www.hollyfuse.com
Dimensions/ 尺寸 :
Unit 单位：mm

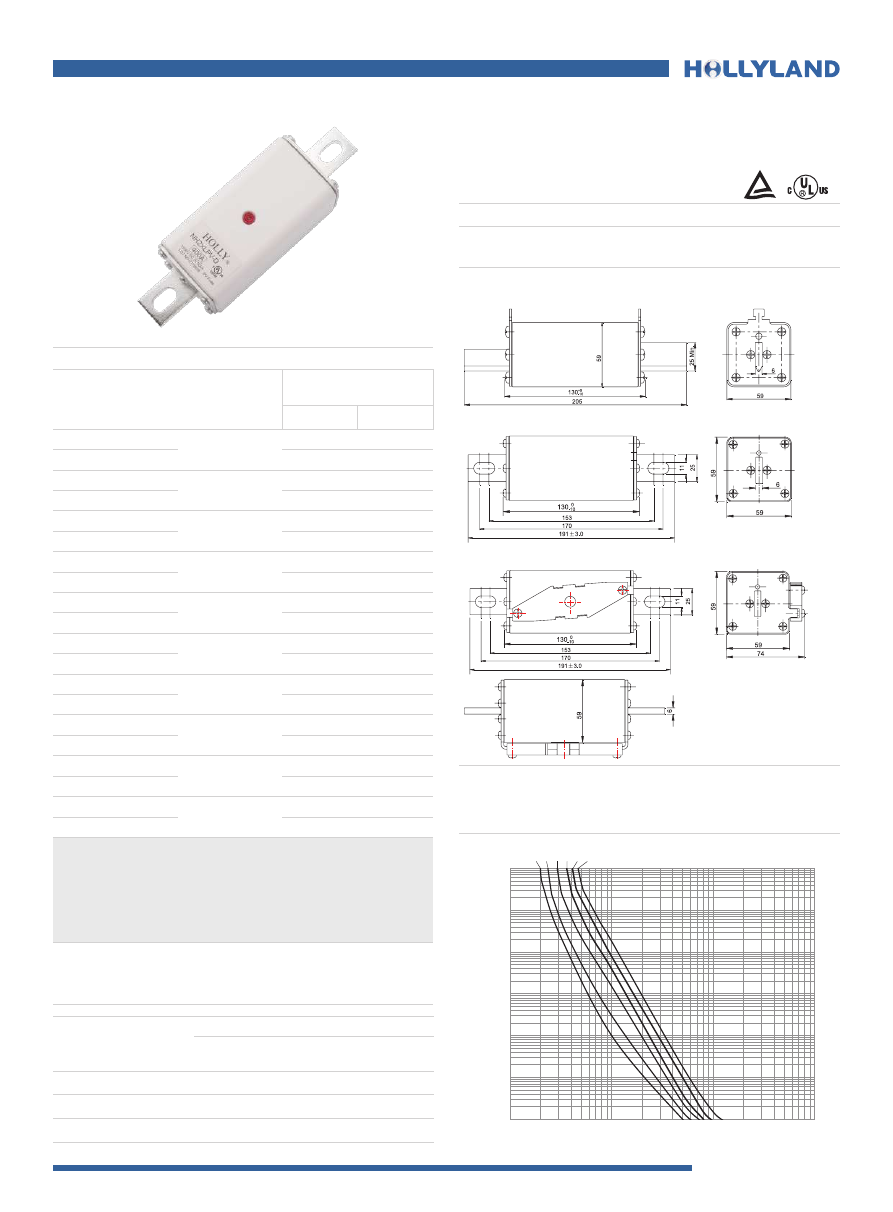

NH2XLPV-C(D) 1500V DC 63A-400A
Photovoltaic Fuse
光伏熔断器
Standard/ 标准：
IEC 60269-6, UL 248-19
INTERRUPTING CAPACITY/ 分断能力：
50,000 A at 1500V DC
NH2XLPV-C(D)
平均 I-T 曲线图 ( 仅供参考）
NH2XLPV-C(D) AVERAGE I-T CHARACTERISTICS CURVE
(FOR REFERENCE)
TECHNICAL PARAMETERS/ 技术参数 :
PART NO.
目录编号
CURRENT
RATING
额定电流
SAFETY APPROVALS
安全认证
cULus
TUV
2XLPV63U15C/C2
63A
○
●
2XLPV63U15D/DC
○
●
2XLPV80U15C/C2
80A
○
●
2XLPV80U15D/DC
○
●
2XLPV100U15C/C2
100A
○
●
2XLPV100U15D/DC
○
●
2XLPV125U15C/C2
125A
●
●
2XLPV125U15D/DC
●
●
2XLPV160U15C/C2
160A
●
●
2XLPV160U15D/DC
●
●
2XLPV200U15C/C2
200A
●
●
2XLPV200U15D/DC
●
●
2XLPV250U15C/C2
250A
●
●
2XLPV250U15D/DC
●
●
2XLPV315U15C/C2
315A
●
●
2XLPV315U15D/DC
●
●
2XLPV350U15C/C2
350A
●
●
2XLPV350U15D/DC
●
●
2XLPV400U15C/C2
400A
●
●
2XLPV400U15D/DC
●
●
C- 触刀安装带中央指示器 blade contacts with the center indicator
C2- 触刀安装带中央指示器和顶部指示器 blade contacts the central indicator and
The top of the indicator
D- 螺栓连接 bolted connections
DC- 螺栓连接带微动开关底座 bolted connections with microswitch base
C、C2-Optional 可选择
D、DC -Optional 可选择
U15 DENONTES FOR 1500V DC U15 表示 1500V DC
● DENOTES FOR APPROVAL
● 表示已取得安全认证
○ DENOTES FOR PENDING
○ 表示正在申请安全认证
目录编号 PART NO.
可选配件 Optional Accessory
熔断器座 Fuse Holders 微动开关 Microswitches
2XLPVXXXU15C
NH3LBU15
/
2XLPVXXXU15C2
NH3LBU15
HMT-01
2XLPVXXXU15DC
/
HMC-01
Type:NH2XLPV-D Part No.: 2XLPV(amp rating )U15D
Type:NH2XLPV-D Part No.: 2XLPV(amp rating )U15DC
CURRENT(A)/ 电流 ( 安培 )
160A 200A 250A 315A 350A 400A
TIME(s)/
时间
(秒
)
1000
10000
100
10
1
0.1
0.01
100
1000
10000
100000
Type:NH2XLPV-C Part No.: 2XLPV(amp rating )U15C/C2
