Details

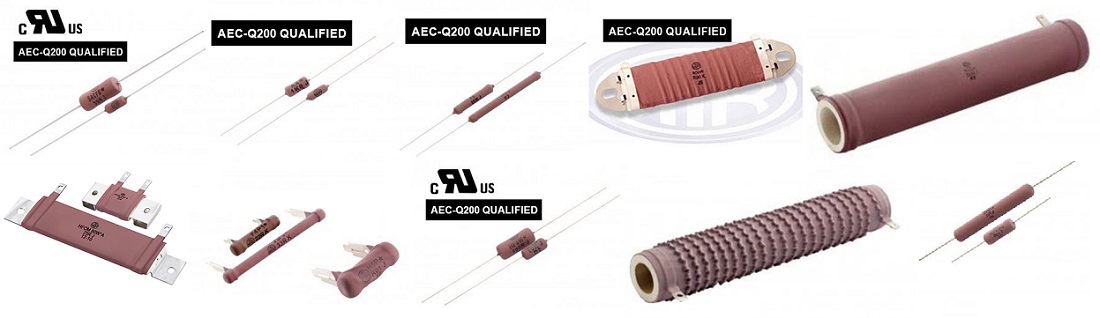

HTR’s product range includes a variety of wirewound resistors, featuring radial type silicon-coated resistors, tubular and axial wirewound resistors with silicone coating. High reliability is ensured by using a chemically inert ceramic core that is centerless ground for uniformity, a carefully selected wire element, and a fully welded construction from terminal to terminal.

HTR wirewound resistors are manufactured using high-quality resistance wires wound on ceramic substrates. The resistors are coated with layers of flame-proof epoxy and feature tubular, radial and axial lead wires. These silicone-coated axial resistors do not compromise quality while providing an economical option. Having a high purity alumina core provides a good size to wattage ratio.

HTR Silicon Coated Wirewound Resistors are high-stability power resistors designed for continuous power applications, featuring a non-flammable silicon cement coating. This series offers a wide range of resistance values, including non-inductive and variable types. Customization options for termination and mounting are also available, ensuring ease of adaptation to specific requirements.

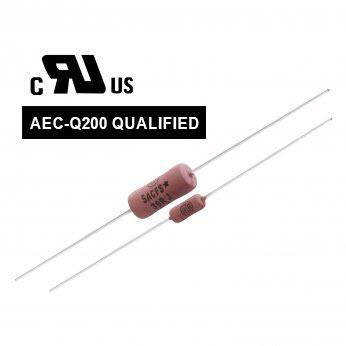

Silicone Coated Resistors

Power Dissipation: 1W to 5W.
Value Range: 10R to 100R*.
Tolerance Options: 1% – 10%.

Applications:
Consumer, Telecommunication and Industrial Electronics.
Features:
UL 1412 approved.
Safety fusing at 220/240 V.
Tailor made fusing options available.

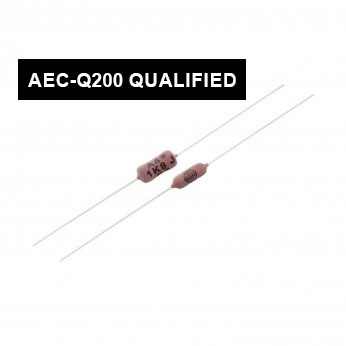

HAA Series

Power Dissipation: 1W to 5W.
Value Range: R01 to 12K.
Tolerance Options: 1% – 10%.
Applications:
Miniature sizes for Automotive Sector.
Features:
UL approved flame retardant coating.
Industrial grade.
Non-inductive type available, Impulse resistors as per IEC 61000-4-5

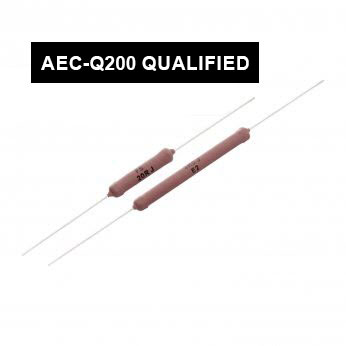

HFA Series

Power Dissipation: 1W to 10W.
Value Range: R10 to 51K.
Tolerance Options: 5% – 10%.
Applications:
Low cost solution for Consumer Electronics.
Features:
Fiber glass core.
UL approved flame retardant coating.

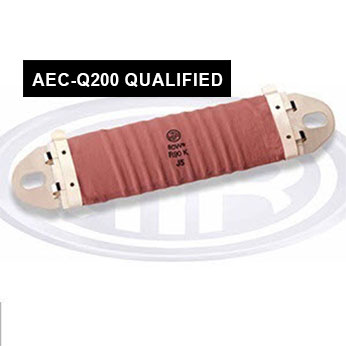

HFO Series

Power Dissipation: 40W to 125W.
Value Range: 10R to 33K.
Tolerance Options: 5% – 10%.
Applications:
High power dissipation and impulse handling capability
High voltage bleeder resistor in power supplies
Load bank resistors
Features:
UL approved flame retardant coating
Choice of anti-rust stainless steel terminals.

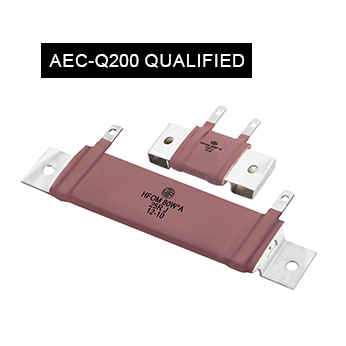

HFOM Series

Power Dissipation: 30 W to 200 W.
Value Range: R10 to 40K
Tolerance Options: 5% – 10%.
Applications:
High power dissipation and impulse handling capability
High voltage bleeder resistor in power supplies
Load bank resistors
Features:
UL approved flame retardant coating
Radial terminals for Amp 187 & Amp 250 connectors available.
Choice of anti-rust stainless steel terminals.

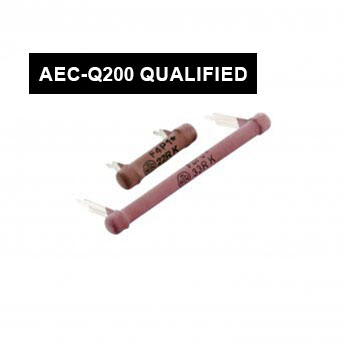

HFP Series

Power Dissipation: 2.5W to 8W.
Value Range: R10 to 56K.
Tolerence Options: 5% – 10%.
Applications:
Commercial & industrial electronics.
Features:
Fiber Glass core.
PCB pluggable style with different terminations and stand off heights available.
UL approved flame retardant coating.

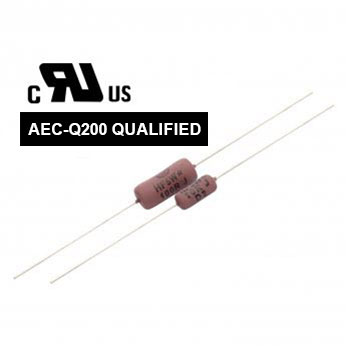

HFW Series

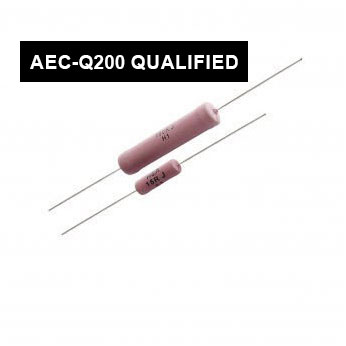

HIA Series

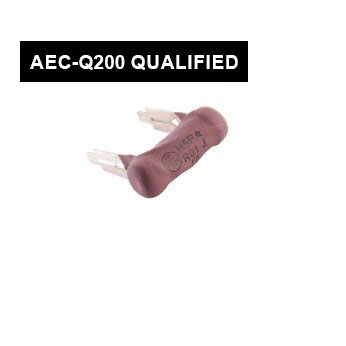

HIP Series

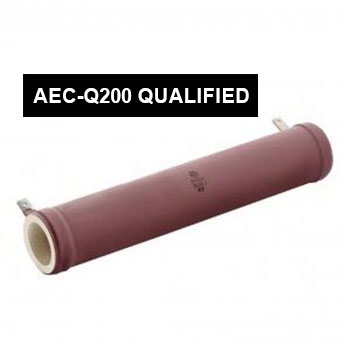

HIR Series

Power Dissipation: 10W to 600W.
Value Range: R22 to 120K.
Tolerance Options: 5% – 10%.
Applications:
High power dissipation and impulse handling capability.
High voltage bleeder resistor in power supplies.
Load Bank Resistors.
Features:
UL approved flame retardant coating.
Radial terminals for Amp 187 & Amp 250 connectors available.
Choice of anti-rust stainless steel terminations.

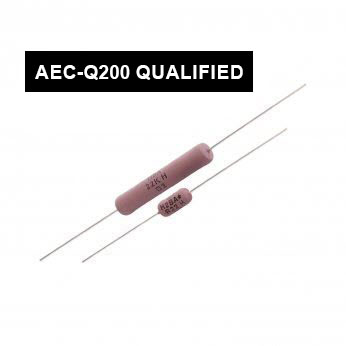

HTA Series

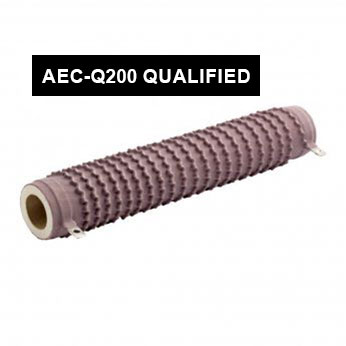

RSR Series

Power Dissipation: 40W to 1000W.
Value Range: R05 to 30R.
Tolerance Options: 5% – 10%.
Applications:
High power dissipation and impulse handling capability.
High Voltage Bleeder resistor in power supplies.
Load Bank Resistors.
Features:
Edge wound resistive strip for reduced surface temperature.
High dissipation and very low ohmic values available.
UL approved flame retardant coating.
Radial terminals for Amp 187 & Amp 250 connectors available.
Choice of anti-rust stainless steel terminations.

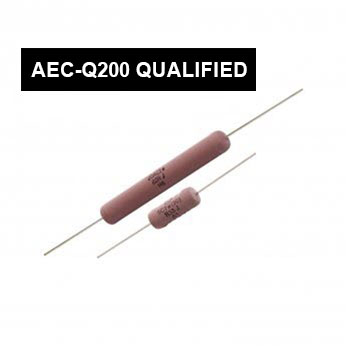

VHIA Series

Power Dissipation: 0.5W to 25W.
Value Range: R01 to 150K.
Tolerance Options: 1% – 10%.
Applications:
Industrial, Telecommunication and Consumer Electronics.
Features:
UL approved flame retardant coating.
Non-inductive type available.
Impulse resistors as per IEC 61000-4-5.
Copper clad steel wire terminations for reduced temperature on PCB.
