Fuses

The function of a fuse is to prevent continued voltage flow through a circuit. This can occur as a result of a voltage overload, in which the fuse melts or trips, thus terminating the line voltage at that point or by way of manual intervention, like removal of the fuse. Fuses are always connected in series with the components to be protected from overcurrent, so that when the fuse blows (opens) it will open the entire circuit and stop current through the components.

Fuse holders or fuse blocks house fuses to safeguard wires within electrical circuits. These fuses encompass fast and slow-blowing variants, offering versatile protection options. When combined with suitable holders or blocks, they prove invaluable for AC & DC electrical systems. While circuit breakers have become prevalent for overcurrent protection in modern high-current circuits, fuses remain an integral for ensuring safety and reliability.

IBS Electronics has a full selection of electronic fuses of all types and sizes when looking for industrial electric fuses, a slow blow fuse, an electrical high voltage fuse or electronics fuses for an electronic fuse circuit.

Fuses are electrical safety devices designed to protect electrical circuits and equipment from excessive current flow. They are commonly used in various applications to prevent damage caused by overcurrent conditions, short circuits, and electrical faults. The fundamental principle of a fuse is to create a sacrificial link within the circuit that will melt or blow when the current exceeds a certain threshold, thereby interrupting the circuit and preventing further damage.

Here are some key points about fuses:

1. Types of Fuses: Fuses come in various types, each designed for specific applications and operating conditions. The most common types include:

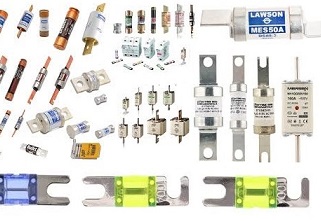

   • Cartridge Fuses: These fuses consist of a cylindrical body with metal end caps and a fusible element inside. Cartridge fuses are available in different sizes and current ratings.
   • Blade Fuses: Blade fuses, also known as automotive fuses, are commonly used in vehicles and have a plastic body with two metal blades for electrical connections.
   • Resettable Fuses (PTC): Unlike traditional fuses, resettable fuses, also called positive temperature coefficient (PTC) fuses, do not require replacement after they trip. They automatically reset when the fault is cleared.
   • Thermal Fuses: Thermal fuses, or thermal cutoffs, are designed to open the circuit when the temperature exceeds a predetermined level. They provide protection against overheating.
   • Surface Mount Fuses: These fuses are designed for surface mount technology (SMT) applications, where they can be directly soldered onto printed circuit boards.
   • Semiconductor Fuses: Semiconductor fuses are specialized fuses designed to protect sensitive electronic components and semiconductor devices from overcurrent conditions.
2. Fuse Ratings: Fuses have specific ratings that indicate their current-carrying capacity and their response characteristics. Key ratings include:
   • Current Rating: This indicates the maximum current that the fuse can safely carry without tripping or blowing. It is crucial to choose a fuse with the appropriate current rating for the specific application.
   • Voltage Rating: The voltage rating of a fuse indicates the maximum voltage that the fuse can safely handle.
   • Interrupting Rating: This rating indicates the maximum fault current that a fuse can safely interrupt without causing an arc flash or damaging the fuse itself.
   • Time-Current Characteristic: Fuses have specific time-current characteristics, which define the response time of the fuse to overcurrent conditions. Fast-acting fuses respond quickly, while slow-blow fuses tolerate short-duration overcurrent conditions.
3. Fuse Applications: Fuses are used in a wide range of applications to protect electrical circuits and equipment. They are commonly found in:
   • Power Distribution Systems: Fuses protect power distribution networks, electrical panels, and switchgear from overcurrent conditions.
   • Electrical Appliances: Fuses are often incorporated into electrical appliances to protect internal circuits and components from excessive currents or faults.
   • Automotive Systems: Fuses are extensively used in automotive applications to protect various electrical systems, such as lighting, power windows, and audio systems.
   • Industrial Equipment: Fuses are employed in industrial machinery, motor controls, and automation systems to prevent damage from overcurrent conditions.
   • Electronic Devices: Fuses are used in electronic devices to protect sensitive components, such as transistors, integrated circuits, and printed circuit boards, from overcurrents and short circuits.
   • Solar systems: Fuses for solar systems protect electrical circuits by breaking the connection if there’s an overload or short circuit. They ensure safety by preventing damage to solar panels, inverters, and other components, and are typically rated based on system voltage and current levels. Fuses are commonly placed on both the DC (direct current) and AC (alternating current) sides of a solar power setup.

Fuses are essential components in electrical safety systems, providing protection against overcurrent events and minimizing the risk of fire or damage to electrical equipment. Proper selection and installation of fuses based on the specific requirements of the application are crucial for maintaining electrical safety and preventing costly damage.
