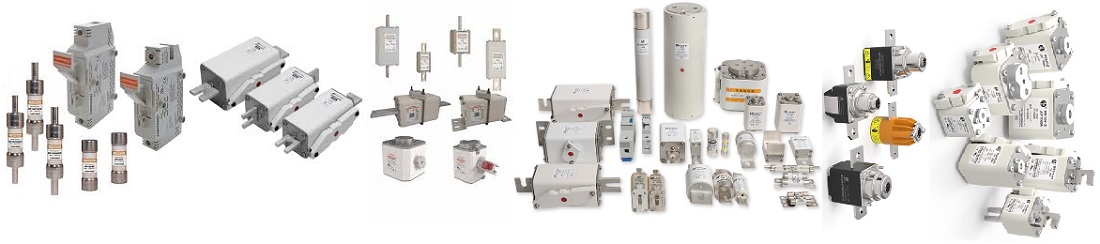

PV Fuses

Solar fuses come in various types, each designed for specific photovoltaic (PV) applications. Midget fuses range from 1 to 32 amps, operating between 600 and 1500 VDC. Class R fuses handle 20 to 400 amps at 600 VDC, while Class J fuses range from 70 to 600 amps and operate between 600 and 1000 VDC. NH or Square Body fuses are available for higher voltages, including 1000, 1250, and 1500 VDC.

Solar gpv fuses

The global shift from fossil fuels to renewable energy has spurred the rapid growth of PV installations, from 574 GW in 2019 to an expected 1064 GW by 2023. This expansion has presented new challenges for system designers and fuse manufacturers, requiring specialized protection devices due to the unique demands of PV systems, such as high DC voltages and low fault currents.

Unlike traditional grid-connected AC systems, PV systems have limited short-circuit current, necessitating fuses that can handle low fault currents effectively. Manufacturers have developed and rigorously tested photovoltaic fuse links to ensure reliable protection for these systems.

The International Electrotechnical Commission (IEC) has set specific standards, reflected in IEC 60269-6, for fuses used in PV systems, categorized as “gPV” for full-range DC protection. These fuses are designed to safeguard PV branches and inverters by interrupting low overcurrents caused by faults like reverse currents or multi-array issues.

Several fuse types, such as UL 2579 fast-acting Midget fuses and 10×38 mm, 14×51 mm, and 14×65 mm fuse links, have been developed to protect and isolate PV strings from faults. Similarly, NH photovoltaic fuses and XL-style fuse links protect array combiners and DC disconnects.

String and Array Protection: In PV systems with three or more parallel strings, fuses are required for each string to prevent overcurrent faults. Systems with fewer strings generally don’t need string protection, as the current levels are insufficient to cause damage. Fuses isolate faulted strings, allowing the rest of the system to continue operating. Similarly, array fuse links protect combined outputs and are essential in larger PV installations.

Solar fuses are specifically designed to protect strings and combiner boxes in photovoltaic (PV) systems, which have unique electrical protection needs due to their high DC voltages and low fault currents. With the growing adoption of PV systems, these fuses ensure overcurrent protection and prevent damage to components.

Manufacturers have developed advanced photovoltaic fuse links that work alongside solar array combiner systems for comprehensive protection. These fuses, available in various sizes and ratings, are crucial for safeguarding the system by isolating faulted strings or arrays, ensuring uninterrupted operation and safety.

Key features include high conductivity, consistent fusing properties, and durable support to handle extreme temperatures and conditions, making them essential for PV systems’ efficient and safe operation.

Solar fuses are specifically engineered to protect strings and combiner boxes in photovoltaic (PV) systems. As PV systems have matured into a widely adopted and sustainable technology, the growing demand has made effective electrical protection essential. Like all electrical systems, PV installations require proper overcurrent and overvoltage protection.

Manufacturers have developed innovative photovoltaic fuse links that work seamlessly with solar array combiner systems to provide comprehensive protection. These fuses, commonly referred to as PV Fuses, Solar PV Fuses, or Solar Panel Fuses, come in a variety of voltages and ampere ratings based on system requirements.

A solar PV fuse consists of three main components:

  1. Melted portion (core): The fuse core breaks the current when blown. Consistency in material, size, and resistance ensures reliable performance.
  2. Electrode component: Typically two electrodes connect the core to the circuit and must provide high conductivity with minimal contact resistance.
  3. Support structure: The support holds the fuse together and must be strong, heat-resistant, flame-retardant, and durable under various conditions.

Key features of a 1000V DC Solar PV Fuse Holder include:

  1. PV Electricity Generation: It concentrates the current from PV arrays and converts DC to AC for grid connection or household use.
  2. Operating conditions: Designed to operate in extreme temperatures, from -40°C to 90°C, and at elevations up to 2000m.
  3. Applications: Suitable for PV systems with rated currents up to 630A and voltages up to 1500V, providing overcurrent protection for arrays and strings.
  4. Structural integrity: The fuse tube is filled with high-purity quartz sand for arc suppression, while the fuse link is made from pure silver for optimal performance.
  5. Use category: Classified under “gPV,” these fuses offer full-range DC protection for solar photovoltaic systems.

IBS Electronics distributes solar fuses for over-current and over-temperature protection, with applications in PV devices, power supplies, household appliances, and new energy vehicles.

Solar Fuses

Authorize Line(*):

Fuses are electrical safety devices designed to protect electrical circuits and equipment from excessive current flow. They are commonly used in various applications to prevent damage caused by overcurrent conditions, short circuits, and electrical faults. The fundamental principle of a fuse is to create a sacrificial link within the circuit that will melt or blow when the current exceeds a certain threshold, thereby interrupting the circuit and preventing further damage.
