Interconnect Solutions
Short Form Catalog

Complete Solutions
for the Electronics Industry

3M Electronics offers a comprehensive range of Interconnect Solutions for the electronics industry

with a product portfolio that includes connectors, cables, cable assemblies and assembly tooling for

a wide variety of applications.

3M is dedicated to innovation, continually developing new products that become an important part

of everyday life across many diverse markets. A number of 3M solution categories are based on

custom-designed products for specialized applications. 3M Electronics can help you design, modify

and customize your product as well as help you to seamlessly integrate our products into your

manufacturing process on a global basis.

RoHS Compliant Statement

“RoHS compliant” means that the product or part does not contain any of the following substances

in excess of the following maximum concentration values in any homogeneous material, unless

the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury,

hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01%

(by weight) for cadmium.  Unless otherwise stated by 3M in writing, this information represents

3M’s knowledge and belief based on information provided by third party suppliers to 3M.

“RoHS compliant” does not imply high temperature. Please refer to the specifications to determine

suitability for processing.

Contents

•  Backplane Connector Solutions . . . . . . . . . . . . . . . . . . . . .1

•  Boardmount Connector Solutions  . . . . . . . . . . . . . . . . . . .2

•  Wiremount Connectors and Assembly Solutions  . . . . . . .5

•  Device-to-Board Connector Solutions . . . . . . . . . . . . . . .10

•  Input/Output Connector Solutions  . . . . . . . . . . . . . . . . . .12

•  Cable Solutions  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

•  Cable Assembly Solutions - High Speed Assemblies  . . .26

Search Tips for
www.3M.com/interconnects

Enter keywords or phrases as they would appear. A search for “cable and assembly” will only

return matches to that exact phrase. Try entering a partial keyword or part number. A search for

“assembl” will return pages with “assembly” and “assemblies” in them. For searches by Tech

Sheet number, enter up to four digits. If you do not find any results, try entering a partial part

number. Less is best. Do not enter spaces. Search is not case sensitive.

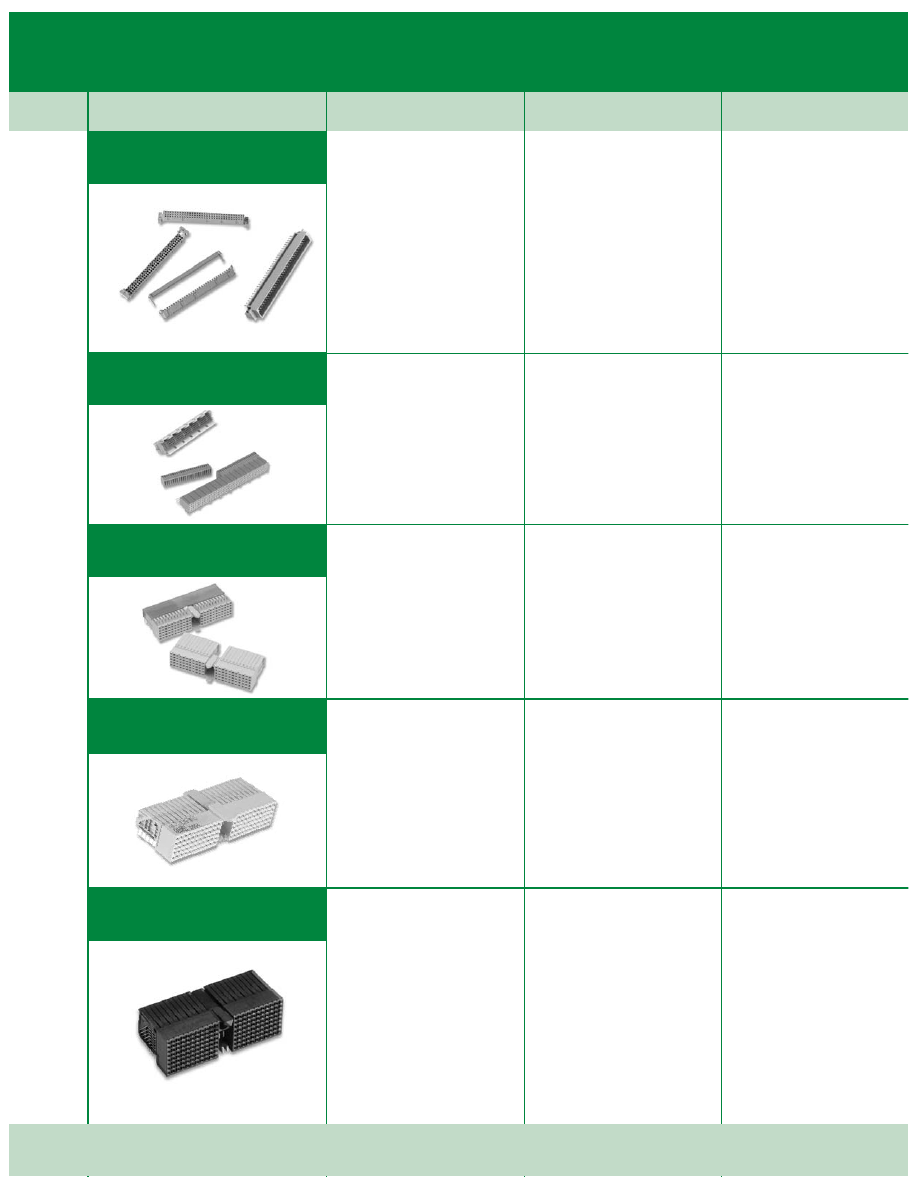

• RoHS Compliant Version Available
•

DIN 41612

•

C-Form Plug and Socket

•

C-Form Wiremount Plugs
and Sockets

•

R-Form Plug and Socket

•

Q-Form Plug and Socket

•

B-Form Wiremount Plug
and Socket

•

Pinless Shrouds

•

Solder Tails or Press-Fit

•

Inverse Versions

•

EMLB Contact Loading

•

PCB Retention Clips

Contact

Material: Copper Alloy

Insulation

Material: Engineering Thermoplastic

Plating

Underplating: 50 µ" [ 1.27 µm ]

Min. Nickel

Interface: 30 µ" [ 76 µm ] Gold

or 3 µ" [ .08 µm ] Gold over
7 µ" [ .18 µm ] PdNi

Current Rating:

3.0 A @ 30°C

T-rise above ambient

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +125°C

• RoHS Compliant Version Available
•

Futurebus+

®

•

Inverse Version Available

•

Vertical and Right Angle

•

Stacking Versions

•

Elevated Versions

•

Guiding Features

•

Pinless Shroud

•

Power Header and Socket

Contact

Material: Copper Alloy

Insulation

Material: High Temp LCP

Plating

Underplating: 50 µ" (1.27 µm) Nickel
Interface: 10 µ" [ 25 µm ] or 30 µ"

[ .76 µm ] Gold or 3 to 5 µ"
[ .07 to 12 µm ] Gold over 7, 27 or
40 µ" [ .18, .69, 1.01 µm ] PdNi

Current Rating:

Signal: 1.5 A

All contacts simultaneously

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +125°C

• RoHS Compliant Version Available
•

Compact PCI

®

•

Types A, B and C

•

Header and Socket

•

Grounding Options

•

EMLB Contact Loading

•

Coding Keys

•

Lower Shield Option

•

Pinless Shroud

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Underplating: Nickel
Wiping Area: 30 µ" [ 0.79 µm ] Gold

Current Rating

: 1A at +70°C

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +125°C

• RoHS Compliant Version Available
•

Hard Metric (HM)

•

5- and 8-Row Versions

•

Socket and Header

•

Power Options

•

Protective Caps

•

Coding Keys

•

Shielding Options

Contact

Material: Copper Alloy

Insulation

Material: High Temperature

Thermoplastic

Plating

Underplating: 50 µ" [ 1.27 µm ] Nickel
Interface: 30 µ" [ .76 µm ] Gold or

5 µ" [ .13 µm ] Gold over 40 µ"
[ 1.01 µm ] PdNi

Current Rating:

(Fully Loaded):

1 A at 70°C Signal, 8.25 A @
70°C Power

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +125°C

• RoHS Compliant Version Available
•

High Speed Hard Metric (HSHM)

•

5 Gigabits Per Second

•

Orthogonal Design Capable

•

Differential Pairs in Rows or
Columns

•

Virtual Coax Capable

•

5- and 8-Row Versions

•

Socket and Header

•

Power Options

•

Protective Caps for Headers

•

Coding Keys

•

Shielding Options

•

Guide Pin Options

Contact

Material: Copper Alloy

Insulation

Material: High Temperature

Thermoplastic

Plating

Underplating: 50 µ" [ 1.27 µm ] Nickel
Interface: 30 µ" [ .76 µm ] Gold or

5 µ" [ .13 µm ] Gold over 40 µ"
[ 1.01 µm ] PdNi

Current Rating:

(Fully Loaded):

1 A at 70°C Signal, 8.25 A @
70°C Power

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +125°C

DIN Connectors

MetPak

™

2-FB Connectors

MetPak

™

CP2 Connectors

MetPak

™

HSHM Connectors

MetPak

™

HM Connectors

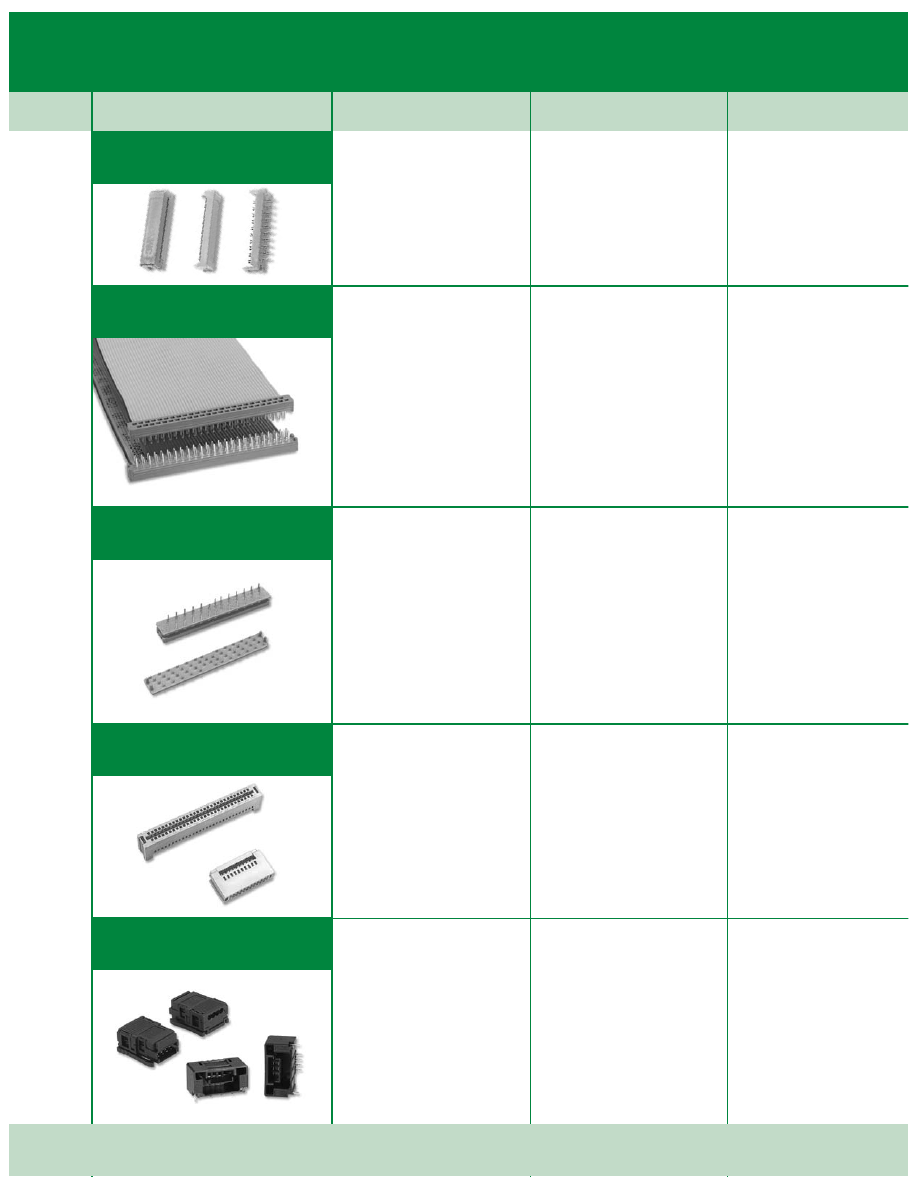

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

w w w . 3 M . c o m / i n t e r c o n n e c t s

1

3M

™

BACKPLANE CONNECTOR SOLUTIONS

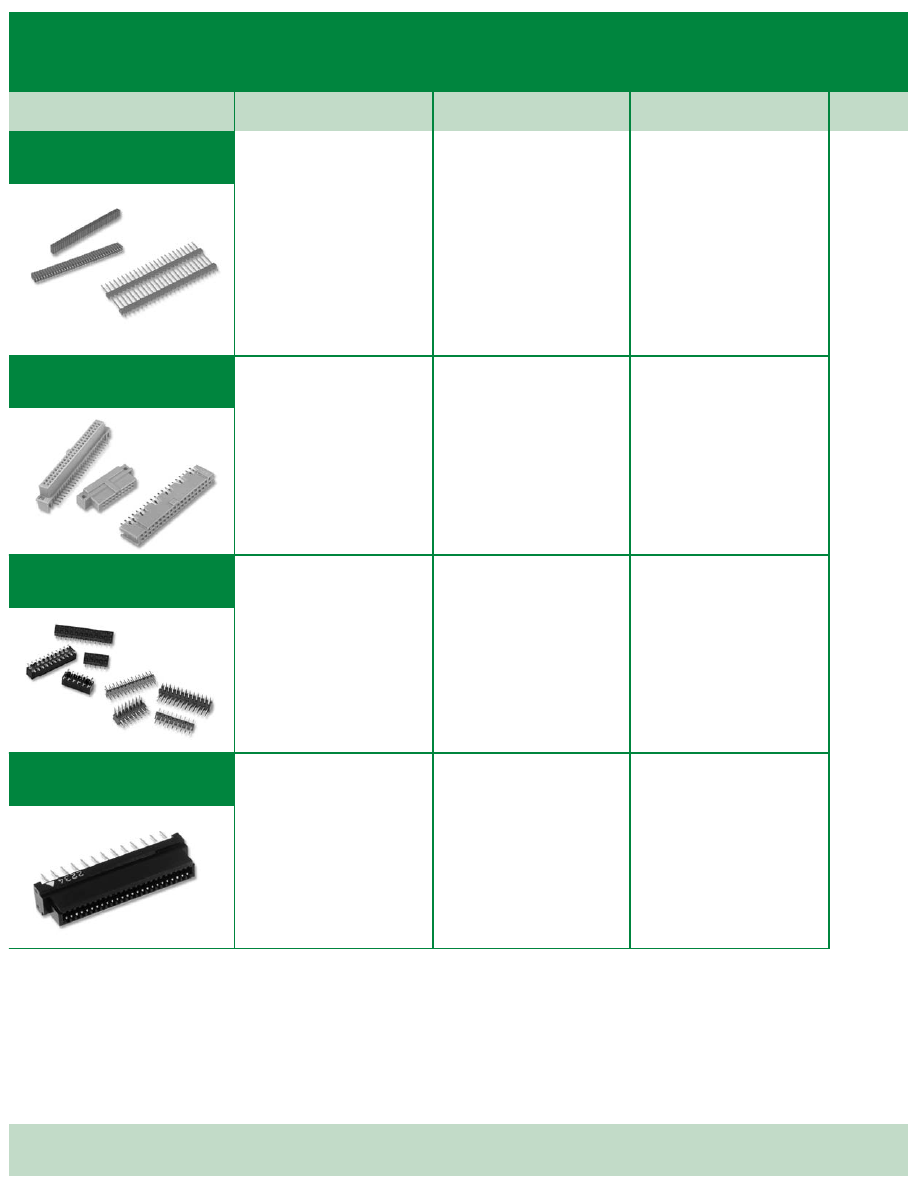

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant Version Available
•

2-80 Positions

•

Single- and Dual-Row Options

•

Through-Hole and Through-Board
Options

•

Customizable Stack Heights
from .150" to 1.325"

•

High Temperature Insulator Option

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled Polyester

(PBT) or PCT (RoHS Compliant)

Plating

Pinstrip Underplating: 50 µ"

[ 1.27µm ] Nickel, Interface: 10 µ"

[ .25 µm ] or 30 µ" [ .76 µm ] Gold

Socket Underplating: 100 µ"

[ 2.54 mm ] Nickel, Interface: 10 µ"

[ .25 µm ] or 30 µ" [ .76 µm ] Gold

Tin Plated Versions Available.

Current Rating:

1 A, 2 A or 2.5 A

Flammability:

UL 94V-0

Temperature Rating:

-40°C

to +105°C

• RoHS Compliant
•

10-64 Positions

•

Vertical and Right Angle Options

•

Center Bump Polarization

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled

Polyester

Plating

Underplating: 2 µm [ 79 µ" ] Nickel
Wiping Area: 0.3 µm [ 12 µ" ] Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant Version Available
•

4-60 Positions

•

Single and Dual-Row Options

•

Surfacemount, Through-Hole
and Through-Board Options

•

Customizable Stack Heights
from .101" to 1.418"

•

High Temperature Insulator

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled PCT

Plating

Underplating: 50-150 µ"

[ 1.27-3.81 mm ] Nickel

Wiping Area: 30 µ" [ 0.76 µm ] Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant
•

20-200 Positions

•

Reliable Ribbon Contacts

•

7.0 - 30.0 mm Stack Heights

•

Parallel, Perpendicular and
End-to-End Mating

•

Audible Tactile "Click" for
Blind Mating

•

Optional Power/Ground Pins

•

Wiremount Options Available

Contact

Material: Phosphor Bronze

Insulation

Material: Glass Filled Nylon

Plating

Underplating: Nickel
Wiping Area: 10 µ"

[ 0.25 µm ] Gold

Current Rating:

0.5 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +85°C

Sockets and Pin Strip

Headers, .100" x .100"

Series 929

Sockets and Pin Strip

Headers, .100" x .100"

Series 929

Polarized Boardmount
Sockets, .100" x .100"

Series 5100, 6800, 8500, 9100

Polarized Boardmount
Sockets, .100" x .100"

Series 5100, 6800, 8500, 9100

Sockets and Pin Strip

Headers, 2 mm x 2 mm

Series 15

Sockets and Pin Strip

Headers, 2 mm x 2 mm

Series 15

Pak 50 Sockets and Headers

Series P50

Pak 50 Sockets and Headers

Series P50

w w w . 3 M . c o m / i n t e r c o n n e c t s

2

3M

™

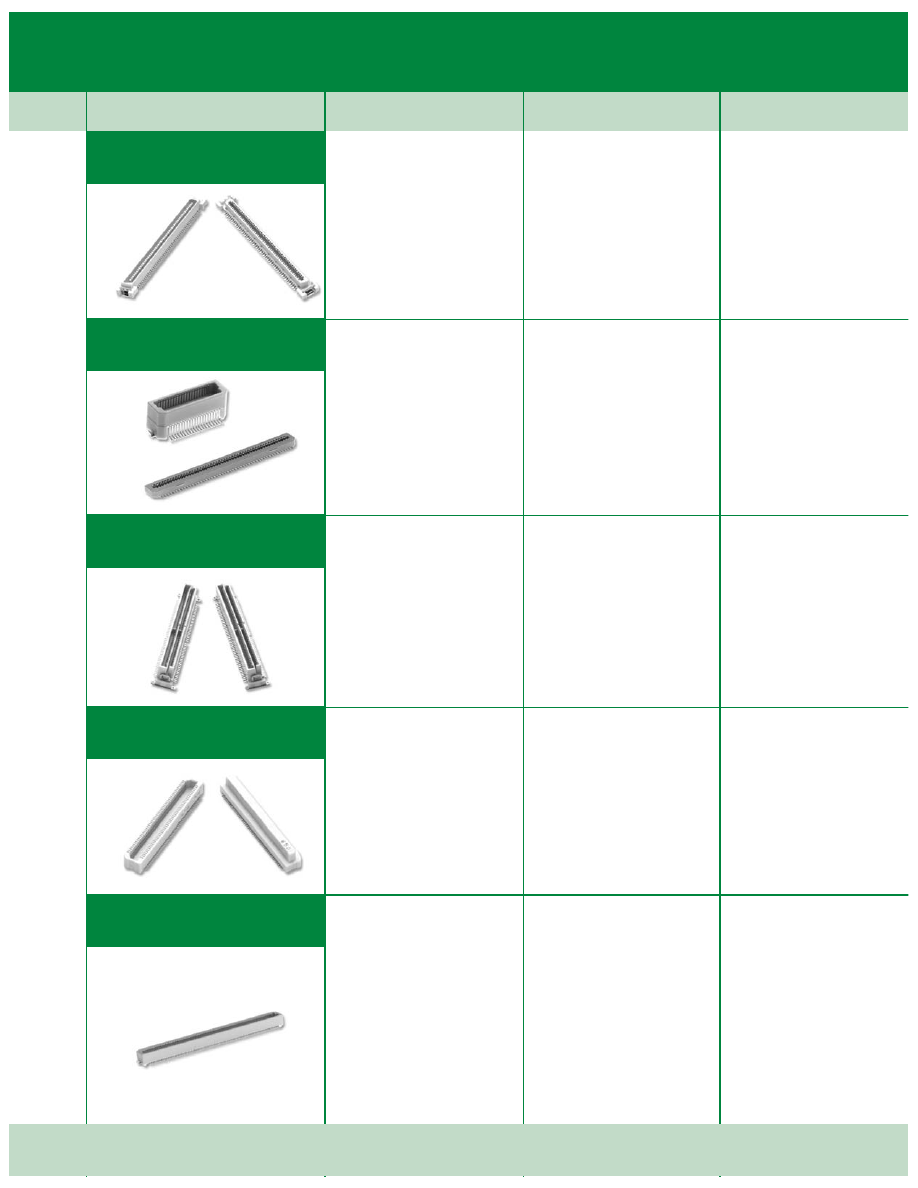

BOARDMOUNT CONNECTOR SOLUTIONS

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

30-100 Positions

•

1.0 mm Pitch

•

Parallel, Perpendicular
and End-to-End Mating

•

4 Mating Heights Available

Contact

Material: Phosphor Bronze

Insulation

Material: Glass Filled LCP

Plating

Underplating: Nickel
Wiping Area: 2 µ" [ 0.05 µm ]

or 4 µ" [ 0.1 µm ] min. Gold

Current Rating:

0.5 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C to

+85°C

• RoHS Compliant
•

20-100 Positions

•

.8 mm Pitch

•

3.0 - 8.0 mm Stack Heights

Contact

Material: Copper Alloy

Insulation

Material: High Temperature

Plastic

Plating

Underplating: 50 µ"

[1.25 µm] Nickel

Wiping Area: 8 µ" [0.20 µm] Gold

Current Rating:

0.5 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +85°C

• RoHS Compliant
•

30-100 Positions

•

.8 mm Pitch

•

11.5 mm Mated Height

•

Mates to Itself, One Part on
the Bill of Material

Contact

Material: Phosphor Bronze

Insulation

Material: High Temperature Plastic

Plating

Underplating: 50 µ"

[1.27µm] Nickel

Wiping Area: 8 µ" (0.2 µm)

minimum Gold

Current Rating:

0.5 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +85°C

• RoHS Compliant
•

20-100 Positions

•

.5 mm Pitch

•

3.0 - 6.0 mm Stack Height

Contact

Material: Copper Alloy

Insulation

Material: High Temperature
Thermoplastic

Plating

Underplating:  50 µ"

[1.27 µm] Nickel

Wiping Area:  8 µ [0.2 µm] Gold

Current Rating:

0.5 A per contact

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +85°C

• RoHS Compliant
•

40-160 Positions

•

.5 mm Pitch

•

4.0 - 8.0 mm Stack Heights

Contact

Material:  Copper Alloy

Insulation

Material: Glass filled LCP

Plating

Underplating: Nickel
Wiping Area: 2 µ" [0.05µm] min.

Gold over Nickel

Current Rating:

0.3 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +85°C

Pak 10 Plugs and Connectors

Series PK10

Pak 8 Plug Connectors

Series P08

Pak 8 Hermaphroditic Connector

Series P08

Pak 5 Plugs

Series PK5

Pak 5 Connectors

Series P05N

w w w . 3 M . c o m / i n t e r c o n n e c t s

3

3M

™

BOARDMOUNT CONNECTOR SOLUTIONS

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

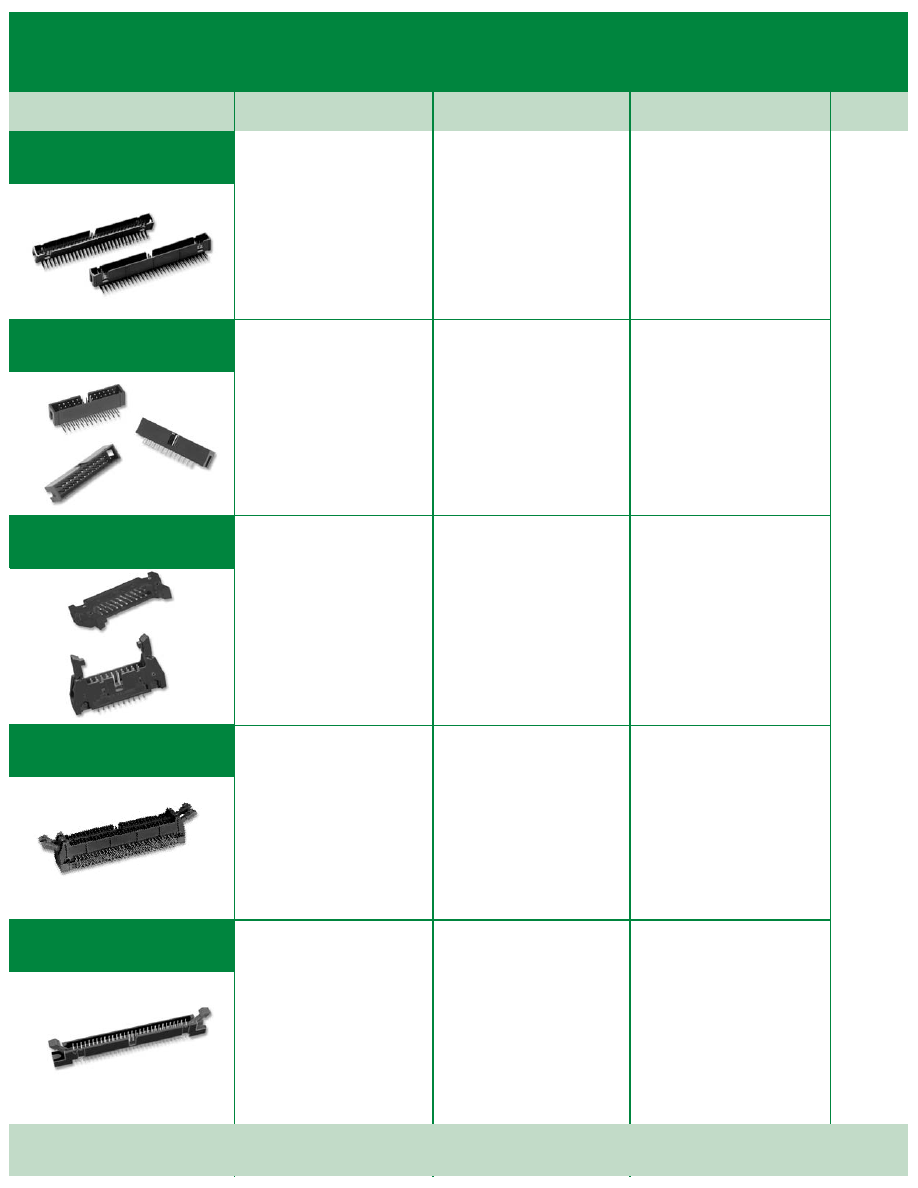

• RoHS Compliant Version Available
•

10-64 Positions

•

Straight and Right Angle Tails

•

Vertical Surfacemount

•

High Temperature Option

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled

Polyester

Plating

Underplating: 100 µ" [ 2.54 µm ]

Nickel - Overall

Wiping Area: 15 µ" [ 0.38 µm ] or

30 µ" [ 0.38 µm ] Gold

Current Rating:

2 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant
•

6-50 Positions

•

Straight and Right Angle Tails

•

Economy Series

Contact

Material: Brass

Insulation

Material: Glass Filled

Polyester

Plating

Underplating: 30 µ" [0.76 µm ]

Nickel

Wiping Area and Solder Tails:

Gold Flash

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant Version Available
•

10-64 Positions

•

Straight and Right Angle Tails

•

Vertical Compliant Pin Option

•

3- or 4-Wall Options

•

Robust Roll Pin Latch System

•

High Temperature Option

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled

Polyester

Plating

Underplating: 100 µ" [ 2.54 µm ]

Nickel - Overall

Wiping Area: 30 µ" [ 0.76 µm ]

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant Version Available
•

20-128 Positions

•

Right Angle Tails

•

3- or 4-Wall Options

•

Robust Roll Pin Latch System

•

High Temperature Option

•

3-Wall Fits in VME Board
Stacking Criteria

•

"HDI" Alternative

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled

Polyester

Plating

Underplating: 100 µ" [ 2.54 µm ]

Nickel - Overall

Wiping Area: 30 µ" [ 0.76 µm ]

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant Version Available
•

10-60 Positions

•

Robust Roll Pin Latch System

•

High Temperature Body

•

Raised Body and Gull Wing Leads
Allow for Easy Inspection

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled

Polyester

Plating

Underplating: 100 µ" [ 2.54 µm ]

Nickel

Wiping Area: 30 µ" [ 0.76 µm ]

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°

4-Wall Low Profile Headers,

.100" x .100"

Series 2500

Low Profile Headers,

.100" x .100"

Series 303

4-Wall Latch/Eject Headers,

.100" x .100"

Series 3400

Surfacemount Latch/Eject Headers,

.100" x .100"

Series N4600

4-Wall Condo Headers,

.100" x .100"

Series 3400

4-Wall Low Profile Headers,

.100" x .100"

Series 2500

Low Profile Headers,

.100" x .100"

Series 303

4-Wall Latch/Eject Headers,

.100" x .100"

Series 3400

Surfacemount Latch/Eject Headers,

.100" x .100"

Series N4600

4-Wall Condo Headers,

.100" x .100"

Series 3400

w w w . 3 M . c o m / i n t e r c o n n e c t s

4

3M

™

BOARDMOUNT CONNECTOR SOLUTIONS

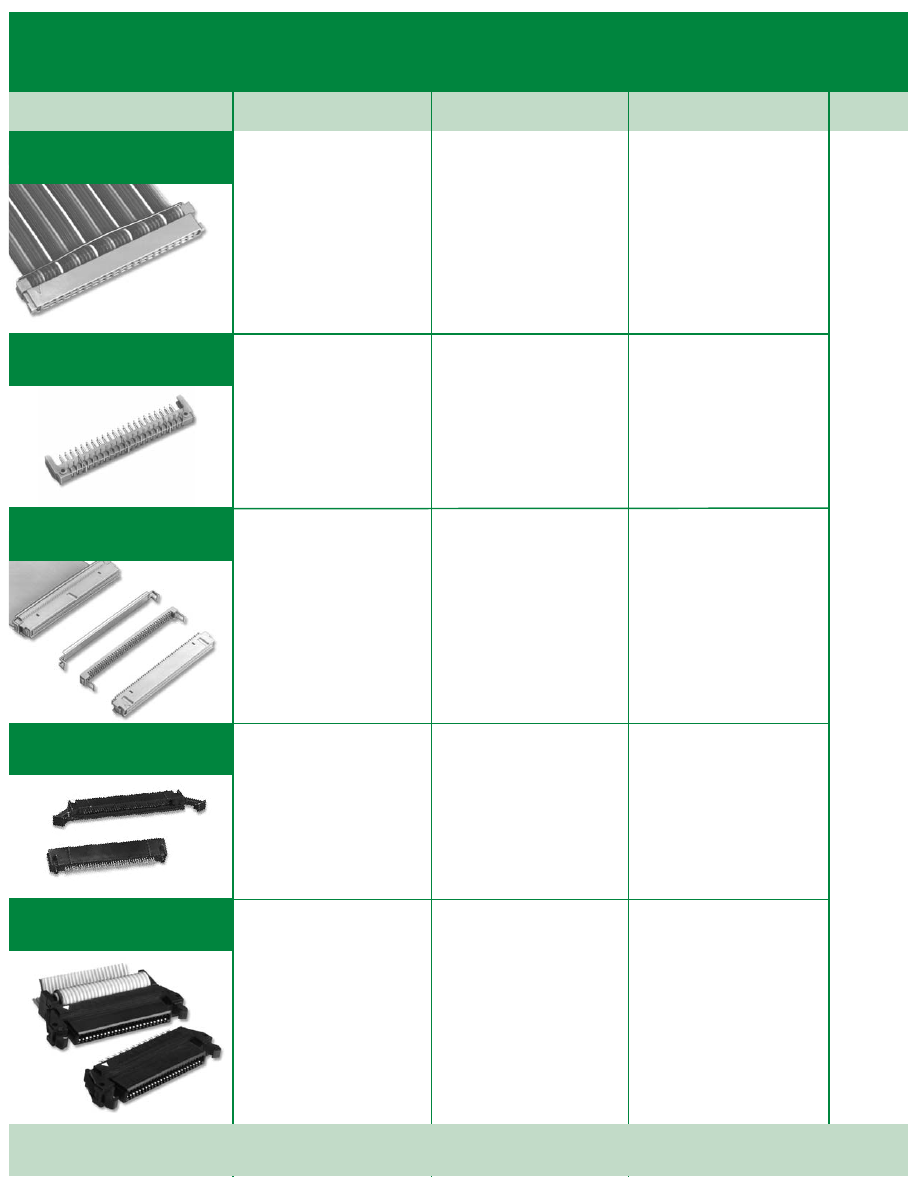

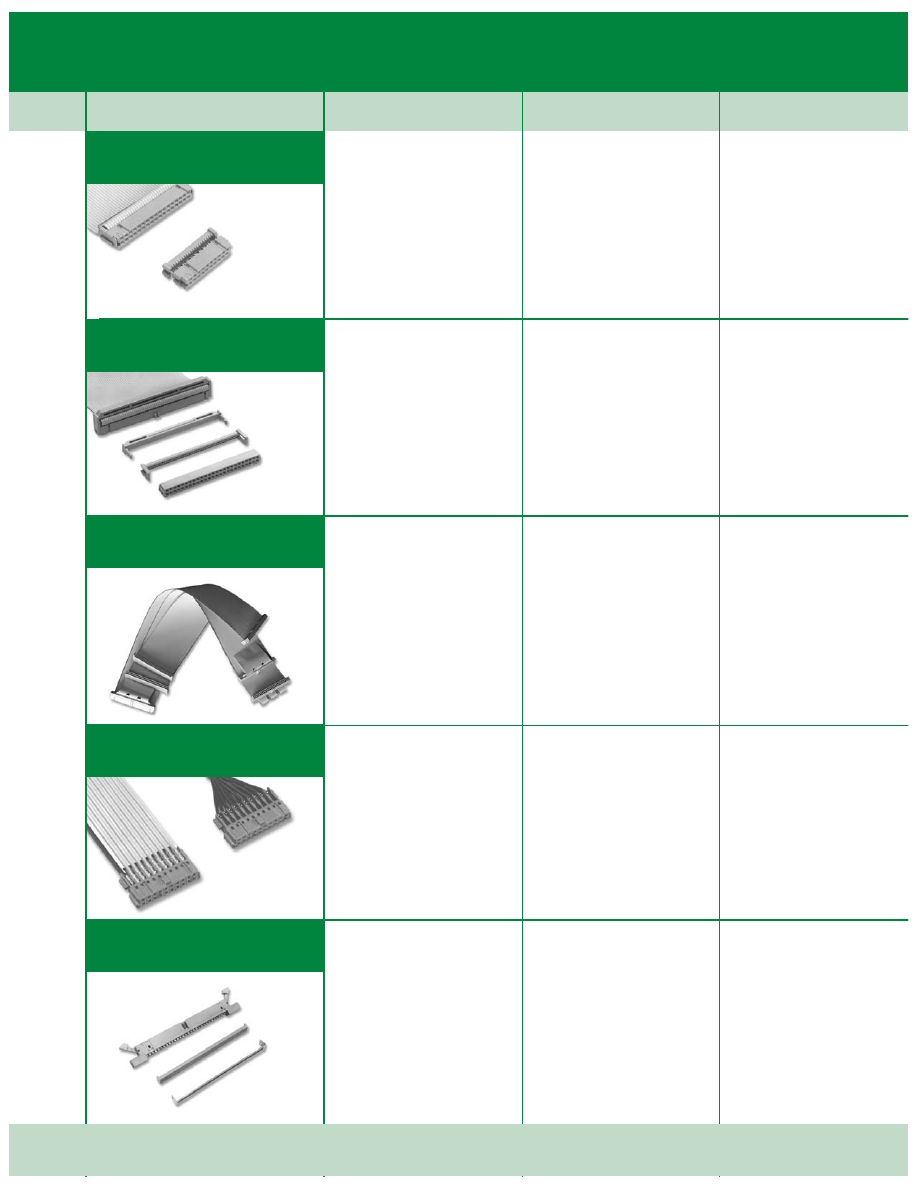

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

10-60 Positions

•

Two-piece with Adhesive Cover
for Daisy Chain or Round-to-Flat
Cable Applications

•

Plastic or Metal Strain
Relief Option

•

Positive Locking Metal Clip
for High Cover Retention

•

Open or Closed-End Covers

Contact

Material:  Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Underplating and U-Slot: 100 µ"

[ 2.54 µm ] Nickel

Wiping Area: 30 µ"[ 0.76 µm ]

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant
•

10-60 Positions

•

Preassembled

•

Plastic Strain Relief Available

•

Open Cover for Daisy Chain

Contact

Material: Phosphor Bronze (C510)

Insulation

Material: Glass Filled Polyester

Plating

Underplating: 100 µ" [ 2.54 µm ]

Nickel

Wiping Area: 15 µ" [ .38 µm ]

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant

When Used

with Compliant Cable

•

6-64 Positions

•

Supplied as Complete
Assembly Only (1M Series)

•

Mates with Standard 0.25"
Square Contacts on
.100" x .100" Centers

•

One Piece, Molded-on Construction
Provides Integral Strain Relief

•

High and Low Profile, Polarity
and Pull Tab Options Available

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Underplating and U-Slot: 50 - 150 µ"

[ 1.27 - 3.81 µm ]

Nickel

Wiping Area: 30 µ" [ 0.76 µm ]

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant
•

10-64 Positions

•

Single- and Dual-Row
Side-to-Side Stackable

•

Single-Row 2-36 Positions

•

Dual-Row 6-72 Positions

•

Dual-Row Polarized Version

•

IDC with 4-Wipe Mating Contact

•

22-28 AWG Discrete or Flat
Cable Wire

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Wipe Area: 30 µ" [ 0.76 µm ]

Gold

Underplating and U-Slot: 100 µ"

[ 2.54 µm ] Nickel

Current Rating:

22-24 AWG:

2 A; 26-28 AWG: 1.5 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant
•

10-64 Positions

•

Open- or Closed-End Covers

•

Optional Ejector Latches

•

Optional Mounting Flanges

•

Plastic Strain Relief Option

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled

Polyester

Plating

Underplating and U-Slot: 100 µ"

[ 2.54 µm ] Nickel

Wiping Area: 30 µ" [0.76 µm]

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +120°C

Wiremount Sockets,

.100" x .100"

Series 3000

Wiremount Sockets,

.100" x .100"

Series 891

Molded Socket Assembly,

.100" x .100"

Series 871

Wiremount Plugs,

.100" x .100"

Series 4600

Polarized Wiremount Sockets,

.100" and .100" x .100"

Series CHG

w w w . 3 M . c o m / i n t e r c o n n e c t s

5

3M

™

WIREMOUNT CONNECTOR

AND ASSEMBLY SOLUTIONS

6

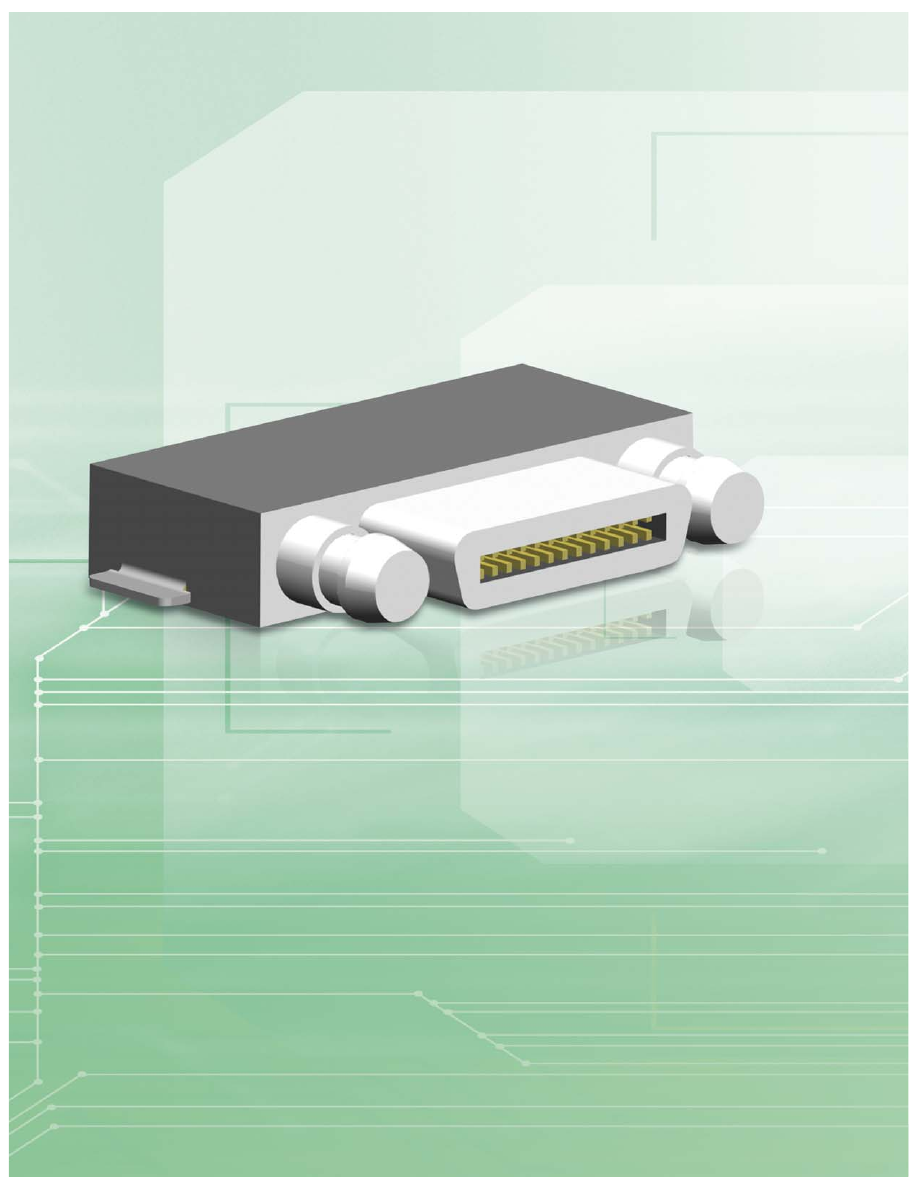

3D CAD Models are Available on
the 3M Website

3M Interconnects now offers 3D CAD models of selected products on our website, www.3M.com/interconnects.

On the website, these models can be found in the Product Search box by clicking on "3D Models" and can also

be found throughout the website if you choose to search for a corresponding product first. Contact your local

3M sales representative for information on CAD models for other products.

To view or open a 3D model, you must have a CAD program and the WinZip

®

software. To download,

right click on the desired file and choose the option to save it to your desktop.

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

10-64 Positions

•

Low Profile

•

2.8 or 3.8 mm Tail Options

Contact

Material: Beryllium Copper

Insulation

Material: Glass Filled Polyester

Plating

Underplating: 100µ" [ 2.54µm ] Nickel
U Slot and Solder Tails: Gold flash

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant

When Used

with Compliant Cable

•

6 - 64 Positions

•

Supplied as Complete Assembly
Only (1M Series)

•

Mates with Standard .100" x .100"
Board Pattern

•

One Piece, Molded-on Construction
Provides Integral Strain Relief

•

Straight and Retention Pin
Options Available

Contact

Material:  Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Underplating and U-Slot: 50 - 150 µ"

[ 1.27 - 3.81 µm ]
Nickel

Contact Tail: 300 - 400 µ"

[ 7.62 - 10.16 µm ] Matte Tin

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant

Version Available

•

10-50 Positions

•

Low Profile Design

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Underplating: 100 µ" [ 2.54 µm ]

Nickel, Class 2

U-Slot and Solder Tails: 10 µ"

[0.25 µm] Gold

or 200 µ" [5.08 µm] Tin Lead

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +120°C

• RoHS Compliant
•

10-64 Positions

•

Bifurcated Contacts

•

Metal Cover Clips

•

Optional Strain Relief

•

Optional Mounting Flanges

Contact

Material:  Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Underplating and U-Slot: 100 µ"

[ 2.54 µm ] Nickel

Wiping Area: 30 µ" [ 0.76 µm ]

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant
•

4 Position

•

Vertical or Right Angle

•

Boardmount

•

Hermaphroditic Wiremount

•

Designed Around
CC-Link Standard

•

Field Terminable with Pliers

Contact

Material:  Copper Alloy

Insulation

Material: Polyester Body,

Nylon Cover

Plating

Underplating: 100 µ" [2.54 µm] Nickel
Wiping Area: 8 µ" [0.2 µm]

minimum Gold with lubricant

IDC: Nickel

Current Rating:

5.0 A

Flammability:

UL 94V-0

Temperature Rating:

-20°C

to 70°C

PCB 2-Row,

.100" x .100"

Series 78

Molded PCB Assembly,

.100" x .100"

Series 878

PCB 4-Row,

.100" x .100"

Series 3400

Link Connectors,

Boardmount and Wiremount, .100"

Series 38

Card Edge,

.100"

Series 3000

w w w . 3 M . c o m / i n t e r c o n n e c t s

7

3M

™

WIREMOUNT CONNECTOR

AND ASSEMBLY SOLUTIONS

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

16-50 Positions

•

Uses Standard .050" Cable

•

Optional Metal Strain Relief

Contact

Material:  Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Underplating: 100 µ" [ 2.54 µm ]

Nickel

Wiping Area: 10 µ" [ 0.25 µm ]

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-40°C

to +85°C

• RoHS Compliant

Version Available

•

16-50 Positions

•

Right Angle

•

Uses Standard .100 x .100

•

Board Pattern

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Underplating and U-Slot: 80 µ"

[ 2.03 µm ] Nickel

Wiping Area: 12 µ" [ 0.30 µm ]

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-40°C

to +85°C

• RoHS Compliant

Version Available

•

20-100 Positions

•

Rugged Tri-Polarized
Mating System

•

High Performance
Hill-n-Dale IDC Interface

•

Metal Cover Latch

•

Optional Metal Strain Relief

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Underplating: 100 µ" [ 2.54 µm ]

Nickel

U-Slot: Matte Tin (RoHS compliant)

or Tin-Lead

Wiping Area: 30 µ" [ 0.76 µm ]

Gold

Current Rating:

0.5 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant

Version Available

•

20-100 Positions

•

Straight and Right Angle

•

Vertical SMT Option

•

High Temperature

Contact

Material: Copper Alloy

Insulation

Material: High Temperature Plastic

Plating

Wiping Area: 30 µ" [ 0.76 µm ]

Gold

Underplating: 100 µ" [ 2.54 µm ]

Nickel

Current Rating:

0.5 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant
•

20-100 Positions

•

Accepts .025" and .050" Cable

•

Integrated Latch/Eject

•

Audible Tactile "Click" for
Blind Mating

Contact

Material: Phosphor Bronze

Insulation

Material: Glass Filled Nylon

Plating

Underplating: Nickel
Wiping Area: .025µm [ 10 µ" ]

Gold

Current Rating:

0.5 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +85°C

Compact Wiremount Sockets,

.100" x .075"

Series 501

Compact Headers,

.100" x .075"

Series 502

Tripolarized Wiremount Sockets,

.050" x .100"

Series 82

Pak 50 Wiremount Sockets

Series P25E, P50E

4-Wall, Tripolarized Headers,

.050" x .100"

Series 81

Compact Wiremount Sockets,

.100" x .075"

Series 501

Compact Headers,

.100" x .075"

Series 502

Tripolarized Wiremount Sockets,

.050" x .100"

Series 82

Pak 50 Wiremount Sockets

Series P25E, P50E

4-Wall, Tripolarized Headers,

.050" x .100"

Series 81

w w w . 3 M . c o m / i n t e r c o n n e c t s

8

3M

™

WIREMOUNT CONNECTOR SOLUTIONS

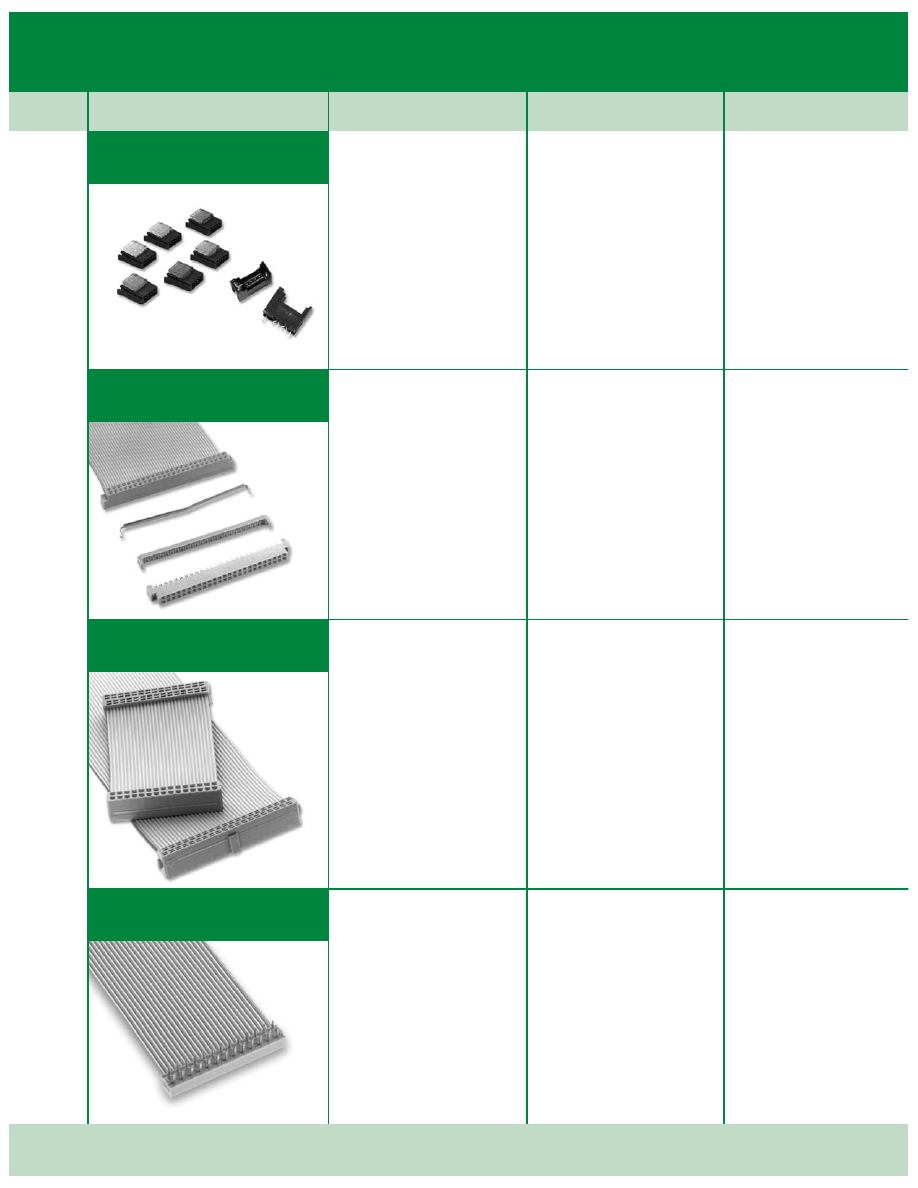

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

3- or 4- Positions

•

Latching

•

No Wire Prep Required

•

Field Terminable with Pliers

•

Vertical Boardmount

Contact

Material:  Copper Alloy

Insulation

Material: Glass reinforced

thermoplastic body and lower

cover, transparent thermoplastic
cover

Plating

Underplating: 100 µ" (2.54 µm) Nickel
Wiping Area: 8 µ" (0.2 µm)

minimum Gold with lubricant

IDC: Nickel

Current Rating:

3.0 A

Flammability:

UL 94V-0

Temperature Rating:

-20°C

to 85°C

• RoHS Compliant
•

10-50 Positions

•

Rugged Cover Retention

•

Open or Closed Cover Options

•

Metal Strain Relief Option

Contact

Material:  Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Underplating and U-Slot: 50-150 µ"

[ 1.27-3.81 µm ] Nickel, Class 2

Wiping Area: 15 µ" [ .38 µm ] or

30 µ" [ .76 µm ] Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant

When Used

with Compliant Cable

•

6-50 Positions

•

Supplied as Complete
Assembly Only (2M Series)

•

Mates with Standard 2 mm x 2 mm
Headers

•

One Piece, Molded-on
Construction Provides Integral
Strain Relief

•

Centerbump and Latching
Ear Features Available

Contact

Material:  Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Underplating and U-Slot: 50-150 µ"

[ 1.27-3.81 µm ] Nickel

Wiping Area: 30 µ" [ 0.76 µm ]

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant

When Used

with Compliant Cable

•

6-50 Positions

•

Supplied as Complete
Assembly Only (2M Series)

•

Mates with Standard 2 mm x 2 mm
Board Pattern

•

One Piece, Molded-on
Construction Provides Integral
Strain Relief

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Underplating and U-Slot: 50-150 µ"

[ 1.27 - 3.81 µm ]

Nickel, Class 2

[ 2.62 - 10.10µm ] Matte Tin

Contact Tail: 300-400 µ"

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

Wiremount Sockets,

2 mm x 2 mm

Series 1522

Mini Clamp

Sockets and Plugs

Series 37

Molded Socket Assembly,

2 mm x 2 mm

Series 870

Molded PCB Assembly,

2 mm x 2 mm

Series 879

w w w . 3 M . c o m / i n t e r c o n n e c t s

9

3M

™

WIREMOUNT CONNECTOR

AND ASSEMBLY SOLUTIONS

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant

Version Available

•

Single and Dual Slot

•

ESD and Board Retention
Options Available

•

With and WithoutIntegrated Ejectors

•

Low Profile Version

•

Alternate Board Pattern
Available for Competitive Cross

Contact

Material:  Copper Alloy

Insulation

Material: LCP

Plating

Underplating: 50 µ" [ 1.27 µm ] Nickel
Wiping Area: Gold flash over 27 µ"

[ .68 µm ] Palladium Nickel

Current Rating:

0.5 A

Flammability:

UL 94V-0

Temperature Rating:

-20°C

to +60°C, 95% RH
Non-condensing

• RoHS Compliant

Version Available

•

Headers for Both Type
I and II Cards

•

Wide Array of Connector
Size Options to Balance
Between Footprint Size
and Functionality

Contact

Material:  Copper Alloy

Insulation

Material: High Temperature Thermplastic

Plating

Underplating: 2.03 µm [ 80 µ"] Nickel
Wiping Area: 0.38 µm
[ 15 µ" ] or 0.76 µm [ 30 µ" ] Gold

Current Rating:

0.5 A

Flammability:

UL 94V-0

Temperature Rating:

-40°C

to +85°C

• RoHS Compliant
•

Mates to Selected N7E50
Series CF Headers to Provide
Added Ejection Functionality

•

Multiple Button Styles and
Orientations Allow
Design Flexibility

Button

Material: Glass-Filled High

Temperature Thermoplastic

Frame

Material: Stainless Steel

Flammability:

UL 94V-0

Process Rating:

260°C

(per J-STD-020C)

• RoHS Compliant
•

3.0 Gbps Input/Output Connector
for Backplane Applications

•

Two Contact Mating Levels for
Early-Mate and Late-Break
Allows "Blind Mating" or "Hot
Swap" Applications

•

Capable of Accepting HDD
Fitted with SAS or Serial
Advanced Technology
Attachment (SATA) Header

•

Meets SFF-8482 Specification

•

Meets SAS Specification
SAS-1.1

OPTIONS
•

Elevated Receptacle Version for
Additional Backplane Stand-off

•

Plated Through-Hole or Press Fit

•

Right Angle Version Available

•

SMT Vertical Option

•

Press-fit Contacts

Contact

Material: Copper Alloy

Insulation

Material:  High Temperature
Themoplastic

Plating

Underplating:  50 - 80 µ" [1.27 - 2.03

µm] Nickel

Wiping Area:  30 - 40 µ" [0.76 - 1.02

µm] Gold

Current Rating:

Power Pin: 1.5A
Signal Pin:  500 mA

Flammability:

UL 94V-0

Temperature Rating:

-40°C

to +85°C

• RoHS Compliant
•

1.5 Gbps I/O Connector
for HDD Applications

•

EMLB Contacts for Hot Swap

•

Blind Mate Polarization

•

Meets SATA 1.0 Specifications

OPTIONS
•

Press-Fit Contacts

•

Extended Height Receptacles for
Additional Backplane Standoff

•

Right Angle Surfacemount Receptacle

•

7-Pin Signal Plug

•

7-Position Signal Assemblies

•

15 x 2 Y-Type Power Assembly

•

22p Device Plugs for Drive Interface

Contact

Material: Copper Alloy

Insulation

Material:  High Temperature
Thermoplastic

Plating

Underplating:  50 - 80 µ"

[ 1.27 - 2.03 µm ] Nickel

Wiping Area:  30 - 40 µ"

[ 0.76 - 1.02 µm ] Gold

Solder Tails: 100 - 200 µ"

[ 2.54 - 5.08 µm ] Tin

Current Rating:

Power Pin: 1.5A
Signal Pin:  500 mA

Flammability:

UL 94V-0

Temperature Rating:

Operating Temperature: 0°C
to +55°C
Non-Operating Temperature:

-40°C to +85°C

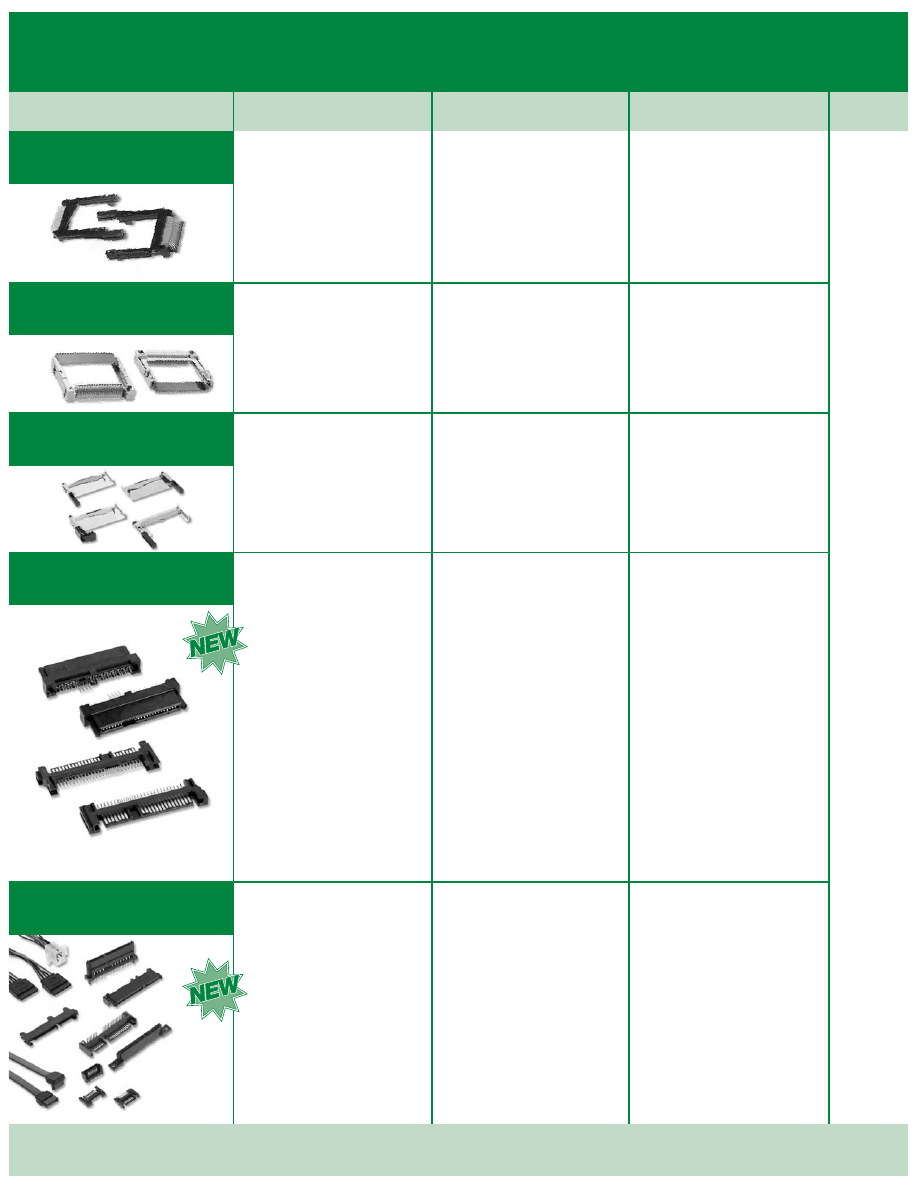

PC Card Headers, PCMCIA

Series MCH

CF Card Headers, CompactFlash

™

Series N7E50

CF Card Ejectors, CompactFlash

™

Series 7E50

Serial Attached SCSI

(SAS) Connectors

Series SBR and SBH

Serial Adavanced Tecnology

Attachment (SATA) Connectors

PC Card Headers, PCMCIA

Series MCH

CF Card Headers, CompactFlash

™

Series N7E50

CF Card Ejectors, CompactFlash

™

Series 7E50

Serial Attached SCSI

(SAS) Connectors

Series SBR and SBH

Serial Adavanced Tecnology

Attachment (SATA) Connectors

w w w . 3 M . c o m / i n t e r c o n n e c t s

10

3M

™

DEVICE-TO-BOARD

CONNECTOR SOLUTIONS

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

.100" Lead Spacing

•

8-48 Leads

•

Lower Cost Stamped
and Formed Contact

•

Kink Tail Option for Additional
Board Retention

•

Straight Tail Option Aids
Automated Insertion

Contact

Material: Phosphor Bronze

Insulation

Material: Glass Filled Polyester

Plating

Underplating: 35 µ" [ 0.89 µm ] min.

Nickel Overall

Surface Plating: 135 µ" [ 3.43 µm ] min.

Matte Tin Overall

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-25°C

to +85°C

• RoHS Compliant
•

6-64 Leads

•

.100" Lead Spacing

•

Screw Machine Contact for
Reliable Package Retention

•

Standard and Low Profile Options

Contact

Sleeve: Brass
Inner Contact: Beryllium Copper

Insulation

Material: Glass Filled PPS

Plating

Underplating: 100 µ" [ 2.54 µm ]

min. Nickel

Wiping Area: 8 µ" [ 0.20 µm ] min.

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-65°C

to +125°C

• RoHS Compliant
•

.100" Lead Spacing

•

Screw Machine Contact for
Reliable Package Retention

•

Up to 17x17 Array

Contact

Sleeve: Brass
Inner Contact: Beryllium Copper

Insulation

Material: Glass Filled Polyester

Plating

Underplating: 100 µ" [ 2.54 µm ]

min. Nickel

Wiping Area: 8 µ" [ 0.20 µm ] min.

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-65°C

to +125°C

• RoHS Compliant
•

20-84 Leads

•

Accepts Common JEDEC
Standard Packages

•

Surfacemount and Through-Hole

•

High Temp - Reflow Capable

Contact

Material: Beryllium Copper

Insulation

Material: Glass Filled

Polyphenylene Sulfide

Plating

Underplating: 50 µ" [ 1.27 µm ]

Nickel - Overall

Wiping Area: 160 µ" [ 4.06 µm ]

Matte Tin

Flammability:

UL 94V-0

Temperature Rating:

-40°C

to +105°C

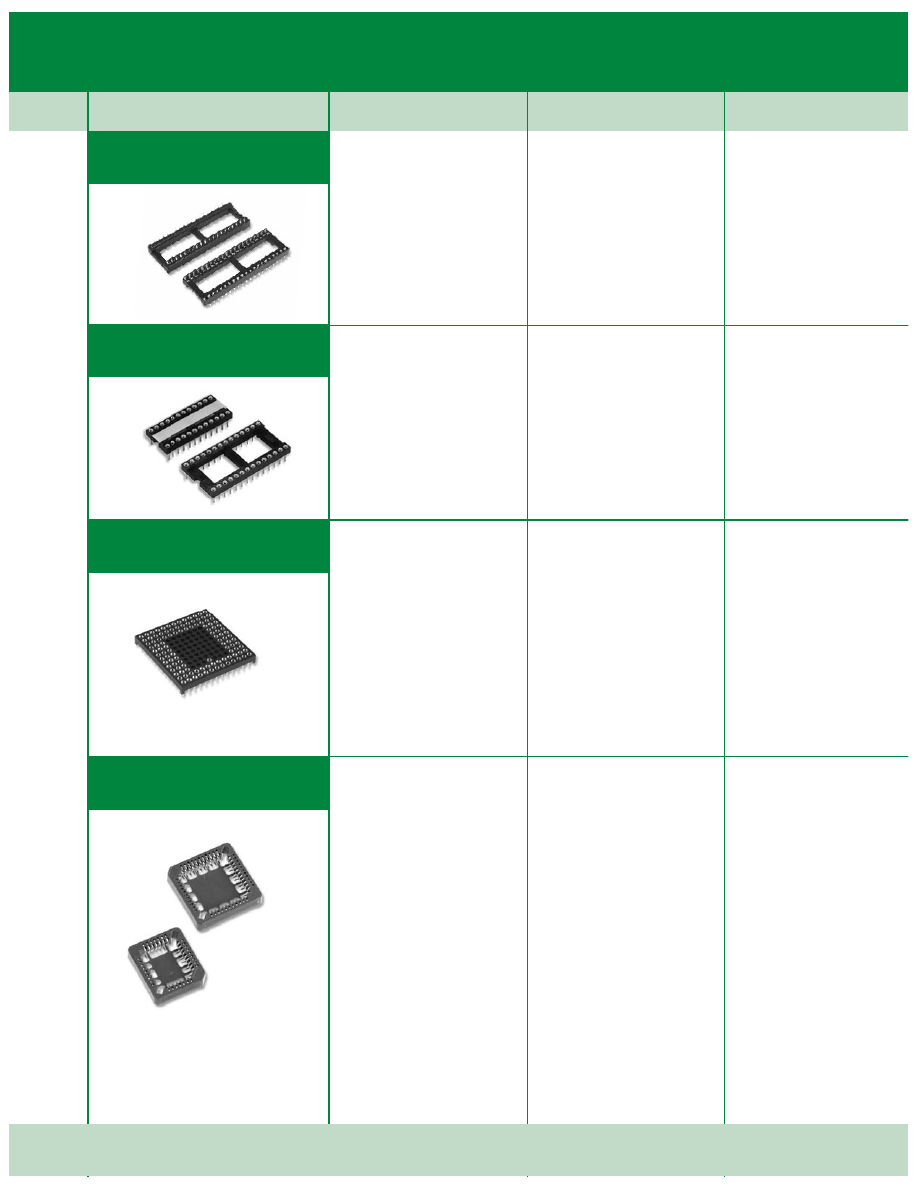

DIP Sockets, Dual Wipe

Series 4800

DIP and SIP Sockets, Screw Machine

Series 100, 300-500

PGA Sockets, Screw Machine

Series 200

Chip Carrier Sockets, PLCC

Series 8400

w w w . 3 M . c o m / i n t e r c o n n e c t s

11

3M

™

DEVICE-TO-BOARD CONNECTOR

AND ASSEMBLY SOLUTIONS

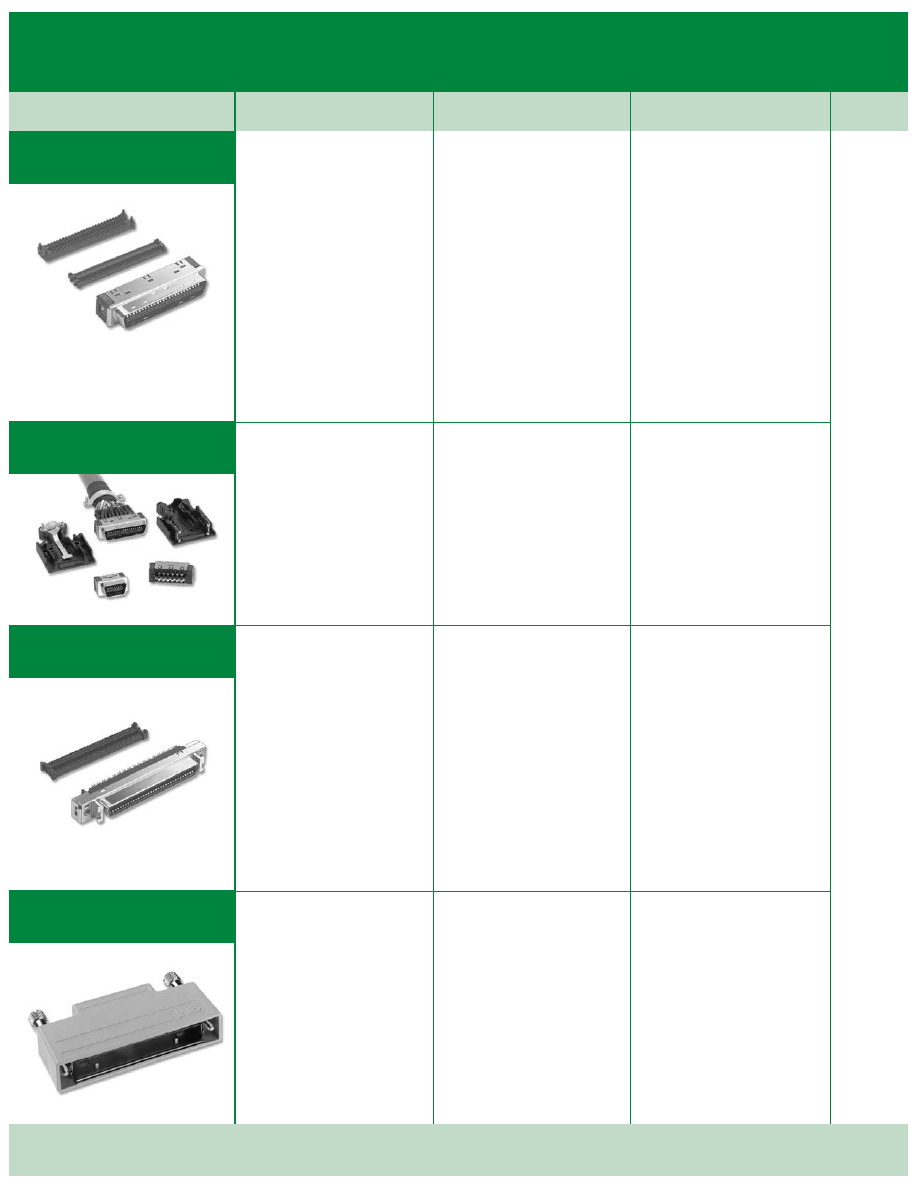

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

14-100 Positions

•

Wiper-on-Wiper Contact for
Reliable Repetitive Plugging

•

Digital LCD Interface as a
20 or 26 Contact Connector

•

IEEE 1284C Interface as a 36
Contact Connector

•

Accepts a Wide Variety of Cable
Constructions Including Split, Flat,
Round,Twisted Pair and Twinax
Cables

•

Accepts a Wide Variety of Shielded
Junction Shells

OPTIONS
•

Plastic-Non Shielded Version

•

Termination Tools

•

Junction Shells

Contact

Material: Beryllium Copper (C172)

Insulation

Material: Glass Filled Polyester

Plating

Underplating: 80 µ" [ 2.0 µm ]

Nickel

Wiping Area: 30 µ" [ 0.76 µm ]

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-20°C

to +85°C

• RoHS Compliant

Version Available

•

14-50 Positions

•

Wiper-on-Wiper Contact for
Reliable Repetitive Plugging

•

Solder Cup Termination Requires
No Special Tooling

•

Accepts a Wide Variety of
Discrete Wire (24 to 30 AWG)
Cable Construction

OPTIONS
•

Junction Shells

Contact

Copper Alloy

Insulation

Glass Reinforced Polyester

Plating

Underplating: 80 µ" [ 2.0 µm ]

Nickel

Wiping Area: Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant
•

20-68 Positions

•

Wiper-on-Wiper Contact for
Reliable Repetitive Plugging

•

IEEE 1284C Interface as a 36
Contact Connector

•

Interface Latch Design for
Connection Stability

•

Accepts a Wide Variety of Cable
Constructions Including Flat,
Shielded Flat and Twisted
Pair Cables

•

Replaces Boardmount Receptacle
when a Wire Transition is Needed

OPTION
•

Wire Termination Tools

Contact

Material: Beryllium Copper (C172)

Insulation

Glass Reinforced Polyester

Plating

Underplating: 80 µ" [ 2.0 µm ]

Nickel

Wiping Area: 30 µ" [ 0.76 µm ]

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-20°C

to +85°C

• RoHS Compliant
•

14-80 Positions

•

Durable One-Piece Plastic Over
Two-Piece Metal Junction Shell
for Straight Round Cable
(Compatible with 101XX-6000
EC Plug)

•

Quick Release Latching

•

MDR Digital LCD Interface as
a 20 or 26 Contact Connector

OPTIONS
•

80 Position

•

Jackscrew Latching for
Connection Stability

Outer Shell

Material: ABS

Inner Shell

Material: Steel, .020"

[ 0.5 mm ] Thick

Plating

Nickel

Flammability:

UL 94V-0

MDR Wiremount Plugs - IDC

Series 101XX-6000, 101XX-8000

MDR Wiremount Plugs - Solder

Series 101XX-3000

MDR Panelmount Receptacles - IDC

Series 102XX-0210

MDR Junction Shells,

Round Cable Exit, Plastic

Series 103XX

MDR Wiremount Plugs - IDC

Series 101XX-6000, 101XX-8000

MDR Wiremount Plugs - Solder

Series 101XX-3000

MDR Panelmount Receptacles - IDC

Series 102XX-0210

MDR Junction Shells,

Round Cable Exit, Plastic

Series 103XX

w w w . 3 M . c o m / i n t e r c o n n e c t s

12

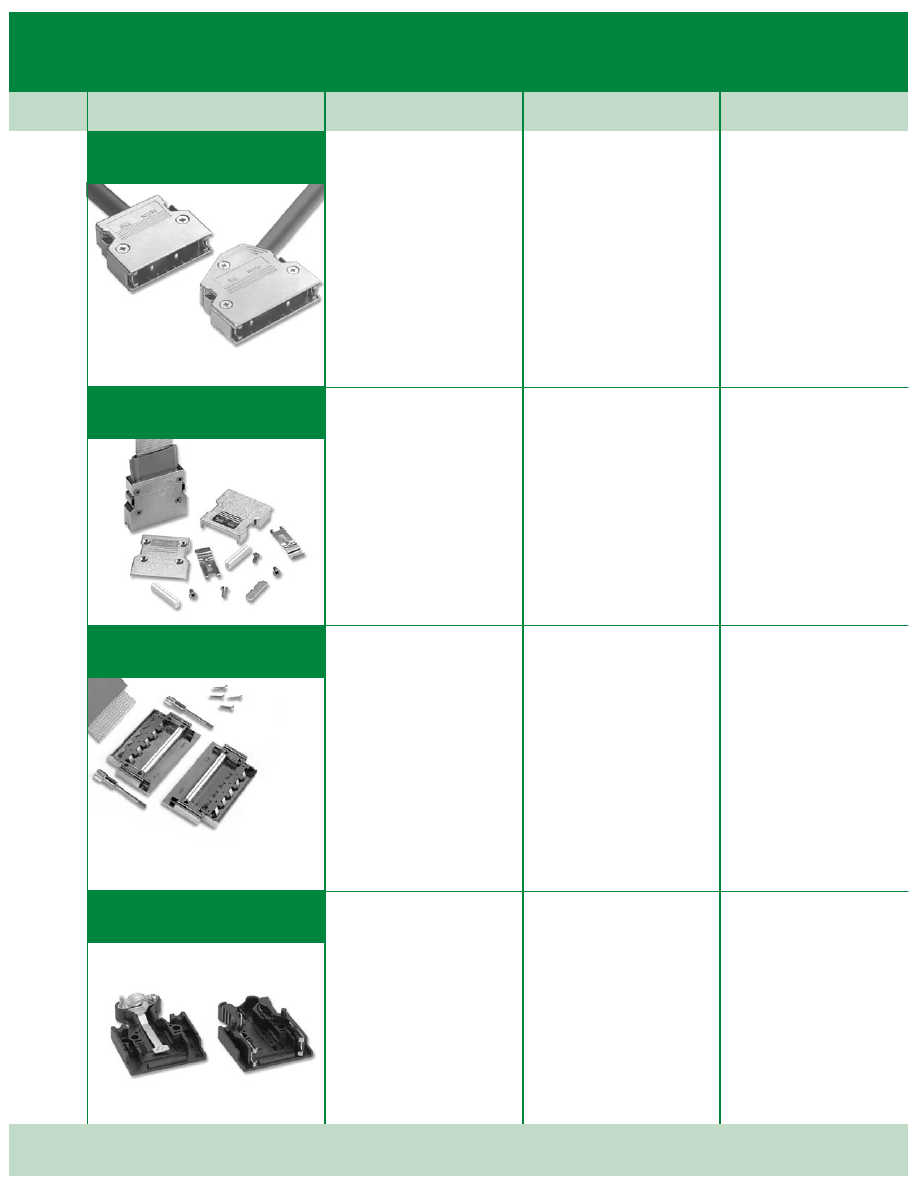

3M

™

INPUT/OUTPUT CONNECTOR SOLUTIONS

MINI DELTA RIBBON (MDR)

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

14-100 Positions

•

Metal Junction Shell for
Round Cable

•

Rugged Two-Piece Die Cast
Metal Shell with Round Straight
Exit (Compatible with
101XX-6000 EC Plug)

•

Reliable Metal Strain Relief

•

Clamp Provides Grounding for
Cable Shield

•

Excellent EMI/ESD Protection

•

Quick Release Latching Mechanism

OPTION

60 Degree Cable Relief Option

Shell

Aluminum, .050" [ 1.27 mm ]

Thick

Plating

Nickel

• RoHS Compliant
•

Metal Junction Shell for
Flat Cable

•

20-40 Positions

•

Rugged Two-Piece Metal
Shells for High Performance
Pleated Foil Cable Assemblies
(Compatible with 101XX-6000
EC Plug)

•

Kit Includes Conductive
Gasket for Superior Cable
Shield to Shell Continuity

•

Accepts 3M 50 Ohm PFC
Cables

Shell

Material: Zinc, .020"

[ 0.5mm ] Thick

Gasket

Material: Elastomer with

Conductive Fibers

Plating

Nickel

• RoHS Compliant
•

Rugged Two-Piece Metal
Junction Shell for Straight
Flat Cable (Compatible with
101XX-6000 EC Plug)

•

68-100 Positions

•

Jackscrew Latching for
Connection Stability

•

Contacts: 68, 80 and 100

Shell

Zinc, .030" [ 0.8 mm ]

Thick

Gasket

Material: Elastomer with

Conductive Fibers

Plating

Nickel

• RoHS Compliant
•

14-50 Positions

•

Design Features Durable
Two-Piece Glass Reinforced
Polyester Backshell with
Ground Strap (Compatible
with 101XX-3000 Plug)

•

Round Straight Exit

•

Reliable Metal Strain Relief
Clamp Provides Grounding
for Cable Shield

•

Quick Release Metal
Latching Mechanism

Outer Shell

Glass Reinforced Polyester

Cable Clamp and Ground Plate

Material: Stainless Steel

Flammability:

UL 94V-0

Temperature Rating:

-20°C

to +85°C

MDR Junction Shells,

Round Cable Exit, Metal

Series 103XX

MDR Junction Shells,
Flat Cable Exit, Metal

Series 103XX

MDR Junction Shells, Round Cable,

Solder Cup

Series 103XX

MDR Junction Shells,
Flat Cable Exit, Metal

Series 103XX

w w w . 3 M . c o m / i n t e r c o n n e c t s

13

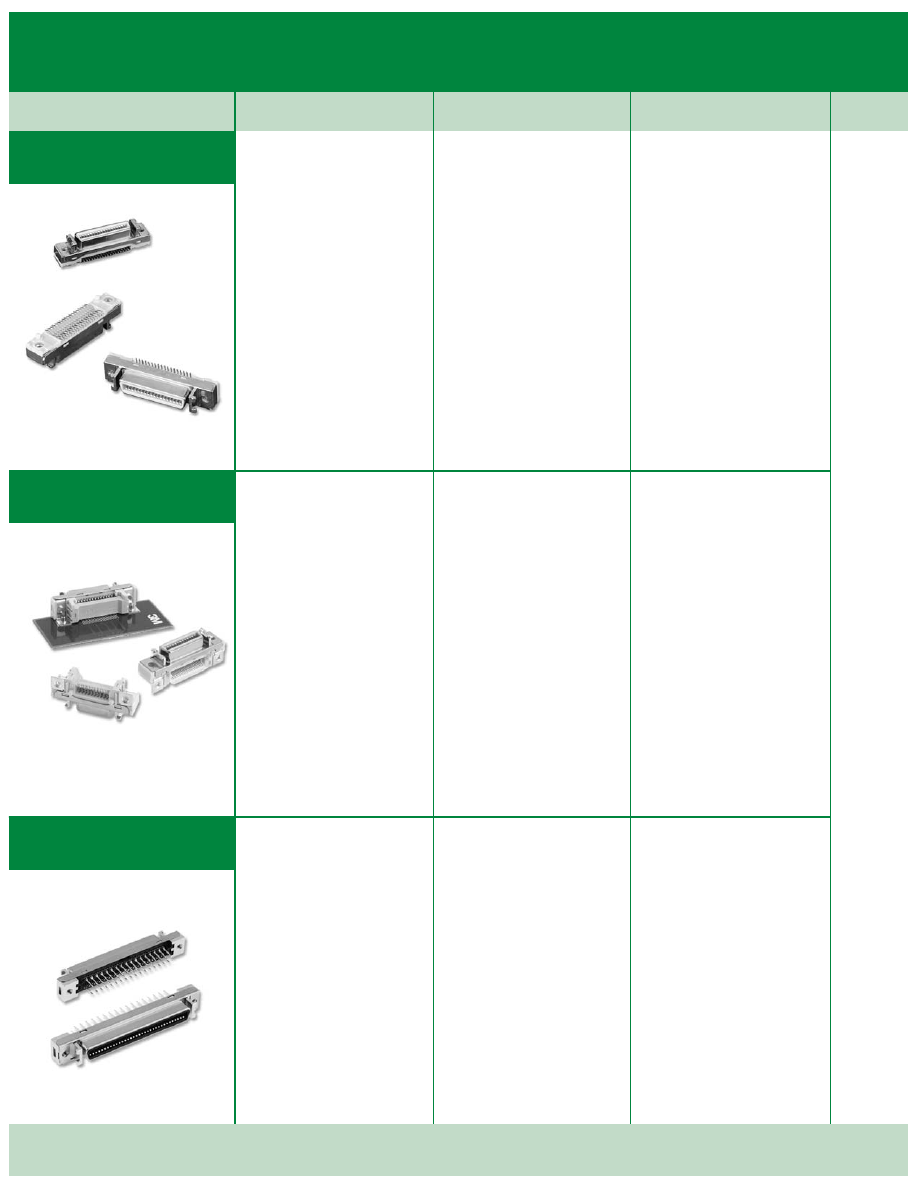

3M

™

INPUT/OUTPUT CONNECTOR SOLUTIONS

MINI DELTA RIBBON (MDR)

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant

Version Available

•

20-36 Positions

•

Wiper-on-Wiper Contact for
Reliable Repetitive Plugging

•

SMT Compatible PCT Insulator
Material

•

Screw Lock-Down for Reliable
PCB Retention

•

Interface Latch Design for
Connection Stability

•

IEEE 1284C Interface as a 36
Contact Connector

OPTIONS
•

Dust Covers

•

Board Lock and Panel
Mount Hardware

Contact

Copper Alloy (C521)

Insulation

Glass Reinforced Polyester

Plating

Underplating: 80 µ" [ 2.00 µm ]

Nickel

Wiping Area: 30 µ" [ 0.76 µm ] Min

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant

Version Available

•

14-50 Positions

•

Wiper-on-Wiper Contact for
Reliable Repetitive Plugging

•

Ultra-Low Signal Skew for High
Data Rate Transmission

•

Interface Latch Design for
Connection Stability

•

Digital LCD Interface as
a 20 or 26 Contact Connector

•

Contacts: 14, 20, 26, 40 and 50

Contact

Copper Alloy (C521)

Insulation

Glass Reinforced Polyester

Plating

Underplating: 80 µ" [ 2.00 µm ]

Nickel

Wiping Area: 20 µ" [ 0.50 µm ]

Min Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant

Version Available

•

14-100 Positions

•

Wiper-on-Wiper Contact for
Reliable Repetitive Plugging

•

Rugged Die Cast Metal Case
Construction

•

Screw Lockdown for Reliable
PCB Retention

•

Interface Latch Design for
Connection Stability

•

IEEE 1284C Interface as a
36 Contact Connector

OPTIONS
•

Dust Covers

•

Board Lock and Panel
Mount Hardware

Contact

Copper Alloy (C521)

Insulation

Glass Reinforced Polyester

Plating

Underplating: 80 µ" [ 2.00 µm ]

Nickel

Wiping Area: 30 µ" [ 0.76 µm ]

Min Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-20°C

to +85°C

MDR Boardmount Receptacles,

SMT Vertical

Series 102XX

MDR Boardmount Receptacles,

SMT Right Angle

Series 102XX

MDR Boardmount Receptacles,

PTH Vertical

Series 102XX

MDR Boardmount Receptacles,

SMT Vertical

Series 102XX

MDR Boardmount Receptacles,

SMT Right Angle

Series 102XX

MDR Boardmount Receptacles,

PTH Vertical

Series 102XX

w w w . 3 M . c o m / i n t e r c o n n e c t s

14

3M

™

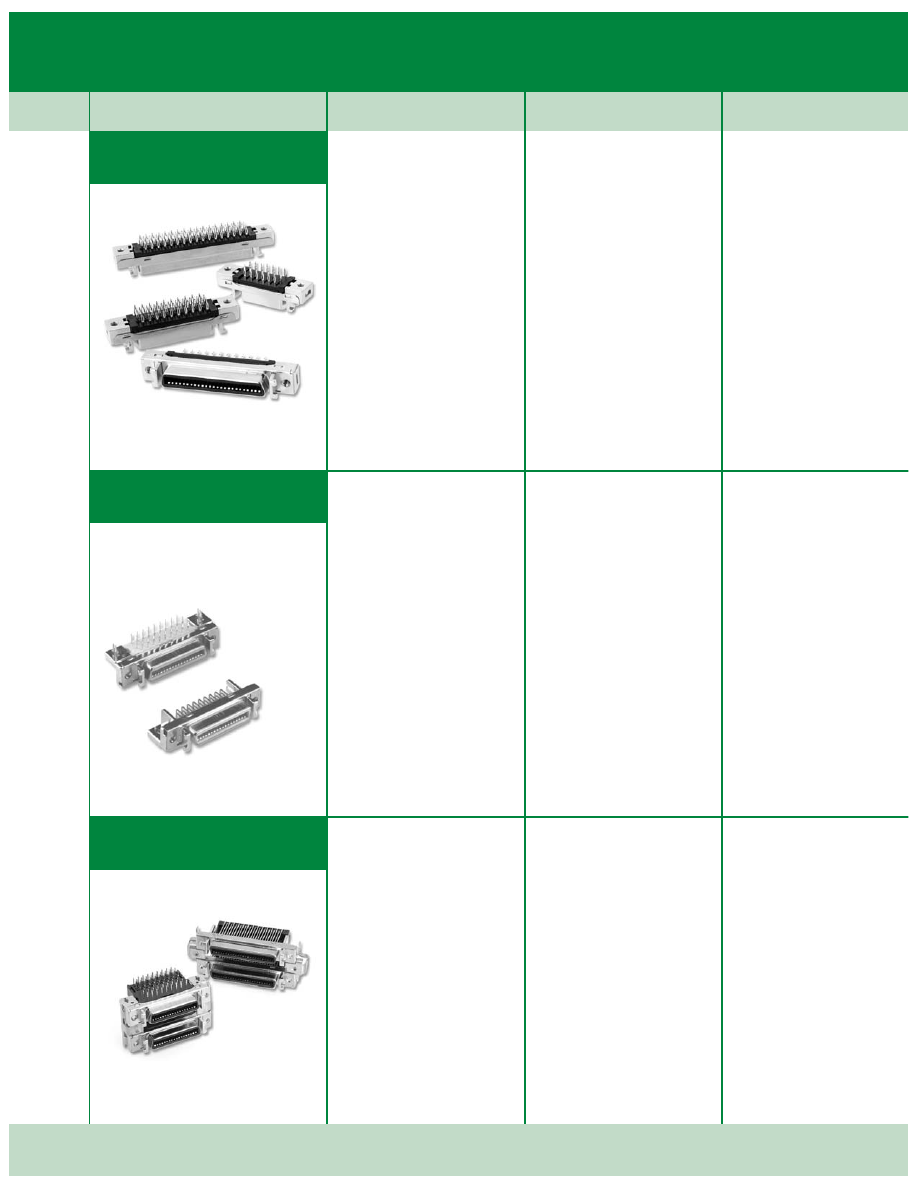

INPUT/OUTPUT CONNECTOR SOLUTIONS

MINI DELTA RIBBON (MDR)

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

14-100 Positions

•

Wiper-on-Wiper Contact for
Reliable Repetitive Plugging

•

Rugged Die Cast Metal Case
Construction

OPTIONS
•

Dust Covers

•

Board Lock and Panel
Mount Hardware

Contact

Copper Alloy (C521)

Insulation

Glass Reinforced Polyester

Plating

Underplating: 80 µ" [ 2.00 µm ]

Nickel

Wiping Area: 30 µ" [ 0.76 µm ]

Min Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-20°C

to +85°C

• RoHS Compliant
•

14-100 Positions

•

Wiper-on-Wiper Contact for
Reliable Repetitive Plugging

•

Rugged Die Cast Metal Case
Construction

•

SMT Compatible PCT
Insulator Material

•

Screw or Ground Lock for
Reliable PCB Retention

•

Interface Latch Design for
Connection Stability

•

IEEE 1284C Interface as a 36
Contact Connector

OPTIONS
•

Stamped Metal Face and Die
Cast Versions

•

Dust Covers

•

Board Lock and Panel
Mount Hardware

Contact

Copper Alloy (C521)

Insulation

Glass Reinforced Polyester (PCT)

Plating

Underplating: 80 µ" [ 2.00 µm ]

Nickel

Wiping Area: 30 µ" [ 0.76 µm ] Min

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant

Version Available

•

Positions 40 (2 x 20), 100
(2 x 50) and 136 (2 x 68)

•

Wiper-on-Wiper Contact for
Reliable Repetitive Plugging

•

Rugged Die Cast Metal Case
Construction

•

Screw Lockdown for Reliable
PCB Retention

•

Interface Latch Design for
Connection Stability

•

Stacked Receptacles Save
Board Space

OPTIONS
•

Dust Covers

•

Board Lock and Panel
Mount Hardware

Contact

Copper Alloy (C521)

Insulation

Glass Reinforced Polyester

Plating

Underplating: 80 µ" [ 2.00 µm ]

Nickel

Wiping Area: 20 µ" [ 0.50 µm ]

Min Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-20°C

to +85°C

MDR Boardmount Receptacles,

Compliant Pin Vertical

Series 102XX

MDR Boardmount Receptacles,

PTH Right Angle

Series 102XX

MDR Boardmount Receptacles,

PTH Right Angle Condo

Series 102XX

w w w . 3 M . c o m / i n t e r c o n n e c t s

15

3M

™

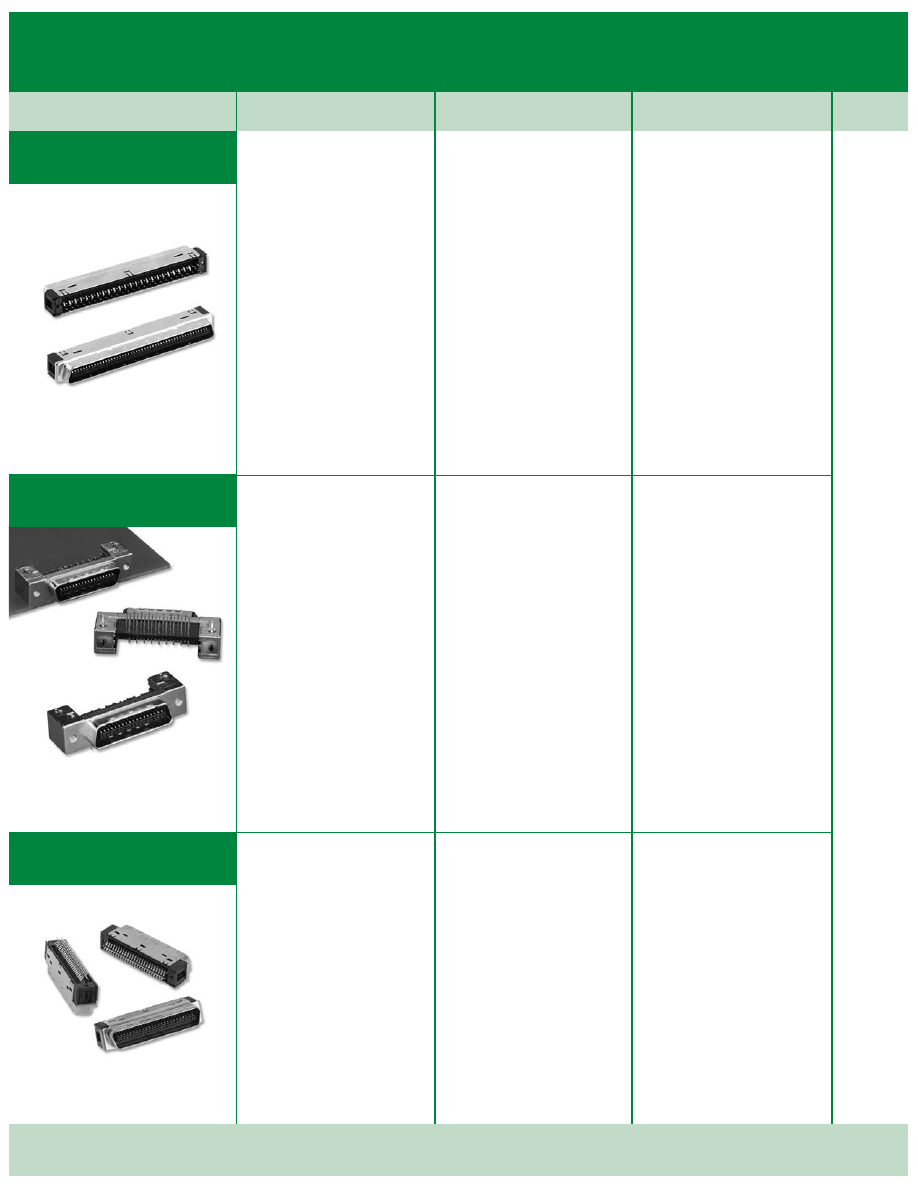

INPUT/OUTPUT CONNECTOR SOLUTIONS

MINI DELTA RIBBON (MDR)

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant

Version Available

•

Wiper-on-Wiper Contact for
Reliable Repetitive Plugging

•

Contacts: 100

Contact

Material: Copper Alloy

Insulation

Material: Glass Reinforced

Polyester - Body

Glass Reinforced

Polyester - Insert Mold

Plating

Underplating: 80 µ" [ 2.00 µm ]

Nickel

Wiping Area: 8 µ" [ 0.20 µm ]

Min Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-20°C

to +85°C

• RoHS Compliant

Version Available

•

20-50 Positions

•

Wiper-on-Wiper Contact for
Reliable Repetitive Plugging

•

Rugged Die Cast Metal Case
Construction

•

Screw or Ground Lock PCB
Retention

•

Normal and Reverse “D” Interface
Options for Board-to-Board
Flexibility

•

IEEE 1284C Interface as a 36
Contact Connector

OPTIONS
•

Normal and Reverse "D"
Interface Options

•

Panel and Board Locking Hardware

Contact

Copper Alloy (C521)

Insulation

Glass Reinforced

Polyester-Body

Glass Reinforced

Polyester-Alignment Plate

Plating

Underplating: 80 µ" [ 2.00 µm ]

Nickel

Wiping Area: 30 µ" [ 0.76 µm ]

Min Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-20°C

to +85°C

• RoHS Compliant

Version Available

•

50-100 Positions

•

Wiper-on-Wiper Contact for
Reliable Repetitive Plugging

•

Solder Tails Require No
Special Tooling

Contact

Copper Alloy (C521)

Insulation

Glass Reinforced

Polyester-Body

Glass Reinforced

Polyester-Insert Mold

Plating

Underplating: 80 µ" [ 2.00 µm ]

Nickel

Wiping Area: 30 µ" [ 0.76 µm ]

Min Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-20°C

to +85°C

MDR Boardmount Plugs,

PTH Vertical

Series 101XX

MDR Boardmount Plugs,

PTH Right Angle

Series 101XX

MDR Boardmount Plugs,

Straddlemount

Series 101XX

MDR Boardmount Plugs,

PTH Vertical

Series 101XX

MDR Boardmount Plugs,

PTH Right Angle

Series 101XX

MDR Boardmount Plugs,

Straddlemount

Series 101XX

w w w . 3 M . c o m / i n t e r c o n n e c t s

16

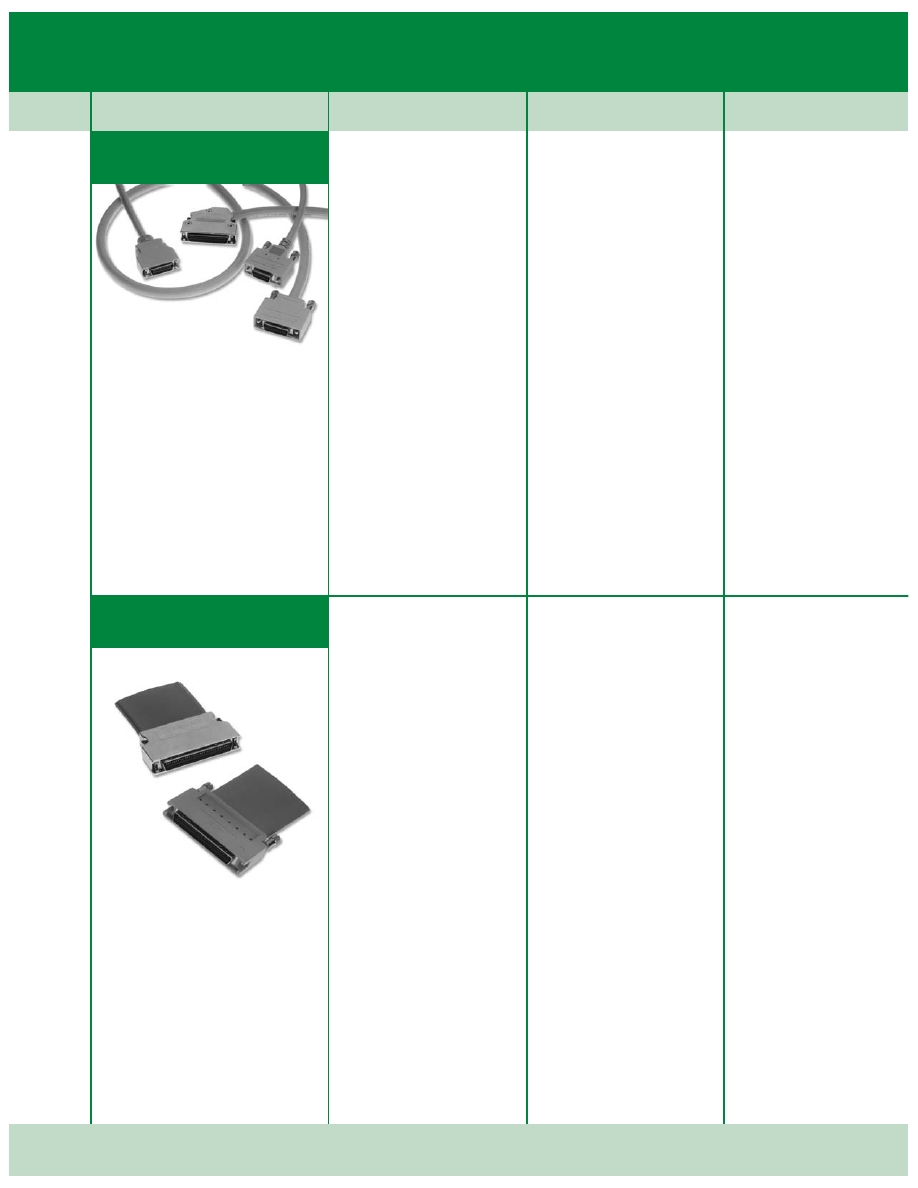

3M

™

INPUT/OUTPUT CONNECTOR SOLUTIONS

MINI DELTA RIBBON (MDR)

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant

Pending

on Some Versions

•

14-100 Positions

•

.050" Pitch Ribbon Style
Contact Provides Reliable
Mating and is Industry
Preferred

•

Compatible for a
Variety of LVDS, IEEE 1284,
Camera Link

®

,

PanelLink

TM

/ TMDS,

Flat Link

TM

, and Channel Link

TM

,

OpenLDI and QuadLDI
Applications

•

Mates with Standard 3M
MDR Boardmount Products

•

Unshielded or Sheilded
Twisted Pair or Twinax
Cable Options

•

Contact 3M for Custom
Configurations

Materials vary for connectors,
cables, shells and jackscrews.
See website for specifics.

Current Rating:

1 A

Flammability:

AWM VW-1

Temperature Rating:

-20°C

to +75°C

• RoHS Compliant
•

Offers Superior Combination
of High-Density, Electrical
Performance, Shielding
and Durability

•

Allows Digital Data Rates
of up to 200 Megabits Per
Second Per Conductor

•

Mates with Standard 3M
MDR Boardmount
Connectors

•

Pleated Copper Foil Provides
360 Degree Shield and
Enables Coax-Like
Performance

•

Overmolded and Metal
with Latching and
Thumbscrew Shells
Available

•

Position Sizes from
20-100

Materials vary for connectors,
cables, shells and jackscrews.
See website for specifics.

Temperature Rating:

75°C maximum

MDR Cable Assemblies,

Round Cable, Input/Output
Series 14XXX, 4926, 4120

MDR Pleated Foil

Input/Output Cable Assemblies

Series OM, LS

w w w . 3 M . c o m / i n t e r c o n n e c t s

17

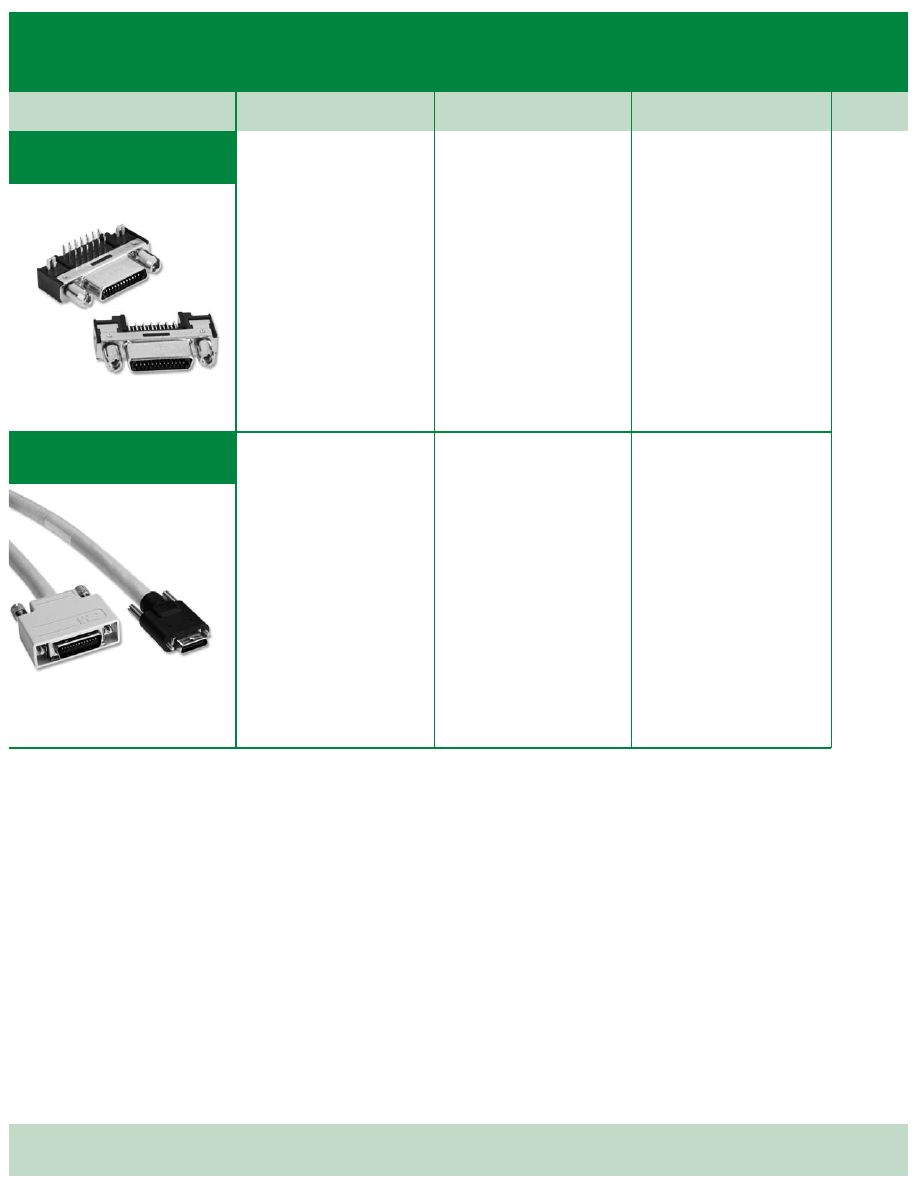

3M

™

INPUT/OUTPUT CONNECTOR AND CABLE

ASSEMBLY SOLUTIONS

MINI DELTA RIBBON (MDR)

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

14-50 Positions

•

Wiper-on-Wiper Contact for
Reliable Repetitive Mating

•

Ground Lock for Reliable
PCB Retention

•

Full Metal Face for Better
EMI Shielding Effectiveness

•

On-board Jacksockets
Maintains a Secure Connection

OPTIONS
•

Surfacemount and Through-Hole

•

Right Angle and Vertical

•

Panel and Board Lock Hardware

Contact

Phosphor Bronze

Insulation

PA9T

Plating

Underplating: 80µ" [ 2.00 µm ]

Nickel

Wiping Area: 30µ" [ 0.76µm ] Au

Current Rating:

0.5 A

Flammability:

UL 94V-0

Temperature Rating:

-40°C

to +70°C

• RoHS Compliant
•

Supplied as a Complete
Assembly Only

•

Supports New AIA Industrial
Camera Link

®

Standard for

Mini C/L Camera to C/L Frame
Grabber Applications

•

11 Shielded Twisted Twinax
Pairs with Four Drain Wires

•

Double Overall Shield with
Foil and Outer Braid EMI
Shielded Cable Assembly

•

Straight and Right Angle
Configurations Available

•

SDR-to-SDR and MDR-to-SDR
Options Available

•

Mates with 3M SDR and MDR
Boardmount Products

Insulation

Material: Polyvinyl Chloride

Plating

Underplating: 100 µ" [ 2.55 µm ]

Nickel

Wiping Area: 30 µ" [ 0.76 µm ]

Min Gold

Material varies for connectors,
cables, shells and jackscrews.
See website for specifics.

Current Rating:

0.5 A

Flammability:

AWM VUS-1

Temperature Rating:

0°C

to 70°C

Shrunk Delta Ribbon (SDR)

Boardmount Receptacles

Series 122XX

Shrunk Delta Ribbon (SDR) Cable

Assemblies, .80 mm, Input/Output

Series 1MG, 1MF, 1SF

Shrunk Delta Ribbon (SDR)

Boardmount Receptacles

Series 122XX

Shrunk Delta Ribbon (SDR) Cable

Assemblies, .80 mm, Input/Output

Series 1MG, 1MF, 1SF

w w w . 3 M . c o m / i n t e r c o n n e c t s

18

3M

™

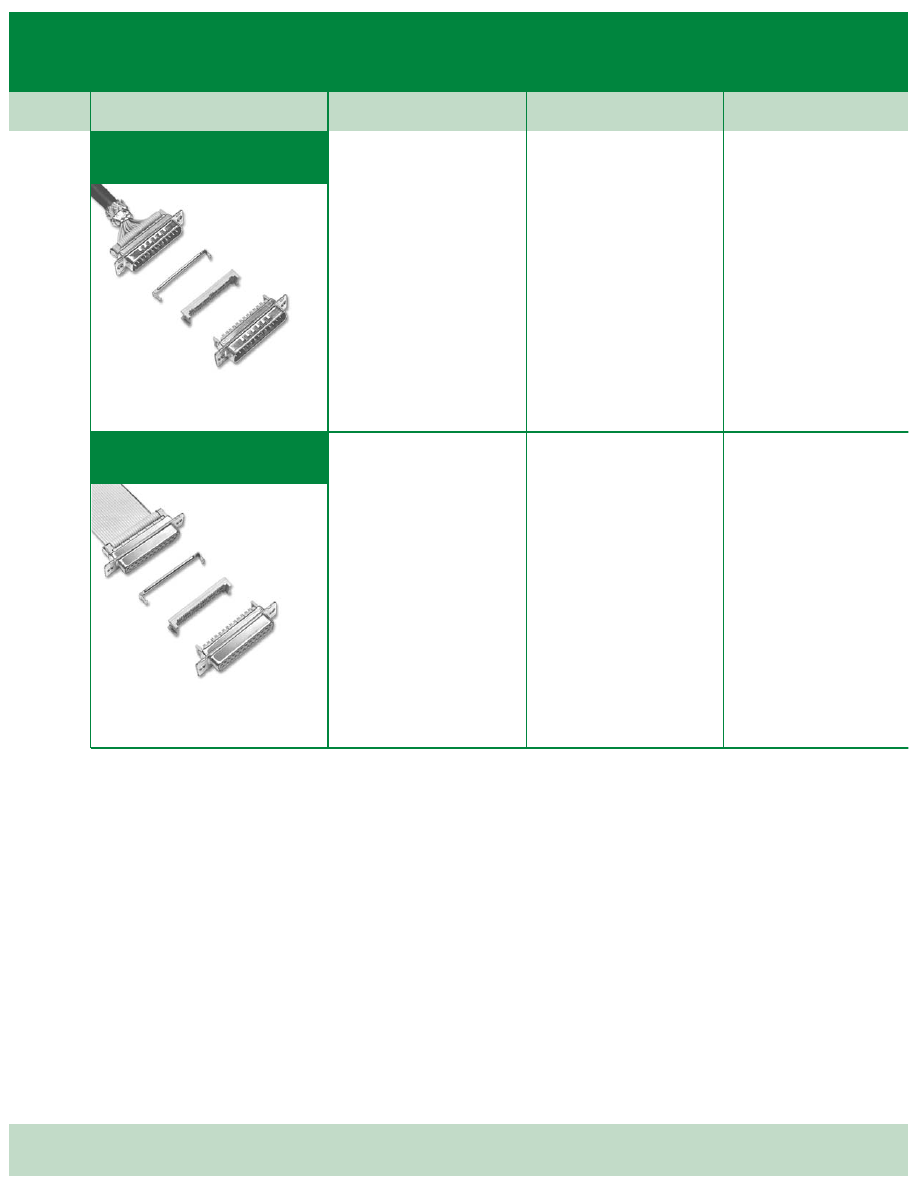

INPUT/OUTPUT CONNECTOR AND

CABLE ASSEMBLY SOLUTIONS

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

9-50 Positions

•

Available in Either Open or
Closed-End Cover

•

Shell Dimples to Aid
in EMI/ESD Protection

•

Metal Strain Relief
Hooks Directly to Metal Shell

•

Low Profile

•

Open or Threaded
(SAE or Metric) Mounting Holes

OPTIONS
•

Mounting Hardware

•

Open and Closed-End Covers

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Underplating: 100 µ" [ 2.54 µm ]

Nickel

Wiping Area: 30 µ"

[ 0.76 µm ]
Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

• RoHS Compliant
•

9-50 Positions

•

Available in Either Open
or Closed-End Cover

•

Metal Strain
Relief - Hooks Directly to
Metal Shell

•

Low Profile

•

Open or Threaded
(SAE or Metric) Mounting Holes

OPTIONS
•

Mounting Hardware

•

Open and Closed-End Covers

Contact

Material: Copper Alloy

Insulation

Material: Glass Filled Polyester

Plating

Underplating: 100 µ" [ 2.54 µm ]

Nickel

Wiping Area: 30 µ" [ 0.76 µm ]

Gold

Current Rating:

1 A

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

D Sub Plugs

IDC Mass Terminated

Series 8200

D Sub Receptacles

IDC Mass Terminated

Series 8300

w w w . 3 M . c o m / i n t e r c o n n e c t s

19

3M

™

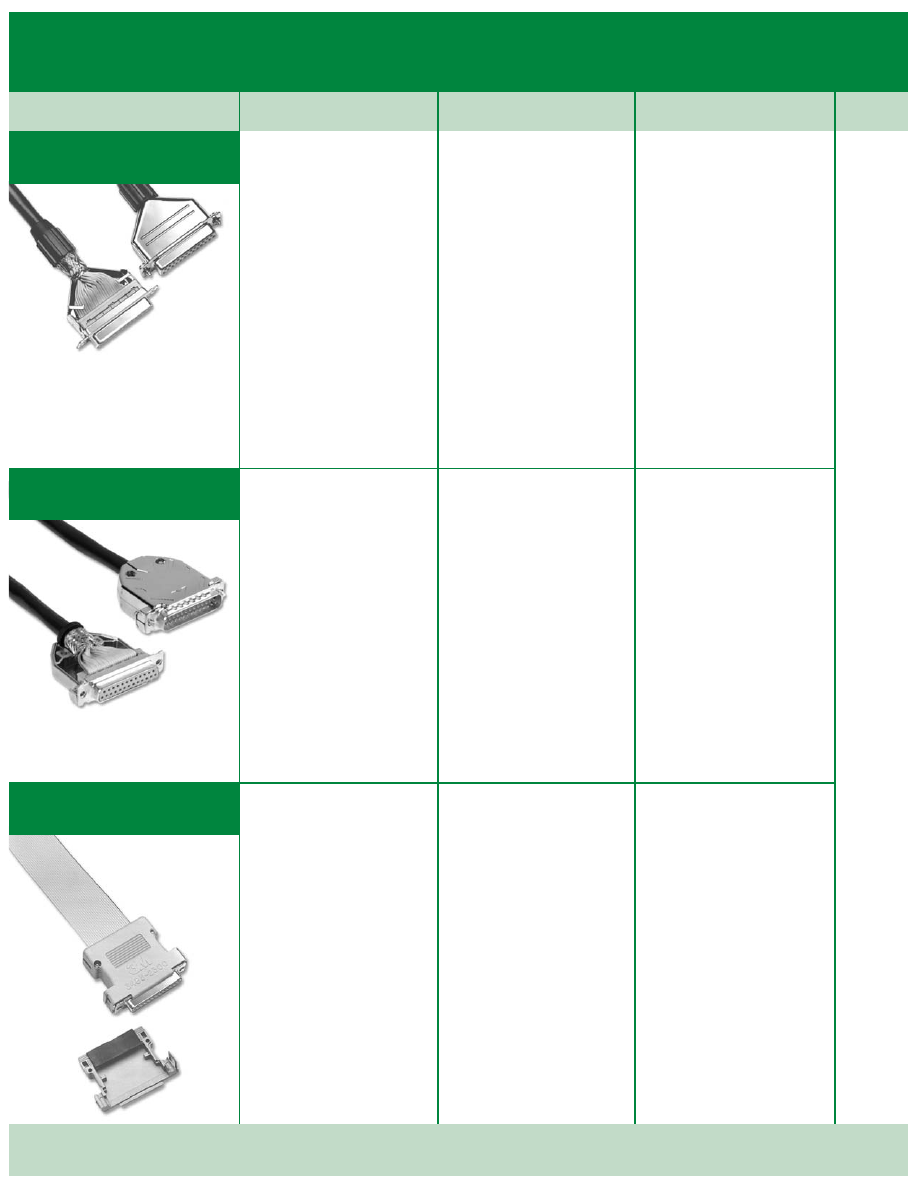

INPUT/OUTPUT CONNECTOR SOLUTIONS

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

Provides EMI/ESD Protection
Similar to Aluminium Die Cast

•

Easy Assembly Reduces Time
and Labor to Ensure Low
Applied Cost

•

Optional Thumbscrew Kit

•

Provides Option in Grounding
for Discrete Wire Applications

•

Light Weight, Compact Design

OPTIONS
•

Thumbscrew Kit

•

Retainer Rings

Cover Nut

Material: Glass Filled

Polyester

Shell and Hardware

Material: Steel

Plating

Nickel

Flammability:

UL 94V-0

• RoHS Compliant
•

Protection from EMI/ESD

•

Easy Assembly Reduces
Time and Labor for Low Cost

•

Light Weight and a Compact Design

•

Strain Relief Compensates
for Multiple Cable Diameters

•

Jack Screws Provide
Positive Retention

OPTIONS
•

60 Degree Relief Cable Exits

Shell and Hardware

Shell Material: ABS

Insulation

Material: Thermo Plastic

Elastomer

Plating

Bright Zinc

Flammability:

UL 94VO

Temperature Rating:

0°C to

+75°C

• RoHS Compliant
•

Uses Standard Hardware

•

Light Weight, Compact Size

•

Full Family of Sizes

OPTIONS
•

EMI Versions Available

Shell

Material: Glass Filled Polyester

Flammability:

UL 94V-0

Temperature Rating:

-55°C

to +105°C

D Sub - Junction Shell

Round Cable, Metal

Series 3357

D Sub - Junction Shell

Round Cable, Plastic

Series 3357

D Sub - Junction Shell

Flat Cable

Series 3485

D Sub - Junction Shell

Round Cable, Metal

Series 3357

D Sub - Junction Shell

Round Cable, Plastic

Series 3357

D Sub - Junction Shell

Flat Cable

Series 3485

w w w . 3 M . c o m / i n t e r c o n n e c t s

20

3M

™

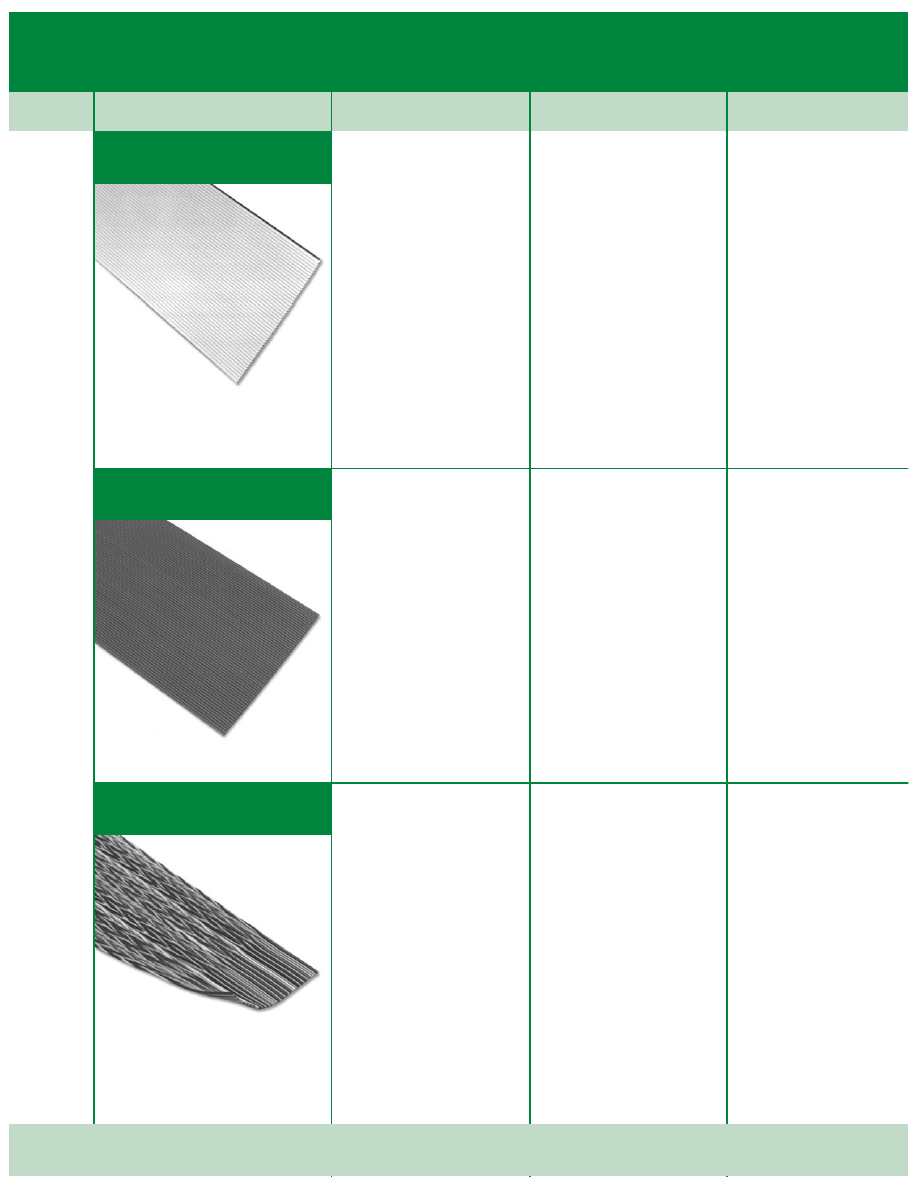

INPUT/OUTPUT CONNECTOR SOLUTIONS

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

28 AWG Wire on .050 Inch
Centers Permits Mass Termination
to a Broad Line of IDC Connectors

•

Stranded Wire Provides Flexibility
and Extended Product Life

•

Zippable for Branching or
Discrete Termination

•

Available in Gray or Black

•

2010 is Halogen Free

OPTIONS
•

.025", .033", .050", 1 mm,
.100" and .156" Center Line

•

18, 22, 24, 26 , 28 and 30
AWG Conductors

•

Solid and Stranded Conductors

•

Multiple Roll Lengths

•

UL/CSA Marking Line

•

PVC Jacket Options

•

For Other Variations, See Website

•

Split Sections

Insulation

Material: Polyvinyl Chloride
TPE, FEP, PO Insulators

Flammability:

USA: VW-1

Canada: FT-1

Temperature Rating:

-20°C

to   +105°C

Voltage:

USA 300V, Canada: 150V,

EU: <50V

• RoHS Compliant
•

Flex Life of 100
Million Cycles at 1 3/4
Inch Diameter

•

High Strength
Copper Alloy Provide the
Longest Flex Life Available
for Dynamic Applications

•

28 AWG Wire on .050 Inch
Wire Spacing Permits Mass
Termination to a Broad Line
of IDC Connectors

•

Zippable for Branching
or Discrete Termination

OPTIONS
•

High Flex

•

Medium Flex

Insulation

Material: Polyvinyl Chloride

Flammability:

USA: VW-1,

Canada FT-1

Temperature Rating:

-20°C

to +105°C

Voltage:

USA 300V,

Canada: 150V, EU: <50V

• RoHS Compliant
•

Wires are Color-Coded
for Easy Identification

•

Twist and Flat Repeat has
Variable Length Option

•

Can be Mass Terminated
to a Broad Line of IDC
Connectors

•

Provides Reduced Crosstalk
in Balanced Drive Applications

•

28 AWG Stranded Wire
Provides Flexibility and
Extended Product Life

•

10-Color Repeat

•

2100 is Halogen Free

OPTIONS
•

Color Coded

•

Variable Twist and Flat
Repeat Lengths

Insulation

Material: Polyvinyl Chloride
or PO Insulators

Flammability:

USA: VW-1

Canada: FT-1

Temperature Rating:

USA: -20° C to +105° C
Canada: -20° C to +80° C

Voltage:

USA 300V,

Canada: 150V, EU: <50V

Round Conductor Flat Cable

Series 3365, 3355, 2010, 3601

Extended Flex Life - Flat Cable

Series 3319, 3539

Twisted Pair Flat Cable

Series 1700, 2100

w w w . 3 M . c o m / i n t e r c o n n e c t s

21

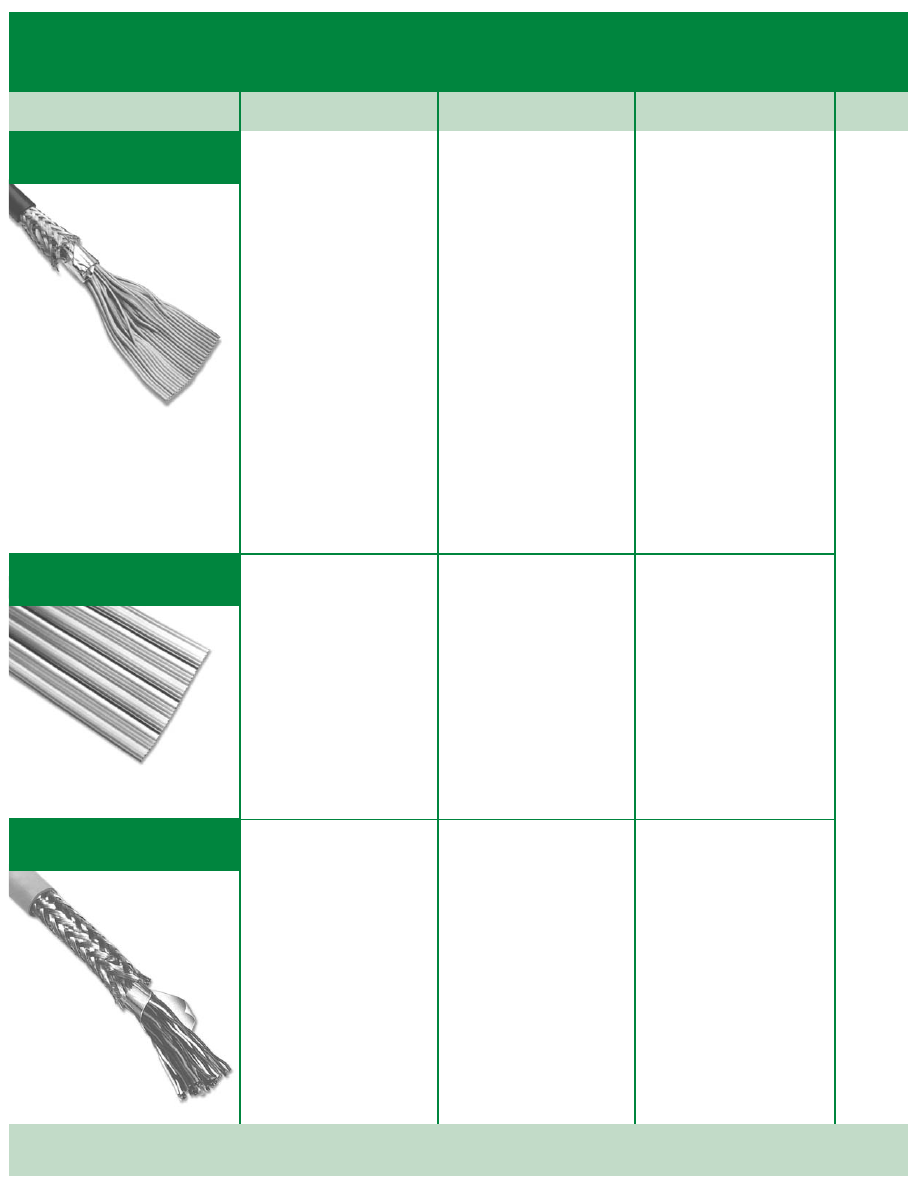

3M

™

CABLE SOLUTIONS

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

Round Construction Permits
Easier Routing

•

28 AWG Wire on .050 Inch
Pitch Permits Mass
Termination to Broad Line
of IDC Connectors

•

Continuous Split/Bond Repeat
Allows for Mass Termination
On 2.4 Inch Centers
(Approximate)

•

Primary Cable is Zippable for
Branching or Discrete
Terminations

•

Meets External Wiring
Requirements of National
Electrical Code, Article 725 (CL2)

•

UL listed for USA and
Canadian Markets

•

Dual Shielding Provides 35 db
Average Shielding Effectiveness

OPTIONS
•

.025", .050" Centerline

•

26, 28 and 30 AWG Conductors

•

Solid and Stranded Conductors

•

Shielded and Non-Shielded
Versions

Jacket

Material: Polyvinyl Chloride
or PO Insulators

Flammability:

USA: N.E.C.

725, CL2
Canada: FT-1

Temperature Rating:

USA: CL2;

75°C Max or AWM; -20°C to
+80°C, Canada: 80°C

Voltage:

USA 300V,

Canada: 150V, EU: <50V

• RoHS Compliant
•

28 AWG Wire on .050 Inch
Centers Permits Mass
Termination to a Broad Line
of IDC Connectors

•

Stranded Wire Provides Flexibility
and Extended Product Life

•

Zippable for Branching or
Discrete Termination Color
Coded for Wire Identification

OPTIONS
•

22, 26 and 28 AWG Conductors

•

100", .156" Centerline

Insulation

Material: Polyvinyl Chloride

Flammability:

USA: VW-1

Canada: FT-1

Temperature Rating:

USA: -20°C

to +105°C
Canada: -20°C to + 80°C

Voltage:

USA 300V,

Canada: 150V, EU: <50V

• RoHS Compliant
•

Meets External Wiring
Requirements of National
Electrical Code, Article 725 (CL2)

•

28 AWG Stranded Wire
Provides Flexibility

•

Twisted Pairs Reduce Crosstalk
for Balanced Drive Applications

•

Dual Shielding with Aluminum
Film Foil and Copper Braid Provides
Excellent EMI/ESD Protection

•

Wires are Color-Coded for
Easy Identification

•

35 db Average Shielding
Effectiveness

OPTIONS
•

26 and 28 AWG Conductors

Jacket

Material: Polyvinyl Chloride
and PO Insulators and Jacket

Flammability:

USA: N.E.C.

725, CL2
Canada: FT-1

Temperature Rating:

USA: CL2

75°C Max, Canada: 80°C

Voltage:

USA 300V,

Canada: 150V, EU: <50V

Round Jacketed Flat Cable

Series 3659, 3759, 3758, 3896

Color Coded Flat Cable

Series 3302, 3811

Round Jacketed Discrete

Twisted Pair Cable

Series 3600, 3644

Round Jacketed Flat Cable

Series 3659, 3759, 3758, 3896

Color Coded Flat Cable

Series 3302, 3811

Round Jacketed Discrete

Twisted Pair Cable

Series 3600, 3644

w w w . 3 M . c o m / i n t e r c o n n e c t s

22

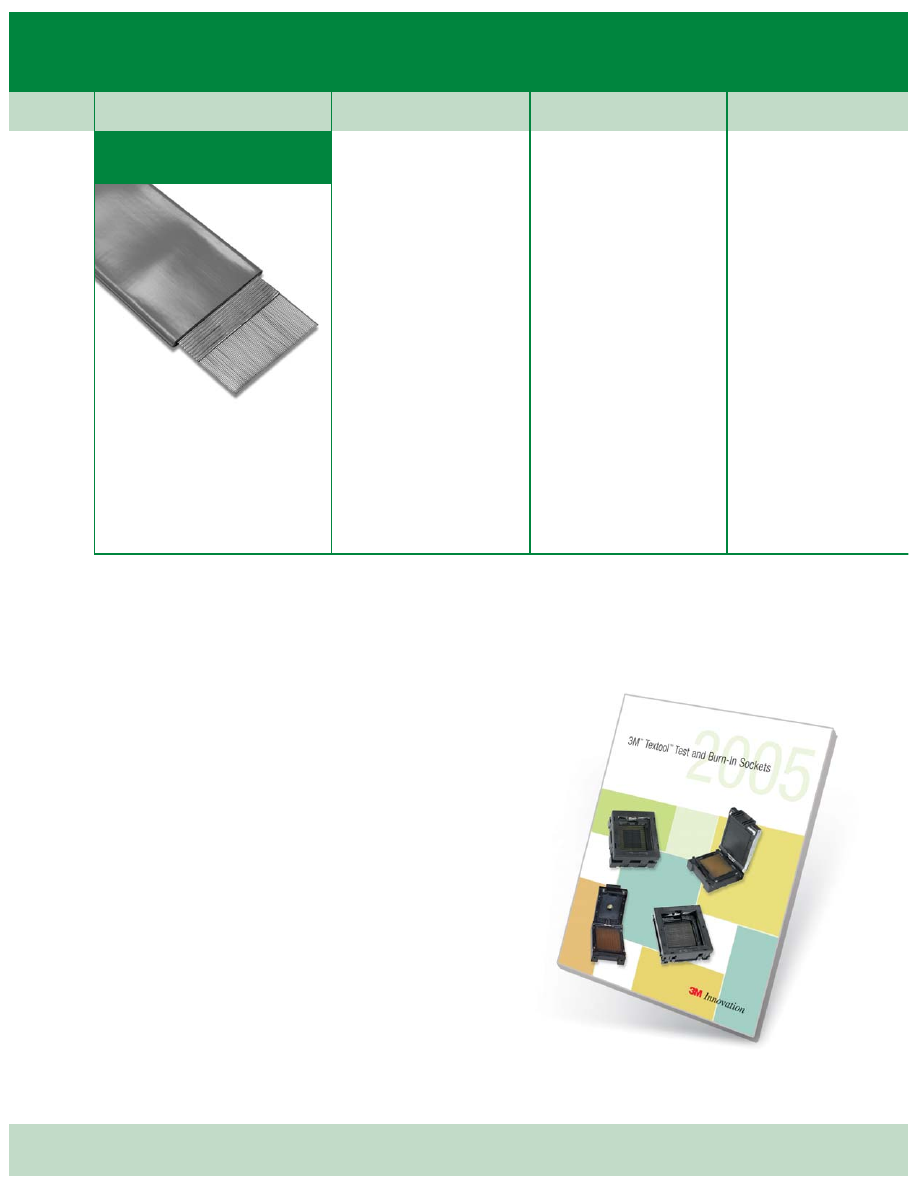

3M

™

CABLE SOLUTIONS

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

Compatible with IDC Mass
Termination Connectors

•

Functions with Applications
Requiring Standard Impedance
of 100

Ω

Balanced (Differential)

•

Extremely Low Crosstalk, Used
in the All-Signal Mode to
Quadruple Signal Density
as Compared to Standard
.050 Inch Flat Ribbon Cable

•

Solid Pleated Copper Foil
Provides Flexibility and 35 db
Average Shielding Effectiveness

•

CL2 Rated, Rugged Design
and High Reliability for
Peripheral Applications

OPTIONS
•

.025 " and .050" Centerline

•

28 and 30 AWG Conductors

•

Solid and Stranded Conductors

•

Thick and Thin Jacket Options

•

Low Skew Versions

Jacket

Material: TPE with PVC and TPE
Jacketing Materials

Flammability:

USA: N.E.C.

725, CL2, Canada: FT-1

Temperature Rating:

USA: CL2: 75°C; Canada: 80˚C

Voltage:

USA 300V,

Canada: 150V, EU: <50V

Pleated Foil Flat Cable

Series 901XX, 902XX, 931XX

w w w . 3 M . c o m / i n t e r c o n n e c t s

23

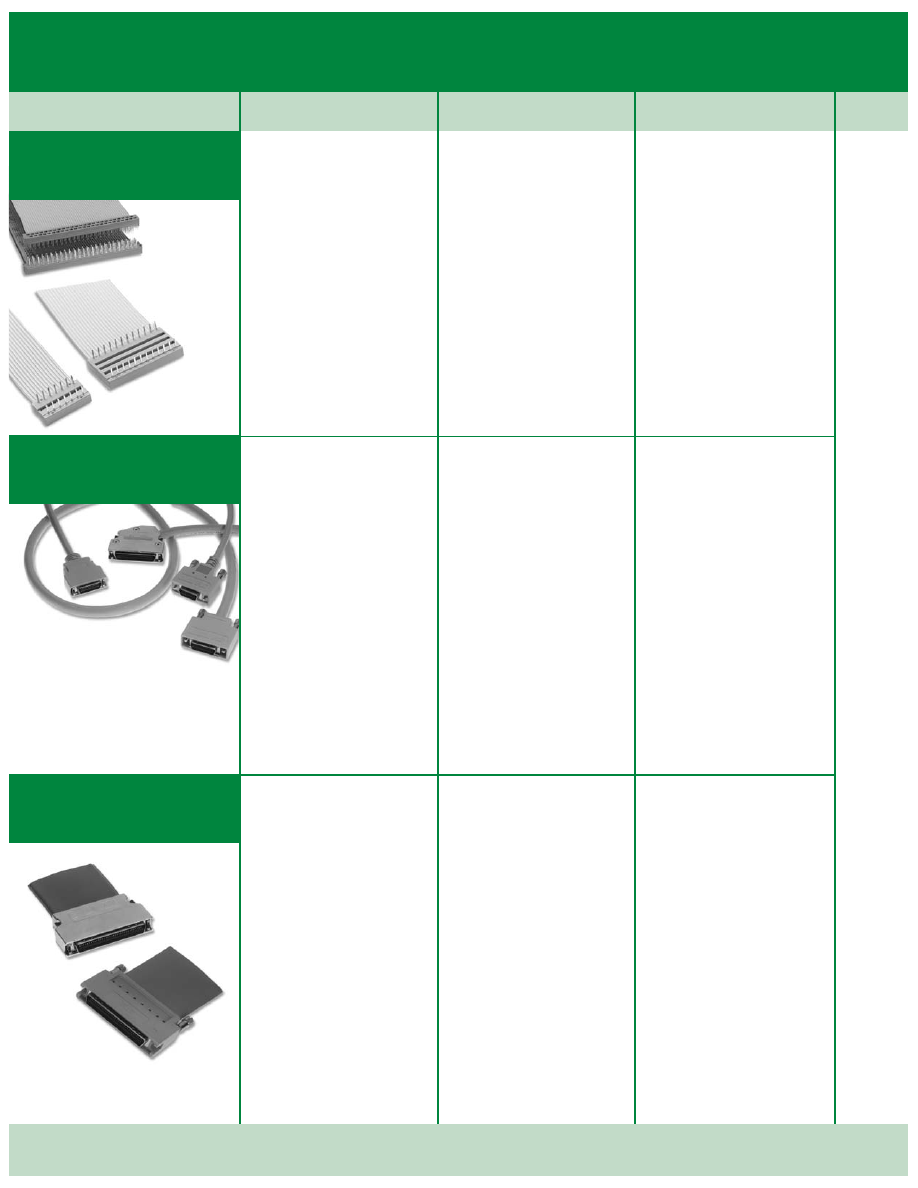

3M

™

CABLE SOLUTIONS

Looking for a Test and Burn-in Solution?

3M has a broad range of sockets for your test and burn-in applications.

Check out the 3M

™

Textool

™

Test and Burn-in Socket Solutions product

catalog and Open-Top BGA brochure on CD. Contact your local

3M sales representative to obtain a copy.

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant

When

Used with Compliant Cable

•

6-64 Positions

•

.100" x .100" - Sockets,
PCBs and DIPs

•

2 mm x 2 mm - Sockets and PCBs

•

One Piece, Molded-on
Construction Provides
Integral Strain Relief

•

Mates with Standard .100" x .100"
and 2 mm x 2 mm Headers
and Plugs

•

26 and 28 AWG Cable Available

Material varies for connectors
and cables. See website for
specifics.

Temperature Rating:

-20°C

to +105°C

• RoHS Compliant

Pending

on Some Versions

•

14-100 Positions

•

.050" Pitch Ribbon Style
Contact Provides Reliable
Mating and is Industry
Preferred

•

Compatible for a
Variety of LVDS, IEEE 1284,
Camera Link

®

,

PanelLink

TM

/ TMDS,

Flat Link

TM

, and Channel Link

TM

,

OpenLDI and QuadLDI
Applications

•

Mates with Standard 3M
MDR Boardmount Products

•

Unshielded or Sheilded
Twisted Pair or Twinax
Cable Options

•

Contact 3M for Custom
Configurations

Materials vary for connectors,
cables, shells and jackscrews.
See website for specifics.

Current Rating:

1 A

Flammability:

AWM VW-1

Temperature Rating:

-20°C

to +75°C

• RoHS Compliant
•

Offers Superior Combination
of High-Density, Electrical
Performance, Shielding
and Durability

•

Allows Digital Data Rates
of up to 200 Megabits Per
Second Per Conductor

•

Mates with Standard 3M
MDR Boardmount
Connectors

•

Pleated Copper Foil Provides
360 Degree Shield and
Enables Coax-Like
Performance

•

Overmolded and Metal
with Latching and
Thumbscrew Shells
Available

•

Position Sizes from
20-100

Materials vary for connectors,
cables, shells and jackscrews.
See website for specifics.

Temperature Rating:

75°C maximum

Molded Flat Ribbon Assemblies

Series 1M, 2M

Mini Delta Ribbon (MDR)

Cable Assemblies,

Round Cable, Input/Output
Series 14XXX, 4926, 4120

Mini Delta Ribbon (MDR),

Pleated Foil Input/Output

Cable Assemblies

Series OM, LS, MS

Molded Flat Ribbon Assemblies

Series 1M, 2M

Mini Delta Ribbon (MDR)

Cable Assemblies,

Round Cable, Input/Output
Series 14XXX, 4926, 4120

Mini Delta Ribbon (MDR),

Pleated Foil Input/Output

Cable Assemblies

Series OM, LS, MS

w w w . 3 M . c o m / i n t e r c o n n e c t s

24

3M

™

CABLE  ASSEMBLY SOLUTIONS

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

Supplied as a Complete
Assembly Only

•

Supports New AIA Industrial
Camera Link

®

Standard for

Mini C/L Camera to C/L Frame
Grabber Applications

•

11 Shielded Twisted Twinax
Pairs with Four Drain Wires

•

Double Overall Shield with
Foil and Outer Braid EMI
Shielded Cable Assembly

•

Straight and Right Angle
Configurations Available

•

SDR-to-SDR and MDR-to-SDR
Options Available

•

Mates with 3M SDR and MDR
Boardmount Products

Insulation

Material: Polyvinyl Chloride

Plating

Underplating: 100 µ" [ 2.55 µm ]

Nickel

Wiping Area: 30 µ" [ 0.76 µm ]

Min Gold

Material varies for connectors,
cables, shells and jackscrews.
See website for specifics.

Current Rating:

0.5 A

Flammability:

AWM VUS-1

Temperature Rating:

0°C

to 70°C

• RoHS Compliant
•

15-position Power Cable

•

Rugged Over-molded
Construction Provided in
Standard Lengths

•

“Y” Type Supports
Multiple Devices

Insulation

Material: High Temperature

Thermoplastic

Plating

Wiping Area: 30 µ" [ 0.76 µm ]

Gold

Solder Tails: 100 µ" [ 2.54 µm ]

Tin

Underplating: 50 µ" [ 1.27 µm ]

Nickel

Current Rating:

4.5 A

Flammability:

UL 94V-0

Temperature Rating:

Operational: 0°C to +55°C
Non-Operational: -40°C

to +85°C

• RoHS Compliant
•

7-position Serial Signal
Assembly

•

Multiple Variations in Length
and Interface Attachments

•

Point-to-point Signaling

•

Polarized Interface Insures
Proper Alignment

•

26 AWG Stranded
Differential Pairs

Insulation

Material: High Temperature

Thermoplastic

Plating

Wiping Area: 30 µ" [ 0.76 µm ]

Gold

Solder Tails: 100 µ" [ 2.54 µm ]

Tin

Underplating: 50 µ" [ 1.27 µm ]

Nickel

Current Rating:

1.5 A

Flammability:

UL 94V-0

Temperature Rating:

Operational: 0°C to +55°C
Non-Operational: -40°C

to +85°C

Shrunk Delta Ribbon (SDR) Cable

Assemblies, .80 mm, Input/Output

Series 1MG, 1MF, 1SF

Serial Advanced Technology Attachment

(SATA) Power Cable

Series 5601

Serial Advanced Technology Attachment

(SATA) Signal Cable

Series 5601

w w w . 3 M . c o m / i n t e r c o n n e c t s

25

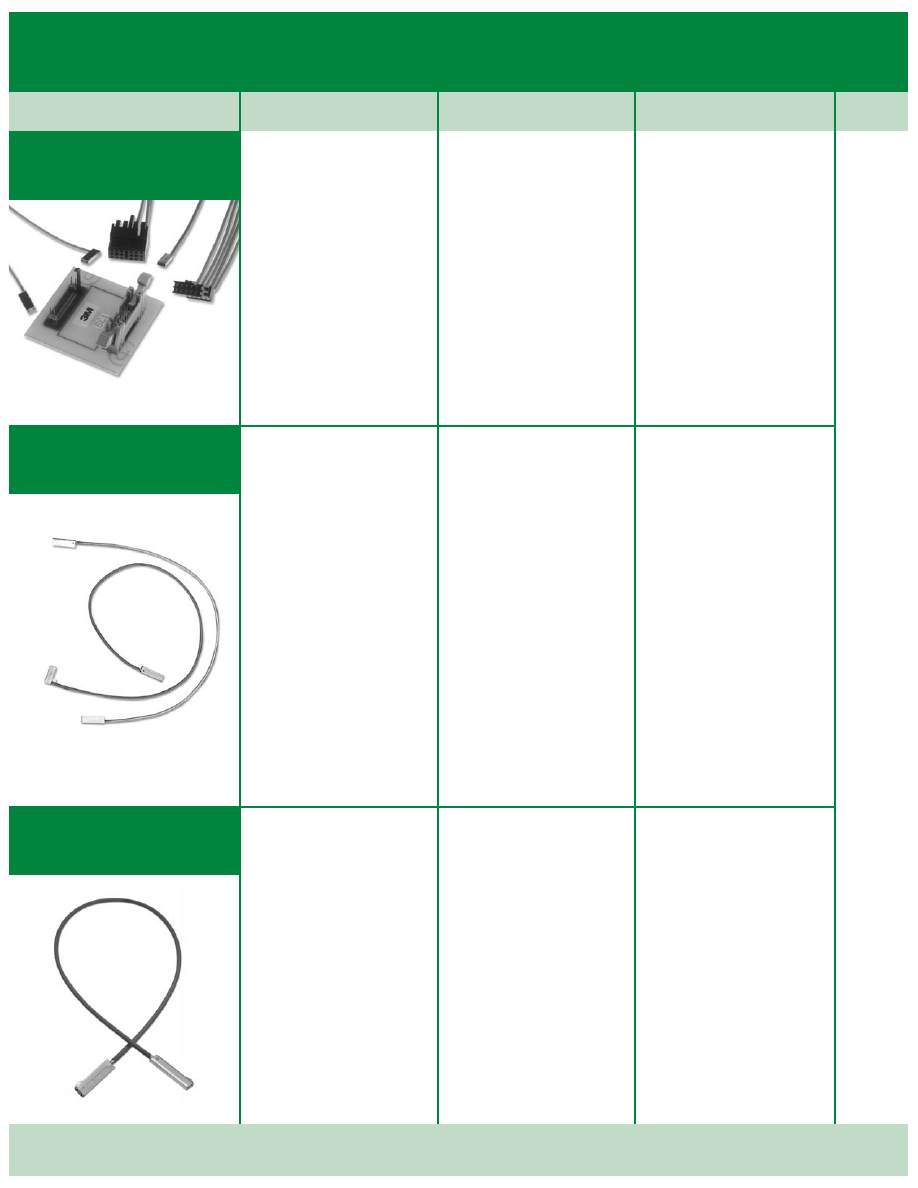

3M

™

CABLE  ASSEMBLY SOLUTIONS

26

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

• RoHS Compliant
•

Robust Metal Grounded
Connectors Provide EMI
Shielding and Controlled
Impedance for Industry
Leading Signal Integrity
and Performance

•

.100” (2.54 mm) Center
Spacing

•

Available in Stand-Alone and
Carrier Versions

Stand-Alone Version
•

Available in Right Angle
and Straight Configurations

•

Mates with 3M Two-pin Headers

Carrier Version
•

Available in Straight Configuration
Designed for use with the 3M
SCI Carrier System

•

Mates with .100” x .100” Headers

•

Carriers may be Purchased
Separately

Contact

Material: Beryllium Copper

Insulation

Material: Thermoplastic

Current Rating:

1A

Flammability:

UL 94V-0

Temperature Rating:

-55˚ to

+105˚C

•

High Density 2.0 mm Center Spacing

•

Available in Stand-alone and
Carrier Versions

•

Mates with CompactPCI

®

, HSHM,

Futurebus

®

and 3M

™

Pin

Strip Headers, 1512 Series, 20-Pin

•

Provides over 12 Gbps Performance

•

Available with High Performance
Coaxial or Twinaxial Cables

•

Available with or without External
Ground Clips

Contact

Material: Beryllium Copper

Insulation

Material: Thermoplastic

Bandwidth:

Rated for Applications

Requiring up to 12 Gbps
Performance

Current Rating:

1A

Flammability:

UL 94V-0

Temperature Rating:

-40˚ to

+105˚C

Shielded Controlled Impedance

(SCI) Assemblies

High Speed Series 98

SCI Cable

Assembly, .100"

SCI Cable

Assembly, 2 mm

Shielded Controlled Impedance

(SCI) Assemblies

High Speed Series 98

SCI Cable

Assembly, .100"

SCI Cable

Assembly, 2 mm

w w w . 3 M . c o m / i n t e r c o n n e c t s

26

3M

™

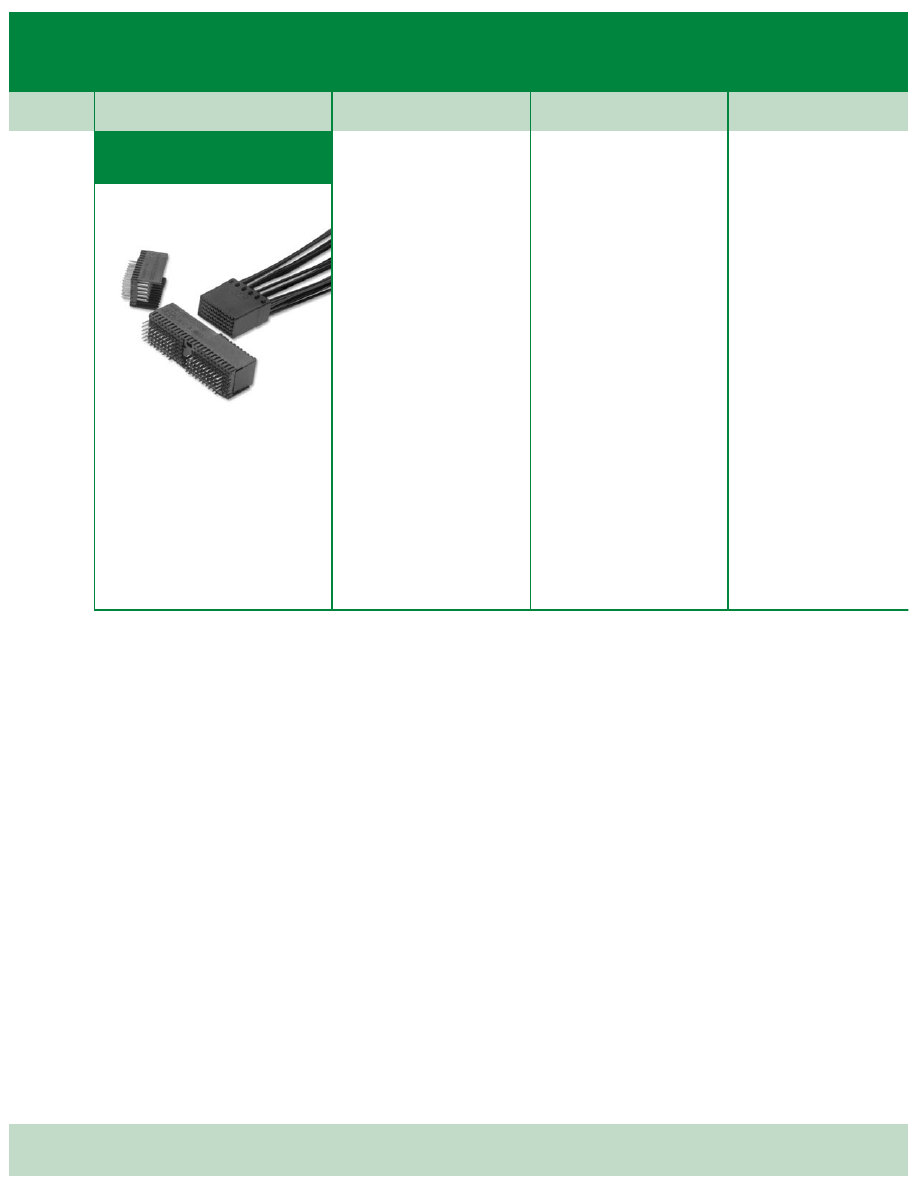

CABLE ASSEMBLY SOLUTIONS

HIGH SPEED ASSEMBLIES

PRODUCT

FEATURES

MATERIALS

PERFORMANCE

•

Available with 0.100" and
2 mm SCI

•

Double-ended SCI with Carrier
or Optional Spring Probe
Termination

•

Controlled Impedance Through
the Interface to Provide Minimal
Reflections

•

Low-loss, Low Cross-talk and
Low Skew to Provide the
Industry Leading Eye Openings
and Performance

•

Available in Differential or
Coaxial Cable Configurations

•

Contact 3M for Custom
Configurations

0.100” Harness Assemblies
•

Compatible with Standard
.100” x .100” Headers

•

Standard Carriers Available

2 mm Harness Assemblies
•

Compatible with CompactPCI

®

,

HSHM, Futurebus

®

and 3M

™

Pin

Strip Headers, 1512 Series, 20-Pin

•

Industry Leading Signal
Density of up to 101 Signals
per Linear Inch

•

Surfacemount 3-wall Header
Available

Custom Harness

Assemblies

27

3M

™

CABLE ASSEMBLY SOLUTIONS

HIGH SPEED ASSEMBLIES

Printed in U.S.A.
80-4000-1947-9 (120640.) K/CSI-1
© 3M 2006  All Rights Reserved.

Please Recycle

3M Electronics

6801 River Place Blvd.
Austin, TX  78726-9000
www.3M.com/interconnects
1-800-225-5373

Camera Link is a certification mark of Automated Imaging Association.
Channel Link is a trademark of National Semiconductor.
CompactFlash is a trademark of SanDisk Corporation.
CompactPCI is a trademark of PICMG-PCI Industrial Computer Manufacturers Group, Inc.
FlatLink is a trademark of Texas Instruments.
Futurebus and Futurebus+ are trademarks of the Institute of Electrical and Electronic Engineers, Inc. (IEEE)
PanelLink is a trademark of Silicon Image, Inc.
Winzip is a trademark of Winzip Computing, Inc.

3M, MetPak and Textool are trademarks of 3M Company.

Important Notice

Before using this product, you must evaluate it and determine if it is suitable for your intended application.
You assume all risks and liability associated with such use.

Warranty; Limited Remedy; Limited Liability.

3M’s product warranty is stated in its Product Literature available upon request.

3M MAKES NO OTHER

WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE.

If this product is defective within the warranty period stated above,

your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M
product. Except where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or
damage arising from this 3M product, regardless of the legal theory asserted.
