YAGEO

Corporation

Date: 04/15/2009

Aluminum Electrolytic Capacitors File : 2060
Engineering Bulletin for SH Type                                                                                              Page: 1/25
______________________________________________________________________________________

SH Type

+105ºC Single-ended lead aluminum electrolytic capacitors for the rated voltage up to 450 V.

.    Long life for 105ºC, 2000 hrs, suited for high quality and high reliability demander.
.    High CV product, the dimension are as same as SEK series for under 100WV.

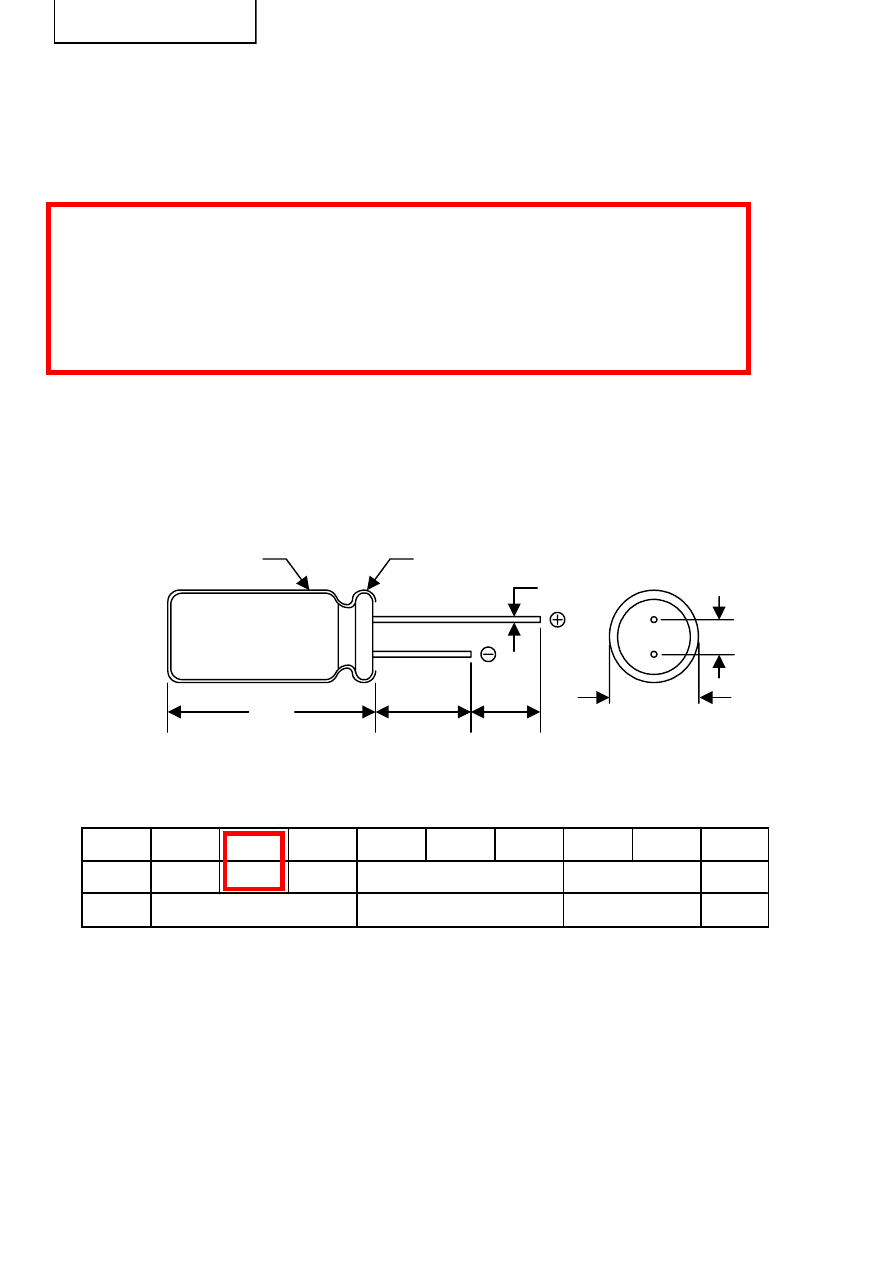

Diagram of Dimensions    (Unit = mm)

≦

16 :

L > 16 :

=8 & 10:

L+1.5max

L+2.5max

D +0.5

0.5

Rubber End Seal

Vinyl Sleeve

15 Min 5 Min

5.0

6.0

8.0

10.0 12.0 13.0 16.0 18.0 22.0

2.0

2.5

3.5

10.0

0.8

5.0
0.6

0.5

7.5
0.8

L+2max

ψ< 20 :

ψ+0.5

ψ≧ 20 :

ψ+1

Artikel Nr. 431204 100µF 25V

431204-html.html

YAGEO

Corporation

Date: 04/15/2009

Aluminum Electrolytic Capacitors File : 2060
Engineering Bulletin for SH Type Page: 2/25
______________________________________________________________________________________

0100

025

0611

Series

2 digit

Voltage

Tolerance

Capacitance

Rubber

Case size

3 digit
006 =  6.3V
010 =   10V
100 = 100V
450 = 450V

3 digit
006 = 6.3V
010 = 10V
100 = 100V
450 = 450V

1 digit

K =

10%

M =

20%

Y = -10% ~ +50%

W = - 5% ~ +20%

V = -10% ~ +20%

1 digit

K =

10%

M =

20%

Y = -10% ~ +50%

W = - 5% ~ +20%

V = -10% ~ +20%

YAGEO

Radial Type E-Cap Ordering Code

1 digit
- = no lead cut / standard
1 = Lead cut length 5.0

0.2 mm

2 = Lead cut length 4.5

0.2 mm

3 = Lead cut length 4.2

0.2 mm

5 = Lead cut length 8 .0

0.2 mm

8 = Lead cut length 10.0

0.5 mm

9 = Lead cut length 3.5

0.3 mm

J = Lead cut length 3.1

0.2 mm

L = Lead cut length 3.3

0.2 mm

V = Lead cut length 2.8

0.2 mm

M = Lead cut length 3.7

0.2 mm

Q = Lead cut length 7.0

0.5 mm

W = Lead cut length 4.0

0.2 mm

1 digit
- = no lead cut / standard
1 = Lead cut length 5.0

0.2 mm

2 = Lead cut length 4.5

0.2 mm

3 = Lead cut length 4.2

0.2 mm

5 = Lead cut length 8 .0

0.2 mm

8 = Lead cut length 10.0

0.5 mm

9 = Lead cut length 3.5

0.3 mm

J = Lead cut length 3.1

0.2 mm

L = Lead cut length 3.3

0.2 mm

V = Lead cut length 2.8

0.2 mm

M = Lead cut length 3.7

0.2 mm

Q = Lead cut length 7.0

0.5 mm

W = Lead cut length 4.0

0.2 mm

4 digit
0507 = 05x07
0611 = 06x11
1019 = 10x19
1625 = 16x25

1 digit

F = Flat rubber
S = Rubber stand-off

1 digit

F = Flat rubber
S = Rubber stand-off

Pitch

1 digit

A = Taping

B = Bulk

C = Lead cut / Bulk

F = Form & Lead cut / Bulk

K = Form & Lead cut & crimp / Bulk

L = Lead cut & crimp / Bulk

1 digit

A = Taping

B = Bulk

C = Lead cut / Bulk

F = Form & Lead cut / Bulk

K = Form & Lead cut & crimp / Bulk

L = Lead cut & crimp / Bulk

1 digit

1 =  1.5 mm
2 =  2.0 mm
3 =  3.5 mm
5 =  5.0 mm
7 =  7.5 mm

Z = 2.5 mm

P = 10.0 mm

1 digit

1 =  1.5 mm
2 =  2.0 mm
3 =  3.5 mm
5 =  5.0 mm
7 =  7.5 mm

Z = 2.5 mm

P = 10.0 mm

4 digit

0R10 =

0.1 uF

1R00 =          1 uF
0010 =         10 uF
0100 =       100 uF
1000 =     1000 uF
10K0 = 10000 uF
100K = 100000 uF

4 digit

0R10 =

0.1 uF

1R00 =          1 uF
0010 =         10 uF
0100 =       100 uF
1000 =     1000 uF
10K0 = 10000 uF
100K = 100000 uF

431204-html.html

YAGEO

Corporation

Date: 04/15/2009

Aluminum Electrolytic Capacitors File : 2060
Engineering Bulletin for SH Type Page: 3/25
______________________________________________________________________________________

PERFORMANCE CHARACTERISTICS

Feature
. Working voltage range : 6.3 to 100V ! 160 to 450V
. Operating temp. range    : -40 to 105ºC ! -25ºC to +105ºC
. Rate capacitance range : 0.47 to 15000uF ! 0.47 to 470uF
. Capacitance tolerance      : -20 to +20%            !    -20 to +20%
. DC leakage current (uA) : 0.01CV+3 ! 0.03CV+10
( Measurements shall be made after a 2 minute charge at rated working voltage, @ 20ºC )
. Dissipation factor          : at 120 Hz, 20ºC

WV(V) 6.3 10 16 25 35 50 63 100 160-250 350-450
----------------------------------------------------------------------------------------------------------
DF(%) 26 22 18 16 14 12 10 10 15 20

For capacitor whose capacitance exceeds 1000 uF, the value of DF(%) is increased by 2% for every
addition of 1000 uF.

. Load Life (105ºC, 2000 hrs.)

Capacitance change ..... : within 20% of initial value
Dissipation factor .. .. : not exceed 200% of specified value
Leakage current ..... .. : not exceed the specified value

. Shelf Life (1000 hrs, no voltage applied)

Capacitance change ..... : within 20% of initial value
Dissipation factor    ..... : not exceed 200% of specified value
Leakage current ...... .. : not exceed the specified value

Catalog Numbering
SH 016 M 1000 A 5 S -

1019

-- --- - ---- - - - -

----

: : : : : : : :

:…Case size

: : : : : :

: :…Lead cut

: : : : :

: …Rubber

: : : :

: : …Pitch

: : :

: …Package Code

: :

: …Capacitance. This expressed in microfarads

: …Capacitance tolerance

: …DC voltage rating. This is expressed in volt.

:…YAGEO type number. This identifies the basic capacitor design

431204-html.html

YAGEO

Corporation

Date: 04/15/2009

Aluminum Electrolytic Capacitors File : 2060
Engineering Bulletin for SH Type Page: 4/25
______________________________________________________________________________________

PERFORMANCE CHARACTERISTICS (continued)

1. General Characteristics
1.1 Marking

Capacitors shall be marked with YAGEO mark ; rated capacitance ; rated DC working voltage range.
and the date code of manufacture. The cathode lead will be identified with minus signs (-) on the side of
the case.

1.2 Operating Temperature Range

These capacitors are designed to operate over a temperature range of -40ºC to +105ºC, for the rated
voltage up to 450 V.

1.2.1 At -40ºC, capacitors shall retain at least 70% of their original 20ºC measured capacitance. At +85ºC.

capacitance shall increases to no more than 120% of their original 20ºC measured capacitance.

1.2.2 At -40(-25) ºC, impedance shall increase to no more than the following table.

TEMPERATURE CHARACTERISTIC (@ 120Hz)
Working Voltage (WV) 6.3 10 16 25 35-100 160-250 315-450
---------------------------------------------------------------------------------------------------------------
              Impedance Z-25ºC/ Z+20ºC      4          3        2        2          2                4                4
              Impedance Z-40ºC/ Z+20ºC      8          6        4        3          3                6                8

1.3 Vent Test (applies only to those capacitors with vents.)

During and after the applicable test below (1.3.1 or 1.3.2.) there shall be no explosion, flash, flame or
expulsion of particles of the core or container. In addition, the case shall not be expelled from the core.
If the capacitor under test is a multisection unit, this test shall apply to the input section only.

1.3.1 AC Test. Capacitors with DC Rating Over 100 Volts

The capacitor under test shall be connected to a 120 volt MS 60Hz, 100 ampere service through a 30
ampere thermal breaker and a 0.5 ohm, low inductance, series resistor. The capacitor shall be connected
to this circuit for 5 minutes after the initial setting of the breaker or until the breaker has opened 3 times.
lf the breaker opens, it shall be reset not sooner than 30 seconds nor longer than 60 seconds from the
time it opened.

1.3.2 DC Test. Capacitors with DC Rating 100 Volts or Less

Both of the following tests shall be performed, but on separate test units.

1.3.2.1 Forward Bias Test.

The capacitor under test shall be connected to a DC power supply that has sufficient voltage to supply a
constant direct current of 500 milliamperes with the positive terminal of the capacitor connected to the
positive supply terminal and the negative capacitor terminal connected to the negative supply terminal.
The constant current shall be maintained until (1) the capacitor vents, (2) 300 seconds have elapsed, or
(3) the capacitor under test open circuits.

431204-html.html

YAGEO

Corporation

Date: 04/15/2009

Aluminum Electrolytic Capacitors File : 2060
Engineering Bulletin for SH Type Page: 5/25
______________________________________________________________________________________

PERFORMANCE CHARACTERISTICS (continued)

1.3.2.2 Reverse Bias Test.

The capacitor under test shall be connected to a power supply with sufficient voltage to provide a
constant direct current of 500 milliamperes when the positive capacitor terminal is connected to the
negative supply terminal and the negative capacitor terminal to the positive supply terminal. The
constant current shall be maintained until (1) the capacitor vents, (2)300 seconds have elapsed, or (3)
The capacitor open circuits.

2. Mechanical Characteristics
2.1 Lead Pull test

Capacitor leads shall withstand a steady pull of 1 Kg applied axially to the leads for 5 seconds.

3. Electrical Characteristics
3.1 Standard Test Conditions

Unless otherwise specified all tests shall be performed at, or referred to, an ambient temperature of 20ºC
and a relative humidity not greater than 50%.

3.2 Capacitance and Dissipation Factor

Measurements shall be made on a capacitance bridge capable of +-2% accuracy on capacitance and
dissipation factor measurements. Measurements shall be made at 120 Hz The RMS value of the AC
measuring voltage shall not exceed 1.0 volt.

3.3 Leakage Current
3.3.1 Pre-conditioning. Rated working voltage shall be applied to capacitors for a minimum period of 15

minutes duration at least 24 hours and not more than 48 hours before test.

3.3.2 Test. Measurements shall be made after a 2 minute charge at rated working voltage at 20ºC with an

application of a steady source of power. Such as a regular power supply, with a 1000 ohm resistance to
limit the charging current, connected in series with each capacitor under test.

3.4 Surge Voltage

The surge DC rating is the maximum voltage to which the capacitor should be subjected under any
conditions. This includes transients and peak ripple at the highest line voltage.

3.4.1 Capacitors, connected in series with 1000 ohm resistors, shall withstand the surge test voltage applied

at the rated of 1/2 minute on, 5 1/2 minutes off, for 1000 successive test cycles at 20ºC.(see the
following table)

Rated Voltage 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450
--------------------------------------------------------------------------------------------------------------------
Surge Voltage 8 13 20 32 44 63 79 125 200 250 300 400 450 500

431204-html.html

YAGEO

Corporation

Date: 04/15/2009

Aluminum Electrolytic Capacitors File : 2060
Engineering Bulletin for SH Type Page: 6/25
______________________________________________________________________________________

PERFORMANCE CHARACTERISTICS (continued)

3.4.2 After the test, the capacitors shall meet the requirement specified in the following table.

Test Value

after

test

Leakage Current Not more than the initial value specified

Capacitance
Change

More than 85% of the value before test

Dissipation
Factor

Not more than 175% of the initial value specified

3.5 Humidity Test

Capacitors shall be subjected to a temperature of 40 +-2ºC at a relative humidity of 90-95% for a period
of 500 hours, then air dried for 1 hour. Following this conditioning, capacitors shall meet the specified
requirements for dissipation factor and DC leakage current, and the capacitance value shall not change
more than 10%.

4. Life And Reliability Test
4.1 Life Test
4.1.1 Rated voltage shall be applied to the capacitors for a period of 2000 hours with maximum ripple

current while units are maintained at an ambient temperature of +105ºC.

4.1.2 Capacitors shall then be removed from the test chamber and return to room temperature.
4.1.3 The capacitance shall then be measured in accordance with section 3.2 It shall not decrease to less than

80% of the capacitance at 20ºC, measured prior to the test, nor shall it increase to more than 120% of the
original 20ºC value.

4.1.4 The dissipation factor shall be measured in accordance with section 3.2 The dissipation factor shall not

exceed 200% of the specified value.

4.1.5 At the conclusion of the test, the leakage current shall not exceed the initial DC leakage current

requirement. Measurements shall be made in accordance with section 3.3

4.2 Shelf Test

After storage for 1000 hours at 105ºC with no voltage applied, the capacitance change within 20% of
initial value at 20ºC and dissipation factor shall meet the initial requirements of section 4.1.4; the DC
leakage current, measured in accordance with section 3.3, shall not exceed 200% of the specified value
for the capacitor.

431204-html.html

YAGEO

Corporation

Date: 04/15/2009

Aluminum Electrolytic Capacitors File : 2060
Engineering Bulletin for SH Type Page: 7/25
______________________________________________________________________________________

GUIDE TO APPLICATION

1. Maximum Ripple Current
1.1 Maximum rms. ripple current at 105ºC 120 Hz is given in the table 1.
1.2 When capacitors are operated at temperatures other than 105ºC, and frequency other than 120 Hz, the

maximum rms. ripple currents must be multiplied by the factors shown in below table.

COMPENSATION FACTOR OF RIPPLE CURRENT VERSUS FREQUENCY
WV. CAP(uF) 50 120 300 1K 10K-100K (Hz)
---------------------------------------------------------------------------------------
6.3-100V Below - 68

μF

0.75

1 1.3 1.57 2.00

6.3-100V 69 - 470

μF

0.80 1

1.23 1.34 1.50

6.3-100V 471 - 22000

μF

0.85 1

1.10 1.13 1.15

160-450V All Cap(

μF)

0.80 1

1.25 1.40 1.60

2. Ripple voltage

Ripple voltage must not exceed the following:
The sum of the DC voltage plus the AC ripple voltage must not exceed the rated DC voltage. The DC
voltage plus the peak AC voltage must not cause a voltage reversal more than 1.5 volts.

3. Insulating

General types of aluminum electrolytic capacitors are covered with a vinyl sleeve or the like. And this
sleeve is used for marking. When the internal element or the container is needed to be insulated,
capacitors specially designed for insulation requirement are recommended to be used.

4. Soldering

4-1 When soldering a printed circuit board with various components, too high soldering temperature or too

long dipping times may cause secondary shrinking of the sleeve which unnecessarily exposes the
container. Soldering is allowed to performed at less than 260ºC for less than 10 seconds.

4-2 Soldering may melt or break the sleeve,if the sleeve is contacted with circuit patterns. To avoid this

trouble, the capacitors are recommended to be slightly apart from the circuit boards.

431204-html.html

YAGEO

Corporation

Date: 04/15/2009

Aluminum Electrolytic Capacitors File : 2060
Engineering Bulletin for SH Type Page: 8/25
______________________________________________________________________________________

GUIDE TO APPLICATION (continued)

5. Vent

The capacitors are provided with a pressure resistive controlled safety vent formed on the bottom of the
container. The vent is designed to rupture in the event that higher internal pressure is developed by
circuit malfunction or capacitor miss-use.

6. High Altitude

These capacitors are capable of withstanding in transit conditions where storage temperature may range
from -40ºC to +105ºC and the altitude may reach 200,000 feet.

7. Cleaning agents

Halogenated hydrocarbon cleaning solvents are not recommended for use in cleaning capacitors
supplied with exposed end seals. Where cleaning with a halogenated solvent is desired,capacitors should
be ordered with a Epoxy-coated end seal.

8. Others
(1) All Yageo capacitors comply to RoHS(Restriction of Hazardous Substances) requirements where
Chromium (Cr+6),Cadmium(Cd), Mercury(Hg), Lead (pb), Polybrominated biphenyls(PBBs)and
Polybrominated biphenyl/diphenyl ethers (PBBEs/PBDEs) have not been detected [lower than MDL
(Method Detection Limit)] per SGS certification test report.
(2) Satisfied characteristic JIS C 5101
(3) Aluminum Electrolytic Capacitors may be damaged by corrosion which is caused by any halogenated
hydrocarbon solvents. Please let us know in advance the solvent name and conditions for your PCB
cleaning.

431204-html.html

Table 1-1 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(µA)

(Tan

)

(mA)

SH006M0100B2F-0511 100

6.3

5X11

9 0.26 100

SH006M0100A2F-0511 100

6.3

5X11

9 0.26 100

SH006M0100AZF-0511 100

6.3

5X11

9 0.26 100

SH006M0100A5F-0511 100

6.3

5X11

9 0.26 100

SH006M0150B2F-0511

150

6.3

5X11

0.26

120

SH006M0150A2F-0511

150

6.3

5X11

0.26

120

SH006M0150AZF-0511

150

6.3

5X11

0.26

120

SH006M0150A5F-0511

150

6.3

5X11

0.26

120

SH006M0220BZF-0611

220

6.3

6.3X11

0.26

165

SH006M0220AZF-0611

220

6.3

6.3X11

0.26

165

SH006M0220A5F-0611

220

6.3

6.3X11

0.26

165

SH006M0330BZF-0611

330

6.3

6.3X11

0.26

161

SH006M0330AZF-0611

330

6.3

6.3X11

0.26

161

SH006M0330A5F-0611

330

6.3

6.3X11

0.26

161

SH006M0330B3F-0811 330

6.3

8X11 24 0.26

200

SH006M0330A3F-0811 330

6.3

8X11 24 0.26

200

SH006M0330A5F-0811 330

6.3

8X11 24 0.26

200

SH006M0470BZF-0611

470

6.3

6.3X11

0.26

225

SH006M0470AZF-0611

470

6.3

6.3X11

0.26

225

SH006M0470A5F-0611

470

6.3

6.3X11

0.26

225

SH006M0470B3F-0811

470

6.3

8X11

0.26

280

SH006M0470A3F-0811

470

6.3

8X11

0.26

280

SH006M0470A5F-0811

470

6.3

8X11

0.26

280

SH006M0680B5S-1012

680

6.3

10X12

0.26

320

SH006M0680A5S-1012

680

6.3

10X12

0.26

320

SH006M1000B5S-1012

1000

6.3

10X12

0.26

470

SH006M1000A5S-1012

1000

6.3

10X12

0.26

470

SH006M1500B5S-1015

1500

6.3

10X15

0.26

600

SH006M1500A5S-1015

1500

6.3

10X15

0.26

600

SH006M2200B5S-1320

2200

6.3

13X20

142

0.28

930

SH006M2200A5S-1320

2200

6.3

13X20

142

0.28

930

SH006M3300B5S-1320

3300

6.3

13X20

211

0.30

1100

SH006M3300A5S-1320

3300

6.3

13X20

211

0.30

1100

SH006M4700B7F-1625

4700

6.3

16X25

299

0.32

1320

SH006M4700A7F-1625

4700

6.3

16X25

299

0.32

1320

SH006M6800B7F-1625 6800

6.3

16X25 431 0.36 1490

SH006M6800A7F-1625 6800

6.3

16X25 431 0.36 1490

SH006M10K0B7F-1632

10000

6.3

16X32

633

0.44

1830

SH006M15K0B7F-1836

15000

6.3

18X36

948

0.54

2280

SH010M0047B2F-0511

5X11

0.22

SH010M0068B2F-0511

5X11

0.22

SH010M0068A2F-0511

5X11

0.22

SH010M0068AZF-0511

5X11

0.22

SH010M0068A5F-0511

5X11

0.22

431204-html.html

Table 1-2 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(

(Tan

)

(Ma)

SH010M0100B2F-0511

100

5X11

0.22

110

SH010M0100A2F-0511

100

5X11

0.22

110

SH010M0100AZF-0511

100

5X11

0.22

110

SH010M0100A5F-0511

100

5X11

0.22

110

SH010M0150BZF-0611

150

6.3X11

0.22

130

SH010M0150AZF-0611

150

6.3X11

0.22

130

SH010M0150A5F-0611

150

6.3X11

0.22

130

SH010M0220BZF-0611

220

6.3X11

0.22

180

SH010M0220AZF-0611

220

6.3X11

0.22

180

SH010M0220A5F-0611

220

6.3X11

0.22

180

SH010M0330B3F-0811

330

8X11

0.22

255

SH010M0330A3F-0811

330

8X11

0.22

255

SH010M0330A5F-0811

330

8X11

0.22

255

SH010M0470B3F-0811

470

8X11

0.22

305

SH010M0470A3F-0811

470

8X11

0.22

305

SH010M0470A5F-0811

470

8X11

0.22

305

SH010M0680B5S-1012

680

10X12

0.22

420

SH010M0680A5S-1012

680

10X12

0.22

420

SH010M1000B3F-0815

1000

8X15

103

0.22

477

SH010M1000A3F-0815

1000

8X15

103

0.22

477

SH010M1000A5F-0815

1000

8X15

103

0.22

477

SH010M1000B5S-1015

1000

10X15

103

0.22

570

SH010M1000A5S-1015

1000

10X15

103

0.22

570

SH010M1000B5S-1012

1000

10X12

103

0.22

490

SH010M1000A5S-1012

1000

10X12

103

0.22

490

SH010M1500B5S-1019

1500

10X19.5

153

0.22

750

SH010M1500A5S-1019

1500

10X19.5

153

0.22

750

SH010M2200B5S-1320 2200

13X20 223 0.24 1010

SH010M2200A5S-1320 2200

13X20 223 0.24 1010

SH010M2200B5S-1019

2200

10X19.5

223

0.24

800

SH010M2200A5S-1019

2200

10X19.5

223

0.24

800

SH010M3300B5S-1325

3300

13X25

333

0.26

1220

SH010M3300A5S-1325

3300

13X25

333

0.26

1220

SH010M4700B7F-1625 4700

16X25 473 0.28 1410

SH010M4700A7F-1625 4700

16X25 473 0.28 1410

SH010M6800B7F-1632

6800

16X32

683

0.32

1610

SH010M10K0B7F-1836

10000

18X36

1003

0.40

1980

SH016M0010B2F-0511 10

5X11

0.18 44

SH016M0010A2F-0511 10

5X11

0.18 44

SH016M0010AZF-0511 10 16

5X11

5 0.18 44

SH016M0010A5F-0511 10

5X11

0.18 44

SH016M0033B2F-0511

5X11

0.18

SH016M0033A2F-0511

5X11

0.18

SH016M0033AZF-0511

5X11

0.18

SH016M0033A5F-0511

5X11

0.18

SH016M0047B2F-0511

5X11

0.18

431204-html.html

Table 1-3 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(

(Tan

)

(Ma)

SH016M0047A2F-0511

5X11

0.18

SH016M0047AZF-0511

5X11

0.18

SH016M0047A5F-0511

5X11

0.18

SH016M0068B2F-0511

5X11

0.18

100

SH016M0068A2F-0511

5X11

0.18

100

SH016M0068AZF-0511

5X11

0.18

100

SH016M0068A5F-0511

5X11

0.18

100

SH016M0100B2F-0511

100

5X11

0.18

115

SH016M0100A2F-0511

100

5X11

0.18

115

SH016M0100AZF-0511

100

5X11

0.18

115

SH016M0100A5F-0511

100

5X11

0.18

115

SH016M0100BZF-0611

100

6.3X11

0.18

135

SH016M0100AZF-0611

100

6.3X11

0.18

135

SH016M0100A5F-0611

100

6.3X11

0.18

135

SH016M0150B3F-0811

150

8X11

0.18

180

SH016M0150A3F-0811

150

8X11

0.18

180

SH016M0220B3F-0811

220

8X11

0.18

235

SH016M0220A3F-0811

220

8X11

0.18

235

SH016M0220BZF-0611 220 16

6.3X11

0.18 180

SH016M0220AZF-0611 220 16

6.3X11

38 0.18 180

SH016M0220A5F-0611 220

6.3X11

0.18 180

SH016M0330B3F-0811

330

8X11

0.18

315

SH016M0330A3F-0811

330

8X11

0.18

315

SH016M0330A5F-0811

330

8X11

0.18

315

SH016M0330B5S-1012

330

10X12

0.18

285

SH016M0330A5S-1012

330

10X12

0.18

285

SH016M0470B3F-0811 470

8X11 78 0.18

315

SH016M0470A3F-0811 470

8X11 78 0.18

315

SH016M0470A5F-0811 470

8X11 78 0.18

315

SH016M0470B5S-1012

470

10X12

0.18

395

SH016M0470A5S-1012

470

10X12

0.18

395

SH016M0680B5S-1015

680

10X15

112

0.18

530

SH016M0680A5S-1015

680

10X15

112

0.18

530

SH016M1000B5S-1015 1000

10X15 163 0.18

600

SH016M1000A5S-1015 1000 16

10X15 163 0.18

600

SH016M1000B5S-1019 1000

10X19.5

163

0.18

700

SH016M1000A5S-1019 1000 16

10X19.5

163

0.18

700

SH016M1500A5S-1019 1500 16

10X19.5

240

0.18

705

SH016M1500B5S-1320

1500

13X20

243

0.18

860

SH016M1500A5S-1320

1500

13X20

243

0.18

860

SH016M2200B5S-1320

2200

13X20

355

0.20

991

SH016M2200A5S-1320

2200

13X20

355

0.20

991

SH016M2200B5S-1325

2200

13X25

355

0.20

1150

SH016M2200A5S-1325

2200

13X25

355

0.20

1150

SH016M3300B5S-1325

3300

13X25

355

0.22

1150

431204-html.html

Table 1-4 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(µA)

(Tan

)

(mA)

SH016M3300A5S-1325

3300

13X25

355

0.22

1150

SH016M3300B7F-1625 3300

16X25 531 0.22 1350

SH016M3300A7F-1625 3300 16

16X25 531 0.22 1350

SH016M4700B7F-1625

4700

16X25

755

0.24

1330

SH016M4700A7F-1625

4700

16X25

755

0.24

1330

SH016M4700B7F-1632

4700

16X32

755

0.24

1560

SH016M6800B7F-1836

6800

18X36

1091

0.28

1790

SH025M0010B2F-0511

5X11

0.16

SH025M0010A2F-0511

5X11

0.16

SH025M0010AZF-0511

5X11

0.16

SH025M0010A5F-0511

5X11

0.16

SH025M0022B2F-0511

5X11

0.16

SH025M0022A2F-0511

5X11

0.16

SH025M0022AZF-0511

5X11

0.16

SH025M0022A5F-0511

5X11

0.16

SH025M0033B2F-0511

5X11

0.16

SH025M0033A2F-0511

5X11

0.16

SH025M0033AZF-0511

5X11

0.16

SH025M0033A5F-0511

5X11

0.16

SH025M0047B2F-0511

5X11

0.16

SH025M0047A2F-0511

5X11

0.16

SH025M0047AZF-0511

5X11

0.16

SH025M0047A5F-0511

5X11

0.16

SH025M0068BZF-0611

6.3X11

0.16

125

SH025M0068AZF-0611

6.3X11

0.16

125

SH025M0068A5F-0611

6.3X11

0.16

125

SH025M0100BZF-0611

100

6.3X11

0.16

145

SH025M0100AZF-0611

100

6.3X11

0.16

145

SH025M0100A5F-0611

100

6.3X11

0.16

145

SH025M0150B3F-0811

150

8X11

0.16

200

SH025M0150A3F-0811

150

8X11

0.16

200

SH025M0150A5F-0811

150

8X11

0.16

200

SH025M0220B3F-0811

220

8X11

0.16

200

SH025M0220A3F-0811

220

8X11

0.16

200

SH025M0220A5F-0811

220

8X11

0.16

200

SH025M0220B5S-1012 220

10X12 58

0.16

250

SH025M0220A5S-1012 220

10X12 58

0.16

250

SH025M0330B5S-1012

330

10X12

0.16

355

SH025M0330A5S-1012

330

10X12

0.16

355

SH025M0470B5S-1012

470

10X12

121

0.16

400

SH025M0470A5S-1012

470

10X12

121

0.16

470

SH025M0470B5S-1015

470

10X15

121

0.16

470

SH025M0470A5S-1015

470

10X15

121

0.16

470

SH025M0680B5S-1019

680

10X19.5

173

0.16

650

431204-html.html

Table 1-5 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(

(Tan

)

(Ma)

SH025M0680A5S-1019

680

10X19.5

173

0.16

650

SH025M1000B5S-1019

1000

10X19.5

253

0.16

700

SH025M1000A5S-1019

1000

10X19.5

253

0.16

700

SH025M1000B5S-1320

1000

13X20

253

0.16

855

SH025M1000A5S-1320

1000

13X20

253

0.16

855

SH025M1500B5S-1325

1500

13X25

378

0.16

1020

SH025M1500A5S-1325

1500

13X25

378

0.16

1020

SH025M2200B7F-1625

2200

16X25

553

0.18

1230

SH025M2200A7F-1625

2200

16X25

553

0.18

1230

SH025M3300B7F-1632

3300

16X32

828

0.20

1450

SH025M4700B7F-1836

4700

18X36

1178

0.22

1690

SH035M0010B2F-0511

5X11

0.14

SH035M0010A2F-0511

5X11

0.14

SH035M0010AZF-0511

5X11

0.14

SH035M0010A5F-0511

5X11

0.14

SH035M0015B2F-0511

5X11

0.14

SH035M0015A2F-0511

5X11

0.14

SH035M0015AZF-0511

5X11

0.14

SH035M0015A5F-0511

5X11

0.14

SH035M0022B2F-0511

5X11

0.14

SH035M0022A2F-0511

5X11

0.14

SH035M0022AZF-0511

5X11

0.14

SH035M0022A5F-0511

5X11

0.14

SH035M0033B2F-0511 33

5X11 15 0.14

SH035M0033A2F-0511 33

5X11 15 0.14

SH035M0033AZF-0511 33

5X11 15 0.14

SH035M0033A5F-0511 33

5X11 15 0.14

SH035M0047BZF-0611

6.3X11

0.14

115

SH035M0047BZF-0611

6.3X11

0.14

115

SH035M0047A5F-0611

6.3X11

0.14

115

SH035M0056BZF-0611

6.3X11

0.16

120

SH035M0056AZF-0611

6.3X11

0.16

120

SH035M0056A5F-0611

6.3X11

0.16

120

SH035M0068B3F-0811 68

8X11 27 0.14

130

SH035M0068A3F-0811 68

8X11 27 0.14

130

SH035M0068A5F-0811 68

8X11 27 0.14

130

SH035M0100BZF-0611 100

6.3X11 38 0.14

150

SH035M0100AZF-0611 100

6.3X11 38 0.14

150

SH035M0100A5F-0611 100

6.3X11 38 0.14

150

SH035M0100B3F-0811 100

8X11 38 0.14

190

SH035M0100A3F-0811 100

8X11 38 0.14

190

SH035M0100A5F-0811 100

8X11 38 0.14

190

SH035M0150B5S-1012 150

10X12 56 0.14

240

SH035M0150A5S-1012 150

10X12 56 0.14

240

431204-html.html

Table 1-6 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(µA)

(Tan

)

(mA)

SH035M0220B3F-0811 220

8X11 80 0.14

253

SH035M0220A3F-0811 220

8X11 80 0.14

253

SH035M0220A5F-0811 220

8X11 80 0.14

253

SH035M0220B5S-1012 220

10X12 80 0.14

315

SH035M0220A5S-1012 220

10X12 80 0.14

315

SH035M0330B5S-1012 330

10X12 119 0.14

380

SH035M0330A5S-1012 330

10X12 119 0.14

380

SH035M0330B5S-1015 330

10X15 119 0.14

440

SH035M0330A5S-1015 330

10X15 119 0.14

440

SH035M0470B5S-1015 470

10X15 168 0.14

440

SH035M0470A5S-1015 470

10X15 168 0.14

440

SH035M0470B5S-1019 470

10X19.5

168

0.14

460

SH035M0470A5S-1019 470

10X19.5

168

0.14

460

SH035M0470B5S-1320 470

13X20 168 0.14

580

SH035M0470A5S-1320 470

13X20 168 0.14

580

SH035M0680B5S-1320

680

13X20

241

0.14

730

SH035M0680A5S-1320

680

13X20

241

0.14

730

SH035M1000B5S-1320

1000

13X20

353

0.14

857

SH035M1000A5S-1320

1000

13X20

353

0.14

857

SH035M1000B5S-1325

1000

13X25

353

0.14

995

SH035M1000A5S-1325

1000

13X25

353

0.14

995

SH035M1500B7F-1625

1500

16X25

528

0.14

1110

SH035M1500A7F-1625

1500

16X25

528

0.14

1110

SH035M2200B7F-1625

2200

16X25

773

0.16

1236

SH035M2200A7F-1625

2200

16X25

773

0.16

1236

SH035M2200B7F-1632

2200

16X32

773

0.16

1450

SH035M3300B7F-1636

3300

16X36

1158

0.18

1477

SH035M3300B7F-1836

3300

18X36

1158

0.18

1660

SH050M0R10B2F-0511

0.1

5X11

0.12

SH050M0R10A2F-0511

0.1

5X11

0.12

SH050M0R10AZF-0511

0.1

5X11

0.12

SH050M0R10A5F-0511

0.1

5X11

0.12

SH050M0R22B2F-0511

0.22

5X11

0.12

SH050M0R22A2F-0511

0.22

5X11

0.12

SH050M0R22AZF-0511

0.22

5X11

0.12

SH050M0R22A5F-0511

0.22

5X11

0.12

SH050M0R47B2F-0511

0.47

5X11

0.12

SH050M0R47A2F-0511

0.47

5X11

0.12

SH050M0R47AZF-0511

0.47

5X11

0.12

SH050M0R47A5F-0511

0.47

5X11

0.12

SH050M1R00B2F-0511

5X11

3.5

0.12

SH050M1R00A2F-0511

5X11

3.5

0.12

SH050M1R00AZF-0511

5X11

3.5

0.12

SH050M1R00A5F-0511

5X11

3.5

0.12

431204-html.html

Table 1-7 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(µA)

(Tan

)

(mA)

SH050M2R20B2F-0511

2.2

50 5X11

0.12

SH050M2R20A2F-0511

2.2

50 5X11

0.12

SH050M2R20AZF-0511

2.2

50 5X11

0.12

SH050M2R20A5F-0511

2.2

50 5X11

0.12

SH050M3R30B2F-0511

3.3

50 5X11

0.12

SH050M3R30A2F-0511

3.3

50 5X11

0.12

SH050M3R30AZF-0511

3.3

50 5X11

0.12

SH050M3R30A5F-0511

3.3

50 5X11

0.12

SH050M4R70B2F-0511

4.7

50 5X11

0.12

SH050M4R70A2F-0511

4.7

50 5X11

0.12

SH050M4R70AZF-0511

4.7

50 5X11

0.12

SH050M4R70A5F-0511

4.7

50 5X11

0.12

SH050M6R80B2F-0511

6.8

50 5X11

0.12

SH050M6R80A5F-0511

6.8

5X11

0.12

SH050M6R80AZF-0511

6.8

5X11

0.12

SH050M6R80A5F-0511

6.8

5X11

0.12

SH050M0010B2F-0511

5X11

0.12

SH050M0010A2F-0511

5X11

0.12

SH050M0010AZF-0511

5X11

0.12

SH050M0010A5F-0511

5X11

0.12

SH050M0015B2F-0511

5X11

0.12

SH050M0015A2F-0511

5X11

0.12

SH050M0015AZF-0511

5X11

0.12

SH050M0015A5F-0511

5X11

0.12

SH050M0022B2F-0511

5X11

0.12

SH050M0022A2F-0511

5X11

0.12

SH050M0022AZF-0511

5X11

0.12

SH050M0022A5F-0511

5X11

0.12

SH050M0033BZF-0611

6.3X11

0.12

105

SH050M0033AZF-0611

6.3X11

0.12

105

SH050M0033A5F-0611

6.3X11

0.12

105

SH050M0047BZF-0611

6.3X11

0.12

101

SH050M0047AZF-0611

6.3X11

0.12

101

SH050M0047A5F-0611

6.3X11

0.12

101

SH050M0047B3F-0811

8X11

0.12

125

SH050M0047A3F-0811

8X11

0.12

125

SH050M0047A5F-0811

8X11

0.12

125

SH050M0068B3F-0811

8X11

0.12

159

SH050M0068A3F-0811

8X11

0.12

159

SH050M0068A5F-0811

8X11

0.12

159

SH050M0100B3F-0811

100

8X11

0.12

169

SH050M0100A3F-0811

100

8X11

0.12

169

SH050M0100A5F-0811

100

8X11

0.12

169

SH050M0100B5S-1012

100

10X12

0.12

210

431204-html.html

Table 1-8 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(µA)

(Tan

)

(mA)

SH050M0100A5S-1012

100

10X12

0.12

210

SH050M0150B5S-1012

150

10X12

0.12

289

SH050M0150A5S-1012

150

10X12

0.12

289

SH050M0220B5S-1012

220

10X12

113

0.12

346

SH050M0220A5S-1012

220

10X12

113

0.12

346

SH050M0220B5S-1015

220

10X15

113

0.12

400

SH050M0220A5S-1015

220

10X15

113

0.12

400

SH050M0330B5S-1320

330

13X20

168

0.12

600

SH050M0330A5S-1320

330

13X20

168

0.12

600

SH050M0330B5S-1019

330

10X19.5

168

0.12

535

SH050M0330A5S-1019

330

10X19.5

168

0.12

535

SH050M0470B5S-1019

470

10X19.5

238

0.12

560

SH050M0470A5S-1019

470

10X19.5

238

0.12

560

SH050M0470B5S-1320

470

13X20

238

0.12

730

SH050M0470A5S-1320

470

13X20

238

0.12

730

SH050M0680B5S-1325

680

13X25

343

0.12

860

SH050M0680A5S-1325

680

13X25

343

0.12

860

SH050M1000B7F-1625

1000

16X25

503

0.12

1110

SH050M1000A7F-1625

1000

16X25

503

0.12

1110

SH050M1500B7F-1632

1500

16X32

753

0.12

1350

SH050M2200B7F-1636

2200

16X36

1103

0.14

1360

SH050M2200B7F-1836

2200

18X36

1103

0.14

1530

SH063M0R47B2F-0511

0.47

5X11

0.10

SH063M0R47A2F-0511

0.47

5X11

0.10

SH063M0R47AZF-0511

0.47

5X11

0.10

SH063M0R47A5F-0511

0.47

5X11

0.10

SH063M1R00B2F-0511

5X11

0.10

SH063M1R00A2F-0511

5X11

0.10

SH063M1R00AZF-0511

5X11

0.10

SH063M1R00A5F-0511

5X11

0.10

SH063M2R20B2F-0511

2.2

5X11

0.10

SH063M2R20A2F-0511

2.2

5X11

0.10

SH063M2R20AZF-0511

2.2

5X11

0.10

SH063M2R20A5F-0511

2.2

5X11

0.10

SH063M3R30B2F-0511

3.3

5X11

0.10

SH063M3R30A2F-0511

3.3

5X11

0.10

SH063M3R30AZF-0511

3.3

5X11

0.10

SH063M3R30A5F-0511

3.3

5X11

0.10

SH063M4R70B2F-0511

4.7

5X11

0.10

SH063M4R70A2F-0511

4.7

5X11

0.10

SH063M4R70AZF-0511

4.7

5X11

0.10

SH063M4R70A5F-0511

4.7

5X11

0.10

SH063M6R80B2F-0511

6.8

5X11

0.10

SH063M6R80A2F-0511

6.8

5X11

0.10

SH063M6R80AZF-0511

6.8

5X11

0.10

SH063M6R80A5F-0511

6.8

5X11

0.10

431204-html.html

Table 1-9 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(µA)

(Tan

)

(mA)

SH063M0010B2F-0511

5X11

0.10

SH063M0010A2F-0511

5X11

0.10

SH063M0010AZF-0511

5X11

0.10

SH063M0100A5F-0511

5X11

0.10

SH063M0015B2F-0511

5X11

0.10

SH063M0015A2F-0511

5X11

0.10

SH063M0015AZF-0511

5X11

0.10

SH063M0015A5F-0511

5X11

0.10

SH063M0022BZF-0611

6.3X11

0.10

SH063M0022AZF-0611

6.3X11

0.10

SH063M0022A5F-0611

6.3X11

0.10

SH063M0330B3F-0811

8X11

0.10

110

SH063M0033A3F-0811

8X11

0.10

110

SH063M0033A5F-0811

8X11

0.10

110

SH063M0047B3F-0811

8X11

0.10

155

SH063M0047A3F-0811

8X11

0.10

155

SH063M0047A5F-0811

8X11

0.10

155

SH063M0068B5S-1012

10X12

0.10

198

SH063M0068A5S-1012

10X12

0.10

198

SH063M0100B5S-1012

100

10X12

0.10

260

SH063M0100A5S-1012

100

10X12

0.10

260

SH063M0150B5S-1015

150

10X15

0.10

330

SH063M0150A5S-1015

150

10X15

0.10

330

SH063M0220A5S-1019

220

10X19.5

142

0.10

465

SH063M0220A5S-1019

220

10X19.5

142

0.10

465

SH063M0330B5S-1320

330

13X20

211

0.10

650

SH063M0330A5S-1320

330

13X20

211

0.10

650

SH063M0470B5S-1235

470

12X35

299

0.10

840

SH063M0470A5S-1235

470

12X35

299

0.10

840

SH063M0470B5S-1320

470

13X20

299

0.10

800

SH063M0470A5S-1320

470

13X20

299

0.10

800

SH063M0470B5S-1325

470

13X25

299

0.10

800

SH063M0470A5S-1325

470

13X25

299

0.10

800

SH063M0680B7F-1625

680

16X25

431

0.10

1000

SH063M0680A7F-1625

680

16X25

431

0.10

1000

SH063M1000B7F-1625

1000

16X25

633

0.10

1023

SH063M1000A7F-1625

1000

16X25

633

0.10

1023

SH063M1000B7F-1632

1000

16X32

633

0.10

1200

SH063M1500B7F-1636

1500

16X36

948

0.10

1450

SH063M2200B7F-1845

2200

18X45

2964

0.16

1800

SH100M0R47B2F-0511

0.47

100

5X11

0.10

SH100M0R47A2F-0511

0.47

100

5X11

0.10

SH100M0R47AZF-0511

0.47

100

5X11

0.10

SH100M0R47A5F-0511

0.47

100

5X11

0.10

SH100M1R00B2F-0511

100

5X11

0.10

SH100M1R00A2F-0511

100

5X11

0.10

431204-html.html

Table 1-10 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(µA)

(Tan

)

(mA)

SH100M1R00AZF-0511

100 5X11

0.10

SH100M1R00A5F-0511

100 5X11

0.10 15

SH100M2R20B2F-0511

2.2

100 5X11

0.10 22

SH100M2R20A2F-0511

2.2

100 5X11

0.10 22

SH100M2R20AZF-0511

2.2

100 5X11

0.10 22

SH100M2R20A5F-0511

2.2

100 5X11

0.10 22

SH100M3R30B2F-0511

3.3

100 5X11

0.10 29

SH100M3R30A2F-0511

3.3

100 5X11

0.10 29

SH100M3R30AZF-0511

3.3

100 5X11

0.10 29

SH100M3R30A5F-0511

3.3

100 5X11

0.10 29

SH100M4R70B2F-0511

4.7

100 5X11

0.10 37

SH100M4R70A2F-0511

4.7

100 5X11

0.10 37

SH100M4R70AZF-0511

4.7

100 5X11

0.10 37

SH100M4R70A5F-0511

4.7

100 5X11

0.10

SH100M6R80B2F-0511

6.8

100 5X11

0.10 46

SH100M6R80A2F-0511

6.8

100

5X11

0.10

SH100M6R80AZF-0511

6.8

100

5X11

0.10

SH100M6R80A5F-0511

6.8

100

5X11

0.10

SH100M0010BZF-0611

100

6.3X11

0.10

SH100M0010AZF-0611

100

6.3X11

0.10

SH100M0010A5F-0611

100

6.3X11

0.10

SH100M0015B3F-0811

100

8X11

0.10

SH100M0015A3F-0811

100

8X11

0.10

SH100M0015A5F-0811

100

8X11

0.10

SH100M0022B3F-0811

100

8X11

0.10

115

SH100M0022A3F-0811

100

8X11

0.10

115

SH100M0022A5F-0811

100

8X11

0.10

115

SH100M0033B5S-1012

100

10X12

0.10

160

SH100M0033A5S-1012

100

10X12

0.10

160

SH100M0047B5S-1015

100

10X15

0.10

210

SH100M0047A5S-1015

100

10X15

0.10

210

SH100M0068B5S-1019

100

10X19.5

0.10

241

SH100M0068A5S-1019

100

10X19.5

0.10

241

SH100M0100B5S-1019 100

100

10X19.5

103

0.10

309

SH100M0100A5S-1019 100

100

10X19.5

103

0.10

309

SH100M0100B5S-1320 100

100

13X20 103

0.10

385

SH100M0100A5S-1320 100

100

13X20 103

0.10

385

SH100M0150B5S-1325 150

100

13X25 153

0.10

414

SH100M0150A5S-1325 150

100

13X25 153

0.10

414

SH100M0220B5S-1325 220

100

13X25 223

0.10

495

SH100M0220A5S-1325 220

100

13X25 223

0.10

495

SH100M0220B7F-1625 220

100

16X25 223

0.10

590

SH100M0220A7F-1625 220

100

16X25 223

0.10

590

SH100M0330B7F-1625 330

100

16X25 333

0.10

720

SH100M0330A7F-1625 330

100

16X25 333

0.10

720

SH100M0470B7F-1632 470

100

16X32 473

0.10

875

431204-html.html

Table 1-11 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(µA)

(Tan

)

(Ma)

SH100M0680B7F-1636 680

100

16X36

683

0.10

1200

SH160M0R47A2F-0511

0.47

160

5X11

0.15

SH160M0R47A2F-0511

0.47

160

5X11

0.15

SH160M0R47AZF-0511

0.47

160

5X11

0.15

SH160M0R47A5F-0511

0.47

160

5X11

0.15

SH160M1R00B2F-0511

160

5X11

0.15

SH160M1R00A2F-0511

160

5X11

0.15

SH160M1R00AZF-0511

160

5X11

0.15

SH160M1R00A5F-0511

160

5X11

0.15

SH160M2R20BZF-0611

2.2

160

6.3X11

0.15

SH160M2R20AZF-0611

2.2

160

6.3X11

0.15

SH160M2R20A5F-0611

2.2

160

6.3X11

0.15

SH160M3R30BZF-0611

3.3

160

6.3X11

25.84

0.15

SH160M3R30BZS-0611

3.3

160

6.3X11

25.84

0.15

SH160M3R30AZF-0611

3.3

160

6.3X11

25.84

0.15

SH160M3R30A5F-0611

3.3

160

6.3X11

25.84

0.15

SH160M3R30B3F-0811

3.3

160

8X11

0.15

SH160M3R30A3F-0811

3.3

160

8X11

0.15

SH160M3R30A5F-0811

3.3

160

8X11

0.15

SH160M4R70BZF-0611

4.7

160

6.3X11

0.15

SH160M4R70AZF-0611 4.7

160

6.3X11

33 0.15 34

SH160M4R70A5F-0611 4.7

160

6.3X11

0.15 34

SH160M4R70B3F-0811

4.7

160

8X11

0.15

SH160M4R70A3F-0811 4.7

160

8X11

0.15 43

SH160M4R70A5F-0811 4.7

160

8X11

0.15 43

SH160M6R80B5S-1012

6.8

160

10X12

0.15

SH160M6R80A5S-1012

6.8

160

10X12

0.15

SH160M0010B5S-1012

160

10X12

0.15

SH160M0010A5S-1012

160

10X12

0.15

SH160M0015B5S-1015

160

10X15

0.15

SH160M0015A5S-1015

160

10X15

0.15

SH160M0022B5S-1019

160

10X19.5

116

0.15

130

SH160M0022A5S-1019

160

10X19.5

116

0.15

130

SH160M0033B5S-1320

160

13X20

168

0.15

180

SH160M0033A5S-1320

160

13X20

168

0.15

180

SH160M0047B5S-1325

160

13X25

236

0.15

250

SH160M0047A5S-1325

160

13X25

236

0.15

250

SH160M0068B5S-1325

160

13X25

336

0.15

270

SH160M0068A5S-1325

160

13X25

336

0.15

270

SH160M0100B7F-1625

100

160

16X25

490

0.15

390

SH160M0100A7F-1625

100

160

16X25

490

0.15

390

SH160M0150B7F-1632

150

160

16X32

730

0.15

435

SH160M0220B7F-1636

220

160

16X36

1056

0.15

700

SH160M0330B7F-1840

330

160

18X40

1594

0.15

850

SH160M0470BPF-2240

470

160

22X40

2266

0.15

980

SH200M0R47B2F-0511

0.47

200

5X11

0.15

431204-html.html

Table 1-12 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(

(Tan

)

(Ma)

SH200M0R47A2F-0511

0.47

200

5X11

0.15

SH200M0R47AZF-0511

0.47

200

5X11

0.15

SH200M0R47A5F-0511

0.47

200

5X11

0.15

SH200M1R00BZF-0611

200

6.3X11

0.15

SH200M1R00AZF-0611

200

6.3X11

0.15

SH200M1R00A5F-0611

200

6.3X11

0.15

SH200M2R20BZF-0611

2.2

200

6.3X11

0.15

SH200M2R20AZF-0611

2.2

200

6.3X11

0.15

SH200M2R20A5F-0611

2.2

200

6.3X11

0.15

SH200M3R30B3F-0811

3.3

200

8X11

0.15

SH200M3R30A3F-0811

3.3

200

8X11

0.15

SH200M3R30A5F-0811

3.3

200

8X11

0.15

SH200M4R70B5S-1012

4.7

200

10X12

0.15

SH200M4R70A5S-1012

4.7

200

10X12

0.15

SH200M6R80B5S-1012

6.8

200

10X12

0.15

SH200M6R80A5S-1012

6.8

200

10X12

0.15

SH200M0010B5S-1012

200

10X12

0.15

SH200M0010A5S-1012

200

10X12

0.15

SH200M0010B5S-1015

200

10X15

0.15

SH200M0010A5S-1015

200

10X15

0.15

SH200M0015B5S-1019

200

10X19.5

100

0.15

110

SH200M0015A5S-1019

200

10X19.5

100

0.15

110

SH200M0022B5S-1015

200

10X15

142

0.15

140

SH200M0022A5S-1015

200

10X15

142

0.15

140

SH200M0022B5S-1019

200

10X19.5

142

0.15

150

SH200M0022A5S-1019

200

10X19.5

142

0.15

150

SH200M0033B5S-1320

200

13X20

208

0.15

160

SH200M0033A5S-1320

200

13X20

208

0.15

160

SH200M0033B5S-1325

200

13X25

208

0.15

190

SH200M0033A5S-1325

200

13X25

208

0.15

190

SH200M0047B5S-1320

200

13X20

292

0.15

220

SH200M0047A5S-1320

200

13X20

292

0.15

220

SH200M0047B5S-1325

200

13X25

292

0.15

260

SH200M0047A5S-1325

200

13X25

292

0.15

260

SH200M0068B7F-1620

200

16X20

418

0.15

242

SH200M0068A7F-1620

200

16X20

418

0.15

242

SH200M0068B7F-1625

200

16X25

418

0.15

280

SH200M0068A7F-1625

200

16X25

418

0.15

280

SH200M0100B7F-1632

100

200

16X32

610

0.15

400

SH200M0150B7F-1636

150

200

16X36

910

0.15

450

SH200M0220B7F-1836

220

200

18X36

1330

0.15

675

SH200M0220B7F-1840

220

200

18X40

1330

0.15

750

SH200M0330B7F-1840

330

200

18X40

1990

0.15

780

SH200M0330BPF-2240

330

200

22X40

1990

0.15

920

SH200M0470B7F-1845

470

200

18X45

2830

0.15

800

SH200M0470BPF-2240

470

200

22X40

2830

0.15

810

431204-html.html

Table 1-13 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(

(Tan

)

(Ma)

SH250M0R47B2F-0511

0.47

250

5X11

0.15

SH250M0R47A2F-0511

0.47

250

5X11

0.15

SH250M0R47AZF-0511

0.47

250

5X11

0.15

SH250M0R47A5F-0511

0.47

250

5X11

0.15

SH250M1R00BZF-0611

250

6.3X11

0.15

SH250M1R00AZF-0611

250

6.3X11

0.15

SH250M1R00A5F-0611

250

6.3X11

0.15

SH250M2R20BZF-0611

2.2

250

6.3X11

0.15

SH250M2R20AZF-0611

2.2

250

6.3X11

0.15

SH250M2R20A5F-0611

2.2

250

6.3X11

0.15

SH250M2R20B3F-0811

2.2

250

8X11

0.15

SH250M2R20A3F-0811

2.2

250

8X11

0.15

SH250M2R20A5F-0811

2.2

250

8X11

0.15

SH250M3R30B3F-0811

3.3

250

8X11

0.15

SH250M3R30A3F-0811

3.3

250

8X11

0.15

SH250M3R30A5F-0811

3.3

250

8X11

0.15

SH250M3R30B5S-1012

3.3

250

10X12

0.15

SH250M3R30A5S-1012

3.3

250

10X12

0.15

SH250M4R70B3F-0811

4.7

250

08X11

0.15

SH250M4R70A3F-0811

4.7

250

08X11

0.15

SH250M4R70A5F-0811

4.7

250

08X11

0.15

SH250M4R70B5S-1019

4.7

250

10X19.5

0.15

SH250M4R70A5S-1019

4.7

250

10X19.5

0.15

SH250M4R70B5S-1012

4.7

250

10X12

0.15

SH250M4R70A5S-1012

4.7

250

10X12

0.15

SH250M6R80B5S-1325

6.8

250

13X25

0.15

SH250M6R80A5S-1325

6.8

250

13X25

0.15

SH250M6R80B5S-1012

6.8

250

10X12

0.15

SH250M6R80A5S-1012

6.8

250

10X12

0.15

SH250M0010B5S-1015

250

10X15

0.15

SH250M0010A5S-1015

250

10X15

0.15

SH250M0010B5S-1019

250

10X19.5

0.15

SH250M0010A5S-1019

250

10X19.5

0.15

SH250M0015B5S-1320

250

13X20

122

0.15

120

SH250M0015A5S-1320

250

13X20

122

0.15

120

SH250M0022B5S-1320

250

13X20

175

0.15

130

SH250M0022A5S-1320

250

13X20

175

0.15

130

SH250M0022B5S-1325

250

13X25

175

0.15

155

SH250M0022A5S-1325

250

13X25

175

0.15

155

SH250M0033B5S-1325

250

13X25

258

0.15

200

SH250M0033A5S-1325

250

13X25

258

0.15

200

SH250M0047B5S-1325

250

13X25

362

0.15

228

SH250M0047A5S-1325

250

13X25

362

0.15

228

SH250M0047B7F-1625

250

16X25

362

0.15

270

SH250M0047A7F-1625

250

16X25

362

0.15

270

SH250M0068B7F-1632

250

16X32

520

0.15

300

431204-html.html

Table 1-14 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(µA)

(Tan

)

(Ma)

SH250M0100B7F-1636

100

250

16X32

520

0.15

300

SH250M0100B7F-1632

100

250

16X32

760

0.15

372

SH250M0100B7F-1836

100

250

18X36

760

0.15

440

SH250M0150B7F-1840

150

250

18X40

760

0.15

600

SH250M0220BPF-2240

220

250

22X40

1660

0.15

800

SH350M0R47BZF-0611

0.47

350

6.3X11

0.20

SH350M0R47AZF-0611

0.47

350

6.3X11

0.20

SH350M0R47A5F-0611

0.47

350

6.3X11

0.20

SH350M1R00BZF-0611

350

6.3X11

0.20

SH350M1R00AZF-0611

350

6.3X11

0.20

SH350M1R00A5F-0611

350

6.3X11

0.20

SH350M1R00B3F-0811

350

8X11

0.20

SH350M1R00A3F-0811

350

8X11

0.20

SH350M1R00A5F-0811

350

8X11

0.20

SH350M2R20B5S-1012

2.2

350

10X12

0.20

SH350M2R20A5S-1012

2.2

350

10X12

0.20

SH350M3R30B5S-1015

3.3

350

10X15

0.20

SH350M3R30A5S-1015

3.3

350

10X15

0.20

SH350M4R70B5S-1012

4.7

350

10X12

0.20

SH350M4R70A5S-1012

4.7

350

10X12

0.20

SH350M4R70B5S-1015

4.7

350

10X15

0.20

SH350M4R70A5S-1015

4.7

350

10X15

0.20

SH350M6R80B5S-1019

6.8

350

10X19.5

0.20

SH350M6R80A5S-1019

6.8

350

10X19.5

0.20

SH350M0010B5S-1019

350

10X19.5

115

0.20

SH350M0010A5S-1019

350

10X19.5

115

0.20

SH350M0010B5S-1015

350

10X15

115

0.20

SH350M0010A5S-1015

350

10X15

115

0.20

SH350M0010B5S-1320

350

13X20

115

0.20

SH350M0010A5S-1320

350

13X20

115

0.20

SH350M0015B5S-1320

350

13X20

168

0.20

140

SH350M0015A5S-1320

350

13X20

168

0.20

140

SH350M0022B5S-1320

350

13X20

241

0.20

125

SH350M0022A5S-1320

350

13X20

241

0.20

125

SH350M0022B7F-1625

350

16X25

241

0.20

165

SH350M0022A7F-1625

350

16X25

241

0.20

165

SH350M0033B7F-1620

350

16X20

356

0.20

150

SH350M0033A7F-1620

350

16X20

356

0.20

150

SH350M0033B7F-1632

350

16X32

356

0.20

195

SH350M0033B7F-1816

350

18X36

356

0.20

148

SH350M0047B7F-1636

350

16X36

503

0.20

210

SH350M0047B7F-1836

350

18X36

503

0.20

240

SH350M0068B7F-1836

350

18X36

724

0.20

320

SH350M0100B7F-1840

100

350

18X40

1060

0.20

300

SH350M0100BPF-2240

100

350

22X40

1060

0.20

360

SH350M0150BPF-2240

150

350

22X40

1585

0.20

480

431204-html.html

Table 1-15 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(

(Tan

)

(Ma)

SH400M0R47BZF-0611

0.47

400

6.3X11

0.20

SH400M0R47AZF-0611

0.47

400

6.3X11

0.20

SH400M0R47A5F-0611

0.47

400

6.3X11

0.20

SH400M1R00BZF-0611

400

6.3X11

0.20

SH400M1R00BZF-0611

400

6.3X11

0.20

SH400M1R00A5F-0611

400

6.3X11

0.20

SH400M1R00B3F-0811

400

8X11

0.20

SH400M1R00A3F-0811

400

8X11

0.20

SH400M1R00A5F-0811

400

8X11

0.20

SH400M2R20B3F-0811

2.2

400

8X11

0.20

SH400M2R20A3F-0811

2.2

400

8X11

0.20

SH400M2R20A5F-0811

2.2

400

8X11

0.20

SH400M2R20B5S-1012

2.2

400

10X12

0.20

SH400M2R20A5S-1012

2.2

400

10X12

0.20

SH400M3R30B5S-1012

3.3

400

10X12

0.20

SH400M3R30A5S-1012

3.3

400

10X12

0.20

SH400M3R30B5S-1015

3.3

400

10X15

0.20

SH400M3R30A5S-1015

3.3

400

10X15

0.20

SH400M4R70A3F-0811

4.7

400

8X11

66.4

0.20

SH400M4R70B3F-0811

4.7

400

8X11

66.4

0.20

SH400M4R70A5F-0811

4.7

400

8X11

66.4

0.20

SH400M4R70A5S-1012

4.7

400

10X12

0.20

66.4

SH400M4R70B5S-1012

4.7

400

10X12

0.20

66.4

SH400M4R70B5S-1015

4.7

400

10X15

0.20

SH400M4R70A5S-1015

4.7

400

10X15

0.20

SH400M6R80B5S-1015

6.8

400

10X15

0.20

SH400M6R80A5S-1015

6.8

400

10X15

0.20

SH400M0010B5S-1019

400

10X19.5

130

0.20

SH400M0010A5S-1019

400

10X19.5

130

0.20

SH400M0010B5S-1320

400

13X20

130

0.20

SH400M0010A5S-1320

400

13X20

130

0.20

SH400M0015B5S-1325

400

13X25

190

0.20

145

SH400M0015A5S-1325

400

13X25

190

0.20

145

SH400M0022B5S-1320

400

13X20

274

0.20

120

SH400M0022A5S-1320

400

13X20

274

0.20

120

SH400M0022B5S-1325

400

13X25

274

0.20

140

SH400M0022A5S-1325

400

13X25

274

0.20

140

SH400M0022B7F-1620

400

16X20

274

0.20

147

SH400M0022A7F-1620

400

16X20

274

0.20

147

SH400M0022B7F-1625

400

16X25

274

0.20

170

SH400M0022A7F-1625

400

16X25

274

0.20

170

SH400M0033B7F-1620

400

16X20

406

0.20

164

SH400M0033A7F-1620

400

16X20

406

0.20

164

SH400M0033B7F-1625

400

16X25

406

0.20

190

SH400M0033A7F-1625

400

16X25

406

0.20

190

SH400M0033B7F-1632

400

16X32

406

0.20

230

431204-html.html

Table 1-16 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(µA)

(Tan

)

(Ma)

SH400M0047B7F-1632

400

16X32

574

0.20

250

SH400M0047B7F-1825

400

18X25

574

0.20

243

SH400M0047B7F-1625

400

16X25

574

0.20

200

SH400M0047A7F-1625

400

16X25

574

0.20

200

SH400M0047B7F-1836

400

18X36

574

0.20

300

SH400M0068B7F-1825

400

18X25

826

0.20

310

SH400M0068B7F-1836

400

18X36

826

0.20

325

SH400M0082B7F-1832

400

18X32

994

0.20

310

SH400M0082B7F-1830

400

18X30

994

0.20

286

SH400M0100B7F-1830

100

400

18X30

1210

0.20

250

SH400M0100B7F-1832

100

400

18X32

1210

0.20

260

SH400M0100B7F-1836

100

400

18X36

1210

0.20

290

SH400M0100BPF-2240

100

400

22X40

1210

0.20

365

SH400M0120B7F-1836

120

400

18X36

1240

0.10

320

SH400M0120B7F-1832

120

400

18X32

1450

0.10

289

SH400M0120BV911832

120

400

18X32

1450

0.10

289

SH400M0120B7F-1840

120

400

18X40

1450

0.10

350

SH400M0150BPF-2240

150

400

22X40

1810

0.20

465

SH400M0220BPF-2240

220

400

22X40

2650

0.20

650

SH450M0R47BZF-0611

0.47

450

6.3X11

0.20

SH450M0R47AZF-0611

0.47

450

6.3X11

0.20

SH450M0R47A5F-0611

0.47

450

6.3X11

0.20

SH450M1R00B3F-0811

450

8X11

0.20

SH450M1R00A3F-0811

450

8X11

0.20

SH450M1R00A5F-0811

450

8X11

0.20

SH450M2R20B5S-1012

2.2

450

10X12

0.20

SH450M2R20A5S-1012

2.2

450

10X12

0.20

SH450M3R30B5S-1012

3.3

450

10X12

0.20

SH450M3R30A5S-1012

3.3

450

10X12

0.20

SH450M3R30B5S-1015

3.3

450

10X15

0.20

SH450M3R30A5S-1015

3.3

450

10X15

0.20

SH450M4R70B5S-1015

4.7

450

10X15

0.20

SH450M4R70A5S-1015

4.7

450

10X15

0.20

SH450M6R80B5S-1320

6.8

450

13X20

102

0.20

SH450M6R80A5S-1320

6.8

450

13X20

102

0.20

SH450M0010B5S-1019

450

10X19.5

145

0.20

SH450M0010A5S-1019

450

10X19.5

145

0.20

SH450M0010B5S-1320

450

13X20

145

0.20

SH450M0010A5S-1320

450

13X20

145

0.20

SH450M0010B5S-1325

450

13X25

145

0.20

SH450M0010A5S-1325

450

13X25

145

0.20

SH450M0015B7F-1625

450

16X25

212

0.20

150

SH450M0015A7F-1625

450

16X25

212

0.20

150

SH450M0022B7F-1625

450

16X25

307

0.20

145

SH450M0022A7F-1625

450

16X25

307

0.20

145

SH450M0022B7F-1632

450

16X32

307

0.20

175

431204-html.html

Table 1-17 SH Type, Standard Ratings and Catalog Number

Capa-

Rated

Size (mm) Leakage Dissipation

Ripple

Catalog Number

citance

Voltage

Current

Factor 105

C 120 Hz

(

(V.DC)

D X L

(

(Tan

)

(Ma)

SH450M0033B7F-1632

450

16X32

456

0.20

211

SH450M0033B7F-1836

450

18X36

456

0.20

250

SH450M0047B7F-1832

450

18X32

645

0.20

300

SH450M0047B7F-1840

450

18X40

645

0.20

350

SH450M0068BPF-2240

450

22X40

928

0.20

380

SH450M0120BPF-2240

120

450

22X40

326

0.20

440

SH450M0150BPF-2240

150

450

22X40

407

0.20

470

Yageo Corporation

3F, 233-1, Pao Chiao Rd.,
Hsin Tien, Taipei, Taiwn

Tel: 886.2.2917.7555
Fax: 886.2.2917.3789
