ADCRC Series

Choke Coils

Radial Leaded Thru Hole

FEATURES

• Small-sized, lightweight vertical radial lead.
• Specially designed magnetic core for higher

self-resonant frequency.

• Excellent temperature and humidity characteristics.
• Low priced.
• Applications: Radio & Radio-Cassette Tape

Recorders and Toys.

BENEFITS

Temperature Rise

20ºC

Ambient Temperature

60ºC

Operating Temperature Range

-20ºC to +60ºC

Dielectric withstanding Voltage

250V r.m.s

Rated Current

Based on inductance variation

Terminal Tensile Strength

1.5 Kg min.

Terminal Bending Strength

0.5 Kg min.

STANDARD SPECIFICATIONS

TYPE ADCRC-5080 ADCRC-7010B ADCRC-9013 ADCRC-1314

Inductance Range (uH)

1 uH ~ 27000 uH

1.2 uH ~ 68000 uH

10 uH ~ 56000 uH

10 uH ~ 100 uH

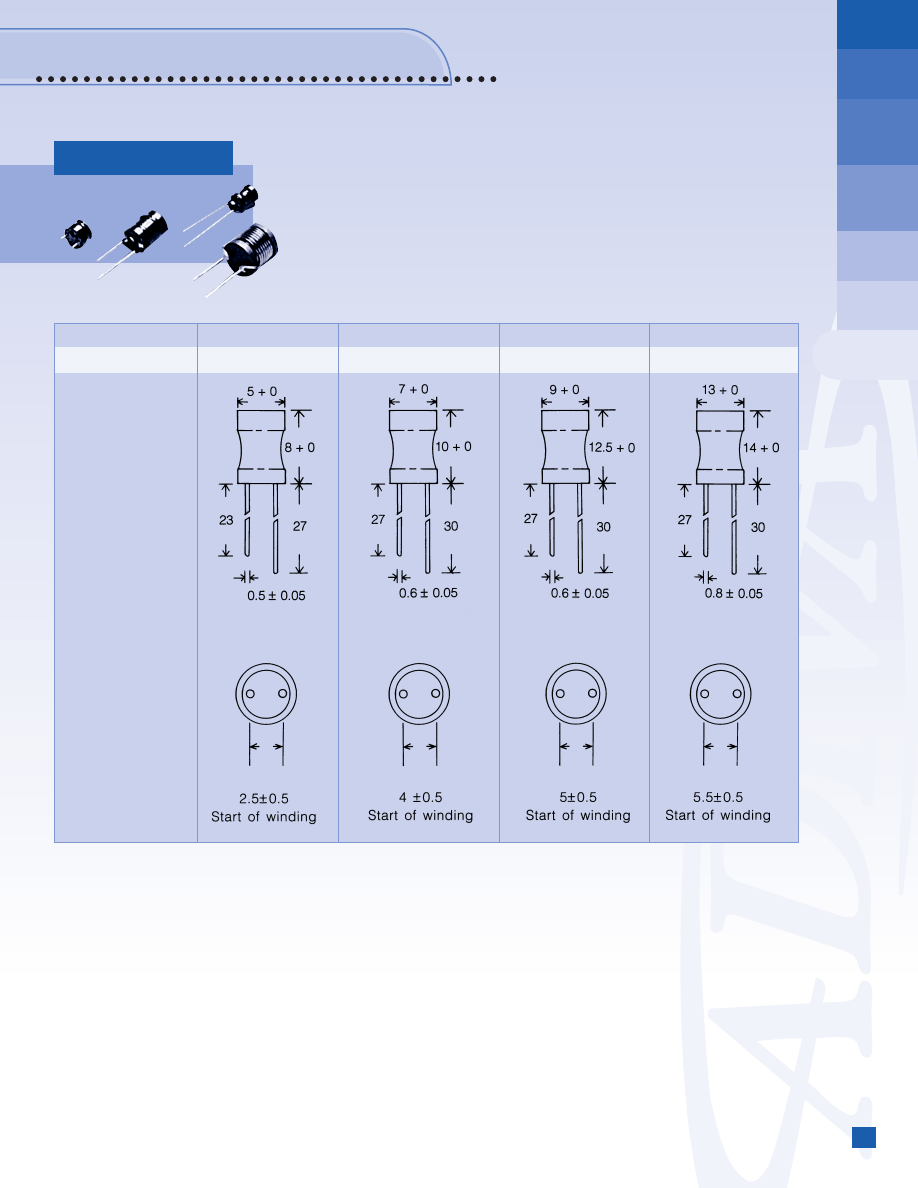

External Dimensions (mm)

(Connection Bottom)

Revised 07/18/02

www.adivatech.com

(888) 30-ADIVA (23482)

O

128

Choke Coils

ADCRC Series — Continued

Radial Leaded Thru Hole

ADCRC-5080 SERIES STANDARD SPECIFICATIONS

ORDERING CODE

INDUCTANCE

Q

TEST FREQUENCY

SELF-RESONANT

DC

RATED DC

(uH)

min.

(MHz)

FREQUENCY (MHz)

RESISTANCE (ohm)

CURRENT (mA)

min.

max.

max.

ADCRC-5080-1R0

❑

1.0 ±20%

40

25.20

45

0.11

960

ADCRC-5080-1R2

❑

1.2 ±20%

40

7.96

40

0.12

960

ADCRC-5080-1R5

❑

1.5 ±10%, ±5%

40

7.96

35

0.12

960

ADCRC-5080-1R8

❑

1.8 ±10%, ±5%

40

7.96

32

0.12

880

ADCRC-5080-2R2

❑

2.2 ±10%, ±5%

40

7.96

28

0.12

880

ADCRC-5080-2R7

❑

2.7 ±10%, ±5%

50

7.96

26

0.12

880

ADCRC-5080-3R3

❑

3.3 ±10%, ±5%

50

7.96

25

0.12

800

ADCRC-5080-3R9

❑

3.9 ±10%, ±5%

50

7.96

24

0.12

800

ADCRC-5080-4R7

❑

4.7 ±10%, ±5%

50

7.96

22

0.13

800

ADCRC-5080-5R6

❑

5.6 ±10%, ±5%

50

7.96

21

0.13

800

ADCRC-5080-6R8

❑

6.8 ±10%, ±5%

50

7.96

20

0.15

640

ADCRC-5080-8R2

❑

8.2 ±10%, ±5%

50

7.96

18

0.16

640

ADCRC-5080-100

❑

10 ±10%, ±5%

50

7.96

16

0.34

640

ADCRC-5080-120

❑

12 ±10%, ±5%

50

2.52

15

0.37

480

ADCRC-5080-150

❑

15 ±10%, ±5%

50

2.52

13

0.37

480

ADCRC-5080-180

❑

18 ±10%, ±5%

60

2.52

12

0.47

480

ADCRC-5080-220

❑

22 ±10%, ±5%

60

2.52

11.5

0.5

480

ADCRC-5080-250

❑

25 ±10%, ±5%

60

2.52

11

0.56

480

ADCRC-5080-270

❑

27 ±10%, ±5%

60

2.52

10.7

0.6

400

ADCRC-5080-300

❑

30 ±10%, ±5%

60

2.52

10

0.6

400

ADCRC-5080-330

❑

33 ±10%, ±5%

60

2.52

9.5

0.6

320

ADCRC-5080-390

❑

39 ±10%, ±5%

50

2.52

8.5

0.6

320

ADCRC-5080-470

❑

47 ±10%, ±5%

50

2.52

8

0.75

320

ADCRC-5080-560

❑

56 ±10%, ±5%

50

2.52

7.7

0.75

240

ADCRC-5080-680

❑

68 ±10%, ±5%

50

2.52

7.2

0.75

240

ADCRC-5080-820

❑

82 ±10%, ±5%

50

2.52

7

0.93

200

ADCRC-5080-101

❑

100 ±10%, ±5%

60

2.52

6

1.83

200

ADCRC-5080-121

❑

120 ±10%, ±5%

60

0.796

5

2.12

200

ADCRC-5080-151

❑

150 ±10%, ±5%

60

0.796

4.8

2.25

120

ADCRC-5080-181

❑

180 ±10%, ±5%

60

0.796

4.5

2.48

120

ADCRC-5080-221

❑

220 ±10%, ±5%

60

0.796

4.5

2.74

120

ADCRC-5080-271

❑

270 ±10%, ±5%

60

0.796

3.8

3.28

120

ADCRC-5080-331

❑

330 ±10%, ±5%

60

0.796

3.5

3.48

120

ADCRC-5080-391

❑

390 ±10%, ±5%

55

0.796

3.4

5.18

120

ADCRC-5080-471

❑

470 ±10%, ±5%

55

0.796

3.0

5.24

56

ADCRC-5080-561

❑

560 ±10%, ±5%

55

0.796

2.8

5.24

56

ADCRC-5080-681

❑

680 ±10%, ±5%

55

0.796

2.5

7

56

ADCRC-5080-821

❑

820 ±10%, ±5%

50

0.796

2.3

8

56

ADCRC-5080-102

❑

1000 ±10%, ±5%

50

0.796

2

12

48

ADCRC-5080-122

❑

1200 ±10%, ±5%

50

0.252

1.9

13

48

ADCRC-5080-152

❑

1500 ±10%, ±5%

50

0.252

1.7

15

48

ADCRC-5080-182

❑

1800 ±10%, ±5%

45

0.252

1.6

18

48

ADCRC-5080-222

❑

2200 ±10%, ±5%

45

0.252

1.4

20

32

ADCRC-5080-272

❑

2700 ±10%, ±5%

45

0.252

1.3

28

32

ADCRC-5080-332

❑

3300 ±10%, ±5%

40

0.252

1.1

32

32

ADCRC-5080-392

❑

3900 ±10%, ±5%

40

0.252

1

36

20

ADCRC-5080-472

❑

4700 ±10%, ±5%

40

0.252

0.9

41

20

ADCRC-5080-562

❑

5600 ±10%, ±5%

40

0.252

0.9

61

20

ADCRC-5080-682

❑

6800 ±10%, ±5%

40

0.252

0.8

70

16

ADCRC-5080-822

❑

8200 ±10%, ±5%

30

0.252

0.7

80

16

ADCRC-5080-103

❑

10000 ±10%, ±5%

20

0.252

0.6

89

16

ADCRC-5080-123

❑

12000 ±10%, ±5%

20

0.0796

0.6

104

10

ADCRC-5080-153

❑

15000 ±10%, ±5%

20

0.0796

0.4

170

10

ADCRC-5080-183

❑

18000 ±10%, ±5%

20

0.0796

0.4

199

10

ADCRC-5080-223

❑

22000 ±10%, ±5%

20

0.0796

0.4

248

10

ADCRC-5080-273

❑

27000 ±10%, ±5%

20

0.0796

0.3

275

10

Inductance Tolerance:

❑

M±20%, K±10%, J±5%, H±2.5%.
