O
INDUCT
ORS
161
ADO3308PA
Power Inductors
ADO3308PA Series
XTAL
OSC
VCXO
VCO
TCXO
VCTCXO
FLTR
RES
IND
Surface Mount
FEATURES
• Surface mountable device.
• Low Profile.
• Excellent performance & cost effective.

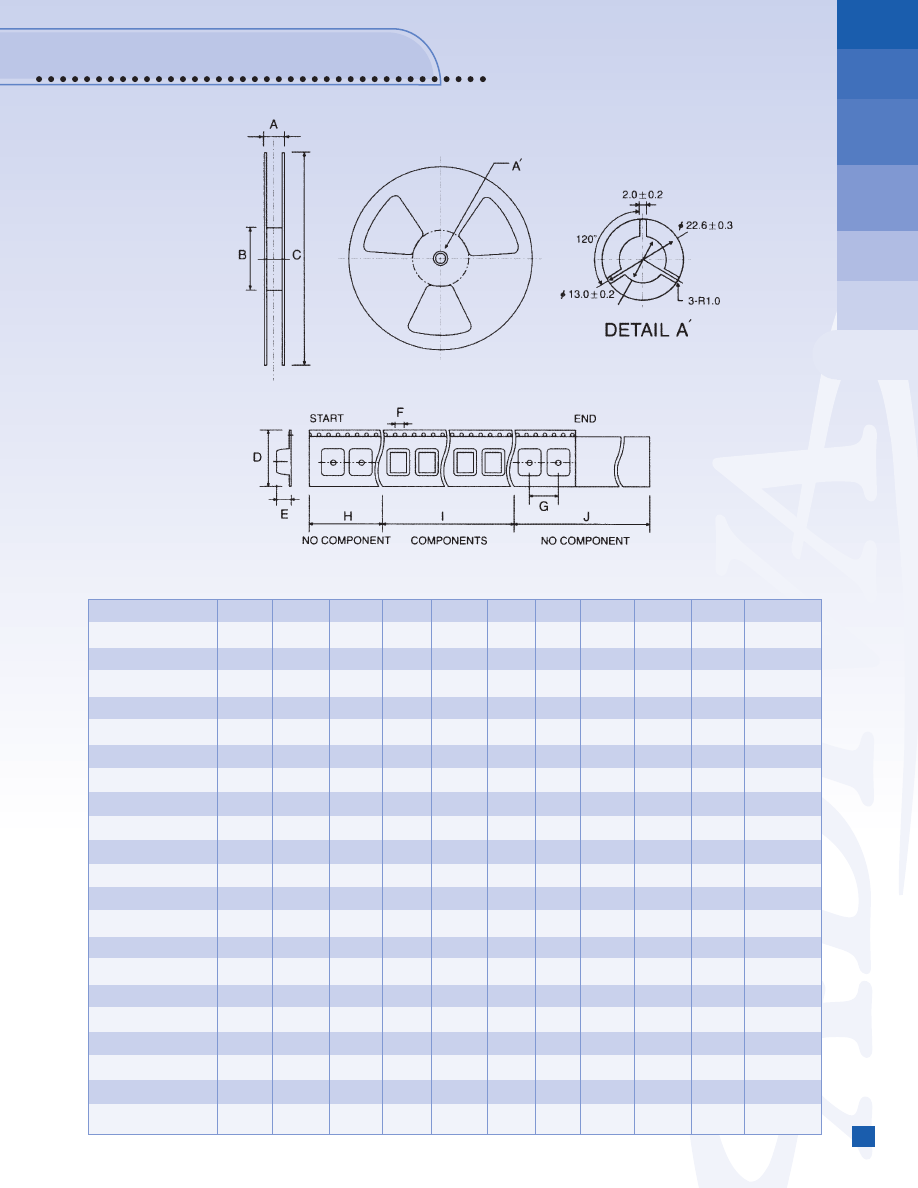

• Tape & Reel for auto-placement.
• Applicable for DC-DC converter and backlight
BENEFITS
Frequency Range:
0.1 ~ 10 MHz
Inductance Range:
4.7 ~ 1000 uH
Tested:
100 KHz and 0.05V
Operating Temperature Range:
-40ºC to +85ºC
Inductance
measured by HP 4194A, impedance
and gain phase analyzer
Inductance Drop
10% at rated current
STANDARD SPECIFICATIONS
PACKAGE TYPE
INDUCTANCE
DC
RATED
(uH ±20%)
RESISTANCE (
Ω
)
CURRENT (A)
max.
max.
ADO3308PA-472
❑
4.7 0.05 3.10
ADO3308PA-103
❑
10
0.11
2.15
ADO3308PA-153
❑
15
0.15
1.80
ADO3308PA-223
❑
22
0.23
1.45
ADO3308PA-333
❑
33
0.30
1.20
ADO3308PA-473
❑
47
0.39
1.00
ADO3308PA-683
❑
68
0.66
0.80
ADO3308PA-104
❑
100
0.84
0.68
ADO3308PA-154
❑
150
1.20
0.55
ADO3308PA-224
❑
220
1.90
0.45
ADO3308PA-334
❑
330
2.70
0.37
ADO3308PA-474
❑
470
4.00
0.30
ADO3308PA-684
❑
680
5.3
0.2
ADO3308PA-105
❑
1000
8.4
0.1

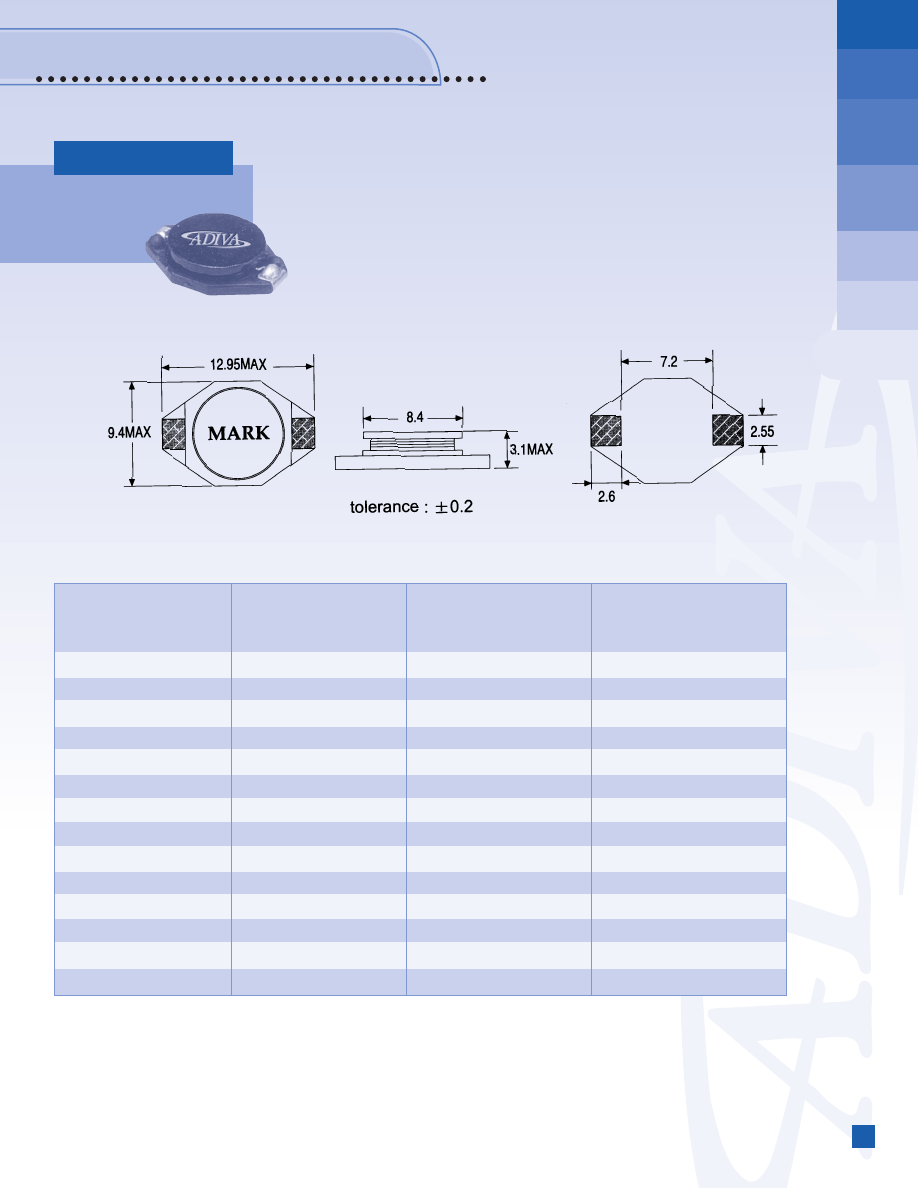

UNIT DIMENSION (unit: mm)
Revised 08/21/02
