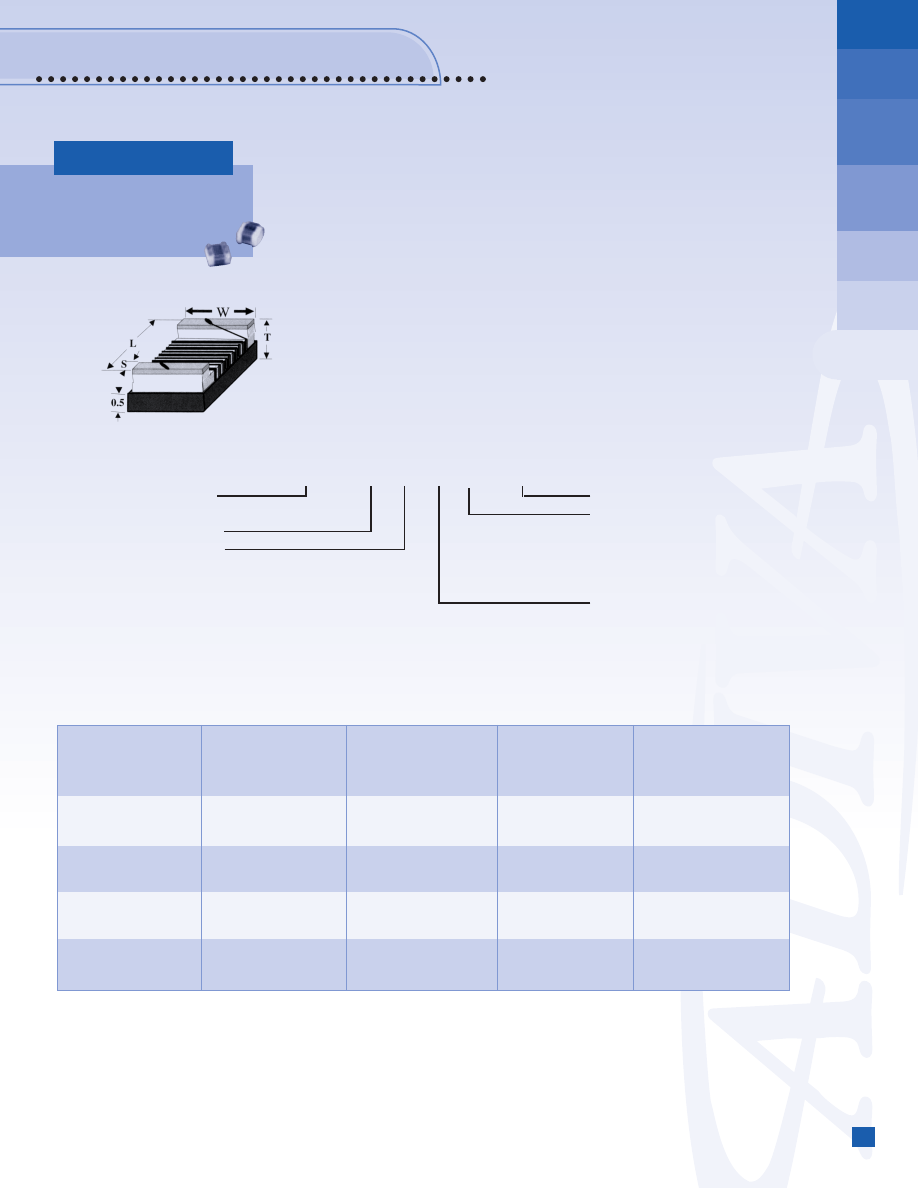

Wire Wound Chip

ADWIA Series

XTAL

OSC

VCXO

VCO

TCXO

VCTCXO

FLTR

RES

IND

Surface Mount

FEATURES

• Operating Temperature: -40ºC to 85ºC.
• Excellent solderability and resistance to soldering heat.
• Suitable for flow and reflow soldering.

• Good dimensions, high reliability, and easy surface

mount assembly.

• 3 types of materials provide wide range of

induction value for flexible needs.

INTRODUCTION

The ADWIA series are wire wound type chip inductors widely used in the communication applications such

as cellular phones, pagers, television tuners, radios, and other electronic devices. The wire wound features

advance in higher self resonate frequency, better Q factor, and much stabler performance.

SPECIFICATIONS

LENGTH (L)

WIDTH (W)

THICKNESS (T)

TERMINAL (S)

SIZE

(inch)

(inch)

(inch)

(inch)

mm

mm

mm

mm

ADWIA-0603

(0.063 ± 0.008)

(0.041 ± 0.008)

(0.041 ± 0.008)

(0.014 ± 0.004)

1.60 ± 0.2

1.05 ± 0.2

1.05 ± 0.2

0.35 ± 0.1

ADWIA-0805

(0.080 ± 0.008)

(0.050 ± 0.008)

(0.048 ± 0.008)

(0.016 ± 0.004)

2.00 ± 0.2

1.25 ± 0.2

1.20 ± 0.2

0.40 ± 0.1

ADWIA-1008

(0.098 ± 0.008)

(0.063 ± 0.008)

(0.063 ± 0.008)

(0.020 ± 0.004)

2.5 ± 0.2

1.60 ± 0.2

1.60 ± 0.2

0.50 ± 0.1

ADWIA-1210

(0.126 ± 0.008)

(0.098 ± 0.008)

(0.087 ± 0.008)

(0.020 ± 0.004)

3.20 ± 0.2

2.50 ± 0.2

2.20 ± 0.2

0.50 ± 0.1

ADWIA

❑

- 0603 - CS - 3N3 - J    - T

PACKAGE TYPE

ADWIA: WIRE WOUND

CHIP DIMENSION
MATERIAL TYPE:

CS: CERAMIC
FS: FERRITE

TAPE & REEL
TOLERANCE:

B = ±0.15 NH
S = ±0.30 NH
G = ±2%
J = ±5%
K = ±10%

INDUCTANCE VALUE:

3N3 = 3.3 NH
33N = 33 NH
R33 = 330 NH
3R3 = 3.3 UH
330 = 33 UH
331 = 330 UH

PART NUMBERING GUIDE

ADWIA

Revised 08/21/02

www.adivatech.com

(888) 30-ADIVA (23482)

O

96

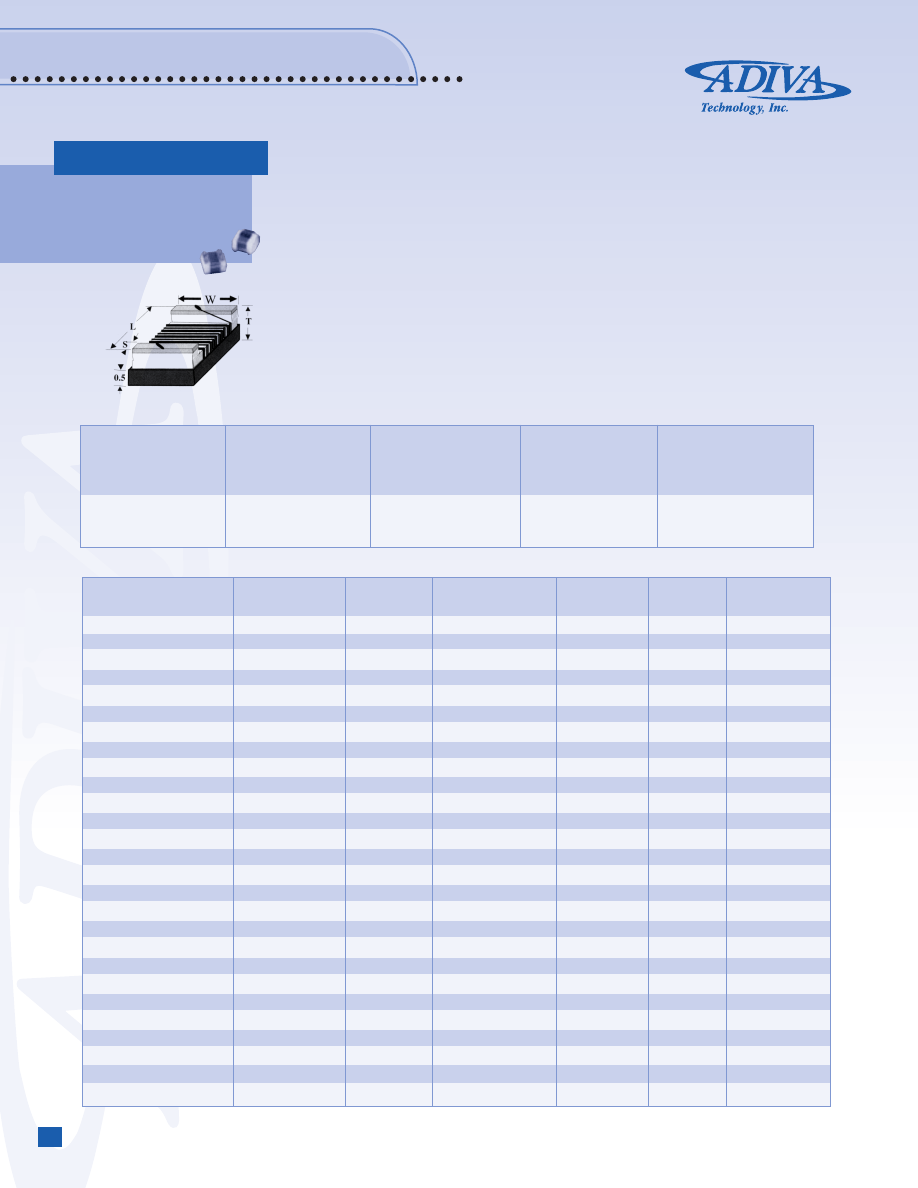

Wire Wound Chip

ADWIA Ceramic Series

Surface Mount

1

Inductance is measured in HP-4291B impedance analyzer with HP-16192 fixture.

2

Q is measured in HP-4291B impedance analyzer with HP-16192 fixture.

3

SRF is measured in HP-8753E RF network analyzer with HP-16192 fixture.

4

RDC is measured in HP-4338B millohmeter.

5

For 15ºC Rise.

FEATURES

• Operating Temperature: -40ºC to 85ºC.
• Excellent solderability and resistance to soldering heat.
• Suitable for flow and reflow soldering.

• Good dimensions, high reliability, and easy

surface mount assembly.

• 3 types of materials provide wide range of

induction value for flexible needs.

INTRODUCTION

The ADWIA series are wire wound type chip inductors widely used in the communication applications such as cellular

phones, pagers, television tuners, radios, and other electronic devices. The wire wound features advance in higher self

resonate frequency, better Q factor, and much stabler performance.

SPECIFICATIONS

LENGTH (L)

WIDTH (W)

THICKNESS (T)

TERMINAL (S)

SIZE

(inch)

(inch)

(inch)

(inch)

mm

mm

mm

mm

ADWIA-0805

(0.080 ± 0.008)

(0.050 ± 0.008)

(0.048 ± 0.008)

(0.016 ± 0.004)

2.00 ± 0.2

1.25 ± 0.2

1.20 ± 0.2

0.40 ± 0.1

ADWIA-0805CS (2012) SERIES STANDARD SPECIFICATIONS

PACKAGE TYPE

INDUCTANCE

1

PERCENT

Q

2

S.R.F.

3

RDC

4

IDC

5

(nH)

TOLERANCE

min.

min. (MHz)

max. (

Ω

)

max. (mA)

ADWIA-0805CS 020

❑

T

2.2 @ 250 MHz

B,S

50 @ 1000 MHz

6000

0.06

600

ADWIA-0805CS 027

❑

T

2.7 @ 250 MHz

B,S

35 @ 1000 MHz

6000

0.08

600

ADWIA-0805CS 039

❑

T

3.9 @ 250 MHz

B,S

60 @ 1000 MHz

6000

0.06

600

ADWIA-0805CS 040

❑

T

4.7 @ 250 MHz

B,S

60 @ 1000 MHz

5800

0.06

600

ADWIA-0805CS 050

❑

T

5.6 @ 250 MHz

K,J,G

60 @ 1000 MHz

5800

0.08

600

ADWIA-0805CS 060

❑

T

6.8 @ 250 MHz

K,J,G

60 @ 1000 MHz

5500

0.06

600

ADWIA-0805CS 080

❑

T

8.2 @ 250 MHz

K.J.G

60 @ 1000 MHz

5500

0.06

600

ADWIA-0805CS 100

❑

T

10 @ 250 MHz

K,J,G

60 @   500 MHz

4800

0.08

600

ADWIA-0805CS 120

❑

T

12 @ 250 MHz

K,J,G

60 @   500 MHz

4100

0.08

600

ADWIA-0805CS 150

❑

T

15 @ 250 MHz

K,J,G

60 @   500 MHz

3600

0.08

600

ADWIA-0805CS 180

❑

T

18 @ 250 MHz

K,J,G

60 @   500 MHz

3400

0.08

600

ADWIA-0805CS 220

❑

T

22 @ 250 MHz

K,J,G

60 @   500 MHz

3300

0.10

600

ADWIA-0805CS 270

❑

T

27 @ 250 MHz

K,J,G

60 @   500 MHz

2600

0.12

600

ADWIA-0805CS 330

❑

T

33 @ 250 MHz

K,J,G

60 @   500 MHz

2400

0.15

500

ADWIA-0805CS 390

❑

T

39 @ 250 MHz

K,J,G

60 @   500 MHz

2100

0.18

500

ADWIA-0805CS 470

❑

T

47 @ 200 MHz

K,J,G

60 @   500 MHz

1700

0.15

500

ADWIA-0805CS 560

❑

T

56 @ 200 MHz

K,J,G

60 @   500 MHz

1600

0.25

500

ADWIA-0805CS 680

❑

T

68 @ 200 MHz

K,J,G

60 @   500 MHz

1450

0.27

500

ADWIA-0805CS 820

❑

T

82 @ 150 MHz

K,J,G

60 @   500 MHz

1350

0.32

500

ADWIA-0805CS 101

❑

T

100 @ 150 MHz

K,J,G

60 @   500 MHz

1200

0.43

500

ADWIA-0805CS 121

❑

T

120 @ 150 MHz

K,J,G

50 @   250 MHz

1100

0.48

500

ADWIA-0805CS 151

❑

T

150 @ 100 MHz

K,J,G

50 @   250 MHz

950

0.67

400

ADWIA-0805CS 181

❑

T

180 @ 100 MHz

K,J,G

50 @   250 MHz

900

0.85

350

ADWIA-0805CS 221

❑

T

220 @ 100 MHz

K,J,G

50 @   250 MHz

860

1.10

300

ADWIA-0805CS 271

❑

T

270 @ 100 MHz

K,J,G

45 @   250 MHz

850

1.46

250

ADWIA-0805CS 331

❑

T

330 @ 100 MHz

K,J,G

45 @   250 MHz

800

1.65

200

ADWIA-0805CS 391

❑

T

390 @ 100 MHz

K,J,G

45 @   250 MHz

780

2.20

170

ADWIA-0805CS

O

INDUCT

ORS

97

Wire Wound Chip

ADWIA Ceramic Series  — Continued

XTAL

OSC

VCXO

VCO

TCXO

VCTCXO

FLTR

RES

IND

Surface Mount

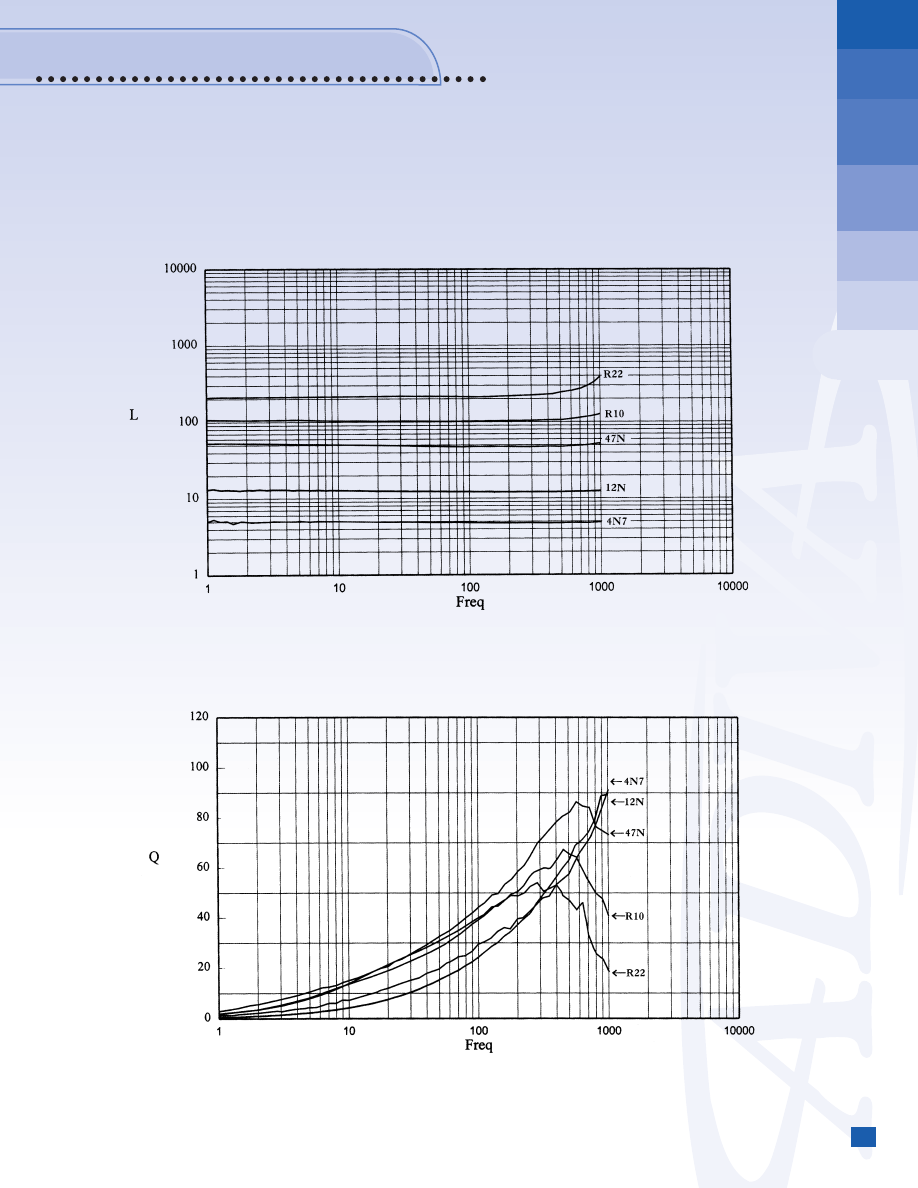

ELECTRICAL CHARACTERISTIC

ADWIA-0805CS (2012)

ADWIA-0805CS (2012)
