DuroSite

®

and SafeSite

®

LED Lighting Fixture Catalogue

for Indoor and Outdoor Industrial and Hazardous Locations

Table of Contents

DuroSite

®

LED Lighting for Industrial Applications

Index

DuroSite LED Lighting Fixtures for Industrial Applications Overview.................................................................................

5

DuroSite LED High Bay....................................................................................................................................................

10

Ordering information

.....................................................................................................................................................

11-13

DuroSite LED Low Bay......................................................................................................................................................

16

Ordering information

.....................................................................................................................................................

16

DuroSite LED Linear..........................................................................................................................................................

17

Ordering information

.....................................................................................................................................................

17

DuroSite LED Stainless Steel Linear Luminaire..................................................................................................................

19

Ordering information

.....................................................................................................................................................

19

DuroSite LED Stainless Steel Linear Luminaire - Battery Backup......................................................................................

20

Ordering information

.....................................................................................................................................................

20

DuroSite LED Area Light..................................................................................................................................................

23

Ordering information

.....................................................................................................................................................

23

DuroSite LED Floodlight...................................................................................................................................................

26

Ordering information

.....................................................................................................................................................

27

DuroSite LED Bulkhead Fixture.........................................................................................................................................

28

Ordering information

....................................................................................................................................................

29

High Bay Controls...........................................................................................................................................................

35

Ordering information

....................................................................................................................................................

35

SafeSite

®

LED Lighting for Hazardous Applications

Index

SafeSite LED Lighting Fixtures for Hazardous Applications Overview...............................................................................

6

SafeSite LED High Bay.....................................................................................................................................................

14

Ordering information

.....................................................................................................................................................

15

SafeSite LED Linear Fixture- ATEX / IECEx..........................................................................................................................

18

Ordering information

.....................................................................................................................................................

18

SafeSite LED Stainless Steel Linear Luminaire..................................................................................................................

21

Ordering information

.....................................................................................................................................................

21

SafeSite LED Stainless Steel Linear Luminaire - Battery Backup.......................................................................................

22

Ordering information

.....................................................................................................................................................

22

SafeSite LED Area Light...................................................................................................................................................

24

Ordering information

....................................................................................................................................................

24

SafeSite LED Bulkhead Fixture.........................................................................................................................................

30

Ordering information

....................................................................................................................................................

31

StreetSense

®

LED Fixture

Index

StreetSense LED Street Light.........................................................................................................................................

32

Ordering information

...................................................................................................................................................

33-34

2

Vigilant

®

LED Lighting for Industrial Applications

Index

Vigilant LED Lighting Fixtures for Industrial Applications Overview.................................................................................

4

Vigilant LED High Bay......................................................................................................................................................

7

Ordering information

.....................................................................................................................................................

8

Vigilant LED High Bay Controls........................................................................................................................................

9

Ordering information

.....................................................................................................................................................

9

Vigilant LED Floodlight.....................................................................................................................................................

25

Ordering information

.....................................................................................................................................................

25

www.dialight.com

About Dialight

Dialight (LSE: DIA.L) is leading the energy efficient LED lighting revolution around the world for industrial and hazardous areas
as well as transportation and infrastructure applications. For 40 years, it has been committed to the  development of LED
lighting solutions that enable organizations to vastly reduce energy use and maintenance needs, improve safety, ease
disposal and reduce CO2 footprint.

Value Proposition

•

10+ years of maintenance free lighting

•

Improved safety, colour rendering quality

•

Improved temperature rating (T-rating)

•

Lower total cost of ownership, quick ROI

•

Lower energy consumption by > 50%

•

Significantly reduces CO2 footprint

History at a Glance

1938

→

Dialight founded in Brooklyn, NY

1971

→

LED Circuit Board Indicator

1994

→

LED Transit Vehicle Signals

1995

→

LED Traffic Signals

2000

→

FAA certified LED Obstruction Lights

2007

→

LED Lighting for Hazardous Locations

2009

→

LED High Bay Fixtures

2012

→

Full performance 10-year warranty

2013

→

Integrated Controls for LED Lighting

2014

→

125lm/W High Bay

Vigilant

®

•

LED lighting for general industrial applications

SafeSite

®

•

LED lighting for hazardous applications

DuroSite

®

•

LED lighting for general industrial applications

Vertically Focused

Regulated Primary Markets

•

Oil, Gas & Petrochemical

•

Power Generation

•

Mining

•

Chemical

•

Pharmaceutical

•

Water & Sewage

•

Food & Beverage

Secondary Markets

•

Manufacturing

•

Warehousing

•

Cold Storage

•

Data Centres

View Dialight Case Studies at:

Diamond Pet Foods :

www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDEXMDPFX001.pdf

Rexam:

www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDEXMRXMX001.pdf

Horizontal Well Drillers

: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/Case_Study_Horizontal_Well_Drillers.pdf

Santa Cruz WWTP:

www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/Santa_Cruz_Case_Study.pdf

LANXESS:

http://www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/LANXESS_Case_Study.pdf

DuroSite

®

and SafeSite

®

LED Lighting Fixture Catalogue

for Indoor and Outdoor Industrial and Hazardous Locations

3

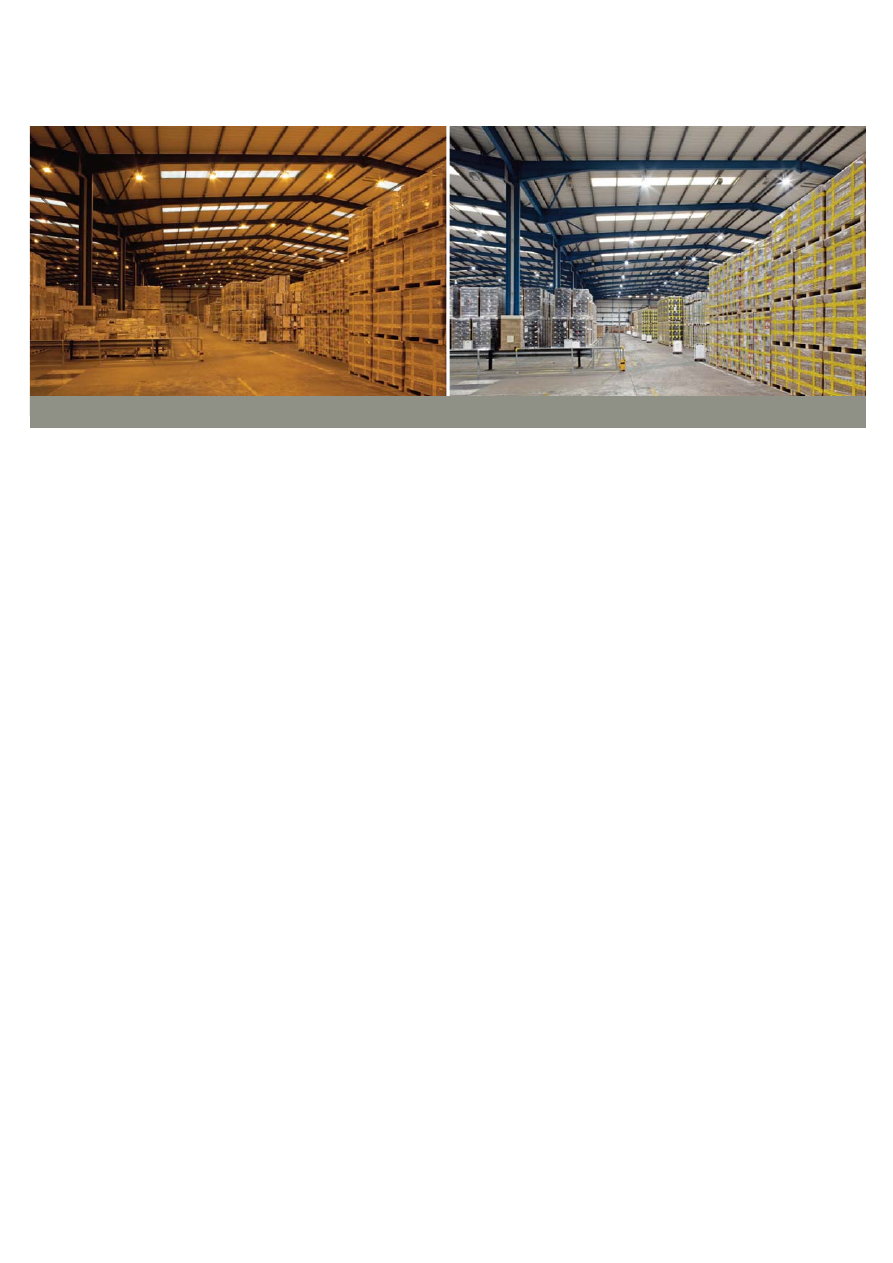

(400W High Pressure Sodium Lights)

(Dialight’s 150W LED)

www.dialight.com

4

High Bay

pg. 7

Lumen
Output

Wattage

Efficacy

lm/W

Occupancy

Sensor

Dimming

Overhead /

Ceiling

Wall

Stanchion

Pole Arm

Task High / Low Bay

General

Area

26,500

212

125

•

•

•

•

•

•

•

•

18,000

144

125

•

•

•

•

•

•

•

•

14,000

112

125

•

•

•

•

•

•

•

•

11,000

88

125

•

•

•

•

•

•

•

•

Vigilant

®

LED Lighting Fixtures for Industrial Applications

www.dialight.com

Dual Floodlight

pg. 25

Lumen
Output

Wattage

Efficacy

lm/W

Occupancy

Sensor

Dimming

Overhead /

Ceiling

Wall

Stanchion

Pole Arm

Task High / Low Bay

General

Area

52,000

424

122

•

•

•

•

Industry leading efficiency for maximum return on investment and
lower total cost of ownership

Dialight’s Vigilant LED fixtures are among the most groundbreaking innovations
and backed by Dialight’s industry-leading 10-year full-performance warranty
for more than a decade of reliable, worry-free performance in the world’s
harshest industrial environments.

Featuring Dialight’s world class in-house designed power supply, next
generation LED technology and advanced optical design, the new Vigilant
LED fixtures marks a major step forward in the future of energy efficiency for
industrial environments.

Features and Benefits:

•

10 year full performance warranty

•

L70 rated for >100,000 hours @ 25°C ambient

•

Significantly reduced glare

•

Instant on/off

•

Maintenance free

•

Mercury free

•

No UV or IR

•

Resistant to shock and vibration

•

Superior colour rendition index compared to HPS, LPS, MV

•

Temperature compensation technology for longer life

DuroSite

®

LED Lighting Fixtures for Industrial Applications

Bulkhead

pg. 28

Lumen
Output

Wattage

Efficacy

lm/W

Occupancy

Sensor

Dimming

Overhead /

Ceiling

Wall

Stanchion

Pole Arm

Task

High Bay

/ Low Bay

General

Area

2,250

34

66

•

•

•

•

•

•

2,150

34

63

•

•

•

•

•

•

1,200

22

55

•

•

•

•

•

•

600

11

55

•

•

•

•

•

•

Floodlight

pg. 26

Lumen
Output

Wattage

Efficacy

lm/W

Occupancy

Sensor

Dimming

Overhead /

Ceiling

Wall

Stanchion

Pole Arm

Task

High

/ Low Bay

General

Area

11,500

109

105

•

•

•

•

11,250

109

103

•

•

•

•

11,000

109

101

•

•

•

•

10,750

109

99

•

•

•

•

10,500

109

96

•

•

•

•

5

www.dialight.com

Low Bay

pg. 16

Lumen
Output

Wattage

Efficacy

lm/W

Occupancy

Sensor

Dimming

Overhhead /

Ceiling

Wall

Stanchion

Pole Arm

Task

High Bay
/ Low Bay

General

Area

6,000

80

75

•

•

•

•

•

•

•

•

•

3,800

45

84

•

•

•

•

•

•

•

•

Area Light

pg. 23

Lumen
Output

Wattage

Efficacy

lm/W

Occupancy

Sensor

Dimming

Overhead /

Ceiling

Wall

Stanchion

Pole Arm

Task

High Bay

/ Low Bay

General

Area

6,000

58

103

•

•

•

•

•

•

•

5,600

58

97

•

•

•

•

•

•

•

5,000

48

104

•

•

•

•

•

•

•

4,700

48

98

•

•

•

•

•

•

•

4,000

38

105

•

•

•

•

•

•

•

3,700

38

97

•

•

•

•

•

•

•

2,200

21

105

•

•

•

•

•

•

•

Stainless Steel Linear

pg. 19

Lumen
Output

Wattage

Efficacy

lm/W

Occupancy

Sensor

Dimming

Overhead /

Ceiling

Wall

Stanchion

Pole Arm

Task

High Bay

/ Low Bay

General

Area

5,100

64

80

•

•

•

•

•

2,600

32

81

•

•

•

•

•

5,100

70

73

•

•

•

•

•

2,600

35

74

•

•

•

•

•

Linear

pg. 17

Lumen
Output

Wattage

Efficacy

lm/W

Occupancy

Sensor

Dimming

Overhhead /

Ceiling

Wall

Stanchion

Pole Arm

Task

High Bay
/ Low Bay

General

Area

6,000

80

75

•

•

•

•

•

3,800

45

84

•

•

•

•

•

High Bay

pg. 10

Lumen
Output

Wattage

Efficacy

lm/W

Occupancy

Sensor

Dimming

Overhead /

Ceiling

Wall

Stanchion

Pole Arm

Task

High Bay

/ Low Bay

General

Area

25,000

270

93

•

•

•

•

•

•

•

•

17,500

172

102

•

•

•

•

•

•

•

•

15,000

172

87

•

•

•

•

•

•

•

•

14,500

161

90

•

•

•

•

•

•

•

•

13,500

161

84

•

•

•

•

•

•

•

•

11,750

146

80

•

•

•

•

•

•

•

•

10,750

146

74

•

•

•

•

•

•

•

•

SafeSite

®

LED Lighting Fixtures for Hazardous Locations

1

1

To ensure proper certification when ordering please refer to www.dialight.com and the current datasheets.

High Bay

pg. 14

Lumen Output

Wattage

Efficacy lm/W

ATEX / IECEx

Zone 1, 21

ATEX / IECEx

Zone 2, 22

ABS

UL 844

21,000

270

78

•

•

•

•

14,500

172

84

•

•

•

•

11,000

161

68

•

•

•

•

9,500

150

63

•

•

•

•

Stainless Steel Linear - ATEX / IECEx

pg. 21

Lumen Output

Wattage

Efficacy lm/W

Atex / IECEx

Zone 1, 21

Atex / IECEx

Zone 2, 22

ABS

UL 844

5,100

64

80

•

•

•

2,600

32

81

•

•

•

Bulkhead

pg. 30

Lumen Output

Wattage

Efficacy lm/W

ATEX / IECEx

Zone 1, 21

ATEX / IECEx

Zone 2, 22

ABS

UL 844

2,250

34

66

•

•

•

•

2,150

34

63

•

•

•

•

1,200

22

55

•

•

•

•

600

11

55

•

•

•

•

Linear - ATEX / IECEx

pg. 18

Lumen Output

Wattage

Efficacy lm/W

ATEX / IECEx

Zone 1, 21

ATEX / IECEx

Zone 2, 22

ABS

UL 844

6,000

68

88

•

•

3,100

36

86

•

•

6

Area Light

pg. 24

Lumen Output

Wattage

Efficacy lm/W

ATEX / IECEx

Zone 1, 21

ATEX / IECEx

Zone 2, 22

ABS

UL 844

6,000

58

103

•

•

•

•

5,600

58

97

•

•

•

•

5,100

48

106

•

•

•

•

4,600

48

96

•

•

•

•

4,000

38

105

•

•

•

•

3,600

38

95

•

•

•

•

2,200

21

105

•

•

•

•

Stainless Steel Linear - Battery Backup ATEX / IECEx

pg. 22

Lumen Output

Emergency

Mode Lumens

Wattage

Efficacy lm/W

ATEX / IECEx

Zone 1, 21

ATEX / IECEx

Zone 2, 22

ABS

UL 844

5,100

270

70

73

•

•

•

2,600

270

35

74

•

•

•

www.dialight.com

Lumens

Wattage

lm/W

Mounting Heights

26,500

212

125

24m

24,250

212

114

18,000

144

125

16,500

144

114

5m

Optical Pattern

Dialight

High Bay

Metal

Halide

High

Pressure Sodium

Warranty

10yr

1

1

L-70

>100,000

15,000

20,000

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDEXHBX001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/711

Ratings and Certifications

(Other certifications available)

   •

CE



•

IP 66

•

IK05





Specifications

Fixture Weight:      8.16kg
Housing:               Copper free aluminium
Lens options:        Tempered Glass
Voltage options:   100 – 277V AC, 110 - 277V AC
L70:                      >100,000 hours @ 25°C ambient

7

Vigilant

®

LED High Bay

Mounting Options

Swivel Bracket

Hook

www.dialight.com

Mounting and Accessories

Part Number

Description

HBXW3

Swivel Bracket

HBXGS-10

Glare Shield - Grey (RAL7001) powder coated spun aluminium (Interior use only, for use with flat lens options)

HBXSBDK

Sand blast kit (dome lens)

HBXSBDL

Sacrificial dome Lens

HBXSBK

Sand blast kit (flat lens)

HBXSBL

Sacrificial flat Lens

Vigilant

®

LED High Bay -

Ordering Information

8

www.dialight.com

Part Number

1,2,3,4

Initial

Fixture

Lumens

Wattage

Lumens

Per  Watt

CCT

Wet Location

Rating

Voltage

Lens

Optical Pattern

Circular

Wide

Standard Models

HEEGMC4PN-HNG

26,500

212

125

5000 (Cool White)

IP66

110 - 277V AC

Tempered Glass

•

HEEGRC4PN-HNG

26,500

212

125

5000 (Cool White)

IP66

110 - 277V AC

Tempered Glass

•

HEEGMC4KN-HNG

18,000

144

125

5000 (Cool White)

IP66

110 - 277V AC

Tempered Glass

•

HEEGRC4KN-HNG

18,000

144

125

5000 (Cool White)

IP66

110 - 277V AC

Tempered Glass

•

HEEGMC4GN-HNG

14,000

112

125

5000 (Cool White)

IP66

100 - 277V AC

Tempered Glass

•

HEEGRC4GN-HNG

14,000

112

125

5000 (Cool White)

IP66

100 - 277V AC

Tempered Glass

•

HEEGMC4DN-HNG

11,000

88

125

5000 (Cool White)

IP66

100 - 277V AC

Tempered Glass

•

HEEGRC4DN-HNG

11,000

88

125

5000 (Cool White)

IP66

100 - 277V AC

Tempered Glass

•

Variable Dimming Models

HEEGMC4PD-HNG

26,500

212

125

5000 (Cool White)

IP66

110 - 277V AC

Tempered Glass

•

HEEGRC4PD-HNG

26,500

212

125

5000 (Cool White)

IP66

110 - 277V AC

Tempered Glass

•

HEEGMC4KD-HNG

18,000

144

125

5000 (Cool White)

IP66

110 - 277V AC

Tempered Glass

•

HEEGRC4KD-HNG

18,000

144

125

5000 (Cool White)

IP66

110 - 277V AC

Tempered Glass

•

HEEGMC4GD-HNG 14,000

112

125

5000 (Cool White)

IP66

100 - 277V AC

Tempered Glass

•

HEEGRC4GD-HNG

14,000

112

125

5000 (Cool White)

IP66

100 - 277V AC

Tempered Glass

•

HEEGMC4DD-HNG

11,000

88

125

5000 (Cool White)

IP66

100 - 277V AC

Tempered Glass

•

HEEGRC4DD-HNG

11,000

88

125

5000 (Cool White)

IP66

100 - 277V AC

Tempered Glass

•

1

Models in part number table are in Cool White (5,000K CCT), for models needing Neutral White (4,000K CCT) replace the 6th character with a

N

. Example HEEGM

C

4PN-HNG

becomes HEEGM

N

4PN-HNG.  Deduct 8% from lumen values when specifying neutral white.

2

For models needing a Safety Bracket replace the 11th character with a

S

.  Example HEEGMC4PN-H

N

G becomes HEEGMC4PN-H

S

G

3

All models in part number table come with an internal fuse.  For models needing an external fuse replace the 11th character with a

F

. Example HEEGMC4PN-H

N

G becomes

HEEGMC4PN-H

F

G.  (Fixtures will be listed with damp location only with external fuse)

4

For models needing both a Safety bracket and Fuse, replace the 11th character with a

G

. Example HEEGMC4PN-H

N

G becomes HEEGMC4PN-H

G

G.

Vigilant

®

LED High Bay with DALI or Wireless Controls

Wall Controller Dimensions

High Bay Dimensions

Certifications & Ratings

(High Bay)

•

CE - EN 55015:2006 / EN 61547:2009 /

EN  60598:2008

•

EN 62471:2008

•

IEC60068 salt spray testing- severity 1

•

IK05 to EN50102 (Glass lens)

•

IP 66 to EN60529

Wall Controller

Sensors

•

Pyroelectric Infrared PIR Motion Sensor
Detector

•

Detecting distance up to 7m

•

Ambient light sensor

•

Tuned for human eye spectral
sensitivity

Physical Dimensions:

•

241.3mm Width

•

241.3mm Height

•

50.8mm Depth

Screen

•

177.8mm Diagonal

•

152.4mm Wide

•

88.9mm High

•

User Input: Resistive Touch Screen

•

Resolution – 800 x 480 pixels

9

Dimensions in mm [Inches]

Dimensions in mm [Inches]

www.dialight.com

Part number

1,2

Lumens

Wattage

Lumens

per Watt

Voltage

CCT

1

Wet

Location

Lens

Optics

Circular

Wide

Vigilant LED High Bay - Jennet 2.4GHz

HEEGMC4PJ-HNG

26,500

217

122

110 - 277V AC

5,000 (Cool White)

IP66

Tempered Glass

•

HEEGRC4PJ-HNG

26,500

217

122

110 - 277V AC

5,000 (Cool White)

IP66

Tempered Glass

•

HEEGMC4KJ-HNG

18,000

149

121

110 - 277V AC

5,000 (Cool White)

IP66

Tempered Glass

•

HEEGRC4KJ-HNG

18,000

149

121

110 - 277V AC

5,000 (Cool White)

IP66

Tempered Glass

•

HEEGMC4GJ-HNG

14,000

117

120

100 - 277V AC

5,000 (Cool White)

IP66

Tempered Glass

•

HEEGRC4GJ-HNG

14,000

117

120

100 - 277V AC

5,000 (Cool White)

IP66

Tempered Glass

•

Vigilant LED High Bay - DALI Protocol

HEEGMC4PA-HNG

26,500

217

122

110 - 277V AC

5,000 (Cool White)

IP66

Tempered Glass

•

HEEGRC4PA-HNG

26,500

217

122

110 - 277V AC

5,000 (Cool White)

IP66

Tempered Glass

•

HEEGMC4KA-HNG

18,000

149

121

110 - 277V AC

5,000 (Cool White)

IP66

Tempered Glass

•

HEEGRC4KA-HNG

18,000

149

121

110 - 277V AC

5,000 (Cool White)

IP66

Tempered Glass

•

HEEGMC4GA-HNG

14,000

117

120

100 - 277V AC

5,000 (Cool White)

IP66

Tempered Glass

•

HEEGRC4GA-HNG

14,000

117

120

100 - 277V AC

5,000 (Cool White)

IP66

Tempered Glass

•

Wall Controller - DALI & Jennet

WLC-004-MBAL

10W typical, 20W max

120 – 277V AC

1

Part numbers in table above are in cool white (5,000K CCT). For models needing neutral white (4,000K CCT), replace the 5th character with a

N

.  Example: HEEGM

C

4PN-HNG

becomes HEEGM

N

4PN-HNG. Deduct 8% from lumen values when specifying neutral.

2

For models needing Safety Bracket replace the 10th character with a

S

. Example: HEGMC4PN-H

N

G becomes HEGMC4PN-H

S

G

3

HEEGMC4PN-H

F

G.  (Fixtures will be listed with damp location only with external fuse)

4

For models needing both a Safety bracket and Fuse, replace the 11th character with a

G

. Example HEEGMC4PN-H

N

G becomes HEEGMC4PN-H

G

G.

Resources:

Datasheet:www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDEXVHBCONEUX001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/711

Lumens

Wattage

lm/W

Mounting Heights

25,000

270

93

24m

17,500

172

102

15,000

172

87

14,500

161

90

13,500

161

84

11,750

146

80

10,750

146

74

5m

3m Cable with Gland

Hook

Swivel Bracket

Mounting Options

Junction box

Optical Patterns

Dialight High Bay

Metal Halide

High Pressure Sodium

Warranty

5 / 10yr

1

1

L-70

>100,000

15,000

20,000

Controls Options

Occupancy Sensor

Resources:

Datasheet: http://www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDEXHBEU001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/711

Ratings and Certifications

(other certifications available)

   •

CE

•

IK06 (Glass / acrylic lens)

•

ABS



•

IK10 (polycarbonate lens)

•

IP 66





Specifications

Fixture Weight:      13.6kg (25,000lm models)

                            8kg (17,000 and lower models)

Operating Temp:  -40°C to +65°C
Housing:               Aluminium
Lens options:        Glass, polycarbonate, acrylic
Voltage options:   100 – 277V AC
L70:                      >100,000 hours @ 25°C ambient

10

151

(5.95)

413

(16.26)

DuroSite

®

LED High Bay

Dimming

Circular Pattern

Aisle Pattern

Dimensions in mm (inches)

www.dialight.com

DuroSite

®

LED High Bay -

Ordering Information

Part Number

1

Initial Fixture

Lumens

Wattage

Lumens

Per Watt

Lens

Optical Pattern

CRI

Clear

Diffused

Circular

Aisle

Standard Models - 100 - 277V AC

HLGC4KNEUH10YR

25,000

270

93

Tempered Glass

•

70

HLLC4KNEUH10YR

22,000

270

81

Dome Polycarbonate

•

70

HLGB4KNEUH10YR

20,000

250

80

Tempered Glass

•

80

HLLB4KNEUH10YR

20,000

270

74

Dome Polycarbonate

•

80

HBGCMPEUH

17,500

172

102

Tempered Glass

•

70

HBGCMPEUDH

17,500

172

102

Tempered Glass

•

70

HBLCMPEUH

15,000

172

87

Dome Polycarbonate

•

70

HBGC4PEUH

14,500

161

90

Tempered Glass

•

70

HBLC4PEUH

14,500

161

90

Dome Polycarbonate

•

70

HBGBMPEUH

14,000

172

81

Tempered Glass

•

80

HBLBMPEUH

14,000

172

81

Dome Polycarbonate

•

80

HBEC4NEUH

11,750

146

80

Tempered Glass

•

70

HBGB4PEUH

11,200

146

77

Tempered Glass

•

80

HBLB4PEUH

11,200

161

70

Dome Polycarbonate

•

80

HB2C4MEUH

10,000

146

68

Polycarbonate

•

70

HB7C4MEUH

10,000

146

68

Polycarbonate

•

70

HBLC4MEUH

10,000

146

68

Dome Polycarbonate

•

70

HB7B4MEUH

8,400

146

58

Polycarbonate

•

80

HBLB4MEUH

8,400

146

58

Dome Polycarbonate

•

80

HB2B4MEUH

8,400

146

58

Polycarbonate

•

80

Standard Models with Junction Box - 100 - 277V AC

HBJGCMPEU

17,500

172

102

Tempered Glass

•

70

HBJLCMPEU

17,500

172

102

Polycarbonate

•

70

HBJGC4PEU

14,500

161

90

Tempered Glass

•

70

HBJLC4PEU

14,500

161

90

Polycarbonate

•

70

HBJGBMPEU

14,000

172

81

Tempered Glass

•

80

HBJLBMPEU

14,000

172

81

Polycarbonate

•

80

HBJGB4PEU

11,200

146

77

Tempered Glass

•

80

HBJLB4PEU

11,200

161

70

Polycarbonate

•

80

HBJ2C4MEU

10,000

146

68

Polycarbonate

•

70

HBJLC4MEU

10,000

146

68

Polycarbonate

•

70

HBJ7C4MEU

9,750

146

67

Polycarbonate

•

70

HBJ7B4MEU

8,000

146

55

Polycarbonate

•

80

1

Part numbers listed in the above table are cool white. For neutral white models replace the 4th character with

N

Ex: HB2

C

4M-EUH becomes HB2

N

4M-EUH.

Deduct 8% from

lumen values when specifying neutral.

11

www.dialight.com

Part Number

1

Initial Fixture

Lumens

Wattage

Lumens

Per Watt

Lens

Optical Pattern

CRI

Clear

Diffused

Circular

Aisle

Occupancy Sensor Models - 100 - 277V AC

HBJ2C4MEUOS

10,750

146

74

Polycarbonate

•

70

HBJLC4MEUOS

10,500

146

72

Dome Polycarbonate

•

70

HBJ7C4MEUOS

9,750

146

67

Polycarbonate

•

70

HBJ2B4MEUOS

8,000

146

55

Polycarbonate

•

80

HBJLB4MEUOS

8,000

146

55

Dome Polycarbonate

•

80

HBJ7B4MEUOS

8,000

146

55

Polycarbonate

•

80

Variable Dimming Models - 100 - 277V AC

HLGC4KNEUDH10YR

25,000

270

93

Tempered Glass

•

70

HLLC4KNEUDH10YR

25,000

270

93

Dome Polycarbonate

•

70

HLGB4KNEUDH10YR

20,000

270

74

Tempered Glass

•

80

HLLB4KNEUDH10YR

20,000

270

74

Dome Polycarbonate

•

80

HBLCMPEUDH

17,500

172

102

Dome Polycarbonate

•

70

HBGC4PEUDH

14,500

161

90

Tempered Glass

•

70

HBLC4PEUDH

14,500

161

90

Dome Polycarbonate

•

70

HBGBMPEUDH

14,000

172

81

Tempered Glass

•

80

HBLBMPEUDH

14,000

172

81

Dome Polycarbonate

•

80

HBLB4PEUDH

11,200

161

70

Dome Polycarbonate

•

80

HBGB4PEUDH

11,200

161

70

Tempered Glass

•

80

HBLC4MEUDH

10,700

146

73

Dome Polycarbonate

•

70

HB2C4MEUDH

10,000

146

68

Polycarbonate

•

70

HB7C4MEUDH

10,000

146

68

Polycarbonate

•

70

HBLB4MEUDH

8,400

146

58

Dome Polycarbonate

•

80

HB2B4MEUDH

8,400

146

58

Polycarbonate

•

80

HB7B4MEUDH

8,000

146

55

Polycarbonate

•

80

Variable Dimming Models with Junction Box

2

- 100 - 277V AC

HBJGCMPEUD

17,500

172

102

Tempered Glass

•

70

HBJLCMPEUD

17,500

172

102

Dome Polycarbonate

•

70

HBJGC4PEUD

14,500

161

90

Tempered Glass

•

70

HBJLC4PEUD

14,000

161

87

Dome Polycarbonate

•

70

HBJGBMPEUD

14,000

172

81

Tempered Glass

•

80

HBJLBMPEUD

14,000

172

81

Dome Polycarbonate

•

80

HBJLB4PEUD

11,200

161

70

Dome Polycarbonate

•

80

HBJGB4PEUD

11,200

161

70

Tempered Glass

•

80

HBJLC4MEUD

10,500

146

72

Dome Polycarbonate

•

70

HBJ2C4MEUD

10,000

146

68

Polycarbonate

•

70

1

Part numbers listed in the above table are cool white. For neutral white models replace the 4th character with

N

Ex: HB2

C

4M-EUH becomes HB2

N

4M-EUH.

Deduct 8% from

lumen values when specifying neutral.

12

www.dialight.com

Part Number

1

Initial Fixture

Lumens

Wattage

Lumens

Per Watt

Lens

Optical Pattern

CRI

Clear

Diffused

Circular

Aisle

Variable Dimming Models with Junction Box

2

- 100 - 277V AC

HBJ7C4MEUD

10,000

146

68

Polycarbonate

•

70

HBJLB4MEUD

8,400

146

58

Dome Polycarbonate

•

80

HBJLB4MEUD

8,400

146

58

Dome Polycarbonate

•

80

HBJ2B4MEUD

8,000

146

55

Polycarbonate

•

80

HBJ7B4MEUD

8,000

146

55

Polycarbonate

•

80

Occupancy Sensor with Variable Dimming Models - 100 - 277V AC

HBJEC4NEUOSD

11,750

146

80

Tempered Glass

•

70

HBJLC4MEUOSD

10,500

146

72

Dome Polycarbonate

•

70

HBJ2C4MEUOSD

10,000

146

68

Polycarbonate

•

70

HBJ7C4MEUOSD

9,750

146

67

Polycarbonate

•

70

HBJ2B4MEUOSD

8,000

146

55

Polycarbonate

•

80

HBJLB4MEUOSD

8,000

146

55

Dome Polycarbonate

•

80

HBJ7B4MEUOSD

8,000

146

55

Polycarbonate

•

80

Standard 70

o

C Model - 100 - 277V AC

HLGC4ANEUH70C

17,000

270

63

Tempered Glass

•

70

HBGC4PEUH70C

14,000

172

81

Tempered Glass

•

70

HBGCMPEU70C

12,000

172

70

Tempered Glass

•

70

Mounting and accessories

Part Number

Description

HBXWGSS

High Bay wire guard - stainless steel

HBXW3

Swivel Bracket (8,000 - 17,500lm models)

HLXW3

Swivel Bracket (25,000lm models)

HBXGS

Glare Shield

HBXSBK

Sand blast kit (flat lens)

HBXSBL

Flat replacement lens for sand blast shield kit

HBXSBDK

Sand blast kit (dome lens)

HBXSBDL

Domed replacement lens for sand blast shield kit

HBXRCL

High Bay PIR IR remote

HBXRCD

High Bay PIR IR dimming remote

HBXSLOS

High Bay PIR IR sensor slave

HBXPIRLUX

High Bay PIR sensor kit

HBXPIRLUXD

High Bay PIR sensor dimming Kit

HBXGS10

High Bay Glare Shield 10 Units

13

1

Part numbers listed in the above table are cool white. For neutral white models replace the 4th character with

N

Ex: HB1

C

4N-EUH becomes HB1

N

4N-EUH

Junction Box Models:

2

Part numbers listed in the above table are cool white. For neutral white models replace the 5th character with

N

Ex: HBJG

C

MP-EUD becomes HBJG

N

MP-EUD.

Deduct 8% from

lumen values when specifying neutral.

www.dialight.com

Lumens

Wattage

lm/W

Mounting Heights

21,000

270

78

15m

14,500

172

84

11,000

161

73

9,500

150

63

5m

Swivel Bracket

Mounting Options

Optical Pattern

Dialight High

Bay

Metal

Halide

High Pressure

Sodium

Warranty

10 / 5yr

1

1

T- Rating

T5

T2

T2A

L-70

>100,000

15,000

20,000

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDTFSFSTHBEU001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/711

Ratings and Certifications

(other certifications available)

•

ATEX / IECEx Zone 1 & 21



•

NEMA  4X

•

ATEX / IECEx Zone 2 & 22



•

IP 66

•

CE



•

RoHS compliant

•

ABS



Specifications

Fixture weight:       20kg (21,000lm models)

                            13.6 (14,500lm and lower models with fixed cable)

                            15.1 (14,500lm models and lower with junction box)

Operating temp:  -40°C to +60°C

Housing:               Aluminium

Lens options:        Tempered Glass

Voltage options:   100 – 277V AC
L70:                      >100,000 hours @ 25°C ambient

14

Junction Box

151

(5.95)

413

(16.26)

SafeSite

®

LED High Bay

Dimensions in mm (inches)

www.dialight.com

SafeSite

®

LED High Bay -

Ordering Information

Part Number

Initial

Fixture

Lumens

Typical Maximum

Lumens

Per Watt

Lens

Optical Pattern

Stainless steel

bracket

included

Hydrogen

Environments

Standard 10yr warranty Models - 100 - 277V AC

HLAGC4KN10YR

21,000

270W

315W

77

Toughened Glass

Narrow Circular

Standard 5yr warranty Models - 100 - 277V AC

HBA9CMP

14,500

172W

195W

81

Toughened Glass

Narrow Circular

HBA9C4P

11,000

161W

165W

68

Toughened Glass

Narrow Circular

HBA9C4M

9,500

150W

165W

63

Toughened Glass

Narrow Circular

HBH9C4M

9,500

150W

165W

63

Toughened Glass

Narrow Circular

•

HBH9C4MSS

9,500

150W

165W

63

Toughened Glass

Narrow Circular

•

•

Standard Models with Junction Box - 100 - 277V AC

HBJA9CMP

14,500

172W

195W

81

Toughened Glass

Narrow Circular

HBJA9C4P

11,000

161W

165W

68

Toughened Glass

Narrow Circular

HBHJ9C4M

9,500

150W

165W

63

Toughened Glass

Narrow Circular

•

HBJH9C4MSS

9,500

150W

165W

63

Toughened Glass

Narrow Circular

•

•

15

Mounting and accessories

Part Number

Description

HBXW3SS

Stainless steel swivel bracket

HBXGS

Glare Shield

HBXSBK

LED High Bay sand blast kit

HBXSBL

Replacement lens for sand blast shield kit

HBXSBDK

LED High Bay domed sand blast Kit

HBXSBDL

Domed replacement lens for sand blast shield kit

HBXWGSS

Stainless steel wire guard

www.dialight.com

Lumens

Wattage

lm/W

Mounting Heights

6,000

80

75

6m and lower

3,800

45

84

6m and lower

Hook

Swivel Bracket

Mounting Options

Optical Pattern

Dialight Low Bay

Metal Halide

High Pressure Sodium

Warranty

5yr

1

1

L-70

>100,000

15,000

20,000

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDEXLBXEU001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/1760

Ratings and Certifications

(other certifications available)

•

CE



•

IP 66



•

IK10

Specifications

Fixture weight:       8.2kg
Operating temp:  -40°C to +60°C
Housing:               Aluminium
Lens options:        Polycarbonate
Voltage options:   230 / 240V AC
L70:                      >100,000 hours @ 25°C ambient

Controls Options

Occupancy Sensor

16

DuroSite

®

LED Low Bay

Dimming

Dimensions in mm (inches)

www.dialight.com

Part Number

Initial Fixture Lumens

Wattage

Lumens Per Watt

Lens

Optical Pattern

Standard Models - 230 / 240V AC

LBW1B1D-EUH

6,000

80

75

Diffuse dome polycarbonate

Circular

LBW1C1D-EUH

6,000

80

75

Diffuse dome polycarbonate

Circular

LBW1C1A-EUH

3,800

45

84

Diffuse dome polycarbonate

Circular

Occupancy Sensor Models - 230 / 240V AC

LBWJ1C1D-EUOS

6,000

80

75

Diffuse dome polycarbonate

Circular

LBWJ1B1D-EUOS

6,000

80

75

Diffuse dome polycarbonate

Circular

Variable Dimming Models - 230 / 240V AC

LBW1C1D-EUDH

6,000

80

75

Diffuse dome polycarbonate

Circular

LBW1B1D-EUDH

6,000

80

75

Diffuse dome polycarbonate

Circular

LBW1C5A-EUH

3,800

45

84

Diffuse dome polycarbonate

Circular

Occupancy sensor and Variable Dimming Models - 230 / 240V AC

LBWJ1C1D-EUOSD

6,000

80

75

Diffuse dome polycarbonate

Circular

LBWJ1B1D-EUOSD

6,000

80

75

Diffuse dome polycarbonate

Circular

Mounting Options

Optical Pattern

Dialight Linear

Fluorescent

Warranty

5 yr

1

L-70

>100,000

24,000

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDTFSFSHZLAX001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/712

Low Profile Top Mount - LPXW4LP

Side Mount - LPXW4

(Included)

Top Mount - LTXW4

(Included)

Lumens

Wattage

lm/W

Mounting Heights

6,000

68

88

6m

3,100

36

86

3m

17

 Part Number

1

Length

Voltage

Lens

CCT

Lumens

Watt

LPW

LPE3C4D2P

2'

100 - 277V AC

Clear

CW

3,500

33

106

LPE3C4M2P

4'

100 - 277V AC

Clear

CW

7,000

66

106

LPE3C4B2D

2'

100 - 277V AC

Diffused

CW

3,300

33

100

LPE3C4H2D

4'

100 - 277V AC

Diffused

CW

6,600

66

100

Ordering Information

DuroSite

®

LED Linear Fixture - Low Profile

1

Part numbers listed in the above table are cool white. For neutral white model replace the 5th character with

N

. Ex. LPE3

C

4D2P becomes LPE3

N

4D2P.  Deduct 8% from lumen

values when specifying neutral.

Mounting and Accessories

 Part Number

 Description

LPXW4LP

Low profile mounting bracket, can be angled at 0° and 15°

LPXW4 (Included)

Mounting bracket, can be angled at 0°, 30°, 45°, 60° & 90°

LTXENDCAPKIT

Chain mount and secondary retention bracket

LTXSAFEKIT

Safety Cable Kit for secondary retention

Ratings and Certifications
•

CE



•

IP 66/67



Specifications

Fixture weight:       4.50 kg - 4’ models

                            3.13 kg - 2’mm models

Operating temp:  -40°C to +65°C
Housing:               Powder coated aluminium
Lens options:        Polycarbonate
Voltage options:   100 - 277V AC
L70:                      >100,000 hours @ 25°C ambient

Dimensions in mm (inches)

www.dialight.com

Mounting Options

Optical Pattern

Dialight Linear

Fluorescent

Warranty

5 yr

1

T- Rating

T5

T3

L-70

>100,000

24,000

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDTFSFSHZLAX001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/712

LSXW7 Mounting bracket

(Included)

605mm with

Mounting bracket

1181mm with

Mounting bracket

Lumens

Wattage

lm/W

Mounting Heights

6,000

68

88

6m

3,100

36

86

3m

18

 Part Number

1

Length

Voltage

Lens

CCT

Lumens

Watt

LPW

LSA3C4M2G

1181mm

100 - 277V AC

6mm clear toughened Glass

CW

6,000

68

88

LSA3C4D2G

605mm

100 - 277V AC

6mm clear toughened Glass

CW

3,100

36

86

LSA3C4M2F

1181mm

100 - 277V AC

Frosted Glass

CW

4,700

67

70

LSA3C4D2F

605mm

100 - 277V AC

Frosted Glass

CW

2,800

35

80

Ordering Information

SafeSite

®

LED Linear Fixture -

ATEX / IECEx

1

Part numbers listed in the above table are cool white. For neutral white model replace the 5th character with

N

. Ex. LSA3

C

4D2P becomes LSA3

N

4D2P. Deduct 8% from lumen

values when specifying neutral.

Mounting and Accessories

 Part Number

 Description

HZXSAFETABS

2 Eyelets, 2 Safety cables, Mounting Hardware

HZXSAFEKIT

Safety Cable Kit

Ratings and Certifications
•

CE



•

RoHS compliant

•

ATEX Zones 1, 21

•

IP 66

•

ATEX Zones 2, 22



•

NEMA 4X



Specifications

Fixture weight:       7.9 kg - 1181mm models

                            4.5 kg - 605mm models

Operating temp:  -20°C to +65°C
Housing:               Low copper Aluminuim
Lens options:        Tempered Glass
Voltage options:   100-277V AC
L70:                      >100,000 hours @ 25°C ambient

Dimensions in mm (inches)

www.dialight.com

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDTFSFSHZLDSEUX001.pdf

•

Case Studies, IES Files, LM79 Reports: ww.dialight.com/Document/Index/712

19

Ratings and Certifications
•

CE



•

IK09



•

IP 66/67



•

RoHS compliant



•

C & D shock compliant to MOD specification BR8470

Specifications

Fixture weight:       1308mm - 11.4kg

                            708mm - 6.5kg

Operating temp:  -40°C to +60°C
Housing:               316L  stainless steel
Lens options:        Polycarbonate
Voltage options:   100-277V AC
L70:                      >100,000 hours @ 25°C ambient

DuroSite

®

LED Stainless Steel Linear Luminaire

Dialight

Linear

Metal

Halide

High

Pressure

Sodium

Fluorescent

Warranty

5yr

1

1

1

L-70

>100,000

15,000

20,000

24,000

Lumens

Wattage

lm/W

Mounting Heights

5,100

64

81

6m

2,600

32

81

3m

Mounting Options

Pole Clamp

Eyelet

Ceiling Mount

Wall Mount Bracket 30°

Wall Mount Bracket 45°

Wall Mount Bracket 60°

Wall Mount Bracket 90°

Photometric View

 Part Number

Description

ELXCMBSS

316 Marine Grade Stainless Steel Ceiling Mount Kit

ELXEYESS

316 Marine Grade Stainless Steel Eyelet kit

ELXPCSS42

∅

40 - 45mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXPCSS47

∅

47 - 51mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXPCSS54

∅

54 - 57mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXPCSS59

∅

59 - 62mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXWMBSS30

30° 316 Marine Grade Stainless Steel Wall Mount Kit

ELXWMBSS45

45° 316 Marine Grade Stainless Steel Wall Mount Kit

ELXWMBSS60

60° 316 Marine Grade Stainless Steel Wall Mount Kit

ELXWMBSS90

90° 316 Marine Grade Stainless Steel Wall Mount Kit

Dimensions in mm (inches)

www.dialight.com

Part Number

Voltage

Colour

Entry Options

Lens

Lumens

Watts

Lumens Per Watt

EL-1C3R-SSCB

100 - 277V AC

5000K (cool white)

2 at each end

Polycarbonate

5,100

64

86

EL-1C3M-SSCB

100 - 277V AC

5000K (cool white)

2 at each end

Polycarbonate

2,600

32

86

Lm/W are under constant review and improvement, please consult technical department for latest achievable values
For factory fitted safety shackle option, add 1 as a suffix to the part code. E.g EL-1C3R-SSCB-1

20

DuroSite

®

LED Stainless Steel Linear Luminaire - Battery Backup

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDTFSFSHZLDSEUX001.pdf

•

Case Studies, IES Files, LM79 Reports: ww.dialight.com/Document/Index/712

Ratings and Certifications
•

CE



•

IK09



•

IP 66



•

RoHS compliant



Specifications

Fixture weight:       1450mm - 14,2 kg (31 lbs)

                            850mm - 8,8 kg (20 lbs)

Operating temp:  -20°C to +60°C
Housing:               316 Marine grade stainless steel
Lens options:        Polycarbonate
Voltage options:   230 / 240V AC
L70:                      >100,000 hours @ 25°C ambient

Lumens

Wattage

lm/W

Mounting Heights

5,100

70

73

6m

2,600

35

74

3m

Mounting Options

Pole Clamp

Eyelet

Ceiling Mount

Wall Mount Bracket 30°

Wall Mount Bracket 45°

Wall Mount Bracket 60°

Wall Mount Bracket 90°

 Part Number

Description

ELXCMBSS

316 Marine Grade Stainless Steel Ceiling Mount Kit

ELXEYESS

316 Marine Grade Stainless Steel Eyelet kit

ELXPCSS42

∅

40 - 45mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXPCSS47

∅

47 - 51mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXPCSS54

∅

54 - 57mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXPCSS59

∅

59 - 62mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXWMBSS30

30° 316 Marine Grade Stainless Steel Wall Mount Kit

ELXWMBSS45

45° 316 Marine Grade Stainless Steel Wall Mount Kit

ELXWMBSS60

60° 316 Marine Grade Stainless Steel Wall Mount Kit

ELXWMBSS90

90° 316 Marine Grade Stainless Steel Wall Mount Kit

www.dialight.com

Part Number

Voltage

Colour

Entry Options

Lens

Lumens

Emergency

mode  Lumens

Watts

Lumens Per Watt

ELE-2C4R-SSCB

230 / 240V AC

5000K (cool white)

2 at each end

Polycarbonate

5,100

271

70

73

ELE-2C4M-SSCB

230 / 240V AC

5000K (cool white)

2 at each end

Polycarbonate

2,600

271

35

74

Lm/W are under constant review and improvement, please consult technical department for latest achievable values
For factory fitted safety shackle option, add 1 as a suffix to the part code. E.g EL-1C3R-SSCB-1

Dialight

Linear

Metal

Halide

High

Pressure

Sodium

Fluorescent

Warranty

5yr

1

1

1

L-70

>100,000

15,000

20,000

24,000

Photometric View

Dimensions in mm (inches)

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDTFSFSHZLSSEUX001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/712

21

Dialight

Linear

Metal

Halide

High

Pressure

Sodium

Fluorescent

Warranty

5yr

1

1

1

T- Rating

T5

T2

T2A

T3

L-70

>100,000

15,000

20,000

24,000

Ratings and Certifications
•

ATEX Zones 1 & 21



•

IP 66

•

ATEX Zones 2 & 22



•

IK09

•

RoHS compliant



Specifications

Fixture weight:       1308mm - 11.4kg

                            708mm - 6.5kg

Operating temp:  -20°C to +60°C
Housing:               316L stainless steel
Lens options:        High Impact resistant polycarbonate
Voltage options:   100-277V AC
L70:                      >100,000 hours @ 25°C ambient

Lumens

Wattage

lm/W

Mounting Heights

5,100

64

80

6m

2,600

32

81

3m

Mounting Options

Pole Clamp

Eyelet

Ceiling Mount

Wall Mount Bracket 30°

Wall Mount Bracket 45°

Wall Mount Bracket 60°

Wall Mount Bracket 90°

 Part Number

Description

ELXCMBSS

316 Marine Grade Stainless Steel Ceiling Mount Kit

ELXEYESS

316 Marine Grade Stainless Steel Eyelet kit

ELXPCSS42

∅

40 - 45mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXPCSS47

∅

47 - 51mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXPCSS54

∅

54 - 57mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXPCSS59

∅

59 - 62mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXWMBSS30

30° 316 Marine Grade Stainless Steel Wall Mount Kit

ELXWMBSS45

45° 316 Marine Grade Stainless Steel Wall Mount Kit

ELXWMBSS60

60° 316 Marine Grade Stainless Steel Wall Mount Kit

ELXWMBSS90

90° 316 Marine Grade Stainless Steel Wall Mount Kit

SafeSite

®

LED Stainless Steel Linear Luminaire

www.dialight.com

Part Number

1

Voltage

Colour / CCT

Entry Options

Lens

Lumens

Watts

Lumens Per Watt

ELA-1C3R-SSCB

100 - 277V AC

5000K (cool white)

2 at each end

Polycarbonate

5,100

64

81

ELA-1C3M-SSCB

100 - 277V AC

5000K (cool white)

2 at each end

Polycarbonate

2,600

32

81

Lm/W are under constant review and improvement, please consult technical department for latest achievable values

Photometric View

Dimensions in mm (inches)

SafeSite

®

LED Stainless Steel Linear Luminaire -

Battery Backup

Ratings and Certifications
•

ATEX Zones 1 & 21



•

IP 66

•

ATEX Zones 2 & 22



•

IK09

•

RoHS compliant



Specifications

Fixture weight:       1450mm - 14,2 kg (31 lbs)

                            850mm - 8,8 kg (20 lbs)

Operating temp:  -20°C to +60°C
Housing:               316 Marine grade stainless steel
Lens options:        High Impact resistant polycarbonate
Voltage options:   230 / 240V AC
L70:                      >100,000 hours @ 25°C ambient

Lumens

Wattage

lm/W

Mounting Heights

5,100

70

73

6m

2,600

35

74

3m

Mounting Options

Pole Clamp

Eyelet

Ceiling Mount

Wall Mount Bracket 30°

Wall Mount Bracket 45°

Wall Mount Bracket 60°

Wall Mount Bracket 90°

 Part Number

Description

ELXCMBSS

316 Marine Grade Stainless Steel Ceiling Mount Kit

ELXEYESS

316 Marine Grade Stainless Steel Eyelet kit

ELXPCSS42

∅

40 - 45mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXPCSS47

∅

47 - 51mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXPCSS54

∅

54 - 57mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXPCSS59

∅

59 - 62mm Range 316 Marine Grade Stainless Steel Pole Clamp

ELXWMBSS30

30° 316 Marine Grade Stainless Steel Wall Mount Kit

ELXWMBSS45

45° 316 Marine Grade Stainless Steel Wall Mount Kit

ELXWMBSS60

60° 316 Marine Grade Stainless Steel Wall Mount Kit

ELXWMBSS90

90° 316 Marine Grade Stainless Steel Wall Mount Kit

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDTFSFSHZLSSEUX001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/712

22

www.dialight.com

Part Number

1

Voltage

Colour / CCT

Entry Options

Lens

Lumens

Emergency mode

Lumens

Watts

Lumens Per Watt

ELEA-2C4R-SSCB 230 / 240V AC

5000K (cool white)

2 at each end

Polycarbonate

5,100

271

70

73

ELEA-2C4M-

230 / 240V AC

5000K (cool white)

2 at each end

Polycarbonate

2,600

271

35

74

Lm/W are under constant review and improvement, please consult technical department for latest achievable values

Photometric View

Dimensions in mm (inches)

Dialight

Linear

Metal

Halide

High

Pressure

Sodium

Fluorescent

Warranty

5yr

1

1

1

T- Rating

T5

T2

T2A

T3

L-70

>100,000

15,000

20,000

24,000

Lumens

Wattage

lm/W

Mounting Heights

7,000

68

103

6m

6,000

58

103

5,600

58

97

5,000

48

104

4,700

48

98

4,000

38

105

3,700

38

97

2,200

21

105

3m

Optical Patterns

Dialight Area Light

Metal Halide

High Pressure Sodium

Warranty

5yr

1

1

L-70

>100,000

15,000

20,000

Resources:

Datasheet:www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDTFSTWALEUX0011.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/710

Ratings and Certifications

(other certifications available)

•

CE

•

IP 66



•

NEMA  4X



Specifications

Fixture weight:       5.22 kg (11.5lb)
Operating temp:  -40°C to +65°C
Housing:               Aluminium
Lens options:        Polycarbonate
Voltage options:   100 – 277V AC
L70:                      >100,000 hours @ 25°C ambient

360° Optical Pattern

180° Optical Pattern  at 45°

Dimensions in mm (inches)

DuroSite

®

LED Area Light

23

www.dialight.com

Part Number

1

Initial Fixture Lumens

Wattage

Lumens Per Watt

Lens

Optical Pattern

Standard Models - 100 - 277V AC

STWEC2NEU

2,200

68

103

Polycarbonate

360

STWFC2NEU

2,200

68

103

Polycarbonate

180

STW9C2NEU

6,000

58

103

Polycarbonate

360

STW8C2NEU

5,600

58

97

Polycarbonate

180

STW5C2NEU

5,000

48

104

Polycarbonate

360

STW4C2NEU

4,700

48

98

Polycarbonate

180

STW3C2NEU

4,000

38

105

Polycarbonate

360

STW2C2NEU

3,700

38

97

Polycarbonate

180

STW0C2NEU

2,200

21

105

Polycarbonate

360

STW1C2NEU

2,200

21

105

Polycarbonate

180

Mounting and Accessories

 Part Number

 Description

HZXW4

Stainless Steel bracket with Pipe Clamp and mounting hardware

HZXW3

Stainless Steel bracket with mounting hardware

HZXW7

Aluminum bracket with mounting hardware

HZXW8

Aluminum bracket with Pipe Clamp and mounting hardware

1

Part numbers listed in the above table are cool white. For neutral white models, replace the 5th character with

N

. EX. STW5

C

2N-EU becomes STW5

N

2N-EU

Ordering Information

Dialight

Area Light

Metal Halide

High Pressure Sodium

Warranty

5yr

1

1

T - Rating

T5

T2

T2A

L-70

>100,000

15,000

20,000

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDTFHZSALEUX001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/710

Ratings and Certifications

(other certifications available)

•

ATEX / IECEx Zone 1 & 21



•

ATEX / IECEx Zone 2 & 22

•

ABS



•

IP 66

•

IK08

•

RoHS





Specifications

Fixture weight:       6.58kg (14.5 lb)
Operating temp:  -40°C to +65°C

Housing:

Aluminium

Lens options:          Toughened Glass

Voltage options:   100 – 277V AC
L70:                      >100,000 hours @ 25°C ambient

Dimensions in mm (inches)

Lumens

Wattage

lm/W

Mounting Heights

6,000

58

103

6m

5,600

58

97

5,100

48

106

4,600

48

96

4,000

38

105

3,600

38

95

2,200

21

105

3m

SafeSite

®

LED Area Light

24

Optical Patterns

360° Optical Pattern

180° Optical Pattern  at 45°

www.dialight.com

Part Number

1

Initial Fixture

Lumens

Wattage

Lumens

Per Watt

Lens

Optical Pattern

Standard Models - 100 - 277V AC

HZA9C2N

6,000

58

103

Toughened Glass

360

HZA8C2N

5,600

58

97

Toughened Glass

180

HZA5C2N

5,100

48

106

Toughened Glass

360

HZA4C2N

4,600

48

96

Toughened Glass

180

HZA3C2N

4,000

38

105

Toughened Glass

360

HZA2C2N

3,600

38

95

Toughened Glass

180

HZA1C2N

2,200

21

105

Toughened Glass

360

HZA0C2N

2,200

21

105

Toughened Glass

180

1

Part numbers listed in the above table are cool white. For neutral white models replace the 5th character with

 N

Ex: HZA2

C

2N becomes HZA2

N

2N

Ordering Information

25

www.dialight.com

Vigilant

®

LED Floodlight Fixture

Ratings and Certifications
•

CE

•

IP 66



Specifications

Fixture weight:       23kg
Operating temp:  -40°C to +65°C
Housing:               Aluminium
Lens options:        Tempered Glass
Voltage options:   100 – 277V AC
L70:                      >100,000 hours @ 25°C ambient



Lumens

Wattage

lm/W

Mounting Heights

52,000

424

123

25m - 15m

Dialight

Flood Light

Metal

Halide

High Pressure

Sodium

Fluorescent

Warranty

10yr

1

1

1

L-70

>100,000

15,000

20,000

Part Number

1

Optical Pattern

Color

Lens

Initial Fixture Lumens

Wattage

Lumens Per Watt

FLEB66MC2NG

Very wide (115°)

Cool White

Tempered Glass

52,000

424

123

FLEBM0MC2NG

Medium Optics

Cool White

Tempered Glass

52,000

424

123

1

Additional NEMA optics coming soon. Please consult factory for details.

Ordering Information

Mounting and Accessories

 Part Number

1

Description

HZXCBL2

Safety cable Kit

FLX-1TPT-20DB

Tenon pole topper, 2-3/8" mount

Mounting and Accessories

 Part Number

Description

FLX-1RAB-20DB

Right Angle mounting bracket for 2-3/8" mount

FLX-3RPA-20DB

Reducer for 3" OD round pole top to 2-3/8" light mount

FLX-4RPA-20DB

Reducer for 4" OD round pole top to 2-3/8" light mount

FLX-4SPA-20DB

Internal tenon adapter for 4" square pole top to 2-3/8" light mount

FLX-5SPA-20DB

Internal tenon adapter for 6" square pole top to 2-3/8" light mount

FLX-6SPA-20DB

Internal tenon adapter for 6" square pole top to 2-3/8" light mount

1

Brackets and Adaptors below require either Tenon Pole Topper (FLX-1TPT-20DB) or Stanchion Mount Junction Box (HZXSTAN200S) to mount Floodlight. Tenon Pole Topper and

Stanchion Mount Junction Box sold separately.

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDTEXVFLEUX001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Product/Category/537721

Optical Pattern

Dialight Floodlight

Metal Halide

High Pressure Sodium

Fluorescent

Warranty

10 yr

1

1

1

L-70

>100,000

15,000

20,000

24,000

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDTEXDSFLEUX001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/6373

Ratings and Certifications

(other certifications available)

•

CE



•

NEMA 4X (pending)

•

IP 66



Specifications

Fixture weight:       14kg
Operating temp:  -40°C to +65°C
Housing:               Low copper Aluminum
Lens options:        Tempered Glass
Voltage options:   100 – 277V AC
L70:                      >100,000 hours @ 25°C ambient

Lumens

Wattage

lm/W

Mounting Heights

11,500

109

105

6m and lower

11,250

109

103

11,000

109

101

10,750

109

99

10,500

109

96

DuroSite

®

LED Floodlight Fixture

26

Asymmetrical

Field angle = 140

o

x 115

o

Asymmetrical

Field angle = 115

o

x 140

o

Very wide

Field angle = 115

o

Dimensions in mm (inches)

Wide

Field angle = 93

o

Medium

Field angle = 52

o

Narrow

Field angle = 23

o

www.dialight.com

 Part Number

1

Optical Pattern

CCT

Lumens

Wattage

LPW

FLE276MC2NG

Asymmetrical (140

o

x 115

o

)

Cool White

11,500

109

105

FLE267MC2NG

Asymmetrical (115

o

x 140

o

)

Cool White

11,500

109

105

FLE266MC2NG

Very wide (115°)

Cool White

11,250

109

103

FLE255MC2NG

Wide (93°)

Cool White

11,000

109

101

FLE244MC2NG

Medium (52°)

Cool White

10,500

109

96

FLE222MC2NG

Narrow (23°)

Cool White

10,750

109

99

27

DuroSite

®

LED Floodlight -

Ordering Information

1

Part numbers listed in the above table are powder coated gray. For bronze powder coated replace the 10th character with

Z

. FLE244MC2

N

G becomes FLE244MC2

Z

G

Mounting and Accessories

 Part Number

1

Description

HZXSAFECBLS

Safety cable Kit

FLX-1TPT-20DB

Tenon pole topper, 2-3/8" mount

HZXSTAN100S

1.00" Slip-Fit Stanchion Mount Junction Box

HZXSTAN125S

1.25" Slip-Fit Stanchion Mount Junction Box

HZXSTAN150S

1.50" Slip-Fit Stanchion Mount Junction Box

HZXSTAN200S

2.00" Slip-Fit Stanchion Mount Junction Box

1

HZXSTAN100T

1.00" NPT Threaded Stanchion Mount Junction Box

HZXSTAN125T

1.25" NPT Threaded Stanchion Mount Junction Box

HZXSTAN150T

1.50" NPT Threaded Stanchion Mount Junction Box

HZXSTAN200T

2.00" NPT Threaded Stanchion Mount Junction Box

Mounting and Accessories

 Part Number

Description

FLX-1RAB-20DB

Right Angle mounting bracket for 2-3/8" mount

FLX-2LBH-20DB

Bull Horn for 2 lights, 2-3/8" mount, 26" spacing

FLX-3LBH-20DB

Bull Horn for 3 lights, 2-3/8" mount, 26" spacing

FLX-4LBH-20DB

Bull Horn for 4 lights, 2-3/8" mount, 26" spacing

FLX-4RBH-20DB

Bull Horn for 4 lights in star configuration, 2-3/8" mount, 26" spacing

FLX-2RSR-20DB

Round Square Round bracket for 2 lights, 2-3/8" mount, 26" spacing

FLX-3RSR-20DB

Round Square Round bracket for 3 lights, 2-3/8" mount, 26" spacing

FLX-4RSR-20DB

Round Square Round bracket for 4 lights, 2-3/8" mount, 26" spacing

FLX-3RPA-20DB

Reducer for 3" OD round pole top to 2-3/8" light mount

FLX-4RPA-20DB

Reducer for 4" OD round pole top to 2-3/8" light mount

FLX-4SPA-20DB

Internal tenon adapter for 4" square pole top to 2-3/8" light mount

FLX-5SPA-20DB

Internal tenon adapter for 6" square pole top to 2-3/8" light mount

FLX-6SPA-20DB

Internal tenon adapter for 6" square pole top to 2-3/8" light mount

1

Brackets and Adaptors below require either Tenon Pole Topper (FLX-1TPT-20DB) or Stanchion Mount Junction Box (HZXSTAN200S) to mount Floodlight. Tenon Pole Topper and

Stanchion Mount Junction Box sold separately.

1

Tenon Pole Topper (FLX-1TPT-20DB) or Stanchion Mount Junction Box (HZXSTAN200S) sold separately

www.dialight.com

Lumens

Wattage

lm/W

Mounting Heights

2,250

34

66

6m

2,150

34

63

1,200

22

56

600

11

55

3m

Stanchion mounting Bracket

Pipe and Flush

Bracket

25 Degree Stanchion

mounting Bracket

Adjustable Bracket

Mounting Options

Optical Patterns

Dialight Wallpack /

Bulkhead

Metal

Halide

High

Pressure

Sodium

Warranty

5yr

1

1

L-70

>100,000

15,000

20,000

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDEXWPXW001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/709

Ratings and Certifications

(other certifications available)

•

CE



•

Emergency models available

•

IP 66/67



•

Amber / Green / Red models available

•

RoHS

Specifications

Fixture weight:       11W / 22W: 4.70kg

                            34W 4.85kg

Operating Temp;  11W / 22W:  -40°C to +60°C

                            34W:   -40°C to +50°C

Housing:               Copper free LM6 alum cast
Lens options:        High impact resistance clear Glass, frosted Glass
Voltage options:   100 – 277V AC or 24-48V DC
L70:                      >100,000 hours @ 25°C ambient

Narrow Optic

Dimensions in mm [Inches]

85 Degree Stanchion

mounting Bracket

Oval Optic (35 x55)

Oval Optic 55x35

DuroSite

®

LED Bulkhead Fixture

28

www.dialight.com

DuroSite

®

LED Bulkhead Fixture -

Ordering Information

Part Number

1

Initial Fixture

Lumens

Wattage

Lumens Per Watt

Bracket

Tempered Glass Lens

Optical Pattern

Clear

Frosted

Circular

Standard Models - 100 - 277V AC

WP4C3LNLGC

2,250

34

66

No Bracket

Glass

Oval (35° X 55°)

WP2C3LNLGC

2,250

34

66

No Bracket

Glass

Wide

WP2C3LNLGF

2,250

34

66

No Bracket

Glass

Wide

WP5C3LNLGC

2,150

34

63

No Bracket

Glass

Oval (55° X 35°)

WP4C3LNLGF

2,115

34

62

No Bracket

Glass

Oval (35° X 55°)

WP4C3LALGF

2,115

34

62

Angle Bracket

Glass

Oval (35° X 55°)

WP4C3CFLGF

2,115

22

96

Flush Bracket

Glass

Oval (35° X 55°)

WP5C3CNLGF

2,021

34

59

No Bracket

Glass

Oval (55° X 35°)

WP5C3LNLGF

2,021

34

59

No Bracket

Glass

Oval (55° X 35°)

WP5C3LFLGC

2,021

34

59

Flush Bracket

Glass

Oval (55° X 35°)

WP4C3HNLGC

1,200

22

55

No Bracket

Glass

Oval (35° X 55°)

WP5C3HNLGC

1,200

22

55

No Bracket

Glass

Oval (55° X 35°)

WP2C3HNLGC

1,200

22

55

No Bracket

Glass

Wide

WP5C3HNLGF

1,200

22

55

No Bracket

Glass

Oval (55° X 35°)

WP5C3HFLGC

1,200

22

55

Flush Bracket

Glass

Oval (55° X 35°)

WP4C3HNLGF

1,128

22

51

No Bracket

Glass

Oval (35° X 55°)

WP2C3HNLGF

1,128

22

51

No Bracket

Glass

Wide

WP4C3LFLGF

1,128

23

49

Flush Bracket

Glass

Oval (35° X 55°)

WP4C3CALGC

600

11

55

Angle Bracket

Glass

Oval (35° X 55°)

WP4C3CNLGC

600

11

55

No Bracket

Glass

Oval (35° X 55°)

WP2C3CNLGC

600

11

55

No Bracket

Glass

Wide

WP5C3LALGC

600

11

55

Angle Bracket

Glass

Oval (55° X 35°)

WP5C3CFLGC

600

11

55

Flush Bracket

Glass

Oval (55° X 35°)

WP5C3CNLGC

600

11

55

No Bracket

Glass

Oval (55° X 35°)

WP5C3CALGC

600

11

55

Angle Bracket

Glass

Oval (55° X 35°)

WP5C3HALGC

600

11

55

Angle Bracket

Glass

Oval (55° X 35°)

WP2C3CFLGC

564

11

51

Flush Bracket

Glass

Wide

WP2C3CNLGF

564

11

51

No Bracket

Glass

Wide

WP4C3CNLGF

564

11

51

No Bracket

Glass

Oval (35° X 55°)

WP4C3CFLGC

564

11

51

Flush Bracket

Glass

Oval (35° X 55°)

WP5C3CFLGF

564

9

63

Flush Bracket

Glass

Oval (55° X 35°)

WP5C3HFLGF

564

11

51

Flush Bracket

Glass

Oval (55° X 35°)

WP5C3LFLGF

564

11

51

Flush Bracket

Glass

Oval (55° X 35°)

WP5C3CALGF

564

10

56

Angle Bracket

Glass

Oval (55° X 35°)

WP5C3HALGF

564

11

51

Angle Bracket

Glass

Oval (55° X 35°)

WP5C3LALGF

564

11

51

Angle Bracket

Glass

Oval (55° X 35°)

WP2C3CFLGF

564

11

51

Flush Bracket

Glass

Wide

Mounting and Accessories

 Part Number

 Description

WPBRKTSSADJ

Stainless Steel Adjustable bracket

WPSTMBLG0024

Stanchion mount npt 90

o

WPSTMBLG2524

Stanchion mount npt 25

o

WPSTMBLG0010

Stanchion mount 50mm 90

o

WPSTMBLG2510

Stanchion mount 50mm 25

o

WPSTMBLG0022

Stanchion mount bsp 90

o

WPSTMBLG2522

Stanchion mount bsp 25

o

WPSTMBLG8550

Stanchion bracket 85D 34mm BORE

WPSTMBLG8560

Stanchion bracket 85D 38mm BORE

WPSTMBLG0042

Stanchion bracket 0D 1.25"BSP

WPSTMBLG2542

Stanchion bracket 25D 1.25"BSP

WPBRKTSS30

Angled mounting bracket Kit

WPBRKTFKIT

Flush mount bracket

WPBRKTLGPF

Bracket pipe/flush RAL7001

WPLMFE

Lens mount, FIRE EXIT KIT

WPLMSB

Lens mount, sand blast kit

WPSBL

Replacement sand blast lens

Notes:

1

Standard option - 2 M20 entries one side.

29

Standard Option

2 Entries One Side

Option “E”

2 Entries One Side, 1 Entry

Opposite Side. Add

E

to the

end of the order code

Option “R”

Add

R

to the end of

the order code

Option “H”

2 Entries One Side, 2 Entries Opposite Side

and 1 Entry in the Rear

Add

H

to the end of the order code

Entry Options

www.dialight.com

Lumens

Wattage

lm/W

Mounting Heights

2,250

34

66

6m

2,115

34

62

1,200

22

55

600

11

55

3m

Dialight Wallpack /

Bulkhead

Metal

Halide

High

Pressure

Sodium

Warranty

5yr

1

1

T-Rating

T6

T2

T2A

L-70

>100,000

15,000

20,000

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDEXSSWPCHZC001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/709

Ratings and Certifications

(other certifications available)

•

ATEX/ IECEx Zones 1 & 21



•

ABS

•

ATEX/ IECEx Zones 2 & 22



•

IP 66/67

•

CE





•

Emergency models available

•

IK09

•

Amber models available



Specifications

Fixture weight:       5.40kg (11.90 lbs)
Operating temp:  -40°C to +60°C
Housing:               Copper free LM6 aluminium
Lens options:        Tempered Glass
Voltage options:   100 – 277V AC or 24 - 48V DC
L70:                      >100,000 hours @ 25°C ambient

SafeSite

®

LED Bulkhead Fixture

Stanchion mounting Bracket

Pipe and Flush

Bracket

25 Degree Stanchion

mounting Bracket

Adjustable Bracket

Mounting Options

Optical Patterns

Narrow Optic

Dimensions in mm [Inches]

85 Degree Stanchion

mounting Bracket

Oval Optic (35 x55)

Oval Optic 55x35

30

www.dialight.com

SafeSite

®

Bulkhead Fixture -

Ordering Information

Part Number

1,2

Initial Fixture

Lumens

Wattage

Lumens Per Watt

Bracket

Tempered Glass Lens

Optical Pattern

Clear

Frosted

Standard Models - 100 - 277V AC

WPA2C3LNLGC

2,250

34

66

No Bracket

Glass

Wide

WPA4C3LNLGC

2,250

34

66

No Bracket

Glass

Oval (35° X 55°)

WPA2C3LNLGF

2,115

34

62

No Bracket

Glass

Wide

WPA4C3LNLGF

2,115

34

62

No Bracket

Glass

Oval (35° X 55°)

WPA2C2HNLGC

1,200

22

55

No Bracket

Glass

Wide

WPA2C3HNLGC

1,200

22

55

No Bracket

Glass

Wide

WPA4C2HALGC

1,200

22

55

Angle Bracket

Glass

Oval (35° X 55°)

WPA4C3HNLGC

1,200

22

55

No Bracket

Glass

Oval (35° X 55°)

WPA5C3HNLGC

1,200

22

55

No Bracket

Glass

Oval (55° X 35°)

WPA4C3HNLGF

1,200

22

55

No Bracket

Glass

Oval (35° X 55°)

WPA5C3LNLGC

1,200

34

35

No Bracket

Glass

Oval (55° X 35°)

WPA2C3HNLGF

1,128

22

51

No Bracket

Glass

Wide

WPA5C2HNLGF

1,128

22

51

No Bracket

Glass

Oval (55° X 35°)

WPA2C3LALGF

1,128

34

33

Angle Bracket

Glass

Wide

WPA5C3HNLGF

1,128

22

51

No Bracket

Glass

Oval (55° X 35°)

WPA5C3LNLGF

1,128

34

33

No Bracket

Glass

Oval (55° X 35°)

WPA4C3CNLGC

600

11

55

No Bracket

Glass

Oval (35° X 55°)

WPA2C3CNLGC

600

11

55

No Bracket

Glass

Wide

WPA5C3CNLGC

600

11

55

No Bracket

Glass

Oval (55° X 35°)

WPA4C3CNLGF

564

11

51

No Bracket

Glass

Oval (35° X 55°)

WPA2C3CNLGF

564

11

51

No Bracket

Glass

Wide

WPA5C3CNLGF

564

11

51

No Bracket

Glass

Oval (55° X 35°)

Standard Models - 24 - 48V AC

WPA4C2HNLGC

1,200

22

55

No Bracket

Glass

Oval (35° X 55°)

WPA5C2HNLGC

1,200

22

55

No Bracket

Glass

Oval (55° X 35°)

WPA4C2HNLGF

1,128

22

51

No Bracket

Glass

Oval (35° X 55°)

WPA2C2CNLGC

600

11

55

No Bracket

Glass

Wide

WPA5C2CNLGC

600

11

55

No Bracket

Glass

Oval (55° X 35°)

WPA4C2CNLGC

600

11

55

No Bracket

Glass

Oval (35° X 55°)

WPA5C2CNLGF

600

11

55

No Bracket

Glass

Oval (55° X 35°)

WPA2C2HNLGF

564

11

51

No Bracket

Glass

Wide

WPA2C2CNLGF

564

11

51

No Bracket

Glass

Wide

WPA4C2CNLGF

564

11

51

No Bracket

Glass

Oval (35° X 55°)

31

Notes:

1

Flush bracket replace the 10th character with an

F

. Example: WPA-2C3L-

N

LGC becomes WPC-2N3L-

F

LGC

2

Angle bracket replace the 10th character with an

A

. Example: WPA-2C3L-

N

LGC becomes WPC-2N3L-

A

LGC

3

Standard option - 2 M20 entries one side

Mounting and Accessories

 Part Number

 Description

WPBRKTSSADJ

Stainless Steel Adjustable bracket

WPSTMBLG0024

Stanchion mount npt 90

o

WPSTMBLG2524

Stanchion mount npt 25

o

WPSTMBLG0010

Stanchion mount 50mm 90

o

WPSTMBLG2510

Stanchion mount 50mm 25

o

WPSTMBLG0022

Stanchion mount bsp 90

o

WPSTMBLG2522

Stanchion mount bsp 25

o

WPSTMBLG8550

Stanchion bracket 85D 34mm BORE

WPSTMBLG8560

Stanchion bracket 85D 38mm BORE

WPSTMBLG0042

Stanchion bracket 0D 1.25"BSP

WPSTMBLG2542

Stanchion bracket 25D 1.25"BSP

WPBRKTSS30

Angled mounting bracket Kit

WPBRKTFKIT

Flush mount bracket

WPBRKTLGPF

Bracket pipe/flush RAL7001

WPLMFE

Lens mount, FIRE EXIT KIT

WPLMSB

Lens mount, sand blast kit

WPSBL

Replacement sand blast lens

Standard Option

2 Entries One Side

Option “E”

2 Entries One Side, 1 Entry

Opposite Side. Add

E

to the

end of the order code

Option “R”

Add

R

to the end of

the order code

Option “H”

2 Entries One Side, 2 Entries Opposite Side

and 1 Entry in the Rear

Add

H

to the end of the order code

Entry Options

www.dialight.com

Lumens

Wattage

lm/W

Mounting Heights

20,250

252

80

17m

16,000

190

84

13,300

165

81

10,900

131

83

6,800

83

82

5,500

65

85

3,700

43

86

5m

Optical Patterns

Dialight Street

Light

Metal

Halide

High Pressure

Sodium

Warrant
y

7yr

1

1

L-70

>100,000

6,000

20,000

Resources:

Datasheet: http://www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDTFSL3X001.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Document/Index/711

Ratings and Certifications

(other certifications available)

•

CE



•

IP 66

•

ATEX / IECEx Zone 2



•

RoHS

Specifications

Fixture weight:       1 light engines:  7.26kg (16 lbs)

                            2 light engines:  11.34kg (25 lbs)
                            3 light engines:  15.42kg (34 lbs)

Operating temp:  -40°F to 165°F (-40°C to 74°C) ambient
Housing:               Die cast aluminum alloy A360

                           Polymeric materials UL94 V0 flame retardant materials

Lens options:        Polycarbonate, optically optimized, tempered Glass
Voltage options:   100 – 277V AC, 347 - 480V AC
L70:                      >100,000 hours @ 25°C ambient

34.7 (880)

26.5 (674)

18.4 (467)

4.8

(122)

14.7

(372)

Dimensions in mm (inches)

190W, 250W

130W, 165W 42W, 65W, 83W

Intensity Distribution Curve (cd)

Type II

Type III

Type IV

Type V

StreetSense

®

LED Street Light

32

www.dialight.com

Part

Number

Initial Fixture

Lumens

Wattage

Lumens

Per Watt

Voltage

Lens

Color Temperature

Housing

Color

Surge

Protection

Zone 2 Models - 100 - 277V AC

SLA3N4HG

10,900

131

83

120-277V AC

Glass

Neutral White

Grey

6kV

SLA3N4SG

20,250

252

80

120-277V AC

Glass

Neutral White

Grey

6kV

Type II - 120 - 277V AC

SL2C4CLGHEU

5,060

65

78

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL2C5CLGHEU

5,060

65

78

120-277V AC

Polycarbonate

Cool White

Grey

10kV

SL2C4CLGGEU

5,500

65

85

120-277V AC

Glass

Cool White

Grey

6kV

SL2C5DLGHEU

6,256

83

75

120-277V AC

Polycarbonate

Cool White

Grey

10kV

SL2C4DLGGEU

6,800

83

82

120-277V AC

Glass

Cool White

Grey

6kV

SL2C4HLGHEU

10,028

131

77

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL2C5HLBHEU

10,028

131

77

120-277V AC

Polycarbonate

Cool White

Bronze

10kV

SL2C4HLGGEU

10,900

131

83

120-277V AC

Glass

Cool White

Grey

6kV

SL2C4RLGHEU

14,720

190

77

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL2C5RLGHEU

14,720

190

77

120-277V AC

Polycarbonate

Cool White

Grey

10kV

SL2C5SNGGEU

20,250

252

80

120-277V AC

Glass

Cool White

Grey

10kV

Type II - 347 - 480V AC

SL2C7CLGGEU

5,500

65

85

347-480V AC

Glass

Cool White

Grey

10kV

SL2C7HLGHEU

10,028

131

77

347-480V AC

Polycarbonate

Cool White

Grey

10kV

Type III - 120 - 277V AC

SL3C4BLGGEU

3,700

43

86

120-277V AC

Glass

Cool White

Grey

6kV

SL3C4CLGHEU

5,060

65

78

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL3C4CLBHEU

5,060

65

78

120-277V AC

Polycarbonate

Cool White

Bronze

6kV

SL3C5CLBHEU

5,060

65

78

120-277V AC

Polycarbonate

Cool White

Bronze

10kV

SL3C4CLBGEU

5,500

65

85

120-277V AC

Glass

Cool White

Bronze

6kV

SL3C4CLGGEU

5,500

65

85

120-277V AC

Glass

Cool White

Grey

6kV

SL3C4DLGHEU

6,256

83

75

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL3C4DNGHEU

6,256

83

75

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL3C4DLGGEU

6,800

83

82

120-277V AC

Glass

Cool White

Grey

6kV

SL3C4HLGHEU

10,028

131

77

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL3C4HNGHEU

10,028

131

77

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL3C5HRGHEU

10,028

131

77

120-277V AC

Polycarbonate

Cool White

Grey

10kV

SL3C4HLBHEU

10,028

131

77

120-277V AC

Polycarbonate

Cool White

Bronze

6kV

SL3C4HLGGEU

10,900

131

83

120-277V AC

Glass

Cool White

Grey

6kV

SL3C4IRGHEU

12,236

165

74

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL3C4ILGGEU

13,300

165

81

120-277V AC

Glass

Cool White

Grey

6kV

SL3C5INBGEU

13,300

165

81

120-277V AC

Glass

Cool White

Bronze

10kV

SL3C4RLGHEU

14,720

190

77

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL3C4RLBHEU

14,720

190

77

120-277V AC

Polycarbonate

Cool White

Bronze

6kV

SL3C5RLBHEU

14,720

190

77

120-277V AC

Polycarbonate

Cool White

Bronze

10kV

SL3C4RLGGEU

16,000

190

84

120-277V AC

Glass

Cool White

Grey

6kV

SL3C4SLGHEU

18,630

252

74

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL3C4SRGHEU

18,630

252

74

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL3C5SLBHEU

18,630

252

74

120-277V AC

Polycarbonate

Cool White

Bronze

10kV

SL3C4SLGGEU

20,250

252

80

120-277V AC

Glass

Cool White

Grey

6kV

SL3C4SRGGEU

20,250

252

80

120-277V AC

Glass

Cool White

Grey

6kV

SL3C5SLGGEU

20,250

252

80

120-277V AC

Glass

Cool White

Grey

10kV

SL3C5SLBGEU

20,250

252

80

120-277V AC

Glass

Cool White

Bronze

10kV

StreetSense

®

LED Street Light -

Ordering Information

33

www.dialight.com

Options and Accessories

Part Number

Description

SLSHIELDKIT

Shield Kit

SLPC03R

483V Photo Controller

SLPC02R

347V Photo Controller

SLPC01R

120-277V Photo Controller

Part

Number

Initial Fixture

Lumens

Wattage

Lumens

Per Watt

Voltage

Lens

Color Temperature

Housing

Color

Surge

Protection

Type III - 347 - 480V AC

SL3C7CLBHEU

5,060

65

78

347-480V AC

Polycarbonate

Cool White

Bronze

10kV

SL3C7CLGGEU

5,500

65

85

347-480V AC

Glass

Cool White

Grey

10kV

SL3C7DLRGEU

6,800

83

82

347-480V AC

Glass

Cool White

Green

10kV

SL3C7HLGHEU

10,028

131

77

347-480V AC

Polycarbonate

Cool White

Grey

10kV

SL3C7HLBHEU

10,028

131

77

347-480V AC

Polycarbonate

Cool White

Bronze

10kV

SL3C7HLGGEU

10,900

131

83

347-480V AC

Glass

Cool White

Grey

10kV

SL3C7INGGEU

13,300

165

81

347-480V AC

Glass

Cool White

Grey

10kV

SL3C7RLGHEU

14,720

190

77

347-480V AC

Polycarbonate

Cool White

Grey

10kV

SL3C7RLBHEU

14,720

190

77

347-480V AC

Polycarbonate

Cool White

Bronze

10kV

SL3C7RLWHEU

14,720

190

77

347-480V AC

Polycarbonate

Cool White

White

10kV

SL3C7SLGHEU

18,630

252

74

347-480V AC

Polycarbonate

Cool White

Grey

10kV

SL3C7SNGHEU

18,630

252

74

347-480V AC

Polycarbonate

Cool White

Grey

10kV

SL3C7SNGGEU

20,250

252

80

347-480V AC

Glass

Cool White

Grey

10kV

Type IV - 120 - 277V AC

SL4C4CLGHEU

5,060

65

78

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL4C4HLGHEU

10,028

131

77

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL4C5HLBHEU

10,028

131

77

120-277V AC

Polycarbonate

Cool White

Bronze

10kV

SL4C4HLGGEU

10,900

131

83

120-277V AC

Glass

Cool White

Grey

6kV

SL4C4ILGHEU

12,236

165

74

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL4C4RLGHEU

14,720

190

77

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL4C4RLKHEU

14,720

190

77

120-277V AC

Polycarbonate

Cool White

Black

6kV

SL4C4SLGHEU

18,630

252

74

120-277V AC

Polycarbonate

Cool White

Grey

6kV

Type IV - 347 - 480V AC

SL4C7DLKHEU

6,256

83

75

347-480V AC

Polycarbonate

Cool White

Black

10kV

SL4C7HLGHEU

10,028

131

77

347-480V AC

Polycarbonate

Cool White

Grey

10kV

SL4C7RLGHEU

14,720

190

77

347-480V AC

Polycarbonate

Cool White

Grey

10kV

SL4C7SLGHEU

18,630

252

74

347-480V AC

Polycarbonate

Cool White

Grey

10kV

Type V - 120 - 277V AC

SL5C4CLGHEU

5,060

65

78

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL5C4HLGHEU

10,028

131

77

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL5C4RLGHEU

14,720

190

77

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL5C4RLKHEU

14,720

190

77

120-277V AC

Polycarbonate

Cool White

Black

6kV

SL5C4SLGHEU

18,630

252

74

120-277V AC

Polycarbonate

Cool White

Grey

6kV

SL5C7SLGHEU

18,630

252

74

347-480V AC

Polycarbonate

Cool White

Grey

10kV

Type V - 347 - 480V AC

SL5C7SLGHEU

18,630

252

74

347-480V AC

Polycarbonate

Cool White

Grey

10kV

For Dialight’s complete list of DLC qualified products, please click this link: www.dialight.com/Assets/News_And_Events/DLC_Part_Number_List.xls

34

www.dialight.com

High Bay Controls

Dimensions

Certifications & Ratings

(High Bay)

•

CE - EN 55015:2006 / EN 61547:2009 /

EN  60598:2008

•

EN 62471:2008

•

IEC60068 salt spray testing- severity 1

•

IK05 to EN50102 (Glass lens)

•

IP 66 to EN60529

Wall Controller

Sensors

•

Pyroelectric Infrared PIR Motion Sensor
Detector

•

Detecting distance up to 7m

•

Ambient light sensor

•

Tuned for human eye spectral
sensitivity

Physical Dimensions:

•

241.3mm Width

•

241.3mm Height

•

50.8mm Depth

Screen

•

177.8mm Diagonal

•

152.4mm Wide

•

88.9mm High

•

User Input: Resistive Touch Screen

•

Resolution – 800 x 480 pixels

35

Dimensions in mm [Inches]

Dimensions in mm [Inches]

www.dialight.com

Part number

Lumens

Wattage

Lumens per Watt

Voltage

CCT

PROTOCOL

DuroSite High Bay - CE

HBGCMP-EUH-Z2

17,000

175

97

100 - 277V AC

Cool White

Wireless

HBGCMP-EUH-D1

17,000

175

97

100 - 277V AC

Cool White

DALI

HBGNMP-EUH-Z2

15,500

175

89

100 - 277V AC

Neutral White

Wireless

HB2CMP-EUH-Z2

14,750

175

84

100 - 277V AC

Cool White

Wireless

HBGC4P-EUH-Z2

14,500

151

96

100 - 277V AC

Cool White

Wireless

HBGC4P-EUH-D1

14,000

157

89

100 - 277V AC

Cool White

DALI

HBEC4P-EUH-Z2

13,500

164

82

100 - 277V AC

Cool White

Wireless

HBGN4P-EUH-Z2

12,750

157

81

100 - 277V AC

Neutral White

Wireless

HB2C4M-EUH-Z2

10,000

151

66

100 - 277V AC

Cool White

Wireless

Wall Controller

WLC-004-MBAL

10W typical, 20W max

120 – 277V AC

DALI & Wireless

Resources:

Datasheet: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/CE_High_Bay_Controls.pdf

•

Case Studies, IES Files, LM79 Reports: www.dialight.com/Product/Category/524351

www.dialight.com

36

EMEA HQ

Exning Road, Newmarket
Suffolk, England, CB8 0AX
Tel:  +44 (0) 1638 665161

North American HQ

1501 Route 34 South
Farmingdale, NJ 07727
Tel: 732-919-3119 - Fax: 732-751-5778
info@dialight.com

Houston office

16830 Barker Springs Rd
Ste 407
Houston, TX 77084

Australia office

U4, 42 Collingwood Street
Osborne Park, WA 6017
Tel:  +61 (0) 8 9244 7600

Middle East office

Level 42
Emirates Towers (Office Tower)
Sheikh Zayed Road
Dubai, United Arab Emirates
Tel:  +971(0)4319 7686

Southeast Asia office

240 Macpherson Road
#07-05 Pines Industrial Building
Singapore 348574

Dialight Contact Information
