HT1

SERIES

Snubber with Thermakon™ Technology

Rev. 4

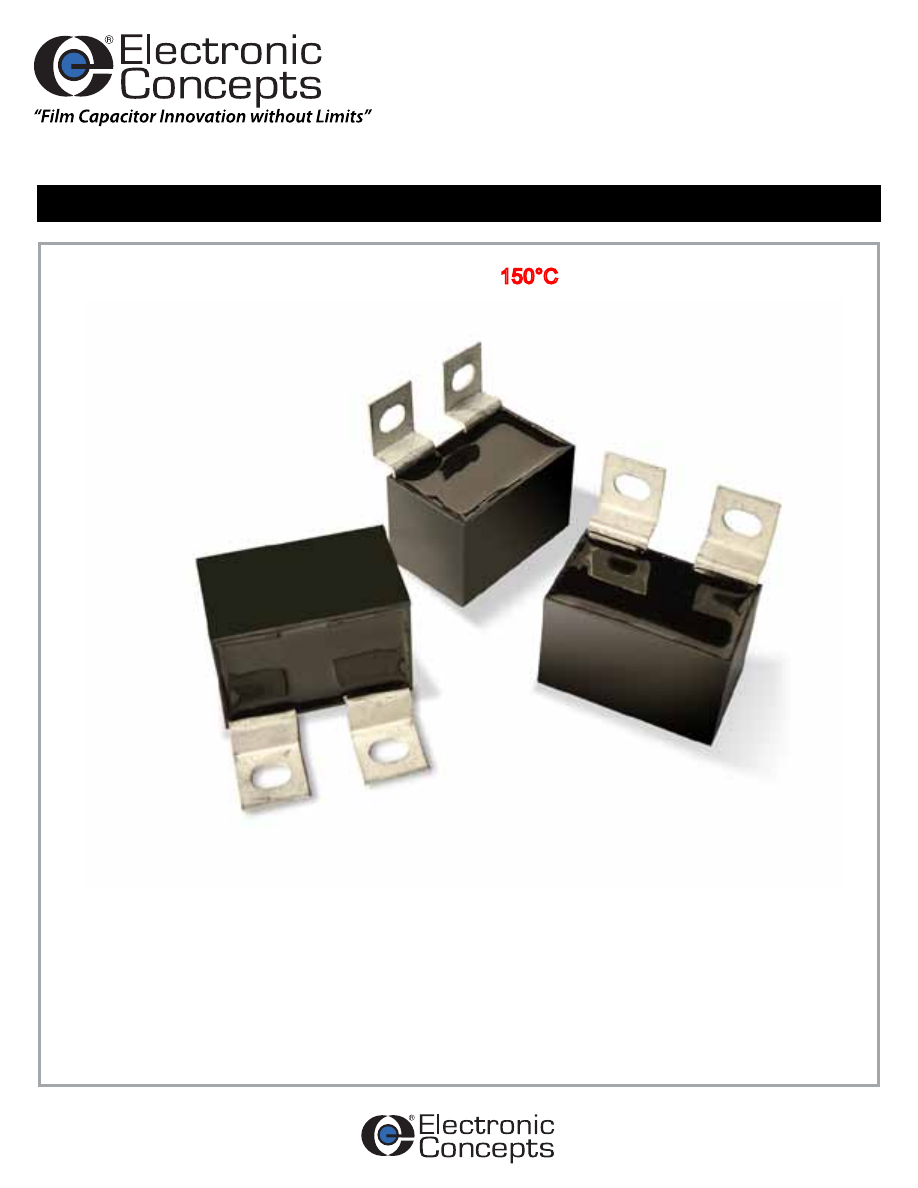

High Temperature DC Snubber Capacitor

Electronic Concepts’ new polymer operates to

150°C

 with the highest peak-current

rating of any metallized dry film capacitor.

FEATURES

- Continuous operation at 150°C

- Highest peak current capabilities of any

  metallized film capacitor technology

- Low loss factors that decrease with temperature

- Tight capacitance stability versus temperature

  between -55°C and +150°C

- Volume efficiency comparable to 85°C

  polypropylene snubber capacitors like ECI series

  MP88

- RoHS compliant

STANDARD CONFIGURATION

- Horizontal Mounting (A)

- Vertical Mounting (B)

Rev. 4



Parameter

Method

Condition

Vibration (Note 1)

204

D

Shock

213

I

Humidity (Note 2)

106

-

Life (Note 3)

108

F

Reference MIL-STD-202

Insulation Resistance vs. Temperature

In

su

la

tio

n

R

es

is

ta

nc

e

(M

Ω

 x

 μ

F

)

Temperature (C)

100000

10000

1000

100

10

1

-55°C

30000

Series 2

-25°C

20000

25°C

80000

85°C

40000

125°C

500

150°C

100

0°C

12000

105°C

15000

Maximum RMS Current

C

ur

re

nt

 (A

rm

s)

Temperature (C)

12.0

10.0

8.0

6.0

4.0

2.0

0.0

40

50

60

70

80

90 100 110 120 130 140 150

HT1_BC225
HT1_BF155
HT1_BJ105
HT1_BN564
HT1_BS334
HT1_BX224
HT1_CB124

Capacitance Change vs. Temperature

C

ap

ac

ita

nc

e

 C

ha

ng

e

(%

)

Temperature (C)

-6.0%

-5.0%

-4.0%

-3.0%

-2.0%

-1.0%

0.0%

1.0%

2.0%

3.0%

4.0%

5.0%

-60

-45 -30 -15

0

15

30

45

60

75

90 105 120 135 150

120Hz
1KHz
10KHz
40KHz
70KHz
100KHz

Dissipation Factor vs. Temperature

D

is

si

pa

tio

n

Fa

ct

or

 (%

)

Temperature (C)

0.0

120Hz
1KHz
10KHz
40KHz
70KHz
100KHz

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

2.0

-60

-45 -30 -15

0

15

30

45

60

75

90

105 120 135 150

  Specification Summary

  Characteristics

Capacitance Range

0.12µF - 2.2µF

Capacitance Tolerance

Standard capacitance tolerance is ± 10%.
(Other tolerances available on request)

Operating Temperature Range

-55°C to +150°C

Enclosure/Construction

Metallized proprietary dielectric in a thermoplastic case
with RoHS tab terminals

Voltage Rating

600 VDC to 2400 VDC

Notes:

1. Vibration is continuous for a four hour period in each of two

    directions, parallel and perpendicular to the major axis.

2. The capacitors shall be subjected to 20 continuous cycles.

3. Capacitors can withstand a test potential of 1.3 times DC Rated

    voltage at 150°C between terminals for a period of 2,000 hours,

    with not more than one failure per group of 10 tested.

Environmental Testing

Rev. 4

21

28

29+/-0.5

44.5+/-0.6

20.3

+/-0.5

3+/-1

15+/-0.8

11

0.8

10+/-0.8

6.35

13.7

+/-0.2

TERMINAL STYLE "A"

29+/-0.5

44.5+/-0.6

20.3

+/-0.5

13.7

+/-0.2

TERMINAL STYLE "B"

21
28

11

10+/-0.8

6.35

3+/-0.8

HT1_BC225
HT1_BF155
HT1_BJ105
HT1_BN564
HT1_BS334
HT1_BX224
HT1_CB124

2.2
1.5
1.0

0.56
0.33
0.22
0.12

6688
5700
4560
3405
2508
2006
1459

600
750
900

1200
1500
1800
2400

3040
3800
4560
6080
7600
9120

12160

678
822

1010
1350
1750
2150
2910

5.2
4.7
4.1
3.3
2.6
2.2
1.7

60
70
95

145
220
300
480

<25
<25
<25
<25
<25
<25
<25

PART NUMBER

VALUE

(µF)

VOLTAGE

(VDC)

Ipk

(Amps)

dv/dt

(V/µs)

Fres

(kHz)

ESL

(nH)

ESR

(100 kHz)

Milliohms

Irms

(100 kHz)

70°C

  Detail Data

  Style

Rev. 4

TYPE

HT1 - 150°C Polymer

STYLE

A - Horizontal Mount, B - Vertical Mount

HT1

A

BC

225

VOLTAGE

DC Voltage Rating: BC=600VDC, BF=750VDC, BJ=900VDC, BN=1200VDC,

BS=1500VDC, BX=1800VDC, CB=2400VDC
CAPACITANCE IN PICOFARADS

The first two digits are significant figures, the third digit represents the number of zeros

to follow to express the capacitance in picofarads.

Marking And Date Code

All capacitors are marked with company initials "EC", corporate logo or EC trademark—in addition to type HT1, capacitance, tolerance, rated

DC working voltage and date code. The first two digits of the date code represent the year, the second two digits the week, i.e., 1252 is the

52nd week of 2012, 1202 is the second week of 2012.

Quality Assurance

Major emphasis is placed on quality assurance. EC is an ISO 9001 and AS9100 Certified Company. Raw material inspection and the use of

SPC manufacturing procedures assure the highest quality standards. Procedures are fully described in the EC Quality Control Manual.

Electronic Concepts will continue to advance the state-of-the-art by utilizing leading edge technology, compact capacitor designs and

establishing reliability procedures.

HT1  snubber  series  offers  high-temperature  performance  as  an  alternative  to  conventional  capacitors  in  applications

including high-temperature switching to 150°C, EV/HEV inverters, and industrial power conversion. The HT1 series responds

to  industry  demands  for  high-temperature  capacitors  with  outstanding  peak-current  performance  surpassing  traditional

metallized dielectrics.
