Honeywell Cable Catalog

Genesis Series
Low Voltage Cable

SECURITY, FIRE, HOME THEATER, SOUND,
CCTV, CATV, VOICE AND DATA AND
THERMOSTAT WIRE

Welcome

Dear Industry Professional,

Welcome to Honeywell’s Genesis Series Cable Catalog. Throughout this catalog you will find an
outstanding selection of low voltage cables, interconnects and accessories.

Honeywell’s cable line is continuously growing. At the same time, we focus on our promise of
quality, technology and commitment explained in the pages to follow. We are always working on
improving existing products while introducing new ones that can help you grow your business.

Recent developments include:

Improved Packaging and Labeling:

• We now provide color-coded boxes and wrap-around labels for our cable products

which aid in the identification of the cable

• To ease the installation process, we have improved our cable legends which now

include room and zone markings as well as our countdown footage marking system

New A/V Cables, Interconnects and Accessories:

• Our new 7000 Series HDMI Cables include Eye Pattern test results in the packaging
• A complete new line of interconnects has been introduced including

, RCA Audio Cables, and RGBHV Video Cables

• The HDMI Restorer, Tester and Diagnostic Unit are just a few of the new accessories we

now have to offer

All of our products, helpful resources and a download of this complete catalog are available on
our website www.honeywellcable.com. We hope you enjoy exploring all we have to offer, and
we thank you for your support.

Honeywell-CableCatalogGenesisSeries-html.html

Honeywell’s Genesis Series Cables are produced in

the newest wire and cable plant in North America,

utilizing state-of-the-art technology and production

equipment. Genesis Series Cables are available for

a full range of applications.

Applications:

Alarm & Security

Access Control

Telephone/Fax

High Speed Internet

Environmental Control

Home Theater

Whole House Audio

CATV/CCTV

Satellite

Computer Networking

and More!

Security & Control Cables . . . . . . . . . . . . . . . . . . . 9

Irrigation Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Thermostat Cables . . . . . . . . . . . . . . . . . . . . . . . . 29

Fire Alarm Cables . . . . . . . . . . . . . . . . . . . . . . . . . 31

Genesis Crystal Series Cables . . . . . . . . . . . . . . . 39

Home Theater Cables . . . . . . . . . . . . . . . . . . . . . . 55

Multimedia Cables . . . . . . . . . . . . . . . . . . . . . . . . 61

Networking Cables . . . . . . . . . . . . . . . . . . . . . . . . 65

Coaxial Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Genesis Series
Cable Products

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Introduction to Genesis Series Cable . . . . . . . . . . . . . . . 3-7

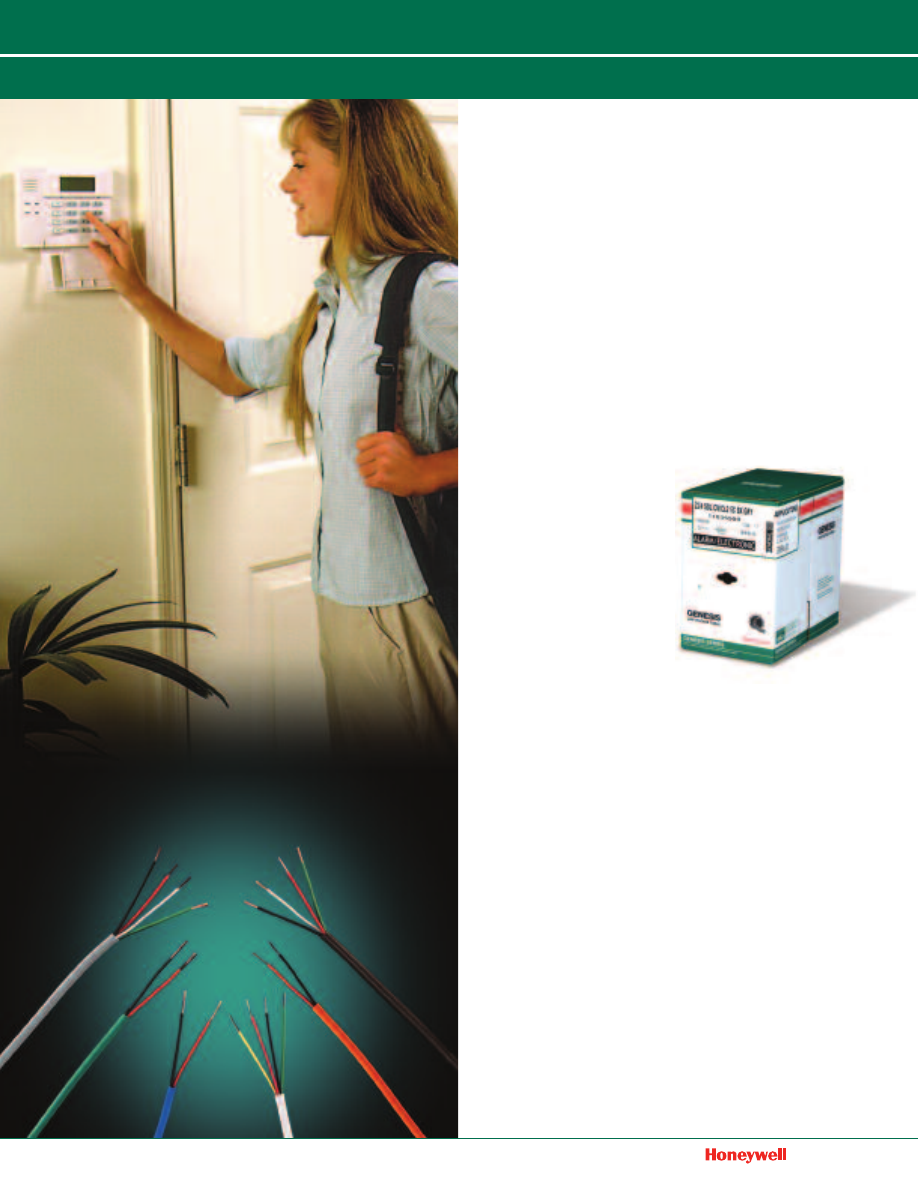

Security & Control / Power Limited Circuit Cables - Article 725

Power Limited Circuit Cables

Type CM, CL2, CMR, CL2R, CMP, CL2P, FT4, FT6

CM, CL2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-16

CMR, CL2R, FT4 (RISER). . . . . . . . . . . . . . . . . . . . . . . 17-20

CMP, CL2P, FT6 (PLENUM) . . . . . . . . . . . . . . . . . . . . . 21-24

Home Automation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

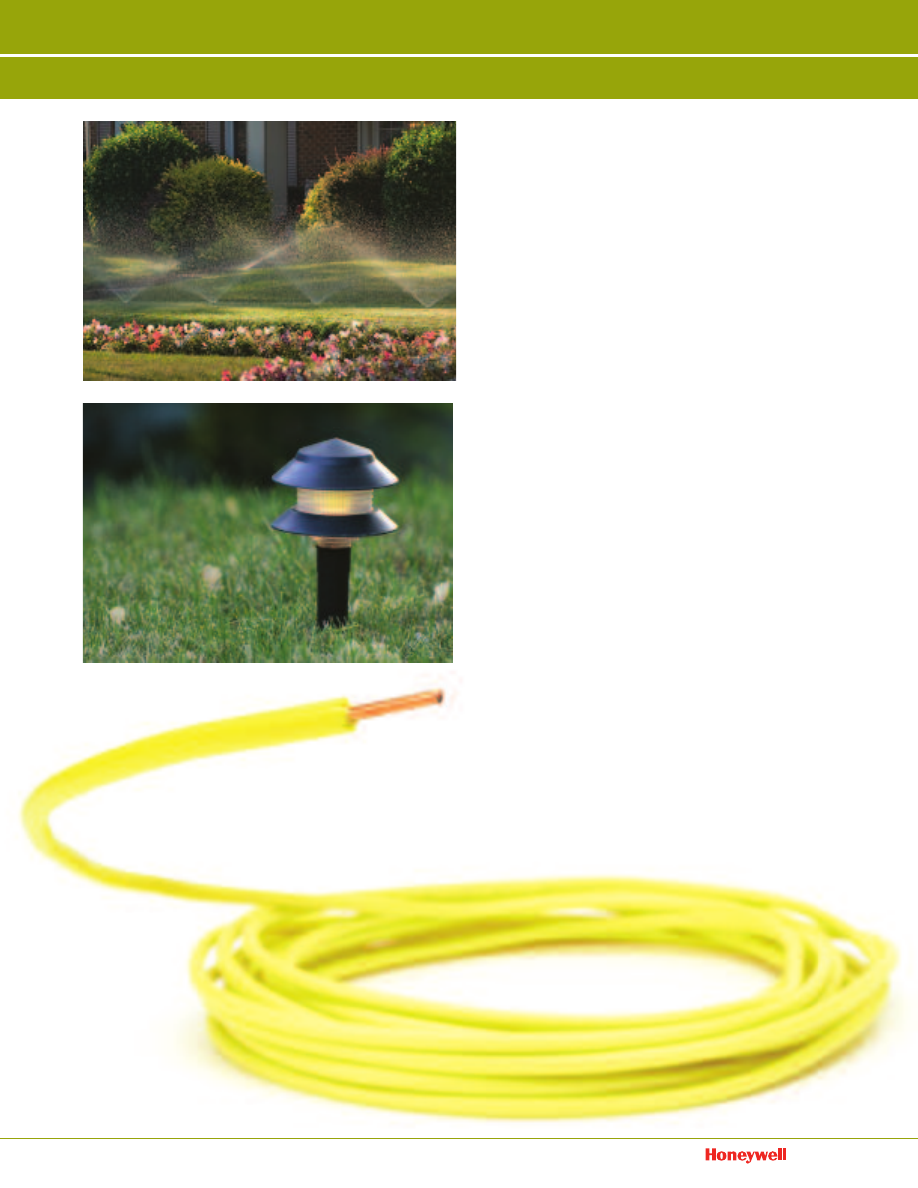

Irrigation, Tracer and Lighting Cable - Article 725

Irrigation, Tracer and lighting Cable . . . . . . . . . . . . . . . . . 27

Underground Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Thermostat Cables - Article 725

Thermostat Wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Thermostat Cable General Purpose . . . . . . . . . . . . . . . . . 30

Thermostat Cable Plenum . . . . . . . . . . . . . . . . . . . . . . . . 30

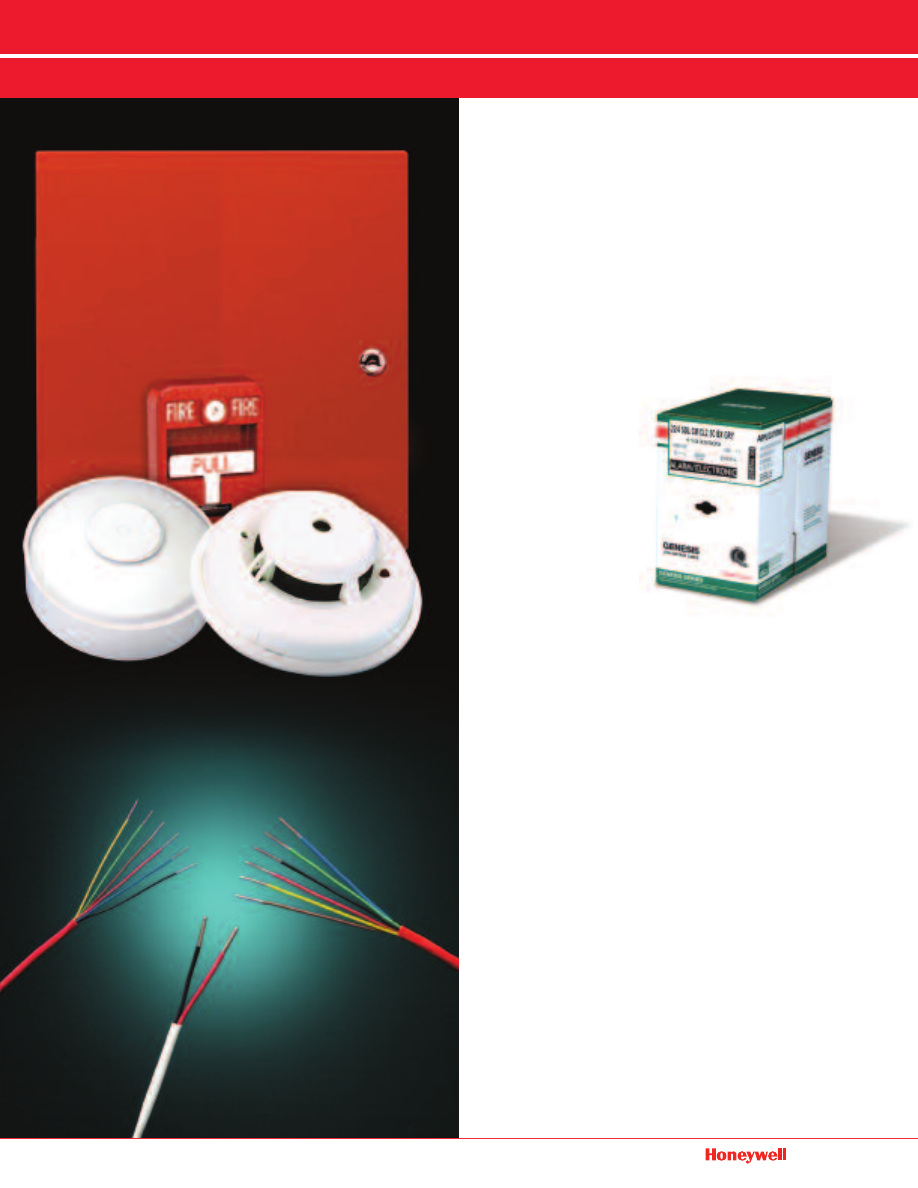

Fire Alarm / Power Limited Circuit Cables - Article 760

Fire Power Limited Circuit Cable

Type FPL, FPLR, FPLP, FPL Direct Burial

FPL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-33

FPLR (RISER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34-35

FPLP (PLENUM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35-36

LL5 (LOCAL LAW FIVE) . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Crystal Series Cables

RGB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Audio Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Serial Digital. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

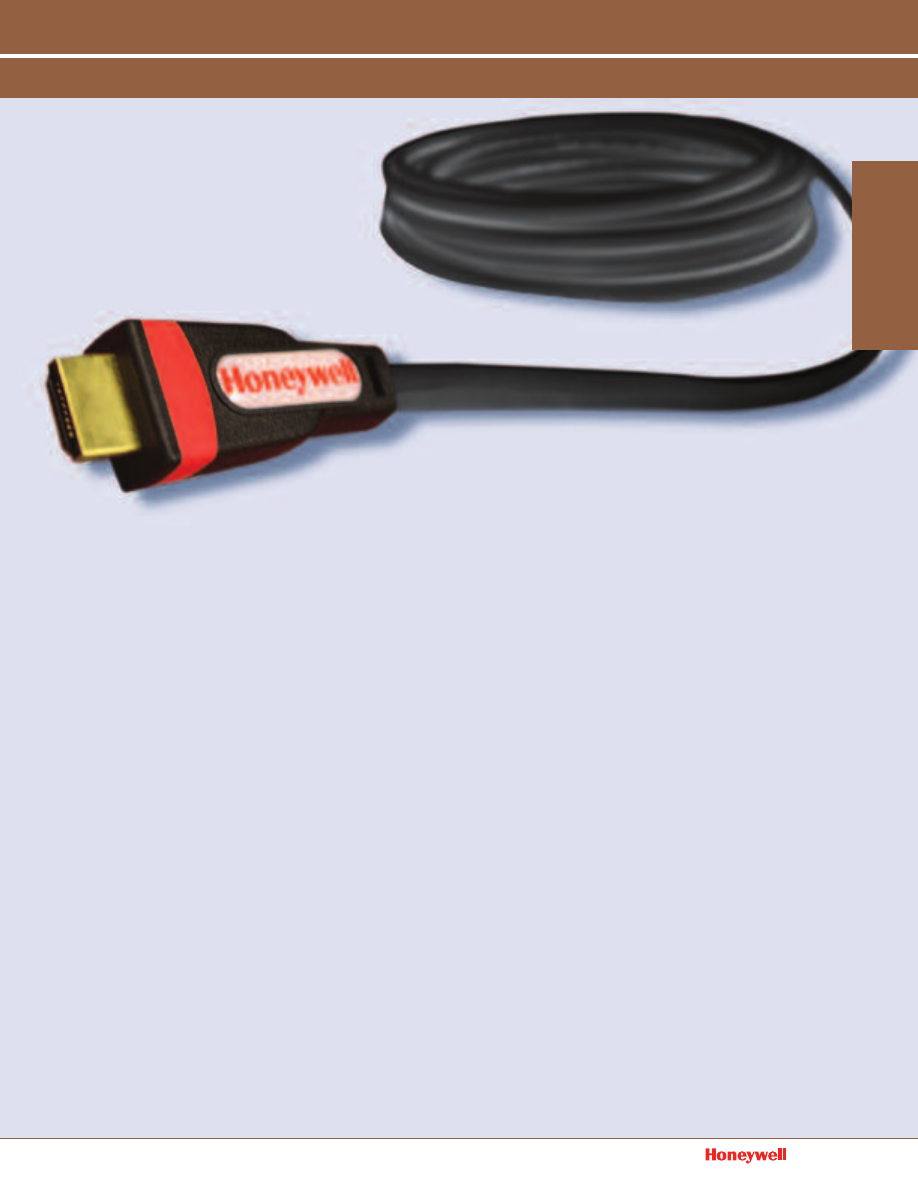

HDMI Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43-47

Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48-52

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53-54

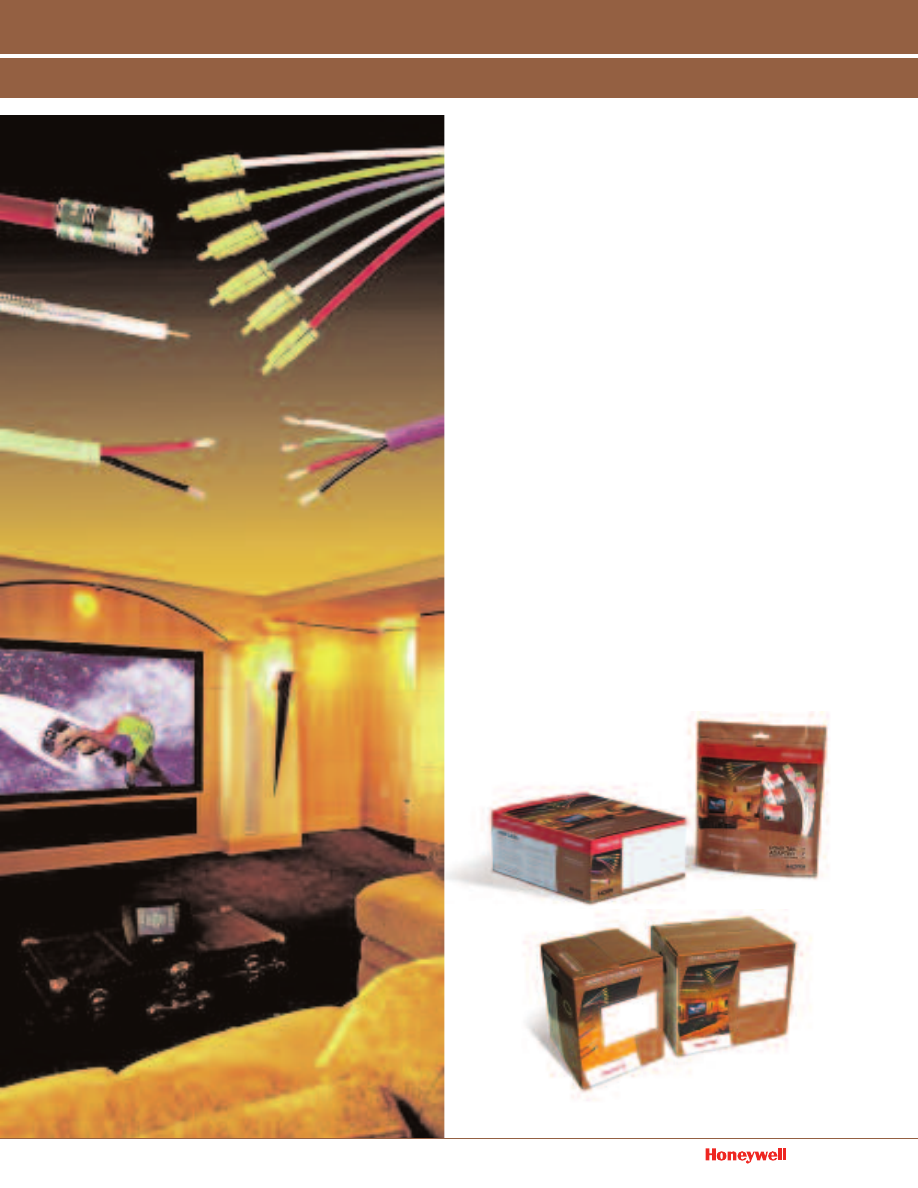

Home Theater Cables - Article 725

Heavy Duty Zip Cable, Clear, Oxygen-free, Zipcord . . . . . 56

Home Theater Sound Cable . . . . . . . . . . . . . . . . . . 57-58

Audacious Sound Cable, Oxygen-Free . . . . . . . . . . . . 59

Crystal Series Professional Audio and Home Theater. . . 59

Multimedia Cables - Article 725

Bundled Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

ProFusion™ Unjacketed Multimedia . . . . . . . . . . . . . . 62

Dual Zip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Networking Cables - Article 800

Communication Circuits, Voice & Data Cable, Type CM,

CMR, CMP, Video Surveillance Systems . . . . . . . . 66-70

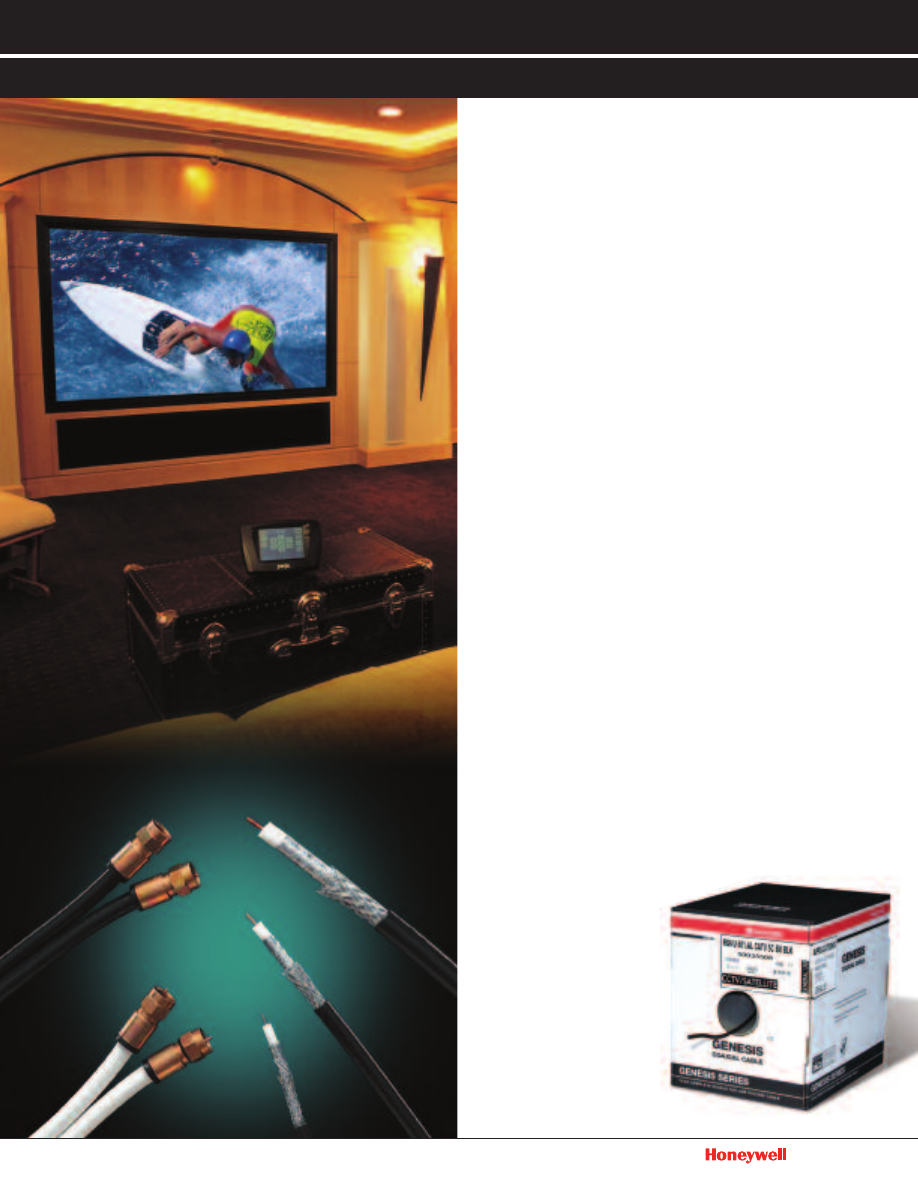

CATV Coaxial Cables - Article 820

CATV (Hyperband Premium Broadband) . . . . . . . . 72-74

Serial Digital Coax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

CCTV Coaxial Cables - Article 725

CCTV (Baseband) . . . . . . . . . . . . . . . . . . . . . . . . . . . 76-78

UTP CCTV Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Underground Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Technical Data

National Electric Code. . . . . . . . . . . . . . . . . . . . . . . . . . 81

Cable Substitution Hierarchy Chart . . . . . . . . . . . . . . . 82

Conductor Color Code Charts. . . . . . . . . . . . . . . . . 83-84

Voice and Data Cables (Warranty Information) . . . . . . 85

ANSI / TIA / EIA Telecommunications Cable Standard . . . . 86

Genesis Semi-Extruded Jacket . . . . . . . . . . . . . . . . . . 87

Voltage Drop and Audio Cable Charts . . . . . . . . . . . . . 88

Part Number Descriptions. . . . . . . . . . . . . . . . . . . . . . . 89

Index By Genesis Part Number

Index by Genesis Part Number . . . . . . . . . . . . . . . . 91-92

Honeywell-CableCatalogGenesisSeries-html.html

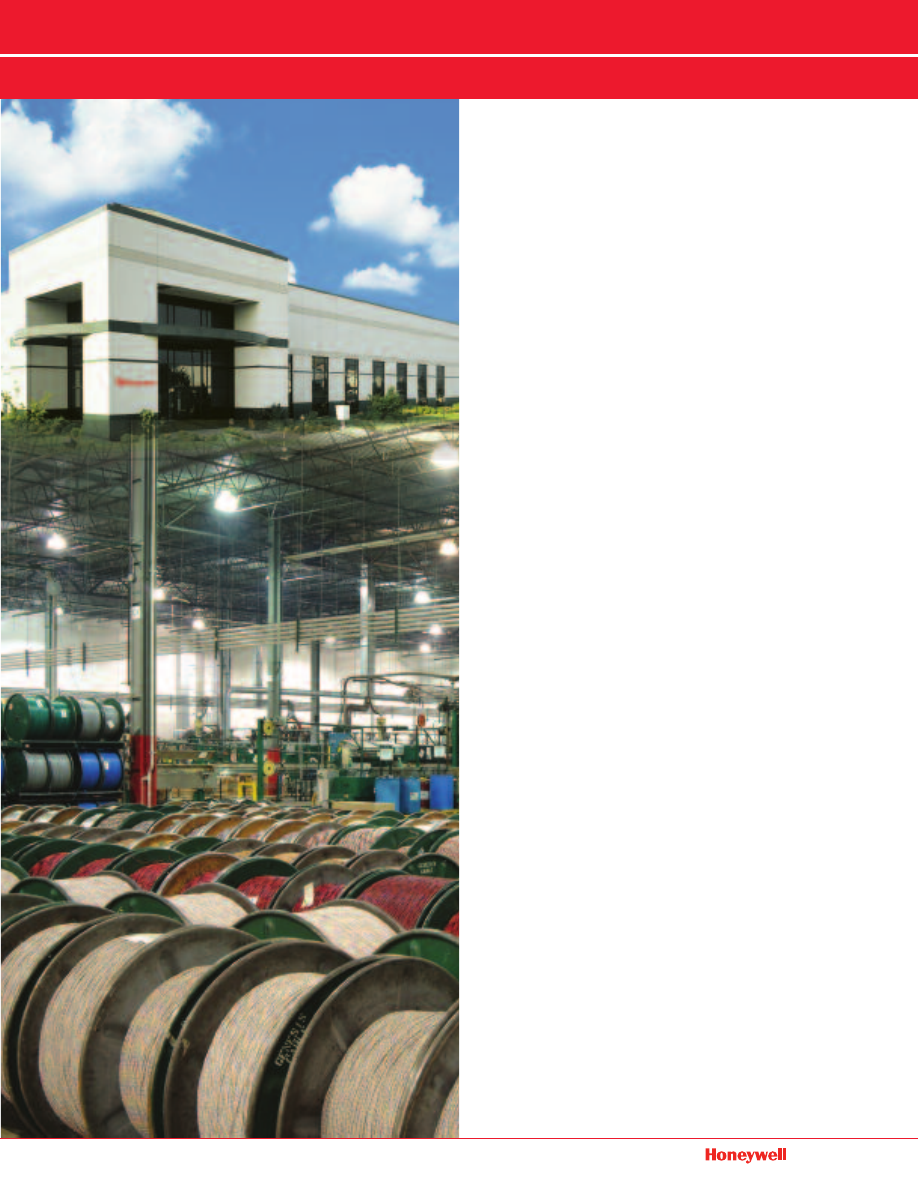

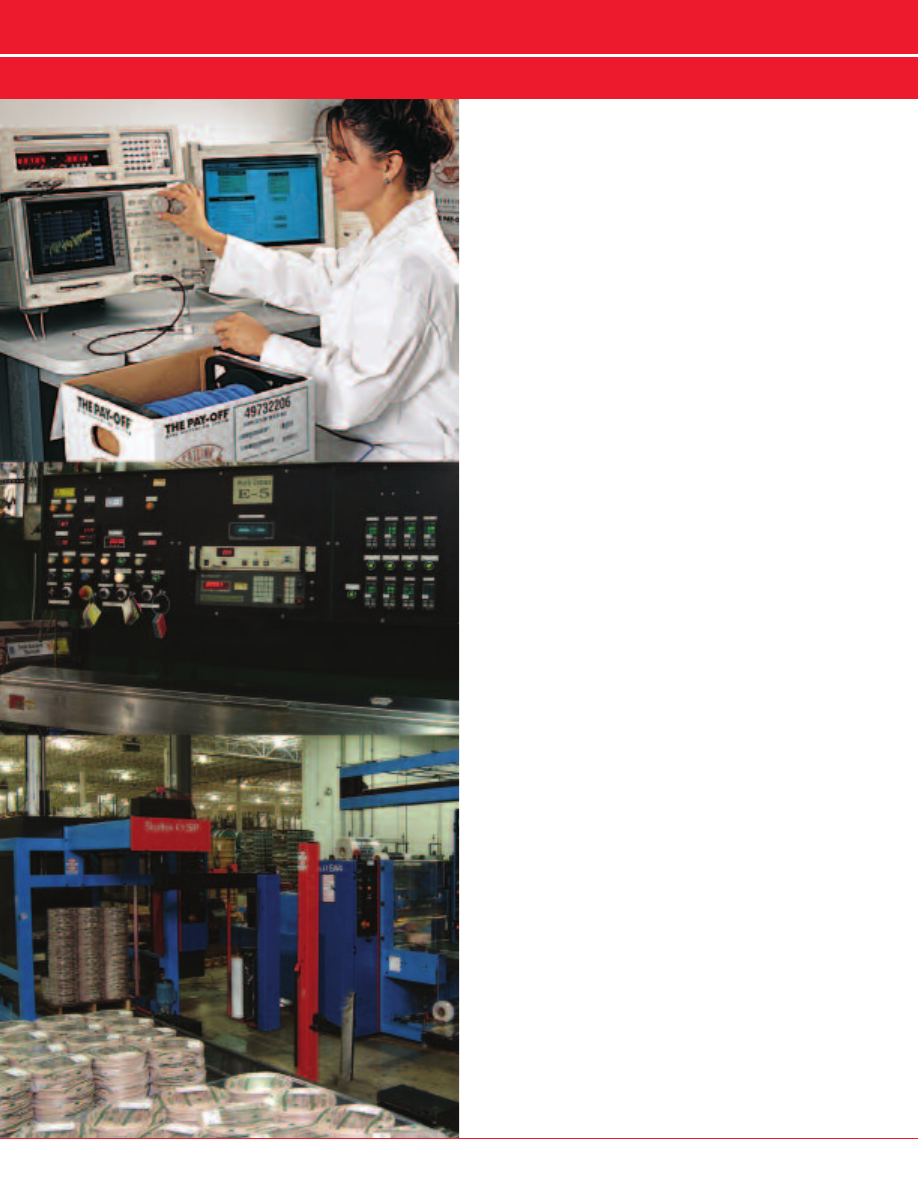

Genesis Series Low Voltage Cables are produced

with innovative equipment and technology in

a state-of-the-art facility. This leading edge

production facility enables Honeywell to produce

the highest quality Security, Fire, Sound, Video,

Voice and Data wire and cable in the most focused

facility in North America.

In addition to operating the premier manufacturing

facility in our industry, Genesis Series Cables are

produced by an experienced team. The management

team has spent their entire career in the wire and

cable industry, representing over 80 years of wire

and cable experience. Furthermore, virtually all

supervisors and line operators boast similar

longevity in the wire business, exhibiting an

uncompromising dedication to their craft.

Genesis Series Cable

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Quality...

unsurpassed equipment, the most

experienced people and the finest raw materials,

combine to create the highest quality products in

the industry. We are so confident in Genesis Series

products that we offer the most comprehensive

guarantee in the industry. If any Genesis Series

product fails to perform to our specification, during

the life of any original installation, we will replace

the cable — three spools or boxes for one. No one

else in the industry makes that guarantee.

Technology...

Genesis Series Cables are the highest

quality and most cost effective cables in our

industry. By understanding the needs of our

customers, Genesis Series Cables deliver real

value. All of our products exceed the industry

standards of Underwriters Laboratories, ETL,

EIA/TIA, the Canadian Standards Association

(where applicable), the National Electric Code and

the NFPA.

Commitment...

Honeywell has brought together

every conceivable resource to ensure that Genesis

Series Low Voltage Cables deliver ultimate value to

our customers. This means the highest standards

of service, quality and efficiency, all backed by our

limited lifetime warranty. Our commitment goes

beyond our products, extending to our distributors

and our loyal customers.

Honeywell-CableCatalogGenesisSeries-html.html

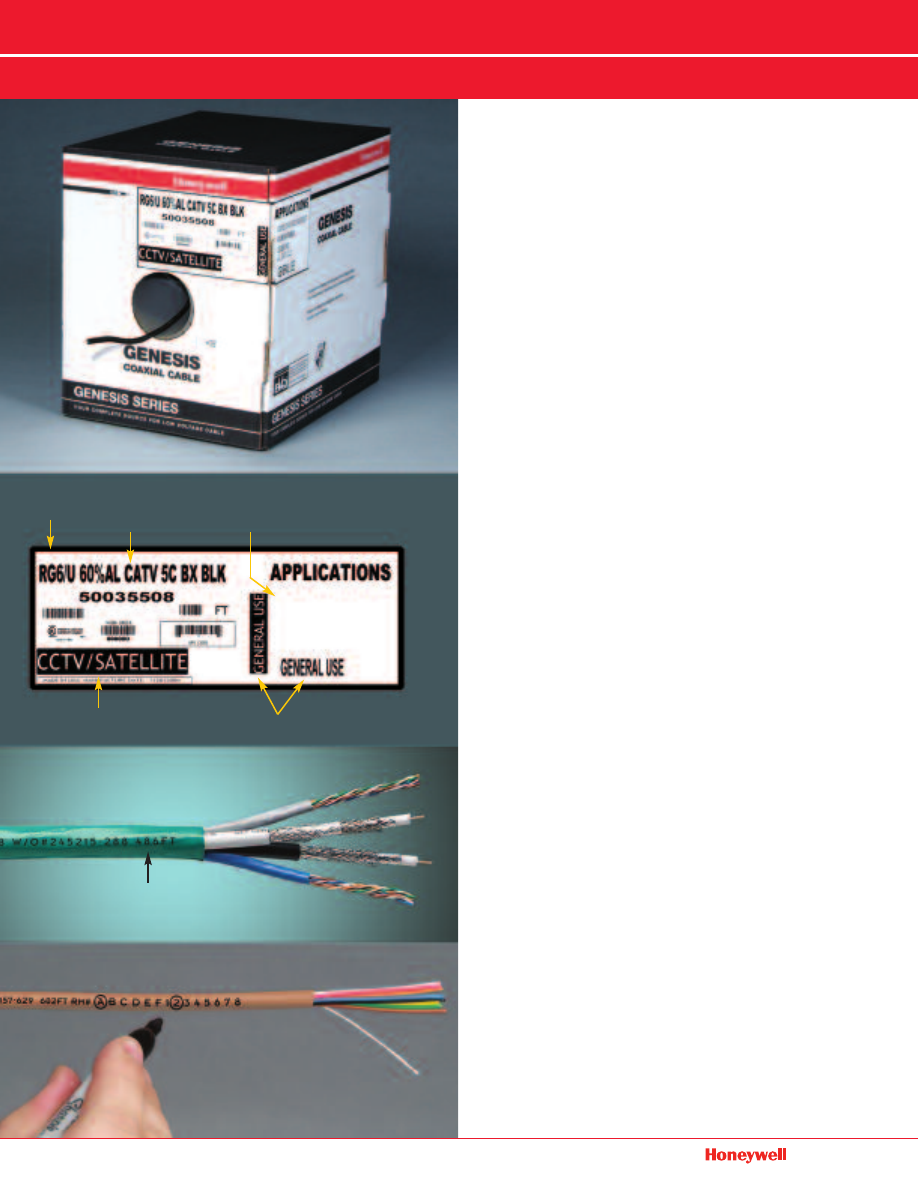

New Improved
Packaging & Labeling

Genesis Series Cable now has color-coded

boxes and wrap-around labels that offer the

following benefits:

• Color-coded boxes for easy identification of

cable type

• Larger, descriptions for easier identification of

specific cable constructions

• Visible Plenum/Riser/General Purpose

identification to help avoid costly accidental

shipments of improper rated cable

• New application section on label for additional

help with identification of the proper cable

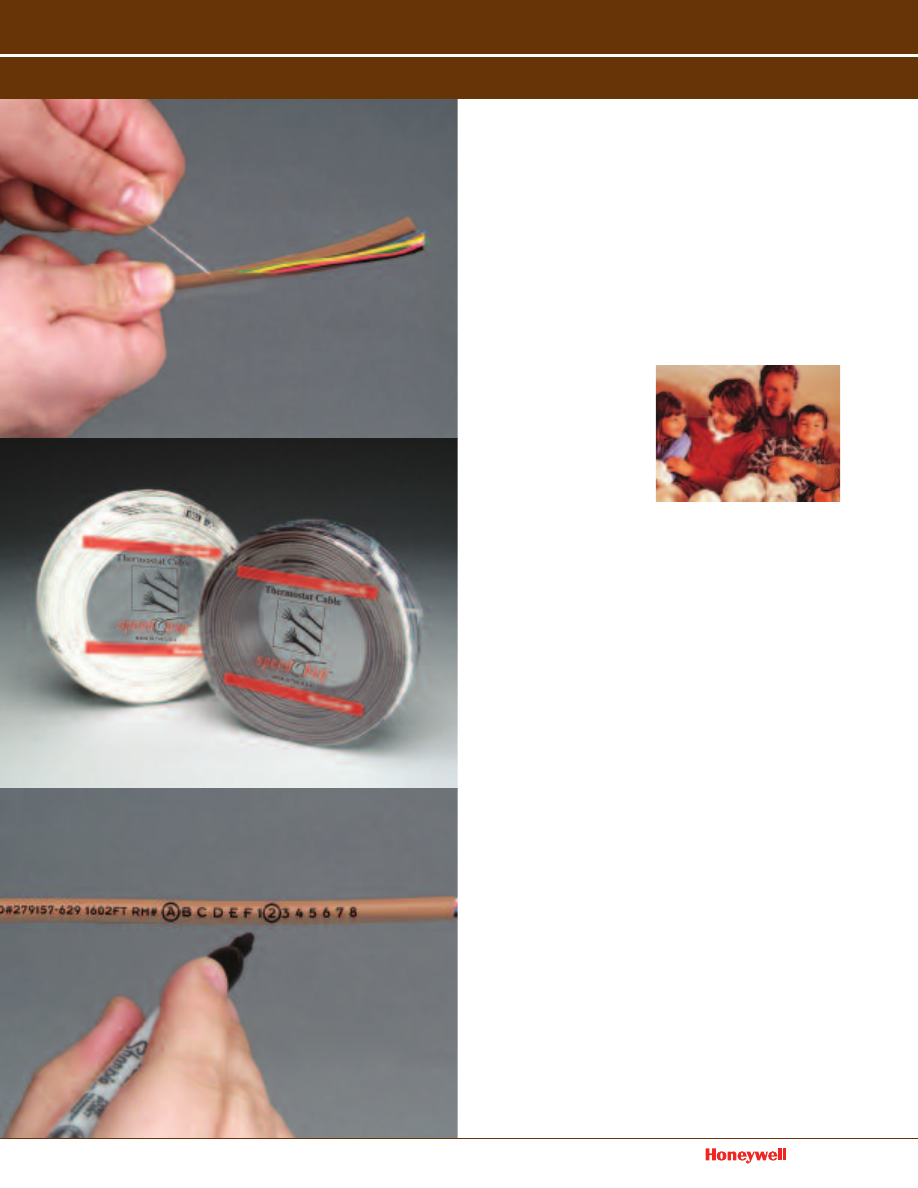

New Cable Legends, Now with Countdown™

Footage Markings

Honeywell Genesis Series Cable has improved its

cable legends with the addition of room and zone

markings as well as our countdown footage

marking system.

• Countdown™ footage markings allow

installers to continuously track the amount

of cable they have remaining

• Convenient new room and zone markings give

installers flexibility by allowing them to easily

mark and identify the cable

• Minimizes any testing that is required to

confirm or identify a non-labeled cable

AUDIO/VIDEO, CATV-MATV, SATELLITE, RADIO FREQUENCY
AND COMPUTER/DATA TRANSMISSIONS
CODE GENERAL PURPOSE
UL, CATV, CL2

NEW LABEL SYSTEM

Color Code

(Black)

Large Description

Applications

Cable Type

General Use

Footage Remaining

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

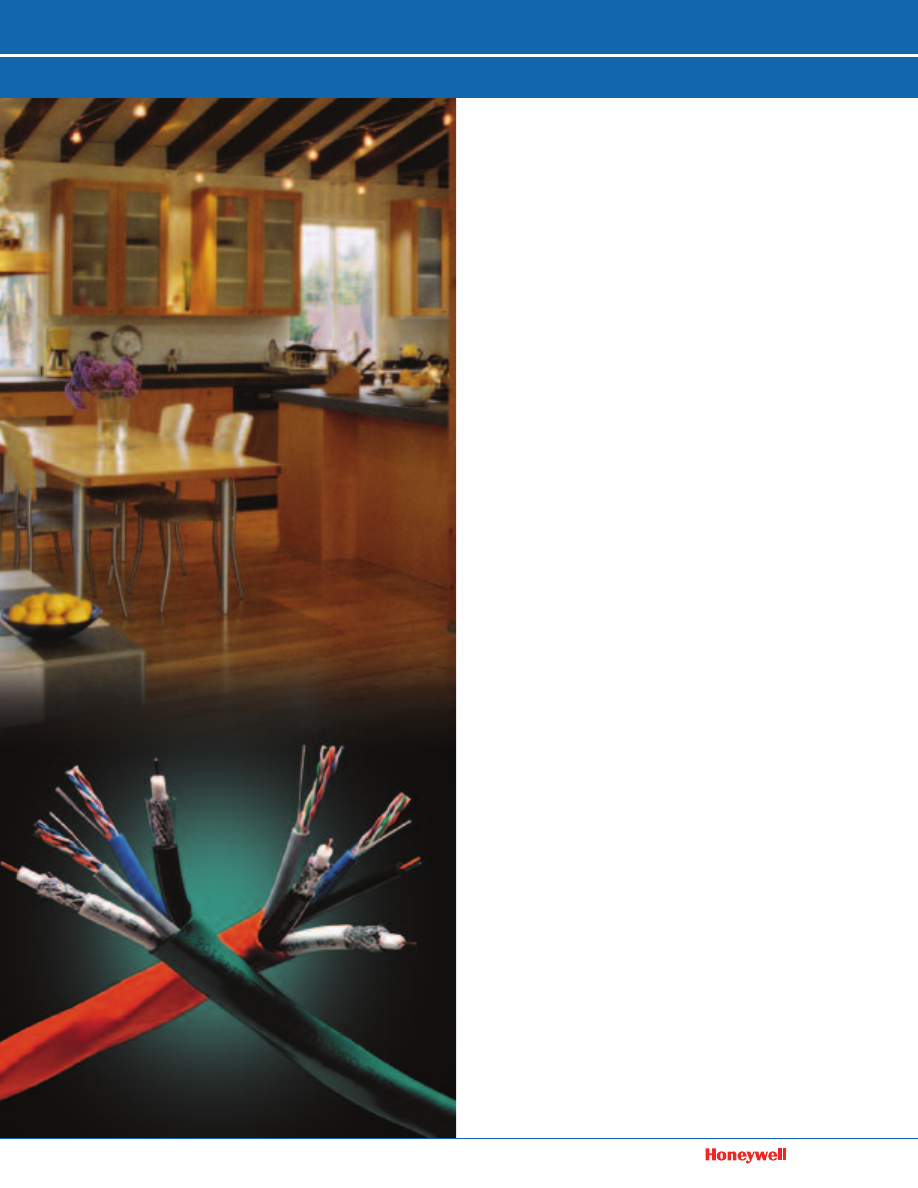

Introducing Genesis Series Profusion™ bundled

cables; the simplest, most cost effective solution

for bundled cable applications. This new bundled

cable technology eliminates the need for an outer

jacket. Individual cables are held together by a

revolutionary tight, continuous twist scheme.

The Profusion twist scheme holds the cables

together without any binder tapes or adhesive

materials. Our twisting method prevents any

deterioration of the original cable’s performance.

Profusion’s unique design lets installers separate

the individual components effortlessly while

reducing cold weather cracking and flexibility

problems. These cables can support voice, data,

video and other options.

• Cables are held together by a revolutionary

twisting method

• Easy installation; just tape the end and pull

• Individual cables effortlessly detach,

unlike other jacketless bundled constructions

• Lighter, more flexible and has a smaller over-all

diameter than other bundled constructions

• Cables are performance tested after bundling

• Jacketless design saves valuable time for the

installation professional, eliminating the need

to remove an outer jacket

• Eliminates cold weather cracking problems

• No degradation of performance

• Multiple constructions available

• UL/ETL listed and tested

• 100% Guaranteed

Profusion Cables

Honeywell-CableCatalogGenesisSeries-html.html

Future Proof Your
Installations with
Category 6

Why Install Category 6 In Your Home?

• Cat 6 bandwidth is 2.5 times that of Cat 5e

• Cat 6 has 40% less signal loss than Cat 5e

• Cat 6 has 100 times lower signal to noise ratio

than Cat 5e

• Cat 6 is built to support 10 times faster speeds

• Cat 5e can only transport compressed

HDTV signals

• Cat 6 can transport uncompressed HDTV

signals running at 1.2 GHz!

• As applications with digital and data rates

increase, Cat 6 will be able to handle them

• Tests of standard Cat 6 have verified that it

can reliably transport 10 GHz data over 55

meters (180 feet)

• TIA-570-B Residential Infrastructure

Telecommunications Standard recommends

that Cat 6 be installed in residential applications

• Category 6 will “future-proof” a home for

its lifetime!

Honeywell-CableCatalogGenesisSeries-html.html

pixel perfect

For additional information, please call

1-800-467-5875,

or visit

www.honeywell.com/security

TV the Way it Was Meant to Be Seen

Everyone knows that a crisp, clear television picture can envelop
a viewer and heighten the overall home theater experience.
Thanks to Honeywell’s new HDMI Restorer and Diagnostics Unit
with

™

Technology, your customers can view TV the

way it’s meant to be seen…in brilliant, eye-popping detail!
It solves the most common problems today’s installers face, including

pixel drop out, audio clipping—even total signal loss. Full, 1080p pristine HD video and audio can
be delivered up to 30 meters. What’s more, upstream and downstream problems with HDMI and
HDCP compliance can even be diagnosed for quick and easy troubleshooting.

Honeywell’s HDMI solutions. It’s picture-perfect thinking from a name you can trust.

Honeywell-CableCatalogGenesisSeries-html.html

Our multi-conductor cables are manufactured in

a wide variety of gage sizes, shielding

configurations and jacketing materials including

plenum, riser and general purpose. Applications

for these cables include control cables (Lutron

Systems & Crestron Systems), alarms,

intercoms, speakers and other low voltage

circuits that are power limited.

Features:

• Countdown

• New Labeling

System on Boxes

• Color Coded Boxes

• Zone and Room

Markings

Article 725/800*

Class 1, Class 2, and Class 3 remote-control,

signaling and power limited circuits that are not

an integral part of a device or appliance.

The scope of this article may include systems

such as burglar alarm, access control, sound,

nurse call, intercom circuits, some computer

network systems, some control circuits for

lighting dimmer systems, and some low voltage

control circuits that originate from listed

computer equipment.

General Purpose Cable:

Type CM, CL2, CMR,

CL2R, CMP, CL2P.

Cables may be dual rated

CM/CL2, CMR/CL2R, CMP/CL2P.

*See Article 800 for more information.

Security &
Control Cables

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

SECURITY & CONTROL CABLES

Control Cables for Crestron Systems

CONTROL CABLES FOR CRESTRON SYSTEMS

COMPARABLE TO

DESCRIPTION

JACKET COLOR

NOM. O.D.

AVG. WT. PER MFT

PART#

CRESCAT-NP

Control Cable

22/1pr Low Cap + 18/2

Teal/Red Stripe

.485

78 (LBS)

1270

Data Cable

CAT 5e 350 MHz

CRESCAT-D-NP

Control Cable

22/1pr Low Cap + 18/2

Teal/Black Stripe

.530

105 (LBS)

1278

Data Cable

2 X CAT 5e 350 MHz

CRESCAT-Q-NP

Control Cable

22/1pr Low Cap + 18/2

Teal/White Stripe

.680

145 (LBS)

1279

Data Cable

4 X CAT 5e 350 MHz

CRESCAT-DC-NP

Control Cable

22/1pr Low Cap + 18/2

Data Cable

2 X CAT 5e 350 MHz

Teal/Orange Stripe

.800

194 (LBS)

1272

Coax Cable

2 X RG6 BC Quad Shielded

DESIGNED FOR USE WITH CRESTRON TOUCH PANELS, KEYPADS, EXPANSION MODULES, TUNERS AND MORE.

COMPARABLE TO

DESCRIPTION

JACKET COLOR

NOM. O.D.

AVG. WT. PER MFT

PART#

CRESNET-NP

Control Cable

22/1pr Low Cap + 18/2 Power

Blue/Yellow Stripe

.280

33 (LBS)

1244

DESIGNED TO PROVIDE A SIGNAL-CABLE SOLUTION FOR WIRING OF MEDIA SYSTEMS.

COMPARABLE TO

DESCRIPTION

JACKET COLOR

NOM. O.D.

AVG. WT. PER MFT

PART#

CRESCAT-IM-P

Control Cable

24/4pr Category 5e 100 MHz CMP

Blue

.200

27 (LBS)

5088

Dimmer Control Cable

Control Cable

22/1pr

Gray

.120

13 (LBS)

1202

Honeywell Genesis Series Cable offers specialized control cables for Crestron Systems.

These bundled cables facilitate fast and easy wiring for Crestron AV distribution switchers,

room solution boxes, intercoms and touch panels. The constructions with RG6 cable allow

for distribution of CATV, satellite, broadband or modulated video.

Honeywell-CableCatalogGenesisSeries-html.html

Echelon

Lonworks

Approved Wire

Echelon supplies infrastructure hardware and software to the rapidly growing networking

market. Echelon Lonworks systems are installed in buildings, factories, utilities and houses

allowing users to remotely connect, monitor and diagnose intelligent devices. Echelon

Lonworks solutions enable multiple key building systems used for security, lighting, elevator

and HVAC to be integrated into a single smart building.

HONEYWELL GENESIS SERIES – LEVEL 4 CABLES APPROVED FOR ECHELON LONWORKS

AWG

CONDUCTORS

LISTING

PART #

1 Pair Stranded Bare Copper, Unshielded

CM, CL2

1061

2 Pair Stranded Bare Copper, Unshielded

CM, CL2

1062

1 Pair Stranded Bare Copper, Shielded

CM, CL2

1063

2 Pair Stranded Bare Copper, Overall Shield

CM, CL2

1064

1 Pair Stranded Bare Copper, Unshielded

CMP, CL2P

3252

2 Pair Stranded Bare Copper, Unshielded

CMP, CL2P

3253

1 Pair Stranded Bare Copper, Shielded

CMP, CL2P

3254

2 Pair Stranded Bare Copper, Overall Shield

CMP, CL2P

3255

Echelon and Lonworks are trademarks of Echelon Corporation registered in the United States and Other Countries.

Control Cables for Lutron

Honeywell Genesis Series Cable offers specialized lighting control cables for Lutron

systems. These cables are specifically designed to meet the Lutron cable standards.

Honeywell's Genesis Series Cable provides a full range of low voltage cables for security,

fire, sound, video, home theater, structured cabling, voice & data and other low voltage

cable applications.

CONTROL CABLES FOR LUTRON

JACKET

STYLE

CONSTRUCTION

COLOR

SHIELD

LISTING

PART#

HomeWorks

18/2 STR 16/30 BC

Gray

Aluminum Mylar TC Drain

1214

Dimmer & Switch
HomeWorks

18/4 STR 16/30 BC

Gray

Aluminum Mylar TC Drain

1215

Dimmer & Switch
Vareo Dimmer & Switch

22/2 STR 7/30 BC

Gray

Aluminum Mylar TC Drain

1202

Keypad Data/Grafik

22/1pr Low Cap

Blue/Yellow

22/1pr Aluminum Mylar TC Drain CM

1244

Eye 3000

Data 18/2 Power

Stripe

Grafik Eye

22/1pr Low Cap Data

Blue

22/1pr Aluminum Mylar TC Drain CM

1260

4000/6000

12/2 Power 18/1 Ground

Sovoia

18/4 BC

Blue /Red

Aluminum Mylar

Shades

16/2 BC

Stripe

None

1287

18/1 BC

None

HomeWorks

18/2 STR 16/30 BC

White

Aluminum Mylar TC Drain

CMP

3214

Dimmer & Switch
HomeWorks

18/4 STR 16/30 BC

White

Aluminum Mylar TC Drain

CMP

3215

Dimmer & Switch
Vareo Dimmer & Switch

22/2 STR 7/30 BC

White

Aluminum Mylar TC Drain

CMP

3202

Control Cables for Echelon

Lonworks

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Jacketed Cables Unshielded

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Stations, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers

and Plenums.

Features:

Available In 500 foot or 1000 foot. Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, Polypropylene Insulation, Flexible Polyvinyl-Chloride

Jackets. Standard Jacket Color: Gray. Conductor Color Code, Chart 1

(up to 12 conductors). Color Code Chart 2 (13 conductors and over).

JACKETED CABLES UNSHIELDED 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.105

CM, CL2

10 (LBS)

1140

SOL.

.104

CM, CL2

8 (LBS.)

1101

STR.

.114

CM, CL2

9 (LBS.)

1102

SOL.

.116

CM, CL2

14 (LBS.)

1103

STR.

.133

CM, CL2

15 (LBS.)

1104

STR.

.145

CM, CL2

19 (LBS.)

1105

SOL.

.140

CM, CL2

19 (LBS.)

1106

STR.

.158

CM, CL2

21 (LBS.)

1107

SOL.

.152

CM, CL2

25 (LBS.)

1108

STR.

.172

CM, CL2

28 (LBS.)

1109

SOL.

.174

CM, CL2

29 (LBS.)

1110

STR.

.200

CM, CL2

33 (LBS.)

1111

SOL.

.182

CM, CL2

35 (LBS.)

1112

STR.

.204

CM, CL2

40 (LBS.)

1113

STR.

.155

CM, CL2

22 (LBS.)

1117

STR.

.148

CM, CL2

18 (LBS.)

1118

SOL.

.136

CM, CL2

16 (LBS.)

1138

STR.

.159

CM, CL2

24 (LBS.)

1130

STR.

.172

CM, CL2

30 (LBS.)

1119

STR.

.206

CM, CL2

44 (LBS.)

1120

STR.

.225

CM, CL2

55 (LBS.)

1121

STR.

.270

CM, CL2

70 (LBS.)

1122

STR.

.277

CM, CL2

80 (LBS.)

1123

STR.

.172

CM, CL2

24 (LBS.)

1125

STR.

.202

CM, CL2

44 (LBS.)

1126

SOLID INSULATED GROUND WIRE

18 (LBS.)

1131

STR.

.208

CM, CL2

37 (LBS.)

1127

STR.

.264

CM, CL2

55 (LBS.)

1129

*Not Twisted
#Color Code = Black, Red, Green, Yellow
+Spools Only
MFT=1000 FT.

Honeywell-CableCatalogGenesisSeries-html.html

Jacketed Cables Shielded (Overall Shield)

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Stations, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers

and Plenums.

Features:

Available In 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Twisted Copper Conductors, Polypropylene Insulation, Aluminum/Mylar

Shield, with Drain Wire, Flexible Polyvinyl-Chloride Jackets. Standard

Jacket Color: Gray. Conductor Color Code Chart 1 (up to 12 conductors).

Color Code Chart 2 (13 conductors and over).

JACKETED CABLES SHIELDED, (OVERALL SHIELD) 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

STR.

.120

CM, CL2

13 (LBS.)

1202

STR.

.139

CM, CL2

18 (LBS.)

1204

STR.

.166

CM, CL2

25 (LBS.)

1206

STR.

.174

CM, CL2

30 (LBS.)

1207

STR.

.210

CM, CL2

36 (LBS.)

1208

STR.

.210

CM, CL2

42 (LBS.)

1209

STR.

.138

CM, CL2

16 (LBS.)

1212

STR.

.144

CM, CL2

21 (LBS.)

1227

STR.

.159

CM, CL2

24 (LBS.)

1213

STR.

.154

CM, CL2

20 (LBS.)

1214

STR.

.161

CM, CL2

27 (LBS.)

1228

STR.

.178

CM, CL2

32 (LBS.)

1215

STR.

.210

CM, CL2

45 (LBS.)

1216

STR.

.230

CM, CL2

59 (LBS.)

1217

STR.

.270

CM, CL2

63 (LBS.)

1218

STR.

.283

CM, CL2

86 (LBS.)

1219

STR.

.307

CM, CL2

104 (LBS.)

1220

STR.

.178

CM, CL2

32 (LBS.)

1221

STR.

.184

CM, CL2

41 (LBS.)

1229

STR.

.202

CM, CL2

44 (LBS.)

1222

STR.

.214

CM, CL2

45 (LBS.)

1223

STR.

.222

CM, CL2

60 (LBS.)

1230

+Spools Only
MFT=1000 FT.

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Multi-Pair Unshielded

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Stations, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers

and Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, Polypropylene Insulation, Conductors arranged in

pairs, Flexible Polyvinyl-Chloride Jackets. Standard Jacket Color: Gray.

Conductor Color Code Chart 3.

MULTI-PAIR UNSHIELDED 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.160

CM, CL2

15 (LBS.)

1248

STR.

.178

CM, CL2

18 (LBS.)

1234

SOL.

.172

CM, CL2

19 (LBS.)

1235

SOL.

.226

CM, CL2

36 (LBS.)

1238

STR.

.240

CM, CL2

40 (LBS.)

1245

STR.

.260

CM, CL2

47 (LBS.)

1246

STR.

.290

CM, CL2

59 (LBS.)

1247

*1 Pair Shielded 1 Pair Unshielded
**Color code=Red/Green, Black/Yellow
+Spools Only
MFT=1000 FT.

Honeywell-CableCatalogGenesisSeries-html.html

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Stations, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers

and Plenums.

Features:

Available In 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Twisted Copper Conductors, Polypropylene Insulation, Conductors are

arranged in pairs; Aluminum/Mylar Shield applied overall each assembled

pair, with Drain Wire for each pair, Flexible Polyvinyl-Chloride Jackets.

Standard Jacket Color: Gray. Conductor Color Code Chart 3.

MULTI-PAIR SHIELDED (EACH PAIR SHIELDED) 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.170

CM, CL2

22 (LBS.)

1263

STR.

.192

CM, CL2

23 (LBS.)

1264

STR.

.197

CM, CL2

31 (LBS.)

1266

STR.

.252

CM, CL2

41 (LBS.)

1273

STR.

.268

CM, CL2

56 (LBS.)

1274

STR.

.300

CM, CL2

72 (LBS.)

1275

+Spools Only

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Stations, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited. Sunlight Resistant.

Code Restrictions:

OK for use with for all Power-Limited Circuits except those in Risers

and Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, Polypropylene Insulation, Aluminum/Mylar Shield

with Drain Wire, Flexible Polyvinyl-Chloride Jackets. Standard Jacket

MULTI-PAIR SHIELDED (OVERALL SHIELD) 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.165

CM, CL2

19 (LBS.)

1280

SOL.

.178

CM, CL2

26 (LBS.)

1282

STR.

.248

CM, CL2

36 (LBS.)

1289

STR.

.265

CM, CL2

51 (LBS.)

1290

STR.

.295

CM, CL2

64 (LBS.)

1291

+Spools Only

Multi-Pair Shielded (Each Pair Shielded)

Multi-Pair Shielded (Overall Shield)

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Unjacketed Twisted Cables

Zipcord

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Stations, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers

and Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, One Conductor Ribbed for Polarity, Flexible

Polyvinyl-Chloride Jackets. Standard Colors: White, Brown, or Clear.

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Stations, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers

and Plenums.

Features:

Available In 500 foot or 1000 foot Spools or Reel-in-a-Box with

Dispensing System.

Construction:

One TC (Tinned Copper) Conductor, Ribbed for Polarity; and one

Smooth BC (Bare Copper Conductor); PVC Insulation.

Colors Available: Brown/Brown, White/White.

UNJACKETED TWISTED CABLES 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

STR.

.147

CM, CL2

10 (LBS.)

1051

STR.

.165

CM, CL2

15 (LBS.)

1052

STR.

.183

CM, CL2

20 (LBS.)

1053

+ Spools Only
• Consult factory for availability.

ZIPCORD 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND

STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

STR

.068 x .145

CL2, C(UL), CMG

9 (LBS.)

1001

•

STR

.074 x .164

CL2, C(UL), CMG

9 (LBS.)

1002

STR

.083 x .180

CL2, C(UL), CMG

17 (LBS.)

1003

•

STR

.090 x .190

CL2, C(UL), CMG

18 (LBS.)

1004

STR

.100 x .200

CL2, C(UL), CMG

24 (LBS.)

1005

•Consult factory for availability.

Honeywell-CableCatalogGenesisSeries-html.html

Jacketed Cables Unshielded, Riser Rated

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms,Telephone

Stations, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits, except those in Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, Polypropylene Insulation, Flexible Polyvinyl-Chloride

Jackets. Standard Jacket Color: Gray. Conductor Color Code Chart 1

(up to 12 conductors). Color Code Chart 2 (13 conductor and over).

JACKETED CABLES UNSHIELDED, RISER RATED 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND. STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.106

C(UL), FT4, CMR, CL2R

9 (LBS.)

2101

STR.

.116

C(UL), FT4, CMR, CL2R

11 (LBS.)

2102

SOL.

.120

C(UL), FT4, CMR, CL2R

14 (LBS.)

2103

STR.

.135

C(UL), FT4, CMR, CL2R

16 (LBS.)

2104

STR.

.145

C(UL), FT4, CMR, CL2R

18 (LBS.)

2105

STR.

.158

C(UL), FT4, CMR, CL2R

21 (LBS.)

2106

STR.

.174

C(UL), FT4, CMR, CL2R

28 (LBS.)

2107

STR.

.202

C(UL), FT4, CMR, CL2R

35 (LBS.)

2108

STR.

.208

C(UL), FT4, CMR, CL2R

37 (LBS.)

2109

STR.

.232

C(UL), FT4, CMR, CL2R

44 (LBS.)

2110

+•

STR.

.136

C(UL), FT4, CMR, CL2R

14 (LBS.)

2112

STR.

.157

C(UL), FT4, CMR, CL2R

22 (LBS.)

2113

STR.

.150

C(UL), FT4, CMR, CL2R

18 (LBS.)

2114

STR.

.174

C(UL), FT4, CMR, CL2R

30 (LBS.)

2115

STR.

.208

C(UL), FT4, CMR, CL2R

42 (LBS.)

2116

STR.

.228

C(UL), FT4, CMR, CL2R

58 (LBS.)

2117

+•

STR.

.268

C(UL), FT4, CMR, CL2R

71 (LBS.)

2118

+•

STR.

.276

C(UL), FT4, CMR, CL2R

84 (LBS.)

2119

+•

STR.

.305

C(UL), FT4, CMR, CL2R

108 (LBS.)

2120

+•

STR.

.176

C(UL), FT4, CMR, CL2R

27 (LBS.)

2121

STR.

.205

C(UL), FT4, CMR, CL2R

46 (LBS.)

2122

STR.

.212

C(UL), FT4, CMR, CL2R

38 (LBS.)

2123

STR.

.248

C(UL), FT4, CMR, CL2R

70 (LBS.)

2124

STR.

.256

C(UL), FT4, CMR, CL2R

58 (LBS.)

2125

*Not Twisted
#Black, Red, Yellow, Green
+Spools Only
• Consult factory for availability.

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Jacketed Cables Overall Shield, Riser Rated

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Stations, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Twisted Copper Conductors, Polypropylene Insulation, Aluminum/Mylar

Shield, with Drain, Flexible Polyvinyl-Chloride Jackets. Standard Jacket

Color: Gray. Conductor Color Code Chart 1 (up to 12 conductors).

Color Code Chart 2 (13 conductors and over).

JACKETED CABLES SHIELDED (OVERALL SHIELD) RISER RATED 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND. STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.112

C(UL), FT4, CMR, CL2R

11 (LBS.)

2201

STR.

.120

C(UL), FT4, CMR, CL2R

12 (LBS.)

2202

SOL.

.127

C(UL), FT4, CMR, CL2R

15 (LBS.)

2203

STR.

.141

C(UL), FT4, CMR, CL2R

19 (LBS.)

2204

STR.

.162

C(UL), FT4, CMR, CL2R

25 (LBS.)

2206

STR.

.175

C(UL), FT4, CMR, CL2R

31 (LBS.)

2207

STR.

.204

C(UL), FT4, CMR, CL2R

37 (LBS.)

2208

STR.

.210

C(UL), FT4, CMR, CL2R

41 (LBS.)

2209

STR.

.234

C(UL), FT4, CMR, CL2R

106 (LBS.)

2210

+•

STR.

.142

C(UL), FT4, CMR, CL2R

17 (LBS.)

2212

STR.

.163

C(UL), FT4, CMR, CL2R

26 (LBS.)

2213

STR.

.154

C(UL), FT4, CMR, CL2R

21 (LBS.)

2214

STR.

.180

C(UL), FT4, CMR, CL2R

34 (LBS.)

2215

STR.

.214

C(UL), FT4, CMR, CL2R

46 (LBS.)

2216

STR.

.232

C(UL), FT4, CMR, CL2R

59 (LBS.)

2217

STR.

.268

C(UL), FT4, CMR, CL2R

72 (LBS.)

2218

STR.

.281

C(UL), FT4, CMR, CL2R

85 (LBS.)

2219

STR.

.312

C(UL), FT4, CMR, CL2R

103 (LBS.)

2220

+•

STR.

.180

C(UL), FT4, CMR, CL2R

32 (LBS.)

2221

STR.

.209

C(UL), FT4, CMR, CL2R

51 (LBS.)

2222

STR.

.216

C(UL), FT4, CMR, CL2R

46 (LBS.)

2223

STR.

.252

C(UL), FT4, CMR, CL2R

76 (LBS.)

2224

STR.

.262

C(UL), FT4, CMR, CL2R

64 (LBS.)

2225

+Spools Only
• Consult factory for availability.

Honeywell-CableCatalogGenesisSeries-html.html

Multi-Pair Unshielded, Riser Rated

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Station, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits, except those in Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, Polypropylene Insulation, Conductors are arranged

in pairs, Flexible Polyvinyl-Chloride Jacket. Standard Jacket Color: Gray.

Conductor Color Code Chart 3.

MULTI-PAIR UNSHIELDED, RISER RATED 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

STR.

.114

C(UL), FT4, CMR, CL2R

10 (LBS.)

2232

SOL.

.150

C(UL), FT4, CMR, CL2R

20 (LBS.)

2233

STR.

.140

C(UL), FT4, CMR, CL2R

21 (LBS.)

2234

STR.

.199

C(UL), FT4, CMR, CL2R

23 (LBS.)

2236

SOL.

.186

C(UL), FT4, CMR, CL2R

26 (LBS.)

2237

STR.

.255

C(UL), FT4, CMR, CL2R

40 (LBS.)

2239

*1 Pair Shielded 1 Pair Unshielded

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Multi-Pair Shielded (Each Pair Shielded), Riser Rated

Multi-Pair Shielded (Overall Shield), Riser Rated

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Stations, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, Polypropylene Insulation, Conductors are arranged in

pairs, Aluminum/Mylar Shield applied overall each assembled pair, with Drain

Wire for each pair, Flexible Polyvinyl-Chloride Jackets. Standard Jacket Color:

Gray. Conductor Color Code Chart 3.

MULTI-PAIR SHIELDED (EACH PAIR SHIELDED) RISER RATED 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.172

C(UL), FT4, CMR, CL2R

22 (LBS.)

2263

STR.

.194

C(UL), FT4, CMR, CL2R

23 (LBS.)

2264

STR.

.200

C(UL), FT4, CMR, CL2R

36 (LBS.)

2266

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Station, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits, except those in Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, Polypropylene Insulation, Aluminum/Mylar Shield

applied overall the assembled pairs with common Drain Wire and Flexible

Polyvinyl-Chloride Jacket. Standard Jacket Color: Gray. Conductor Color

Code Chart 1.

MULTI-PAIR SHIELDED (OVERALL SHIELD) RISER RATED 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.156

C(UL), FT4, CMR, CL2R

17 (LBS.)

2280

STR.

.176

C(UL), FT4, CMR, CL2R

19 (LBS.)

2281

SOL.

.180

C(UL), FT4, CMR, CL2R

23 (LBS.)

2282

STR.

.202

C(UL), FT4, CMR, CL2R

24 (LBS.)

2283

SOL.

.230

C(UL), FT4, CMR, CL2R

43 (LBS.)

2284

STR.

.260

C(UL), FT4, CMR, CL2R

45 (LBS.)

2285

Honeywell-CableCatalogGenesisSeries-html.html

Jacketed Cables Unshielded, Plenum Rated

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Stations, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited.

Code Restrictions:

OK for use with all Power-Limited Circuits.

Features:

Available In 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, Low Smoke PVC insulation, Low Smoke PVC

Jacket. Standard Jacket Color: Natural. Conductor Color Code Chart 1

(up to 12 conductors). Color Code Chart 2 (13 conductors and over).

JACKETED CABLES UNSHIELDED, PLENUM RATED 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND. STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.104

C(UL), FT6, CMP, CL2P

10 (LBS.)

3101

STR.

.114

C(UL), FT6, CMP, CL2P

11 (LBS.)

3102

STR.

.120

C(UL), FT6, CMP, CL2P

15 (LBS.)

3127

SOL.

.116

C(UL), FT6, CMP, CL2P

15 (LBS.)

3103

STR.

.133

C(UL), FT6, CMP, CL2P

17 (LBS.)

3104

STR.

.145

C(UL), FT6, CMP, CL2P

20 (LBS.)

3105

*•

STR.

.158

C(UL), FT6, CMP, CL2P

24 (LBS.)

3106

STR.

.172

C(UL), FT6, CMP, CL2P

30 (LBS.)

3107

STR.

.200

C(UL), FT6, CMP, CL2P

37 (LBS.)

3108

STR.

.204

C(UL), FT6, CMP, CL2P

43 (LBS.)

3109

STR.

.232

C(UL), FT6, CMP, CL2P

53 (LBS.)

3110

STR.

.132

C(UL), FT6, CMP, CL2P

15 (LBS.)

3112

STR.

.140

C(UL), FT6, CMP, CL2P

20 (LBS.)

3128

STR.

.155

C(UL), FT6, CMP, CL2P

25 (LBS.)

3113

STR.

.148

C(UL), FT6, CMP, CL2P

19 (LBS.)

3114

SOL.

.136

C(UL), FT6, CMP, CL2P

18 (LBS.)

3134

STR.

.159

C(UL), FT6, CMP, CL2P

26 (LBS.)

3126

STR.

.172

C(UL), FT6, CMP, CL2P

33 (LBS.)

3115

STR.

.212

C(UL), FT6, CMP, CL2P

47 (LBS.)

3116

STR.

.232

C(UL), FT6, CMP, CL2P

61 (LBS.)

3117

STR.

.270

C(UL), FT6, CMP, CL2P

75 (LBS.)

3118

STR.

.277

C(UL), FT6, CMP, CL2P

88 (LBS.)

3119

STR.

.316

C(UL), FT6, CMP, CL2P

109 (LBS.)

3120

+•

STR.

.172

C(UL), FT6, CMP, CL2P

28 (LBS.)

3121

STR.

.186

C(UL), FT6, CMP, CL2P

38 (LBS.)

3129

STR.

.202

C(UL), FT6, CMP, CL2P

50 (LBS.)

3122

STR.

.208

C(UL), FT6, CMP, CL2P

39 (LBS.)

3123

STR.

.220

C(UL), FT6, CMP, CL2P

53 (LBS.)

3130

STR.

.244

C(UL), FT6, CMP, CL2P

70 (LBS.)

3124

STR.

.265

C(UL), FT6, CMP, CL2P

61 (LBS.)

3125

*Not Twisted
+Spools Only
• Consult factory for availability.

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Jacketed Cables Overall Shield, Plenum Rated

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Stations, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited.

Code Restrictions:

OK for use with all Power-Limited Circuits.

Features:

Available In 500 foot or 1000 foot Tangle-Ffree Boxes or Spools.

Sequential Footage Markings.

Construction:

Twisted Copper Conductors, Low Smoke PVC Insulation,

Aluminum/Mylar Shield, with Drain Wire applied over assembled

conductors, Low Smoke PVC Jacket. Standard Jacket Color: Natural.

Conductor Color Code Chart 1 (up to 12 conductors). Color Code

Chart 2 (13 conductors and over).

JACKETED CABLES SHIELDED, (OVERALL SHIELD) PLENUM RATED 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND. STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.108

C(UL), FT6, CMP, CL2P

13 (LBS.)

3201

STR.

.120

C(UL), FT6, CMP, CL2P

14 (LBS.)

3202

STR.

.130

C(UL), FT6, CMP, CL2P

17 (LBS.)

3227

SOL.

.125

C(UL), FT6, CMP, CL2P

19 (LBS.)

3203

STR.

.139

C(UL), FT6, CMP, CL2P

20 (LBS.)

3204

STR.

.166

C(UL), FT6, CMP, CL2P

27 (LBS.)

3206

STR.

.174

C(UL), FT6, CMP, CL2P

33 (LBS.)

3207

STR.

.210

C(UL), FT6, CMP, CL2P

42 (LBS.)

3208

STR.

.216

C(UL), FT6, CMP, CL2P

51 (LBS.)

3209

STR.

.234

C(UL), FT6, CMP, CL2P

63 (LBS.)

3210

STR.

.138

C(UL), FT6, CMP, CL2P

19 (LBS.)

3212

STR.

.138

C(UL), FT6, CMP, CL2P

22 (LBS.)

3228

STR.

.159

C(UL), FT6, CMP, CL2P

27 (LBS.)

3213

STR.

.154

C(UL), FT6, CMP, CL2P

23 (LBS.)

3214

STR.

.161

C(UL), FT6, CMP, CL2P

29 (LBS.)

3226

STR.

.178

C(UL), FT6, CMP, CL2P

33 (LBS.)

3215

STR.

.216

C(UL), FT6, CMP, CL2P

50 (LBS.)

3216

STR.

.230

C(UL), FT6, CMP, CL2P

61 (LBS.)

3217

STR.

.270

C(UL), FT6, CMP, CL2P

79 (LBS.)

3218

+•

STR.

.283

C(UL), FT6, CMP, CL2P

90 (LBS.)

3219

STR.

.320

C(UL), FT6, CMP, CL2P

114 (LBS.)

3220

+•

STR.

.178

C(UL), FT6, CMP, CL2P

34 (LBS.)

3221

STR.

.184

C(UL), FT6, CMP, CL2P

45 (LBS.)

3229

STR.

.202

C(UL), FT6, CMP, CL2P

57 (LBS.)

3222

STR.

.214

C(UL), FT6, CMP, CL2P

45 (LBS.)

3223

STR.

.222

C(UL), FT6, CMP, CL2P

60 (LBS.)

3230

STR.

.248

C(UL), FT6, CMP, CL2P

76 (LBS.)

3224

STR.

.270

C(UL), FT6, CMP, CL2P

66 (LBS.)

3225

+Spools Only
• Consult factory for availability.

Honeywell-CableCatalogGenesisSeries-html.html

Multi-Pair Unshielded, Plenum Rated

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Station, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited.

Code Restrictions:

OK for use with all Power-Limited Circuits.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, Low Smoke PVC Insulation, Conductors

are arranged in pairs, Low Smoke PVC Jacket. Standard Jacket

Color: Natural. Conductor Color Code Chart 3.

MULTI-PAIR UNSHIELDED, PLENUM RATED 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.110

C(UL), FT6, CMP, CL2P

10 (LBS.)

3231

•

*1 Pair Shielded 1 Pair Unshielded
• Consult factory for availability.

Multi-Pair (Each Pair Shielded), Plenum Rated

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Station, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited.

Code Restrictions:

OK for use with all Power-Limited Circuits.

Features:

Available In 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, Low Smoke PVC Insulation, Conductors are

arranged in pairs, Aluminum/Mylar Shield applied overall each

assembled pair, with Drain Wire for each pair. Low Smoke PVC Jacket.

Standard Jacket Color: Natural. Conductor Color Code Chart 3.

MULTI-PAIR (EACH PAIR SHIELDED), PLENUM RATED 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

STR.

.120

C(UL), FT6, CMP, CL2P

14 (LBS.)

3262

SOL.

.172

C(UL), FT6, CMP, CL2P

24 (LBS.)

3263

STR.

.194

C(UL), FT6, CMP, CL2P

24 (LBS.)

3264

SOL.

.183

C(UL), FT6, CMP, CL2P

33 (LBS.)

3265

STR.

.200

C(UL), FT6, CMP, CL2P

35 (LBS.)

3266

SOL.

.201

C(UL), FT6, CMP, CL2P

39 (LBS.)

3267

SOL.

.244

C(UL), FT6, CMP, CL2P

57 (LBS.)

3268

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Multi-Pair Overall Shield, Plenum Rated

Home Automation Cable

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone

Station, Speakers, Instrumentation, Control and other Low Voltage

Circuits that are Power-Limited.

Code Restrictions:

OK for use with all Power-Limited Circuits.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, Low Smoke PVC Insulation, Aluminum/Mylar Shield

with Drain Wire applied overall the assembly pairs. Low Smoke PVC

Jacket. Standard Jacket Color: Natural. Conductor Color Code Chart 3.

MULTI-PAIR SHIELDED (OVERALL SHIELD), PLENUM RATED 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.156

C(UL), FT6, CMP, CL2P

20 (LBS.)

3280

•

STR.

.176

C(UL), FT6, CMP, CL2P

22 (LBS.)

3281

SOL.

.180

C(UL), FT6, CMP, CL2P

24 (LBS.)

3282

•

STR.

.202

C(UL), FT6, CMP, CL2P

26 (LBS.)

3283

SOL.

.240

C(UL), FT6, CMP, CL2P

49 (LBS.)

3284

•

STR.

.272

C(UL), FT6, CMP, CL2P

53 (LBS.)

3285

• Consult factory for availability.

Applications:

Designed for Lighting Control and other Home Automation applications.

Code Restrictions:

OK for Power-Limited Circuits, except those in Risers and Plenums.

Construction:

22 AWG shielded copper pair for data, 18 AWG unshielded copper pair
for power.

HOME AUTOMATION CABLE

JACKET

AVG. WT.

DESCRIPTION

CONDUCTORS

COLOR

LISTINGS

PER MFT

PART#

18 AWG 1 UNSHIELDED PAIR + STRANDED

GREEN

CM, CL2

30 (LBS.)

1243

22 AWG 1 SHIELDED PAIR

Honeywell-CableCatalogGenesisSeries-html.html

Access Control Cable

Applications:

Gated Communities, Limited Access.

Code Restrictions:

OK for use with all Power-Limited Circuits.

Features:

Profusion Access Control Cables are held together by a revolutionary

tight, continuous twist scheme that secures lock power, card reader,

door contact and request for exit (Rex/Spare) cables together without

an adhesive material, delivering a better bundled cable, while saving

the installer valuable time by eliminating the need to remove an outer

jacket. This design eliminates cold weather cracking and cable

separation problems.

Construction:

DOOR

CARD

DOOR

REQUEST

GROUP

STRIKE

READER

CONTACT

FOR EXIT

Conductor

18 AWG BC

22 AWG BC

16/30 STR

7/30 STR

Construction

4/C OAS

3 pair OAS

2/C OAS

4/C OAS

Insulation

BLK, RED,

BLK/RED,

BLK, RED

BLK, RED,

Colors

WHT, GRN

GRN/WHT,

WHT, GRN

ORG/BLU

Lay Length

3" nom.

Pair-2" nom.

1.75" nom.

2" nom.

Cable-4.5" nom.

Shield

AL/Mylar

Jacket Color

Orange

White

Blue

Green

ACCESS CONTROL CABLE

DESCRIPTION

PART#

4 Leg Access Control Cable CM Rated

1298

4 Leg Access Control Cable CMP Rated

3295

Honeywell-CableCatalogGenesisSeries-html.html

Notes: ____________________________________________________________

__________________________________________________________________

Honeywell-CableCatalogGenesisSeries-html.html

Single Conductor Sprinkler and Tracer Wire

(UL Listed Sprinkler and Tracer Wire 600V)

These cables are designed for underground

applications where harsh conditions may be

encountered. One of the common uses is for tracer

wire. Typically, yellow tracer wire is used to mark gas

pipes, blue to mark water pipes, orange to mark fiber

optic cables and green for sewage lines. Another use is

for connecting the remote control valves to an irrigation

controller in a golf course sprinkler system.

Multi Conductor Sprinkler Cable

(UL Listed Direct Burial Solid Bare Copper 30V)

These underground multi conductor cables are used to

control the valves in residential and commercial

irrigation systems.

Landscape Lighting Cable

(UL Listed Underground Low Energy Circuit Cable 150V)

These cables are used for low-voltage direct burial

lighting applications.

Irrigation Cable

Tracer Wire

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Irrigation, Tracer and Lighting Cable

Applications:

Underground Golf Course Sprinkler Wire, Tracer Wire and Lawn Sprinkler
Wire. Designed for underground applications where harsh conditions may
be encountered.

Code Restrictions:

UL Misc. Wire

Construction:

Copper Conductor, Polyethylene Insulation. Check Factory for Availability.

IRRIGATION, TRACER AND LIGHTING CABLE

AVG. WT.

AWG

#/COND.

STR/SOL

DESCRIPTION

PER MFT

PART#

SOL

600V Sprinkler System or Tracer Wire

1301

SOL

600V Sprinkler System or Tracer Wire

1303

SOL

600V Sprinkler System or Tracer Wire

1304

• Please check with factory for stock and availability on put-ups and jacket colors.

Underground Lighting

Applications:

Underground, Low Energy Circuit Cable. Sunlight Resistant.

Code Restrictions:

OK for Underground Circuits.

Features:

Available in 250, 500 or 1000 foot spools. Sequential Footage Markings.

Construction:

Heavy Wall, Integral Zip Construction. Black Jacket.

UNDERGROUND LIGHTING

NOM.

AVG. WT.

AWG

#/COND.

STR/SOL

O.D.

PER MFT

PART#

7 x 24/30 STR BC

.295" x .590"

225 (LBS.)

1017

104/30 STR BC

.220" x .440"

120 (LBS.)

1018

65/30 STR BC

.190" x .390"

82 (LBS.)

1019

41/30 STR BC

.165" x .345"

50 (LBS.)

1021

Honeywell-CableCatalogGenesisSeries-html.html

As the world’s leading thermostat manufacturer,

Honeywell knows about home comfort systems.

Although it’s hidden behind the walls, the

thermostat wire is a key component of heating and

cooling systems. The quality of the wire can

impact performance. As systems continue to get

more intelligent, quality

wire becomes a more

important factor.

Quality:

Honeywell thermostat

wire, like all Honeywell

products, is manufactured to the highest quality

standards and is recommended for use with all

thermostats, ensuring optimal system

performance.

Commitment:

If any Honeywell thermostat wire fails to perform to

our specification during the life of any original

installation, we will replace the cable, three for one.

No one else in the industry makes that guarantee.

Features:

• Full range of thermostat and electronic low

voltage wire

• Polypropylene insulation provides exceptional

dielectric and strips easily and cleanly,

saving time

• Available for General Purpose (CL2) or Plenum

(CL2P) Applications

• Ripcord for quick jacket removal

• Room and zone markings printed right on jacket

• Packaging options: Spools, SpeedbagsTM

and Pull Boxes

• Manufactured in ISO 9001:2000 facility to

exacting quality standards

• 100% guaranteed

Honeywell
Thermostat Wire

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Thermostat Cable 60˚ C - CL2

NOM.

NOM. CAP.

AVG. WT.

AWG

#/COND.

PACKAGING

SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

4 x 500 S or 1 x 500 SB

SOL

.118

CL2

4701

4 x 500 S or 1 x 500 SB

SOL

.124

CL2

4702

4 x 250 S or 1 x 250 SB

SOL

.136

CL2

4703

4 x 250 S or 1 x 250 SB

SOL

.148

CL2

4704

4 x 250 S or 1 x 250 SB

SOL

.161

CL2

4705

4 x 250 S or 1 x 250 SB

SOL

.161

CL2

4706

4 x 250 S or 1 x 250 SB

SOL

.174

CL2

4707

4 x 250 S or 1 x 250 SB

SOL

.188

CL2

4708

•

4 x 250 S or 1 x 250 SB

SOL

.204

CL2

4709

•

4 x 500 S or 1 x 500 SB

SOL

.136

CL2

4710

4 x 500 S or 1 x 500 SB

SOL

.144

CL2

4711

4 x 250 S or 1 x 250 SB

SOL

.157

CL2

4712

4 x 250 S or 1 x 250 SB

SOL

.172

CL2

4713

4 x 250 S or 1 x 250 SB

SOL

.188

CL2

4714

4 x 250 S or 1 x 250 SB

SOL

.188

CL2

4715

4 x 250 S or 1 x 250 SB

SOL

.204

CL2

4716

4 x 250 S or 1 x 250 SB

SOL

.220

CL2

4717

4 x 250 S or 1 x 250 SB

SOL

.240

CL2

4718

1 x 250 S or 1 x 250 SB

SOL

.248

CL2

4719

• Consult factory for availability. S=Spools SB=Speedbags MFT=1000 Feet

NOM.

NOM. CAP.

AVG. WT.

AWG

#/COND.

PACKAGING

SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

4 x 500 S

SOL

.136

CMP, CL2P, C(UL) FT6

4760

4 x 500 S

SOL

.144

CMP, CL2P, C(UL) FT6

4761

4 x 250 S

SOL

.157

CMP, CL2P, C(UL) FT6

4762

4 x 250 S

SOL

.172

CMP, CL2P, C(UL) FT6

4763

4 x 250 S

SOL

.188

CMP, CL2P, C(UL) FT6

4764

4 x 250 S

SOL

.188

CMP, CL2P, C(UL) FT6

4765

•

4 x 250 S

SOL

.204

CMP, CL2P, C(UL) FT6

4766

4 x 250 S

SOL

.220

CMP, CL2P, C(UL) FT6

4767

•

4 x 250 S

SOL

.240

CMP, CL2P, C(UL) FT6

4768

18 1

1 x 250 S

SOL

.248

CMP, CL2P, C(UL) FT6

4769

•

• Consult factory for availability. S=Spools MFT=1000 Feet

Applications:

Wiring of Thermostat Controls, Heating and Air Conditioning Equipment,
doorbells, as well as other Low Voltage Applications. Sunlight Resistant
except CL2P.

Features:

Sequential Footage Markings on Spools. Braided Ripcord.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers and
Plenums.

Construction:

Copper Conductors, Polypropylene Insulation, Polyvinyl-Chloride Jacket.

Applications:

Wiring of Thermostat Controls, Heating and Air Conditioning Equipment,
doorbells, as well as other Low Voltage Applications. Sunlight Resistant
except CL2P.

Features:

Sequential Footage Markings on Spools. Braided Ripcord.

Code Restrictions:

OK for use with all Power-Limited Circuits.

Construction:

Copper Conductors, Low Smoke PVC, Low Smoke PVC Jacket.

Thermostat Cable, Plenum Rated - CL2P

Honeywell-CableCatalogGenesisSeries-html.html

Our Fire Alarm Cables are manufactured in a

wide variety of gage sizes, shielding

configurations and jacketing materials including

plenum, riser and general purpose. Genesis also

manufactures fire alarm cables that meet the

requirements of New York City Local Law 5 and

New York State Toxicity requirements.

Features:

• Countdown

• New Labeling

System on box

• Color Coded

Boxes

• Zone and Room

Markings

Article 760

The scope of this article covers the installation

of wiring and equipment of fire alarm systems

including all circuits controlled and powered by

the fire alarm system. These include fire detection

and alarm notification, guard’s tour, sprinkler

waterflow and sprinkler supervisory systems:

Circuits controlled and powered by the fire alarm

system include circuits for the control of building

systems safety functions, elevator capture,

elevator shutdown, door release, smoke doors

and damper control, fire doors and damper

control and fan shutdown. Applicable only where

these circuits are powered by and controlled by

the fire alarm system.

Fire Power Limited Cable:

Type FPL, FPLR, FPLP

Fire Alarm

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Fire Alarm Jacketed Unshielded

FIRE ALARM CABLES

Fire Alarm Jacketed Unshielded, Direct Burial

Applications:

Wiring of Fire-Protective Signaling Circuits. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers
and Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.
Sequential Footage Markings.

Construction:

Copper Conductors, Polypropylene Insulation, Polyvinyl-Chloride Jacket.
Standard Jacket Color: Red or White. Conductor Color Code Chart 4.

FIRE ALARM JACKETED UNSHIELDED 75˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.122

FPL

15 (LBS.)

4101

SOL.

.144

FPL

19 (LBS.)

4102

SOL.

.156

FPL

24 (LBS.)

4103

SOL.

.182

FPL

31 (LBS.)

4104

SOL.

.188

FPL

37 (LBS.)

4105

SOL.

.134

FPL

17 (LBS.)

4106

SOL.

.170

FPL

29 (LBS.)

4107

SOL.

.192

FPL

41 (LBS.)

4108

SOL.

.208

FPL

52 (LBS.)

4109

SOL.

.244

FPL

68 (LBS.)

4110

SOL.

.154

FPL

24 (LBS.)

4111

SOL.

.180

FPL

43 (LBS.)

4112

SOL.

.182

FPL

35 (LBS.)

4113

SOL.

.214

FPL

64 (LBS.)

4114

SOL.

.214

FPL

52 (LBS.)

4115

*Not Twisted
+Spools Only

Applications:

Wiring for Outdoor or Underground. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers
and Plenums, but intended for Outdoor or Underground Use.

Features:

Available in 500 foot or 1000 foot Spools. Sequential Footage Markings.

Construction:

Stranded Copper Conductors, PVC Insulation, High Molecular Weight
PVC Jacket Color: Black. Conductor Color Code Chart 4.

FIRE ALARM JACKETED UNSHIELDED, DIRECT BURIAL 75˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

STR

O.D.

PF/FT

LISTINGS

PER MFT

PART#

STR.

.260

FPL, CL2

37(LBS.)

4156

STR.

.295

FPL, CL2

59 (LBS.)

4157

STR.

.345

FPL, CL2

76 (LBS.)

4158

STR.

.282

FPL, CL2

45 (LBS.)

4151

STR.

.310

FPL, CL2

60 (LBS.)

4153

STR.

.355

FPL, CL2

102 (LBS.)

4154

*Not Twisted

Honeywell-CableCatalogGenesisSeries-html.html

Fire Alarm Jacketed Shielded (Overall Shield)

Applications:

Wiring of Fire-Protective Signaling Circuits. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers
and Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.
Sequential Footage Markings.

Construction:

Twisted Copper Conductors, Polypropylene Insulation, Aluminum/Mylar
Shield with Drain Wire applied overall the assembled conductors.
Flexible Polyvinyl-Chloride Jacket. Standard Jacket Color: Red or White,
Conductor Color Code Chart 4.

FIRE ALARM JACKETED SHIELDED (OVERALL SHIELD) 75˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.124

FPL

17 (LBS.)

4201

SOL.

.138

FPL

20 (LBS.)

4202

SOL.

.160

FPL

31 (LBS.)

4203

SOL.

.196

FPL

50 (LBS.)

4204

SOL.

.212

FPL

57 (LBS.)

4205

SOL.

.158

FPL

29 (LBS.)

4206

SOL.

.186

FPL

49 (LBS.)

4207

SOL.

.186

FPL

40 (LBS.)

4208

SOL.

.218

FPL

67 (LBS.)

4209

SOL.

.218

FPL

59 (LBS.)

4210

+Spools Only

Applications:

Wiring of Fire-Protective Signaling Circuits. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers
and Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.
One Conductor Ribbed for Polarity. Sequential Footage Markings.

Construction:

Copper Conductors Laid Parallel in a Zipcord Style. Integral
Polyvinyl-Chloride Insulation. Standard Colors: Red, White.

FIRE ALARM ZIPCORD 75˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.105 x .217

FPL, C(UL) CMG

18 (LBS.)

4002

SOL.

.129 x .273

FPL, C(UL) CMG

39 (LBS.)

4004

• Consult factory for availability.

Fire Alarm Zipcord

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Fire Alarm Jacketed Unshielded, Riser Rated

Fire Alarm Jacketed (Overall Shield), Riser Rated

Applications:

Wiring of Fire-Protective Signaling Circuits. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, Polypropylene Insulation, Polyvinyl-Chloride Jacket.

Standard Jacket Color: Red or White, Conductor Color Code Chart 4.

FIRE ALARM JACKETED UNSHIELDED, RISER RATED 75˚C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.122

FPLR/CL2R, C(UL), FT4

15 (LBS.)

4301

SOL.

.144

FPLR/CL2R, C(UL), FT4

19 (LBS.)

4302

•

SOL.

.156

FPLR/CL2R, C(UL), FT4

25 (LBS.)

4303

•

SOL.

.182

FPLR/CL2R, C(UL), FT4

30 (LBS.)

4304

•

SOL.

.188

FPLR/CL2R, C(UL), FT4

36 (LBS.)

4305

•

SOL.

.138

FPLR/CL2R, C(UL), FT4

17 (LBS.)

4306

SOL.

.174

FPLR/CL2R, C(UL), FT4

34 (LBS.)

4307

SOL.

.187

FPLR/CL2R, C(UL), FT4

44 (LBS.)

4308

SOL.

.208

FPLR/CL2R, C(UL), FT4

54 (LBS.)

4309

SOL.

.244

FPLR/CL2R, C(UL), FT4

67 (LBS.)

4310

SOL.

.160

FPLR/CL2R, C(UL), FT4

24 (LBS.)

4311

SOL.

.184

FPLR/CL2R, C(UL), FT4

43 (LBS.)

4312

SOL.

.184

FPLR/CL2R, C(UL), FT4

37 (LBS.)

4313

SOL.

.214

FPLR/CL2R, C(UL), FT4

65 (LBS.)

4314

SOL.

.214

FPLR/CL2R, C(UL), FT4

55 (LBS.)

4315

+Spools Only
• Consult factory for availability.

Applications:

Wiring of Fire-Protective Signaling Circuits. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Plenums.

Features:

Available In 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, Polypropylene Insulation, Polyvinyl-Chloride Jacket.

Standard Jacket Color: Red or White, Conductor Color Code Chart 4.

FIRE ALARM JACKETED (OVERALL SHIELD), RISER RATED 75˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.126

FPLR/CL2R, C(UL), FT4

16 (LBS.)

4401

SOL.

.138

FPLR/CL2R, C(UL), FT4

21 (LBS.)

4402

SOL.

.163

FPLR/CL2R, C(UL), FT4

32 (LBS.)

4403

SOL.

.196

FPLR/CL2R, C(UL), FT4

46 (LBS.)

4404

SOL.

.212

FPLR/CL2R, C(UL), FT4

56 (LBS.)

4405

SOL.

.158

FPLR/CL2R, C(UL), FT4

31 (LBS.)

4406

SOL.

.190

FPLR/CL2R, C(UL), FT4

49 (LBS.)

4407

SOL.

.192

FPLR/CL2R, C(UL), FT4

42 (LBS.)

4408

SOL.

.218

FPLR/CL2R, C(UL), FT4

72 (LBS.)

4409

SOL.

.218

FPLR/CL2R, C(UL), FT4

60 (LBS.)

4410

+Spools Only

Honeywell-CableCatalogGenesisSeries-html.html

Fire Alarm Zipcord, Riser Rated

Fire Alarm Mid Cap Unshielded, Riser Rated

Fire Alarm Mid Cap (Overall Shield), Riser Rated

Applications:

Wiring of Fire-Protective Signaling Circuits. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.

One Conductor Ribbed for Polarity. Sequential Footage Markings.

Construction:

Copper Conductors, Polyvinyl-Chloride Insulation.

Standard Colors: White, Blue, Red.

FIRE ALARM ZIPCORD, RISER RATED 75˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG

#/COND.

SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.088 x .196

FPLR/CL2R, C(UL), FT4

18 (LBS.)

4422

SOL.

.094 x .200

FPLR/CL2R, C(UL), FT4

26 (LBS.)

4423

SOL.

.107 x .220

FPLR/CL2R, C(UL), FT4

37 (LBS.)

4424

SOL.

.124 x .250

FPLR/CL2R, C(UL), FT4

52 (LBS.)

4425

+Spools Only

Applications:

Wiring of Mid-Capacitance Addressable Fire-Protective Signaling

Circuits. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.

Sequential Footage Markings.

Construction:

Copper Conductors, Polypropylene Insulation, Polyvinyl-Chloride

Jacket. Standard Jacket Color: Red, Conductor Color Code Chart 4.

FIRE ALARM MID CAP UNSHIELDED, RISER RATED 75˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.144

FPLR/CL2R, C(UL), FT4

19 (LBS.)

4431

SOL.

.170

FPLR/CL2R, C(UL), FT4

26 (LBS.)

4432

SOL.

.208

FPLR/CL2R, C(UL), FT4

38 (LBS.)

4433

SOL.

.256

FPLR/CL2R, C(UL), FT4

60 (LBS.)

4434

+•

+Spools Only

• Consult factory for availability.

Applications:

Wiring of Mid-Capacitance Fire-Protective Signaling Circuits.

Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Plenums.

Features:

Available in 500 foot or 1000 foot Spools. Sequential Footage Markings.

Construction:

Twisted Copper Conductors, Polypropylene Insulation, Aluminum/Mylar

Shield with Drain Wire, Polyvinyl-Chloride Jacket. Standard Jacket

Color: Red, Conductor Color Code Chart 4.

FIRE ALARM MID CAP SHIELDED (OVERALL SHIELD) RISER RATED 75˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.148

FPLR/CL2R, C(UL), FT4

21 (LBS.)

4441

SOL.

.187

FPLR/CL2R, C(UL), FT4

32 (LBS.)

4442

SOL.

.212

FPLR/CL2R, C(UL), FT4

43 (LBS.)

4443

•

SOL.

.260

FPLR/CL2R, C(UL), FT4

48 (LBS.)

4444

• Consult factory for availability.

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Fire Alarm Jacketed Unshielded, Plenum Rated

Fire Alarm Jacketed (Overall Shield), Plenum Rated

Applications:

Wiring of Fire-Protective Signaling Circuits.

Code Restrictions:

OK for use with all Power-Limited Circuits.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools. Sequential
Footage Markings.

Construction:

Copper Conductors, Low Smoke PVC Insulation, Low Smoke PVC Jacket
And Ripcord. Standard Jacket Color: Red, Conductor Color Code Chart 4.

FIRE ALARM JACKETED UNSHIELDED, PLENUM RATED 75˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.144

FPLP/CL2P C(UL), FT6

21 (LBS.)

4502

SOL.

.182

FPLP/CL2P C(UL), FT6

33 (LBS.)

4504

•

SOL.

.188

FPLP/CL2P C(UL), FT6

38 (LBS.)

4505

SOL.

.134

FPLP/CL2P C(UL), FT6

19 (LBS.)

4506

SOL.

.156

FPLP/CL2P C(UL), FT6

32 (LBS.)

4507

SOL.

.192

FPLP/CL2P C(UL), FT6

45 (LBS.)

4508

SOL.

.154

FPLP/CL2P C(UL), FT6

26 (LBS.)

4511

SOL.

.180

FPLP/CL2P C(UL), FT6

47 (LBS.)

4512

SOL.

.182

FPLP/CL2P C(UL), FT6

38 (LBS.)

4513

SOL.

.214

FPLP/CL2P C(UL), FT6

68 (LBS.)

4514

SOL.

.214

FPLP/CL2P C(UL), FT6

55 (LBS.)

4515

+Spools Only

• Consult factory for availability.

Applications:

Wiring of Fire-Protective Signaling Circuits.

Code Restrictions:

OK for use with all Power-Limited Circuits.

Features:

Available In 500 foot or 1000 foot Tangle-Free Boxes or Spools.
Sequential Footage Markings.

Construction:

Twisted Copper Conductors, Low Smoke PVC Insulation,
Aluminum/Mylar Shield With Drain Wire Low Smoke PVC Jacket and
Ripcord. Standard Jacket Color: Red, Conductor Color Code Chart 4.

FIRE ALARM JACKETED SHIELDED (OVERALL SHIELD) PLENUM RATED 75

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.126

FPLP/CL2P C(UL), FT6

18 (LBS.)

4601

SOL.

.140

FPLP/CL2P C(UL), FT6

22 (LBS.)

4602

SOL.

.168

FPLP/CL2P C(UL), FT6

35 (LBS.)

4603

SOL.

.196

FPLP/CL2P C(UL), FT6

50 (LBS.)

4604

SOL.

.158

FPLP/CL2P C(UL), FT6

35 (LBS.)

4606

SOL.

.186

FPLP/CL2P C(UL), FT6

52 (LBS.)

4607

SOL.

.186

FPLP/CL2P C(UL), FT6

44 (LBS.)

4608

SOL.

.218

FPLP/CL2P C(UL), FT6

75 (LBS.)

4609

SOL.

.218

FPLP/CL2P C(UL), FT6

63 (LBS.)

4610

+Spools Only

Honeywell-CableCatalogGenesisSeries-html.html

Jacketed Unshielded LL5

Jacketed Shielded LL5 (Overall Shield)

Applications:

Fire Protective Signaling Circuits installed in the City of New York.

Code Restrictions:

Meets the requirements of New York City Local Law 5, and New
York State Toxicity.

Features:

Available in 500 foot or 1000 foot Spools. Sequential Footage Markings.

Construction:

Copper Conductors, Fluoropolymer Insulation and Jacket.
Standard Jacket Color: Red. Color Code Chart 4.

JACKETED UNSHIELDED LL5 150˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/PAIRS

SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.198

FPLP, NYC LL5

26 (LBS.)

5500

•

SOL.

.312

FPLP, NYC LL5

47 (LBS.)

5501

•

SOL.

.214

FPLP, NYC LL5

36 (LBS.)

5502

116

SOL.

.345

FPLP, NYC LL5

62 (LBS.)

5503

•

SOL.

.244

FPLP, NYC LL5

47 (LBS.)

5504

SOL.

.374

FPLP, NYC LL5

87 (LBS.)

5506

SOL.

.272

FPLP, NYC LL5

67 (LBS.)

5505

•

• Consult factory for availability.

Applications:

Fire Protective Signaling Circuits installed in the City of New York.

Code Restrictions:

Meets the requirements of New York City Local Law 5, and New
York State Toxicity.

Features:

Available in 500 foot or 1000 foot Spools. Sequential Footage
Markings.

Construction:

Copper Conductors, Fluoropolymer Insulation, Aluminum/Mylar Shield
and Fluoropolymer Jacket. Standard Jacket Color: Red. Color Code
Chart 4.

JACKETED SHIELDED LL5 (OVERALL SHIELD) 150˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/PAIRS

SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

SOL.

.202

FPLP, NYC LL5

28 (LBS.)

5550

•

SOL.

.316

FPLP, NYC LL5

51 (LBS.)

5551

•

SOL.

.215

100

FPLP, NYC LL5

42 (LBS.)

5552

SOL.

.343

100

FPLP, NYC LL5

71 (LBS.)

5553

SOL.

.243

110

FPLP, NYC LL5

51 (LBS.)

5554

SOL.

.398

110

FPLP, NYC LL5

93 (LBS.)

5555

•

SOL.

.276

130

FPLP, NYC LL5

75 (LBS.)

5556

•

• Consult factory for availability.

Honeywell-CableCatalogGenesisSeries-html.html

weʼve got the cure

For more information, please visit

www.honeywellcable.com

Honeywell’s Self-Diagnostic Cable.
Your Prescription for Success.

Relief is on the way with the industry’s only patented self-healing HDMI

cable with

CURE Light

Technology. Thanks to a unique, embedded

line driver designed to detect and “cure” problematic loading and

communication issues, you can count on our cables to monitor and

provide instant feedback on Hot Plug Detect, 5 Volt Line, EDID and

HDCP status.

The prognosis? You’ll reduce installation costs while delivering the

superior format and brilliant, crystal-clear resolution your customers

deserve. It’s your prescription for success!

Honeywell-CableCatalogGenesisSeries-html.html

The Honeywell Genesis Crystal Series is an

innovative line of advanced, top quality cables,

developed to assist the CE professional in crafting

“state-of-the-art” home theater and audio/video

systems. CE professionals demand cable solutions

that offer uncompromising performance. They want

cables that are lightweight, flexible and visually

appealing. Crystal Series cables are constructed

with premium materials allowing the ultimate

synthesis of artistic performance and technical

sophistication. For example, Crystal Audio Series

cables use only high-strand count, oxygen-free

copper conductors for the purest sound transmission.

Crystal Video Series serial digital coaxial cables

utilize a bare copper center conductor with a gas

injected dielectric to deliver bandwidth of 3 GHz.

They are UL Listed and stringently tested to

surpass the industry’s high standards.

Genesis Crystal
Series Cable

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

GENESIS CRYSTAL SERIES

Mini-RGB Component Video Cable

Profusion RG59 RGB Component Video

Applications:

Component video cables are a key element of any home theater
system. These 75 ohm cables carry video signals from a source
(e.g. DVD Player) to a load (e.g. TV Monitor).

Features:

• 100% Foil Shield
• 95% Tinned Copper Braid Shield
• Gas Injected Dielectric
• 81% VP
• Super Flexible Easy Strip TPE Outer Jacket
• Ripcord for Jacket Overall Removal
• 24 AWG Low Loss Solid Bare Copper Center Conductor
• Sweep Tested

MINI-RGB COMPONENT VIDEO CABLE

COAXIAL JACKET

NOM.

AVE.

STYLE

COLORS

SHIELD

OHMS

O.D.

CAP.

LISTING

WT/MFT

PART#

3 X Mini-Coax

Red, Green

95% TC &

0.375

(LBS.

)

5019

& Blue

100% Foil

5 X Mini-Coax

Red, Green,

95% TC &

0.475

CM 135 (

LBS.)

5029

Blue, Yellow

100% Foil

& White

6 X Mini-Coax

Red, Green,

95% TC &

0.54

CM 145 (

LBS.

)

5099

Blue, Yellow

100% Foil

White & Gray

5 X Mini-Coax

Red, Green,

95% TC &

0.620

150(

LBS.)

5098

+ CAT 5e

Blue, Yellow

100% Foil

White

Applications:

Component video cables are key elements of any home theater
system. This 75 ohm cable carries video and audio signals from
the source (e.g. DVD Player) to a load (e.g. TV Monitor).

Features:

• 95% TC Braided Shield
• 100% Aluminum Foil Shield
• Gas Injected Dielectric
• Un-Jacketed Profusion Design
• Sweep Tested to 3 GHz
• Lighter and More Flexible

RG59 RGB COMPONENT VIDEO CABLE

COAXIAL JACKET

NOM.

AVE.

STYLE

COLORS

SHIELD

OHMS

O.D.

CAP.

LISTING

WT/MFT

PART#

3 X RG59

Red, Green

95% TC &

.360

16.2

CMX

86 (

LBS.

)

5036

& Blue

100% Foil

5 X RG59

Red, Green,

95% TC &

.600

16.2

CMX 144 (

LBS.

)

5052

Blue, Yellow

100% Foil

& Clear

Honeywell-CableCatalogGenesisSeries-html.html

Profusion Mini-RGB Component Cable

Crystal Series Professional Audio & Home Theater

Applications:

Component video cables are key elements of any home theater
system. This 75 ohm cable carries video and audio signals from
the source (e.g. DVD Player) to a load (e.g. TV Monitor).

Features:

• 95% TC Braided Shield
• 100% Aluminum Foil Shield
• Gas Injected Dielectric
• Un-Jacketed Profusion Design
• Sweep Tested
• Lighter and More Flexible

RGB COMPONENT VIDEO CABLE

COAXIAL JACKET

NOM.

AVE.

STYLE

COLORS

SHIELD

OHMS

O.D.

CAP.

LISTING

WT/MFT

PART#

3 X RG59

Red, Green

95% TC &

0.315” 16.2

86 (

LBS.

)

5094

& Blue

100% Foil

5 X RG59

Red, Green,

95% TC &

0.400” 16.2

144 (

LBS.

)

5095

Blue, Yellow

100% Foil

& Clear

Applications:

High-End Home Theater, Professional & Studio Sound System
& Surround System

Code Restrictions:

OK for Power-Limited Circuits, except those in Risers and Plenums.

Construction:

High-Strand Oxygen Free Copper Conductors. Extra-Flexible Jacket.

CRYSTAL SERIES PROFESSIONAL AUDIO & HOME THEATER

NOM.

#STR

STR/

NOM.

CAP.

OXYGEN

JACKET

AVG. WT.

AWG COND. SOL

O.D.

PF/FT

FREE BC

COLOR

LISTINGS

PER MFT

PART#

STR .225"

19pF/ft

65 STR

Light Purple or White CM/CL3

45 (LBS)

5290

STR .275"

19pF/ft

65 STR

Dk. Purple or White

CM/CL3

65 (LBS)

5291

STR .275"

19pF/ft

105 STR

Light Green or White CM/CL3

62 (LBS)

5292

STR .335"

19pF/ft

105 STR

Dark Green or White

CM/CL3 105 (LBS)

5293

STR .320" 21.5pF/ft

168 STR

Light Green

CM/CL3

93 (LBS)

5294

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Crystal Series Digital and HDTV Clear RG59 Coaxial Cable

Crystal Series Digital and HDTV Coaxial Cable

Applications:

High-End Home Theater, HDTV, Production, Satellite, Digital
and Analog Broadcast.

Code Restrictions:

OK for CMX uses.

Features:

Available in 500 foot Reel-in-a-Box. Tested to 3 GHz.

Construction:

Foamed Dielectric over Solid Bare Copper Center Conductor.
95% Tinned Copper Braid Shield and 100% Foil Shield.
Jacket Colors: Translucent Red, Green, Blue, Yellow and Clear.

CRYSTAL SERIES DIGITAL AND HDTV CLEAR RG59 COAXIAL CABLE

NOM.

NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

LISTINGS

PER MFT

PART#

RG59

95% TC

20 BC

.242

16.2

CMX

29 (

LBS.)

5035

100% Foil

Applications:

High-End Home Theater, HDTV, Production, Satellite, Analog and
Digital Broadcast.

Code Restrictions:

OK for General Purpose use except in Riser and Plenums.

Features:

Available in 500 foot Reel-in-a-Box. Tested to 3 GHz.

Construction:

Foamed Dielectric over Solid Bare Copper Center Conductor. 95%
TC Braid and 100% Foil Shields. Extra-Flexible Red, Green, Blue and
White Jacket.

SERIAL DIGITAL AND HDTV COAXIAL CABLE

NOM.

NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

LISTINGS

PER MFT

PART#

RG6

95% TC

18 BC

0.280"

16.5

CATV

33 lbs.

5363

100% Foil

CL2

Honeywell-CableCatalogGenesisSeries-html.html

High Definition Multimedia Interface (HDMI) is the first

connection to deliver uncompressed all digital video,

audio and data. As of 2007, over 600 manufacturers

have adopted this interface as the newest and best

connection to deliver HD audio and video.

HDMI

cables will connect these devices to deliver better

video and audio than consumers have ever seen or

heard.

HD video is undoubtedly improving in resolution,

color depth and refresh rates. HD audio is now being

recorded and played back in lossless detail. All this

new digital video and audio information comes in the

form of 1’s and 0’s.

The amount of information and

the speed with which it needs to move is far greater

today than ever before and it’s continuing to grow.

Today’s HD audio and video is great and it’s getting

better. To ensure our HDMI cables can deliver the

higher

bandwidth requirements of today and tomorrow’s

best HD,

Honeywell builds our cables to exceed

today’s highest standards.

To validate this performance we carefully test the

Eye Patterns of our cable transmissions. We proudly

include these test results with our packaging and

hope it serves as proof to you and your customers

that

Honeywell HDMI cables can deliver the best

HD possible.

Honeywell HDMI Cables

Introducing

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Your time is your most valuable resource. You should choose to spend it talking with customers about aspects

of your job that will yield the greatest profit. For your convenience, Honeywell’s HDMI cable Eye Pattern Test results

are included in the packaging. While speaking with your customers, these results will help you to showcase your

expertise and earn the profit you deserve.

Eye Pattern Test Results graphically depict a

digital signal transmission. Symmetry, a wide

opening and thin lines are all indicators of a

good result. The shape in the center of the

patterns is called a mask. If at any point the

“eye” touches the mask, the test is failed.

The farther away the “eye” is from the mask

the better that cable is performing.* The Eye

Pattern Test done to Honeywell’s HDMI cables

ensure they can pass full 1080p HD Video.

This means that Honeywell’s HDMI cable offers

you the test results you need to prove that you

will get the best HD possible.

This is a good result.

Eye Pattern Testing

Information about

This is a bad result.

For your Eye Pattern Test Results simply look behind

the insert card in your Honeywell HDMI cable package.

*The yellow area between the mask and the eye represents headroom

versus minimal compliance.

Honeywell-CableCatalogGenesisSeries-html.html

This is a very exciting time in Consumer Electronics. Content creators and CE device manufacturers are all

doing their part to create better HD video and audio. All this adds up to more opportunity for the CE Installer.

To successfully navigate these new opportunities you must first understand what is out there today and what’s

coming in the near future.

What kind of HD are you selling?

The bandwidth required to pass a HD signal is computed by:

Resolution

Color Depth

Refresh Rate

As new technologies are making improvements on all fronts, the bandwidth

requirements are increasing dramatically. To support the best HD, you must

choose an HDMI cable that can support the bandwidth requirements!

Eye Pattern Tests can graphically depict how well an HDMI cable can pass a

signal. As content improves and bandwidth requirements increase, the results

from this test become more critical.

While most “minimally compliant” cables only support bandwidths up to

2 Gbps, Honeywell cables far exceed today’s requirements by supporting

bandwidths up to 10 Gbps. This means that the Honeywell HDMI cable you

install today will be able to support the best HD of tomorrow.

Bandwidth Required (Gbps)

Improvements in HD

video are being made

in three major ways:

Resolution:

The total number of pixels in the
video field (or dots on the screen).
1080p is the highest resolution
available today via Blu-ray, HDDVD,
PS3, XBox360 and download.

Color Depth:

The number of colors available for
display (think the more crayons in
the box, the better picture you can
draw). Measured by bit-rate, 8 bit
is common today, enabling 16.9
million colors, 12 bit is the highest
available today which enables
trillions of colors.

Refresh Rate:

The frequency with which new
information appears on the screen.
Most televisions today have a 60
Hz refresh rate, or simply put they
display new information 60 times
a second. New televisions by the
end of 2007 will be able to refresh
at 120 Hz.

120Hz, 8bit

60Hz, 12bit

60Hz, 8bit

1080p

HDDVD,

Blue-ray,

PS3, Other

480p

Standard

DVD Player

Honeywell cables are capable
of performing at 10.2 Gbps.

Most “minimally compliant” HDMI

cables can only perform at 2.23 Gbps.

720p/1080i

HD Set Top Box

Honeywell-CableCatalogGenesisSeries-html.html

Honeywell 7000 Series HDMI Cables

The HDMI Cable Building Process:

Each connector is terminated in a 55 step process that takes about 30 minutes to complete. The length tolerance

for all 19 conductors is 0.5 mm. The cables are soldered or heated tacked via IR to the board in the connector.

All Honeywell HDMI cables are Eye Pattern tested to ensure quality. Eye Pattern Test results are included with

each Honeywell HDMI cable.

In addition to the Eye Pattern Tests like the one being
administered above, 100% of Honeywell HDMI cables, 10
meters and longer, are used to watch 1080p source material
on a HDTV for real-life visual inspection as a final quality
control procedure.

Each HDMI cable is made of 19 conductors included

4 shielded twisted pair. The length tolerance for each

conductor is 0.5mm.

To prepare each HDMI for termination, the braid is

pulled back and secured. Before the conductors can

be soldered to the board the individual insulators must

be stripped back to the minimum amount possible to

reveal the silver plated copper wires. Careful attention must

be paid to maintaining the twists of the TMDS lines to

ensure inter-pair and intra-pair SKU is not induced.

Precision soldering is critical. Any solder spilled onto its

adjacent lead will require the connector to be scrapped.

Once the 19 conductors are soldered to the leads, the first

round of testing verifies a perfect connection. After

verification of proper soldering, a premold is injected to

permanently hold the connections in place. After the

premold, the second round of testing verifies the

connections are still perfect.

Over the premold a copper shielding tape provides further

protection from interference.

The first overmold process creates the red global arc. After

this step the third round of testing verifies the integrity of

the connection. The white part of the overmold is injected

next, followed by a fourth round of testing. Finally the

Honeywell and HDMI logos are applied and the cable is

ready to be submitted for eye pattern testing.

www.honeywellcable.com

Honeywell-CableCatalogGenesisSeries-html.html

Below are examples of what the LED indicators, a part of the

might be telling you about the HDMI equipped devices you have connected.

Below are examples of what your HDMI equipped TV might look or sound like in the
event your system is suffering a communication problem that needs the line driver,
a part of

All Four LEDs Unlit

Potential Issues:

• Sink not sending HPD

(TV on wrong input?)

• Voltage level of the HPD

is not adequate

• Failed 5V line in short cable

(use 7953NS08 to verify)

DOWNSTREAM PROBLEM:

Only Hot Plug Lit

Potential Issues:

• Voltage supplied by the

source is inadequate

• Peripheral on the buss

is stealing the voltage

• Failed 5V in long cable

(use 7953NS08 to verify)

UPSTREAM PROBLEM:

Hot Plug and 5V LEDs Lit,
Clock and Data LEDs Flash
Once

Potential Issue:

Failure for HDCP
authentication: the encryption
is corruped on the buss,
either by the source or sink.
Image might default to 480i

DEVICE PROBLEM:

HOT PLUG

5 VOLT LINE

CLOCK

DATA

HOT PLUG

5 VOLT LINE

CLOCK

DATA

HOT PLUG

5 VOLT LINE

CLOCK

DATA

HOT PLUG

5 VOLT LINE

CLOCK

DATA

All LEDs Lit,
Clock and Data Flashing
Every Two Seconds

All are working correctly!

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

CRYSTAL SERIES CABLE ASSEMBLIES

HDMI Digital Audio/Video Male to Male Cable with

HDMI DIGITAL AUDIO/VIDEO MALE TO MALE CABLE WITH

DESCRIPTION

PART#

.5 meter (1.6 feet)

7G00NS08

.5 meter (1.6 feet) 3 pack

7G003P08

1 meter (3.3 feet)

7G01NS08

1 meter (3.3 feet) 3 pack

7G013P08

2 meter (6.6 feet)

7G02NS08

2 meter (6.6 feet) 3 pack

7G023P08

3 meter (9.9 feet)

7G03NS08

5 meter (16.4 feet)

7G05NS08

7 meter (23 feet)

7G07NS08

10 meter (32.8 feet)

7G10NS08

12 meter (39.4 feet)

7G12NS08

15 meter (49.2 feet)

7G15NS08

This series of HDMI cables is designed to automatically correct for corrupt data from inferior
loading on the HDCP and EDID Communication Channel. Many failures of HDMI signals are
caused by inconsistency of hardware, lack of knowledge by the end-user and excess
transmission distances.

can correct inconsistent capacitive loading

on the buss which degrades the interface and limits the HDMI operation.

These HDMI cables come in lengths up to 15 meters and will display and correct corrupted
HDCP and EDID data that is required for the HDMI interface to function correctly. The data
is automatically cleaned to its intended dynamic range – supplying the much needed
intelligence that the HDMI signal requires.

Features:

• HDMI v.1.3 compliant
• Full balanced line transition-minimized differential signaling (TMDS)
• Self diagnoses and monitoring indicators
• Designed for HDTV 480i, 480p, 720p, 1080i and 1080p
• Four LED-HDMI status indicators located on the connector: verifies

Hot Plug, +5Volts, HDCP and EDID

• Automatically corrects HDCP and EDID data integrity
• 100% Foil Shield with 25% overlapping
• 24 Pin Gold Platted HDMI Connectors
• UL CL3 rated
• Eye Pattern Tested
• 90% Tinned Copper Braid Shield
• Silver Platted Copper Wire

Honeywell-CableCatalogGenesisSeries-html.html

Designed for Home Theater Applications

Crystal’s 7000 Series of HDMI cables are designed to maximize the performance of
uncompressed high definition digital audio and video signals. These cables support the new
high definition audio formats of Dolby TrueHD, Dolby Digital Plus and DTS-HD. Additionally
these cables support deep color, higher speeds and are 1080p capable up to 15 meters.

All of the Crystal 7000 Series of HDMI cables have passed HDMI compliant testing to
spec v. 1.3 and support High-Bandwidth Digital Content Protection (HDCP). The HDMI
cables have all been EYE Pattern Diagram tested to ensure the highest quality performance.
All of the Crystal HDMI assemblies are 100% quality guaranteed.

Features:

• Eye Pattern Tested
• HDMI Compliant
• 100% Guaranteed

Designed for Home Theater Applications

Crystal’s 7000 Series of DVI cables are designed to maximize the video quality of digital
display devices like HDTV, computer monitors and projectors. These cables are commonly
used in cable and satellite set top boxes, computers and other digital devices, DVI passes
uncompressed digital video between the source and the HDTV. These assemblies greatly
improve transmission speeds and video quality by eliminating the need to convert the signal
from digital to analog and back.

Crystal’s 7000 Series of DVI cables have been EYE Pattern Diagram tested to ensure the
highest quality performance. All of the Crystal DVI assemblies are 100% quality guaranteed.

Features:

• Eye Pattern Tested
• 100% Guaranteed

DVI-DIGITAL VIDEO ASSEMBLIES

DESCRIPTION

PART#

1 meter Male to Male DVI Cable (3.3 feet)

7101NS01

2 meter Male to Male DVI Cable (6.6 feet)

7102NS01

3 meter Male to Male DVI Cable (9.8 feet)

7103NS01

HDMI-DIGITAL A/V Assemblies

DVI-Digital Video Assemblies

HDMI-DIGITAL A/V ASSEMBLIES

DESCRIPTION

PART#

.5 meter Male to Male HDMI Cable (1.6 feet)

7000NS08

.5 meter Male to Male HDMI Cable (1.6 feet) 3 Pack

70003P08

1 meter Male to Male HDMI Cable (3.3 feet)

7001NS08

1 meter Male to Male HDMI Cable (3.3 feet) 3 Pack

70013P08

2 meter Male to Male HDMI Cable (6.6 feet)

7002NS08

2 meter Male to Male HDMI Cable (6.6 feet) 3 Pack

70023P08

3 meter Male to Male HDMI Cable (9.8 feet)

7003NS08

5 meter Male to Male HDMI Cable (16.4 feet)

7005NS08

7 meter Male to Male HDMI Cable (23.0 feet)

7007NS08

10 meter Male to Male HDMI Cable (32.8 feet)

7010NS08

15 meter Male to Male HDMI Cable (49.2 feet)

7015NS08

30 meter Kit (1 x 30 meter HDMI Cable, 1 x .5 meter HDMI Cable 7 1 Restorer)

7030KT01

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

HDMI-DVI Pony Tail Adapters

HDMI-DVI-Digital Assemblies

Designed for Home Theater Applications

The Crystal 7000 Series of Pony Tail Adapters allow the transmission of uncompressed
high definition content between two interfaces. Unlike modular adapters that are
difficult to integrate into an installation, the Crystal Series of pony tail adapters are
flexible, allowing the installer to more easily hide the adapter and reduce the leverage
at the point of the connection.

Crystal’s 7000 Series of Pony Tail Adapters have been EYE Pattern Diagram tested to
ensure the highest quality performance. All of the Crystal Pony Tail Adapters are 100%
quality guaranteed.

HDMI-DVI PONY TAIL ADAPTERS

DESCRIPTION

PART#

Pony Tail Adapter DVI Male to HDMI Female

7901NS01

Pony Tail Adapter DVI Male to HDMI Female 3 Pack

79013P01

Pony Tail Adapter DVI Female to HDMI Male

7902NS01

Pony Tail Adapter DVI Female to HDMI Male 3 Pack

79023P01

Designed for Home Theater Applications

The Crystal 7000 Series of HDMI-DVI cables are designed to maximize performance of
uncompressed high definition audio and video. These cables accept DVI input and output
HDMI eliminating the need for an adapter. These cables support the new high definition
audio formats of Dolby TrueHD, Dolby Digital Plus and DTS-HD. Additionally these cables
support deep color, higher speeds and are 1080p capable up to 15 meters.

All of the Crystal 7000 Series of HDMI-DVI cables have passed HDMI compliant testing to
spec v. 1.3 and support High-Bandwidth Digital Content Protection (HDCP). The HDMI-DVI
cables have all been EYE Pattern Diagram tested to ensure the highest quality performance.
All of the Crystal HDMI assemblies are 100% quality guaranteed.

Features:

• DVI in, HDMI out
• Eye Pattern Tested
• 100% Guaranteed

HDMI-DVI-DIGITAL ASSEMBLIES

DESCRIPTION

PART#

1 meter DVI Male to HDMI Male Cable (3.3 feet)

7201NS01

2 meter DVI Male to HDMI Male Cable (6.6 feet)

7202NS01

3 meter DVI Male to HDMI Male Cable (9.8 feet)

7203NS01

Honeywell-CableCatalogGenesisSeries-html.html

Designed for Home Theater Applications

The Crystal Series of Coaxial and Mini-RGB Cables are now available in pre-terminated
lengths and are designed for the CE professional installer who prefers to work with
finished products on site, but refuses to compromise on quality. These assemblies are
available in standard lengths for the following applications:
• Subwoofer • Digital Coax • Audio • Component Video • RGBHV

Features:

• 20 AWG BC Center Conductor
• 95% TC Braid Shield + 100 AL Foil

DIGITAL COAXIAL CABLE

DESCRIPTION

PART#

1 meter Male to Male RCA Digital Coax Cable (3.3 feet)

7301NS01

2 meter Male to Male RCA Digital Coax Cable (6.6 feet)

7302NS01

3 meter Male to Male RCA Digital Coax Cable (9.8 feet)

7303NS01

Features:

• 26 AWG BC Center Conductor
• 95% TC Braid Shield + 100 AL Foil

RCA AUDIO CABLE

DESCRIPTION

PART#

1.5 meter Male to Male RCA Audio Cable (4.9 feet)

7501NS01

3 meter Male to Male RCA Audio Cable (9.8 feet)

7503NS01

Digital Coaxial Cable

RCA & BNC ANALOG ASSEMBLIES

Subwoofer Cable

RCA Audio Cable

Features:

• 20 AWG BC Center Conductor
• 95% TC Braid Shield + 100 AL Foil

SUBWOOFER CABLE

DESCRIPTION

PART#

5 meter Male to Male RCA Subwoofer Cable (16.4 feet)

7405NS01

10 meter Male to Male RCA Subwoofer Cable (32.8 feet)

7410NS01

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

RCA 3 Conductor Component Video Cable

BNC 5 Conductor RGBHV Video Cable

Features:

• Color Red, Green, and Blue
• 24 AWG BC Center Conductor
• 95% TC Braid Shield + 100 AL Foil
• 75 Ohm Mini Coax

RCA 3 CONDUCTOR COMPONENT VIDEO CABLE

DESCRIPTION

PART#

1 meter Male to Male RCA Component Video Cable (3.3 feet)

7601NS01

1 meter Male to Male RCA Component Video Cable (3.3 feet) 3 Pack

76013P01

2 meter Male to Male RCA Component Video Cable (6.6 feet)

7602NS01

2 meter Male to Male RCA Component Video Cable (6.6 feet) 3 Pack

76023P01

3 meter Male to Male RCA Component Video Cable (9.8 feet)

7603NS01

3 meter Male to Male RCA Component Video Cable (9.8 feet) 3 Pack

76033P01

Features:

• Color Red, Green, Blue, White and Yellow
• 24 AWG BC Center Conductor
• 95% TC Braid Shield + 100 AL Foil

BNC 5 CONDUCTOR RGBHV VIDEO CABLE

DESCRIPTION

PART#

3 meter Male to Male BNC RGBHV Video Cable (9.8 feet)

7703NS01

5 meter Male to Male BNC RGBHV Video Cable (16.4 feet)

7705NS01

10 meter Male to Male BNC RGBHV Video Cable (32.8 feet)

7710NS01

15 meter Male to Male BNC RGBHV Video Cable (49.2 feet)

7715NS01

TOSLink Cable

Features:

• Fiber Optic Connection
• Distortion Free Connection
• Digital Signal

TOSLINK CABLE

DESCRIPTION

PART#

1 meter TOSLink Cable (3.3 feet)

7801NS01

2 meter TOSLink Cable (6.6 feet)

7802NS01

4 meter TOSLink Cable (13.1 feet)

7804NS01

6 meter TOSLink Cable (19.7 feet)

7806NS01

Honeywell-CableCatalogGenesisSeries-html.html

The Restorer analyzes and corrects the digital signal for the amount of loss over long runs of

HDMI cable. In addition, it visually verifies the operation of the entire HDMI communication

system and eliminates any inferior loading induced on the interface. The restorer should be

installed, with included power supply, at the display side of the connection.

Features:

• Designed for easy set-up and operation; wall or table mount
• Direct coupled from input to output offering maximum video bandwidth
• Self diagnoses and monitoring indicators
• Designed for HDTV 480p, 720p, 1080i, and 1080p
• 75 Ohm Mini Coax

HDMI Restorer

HDMI Tester

HDMI RESTORER

DESCRIPTION

PART#

HDMI Restorer

7952NS08

The 7953NS08 HDMI cable tester sends a controlled signal through every conductor in the

cable interface to give you a go or no go decision on the use of your HDMI cables. There

are nineteen conductors making up the HDMI interface composing of nine discrete

functions. The tester is equipped with nine LEDs that illuminate one by one as each function

is verified. Use the 7053NS08 to ensure your HDMI cable hasn’t been damaged during or

after installation; if any of the LEDs fail to illuminate the cable is compromised.

Features:

• Measures each sub circuit within the HDMI interface and displays a

pass or fail function

• Install HDMI and DVI cables with confidence
• 9 LEDs illuminate testing of all nine functions of the 19 conductors of

the HDMI cable

• Easy to use, just connect each side of the cable
• May be used for DVI cable assemblies, CEC LED will remain unlit

HDMI TESTER

DESCRIPTION

PART#

HDMI Tester

7953NS08

HONEYWELL ACCESSORIES

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

HDMI to Cat5 Converter

HDMI Line Driver & Diagnostic Unit

With the 7954NS01, installers can use category 5e network cable for runs of up to 125 feet

or 200 feet using category 6 to connect HDMI video source material. A balanced line

transmitter sends the signal to a balanced line receiver were the HDMI signal is restored and

sent to the video source. This system will automatically correct for any corrupted EDID data

and display HDCP with it’s built in line driver and diagnostics capabilities.

Features:

• Designed for easy set-up and operation
• Automatically corrects HDCP and EDID data integrity
• DVI Compatible
• Accommodates HDMI, HDTV 480p, 720p, 1080i and 1080p
• Compatible with computer resolutions VGA, SVGA, XGA, SXGA

and UXGA

HDMI TO CAT5 CONVERTER

DESCRIPTION

PART#

HDMI to Cat5 Converter

7954NS01

The 7956 HDMI line driver & diagnostics unit corrects for corrupt data from inferior loading

on the HDCP and EDID communication channel. Many failures of HDMI signals are caused

by inconsistency of hardware, lack of knowledge by the end-user and excess transmission

distances. Many of the failures are not due to long cable runs, but to the inconsistent

capacitive loading on the buss which degrades the interface and limits the HDMI operation.

Used primarily with cable distances less than 20 meters, the 7956 will display and correct

for corrupted HDCP and EDID data that is required for the HDMI interface to function

correctly. The data is automatically cleaned to its intended dynamic range supplying the

much needed intelligence that the HDMI signal requires.

Features:

• Direct coupled from input to output offering maximum

video bandwidth

• Full balanced line transition-minimized differential signaling (TMDS)
• Self diagnoses and monitoring indicators
• Designed for HDTV 480i, 480p, 720p, 1080i and 1080p
• Four LED-HDMI status indicators: verifies Hot Plug, +5Volts,

HDCP and EDID

• Automatically corrects HDCP and EDID data integrity

HDMI LINE DRIVER & DIAGNOSTIC UNIT

DESCRIPTION

PART#

HDMI Line Driver & Diagnostic Unit

7956NS08

Honeywell-CableCatalogGenesisSeries-html.html

Your complete solution for high-end audio
transmission, stereo, professional audio systems
and home theater systems.

Home Theater Sound Jacketed Cables Shielded

Features:

• Twisted Bare Copper Conductors
• Polypropylene Insulation
• 100% Foil Shield
• Countdown

Home Theater Sound Jacketed Cables Unshielded

Features:

• Twisted Bare Copper Conductors
• Polypropylene Insulation
• Countdown

Direct Burial Audio Cable

Features:

• Oxygen Free Copper (Pure Transmission Area)
• High Strand Count (Flexibility & More Surface Area)
• Burial Applications

Home Theater Plus Audio Cable, Oxygen Free
High Strand Count

Features:

• Loose Tube Jacket (Easy Strip)
• Oxygen Free Copper (Pure Transmission Area)
• High Strand Count (Flexibility & More Surface Area)
• Polypropylene Insulation (Installation Friendly)
• Countdown

Audacious Audio Cable Oxygen Free Copper
High Strand Count

Features:

Crystal Series Audio Cable Oxygen Free Copper
High Strand Count

Features:

• Extra Flexible Jacket Material
• Extruded Jacket (Abrasion Resistant)
• Easy Strip Construction
• Oxygen Free Copper (Pure Transmission Area)
• High Strand Count (Flexibility & More Surface Area)
• Polypropylene Insulation (Installation Friendly)
• Legend Markings, (Channel, Rooms & Zones)

Home Theater Cables

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Heavy Duty Zip Cable-Clear, Oxygen Free

HOME THEATER CABLES

Zipcord

Applications:

High-End Audio Transmission, Stereo, Professional Sound and
Studio Requirements.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers
and Plenums.

Features:

Available in 500 foot or 1000 foot Spools. One Conductor Ribbed
for Polarity.

Construction:

Copper Conductors, Super Flexible Polyvinyl-Chloride Jacket.
Standard Jacket Color: Clear.

HEAVY DUTY ZIP CABLE-CLEAR, OXYGEN FREE

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

STR/SOL

O.D.

PF/FT

#STR

LISTINGS

PER MFT

PART#

X-FLEX

.150 x .305

65/34

CM, CL2

30 (LBS.)

5400

X-FLEX

.165 x .335

105/34

CM, CL2

40 (LBS.)

5401

X-FLEX

.187 x .380

168/34

CM, CL2

62 (LBS.)

5402

Applications:

Wiring Burglar Alarm, Public Address Systems, Intercoms, Telephone
Stations, Speakers, Instrumentation, Control and other Low Voltage
Circuits that are Power-Limited.

Code Restrictions:

OK for use with all (Non-Fire) Power-Limited Circuits except those in
Risers and Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.
One Conductor Ribbed For Polarity.

Construction:

Copper Conductors, Flexible Polyvinyl-Chloride Insulation.
Standard Colors: White, Brown, or Clear.

ZIPCORD

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

STR/SOL

O.D.

PF/FT

LISTINGS

PER MFT

PART#

STR

.068 x .145

CL2, C(UL), CMG

9 (LBS.)

1001

•

STR

.074 x .164

CL2, C(UL), CMG

9 (LBS.)

1002

STR

.083 x .180

CL2, C(UL), CMG

17 (LBS.)

1003

•

STR

.090 x .190

CL2, C(UL), CMG

18 (LBS.)

1004

STR

.100 x .200

CL2, C(UL), CMG

24 (LBS.)

1005

• Consult factory for availability.

Honeywell-CableCatalogGenesisSeries-html.html

Home Theater Sound, Jacketed Cables, Unshielded

Home Theater Sound, Jacketed Cables, Overall Shield

Applications:

High-End Audio Transmission, Stereo, Professional Sound and
Studio Requirements. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers
and Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools.
Sequential Footage Markings.

Construction:

Twisted Copper Conductors, Polypropylene Insulation, Super Flexible
Polyvinyl-Chloride Jacket. Standard Jacket Colors: Blue, Green, White,
Yellow, Purple. Conductor Color Code Chart 1.

HOME THEATER SOUND, JACKETED CABLES, UNSHIELDED 60˚ C

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

STR/SOL

O.D.

PF/FT

#STR

LISTINGS

PER MFT

PART#

STR.

.192

CM, CL2

27 (LBS.)

5250

STR.

.224

CM, CL2

47 (LBS.)

5251

STR.

.224

CM, CL2

38 (LBS.)

5252

STR.

.265

CM, CL2

68 (LBS.)

5253

STR.

.264

CM, CL2

57 (LBS.)

5254

STR.

.312

CM, CL2

107 (LBS.)

5255

+Spools Only

Applications:

High-End Audio Transmission, Stereo, Professional Sound and
Studio Requirements. Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers
and Plenums.

Features:

Available in 500 foot or 1000 foot Spools. Sequential Footage Markings.

Construction:

Twisted Copper Conductors, Polypropylene Insulation, Aluminum/Mylar
Shield with Drain Wire, Super Flexible Polyvinyl-Chloride Jacket.
Standard Jacket Colors: Blue, Green, White. Conductor Color Code
Chart 1.

HOME THEATER SOUND, JACKETED CABLES SHIELDED, OVERALL SHIELD

NOM.

NOM. CAP.

AVG. WT.

AWG #/COND.

STR/SOL

O.D.

PF/FT

#STR

LISTINGS

PER MFT

PART#

STR.

.196

CM, CL2

33 (LBS.)

5650

STR.

.228

CM, CL2

43 (LBS.)

5651

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Home Theater Plus

Direct Burial Sound

Applications:

High-End Audio Transmission, Home Theater Systems & Stereo Systems.

Code Restrictions:

OK for Power-Limited Circuits, except those in Risers and Plenums.

Features:

Light Green Easy Strip Loose Tube Jacket.

Construction:

High-Strand-Count Oxygen Free Copper Conductors.

HOME THEATER PLUS

NOM.

#STR

STR/

NOM.

CAP.

OXYGEN

JACKET

AVG. WT.

AWG

#/COND.

SOL

O.D.

PF/FT

FREE BC

COLOR

LISTINGS

PER MFT

PART#

STR .192" NOM. 15pF/ft

Light Green

CM, CL3

27 (LBS)

5265

STR .224" NOM. 15pF/ft

Light Green

CM, CL3

45 (LBS)

5266

STR .236" NOM. 16pF/ft 105

Light Green

CM, CL3

39 (LBS)

5267

STR .277" NOM. 16pF/ft 105

Light Green

CM, CL3

68 (LBS)

5268

Applications:

High-End Audio Transmission, Stereo, Professional Sound and Studio
Requirements where Crush Resistance is required. Direct Burial
Sunlight Resistant.

Code Restrictions:

OK for use with all Power-Limited Circuits except those in Risers and
Plenums. Intended for Outdoor or Underground Use.

Features:

Available on 500 foot Spool. Sequential Footage Markings.

Construction:

High-Strand Oxygen Free Copper Conductors. High Molecular Weight
PVC Jacket. Jacket Color: Black

DIRECT BURIAL SOUND

AVG. WT.

AWG

#/CONDUCTORS /STRAND COUNT

LISTINGS

PER MFT

PART#

(65 STR BC) Oxygen Free

CL2, CL3

42 (LBS.)

5283

(65 STR BC) Oxygen Free

CL2, CL3

67 (LBS.)

5284

(105 STR BC) Oxygen Free

CL2, CL3

65 (LBS.)

5285

(105 STR BC) Oxygen Free

CL2, CL3

110 (LBS.)

5286

Honeywell-CableCatalogGenesisSeries-html.html

Audacious™ Sound Oxygen Free and Combination Sound

Applications:

High-End Audio Transmission, Stereo, Professional Sound and
Studio Requirements. Sunlight Resistant.

Code Restrictions:

OK for Power-Limited Circuits, except those in Risers and Plenums.

Features:

Available on 500 foot or 1000 foot Spools, 500 foot Tangle-Free
Box
or Reel-in-a Box Wire Dispensing System. Sequential Footage
Markings. Legend markings for channels, rooms and zones to
save installation time.

Construction:

High-Strand Oxygen Free Copper Conductors. Super Flexible
Polyvinyl-Chloride Jacket.

AUDACIOUS

™

SOUND

AVG. WT.

AWG

#/CONDUCTORS /STRAND COUNT

JACKET COLORS

LISTINGS

PER MFT

PART#

2 (65 STR BC) Oxygen Free

Light Purple or White

CM, CL3

27 (LBS.)

5273

4 (65 STR BC) Oxygen Free

Dk. Purple or White

CM, CL3

45 (LBS.)

5274

2 (105 STR BC) Oxygen Free

Light Green or White

CM, CL3

39 (LBS.)

5275

4 (105 STR BC) Oxygen Free

Dark Green or White

CM, CL3

68 (LBS.)

5276

Combo14/4STR Oxygen Free

Fluorescent Pink

CM, CL3

89 (LBS.)

5279

24/4 pair Cat 5e

Combo16/4STR Oxygen Free

Pink or White

CM, CL3

66 (LBS.)

5280

24/4 pair Cat 5e

+Spool Only

Applications:

High-End Home Theater, Professional & Studio Sound System
and Surround System

Code Restrictions:

OK for Power-Limited Circuits, except those in Risers and Plenums.

Construction:

High-Strand Oxygen Free Copper Conductors. Extra-Flexible Jacket.

CRYSTAL SERIES PROFESSIONAL AUDIO & HOME THEATER

NOM.

#STR

STR/

NOM.

CAP.

OXYGEN

JACKET

AVG. WT.

AWG

COND.

SOL

O.D.

PF/FT

FREE BC

COLOR

LISTINGS

PER MFT

PART#

STR .225" 19pF/ft

65 STR Light Purple or White CM/CL3 45 (LBS)

5290

STR .275" 19pF/ft

65 STR Dk. Purple or White

CM/CL3 65 (LBS)

5291

STR .275" 19pF/ft 105 STR Light Green or White

CM/CL3 62 (LBS)

5292

STR .335" 19pF/ft 105 STR Dark Green or White

CM/CL3 105 (LBS)

5293

STR .320" 21.5pF/ft 168 STR Light Green

CM/CL3 93 (LBS)

5294

Crystal Series Professional Audio & Home Theater

Honeywell-CableCatalogGenesisSeries-html.html

Notes: ____________________________________________________________

__________________________________________________________________

Honeywell-CableCatalogGenesisSeries-html.html

Honeywell’s Genesis Series Cable offers Multimedia

Cables to support voice, video and data in a single

cable. Multimedia cables are composite

constructions designed to minimize the number of

cable pulls, reduce installation cost and shorten

the time required for the pre-wiring of residential

systems.

Features:

• Multiple constructions available

• Cables are performance tested after bundling

to assure quality

• Reduces labor time and installation cost

• UL/ETL listed and tested

• 100% Guaranteed

• Available in both jacketed and Profusion

(non-jacketed) constructions

• Zone and Room markings available on jacketed

multimedia cables

Article 725

Class 1, Class 2, and Class 3 remote-control,

signaling and power limited circuits that are not

an integral part of a device or appliance.

The scope of this article may include systems such

as burglar alarm, access control, sound, nurse call,

intercom circuits, some computer network systems,

some control circuits for lighting dimmer systems,

and some low voltage control circuits that originate

from listed computer equipment.

General Purpose Cable:

Type CM, CL2, CL3

Multimedia Cable

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Multimedia Cable

ProFusion

™

Unjacketed Multimedia Cable

Applications:

Residential Voice, Video and Data Cabling.

Code Restrictions:

OK for Power-Limited Circuits, except those in Risers and Plenums.

Features:

Available in 500 foot or 1000 foot Spools. Sequential Footage
Markings.

Construction:

Composite Constructions include 2 Cat 5e 24/4 Pair UTP Cables for
Voice & Data, and 2 RG6/U Quad Shielded Satellite Grade Coaxial
Cables tested to 3 GHz.

MULTIMEDIA CABLE UL RATED

CONSTRUCTION

NOM.

AVG. WT.

CAT CABLE

COAX

O.D.

PER MFT

PART #

2 x CAT 5e 350 MHz + 2 x RG6/U QUAD

.650"

161 (LBS.)

5050

2 x CAT 5e 350 MHz + 2 x RG6/U QUAD

.720"

177 (LBS.)

5051

+ 2 FDDI FIBERS

2 x CAT 5e 350 MHz + 1 x RG6/U QUAD

.565"

108 (LBS.)

5055

•

1 x CAT 5e 350 MHz + 3 x RG6/U QUAD

.750"

164 (LBS.)

5057

•

+ 4 x RG6/U QUAD

.765"

177 (LBS.)

5058

•+

2 x CAT 5e 350 MHz + 2 x RG6/U QUAD BC CONDUCTOR .725"

162 (LBS.)

5061

•+

+ 2 FDDI FIBERS

2 x CAT 5e 350 MHz + 2 x RG6/U QUAD BC CONDUCTOR .650"

147 (LBS.)

5062

•+

+Spool Only
• Consult factory for availability.

Applications:

Residential Voice, Video and Data Cabling. No jacket to remove.

Code Restrictions:

OK for Power-Limited Circuits, except those in Risers and Plenums.

Features:

Available in 500 foot Spools.

Construction:

Composite Constructions include 2 Cat 5e 24/4 Pair UTP Cables for Voice
& Data, and 2 RG6/U Quad Shielded Satellite Grade Coaxial Cables tested
to 3 GHz. No jacket to remove. Custom constructions available.

UNJACKETED MULTIMEDIA CABLE UL RATED

CONSTRUCTION

NOM.

AVG. WT.

CAT CABLE

COAX

O.D.

PER MFT

PART #

2 x CAT 5e 350 MHz + 2 x RG6/U QUAD

.600" 116 (LBS.)

5060

2 x CAT 5e 350 MHz + 2 x RG6/U BC QUAD 3 GHz + 2 FDDI FIBERS .650" 132 (LBS.)

5950

2 x CAT 6 500 MHz + 2 x RG6/U BC QUAD 3 GHz + 2 FDDI FIBERS .700" 132 (LBS.)

5956

2 x CAT 6 500 MHz + 2 x RG6/U BC QUAD 3 GHz

.700” 150 (LBS.)

5957

Honeywell-CableCatalogGenesisSeries-html.html

Genesis Catlink Dual Zip

Applications:

Multiple Communication Media.

Code Restrictions:

OK for Power-Limited Circuits, except those in Risers and Plenums.

Features:

Available in 500 foot or 1000 foot Spools. Sequential Footage
Markings.

Construction:

Dual Zip Constructions include Cat 5e 24/4 Pair UTP Cable for
Voice & Data joined to an RG6/U Quad Shield, Satellite Grade Coaxial
Cable tested to 3 GHz or Option, RG6/U 100% Foil Shield & 60%
Aluminum Braid.

GENESIS CATLINK DUAL ZIP, UL RATED

AVG. WT.

CAT CABLE

COAX

DIAMETER

PER MFT

PART#

24/4 PAIR CAT 5e

RG6/U QUAD 3 GHZ

.298 x .523"

60 (LBS.)

5066

24/4 PAIR CAT 5e

RG6/U 60% 3 GHZ

.275 x .500"

53 (LBS.)

5067

Honeywell-CableCatalogGenesisSeries-html.html

Notes: ____________________________________________________________

__________________________________________________________________

Honeywell-CableCatalogGenesisSeries-html.html

Honeywell’s Genesis Series of Networking Cables

are the main component of a communications

system and a key determinant to its performance.

Genesis Series Cable strictly adheres to quality

manufacturing and exceeding the requirements set

forth by TIA/EIA category requirements.

Features:

• Countdown

• Room Numbers on Legend

• Color Coded Boxes

• New Labeling System on Boxes

• 100% Guaranteed

Article 800

Communications Circuits, Voice & Data Cables.

The scope of this article covers: telephone,

telegraph (except radio), voice and data.

Communications Cable:

Type CM, CMR, CMP, MP, MPR, MPP

Networking Cable

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Voice & Data Category 3, CM Rated

Voice & Data Category 3, Riser Rated

Applications:

Voice and Low Speed Data. Sunlight Resistant.

Code Restrictions:

OK for Power-Limited Circuits except those in Plenums.

Features:

Available in 500 foot or 1000 foot Speed Box or Spools.

Construction:

UTP Cables are Unshielded Twisted Pair Cables with a Nominal
Impedance of 100 ohms. Jacket Colors: White, Yellow, Orange,
Red, Green, Blue, Gray, Beige. Conductor Color Code Chart 5.

Maximum Attenuation at 16 MHz: 13.1 db/100 M
Minimum NEXT at 16 MHz: 23 db

VOICE & DATA CATEGORY 3, RISER RATED

IMP.

CABLE

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

OHMS

TYPE

O.D.

PF/FT

LISTINGS

PER MFT

PART#

100

UTP

.150

FT4, CMR, CL2R 12 (LBS.)

5031

100

UTP

.160

FT4, CMR, CL2R 14 (LBS.)

5032

100

UTP

.170

FT4, CMR, CL2R 19 (LBS.)

5033

100

UTP

.207

FT4, CMR, CL2R 26 (LBS.)

5034

Applications:

Voice and Low Speed Data. Sunlight Resistant.

Code Restrictions:

OK for Power-Limited Circuits except those in Risers and Plenums.

Features:

Available in 500 foot or 1000 foot Speed Box or Spools.

Construction:

UTP Cables are Unshielded Twisted Pair Cables with a Nominal
Impedance of 100 ohms. Jacket Colors: White, Yellow, Orange,
Red, Green, Blue, Gray, Beige. Conductor Color Code Chart 5.

Maximum Attenuation at 16 MHz: 13.1 db/100 M
Minimum NEXT at 16 MHz: 23 db

VOICE & DATA CATEGORY 3, CM RATED

IMP.

CABLE

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

OHMS

TYPE

O.D.

PF/FT

LISTINGS

PER MFT

PART#

100

UTP

.175

CM, CL2

14 (LBS.)

4930

100

UTP

.145

CM, CL2

11 (LBS.)

4931

100

UTP

.141

CM, CL2

15 (LBS.)

4932

100

UTP

.170

CM, CL2

19 (LBS.)

4933

100

UTP

.207

CM, CL2

26 (LBS.)

4934

NETWORK CABLE

Honeywell-CableCatalogGenesisSeries-html.html

Voice & Data Category 3, Plenum Rated

Category 3 Cross Connect Wire

Applications:

Voice and Low Speed Data.

Code Restrictions:

OK for Power-Limited Circuits.

Features:

Available in 500 foot or 1000 foot Speed Box or Spools.

Construction:

UTP Cables are Unshielded Twisted Pair Cables with a Nominal
Impedance of 100 ohms. Jacket Colors: White, Yellow, Orange,
Red, Green, Blue, Gray, Natural. Conductor Color Code Chart 5.

Maximum Attenuation at 16 MHz: 13.1 db/100 M
Minimum NEXT at 16 MHz: 23 db

VOICE & DATA CATEGORY 3, PLENUM RATED

IMP.

CABLE

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

OHMS

TYPE

O.D.

PF/FT

LISTINGS

PER MFT

PART#

100

UTP

.165

FT6, CMP, CL2P

14 (LBS.)

5041

100

UTP

.175

FT6, CMP, CL2P

18 (LBS.)

5042

100

UTP

.190

FT6, CMP, CL2P

23 (LBS.)

5043

100

UTP

.215

FT6, CMP, CL2P

33 (LBS.)

5044

•

• Consult factory for availability.

Applications:

Voice Circuits.

Code Restrictions:

OK for use with all Power-Limited Circuits, except in Risers
and Plenums.

Features:

Available on 1000 foot Spools.

Construction:

Unjacketed, Unshielded Twisted Pairs, Polypropylene Insulation,
Solid Bare Copper Conductors, Color Code Chart 5.

Maximum Attenuation at 16 MHz: 13.1 db/100 M
Minimum NEXT at 16 MHz: 23 db

CATEGORY 3 CROSS CONNECT WIRE

IMP.

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

OHMS

O.D.

PF/FT

PER MFT

PART#

100

UTP

4 (LBS.)

1031

100

UTP

7 (LBS.)

1032

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Voice & Data Category 5e, Riser Rated

Applications:

Voice, 10/100 Mb/S Ethernet, 4/16 Mb/S Token Ring, FDDI TP-PMD,
155 Mb/S ATM and Gigabit Ethernet. Sunlight Resistant.

Code Restrictions:

OK for Power-Limited Circuits, except those in Plenums.

Features:

Available in 1000 foot Speed Box or Reel-in-a-Box, Wire
Dispensing System. Sequential Footage Markings.

Construction:

UTP Cables are Unshielded Twisted Pair Cables with a Nominal
Impedance of 100 ohms. Jacket Colors: White, Yellow, Orange, Red,
Green, Blue, Gray. Conductor Color Code Chart 5.

Maximum Attenuation at 100 MHz: 22 db/100 M
Minimum PSNEXT at 100 MHz: 32 db
Tested to 350 MHz

VOICE & DATA CATEGORY 5E, RISER RATED

IMP.

CABLE

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

OHMS

TYPE

O.D.

PF/FT

LISTINGS

PER MFT

PART#

100

UTP

.200”

FT4, CMR, CL2R 21 (LBS.)

5078

Dual 4

100

UTP/UTP

.410”

FT4, CMR, CL2R 43 (LBS.)

5079

~500 foot RIB or 1,000 foot Spools in Blue only.

Voice & Data Category 5e, Plenum Rated

Applications:

Voice, 10/100 Mb/S Ethernet, 4/16 Mb/S Token Ring, FDDI TP-PMD,
155 Mb/S ATM and Gigabit Ethernet.

Code Restrictions:

OK for Power-Limited Circuits.

Features:

Available in 1000 foot Speed Box Wire Dispensing System.
Ripcord and Sequential Footage Markings.

Construction:

UTP Cables are Unshielded Twisted Pair Cables With A Nominal
Impedance of 100 Ohms. Standard Jacket Colors are White, Blue,
Gray. Conductor Color Code Chart 5.

Maximum Attenuation at 100 MHz: 22 db/100 M
Minimum PSNEXT at 100 MHz: 32 db

VOICE & DATA CATEGORY 5E, PLENUM RATED

IMP.

CABLE

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

OHMS

TYPE

O.D.

PF/FT

LISTINGS

PER MFT

PART#

100

UTP

.200"

FT6, CMP, CL2P

27 (LBS.)

5088

Dual 4

100

UTP/UTP

.410"

FT6, CMP, CL2P

55 (LBS.)

5089

•

• Consult factory for availability

Honeywell-CableCatalogGenesisSeries-html.html

Voice & Data, Enhanced 350, Plenum Rated

Voice & Data Water Resistant Category 5e

Applications:

Voice, 10/100 Mb/S Ethernet, 4/16 Mb/S Token Ring, FDDI TP-PMD,
155 Mb/S ATM and Gigabit Ethernet. Sunlight Resistant.

Code Restrictions:

Intended for Conduit or Wet Location Applications.

Features:

Available in 500 foot or 1000 foot Reels.

Construction:

UTP Cables are Unshielded Twisted Pair Cables with a Nominal
Impedance of 100 ohms. Jacket Colors: Black.

VOICE & DATA WATER RESISTANT CATEGORY 5E

IMP.

CABLE

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

OHMS

TYPE

O.D.

PF/FT

LISTINGS

PER MFT

PART#

100

UTP

.200"

N/A

21 (LBS.)

5090

Applications:

Voice, 10/100/1000 Mb/S Ethernet, 4/16 Mb/S Token Ring, FDDI
TP-PMD, 155 Mb/S ATM and Gigabit Ethernet.

Code Restrictions:

OK for use with all Power-Limited Circuits.

Features:

Available in 1000 foot Speed Box or Reel-in-a-Box, Wire
Dispensing System. Ripcord and Sequential Footage Markings.

Construction:

UTP Cables are Unshielded Twisted Pair Cables with a Nominal
Impedance of 100 Ohms. Standard Jacket Color is Blue or White.
Conductor Color Code Chart 5.

Maximum Attenuation at 100 MHz: 22 db/100 M
Maximum Attenuation at 350 MHz: 44.9 db/100 M
Minimum NEXT at 100 MHz: 38 db
Minimum NEXT at 350 MHz: 30 db

VOICE & DATA, PLENUM RATED, ENHANCED 350

IMP.

CABLE

NOM.

NOM. CAP.

AVG. WT.

AWG

#/PAIR

OHMS

TYPE

O.D.

PF/FT

LISTINGS

PER MFT

PART#

100

UTP

.200

14"

FT6, CMP, CL2P

22 (LBS.)

5101

MAX

MIN

FREQUENCY

ATTENUATION

NEXT

PSNEXT

PSACR

IMPEDANCE

ELFEXT

SRL

(MHz)

(db/100 m)

(db)

(db/100 m)

(ohms)

(db)

0.772

1.8

2.0

100 +/- 15

63.8

4.1

100 +/- 15

51.7

5.8

100 +/- 15

45.7

6.5

100 +/- 15

43.8

8.2

100 +/- 15

39.7

9.3

100 +/- 15

37.7

10.4

100 +/- 15

35.8

31.25

11.7

100 +/- 15

33.9

62.5

17.0

100 +/- 15

27.8

100

22.0

100 +/- 15

23.8

155

28.1

100 +/- 15

200

32.4

100 +/- 15

350

44.9

100 +/- 15

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Voice & Data Category 6 Plus

Applications:

Voice, 10/100/1000 Mb/S Ethernet, FDDI TP-PMD, 155 Mb/S ATM
and 1/10 Gigabit Ethernet.

Code Restrictions:

OK for use with Power Limited Circuits.

Features:

Available in 1000 foot RIB or Spools. Ripcord and Sequential
Footage Markings.

Construction:

UTP Cables are Unshielded Twisted Pair Cables with a Nominal
Impedance of 100 ohms. Dielectric Separator Between Pairs.
Standard Jacket Colors: White, Blue, Green. Consult Factory for
Availability of Other Colors. Conductor Color Code Chart 5.

Genesis Catlink 6 Plus Exceeds TIA/EIA-568-B.2-1
Requirements For Category 6 and is Tested to 500 MHz

VOICE & DATA CATEGORY 6 PLUS, RISER RATED

NOM.

AVG. WT.

AWG

#/PAIRS

O.D.

LISTINGS

PER MFT

PART#

.240

FT4, CMR, CL2R

22 (LBS.)

5092

VOICE & DATA CATEGORY 6 PLUS, PLENUM RATED

NOM.

AVG. WT.

AWG

#/PAIRS

O.D.

LISTINGS

PER MFT

PART#

.240

FT6, CMP, CL2P

25 (LBS.)

5102

MAX

MIN

FREQUENCY

ATTENUATION

PSNEXT

PSACR

PSELFEXT

MIN RL

(MHz)

(db/100 m)

(db)

(db/100 m)

(db)

2.0

100

19.8

250

32.8

350

39.8

N/A

500

48.9

N/A

Honeywell-CableCatalogGenesisSeries-html.html

Honeywell’s Genesis Series of broadband and

digital coaxial cables are tested to the highest

standards to assure the best performance in

high-end home theater installations, incorporating

HDTV and digital video. Honeywell also manufactures

a wide variety of baseband coaxial cables for CCTV

and other applications applications.

Features:

• Countdown

• Room/Zone Markings on Legend

• Color Coded Boxes

• New Labeling System on Boxes

• 100% Guaranteed

Article 820

Community Antenna Television and Video

Surveillance Systems (Coaxial Cable).

The scope of this article covers coaxial cable

distribution of radio frequency signals typically

employed in community antenna television

(CATV) systems.

NEC Energy Limitations (NEC Section 820-2):

The coaxial cable shall be permitted to deliver low

energy power to equipment directly associated

with the radio frequency

distribution system if the

voltage is not over 60

volts and if the current

supply is from a

transformer or other

device having energy-

limiting characteristics.

Coaxial Cable

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Coaxial Cable, Hyperband Premium Broadband

Satellite & Digital Coaxial Cable

Applications:

Audio/Video, Radio Frequency, CATV-MATV, and Computer/Data
Processing Transmissions. Sunlight Resistant.

Code Restrictions:

OK for General Purpose use except in Risers and Plenums.

Features:

Available in 500 foot or 1000 foot Speed Boxes or Spools; or 500 foot
Reel-in-a-Box Wire Dispensing System. Sequential Footage Markings.

Construction:

Foamed Dielectric Cores over Copper Covered Steel Center
Conductors (CATV), Shields are available in various Aluminum Braid
Coverages. Standard Jacket Colors are Black and White.

COAXIAL CABLE 75˚ C, HYPERBAND PREMIUM BROADBAND TESTED TO 2.4 GHz

NOM.

NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

LISTINGS

PER MFT

PART#

RG59/U

40% AL

20 CCS

82 .244

CATV, CL2

25 (LBS.)

5006

RG6/U

40% AL

18 CCS

82 .275

CATV, CL2

31 (LBS.)

5010

RG6/U

80% AL

18 CCS

82 .275

CATV, CL2

35 (LBS.)

5011

RG11

60% AL

14 CCS

82 .395

CATV, CL2

65 (LBS.)

5018

+Spools Only

Applications:

Designed for High End Broadband Signal Transmission for satellite
use. Fully swept tested to 3 GHz. Sunlight Resistant.

Code Restrictions:

OK for General Purpose use except in Risers and Plenums.

Features:

Available on 500 foot or 1000 foot Reel, or 500 foot or 1000 foot
Speed Boxes or 500 foot Reel-in-a-Box Wire Dispensing System.
Sequential Footage Markings.

Construction:

Foamed Dielectric over Solid Copper Clad Steel or Bare Copper
Center Conductors. Quad Aluminum/Foil-Aluminum/Braid Shields.
Standard Jacket Colors are Black or White.

SATELLITE & DIGITAL COAXIAL CABLE 75˚ C TESTED TO 3 GHz

NOM.

NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

LISTINGS

PER MFT

PART#

RG6/U

60% AL

18 CCS

82 .275

CATV, CL2

31 (LBS.)

5003

RG6/U

QUAD

18 CCS

82 .298

CATV, CL2

35 (LBS.)

5007

DUAL RG6/U QUAD

18 CCS

82 .298 x .605 16

CATV, CL2

72 (LBS.)

5008

DUAL RG6/U 40% AL

18 CCS

82 .275 x .565 16

CATV, CL2

69 (LBS.)

5012

RG6/U

QUAD

18 BC

82 .298

CATV, CL2

36 (LBS.)

5027

RG6/U

60%AL

18 BC

82 .275

CATV, CL2

31 (LBS.)

5304

+Spools Only

COAXIAL CABLE

Honeywell-CableCatalogGenesisSeries-html.html

Coaxial Cable, Hyperband Premium Broadband, Riser Rated

Applications:

Audio/Video, Radio Frequency, CATV-MATV and Computer/Data
Processing Transmissions. Sunlight Resistant.

Code Restrictions:

OK for General Purpose use except in Plenums.

Features:

Available in 500 foot or 1000 foot Speed Boxes or Spools; or 500 foot
Reel-in-a-Box Wire Dispensing System. Sequential Footage Markings.

Construction:

Foamed Dielectric Cores over Copper Covered Steel Center
Conductors, Shields are available in various Aluminum Braid
Coverages. Standard Jacket Colors are Black and White.

COAXIAL CABLE 75˚, HYPERBAND PREMIUM BROADBAND, RISER RATED, TESTED TO 3 GHz

NOM.

NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

LISTINGS

PER MFT

PART#

RG6/U

60% AL 18 CCS

.275

16.5

CATVR, CL2R

33 (LBS.)

5303

RG6/U

QUAD

18 CCS

.298

16.5

CATVR, CL2R

33 (LBS.)

5307

Coaxial Cable, Hyperband Premium Broadband, Plenum Rated

Applications:

Audio/Video, Radio Frequency, CATV-MATV and Computer/Data
Processing Transmissions.

Code Restrictions:

OK for General Purpose use.

Features:

Available In 500 foot or 1000 foot Tangle-Free Boxes, Spools, or
Reel-in-a-Box, Wire Dispensing System 500 foot

Construction:

Solid and Foamed Dielectric Cores over Copper Covered Steel Center
Conductors (CATV), Shields are available in Copper as well as Aluminum.
Various Braid Coverages are available. Standard Jacket Color is Natural.

COAXIAL CABLE 75˚ C, HYPERBAND PREMIUM BROADBAND, PLENUM RATED

NOM.

NOM. NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

LISTINGS

PER MFT

PART#

RG6/U

65% AL 18 CCS

.242

CATVP, CL2P

36 (LBS.)

5353

RG6/U

QUAD

18 CCS

.276

CATVP, CL2P

41 (LBS.)

5356

+ Spools Only

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

CATV Coaxial Cable, Water Resistant Use

3 GHz Digital Video Cable

Applications:

Audio/Video Wiring for Outdoor or Underground use. Sunlight Resistant.

Code Restrictions:

Intended for Outdoor, Conduit or Wet Location Applications.

Features:

Available on 500 foot or 1000 foot Spools.

Construction:

Solid and Foamed Dielectric Cores over Solid Copper Covered Steel
Conductor, Low Density, High Molecular Weight, Polyethylene Jacket.
Jacket Color Black.

CATV COAXIAL CABLE, WATER RESISTANT USE

NOM.

NOM. NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

PER MFT

PART#

RG6/U

60% AL 18 CCS

.275

32 (LBS.)

5105

RG6/U

QUAD

18 CCS

.300

32 (LBS.)

5106

Applications:

HDTV, High-End Broadband Signal Transmissions for Satellite Use,
Production and Digital Broadcast.

Code Restrictions:

OK for General Purpose use except in Riser and Plenums.

Features:

Available in 500 foot Box, 1,000 foot Box and 1,000 foot Reel.

Construction:

Foamed Dielectric over Solid Bare Copper Center Conductor.
95% TC Braid & 100% Foil Shields. White PVC Jacket.

3 GHZ DIGITAL VIDEO CABLE

NOM.

NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

LISTINGS

PER MFT

PART#

RG6/U

95% TC

18 BC

0.280”

16.5

CATV

39 lbs.

5361

100% Foil

CL2

Honeywell-CableCatalogGenesisSeries-html.html

Crystal Series Digital and HDTV Coaxial Cable

Applications:

High-End Home Theater, HDTV, Production, Satellite, Analog and
Digital Broadcast.

Code Restrictions:

OK for General Purpose use except in Riser and Plenums.

Features:

Available in 500 foot Reel-in-a-Box. Tested to 3 GHz.

Construction:

Foamed Dielectric over Solid Bare Copper Center Conductor.
95% TC Braid and 100% Foil Shields. Extra-Flexible Red, Green,
Blue, Yellow, Orange and White Jacket.

SERIAL DIGITAL AND HDTV COAXIAL CABLE

NOM.

NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

LISTINGS

PER MFT

PART#

RG6

95% TC

18 BC

0.280”

16.5

CATV

33 lbs.

5363

100% Foil

CL2

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Coaxial Cable, Baseband

Coaxial Cable, Baseband, Riser Rated

Applications:

Audio/Video, Radio Frequency, and CCTV Transmissions.
Sunlight Resistant.

Code Restrictions:

OK for General Purpose use except in Risers and Plenums.

Features:

Available In 500 foot or 1000 foot Tangle-free Boxes or Spools,
or 500 foot Reel-in-a-Box Wire Dispensing System. Sequential
Footage Markings.

Construction:

Foamed Dielectric Cores Over Solid Copper Conductors with
Bare Copper Braid Shield. Standard Jacket Colors: Black, White.

COAXIAL CABLE, 75˚ C BASEBAND

NOM.

NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

LISTINGS

PER MFT

PART#

RG59/U

95% BC

20 BC

.242

CL2

36 (LBS.)

5001

RG6/U

95% BC

18 BC

.275

CL2

42 (LBS.)

5002

RG59/U
& 18/2

95% BC

20 BC

.360 x .285

CL2

66 (LBS.)

5009

RG59/U
+18/2
Siamese 95% BC

20 BC

.421 x .245

CL2

60 (LBS.)

5013

*Composite (under one jacket)
+Spools Only

Applications:

Audio/Video, Radio Frequency, and CCTV Transmissions.
Sunlight Resistant.

Code Restrictions:

OK for General Purpose use except in Plenums.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or Spools;
or 500 foot Reel-in-a-Box Wire Dispensing System. Sequential
Footage Markings.

Construction:

Foamed Dielectric Cores over Solid Copper Conductors with Bare
Copper Braid Shield. Standard Jacket Colors: Black, White.

COAXIAL CABLE, 75˚C BASEBAND, RISER RATED

NOM.

NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

LISTINGS

PER MFT

PART#

RG59/U

95% BC

20 BC

.232

CL2R, FT4

38 (LBS.)

5301

RG6/U

95% BC

18 BC

.270

CL2R, FT4

45 (LBS.)

5302

Honeywell-CableCatalogGenesisSeries-html.html

Coaxial Cable, Baseband, Plenum Rated

CCTV Coaxial, Water Resistant Use

Applications:

Audio/Video, Radio Frequency, and CCTV Transmissions.

Code Restrictions:

OK for General Purpose use.

Features:

Available in 500 foot or 1000 foot Tangle-Free Boxes or
Spools; or 500 foot Reel-in-a-Box Wire Dispensing System.
Sequential Footage Markings.

Construction:

Solid and Foamed Dielectric Cores over Solid Bare Copper or
Copper Covered Steel Conductors with Bare Copper Braid
Shield. Standard Jacket Color is Natural.

COAXIAL CABLE 75˚ C, BASEBAND, PLENUM RATED

NOM.

NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

LISTINGS

PER MFT

PART#

RG59/U

95% BC

20 BC

.200

CL2P, FT6

39 (LBS.)

5351

RG6/U

95% BC

18 BC

.230

CL2P, FT6

47 (LBS.)

5352

RG59/U
+ 18/2
Siamese

95% BC

20 BC

82 .421 x .245 18

CL2P, FT6

65 (LBS.)

5355

Applications:

Audio/Video Wiring for Outdoor or Underground use.
Sunlight Resistant.

Code Restrictions:

Intended for Outdoor, Conduit or Wet Location Applications.

Features:

Available on 1000 foot Spools.

Construction:

Solid and Foamed Dielectric Cores over Solid Copper Center
Conductors, Low Density, High Molecular Weight, Polyethylene
Jacket. Jacket Color: Black

CCTV COAXIAL CABLE, WATER RESISTANT USE

NOM.

NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

PER MFT

PART#

RG59/U

95% BC

20 BC

.2475

36 (LBS.)

5103

RG59/U + 18/2

95% BC

20 BC

.421 x .245

65 (LBS.)

5104

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Camera Video Cable with Power Options

Mini 75 Ohm CCTV Coaxial Cable

Applications:

CCTV Video Wiring.

Code Restrictions:

OK for General Purpose use except in Risers and Plenums.

Features:

Available on 500 foot or 1000 foot Spools.

Construction:

Foamed Dielectric Cores over Bare Copper or Copper
Covered Steel Conductors with Bare Copper Braid Shield.
Jacket Colors: Black or White.

CAMERA VIDEO CABLE WITH POWER OPTIONS

NOM.

NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

PER MFT

PART#

RG59/U & 18/2

95% BC

20 BC

.360 x .285

66 (LBS.)

5009

RG59/U & 18/2

Siamese

95% BC

20 BC

.421 x .245

60 (LBS.)

5013

75 Ohm Mini

+ 20/2

95% BC

24 BC

.145 x .278

29 (LBS.)

5022

RG6/U & 18/2

95% BC

18 BC

450 x 275

35 (LBS.)

5119

*Composite (under one jacket)

Applications:

Designed for high density camera use, and camera runs of up to
375 feet. Allows camera installers to reduce the space needed for
coax runs and rack systems associated with high surveillance areas
such as casinos, retail stores, schools, and banking institutions.
Sunlight Resistant.

Code Restrictions:

OK for General Purpose use except in Risers and Plenums.

Features:

Available in 500 foot or 1000 foot Reels. Standard CCTV Equipment.

Construction:

Coax has Foamed Dielectric Core over Sold Copper Center
Conductor with Bare Copper Braid Shield. Zip Construction has
2 Stranded, Twisted, Polypropylene Insulated Conductors Attached
to Coax Cable. Standard Jacket Colors: Black, Blue, Green Red,
Yellow or White.

MINI 75 OHM CCTV COAXIAL CABLE 75˚ C

NOM.

NOM. CAP.

AVG. WT.

STYLE

SHIELD

AWG

O.D.

PF/FT

LISTINGS

PER MFT

PART#

75 Ohm

95% BC

.145

CL2

15 (LBS.)

5020

75 Ohm + 20/2 95% BC

.145 x .278

CL2

29 (LBS.)

5022

Honeywell-CableCatalogGenesisSeries-html.html

Unshielded Twisted Pair for CCTV Applications

Applications:

For closed circuit television (CCTV) - video, power and control signals
within a single Unshielded Twisted Pair (UTP) cable.

Features:

Category 5e tested to 200 MHz, available for Riser and Plenum
applications, ripcord and sequential footage markers on cable,
100% guaranteed.

Product Benefits:

Unshielded Twisted Pair (UTP) Structured Premise Cabling permits
many communication protocols to reside in the same wire bundle,
including voice, data, and CCTV video and control with 2 conductors
for power supply requirements. Benefits of structured UTP cabling
include:
• Better EMI interference rejection than coaxial cable.
• UTP is less expensive than dedicated coax or fiber.
• PAN/TILT/ZOOM Signals.
• Longer distance runs.
• Physically smaller than coaxial alternatives.
• UTP is extremely easy to install and terminate.

UTP FOR CCTV APPLICATIONS

POWER

UTP

DIAMETER

LISTINGS

PART#

16/2 STR

Cat 5e 24/2 pair

0.170" x .360"

CMR, CL2R, FT4

5281

16/2 STR

Cat 5e 24/2 pair

0.170" x .360"

CMP, CL2P, FT6

5381

Honeywell-CableCatalogGenesisSeries-html.html

UNDERGROUND / WATER RESISTANT CABLE

(

LIGHTING, CATEGORY 5E, CATV, CCTV, AUDIO & FIRE ALARM)

AWG

Pairs

Color

Putup

Description

Part#

Black

1,000

Category 5e

5090

AWG COND

STR

Nom. OD

AVG WT

Putup

Part #

7 X 24/30 STR BC .295" X .590"

225 lbs

250', 500',

1,000'

1017

104/30 STR BC

.220" X .440"

120 lbs

250', 500',

1,000'

1018

65/30 STR BC

.190" X .390"

82 lbs

500', 1,000'

1019

41/30 STR BC

.165" X .345"

50 lbs

250', 500'

1000'

1021

Underground Lighting

Category 5e

CATV

Style

Shield

AWG

Putup

Color

Part#

RG6

60%

18 CCS

1,000

Black

5105

RG6

Quad

18 CCS

1,000

Black

5106

CCTV

Style

Shield

AWG

Putup

Color

Part#

RG59

95%

20 BC

1,000

Black

5103

RG59+18/2

95%

20 BC

1,000

Black

5104

Audio Oxygen Free UL, CL2, CL3

AWG

Cond

STR

Putup

Color

Part#

65 STR Oxygen Free

500'

Black

5283

65 STR Oxygen Free

500'

Black

5284

105 STR Oxygen Free

500'

Black

5285

105 STR Oxygen Free

500'

Black

5286

Fire Alarm Power Limited

AWG

Cond

STR

Listing

Putup

Color

Part#

STR

FPL

1,000'

Black

4156

STR

FPL

1,000'

Black

4157

STR

FPL

1,000'

Black

4158

STR

FPL

1,000'

Black

4151

STR

FPL

1,000'

Black

4153

STR

FPL

1,000'

Black

4154

Genesis Series Cable

The Genesis Series includes a full line of low voltage cables used for voice, CCTV, video, data, access control,
fire alarm, security, home theater and audio applications.

To learn more about Genesis Series Low Voltage Cable: 7701 95th Street, Pleasant Prairie, WI 53158
Phone: 800-222-0060

Web: www.honeywellcable.com

Honeywell Genesis Series Cable

www.honeywellcable.com

Honeywell-CableCatalogGenesisSeries-html.html

The NEC is a highly regarded handbook resource

and considered the most comprehensive document

on electrical safety. The NEC was developed by a

large cross section of representatives from the

electrical industry (electricians, engineers, code

enforcers, researchers, testers, insurers, etc.).

The NEC explains current code requirements

and discusses pertinent code changes. Specific

technical language is contained in the handbook

with complete information on:

• Code Requirements and Application

• Code Intent

• Code Restrictions

• Code Interpretations

In addition, historical trends are examined, and

tables and illustrations are provided. The NEC is

divided into sections, containing articles on specific

electrical subject areas.

Community code for installations are usually based

on information or requirements in the NEC. For

convenience, the Genesis catalog has identified

pertinent NEC articles and scope of article for each

cable group as well as provided useful information

to help with ordering appropriate cable.

Technical Data

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Cable Substitution Hierarchy

TECHNICAL DATA

CMP

CL3P

FPLP

FPLR

CL2P

CL3R

CL2R

CMX

CL3X

CL2X

FPL

CATVP

CATVR

CATV

CATVX

MPP

CMR

MPR

CL3

CL2

PLTC

PLENUM

RISER

GENERAL
PURPOSE

DWELLINGS

Type CM

Communications Wires and Cables

Type CL2 and CL3

Class 2 and Class 3 Remote-Control, Signaling, and Power-Limited Cables

Type FPL

Power Limited Fire Alarm Cables

Type MP

Multipurpose Cables

Type PLTC

Power-Limited Tray Cable

Type CATV

Community Antenna Television Cable

Honeywell-CableCatalogGenesisSeries-html.html

CHART 1 — MULTI CONDUCTOR CABLES (UP TO 12)

CONDUCTOR

COLOR

CONDUCTOR

COLOR

CONDUCTOR

COLOR

BLK

BRN

PPL

RED

BLU

GRY

WHT

ORG

PNK

GRN

YEL

TAN

EXCEPTION: (1103 and 2103) SOL=BLACK, RED, YELLOW, GREEN

CHART 2 — MULTI CONDUCTOR CABLES (OVER 12)

CONDUCTOR COLOR/STRIPES

CONDUCTOR

COLOR/STRIPES

BLK

BLU

BLU/BLK

WHT

WHT/BLK

BLK/ WHT

RED

RED/BLK

RED/WHT

GRN

GRN/BLK

GRN/WHT

ORG

ORG/BLK

BLU/WHT

CHART 3 — MULTI PAIR CABLES

PAIR #

COND 1/COND 2

CONDUCTOR

COND 1/COND 2

CONDUCTOR

COND 1/COND 2

BLK/RED

BLK/GRN

BLK/YEL

BLK/WHT

BLK/BLU

BLK/BRN

KEY:

BLK

Black

WHT

White

GRN

Green

BRN

Brown

PNK

Pink

BLU

Blue

ORG

Orange

YEL

Yellow

PPL

Purple

GRY

Gray

OTHER EXCEPTIONS ARE NOTED ON SPECIFIC PAGE

Conductor Color Code Charts

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

CHART 4 — FIRE ALARM CABLES

CONDUCTOR

COLOR

CONDUCTOR

COLOR

CONDUCTOR

COLOR

BLK

BRN

TAN

RED

BLU

ORG

GRN

PPL

BLK/WHT

YEL

PNK

RED/WHT

CHART 5 — VOICE AND DATA CABLES

PAIR

COLOR/STRIPES

PAIR

COLOR/STRIPES

BLU + WHT/BLU

GRN + WHT/GRN

ORG + WHT/ORG

BRN + WHT/BRN

CHART 6 — THERMOSTAT WIRE

CONDUCTOR

COLOR

CONDUCTOR

COLOR

CONDUCTOR

COLOR

RED

YEL

PNK

WHT

BRN

GRY

GRN

ORG

TAN

BLU

BLK

PPL

KEY:

BLK

Black

WHT

White

GRN

Green

BRN

Brown

PNK

Pink

BLU

Blue

ORG

Orange

YEL

Yellow

PPL

Purple

GRY

Gray

OTHER EXCEPTIONS ARE NOTED ON SPECIFIC PAGE

Conductor Color Code Charts

Honeywell-CableCatalogGenesisSeries-html.html

Voice & Data Cables

Packaging Options:

500 foot or 1000 foot Tangle Free Speed Box or Reel-in-a-Box Wire Dispensing System.

Jacket Colors:

White, Yellow, Orange, Red, Green, Blue, Gray, Beige

NOTE:

Not all products are available in all packaging options or jacket colors.

ANSI/TIA/EIA-568B

Telecommunications Cabling Standards for: Category 3, Category 5e, 350 MHz Enhanced
Category 5e and Category 6 PLUS Unshielded Twisted Pairs (UTP)
Horizontal UTP Cable Attenuation db/100m (328 ft)
Horizontal UTP Cable NEXT Loss, db (Worst Pair Combination) 100m (328 ft)

Joint Warranties:

ADC Telecommunications

25 years

Grey Fox

15 years

Hellerman-Tyton

25 years

Hubbell Premise Wiring

25 years

ICC

30 years

Leviton Telcom (Residential)

15 years

Pass & Seymour

15 years

OnQ Technologies (Residential)

15 years

Superior Modular

25 years

Suttle

15 years

Thomas & Betts (CFN)

15 years

Genesis 15 Year Warranties:

Avaya
Leviton Telcom (Commercial)
Molex
Panduit
Ortronics
Siemon

UL Rated Safety Compliance

•

ETL Verified Electrical Performance

•

ISO 9001: 2000 Registered

BASE PART NUMBERS

350 MHz ENHANCED

CATEGORY 6

FOR 4 PAIR CABLES

CATEGORY 3

CATEGORY 5e

PLUS

General Purpose (CM)

4933

Riser (CMR)

5033

5078

5092

Plenum (CMP)

5043

5088

5101

5102

350 MHz ENHANCED

CATEGORY 6

CATEGORY 3

CATEGORY 5e

PLUS

Freq (MHz)

Loss

NEXT

Loss

NEXT

Loss

NEXT

Loss

NEXT

2.6

2.0

72.3

13.1

8.2

7.6

54.2

20.7

11.8

10.8

49.7

100

22.0

19.8

42.3

200

32.4

29.0

37.8

350

44.9

27*

44.9

39.8

34.1

500

48.9

31.8

* 350 MHz Non-Plenum only.

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

ANSI/TIA/EIA - 568A

Commercial Building Telecommunications Cabling Standard

The following tables list attenuation and near-end crosstalk (NEXT) specifications from

ANSI/TIA/EIA-568A for Category 3, Category 5 and 6 unshielded twisted pair (UTP) cables.

TABLE 1: HORIZONTAL UTP CABLE ATTENUATION dB/100 M (dB/1000 FT)

FREQUENCY

(MHZ)

CATEGORY 3

CATEGORY 5e

CATEGORY 6

0.772

2.2 (6.7)

1.8 (5.5)

1.0

2.6 (7.9)

2.0 (6.1)

4.0

5.6 (17.1)

4.1 (12.5)

3.8 (11.6)

8.0

8.5 (25.9)

5.8 (17.7)

5.3 (16.2)

10.0

9.7 (29.6)

6.5 (19.8)

6.0 (18.3)

16.0

13.1 (39.9)

8.2 (25.0)

7.6 (23.2)

20.0

9.3 (28.4)

8.5 (25.9)

25.0

10.4 (31.7)

9.5 (29.0)

31.25

11.7 (35.7)

10.7 (32.6)

62.5

17.0 (51.8)

15.4 (47.0)

100.0

22.0 (67.1)

19.8 (60.4)

200.0

29.0 (88.4)

250.0

32.8 (100.0)

TABLE 2: HORIZONTAL UTP CABLE NEXT LOSS, dB (WORST PAIR COMBINATION) 100M (328 FT)

FREQUENCY

(MHZ)

CATEGORY 3

CATEGORY 5e

CATEGORY 6

0.772

1.0

4.0

8.0

10.0

16.0

20.0

25.0

31.25

62.5

100.0

200.0

250.0

Honeywell-CableCatalogGenesisSeries-html.html

Genesis Semi-Extruded Jacket

Genesis Cable Products most popular constructions have the added feature of semi-extruded

rather than tubed jackets. Semi-extruded jackets “mold” the conductors in place. This prevents

the movement of the conductors under the jacket. When conductors move under their jacket,

they can “cross-over” themselves. This creates a convolution or “high-spot” on the outer

jacket. If compressed with a staple at this point a conductor fracture or “short” may occur.

Extruded jackets fit tightly over the conductors to prevent movement. This can create

slightly more resistance when removing the jacket. To assure that the jacket never bonds to

the conductor, Genesis uses polypropylene insulation. Polypropylene will not bond to PVC

(the jacketing material). Furthermore, polypropylene is electrically superior to PVC.

Although extruded jacket cable constructions are more expensive to produce, they pay for

themselves many times over in avoiding costly labor charges due to tracing “shorts” and

replacing damaged cables.

Solid
Copper
Conductor

Semi-Extruded
Jacket

Insulation

Jacket

Copper
Conductor

TUBED JACKET

SEMI-EXTRUDED JACKET

Honeywell-CableCatalogGenesisSeries-html.html

www.honeywellcable.com

Voltage Drop and Recommended Footage Chart

The chart above shows the approximate values for the AC
resistive component of the circuit impedance.

Example:

What is the voltage drop for a 18 AWG 2/C
carrying 3 amps over a distance of 100 feet?

Voltage-drop

= voltage-drop/amp x amp
= 1.2 x 3
= 3.6 Volts

100

150

200

250

300

350

26AWG

24AWG

22AWG

20AWG

16AWG

18AWG

APPROXIMATE VOLTAGE DROP AT 68˚ F

Feet

Maximum Cable Length (ft)

8 Ohm Speaker

4 Ohm Speaker

RECOMMENDED FOOTAGE/AWG AUDIO CABLE

Acceptable Loss (%)

10%

20%

50%

10% 20%

50%

12 AWG 250

500

1250

500

1000

2500

14 AWG 150

300

750

300

600

1500

16 AWG 95

190

475

190

380

950

Honeywell-CableCatalogGenesisSeries-html.html

Part Numbers, Packaging & Color Codes

All Genesis Series Cable products come with an 8 digit part number.

The first 4 digits represent the product.
The next two digits represent the packaging.
The last two digits represent the color code.

Packaging

Code

Put Up

1 x 250' reel

4 x 250' reel

1000' reel

1000' pull box

1000' speedbag

1000' reel in a box

4 x 500' reel

500' reel

500' box

500' speedbag

500' reel in a box

Color

Code

Color

white

yellow

orange

red

green

blue

brown

black

gray

purple

pink

natural

beige

For example:

This is a 500' Box of Black RG6U 60% AL

5003 = RG6U 60% AL
55 = 500' Pull Out Box
08 = Black

Genesis Series Cable

Toll Free

800-222-0060

genesiscable.com

Honeywell-CableCatalogGenesisSeries-html.html

Eye Diagram Test results graphically depict
transmission of a digital signal. The Eye
Diagram gets its name because a good result
resembles an eye. A wide opening, thin lines
and a symmetrical shape are all indicators of
a good result.The area inside the eye pattern
represents headroom versus minimal
compliance. Any area of the pattern that
touches the polygon represents a failure.

A good result

A bad result

eye popping results

Honeywell's HDMI test results mean dealer profitability.

Time spent in front of a customer is incredibly valuable and
should be spent talking about the most profitable products you carry.
Use the Eye Pattern Test Results to explain to your customers that
Honeywell's HDMI cables will pass the very best HD possible -
qualifying your expertise, and driving your profitability!

For more information, please call

800.222.0060

or visit

www.honeywellcable.com.

Honeywell-CableCatalogGenesisSeries-html.html

INDEX BY GENESIS PART NUMBER

PART NO.

PAGE

PART NO.

PAGE

PART NO.

PAGE

PART NO.

PAGE

PART NO.

PAGE

1001 . . . . . 16, 56
1002 . . . . . 16, 56
1003 . . . . . 16, 56
1004 . . . . . 16, 56
1005 . . . . . 16, 56
1017 . . . . . 28, 80
1018 . . . . . 28, 80
1019 . . . . . 28, 80
1021 . . . . . 28, 80
1031 . . . . . . . . 67
1032 . . . . . . . . 67
1051 . . . . . . . . 16
1052 . . . . . . . . 16
1053 . . . . . . . . 16
1061 . . . . . . . . 11
1062 . . . . . . . . 11
1063 . . . . . . . . 11
1064 . . . . . . . . 11
1101 . . . . . . . . 12
1102 . . . . . . . . 12
1103 . . . . . . . . 12
1104 . . . . . . . . 12
1105 . . . . . . . . 12
1106 . . . . . . . . 12
1107 . . . . . . . . 12
1108 . . . . . . . . 12
1109 . . . . . . . . 12
1110 . . . . . . . . 12
1111 . . . . . . . . 12
1112 . . . . . . . . 12
1113 . . . . . . . . 12
1117 . . . . . . . . 12
1118 . . . . . . . . 12
1119 . . . . . . . . 12
1120 . . . . . . . . 12
1121 . . . . . . . . 12
1122 . . . . . . . . 12
1123 . . . . . . . . 12
1125 . . . . . . . . 12
1126 . . . . . . . . 12
1127 . . . . . . . . 12
1129 . . . . . . . . 12
1130 . . . . . . . . 12
1131 . . . . . . . . 12
1138 . . . . . . . . 12
1140 . . . . . . . . 12
1202 . . 10, 11, 13
1204 . . . . . . . . 13
1206 . . . . . . . . 13
1207 . . . . . . . . 13
1208 . . . . . . . . 13
1209 . . . . . . . . 13
1212 . . . . . . . . 13
1213 . . . . . . . . 13
1214 . . . . . 11, 13
1215 . . . . . 11, 13
1216 . . . . . . . . 13

1217 . . . . . . . . 13
1218 . . . . . . . . 13
1219 . . . . . . . . 13
1220 . . . . . . . . 13
1221 . . . . . . . . 13
1222 . . . . . . . . 13
1223 . . . . . . . . 13
1227 . . . . . . . . 13
1228 . . . . . . . . 13
1229 . . . . . . . . 13
1230 . . . . . . . . 13
1234 . . . . . . . . 14
1235 . . . . . . . . 14
1238 . . . . . . . . 14
1243 . . . . . . . . 24
1244 . . . . . 10, 11
1245 . . . . . . . . 14
1246 . . . . . . . . 14
1247 . . . . . . . . 14
1248 . . . . . . . . 14
1260 . . . . . . . . 11
1263 . . . . . . . . 15
1264 . . . . . . . . 15
1266 . . . . . . . . 15
1270 . . . . . . . . 10
1272 . . . . . . . . 10
1273 . . . . . . . . 15
1274 . . . . . . . . 15
1275 . . . . . . . . 15
1278 . . . . . . . . 10
1279 . . . . . . . . 10
1280 . . . . . . . . 15
1282 . . . . . . . . 15
1287 . . . . . . . . 11
1289 . . . . . . . . 15
1290 . . . . . . . . 15
1291 . . . . . . . . 15
1298 . . . . . . . . 25
1301 . . . . . . . . 28
1303 . . . . . . . . 28
1304 . . . . . . . . 28
2101 . . . . . . . . 17
2102 . . . . . . . . 17
2103 . . . . . . . . 17
2104 . . . . . . . . 17
2105 . . . . . . . . 17
2106 . . . . . . . . 17
2107 . . . . . . . . 17
2108 . . . . . . . . 17
2109 . . . . . . . . 17
2110 . . . . . . . . 17
2112 . . . . . . . . 17
2113 . . . . . . . . 17
2114 . . . . . . . . 17
2115 . . . . . . . . 17
2116 . . . . . . . . 17
2117 . . . . . . . . 17

2118 . . . . . . . . 17
2119 . . . . . . . . 17
2120 . . . . . . . . 17
2121 . . . . . . . . 17
2122 . . . . . . . . 17
2123 . . . . . . . . 17
2124 . . . . . . . . 17
2125 . . . . . . . . 17
2201 . . . . . . . . 18
2202 . . . . . . . . 18
2203 . . . . . . . . 18
2204 . . . . . . . . 18
2206 . . . . . . . . 18
2207 . . . . . . . . 18
2208 . . . . . . . . 18
2209 . . . . . . . . 18
2210 . . . . . . . . 18
2212 . . . . . . . . 18
2213 . . . . . . . . 18
2214 . . . . . . . . 18
2215 . . . . . . . . 18
2216 . . . . . . . . 18
2217 . . . . . . . . 18
2218 . . . . . . . . 18
2219 . . . . . . . . 18
2220 . . . . . . . . 18
2221 . . . . . . . . 18
2222 . . . . . . . . 18
2223 . . . . . . . . 18
2224 . . . . . . . . 18
2225 . . . . . . . . 18
2232 . . . . . . . . 19
2233 . . . . . . . . 19
2234 . . . . . . . . 19
2236 . . . . . . . . 19
2237 . . . . . . . . 19
2239 . . . . . . . . 19
2263 . . . . . . . . 20
2264 . . . . . . . . 20
2266 . . . . . . . . 20
2280 . . . . . . . . 20
2281 . . . . . . . . 20
2282 . . . . . . . . 20
2283 . . . . . . . . 20
2284 . . . . . . . . 20
2285 . . . . . . . . 20
3101 . . . . . . . . 21
3102 . . . . . . . . 21
3103 . . . . . . . . 21
3104 . . . . . . . . 21
3105 . . . . . . . . 21
3106 . . . . . . . . 21
3107 . . . . . . . . 21
3108 . . . . . . . . 21
3109 . . . . . . . . 21
3110 . . . . . . . . 21
3112 . . . . . . . . 21

3113 . . . . . . . . 21
3114 . . . . . . . . 21
3115 . . . . . . . . 21
3116 . . . . . . . . 21
3117 . . . . . . . . 21
3118 . . . . . . . . 21
3119 . . . . . . . . 21
3120 . . . . . . . . 21
3121 . . . . . . . . 21
3122 . . . . . . . . 21
3123 . . . . . . . . 21
3124 . . . . . . . . 21
3125 . . . . . . . . 21
3126 . . . . . . . . 21
3127 . . . . . . . . 21
3128 . . . . . . . . 21
3129 . . . . . . . . 21
3130 . . . . . . . . 21
3134 . . . . . . . . 21
3201 . . . . . . . . 22
3202 . . . . . 11, 22
3203 . . . . . . . . 22
3204 . . . . . . . . 22
3206 . . . . . . . . 22
3207 . . . . . . . . 22
3208 . . . . . . . . 22
3209 . . . . . . . . 22
3210 . . . . . . . . 22
3212 . . . . . . . . 22
3213 . . . . . . . . 22
3214 . . . . . 11, 22
3215 . . . . . . . . 22
3216 . . . . . 11, 22
3217 . . . . . . . . 22
3218 . . . . . . . . 22
3219 . . . . . . . . 22
3220 . . . . . . . . 22
3221 . . . . . . . . 22
3222 . . . . . . . . 22
3223 . . . . . . . . 22
3224 . . . . . . . . 22
3225 . . . . . . . . 22
3226 . . . . . . . . 22
3227 . . . . . . . . 22
3228 . . . . . . . . 22
3229 . . . . . . . . 22
3230 . . . . . . . . 22
3231 . . . . . . . . 23
3252 . . . . . . . . 11
3253 . . . . . . . . 11
3254 . . . . . . . . 11
3255 . . . . . . . . 11
3262 . . . . . . . . 23
3263 . . . . . . . . 23
3264 . . . . . . . . 23
3265 . . . . . . . . 23
3266 . . . . . . . . 23

3267 . . . . . . . . 23
3268 . . . . . . . . 23
3280 . . . . . . . . 24
3281 . . . . . . . . 24
3282 . . . . . . . . 24
3283 . . . . . . . . 24
3284 . . . . . . . . 24
3285 . . . . . . . . 24
3295 . . . . . . . . 25
4002 . . . . . . . . 33
4004 . . . . . . . . 33
4101 . . . . . . . . 32
4102 . . . . . . . . 32
4103 . . . . . . . . 32
4104 . . . . . . . . 32
4105 . . . . . . . . 32
4106 . . . . . . . . 32
4107 . . . . . . . . 32
4108 . . . . . . . . 32
4109 . . . . . . . . 32
4110 . . . . . . . . 32
4111 . . . . . . . . 32
4112 . . . . . . . . 32
4113 . . . . . . . . 32
4114 . . . . . . . . 32
4115 . . . . . . . . 32
4151 . . . . . 32, 80
4153 . . . . . 32, 80
4154 . . . . . 32, 80
4156 . . . . . 32, 80
4157 . . . . . 32, 80
4158 . . . . . 32, 80
4201 . . . . . . . . 33
4202 . . . . . . . . 33
4203 . . . . . . . . 33
4204 . . . . . . . . 33
4205 . . . . . . . . 33
4206 . . . . . . . . 33
4207 . . . . . . . . 33
4208 . . . . . . . . 33
4209 . . . . . . . . 33
4210 . . . . . . . . 33
4301 . . . . . . . . 34
4302 . . . . . . . . 34
4303 . . . . . . . . 34
4304 . . . . . . . . 34
4305 . . . . . . . . 34
4306 . . . . . . . . 34
4307 . . . . . . . . 34
4308 . . . . . . . . 34
4309 . . . . . . . . 34
4310 . . . . . . . . 34
4311 . . . . . . . . 34
4312 . . . . . . . . 34
4313 . . . . . . . . 34
4314 . . . . . . . . 34
4315 . . . . . . . . 34

Honeywell-CableCatalogGenesisSeries-html.html

INDEX BY GENESIS PART NUMBER

PART NO.

PAGE

PART NO.

PAGE

PART NO.

PAGE

PART NO.

PAGE

PART NO.

PAGE

www.honeywellcable.com

PART NO.

PAGE

PART NO.

PAGE

PART NO.

PAGE

PART NO.

PAGE

PART NO.

PAGE

Note:
Conductor Color
code Charts are on
pages 83 and 84.

4401 . . . . . . . . 34
4402 . . . . . . . . 34
4403 . . . . . . . . 34
4404 . . . . . . . . 34
4405 . . . . . . . . 34
4406 . . . . . . . . 34
4407 . . . . . . . . 34
4408 . . . . . . . . 34
4409 . . . . . . . . 34
4410 . . . . . . . . 34
4422 . . . . . . . . 35
4423 . . . . . . . . 35
4424 . . . . . . . . 35
4425 . . . . . . . . 35
4431 . . . . . . . . 35
4432 . . . . . . . . 35
4433 . . . . . . . . 35
4434 . . . . . . . . 35
4441 . . . . . . . . 35
4442 . . . . . . . . 35
4443 . . . . . . . . 35
4444 . . . . . . . . 35
4502 . . . . . . . . 36
4504 . . . . . . . . 36
4505 . . . . . . . . 36
4506 . . . . . . . . 36
4507 . . . . . . . . 36
4508 . . . . . . . . 36
4511 . . . . . . . . 36
4512 . . . . . . . . 36
4513 . . . . . . . . 36
4514 . . . . . . . . 36
4515 . . . . . . . . 36
4601 . . . . . . . . 36
4602 . . . . . . . . 36
4603 . . . . . . . . 36
4604 . . . . . . . . 36
4606 . . . . . . . . 36
4607 . . . . . . . . 36
4608 . . . . . . . . 36
4609 . . . . . . . . 36
4610 . . . . . . . . 36
4701 . . . . . . . . 30
4702 . . . . . . . . 30
4703 . . . . . . . . 30
4704 . . . . . . . . 30
4705 . . . . . . . . 30
4706 . . . . . . . . 30
4707 . . . . . . . . 30
4708 . . . . . . . . 30
4709 . . . . . . . . 30
4710 . . . . . . . . 30
4711 . . . . . . . . 30
4712 . . . . . . . . 30
4713 . . . . . . . . 30
4714 . . . . . . . . 30
4715 . . . . . . . . 30

4716 . . . . . . . . 30
4717 . . . . . . . . 30
4718 . . . . . . . . 30
4719 . . . . . . . . 30
4760 . . . . . . . . 30
4761 . . . . . . . . 30
4762 . . . . . . . . 30
4763 . . . . . . . . 30
4764 . . . . . . . . 30
4765 . . . . . . . . 30
4766 . . . . . . . . 30
4767 . . . . . . . . 30
4768 . . . . . . . . 30
4769 . . . . . . . . 30
4930 . . . . . . . . 66
4931 . . . . . . . . 66
4932 . . . . . . . . 66
4933 . . . . . . . . 66
4934 . . . . . . . . 66
5001 . . . . . . . . 76
5002 . . . . . . . . 76
5003 . . . . . . . . 72
5006 . . . . . . . . 72
5007 . . . . . . . . 72
5008 . . . . . . . . 72
5009 . . . . . 76, 78
5010 . . . . . . . . 72
5011 . . . . . . . . 72
5012 . . . . . . . . 72
5013 . . . . . 76, 78
5018 . . . . . . . . 72
5019 . . . . . . . . 40
5020 . . . . . . . . 78
5022 . . . . . . . . 78
5027 . . . . . . . . 72
5029 . . . . . . . . 40
5031 . . . . . . . . 66
5032 . . . . . . . . 66
5033 . . . . . . . . 66
5034 . . . . . . . . 66
5035 . . . . . . . . 42
5036 . . . . . . . . 40
5041 . . . . . . . . 67
5042 . . . . . . . . 67
5043 . . . . . . . . 67
5044 . . . . . . . . 67
5050 . . . . . . . . 62
5051 . . . . . . . . 62
5052 . . . . . . . . 40
5055 . . . . . . . . 62
5057 . . . . . . . . 62
5058 . . . . . . . . 62
5060 . . . . . . . . 62
5061 . . . . . . . . 62
5062 . . . . . . . . 62
5066 . . . . . . . . 63
5067 . . . . . . . . 63

5078 . . . . . . . . 68
5079 . . . . . . . . 68
5088 . . . . . 10, 68
5089 . . . . . . . . 68
5090 . . . . . 69, 80
5092 . . . . . . . . 70
5094 . . . . . . . . 41
5095 . . . . . . . . 41
5098 . . . . . . . . 40
5099 . . . . . . . . 40
5101 . . . . . . . . 69
5102 . . . . . . . . 70
5103 . . . . . 77, 80
5104 . . . . . 77, 80
5105 . . . . . 74, 80
5106 . . . . . 74, 80
5119 . . . . . . . . 78
5250 . . . . . . . . 57
5251 . . . . . . . . 57
5252 . . . . . . . . 57
5253 . . . . . . . . 57
5254 . . . . . . . . 57
5255 . . . . . . . . 57
5265 . . . . . . . . 58
5266 . . . . . . . . 58
5267 . . . . . . . . 58
5268 . . . . . . . . 58
5273 . . . . . . . . 59
5274 . . . . . . . . 59
5275 . . . . . . . . 59
5276 . . . . . . . . 59
5279 . . . . . . . . 59
5280 . . . . . . . . 59
5281 . . . . . . . . 79
5283 . . . . . 58, 80
5284 . . . . . 58, 80
5285 . . . . . 58, 80
5286 . . . . . 58, 80
5290 . . . . . 41, 59
5291 . . . . . 41, 59
5292 . . . . . 41, 59
5293 . . . . . 41, 59
5294 . . . . . 41, 59
5301 . . . . . . . . 76
5302 . . . . . . . . 76
5303 . . . . . . . . 73
5304 . . . . . . . . 72
5307 . . . . . . . . 73
5351 . . . . . . . . 77
5352 . . . . . . . . 77
5353 . . . . . . . . 73
5355 . . . . . . . . 77
5356 . . . . . . . . 73
5361 . . . . . . . . 74
5363 . . . . . 42, 75
5381 . . . . . . . . 79
5400 . . . . . . . . 56

5401 . . . . . . . . 56
5402 . . . . . . . . 56
5500 . . . . . . . . 37
5501 . . . . . . . . 37
5502 . . . . . . . . 37
5503 . . . . . . . . 37
5504 . . . . . . . . 37
5505 . . . . . . . . 37
5506 . . . . . . . . 37
5550 . . . . . . . . 37
5551 . . . . . . . . 37
5552 . . . . . . . . 37
5553 . . . . . . . . 37
5554 . . . . . . . . 37
5555 . . . . . . . . 37
5556 . . . . . . . . 37
5650 . . . . . . . . 57
5651 . . . . . . . . 57
5950 . . . . . . . . 62
5956 . . . . . . . . 62
5957 . . . . . . . . 62
70003P08 . . . . 49
7000NS08 . . . 49
70013P08 . . . . 49
7001NS08 . . . 49
70023P08 . . . . 49
7002NS08 . . . 49
7003NS08 . . . 49
7005NS08 . . . 49
7007NS08 . . . 49
7010NS08 . . . 49
7015NS08 . . . 49
7030KT01 . . . . 49
7101NS01 . . . 49
7102NS01 . . . 49
7103NS01 . . . 49
7201NS01 . . . 50
7202NS01 . . . 50
7203NS01 . . . 50
7301NS01 . . . 51
7302NS01 . . . 51
7303NS01 . . . 51
7405NS01 . . . 51
7410NS01 . . . 51
7501NS01 . . . 51
7503NS01 . . . 51
76013P01 . . . . 52
7601NS01 . . . 52
76023P01 . . . . 52
7602NS01 . . . 52
76033P01 . . . . 52
7603NS01 . . . 52
7703NS01 . . . 52
7705NS01 . . . 52
7710NS01 . . . 52
7715NS01 . . . 52
7801NS01 . . . 52

7802NS01 . . . 52
7804NS01 . . . 52
7806NS01 . . . 52
79013P01 . . . . 50
7901NS01 . . . 50
79023P01 . . . . 50
7902NS01 . . . 50
7952NS08 . . . 53
7953NS08 . . . 53
7954NS01 . . . 54
7956NS08 . . . 54
7G003P08 . . . 48
7G00NS08 . . . 48
7G013P08 . . . 48
7G01NS08 . . . 48
7G023P08 . . . 48
7G02NS08 . . . 48
7G03NS08 . . . 48
7G05NS08 . . . 48
7G07NS08 . . . 48
7G10NS08 . . . 48
7G12NS08 . . . 48
7G15NS08 . . . 48

Honeywell-CableCatalogGenesisSeries-html.html

problem solved

For more information, please call

1-800.222.0060

or visit

www.genesiscable.com.

Honeywell introduces Genesis Series jacketless
multimedia cable; the simplest, most cost effective
solution for residential structured cable applications.
Individual cables are held together by a revolutionary tight
continuous twist scheme. This twist scheme holds the
cables together without any binding tapes or adhesive
materials. Our twisting method prevents any deterioration
of the original cable’s performance.

Honeywell’s jacketless design saves valuable time for the installation professional by
eliminating the need to remove an outer jacket. This construction is lighter, more flexible and
has an over-all diameter smaller than other bundled cables. Cold weather cracking is reduced
by the added flexibility of this non-bonded design. In addition to the multi-media cable, other
constructions are available.

Honeywell-CableCatalogGenesisSeries-html.html

Automation and Control Solutions

Honeywell Cable & Custom Electronics
7701 95th Street
Pleasant Prairie, WI 53158
800-222-0060
www.honeywell.com

For more information:

www.honeywellcable.com

Honeywell’s Genesis Series low voltage wire and

cable is produced with innovative equipment and

technology. Our leading edge production facility,

located in Pleasant Prairie, Wisconsin enables

Honeywell to produce the highest quality and cost

effective thermostat, electronic, security, fire, sound,

voice, data and video wire and cable.

See our full line catalog or visit

www.honeywellcable.com

to see our full product listing of low

voltage wire and cable.

•

Thermostat

•

Electronic Shielded and Unshielded

•

Fire

•

Security

•

Sound

•

Video

•

Voice & Data

•

And Much More!
