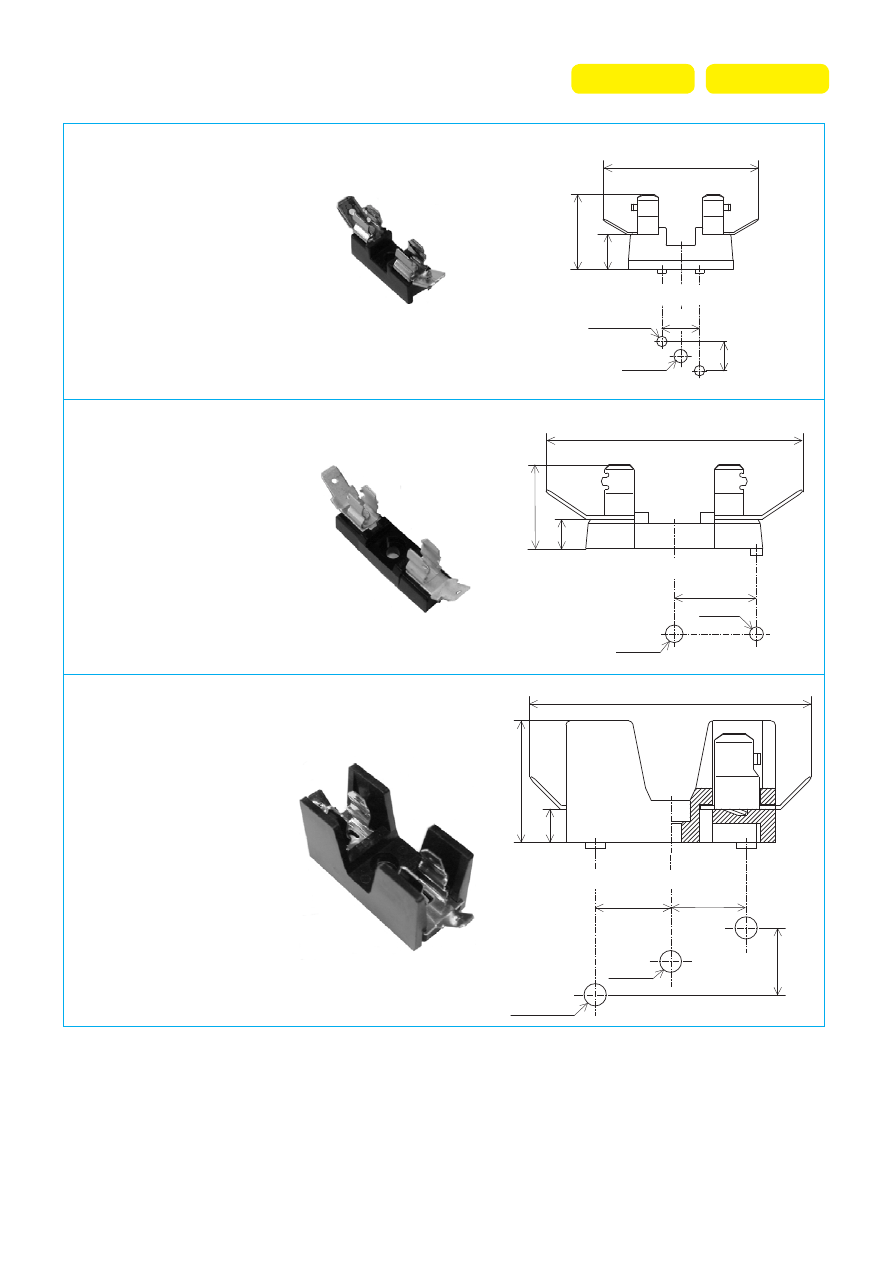

BM-SS-I-14

Fuse size:

φ

5.2 mm ×

L

20 mm

Rating:

AC 250 V 15 A

Certification:

UL Recognized

Base material:

Phenolic resin



(UL94V-0)

Surface treatment: Nickel plated

BM-LQ-I-13

Fuse size:

φ

6.35 mm ×

L

30 mm



φ

6.35 mm ×

L

31.8 mm

Rating:

AC 250 V 30 A

Certification:

UL Recognized

Base material:

Phenolic resin



(UL94V-0)

Surface treatment: Tin plated

BM-LQ-I-15

Fuse size:

φ

10.3 mm ×

L

38.1 mm

Rating:

AC 250 V 30 A

Certification:

UL Recognized

Base material:

Phenolic resin



(UL94V-0)

Surface treatment: Nickel plated

⚠

 CAUTION

■



The fuseholder ratings shown above represent the maximum ratings for fuses that can be used under normal

circumstances. Rated currents are based on the assumption that a fuse inserted in a fuseholder will operate

at less than or equal to 1.35 times the fuseholder's rating. For all other cases, please contact your SOC

representative.

■

 When inserting a fuse into a fuseholder, please do not force the fuse into the holder or hit the fuse. Contact

failure caused by damage to the fuse or deformation of the fuseholder's clips due to impact or forcing the

fuse into the holder may significantly alter the fuse's electrical characteristics and lifetime, and may lead to

accidents including nuisance operations.

Fuseholders



φ

3.3

φ

4.2

19.5

61

20

7



18

18

φ

5.2

φ

5.3×2

16

68

29

8



37

18

8.5

φ

2.5×2

φ

3.2

9

7

Unit: mm

RoHS-compliant

Pb free

Referential dimensions of mounting holes

Referential dimensions of mounting holes

Referential dimensions of mounting holes
