B2007 B

09/16

Your Global Automation Partner

Connectivity

Catalog

A Global Leader in

Industrial Automation

Turck’s sensors, connectivity, network and interface products are built to be the
best. As one of the most

prominent

 sensor manufacturers

in the world

, we

even back our sensors with a

lifetime warranty

. Turck works by bringing

rugged



engineering

 solutions to your industrial automation applications.

85,000+

50+

SOLUTIONS

YEARS OF INNOVATION

EXTENSIVE WARRANTY

SUPPORT &

DEDICATED SERVICE

RESPOND

 and

 SOLVE

ove

r

1,200

inquiries

per day

BUT LOCAL...

GLOBAL

representations worldwide

60

28

GLOBAL

SUBSIDIARIES

USA

Strategically placed manufacturing facilities in the

with

4,000+

APPLICATION EXPERTS

Developed innovative

connectivity



solutions in response to our sensor customer needs

environments lead to



I/O solutions

Pioneer in non-contact

sensing



technology

Recognized need and advanced knowledge of harsh duty

2,000+

EXPERIENCED

SALES REPRESENTATIVES

13,000

more than

CUSTOM SKUs

 • overmolds

 • RFID tags

 • kitting

 • wiring/pinouts

 • pigtails/mold-ons

 • color coded wiring

 • free software & support

 • cable lengths

 • daisy chains

 • silicone tubing

 • extreme environments

 • harness assemblies

 • mix & match I/O

 • major industry protocols

 • private labeling

 • snap-in labels

  and more...

INNOVATIVE

MANUFACTURING CAPABILITIES

THE ADVANTAGE

MOLDING

LASER TRIMMING

EDM

DESIGN

At Turck, we understand that not every
application is the same. That’s why
we dedicate ourselves to finding the



optimal engineered solution for



every application.

Whether you need a cordset, network  I/O, or
sensor, our range of innovative manufacturing

capabilities and engineering expertise allows
us to achieve what others cannot.

Turck offers advanced designs and the
most up to date manufacturing processes –
including EDM, molding, and laser trimming –
allowing our products to thrive in the harshest
environments.

THAT’S THE TURCK ADVANTAGE.

providing customers with



  engineered solutions

10 YEARS EXPERIENCE

Just to name a few....

ENGINEERED

SOLUTIONS

Engineered solutions for all application challenges

COMPLIMENTARY AUDITS

GREAT VALUE

WARRANTY

EXTENSIVE TESTING

Our products undergo

THE GOLD STANDARD

To continuously deliver solutions of only the highest
quality, we put our products through a rigorous set of
tests. These tests are in accordance with national and
international standards such as IEC and UL to confirm
that they meet and exceed industry  standards, ensuring
their survivability and dependability in all applications.

INVENTORY

Point of Use

Get immediate access to Turck
products with your own on-
site Turck vending machine.



Convenient access can help
you save money while reducing
downtime by having your
products easily accessible at a
moment's notice.

NO MINIMUM

Ship 1 to 1 Million with

We understand that not
everyone needs 1,000 or
one million parts. We offer
flexible minimum orders to
ensure you get exactly the
number of parts you need.

built to last in the
harshest
environments

 • stainless steel

 • nickel plated brass

 • viton

 • rubber

 • gold

 • PUR/TPU/TPE

 • armored cable

 • washdown

 • extreme temperatures

  and more...

MATERIALS

Quality

At Turck, we consider it our job to help our
customers decrease failures and reduce
operation downtime.  That’s why we offer
a complimentary audit program. The audit
helps you identify, evaluate, and solve
problem areas where sensors and cordsets

are continually damaged or destroyed. This
reduction in downtime will save you costs,
ensuring you get the most out of your
production processes.

We have confidence in our products, and
believe you should too. All of our products
come with extensive warranties to assure
you that our products are not only built to

work, but built to last.  We also have 3,500+
application experts ready to support you
with any application issues that may arise.

TABLE OF CONTENTS

M8 Picofast®

C

M12 Eurofast®

D

1/2-20 Microfast®

E

7/8", 1” and 1 1/8" Minifast®

F

M16 Versafast®

G

M23 and M27 Multifast®

H

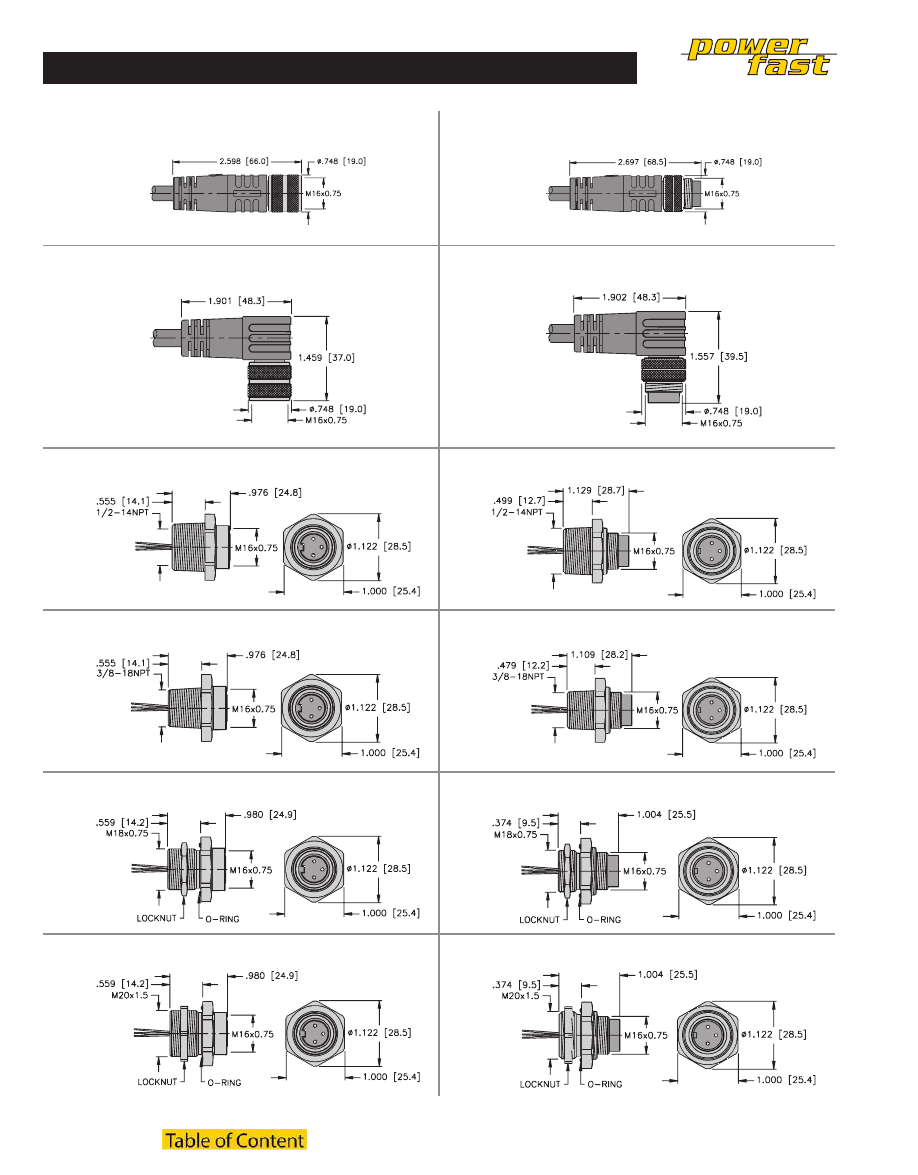

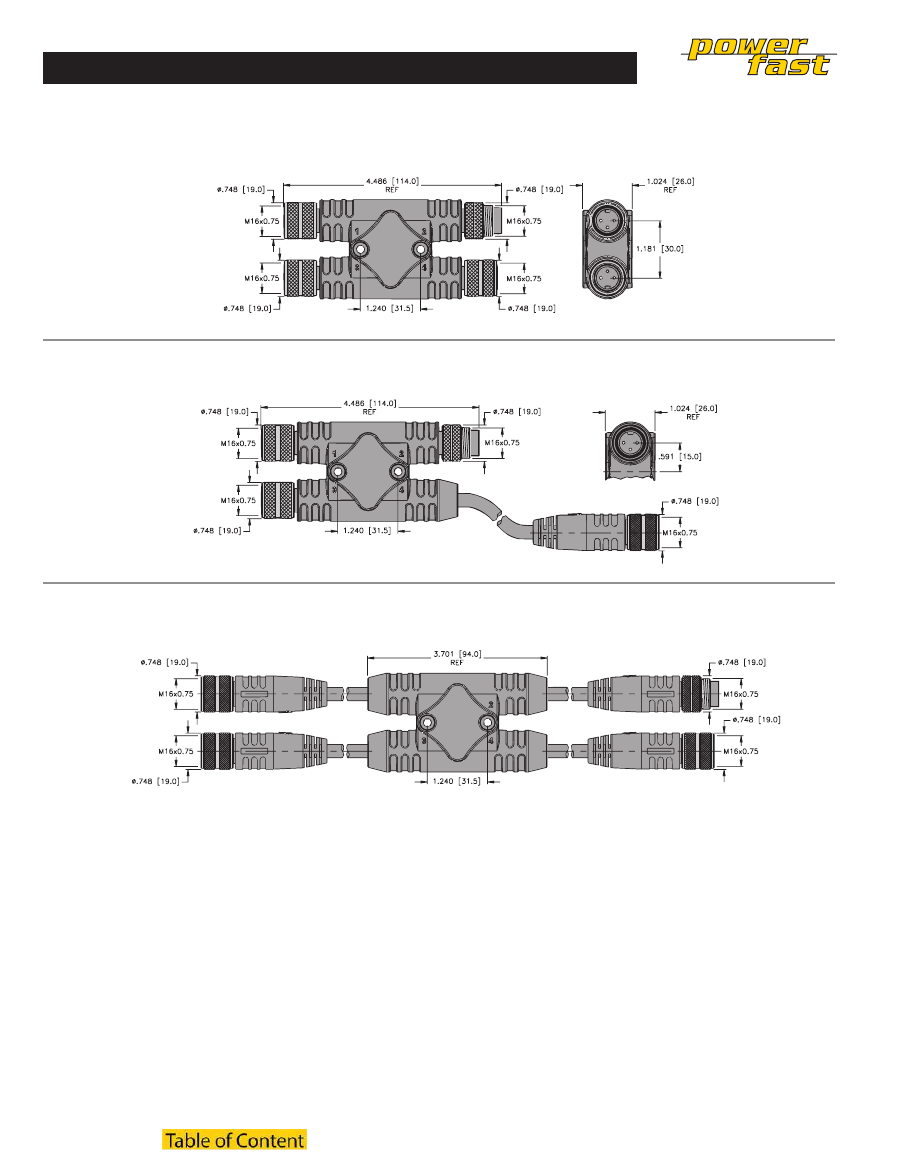

Powerfast

J

Ethernet

K

PROFINET

L

DeviceNet™

M

FOUNDATION™ fieldbus

N

PROFIBUS® -DP/PA

P

AS-interface®

R

Junction Box (Multibox®)

S

Valve Plugs

T

Accessories

U

Splitters

V

Reference

W

Index

Y



y

3, 4 and 6 pins



y

Threaded or snap mating



y

Nickel-brass or stainless steel materials



y

Straight and angled connectors



y

LED options



y

Receptacles with leads or PCB pins

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C1

M8

picofast

®

Connectivity

Features

y

3, 4 and 6 pins

y

Threaded or snap mating

y

Nickel-brass or stainless steel materials

y

Straight and angled connectors

y

LED options

y

Receptacles with leads or PCB pins

Part Number Keys

C2

Cordsets

C4

Receptacles

C16

Field Wireables

C24

Inserts

C28

Closure Caps

C31

pic

of

ast

®



www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C3

C2 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

M8

picofast

®

Connectivity

Insertion Point of Extension Cable and Second Prefix*

* Female connector listed first, male connector second

Example:

PKG 3M-2-PSG 3M

Length in Meters

M8 Picofast Cordset

Extension Examples:

Hybrid connector extensions also available. Consult factory.

Varieties

(blank)

=

PVC jacket

/S90

=

TPU jacket

/S90-SP

=

TPU coil cord

/S90/S101 =

TPU jacket, Flexlife-20

/S90/S618 =

TPU jacket with foil shield and drain wire

/S90/S653 =

TPU jacket with foil shield and drain wire

/S760

=

PVC black jacket

/S ..

=

consult factory, special

/CS ..

=

consult factory, special

LED Options

(blank) =

No LEDs

P7X2

=

2 LEDs with sourcing (PNP) signal and power

N7X2

=

2 LEDs with sinking (NPN) signal and power

Gender

K

=

female connector

S

=

male connector

Configuration

G

=

straight

W =

right angle

Coupling Nut (Threaded coupling nut only)

(blank) =

nickel plated brass

V

=

Stainless steel

S

=

Shielded to coupling nut

Number of Wires / AWG / Color Codes

3

=

3x24 AWG BN, BU, BK

4

=

4x26 AWG BN, BU, BK, WH

6

=

6x26 AWG BN, BU, BK, WH, GY, PK

Locking Method

(blank) =

male snap lock (no locking sleeve)

Z

=

female snap lock (locking sleeve)

M

=

M8x1 threaded coupling nut

F

=

fixed thread (3-pin male only)

P K G

3 Z - P7X2 *

/S..

Extension Examples:

Cordset Part Number Key

P K G

3M - 2 - P S G

3M

P K G

3M - 2 - P S W

3M

P K W

3M - 2 - P S G

3M

R K

4.4 T - 2 - P K G

4M

Part Number Keys are to assist in IDENTIFICATION ONLY. Consult factory for catalog items not identified.

Hybrid connector extensions also available. Consult factory.

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C3

M8

picofast

®

Connectivity

Number of Wires / AWG / Color Codes

3

=

3x26 AWG

BN, BU, BK

4

=

4x26 AWG

BN, BU, BK, WH

6

=

6x26 AWG

BN, BU, BK, WH, GY, PK

Connection Type / Length in Meters

PCB

=

PCB pins

PCBF =

PCB pins

Mounting Style

(blank) =

front mount (rear thread and locknut)

F

=

rear mount (front thread and locknut)

Designator for Receptacle

M8 Picofast Receptacle

M

=

straight

WM =

right angle (PCB pins)

Gender

K

=

female connector

S

=

male connector

Connection Type

(blank) =

snap lock

S

=

threaded

SH

=

threaded and mounting bracket

SHL

=

threaded and long mounting bracket

Field Wireable Type

B

=

standard field wireable

Gender

(Blank) =

female connector

S

=

male connector

M8 Picofast Field Wireable

Housing Style

1

=

straight

2

=

right angle

Cable Option

0

=

no cable

Termination

1

=

threaded connector

2

=

snap lock

3

=

threaded with screw terminal

6

=

IDC

Number of Pins

3

=

3

4

=

4

M F K  S

3 F - *

B S

5 1 3 1 - 0

Receptacle Part Number Key

Field Wireable Part Number Key

pic

of

ast

®



Part Number Keys are to assist in IDENTIFICATION ONLY. Consult factory for catalog items not identified.



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection



y

125 V, 4 A

C4 B2007

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C5

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 5, 6, 8 and 10 meters.

Locking sleeve material is POM..”PKG..Z”.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

PKG ..Z**

PKG 3Z-*

PKW 3Z-*

PSG 3-*

PSW 3-*

AWM, PVC Yellow, 3x24
AWG, 105 °C, 4.4 mm OD,
Cable #RF50642-*M,
Flexlife®

1. BN
3. BU
4. BK

Female

PKG 3Z-*/S90

PKW 3Z-*/S90

PSG 3-*/S90

PSW 3-*/S90

AWM, TPU Black, 3x24
AWG, 90 °C, 4.2 mm OD,
Cable #RF50587-*M,
Cut/Abrasion Immune

PKW ..Z**

PKG 3Z-*/S90/S101

PKW 3Z-*/S90/S101

PSG 3-*/S90/S101

PSW 3-*/S90/S101

AWM, TPU Black, 3x24
AWG, 90 °C, 4.4 mm OD,
Cable #RF51166-*M,
Cut/Abrasion Immune,
Flexlife-20, High Flex - Over
20 Million Cycles

PSG ..

Male

PKG 3Z-*/S90/S618

PKW 3Z-*/S90/S618

PSG 3-*/S90/S618

PSW 3-*/S90/S618

AWM, TPU Black, 3x24
AWG, 90 °C, 4.2 mm OD,
Cable #RF50601-*M, Cut/
Abrasion Immune, EMI/RFI
Protection

PSW ..

PKG 3Z-*/S760

PKW 3Z-*/S760

PSG 3-*/S760

PSW 3-*/S760

AWM, PVC Black, 3x24
AWG, 105 °C, 4.2 mm OD,
Cable #RF50585-M, Flexlife

M8

picofast

®

Connectivity

3-Wire Cordsets, Snap Lock (Locking Sleeve)



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection



y

125 V, 2 A

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C5

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 5, 6, 8 and 10 meters.

Locking sleeve material is POM..”PKG..Z”.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

PKG ..Z**

PKG 4Z-*

PKW 4Z-*

PSG 4-*

PSW 4-*

AWM, PVC Yellow, 4x26
AWG, 105 °C, 4.4 mm OD,
Cable #RF50697-*M,
Flexlife®

1. BN
2. WH
3. BU
4. BK

Female

PKG 4Z-*/S90

PKW 4Z-*/S90

PSG 4-*/S90

PSW 4-*/S90

AWM, TPU Black, 4x26
AWG, 90 °C, 4.2 mm OD,
Cable #RF50586-*M,
Cut/Abrasion Immune

PKW ..Z**

PKG 4Z-*/S90/S101

PKW 4Z-*/S90/S101

PSG 4-*/S90/S101

PSW 4-*/S90/S101

AWM, TPU Black, 4x26
AWG, 90 °C, 4.4 mm OD,
Cable #RF50935-*M,
Cut/Abrasion Immune,
Flexlife-20, High Flex - Over
20 Million Cycles

PSG ..

PKG 4Z-*/S90/S618

PKW 4Z-*/S90/S618

PSG 4-*/S90/S101

PSW 4-*/S90/S101

AWM, TPU Black, 4x26
AWG, 90 °C, 4.2 mm OD,
Cable #RF50602-*M,
Cut/Abrasion Immune,
EMI/RFI Protection

Male

PKG 4Z-*/S760

PKW 4Z-*/S760

PSG 4-*/S760

PSW 4-*/S760

AWM, PVC Black, 4x26
AWG, 105 °C, 4.4 mm OD,
Cable #RF50870-*M,
Flexlife

PSW ..

PKG 4Z-*/S90/S653

PKW 4Z-*/S90/S653

PSG 4-*/S90/S653

PSW 4-*/S90/S653

AWM, TPU Black, 3x24
AWG, 90 °C, 4.2 mm OD,
Cable #RF50601-*M,
Cut/Abrasion Immune,
EMI/RFI Protection

1. BN
2. Drain
3. BU
4. BK

M8

picofast

®

Connectivity

4-Wire Cordsets, Snap Lock (Locking Sleeve)

Cor

dsets



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection



y

125 V, 2 A

C6 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C7

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 5, 6, 8 and 10 meters.

Locking sleeve material is POM..”PKG..Z”.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

PKG ..Z**

PKG 6Z-*

PKW 6Z-*

PSG 6-*

PSW 6-*

AWM, PVC Yellow, 6x26
AWG, 105 °C, 4.5 mm OD,
Cable #RF50734-*M,
Flexlife

®,

UL Listed

1. BN
2. WH
3. BU
4. BK
5. GY
6. PK

Female

PKW ..Z**

PKG 6Z-*/S90

PKW 6Z-*/S90

PSG 6-*/S90

PSW 6-*/S90

AWM, TPU Black, 6x26
AWG, 90 °C, 4.2 mm OD,
Cable #RF50735-*M,
Cut/Abrasion Immune

PSG ..

PKG 6Z-*/S90/S618

PKW 6Z-*/S90/S618

PSG 6-*/S90/S618

PSW 6-*/S90/S618

AWM, TPU Black, 6x26
AWG, 90 °C, 4.2 mm OD,
Cable #RF51144-M,
Cut/Abrasion Immune
EMI/RFI Protection

Male

PSW ..

PKG 6Z-*/S760

PKW 6Z-*/S760

PSG 6-*/S760

PSW 6-*/S760

AWM, PVC Black, 6x26
AWG, 105 °C, 4.5 mm OD,
Cable #RF51083-*M,
Flexlife

,

UL Listed

M8

picofast

®

Connectivity

6-Wire Cordsets, Snap Lock (Locking Sleeve)



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection



y

125 V, 4 A

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C7

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 5, 6, 8 and 10 meters.

Standard coupling material is nickel plated brass..”PKG..M”; “PKGV..M” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

PKG ..Z**

PKG 3M-*

PKW 3M-*

PSG 3M-*

PSW 3M-*

AWM, PVC Yellow, 3x24
AWG, 105 °C, 4.4 mm OD,
Cable #RF50642-*M,
Flexlife

®

1. BN
3. BU
4. BK

Female

PKG 3M-*/S90

PKW 3M-*/S90

PSG 3M-*/S90

PSW 3M-*/S90

AWM, TPU Black, 3x24
AWG, 90 °C, 4.2 mm OD,
Cable #RF50587-*M,
Cut/Abrasion Immune

PKW ..M**

PKG 3M-*/S90/S101

PKW 3M-*/S90/S101

PSG 3M-*/S90/S101

PSW 3M-*/S90/S101

AWM, TPU Black, 3x24
AWG, 90 °C, 4.4 mm OD,
Cable #RF51166-*M,
Cut/Abrasion Immune,
Flexlife-20, High Flex - Over
20 Million Cycles

PKG 3M-*/S90/S618

PKW 3M-*/S90/S618

PSG 3M-*/S90/S618

PSW 3M-*/S90/S618

AWM, TPU Black, 3x24
AWG, 90 °C, 4.2 mm OD,
Cable #RF50601-*M, Cut/
Abrasion Immune, EMI/RFI
Protection

PSG .. M**

Male

PKG 3M-*/S1587

PKW 3M-*/S1587

PSG 3M-*/S1587

PSW 3M-*/S1587

AWM, TPE Yellow, 3x24
AWG, 105 °C, 4.4 mm OD,
Cable #RF51271-*M,
Weldlife

®

, Weld Flash

Immune

PSW .. M**

PKG 3M-*/S760

PKW 3M-*/S760

PSG 3M-*/S760

PSW 3M-*/S760

AWM, PVC Black, 3x24
AWG, 4.2 mm OD, Cable
#RF50585-M, Flexlife

1. BN
3. BU
4. Drain

PKG 3M-*/S90/S1084

PKW 3M-*/S90/S1084

PSG 3M-*/S90/S1084

PSW 3M-*/S90/S1084

AWM, TPU Black, 2x24
AWG, 90 °C, 4.2 mm OD,
Cable #RF51197-*M,
Cut/Abrasion Immune,
Shielded

1. BN
3. BU
4. BK

PSG 3F .. **

PSG 3F-*

AWM, PVC Yellow, 3x24
AWG, 105 °C, 4.4 mm OD,
Cable #RF50642-*M, Fixed
coupling nut

M8

picofast

®

Connectivity

3-Wire Cordsets, Threaded Coupling Nut

Cor

dsets

C8 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C9



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection



y

125 V, 4 A

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 5, 6, 8 and 10 meters.

Standard coupling material is nickel plated brass..”PKG..M”; “PKGV..M” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

PKG ..M**

PKG 4M-*

PKW 4M-*

PSG 4M-*

PSW 4M-*

AWM PVC Yellow, 4x26
AWG, 105 °C, 4.4 mm OD,
Cable #RF50697-*M,
Flexlife

®

1. BN
2. WH
3. BU
4. BK

Female

PKG 4M-*/S90

PKW 4M-*/S90

PSG 4M-*/S90

PSW 4M-*/S90

AWM TPU Black, 4x26
AWG, 90 °C, 4.2 mm OD,
Cable #RF50586-*M,
Cut/Abrasion Immune

PKW ..M**

PKG 4M-*/S90/S101

PKW 4M-*/S90/S101

PSG 4M-*/S90/S101

PSW 4M-*/S90/S101

AWM TPU Black, 4x26
AWG, 90 °C, 4.4 mm OD,
Cable #RF50935-*M,
Cut/Abrasion Immune,
Flexlife-20, High Flex - Over
20 Million Cycles

PSG .. M**

PKG 4M-*/S90/S618

PKW 4M-*/S90/S618

PSG 4M-*/S90/S618

PSW 4M-*/S90/S618

AWM TPU Black, 4x26
AWG, 90 °C, 4.2 mm OD,
Cable #RF50602-*M, Cut/
Abrasion Immune, EMI/RFI
Protection

Male

PKG 4M-*/S760

PKW 4M-*/S760

PSG 4M-*/S760

PSW 4M-*/S760

AWM PVC Black, 4x26
AWG, 105 °C, 4.4 mm OD,
Cable #RF50870-*M,
Flexlife

PSW .. M**

PKG 4M-*/S90/S653

PKW 4M-*/S90/S653

PSG 4M-*/S90/S653

PSW 4M-*/S90/S653

AWM TPU Black, 3x24
AWG, 90 °C, 4.2 mm OD,
Cable #RF50601-*M, Cut/
Abrasion Immune, EMI/RFI
Protection

1. BN
2. Drain
3. BU
4. BK

M8

picofast

®

Connectivity

4-Wire Cordsets, Threaded Coupling Nut



y

 NEMA 1, 3, 4, 6P



y

IEC IP67 Protection



y

125 V, 2 A

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C9

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 5, 6, 8 and 10 meters.

Standard coupling material is nickel plated brass..”PKG..M”; “PKGV..M” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

PKG ..M**

PKG 6M-*

PKW 6M-*

PSG 6M-*

PSW 6M-*

AWM PVC Yellow, 6x26
AWG, 105 °C, 4.5 mm OD,
Cable #RF50734-*M,
Flexlife

®,

UL Listed

1. BN
2. WH
3. BU
4. BK
5. GY
6. PK

Female

PKW ..M**

PKG 6M-*/S90

PKW 6M-*/S90

PSG 6M-*/S90

PSW 6M-*/S90

AWM TPU Black, 6x26
AWG, 90 °C, 4.2 mm OD,
Cable #RF50735-*M,
Cut/Abrasion Immune

PSG .. M**

PKG 6M-*/S760

PKW 6M-*/S760

PSG 6M-*/S760

PSW 6M-*/S760

AWM PVC Black, 6x26
AWG, 105 °C, 4.5 mm OD,
Cable #RF51083-*M,
Flexlife

,

UL Listed

Male

PSW .. M**

PKG 6M-*/S90/S618

PKW 6M-*/S90/S618

PSG 6M-*/S90/S618

PSW 6M-*/S90/S618

AWM TPU Black, 6x26
AWG, 90 °C, 4.2 mm OD,
Cable #RF51144-*M, Cut/
Abrasion Immune EMI/RFI
Protection

M8

picofast

®

Connectivity

6-Wire Cordsets, Threaded Coupling Nut

Cor

dsets



y

Shield to Coupling Nut



y

IEC IP67 Protection



y

125 V, 4 A (3-pin), 2 A (4-pin)

C10 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C11

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling material is nickel plated brass.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

PKG ..M**

PKGS 3M-*

PKWS 3M-*

PSGS 3M-*

PSWS 3M-*

AWM, PVC Yellow, 3x24
AWG, 105 °C, 5.1 mm OD,
Cable #RF51422-*M,
RFI/EMI Shielding Tied to
Coupling Nut

1. BN
3. BU
4. BK

Female

PKW ..M**

PKGS 3M-*/S90

PKWS 3M-*/S90

PSGS 3M-*/S90

PSWS 3M-*/S90

AWM, TPU Black, 3x24
AWG, 90 °C, 5.1 mm OD,
Cable #RF51423-*M,
RFI/EMI Shielding Tied to
Coupling Nut

Male

PSG .. M**

PKGS 4M-*

PKWS 4M-*

PSGS 4M-*

PSWS 4M-*

AWM, PVC Yellow, 4x26
AWG, 105 °C, 5.1 mm OD,
Cable #RF51424-*M,
RFI/EMI Shielding Tied to
Coupling Nut

1. BN
2. WH
3. BU
4. BK

Female

PSW .. M**

PKGS 4M-*/S90

PKWS 4M-*/S90

PSGS 4M-*/S90

PSWS 4M-*/S90

AWM, TPU Black, 4x26
AWG, 90 °C, 5.1 mm OD,
Cable #RF51425-*M,
RFI/EMI Shielding Tied to
Coupling Nut

Male

M8

picofast

®

Connectivity

3 and 4-Wire Cordsets, Threaded Coupling Nut, Shielded



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection



y

10-30 VDC, 4 A (3-pin), 2 A (4-pin)

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C11

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters.

Locking sleeve material is POM..”PKW..Z”.

Connector Style

Female Part Number

Features

Pinout

PKW ..Z**

PKW 3Z-P7X2-*

AWM PVC Yellow, 3x24 AWG, 105 °C, 4.4 mm
OD, Cable #RF50642-*M, PNP Signal, Flexlife

®

1. BN
3. BU
4. BK

Female

PKW 3Z-P7X2-*/S90

AWM TPU Black, 3x24 AWG, 90 °C, 4.2 mm OD,
Cable #RF50587-*M, PNP Signal, Cut/Abrasion
Immune

PKW 3Z-P7X2-*/S90/S618

AWM TPU Black, 3x24 AWG, 90 °C, 4.2 mm OD,
Cable #RF50601-*M, PNP Signal, Cut/Abrasion
Immune, EMI/RFI Protection

PKW 3Z-P7X2-*/S90/S101

AWM TPU Black, 3x24 AWG, 90 °C, 4.4 mm
OD, Cable #RF51166-*M, PNP Signal, Cut/
Abrasion Immune, Flexlife-20, High Flex - over
20 Million Cycles

PKW 3Z-N7X2-*

AWM PVC Yellow, 3x24 AWG, 105 °C, 4.4 mm
OD, Cable #RF50642-*M, NPN Signal, Flexlife

PKW 3Z-N7X2-*/S90

AWM TPU Black, 3x24 AWG, 90 °C, 4.2 mm OD,
Cable #RF50587-*M, NPN Signal, Cut/Abrasion
Immune

PKW 3Z-N7X2-*/S90/S618

AWM TPU Black, 3x24 AWG, 90 °C, 4.2 mm OD,
Cable #RF50601-*M, NPN Signal, Cut/Abrasion
Immune, EMI/RFI Protection

PKW 3Z-N7X2-*/S90/S101

AWM TPU Black, 3x24 AWG, 90 °C, 4.4 mm OD,
Cable #RF51166-*M, NPN Signal, Cut/Abra-
sion Immune, Flexlife-20, High Flex - over 20
Million Cycles

PKW 4Z-P7X2-*

AWM PVC Yellow, 4x26 AWG, 105 °C, 4.4 mm
OD, Cable #RF50697-*M, PNP Signal, Flexlife

1. BN
2. WH
3. BU
4. BK

Male

PKW 4Z-P7X2-*/S90

AWM TPU Black, 4x26 AWG, 90 °C, 4.2 mm OD,
Cable #RF50586-*M, PNP Signal, Cut/Abrasion
Immune

PKW 4Z-P7X2-*/S90/S101

AWM TPU Black, 4x26 AWG, 90 °C, 4.4 mm
OD, Cable #RF50935-*M, PNP Signal,  Cut/
Abrasion Immune, Flexlife-20, High Flex - Over
20 Million Cycles

M8

picofast

®

Connectivity

3 and 4-Wire Cordsets, with LEDs, Snap Lock (Locking Sleeve)

Cor

dsets

C12 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C13



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection



y

10-30 VDC, 4 A

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling material is nickel plated brass.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

PKW ..M**

PKW 3M-P7X2-*

PSW 3M-P7X2-*

AWM PVC Yellow, 3x24
AWG, 105 °C, 4.4 mm OD,
Cable #RF50642-*M, PNP
Signal, Flexlife

®

1. BN
3. BU
4. BK

Female

PKW 3M-P7X2-*/S90

PSW 3M-P7X2-*/S90

AWM TPU Black, 3x24
AWG, 90 °C, 4.2 mm OD,
Cable #RF50587-*M, PNP
Signal, Cut/Abrasion
Immune

PKW 3M-P7X2-*/S90/S101 PSW 3M-P7X2-*/S90/S101

AWM TPU Black, 3x24
AWG, 90 °C, 4.4 mm OD,
Cable #RF51166-*M, PNP
Signal, Cut/Abrasion
Immune, Flexlife-20,
High Flex - over 20
Million Cycles

PKW 3M-P7X2-*/S90/S618

AWM TPU Black, 3x24
AWG, 90 °C, 4.2 mm
OD, Cable #RF50601-
*M, PNP Signal, Cut/
Abrasion Immune, EMI/
RFI Protection

PSW .. M**

PKW 3M-N7X2-*

AWM PVC Yellow, 3x24
AWG, 105 °C, 4.4 mm OD,
Cable #RF50642-*M, NPN
Signal, Flexlife

PKW 3M-N7X2-*/S90

AWM TPU Black, 3x24
AWG, 90 °C, 4.2 mm OD,
Cable #RF50587-*M, NPN
Signal, Cut/Abrasion
Immune

PKW 3M-N7X2-*/S90/S101

AWM TPU Black, 3x24
AWG, 90 °C, 4.4 mm OD,
Cable #RF51166-*M, NPN
Signal, Cut/Abrasion
Immune, Flexlife-20, High
Flex - over 20 Million
Cycles

PKW 3M-N7X2-*/S90/S618

AWM TPU Black, 3x24
AWG, 90 °C, 4.2 mm OD,
Cable #RF50601-*M, NPN
Signal, Cut/Abrasion
Immune, EMI/RFI
Protection

M8

picofast

®

Connectivity

3 and 4-Wire Cordsets, Threaded Coupling Nut, Shielded

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C13



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection



y

10-30 VDC, 2 A

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters.

Locking sleeve material is POM..”PKW..Z”.

Connector Style

Female Part Number

Features

Pinout

PKW ..Z**

PKW 4M-P7X2-*

AWM PVC Yellow, 4x26 AWG, 105 °C, 4.4 mm
OD, Cable #RF50697-*M, PNP Signal, Flexlife

®

1. BN
2. WH
3. BU
4. BK

Female

PKW 4M-P7X2-*/S90

AWM TPU Black, 4x26 AWG, 90 °C, 4.2 mm
OD, Cable #RF50586-*M, PNP Signal, Cut/
Abrasion Immune

PKW 4M-P7X2-*/S90/S101

AWM TPU Black, 4x26 AWG, 90 °C, 4.4 mm
OD, Cable #RF50935-*M, PNP Signal, Cut/
Abrasion Immune, Flexlife-20, High Flex -
over 20 Million Cycles

PKW 4M-P7X2-*/S90/S618

AWM TPU Black, 4x26 AWG, 90 °C, 4.2 mm
OD, Cable #RF50602-*M, PNP Signal, Cut/
Abrasion Immune, EMI/RFI Protection

M8

picofast

®

Connectivity

4-Wire Cordsets, with LEDs, Threaded Coupling Nut

Cor

dsets

C14 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C15



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection



y

125 V, 4 A (3-pin) and 2 A (4-pin)

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable length is 3 meters. Consult factory for other lengths.

Locking sleeve material is POM..”PKG(W)..Z”.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

PKG ..Z**

PKG 3Z-3/S90-SP

PKW 3Z-3/S90-SP

PSG 3-3/S90-SP

PSW 3-3/S90-SP

AWM TPU Black, 4x26
AWG, 90 °C, 125 VAC/
VDC, 4 A, 4.2 mm OD, for
repetitive motion 3-wire
applications, snap lock
coupling nut

1. BN
3. BU
4. BK

Female

PKW ..Z**

Male

PSG ..

PKG 4Z-3/S90-SP

PKW 4Z-3/S90-SP

PSG 4-3/S90-SP

PSW 4-3/S90-SP

AWM TPU Black, 4x26
AWG, 90 °C, 125 VAC/
VDC, 2 A, 4.2 mm OD, for
repetitive motion 4-wire
applications, snap lock
coupling nut

1. BN
2. WH
3. BU
4. BK

Female

PSW ..

Male

3 and 4-Wire Spiral Cordsets, Snap Lock (Locking Sleeve)

M8

picofast

®

Connectivity

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C15

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable length is 3 meters. Consult factory for other lengths.

Locking sleeve material is POM..”PKW..Z”.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

PKG ..Z**

PKG 3M-3/S90-SP

PKW 3M-3/S90-SP

PSG 3M-3/S90-SP

PSW 3M-3/S90-SP

AWM TPU Black, 4x26
AWG, 90 °C, 125 VAC/
VDC, 4 A, 4.2 mm OD, for
repetitive motion 3-wire
applications, threaded
coupling nut

1. BN
3. BU
4. BK

Female

PKW ..Z**

Male

PKG 4M-3/S90-SP

PKW 4M-3/S90-SP

PSG 4M-3/S90-SP

PSW 4M-3/S90-SP

AWM TPU Black, 4x26
AWG, 90 °C, 125 VAC/
VDC, 2 A, 4.2 mm OD, for
repetitive motion 4-wire
applications, threaded
coupling nut

1. BN
2. WH
3. BU
4. BK

Female

Male

PSW ..

PSG ..



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection



y

125 VAC/VDC, 4 A (3-pin) and
2 A (4-pin)

3 and 4-Wire Spiral Cordsets, Threaded Coupling Nut

M8

picofast

®

Connectivity

Cor

dsets

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C17

C16 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

Mounting Style


Panel Thread Types

Page

Front Mount

M8

C17

Rear Mount

M8

C18

7/16-20 with Solder Cups

C22

PCB Mount

M8 with PCB Pins

C19

7/16-20 with Header Pins

C19

M8 with Header Pins

C20

Receptacle Selection Guide

M8

picofast

®

Connectivity

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C17

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

* Length in meters. Standard lead length is 0.2 meters. Consult factory for other lengths.

Standard housing material is nickel plated brass .. “MFK(S)..”; “MFK(S)V..” indicates stainless steel.

Housing Style

Female Part Number

Male Part Number

Features

Pinout

Typical panel cutout is 8.2 mm

MFKS ..

MFKS 3-*

3x24  AWG, 105 °C,
125 V, 4 A, mates with
3-pin threaded female
cordsets

1. BN
3. BU
4. BK

Female

MFS 3-*

3x24  AWG, 105 °C, 125 V,
4 A, mates with 3-pin snap
lock female cordsets

Male

MFKS 4-*

4x24 AWG, 105 °C, 125 V,
4 A, mates with 4-pin
threaded female cordsets

1. BN
2. WH
3. BU
4. BK

Female

Typical panel cutout is 8.2 mm

MFS ..

MFS 4-*

4x24 AWG, 105 °C, 125 V,
4 A, mates with 4-pin snap
lock female cordsets

Male

MFKS 6-*

6x24 AWG, 105 °C, 125 V,
2 A, mates with 6-pin
threaded female cordsets

1. BN
2. WH
3. BU
4. BK
5. GY
6. PK

Female

MFS 6-*

6x24 AWG, 105 °C, 125 V,
2 A, mates with 6-pin snap
lock female cordsets

Male



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection

3, 4 and 6-Wire Receptacles, Front Mount

M8

picofast

®

Connectivity

Rec

eptacles

C18 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C19



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

* Length in meters. Standard lead length is 0.2 meters. Consult factory for other lengths.

Standard housing material is nickel plated brass .. “MFS(S)..”; “MFS(S)V..” indicates stainless steel.

Housing Style

Male Part Number

Features

Pinout

MFS ..F..

Typical panel cutout is 8.2 mm

MFS 3F-*

3x24 AWG, 105 °C, 125 V, 4 A, mates with
3-pin snap lock or threaded female cordsets,
rear mount

1. BN
3. BU
4. BK

Male

MFS 4F-*

4x24 AWG, 105 °C, 125 V, 4 A, mates with
4-pin snap lock or threaded female cordsets,
rear mount

1. BN
2. WH
3. BU
4. BK

Male

MFS 6F-*

6x24 AWG, 105 °C, 125 V, 2 A, mates with
6-pin snap lock or threaded female cordsets,
rear mount

1. BN
2. WH
3. BU
4. BK
5. GY
6. PK

Male

MFSS ..

Typical panel cutout is 8.2 x 7.1 mm

MFSS 3-*

3x24 AWG, 105 °C, 125 V, 4 A, mates with
3-pin snap lock or threaded female cordsets,
front mount

1. BN
3. BU
4. BK

Male

MFSS 4-*

4x24 AWG, 105 °C, 125 V, 4 A, mates with
4-pin snap lock or threaded female cordsets,
front mount

1. BN
2. WH
3. BU
4. BK

Male

MFSS 6-*

4x24 AWG, 105 °C, 125 V, 4 A, mates with
4-pin snap lock or threaded female cordsets,
front mount

1. BN
2. WH
3. BU
4. BK
5. GY
6. PK

Male

M8

picofast

®

Connectivity

3, 4 and 6-Wire Receptacles, Rear Mount



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C19

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

Standard housing material is nickel plated brass.

Housing Style

Female Part Number

Features

Pinout

MFKS .. F-PCBF

MFKS 3F-PCBF

PCB Pins, 85 °C, 60 V, 4 A, mates with 3-pin threaded
male cordsets

Female

MFKS 4F-PCBF

PCB Pins, 85 °C, 30 V, 4 A, mates with 4-pin threaded
male cordsets

Female

WMFK .. F-PCB

WMFK 3F-PCB

PCB Pins, 80 °C, 60 VAC/75 VDC, 4 A, mates with 3-pin
threaded male cordsets

Female

WMFK 4F-PCB

PCB Pins, 80 °C, 30 VAC/36 VDC, 4 A, mates with 4-pin
threaded male cordsets

Female

WMFK 6F-PCB

PCB Pins, 80 °C, 24 VDC, 1 A, mates with 6-pin threaded
male cordsets

Female

MFKS 3F-PCBF

MFKS 4F-PCBF

WMFK 3F-PCB

WMFK 4F-PCB

WMFK 6F-PCB

M8

picofast

®

Connectivity

3, 4 and 6-Pin Receptacles with PCB Pins

Rec

eptacles



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection

C20 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C21

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

Standard housing material is nickel plated brass.

Housing Style

Male Part Number

Features

Pinout

MFKS .. F-PCBF

WMFS 3-PCB

PCB Pins, 80 °C, 60 VAC/75 VDC, 4 A, mates with 3-pin
snap lock or threaded female cordsets

Male

WMFS 4-PCB

PCB Pins, 80 °C, 30 VAC/36 VDC, 4 A, mates with 4-pin
snap lock or threaded female cordsets

Male

WMFS 6-PCB

PCB Pins, 80 °C, 24 VDC, 1 A, mates with 6-pin snap lock
or threaded female cordsets

Male

WMFK .. F-PCB

WMFS 3F-PCB

PCB Pins, 80 °C, 75 VDC, 4 A, mates with 3-pin snap lock
or threaded female cordsets

Male

WMFS 4F-PCB

PCB Pins, 80 °C, 36 VDC, 4 A, mates with 4-pin snap lock
or threaded female cordsets

Male

WMFS 6F-PCB

PCB Pins, 80 °C, 24 VDC, 1 A, mates with 6-pin snap lock
or threaded female cordsets

Male

WMFS 3-PCB

WMFS 4-PCB

WMFS 6-PCB

WMFS 3F-PCB

WMFS 4F-PCB

WMFS 6F-PCB

M8

picofast

®

Connectivity

3, 4 and 6-Pin Receptacles with PCB Pins



y

IEC IP67 Protection

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C21

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

Standard housing material is nickel plated brass.

MFKSH 3F-PCB

MFKSHL 3F-PCB

WMFKSH 3F-PCB

MFKSH 4F-PCB

MFKSHL 4F-PCB

WMFKSH 4F-PCB

Housing Style

Female Part Number

Features

Pinout

MFKSH .. F-PCB

MFKSH 3F-PCB

PCB Pins, 85 °C, 60 V, 4 A, mates with 3-pin threaded
male cordsets

Female

MFKSH 4F-PCB

PCB Pins, 85 °C, 30 V, 4 A, mates with 4-pin threaded
male cordsets

Female

MFKSHL .. F-PCB

MFKSHL 3F-PCB

PCB Pins, Long Bracket, 85 °C, 60 V, 4 A, mates with
3-pin threaded male cordsets

Female

MFKSHL 4F-PCB

PCB Pins, Long Bracket, 85 °C, 30 V, 4 A, mates with
4-pin threaded male cordsets

Female

WMFKSH .. F-PCB

WMFKSH 3F-PCB

PCB Pins, 85 °C, 60 V, 4 A, mates with 3-pin threaded
male cordsets

Female

WMFKSH 4F-PCB

PCB Pins, 85 °C, 30 V, 4 A, mates with 4-pin threaded
male cordsets

Female

M8

picofast

®

Connectivity

3 and 4-Pin Receptacles with PCB Pins and Mounting Bracket

Rec

eptacles



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection

C22 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C23

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

Standard housing material is nickel plated brass.

Housing Style

Female Part Number

Features

Pinout

MFKS 3F

Solder Cups, accepts up to 22 AWG conductors, 80 °C,
125 V, 4 A, mates with 3-pin threaded male cordsets

Female

MFKS .. F

MFKS 4F

Solder Cups, accepts up to 22 AWG conductors, 80 °C,
125 V, 2 A, mates with 4-pin threaded male cordsets

Female

MFKS 6F

Solder Cups, accepts up to 24 AWG conductors, 80 °C,
125 V, 2 A, mates with 6-pin threaded male cordsets

Female

M8

picofast

®

Connectivity

3, 4 and 6-Pin Receptacles, Rear Mount with Solder Cups



y

Female to Male Receptacles



y

NEMA 1, 3, 4, 6P



y

IEC IP67 Protection

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C23

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

Standard housing material is nickel plated brass.

Housing Style

Part Number

Features

Pinout

MFSV MFKV ..

MFSV MFKV 3/M8

3-conductor, 80 °C, 125 V, 4 A, mates
with 3-pin threaded cordsets

Female

Male

MFSV MFKV 4/M8

4-conductor, 80 °C, 125 V, 2 A, mates
with 4-pin threaded cordsets

Female

Male

MFSV MFKV ..

MFSV MFKV 6/M8

6-conductor, 80 °C, 125 V, 2 A, mates
with 6-pin threaded cordsets

Female

Male

M8

picofast

®

Connectivity

3, 4 and 6-Pin Feed-Thru Receptacles

Rec

eptacles



y

IEC IP67 Protection

C24 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C25

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

Housing Style

Female Part Number

Male Part Number

Features

Pinout

B 513(4)1-0

B 5131-0

BS 5131-0

PBT, Black, accepts 3-5 mm cable
diameter, solder terminals, accepts
up to 24 AWG conductors, 85 °C, 60
VAC/75 VDC, 4 A, mates with 4-pin
threaded cordsets and receptacles

Female

Male

BS 513(4)1-0

B 5141-0

BS 5141-0

PBT, Black, accepts 3-5 mm cable
diameter, solder terminals, accepts
up to 24 AWG conductors, 85 °C, 30
VAC/36 VDC, 4 A, mates with 4-pin
threaded cordsets and receptacles

Female

Male

B 513(4)3-0

B 5133-0

BS 5133-0

PBT, Black, accepts 3-5 mm cable
diameter, screw terminals, accepts
up to 22 AWG conductors, 85 °C, 60
VAC/75 VDC, 4 A, mates with 3-pin
threaded cordsets and receptacles

Female

Male

BS 513(4)3-0

B 5143-0

BS 5143-0

PBT, Black, accepts 3-5 mm cable
diameter, screw terminals, accepts
up to 22 AWG conductors, 85 °C, 60
VAC/75 VDC, 4 A, mates with 4-pin
threaded cordsets and receptacles

Female

Male

M8

picofast

®

Connectivity

3 and 4-Pin Field Wireable Connectors, Standard



y

IEC IP67 Protection

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C25

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

Housing Style

Female Part Number

Male Part Number

Features

Pinout

BS 513(4)2-0

BS 5132-0

PBT, Black, accepts 3-5 mm cable
diameter, solder terminals, accepts
up to 26 AWG conductors, 85 °C,
60 VAC/75 VDC, 4 A, mates with
3-pin female snap-lock cordsets,
receptacles and junction boxes and
threaded cordsets

Male

BS 5142-0

PBT, Black, accepts 3-5 mm cable
diameter, solder terminals, accepts
up to 26 AWG conductors, 85 °C,
60 VAC/75 VDC, 2 A, mates with
3-pin female snap-lock cordsets,
receptacles and junction boxes and
threaded cordsets

Male

B 523(4)1-0

B 5231-0

BS 5231-0

PBT, Black, Accepts 3-5 mm cable
diameter, solder terminals, accepts
up to 24 AWG conductors, 85 °C, 60
VAC/75 VDC, 4 A, mates with 3-pin
threaded cordsets and receptacles

Female

Male

BS 523(4)1-0

B 5241-0

BS 5241-0

PBT, Black, accepts 3-5 mm cable
diameter, solder terminals, accepts
up to 24 AWG conductors, 85 °C, 30
VAC/36 VDC, 4 A, mates with 4-pin
threaded cordsets and receptacles

Female

Male

M8

picofast

®

Connectivity

3 and 4-Pin Field Wireable Connectors, Standard

Field W

ir

eables

C26 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C27

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

Housing Style

Female Part Number

Features

Pinout

B 513(4)6-0

B 5136-0

BS 5136-0

Nickel plated brass, accepts 4-5 mm
cable diameter, IDC, accepts 22-26
AWG conductors, 85 °C, 32 V, 4 A,
mates with 3-pin threaded cordsets
and receptacles

Female

Male

BS 513(4)6-0

B 5146-0

BS 5146-0

Nickel plated brass, accepts 4-5 mm
cable diameter, IDC, accepts 22-26
AWG conductors, 85 °C, 32 V, 4 A,
mates with 4-pin threaded cordsets
and receptacles

Female

Male



y

Insulation Displacement Technology



y

No Conductor Stripping Required



y

IEC IP67 Protection

3 and 4-Pin Field Wireable Connectors, IDC

M8

picofast

®

Connectivity



y

Enables Picofast and Eurofast Connectors

       to be interchanged



y

Eurofast Connection has Anti-vibration

       Coupling Nut



y

IEC IP67 Protection

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C27

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

Add “/S857” to the end of part description to specify addition of mounting hole.

Housing Style

Part Number

Features

Wiring Diagram

FKMR 4 ..

FKMR 4-ESM 3S

TPU body, 60 VAC/75 VDC, 4 A, 80 °C, female Eurofast,
male snap-lock Picofast connector, 3-pin

FKMR 4.4-ESM 4S

TPU body, 30 VAC/36 VDC, 4 A, 80 °C, female Eurofast,
male snap-lock Picofast connector, 4-pin

FKMR 4 ..

FSMR 4-SKM 3

TPU body, 60 VAC/75 VDC, 4 A, 80 °C, male Eurofast,
female threaded Picofast connector, 3-pin

FSMR 4.4-SKM 4

TPU body, 30 VAC/36 VDC, 4 A, 80 °C, male Eurofast,
female threaded Picofast connector, 4-pin

Pinouts

3-Pin Picofast

4-Pin Picofast

4-Pin Eurofast

3-Pin Picofast

4-Pin Picofast

4-Pin Eurofast

Female

Male

M8 Picofast to M12 Eurofast® Adapters

M8

picofast

®

Connectivity

Field W

ir

eables

C28 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C29

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

Housing Style

Female Part Number

Features

Pinout

ESM ..

ESM 3S (10/BAG)

Nylon, black, solder cup, accepts 26 AWG, 60 VAC/75
VDC, 4 A, 80 °C, 3-pin snap lock

Male

ESM 4S (10/BAG)

Nylon, black, solder cup, accepts 28 AWG, 30 VAC/36
VDC, 4 A, 80 °C, 4-pin snap lock

Male

ESM 6S (10/BAG)

Nylon, black, solder cup, accepts 26 AWG, 24 VDC, 1 A,
80 °C, 6-pin snap lock

Male

ESHM ..

ESHM 3L (10/BAG)

Nickel plated brass and nylon housing, solder cup,
accepts 26 AWG, 30 VAC/75 VDC, 4 A, 80 °C, 3-pin snap
lock clear body for LED

Male

ESHM 4L (10/BAG)

Nickel plated brass and nylon housing, solder cup,
accepts 26 AWG, 30 VAC/36 VDC, 4 A, 80 °C, 4-pin snap
lock clear body for LED

Male

ESHM 3P (10/BAG)

Nickel plated brass and nylon housing, PCB pin, 60
VAC/75 VDC, 4 A, 80 °C, 3-pin snap lock clear body for LED

Male

ESHM 4P (10/BAG)

Nickel plated brass and nylon housing, PCB pin, 30
VAC/36 VDC, 4 A, 80 °C, 4-pin snap lock clear body for LED

Male

Mounting Bore

(for male insert)

3-pin PCB Board Layout

4-pin PCB Board Layout

Connector Inserts



y

For use in Sensors and Custom Receptacles



y

Clear Body versions for use with Indicator LEDs



y

Solder Lug or Printed Circuit Pin mounting options

M8

picofast

®

Connectivity



y

For use in Sensors and Custom Receptacles



y

Clear Body versions for use with Indicator LEDs



y

Solder Lug or Printed Circuit Pin mounting options

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C29

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

Housing Style

Male Part Number

Features

Pinout

SESM ..

SESM 3S (10/BAG)

Nickel plated brass and nylon housing, solder cup, accepts
26 AWG, 60 VAC/75 VDC, 4 A, 80 °C, 3-pin snap lock or
threaded

Male

SESM 4S (10/BAG)

Nickel plated brass and nylon housing, solder cup, accepts
28 AWG, 30 VAC/36 VDC, 4 A, 80 °C, 4-pin snap lock or
threaded

Male

ESGM ..

ESGM 3L (10/BAG)

Nickel plated brass housing with clear nylon lens, solder
cup, accepts 26 AWG, 60 VAC/75 VDC, 4 A, 80 °C, 3-pin snap
lock or threaded, clear lens for LED

Male

ESGM 4L (10/BAG)

Nickel plated brass housing with clear nylon lens, solder
cup, accepts 26 AWG, 30 VAC/36 VDC, 4 A, 80 °C, 4-pin
snap lock or threaded, clear lens for LED

Male

ESGM 3P (10/BAG)

Nickel plated brass housing with clear nylon lens, PCB
pin, 60 VAC/75 VDC, 4 A, 80 °C, 3-pin snap lock or threaded,
clear lens for LED

Male

ESGM 4P (10/BAG)

Nickel plated brass housing with clear nylon lens, PCB
pin, 30 VAC/36 VDC, 4 A, 80 °C, 4-pin snap lock or threaded,
clear lens for LED

Male

Mounting Bore

(for male insert)

3-pin PCB Board Layout

4-pin PCB Board Layout

M8

picofast

®

Connectivity

Connector Inserts

A

cc

essories

C30 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 C31

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

3-pin PCB Board Layout

4-pin PCB Board Layout

Housing Style

Female Part Number

Features

Pinout

MFK ..

MFK 3 (10/BAG)

TPU housing, black, PCB pins, 60 VAC/75 VDC, 4 A, 80 °C,
3-pin snap lock

Female

MFK 4 (10/BAG)

TPU housing, black, PCB pins, 30 VAC/36 VDC, 4 A, 80 °C,
4-pin snap lock

MFKB ..

MFKB 3 (10/BAG)

TPU housing, black, PCB pins, 60 VAC/75 VDC, 4 A, 80 °C,
3-pin snap lock

Female

MFKB 4 (10/BAG)

TPU housing, black, PCB pins, 30 VAC/36 VDC, 4 A, 80 °C,
4-pin snap lock

MFKB 3L (10/BAG)

TPU housing, black, solder cups, 60 VAC/75 VDC 4 A, 80 °C,
3-pin snap lock, accepts 24 AWG

MFKB 4L (10/BAG)

TPU housing, black, solder cups, 30 VAC/36 VDC 4 A, 80 °C,
4-pin snap lock, accepts 24 AWG



y

For use in Sensors and Custom Receptacles



y

Clear Body versions for use with Indicator LEDs



y

Female Inserts



y

Solder Lug or Printed Circuit Pin mounting options

Connector Inserts

M8

picofast

®

Connectivity

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C31

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

Housing Style

Part Number

Features

PSGK-MC (8/BAG)

Nylon, Mates to female snap lock cordsets, receptacles and junction boxes

PSGM-CC (8/BAG)

Nylon, Mates to female threaded cordsets, receptacles and junction boxes

PSG-CC

Nickel plated brass, Mates to female threaded cordsets, receptacles and junction
boxes

PSG-MC

Nickel plated brass, Mates to female threaded cordsets, receptacles and junction
boxes

PKG-CC

Nickel plated brass, Mates to male threaded cordsets, receptacles and junction
boxes

PKG-MC

Nickel plated brass, Mates to male threaded cordsets, receptacles and junction
boxes

Closure Caps



y

For use with Cordsets, Receptacles
and Junction Boxes

M8

picofast

®

Connectivity

A

cc

essories

C32 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

M8 Picofast “Snap Lock” Connector Instructions

UNLOCK

With Turck’s patented Locking Sleeve pulled back,
any Picofast sensor slides on without any difficulty.

After sensor is connected, push Locking Sleeve forward
to create a watertight connection. It’s a snap!

LOCK

Installation Instructions

To Attach:

To Detach:

1.  Be sure black locking

sleeve is pulled back.

2.  Line up pins and push

connector onto plug. You

will feel a “snap.” Do not

twist.

3.  Push locking sleeve

forward on connector until

it is flush with the front of

the connector.

4.  If sleeve is difficult to

slide on a new connector,

“exercise” it a few times. Do

not use tools.

1. Do not twist.

2. Pull locking sleeve back to

“unlocked” position.

3. Pull connector straight off.

4. Leave locking sleeve in

unlocked position.

M8

picofast

®

Connectivity

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 C33

M8

picofast

®

Connectivity

Notes

pic

of

ast

®



C34 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

M8

picofast

®

Connectivity

Notes

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 D1

Part Number Keys

D2

Cordsets

D7

Receptacles

D45

Field Wireables

D83

Adapters

D91

Inserts

D94

Closure Caps

D95



y

4-12 pins utilizing 2-12 wires



y

Nickel-brass, stainless steel and nylon materials



y

Fully shielded options



y

Multiple connector mold bodies



y

Quick-connect selection



y

LED options



y

Multiple receptacle mounting thread options



y

Receptacles with leads, solder cups or PCB pins

Features

eurof

ast

®



M12

eurofast

®

Connectivity

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 D3

D2 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • TURCK • Minneapolis,

MN

55441

M12

eurofast

®

Connectivity

Part Number Keys are to assist in IDENTIFICATION ONLY. Consult factory for catalog items not identified.

Gender

K

=

female connector

S

=

male connector

Plug Body Style

(blank) =

standard plug body

A

=

armored plug body, 18 AWG

C

=

medium plug body

CN

=

medium plug body, NAMUR wiring

E

=

large plug body

G

=

large, robust plug body

L

=

compact plug body

S

=

shielded to coupling nut

Coupling Nut (Threaded coupling nut only)

(blank) =

nickel plated brass

V

=

Stainless steel

S

=

Shielded to coupling nut

K

=

nylon

Number of Wires / AWG / Color Codes

4.2

=

2-wire    BN, BU

4.21 =

2-wire    BN, BU, blue jacket, NAMUR

4.22 =

2-wire    BN, BU

4.23 =

2-wire    BN, BU

4

=

3-wire    BN, BU, BK

4.4

=

4-wire    BN, WH, BU, BK

4.41 =

4-wire    BN, WH, BU, BK, blue jacket, NAMUR

4.43 =

4-wire    BN, WH, BU, BK, yellow jacket

4.5

=

5-wire    BN, WH, BU, BK, GY

4.6

=

6-wire    BN, WH, BU, BK, GY, PK

5

=

5-wire    GN, WH, OG, BK, RD, blue jacket, NAMUR

6

=

6-wire    BN, WH, BU, BK, GY, PK

8

=

8-wire    WH, BN, GN, YE, GY, PK, BU, RD

8.6

=

6-wire    WH, GN, YE, GY, BN, BU

8.6

=

8-wire    WH, GN, YE, GY, BN, PK, BU, RD

10

=

10-wire  WH, BN, GN, YE, GY, PK, BU, RD, OG, TN

12

=

12-wire  WH, BN, GN, YE, GY, PK, BU, RD, OG, TN, BK, VT

AWG sizes depend on body style and “/S” variety

Length in Meters

Varieties

(blank) =

PVC jacket

/S90

=

TPU jacket

/S90-SP =

TPU coil cord

/S101

=

Flexlife-20, high flex cable

/S529

=

yellow PUR jacket, braided shield, PVC inner

jacket

/S600

=

CPE, rubber jacket

/S618

=

foil shield & drain wire, drain not connected

/S622

=

grey PVC jacket, 18 AWG Conductors

/S653

=

foil shield & drain wire, drain connected

/S715

=

yellow jacket

/S824

=

PLTC

/S1092 =

PTFE coated coupling nuts

/S1587 =

TPE, Weldlife®

/S1077 =

silicone tubing

/S3031 =

PUR mold body, PTFE coated coupling nut

and silicone tubing

/CS ..

=

consult factory, special

/S ..

=

consult factory, special

Insertion Point of Extension Cable and Second Prefix*

* Female connector listed first, male connector second

Example: RK 4T-4-WS 4T

(blank) =

no barb fitting, L style only

T

=

T barb fitting

A

=

armored cable

Q

=

quick turn

M12 Picofast Cordset

R

=

straight

W =

right angle

LED Options

(blank) =

No LEDs

P7X2

=

2 LEDs with sourcing (PNP) signal and power

P7X3

=

3 LEDs with sourcing (PNP) signal and power

N7X2

=

2 LEDs with sinking (NPN) signal and power

R K

V

4.4 T - * -

-

/S..

Cordset Part Number key

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 D3

M12

eurofast®



Connectivity

Extension Examples:

Hybrid connector extensions also available. Consult factory.

R K G

4.4

T - 2 - R S E

4.4

T

/S600

R K

4.4

T - 2 - R S

4.4

T

R K

4.4

T - 2 - W S

4.4

T

W K

4.4

T - 2 - R S

4.4

T

W K

4.4

T - 2 - W S

4.4

T

Cordset Part Number key

eurof

ast

®



www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 D5

D4 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

Reverse Key

Gender

K

=

female connector

S

=

male connector

Coupling Nut Options

(blank) =

nickel plated brass

K

=

nylon

V

=

stainless steel

Number of Wires / AWG / Color Codes

4

=

4-pins, 3-wires

4.5 =

5-pins, 5-wires

AWG sizes depend on body styles and “/S” variety

(blank) =

no barb fitting, L style only

T

=

T barb fitting

Insertion Point of Extension Cable and 2nd Prefix*

* Female connector listed 1st, male connector 2nd
   Example:

WAKW 4.5T-*-WASW 4.5T

M12 Eurofast Cordset

(blank) =

straight

W

=

right angle

Length in Meters

Reverse Key

Varieties

/S626

=

grey PVC jacket, 3x20 AWG

/S101

=

Flexlife-20, high flex cable

/S618

=

EMI, RFI protection, 5x22 AWG

/S653

=

EMI, RFI protection, 4x22 AWG

/S ..

=

consult factory, special

/CS

=

consult factory, special

*  Female connector listed first, male connector second

Example: WAKW 4.5T-*-WASW 4.5T

Insertion Point of Extension Cable and Second Prefix*

M12

eurofast

®

Connectivity

Part Number Keys are to assist in IDENTIFICATION ONLY. Consult factory for catalog items not identified.

W A K

W

4.5 T - * -

/S..

Reverse Key (B-Code) Cordset Part Number Key

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 D5

Reverse Key (B-Code) Cordset Part Number Key

Housing Style

(blank)

front mount

D

front mount, front locknut

FD

rear mount

FDH

rear mount, separate housing

FDL

rear mount, solder cup

M

front mount, rotating coupling nut

P

back panel mount

FDHO

rear mount, separate housing, optional mounting

Keyway Type

(blank) =

standard keyway

W

=

reverse keyway

Number of Wires / AWG / Color Codes

4.2

=

2-wire    BN, BU

4.21

=

2-wire    BN, BU, NAMUR

4.22

=

2-wire    BN, BU

4.23

=

2-wire    BN, BU

4

=

3-wire    BN, BU, BK

4.4

=

4-wire    BN, WH, BU, BK

4.41

=

4-wire    BN, WH, BU, BK, NAMUR

4.43

=

4-wire    BN, WH, BU, BK, yellow jacket

4.5

=

5-wire    BN, WH, BU, BK, GY

4.6

=

6-wire    BN, WH, BU, BK, GY, PK

5

=

5-wire    GN, WH, OG, BK, RD, NAMUR

6

=

6-wire    BN, WH, BU, BK, GY, PK

8

=

8-wire    WH, BN, GN, YE, GY, PK, BU, RD

8.6

=

6-wire    WH, GN, YE, GY, BN, BU

8.8

=

8-wire    WH, GN, YE, GY, BN, PK, BU, RD

10

=

10-wire  WH, BN, GN, YE, GY, PK, BU, RD, OG, TN

12

=

12-wire  WH, BN, GN, YE, GY, PK, BU, RD, OG, TN, BK, VT

AWG sizes depend on body style and “/S” variety

Gender

K

=

female connector

S

=

male connector

Connection Type / Length in Meters

(blank) =

no leads, either PCB pin or solder cup

PCB

=

PCB pins

Varieties

/S613

=

18 AWG, standard color code

/S621

=

all grey leads, 18 AWG

/S627

=

20 AWG, standard color code

/S1505 =

26 AWG, standard color code

/CS

=

consult factory, special

/S ..

=

consult factory, special

Thread Type

(blank)

=

PG 9 threads or other, see specifications

/13.5

=

PG 13.5 threads

/14.5

=

1/2-14 NPSM threads

/14.5/NPT =

1/2-14 NPT threads

/18.25

=

1/4-18 NPT threads

M20

=

M20x1 threads

/PG16

=

PG 16 threads

M12 Eurofast Receptacle

Housing Material Keyway Type

(blank) =

nickel plated brass

V

=

stainless steel

M12

eurofast®



Connectivity

Part Number Keys are to assist in IDENTIFICATION ONLY. Consult factory for catalog items not identified.

F K FD

4.4

*

/S..

Receptacle Part Number Key

eurof

ast

®



www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 D7

D6 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

Gender

(blank) =

female

S

=

male

K

=

female

Housing Style

1

=

straight

2

=

right angle

M12 Eurofast Field Wireable

LED Option

(blank) =

no indicators

P7X2

=

PNP LEDs

Field Wireable Type

B

=

standard field wireable

BM

=

metal coupling nut

CM

=

shielded, solder cup

CMB

=

shielded, screw terminal

DB

=

dual cable, splitter

Cable Option

0

=

no cable

Color Coded Pin Labels

LABEL

=

standard

ASI

=

AS-interface®

network

DNET

=

DeviceNet™

network

Keyway Type

(blank) =

standard

WS

=

reverse key

Cable Opening

(blank) =

standard

PG 9

=

PG9 cable opening

0/9

=

PG9 cable opening, for reverse key

Termination

1

=

screw terminal

6

=

IDC

7

=

spring clamp

Number of Pins

4

=

4

5

=

5

6

=

6

8

=

8

12

=

12

M12

eurofast

®

Connectivity

Part Number Keys are to assist in IDENTIFICATION ONLY. Consult factory for catalog items not identified.

BM S WS

8 2 5 1 - P7X2 - 0 / PG 9 / LABEL

Field Wireable Part Number Key

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 D7

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 5, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RK ..”; “RKK ..” indicates nylon and “RKV ..” indicates stainless steel.

Connector Style

Female Part Number Male Part Number

Features

Pinout

RK ..**

RK 4.2T-*

WK 4.2T-*

RS 4.2T-*

WS 4.2T-*

ITC/PLTC PVC Grey, 2x20
AWG, 105 °C, 5.1 mm OD,
Cable #RF50529-*M, Flexlife

®

1. N/C
2. N/C
3. BN
4. BU

Female

RK 4.2T-*/S90

WK 4.2T-*/S90

RS 4.2T-*/S90

WS 4.2T-*/S90

AWM TPU Grey, 2x20 AWG,
90 °C, 4.8 mm OD, Cable
#RF50772-*M, Cut/Abrasion
Immune

WK ..**

RK 4.2T-*/S748

WK 4.2T-*/S748

RS 4.2T-*/S748

WS 4.2T-*/S748

ITC/PLTC PVC Yellow, 2x22
AWG, 105 °C, 5.1 mm OD,
Cable #RF50650-*M, Flexlife

1. WH
2. N/C
3. N/C
4. BK

RK 4.21T-*/S1511

WK 4.21T-*/S1511

RS 4.21T-*/S1511

WS 4.21T-*/S1511

ITC/PLTC PVC Grey, 2x20
AWM PVC, 105 °C, 5.1 mm OD,
Cable #RF50529-*M, Flexlife

1. BN
2. BU
3. N/C
4. N/C

RS ..**

RK 4.21T-*

WK 4.21T-*

RS 4.21T-*

WS 4.21T-*

ITC/PLTC PVC NAMUR Blue,
2x20 AWG, 105 °C, 5.1 mm
OD, Cable #RF51923-*M

Male

RK 4.21T-*/S90

WK 4.21T-*/S90

RS 4.21T-*/S90

WS 4.21T-*/S90

AWM TPU NAMUR Blue, 2x20
AWG, 90 °C, 5.1 mm OD,
Cable #RF50657-*M, Cut/
Abrasion Immune

WS ..**

RK 4.22T-*

WK 4.22T-*

RS 4.22T-*

WS 4.22T-*

ITC/PLTC PVC Grey, 2x20
AWG, 105 °C, 5.1 mm OD,
Cable #RF50529-*M, Flexlife

1. BN
2. N/C
3. BU
4. N/C

RK 4.23T-*

WK 4.23T-*

RS 4.23T-*

WS 4.23T-*

1. BN
2. N/C
3. N/C
4. BU

M12

eurofast®



Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

250 V, 4 A

Cor

dsets



2-Wire Cordsets, Standard Plug Body

D8 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 D9

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 5, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RK ..”; “RKK ..” indicates nylon and “RKV ..” indicates stainless steel.

Connector Style

Female Part Number Male Part Number

Features

Pinout

RK ..**

RK 4T-*

WK 4T-*

RS 4T-*

WS 4T-*

ITC/PLTC PVC Grey, 3x20
AWG, 105 °C, 5.1 mm OD,
Cable #RF52081-*M, Flexlife

®

1. BN
2. N/C
3. BU
4. BK

Female

RK 4T-*/S90

WK 4T-*/S90

RS 4T-*/S90

WS 4T-*/S90

AWM TPU Grey, 3x22 AWG,
90 °C, 4.8 mm OD, Cable
#RF52080-*M, Cut/Abrasion
Immune

RK 4T-*/S101

WK 4T-*/S101

RS 4T-*/S101

WS 4T-*/S101

AWM TPE Grey, 3x22 AWG,
105 °C, 4.8 mm OD, Cable
#RF52085-*M, Flexlife-20,
High Flex Over 20 Million
Cycles

WK ..**

RK 4T-*/S529

WK 4T-*/S529

RS 4T-*/S529

WS 4T-*/S529

TPU/Heavy Braid Double
Jacket Yellow, 3x22 AWG,
90 °C, 4.8 mm OD, Cable
#RF52084-*M, Cut/Abrasion
Immune Braided Mechanical
Shield

RS ..**

RK 4T-*/S824

WK 4T-*/S824

RS 4T-*/S824

WS 4T-*/S824

ITC/PLTC AWM PVC Grey,
3x22 AWG, 105 °C, 5.1 mm
OD, Cable #RF52081-*M, Tray
Rated, Flexlife

Male

RK 4T-*/S715

WK 4T-*/S715

RS 4T-*/S715

WS 4T-*/S715

ITC/PLTC PVC Yellow, 3x22
AWG, 105 °C, 5.1 mm OD,
Cable #RF52087-*M, Flexlife

WS ..**

RK 4T-*/S760

WK 4T-*/S760

RS 4T-*/S760

WS 4T-*/S760

ITC/PLTC PVC Black, 3x22
AWG, 105 °C, 5.1 mm OD,
Cable #RF52083-*M, Flexlife

RK 4T-*/S618

WK 4T-*/S618

RS 4T-*/S618

WS 4T-*/S618

ITC/PLTC PVC Grey, 3x22
AWG, Foil/Drain, 105 °C,
5.1 mm OD, Cable #RF52082-
*M, RFI/EMI Shielding, tray
rated

M12

eurofast

®

Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

250 V, 4 A

3-Wire Cordsets, Standard Plug Body

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 D9

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 5, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RK ..”; “RKK ..” indicates nylon and “RKV ..” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

RK ..**

RK 4.41T-*

WK 4.41T-*

RS 4.41T-*

WS 4.41T-*

ITC/PLTC PVC NAMUR Blue, 4x22
AWG, 105 °C, 5.3 mm OD, Cable
#RF50598-*M, Flexlife

®

1. BN
2. WH
3. BU
4. BK

Female

RK 4.41T-*/S529

WK 4.41T-*/S529

RS 4.41T-*/S529

WS 4.41T-*/S529

TPU/Heavy Braid Double Jacket
Yellow, 4x20 AWG, 90 °C, 5.7 mm
OD, Cable #RF50526-*M, Cut/
Abrasion Immune Braided
Mechanical Shield

RK 4.43T-*

WK 4.43T-*

RS 4.43T-*

WS 4.43T-*

ITC/PLTC PVC Yellow, 4x22
AWG, 105 °C, 5.3 mm OD, Cable
#RF50530-*M, Flexlife

WK ..**

RK 4.43T-*/S90

WK 4.43T-*/S90

RS 4.43T-*/S90

WS 4.43T-*/S90

AWM TPU Yellow, 4x22
AWG, 90 °C, 5.1 mm OD,
Cable #RF50613-*M,
Cut/Abrasion Immune

RK 4.4T-*

WK 4.4T-*

RS 4.4T-*

WS 4.4T-*

ITC/PLTC PVC Grey, 4x22 AWG,
105 °C, 5.3 mm OD, Cable
#RF50516-*M, Flexlife

RS ..**

RK 4.4T-*/S90

WK 4.4T-*/S90

RS 4.4T-*/S90

WS 4.4T-*/S90

AWM TPU Grey, 4x22 AWG,
90 °C, 5.1 mm OD, Cable
#RF50532-*M, Cut/Abrasion
Immune

Male

RK 4.4T-*/S101

WK 4.4T-*/S101

RS 4.4T-*/S101

WS 4.4T-*/S101

AWM TPE Grey, 4x22 AWG,
105 °C, 5.1 mm OD, Cable
#RF50941-*M, Flexlife-20, High
Flex Over 20 Million Cycles

RK 4.4T-*/S824

WK 4.4T-*/S824

RS 4.4T-*/S824

WS 4.4T-*/S824

ITC/PLTC PVC Grey, 4x22 AWG,
105 °C, 5.3 mm OD, Cable
#RF50698-*M, Tray Rated

WS ..**

RK 4.4T-*/S618

WK 4.4T-*/S618

RS 4.4T-*/S618

WS 4.4T-*/S618

ITC/PLTC PVC Grey, 4x22 AWG
Foil/Drain, 105 °C, 5.3 mm OD,
Cable #RF50577-*M, RFI/EMI
Shielding

RK 4.4T-*/S618/S824

WK 4.4T-*/S618/S824

RS 4.4T-*/S618/S824

WS 4.4T-*/S618/S824

ITC/PLTC PVC Grey, 4x22 AWG
Foil/Drain, 105 °C, 5.3 mm OD,
Cable #RF50777-*M, RFI/EMI
Shielding, Tray Rated

M12

eurofast®



Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

250 V, 4 A

4-Wire Cordsets, Standard Plug Body

Cor

dsets



D10 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 D11

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 5, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RK ..”; “RKK ..” indicates nylon and “RKV ..” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

RK ..**

RK 4.4T-*/S653

WK 4.4T-*/S653

RS 4.4T-*/S653

WS 4.4T-*/S653

ITC/PLTC PVC Grey, 3x22
AWG Foil/Drain, 105 °C,
5.1 mm OD, Cable
#RF52082-*M, RFI/EMI
Shielding, Tray Rated

1. BN
2. Drain
3. BU
4. BK

Female

RK 4.4T-*/S760

WK 4.4T-*/S760

RS 4.4T-*/S760

WS 4.4T-*/S760

ITC/PLTC PVC Black, 4x22
AWG, 105 °C, 5.3 mm OD,
Cable #RF50983-*M,
Flexlife

®

1. BN
2. WH
3. BU
4. BK

WK ..**

RK 4.4T-*/S90/S670

WK 4.4T-*/S90/S670

RS 4.4T-*/S90/S670

WS 4.4T-*/S90/S670

AWM TPU Black, 4x26
AWG, 90 °C, 4.2 mm OD,
Cable #RF50586-*M, Cut/
Abrasion Immune

RS ..**

Male

RK 4.4T-*/S1587

WK 4.4T-*/S1587

RS 4.4T-*/S1587

WS 4.4T-*/S1587

ITC/PLTC TPE Yellow, 4x22
AWG, 105 °C, 5.3 mm
OD, Cable #RF51132-*M,
Weldlife, Weld Flash
Immune

RK 4.4T-*/S1666

WK 4.4T-*/S1666

RS 4.4T-*/S1666

WS 4.4T-*/S1666

AWM TPU Grey, 2: 2x22
AWG, STP Foil/Drain, 90 °C,
6.2 mm OD, Cable
#RF51069-*M, Cut/
Abrasion Immune,
Shielded Twisted Pair for
Communication

WS ..**

M12

eurofast

®

Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

250 V, 4 A

4-Wire Cordsets, Standard Plug Body

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 D11

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 5, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RK ..”; “RKK ..” indicates nylon and “RKV ..” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

RK ..**

RK 4.5T-*

WK 4.5T-*

RS 4.5T-*

WS 4.5T-*

ITC/PLTC PVC Grey, 5x22
AWG, 105 °C, 5.7 mm
OD, Cable #RF50543-*M,
Flexlife

®

1. BN
2. WH
3. BU
4. BK
5. GY

Female

RK 4.5T-*/S90

WK 4.5T-*/S90

RS 4.5T-*/S90

WS 4.5T-*/S90

AWM TPU Grey, 5x22
AWG, 90 °C, 5.3 mm OD,
Cable #RF50649-*M, Cut/
Abrasion Immune

WK ..**

RK 4.5T-*/S101

WK 4.5T-*/S101

RS 4.5T-*/S101

WS 4.5T-*/S101

AWM TPE Grey, 5x22 AWG,
105 °C, 5.1 mm OD, Cable
#RF50909-*M, Flexlife-20,
High Flex Over 20 Million
Cycles

RS ..**

RK 4.5T-*/S618

WK 4.5T-*/S618

RS 4.5T-*/S618

WS 4.5T-*/S618

ITC/PLTC PVC Grey, 5x22
AWG Foil/Drain, 105 °C,
5.7 mm OD, Cable
#RF50609-*M, RFI/EMI
Protection

Male

RS 4.5T-*/S715

WS 4.5T-*/S715

RS 4.5T-*/S715

WS 4.5T-*/S715

ITC/PLTC PVC Yellow,
5x22 AWG, 105 °C, 5.7 mm
OD, Cable #RF50684-*M,
Flexlife

WS ..**

RK 4.5T-*/S653

WK 4.5T-*/S653

RS 4.5T-*/S653

WS 4.5T-*/S653

ITC/PLTC PVC Grey, 4x22
AWG Foil/Drain, 105 °C,
5.3 mm OD, Cable
#RF50577-*M, RFI/EMI
Shielding

1. BN
2. WH
3. BU
4. BK
5. Drain

RK 4.5T-*/S1554

WK 4.5T-*/S1554

RS 4.5T-*/S1554

WS 4.5T-*/S1554

ITC/PLTC PVC Black, 5x22
AWG Foil/Drain, 105 °C,
5.7 mm OD, Cable
#RF50794-*M, RFI/EMI
Shielding

1. BN
2. WH
3. BU
4. BK
5. GY

M12

eurofast®



Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

250 V, 4 A

5-Wire Cordsets, Standard Plug Body

Cor

dsets



D12 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 D13

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RK ..”; “RKK ..” indicates nylon and “RKV ..” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

RK ..**

RK 4.6T-*

WK 4.6T-*

RS 4.6T-*

WS 4.6T-*

AWM PVC Grey, 6x24 AWG,
105 °C, 5.1 mm OD, Cable
#RF50608-*M, Flexlife

®

1. BN
2. WH
3. BU
4. BK
5. GY
6. PK

Female

RK 4.6T-*/S90

WK 4.6T-*/S90

RS 4.6T-*/S90

WS 4.6T-*/S90

AWM TPU Grey, 6x24
AWG, 90 °C, 5.1 mm OD,
Cable #RF50646-*M, Cut/
Abrasion Immune

WK ..**

RK 4.6T-*/S90/S760

WK 4.6T-*/S90/S760

RS 4.6T-*/S90/S760

WS 4.6T-*/S90/S760

AWM TPU Black, 6x24
AWG, 90 °C, 5.1 mm OD,
Cable #RF50728-*M, Cut/
Abrasion Immune

RS ..**

Male

RK 4.6T-*/S618

WK 4.6T-*/S618

RS 4.6T-*/S618

WS 4.6T-*/S618

AWM PVC Grey, 6x24 AWG
Foil/Drain, 105 °C, 5.1 mm
OD, Cable #RF50610-*M,
RFI/EMI Shielding

WS ..**

RK 4.6T-*/S653

WK 4.6T-*/S653

RS 4.6T-*/S653

WS 4.6T-*/S653

ITC/PLTC PVC Grey, 5x22
AWG Foil/Drain, 105 °C,
5.7 mm OD, Cable
#RF50609-*M, RFI/EMI
Shielding

1. BN
2. WH
3. BU
4. BK
5. GY
6. Drain

M12

eurofast

®

Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

250 V, 4 A

6-Wire Cordsets, Standard Plug Body

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 D13

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RK ..”; “RKK ..” indicates nylon and “RKV ..” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

RK ..**

RK 10T-*

RS 10T-*

AWM PVC Grey, 10x24
AWG, 105 °C, 6.2 mm OD,
Cable #RF51004-*M,
Flexlife

®

1. WH
2. BN
3. GN
4. YE
5. GY
6. PK
7. BU
8. RD
9. OG
10. TN

Female

RK 10T-*/S90

RS 10T-*/S90

AWM TPU Grey, 10x24
AWG, 90 °C, 6.2 mm OD,
Cable #RF51005-*M,
Cut/Abrasion Immune

Male

RK 12T-*

RS 12T-*

AWM PVC Grey, 12x24
AWG, 105 °C, 6.3 mm OD,
Cable #RF50991-*M,
Flexlife

1. WH
2. BN
3. GN
4. YE
5. GY
6. PK
7. BU
8. RD
9. OG
10. TN
11. BK
12. VT

RS ..**

Female

Male

RK 12T-*/S90

RS 12T-*/S90

AWM TPU Grey, 12x24
AWG, 90 °C, 6 mm OD,
Cable #RF50990-*M,
Cut/Abrasion Immune

M12

eurofast®



Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

60 VAC/75 VDC, 2 A

10 and 12-Wire Cordsets, Standard Plug Body

Cor

dsets



D14 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 D15

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RKC ..”; “RKCV ..” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

RKC ..**

RKC 4.2T-*

WKC 4.2T-*

RSC 4.2T-*

WSC 4.2T-*

ITC/PLTC PVC Yellow,
2x18 AWG, 105 °C,
6.2 mm OD, Cable
#RF50511-*M, Flexlife

®

1. N/C
2. N/C
3. BN
4. BU

Female

WKC ..**

RKC 4.2T-*/CS10191

WKC 4.2T-*/CS10191

RSC 4.2T-*/CS10191

WSC 4.2T-*/CS10191

ITC/PLTC PVC NAMUR
Blue, 2x18 AWG,
105 °C, 6.2 mm OD,
Cable #RF50843-*M,
Flexlife, Black Plug Body

RSC ..**

Male

RKC 4T-*

WKC 4T-*

RSC 4T-*

WSC 4T-*

ITC/PLTC PVC Yellow,
3x18 AWG, 105 °C,
6.2 mm OD, Cable
#RF50513-*M, Flexlife

1. BN
2. N/C
3. BU
4. BK

WSC ..**

M12

eurofast

®

Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

250 V, 4 A

2 and 3-Wire Cordsets, “C” Style Medium Plug Body

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 D15

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 5, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RKC ..”; “RKCV ..” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

RKC ..**

RKC 4.4T-*

WKC 4.4T-*

RSC 4.4T-*

WSC 4.4T-*

ITC/PLTC PVC Yellow,
4x18 AWG, 105 °C,
6.7 mm OD, Cable
#RF50579-*M, Flexlife

®

1. BN
2. WH
3. BU
4. BK

Female

RKC 4.4T-*/S90

WKC 4.4T-*/S90

RSC 4.4T-*/S90

WSC 4.4T-*/S90

AWM TPU Yellow, 4x18
AWG, 90 °C, 7.2 mm OD,
Cable #RF50544-*M,
Cut/Abrasion Immune

RKC 4.4T-*/S622

WKC 4.4T-*/S622

RSC 4.4T-*/S622

WSC 4.4T-*/S622

ITC/PLTC PVC Grey, 4x18
AWG, 105 °C, 6.7 mm
OD, Cable #RF50580-*M,
Flexlife

WKC ..**

RKC 4.4T-*/S824

WKC 4.4T-*/S824

RSC 4.4T-*/S824

WSC 4.4T-*/S824

ITC/PLTC PVC Grey, 4x18
AWG, 105 °C, 6.7 mm
OD, Cable #RF50579-*M,
Tray Rated, Flexlife

RSC ..**

RKC 4.4T-*/S1587

WKC 4.4T-*/S1587

RSC 4.4T-*/S1587

WSC 4.4T-*/S1587

ITC/PLTC TPE Yellow,
4x18 AWG, 105 °C,
6.9 mm OD, Cable
#RF50956-*M, Weld
Flash Immune, Weldlife

Male

RKC 4.4T-*/S101/S849

WKC 4.4T-*/S101/S849

RSC 4.4T-*/S101/S849

WSC 4.4T-*/S101/S849

AWM TPE Grey, 4x22
AWG, 105 °C, 5.1 mm
OD, Cable #RF50941-*M,
Flexlife-20, High Flex
Over 20 Million Cycles

WSC ..**

RKC 4.4T-*/S101

WKC 4.4T-*/S101

RSC 4.4T-*/S101

WSC 4.4T-*/S101

AWM TPE Yellow, 4x18
AWG, 105 °C, 6.2 mm
OD, Cable #RF50968-*M,
Flexlife-20, High Flex
Over 20 Million Cycles

M12

eurofast®



Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

250 V, 4 A

4-Wire Cordsets, “C” Style Medium Plug Body

Cor

dsets



D16 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 D17

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RKC ..”; “RKCV ..” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

RKC ..**

RKC 4.5T-*/S653

WKC 4.5T-*/S653

RSC 4.5T-*/S653

WSC 4.5T-*/S653

ITC/PLTC PVC Grey,
4x22 AWG, 105 °C, Foil/
Drain, 5.3 mm OD, Cable
#RF50577-*M, RFI/EMI
Shielding, Tray Rated

1. BN
2. WH
3. BU
4. BK
5. Drain

Female

RKC 4.5T-*/S1538

WKC 4.5T-*/S1538

RSC 4.5T-*/S1538

WSC 4.5T-*/S1538

ITC/PLTC PVC Grey, 5x18
AWG, 105 °C, 7.6 mm
OD, Cable #RF50630-*M,
Flexlife

®

1. BN
2. WH
3. BU
4. BK
5. GN/YE

WKC ..**

RKC 4.5T-*/S715/S849

WKC 4.5T-*/S715/S849

RSC 4.5T-*/S715/S849

WSC 4.5T-*/S715/S849

ITC/PLTC PVC Yellow,
5x22 AWG, 105 °C,
5.7 mm OD, Cable
#RF50684-*M, Flexlife

1. BN
2. WH
3. BU
4. BK
5. GY

RKC 4.5T-*/CS10288

WKC 4.5T-*/CS10288

RSC 4.5T-*/CS10288

WSC 4.5T-*/CS10288

ITC/PLTC PVC Yellow,
5x18 AWG, 105 °C,
7.6 mm OD, Cable
#RF50549-*M, Flexlife

1. BN
2. WH
3. BU
4. BK
5. GN/YE

RSC ..**

Male

RKC 4.5T-*/S1587

WKC 4.5T-*/S1587

RSC 4.5T-*/S1587

WSC 4.5T-*/S1587

ITC/PLTC TPE Yellow,
5x18 AWG, 105 °C,
7.6 mm OD, Cable
#RF51720-*M, Weldlife,
Weld Flash Immune

1. BN
2. WH
3. BU
4. BK
5. GY

WSC ..**

RKCN 5T-*

WKCN 5T-*

RSCN 5T-*

WSCN 5T-*

ITC/PLTC PVC NAMUR
Blue, 5x22 AWG,
105 °C, 6.2 mm OD,
Cable #RF50767-*M,
Flexlife,  for VBN
40-H1141 Multibox

®

1. GN
2. WH
3. OG
4. BK
5. RD

M12

eurofast

®

Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

250 V, 4 A

5-Wire Cordsets, “C” Style Medium Plug Body

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 D17

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RKC ..”; “RKCV ..” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

RKC ..**

RKC 6T-*

WKC 6T-*

RSC 6T-*

WSC 6T-*

AWM PVC Grey, 6x24
AWG, 105 °C, 5.1 mm OD,
Cable #RF50608-*M,
Flexlife

®

1. BN
2. WH
3. BU
4. BK
5. GY
6. PK

Female

RKC 6T-*/S90

WKC 6T-*/S90

RSC 6T-*/S90

WSC 6T-*/S90

AWM TPU Grey, 6x24
AWG, 90 °C, 5.1 mm OD,
Cable #RF50646-*M, Cut/
Abrasion Immune

RKC 6T-*/S101

WKC 6T-*/S101

RSC 6T-*/S101

WSC 6T-*/S101

AWM TPE Grey, 6x24
AWG, 105 °C, 5.1 mm
OD, Cable #RF50910-*M,
Flexlife-20, high flex over
20 million cycles

WKC ..**

RKC 6T-*/S90/S760

WKC 6T-*/S90/S760

RSC 6T-*/S90/S760

WSC 6T-*/S90/S760

AWM TPU Black, 6x24
AWG, 90 °C, 5.1 mm OD,
Cable #RF50728-*M, Cut/
Abrasion Immune

RKC 6T-*/S529

WKC 6T-*/S529

RSC 6T-*/S529

WSC 6T-*/S529

AWM TPU Yellow, 6x24
AWG, 90 °C, 6.2 mm OD,
Cable #RF51120-*M,
Cut/Abrasion immune,
braided mechanical
shield

RSC ..**

Male

RKC 6T-*/S849/S1052

WKC 6T-*/S849/S1052

RSC 6T-*/S849/S1052

WSC 6T-*/S849/S1052

ITC/PLTC PVC Grey, 6x22
AWG, 105 °C, 6.2 mm OD,
Cable #RF51284-*M,
Flexlife, 22 AWG
conductors, grey cable

RKC 6T-*/S618

WKC 6T-*/S618

RSC 6T-*/S618

WSC 6T-*/S618

AWM PVC Grey, 6x24
AWG Foil/Drain, 105 °C,
5.1 mm OD, Cable
#RF50610-*M, RFI/EMI
Shielding

RKC 6T-*/S653

WKC 6T-*/S653

RSC 6T-*/S653

WSC 6T-*/S653

ITC/PLTC PVC Grey, 5x22
AWG Foil/Drain,
105 °C, 5.7 mm OD, Cable
#RF50609-*M, RFI/EMI
Shielding

1. BN
2. WH
3. BU
4. BK
5. GY
6. Drain

WSC ..**

RKC 6T-*S90/CS10476

WKC 6T-*S90/CS10476

RSC 6T-*/S90/CS10476

WSC 6T-*/S90/CS10476

AWM TPU NAMUR Blue,
5x24 AWG Foil/Drain,
90 °C, 5.7 mm OD, Cable
#RF50928-*M, Cut/
Abrasion Immune

1. OR
2. RD
3. YE
4. BK
5. BU
6. Drain

M12

eurofast®



Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

60 VAC/75 VDC, 2 A

6-Wire Cordsets, “C” Style Medium Plug Body

Cor

dsets



D18 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 D19

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RKC ..”; “RKCV ..” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

RKC ..**

RKC 8.6T-*

WKC 8.6T-*

RSC 8.6T-*

WSC 8.6T-*

AWM PVC Black, 6x24 AWG
Foil/Drain, 105 °C, 5.1 mm
OD, Cable #RF50845-*M,
Flexlife

®

, for Picofast

®



4-port Multibox

®

1. WH
2. GN
3. YE
4. GY
5. BN
6. N/C
7. BU
8. N/C

Female

RKC 8T-*

WKC 8T-*

RSC 8T-*

WSC 8T-*

AWM PVC Grey, 8x24 AWG,
105 °C, 5.7 mm OD, Cable
#RF50753-*M, Flexlife

1. WH
2. BN
3. GN
4. YE
5. GY
6. PK
7. BU
8. RD

WKC ..**

RKC 8T-*/S715

WKC 8T-*/S715

RSC 8T-*/S715

WSC 8T-*/S715

AWM PVC Yellow, 8x24
AWG, 105 °C, 5.7 mm OD,
Cable #RF50884-*M,
Flexlife

RKC 8T-*/S90

WKC 8T-*/S90

RSC 8T-*/S90

WSC 8T-*/S90

AWM TPU Grey, 8x24 AWG,
90 °C, 5.7 mm OD, Cable
#RF50984-*M,
Cut/Abrasion Immune

RKC 8T-*/S101

WKC 8T-*/S101

RSC 8T-*/S101

WSC 8T-*/S101

AWM TPE Grey, 8x24 AWG,
105 °C, 6.2 mm OD, Cable
#RF50911-*M, Flexlife-20,
High Flex Over 20 Million
Cycles

RSC ..**

Male

RKC 8T-*/S618

WKC 8T-*/S618

RSC 8T-*/S618

WSC 8T-*/S618

AWM PVC Grey, 8x24 AWG
Foil/Drain, 105 °C, 5.7 mm
OD, Cable #RF50815-*M,
RFI/EMI Shielding

RKC 8T-*/S1555

WKC 8T-*/S1555

RSC 8T-*/S1555

WSC 8T-*/S1555

AWM PVC Black, 7x24 AWG
Foil/Drain, 105 °C, 5.1 mm
OD, Cable #RF50761-*M,
RFI/EMI Shielding

1. WH
2. BN
3. GN
4. YE
5. GY
6. PK
7. BU
8. Drain

WSC ..**

RKC 8.8T-*

WKC 8.8T-*

RSC 8.8T-*

WSC 8.8T-*

AWM PVC Grey, 8x24 AWG,
105 °C, 5.7 mm OD, Cable
#RF50753-*M, Flexlife

1. WH
2. GN
3. YE
4. GY
5. BN
6. PK
7. BU
8. RD

M12

eurofast

®

Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

60 VAC/75 VDC, 2 A

8-Wire Cordsets, “C” Style Medium Plug Body

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 D19

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RKC ..”; “RKCV ..” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

RKC ..**

RKC 10T-*

WKC 10T-*

RSC 10T-*

WSC 10T-*

AWM PVC Grey, 10x24
AWG, 105 °C, 6.2 mm
OD, Cable #RF51004-*M,
Flexlife

®

1. WH
2. BN
3. GN
4. YE
5. GY
6. PK
7. BU
8. RD
9. OG
10. TN

Female

WKC ..**

RKC 10T-*/S90

WKC 10T-*/S90

RSC 10T-*/S90

WSC 10T-*/S90

AWM TPU Grey, 10x24
AWG, 90 °C, 6.2 mm OD
Cable #RF51005-*M,
Cut/Abrasion Immune

RSC ..**

RKC 10T-*/S101

WKC 10T-*/S101

RSC 10T-*/S101

WSC 10T-*/S101

AWM TPE Black, 10x24
AWG, 105 °C, 7.0 mm OD,
Cable #RF51077-*M,
Flexlife

-

20, High Flex Over

20 Million Cycles

Male

WSC ..**

RKC 10T-*/S618

WKC 10T-*/S618

RSC 10T-*/S618

WSC 10T-*/S618

AWM PVC Black, 10x24
AWG Foil/Drain, 105 °C,
6.6 mm OD, Cable
#RF51076-*M, RFI/EMI
Shielding

M12

eurofast®



Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

60 VAC/75 VDC, 2 A

10-Wire Cordsets, “C” Style Medium Plug Body

Cor

dsets



D20 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 D21

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RKC ..”; “RKCV ..” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

RKC 12T-*

WKC 12T-*

RSC 12T-*

WSC 12T-*

AWM PVC Grey, 12x24
AWG, 105 °C, 6.3 mm
OD, Cable #RF50991-*M,
Flexlife

®

1. WH
2. BN
3. GN
4. YE
5. GY
6. PK
7. BU
8. RD
9. OG
10. TN
11. BK
12. VT

Female

RKC 12T-*/S90

WKC 12T-*/S90

RSC 12T-*/S90

WSC 12T-*/S90

AWM TPU Grey, 12x24
AWG, 90 °C, 6.0 mm OD,
Cable #RF50990-*M,
Cut/Abrasion Immune

RSC ..**

RKC 12T-*/S90

WKC 12T-*/S90

RSC 12T-*/S101

WSC 12T-*/S101

AWM TPE Black, 12x24
AWG, 105 °C, 7.6 mm
OD, Cable #RF50943-*M,
Flexlife-20, High Flex Over
20 Million Cycles

Male

WSC ..**

RKC 12T-*/S618

WKC 12T-*/S618

RSC 12T-*/S618

WSC 12T-*/S618

AWM PVC Black, 12x24
AWG Foil/Drain, 105 °C,
6.7 mm OD, Cable
#RF50755-*M, RFI/EMI
Shielding

RKC ..**

WKC ..**

M12

eurofast

®

Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

60 VAC/75 VDC, 2 A

12-Wire Cordsets, “C” Style Medium Plug Body

www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441



B2007 D21

W

e r

eser

ve the r

igh

t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RKL ..”.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

RKL ..**

RKL 4-*

RSL 4-*

ITC/PLTC PVC Grey, 3x22
AWG, 105 °C, 5.1 mm
OD, Cable #RF52081-*M,
Flexlife

®

1. BN
2. N/C
3. BU
4. BK

Female

RKL 4-*/S90

RSL 4-*/S90

AWM TPU Grey, 3x22
AWG, 90 °C, 4.8 mm OD,
Cable #RF52080-*M, Cut/
Abrasion Immune

RKL 4.4-*

RSL 4.4-*

ITC/PLTC PVC Grey, 4x22
AWG, 105 °C, 5.3 mm
OD, Cable #RF50516-*M,
Flexlife

1. BN
2. WH
3. BU
4. BK

RSL ..**

Male

RKL 4.4-*/S90

RSL 4.4-*/S90

AWM TPU Grey, 4x22 AWG,
90 °C, 5.1 mm OD, Cable
#RF50532-*M, Cut/
Abrasion Immune

RKL 4.4-*/S715

RSL 4.4-*/S715

ITC/PLTC PVC Yellow,
4x22 AWG, 105 °C, 5.3 mm
OD, Cable #RF50530-*M,
Flexlife

M12

eurofast®



Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

250 V, 4 A

3 and 4-Wire Cordsets, “L” Style Compact Plug Body

Cor

dsets



D22 B2007



www.turck.com

  • 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

www.turck.com

• 1-800-544-7769 • Fax:

(763)

553-0708 • Turck • Minneapolis,

MN

55441

B2007 D23

W

e r

eser
ve the r

igh
t t

o make t

echnical alt

er

ations without pr

ior notic

e.

*

**

Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters. Consult factory for other lengths.

Standard coupling nut material is nickel plated brass “RKG ..”; “RKGV ..” indicates stainless steel.

Connector Style

Female Part Number

Male Part Number

Features

Pinout

RKG ..**

RKG 4T-*

RSG 4T-*

ITC/PLTC PVC Yellow,
3x18 AWG, 105 °C,
6.2 mm OD, Cable
#RF50513-*M, Flexlife

®

,

tray rated

1. BN
2. N/C
3. BU
4. BK

Female

RKG 4T-*/S600

RSG 4T-*/S600

SJOOW, CPE Yellow, 3x18
AWG, 105 °C, 8.0 mm OD,
Cable #RF50654-*M, Weld
Flash Immune, Flame
Resistance

RKG 4.4T-*

RSG 4.4T-*

ITC/PLTC PVC Yellow,
4x18 AWG, 105 °C,
6.7 mm OD, Cable
#RF50579-*M, Flexlife

1. BN
2. WH
3. BU
4. BK

RKG 4.4T-*/S90

RSG 4.4T-*/S90

AWM TPU Yellow, 4x18
AWG, 90 °C, 7.2 mm OD,
Cable #RF50544-*M, Cut/
Abrasion Immune

RKG 4.4T-*/S101/S849 RSG 4.4T-*/S101/S849

AWM TPE Grey, 4x22
AWG, 105 °C, 5.1 mm
OD, Cable #RF50941-*M,
Flexlife-20, High Flex -
Over 20 Million Cycles

RSG ..**

Male

RKG 4.4T-*/S101

RSG 4.4T-*/S101

AWM TPE Yellow, 4x18
AWG, 105 °C, 6.2 mm
OD, Cable #RF50968-*M,
Flexlife-20, High Flex -
Over 20 Million Cycles

RKG 4.4T-*/S529

RSG 4.4T-*/S529

TPU/Heavy Braid Double
Jacket Yellow, 4x20
AWG, 90 °C, 5.7 mm OD,
Cable #RF50526-*M, Cut/
Abrasion Immune,
Braided Mechanical
Shield

RKG 4.4T-*/S1587

RSG 4.4T-*/S1587

ITC/PLTC TPE Yellow,
4x18 AWG, 105 °C,
6.9 mm OD, Cable
#RF50956-*M, Weldlife,
Weld Flash Immune

M12

eurofast

®

Connectivity



y

NEMA 1, 3, 4, 6P



y

IEC IP68 Protection



y

250 V, 4 A

3 and 4-Wire Cordsets, “G” Style Large Plug Body
