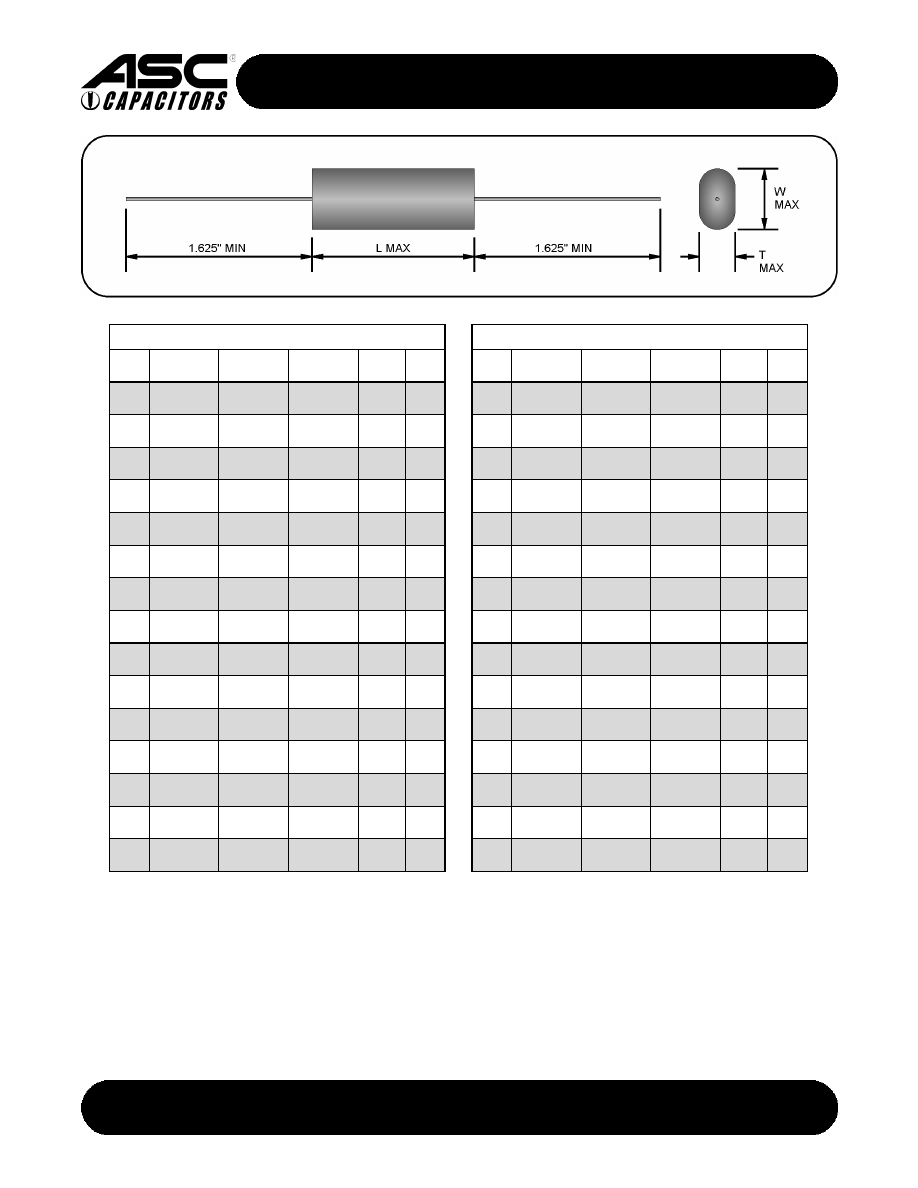

X637

301 WEST O STREET

•

OGALLALA, NE 69153

Phone: (308) 284-3611

e-mail: sales@ascapacitor.com

Fax: (308) 284-8324

web: www.ascapacitor.com

220VAC

CAP

(µF)

MAX

LEAD

AWG

PEAK

(A)

CAP

(µF)

MAX

LEAD

AWG

PEAK

(A)

0.50

0.295"

(7.5mm)

0.492"

(12.5mm)

1.354"

(34.4mm)

2.1

11.0

0.629"

(16.0mm)

0.984"

(25.0mm)

2.234"

(56.7mm)

22.0

0.68

0.295"

(7.5mm)

0.492"

(12.5mm)

1.354"

(34.4mm)

2.9

12.0

0.669"

(17.0mm)

1.020"

(25.9mm)

2.234"

(56.7mm)

24.0

1.00

0.295"

(7.5mm)

0.492"

(12.5mm)

1.354"

(34.4mm)

4.2

13.0

0.691"

(17.6mm)

1.034"

(26.3mm)

2.234"

(56.7mm)

26.0

1.25

0.271"

(6.9mm)

0.580"

(14.7mm)

1.354"

(34.4mm)

5.3

14.0

0.644"

(16.4mm)

0.986"

(25.0mm)

2.624"

(66.6mm)

23.8

1.50

0.302"

(7.7mm)

0.611"

(15.5mm)

1.354"

(34.4mm)

6.3

15.0

0.657"

(16.7mm)

1.028"

(26.1mm)

2.624"

(66.6mm)

25.5

1.80

0.336"

(8.5mm)

0.646"

(16.4mm)

1.354"

(34.4mm)

7.6

16.0

0.682"

(17.3mm)

1.053"

(26.7mm)

2.624"

(66.6mm)

27.2

2.00

0.364"

(9.2mm)

0.659"

(16.7mm)

1.354"

(34.4mm)

8.4

17.0

0.707"

(18.0mm)

1.078"

(27.4mm)

2.624"

(66.6mm)

28.9

3.00

0.456"

(11.6mm)

0.765"

(19.4mm)

1.354"

(34.4mm)

12.6

18.0

0.731"

(18.6mm)

1.102"

(28.0mm)

2.624"

(66.6mm)

30.6

4.00

0.539"

(13.7mm)

0.848"

(21.5mm)

1.354"

(34.4mm)

16.8

19.0

0.755"

(19.2mm)

1.126"

(28.6mm)

2.624"

(66.6mm)

32.3

5.00

0.614"

(15.6mm)

0.923"

(23.4mm)

1.354"

(34.4mm)

21.0

20.0

0.777"

(19.7mm)

1.148"

(29.2mm)

2.624"

(66.6mm)

34.0

6.00

0.551"

(14.0mm)

0.866"

(22.0mm)

1.794"

(45.6mm)

18.0

21.0

0.800"

(20.3mm)

1.171"

(29.7mm)

2.624"

(66.6mm)

35.7

7.00

0.590"

(15.0mm)

0.905"

(23.0mm)

1.794"

(45.6mm)

21.0

22.0

0.822"

(20.9mm)

1.193"

(30.3mm)

2.624"

(66.6mm)

37.4

8.00

0.610"

(15.5mm)

1.000"

(25.4mm)

1.794"

(45.6mm)

24.0

23.0

0.843"

(21.4mm)

1.214"

(30.8mm)

2.624"

(66.6mm)

39.1

9.00

0.649"

(16.5mm)

1.020"

(25.9mm)

1.794"

(45.6mm)

27.0

24.0

0.864"

(21.9mm)

1.235"

(31.4mm)

2.624"

(66.6mm)

40.8

10.0

0.590"

(15.0mm)

0.964"

(24.5mm)

2.234"

(56.7mm)

20.0

25.0

0.885"

(22.5mm)

1.256"

(31.9mm)

2.624"

(66.6mm)

42.5

PAGE 1 OF 3

METALLIZED POLYESTER
TAPE WRAP AND EPOXY FILL CASE

X637

301 WEST O STREET

•

OGALLALA, NE 69153

Phone: (308) 284-3611

e-mail: sales@ascapacitor.com

Fax: (308) 284-8324

web: www.ascapacitor.com

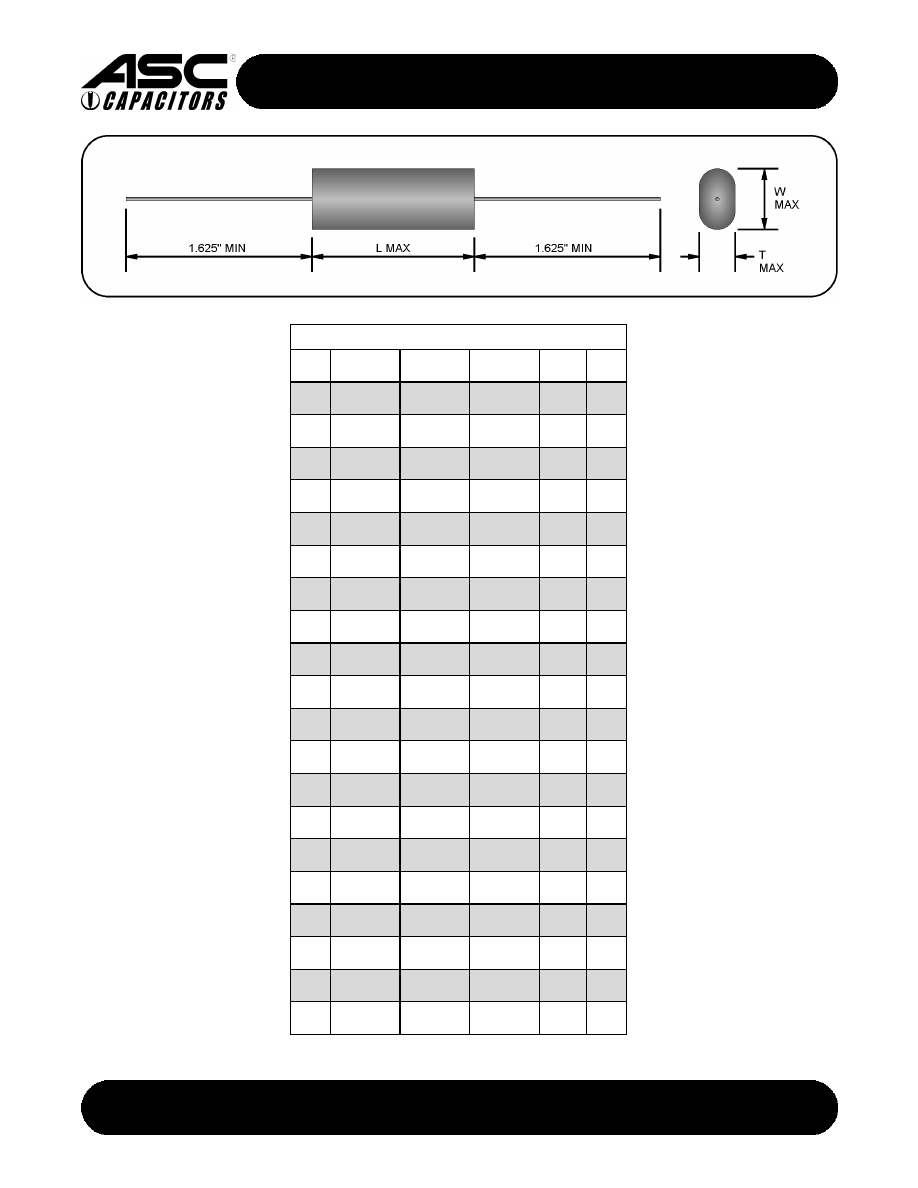

250VAC

CAP

(µF)

MAX

LEAD

AWG

PEAK

(A)

0.50

0.334"

(8.5mm)

0.590"

(15.0mm)

1.354"

(34.4mm)

2.5

0.68

0.340"

(8.6mm)

0.590"

(15.0mm)

1.354"

(34.4mm)

3.4

1.00

0.334"

(8.5mm)

0.590"

(15.0mm)

1.354"

(34.4mm)

5.0

1.25

0.375"

(9.5mm)

0.625"

(15.9mm)

1.354"

(34.4mm)

6.3

1.50

0.425"

(10.8mm)

0.655"

(16.6mm)

1.354"

(34.4mm)

7.5

1.80

0.460"

(11.7mm)

0.700"

(17.8mm)

1.354"

(34.4mm)

9.0

2.00

0.472"

(12.0mm)

0.720"

(18.3mm)

1.354"

(34.4mm)

10.0

3.00

0.564"

(14.3mm)

0.873"

(22.2mm)

1.354"

(34.4mm)

15.0

4.00

0.637"

(16.2mm)

1.008"

(25.6mm)

1.354"

(34.4mm)

20.0

5.00

0.590"

(15.0mm)

0.964"

(24.5mm)

1.794"

(45.6mm)

16.5

6.00

0.688"

(17.5mm)

1.060"

(26.9mm)

1.794"

(45.6mm)

19.8

7.00

0.708"

(18.0mm)

1.080"

(27.4mm)

1.794"

(45.6mm)

23.1

8.00

0.649"

(16.5mm)

1.020"

(25.9mm)

2.234"

(56.7mm)

20.0

9.00

0.688"

(17.5mm)

1.060"

(26.9mm)

2.234"

(56.7mm)

22.5

10.0

0.728"

(18.5mm)

1.100"

(27.9mm)

2.234"

(56.7mm)

25.0

11.0

0.678"

(17.2mm)

1.049"

(26.6mm)

2.624"

(66.6mm)

22.0

12.0

0.714"

(18.1mm)

1.085"

(27.6mm)

2.624"

(66.6mm)

24.0

13.0

0.719"

(18.3mm)

1.152"

(29.3mm)

2.624"

(66.6mm)

26.0

14.0

0.752"

(19.1mm)

1.185"

(30.1mm)

2.624"

(66.6mm)

28.0

15.0

0.784"

(19.9mm)

1.217"

(30.9mm)

2.624"

(66.6mm)

30.0

PAGE 2 OF 3

METALLIZED POLYESTER
TAPE WRAP AND EPOXY FILL CASE

X637

301 WEST O STREET

•

OGALLALA, NE 69153

Phone: (308) 284-3611

e-mail: sales@ascapacitor.com

Fax: (308) 284-8324

web: www.ascapacitor.com

PAGE 3 OF 3

GENERAL SPECIFICATIONS

PHYSICAL CHARACTERISTICS

CONSTRUCTION:

NON-INDUCTIVE WOUND METALLIZED POLYESTER.

CASE:

FLAME RETARDANT TAPE WRAP CASE AND EPOXY FILL.

LEAD MATERIAL:

AXIAL SOLDER COATED OR TINNED SOLID WIRE, AWG AS SPECIFIED IN TABLES.

DIMENSIONS:

AS SPECIFIED IN TABLES.

ELECTRICAL CHARACTERISTICS

CAPACITANCE:

AS SPECIFIED IN TABLES ± REQUESTED TOLERANCE WHEN MEASURED AT OR

REFERRED TO 1000 ± 20 HZ AND 25 ± 5 °C.

TOLERANCE:

±5%, ±10%, AND ±20% AVAILABLE. OTHER TOLERANCES AVAILABLE UPON REQUEST.

DISSIPATION FACTOR:

SHALL NOT BE GREATER THAN 1.0% WHEN MEASURED AT OR REFERRED TO

1000 ± 20 HZ AND 25 ± 5 °C.

INSULATION RESISTANCE:

SHALL BE GREATER THAN 10,000 M

Ω

X µ WHEN MEASURED AFTER 2

MINUTES ELECTRIFICATION AT 200VDC AND 25 ± 5 °C.

DIELECTRIC STRENGTH:

400VDC (FOR 220VAC RATING) AND 500VDC (FOR 250VAC RATING) FOR 1

MINUTE THROUGH A LIMITING RESISTANCE OF 100 OHMS/VOLT AT 25 ± 5 °C.

RATED VOLTAGE:

220VAC AND 250VAC AVAILABLE. ALL RATINGS ARE FOR 50/60 HZ OPERATION.

TEMPERATURE:

-55 °C TO +85 °C AT FULL RATED VOLTAGE OPERATIONAL TEMPERATURE, +105 °C

MAX STORAGE TEMPERATURE.

ADDITIONAL INFORMATION

ORDERING INFORMATION:

ALL ASC CAPACITORS ARE ORDERED BY "FAMILY CAP-TOL-VOLT"

DESIGNATION. (I.E. TO ORDER AN X637 1.0µF, ±10%, 250VAC CAPACITOR, REQUEST PART NUMBER
"X637 1-10-250")

SEE ALSO:

"GENERAL INFORMATION - POLYESTER CAPACITORS" DOCUMENT FOR ADDITIONAL

PHYSICAL, ELECTRICAL, AND PERFORMANCE CHARACTERISTICS NOT MENTIONED IN THIS FILE.

WARNING:

INFORMATION ON THIS FILE IS SUBJECT TO CHANGE WITHOUT NOTICE AT ASC'S

DISCRETION.

LAST MODIFIED: 09/26/01
