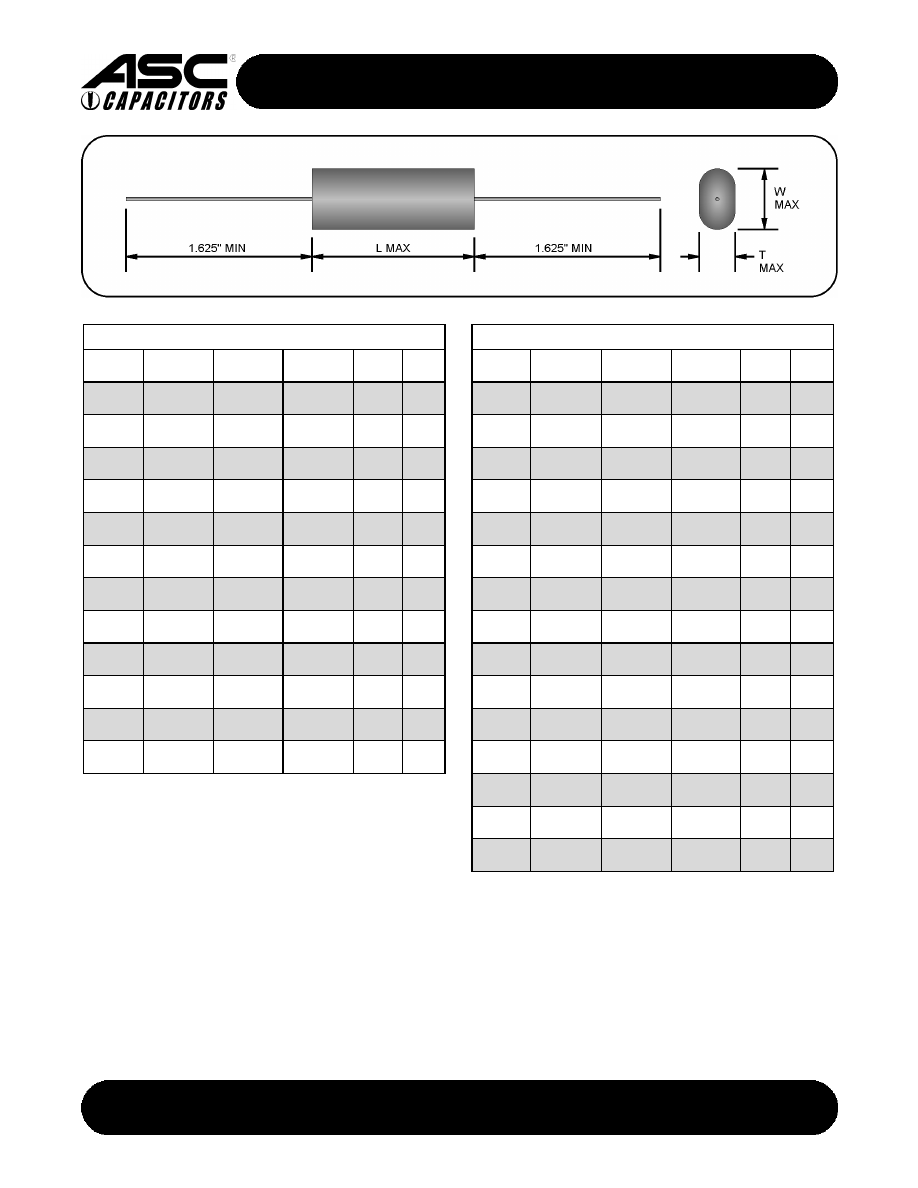

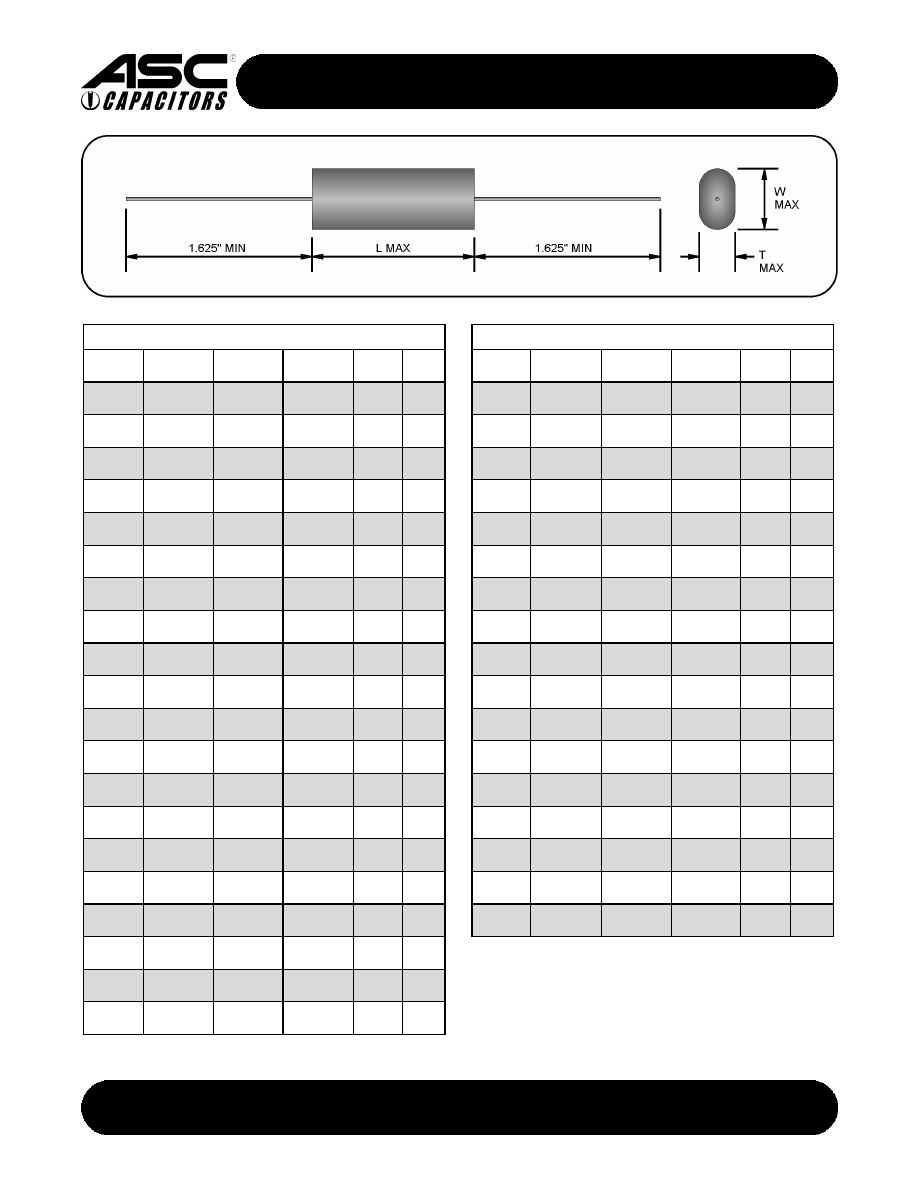

X667

301  WEST  O  STREET

•

  OGALLALA, NE  69153

Phone:  (308) 284-3611

e-mail:  sales@ascapacitor.com

Fax:  (308) 284-8324

web:  www.ascapacitor.com

63VDC

100VDC

CAP

(µF)

T

MAX

W

MAX

L

MAX

AWG

I

PEAK

(A)

CAP

(µF)

T

MAX

W

MAX

L

MAX

AWG

I

PEAK

(A)

0.22

0.200"

(5.1mm)

0.250"

(6.4mm)

0.450"

(11.4mm)

24

1.8

0.068

0.200"

(5.1mm)

0.250"

(6.4mm)

0.450"

(11.4mm)

24

0.8

0.33

0.210"

(5.3mm)

0.280"

(7.1mm)

0.450"

(11.4mm)

24

2.6

0.10

0.210"

(5.3mm)

0.280"

(7.1mm)

0.450"

(11.4mm)

24

1.2

0.47

0.240"

(6.1mm)

0.320"

(8.1mm)

0.450"

(11.4mm)

24

3.8

0.15

0.200"

(5.1mm)

0.270"

(6.9mm)

0.450"

(11.4mm)

24

1.8

0.68

0.210"

(5.3mm)

0.310"

(7.9mm)

0.580"

(14.7mm)

24

3.4

0.22

0.220"

(5.6mm)

0.300"

(7.6mm)

0.450"

(11.4mm)

24

2.6

1.0

0.250"

(6.4mm)

0.350"

(8.9mm)

0.580"

(14.7mm)

24

5.0

0.33

0.200"

(5.1mm)

0.300"

(7.6mm)

0.580"

(14.7mm)

24

2.3

1.5

0.300"

(7.6mm)

0.400"

(10.2mm)

0.580"

(14.7mm)

24

7.5

0.47

0.230"

(5.8mm)

0.330"

(8.4mm)

0.580"

(14.7mm)

24

3.3

2.2

0.360"

(9.1mm)

0.460"

(11.7mm)

0.580"

(14.7mm)

22

11.0

0.68

0.270"

(6.9mm)

0.370"

(9.4mm)

0.580"

(14.7mm)

24

4.8

3.3

0.350"

(8.9mm)

0.470"

(11.9mm)

0.700"

(17.8mm)

22

9.9

1.0

0.320"

(8.1mm)

0.420"

(10.7mm)

0.580"

(14.7mm)

22

7.0

5.0

0.430"

(10.9mm)

0.550"

(14.0mm)

0.700"

(17.8mm)

22

15.0

1.5

0.320"

(8.1mm)

0.440"

(11.2mm)

0.700"

(17.8mm)

22

7.5

6.0

0.370"

(9.4mm)

0.530"

(13.5mm)

0.830"

(21.1mm)

22

12.0

2.2

0.330"

(8.4mm)

0.450"

(11.4mm)

0.830"

(21.1mm)

22

6.6

8.0

0.390"

(9.9mm)

0.550"

(14.0mm)

1.000"

(25.4mm)

22

16.0

3.3

0.400"

(10.2mm)

0.530"

(13.5mm)

0.830"

(21.1mm)

22

9.9

10.0

0.440"

(11.2mm)

0.590"

(15.0mm)

1.000"

(25.4mm)

22

20.0

5.0

0.430"

(10.9mm)

0.580"

(14.7mm)

1.000"

(25.4mm)

22

15.0

6.0

0.380"

(9.7mm)

0.540"

(13.7mm)

1.200"

(30.5mm)

22

12.0

8.0

0.400"

(10.2mm)

0.560"

(14.2mm)

1.200"

(30.5mm)

22

16.0

10.0

0.510"

(13.0mm)

0.680"

(17.3mm)

1.200"

(30.5mm)

20

20.0

PAGE 1 OF 3

METALLIZED POLYESTER
TAPE WRAP AND EPOXY FILL CASE

X667

301  WEST  O  STREET

•

  OGALLALA, NE  69153

Phone:  (308) 284-3611

e-mail:  sales@ascapacitor.com

Fax:  (308) 284-8324

web:  www.ascapacitor.com

250VDC

400VDC

CAP

(µF)

T

MAX

W

MAX

L

MAX

AWG

I

PEAK

(A)

CAP

(µF)

T

MAX

W

MAX

L

MAX

AWG

I

PEAK

(A)

0.010

0.200"

(5.1mm)

0.230"

(5.8mm)

0.450"

(11.4mm)

24

0.2

0.010

0.200"

(5.1mm)

0.260"

(6.6mm)

0.580"

(14.7mm)

24

0.2

0.015

0.200"

(5.1mm)

0.260"

(6.6mm)

0.450"

(11.4mm)

24

0.4

0.015

0.200"

(5.1mm)

0.260"

(6.6mm)

0.580"

(14.7mm)

24

0.3

0.022

0.200"

(5.1mm)

0.230"

(5.8mm)

0.450"

(11.4mm)

24

0.5

0.022

0.200"

(5.1mm)

0.260"

(6.6mm)

0.580"

(14.7mm)

24

0.5

0.033

0.200"

(5.1mm)

0.250"

(6.4mm)

0.450"

(11.4mm)

24

0.8

0.033

0.200"

(5.1mm)

0.290"

(7.4mm)

0.580"

(14.7mm)

24

0.7

0.047

0.200"

(5.1mm)

0.280"

(7.1mm)

0.450"

(11.4mm)

24

1.1

0.047

0.220"

(5.6mm)

0.320"

(8.1mm)

0.580"

(14.7mm)

24

1.0

0.068

0.200"

(5.1mm)

0.270"

(6.9mm)

0.580"

(14.7mm)

24

0.9

0.068

0.220"

(5.6mm)

0.320"

(8.1mm)

0.700"

(17.8mm)

24

1.0

0.10

0.200"

(5.1mm)

0.300"

(7.6mm)

0.580"

(14.7mm)

24

1.3

0.10

0.260"

(6.6mm)

0.360"

(9.1mm)

0.700"

(17.8mm)

24

1.4

0.15

0.240"

(6.1mm)

0.340"

(8.6mm)

0.580"

(14.7mm)

24

2.0

0.15

0.270"

(6.9mm)

0.370"

(9.4mm)

0.830"

(21.1mm)

24

1.7

0.22

0.290"

(7.4mm)

0.390"

(9.9mm)

0.580"

(14.7mm)

24

2.9

0.22

0.320"

(8.1mm)

0.420"

(10.7mm)

0.830"

(21.1mm)

22

2.4

0.33

0.250"

(6.4mm)

0.370"

(9.4mm)

0.830"

(21.1mm)

24

2.3

0.33

0.350"

(8.9mm)

0.450"

(11.4mm)

1.000"

(25.4mm)

22

3.0

0.47

0.290"

(7.4mm)

0.410"

(10.4mm)

0.830"

(21.1mm)

24

3.3

0.47

0.320"

(8.1mm)

0.490"

(12.4mm)

1.200"

(30.5mm)

22

2.8

0.68

0.300"

(7.6mm)

0.450"

(11.4mm)

1.000"

(25.4mm)

24

4.1

0.68

0.390"

(9.9mm)

0.560"

(14.2mm)

1.200"

(30.5mm)

22

4.1

1.0

0.360"

(9.1mm)

0.530"

(13.5mm)

1.000"

(25.4mm)

22

6.0

1.0

0.480"

(12.2mm)

0.650"

(16.5mm)

1.200"

(30.5mm)

20

6.0

1.5

0.450"

(11.4mm)

0.600"

(15.2mm)

1.000"

(25.4mm)

22

9.0

1.5

0.520"

(13.2mm)

0.690"

(17.5mm)

1.500"

(38.1mm)

20

7.5

2.2

0.460"

(11.7mm)

0.610"

(15.5mm)

1.200"

(30.5mm)

22

8.8

2.2

0.550"

(14.0mm)

0.720"

(18.3mm)

1.950"

(49.5mm)

20

8.8

3.3

0.560"

(14.2mm)

0.720"

(18.3mm)

1.200"

(30.5mm)

20

13.2

3.3

0.670"

(17.0mm)

0.840"

(21.3mm)

1.950"

(49.5mm)

20

13.2

5.0

0.680"

(17.3mm)

0.840"

(21.3mm)

1.200"

(30.5mm)

20

20.0

5.0

0.810"

(20.6mm)

0.980"

(24.9mm)

1.950"

(49.5mm)

20

20.0

6.0

0.570"

(14.5mm)

0.740"

(18.8mm)

1.700"

(43.2mm)

20

18.0

8.0

0.580"

(14.7mm)

0.750"

(19.1mm)

1.950"

(49.5mm)

20

16.0

10.0

0.750"

(19.1mm)

0.920"

(23.4mm)

1.950"

(49.5mm)

20

20.0

PAGE 2 OF 3

METALLIZED POLYESTER
TAPE WRAP AND EPOXY FILL CASE

X667

301  WEST  O  STREET

•

  OGALLALA, NE  69153

Phone:  (308) 284-3611

e-mail:  sales@ascapacitor.com

Fax:  (308) 284-8324

web:  www.ascapacitor.com

PAGE 3 OF 3

GENERAL SPECIFICATIONS

PHYSICAL CHARACTERISTICS

CONSTRUCTION:

 NON-INDUCTIVE WOUND METALLIZED POLYESTER.

CASE:

  FLAME RETARDANT TAPE WRAP CASE AND EPOXY FILL.

LEAD MATERIAL:

  AXIAL SOLDER COATED OR TINNED SOLID WIRE, AWG AS SPECIFIED IN TABLES.

DIMENSIONS:

 AS SPECIFIED IN TABLES.

ELECTRICAL CHARACTERISTICS

CAPACITANCE:

  AS SPECIFIED IN TABLES ± REQUESTED TOLERANCE WHEN MEASURED AT OR

REFERRED TO 1000 ± 20 HZ AND 25 ± 5 °C.

TOLERANCE:

  ±5%, ±10%, AND ±20% AVAILABLE.  OTHER TOLERANCES AVAILABLE UPON REQUEST.

DISSIPATION FACTOR:

  SHALL NOT BE GREATER THAN 1.0% WHEN MEASURED AT OR REFERRED TO

1000 ± 20 HZ AND 25 ± 5 °C.

INSULATION RESISTANCE:

  SHALL BE GREATER THAN 25,000 M

Ω

 FOR CAPACITANCE VALUES 0.40 µF

AND LESS OR 10,000 M

Ω

 X µF FOR CAPACITANCE VALUES GREATER THAN 0.40 µF WHEN MEASURED

AFTER 2 MINUTES ELECTRIFICATION AT RATED VOLTAGE OR 500VDC, WHICHEVER IS LESS, AND
25 ± 5 °C.

DIELECTRIC STRENGTH:

  160% RATED VOLTAGE FOR 1 MINUTE THROUGH A LIMITING RESISTANCE

OF 100 OHMS/VOLT AT 25 ± 5 °C.

RATED VOLTAGE:

  63VDC, 100VDC, 250VDC, AND 400VDC AVAILABLE.

TEMPERATURE:

  -55 °C TO +85 °C AT FULL RATED VOLTAGE OPERATIONAL TEMPERATURE, DERATE

LINEARLY 1.25%/°C ABOVE +85 °C TO +125 °C, +125 °C MAX STORAGE TEMPERATURE.

ADDITIONAL INFORMATION

ORDERING INFORMATION:

  ALL ASC CAPACITORS ARE ORDERED BY "FAMILY CAP-TOL-VOLT"

DESIGNATION.  (I.E.  TO ORDER A X667 0.1µF, ±10%, 250VDC CAPACITOR, REQUEST PART NUMBER
"X667 .1-10-250")

SEE ALSO:

  "GENERAL INFORMATION - POLYESTER CAPACITORS" DOCUMENT FOR ADDITIONAL

PHYSICAL, ELECTRICAL, AND PERFORMANCE CHARACTERISTICS NOT MENTIONED IN THIS FILE.

WARNING:

  INFORMATION ON THIS FILE IS SUBJECT TO CHANGE WITHOUT NOTICE AT ASC'S

DISCRETION.

LAST MODIFIED:  09/26/01

METALLIZED POLYESTER
TAPE WRAP AND EPOXY FILL CASE
