PRODUCT SELECTION GUIDE

2016

SMD RESISTORS + MLCC

SMD CERAMIC EMI FILTER CAPACITORS - X2Y

WIRELESS COMPONENTS

MULTILAYER CHIP VARISTORS

www

.yageo.com

Yageo-ProductSelectionGuide-html.html

Part numbering system and ordering

You can order components from this catalogue in two ways. Both ways give logistic and packing information.
•

Clear text ordering code

This unique number is an easily-readable code.
- 15 digits code (PHYCOMP CTC )
- 14 to 17 digits code (GLOBAL PART NUMBER for both Yageo and Phycomp branded products)

•

12 digits ordering code

This unique 12NC number forms the basis of the Phycomp logistic system.

You will find details for ordering in the "

Ordering"

section next to each selection chart.

Minimum shipment quantities, prices and delivering details can be obtained from the Yageo sales organization in
your country or from one of our franchised distributors.

Case size codes

Throughout this catalogue, inch-based codes are used
for the component sizes. According to IEC 60384-10,
amendment 2 of September 2000 for MLCCs, and IEC
60115-8, amendment 1 of July 2000 for R-chip. Values
for length and width should be in millimeters rather than
in inches. To distinguish between inch-based codes and
metric-based codes, metric-based codes will temporarily
have the suffix ‘’M’’. The table right next shows the
relation between inch-based case sizes versus the
recommended metric case size designators. Please note
that HF products use metric case size only.

Contact us

Founded in 1977, the Yageo Corporation has become a world-class provider of passive-component services with
capabilities on a global scale, including production and sales facilities in Asia, Europe and America. The corporation
is uniquely positioned to provide one-stop-shopping, offering its complete product portfolio of resistors, capacitors
and inductors in both commodity and specialty versions, plus design-in capability, distribution, e-commerce
connection and logistics. Yageo markets its products under the product brand names Yageo, Phycomp and Vitrohm.

All products can be obtained from our Yageo sales offices, of which contact details can be found on the backcover of

this catalogue. For most up-to-date information, as well as contact details of our franchise distributors, please refer to
our website:

www.yageo.com

Case size designation and cross-reference

Inch-based

Metric

Inch-based

Metric

Inch-based

Metric

0050

0201M

0606

1616M

1224

3250M

0075

03015M

0612

1632M

1225

3264M

01005

0402M

0616

1640M

1812

4532M

0201

0603M

0805

2012M

2007

5320M

0202

0605M

0815

2037M

2010

5025M

0402

1005M

0830

2075M

2220

5750M

0404

1010M

1008

2520M

2512

6432M

0408

1020M

1206

3216M

3014

7836M

0508

1220M

1210

3225M

4527

11070M

0603

1608M

1218

3245M

Preface

Yageo-ProductSelectionGuide-html.html

Table of Contents

Chip Resistors General Information

Specification overview

Ordering information - Global part number

Ordering information - North America

IEC publication 63, SPQ, last digit of 12NC

Chip Resistors Selection Charts

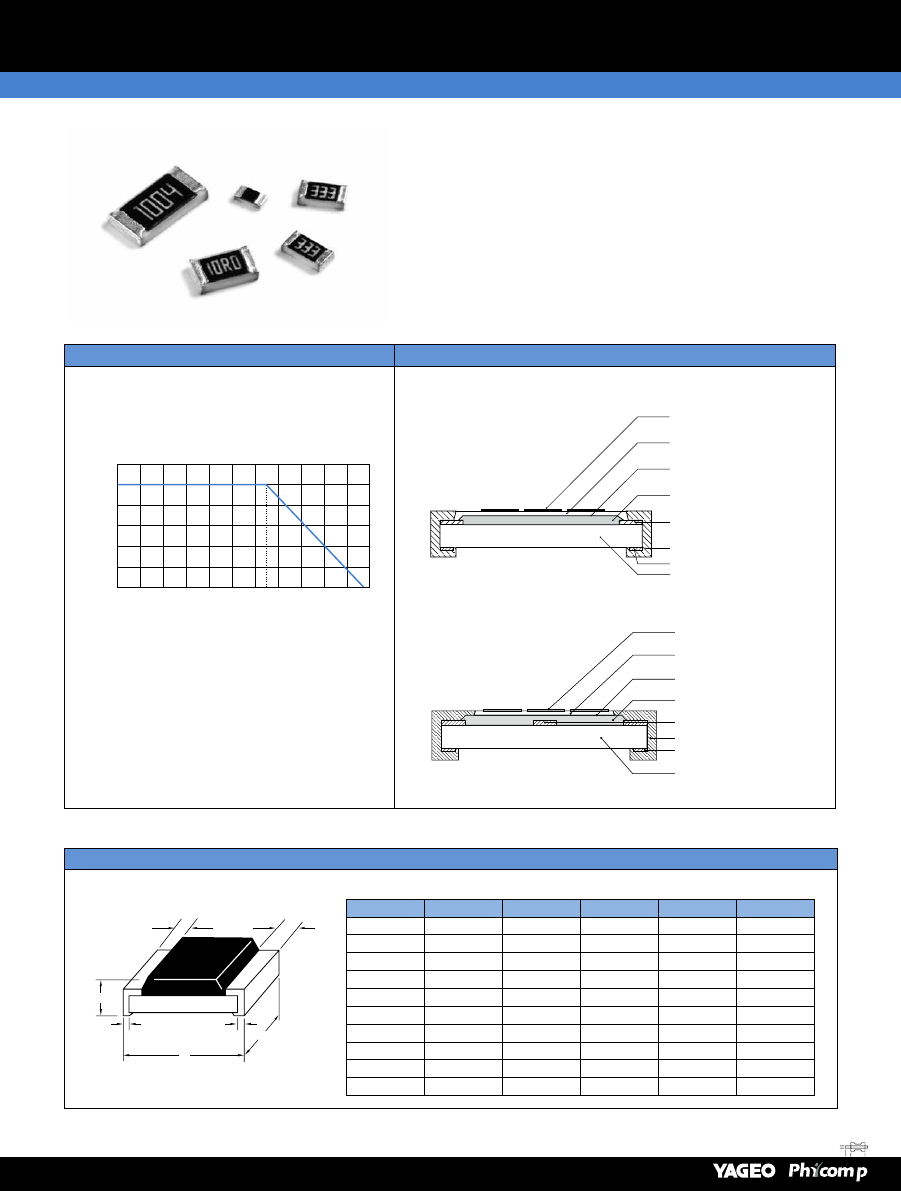

RC - Thick film chip resistors

RC - Thick film general purpose chip resistors, 0075 to 2512

RC_P ,Total lead free thick film general purpose chip resistor

RC_P ,Total lead free thick film general purpose chip resistor,01005 to 2512

RE - Thick film precision grade chip resistors

RE - Thick film precision grade chip resistors, 0201 to 1206

RT - Thin film high precision high stability chip resistors

RT - Thin film high precision high stability chip resistors, 0201 to 2512

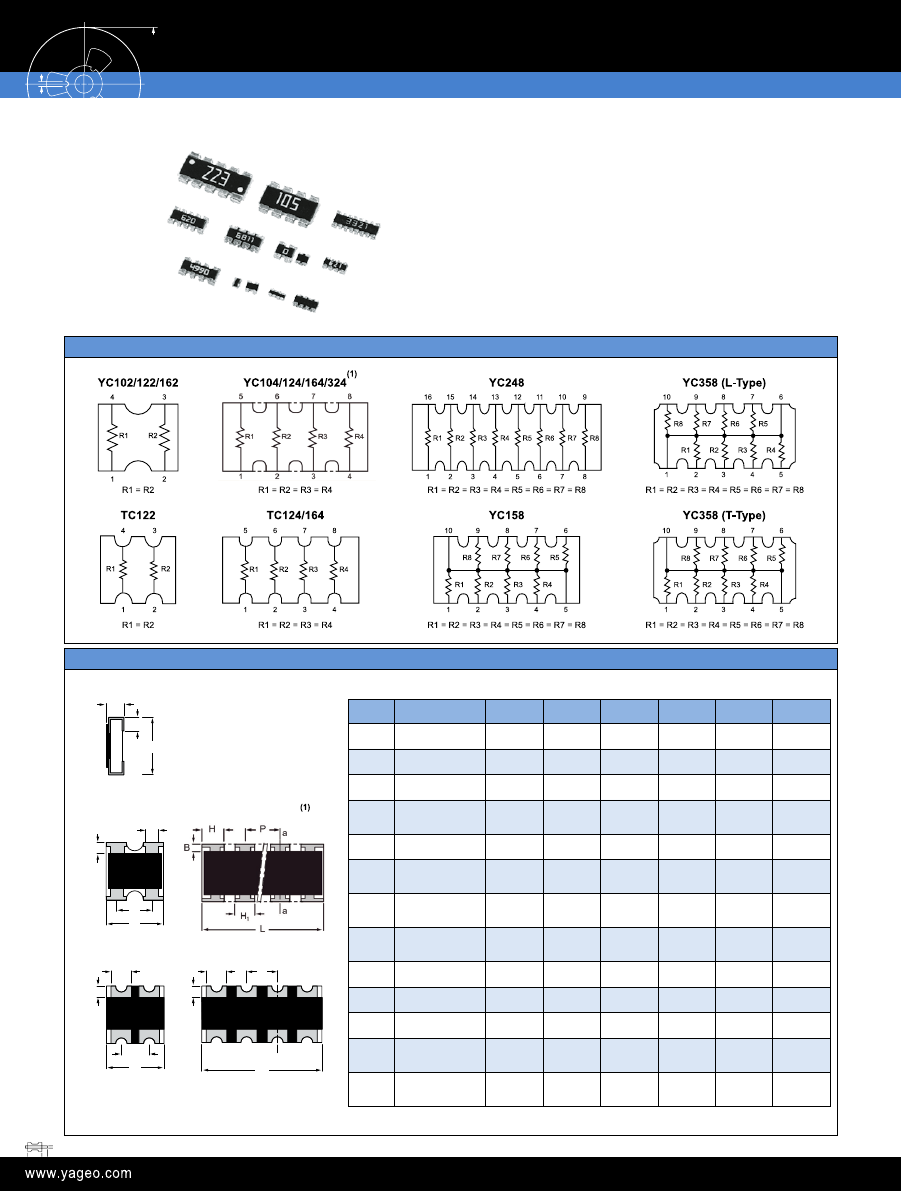

YC/TC - Thick film array / network chip resistors

YC/TC - Arrays, convex / concave / flat

YC - Network, T-type / L-type

RL - Thick film low ohmic chip resistors

RL - Thick film low ohmic chip resistors, 0402 to 2512

RL - Thick film low ohmic, high power chip resistors, 0805 / 1206

PT - Thick film low ohmic low T. C. R. chip resistors

PT - Thick film low ohmic low T. C. R. chip resistors, 0402 to 2512

PA/PE - Current sensors - low T. C. R. chip resistors

PA/PE - Current sensors - low T. C. R. chip resistors, 0201 to 2512

PE - Current sensors - low T. C. R. chip resistors, wide termination

PE - Current sensors - low T. C. R. chip resistors, wide termination, 0508 to 0612

PS - Current sensors - low T. C. R. chip resistors, 4 termination

PS - Current sensors - low T. C. R. chip resistors, 4 termination, 0306 to 0612

PU - Shunt chip resistors

PU - Shunt chip resistors, 3921, 5931

AR - NiAu termination chip resistors

AR - NiAu termination chip resistors, 0402 to 1206

SR - Surge chip resistors

SR - Surge chip resistors, 0402 to 2512

RV - High voltage chip resistors

RV - High voltage chip resistors, 0603 to 2512

TR - Trimmable chip resistors

TR - Trimmable chip resistors, 0402 to 1206

AF - Sulfur resistant chip resistors

AF - Sulfur resistant chip resistors, 0201 to 2512

AF - Sulfur resistant chip resistors, Arrays

AC - Automotive grade chip resistors

AC - Automotive grade chip resistors, 0201 to 2512

AC - Automotive grade sulfur-resistant chip resistors, wide termination

AC - Automotive grade sulfur-resistant chip resistors, wide termination, 0612 to 1225

AA - Automotive grade sulfur-resistant chip resistors

AA - Automotive grade sulfur-resistant chip resistors, 0201 to 2512

Yageo-ProductSelectionGuide-html.html

Table of Contents

ATV - RF attenuator chip resistors

ATV - RF attenuator chip resistors, 0404

AT - Automotive grade Thin film high precision high stability chip resistors

AT - Automotive grade Thin film high precision high stability chip resistors, 0402 to 1206

Chip Resistors Engineering Design Kits

Engineering design kits

Engineering design books

MLCC General Information

Specification overview

Ordering information - Global part number

Thickness classes and packing quantities for all series

MLCC Selection Charts

NP0 - General purpose

NP0 - General purpose 16 to 50V, 01005 to 0603

NP0 - General purpose 16 to 50V, 0805 to 1812

NP0 - Medium & High voltage

101

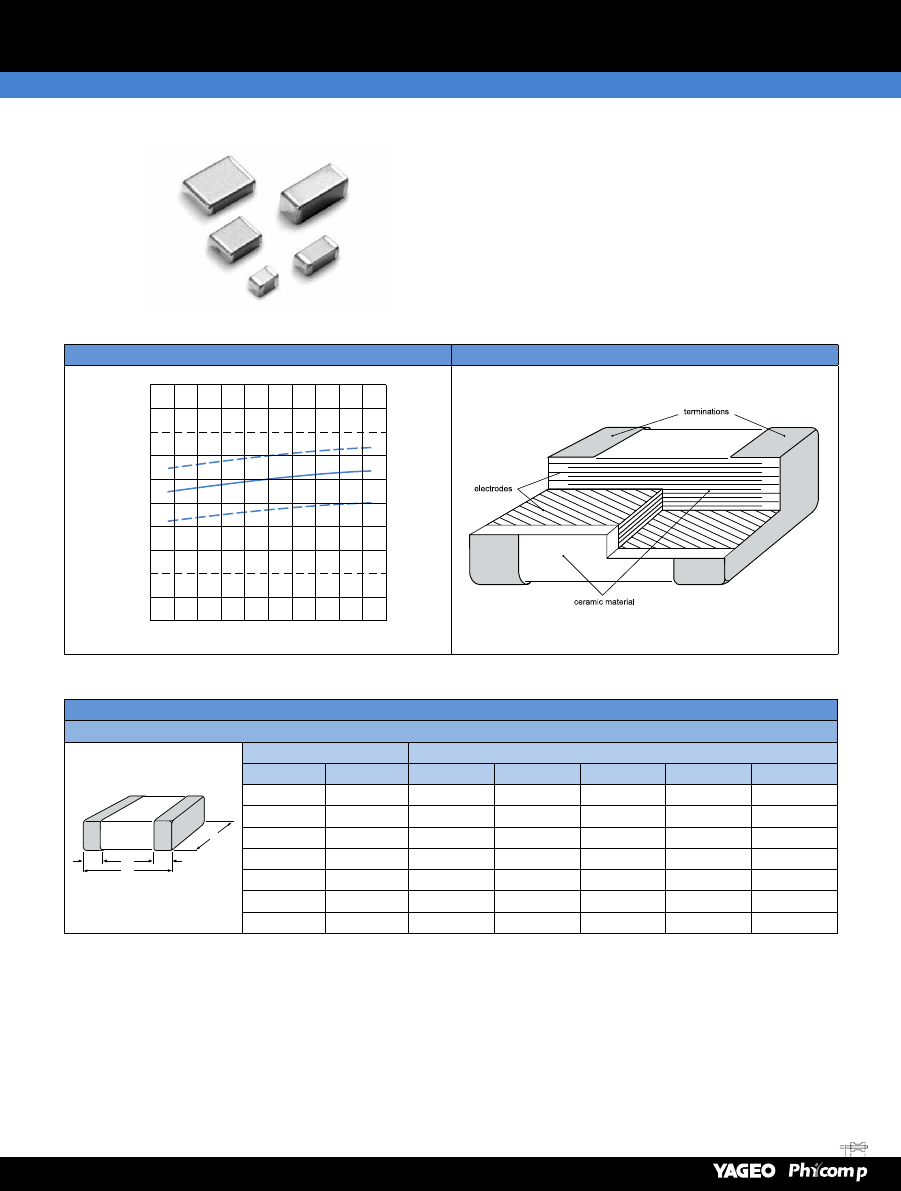

NP0 - Medium voltage, 0402 to 0805

102

NP0 - Medium voltage, 1206 to 1812

103

NP0 - High voltage, 0805 to 1210

104

NP0 - High voltage, 1808 / 1812

105

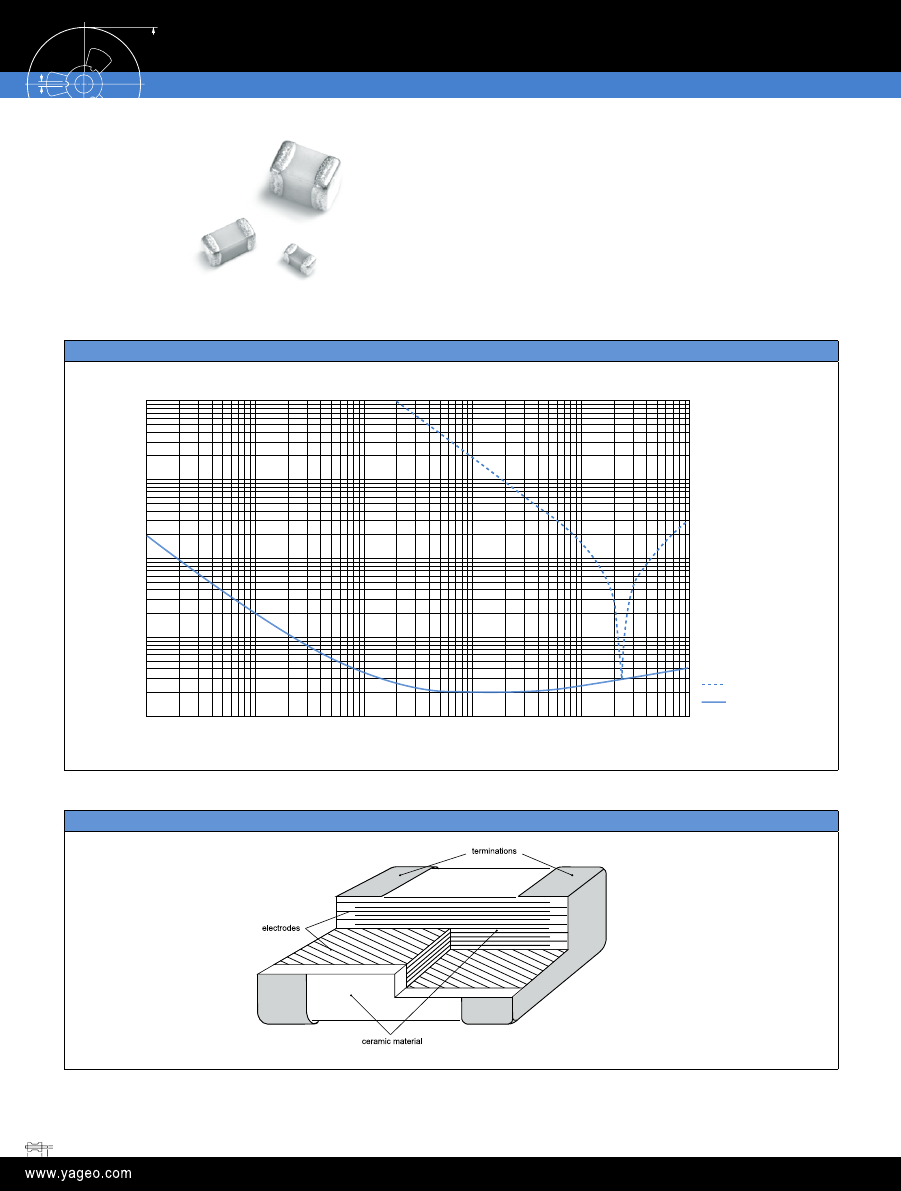

NP0 - High frequency

106

NP0 - High frequency, 0201 to 0805

106

X7R - General purpose & High capacitance

108

X7R - General purpose

& High capacitance, 01005 to 0402

109

X7R - General purpose & High capacitance, 0603 / 0805

110

X7R - General purpose & High capacitance, 1206 to 2220

111

X7R - Medium & High voltage

112

X7R - Medium voltage

& High voltage, 0402 to 0805

113

X7R - Medium voltage

& High voltage, 1206 / 1210

114

X7R - Medium voltage

& High voltage, 1808 / 1812

115

X7R / X5R - Low inductance

116

X7R/ X5R - Low inductance, 0204 to 0612

116

NP0 / X7R - Soft termination

118

NP0 - Soft termination, 0402 to 0805

119

NP0 - Soft termination, 1206 / 1210

120

NP0 - Soft termination, 1808 / 1812

121

X7R - Soft termination, 0402 / 0603

122

X7R - Soft termination, 0805

123

X7R - Soft termination, 1206

124

X7R - Soft termination, 1210

125

X7R - Soft termination, 1808

126

X7R - Soft termination, 1812

127

X5R - General purpose & High capacitance

128

X5R - General purpose & High capacitance, 01005 to 0402

129

X5R - General purpose & High capacitance, 0603 / 0805

130

X5R - General purpose

& High capacitance, 1206

131

X5R - General purpose

& High capacitance, 1210

132

Yageo-ProductSelectionGuide-html.html

Table of Contents

Y5V - General purpose & High capacitance

133

Y5V - General purpose & High capacitance 6.3 to 50V, 0402

134

Y5V - General purpose & High capacitance 6.3 to 50V, 0603 / 0805

135

Y5V - General purpose & High capacitance 6.3 to 50V, 1206 / 1210

136

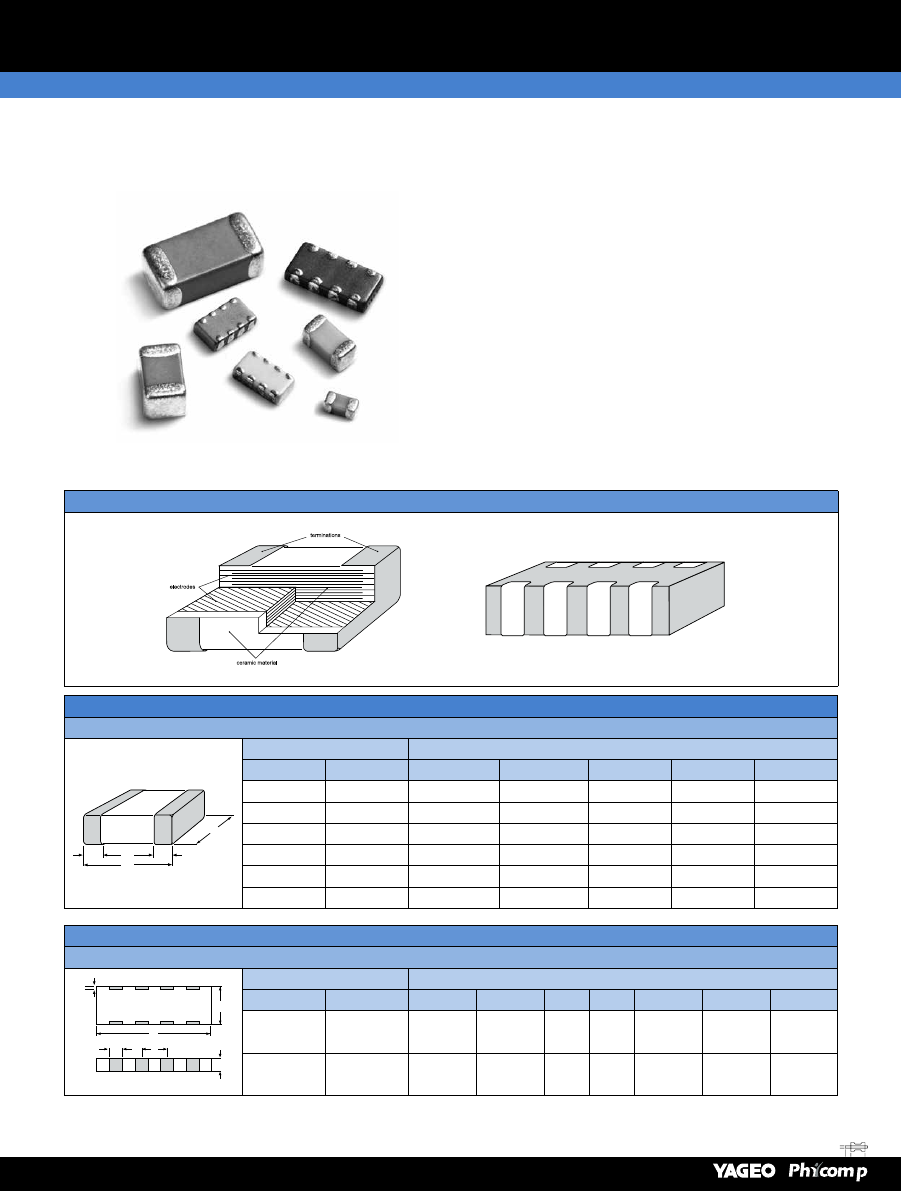

Automotive grade MLCCs

137

NP0 - Automotive grade, 0402 to 0805

138

NP0 - Automotive grade, 1206 / 1210

139

X7R - Automotive grade, 0402 / 0603

140

X7R - Automotive grade, 0805

141

X7R - Automotive grade, 1206

142

X7R - Automotive grade, 1210 / 1812

143

NPO / X7R - Automotive grade 4C Arrays, 0508 / 0612

144

Safety certification MLCCs

145

NPO - High voltage SC type, 1808 / 1812

146

X7R - High voltage SC type, 1808 / 1812

146

Arrays

147

NPO / X7R / Y5V / X5R- 4C Arrays, 0508 / 0612

147

NPO - 4C Arrays, 0508 / 0612

149

X7R / X5R - 4C Arrays, 0508 / 1612

150

Y5V - 4C Arrays, 0612

151

MLCC Engineering Design Kits

152

Sample kits

152

X2Y

Product Selection Charts

154

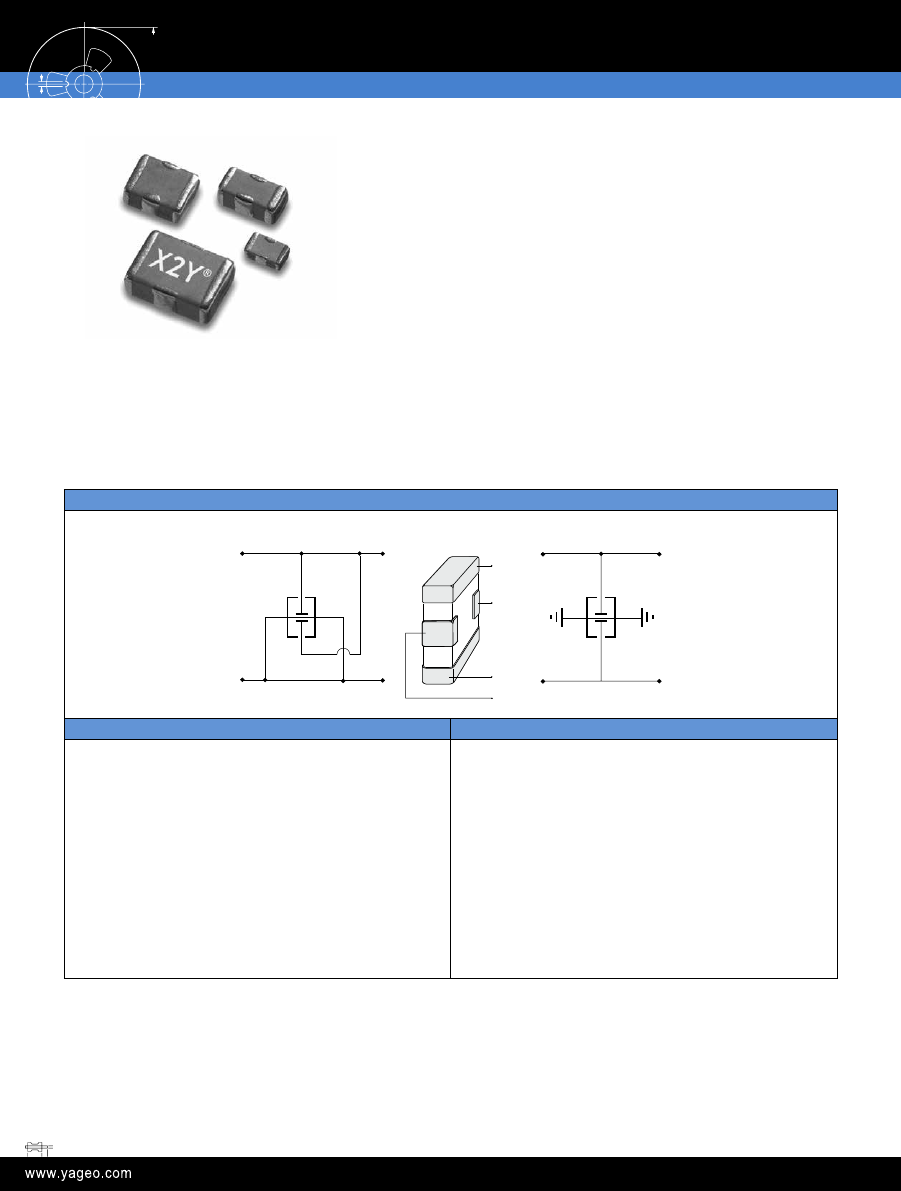

SMD ceramic EMI filter capacitors X2Y

series

154

Ordering information

155

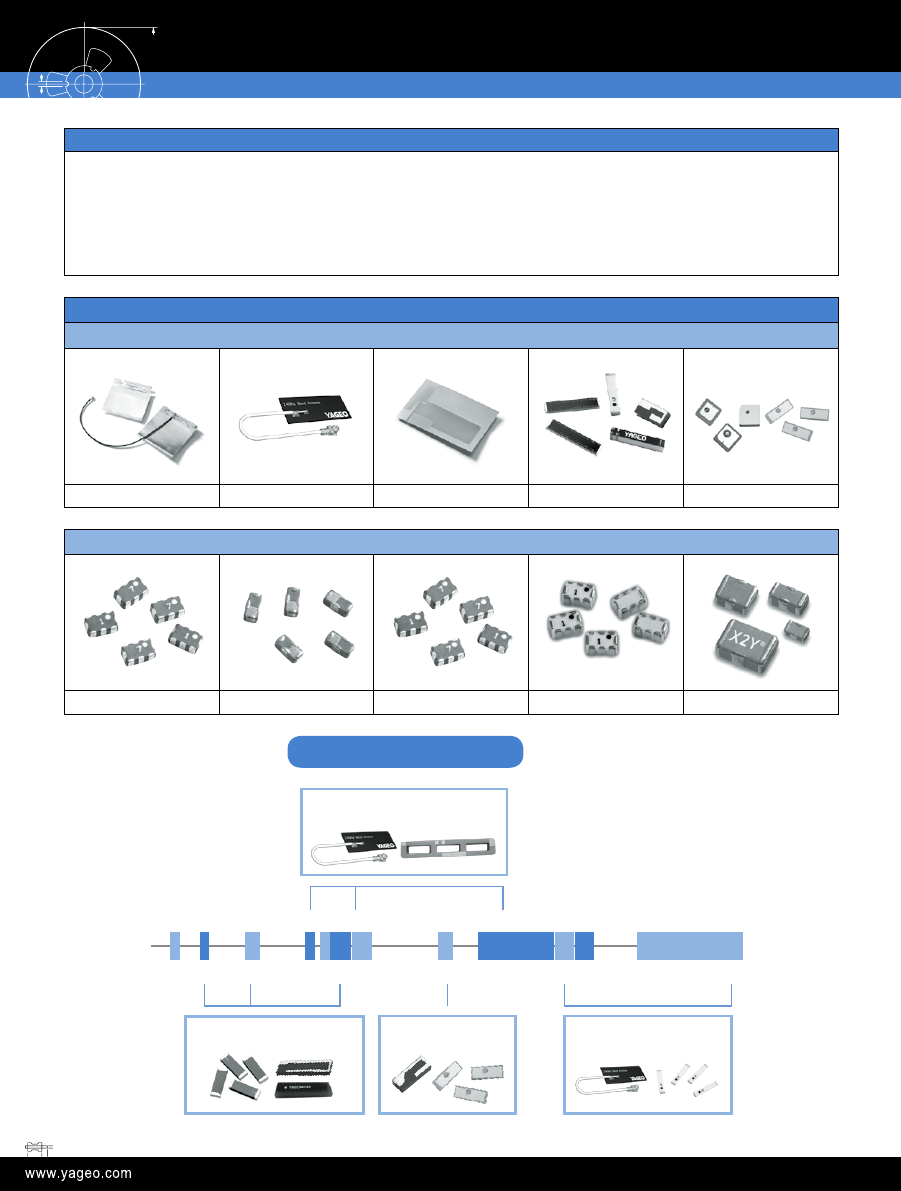

Wireless Components Selection Charts

160

Introduction

160

Key features of Wireless Components

161

Product Information

162

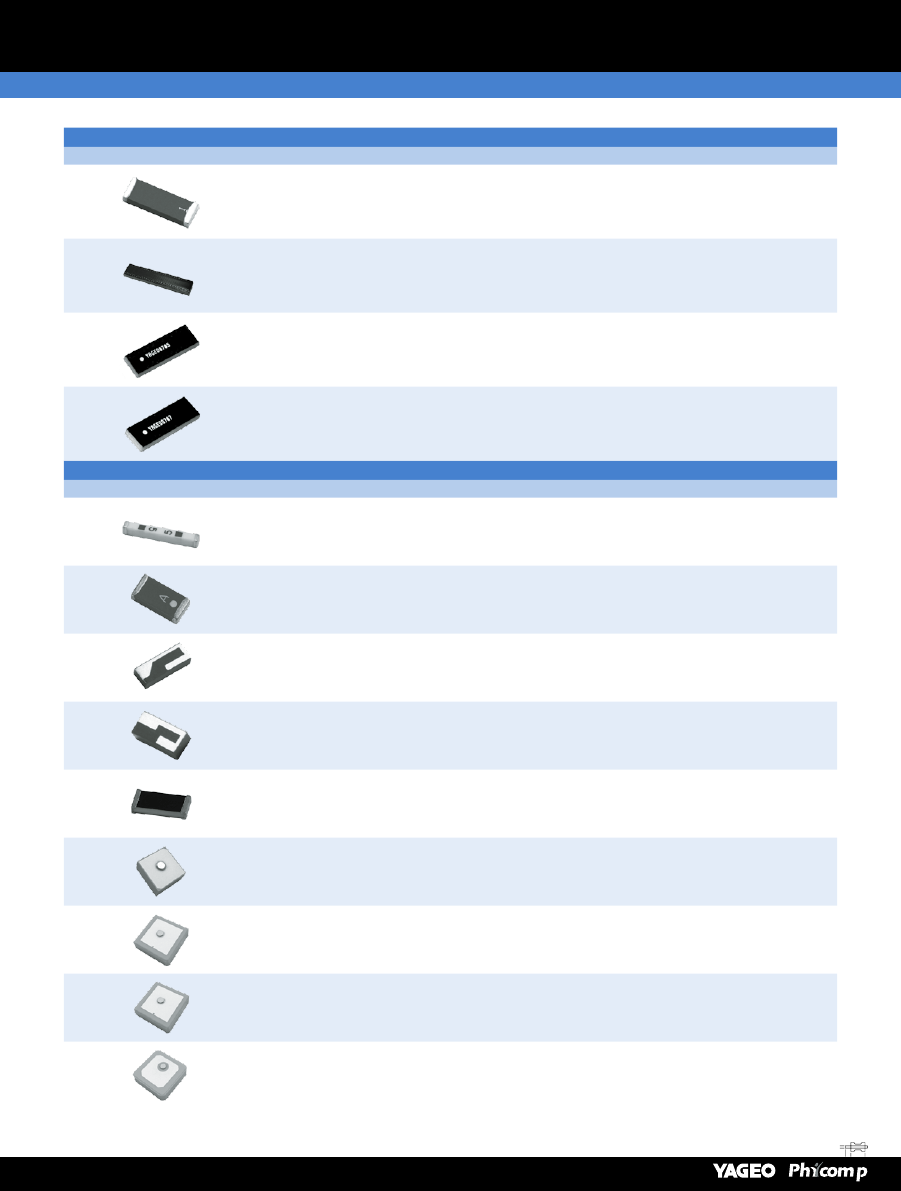

Antenna - 2.4 GHz

162

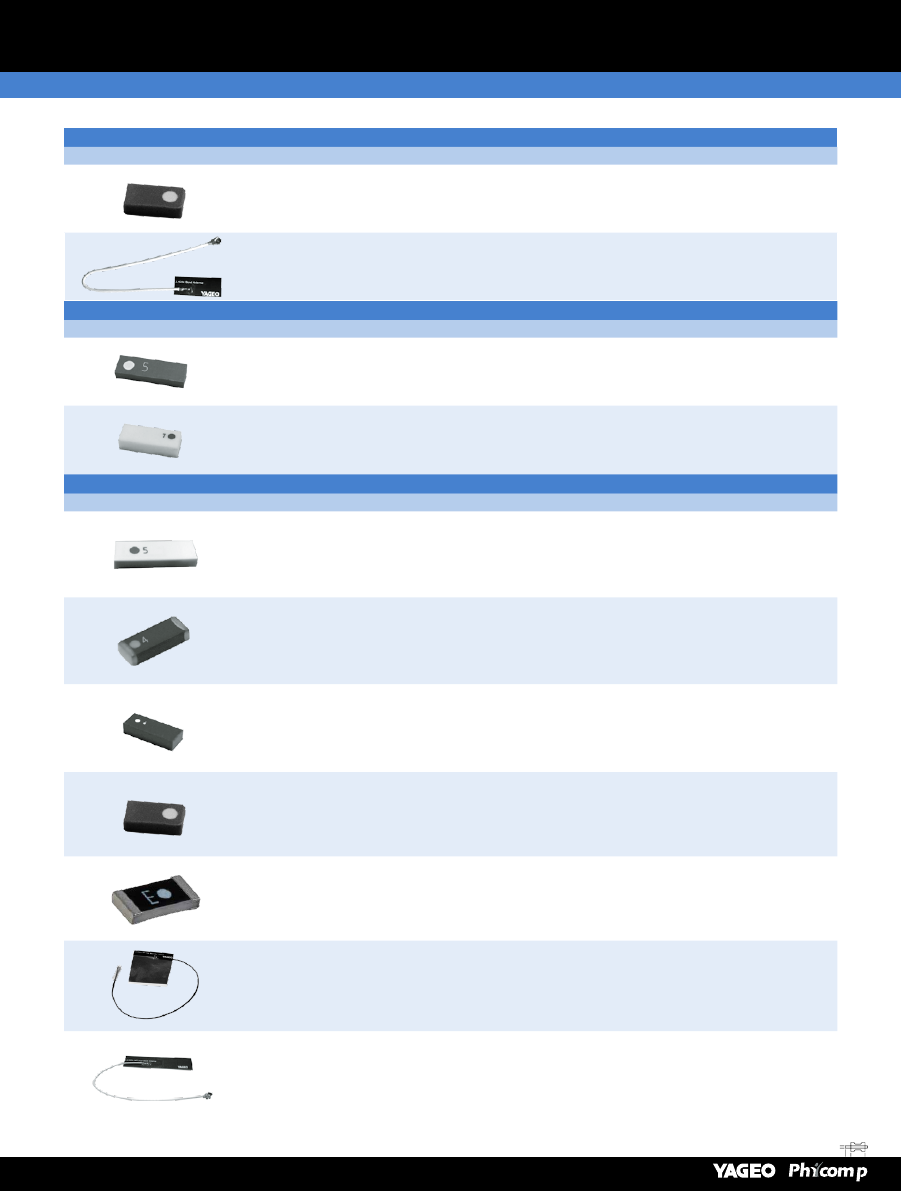

Antenna - 2.4 / 5 GHz

163

Antenna - 5 GHz / Cellular WWAN / Short Range

164

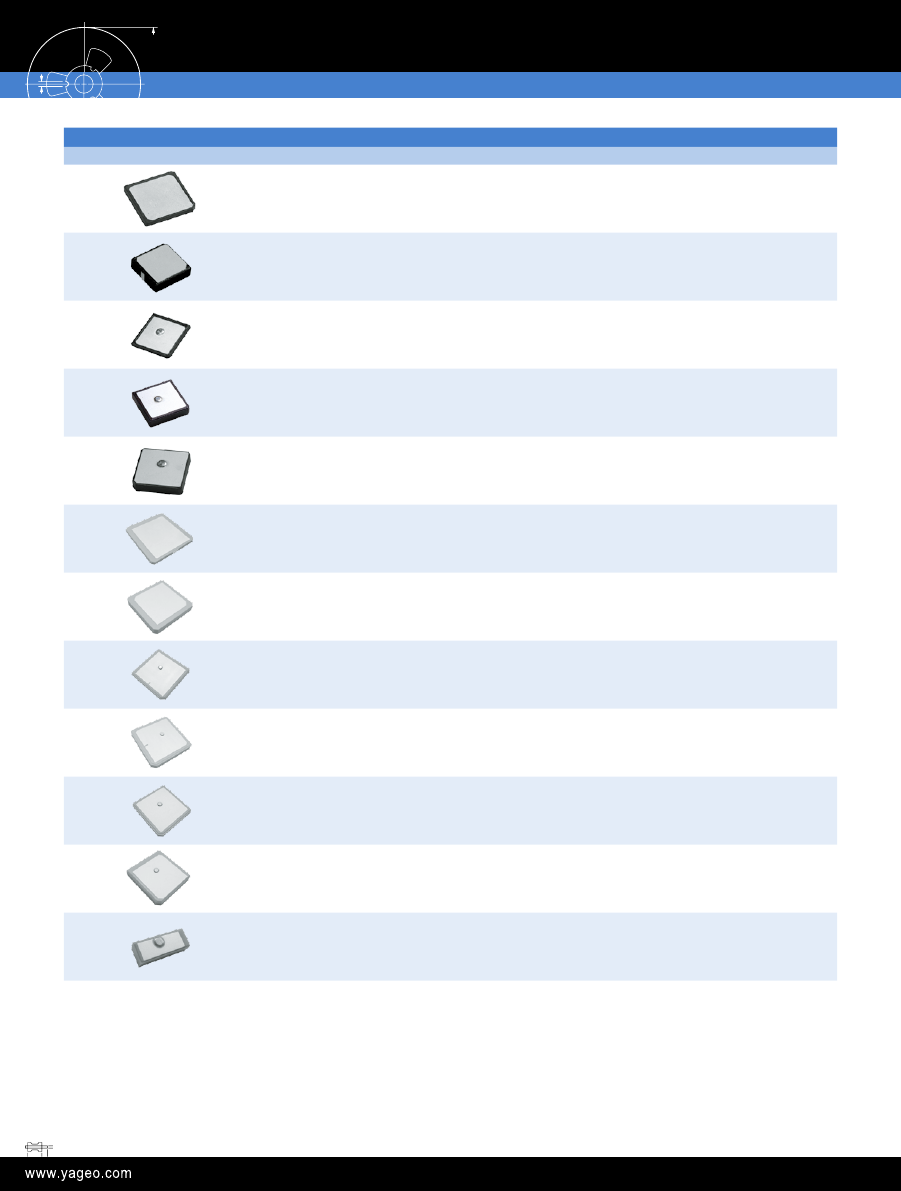

Antenna - GPS

165

Antenna - GPS / Glonass / Active Antenna

167

Antenna - GPS+BD / Others

168

Filters

169

Ordering Information

174

Wireless Components Engineering Design Kits

175

Sample Kits

175

MLV Product Selection Charts

178

Specification for 0402

179

Specification for 0603

180

Specification for 0805

181

Specification for 1206

182

Ordering information for 0402 to 1206

183

Yageo-ProductSelectionGuide-html.html

SURFACE-MOUNT CHIP RESISTORS

Yageo-ProductSelectionGuide-html.html

Chip Resistors General Information

Specification overview

Global part number Series Size Power

rating

Max.

voltage

Operating

Temp.

range

Resistance

range

Tolerance

T. C. R.

RC0075xR-07xxxxL

0075

1/50W

10V

-55°C to 125°C

10Ω ≤ R ≤ 1MΩ

Jumper < 50mΩ

±1%

±5%

10Ω ≤ R < 100Ω

100Ω ≤ R ≤ 1MΩ

-200/+600ppm/°C

±200ppm/°C

RC0100xR-07xxxxL

01005 1/32W

15V

1Ω≤R≤22MΩ

Jumper < 50mΩ

Max./Min.:10MΩ/1Ω

Max.: 22MΩ

Max./Min.:470KΩ/33Ω

±1%

±5%

±0.5%

1Ω ≤ R < 10Ω

10Ω ≤ R < 100Ω

100Ω ≤ R ≤ 10MΩ

10MΩ < R ≤ 22MΩ

-200/+600ppm/°C

+300ppm/°C

+200ppm/°C

+250ppm/°C

RC0201xR-07xxxxL

0201

1/20W

25V

Ω ≤ R ≤ 10MΩ

Jumper < 50m

Max./Min.:1MΩ/10Ω

Max.: 10MΩ

±0.1,0.5%

±1%,±5%

Ω ≤ R ≤ 10Ω

Ω < R ≤ 10MΩ

-100/+350 ppm/°C

±200 ppm/°C

RC0402xR-07xxxxL

0402 1/16W

50V

-55°C to 155°C

1Ω ≤ R ≤ 22MΩ

Jumper < 50mΩ

Max./Min.:1MΩ/10Ω

Max.:10MΩ

Max.:22MΩ

±0.1%,±0.5%

±1%

±5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

10MΩ < R ≤ 22MΩ

±200 ppm/°C

±100 ppm/°C

±200 ppm/°C

RC0603xR-07xxxxL

0603

1/10W

75V

RC0805xR-07xxxxL

0805

1/8W

150V

1Ω ≤ R ≤ 100MΩ

Jumper < 50mΩ

Max./Min.:1MΩ/10Ω

Max.:10MΩ

Max.:22MΩ

Max./Min.:100MΩ/24MΩ

±0.1%,±0.5%

±1%

±5%

±10%,±20%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

10MΩ < R ≤ 22MΩ

24MΩ ≤ R ≤ 100MΩ

±200ppm/°C

±100ppm/°C

±200ppm/°C

±300ppm/°C

RC1206xR-07xxxxL

1206

1/4W

200V

1Ω ≤ R ≤ 100MΩ

Jumper < 50mΩ

Max./Min.:1MΩ/10Ω

Max.:10MΩ

Max.:22MΩ

Max./Min.:100MΩ/24MΩ

±0.1%,±0.5%

±1%

±5%

±10%,±20%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

10MΩ < R ≤ 22MΩ

24MΩ ≤ R ≤ 100MΩ

±200ppm/°C

±100ppm/°C

±200ppm/°C

±300ppm/°C

RC1210xR-07xxxxL

1210

1/2W

200V

1Ω ≤ R ≤ 22MΩ

Jumper < 50mΩ

Max./Min.:1MΩ/10Ω

Max.: 10MΩ

Max.:22MΩ

±0.1%,±0.5%

±1%

±5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

10MΩ < R ≤ 22MΩ

±200 ppm/°C

±100 ppm/°C

±200 ppm/°C

RC1218xK-07xxxxL

1218

200V

Ω ≤ R ≤ 1MΩ

Jumper < 50m

Max./Min.:1MΩ/10Ω

Max.:1MΩ

±0.1%,±0.5%

±1%,±5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 1MΩ

±200ppm/°C

±100ppm/°C

RC2010xK-07xxxxL

2010

3/4W

200V

Ω ≤ R ≤ 22MΩ

Jumper < 50m

Max./Min.:1MΩ/10Ω

Max.: 10MΩ

Max.:22MΩ

±0.1%,±0.5%

±1%

±5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

10MΩ < R ≤ 22MΩ

±200 ppm/°C

±100 ppm/°C

±200 ppm/°C

RC2512xK-07xxxxL

2512

200V

RC0402xR-7WxxxxL

0402

1/8W

50V

-55°C to 155°C

Ω ≤ R ≤ 1MΩ

±1%

±5%

±200 ppm/°C

RC0603xR-7WxxxxL

0603

1/5W

75V

RC0805xR-7WxxxxL

0805

1/4W

150V

RC1206xR-7WxxxxL

1206

1/2W

200V

RC2512xK-7WxxxxL

2512

200V

RC0100xR-07xxxxP

RC_P

01005 1/32W

15V -55°C to 125°C

Ω ≤ R ≤ 1MΩ

Jumper < 50m

Max./Min.:1MΩ/10Ω

Max.: 1MΩ

±0.5%

±1%,±5%

1Ω ≤ R ≤ 10Ω

10Ω ≤ R ≤ 100Ω

100Ω ≤ R ≤ 1MΩ

-200/+600ppm°C

±370ppm°C

±250ppm°C

RC0201xR-07xxxxP

0201

1/20W

25V -55°C to 125°C

Ω ≤ R ≤ 10MΩ

Jumper < 50m

Max./Min.:1MΩ/10Ω

Max.: 10MΩ

±0.5%

±1%,±5%

1Ω ≤ R ≤ 10Ω

10Ω ≤ R ≤ 100Ω

100Ω ≤ R ≤ 10MΩ

-100/+500ppm°C

±300ppm°C

±200ppm°C

RC0402xR-07xxxxP

0402

1/16W

50V -55°C to 155°C

Ω ≤ R ≤ 22MΩ

Jumper < 50m

Max./Min.: 1MΩ/10Ω

Max.: 22MΩ

Max.: 10MΩ

±0.5%

±5%

±1%

1Ω ≤ R ≤ 10Ω

10Ω ≤ R ≤ 100Ω

100Ω ≤ R ≤ 10MΩ

10MΩ ≤ R ≤ 22MΩ

±350ppm°C

±200ppm°C

±150ppm°C

±200ppm°C

RC0603xR-07xxxxP

0603

1/10W

75V -55°C to 155°C

1Ω ≤ R ≤ 10Ω

10Ω ≤ R ≤ 100Ω

100Ω ≤ R ≤ 10MΩ

10MΩ ≤ R ≤ 22MΩ

±300ppm°C

±200ppm°C

±150ppm°C

±200ppm°C

RC0805xR-07xxxxP

0805

1/8W

150V -55°C to 155°C

1Ω ≤ R ≤ 10Ω

10Ω ≤ R ≤ 100Ω

100Ω ≤ R ≤ 10MΩ

10MΩ ≤ R ≤ 22MΩ

±300ppm°C

±150ppm°C

±100ppm°C

±200ppm°C

RC1206xR-07xxxxP

1206

1/4W

200V -55°C to 155°C

1Ω ≤ R ≤ 10Ω

10Ω ≤ R ≤ 100Ω

100Ω ≤ R ≤ 10MΩ

10MΩ ≤ R ≤ 22MΩ

±300ppm°C

±100ppm°C

±200ppm°C

RC1210xR-07xxxxP

1210

1/2W

200V -55°C to 155°C

RC1218xK-07xxxxP

1218

200V -55°C to 155°C

Ω ≤ R ≤ 1MΩ

Jumper < 50m

Max./Min.:1MΩ/10Ω

Max.: 1MΩ

±0.5%

±1%,±5%

RC2010xK-07xxxxP

2010

3/4W

200V -55°C to 155°C

Ω ≤ R ≤ 22MΩ

Jumper < 50m

Max./Min.: 1MΩ/10Ω

Max.: 22MΩ

Max.: 10MΩ

±0.5%

±5%

±1%

RC2512xK-07xxxxP

2512

200V -55°C to 155°C

Note:

“

“ is the symbol for new product

Yageo-ProductSelectionGuide-html.html

Chip Resistors General Information

Specification overview

Global part number Series Size Power

rating

Max.

voltage

Operating

Temp

range

Resistance

range

Tolerance

T. C. R.

RE0201xRE07xxxxL

0201

1/20W

25V

-55°C to 155°C

10Ω ≤ R ≤ 1MΩ

±0.1%

±0.5%

±1%

±50 ppm/°C

RE0402xRE07xxxxL

0402

1/16W

50V

Ω ≤ R ≤ 1MΩ

RE0603xRE07xxxxL

0603

1/10W

75V

Ω ≤ R ≤ 1MΩ

RE0805xRE07xxxxL

0805

1/8W

150V

Ω ≤ R ≤ 1MΩ

RE1206xRE07xxxxL

1206

1/4W

200V

Ω ≤ R ≤ 1MΩ

RT0201xRx07xxxxL

0201 1/20W

25V

-55°C to 155°C

22Ω ≤ R ≤ 75KΩ

±0.1%,±0.25%,±0.5%,±1%

±5 ppm/°C

±10 ppm/°C

±15 ppm/°C

±25 ppm/°C

±50 ppm/°C

RT0402xRx07xxxxL

0402 1/16W 50V

4.7Ω ≤ R ≤ 240KΩ

±0.05%

±0.1%

±0.25%

±0.5%

±1%

RT0603xRx07xxxxL

0603 1/10W 75V

1Ω ≤ R ≤ 1MΩ

RT0805xRx07xxxxL

0805 1/8W 150V

1Ω ≤ R ≤ 1.5MΩ

RT1206xRx07xxxxL

1206 1/4W

200V

1Ω ≤ R ≤ 1.5MΩ

RT1210xRx07xxxxL

1210 1/4W

-55°C to 125°C

4.7Ω ≤ R ≤ 1MΩ

RT2010xKx07xxxxL

2010 1/2W

4.7Ω ≤ R ≤ 1MΩ

RT2512xKx07xxxxL

2512 3/4W

4.7Ω ≤ R ≤ 1MΩ

YC102-xR-07xxxxL

2*0201 1/32W 15V

-55°C to 125°C

10Ω ≤ R ≤ 1MΩ

Jumper < 50mΩ

±1%

±5%

±200 ppm/°C

YC104-xR-07xxxxL

4*0201 1/32W 12.5V

YC122-xR-07xxxxL

2*0402 1/16W 50V

-55°C to 155°C

1Ω ≤ R ≤ 1MΩ

Jumper < 50mΩ

±1%

±5%

YC124-xR-07xxxxL

4*0402 1/16W 25V

1Ω ≤ R ≤ 1MΩ

Jumper < 50mΩ

±1%

±5%

1Ω ≤ R < 10Ω

10Ω ≤ R ≤ 1MΩ

±250 ppm/°C

±200 ppm/°C

YC162-xR-07xxxxL

2*0603 1/16W 50V

1Ω ≤ R ≤ 1MΩ

Jumper < 50mΩ

±200 ppm/°C

YC164-xR-07xxxxL

4*0603 1/16W 50V

1Ω ≤ R ≤ 1MΩ

Jumper < 50mΩ

YC248-xR-07xxxxL

8*0602 1/16W 50V

10Ω ≤ R ≤ 1MΩ

Jumper < 50mΩ

YC324-xK-07xxxxL

4*1206 1/8W 200V

10Ω ≤ R ≤ 1MΩ

TC122-xR-07xxxxL

2*0402 1/16W 50V -55°C to 125°C

10Ω ≤ R ≤ 1MΩ

Jumper < 50mΩ

±1%

±5%

±200 ppm/°C

TC124-xR-07xxxxL

4*0402 1/16W

50V -55°C to 125°C

TC164-xR-07xxxxL

4*0603 1/16W 50V -55°C to 155°C

YC158TJR-07xxxxL YC158 10P8R

(0612) 1/16W 25V

-55°C to 155°C

10Ω ≤ R ≤ 100KΩ

±5%

±200 ppm/°C

YC358xJx-07xxxxL YC358 10P8R

(1225) 1/16W 50V

10Ω ≤ R ≤ 330KΩ

±200 ppm/°C

Note:

“

“ is the symbol for new product

Yageo-ProductSelectionGuide-html.html

Chip Resistors General Information

Specification overview

Global part number Series

Size Power

rating

Max.

voltage

Operating

Temp. range

Resistance

range

Tolerance

T. C. R.

RL0402xR-07xxxxL

0402 1/16W

(PxR)^1/2

-55°C to 155°C

50mΩ ≤ R < 1Ω

±1%

±2%

±5%

See page 41, table

“T. C. R. - RL series“

RL0603xR-07xxxxL

0603 1/10W

10m

Ω ≤ R < 1Ω

RL0805xR-07xxxxL

0805

1/8W

RL1206xR-07xxxxL

1206

1/4W

RL1210xR-07xxxxL

1210

1/2W

10m

Ω ≤ R < 1Ω

RL1218xK-07xxxxL

1218

RL2010xK-07xxxxL

2010

3/4W

RL2512xK-07xxxxL

2512

RL0805xR-7WxxxxL

0805

1/4W

-55°C to 125°C

10m

Ω ≤ R < 1Ω

RL1206xR-7WxxxxL

1206

1/2W

PT0402xR-07xxxxL

0402 1/16W

(PxR)^1/2 -55°C to 155°C

50mΩ ≤ R < 1Ω

±1%

±2%

±5%

See page 46, table

"T.C.R. - PT series"

PT0603xR-07xxxxL

0603 1/10W

50mΩ ≤ R < 1Ω

PT0805xR-07xxxxL

0805

1/8W

50mΩ ≤ R < 1Ω

PT1206xR-07xxxxL

1206

1/4W

PT2010xK-07xxxxL

2010

3/4W

100m

Ω ≤ R < 1Ω

PT2512xK-07xxxxL

2512

PT0402xR-7WxxxxL

0402

1/8W

50mΩ ≤ R < 1Ω

PT0603xR-7WxxxxL

0603

1/5W

PT0805xR-7WxxxxL

0805

1/4W

PT1206xR-7WxxxxL

1206

1/2W

PT2010xK-7WxxxxL

2010

100mΩ ≤ R < 1Ω

PT2512xK-7WxxxxL

2512

PT0603xR-7TxxxxL

0603

1/3W

50m

Ω ≤ R ≤ 68mΩ

Note:

“

“ is the symbol for new product

Yageo-ProductSelectionGuide-html.html

Global part number

Series

Size Power

rating

Max.

voltage

Operating

Temp. range

Resistance

range

Tolerance

T. C. R.

PA2512xKF07xxxxE

2512

(PxR)^1/2 -55°C to 170°C

1mΩ ≤ R ≤ 50mΩ

±1%

±5%

±100 ppm/°C

PA2512xKF7WxxxxE

PA2512xKF7TxxxxE

PA1206xRF07xxxxL

1206

1/4W

(PxR)^1/2 -55°C to 170°C

1mΩ ≤ R ≤ 5mΩ

±1%

±5%

±100ppm/°C

PA1206xRF7WxxxxL

1/2W

PA1206xRF47xxxxL

PE0508xRx07xxxxxL

(Wide)

0508

1.2W

(PxR)^1/2 -55°C to 155°C

5mΩ≤R≤100mΩ

±1%

±5%

±50 ppm/°C

±75 ppm/°C

±100 ppm/°C

PE0612xKx07xxxxxL

0612

1mΩ≤R≤100mΩ

PE0612xKx7WxxxxxL

PE0201xRx07xxxxL

0201

1/20W

(PxR)^1/2

-55°C to 125°C

50mΩ ≤ R ≤ 200mΩ

Min.: 51mΩ ±0.5%

±1%

±5%

50mΩ ≤ R ≤ 70mΩ

70mΩ < R ≤ 200mΩ

±350 ppm/°C

±100 ppm/°C

PE0201xRx7WxxxxL

1/10W

PE0402xRx07xxxxL

0402

1/16W

10mΩ ≤ R ≤ 910mΩ

±100ppm/°C

PE0402xRx7WxxxxL

1/8W

PE0402xRx7TxxxxL

1/6W

PE0402xRx47xxxxL

1/4W

PE0603xRx07xxxxL

0603

1/10W

-55°C to 170°C

5m,10m,

20mΩ ≤ R ≤ 910mΩ

±75 ppm/°C

±100 ppm/°C

PE0603xRx7WxxxxL

1/5W

PE0603xRx7TxxxxL

1/3W

PE0603xRx47xxxxxL

2/5W

PE0603xRx57xxxxxL

1/2W

PE0805xRx07xxxxxL

0805

1/8W

PE0805xRx7WxxxxxL

1/4W

PE0805xRx7TxxxxxL

1/3W

PE0805xRx47xxxxxL

1/2W

PE1206xRx07xxxxxL

1206

1/4W

5mΩ ≤ R ≤ 910mΩ

PE1206xRx7WxxxxxL

1/2W

PE1206xRx47xxxxxL

PE2010xKx07xxxxxL

2010

1/2W

5mΩ ≤ R ≤ 100mΩ

±50 ppm/°C

±75 ppm/°C

±100 ppm/°C

PE2010xKx7WxxxxxL

PE2512xKx07xxxxxL

2512

6mΩ ≤ R ≤ 100mΩ

PE2512xKx7WxxxxxL

PS0306xRx07xxxxxL

(4 Termination)

0306

1/8W

(PxR)^1/2

-55°C to 125°C

3mΩ ≤ R ≤ 100mΩ

±1%

±5%

3mΩ ≤ R < 5mΩ

±75 ppm/°C

±100 ppm/°C

±150 ppm/°C

PS0306xRx7WxxxxxL

1/4W

PS0306xRx7TxxxxxL

1/2W

PS0612xKx07xxxxxL

0612

0.5mΩ ≤ R ≤10mΩ

-55°C to 150°C

12mΩ ≤ R ≤ 100mΩ

-55°C to 125°C

0.5mΩ, 0.75mΩ

1mΩ ≤ R ≤ 100mΩ

0.5mΩ ≤ R ≤ 1mΩ

10mΩ ≤ R ≤ 13mΩ

2mΩ ≤ R ≤ 9mΩ

14mΩ ≤ R ≤ 100mΩ

±150ppm/°C

±200ppm/°C

±100ppm/°C

Note:

“

“ is the symbol for new product

Chip Resistors General Information

Specification overview

5mΩ ≤ R ≤ 100mΩ

Yageo-ProductSelectionGuide-html.html

Chip Resistors General Information

Specification overview

Global part number

Series

Size Power

rating

Max.

voltage

Operating

Temp. range

Resistance

range

Tolerance

T. C. R.

PU3921xKxxxxxxxL

3921

(PxR)^1/2

-55°C to 170°C

0.2mR/ 0.3mR/ 0.5mR/

1mR/ 2mR/3mR/4mR

±1%

±5%

0.2mR

0.3mR/ 0.5mR

1mR~4mR

±325ppm/°C

±175ppm/°C

±75ppm/°C

-55°C to 275°C

0.5mR/1mR/ 2mR/

3mR/4mR

-55°C to 170°C

2mR/3mR/4mR

0.2mR/ 0.3mR/

0.5mR/1mR

PU5931xKxxxxxxxL

5931

-55°C to 170°C

0.2mR/ 0.3mR/ 0.5mR/

1mR/ 2mR/3mR/4mR

±1%

±5%

0.2mR

0.3mR/ 0.5mR

1mR~4mR

±225ppm/°C

±175ppm/°C

±75ppm/°C

-55°C to 275°C

0.3mR/ 0.5mR/1mR/

2mR/3mR/4mR

-55°C to 170°C

1mR/2mR/3mR/4mR

10W

0.2mR/ 0.3mR/ 0.5mR

AR0402xR-07xxxxL

0402

1/16W

50V

-55°C to 155°C

1Ω ≤ R ≤ 10MΩ

Jumper < 50mΩ

±1%

±5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

±200 ppm/°C

±100 ppm/°C

AR0603xR-07xxxxL

0603

1/10W

50V

AR0805xR-07xxxxL

0805

1/8W

150V

AR1206xR-07xxxxL

1206

1/4W

200V

SR0402xR-07xxxxL

0402

1/16W

50V

-55°C to 155°C

1Ω ≤ R ≤ 100KΩ

±0.5%

±1%

±5%

±10%

±20%

±200 ppm/°C

SR0402xR-7WxxxxL

1/8W

SR0603xR-07xxxxL

0603

1/10W

75V

SR0603xR-7WxxxxL

1/5W

SR0603xR-7TxxxxL

1/4W

SR0805xR-07xxxxL

0805

1/8W

150V

SR0805xR-7WxxxxL

1/4W

SR0805xR-7TxxxxL

1/3W

SR1206xR-07xxxxL

1206

1/4W

200V

SR1206xR-7WxxxxL

1/2W

SR1210xR-07xxxxL

1210

1/2W

200V

SR1210xR-7WxxxxL

3/4W

200V

SR1218xK-07xxxxL

1218

200V

SR2010xK-07xxxxL

2010

3/4W

200V

SR2512xK-07xxxxL

2512

200V

RV0603xR-07xxxxL

0603

1/10W

350V

-55°C to 155°C

47Ω ≤ R ≤ 10MΩ

±0.5%,±1%,±5%

±200 ppm/°C

RV0805xR-07xxxxL

0805

1/8W

400V

47Ω ≤ R ≤ 22MΩ

Max.: 22MΩ

Max.: 10MΩ

±5%,±1%

±0.5%

RV1206xR-07xxxxL

1206

1/4W

500V

47Ω ≤ R ≤ 27MΩ

Max.: 27MΩ

Max.: 10MΩ

±5%,±1%

±0.5%

RV2010xK-07xxxxL

2010

3/4W

47Ω ≤ R ≤ 22MΩ

Max.: 22MΩ

Max.: 10MΩ

±5%,±1%

±0.5%

RV2512xK-07xxxxL

2512

47Ω ≤ R ≤ 16MΩ

Max.: 16MΩ

Max.: 10MΩ

±5%,±1%

±0.5%

TR0402xR-07xxxxL

0402

1/16W

50V

-55°C to 125°C

1Ω ≤ R ≤ 10MΩ

+0/-10%

+0/-20%

+0/-30%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 1MΩ

1MΩ < R ≤ 10MΩ

±200 ppm/°C

±100 ppm/°C

±200 ppm/°C

TR0603xR-07xxxxL

0603

1/16W

TR0805xR-07xxxxL

0805

1/8W

150V

-55°C to 155°C

TR1206xR-07xxxxL

1206

1/4W

200V

Note:

“

“ is the symbol for new product

Yageo-ProductSelectionGuide-html.html

Chip Resistors General Information

Specification overview

Global part number

Series

Size Power

rating

Max.

voltage

Operating

Temp. range

Resistance

range

Tolerance

T. C. R.

AF0201xR-07xxxxL

0201

1/20W

25V

-55°C to 125°C

1Ω ≤ R ≤ 10MΩ

Jumper < 50mΩ

±1%, ±5%, ±0.5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

-100/+350 ppm/°C

±200 ppm/°C

AF0402xR-07xxxxL

0402

1/16W

50V

-55°C to 155°C

1Ω ≤ R ≤ 22MΩ

Jumper < 50mΩ

Max:10MΩ

Max:22MΩ

±0.5%, ±1%

±5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

10MΩ < R ≤ 22MΩ

±200 ppm/°C

±100 ppm/°C

±200 ppm/°C

AF0603xR-07xxxxL

0603

1/10W

75V

AF0805xR-07xxxxL

0805

1/8W

150V

AF1206xR-07xxxxL

1206

1/4W

200V

AF1210xR-07xxxxL

1210

1/2W

200V

1Ω ≤ R ≤ 10MΩ

Jumper < 50mΩ

±1% , ±5% , ±0.5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

±200 ppm/°C

±100 ppm/°C

AF1218xK-07xxxxL

1218

200V

1Ω ≤ R ≤ 1MΩ

Jumper < 50mΩ

AF2010xK-07xxxxL

2010

3/4W

200V

1Ω ≤ R ≤ 10MΩ

Jumper < 50mΩ

AF2512xK-07xxxxL

2512

200V

AF122-xR-07xxxxL

2*0402 1/16W

50V

-55°C to 155°C

1Ω ≤ R ≤ 1MΩ

Jumper < 50mΩ

Max.: 1MΩ

Max./Min.: 1MΩ/10Ω

±5%

±1%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 1MΩ

±250 ppm/°C

±200 ppm/°C

AF124-xR-07xxxxL

4*0402 1/16W

25V

±1%,±5%

AF162-xR-07xxxxL

2*0603 1/16W

50V

±1%,±5%

AF164-xR-07xxxxL

4*0603 1/16W

50V

±1%,±5%

±250 ppm/°C

AC0201xR-07xxxxL

0201

1/20W

25V

-55°C to 155°C

1Ω ≤ R ≤ 10MΩ

Jumper < 50mΩ

Max.: 10MΩ

Max./Min.: 1MΩ/10Ω

±5%,±1%

±0.5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

-100/+350ppm/°C

±200ppm/°C

AC0402xR-07xxxxL

0402

1/16W

50V

1Ω ≤ R ≤ 22MΩ

Jumper < 50mΩ

Max.: 10MΩ

Max.: 22MΩ

±0.5%, ±1%

±5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

10MΩ < R ≤ 22MΩ

±200 ppm/°C

±100ppm/°C

±200 ppm/°C

AC0603xR-07xxxxL

0603

1/10W

75V

AC0805xR-07xxxxL

0805

1/8W

150V

AC1206xR-07xxxxL

1206

1/4W

200V

AC1210xR-07xxxxL

1210

1/2W

200V

AC1218xK-07xxxxL

1218

200V

1Ω ≤ R ≤ 1MΩ

Jumper < 50mΩ

±0.5%, ±1%, ±5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 1MΩ

±200 ppm/°C

±100 ppm/°C

AC2010xK-07xxxxL

2010

3/4W

200V

1Ω ≤ R ≤ 22MΩ

Jumper < 50mΩ

Max.: 10MΩ

Max.: 22MΩ

±0.5%, ±1%

±5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

10MΩ < R ≤ 22MΩ

±200 ppm/°C

±100ppm/°C

±200 ppm/°C

AC2512xK-07xxxxL

2512

200V

AC0402xR-7WxxxxL

0402

1/8W

50V

1Ω ≤ R ≤ 10MΩ

±0.5%, ±1%, ±5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

±200 ppm/°C

±100ppm/°C

AC0603xR-7WxxxxL

0603

1/5W

75V

AC0805xR-7WxxxxL

0805

1/4W

150V

AC1206xR-7WxxxxL

1206

1/2W

200V

AC1210xR-7WxxxxL

1210

200V

AC1218xR-7WxxxxL

1218

1.5W

200V

AC2010xR-7WxxxxL

2010

1.25W

200V

AC2512xR-7WxxxxL

2512

200V

AC0612xR-07xxxxL

wide

0612

3/4W

200V

1Ω ≤ R ≤ 1MΩ

±0.5%, ±1%, ±5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 1MΩ

±200 ppm/°C

±100ppm/°C

AC1020xK-07xxxxL

1020

200V

AC1225xK-07xxxxL

1225

200V

Note:

“

“ is the symbol for new product

Yageo-ProductSelectionGuide-html.html

Chip Resistors General Information

Specification overview

Global part number

Series

Size Power

rating

Max.

voltage

Operating

Temp. range

Resistance

range

Tolerance

T. C. R.

AA0201xR-07xxxxL

0201

1/20W

25V

-55°C to 155°C

1Ω ≤ R ≤ 10MΩ

Jumper < 50mΩ

±0.5%, ±1%, ±5%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

-100/+400ppm/°C

±300ppm°C

AA0402xR-07xxxxL

0402

1/16W

50V

1Ω ≤ R ≤ 22MΩ

Jumper < 50mΩ

Max:22MΩ

Max:10MΩ

±5%

±0.5%, ±1%

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

10MΩ ≤ R ≤ 22MΩ

±200 ppm/°C

±150 ppm/°C

±200 ppm/°C

AA0603xR-07xxxxL

0603

1/10W

75V

AA0805xR-07xxxxL

0805

1/8W

150V

AA1206xR-07xxxxL

1206

1/4W

200V

AA1210xR-07xxxxL

1210

1/2W

200V

AA1218xK-07xxxxL

1218

200V

1Ω ≤ R ≤ 1MΩ

Jumper< 50mΩ

±0.5%, ±1%, ±5%

AA2010xK-07xxxxL

2010

3/4W

200V

1Ω ≤ R ≤ 22MΩ

Jumper < 50mΩ

Max:22MΩ

Max:10MΩ

±5%

±0.5%, ±1%

AA2512xK-07xxxxL

2512

200V

ATV321xR-07xxxxL

ATV

0404

40mW

50V

-55°C to 125°C

-1dB to -20dB

±0.3dB

±0.5dB

±1.0dB

±2.0dB

---

AT0402xRx07xxxxL

0402

1/16W

50V

-55°C to 155°C

10Ω ≤ R ≤ 100KΩ

±0.1%

±0.25%

±0.5%

±1%

±25 ppm/°C

±50 ppm/°C

AT0603xRx07xxxxL

0603

1/10W

75V

10Ω ≤ R ≤ 330KΩ

AT0805xRx07xxxxL

0805

1/8W

150V

10Ω ≤ R ≤ 1MΩ

AT1206xRx07xxxxL

1206

1/4W

200V

Note:

" is the symbol for new product

Yageo-ProductSelectionGuide-html.html

Global part number - Single resistor

(3)

R C

0 4 02 J R

―

7 D 1 0 R

Series name (code 1-2)

Default code

(1/2)

(code 17)

RC = Thick film general purpose
RE = Thick film precision grade

Resistance (code 12-16)

RT = Thin film high precision high stability

= Jumper

RL = Thick film low ohmic

0U5 = 0.0005Ω

PT = Thick film low ohmic low T. C. R.

0R1 = 0.1Ω

PA/PE = Current sensor - low T. C. R.

1R = 1Ω

PS = Current sensor - low T.C.R, 4 termination

10R = 10Ω

TR = Trimmable

100R = 100Ω

SR = Surge

1K = 1 000Ω

AR = NiAu termination

1M = 1 000 000Ω

RV = High voltage

100M = 100 000 000Ω

AF = Sulfur resistant
AC = Automotive grade

AT = Thin film automotive grade

Taping reel (code 10-11)

= Sulfur resistant automotive grade

07 = 7 inch Dia. reel

PU = Shunt resistor

13 = 13 inch Dia. reel
7W = 7 inch Dia. reel

2 x standard power

Size code (code 3-6)

(inch / metric)

7N = 7 inch Dia. reel, ESD safe reel

0075 = 0.3 x 0.1
0100 = 0.4 x 0.2

T. C. R. (code 9)

0201 = 0.6 x 0.3

A = ±5 ppm/°C

0402 = 1.0 x 0.5

B = ±10 ppm/°C

0603 = 1.6 x 0.8

C = ±15 ppm/°C

0612 = 1.6 x 3.2

D = ±25 ppm/°C

0805 = 2.0 x 1.25

E = ±50 ppm/°C

0830 = 2.0 x 7.5

M = ±75 ppm/°C

1206 = 3.2 x 1.6

F = ±100 ppm/°C

1210 = 3.2 x 2.6

L = ±150 ppm/°C

1218 = 3.2 x 4.5

G = ±200 ppm/°C

2010 = 5.0 x 2.5

I = ±300 ppm/°C

2512 = 6.35 x 3.2

O = ±320 ppm/°C

3921 =10.0 x 5.2

J = ±350 ppm/°C

5931 =15.0 x 7.75

K = ±400 ppm/°C
Q = ±700 ppm/°C

“―” = Based on spec.

Tolerance (code 7)

(― for thick film only)

L = ±0.01%
W = ±0.05%

Packing style (code 8 )

B = ±0.1%

R = Paper tape reel

C = ±0.25%

K = Embossed plastic tape reel

D = ±0.5%

C = Bulk cassette

F = ±1%

S = ESD safe reel

G = ±2%
J = ±5% (for RC/AR/AF/AC Jumper ordering)
K = ±10% (for TR = 0/-10%)
M = ±20% (for TR = 0/-20%)
N = ±30% (for TR = 0/-30%)

“―” for RL/PT Jumper ordering

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

3. Global Part Number is the preferred clear text code for ordering Yageo and Phycomp branded products.

Chip Resistors General Information

Ordering information - Global part number

Yageo-ProductSelectionGuide-html.html

Global part number - Power enhancement

R L 0 8 0 5 J R

―

7 W 0 R 0 1 5

Series name (code 1-2)

Default code (code 17)

RC = Thick film general purpose

AC = Automotive grade chip resistor

RL = Thick film low ohmic

Resistance (code 12-16)

PT = Thick film low ohmic low T. C. R.

0U5

= 0.0005Ω

PA/PE = Current sensor - low T. C. R.

0R01

= 0.01Ω

PS = Current sensor - low T.C.R, 4 termination

0R1

= 0.1Ω

PU = Shunt resistor

= 1Ω

10R

= 10Ω

Size code (code 3-6)

100R = 100Ω

(inch / metric)

1K = 1000Ω

0306 = 0.8 x 1.6

1M = 1000000Ω

0508 = 1.25 x 2.0

100M = 100000000Ω

0612 = 1.6 x 3.2

0805 = 2.0 x 1.25

Taping reel (code 10-11)

1206 = 3.2 x 1.6

07 = 7 inch Dia. reel

2010 = 5.0 x 2.5

7W = 7 inch Dia. reel

2 x standard power type

7T = 7 inch Dia. reel

Tolerance (code 7)

3 x standard power type

B = ±0.1%

47 = 7 inch Dia. reel

D = ±0.5%

4 x standard power type

F = ±1%

57 = 7 inch Dia. reel

G = ±2%

5 x standard power type

J = ±5%

Packing style (code 8 )

R = Paper tape reel

T. C. R. (code 9)

K = Embossed plastic tape reel

E = ±50 ppm/°C

M = ±75 ppm/°C

F = ±100 ppm/°C

G = ±200 ppm/°C

“―” = Based on spec.

(― for thick film only)

Chip Resistors General Information

Ordering information - Global part number

Yageo-ProductSelectionGuide-html.html

Global part number - Arrays & Networks

Y C 1 6 4

―

J R

―

0 7 1 0 R

Series name (code 1-2)

Default code (code 17)

YC = Array & Network

(convex / flat) thick film

TC = Array (concave) thick film

Resistance (code 12-16)

0R = Jumper

Size code (inch) (code 3-4)

0R1 = 0.1Ω

10 = 0201 x 2 (0202)

1R = 1Ω

0201 x 4 (0204)

10R = 10Ω

12 = 0402 x 2 (0404)

100R = 100Ω

0402 x 4 (0408)

1K = 1 000Ω

15 = 10Pin/8R (0612)

1M = 100 000 000

16 = 0603 x 2 (0606)

0603 x 4 (0612)

Taping reel (code 10-11)

24 = 0602 x 8 (0616)

07 = 7 inch Dia. reel

32 = 1206 x 4 (1224)

13 = 13 inch Dia. reel

35 = 10Pin/8R (1225)

Number of resistors (code 5)

T.C.R. (code 9)

2 = 2 resistors

"―" = Based on spec.

4 = 4 resistors

8 = 8 resistors

Packing style (code 8 )

R = Paper tape reel

Schematic (code 6)

K = Embossed plastic tape reel

L = L-type (for YC358)

T = T-type (for YC158/358)

Tolerance (code 7)

“―” = Based on spec.

F = ±1%

J = ±5% (for Jumper ordering)

Chip Resistors General Information

Ordering information - Global part number

Yageo-ProductSelectionGuide-html.html

Phycomp CTC ordering code - North America

Ordering example: 9C06031A10R0FKHFT = R-Chip 0603, 10R0, 1%, 5K reel

1-2

3-6

7-8

9-12

13 14 15-16 17

X X

X X X X X X X X X X X X X X X

Series name (code 1-2)

Packing style (code 17 )

9C = Phycomp thick film chip resistors

T = 5K paper

9T = Phycomp thin film chip resistors

3 = 10K paper

4 = 20K paper

Size code (standard resistors, code 3-6)

5 = 4K blister

0201 0201 (0603)

6 = 5K blister

0402 0402 (1005)

7 = 50K paper

0603 0603 (1608)

P = 25K bulk case

0805 0805 (2012)

1206 1206 (3216)

Special coding (code 15-16)

1210 1210 (3225)

HF = SnPb

1218 1218 (3248)

PF = Lead-free

2010 2010 (5025)

AF = NiAu

2512 2512 (6432)

AC34 0603 (1608) 4R concave array

T. C. R. (code 14)

AV34 0603 (1608) 4R convex array

C = ±10 ppm/°C

AV22 0402 (1005) 2R convex array

D = ±15 ppm/°C

AV24 0402 (1005) 4R convex array

A = ±25 ppm/°C

AV28 0402 (1005) 8R convex array

B = ±50 ppm/°C

RN31 10P8R in 1206 convex network

K = ±100 ppm/°C

FR01 1206 (3216) Fusible

L = ±200 ppm/°C

FR21 0603 (1608) Fusible

E = ±250 ppm/°C

SR01 1206 (3216) Surge

M = ±300 ppm/°C

VR01 1206 (3216) High voltage 5%

G = ±500 ppm/°C

VR02 1206 (3216) High voltage 1%

F = 0/+500 ppm/°C

VR11 0805 (2012) High voltage 5%

R = ±600 ppm/°C

VR12 0805 (2012) High voltage 1%

Q = -100/+600 ppm/°C

VR21 2512 (6432) High voltage 5%

P = ±750 ppm/°C

MR22 2512 (6432) Current sensor - low T. C. R.

H = ±1000 ppm/°C

MF22 2512 (6432) Current sensor - low T. C. R.

I = ±1500 ppm/°C

V321 0404 (1010) RF attenuator

J = ±2000 ppm/°C

N = ±3000 ppm/°C

Power rating (code 7-8)

1/16W

0.063W

(0402)

Tolerance (code 13)

1/10W

0.10W

(0603)

E = ±0.01%

1/8W

0.125W

(0805)

A = ±0.05%

1/4W

0.25W

(1206)

B = ±0.1%; 0.2dB

1/2W

0.5W

(1210)

C = ±0.25%; 0.3dB

1/20W

0.05W

(0201)

D = ±0.5%; 0.5dB

1/32W

0.03125W

(RN31)

F = ±1%; 1dB

3/4W

0.75W

(2010)

G = ±2%; 2dB

(1218/2512)

J = ±5%

N = 0/-20%

R = 0/-30%

Resistance value (code 9-12)

0R00

= Jumper

R0XX < 0.1Ω

RXXX = 0.1Ω - 0.976Ω

XRXX = 1Ω - 9.76Ω

XXRX = 10Ω - 97.6Ω

XXX0

= 100Ω - 976Ω

XXX1

= 1K - 9.76K

XXX2

= 10K - 97.6K

XXX3

= 100K - 9.78K

XXX4

= 1M - 9.76M

XXX5

= 10M - 97.6M

XXX6

= 100M+

XXDB = 1 - 20DB

Right values apply to

trimmable resistors

dB values apply to

attenuators

Chip Resistors General Information

Ordering information - North America

Yageo-ProductSelectionGuide-html.html

Standard of values in a decade according to “IEC publication 63”

E24 series

E96 series

100

102

105

107

110

113

115

118

121

124

127

130

133

137

140

143

147

150

154

158

162

165

169

174

178

182

187

191

196

200

205

210

215

221

226

232

237

243

249

255

261

267

274

280

287

294

301

309

316

324

332

340

348

357

365

374

383

392

402

412

422

432

442

453

464

475

487

499

511

523

536

549

562

576

590

604

619

634

649

665

681

698

715

732

750

768

787

806

825

845

866

887

909

931

953

976

Packing quantities

Size code

Tape width

178mm / Ø7” reel

330mm / Ø13" reel

Weight

Volume

Paper

Embossed

Paper

Embossed

g /100pcs

0100

8mm

20000

---

0.007

0.0104

0201

8mm

10000 / 20000

---

80000

---

0.016

0.041

0075

4mm

40000

---

0306

4mm

5000

---

0508

8mm

5000

---

1020

12mm

---

4000

---

1225

12mm

---

4000

---

0402

8mm

10000 / 20000

---

50000

---

0.058

0.175

0603

8mm

5000

---

20000

---

0.192

0.576

0612

8mm

4000

---

0.862

2.728

0805

8mm

4000 / 5000

---

20000

---

0.450

1.250

1206

8mm

4000 / 5000

---

20000

---

0.862

2.728

1210

8mm

5 000

---

20000

---

1.471

4.030

1218

12mm

---

4000

---

2.703

7.590

2010

12mm

---

4000

---

16000

2.273

6.875

2512

12mm

---

4000

---

3.704

10.827

YC102

8mm

10000

---

0.052

---

YC104

8mm

10000

---

0.099

---

AF/YC122

8mm

10000

---

50000

---

0.100

---

TC122

8mm

10000

---

50000

---

0.112

---

ATV321

8mm

10000

---

0.100

---

AF/YC124

8mm

10000

---

40000

---

0.281

---

TC124

8mm

10000

---

40000

---

0.311

---

AF/YC162

8mm

5000

---

0.376

---

AF/YC164

8mm

5000

---

20000

---

0.833

---

TC164

8mm

5000

---

20000

---

1.030

---

YC158

8mm

5000

---

20000

---

0.855

---

YC248

12mm

5000

4000

---

0.885

---

YC324

12mm

---

4000

---

2.703

---

YC358

12mm

---

4000

---

3.333

---

12NC Ordering information

The first 8 or 9 digits of the 12 digit catalogue number are given under section
“Phycomp worldwide - Traditional type” on following pages.

The remaining 4 or 3 digits represent the resistance value with the last digit indicating the
multiplier as shown in table on the right.

Last digit of 12NC

Resistance

Last digit

0.001 to 0.0976 Ω

0.1 to 0.976 Ω

Example:

0.001 Ω = 0010 or 010

0.02 Ω = 0200 or 200

0.3 Ω = 3007 or 307

1 Ω = 1008 or 108

33 kΩ = 3303 or 333

10 MΩ = 1006 or 106

1 to 9.76 Ω

10 to 97.6 Ω

100 to 976 Ω

1 to 9.76 kΩ

10 to 97.6 kΩ

100 to 976 kΩ

1 to 9.76 MΩ

10 to 97.6 MΩ

Chip Resistors General Information

IEC publication 63, SPQ, last digit of 12NC

Yageo-ProductSelectionGuide-html.html

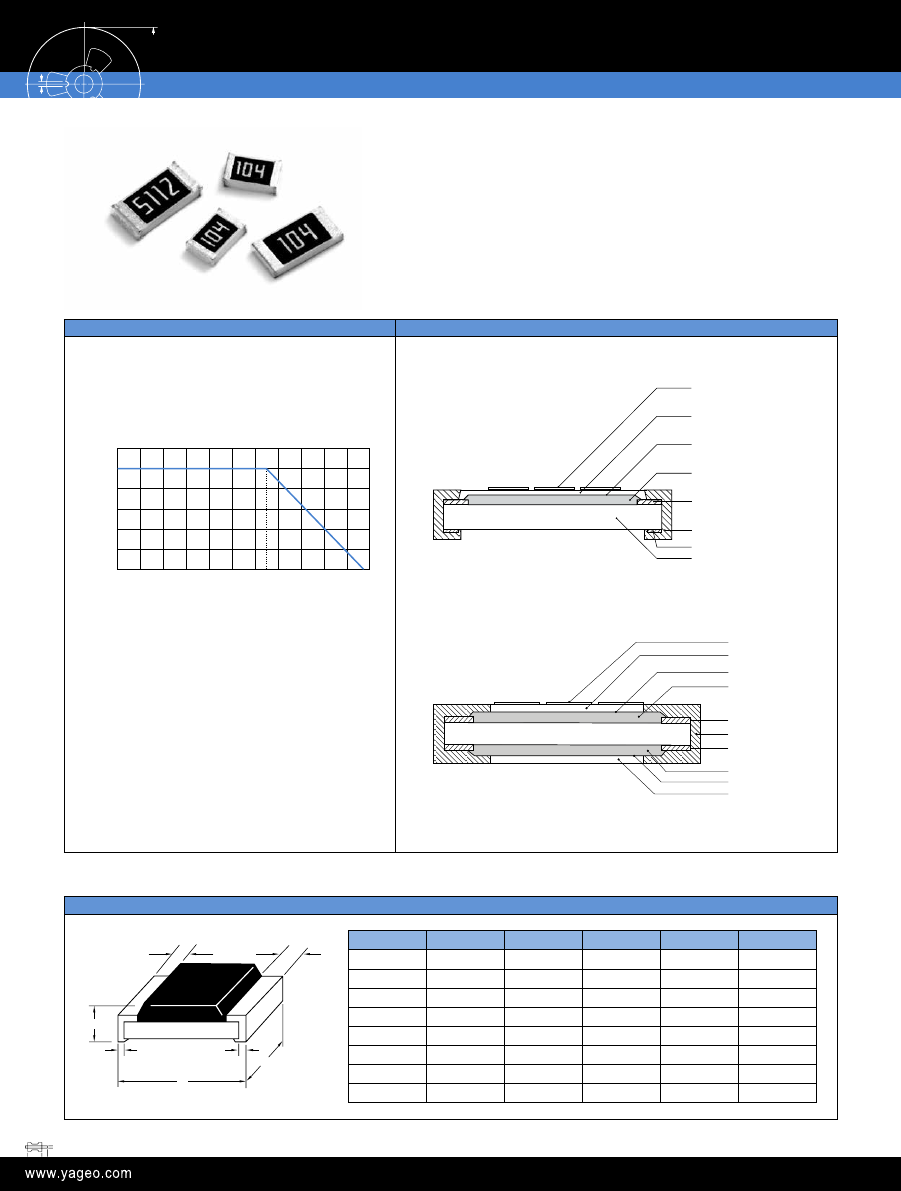

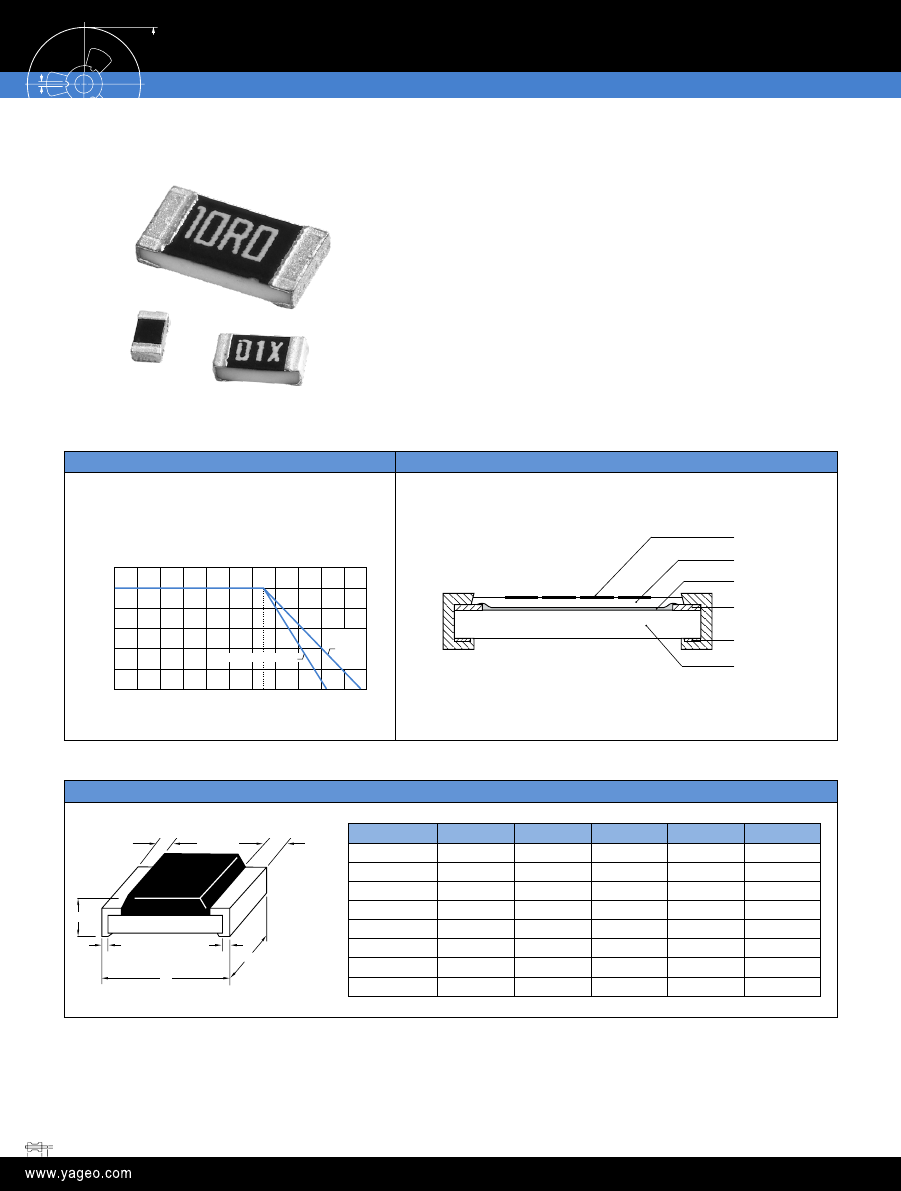

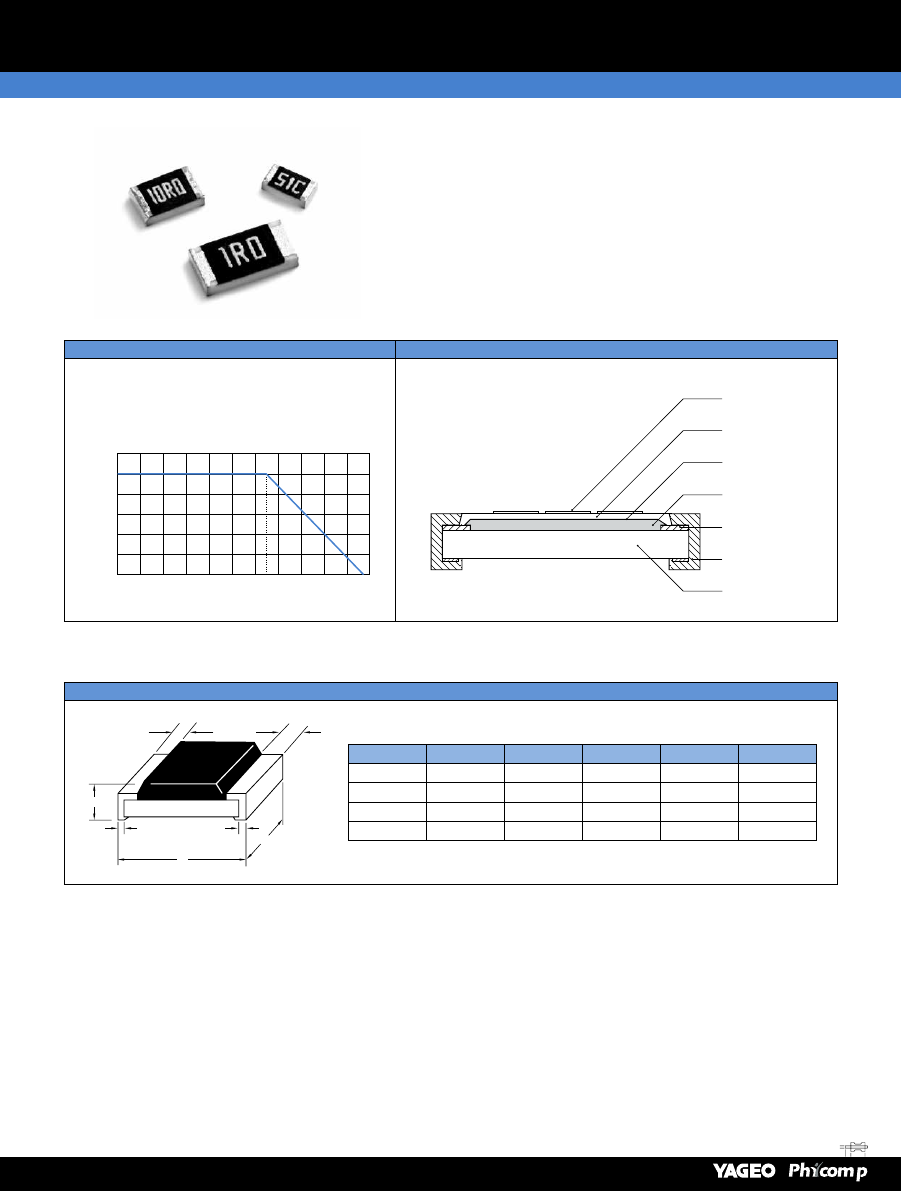

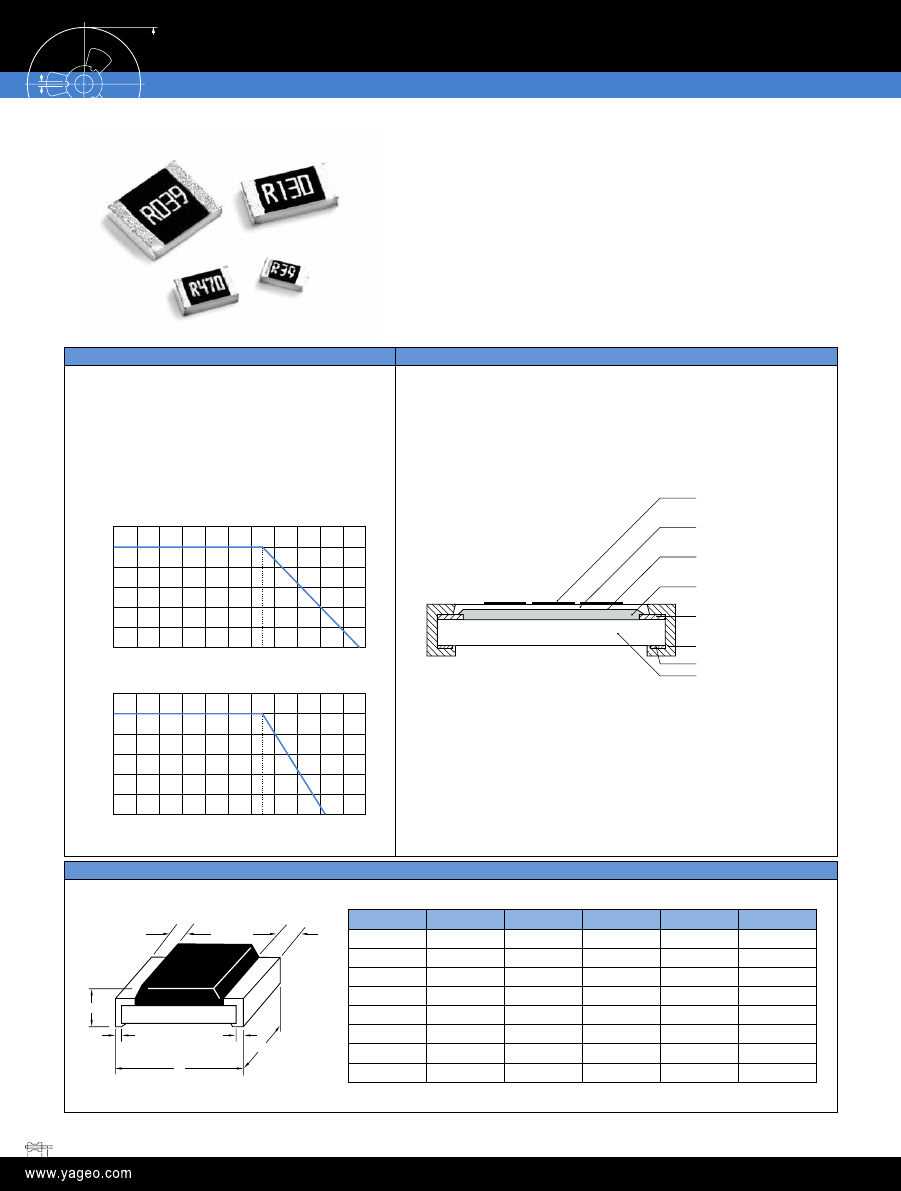

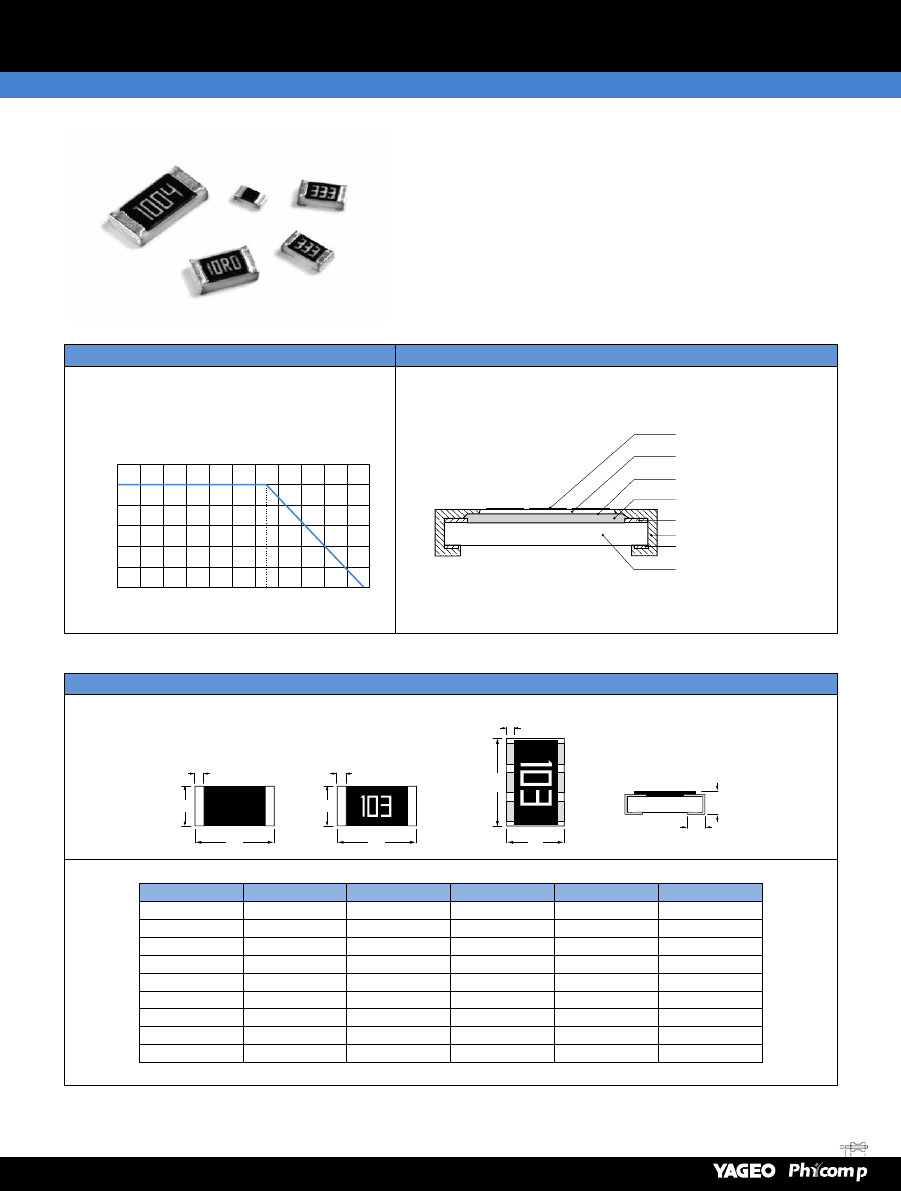

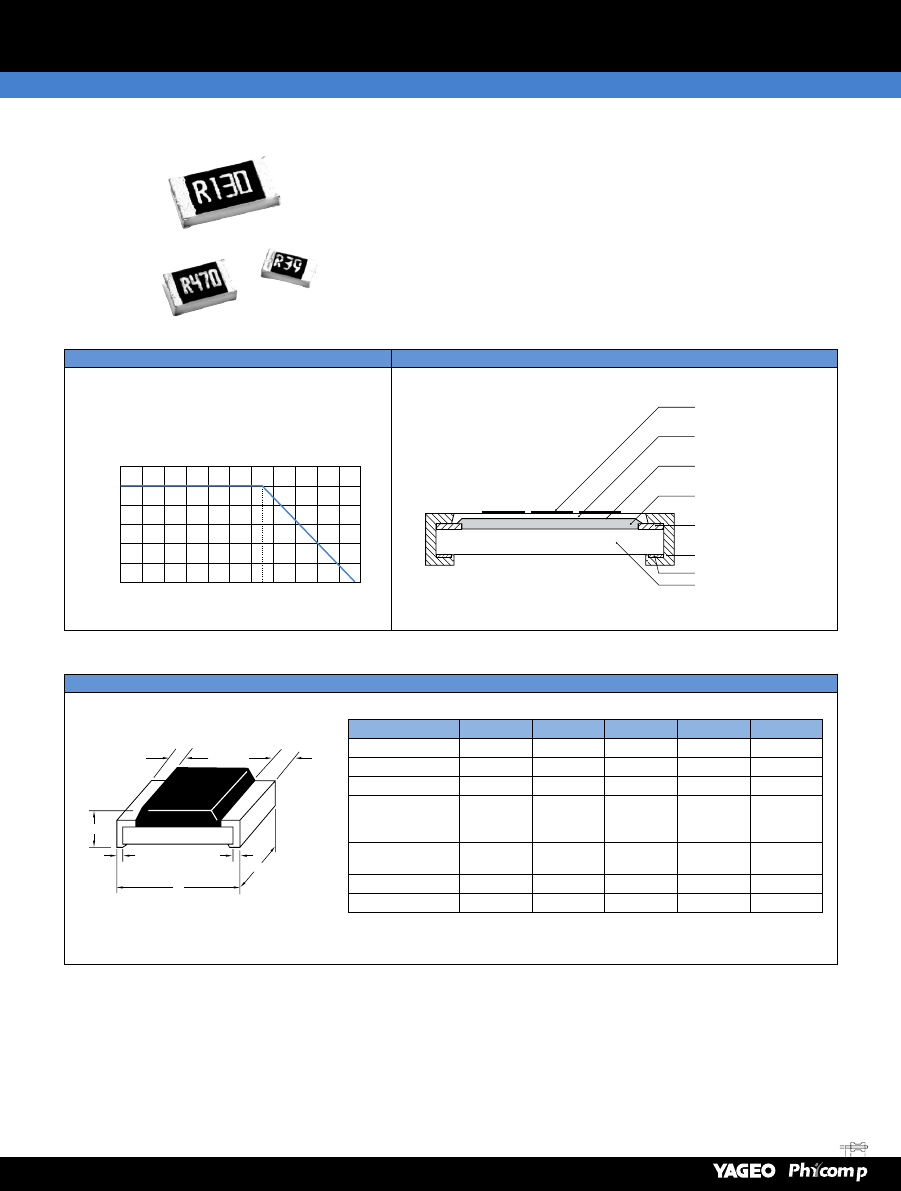

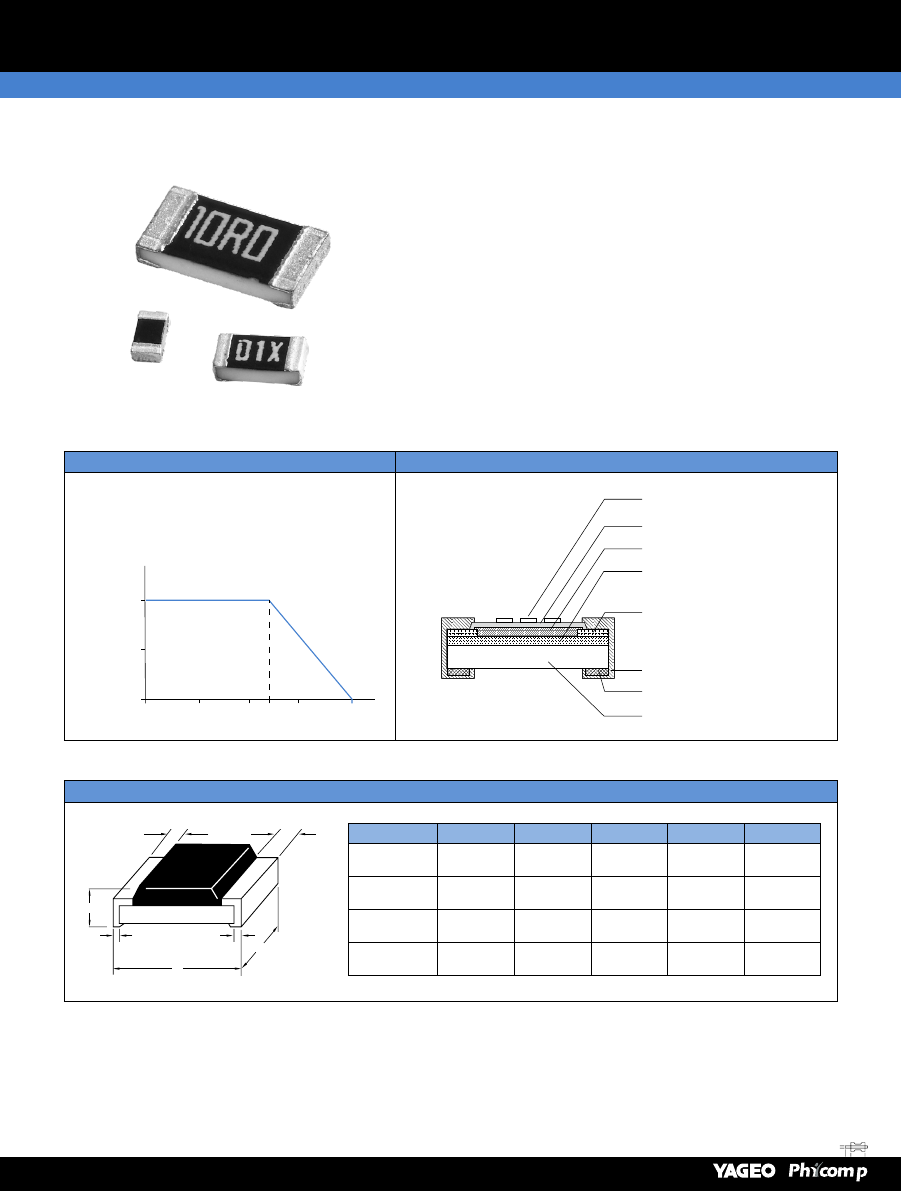

Features

•  Extremely thin and light (0075 & 0100)
•  Highly reliable construction
•  Compatible with all soldering processes
•  Highly stable in auto-placement surface mounting applications
•  Jumper is available
•  Available in 8mm tape & reel per IEC 60286-3 (EIA -RS 481)

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

100

-55

-40

-20

100

120

140

160

Ambient Temperature ( C)

Rated Power (%)

155

RC0402-

RC2512

125

RC0075-

RC0201

overcoat

protective glass

resistive layer

inner electrode

termination (Ni / matte tin)

ceramic substrate

inner electrode

marking layer

Dimensions

unit: mm

Type

RC0075

0.30 ±0.01

0.15 ±0.01

0.10 ±0.01

0.08 ±0.03

RC01005

0.40 ±0.02

0.20 ±0.02

0.13 ±0.02

0.10 ±0.03

RC0201

0.60 ±0.03

0.30 ±0.03

0.23 ±0.03

0.10 ±0.05

0.15 ±0.05

RC0402

1.00 ±0.05

0.50 ±0.05

0.35 ±0.05

0.20 ±0.10

0.25 ±0.10

RC0603

1.60 ±0.10

0.80 ±0.10

0.45 ±0.10

0.25 ±0.15

RC0805

2.00 ±0.10

1.25 ±0.10

0.50 ±0.10

0.35 ±0.20

RC1206

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

RC1210

3.10 ±0.10

2.60 ±0.15

0.50 ±0.10

0.45 ±0.15

0.50 ±0.20

RC1218

3.10 ±0.10

4.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

RC2010

5.00 ±0.10

2.50 ±0.15

0.55 ±0.10

0.45 ±0.15

0.50 ±0.20

RC2512

(1W)

6.35 ±0.10

3.10 ±0.15

0.55 ±0.10

0.60 ±0.20

0.50 ±0.20

RC2512

(2W)

6.35 ±0.10

3.10 ±0.15

0.55 ±0.10

0.60 ±0.20

1.15 ±0.20

Chip Resistors Selection Charts

RC - Thick film general purpose chip resistors, 0075 to 2512

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

RC - Thick film general purpose chip resistors, 0075 to 2512

Electrical characteristics

Type Power

Operating Temp.

range

MWV RCOV DWV

Resistance range & tolerance

T. C. R.

( ppm/°C)

Jumper criteria

(unit: A)

RC0075 1/50W -55°C to +125°C 10V

25V

E24 ±5%

E24/E96 ±1%

10Ω ≤ R ≤ 1MΩ

10Ω

≤

100Ω

≤

1MΩ

-200/+600ppm°C

±200ppm°C

Rated current

Max. current

0.5

1.0

RC0100 1/32W -55°C to +125°C 15V 30V 30V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.5%

Jumper

1Ω ≤ R ≤ 22MΩ

1Ω ≤ R ≤ 10MΩ

33Ω ≤ R ≤ 470KΩ

< 50mΩ

1Ω

≤

10Ω

≤

100Ω

≤

10MΩ

≤

22MΩ

-200/+600ppm°C

+300ppm°C

+200ppm°C

+250ppm°C

Rated current

Max. current

0.5

1.0

RC0201 1/20W -55°C to +125°C 25V 50V 50V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.1%,±0.5%

Jumper

1Ω ≤ R ≤ 10MΩ

10Ω ≤ R ≤ 1MΩ

< 50mΩ

10Ω

≤

10MΩ

1Ω

≤

10Ω

±200ppm°C

-100/+350ppm°C

Rated current

Max. current

0.5

1.0

RC0402

1/16W -55°C to +155°C 50V 100V 100V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.1%,±0.5%

Jumper

1Ω ≤ R ≤ 22MΩ

1Ω ≤ R ≤ 10MΩ

10Ω ≤ R ≤ 1MΩ

< 50mΩ

1Ω

≤

10Ω

≤

10MΩ

≤

22MΩ

±200ppm°C

±100ppm°C

±200ppm°C

Rated current

Max. current

1.0

2.0

1/8W -55°C to +155°C 50V 100V 100V

E24 ±5%

E24/E96 ±1%

1Ω ≤ R ≤ 1MΩ

1Ω

≤

1MΩ

±200ppm°C

RC0603

1/10W -55°C to +155°C 75V 150V 150V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.1%,±0.5%

Jumper

1Ω ≤ R ≤ 22MΩ

1Ω ≤ R ≤ 10MΩ

10Ω ≤ R ≤ 1MΩ

< 50mΩ

1Ω

≤

10Ω

≤

10MΩ

≤

22MΩ

±200ppm°C

±100ppm°C

±200ppm°C

Rated current

Max. current

1.0

2.0

1/5W -55°C to +155°C 75V 150V 150V

E24 ±5%

E24/E96 ±1%

1Ω ≤ R ≤ 1

1Ω

≤

±200ppm°C

RC0805

1/8W -55°C to +155°C 150V 300V 300V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.1%,±0.5%

E24 ±10%,20%

Jumper

1Ω ≤ R ≤ 22MΩ

1Ω ≤ R ≤ 10MΩ

10Ω ≤ R ≤ 1MΩ

24MΩ ≤ R ≤ 100MΩ

< 50mΩ

1Ω

≤

10Ω

≤

10MΩ

≤

22MΩ

24MΩ

≤

100MΩ

±200ppm°C

±100ppm°C

±200ppm°C

±300ppm°C

Rated current

Max. current

2.0

5.0

1/4W -55°C to +155°C 150V 300V 300V

E24 ±5%

E24/E96 ±1%

1Ω

≤

1MΩ

1Ω

≤

1MΩ

1Ω

≤

1MΩ

±200ppm°C

RC1206

1/4W -55°C to +155°C 200V 400V 500V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.1%,±0.5%

E24 ±10%,20%

Jumper

1Ω

≤

22MΩ

1Ω

≤

10MΩ

10Ω

≤

1MΩ

24MΩ

≤

100MΩ

50mΩ

1Ω

≤

10Ω

≤

10MΩ

≤

22MΩ

24MΩ

≤

100MΩ

±200ppm°C

±100ppm°C

±200ppm°C

±300ppm°C

Rated current

Max. current

2.0

10.0

1/2W -55°C to +155°C 200V 400V 500V

E24 ±5%

E24/E96 ±1%

1Ω

≤

1MΩ

1Ω

≤

1MΩ

1Ω

≤

1MΩ

±200ppm°C

RC1210 1/2W -55°C to +155°C 200V 500V 500V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.1%,±0.5%

Jumper

1Ω ≤ R ≤ 22MΩ

1Ω ≤ R ≤ 10MΩ

10Ω

≤

1MΩ

50mΩ

1Ω

≤

10Ω

≤

10MΩ

≤

22MΩ

±200ppm°C

±100ppm°C

±200ppm°C

Rated current

Max. current

2.0

10.0

RC1218 1W -55°C to +155°C 200V 500V 500V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.1%,±0.5%

Jumper

1Ω

≤

1MΩ

1Ω

≤

1MΩ

10Ω

≤

1MΩ

50mΩ

1Ω

≤

10Ω

11Ω

≤

1MΩ

±200ppm°C

±100ppm°C

Rated current

Max. current

6.0

10.0

RC2010 3/4W -55°C to +155°C 200V 500V 500V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.1%,±0.5%

Jumper

1Ω

≤

22MΩ

1Ω

≤

10MΩ

10Ω

≤

1MΩ

50mΩ

1Ω

≤

10Ω

≤

10MΩ

≤

22MΩ

±200ppm°C

±100ppm°C

±200ppm°C

Rated current

Max. current

2.0

10.0

RC2512

1W -55°C to +155°C 200V 500V 500V

Rated current

Max. current

2.0

10.0

2W -55°C to +155°C 200V 400V 500V

E24 ±5%

E24/E96 ±1%

1Ω

≤

1Ω

≤

1Ω

≤

1MΩ

±200ppm°C

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

RC - Thick film general purpose chip resistors, 0075 to 2512

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

-method

108A

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

0075/ 01005: ±(3% +50mΩ)

< 100mΩ for jumper

Others: ±(1% +50mΩ) for 0.1%/0.5%/1% tol.

±(3% +50mΩ) for 5% tol.

< 100mΩ for jumper

High temperature exposure

MIL-STD-202

-method

108A

1000 hours at maximum operating temperature

depending on specification, unpowered

0075/ 01005: ±(1% +50mΩ)

< 50mΩ for jumper

Others: ±(1% +50mΩ) for 0.1%/0.5%/1% tol.

±(2% +50mΩ) for 5% tol.

< 50mΩ for jumper

Moisture resistance

MIL-STD-202

-method

106G

Each temperature / humidity cycle is defined

as 8 hours (method 106G), 3 cycles / 24

hours

for 10d with 25°C / 65°C 95% R.H

0075/ 01005: ±(2.0% +50mΩ)

< 100mΩ for jumper

Others: ±(0.5% +50mΩ) for 0.1%/0.5%/1% tol.

±(2% +50mΩ) for 5% tol.

< 100mΩ for jumper

Thermal shock

MIL-STD-202

-method

107G

-55/+125 °C

Note: Number of cycles required is 300.

Devices mounted

Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

0075/ 01005: ±(1% +50mΩ)

< 50mΩ for jumper

Others: ±(0.5% +50mΩ) for 0.1%/0.5%/1% tol.

±(1% +50mΩ) for 5% tol.

< 50mΩ for jumper

Solderability

Wetting

J-STD-002B

testB

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned (≥95% covered)

No visible damage

Resistance to

soldering heat

MIL-STD-202

-method

210F

Lead-free solder, 260°C, 10 seconds

immersion time

0075/ 01005: ±(1% +50mΩ)

< 50mΩ for jumper

Others: ±(0.5% +50mΩ) for 0.1%/0.5%/1% tol.

±(1% +0.05 Ω) for 5% tol.

< 50mΩ for jumper

No visible damage

Short time overload

IEC 60115

-1 4.13

2.5 times RCWV or maximum overload voltage

whichever is less for 5 seconds at room

temperature

0075/ 01005: ±(2% +50mΩ)

< 50mΩ for jumper

Others: ±(1% +50mΩ) for 0.1%/0.5%/1% tol.

±(2% +50mΩ) for 5% tol.

< 50mΩ for jumper

No visible damage

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

RC - Thick film general purpose chip resistors, 0075 to 2512

Global part number - Preferred type for ordering Yageo / Phycomp branded products

Ordering example: RC0402JR-07100KL

R C 0 4 0 2 J R

―

0 7 1 0 0 K

Series name (code 1-2)

Default code

(1/2)

(code 17)

RC = General purpose thick film

Resistance (code 12-16)

Size code (code 3-6)

= Jumper

(inch / metric)

10R = 10Ω

0075 = 0.3 x 0.1

100R = 100Ω

0100 = 0.4 x 0.2

100K = 100KΩ

0201 = 0.6 x 0.3
0402 = 1.0 x 0.5
0603 = 1.6 x 0.8

Taping reel (code 10-11)

0805 = 2.0 x 1.25

07 = 7 inch Dia. reel

1206 = 3.2 x 1.6

13 = 13 inch Dia. reel

1210 = 3.2 x 2.6

7N = 7 inch Dia. reel,ESD safe reel

(0075/0100 only)

1218 = 3.2 x 4.5
2010 = 5.0 x 2.5

7W = 7 inch Dia. reel,

2512 = 6.35 x 3.2

2 x standard power

Tolerance (code 7)

B = ±0.1%

T. C. R. (code 9)

D = ±0.5%

“―” = Based on spec.

F = ±1%

(― for thick film only)

J = ±5% (for Jumper ordering)

Packing style (code 8 )

R = Paper tape reel
K = Embossed plastic tape reel
S = ESD safe reel (0075/0100 only)

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

RC - Thick film general purpose chip resistors, 0075 to 2512

Phycomp worldwide - Traditional type

General purpose thick film / RC series

Size: inch (mm)

0201 (0603)

0402 (1005)

0603 (1608)

0805 (2012)

Power

1/20 W

1/16 W

1/10 W

1/8 W

Tolerance

+5%

+1%

+5%

+1%

+5%

+1%

+5%

+1%

Resistance

E24

E24 / E96

E24

E24 / E96

E24

E24 / E96

E24

E24 / E96

Packing

paper tape

Quantity 5 000

---

2322 702 60...L 2322 704 6.…L 2322 730 61...L 2322 734 6.…L

10 000

2322 803 70...L 2322 806 7.…L 2322 705 70...L 2322 706 7.…L 2322 702 70...L 2322 704 7.…L 2322 730 71...L 2322 734 7.…L

20 000

2322 806 80...L 2322 806 8.…L

---

2322 702 81...L 2322 704 8.…L 2322 730 81...L 2322 734 8.…L

50 000

2322 803 60...L 2322 806 6.…L 2322 705 87...L 2322 706 8.…L

---

Jumper 5 000

---

2322 702 96001L

---

2322 730 91002L

---

10 000

2322 803 91001L

---

2322 705 91001L

---

2322 702 97001L

---

2322 730 91003L

---

20 000

---

2322 702 92002L

---

2322 730 92002L

---

50 000

---

2322 705 91007L

---

For ordering rules:

See page 14 for E24 / E96 values and the last 4 or 3 digits of the 12NC catalogue number

Phycomp worldwide - Traditional type

General purpose thick film / RC series

Size: inch (mm)

1206 (3216)

1210 (3225)

1218 (3248)

2010 (5025)

2512 (6432)

Power

1/4 W

1/2 W

1 W

3/4 W

1 W

Tolerance

+5%

+1%

+5%

+1%

+5%

+1%

+5%

+1%

+5%

+1%

Resistance

E24

E24 / E96

E24

E24 / E96

E24

E24 / E96

E24

E24 / E96

E24

E24 / E96

Packing

paper tape

blister tape

Quantity 4 000

---

2322 735 64...L 2322 735 7.…L 2322 760 60...L 2322 761 6.…L 2322 762 60...L 2322 763 6.…L

5 000

2322 711 61...L 2322 724 6.…L 2390 735 70...L 2390 735 3.…L

---

10 000

2322 711 51...L 2322 724 7.…L

---

20 000

2322 711 81...L 2322 724 8.…L 2390 735 71...L 2390 735 5.…L

---

Jumper 4 000

---

2322 735 90007L

---

2322 760 90003L

---

2322 762 90000L

---

5 000

2322 711 91032L

---

2390 735 90001L

---

10 000

2322 711 91005L

---

20 000

2322 711 92004L

---

For ordering rules:

See page 14 for E24 / E96 values and the last 4 or 3 digits of the 12NC catalogue number

Phycomp CTC ordering code - Traditional type - North America

Regional code for ordering Phycomp branded products. Please see page 15 for details.

Yageo-ProductSelectionGuide-html.html

Features

•  Highly reliable electrode construction
•  Compatible with all soldering processes
•  Highly stable in auto-placement surface mounting applications
•  Barrier layer end termination
•  Lead free (Pb<1000ppm) without RoHS exemptions (7C-1)

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

100

-55

-40

-20

100

120

140

160

Ambient Temperature ( C)

Rated Power (%)

155

RC0402-

RC2512

125

RC0100-

RC0201

overcoat

protective glass

resistive layer

inner electrode

termination (Ni / matte tin)

ceramic substrate

inner electrode

marking layer

Dimensions

unit: mm

Type

RC01005

0.40 ±0.02

0.20 ±0.02

0.13 ±0.02

0.10 ±0.03

RC0201

0.60 ±0.03

0.30 ±0.03

0.23 ±0.03

0.10 ±0.05

0.15 ±0.05

RC0402

1.00 ±0.05

0.50 ±0.05

0.35 ±0.05

0.20 ±0.10

0.25 ±0.10

RC0603

1.60 ±0.10

0.80 ±0.10

0.45 ±0.10

0.25 ±0.15

RC0805

2.00 ±0.10

1.25 ±0.10

0.50 ±0.10

0.35 ±0.20

RC1206

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

RC1210

3.10 ±0.10

2.60 ±0.15

0.50 ±0.10

0.45 ±0.15

0.50 ±0.20

RC1218

3.10 ±0.10

4.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

RC2010

5.00 ±0.10

2.50 ±0.15

0.55 ±0.10

0.45 ±0.15

0.50 ±0.20

RC2512

6.35 ±0.10

3.10 ±0.15

0.55 ±0.10

0.60 ±0.20

0.50 ±0.20

Chip Resistors Selection Charts

RC_P ,Total lead free thick film general purpose chip resistor,01005 to 2512

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

RC_P ,Total lead free thick film general purpose chip resistor,01005 to 2512

Electrical characteristics

Type Power

Operating Temp.

range

MWV RCOV DWV

Resistance range & tolerance

T. C. R.

( ppm/°C)

Jumper criteria

(unit: A)

RC0100 1/32W -55°C to +125°C 15V 30V 30V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.5%

Jumper

1Ω ≤ R ≤ 1MΩ

10Ω ≤ R ≤ 1MΩ

< 50mΩ

1Ω

≤

10Ω

≤

100Ω

≤

1MΩ

-200/+600ppm°C

+370ppm°C

+250ppm°C

Rated current

Max. current

0.5

1.0

RC0201 1/20W -55°C to +125°C 25V 50V 50V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.5%

Jumper

1Ω ≤ R ≤ 10MΩ

10Ω ≤ R ≤ 1MΩ

< 50mΩ

1Ω ≤ R ≤ 10Ω

10Ω ≤ R ≤ 100Ω

100Ω ≤ R ≤ 10MΩ

-100/+500ppm°C

±300ppm°C

±200ppm°C

Rated current

Max. current

0.5

1.0

RC0402 1/16W -55°C to +155°C 50V 100V 100V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.5%

Jumper

1Ω ≤ R ≤ 22MΩ

1Ω ≤ R ≤ 10MΩ

10Ω ≤ R ≤ 1MΩ

< 50mΩ

1Ω ≤ R ≤ 10Ω

10Ω ≤ R ≤ 100Ω

100Ω ≤ R ≤ 10MΩ

10MΩ ≤ R ≤ 22MΩ

±350ppm°C

±200ppm°C

±150ppm°C

±200ppm°C

Rated current

Max. current

1.0

2.0

RC0603 1/10W -55°C to +155°C 75V 150V 150V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.5%

Jumper

1Ω ≤ R ≤ 22MΩ

1Ω ≤ R ≤ 10MΩ

10Ω ≤ R ≤ 1MΩ

< 50mΩ

1Ω ≤ R ≤ 10Ω

10Ω ≤ R ≤ 100Ω

100Ω ≤ R ≤ 10MΩ

10MΩ ≤ R ≤ 22MΩ

±300ppm°C

±200ppm°C

±150ppm°C

±200ppm°C

Rated current

Max. current

1.0

2.0

RC0805 1/8W -55°C to +155°C 150V 300V 300V

E24 ±5%

E24/E96 ±1%

E24/E96±0.5%

Jumper

1Ω ≤ R ≤ 22MΩ

1Ω ≤ R ≤ 10MΩ

10Ω ≤ R ≤ 1MΩ

< 50mΩ

1Ω ≤ R ≤ 10Ω

10Ω ≤ R ≤ 100Ω

100Ω ≤ R ≤ 10MΩ

10MΩ ≤ R ≤ 22MΩ

±300ppm°C

±150ppm°C

±100ppm°C

±200ppm°C

Rated current

Max. current

2.0

5.0

RC1206 1/4W -55°C to +155°C 200V 400V 500V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.5%

Jumper

1Ω

≤

22MΩ

1Ω

≤

10MΩ

10Ω

≤

1MΩ

50mΩ

1Ω ≤ R ≤ 10Ω

10Ω ≤ R ≤ 100Ω

100Ω ≤ R ≤ 10MΩ

10MΩ ≤ R ≤ 22MΩ

±300ppm°C

±100ppm°C

±200ppm°C

Rated current

Max. current

2.0

10.0

RC1210 1/2W -55°C to +155°C 200V 500V 500V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.5%

Jumper

1Ω ≤ R ≤ 22MΩ

1Ω ≤ R ≤ 10MΩ

10Ω

≤

1MΩ

50mΩ

10Ω

10Ω ≤ R ≤ 100Ω

100Ω ≤ R ≤ 10MΩ

10MΩ ≤ R ≤ 22MΩ

±300ppm°C

±100ppm°C

±200ppm°C

Rated current

Max. current

2.0

10.0

RC1218 1W -55°C to +155°C 200V 500V 500V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.5%

Jumper

1Ω

≤

1MΩ

1Ω

≤

1MΩ

10Ω

≤

1MΩ

50mΩ

Rated current

Max. current

6.0

10.0

RC2010 3/4W -55°C to +155°C 200V 500V 500V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.5%

Jumper

1Ω

≤

22MΩ

1Ω

≤

10MΩ

10Ω

≤

1MΩ

50mΩ

Rated current

Max. current

2.0

10.0

RC2512 1W -55°C to +155°C 200V 500V 500V

Rated current

Max. current

2.0

10.0

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

RC_P ,Total lead free thick film general purpose chip resistor,01005 to 2512

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

-method

108A

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

01005: ±(3% +50mΩ)

< 100mΩ for jumper

Others:±(1% +50mΩ) for 0.1%/0.5%/1% tol.

±(3% +50mΩ) for 5% tol.

< 100mΩ for jumper

High temperature exposure

MIL-STD-202

-method

108A

1000 hours at maximum operating temperature

depending on specification, unpowered

01005: ±(1% +50mΩ)

< 50mΩ for jumper

Others:±(1% +50mΩ) for 0.1%/0.5%/1% tol.

±(2% +50mΩ) for 5% tol.

< 50mΩ for jumper

Moisture resistance

MIL-STD-202

-method

106G

Each temperature / humidity cycle is defined

as 8 hours (method 106G), 3 cycles / 24

hours

for 10d with 25°C / 65°C 95% R.H

01005: ±(2.0% +50mΩ)

< 100mΩ for jumper

Others:±(0.5% +50mΩ) for 0.1%/0.5%/1% tol.

±(2% +50mΩ) for 5% tol.

< 100mΩ for jumper

Thermal shock

MIL-STD-202

-method

107G

-55/+125 °C

Note: Number of cycles required is 300.

Devices mounted

Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

01005: ±(1% +50mΩ)

< 50mΩ for jumper

Others:±(0.5% +50mΩ) for 0.1%/0.5%/1% tol.

±(1% +50mΩ) for 5% tol.

< 50mΩ for jumper

Solderability

Wetting

J-STD-002B

testB

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned (≥95% covered)

No visible damage

Resistance to

soldering heat

MIL-STD-202

-method

210F

Lead-free solder, 260°C, 10 seconds

immersion time

01005: ±(1% +50mΩ)

< 50mΩ for jumper

Others:±(0.5% +50mΩ) for 0.1%/0.5%/1% tol.

±(1% +0.05 Ω) for 5% tol.

< 50mΩ for jumper

No visible damage

Short time overload

IEC 60115

-1 4.13

2.5 times RCWV or maximum overload voltage

whichever is less for 5 seconds at room

temperature

01005: ±(2% +50mΩ)

< 50mΩ for jumper

Others:±(1% +50mΩ) for 0.1%/0.5%/1% tol.

±(2% +50mΩ) for 5% tol.

< 50mΩ for jumper

No visible damage

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

RC_P ,Total lead free thick film general purpose chip resistor,01005 to 2512

Global part number - Preferred type for ordering Yageo / Phycomp branded products

Ordering example: RC0402JR-07100KP

R C 0 4 0 2 J R

―

0 7 1 0 0 K

Series name (code 1-2)

Default code

(1/2)

(code 17)

RC = General purpose thick film

Resistance (code 12-16)

Size code (code 3-6)

= Jumper

(inch / metric)

10R = 10Ω

0100 = 0.4 x 0.2

100R = 100Ω

0201 = 0.6 x 0.3

100K = 100KΩ

0402 = 1.0 x 0.5
0603 = 1.6 x 0.8
0805 = 2.0 x 1.25

Taping reel (code 10-11)

1206 = 3.2 x 1.6

07 = 7 inch Dia. reel

1210 = 3.2 x 2.6

13 = 13 inch Dia. reel

1218 = 3.2 x 4.5

7N = 7 inch Dia. reel,ESD safe reel

(0100 only)

2010 = 5.0 x 2.5
2512 = 6.35 x 3.2

T. C. R. (code 9)

“―” = Based on spec.

Tolerance (code 7)

(― for thick film only)

D = ±0.5%
F = ±1%

Packing style (code 8 )

J = ±5% (for Jumper ordering)

R = Paper tape reel
K = Embossed plastic tape reel
S = ESD safe reel (0100 only)

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

Yageo-ProductSelectionGuide-html.html

Features

•  Narrow tolerance
•  Low T. C. R.
•  Highly reliable construction
•  Compatible with all soldering processes
•  Suitable for auto-placement surface mounting applications
•  Available in 8mm tape & reel per EIA RS481

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

overcoat

protective glass

resistive layer

inner electrode

termination (Ni / matte tin)

ceramic substrate

inner electrode

marking layer

Dimensions

Type

RE0201

0.60 ±0.03

0.30 ±0.03

0.23 ±0.03

0.10 ±0.05

0.15 ±0.05

RE0402

1.00 ±0.05

0.50 ±0.05

0.32 ±0.05

0.20 ±0.10

0.25 ±0.10

RE0603

1.60 ±0.10

0.80 ±0.10

0.45 ±0.10

0.25 ±0.15

RE0805

2.00 ±0.10

1.25 ±0.10

0.50 ±0.10

0.35 ±0.20

RE1206

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

Chip Resistors Selection Charts

RE - Thick film precision grade chip resistors, 0201 to 1206

100

-55

-40

-20

100

120

140

160

Ambient Temperature ( C)

Rated Power (%)

155

unit: mm

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

RE - Thick film precision grade chip resistors, 0201 to 1206

Electrical characteristics

Type

Power

Operating Temp. range

MWV

RCOV

DWV

Resistance range & tolerance

T. C. R.

RE0201

1/20W

-55°C to +155°C

25V

50V

E24/E96 ±0.1%,±0.5%, ±1%

10Ω ≤ R ≤ 1MΩ

±50 ppm/°C

RE0402

1/16W

-55°C to +155°C

50V

100V

RE0603

1/10W

-55°C to +155°C

75V

150V

RE0805

1/8W

-55°C to +155°C

150V

300V

RE1206

1/4W

-55°C to +155°C

200V

400V

500V

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

-method 108A

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(3% +50mΩ)

High temperature exposure

MIL-STD-202

-method 108A

1000 hours at maximum operating temperature

depending on specification, unpowered

±(3% +50mΩ)

Moisture resistance

MIL-STD-202

-method 106G

Each temperature / humidity cycle is defined

as 8 hours (method 106G), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H

±(3% +50mΩ)

Thermal shock

MIL-STD-202

-method 107G

-55/+125 °C

Note: Number of cycles required is 300.

Devices mounted Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

±(1% +50mΩ)

Solderability

Wetting

IPC/JEDECJ-

STD-002B

testB

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned (≥95% covered)

No visible damage

Resistance to

soldering heat

MIL-STD-202

-method 210F

Lead-free solder, 260°C, 10 seconds immersion time

±(0.5%+ 50mΩ)

No visible damage

Short time overload

IEC 60115

-1 4.13

2.5 times RCWV or maximum overload voltage

whichever is less for 5 seconds at room temperature

±(1%+ 50mΩ)

No visible damage

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

RE - Thick film precision grade chip resistors, 0201 to 1206

Global part number - Preferred type for ordering Yageo / Phycomp branded products

Ordering example: RE0603DRE07100KL

R E 0 6 0 3 D R E 0 7 1 0 0 K

Series name (code 1-2)

Default code

(1/2)

(code 17)

RE = Thick film precision grade

Resistance (code 12-16)

Size code (code 3-6)

10R = 10Ω

(inch / metric)

100R = 100Ω

0201 = 0.6 x 0.3

100K = 100KΩ

0402 = 1.0 x 0.5
0603 = 1.6 x 0.8

Taping reel (code 10-11)

0805 = 2.0 x 1.25

07 = 7 inch Dia. reel

1206 = 3.2 x 1.6

13 = 13 inch Dia. reel

Tolerance (code 7)

B = ±0.1%

T. C. R. (code 9)

D = ±0.5%

E = ±50 ppm/°C

F = ±1%

Packing style (code 8 )

R = Paper tape reel

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

3. RE series products are available by "Global part number" only

Phycomp CTC ordering code - Traditional type - North America

Regional code for ordering Phycomp branded products. Please see page 15 for details.

Yageo-ProductSelectionGuide-html.html

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

100

-55

-40

-20

100

120

140

160

Ambient Temperature (°C)

Rated Power (%)

155

RT0402-

RT1206

125

RT0201,RT1210-RT2512

protective glass

marking layer

resistive layer

inner electrode

ceramic substrate

inner electrode

Dimensions

Type

RT0201

0.60 ±0.03

0.30 ±0.03

0.23 ±0.03

0.10 ±0.05

0.15 ±0.05

RT0402

1.00 ±0.10

0.50 ±0.05

0.30 ±0.05

0.20 ±0.10

0.25 ±0.10

RT0603

1.60 ±0.10

0.80 ±0.10

0.45 ±0.10

0.25 ±0.15

RT0805

2.00 ±0.10

1.25 ±0.10

0.50 ±0.10

0.35 ±0.20

RT1206

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

RT1210

3.10 ±0.10

2.60 ±0.15

0.55 ±0.10

0.50 ±0.20

RT2010

5.00 ±0.10

2.50 ±0.15

0.55 ±0.10

0.60 ±0.20

0.50 ±0.20

RT2512

6.35 ±0.10

3.20 ±0.15

0.55 ±0.10

0.60 ±0.20 0.50 ±0.20

Features

•  High precision - High stability
•  Low T. C. R. / low noise
•  High accuracy (±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%)

Chip Resistors Selection Charts

RT - Thin film high precision high stability chip resistors, 0201 to 2512

unit: mm

Yageo-ProductSelectionGuide-html.html

Electrical characteristics

Type

Power

Operating Temp.

range

MWV RCOV DWV

T.C.R.

(ppm/°C)

Resistance Range (E24/E96) & tolerance

±0.05%

±0.1%

±0.25%

±0.5%

±1.0%

RT0201 1/20W –55 °C to +125 °C

25V

50V

±50

22 ~75K

±25

22~75K

±15

±10

±5

RT0402 1/16W

–55 °C to +155 °C

50V

100V

75V

±50

20~12K

4.7~240K

±25

20~12K

4.7~240K

±15

20~12K

20~70K

±10

20~12K

20~70K

±5

20~10K

RT0603 1/10W

75V

150V

100V

±50

4.7~100K

1~1M

±25

4.7~100K

1~1M

±15

4.7~100K

4.7~332K

±10

4.7~100K

4.7~332K

±5

20~30K

RT0805

1/8W

150V

300V

200V

±50

4.7~200K

1~1.5M

±25

4.7~200K

1~1.5M

±15

4.7~200K

4.7~800K

±10

4.7~200K

4.7~800K

±5

20~50K

RT1206

1/4W

200V

400V

300V

±50

5.6~500K

1~1.5M

±25

5.6~500K

1~1.5M

±15

5.6~500K

5.6~1M

±10

5.6~500K

5.6~1M

±5

20~100K

RT1210

1/4W

–55 °C to +125 °C

200V

400V

±50

4.7~1M

±25

4.7~1M

±15

100~100K

4.7~100K

±10

100~100K

4.7~100K

±5

RT2010

1/2W

200V

400V

±50

4.7~1M

±25

4.7~1M

±15

100~100K

4.7~100K

±10

100~100K

4.7~100K

±5

RT2512

3/4W

200V

400V

±50

4.7~1M

±25

4.7~1M

±15

100~100K

4.7~100K

±10

100~100K

4.7~100K

±5

Chip Resistors Selection Charts

RT - Thin film high precision high stability chip resistors, 0201 to 2512

Yageo-ProductSelectionGuide-html.html

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

Method 108A

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(0.5%+ 50mΩ)

High temperature exposure

MIL-STD-202

Method 108A

1000 hours at maximum operating temperature

depending on specification, unpowered

±(0.5%+ 50mΩ)

Moisture resistance

MIL-STD-202

Method 106G

Each temperature / humidity cycle is defined

as 8 hours (method 106G), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H

±(0.5%+ 50mΩ)

Thermal shock

MIL-STD-202

Method 107G

-55/+125 °C

Note: Number of cycles required is 300.

Devices mounted Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

±(0.5%+ 50mΩ)

Short time overload

IEC 60115-1 4.13

2.5 times RCWV or maximum overload voltage which-

ever is less for 5 seconds at room temperature

±(0.5%+ 50mΩ)

No visible damage

Solderability

Resistance to

soldering heat

MIL-STD-202

method 210F

Lead-free solder, 260°C, 10 seconds immersion time

±(0.5% +50mΩ)

No visible damage

Wetting

J-STD-002B

test B

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned

(≥95% covered)

No visible damage

Global part number - Preferred type for ordering Yageo / Phycomp branded products

Ordering example: RT0603DRE07100KL

R T 0 6 0 3 D R E 0 7 1 0 0 K

Series name (code 1-2)

Default code

(1/2)

(code 17)

RT = High precision - High stability thin film

Resistance (code 12-16)

Size code (code 3-6)

10R = 10Ω

(inch / metric)

100R = 100Ω

0201 = 0.6 x 0.3

10K = 10KΩ

0402 = 1.0 x 0.5

100K = 100KΩ

0603 = 1.6 x 0.8

0805 = 2.0 x 1.25
1206 = 3.2 x 1.6

Taping reel (code 10-11)

1210 = 3.2 x 2.6

07 = 7 inch Dia. reel

2010 = 5.0 x 2.5

13 = 13 inch Dia. reel

2512 = 6.35 x 3.2

T. C. R. (code 9)

Tolerance (code 7)

A = ±5 ppm/°C

W = ±0.05%

B = ±10 ppm/°C

B = ±0.1%

C = ±15 ppm/°C

C = ±0.25%

D = ±25 ppm/°C

D = ±0.5%

E = ±50 ppm/°C

F = ±1%

Packing style (code 8 )

R = Paper tape reel
K = Embossed plastic tape reel

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

Chip Resistors Selection Charts

RT - Thin film high precision high stability chip resistors, 0201 to 2512

Yageo-ProductSelectionGuide-html.html

Phycomp worldwide - Traditional type

High precision - High stability

Size: inch (mm)

0402 (1005)

0603 (1608)

Power

1/16 W

1/10 W

Tolerance

±1%

±0.5%

±0.25%

±0.1%

±1%

±0.5%

±0.25%

±0.1%

Resistance

E24 / E96

Packing

paper tape

Quantity

TC25

5 000

---

2390 604 7.…L 2390 604 6.…L 2390 604 5.…L 2390 604 4.…L

TC50

5 000

---

2390 404 7.…L 2390 404 6.…L 2390 404 5.…L 2390 404 4.…L

TC25

10 000

2390 607 7.…L 2390 607 6.…L 2390 607 5.…L 2390 607 4.…L

---

TC50

10 000

2390 407 7.…L 2390 407 6.…L 2390 407 5.…L 2390 407 4.…L

---

For ordering rules:

See page 14 for E24 / E96 values and the last 4 or 3 digits of the 12NC catalogue number

Phycomp worldwide - Traditional type

High precision - High stability

Size: inch (mm)

0805 (2012)

1206 (3216)

1210 (3225)

Power

1/8 W

1/4 W

1/2 W

Tolerance

±1%

±0.5%

±0.25%

±0.1%

±1%

±0.5%

±0.25%

±0.1%

±1%

±0.5%

±0.25%

±0.1%

Resistance

E24 / E96

Packing

paper tape

Quantity

TC10

5 000

2390 801 7.…L 2390 801 6.…L 2390 801 5....L 2390 801 4....L 2390 811 7....L 2390 811 6....L 2390 811 5....L 2390 811 4....L 2390 812 7....L 2390 812 6....L 2390 812 5....L 2390 812 4....L

TC15

5 000

2390 701 7.…L 2390 701 6.…L 2390 701 5....L 2390 701 4....L 2390 711 7....L 2390 711 6....L 2390 711 5....L 2390 711 4....L 2390 712 7....L 2390 712 6....L 2390 712 5....L 2390 712 4....L

TC25

5 000

2390 601 7.…L 2390 601 6....L 2390 601 5....L 2390 601 4....L 2390 611 7....L 2390 611 6....L 2390 611 5....L 2390 611 4....L 2390 612 7....L 2390 612 6....L 2390 612 5....L 2390 612 4....L

TC50

5 000

2390 401 7.…L 2390 401 6....L 2390 401 5....L 2390 401 4....L 2390 411 7....L 2390 411 6....L 2390 411 5....L 2390 411 4....L 2390 412 7....L 2390 412 6....L 2390 412 5....L 2390 412 4....L

For ordering rules:

See page 14 for E24 / E96 values and the last 4 or 3 digits of the 12NC catalogue number

Phycomp worldwide - Traditional type

High precision - High stability

Size: inch (mm)

2010 (5025)

2512 (6432)

Power

1/2 W

3/4 W

Tolerance

±1%

±0.5%

±0.25%

±0.1%

±1%

±0.5%

±0.25%

±0.1%

Resistance

E24 / E96

Packing

blister tape

Quantity

TC10

4 000

2390 815 7....L 2390 815 6....L 2390 815 5....L 2390 815 4....L 2390 818 7....L 2390 818 6....L 2390 818 5....L 2390 818 4....L

TC15

4 000

2390 731 7....L 2390 731 6....L 2390 731 5....L 2390 731 4....L 2390 735 7....L 2390 735 6....L 2390 735 5....L 2390 735 4....L

TC25

4 000

2390 615 7....L 2390 615 6....L 2390 615 5....L 2390 615 4....L 2390 618 7....L 2390 618 6....L 2390 618 5....L 2390 618 4....L

TC50

4 000

2390 415 7....L 2390 415 6....L 2390 415 5....L 2390 415 4....L 2390 418 7....L 2390 418 6....L 2390 418 5....L 2390 418 4....L

For ordering rules:

See page 14 for E24 / E96 values and the last 4 or 3 digits of the 12NC catalogue number

Phycomp CTC ordering code - Traditional type - North America

Regional code for ordering Phycomp branded products. Please see page 13 for details.

Thin film product range against tolerance / T. C. R. (ordering code)

Tolerance

±0.05% (W)

±0.1% (B)

±0.25% (C )

±0.5% (D)

±1% (F)

T. C. R.

(ppm/°C)

±5 (A) ±10 (B) ±15 (C ) ±25 (D) ±50 (E) ±5 (A) ±10 (B) ±15 (C ) ±25 (D) ±50 (E) ±5 (A) ±10 (B) ±15 (C ) ±25 (D) ±50 (E) ±25 (D) ±50 (E) ±25 (D) ±50 (E)

RT0201

22R - 75K 22R - 75K

22R - 75K 22R - 75K 22R - 75K 22R - 75K 22R - 75K 22R - 75K

RT0402

20R-10K 20R-12K

20R-12K 20R-12K 20R-12K 20R-10K 20R-70K 20R-70K 4.7R-240K 4.7R-240K 20R-10K 20R-70K 20R-70K 4.7R-240K 4.7R-240K 4.7R-240K 4.7R-240K 4.7R-240K 4.7R-240K

RT0603

20-30K 4.7R-100K 4.7R-100K 4.7R-100K 4.7R-100K 20-30K 4.7R-332K 4.7R-332K 1R-1M

1R-1M

20-30K 4.7R-332K 4.7R-332K 1R-1M

1R-1M

1 R-1M

RT0805

20-50K 4.7R-200K 4.7R-200K 4.7R-200K 4.7R-200K 20-50K 4.7R-800K 4.7R-800K 1R-1.5M 1R-1.5M 20-50K 4.7R-800K 4.7R-800K 1R-1.5M 1R-1.5M 1R-1.5M 1R-1.5M 1R-1.5M 1R-1.5M

RT1206

20-100K 5.6R-500K 5.6R-500K 5.6R-500K 5.6R-500K 20-100K 5.6R-1M 5.6R-1M 1R-1.5M 1R-1.5M 20-100K 5.6R-1M 5.6R-1M 1R-1.5M 1R-1.5M 1R-1.5M 1R-1.5M 1R-1.5M 1R-1.5M

RT1210

100R-100K 100R-100K 4.7R-1M 4.7R-1M

4.7R-100K 4.7R-100K 4.7R-1M 4.7R-1M

4.7R-100K 4.7R-100K 4.7R-1M 4.7R-1M 4.7R-1M 4.7R-1M 4.7R-1M 4.7R-1M

RT2010

100R-100K 100R-100K 4.7R-1M 4.7R-1M

4.7R-100K 4.7R-100K 4.7R-1M 4.7R-1M

4.7R-100K 4.7R-100K 4.7R-1M 4.7R-1M 4.7R-1M 4.7R-1M 4.7R-1M 4.7R-1M

RT2512

100R-100K 100R-100K 4.7R-1M 4.7R-1M

4.7R-100K 4.7R-100K 4.7R-1M 4.7R-1M

4.7R-100K 4.7R-100K 4.7R-1M 4.7R-1M 4.7R-1M 4.7R-1M 4.7R-1M 4.7R-1M

Chip Resistors Selection Charts

RT - Thin film high precision high stability chip resistors, 0201 to 2512

Yageo-ProductSelectionGuide-html.html

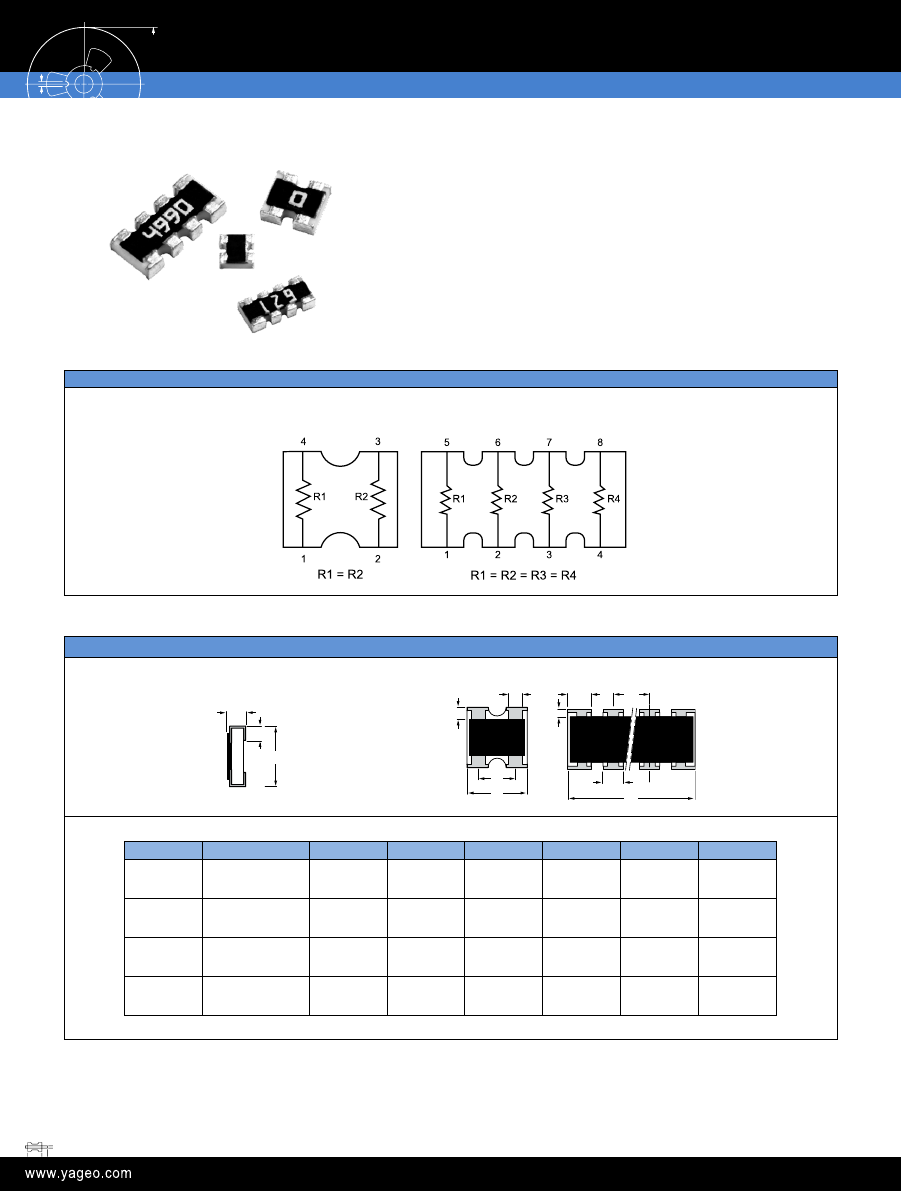

Schematics

Dimensions

Side view for all types

YC 102/122/162

YC 104/124/164/324

158/358/248

TC 122

TC 124/164

unit: mm

Type

H / H

YC102

H: 0.30 ±0.10

0.15 ±0.10 0.50 ±0.05 0.80 ±0.10 0.35 ±0.10 0.15 ±0.10 0.60 ±0.10

YC104

H: 0.20 ±0.10

0.15 ±0.05 0.40 ±0.10 1.40 ±0.10 0.35 ±0.10 0.15 ±0.10 0.60 ±0.10

YC122 H: 0.21 +0.10/-0.05 0.20 ±0.10 0.67 ±0.05 1.00 ±0.10 0.30 ±0.10 0.25 ±0.10 1.00 ±0.10

YC124

H: 0.45 ±0.05

:0.30 ±0.05

0.20 ±0.15 0.50 ±0.05 2.00 ±0.10 0.45 ±0.10 0.30 ±0.15 1.00 ±0.10

YC162

H: 0.30 ±0.10

0.30 ±0.10 0.80 ±0.05 1.60 ±0.10 0.40 ±0.10 0.30 ±0.10 1.60 ±0.10

YC164

H: 0.65 ±0.05

:0.50 ±0.15

0.30 ±0.15 0.80 ±0.05 3.20 ±0.15 0.60 ±0.10 0.30 ±0.15 1.60 ±0.15

YC248

H: 0.45 ±0.05

:0.30 ±0.05

0.30 ±0.15 0.50 ±0.05 4.00 ±0.20 0.45 ±0.10 0.40 ±0.15 1.60 ±0.15

YC324

H: 1.10 ±0.15

:0.90 ±0.15

0.50 ±0.20 1.27 ±0.05 5.08 ±0.20 0.60 ±0.10 0.50 ±0.15 3.20 ±0.20

TC122

H: 0.30 ±0.05

0.25 ±0.15 0.50 ±0.05 1.00 ±0.10 0.30 ±0.10 0.25 ±0.15 1.00 ±0.10

TC124

H: 0.30 ±0.10

0.20 ±0.10 0.50 ±0.05 2.00 ±0.10 0.40 ±0.10 0.25 ±0.10 1.00 ±0.10

TC164

H: 0.60 ±0.15

0.30 ±0.15 0.80 ±0.05 3.20 ±0.15 0.60 ±0.10 0.30 ±0.15 1.60 ±0.15

YC158

H: 0.45 ±0.05

:0.32 ±0.05

0.30 ±0.15 0.64 ±0.05 3.20 ±0.20 0.60 ±0.10 0.35 ±0.15 1.60 ±0.15

YC358

H: 1.10 ±0.15

:0.90 ±0.15

0.50 ±0.15 1.27 ±0.05 6.40 ±0.20 0.60 ±0.10 0.50 ±0.15 3.20 ±0.20

Features

• Integrated discrete chip resistors from 2 to 8 pcs
•

More efficient in pick & place application

• Low assembly costs
•

Reduced size of final equipment

• Higher component and equipment reliability

Chip Resistors Selection Charts

YC/TC - Thick film array / network chip resistors

Note:

1. YC104 is flat type

Yageo-ProductSelectionGuide-html.html

Electrical characteristics

Type

Power

Operating Temp.

range

MWV RCOV DWV Resistance range & tolerance

T. C. R.

Jumper criteria

(unit: A)

YC102 1/32W -55°C to +125°C 15V

30V

E24 ±5%

E24/E96 ±1%

Jumper

10Ω ≤ R ≤ 1MΩ

< 50mΩ

±200 ppm/°C

Rated current

Max. current

0.5

1.0

YC104 1/32W -55°C to +125°C 12.5V 25V

25V

E24 ±5%

E24/E96 ±1%

Jumper

10Ω ≤ R ≤ 1MΩ

< 50mΩ

Rated current

Max. current

0.5

1.0

YC122 1/16W -55°C to +155°C 50V 100V 100V

E24 ±5%

E24/E96 ±1%

Jumper

1Ω ≤ R ≤ 1MΩ

< 50mΩ

1Ω ≤ R ≤ 10Ω ±250 ppm/°C

10Ω ≤ R ≤ 1MΩ

±200 ppm/°C

Rated current

Max. current

0.5

1.0

YC124 1/16W -55°C to +155°C 25V

50V 100V

E24 ±5%

E24/E96 ±1%

Jumper

1Ω ≤ R ≤ 1MΩ

< 50mΩ

Rated current

Max. current

1.0

2.0

YC162 1/16W -55°C to +155°C 50V 100V 100V

E24/E96 ±1%

E24 ±5%

Jumper

1Ω ≤ R ≤ 1MΩ

1Ω ≤ R ≤ 1MΩ

< 50mΩ

Rated current

Max. current

1.0

2.0

YC164 1/16W -55°C to +155°C 50V 100V 100V

E24 ±5%

E24/E96 ±1%

Jumper

1Ω ≤ R ≤ 1MΩ

< 50mΩ

±200 ppm/°C

Rated current

Max. current

1.0

2.0

YC248 1/16W -55°C to +155°C 50V 100V 100V

E24 ±5%

E24/E96 ±1%

Jumper

10Ω ≤ R ≤ 1MΩ

< 50mΩ

Rated current

Max. current

2.0

10.0

YC324

1/8W -55°C to +155°C 200V 500V 500V

E24 ±5%

E24/E96 ±1%

10Ω ≤ R ≤ 1MΩ

TC122 1/16W -55°C to +125°C 50V 100V 100V

E24 ±5%

E24/E96 ±1%

Jumper

10Ω ≤ R ≤ 1MΩ

< 50mΩ

Rated current

Max. current

1.0

1.5

TC124 1/16W -55°C to +125°C 50V 100V 100V

E24 ±5%

E24/E96 ±1%

Jumper

10Ω ≤ R ≤ 1MΩ

< 50mΩ

Rated current

Max. current

1.0

1.5

TC164 1/16W -55°C to +155°C 50V 100V 100V

E24 ±5%

E24/E96 ±1%

Jumper

10Ω ≤ R ≤ 1MΩ

< 50mΩ

Rated current

Max. current

1.0

2.0

YC158 1/16W -55°C to +155°C 25V

50V

E24 ±5%

10Ω ≤ R ≤ 100KΩ

YC358 1/16W -55°C to +155°C 50V 100V 100V

E24 ±5%

10Ω ≤ R ≤ 330KΩ

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

Method 108A

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(2% +50mΩ)

< 100mΩ for jumper

High temperature exposure

MIL-STD-202

Method 108A

1000 hours at maximum operating temperature

depending on specification, unpowered

±(1% +50mΩ)

< 50mΩ for jumper

Moisture resistance

MIL-STD-202

Method 106G

Each temperature

humidity cycle is defined

as 8 hours(method 106G), 3 cycles / 24 hours

for 10d with25°C / 65°C 95% R.H

±(2% +50mΩ)

< 100mΩ for jumper

Thermal shock

MIL-STD-202

Method 107G

-55/+125 °C

Note: Number of cycles required is 300.

Devices mounted Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

±(1% +50mΩ) for others

< 50mΩ for jumper

Solderability

Wetting

J-STD-002B

test B

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned (≥95% covered)

Resistance to

soldering heat

MIL-STD-202

method 210F

Lead-free solder, 260°C, 10 seconds immersion time

±(1% +50mΩ)

< 50mΩ for jumper

No visible damage

Short time overload

IEC 60115

-1 4.13

2.5 times RCWV or maximum overload voltage

whichever is less for 5 seconds at room temperature

±(2% +50mΩ)

< 50mΩ for jumper

No visible damage

Chip Resistors Selection Charts

YC/TC - Thick film array / network chip resistors

Yageo-ProductSelectionGuide-html.html

Global part number - Arrays

Ordering example: YC122-JR-07100KL

Y C 1 2 2

―

J R

―

0 7 1 0 0 K L/T

Series name (code 1-2)

Default code (code 17)

YC = Array & Network

(convex / flat) thick film

T = YC102 only

TC = Array (concave) thick film

Resistance (code 12-16)

0R = Jumper

10R = 10Ω

Size code (inch) (code 3-4)

100R = 100Ω

10 = 0201 x 2 (0202)

100K = 100KΩ

0201 x 4 (0204)

12 = 0402 x 2 (0404)
0402 x 4 (0408)

Taping reel (code 10-11)

16 = 0603 x 2 (0606)

07 = 7 inch Dia. reel

0603 x 4 (0612)

13 = 13 inch Dia. reel

24 = 0602 x 8 (0616)
32 = 1206 x 4 (1224)

T. C. R. (code 9)

Number of resistors (code 5)

“―” = Based on spec.

2 = 2 resistors
4 = 4 resistors

Packing style (code 8 )

8 = 8 resistors

R = Paper tape reel
K = Embossed plastic tape reel

Tolerance (code 7)

F = ±1%
J = ±5% (for Jumper ordering)

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

Phycomp worldwide - Traditional type

Array thick film chip resistors

Size: inch / mm

2 X 0402 /

1 X 1

4 X 0402 /

2 X 1

8 X 0602 /

4.0 X 1.6

4 X 0603 /

3.2 X 1.3

4 X1206 /

5.2 X 3.1

Power

1/16 W

1/8 W

Tolerance

+5%

+1%

+5%

+1%

+5%

+1%

+5%

+1%

+5%

+1%

+5%

Type

R-array /

R-network

(convex)

R-array /

R-network

(convex)

R-array /

R-network

(convex)

R-array /

R-network

(convex)

R-array /

R-network

(convex)

R-array /

R-network

(convex)

R-array /

R-network

(convex)

R-array /

R-network

(convex)

R-array /

R-network

(concave)

R-array /

R-network

(concave)

R-array /

R-network

(convex)

Resistance

E24

E24 / E96

E24

E24 / E96

E24

E24 / E96

E24

E24 / E96

E24

E24/E96

E24

Packing

paper tape

blister tape

Quantity 4 000

---

2350 039 10...L

5 000

---

2350 053 10...L 2350 043 1....L 2350 035 10...L 2350 025 1....L 2350 034 10...L 2350 024 1...L

---

10 000

2350 013 11...L 2350 013 2....L 2350 033 11...L 2350 023 2....L

---

Jumper

5 000

---

2350 053 91001L

---

2350 035 91001L

---

2350 034 91001L

---

10 000

2350 013 91001L

---

2350 033 91001L

---

For ordering rules:

See page 14 for E24 / E96 values and the last 4 or 3 digits of the 12NC catalogue number

Phycomp CTC ordering code - Traditional type - North America

Regional code for ordering Phycomp branded products. Please see page 15 for details.

Chip Resistors Selection Charts

YC/TC - Arrays, convex / concave / flat

Yageo-ProductSelectionGuide-html.html

Global part number - Networks

Ordering example: YC158TJR-07100KL

Y C 1 5 8 T J R

―

0 7 1 0 0 K

Series name (code 1-2)

Default code (code 17)

YC = Array & Network (convex) thick film

Resistance (code 12-16)

Size code (inch) (code 3-4)

0R = Jumper

15 = 10Pin/8R (0612)

10R = 10Ω

35 = 10Pin/8R (1225)

100R = 100Ω
100K = 100KΩ

Number of resistors (code 5)

8 = 8 resistors

Taping reel (code 10-11)

07 = 7 inch Dia. reel

Schematic (code 6)

13 = 13 inch Dia. reel

L = L-type (for YC358)
T = T-type (for YC158/358)

T. C. R. (code 9)

“―” = Based on spec.

Packing style (code 8 )

R = Paper tape reel
K = Embossed plastic tape reel

Tolerance (code 7)

J = ±5%

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

Phycomp worldwide - Traditional type

Network thick film chip resistors

Size: inch (mm)

0612 (1632)

1225 (3264)

Power

1/16 W

Tolerance

+5%

Type

T-type 10 Pin / 8R

PIN 5 and PIN 10 no resistance

T-type 10 Pin / 8R

PIN 5 and PIN 10 no resistance

L-type 10 Pin / 8R

PIN 1 and PIN 6 no resistance

Resistance

E24

Packing

paper tape

blister tape

Quantity 4 000

---

2350 201 10...L

2350 200 10...L

5 000

2350 230 10...L

---

For ordering rules:

See page 14 for E24 / E96 values and the last 4 or 3 digits of the 12NC catalogue number

Phycomp CTC ordering code - Traditional type - North America

Regional code for ordering Phycomp branded products. Please see page 15 for details.

Chip Resistors Selection Charts

YC/TC - Network, T-type / L-type

Yageo-ProductSelectionGuide-html.html

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating

ambient temperature (T

amb

Normal Power: Range: –55 °C to +155 °C

Double Power: Range: –55 °C to +125 °C

Dimensions

unit: mm

Type

RL0402

1.00 ±0.10

0.50 ±0.05

0.35 ±0.05

0.20 ±0.10

0.25 ±0.10

RL0603

1.60 ±0.10

0.80 ±0.10

0.45 ±0.10

0.25 ±0.15

RL0805

2.00 ±0.10

1.25 ±0.10

0.50 ±0.10

0.35 ±0.20

RL1206

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.45±0.20

RL1210

3.10 ±0.10

2.60 ±0.15

0.55 ±0.10

0.50 ±0.20

RL1218

3.05 ±0.15

4.60 ±0.20

0.55 ±0.10

0.45 ±0.25

0.50 ±0.25

RL2010

5.00 ±0.10

2.50 ±0.15

0.55 ±0.10

0.60 ±0.20

0.50 ±0.20

RL2512

6.35 ±0.10

3.20 ±0.15

0.55 ±0.10

0.60 ±0.20

0.50 ±0.20

100

-55

-40

-20

100

120

140

160

Ambient Temperature ( C)

Rated Power (%)

155

Chip Resistors Selection Charts

RL - Thick film low ohmic chip resistors, 0402 to 2512

Features

• Current sensing of desktop & notebook PC
•

Resistance values down to 0.01Ω

• Highly reliable electrode construction

overcoat

protective glass

resistive layer

inner electrode

termination (Ni / matte tin)

ceramic substrate

inner electrode

marking layer

100

-55

-40

-20

100

120

140

160

Ambient Temperature ( C)

Rated Power (%)

125

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

RL - Thick film low ohmic chip resistors, 0402 to 2512

Electrical characteristics

Type

Power

Operating Temp.

range

Resistance range & tolerance

T. C. R.

( ppm/°C)

Jumper criteria

RL0402

1/16W

-55°C to +155°C

E24 ±1%, ±2%, ±5%

50mΩ ≤ R < 1Ω

See following table

“T.C.R.- RL series”

Max. resistance

Rated current

20mΩ

1.5A

RL0603

1/10W

-55°C to +155°C

10mΩ ≤ R < 1Ω

Max. resistance

Rated current

20mΩ

RL0805

1/8W

-55°C to +155°C

10mΩ ≤ R < 1Ω

Max. resistance

Rated current

20mΩ

2.5A

1/4W

-55°C to +125°C

10mΩ ≤ R < 1Ω

RL1206

1/4W

-55°C to +155°C

10mΩ ≤ R < 1Ω

Max. resistance

Rated current

20mΩ

3.5A

1/2W

-55°C to +125°C

10mΩ ≤ R < 1Ω

RL1210

1/2W

-55°C to +155°C

10mΩ ≤ R < 1Ω

RL1218

-55°C to +155°C

10mΩ ≤ R < 1Ω

RL2010

3/4W

-55°C to +155°C

10mΩ ≤ R < 1Ω

RL2512

-55°C to +155°C

10mΩ ≤ R < 1Ω

Note:

The partial values of 25 / 40 / 50 / 60 / 250 / 400 / 500 mΩ are also available

T. C. R. - RL series

Type

Operating

Temp. range

Resistancec

range

T. C. R.

50mΩ≤R<100mΩ

100mΩ≤R<500mΩ

500mΩ≤R<1Ω

RL0402 -55°C to +125°C

50mΩ≤R<1Ω

±1000 ppm/°C

±800 ppm/°C

±300 ppm/°C

10mΩ≤R≤36mΩ

36mΩ≤R≤91mΩ

91mΩ<R≤500mΩ

500mΩ<R<1Ω

RL0603 -55°C to +125°C

10mΩ≤R<1Ω

±1500 ppm/°C

±1200 ppm/°C

±800 ppm/°C

±300 ppm/°C

10mΩ≤R≤18mΩ 18mΩ<R≤47mΩ 47mΩ<R≤91mΩ 91mΩ<R≤360mΩ 360mΩ<R≤500mΩ 500mΩ<R<1Ω

RL0805

-55°C to +125°C

10mΩ≤R<1Ω

±1500 ppm/°C ±1200 ppm/°C ±1000 ppm/°C

±600 ppm/°C

±300 ppm/°C

±200 ppm/°C

RL1206
RL1210

±1500 ppm/°C ±1000 ppm/°C

±800 ppm/°C

±600 ppm/°C

±300 ppm/°C

±200 ppm/°C

10mΩ≤R≤30mΩ

30mΩ<R≤56mΩ

56mΩ<R≤180mΩ

180mΩ<R<1Ω

RL1218 -55°C to +125°C

10mΩ≤R<1Ω

±2000 ppm/°C

±1000 ppm/°C

±700 ppm/°C

±250 ppm/°C

10mΩ≤R≤18mΩ 18mΩ<R≤47mΩ 47mΩ<R≤91mΩ 91mΩ<R≤360mΩ 360mΩ<R≤500mΩ 500mΩ<R<1Ω

RL2010

-55°C to +125°C

10mΩ≤R<1Ω

±1500 ppm/°C ±1200 ppm/°C ±1000 ppm/°C

±600 ppm/°C

±300 ppm/°C

±200 ppm/°C

RL2512

±1500 ppm/°C ±1200 ppm/°C

±800 ppm/°C

±600 ppm/°C

±300 ppm/°C

±200 ppm/°C

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

Method 108A

1000 hours at 70°C ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(2%+0.5mΩ)

High temperature

exposure

MIL-STD-202

Method 108A

1000 hours at maximum operating temperature

depending on specification, unpowered

±(1%+0.5mΩ)

Moisture resistance

MIL-STD-202

Method 106G

Each temperature / humidity cycle is defined

as 8 hours (method 106G), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H

±(2%+0.5mΩ)

Thermal shock

MIL-STD-202

Method 107G

-55/+125 °C

Note: Number of cycles required is 300.

Devices mounted Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

±(1%+0.5mΩ)

Solderability

Wetting

J-STD-002B

test B

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned

(≥95% covered)

No visible damage

Resistance to

soldering heat

MIL-STD-202

method 210F

Lead-free solder, 260°C, 10 seconds immersion time

±(1%+0.5mΩ)

No visible damage

Short time overload

IEC 60115

-1 4.13

RL standard power:

6.25 times of rated power for 5 seconds at room temperature

RL high power:

5 times of rated power for 5 seconds at room temperature

±(2%+0.5mΩ)

No visible damage

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

RL - Thick film low ohmic chip resistors, 0402 to 2512

Global part number - Preferred type

Ordering example: RL0603JR-070R01L

R L 0 6 0 3 J R

―

0 7 0 R 0 1

Series name (code 1-2)

Default code

(1/2)

(code 17)

RL = Thick Film Low ohmic

Resistance (code 12-16)

Size code (code 3-6)

0R01 = 0.01Ω

(inch / metric)

0R1 = 0.1Ω

0402 = 1.0 x 0.5

0R2 = 0.2Ω

0603 = 1.6 x 0.8
0805 = 2.0 x 1.25

Taping reel (code 10-11)

1206 = 3.2 x 1.6

07 = 7 inch Dia. reel

1210 = 3.2 x 2.6

13 = 13 inch Dia. reel

1218 = 3.2 x 4.5
2010 = 5.0 x 2.5
2512 = 6.35 x 3.2

T. C. R. (code 9)

“―” = Based on spec.

Tolerance (code 7)

(― for thick film only)

F = ±1%
G = ±2%

Packing style (code 8 )

J = ±5%

R = Paper tape reel

"-" = Jumper ordering

K = Embossed plastic tape reel

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

RL - Thick film low ohmic chip resistors, 0402 to 2512

Phycomp worldwide - Traditional type

Low ohmic chip resistors

Size: inch (mm)

0402 (1005)

0603 (1608)

0805 (2012)

1206 (3216)

Power

1/16 W

1/10 W

1/8 W

1/4 W

Tolerance

+5%

+1%

+5%

+1%

+5%

+1%

+5%

+1%

Resistance

E24

Packing

paper tape

Quantity 5 000

---

2350 512 10…L 2350 512 12…L 2350 511 10…L 2350 511 12…L 2350 510 10…L 2350 510 12…L

10 000

2350 513 20…L 2350 513 22…L

---

For ordering rules:

See page 14 for E24 / E96 values and the last 4 or 3 digits of the 12NC catalogue number

Phycomp worldwide - Traditional type

Low ohmic chip resistors

Size: inch (mm)

1210 (3225)

1218 (3248)

2010 (5025)

2512 (6432)

Power

1/2 W

1 W

3/4 W

1 W

Tolerance

+5%

+1%

+5%

+1%

+5%

+1%

+5%

+1%

Resistance

E24

Packing

paper tape

blister tape

Quantity 4 000

---

2322 735 64…L

2322 735 7….L

2322 760 90..0L/60..7L 2322 761 90..0L/6...7L 2322 762 90..0L/60..7L 2322 763 90..0L/6...7L

5 000

2390 735 90..0L/60..7L

2390 735 3….L

---

For ordering rules:

See page 14 for E24 / E96 values and the last 4 or 3 digits of the 12NC catalogue number

Phycomp CTC ordering code - Traditional type - North America

Regional code for ordering Phycomp branded products. Please see page 15 for details.

Yageo-ProductSelectionGuide-html.html

Global part number - Preferred type

Ordering example: RL0805JR-7W0R01L

R L 0 8 0 5 J R

―

7 W 0 R 0 1 L

Series name (code 1-2)

Default code (code 17)

RL = Thick film low ohmic

Resistance (code 12-16)

Size code (code 3-6)

0R01 = 0.01Ω

(inch / metric)

0R1 = 0.1Ω

0805 = 2.0 x 1.25

0R2 = 0.2Ω

1206 = 3.2 x 1.6

Taping reel (code 10-11)

Tolerance (code 7)

7W = 7 inch Dia. reel and

2 x standard power type

F = ±1%
G = ±2%
J = ±5%

Packing style (code 8 )

T. C. R. (code 9)

R = Paper tape reel

“―” = Based on spec.
(― for thick film only)

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

Phycomp worldwide - Traditional type

Low ohmic high power chip resistors

Size: inch (mm)

0805 (2012)

1206 (3216)

Power

1/4 W

1/2 W

Tolerance

+5%

+1%

+5%

+1%

Resistance

E24

E24 / E96

E24

E24 / E96

Packing

paper tape

Quantity 5 000

2350 511 15…L

2350 511 17…L

2350 519 01…L

2350 519 1.…L

For ordering rules:

See page 14 for E24 / E96 values and the last 4 or 3 digits of the 12NC catalogue number

Phycomp CTC ordering code - Traditional type - North America

Regional code for ordering Phycomp branded products. Please see page 15 for details.

Chip Resistors Selection Charts

RL - Thick film low ohmic, high power chip resistors, 0805 / 1206

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

PT - Thick film low ohmic low T. C. R. chip resistors, 0402 to 2512

Features

•  Excellent T. C. R.
•  Precision current sensing control
•  Excellent performance for current sensing applications
•  Low ohmic and high power

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

100

-55

-40

-20

100

120

140

160

Ambient Temperature ( C)

Rated Power (%)

155

Dimensions

unit: mm

Type

PT0402

1.00 ±0.10

0.50 ±0.05

0.35 ±0.05

0.20 ±0.10

0.25 ±0.10

PT0603

1.60 ±0.10

0.80 ±0.10

0.45 ±0.10

0.25 ±0.15

PT0805

2.00 ±0.10

1.25 ±0.10

0.55 ±0.10

0.35 ±0.20

PT1206

( 50mΩ ≤ R < 75mΩ

& 91mΩ ≤ R < 1Ω)

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.45 ±0.20

PT1206

(75mΩ ≤ R < 91mΩ)

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.75 ±0.20

0.45 ±0.20

PT2010

5.00 ±0.10

2.50 ±0.15

0.55 ±0.10

0.60 ±0.20

0.50 ±0.20

PT2512

6.35 ±0.10

3.20 ±0.15

0.55 ±0.10

0.60 ±0.20

0.50 ±0.20

Note:

For relevant physical dimensions, please refer to above construction outlines

Please contact our sales offices, distributors and representatives in your region before ordering

overcoat

protective glass

resistive layer

inner electrode

termination (Ni / matte tin)

ceramic substrate

inner electrode

marking layer

Yageo-ProductSelectionGuide-html.html

Electrical characteristics

Type

Power

Operating Temp.

range

Max.

working voltage

Tolerance

Resistance range & T. C. R.

Jumper criteria

PT0402

1/16W

-55°C to +155°C

(PxR)^1/2

E24 ±2%, ±5%

E24/E96 ±1%

50mΩ ≤ R < 68mΩ

mΩ ≤ R < 100mΩ

100

mΩ ≤ R < 1Ω

±600 ppm/°C

±300 ppm/°C

±200 ppm/°C

Max. resistance

Rated current

10mΩ

1/8W

PT0603

1/10W

mΩ

< R < 68

mΩ

mΩ ≤ R < 100mΩ

100

mΩ ≤ R < 1Ω

0/+400 ppm/°C

0/+350 ppm/°C

0/+300 ppm/°C

±200 ppm/°C

Max. resistance

Rated current

8mΩ

1/5W

1/3W

mΩ

< R < 68

mΩ

0/+400 ppm/°C

0/+350 ppm/°C

0/+300 ppm/°C

PT0805

1/8W

mΩ

< R < 68

mΩ

mΩ ≤ R < 100mΩ

100

mΩ ≤ R < 1Ω

0/+350 ppm/°C

0/+300 ppm/°C

0/+250 ppm/°C

±100 ppm/°C

Max. resistance

Rated current

5mΩ

1/4W

PT1206

1/4W

50mΩ ≤ R < 75mΩ

75mΩ ≤ R ≤ 100mΩ

100

mΩ < R < 1Ω

±350ppm

±100ppm

±75ppm

Max. resistance

Rated current

5mΩ

10A

1/2W

PT2010

3/4W

100mΩ

100mΩ < R < 1Ω

±100 ppm/°C

±75 ppm/°C

Max. resistance

Rated current

---

PT2512

Max. resistance

Rated current

---

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

Method 108A

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(1% +0.5mΩ)

< 20mΩ for jumper

High temperature exposure

MIL-STD-202

Method 108A

1000 hours at maximum operating temperature depending on

specification, unpowered

±(1% +0.5mΩ)

< 20mΩ for jumper

Moisture resistance

MIL-STD-202

Method 106G

Each temperature / humidity cycle is defined

as 8 hours (method 106G), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H

±(0.5% +0.5mΩ)

< 20mΩ for jumper

Thermal shock

MIL-STD-202

Method 107G

-55/+125 °C

Note: Number of cycles required is 300.

Devices mounted Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

±(1% +0.5mΩ)

< 10mΩ for jumper

Solderability

Wetting

J-STD-002B

test B

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned

(≥95% covered)

No visible damage

Resistance to

soldering heat

MIL-STD-202

method 210F

Lead-free solder, 260°C, 10 seconds immersion time

±(0.5% +0.5mΩ)

No visible damage

< 10mΩ for jumper

Short time overload

IEC 60115

-1 4.13

PT standard power:

6.25 times of rated power for 5 seconds at room temperature

PT high power:

5 times of rated power for 5 seconds at room temperature

PT jumper:

2.5 times of rated current for 5 seconds at room temperature

±(1% +0.5mΩ)

No visible damage

< 10mΩ for jumper

Chip Resistors Selection Charts

PT - Thick film low ohmic low T. C. R. chip resistors, 0402 to 2512

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

PT - Thick film low ohmic low T. C. R. chip resistors, 0402 to 2512

Global part number - Preferred type

Ordering example: PT2512FK-070R01L

P T 2 5 1 2 F K

―

0 7 0 R 0 1

Series name (code 1-2)

Default code

(1/2)

(code 17)

PT = Thick film low ohmic low T. C. R.

Resistance (code 12-16)

Size code (code 3-6)

0R = Jumper

(inch / metric)

0R1 = 0.1Ω

0402 = 1.0 x 0.5

0R2 = 0.2Ω

0603 = 1.6 x 0.8

0805 = 2.0 x 1.25

Taping reel (code 10-11)

1206 = 3.2 x 1.6

07 = 7 inch Dia. reel

2010 = 5.0 x 2.5

13 = 13 inch Dia. reel

2512 = 6.35 x 3.2

7W = 7 inch Dia. reel and

2 x standard power type

Tolerance (code 7)

7T = 7 inch Dia. reel and

3 x standard power type

F = ±

G = ±

3W = 13 inch Dia. reel and

2 x standard power type

J = ±

“―” for Jumper ordering

T. C. R. (code 9)

Packing style (code 8 )

“―” = Based on spec.

R = Paper tape reel
K = Embossed plastic tape reel

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

3. PT series products are available by "Global part number" only

Phycomp CTC ordering code - Traditional type - North America

Regional code for ordering Phycomp branded products. Please see page 15 for details.

Yageo-ProductSelectionGuide-html.html

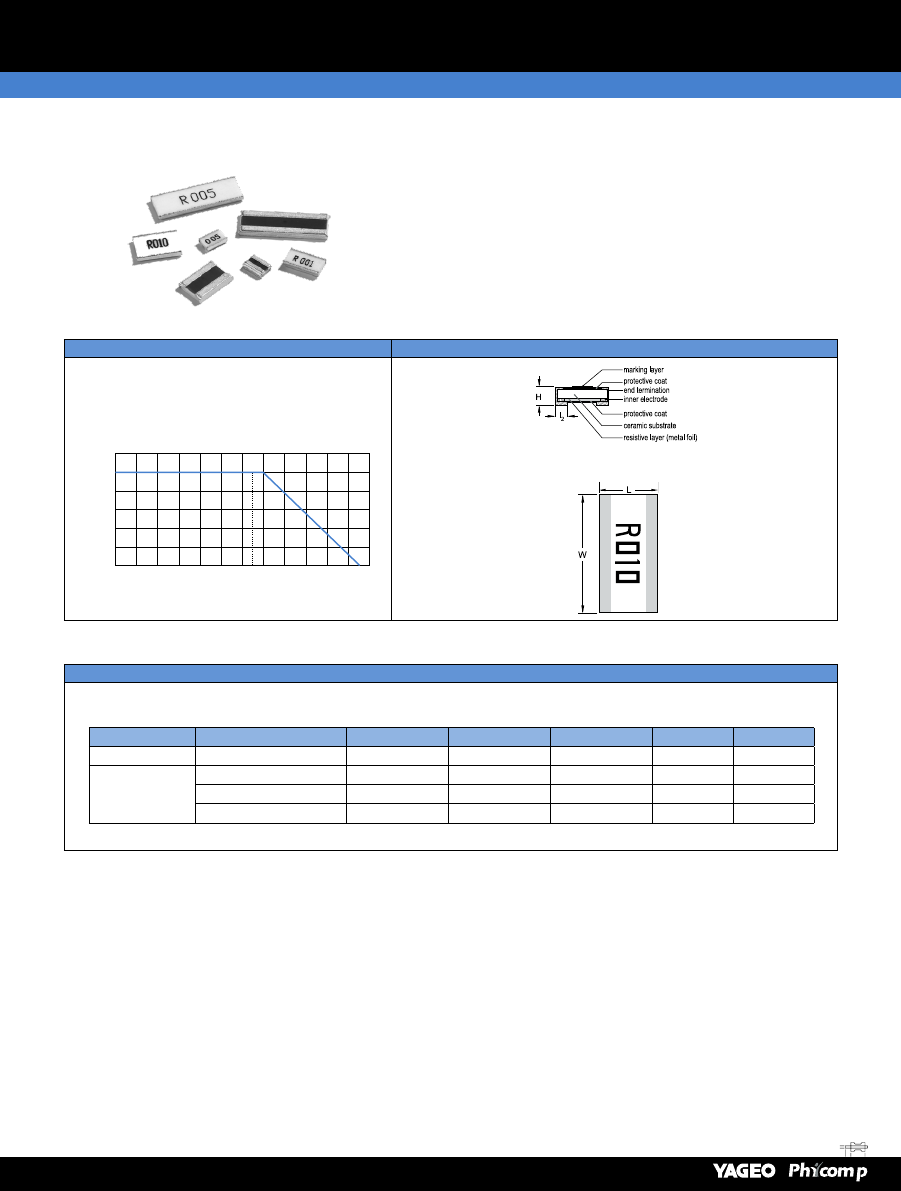

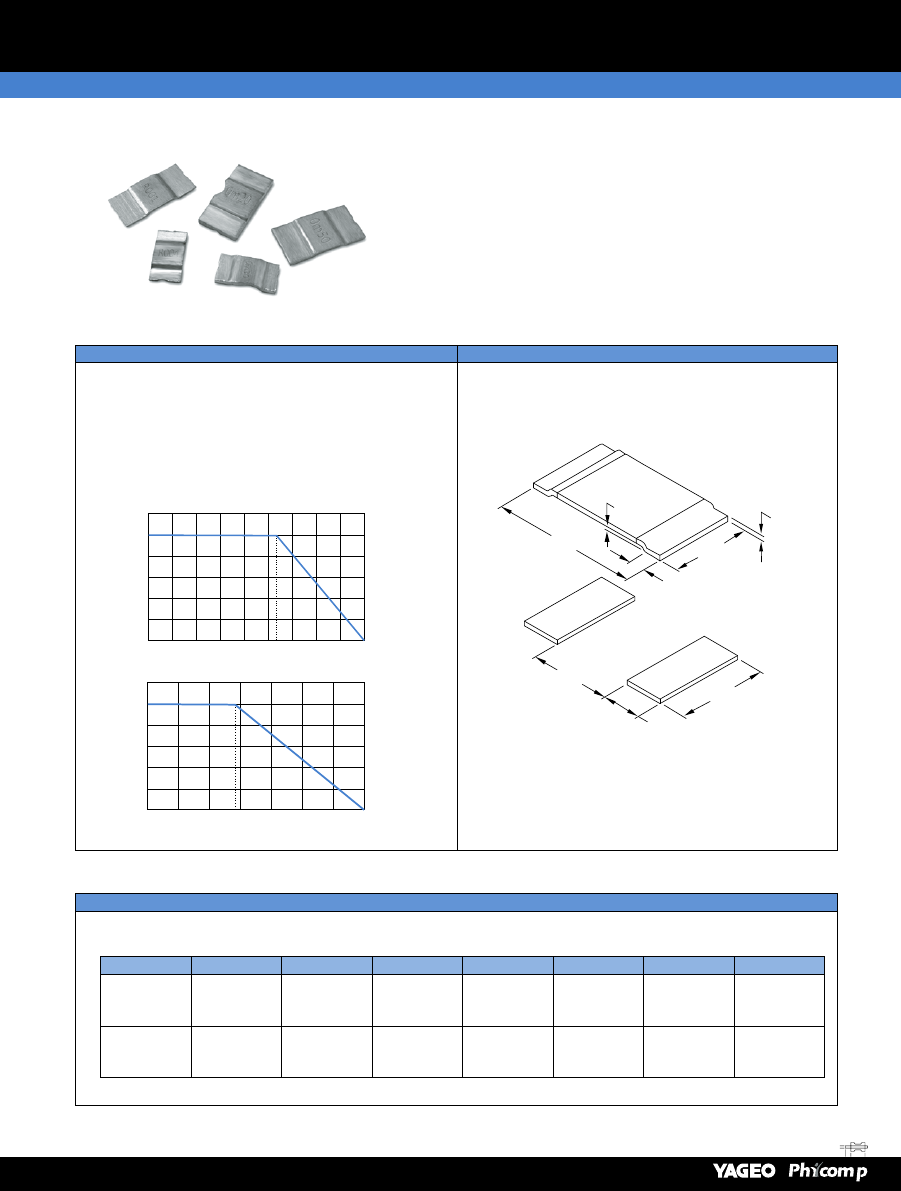

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

100

-55

-40

-20

100

120

140

160

180

Ambient Temperature ( C)

Rated Power (%)

155 170

PA series

0201, 0402

PE series

0603 ~ 2512

Dimensions

PA series

unit: mm

Type

Resistance range

PA1206

1mΩ

3.20 ± 0.25

1.60 ± 0.25

0.65 ± 0.25

1.04 ± 0.25

2mΩ ≤ R ≤5mΩ

3.20 ± 0.25

1.60 ± 0.25

0.65 ± 0.25

0.63 ± 0.25

PA2512

1mΩ ≤ R ≤ 4mΩ

6.35 ± 0.25

3.18 ± 0.25

0.63 ± 0.25

2.21 ± 0.25

5mΩ ≤ R ≤ 6mΩ

6.35 ± 0.25

3.18 ± 0.25

0.63 ± 0.25

1.19 ± 0.25

7mΩ ≤ R ≤ 50mΩ

6.35 ± 0.25

3.18 ± 0.25

0.63 ± 0.25

0.76 ± 0.25

PE series

Type

Resistance range

PE0201

50mΩ ≤ R ≤ 200mΩ

0.60 ± 0.03

0.31 ± 0.04

0.27 ± 0.04

0.14 ± 0.06

PE0402

10mΩ ≤ R ≤ 910mΩ

1.00+0.10/-0.15

0.50+0.10/-0.15

0.35 ± 0.15

0.25 ± 0.10

PE0603

20mΩ ≤ R ≤ 50mΩ

1.60 ± 0.20

0.76 ± 0.25

0.35 ± 0.25

0.38 ± 0.25

51mΩ ≤ R ≤ 910mΩ

1.52 ± 0.25

0.76 ± 0.25

0.45 ± 0.10

0.38 ± 0.25

PE0805

20 mΩ ≤ R ≤ 50mΩ

2.03 ± 0.25

1.27 ± 0.25

0.35 ± 0.25

0.38 ± 0.25

51mΩ ≤ R ≤ 910mΩ

0.55 ± 0.10

0.35 ± 0.20

PE1206

5mΩ

3.20 ± 0.25

1.60 ± 0.25

0.64 ± 0.25

6mΩ ≤ R ≤ 910mΩ

0.51 ± 0.25

PE2010

5mΩ ≤ R ≤ 6mΩ

5.08 ± 0.25

2.54 ± 0.25

0.64 ± 0.25

1.47 ± 0.25

7mΩ ≤ R ≤ 100mΩ

0.51 ± 0.25

PE2512

6mΩ ≤ R ≤ 100mΩ

6.35 ± 0.25

3.18 ± 0.25

0.64 ± 0.25

0.76 ± 0.25

Chip Resistors Selection Charts

PA/PE - Current sensors - low T. C. R. chip resistors, 0201 to 2512

PA series

SCR020

Features

•

Excellent T. C. R. compared to thick film low ohmic

• Precision current sensing control
• Excellent performance for current sensing applications
•

Ultra low ohmic down to 0.0005Ω

Note:

construction will be adjusted to resistance value.

Yageo-ProductSelectionGuide-html.html

Electrical characteristics

Type

Technology

Size Power

P70

Operating Temp.

range

Max.

working voltage

Tolerance

Resistance range

T. C. R.

Metal Foil

0201

1/20W

-55°C to 125°C

(PxR)^1/2

±0.5% R

50mΩ

±1%

±5%

50mΩ ≤ R ≤ 200mΩ

50mΩ ≤ R ≤ 70mΩ

±350ppm/°C

70mΩ < R ≤ 200mΩ

±100ppm/°C

1/10W

0402

1/16W

-55°C to 125°C

(PxR)^1/2

±0.5% R

50mΩ

±1%

±5%

10mΩ

≤

910mΩ

±100 ppm/°C

1/8W
1/6W
1/4W

0603

1/10W

-55°C to 170°C

(PxR)^1/2

±0.5% R

50mΩ

±1%

±5%

5m,10m,

20mΩ ≤ R ≤ 910mΩ

±75 ppm/°C

±100 ppm/°C

1/5W
1/3W
2/5W
1/2W

0805

1/8W
1/4W
1/3W
1/2W

1206

1/4W

5mΩ ≤ R ≤ 910mΩ

1/2W

2010

1/2W

-55°C to 170°C

(PxR)^1/2

±0.5% R

50mΩ

±1%

±5%

5mΩ

≤

R<100mΩ

±50ppm/°C

±75ppm/°C

±100ppm/°C

2512

6mΩ

≤

R<100mΩ

Note:

Please contact with sales offices, distributors and representatives in your region before ordering

Electrical characteristics

Type

Technology

Size Power

P70

Operating Temp.

range

Max.

working voltage

Tolerance

Resistance range

Min.

T. C. R.

Metal Plate

1206

1/4W

-55°C to 170°C

(PxR)^1/2

±1%, ±5%

1mΩ

≤

5mΩ

±100 ppm/°C

1/2W

2512

-55°C to 170°C

(PxR)^1/2

±1%, ±5%

1mΩ ≤ R ≤ 50mΩ

±100 ppm/°C

2W
3W

Note:

Please contact with sales offices, distributors and representatives in your region before ordering

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

Method 108A

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(1% +0.5mΩ)

High temperature exposure

MIL-STD-202

Method 108A

1000 hours at maximum operating temperature depending on

specification, unpowered

±(1% +0.5mΩ)

Moisture resistance

MIL-STD-202

Method 106G

Each temperature / humidity cycle is defined

as 8 hours (method 106G), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H

±(0.5% +0.5mΩ)

Thermal shock

MIL-STD-202

Method 107G

-55/+125 °C

Note: Number of cycles required is 300.

Devices mounted Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

±(0.5% +0.5mΩ)

Solderability

Wetting

J-STD-002B

test B

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned

(≥95% covered)

Resistance to

soldering heat

MIL-STD-202

method 210F

Lead-free solder, 260°C, 10 seconds immersion time

±(0.5% +0.5mΩ)

No visible damage

Short time overload

IEC 60115

-1 4.13

5 times of rated power for 5 seconds at room temperature

±(0.5% +0.5mΩ)

No visible damage

Chip Resistors Selection Charts

PA/PE - Current sensors - low T. C. R. chip resistors, 0201 to 2512

Yageo-ProductSelectionGuide-html.html

Global part number - Preferred type

Ordering example: PE2512FKF070R01L

P E

2 5 1 2

F K F 0 7 0 R 0 1 L/E

Series name (code 1-2)

Default code

(1)

(code 17)

PA/PE = Current sensors - low T. C. R.

E = PA2512 only

Size code (code 3-6)

Resistance (code 12-16)

(inch / metric)

0U5

= 0.0005Ω

0201 = 0.6 x 0.31

0R01 = 0.01Ω

0402 = 1.0 x 0.5

0R1 = 0.1Ω

0603 = 1.6 x 0.8

0R2 = 0.2Ω

0805 = 2.0 x 1.25
1206 = 3.2 x 1.6

Taping reel (code 10-11)

2010 = 5.0 x 2.5

07 = 7 inch Dia. reel

2512 = 6.35 x 3.2

7W = 7 inch Dia. reel

2 x standard power type

Tolerance (code 7)

7T = 7 inch Dia. reel

D = ±0.5%

3 x standard power type

F = ±1%

47 = 7 inch Dia. reel

J = ±5%

4 x standard power type

57 = 7 inch Dia. reel

Packing style (code 8 )

5 x standard power type

R = Paper tape reel
K = Embossed plastic tape reel

T. C. R. (code 9)

E = ±50 ppm/°C
M = ±75 ppm/°C
F = ±100 ppm/°C

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

Phycomp CTC ordering code - Traditional type - North America

Regional code for ordering Phycomp branded products. Please see page 15 for details.

Chip Resistors Selection Charts

PA/PE - Current sensors - low T. C. R. chip resistors, 0201 to 2512

Yageo-ProductSelectionGuide-html.html

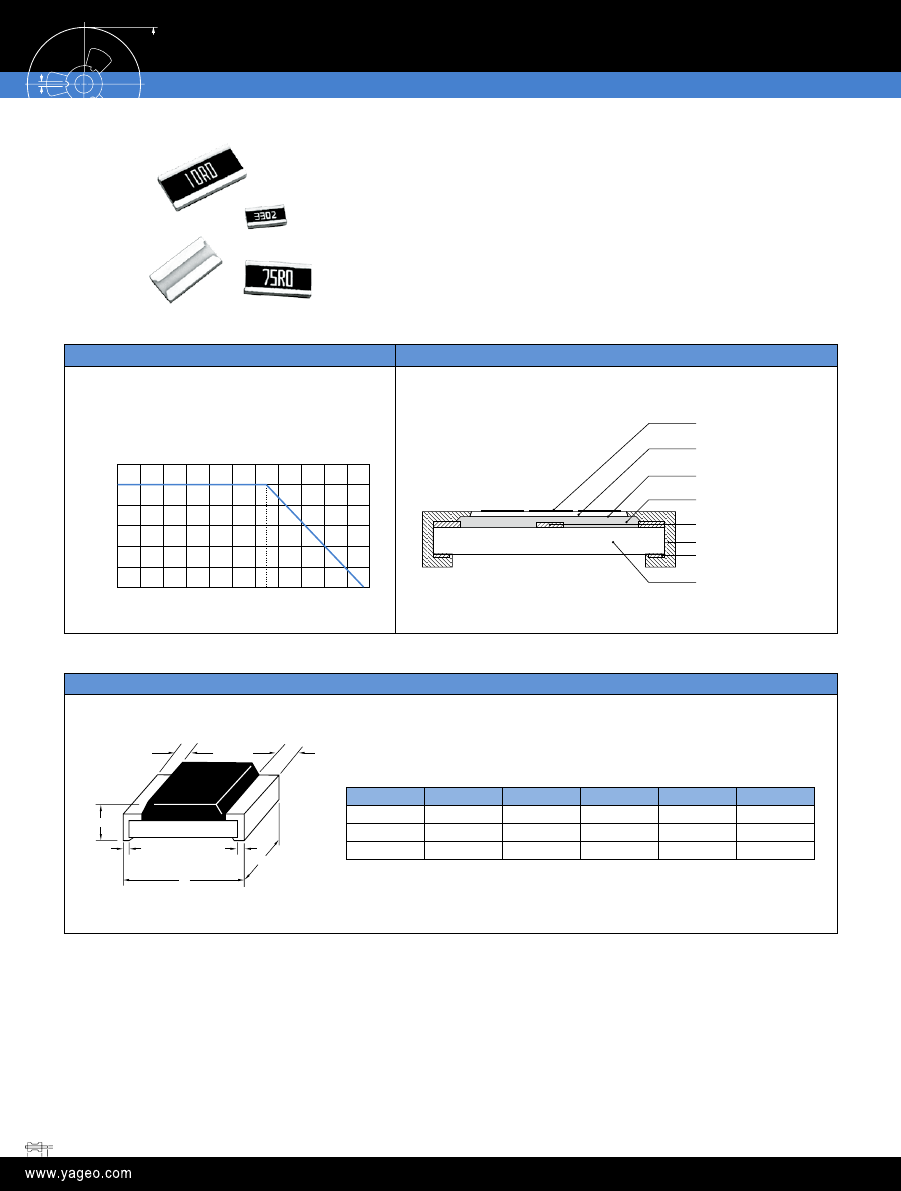

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

100

-55

-40

-20

100

120

140

160

180

Ambient Temperature ( C)

Rated Power (%)

170

Dimensions

unit: mm

Type

Resistance range

PE0508

3 mΩ ≤ R ≤ 100 mΩ

1.35 ±0.20

2.10 ±0.20

0.65 ±0.20

---

0.43 ±0.15

PE0612

1mΩ

1.60 ±0.20

0.32 ±0.20

0.60 ±0.15

---

0.55 ±0.20

2mΩ ≤ R ≤ 4mΩ

1.60 ±0.20

0.32 ±0.20

0.60 ±0.15

---

0.40 ±0.20

5mΩ ≤ R ≤ 100mΩ

1.60 ±0.20

0.32 ±0.20

0.60 ±0.15

---

0.30 ±0.15

PE0508/ 0612

Chip Resistors Selection Charts

PE - Current sensors - low T. C. R. chip resistors, wide termination, 0508 to 0612

Features

•

Excellent T. C. R. compared to thick film low ohmic

•  Precision current sensing control
•  Excellent performance for current sensing applications
•  Low ohmic and high power

Yageo-ProductSelectionGuide-html.html

Electrical characteristics

Type

Technology

Size

Power

Operating Temp.

range

Max.

working voltage

Tolerance

Resistance range & T. C. R.

Foil

0508

1.2W

-55°C to +155°C

(PxR)^1/2

±1%

±5%

5mΩ ≤ R ≤ 100mΩ

±50ppm°C

±75ppm/°C

±100ppm/°C

0612

-55°C to +155°C

(PxR)^1/2

±1%

±5%

1mΩ ≤ R ≤ 100mΩ

±50ppm°C

±75 ppm/°C

±100 ppm/°C

Note:

Please contact with sales offices, distributors and representatives in your region before ordering

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

Method 108A

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(1% +0.5mΩ)

High temperature exposure

MIL-STD-202

Method 108A

1000 hours at maximum operating temperature

depending on specification, unpowered

±(1% +0.5mΩ)

Moisture resistance

MIL-STD-202

Method 106G

Each temperature / humidity cycle is defined

as 8 hours (method 106G), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H

±(0.5% +0.5mΩ)

Solderability

Wetting

J-STD-002B test B

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned

(≥95% covered)

Resistance to

soldering heat

MIL-STD-202

method 210F

Lead-free solder, 260°C, 10 seconds immersion time

±(0.5% +0.5mΩ)

No visible damage

Short time overload

IEC 60115-1 4.13

5 times of rated power for 5 seconds at room temperature

±(0.5% +0.5mΩ)

No visible damage

Chip Resistors Selection Charts

PE - Current sensors - low T. C. R. chip resistors, wide termination, 0508 to 0612

Global part number - Preferred type

Ordering example: PE0612FKF070R01L

P E 0 6 1 2 F K F 0 7 0 R 0 1

Series name (code 1-2)

Default code

(1)

(code 17)

PE = current sensors - low T. C. R.,

wide termination

Resistance (code 12-16)

Size code (code 3-6)

0R01 = 0.01Ω

(inch / metric)

0R02 = 0.02Ω

0508 = 1.35 x 2.1
0612 = 1.6 x 3.2

Taping reel (code 10-11)

07 = 7 inch Dia. reel
7W = 7 inch Dia. reel

Tolerance (code 7)

2 x standard power type

F = ±1%
J = ±5%

T. C. R. (code 9)

E = ±50 ppm/°C
M = ±75 ppm/°C

Packing style (code 8 )

F = ±100 ppm/°C

K = Embossed plastic tape reel
R = Paper tape reel

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

Yageo-ProductSelectionGuide-html.html

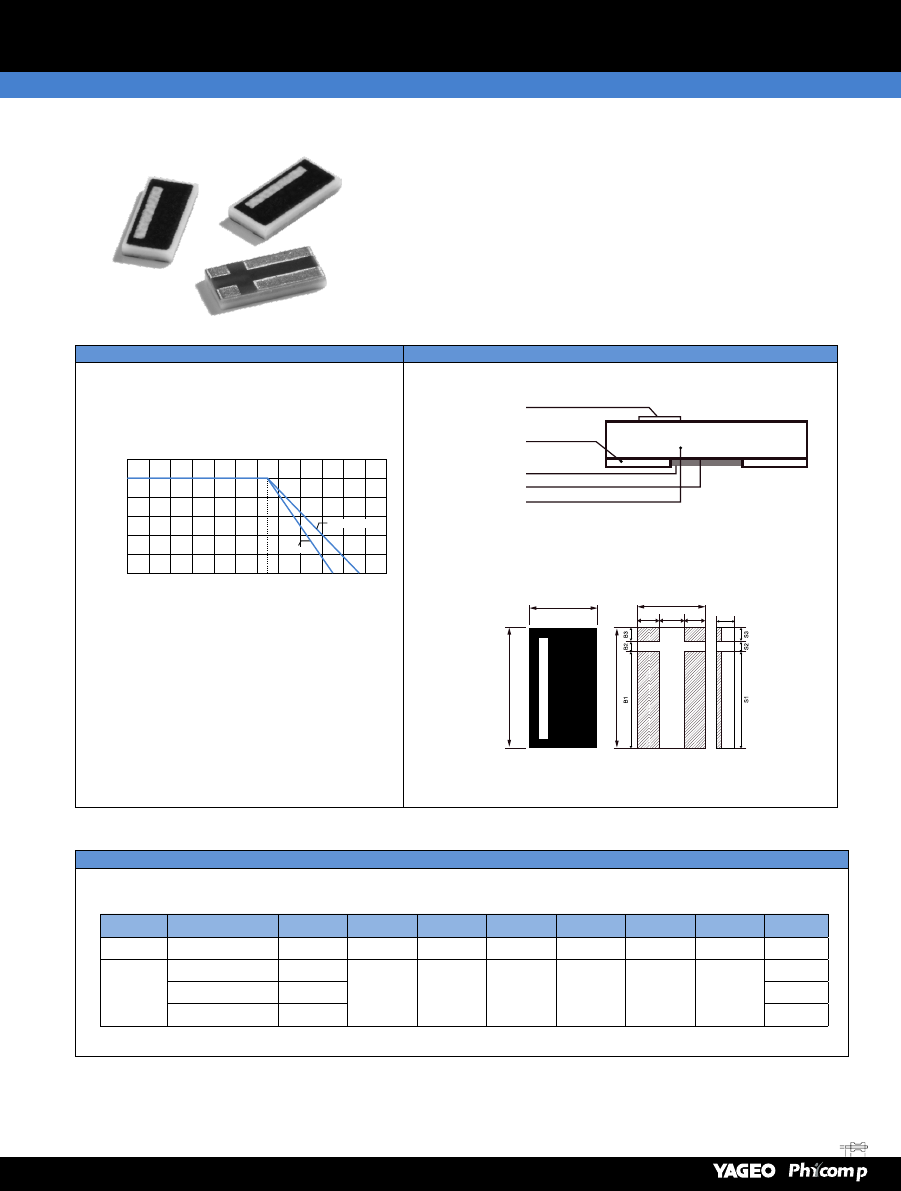

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

100

-55

-40

-20

100

120

140

160

180

Ambient Temperature ( C)

Rated Power (%)

155

0306, 0612

0612 0.5mΩ - 10mΩ

125

Dimensions

unit: mm

Type

Resistance range

B1/S1

B2/S2

B3/S3

PS0306

5mΩ ≤ R ≤100mΩ

0.80 ±0.15 1.60 ±0.20 1.10 ±0.20 0.25 ±0.10 0.25 ±0.10 0.20 ±0.10 0.40 ±0.20 0.50 ±0.20

PS0612

0.5mΩ ≤ R ≤ 1mΩ

3.20 ±0.20

1.60+

0.15/-0.20 2.20 ±0.20 0.50 ±0.20 0.50 ±0.20 0.45 ±0.20 0.70 ±0.20

0.70 ±0.20

2mΩ ≤ R ≤ 10mΩ

3.20 ±0.20

0.60 ±0.20

12mΩ ≤ R ≤ 100mΩ

3.20 ±0.20

0.50 ±0.20

Chip Resistors Selection Charts

PS - Current sensors - low T.C.R. chip resistors, 4 termination, 0306 to 0612

Features

•

Excellent T. C. R. compared to thick film low ohmic

•  Precision current sensing control
•  Excellent performance for current sensing applications
•  Ultra-low resistance and narrow tolerance are suitable for

current detection

PS0306 / PS0612

Marking Coating

Terminal electrode

Protective coat

Resistor Layer

Ceramic substrate

Bottom

Side

Top

Yageo-ProductSelectionGuide-html.html

Electrical characteristics

Type

Technology

Size

Power

Operating Temp.

range

Max.

working voltage Tolerance

Resistance range & T. C. R.

Metal Foil

4 termination

0306

1/4W

-55°C to 125°C

(PxR)^1/2

±1%, ±5%

±75 ppm/°C

±100 ppm/°C

1/3W
1/2W

3mΩ ≤ R < 5mΩ

±150 ppm/°C

0612

0.5mΩ ~ 10mΩ –55°C to +150°C

12mΩ ~ 100mΩ –55°C to +125°C

0.5mΩ ≤ R ≤ 1mΩ

2mΩ ≤ R ≤ 9mΩ

14mΩ ≤ R ≤ 100mΩ

10mΩ ≤ R ≤ 13mΩ

±150ppm/°C

±100ppm/°C

±200ppm/°C

Note:

Please contact with sales offices, distributors and representatives in your region before ordering

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

Method 108A

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(1% +0.5mΩ)

High temperature exposure

MIL-STD-202

Method 108A

1000 hours at maximum operating temperature

depending on specification, unpowered

±(1% +0.5mΩ)

Moisture resistance

MIL-STD-202

Method 106G

Each temperature / humidity cycle is defined

as 8 hours (method 106G), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H

±(0.5% +0.5mΩ)

Solderability

Wetting

J-STD-002B test B

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned

(≥95% covered)

Resistance to

soldering heat

MIL-STD-202

method 210F

Lead-free solder, 260°C, 10 seconds immersion time

±(0.5% +0.5mΩ)

No visible damage

Short time overload

IEC 60115-1 4.13

5 times of rated power for 5 seconds at room temperature

±(0.5% +0.5mΩ)

No visible damage

Chip Resistors Selection Charts

PS - Current sensors - low T.C.R. chip resistors, 4 termination, 0306 to 0612

Global part number - Preferred type

Ordering example: PS0612FKF070R01L

P S 0 6 1 2 F K F 0 7 0 R 0 1

Series name (code 1-2)

Default code

(1/2)

(code 17)

PS = current sensors - low T.C.R., 4 termination

Resistance (code 12-16)

0U5

= 0.0005Ω

Size code (code 3-6)

0R01 = 0.01Ω

(inch / metric)

0R02 = 0.02Ω

0306 = 0.8 x 1.6
0612 = 1.6 x 3.2

Taping reel (code 10-11)

07 = 7 inch Dia. reel
7W = 7 inch Dia. reel

2 x standard power type

Tolerance (code 7)

7T = 7 inch Dia. reel

F = ±1%

3 x standard power type

J = ±5%

T. C. R. (code 9)

Packing style (code 8 )

M = ±75 ppm/°C

R = Paper tape reel

F = ±100 ppm/°C

K = Embossed plastic tape reel

L = ±150 ppm/°C
G = ±200 ppm/°C

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. PS series 4 termination

type products are available by "Global part number" only

5mΩ ≤ R ≤ 100mΩ

Yageo-ProductSelectionGuide-html.html

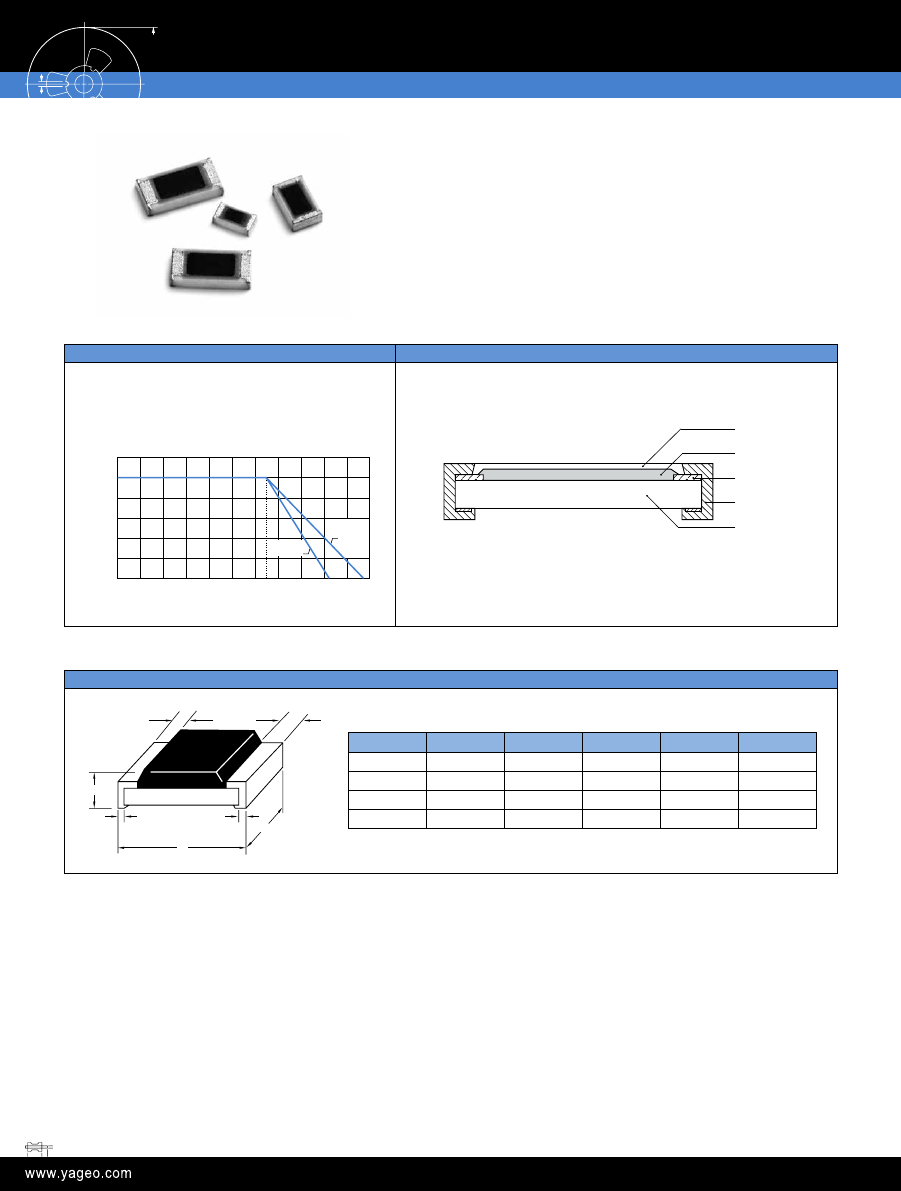

Derating curve

Construction

Maximum dissipation (P) in percentage of rated

power as a function of the operating ambient tem-
perature (T

amb

Normal Temperature Range: –55 °C to +170 °C

High Temperature Range: –55 °C to +275 °C

-65

-60

-30

120

150

170

Ambient Temperature ( C)

Power rating ratio (%

)

Dimensions

unit: mm

Type

PU3921

10.0 ±0.25

5.25 ±0.25

0.5 ±0.1

2.00 ±0.25

2.75 ±0.25

6.25 ±0.25

5.5 ±0.25

PU5931

15.0 ±0.25

7.75 ±0.25

0.5 ±0.1

4.0 ±0.25

5.25 ±0.25

8.75 ±0.25

5.5 ±0.25

Features

•

Resistance value down to 0.0002Ω and high power to 10(W)

• 85°C/85% for high temperature & high humidity
• Welded metal plate construction

PU3921/PU5931

Chip Resistors Selection Charts

PU - Shunt chip resistors, 3921 / 5931

100

-65

-25

125

175

225

275

Ambient Temperature ( C)

Power rating ratio (%

)

Yageo-ProductSelectionGuide-html.html

Electrical characteristics

Type

Size

Power

Max voltage Operating Temp.

range

Resistance range

Tolerance

TCR

3921

(PxR)^1/2

-55°C to 170°C

0.2mR/ 0.3mR/ 0.5mR/

1mR/ 2mR/3mR/4mR

±1%,±5%

0.2mR

0.3mR/ 0.5mR

1mR~4mR

±325ppm/°C

±175ppm/°C

±75ppm/°C

-55°C to 275°C

0.5mR/1mR/ 2mR/3mR/4mR

-55°C to 170°C

2mR/3mR/4mR

0.2mR/ 0.3mR/ 0.5mR/1mR

5931

-55°C to 170°C

0.2mR/ 0.3mR/ 0.5mR/

1mR/ 2mR/3mR/4mR

±1%,±5%

0.2mR

0.3mR/ 0.5mR

1mR~4mR

±225ppm/°C

±175ppm/°C

±75ppm/°C

-55°C to 275°C

0.3mR/0.5mR/1mR/2mR/3mR/4mR

-55°C to 170°C

1mR/2mR/3mR/4mR

10W

0.2mR/ 0.3mR/ 0.5mR

Note:

Please contact with sales offices, distributors and representatives in your region before ordering

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

Method 108A

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(1% +0.5mΩ)

High temperature exposure

MIL-STD-202

Method 108A

1000 hours at maximum operating temperature

depending on specification, unpowered

±(1% +0.5mΩ)

Moisture resistance

MIL-STD-202

Method 106G

Each temperature / humidity cycle is defined

as 8 hours (method 106G), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H

±(0.5% +0.5mΩ)

Solderability Resistance to

soldering heat

MIL-STD-202

method 210F

Lead-free solder, 260°C, 10 seconds immersion time

±(0.5% +0.5mΩ)

No visible damage

Short time overload

IEC 60115-1 4.13

5 times of rated power for 5 seconds at room temperature

±(0.5% +0.5mΩ)

No visible damage

Chip Resistors Selection Charts

PU - Shunt chip resistors, 3921 / 5931

Global part number - Preferred type

Ordering example: PU3921FKO130U2L

P U 3 9 2 1 F K O 1 3 0 U 2 L

Series name (code 1-2)

Default code

(1/2)

(code 17)

PU = Metal shunt resistor

Resistance (code 12-16)

0R005 = 0.005Ω

Size code (code 3-6)

0U2 = 0.0002Ω

(inch / metric)

3921 = 10.0 x 5.2

Taping reel (code 10-11)

5931 = 15.0 x 7.75

13 = Standard power, 13 inch Dia. reel
P5 = 5W , 13 inch Dia. reel
P7 = 7W, 13 inch Dia. reel

Tolerance (code 7)

P9 = 9W , 13 inch Dia. reel

F = ±1%

T3 = 3W , High temperature 13 inch Dia. reel

J = ±5%

T5 = 5W , High temperature 13 inch Dia. reel
PA = 10W, 13 inch Dia. reel

Packing style (code 8 )

T. C. R. (code 9)

K = Embossed plastic tape reel

M = ±75 ppm/°C
N

= ±175 ppm/°C

= ±225 ppm/°C

O = ±325 ppm/°C

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. PU series 4 termination

type products are available by "Global part number" only

Yageo-ProductSelectionGuide-html.html

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

100

-55

-40

-20

100

120

140

160

Ambient Temperature ( C)

Rated Power (%)

155

overcoat

protective glass

resistive layer

(jumper chip is a conductor)

inner electrode

termination (Ni / Au / Pd)

ceramic substrate

marking layer

Dimensions

unit: mm

Type

AR0402

1.00 ±0.05

0.50 ±0.05

0.35 ±0.05

0.20 ±0.10

0.25 ±0.10

AR0603

1.60 ±0.10

0.80 ±0.10

0.45 ±0.10

0.25 ±0.15

AR0805

2.00 ±0.10

1.25 ±0.10

0.50 ±0.10

0.35 ±0.20

AR1206

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

Features

• New NiAu terminations provide special application for

hybrid board gluing

•  Competitive with NiAu terminations
•  Special use in high temperature environment
•  Higher component and equipment reliability

Chip Resistors Selection Charts

AR - NiAu termination chip resistors, 0402 to 1206

Yageo-ProductSelectionGuide-html.html

Electrical characteristics

Type

Power

Operating Temp.

range

MWV RCOV DWV Resistance range & tolerance

T. C. R.

( ppm/°C)

Jumper criteria

(unit: A)

AR0402 1/16W -55°C to +155°C 50V 100V 100V

E24 ±5%

E24/E96 ±1%

1Ω ≤ R ≤ 10MΩ

1Ω ≤ R ≤ 10MΩ 10Ω < R ≤ 10MΩ

1Ω ≤ R ≤ 10Ω

±100 ppm/°C

±200 ppm/°C

Rated current

Max. current

1.0

2.0

AR0603 1/10W -55°C to +155°C 50V 100V 100V

Rated current

Max. current

1.0

2.0

AR0805 1/8W -55°C to +155°C 150V 300V 300V

Jumper

< 50mΩ

Rated current

Max. current

2.0

5.0

AR1206 1/4W -55°C to +155°C 200V 500V 500V

Rated current

Max. current

2.0

10.0

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

-method 108A

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(2% +50mΩ)

< 100mΩ for jumper

High temperature exposure

MIL-STD-202

-method 108A

1000 hours at maximum operating temperature

depending on specification, unpowered

±(1% +50mΩ)

< 50mΩ for jumper

Moisture resistance

MIL-STD-202

-method 106F

Each temperature / humidity cycle is defined

as 8 hours (method 106F), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H

±(2% +50mΩ)

< 100mΩ for jumper

Thermal shock

MIL-STD-202

-method 107G

-55/+125 °C

Note: Number of cycles required is 300.

Devices mounted Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

±(0.5% +50mΩ) for

10K to 10M

±(1% +50mΩ) for others

< 50mΩ for jumper

Solderability

Wetting

J-STD-002B

testB

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned (≥95% covered)

No visible damage

Resistance to

soldering heat

MIL-STD-202

-method 107G

Lead-free solder, 260°C, 10 seconds immersion time

±(1% +50mΩ)

< 50mΩ for jumper

No visible damage

Short time overload

MIL-R-55342D

-para 4.7.5

2.5 times RCWV or maximum overload voltage

whichever is less for 5 seconds at room temperature

±(2% +50mΩ)

< 50mΩ for jumper

No visible damage

Chip Resistors Selection Charts

AR - NiAu termination chip resistors, 0402 to 1206

Yageo-ProductSelectionGuide-html.html

Global part number - Preferred type for ordering Yageo / Phycomp branded products

Ordering example: AR0603JR-07100KL

A R 0 6 0 3 J R

―

0 7 1 0 0 K

Series name (code 1-2)

Default code

(1/2)

(code 17)

AR = NiAu termination

Resistance (code 12-16)

Size code (code 3-6)

= Jumper

(inch / metric)

10R = 10Ω

0402 = 1.0 x 0.5

100R = 100Ω

0603 = 1.6 x 0.8

100K = 100KΩ

0805 = 2.0 x 1.25
1206 = 3.2 x 1.6

Taping reel (code 10-11)

07 = 7 inch Dia. reel

Tolerance (code 7)

F = ±1%

T. C. R. (code 9)

J = ±5% (for Jumper ordering)

“―” = Based on spec.
(― for thick film only)

Packing style (code 8 )

R = Paper tape reel

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

Phycomp worldwide - Traditional type

Chip resistors with Ni/Au terminations

Size: inch (mm)

0402 (1005)

0603 (1608)

0805 (2012)

1206 (3216)

Power

1/16 W

1/10 W

1/8 W

1/4 W

Tolerance

+5%

+1%

+5%

+1%

+5%

+1%

+5%

+1%

Resistance

E24

E24 / E96

E24

E24 / E96

E24

E24 / E96

E24

E24 / E96

Packing

paper tape

Quantity 5 000

---

2322 702 11…L 2322 704 1.…L

2322 730 11… 2322 734 1.…L 2322 711 11...L 2322 729 1.…L

10 000

2322 705 12…L

2322 706 2….

---

Jumper 5 000

---

2322 702 19001L

---

2322 730 19001L

---

2322 711 19001L

---

10 000

2322 705 19001 L

---

For ordering rules:

See page 14 for E24 / E96 values and the last 4 or 3 digits of the 12NC catalogue number

Phycomp CTC ordering code - Traditional type - North America

Regional code for ordering Phycomp branded products. Please see page 13 for details.

Chip Resistors Selection Charts

AR - NiAu termination chip resistors, 0402 to 1206

Yageo-ProductSelectionGuide-html.html

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

100

-55

-40

-20

100

120

140

160

Ambient Temperature ( C)

Rated Power (%)

155

Dimensions

unit: mm

Type

SR0402

1.00 ±0.05

0.50 ±0.05

0.35 ±0.05

0.20 ±0.10

0.25 ±0.10

SR0603

1.60 ±0.10

0.80 ±0.10

0.45 ±0.10

0.25 ±0.15

SR0805

2.00 ±0.10

1.25 ±0.10

0.50 ±0.10

0.35 ±0.20

SR1206

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

SR1210

3.10 ±0.10

2.60 ±0.15

0.50 ±0.10

0.45 ±0.15

0.50 ±0.20

SR1218

3.10 ±0.10

4.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

SR2010

5.00 ±0.10

2.50 ±0.15

0.55 ±0.10

0.55 ±0.15

0.50 ±0.20

SR2512

6.35 ±0.10

3.10 ±0.15

0.55 ±0.10

0.60 ±0.20

0.50 ±0.20

overcoat

protective glass

resistive layer

inner electrode

termination (Ni / matte tin)

ceramic substrate

inner electrode

marking layer

overcoat

protective glass

resistive layer

inner electrode
termination (Ni / matte tin)
inner electrode

marking layer

Features

•

Reduced size of final equipment

• Higher component and equipment reliability
• Excellent performance at pulse loading

Chip Resistors Selection Charts

SR - Surge chip resistors, 0402 to 2512

All size range except SR2512 with D/F tol

SR2512 (D/F tol)

Yageo-ProductSelectionGuide-html.html

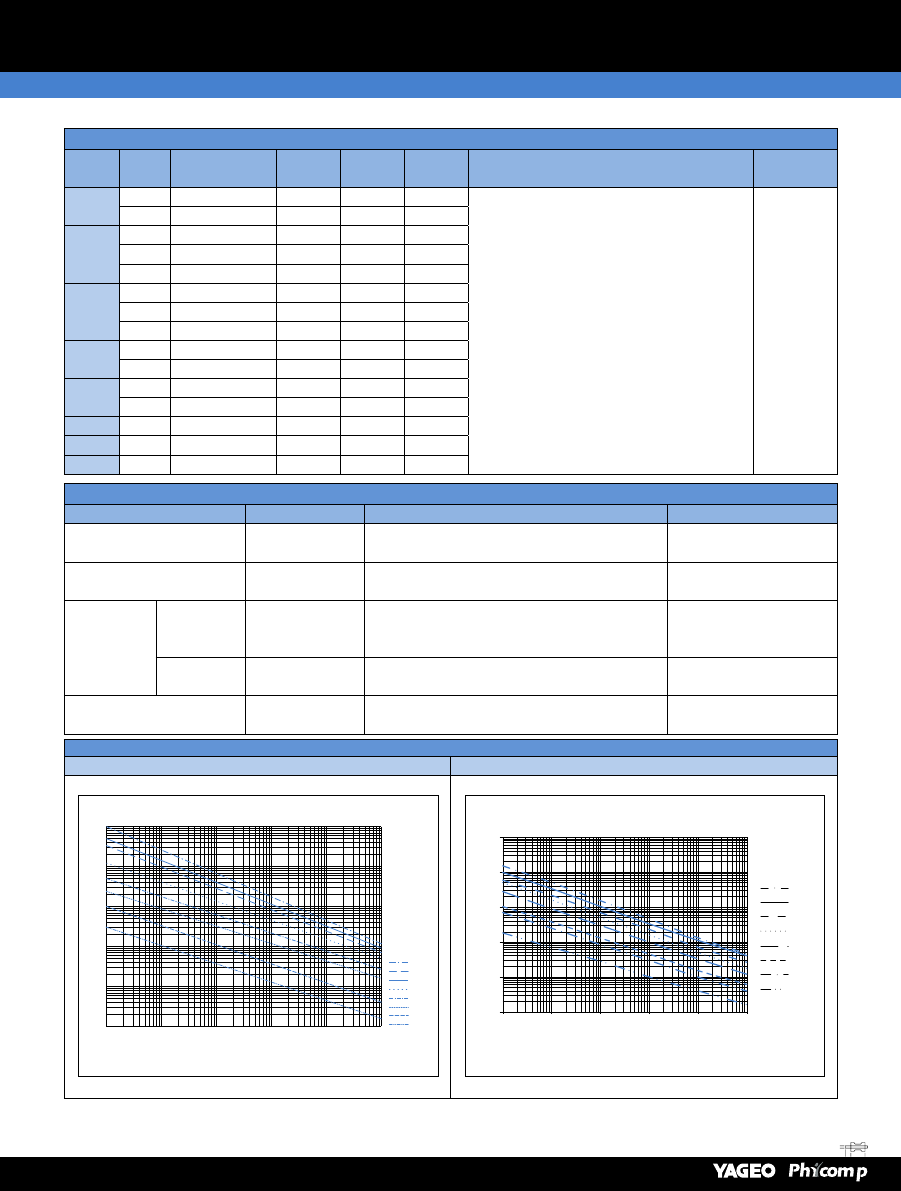

Electrical characteristics

Type

Power

Operating Temp.

range

MWV

RCOV

DWV

Resistance range & tolerance

T. C. R.

SR0402

1/16W

-55°C to +155°C

50V

100V

E24 ±0.5%,±1%,±5%,±10%,±20%

E96 ±0.5%,±1%

1Ω ≤ R ≤ 100KΩ

±200 ppm/°C

1/8W

-55°C to +155°C

50V

100V

SR0603

1/10W

-55°C to +155°C

75V

150V

1/5W

-55°C to +155°C

75V

150V

1/4W

-55°C to +155°C

75V

150V

SR0805

1/8W

-55°C to +155°C

150V

300V

1/4W

-55°C to +155°C

150V

300V

1/3W

-55°C to +155°C

150V

300V

SR1206

1/4W

-55°C to +155°C

200V

400V

500V

1/2W

-55°C to +155°C

200V

400V

500V

SR1210

1/2W

-55°C to +155°C

200V

400V

500V

3/4W

-55°C to +155°C

200V

400V

SR1218

-55°C to +155°C

200V

400V

500V

SR2010

3/4W

-55°C to +155°C

200V

400V

500V

SR2512

-55°C to +155°C

200V

400V

500V

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

-method 108

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(3% +50mΩ)

High temperature exposure

IEC 60068-2-2

1000 hours at maximum operating temperature

depending on specification, unpowered

±(3% +50mΩ)

Solderability

Wetting

J-STD-002B

testB

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned (≥95% covered)

No visible damage

Resistance to

soldering heat

MIL-STD-202

-method 210F

Lead-free solder, 260°C, 10 seconds immersion time

±(1% +50mΩ)

No visible damage

Short time overload

IEC60115-1 4.13

2.5 times RCWV or maximum overload voltage

whichever is less for 5 seconds at room temperature

±(2% +50mΩ)

No visible damage

Pulse-Load behavior

±5%,±10%,±20%

±0.5%,±1%

Chip Resistors Selection Charts

SR - Surge chip resistors, 0402 to 2512

-2

-1

One-Pulse limiting electric power (W)

Pulse duration (ms)

0805
0603
0402

1206

1218
1210

2010

2512

0.1

100

1000

10000

0.01

0.1

100

1000

lse

ic p

(W)

Pulse duraon (ms)

SR2512
SR1218
SR2010
SR1210
SR1206
SR0805
SR0603
SR0402

Yageo-ProductSelectionGuide-html.html

Global part number - Preferred type for ordering Yageo / Phycomp branded products

Ordering example: SR0805MR-07100KL

S R 0 8 0 5 M R

―

0 7 1 0 0 K

Series name (code 1-2)

Default code

(1/2)

(code 17)

SR = Surge

Resistance (code 12-16)

Size code (code 3-6)

10R = 10Ω

(inch / metric)

100K = 100KΩ

0402 = 1.0 x 0.5
0603 = 1.6 x 0.8

Taping reel (code 10-11)

0805 = 2.0 x 1.25

7T = 7 inch Dia. reel

1206 = 3.2 x 1.6

3 x standard power type

1218 = 3.2 x 4.5

7W = 7 inch Dia. reel

2010 = 5.0 x 2.5

2 x standard power type

2512 = 6.35 x 3.2

07 = 7 inch Dia. reel
13 = 13 inch Dia. reel

Tolerance (code 7)

D = ±0.5%

T. C. R. (code 9)

F = ±1%

“―” = Based on spec.

J = ±5%

(― for thick film only)

K = ±10%
M = ±20%

Packing style (code 8 )

R = Paper tape reel
K = Embossed plastic tape reel

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

Phycomp worldwide - Traditional type

Surge chip resistors

Size: inch (mm)

0805 (2012)

1206 (3216)

1218 (3248)

2512 (6432)

Power

1/8 W

1/4 W

1 W

Tolerance

+10%

+5%

+10%

+5%

+10%

+20%

Resistance

E24

Packing

paper tape

Quantity

4 000

---

2350 557 10…L

2350 556 11…L

2350 556 10…L

2350 556 13…L

5 000

2350 554 12…L

2350 550 10…L

---

For ordering rules:

See page 14 for E24 / E96 values and the last 4 or 3 digits of the 12NC catalogue number

Phycomp CTC ordering code - Traditional type - North America

Regional code for ordering Phycomp branded products. Please see page 15 for details.

Chip Resistors Selection Charts

SR - Surge chip resistors, 0402 to 2512

Yageo-ProductSelectionGuide-html.html

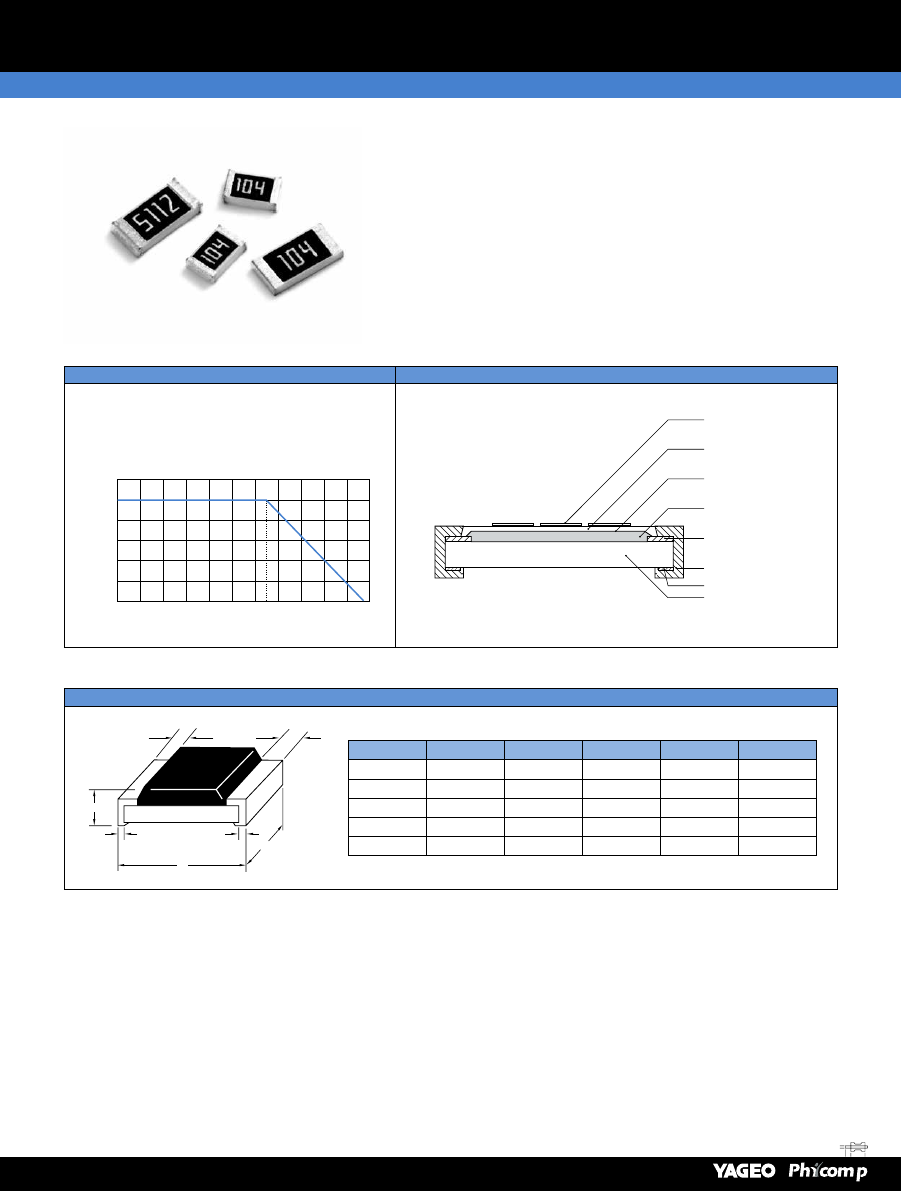

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

100

-55

-40

-20

100

120

140

160

Ambient Temperature ( C)

Rated Power (%)

155

Dimensions

unit: mm

Type

RV0603

1.60 ±0.10

0.80 ±0.10

0.45 ±0.10

0.25 ±0.15

RV0805

2.00 ±0.10

1.25 ±0.10

0.50 ±0.10

0.35 ±0.20

RV1206

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.40 ±0.20

0.45 ±0.20

RV2010

5.00 ±0.10

2.50 ±0.15

0.55 ±0.10

0.45 ±0.15

0.50 ±0.20

RV2512

6.35 ±0.10

3.10 ±0.15

0.55 ±0.10

0.60 ±0.20

0.50 ±0.20

overcoat

protective glass

resistive layer

inner electrode

termination (Ni / matte tin)

ceramic substrate

inner electrode

marking layer

Features

•  Higher maximum working voltage compared to RC series
•  Reliable electrode construction
•  Compatible with lead containing and lead-free soldering

processes

• Highly stable in auto-placement surface mounting

Chip Resistors Selection Charts

RV - High voltage chip resistors, 0603 to 2512

Yageo-ProductSelectionGuide-html.html

Electrical characteristics

Type

Power

Operating Temp.

range

MWV

RCOV

DWV

Resistance range & tolerance

T. C. R.

RV0603

1/10W

-55°C to +155°C

350V

500V

E24 ±5%

E24/E96 ±1%

47Ω

≤

10MΩ

±200 ppm/°C

RV0805

1/8W

-55°C to +155°C

400V

800V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.5%

47Ω

≤

22MΩ

47Ω

≤

22MΩ

47Ω

≤

10MΩ

RV1206

1/4W

-55°C to +155°C

500V

1000V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.5%

47Ω

≤

27MΩ

47Ω

≤

27MΩ

47Ω

≤

10MΩ

RV2010

3/4W

-55°C to +155°C

500V

1000V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.5%

47Ω

≤

22MΩ

47Ω

≤

22MΩ

47Ω

≤

10MΩ

RV2512

-55°C to +155°C

500V

1000V

E24 ±5%

E24/E96 ±1%

E24/E96 ±0.5%

47Ω

≤

16MΩ

47Ω

≤

16MΩ

47Ω

≤

10MΩ

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

Method 108A

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(2% +50mΩ)

High temperature exposure

MIL-STD-202

Method 108A

1000 hours at maximum operating temperature

depending on specification, unpowered

±(1% +50mΩ)

Moisture resistance

MIL-STD-202

Method

106G

Each temperature / humidity cycle is defined

as 8 hours (method 106G), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H

±(2% +50mΩ)

Thermal shock

MIL-STD-202

Method

107G

-55/+125 °C

Note: Number of cycles required is 300.

Devices mounted Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

±(0.5% +50mΩ) for 10K to 10M

±(1% +50mΩ) for others

Solderability

Wetting

IEC 60115

-1 4.13

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned (≥95% covered)

No visible damage

Resistance to

soldering heat

MIL-STD-202

method 210F

Lead-free solder, 260°C, 10 seconds immersion time

±(1% +50mΩ)

No visible damage

Short time overload

J-STD-002B

test B

2.5 times RCWV or maximum overload voltage

whichever is less for 5 seconds at room temperature

±(2% +50mΩ)

No visible damage

Chip Resistors Selection Charts

RV - High voltage chip resistors, 0603 to 2512

Yageo-ProductSelectionGuide-html.html

Global part number - Preferred type for ordering Yageo / Phycomp branded products

Ordering example: RV0805JR-07100KL

R V 0 8 0 5 J R

―

0 7 1 0 0 K

Series name (code 1-2)

Default code

(1/2)

(code 17)

RV = High voltage

Resistance (code 12-16)

Size code (code 3-6)

100K = 100KΩ

(inch / metric)

1M = 1MΩ

0603 = 1.6 x 0.8
0805 = 2.0 x 1.25
1206 = 3.2 x 1.6

Taping reel (code 10-11)

2010 = 5.0 x 2.5

07 = 7 inch Dia. reel

2512 = 6.35 x 3.2

T. C. R. (code 9)

Tolerance (code 7)

“―” = Based on spec.

D = ±0.5%

(― for thick film only)

F = ±1%
J = ±5%

Packing style (code 8 )

R = Paper tape reel
K = Embossed plastic tape reel

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

Phycomp worldwide - Traditional type

High voltage chip resistors

Size: inch (mm)

0805 (2012)

1206 (3216)

2512 (6432)

Power

1/8 W

1/4 W

1 W

Tolerance

+5%

+1%

+5%

+1%

+5%

Resistance

E24

E24 / E96

E24

E24 / E96

E24

Packing

paper tape

blister tape

Quantity

4 000

---

2322 762 98...L

5 000

2322 792 61...L

2322 793 6....L

2322 790 61...L

2322 791 6....L

---

For ordering rules:

See page 14 for E24 / E96 values and the last 4 or 3 digits of the 12NC catalogue number

Phycomp CTC ordering code - Traditional type - North America

Regional code for ordering Phycomp branded products. Please see page 15 for details.

Chip Resistors Selection Charts

RV - High voltage chip resistors, 0603 to 2512

Yageo-ProductSelectionGuide-html.html

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

100

-55

-40

-20

100

120

140

160

Ambient Temperature ( C)

Rated Power (%)

155

RC0402-

RC2512

125

RC0075-

RC0201

overcoat

resistive layer

inner electrode

termination

ceramic substrate

Dimensions

unit: mm

Type

TR0402

1.00 ±0.10

0.50 ±0.05

0.35 ±0.05

0.20 ±0.10

0.25 ±0.10

TR0603

1.60 ±0.10

0.80 ±0.10

0.45 ±0.10

0.25 ±0.15

TR0805

2.00 ±0.10

1.25 ±0.10

0.50 ±0.10

0.35 ±0.20

TR1206

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

Features

•

Reduced size of final equipment

•  Higher component and equipment reliability
•  Low noise, when not trimmed
•  Flexible for resistance trimming

Chip Resistors Selection Charts

TR - Trimmable chip resistors, 0402 to 1206

Yageo-ProductSelectionGuide-html.html

Electrical characteristics

Type

Power

Operating Temp.

range

MWV RCOV DWV

Resistance range & tolerance

T. C. R.

( ppm/°C)

TR0402 1/16W -55°C to +125°C

50V

100V

E24 +0/-10%, +0/-20%, +0/-30%

1Ω ≤ R ≤ 10MΩ

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 1MΩ

1MΩ < R ≤ 10MΩ

±200 ppm/°C

±100 ppm/°C

±200 ppm/°C

TR0603 1/16W -55°C to +125°C

50V

100V

TR0805

1/8W

-55°C to +155°C

150V

300V

500V

TR1206

1/4W

-55°C to +155°C

200V

500V

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

Method 108A

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(1% +50mΩ)

High temperature exposure

MIL-STD-202

Method 108A

1000 hours at maximum operating temperature

depending on specification, unpowered

±(1% +50mΩ)

Moisture resistance

MIL-STD-202

Method 106G

Each temperature / humidity cycle is defined

as 8 hours (method 106G), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H

±(2% +50mΩ)

Thermal shock

MIL-STD-202

Method 107G

-55/+125 °C

Note: Number of cycles required is 300.

Devices mounted Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

±(1% +50mΩ)

Solderability

Wetting

J-STD-002B

test B

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned (≥95% covered)

No visible damage

Resistance to

soldering heat

MIL-STD-202

method 210F

Lead-free solder, 260°C, 10 seconds immersion time

±(1% +50mΩ)

No visible damage

Short time overload

IEC 60115

-1 4.13

2.5 times RCWV or maximum overload voltage

whichever is less for 5 seconds at room temperature

±(1% +50mΩ)

No visible damage

Chip Resistors Selection Charts

TR - Trimmable chip resistors, 0402 to 1206

Yageo-ProductSelectionGuide-html.html

Global part number - Preferred type for ordering Yageo / Phycomp branded products

Ordering example: TR0603MR-07100KL

T R 0 6 0 3 M R

―

0 7 1 0 0 K

Series name (code 1-2)

Default code

(1/2)

(code 17)

TR = Trimmable

Resistance (code 12-16)

Size code (code 3-6)

10R = 10Ω

(inch / metric)

100R = 100Ω

0402 = 1.0 x 0.5

100K = 100KΩ

0603 = 1.6 x 0.8
0805 = 2.0 x 1.25

Taping reel (code 10-11)

1206 = 3.2 x 1.6

07 = 7 inch Dia. reel

Tolerance (code 7)

T. C. R. (code 9)

K = 0/-10%

“―” = Based on spec.

M = 0/-20%

(― for thick film only)

N = 0/-30%

Packing style (code 8 )

R = Paper tape reel

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

Phycomp worldwide - Traditional type

Trimmable chip resistors

Size: inch (mm)

0402 (1005)

0603 (1608)

0805 (2012)

1206 (3216)

Power

1/16 W

1/10 W

1/8 W

1/4 W

Tolerance

E24

Resistance

paper tape

Packing

2350 503 21…L

2350 502 11…L

2350 501 11…L

2350 500 11…L

Quantity 5 000 0/-20%

2350 503 20…L

2350 502 10…L

2350 511 10…L

2350 500 10…L

5 000 0/-30%

on request

2322 724 94…L

Europe

5 000

2322 792 61...L

2322 793 6....L

2322 791 6....L

---

For ordering rules:

See page 14 for E24 / E96 values and the last 4 or 3 digits of the 12NC catalogue number

Phycomp CTC ordering code - Traditional type - North America

Regional code for ordering Phycomp branded products. Please see page 15 for details.

Chip Resistors Selection Charts

TR - Trimmable chip resistors, 0402 to 1206

Yageo-ProductSelectionGuide-html.html

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

AF0201 Range: -55 °C to + 125 °C

AF0402 - AF2512 Range: -55 °C to + 155 °C

100

-55

-40

-20

100

120

140

160

Ambient Temperature ( C)

Rated Power (%)

125

Dimensions

unit: mm

Type

AF0201

0.60 ±0.03

0.30 ±0.03

0.23

±0.03

0.12 ±0.05

0.15 ±0.05

AF0402

1.00 ±0.05

0.50 ±0.05

0.32 ±0.05

0.20 ±0.10

0.25 ±0.10

AF0603

1.60 ±0.10

0.80 ±0.10

0.45 ±0.10

0.25 ±0.15

AF0805

2.00 ±0.10

1.25 ±0.10

0.50 ±0.10

0.35 ±0.20

AF1206

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

AF1210

3.10 ±0.10

2.60 ±0.15

0.50

±0.10

0.45 ±0.15

0.50 ±0.20

AF1218

3.10 ±0.10

4.60 ±0.10

0.55

±0.10

0.45 ±0.20

0.40 ±0.20

AF2010

5.00 ±0.10

2.50 ±0.15

0.55 ±0.10

0.55 ±0.15

0.50 ±0.20

AF2512

6.35 ±0.10

3.10 ±0.15

0.55 ±0.10

0.60 ±0.20

0.50 ±0.20

overcoat

protective glass

resistive layer

inner electrode

termination (Ni / matte tin)

ceramic substrate

inner electrode

marking layer

Features

•  Superior resistance against sulfur containing atmosphere
•  Highly reliable electrode construction
•  Compatible with all soldering processes
•  Highly stable in auto-placement surface mounting applications
•  Halogen free product and production

Chip Resistors Selection Charts

AF - Sulfur resistant chip resistors, 0201 to 2512

100

-55

-40

-20

100

120

140

160

Ambient Temperature ( C)

Rated Power (%)

155

Yageo-ProductSelectionGuide-html.html

Electrical characteristics

Type Power

Operating Temp.

range

MWV RCOV DWV

Resistance range & tolerance

T. C. R.

( ppm/°C)

Jumper criteria

(unit: A)

AF0201 1/20W

-55°C to +125°C

25V

50V

E24 ±5%

E24/E96 ±0.5%, ±1%

Jumper

1Ω

≤

10MΩ

1Ω

≤

10MΩ

50mΩ

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

-100/+350ppm/°C

±200ppm/°C

Rated current

Max. current

0.5

1.0

AF0402 1/16W

-55°C to +155°C 50V 100V 100V

E24 ±5%

E24/E96 ±0.5%, ±1%

Jumper

1Ω ≤ R ≤ 22MΩ

1Ω ≤ R ≤ 10MΩ

< 50mΩ

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

10MΩ < R ≤ 22MΩ

±200ppm/°C

±100ppm/°C

±200ppm/°C

Rated current

Max. current

1.0

2.0

AF0603 1/10W

-55°C to +155°C 75V 150V 150V

Rated current

Max. current

1.0

2.0

AF0805 1/8W

-55°C to +155°C 150V 300V 300V

Rated current

Max. current

2.0

5.0

AF1206 1/4W

-55°C to +155°C 200V 400V 500V

Rated current

Max. current

2.0

10.0

AF1210 1/2W

-55°C to +155°C 200V 500V 500V

E24 ±5%

E24/E96 ±0.5%, ±1%

Jumper

1Ω ≤ R ≤ 10MΩ
1Ω ≤ R ≤ 10MΩ

< 50mΩ

1Ω

≤

10Ω

≤

10MΩ

±200ppm/°C

±100ppm/°C

Rated current

Max. current

2.0

10.0

AF1218 1W

-55°C to +155°C 200V 500V 500V

E24 ±5%

E24/E96 ±0.5%, ±1%

Jumper

1Ω ≤ R ≤ 1MΩ

< 50mΩ

Rated current

Max. current

2.0

10.0

AF2010 3/4W

-55°C to +155°C 200V 500V 500V

E24 ±5%

E24/E96 ±0.5%, ±1%

Jumper

1Ω ≤ R ≤ 10MΩ
1Ω ≤ R ≤ 10MΩ

< 50mΩ

Rated current

Max. current

2.0

10.0

AF2512 1W

-55°C to +155°C 200V 500V 500V

Rated current

Max. current

2.0

10.0

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

Method 108

1000 hours at 70 ±2°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(1% +50mΩ)

< 100mΩ for jumper

High temperature exposure

MIL-STD-202

Method 108

1000 hours at maximum operating temperature

depending on specification, unpowered

±(1% +50mΩ)

< 100mΩ for jumper

Moisture resistance

MIL-STD-202

Method 106

Each temperature / humidity cycle is defined

as 8 hours (method 106G), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H

±(0.5% +50mΩ) for 1% tol.

±(1% +50mΩ) for 5% tol.

< 100mΩ for jumper

Thermal shock

MIL-STD-202

Method 107

-55/+125 °C

Note: Number of cycles required is 300.

Devices mounted Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

±(0.5% +50mΩ) for 1% tol.

±(1% +50mΩ) for 5% tol.

< 100mΩ for jumper

Solderability

Wetting

J-STD-002B testB

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned

(≥95% covered)

No visible damage

Resistance to

soldering heat

MIL-STD-202

Method 215

Lead-free solder, 260°C, 10 seconds immersion time

±(1% +50mΩ)

No visible damage

Short time overload

IEC60115-1 4.13

2.5 times RCWV or maximum overload voltage

whichever is less for 5 seconds at room temperature

±(1% +50mΩ)

No visible damage

Anti-FOS

ASTM-B-809-95

Sulfur (saturated vapor) 1000 hours, 90±2°C,

Rating with no power

±(1% +50mΩ)

ASTM-B-809-95*

* Modified

Sulfur 750 hours, 105°C, Rating with no power

±(4% +50mΩ)

Chip Resistors Selection Charts

AF - Sulfur resistant chip resistors, 0201 to 2512

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

AF - Sulfur resistant chip resistors, 0201 to 2512

Global part number - Preferred type

Ordering example: AF0603JR-07100KL

A F 0 6 0 3 J R

―

0 7 1 0 0 K

Series name (code 1-2)

Default code

(1/2)

(code 17)

AF = Anti-sulfurated

Resistance (code 12-16)

Size code (code 3-6)

0R = Jumper

(inch / metric)

10R = 10Ω

0201 = 0.6 x 0.3

100R = 100Ω

0402 = 1.0 x 0.5

100K = 100KΩ

0603 = 1.6 x 0.8
0805 = 2.0 x 1.25

Taping reel (code 10-11)

1206 = 3.2 x 1.6

07 = 7 inch Dia. reel

1210 = 3.2 x 1.6

13 = 13 inch Dia. reel

1218 = 3.2 x 2.6
2010 = 5.0 x 2.5
2512 = 6.35 x 3.2

T. C. R. (code 9)

“―” = Based on spec.

Tolerance (code 7)

(― for thick film only)

D = ±0.5%
F = ±1%
J = ±5% (for Jumper ordering)

Packing style (code 8 )

R = Paper tape reel

K = Embossed plastic tape reel

Note:

1. All our RSMD products meet RoHS Compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for order only

3. AF series products are available by "Global part number" only

Yageo-ProductSelectionGuide-html.html

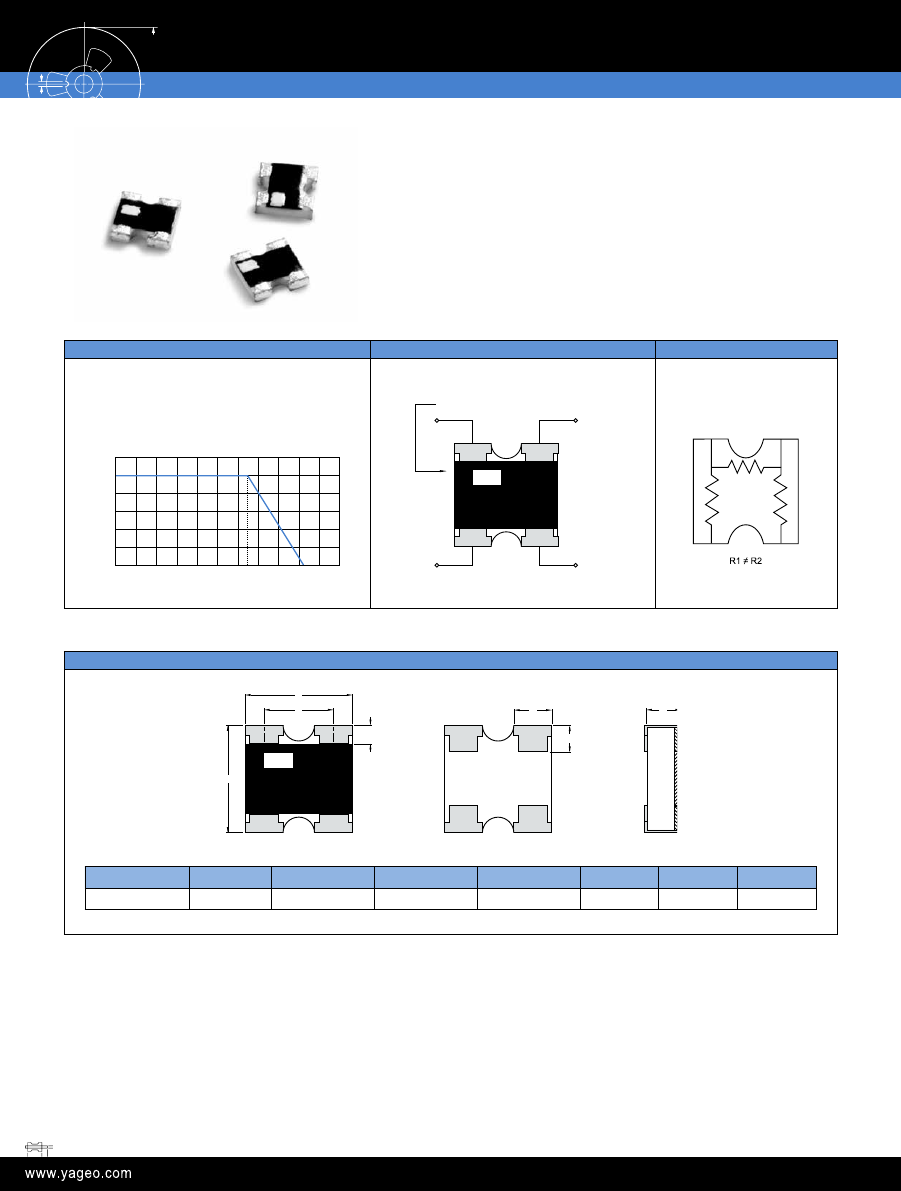

Chip Resistors Selection Charts

AF - Sulfur resistant chip resistors, Arrays

Schematics

Dimensions

unit: mm

Type

H / H1

AF122

0.30 +0.10/-0.05

0.24 ±0.10

0.67 ±0.05

1.00 ±0.10

0.30 ±0.10

0.25 ±0.10

1.00 ±0.10

AF124

H : 0.45 ±0.05

H1 : 0.30 ±0.05

0.25 ±0.15

0.50 ±0.05

2.00 ±0.10

0.45 ±0.10

0.30 ±0.15

1.00 ±0.10

AF162

0.35

±0.10

0.30

±0.10

0.80

±0.05

1.6

±0.10

0.40

±0.10

0.30

±0.10

1.6

±0.10

AF164

H: 0.65

±0.05

H1: 0.50

±0.15

0.30

±0.15

0.80

±0.05

3.2

±0.15

0.60

±0.10

0.30

±0.15

1.6

±0.15

Features

AF122 /AF162

AF124 /AF164

Side view for all types

AF122/ AF162

AF124/ AF164

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

AF - Sulfur resistant chip resistors, Arrays

Electrical characteristics

Type Power

rating

Operating Temp.

range

MWV RCOV DWV Resistance range & tolerance

T. C. R.

Jumper criteria

(unit: A)

AF122 1/16W -55°C to 155°C 50V 100V 100V

E24 ±5%

E24/E96 ±1%

Jumper

1Ω

≤

1MΩ

10Ω

≤

1MΩ

50mΩ

1Ω

≤

10Ω

≤

1MΩ

±250ppm/°C

±200ppm/°C

Rated current

Max. current

0.5A

1.0A

AF124 1/16W -55°C to 155°C 25V 50V 100V

E24 ±5%

E24/E96 ±1%

Jumper

1Ω

≤

1MΩ

1Ω

≤

1MΩ

50mΩ

1Ω

≤

10Ω

≤

1MΩ

±250ppm/°C

±200ppm/°C

Rated current

Max. current

1.0A

2.0A

AF162 1/16W -55°C to 155°C 50V 100V 100V

E24 ±5%

E24/E96 ±1%

Jumper

1Ω

≤

1MΩ

1Ω

≤

1MΩ

50mΩ

1Ω

≤

10Ω

≤

1MΩ

±250ppm/°C

±200ppm/°C

Rated current

Max. current

1.0A

2.0A

AF164 1/16W -55°C to 155°C 50V 100V 100V

E24 ±5%

E24/E96 ±1%

Jumper

1Ω

≤

1MΩ

1Ω

≤

1MΩ

50mΩ

±250ppm/°C

Rated current

Max. current

1.0A

2.0A

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

-method 108

1000 hours at 70 ±5°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

±(2% +50mΩ)

< 100mΩ for jumper

High temperature exposure

MIL-STD-202

-method 108

1000 hours at maximum operating temperature

depending on specification, unpowered

No direct impingement of forced air to the parts

Tolerances: 125±3 °C

±(1% +50mΩ)

< 50mΩ for jumper

Moisture resistance

MIL-STD-202

-method 106

Each temperature / humidity cycle is defined

as 8 hours (method 106F), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H

±(2% +50mΩ)

< 50mΩ for jumper

Thermal shock

MIL-STD-202

-method 107

-55/+125 °C

Note: Number of cycles required is 300.

Devices mounted

Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

±(1% +50mΩ) for others

< 50mΩ for jumper

Solderability

Wetting

J-STD-002B testB

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned (≥95% covered)

Resistance to

soldering heat

MIL-STD-202

Method 210

Lead-free solder, 260°C, 10 seconds immersion time

±(1% +50mΩ)

< 50mΩ for jumper

No visible damage

Short time overload

IEC60115-1 4.13

2.5 times RCWV or maximum overload voltage

whichever is less for 5 seconds at room temperature

±(2% +50mΩ)

< 50mΩ for jumper

No visible damage

Anti-FOS

ASTM-B-809-95

Sulfur (saturated vapor) 1000 hours, 90±2°C,

Rating with no power

±(1% +50mΩ)

ASTM-B-809-95*

*Modified

Sulfur 750 hours, 105°C, Rating with no power

±(4% +50mΩ)

Yageo-ProductSelectionGuide-html.html

Global part number - Array

Ordering example: AF122-JR-07100KL

A F 12

―

J R

―

0 7 1 0 0 K

Series name (code 1-2)

Default code

(code 17)

AF = Array

(convex) thick film

Resistance (code 12-16)

Size code (inch) (code 3-4)

0R = Jumper

10R = 10Ω

12 = 0402 x 2 (0404)

100R = 100Ω

0402 x 4 (0408)

100K = 100KΩ

16 = 0603 x 2 (0606)
= 0603 x 4 (0612)

Taping reel (code 10-11)

07 = 7 inch Dia. reel

Number of resistor (code 5)

13 = 13 inch Dia. reel

2 = 2 resistors
4 = 4 resistors

T. C. R. (code 9)

Schematic (code 6)

“―” = Based on spec.

"─" = Based on spec.

Packing style (code 8)
R = Paper tape reel

Tolerance (code 7)
F = ± 1%

J = ± 5% (for jumper ordering)

Note:

1. All our RSMD products meet RoHS Compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for order only

Chip Resistors Selection Charts

AF - Sulfur resistant chip resistors, Arrays

Yageo-ProductSelectionGuide-html.html

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

100

-55

-40

-20

100

120

140 160

Ambient Temperature ( C)

Rated Power (%)

155

Dimensions

unit: mm

Type

AC0201

0.60 ±0.03

0.30 ±0.03

0.23 ±0.03

0.12 ±0.05

0.15 ±0.05

AC0402

1.00 ±0.05

0.50 ±0.05

0.32 ±0.05

0.20 ±0.10

0.25 ±0.10

AC0603

1.60 ±0.10

0.80 ±0.10

0.45 ±0.10

0.25 ±0.15

AC0805

2.00 ±0.10

1.25 ±0.10

0.50 ±0.10

0.35 ±0.20

AC1206

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

AC1210

3.10 ±0.10

2.60 ±0.15

0.50 ±0.10

0.45 ±0.15

0.50 ±0.20

AC1210 7W

3.10 ±0.10

2.60 ±0.15

0.55 ±0.10

0.45 ±0.15

0.50 ±0.20

AC1218

3.10 ±0.10

4.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

AC2010

5.00 ±0.10

2.50 ±0.15

0.55 ±0.10

0.55 ±0.15

0.50 ±0.20

AC2512

6.35 ±0.10

3.10 ±0.15

0.55 ±0.10

0.60 ±0.20

0.50 ±0.20

Chip Resistors Selection Charts

AC - Automotive grade chip resistors, 0201 to 2512

Features

•

AEC-Q200 qualified

•  Production part approval process (PPAP) support
•  High reliability
•  High quality level

overcoat

protective glass

resistive layer

inner electrode

termination (Ni / matte tin)

ceramic substrate

inner electrode

marking layer

overcoat

protective glass
resistive layer

(Jumper chip is a conductor)
inner electrode

inner electrode

termination (Ni / matte tin)

ceramic substrate

All size rane except AC2010/ 2512 double power

AC2010/ 2512 double power

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

AC - Automotive grade chip resistors, 0201 to 2512

Electrical characteristics

Type Power

Operating

Temp.

range

MWV RCOV DWV

Resistance range & tolerance

T. C. R.

( ppm/°C)

Jumper criteria

(unit: A)

AC0201 1/20W -55°C to 155°C 25V

50V 50V

E24 ±1%,±5%

E24/E96 ±0.5%

Jumper

1Ω

≤

10MΩ

10Ω

≤

1MΩ

50mΩ

1Ω

≤

10Ω

≤

10MΩ

-100/+350ppm/°C

±200ppm/°C

Rated Current

Max. Current

0.5A

1.0A

AC0402

1/16W -55°C to 155°C 50V 100V 100V

E24 ±5%

E24/E96 ±0.5%,±1%

Jumper

1Ω

≤

22MΩ

1Ω

≤

10MΩ

< 50mΩ

1Ω

≤

10Ω

≤

10MΩ

10MΩ < R ≤ 22MΩ

±200ppm°C

±100ppm°C

±200ppm°C

Rated Current

Max. Current

1/8W -55°C to 155°C 50V 100V 100V

E24 ±5%

E24/E96 ±1%, 0.5%

1Ω

≤

10MΩ

1Ω

≤

10MΩ

1Ω

≤

10Ω

≤

10MΩ

±200ppm°C

±100ppm°C

-- --

AC0603

1/10W -55°C to 155°C 75V 150V 150V

E24 ±5%

E24/E96 ±0.5%,±1%

Jumper

1Ω

≤

22MΩ

1Ω

≤

10MΩ

< 50mΩ

1Ω

≤

10Ω

≤

10MΩ

10MΩ < R ≤ 22MΩ

±200ppm°C

±100ppm°C

±200ppm°C

Rated Current

Max. Current

1/5W -55°C to 155°C 75V 150V 150V

E24 ±5%

E24/E96 ±1%, 0.5%

1Ω

≤

10MΩ

1Ω

≤

10MΩ

1Ω

≤

10Ω

≤

10MΩ

±200ppm°C

±100ppm°C

-- --

AC0805

1/8W -55°C to 155°C 150V 300V 300V

E24 ±5%

E24/E96 ±0.5%,±1%

Jumper

1Ω

≤

22MΩ

1Ω

≤

10MΩ

< 50mΩ

1Ω

≤

10Ω

≤

10MΩ

10MΩ < R ≤ 22MΩ

±200ppm°C

±100ppm°C

±200ppm°C

Rated Current

Max. Current

1/4W -55°C to 155°C 150V 300V 300V

E24 ±5%

E24/E96 ±1%, 0.5%

1Ω

≤

10MΩ

1Ω

≤

10MΩ

1Ω

≤

10Ω

≤

10MΩ

±200ppm°C

±100ppm°C

-- --

AC1206

1/4W -55°C to 155°C 200V 400V 500V

E24 ±5%

E24/E96 ±0.5%,±1%

Jumper

1Ω

≤

22MΩ

1Ω

≤

10MΩ

< 50mΩ

1Ω

≤

10Ω

≤

10MΩ

10MΩ < R ≤ 22MΩ

±200ppm°C

±100ppm°C

±200ppm°C

Rated Current

Max. Current

10A

1/2W -55°C to 155°C 200V 400V 500V

E24 ±5%

E24/E96 ±1%, 0.5%

1Ω

≤

10MΩ

1Ω

≤

10MΩ

1Ω

≤

10Ω

≤ 10MΩ

±200ppm°C

±100ppm°C

-- --

AC1210

1/2W -55°C to 155°C 200V 500V 500V

E24 ±5%

E24/E96 ±0.5%,±1%

Jumper

1Ω

≤

22MΩ

1Ω

≤

10MΩ

50mΩ

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

10MΩ < R ≤ 22MΩ

±200ppm°C

±100ppm°C

±200ppm°C

Rated Current

Max. Current

10A

1W -55°C to 155°C 200V 500V 500V

E24 ±5%

E24/E96 ±1%, 0.5%

1Ω

≤

10MΩ

1Ω

≤

10MΩ

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

±200ppm°C

±100ppm°C

-- --

AC1218

1W -55°C to 155°C 200V 500V 500V

E24 ±5%

E24/E96 ±0.5%,±1%

Jumper

1Ω

≤

1MΩ

1Ω

≤

1MΩ

50mΩ

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 1MΩ

±200ppm°C

±100ppm°C

Rated Current

Max. Current

10A

1.5W -55°C to 155°C 200V 500V 500V

E24 ±5%

E24/E96 ±1%, 0.5%

1Ω

≤

1MΩ

1Ω

≤

1MΩ

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 1MΩ

±200ppm°C

±100ppm°C

-- --

AC2010

3/4W -55°C to 155°C 200V 500V 500V

E24 ±5%

E24/E96 ±0.5%,±1%

Jumper

1Ω

≤

22MΩ

1Ω

≤

10MΩ

50mΩ

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

10MΩ < R ≤ 22MΩ

±200ppm°C

±100ppm°C

±200ppm°C

Rated Current

Max. Current

10A

1.5W -55°C to 155°C 200V 500V 500V

E24 ±5%

E24/E96 ±1%, 0.5%

1Ω

≤

10MΩ

1Ω

≤

10MΩ

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

±200ppm°C

±100ppm°C

-- --

AC2512

1W -55°C to 155°C 200V 500V 500V

E24 ±5%

E24/E96 ±0.5%,±1%

Jumper

1Ω

≤

22MΩ

1Ω

≤

10MΩ

50mΩ

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

10MΩ < R ≤ 22MΩ

±200ppm°C

±100ppm°C

±200ppm°C

Rated Current

Max. Current

10A

2W -55°C to 155°C 200V 500V 500V

E24 ±5%

E24/E96 ±1%, 0.5%

1Ω

≤

10MΩ

1Ω

≤

10MΩ

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

±200ppm°C

±100ppm°C

-- --

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

AC - Automotive grade chip resistors, 0201 to 2512

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

AEC-Q200-REV C-Test 8

MIL-STD-202 Method 108

1000 hours at 125°C applied RCWV

1.5 hours on, 0.5 hours off

± (1%+50mΩ ) for D/F tol

± (3%+50mΩ ) for J tol

<100 mΩ for Jumper

High temperature exposure AEC-Q200 Test 3

MIL-STD-202 Method 108

1000 hours at TA = 155 °C, unpowered

± (1%+50mΩ ) for D/F tol

± (2%+50mΩ ) for J tol

<50 mΩ for Jumper

Moisture resistance

AEC-Q200 Test 6

MIL-STD-202 Method 106

Each temperature / humidity cycle is defined

as 8 hours (method 106F), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H.

± (0.5%+50mΩ ) for D/F tol

± (2%+50mΩ ) for J tol

<100 mΩ for Jumper

Biased humidity

AEC-Q200 Test 7

MIL-STD-202 Method 103

1000 hours; + 85°C 85% R.H.;

10% of operating power

Measured at 24 ±2 hours after test

± (1%+50mΩ ) for D/F tol

± (3%+50mΩ ) for J tol

<100 mΩ for Jumper

Thermal shock

AEC-Q200 Test 16

MIL-STD-202 Method 107

-55/+125 °C

Number of cycles is 300. Devices mounted

Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

± (0.5%+50mΩ ) for D/F tol

± (1%+50mΩ ) for J tol

<50 mΩ for Jumper

Solderability

Wetting

AEC-Q200 Test 18

J-STD-002B testB

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned

(≥95% covered)

No visible damage

Resistance to

soldering heat

AEC-Q200 Test 15

MIL-STD-202 Method 215

Lead-free solder, 260°C, 10 seconds immersion time

± (0.5%+50mΩ ) for D/F tol

± (1%+50mΩ ) for J tol

<50 mΩ for Jumper

No visible damage

Short time overload

IEC60115-1 4.13

2.5 times RCWV or maximum overload voltage

whichever is less for 5 seconds at room temperature

± (1%+50mΩ ) for D/F tol

± (2%+50mΩ ) for J tol

<50 mΩ for Jumper

Global part number - Preferred type

Ordering example: AC0603JR-07100KL

A C 0 6 0 3 J R

―

0 7 1 0 0 K

Series name (code 1-2)

Default code

(1/2)

(code 17)

AC = Automotive grade

Resistance (code 12-16)

Size code (code 3-6)

0R = Jumper

(inch / metric)

10R = 10Ω

0201 = 0.6 x 0.3

100R = 100Ω

0402 = 1.0 x 0.5

100K = 100KΩ

0603 = 1.6 x 0.8
0612 = 1.6 x 3.2

Taping reel (code 10-11)

0805 = 2.0 x 1.25

= 7 inch Dia. reel

1020 = 2.5 x 5.0

= 13 inch Dia. reel

1206 = 3.2 x 1.6

7W = 7 inch Dia. reel

1210 = 3.2 x 2.6

2 x standard power type

1218 = 3.2 x 4.5
1225 = 3.2 x 6.4

T. C. R. (code 9)

2010 = 5.0 x 2.5

“―” = Based on spec.

2512 = 6.35 x 3.2

(― for thick film only)

Tolerance (code 7)

Packing style (code 8 )

D = ±0.5%

R = Paper tape reel

F = ±1%

K = Embossed plastic tape reel

J = ±5% (for jumper ordering)

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

3. AC series products are available by "Global part number" only

Yageo-ProductSelectionGuide-html.html

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

100

-55

-40

-20

100

120

140 160

Ambient Temperature ( C)

Rated Power (%)

155

Dimensions

unit: mm

Type

AC0612 1.60 ±0.20

3.20 ±0.20

0.55 ±0.10

0.18 ±0.15

0.40 ±0.15

AC1020 2.50 ±0.20

5.00 ±0.20

0.55 ±0.10

0.25 ±0.20

0.90 ±0.20

AC1225 3.20 ±0.20

6.40 ±0.20

0.55 ±0.10

0.45 ±0.20

0.75 ±0.20

Chip Resistors Selection Charts

AC - Automotive grade chip resistors, wide termination , 0612 to 1225

Features

•

AEC-Q200 qualified

•  Production part approval process (PPAP) support
•  High reliability
•  High quality level

marking layer

overcoat

protective glass
resistive layer

(Jumper chip is a conductor)
inner electrode

inner electrode

termination (Ni / matte tin)

ceramic substrate

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

AC - Automotive grade chip resistors, wide termination , 0612 to 1225

Electrical characteristics

Type Power

Operating

Temp.

range

MWV RCOV DWV

Resistance range & tolerance

T. C. R.

( ppm/°C)

Jumper criteria

(unit: A)

AC0612 3/4W -55°C to 155°C 200V 400V 500V

E24 ±5%

E24/E96 ±0.5%,±1%

Jumper

1Ω≤R≤1MΩ

50mΩ

1Ω≤R≤10Ω

10Ω<R≤1MΩ

±200 ppm/°C

±100 ppm/°C

Rated Current

Max. Current

10A

AC1020 1W -55°C to 155°C 200V 400V 500V

AC1225 2W -55°C to 155°C 200V 400V 500V

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

AC - Automotive grade chip resistors, wide termination , 0612 to 1225

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

AEC-Q200-REV C-Test 8

MIL-STD-202 Method 108

1000 hours at 125°C applied RCWV

1.5 hours on, 0.5 hours off

± (1%+50mΩ ) for D/F tol

± (3%+50mΩ ) for J tol

<100 mΩ for Jumper

High temperature exposure AEC-Q200 Test 3

MIL-STD-202 Method 108

1000 hours at maximum operating temperature

depending on specification

± (1%+50mΩ ) for D/F tol

± (2%+50mΩ ) for J tol

<50 mΩ for Jumper

Moisture resistance

AEC-Q200 Test 6

MIL-STD-202 Method 106

Each temperature / humidity cycle is defined

as 8 hours (method 106F), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H.

± (0.5%+50mΩ ) for D/F tol

± (2%+50mΩ ) for J tol

<100 mΩ for Jumper

Biased humidity

AEC-Q200 Test 7

MIL-STD-202 Method 103

1000 hours; + 85°C 85% R.H.;

10% of operating power

Measured at 24 ±2 hours after test

± (1%+50mΩ ) for D/F tol

± (3%+50mΩ ) for J tol

<100 mΩ for Jumper

Thermal shock

AEC-Q200 Test 16

MIL-STD-202 Method 107

-55/+125 °C

Number of cycles is 300. Devices mounted

Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

± (0.5%+50mΩ ) for D/F tol

± (1%+50mΩ ) for J tol

<50 mΩ for Jumper

Solderability

Wetting

AEC-Q200 Test 18

J-STD-002B testB

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned

(≥95% covered)

No visible damage

Resistance to

soldering heat

AEC-Q200 Test 15

MIL-STD-202 Method 215

Lead-free solder, 260°C, 10 seconds immersion time

± (0.5%+50mΩ ) for D/F tol

± (1%+50mΩ ) for J tol

<50 mΩ for Jumper

No visible damage

Short time overload

IEC60115-1 4.13

2.5 times RCWV or maximum overload voltage

whichever is less for 5 seconds at room temperature

± (1%+50mΩ ) for D/F tol

± (2%+50mΩ ) for J tol

<50 mΩ for Jumper

Global part number - Preferred type

Ordering example: AC0612FR-07100KL

A C 0 6 1 2 J R

―

0 7 1 0 0 K

Series name (code 1-2)

Default code

(1/2)

(code 17)

AC = Automotive grade wide termination

Resistance (code 12-16)

Size code (code 3-6)

0R = Jumper

(inch / metric)

10R = 10Ω

0612 = 1.6 x 3.2

100R = 100Ω

1020 = 2.5 x 5.0

100K = 100KΩ

1225 = 3.2 x 6.4

Taping reel (code 10-11)

Tolerance (code 7)

07 = 7 inch Dia. reel

D = ±0.5%

13 = 13 inch Dia. reel

F = ±1%

J = ±5% (for jumper ordering)

T. C. R. (code 9)

Packing style (code 8 )

“―” = Based on spec.

R = Paper tape reel

(― for thick film only)

K = Embossed plastic tape reel

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

3. AC wide series products are available by "Global part number" only

Yageo-ProductSelectionGuide-html.html

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

100

-55

-40

-20

100

120

140 160

Ambient Temperature ( C)

Rated Power (%)

155

Dimensions

AA0201/ 0402

AA0603/0805/1206

1210/2010/2512

AA1218

Side view for all type

unit: mm

Type

AA0201

0.60 ±0.03

0.30 ±0.03

0.23 ±0.03

0.12 ±0.05

0.15 ±0.05

AA0402

1.00 ±0.05

0.50 ±0.05

0.32 ±0.05

0.20 ±0.10

0.25 ±0.10

AA0603

1.60 ±0.10

0.80 ±0.10

0.45 ±0.10

0.25 ±0.15

AA0805

2.00 ±0.10

1.25 ±0.10

0.50 ±0.10

0.35 ±0.20

AA1206

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

AA1210

3.10 ±0.10

2.60 ±0.15

0.50 ±0.10

0.45 ±0.15

0.50 ±0.20

AA1218

3.10 ±0.10

4.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

AA2010

5.00 ±0.10

2.50 ±0.15

0.55 ±0.10

0.55 ±0.15

0.50 ±0.20

AA2512

6.35 ±0.10

3.10 ±0.15

0.55 ±0.10

0.60 ±0.20

0.50 ±0.20

Chip Resistors Selection Charts

AA - Automotive grade sulfur-resistant chip resistors,0201 to 2512

Features

•

AEC-Q200 qualified

•  Production part approval process (PPAP) support
•  High reliability
•  High quality level

RYHUFRDW

SURWHFWLYHJODVV

UHVLVWLYHOD\HU

-XPSHUFKLSLVDFRQGXFWRU
LQQHUHOHFWURGH
WHUPLQDWLRQ1LPDWWHWLQ

FHUDPLFVXEVWUDWH

PDUNLQJOD\HU

LQQHUHOHFWURGH

<16&

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

AA - Automotive grade sulfur-resistant chip resistors,0201 to 2512

Electrical characteristics

Type Power

Operating

Temp.

range

MWV RCOV DWV Resistance range & tolerance

T. C. R.

( ppm/°C)

Jumper criteria

(unit: A)

AA0201 1/20W

-55°C to 155°C

25V

50V 50V

E24 ±5%

E24/E96 ±0.5%,±1%

Jumper

1Ω ≤ R ≤ 10MΩ

< 50mΩ

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

-100/+400ppm

°C

±300ppm

°C

Rated Current

Max. Current

0.5A

1.0A

AA0402 1/16W

50V 100V 100V

E24 ±5%

E24/E96 ±0.5%,±1%

Jumper

1Ω ≤ R ≤ 22MΩ

1Ω ≤ R ≤ 10MΩ

< 50mΩ

1Ω ≤ R ≤ 10Ω

10Ω < R ≤ 10MΩ

10MΩ < R ≤ 22MΩ

±200ppm

°C

+150ppm

°C

±200ppm

°C

Rated Current

Max. Current

AA0603 1/10W

75V 150V 150V

Rated Current

Max. Current

AA0805 1/8W

150V 300V 300V

Rated Current

Max. Current

AA1206 1/4W

200V 400V 500V

Rated Current

Max. Current

10A

AA1210 1/2W

200V 500V 500V

Rated Current

Max. Current

10A

AA1218 1W

200V 500V 500V

E24 ±5%

E24/E96 ±0.5%,±1%

Jumper

1Ω ≤ R ≤ 1MΩ

< 50mΩ

Rated Current

Max. Current

10A

AA2010 3/4W

200V 500V 500V

E24 ±5%

E24/E96 ±0.5%,±1%

Jumper

1Ω ≤ R ≤ 22MΩ

1Ω ≤ R ≤ 10MΩ

< 50mΩ

Rated Current

Max. Current

10A

AA2512 1W

200V 500V 500V

Rated Current

Max. Current

10A

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

AA - Automotive grade sulfur-resistant chip resistors,0201 to 2512

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

AEC-Q200 Test 8

MIL-STD-202 Method 108

1000 hours at 125°C applied RCWV

1.5 hours on, 0.5 hours off

±(1% +50mΩ)

< 100mΩ for jumper

High temperature exposure AEC-Q200 Test 3

MIL-STD-202 Method 108

1000 hours at maximum operating temperature

depending on specification

±(1% +50mΩ)

< 50mΩ for jumper

Moisture resistance

AEC-Q200 Test 6

MIL-STD-202 Method 106

Each temperature / humidity cycle is defined

as 8 hours (method 106F), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H.

±(0.5% +50mΩ) for 1% tol.

±(2% +50mΩ) for 5% tol.

< 100mΩ for jumper

Biased humidity

AEC-Q200 Test 7

MIL-STD-202 Method 103

1000 hours; + 85°C 85% R.H.;

10% of operating power

Measured at 24 ±2 hours after test

±(3% +50mΩ)

< 100mΩ for jumper

Thermal shock

AEC-Q200 Test 16

MIL-STD-202 Method 107

-55/+125 °C

Number of cycles is 300. Devices mounted

Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air – Air

±(1% +50mΩ)

< 50mΩ for jumper

Solderability

Wetting

AEC-Q200 Test 18

J-STD-002B testB

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned

(≥95% covered)

No visible damage

Resistance to

soldering heat

AEC-Q200 Test 15

MIL-STD-202 Method 210 Lead-free solder, 260°C, 10 seconds immersion time

±(0.5%+50mΩ) for 1% tol.

±(1%+50mΩ) for 5% tol.

<50 mΩ for Jumper

No visible damage

Short time overload

IEC60115-1 4.13

2.5 times RCWV or maximum overload voltage

whichever is less for 5 seconds at room temperature

±(1%+50mΩ)

<50 mΩ for Jumper

FOS

ASTM-B-809-5

Sulfur (saturated vapor) 1000 hours, 90±2°C,

Rating with no power

±(1%+50mΩ )

ASTM-B-809-5*

* Modified

Sulfur 750 hours, 105°C, Rating with no power

±(4%+50mΩ )

Global part number - Preferred type

Ordering example: AA0603JR-07100KL

A A 0 6 0 3 J R

―

0 7 1 0 0 K

Series name (code 1-2)

Default code

(1/2)

(code 17)

AA = Automotive grade

Resistance (code 12-16)

Size code (code 3-6)

0R = Jumper

(inch / metric)

10R = 10Ω

0201 = 0.6 x 0.3

100R = 100Ω

0402 = 1.0 x 0.5

100K = 100KΩ

0603 = 1.6 x 0.8
0805 = 2.0 x 1.25

Taping reel (code 10-11)

1206 = 3.2 x 1.6

07 = 7 inch Dia. reel

1210 = 3.2 x 2.6

13 = 13 inch Dia. reel

1218 = 3.2 x 4.5
2010 = 5.0 x 2.5
2512 = 6.35 x 3.2

T. C. R. (code 9)

“―” = Based on spec.

Tolerance (code 7)

(― for thick film only)

D = ±0.5%
F = ±1%

Packing style (code 8 )

J = ±5% (for jumper ordering)

R = Paper tape reel
K = Embossed plastic tape reel

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

3. AA series products are available by "Global part number" only

Yageo-ProductSelectionGuide-html.html

Features

•  Reduce system size
•  Low assembly cost
•  Higher component and system reliability
•  Suitable for applications of mobile phones, receivers,

battery chargers, palmtop computers and tablets

Derating curve

Construction

Schematics

Maximum dissipation (P) in percent-

age of rated power as a function of the
operating ambient temperature (T

amb

100

-55

-40

-20

100

120

140

160

Ambient Temperature ( C)

Rated Power (%)

125

input signal

attenuated

output signal

The rectangular marker designates input pin 1

ATV 321

Dimensions

unit: mm

Type

ATV321

1.00 ±0.10

0.35 ±0.05

0.33 ±0.10

0.15 ±0.10

0.65 ±0.10

0.25 ±0.10

Chip Resistors Selection Charts

ATV - RF attenuator chip resistors, 0404

Yageo-ProductSelectionGuide-html.html

Electrical characteristics

Type

Power

Operating Temp.

range

MPV

VSWR

(Max.)

Impedance Attenuation range & tolerance

Frequency range

ATV321 40mW

-55°C to +125°C

50V

1.3

50Ω

-1dB to -5dB ±0.3 dB

-1dB to -10dB DC to 2.5 GHz

-6dB to -10dB ±0.5 dB

-15dB ±1.0 dB

-15dB to -20dB DC to 2.0 GHz

-20dB ±2.0 dB

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life

MIL-STD-202

-method 108A

1000 hours at 70 ±5°C applied RCWV

1.5 hours on, 0.5 hours off, still air required

Max.: ±0.3 dB

Humidity

(steady state)

JIS C 5202 7.5

1000 hours, 40 ±2°C, 93(+2/-3)% RH

RCWV applied for 1.5 hours on and 0.5 hour off

Max.: ±0.3 dB

Moisture resistance

MIL-STD-202

-method 106F

Each temperature / humidity cycle is defined

as 8 hours (method 106F), 3 cycles / 24 hours

for 10d with 25°C / 65°C 95% R.H

Max.: ±0.3 dB

Thermal shock

MIL-STD-202

-method 107G

LCT / UCT, number of cycles required is 300

Maximum transfer time is 20 seconds

Max.: ±0.3 dB

Solderability

Wetting

J-STD-002B

testB

Electrical test not required. Magnification 50X

Lead-free solder bath at 245 ±3°C

Dipping time: 3 ±0.5 seconds

Well tinned

(≥95% covered)

Resistance to

soldering heat

MIL-STD-202

-method 210F

Lead-free solder, 260°C, 10 seconds immersion time

Max.: ±0.1 dB

Short time overload

MIL-R-55342D

-para 4.7.5

2.5 times RCWV or maximum overload voltage whichever is

less for 5 seconds at room temperature

Max.: ±0.3 dB

Chip Resistors Selection Charts

ATV - RF attenuator chip resistors, 0404

Yageo-ProductSelectionGuide-html.html

Global part number - Preferred type for ordering Yageo / Phycomp branded products

Ordering example: ATV321CR-071DBL

ATV

3 2 1

C R

―

0 7 1 D B

Series name (code 1-2)

Default code

(1/2)

(code 16)

ATV = RF attenuator thick film

Attenuation (code 12-15)

Size code (code 3-6)

0dB

(inch / metric)

-1dB

321 = 0404 = 1.0 x 1.0

-2dB
-10dB

Tolerance (code 7)

-15dB

C = ±0.3dB

-20dB

D = ±0.5dB
F = ±1dB

Taping reel (code 10-11)

G = ± 2dB

07 = 7 inch Dia. reel

Packing style (code 8 )

T. C. R. (code 9)

R = Paper/PE tape reel

“―” = Based on spec.
(― for thick film only)

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

Phycomp worldwide - Traditional type

Packing

paper tape

Quantity

10 000

2350 703 11…L

Remark

For last three digits, see following table "Attenuation codes"

Note:

L = Default code

Phycomp CTC ordering code - Traditional type - North America

Packing

paper tape

Quantity 10 000

9CV3218AXXXXX-PF3

Remark

For last 9th to 13th digits, see following table "Attenuation codes"

Attenuation codes

Standard

Value

(dB)

Tolerance

(dB)

Phycomp worldwide code

(12NC)

Phycomp North America code

(NA code)

±0.3

012

01DBC

±0.3

022

02DBC

±0.3

032

03DBC

±0.3

042

04DBC

±0.3

052

05DBC

±0.5

063

06DBD

±0.5

073

07DBD

±0.5

083

08DBD

±0.5

093

09DBD

±0.5

103

10DBD

±1.0

154

15DBF

±2.0

205

20DBG

Chip Resistors Selection Charts

ATV - RF attenuator chip resistors, 0404

Yageo-ProductSelectionGuide-html.html

Derating curve

Construction

Maximum dissipation (P) in percentage of

rated power as a function of the operating
ambient temperature (T

amb

-55

100

155

T (°C)

amb

(%P )

rated

marking layer
protective coat
protective coat
resistive layer

inner electrode

termination (Ni / matte tin)

ceramic substrate

Dimensions

unit: mm

Type

AT0402

1.00 ±0.10

0.50 ±0.05

0.30 ±0.05

0.20 ±0.10

0.25 ±0.10

AT0603

1.60 ±0.10

0.80 ±0.10

0.45 ±0.10

0.25 ±0.15

AT0805

2.00 ±0.10

1.25 ±0.10

0.50 ±0.10

0.35 ±0.20

AT1206

3.10 ±0.10

1.60 ±0.10

0.55 ±0.10

0.45 ±0.20

0.40 ±0.20

Features

•  High precision - High stability
•  Low T. C. R. / low noise
•  High accuracy (±0.1%, ±0.25%, ±0.5%, ±1%)
•  Superior resistance against sulfur containing atmosphere
•

AEC-Q200 qualified

Chip Resistors Selection Charts

AT - Automotive grade thin film high precision high stability chip resistors, 0402 to 1206

Yageo-ProductSelectionGuide-html.html

Chip Resistors Selection Charts

AT - Automotive grade thin film high precision high stability chip resistors, 0402 to 1206

Electrical characteristics

Type

Power rating

Operating Temp.

range

MWV RCOV DWV

Resistance Range (E24/E96)

& tolerance

T. C. R. (ppm/°C)

±0.1%

±0.25%

±0.5%

±1.0%

AT0402

1/16W

–55 °C to +155 °C

50V

100V

10Ω~100KΩ

±25

±50

AT0603

1/10W

75V

150V

100V

10Ω~330KΩ

AT0805

1/8W

150V

300V

10Ω~1MΩ

AT1206

1/4W

200V

400V

500V

Environmental characteristics

Performance test

Test method

Procedure

Requirements

Life/ Endurance

AEC-Q200 Test 8

MIL-STD-202

Method 108

1000 hours at 70± 5 °C, RCWV applied for 1.5

hours on, 0.5 hour off, still air required

± (0.1%+50mΩ )

1000 hours at 125 °C, derated voltage applied

for 1.5 hours on, 0.5 hour off, still air required

± (0.3%+50mΩ )

High

Temperature

Exposure temperature

AEC-Q200 Test 3

MIL-STD-202

Method 108

1000 hours at Tamb = 125 °C, unpowered

± (0.1%+50mΩ )

1000 hours at Tamb = 155 °C, unpowered

± (0.3%+50mΩ )

Moisture Resistance

AEC-Q200 Test 6

MIL-STD-202

Method 106

Each temperature / humidity cycle is defined at

8 hours (method 106F), 3 cycles / 24 hours for 10d.

with 25 °C / 65 °C 95% R.H,

without steps 7a & 7b, unpowered

Parts mounted on test-boards, without condensation on parts

± (0.1%+50mΩ )

Thermal Shock

AEC-Q200 Test 16

MIL-STD-202

Method 107

-55/+125 °C

Number of cycles is 300.

Devicesmounted Maximum transfer time is 20 seconds.

Dwell time is 15 minutes. Air –Air

± (0.1%+50mΩ )

No visible damage

Short time overload

IEC60115-1 4.13

2.5 times of rated voltage or maximum

overload voltage, the less of the above,

for 5 sec at room temperature

± (0.05%+50mΩ )

Solderability

Wetting

AEC-Q200 Test 18

J-STD-002

Electrical Test not required Magnification

50X SMD conditions:

(a) Method B, aging 4 hours at 155 °C dry heat,

dipping at 235± 3 °C for 5± 0.5 seconds.

(b) Method B, steam aging 8 hours, dipping at

215± 3 °C for 5± 0.5 seconds.

260± 3 °C for 7± 0.5 seconds

Well tinned

(>95% covered)

No visible damage

Resistance to

soldering heat

AEC-Q200 Test 15

MIL-STD-202

Method 210

Condition B, no pre-heat of samples

Lead-free solder, 260± 5 °C,

10± 1 seconds immersion time

Procedure 2 for SMD:

devices fluxed and cleaned with isopropanol

± (0.05%+50mΩ)

FOS

ASTM-B-809-5

Sulfur (saturated vapor) 1000 hours, 90±2°C,

Rating with no power

± (1%+50mΩ )

ASTM-B-809-5*

* Modified

Sulfur 750 hours, 105°C, Rating with no power

± (4%+50mΩ )

Yageo-ProductSelectionGuide-html.html

Global part number - Preferred type for ordering Yageo / Phycomp branded products

Ordering example: AT0603DRE07100KL

A T 0 6 0 3 D R E 0 7 1 0 0 K

Series name (code 1-2)

Default code

(1/2)

(code 17)

AT = Automotive grade thin film

high precision high stability

Resistance (code 12-16)

10R = 10Ω

Size code (code 3-6)

100R = 100Ω

(inch / metric)

10K = 10KΩ

0402 = 1.0 x 0.5

100K = 100KΩ

0603 = 1.6 x 0.8

0805 = 2.0 x 1.25
1206 = 3.2 x 1.6

Taping reel (code 10-11)

07 = 7 inch Dia. reel

Tolerance (code 7)

B = ±0.1%
C = ±0.25%

T. C. R. (code 9)

D = ±0.5%

D = ±25 ppm/°C

F = ±1%

E = ±50 ppm/°C

Packing style (code 8 )

R = Paper tape reel

Note:

1. All of our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead Free Process"

2. Letter L is system default code for ordering only

Chip Resistors Selection Charts

AT - Automotive grade thin film high precision high stability chip resistors, 0402 to 1206

Yageo-ProductSelectionGuide-html.html

Thick film chip resistors

Yageo Part Number

Resistor

pieces

Resistor

values

Description

Size

Tolerance Max.

power

Resistance

range

RC0100-R-SKE24L

100

RC0100, ±1% & ±5% , E24 & E96,

RoHS compliant, + Jumper

0100

F/J

1/32W 0R, 1R-3M32

RC0201-R-SKE24L

100

120

RC0201, ±1% & ±5% , E24 & E96,

RoHS compliant, + Jumper

0201

F/J

1/20W 0R, 1R-10M

RC0201FR-SKE96L

100

200

RC0201, ±1%, E96, RoHS compliant

0201

1/20W

1R-10M

RC0402JR-SKE24L

100

120

RC0402, ±5%, E24, RoHS compliant, + Jumper

0402

1/16W 0R, 1R-22M

RC0402FR-SKE96L

100

200

RC0402, ±1%, E96, RoHS compliant

0402

1/16W

1R-10M

RC0603JR-SKE24L

120

RC0603, ±5%, E24, RoHS compliant, + Jumper

0603

1/10W 0R, 1R-22M

RC0603FR-SKE96L

200

RC0603, ±1%, E96, RoHS compliant

0603

1/10W

1R-10M

RC0805JR-SKE24L

120

RC0805, ±5%, E24, RoHS compliant, + Jumper

0805

1/8W 0R, 1R-22M

RC0805FR-SKE96L

200

RC0805, ±1%, E96, RoHS compliant

0805

1/8W

1R-10M

RC1206JR-SKE24L

120

RC1206, ±5%, E24, RoHS compliant, + Jumper

1206

1/4W 0R, 1R-22M

RC1206FR-SKE96L

200

RC1206, ±1%, E96, RoHS compliant

1206

1/4W

1R-10M

RC0000-R-SK001L

50 - 100

570

RC0201-RC1206, ±1% & ±5%,

RoHS compliant, + Jumper

0201 - 1206

F/J

---

0R, 10R-1M

Thick film array chip resistors (convex)

Yageo Part Number

Resistor

pieces

Resistor

values

Description

Size

Tolerance Max.

power

Resistance

range

YC12X-JR-SK001L

100

YC124/122, ±5%, RoHS compliant, + Jumper

0402x2

0402x4

1/16W 0R, 1R-1M

Engineering design kit for current sensing application

Yageo Part Number

Resistor

pieces

Resistor

values

Description

Size

Tolerance Max.

power

Resistance

range

CS0201-R-SB001L

PA/PE/RL/PT, ±5%, ±1%,

E24 & E96, RoHS compliant

0201~2512

F/J

---

1m-820m

CS0402-R-SK001L

160

RL0402-RL2512, ±1% & ±5%, RoHS compliant

0402 - 2512

F/J

---

100m - 910m

Engineering design kit for general purpose

Yageo Part Number

Resistor

pieces

Resistor

values

Description

Size

Tolerance Max.

power

Resistance

range

RC0402-R-SK001L

50 - 100

472

Chip resistor / MLCC

0402 - 1206

---

Engineering design book for thin film chip resistor

Yageo Part Number

Resistor

pieces

Resistor

values

Description

Size

Tolerance Max.

power

Resistance

range

RT0402-R-SB001L

RT0402-RT1206, ±0.1%, RoHS compliant

0402 - 1206

---

10R-1M

RT0201-R-SB001L

RT0201-RT0402, ±0.1%, RoHS compliant

0201 - 0402

---

10R-120K

AT0402-R-SB001L

AT0402~AT1206, ±0.1~ ±1%,

E24 & E96, RoHS compliant

0402~1206

B/D/F

1/4W

10R~1M

Engineering design book for automotive application

Yageo Part Number

Resistor

pieces

Resistor

values

Description

Size

Tolerance Max.

power

Resistance

range

AC0402-R-SB001L

AC0402-AC1206, ±1%, RoHS compliant

0402 - 1206

---

10R-1M

AA0201-R-SB001L

Automotive Grade: AC/AA/AT/PE/PA/RL/PT,

±0.1~ ±5%, E24 & E96, RoHS compliant, +Jumper 0201~2512 B/D/F/J

---

Engineering design book for Thick film chip resistors

Yageo Part Number

Resistor

pieces

Resistor

values

Description

Size

Tolerance Max.

power

Resistance

range

RC0805-R-SBE24L

RC0805, ±1% & ±5% , RoHS compliant, High power

0805

1/4W

1R-1M

RC1206-R-SBE24L

RC1206, ±1% & ±5% , RoHS compliant, High power

1206

1/2W

1R-1M

RC0201-R-SB001P

Total Lead Free: RC0201~1206, ±1%, + Jumper

0201~1206

---

0R, 1R-10M

Chip Resistors Engineering Design Kits

Engineering design kits/ Engineering design books

Yageo-ProductSelectionGuide-html.html

SMD CERAMIC MULTILAYER CAPACITORS

Yageo-ProductSelectionGuide-html.html

Specification overview

Description

code Series

Capacitance range Voltage range

Size

Discrete

NPO

General purpose

0.47 pF to 22 nF

10V to 50 V

01005, 0201, 0402, 0603,
0805, 1206, 1210,1812

Medium and High voltage

10 pF to 22 nF

100 V to 3000 V 0402, 0603, 0805, 1206,

1210, 1808, 1812

High frequency

0.2 pF to 100 pF

16V to 250 V

0201, 0402, 0603, 0805

X7R

General purpose & High capacitance 100 pF to 47 µF

6.3 V to 50 V

01005, 0201, 0402, 0603, 0805,
1206, 1210,1812, 2220

Medium and High voltage

100 pF to 2.2 µF

100 V to 3000 V 0603, 0805, 1206, 1210, 1812

Low inductance

10 nF to 220 nF

10 V to 50 V

0204, 0306, 0508, 0612

X5R General purpose & High capacitance 100 pF to 100 µF

6.3 V to 50 V

01005, 0201, 0402, 0603,
0805, 1206, 1210,1812

Y5V General purpose & High capacitance 10 nF to 47 µF

6.3 V to 50 V

0201, 0402, 0603, 0805, 1206, 1210

Automotive grade

products

NP0 Automotive grade

10 pF to 10 nF

50 V to 630 V

0402, 0603, 0805,1206, 1210

X7R Automotive grade

100 pF to 2.2 μF

16 V to 630 V

0402, 0603, 0805,1206, 1210

Safety certification

products

NP0 High voltage SC type

2.0 pF to 470 pF

X1/Y2, X2/Y3

1808, 1812

X7R High voltage SC type

150 pF to 1.5 nF

X1/Y2, X2/Y3

1808, 1812

Soft-termination

Series

NP0 Soft-termination series

0.47pF to 22nF

100V to 3KV

0402, 0603, 0805, 1206,

1210, 1808, 1812

X7R Soft-termination series

100pF to 2.2uF

16V to 3KV

0402, 0603, 0805, 1206,

1210, 1808, 1812

C-Arrays

NP0 4C arrays

10 pF to 470 pF

50 V

0508, 0612

X7R 4C arrays

180 pF to 100 nF

16 V to 50 V

0508, 0612

Y5V 4C arrays

10 nF to 100 nF

25 V

0612

X5R 4C arrays

100 nF to 2.2 uF

10 V

0508, 0612

MLCC General Information

Specification overview

Yageo-ProductSelectionGuide-html.html

Global part number

Ordering example: CC0201KRX7R8BB102

C C 0 2 0 1 K R X 7 R 8 B B 1 0 2

Series name (code 1-2)

Capacitance value (code 15-17)

CA = 4 x Capacitors array

102 = 1 000 pF

CC = Multilayer chip capacitors

(2 significant digits+number of zeros;

CL = Low inductance capacitors

the 3rd digit signifies the multiplying

CQ = High frequency capacitors

factor, and letter R is decimal point)

SC = Safety certification capacitors

0 = x 1

AC = Automotive grade capacitors

1 = x 10

CS = Soft termination capacitors

2 = x 10

3 = x 10

Size code (code 3-6)

4 = x 10

0100

5 = x 10

0201

6 = x 10

0402

7 = x 10

0603

X X R = Special capacitance

0805

(X X: capacitance before decimal point)

1206
1210

Process code (code 14)

1808

N = NP0

1812

B = Class 2 product

2220
0204
0306

Termination (code 13)

0508

B = Ni-Barrier

0612

Capacitance tolerance (code 7)

Rated voltage (code 12)

A = ±0.05 pF (CQ series only)

4 = 4 V

B = ±0.1 pF

5 = 6.3 V

C = ±0.25 pF

6 = 10 V

D = ±0.5 pF

7 = 16 V

±1%

8 = 25 V

G = ±2%

G = 35 V

J = ±5%

9 = 50 V

K = ±10%

0 = 100 V

M = ±20%

A = 200 V

-20% to +80%

Y = 250 V

Packing style (code 8)

B = 500 V

= Paper / PE tape reel Ø7 inch

Z = 630 V

= Paper / PE tape reel Ø13 inch

C = 1 kV

K = Embossed plastic tape reel Ø7 inch

D = 2 kV

F = Embossed plastic tape reel Ø13 inch

E = 3 kV

C = Bulk case

T = X2 / Y3 for TUV / UL
W = X1 / Y2 for TUV / UL

TC material (code 9-11)

U = X1 for UL (X7R, 1812)

NPO
X5R
X7R
Y5V
X6S

MLCC General Information

Ordering information - Global part number

Yageo-ProductSelectionGuide-html.html

Global part number

Ordering example: CCxxxxKRX5RxBBxxx (for Low profile)

C C 1 05 9 K R X 7 R 8 B B 1 0 2

Series name (code 1-2)

Capacitance value (code 15-17)

CC = Multilayer chip capacitors

102 = 1 000 pF

(2 significant digits+number of zeros;
the 3rd digit signifies the multiplying

Number of cap (code 3)

factor, and letter R is decimal point)

4 = 4 cap

0 = x 1

2 = 2 cap

1 = x 10

1 = Single

2 = x 10

3 = x 10

Size code (code 4-5)

4 = x 10

01 = 0201

5 = x 10

02 = 0402

6 = x 10

03 = 0603

7 = x 10

05 = 0805

X X R = Special capacitance

06 = 1206, 0306

(X X: capacitance before decimal point)

08 = 1808, 0508
10 = 1210

Process code (code 14)

12 = 1812, 0612

N = NP0
B = Class 2 product

Thickness (code 6)

3 = 0.3 mm

Termination (code 13)

4 = 0.45 mm

B = Ni-Barrier

5 = 0.5 mm
6 = 0.6 mm

Rated voltage (code 12)

8 = 0.8 mm

5 = 6.3 V

9 = 0.85 mm

6 = 10 V

A = 1.0 mm

7 = 16 V

B = 1.25 mm

8 = 25 V

C = 1.6 mm

9 = 50 V

D = 2.0 mm

0 = 100 V

E = 2.5 mm

A = 200 V

F = 1.7 mm

B = 500 V

M = 1.15 mm

C = 1 kV

N = 1.35 mm

D = 2 kV

Q = 1.5 mm

E = 3 kV

R = 1.8 mm

G = 35 V
Y = 250 V

Capacitance tolerance (code 7)

Z = 630 V

B  =  ±0.1  pF
C  =  ±0.25  pF
D  =  ±0.5  pF

TC material (code 9-11)

F = ±1%

X5R

G = ±2%

X7R

J = ±5%
K = ±10%
M = ±20%
Z = -20% to +80%

Packing style (code 8)

R = Paper / PE tape reel Ø7 inch
P = Paper / PE tape reel Ø13 inch
K = Embossed plastic tape reel Ø7 inch
F = Embossed plastic tape reel Ø13 inch
C = Bulk case

MLCC Selection Charts

Ordering information - Global part number

Yageo-ProductSelectionGuide-html.html

Thickness classes and packing quantities

Description

Size

code

Thickness

classification

(mm)

Quantity per reel

Quantity

per

bulk case

Tape width

180 mm / 7”

330 mm / 13”

Paper

Blister

Paper

Blister

Discrete capacitors

01005

0.2 ±0.02

8 mm

20000

---

0201

0.3 ±0.03 / ±0.05

15000

---

50000

---

0402

0.5 ±0.05 / ±0.15 / ±0.20

10000

---

50000

---

50000

0603

0.8 ±0.1 / ±0.2

4000

---

15000

---

15000

0805

0.6 ±0.1

4000

---

20000

---

10000

0.85 / 1.0 ±0.1

4000

---

15000

---

8000

1.25 ±0.2

---

3000

---

10000

5000

1206

0.6 ±0.1

4000

---

20000

---

0.85 ±0.1

4000

---

15000

---

1.00 / 1.15 ±0.1

---

3000

---

10000

---

1.25 ±0.2

---

3000

---

10000

---

1.6 ±0.15

---

2500

---

8000

---

1.6 ±0.2 / ±0.3

---

2000

---

8000

---

1210

0.6 / 0.7 ±0.1

---

4000

---

15000

---

0.85 ±0.1

---

4000

---

10000

---

1.0 ±0.15

---

3000

---

10000

---

1.15 ±0.1

---

3000

---

10000

---

1.15 ±0.15

---

3000

---

10000

---

1.25 ±0.2

---

3000

---

10000

---

1.5 ±0.1

---

2000

---

8000

---

1.6 / 1.9 ±0.2

---

2000

---

5000

---

2.0 ±0.2

---

2000 / 1000

---

2.5 ±0.2 / ±0.3

---

1000 / 500

---

1808

1.15 ±0.15

12 mm

---

3000

---

1.25 ±0.2

---

3000

---

1.35 ±0.15

---

2000

---

1.5 ±0.1

---

2000

---

1.6 ±0.2

---

2000

---

8000

---

2.0 ±0.2

---

2000

---

1812

0.6 / 0.85 ±0.1

---

2000

---

1.15 ±0.1

---

1000

---

1.15 ±0.15

---

1000

---

1.25 ±0.2

---

1000

---

8000

---

1.35 ±0.15

---

1000

---

1.5 ±0.1

---

1000

---

1.6 ±0.2

---

1000

---

2.0 ±0.2

---

1000

---

2220

0.85 ±0.1

---

1500

---

1.15 ±0.1

---

1500

---

Low inductance

0204

0.3 ±0.1

8 mm

10000

---

0306

0.5 ±0.1

4000

---

15000

---

0508

0.85 ±0.1

4000

---

15000

---

0612

0.85 ±0.1

4000

---

15000

---

Arrays

0508

0.6 ±0.1

4000

---

20000

---

0612

0.8 ±0.1

4000

---

15000

---

MLCC General Information

Thickness classes and packing quantities for all series

Yageo-ProductSelectionGuide-html.html

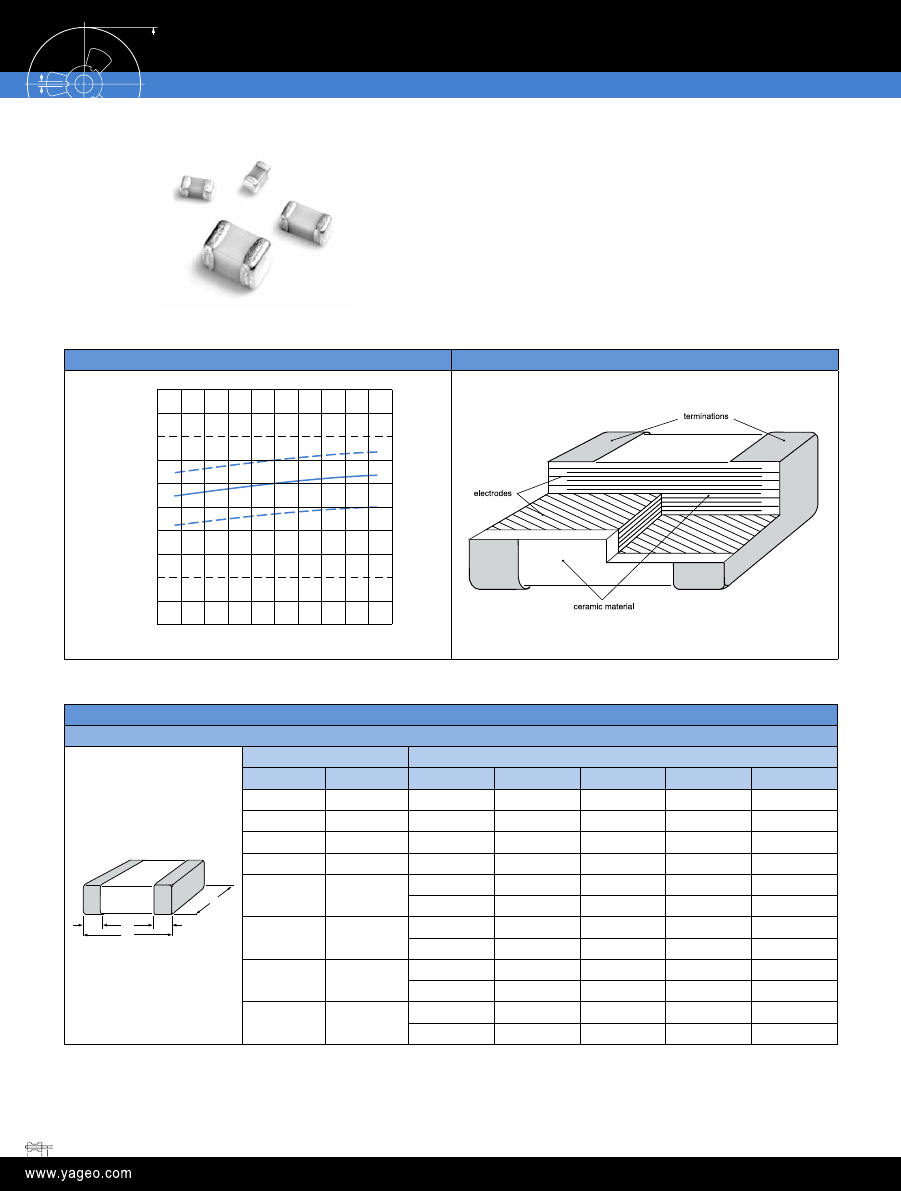

MLCC Selection Charts

NPO - General purpose 16 to 50V, 01005 to 1812

Temperature characteristic

Construction

Case dimensions

Discrete capacitors - General purpose

Case size designation

Dimensions in mm

Inch-based

Metric

/ L

3 min

/ L

3 max

4 min

01005

0402M

0.4 ±0.02

0.2 ±0.02

0.07

0.14

0201

0603M

0.6 ±0.03

0.3 ±0.03

0.10

0.20

0402

1005M

1.0 ±0.05

0.5 ±0.05

0.15

0.30

0.40

0603

1608M

1.6 ±0.10

0.8 ±0.10

0.20

0.60

0.40

0805

2012M

2.0 ±0.10

(1)

1.25 ±0.10

(1)

0.25

0.75

0.55

2.0 ±0.20

(2)

1.25 ±0.20

(2)

0.25

0.75

0.55

1206

3216M

3.2 ±0.15

(1)

1.6 ±0.15

(1)

0.25

0.75

1.40

3.2 ±0.30

(2)

1.6 ±0.20

(2)

0.25

0.75

1.40

1210

3225M

3.2 ±0.20

(1)

2.5 ±0.20

(1)

0.25

0.75

1.40

3.2 ±0.40

(2)

2.5 ±0.30

(2)

0.25

0.75

1.40

1812

4532M

4.5 ±0.20

(1)

3.2 ±0.20

(1)

0.25

0.75

2.20

4.5 ±0.40

(2)

3.2 ±0.40

(2)

0.25

0.75

2.20

Note:

1. Dimension for size 0805 to 1812, C ≤ 1 nF

2. Dimension for size 0805 to 1812, C > 1 nF

Features

•  Ultra-stable on capacitance
•  Tight tolerance available
•  High reliability
•  Low ESR
•  Good frequency performance
•  No aging of capacitance

120

T ( C)

(x10 /K)

- 6

-40

-20

Yageo-ProductSelectionGuide-html.html

MLCC Selection Charts

NPO - General purpose 16 to 50V, 01005 to 0603

NP0

General purpose

Capacitance

01005

0201

0402

0603

10 V

16 V

25 V

50 V

16 V

25 V

50 V

16 V

25 V

50 V

0.22 pF

0.3 ±0.03 0.3 ±0.03 0.3 ±0.03

0.47 pF

0.3 ±0.03 0.3 ±0.03 0.3 ±0.03 0.5 ±0.05 0.5 ±0.05 0.5 ±0.05 0.8 ±0.1

0.8 ±0.1

0.5 pF 0.2 ±0.02 0.2 ±0.02

0.56 pF

0.3 ±0.03 0.3 ±0.03 0.3 ±0.03 0.5 ±0.05 0.5 ±0.05 0.5 ±0.05 0.8 ±0.1

0.8 ±0.1

0.6 pF 0.2 ±0.02 0.2 ±0.02

0.68 pF

0.3 ±0.03 0.3 ±0.03 0.3 ±0.03 0.5 ±0.05 0.5 ±0.05 0.5 ±0.05 0.8 ±0.1

0.8 ±0.1

0.7 pF 0.2 ±0.02 0.2 ±0.02
0.8 pF 0.2 ±0.02 0.2 ±0.02

0.82 pF

0.3 ±0.03 0.3 ±0.03 0.3 ±0.03 0.5 ±0.05 0.5 ±0.05 0.5 ±0.05 0.8 ±0.1

0.8 ±0.1

0.9 pF 0.2 ±0.02 0.2 ±0.02

1 pF

0.2 ±0.02 0.2 ±0.02 0.3 ±0.03 0.3 ±0.03 0.3 ±0.03

0.5 ±0.05 0.5 ±0.05 0.5 ±0.05

0.8 ±0.1

1.2 pF
1.5 pF
1.8 pF
2.2 pF
2.7 pF
3.3 pF
3.9 pF
4.7 pF
5.6 pF
6.8 pF
8.2 pF

10 pF
12 pF
15 pF
18 pF
22 pF
27 pF
33 pF
39 pF
47 pF
56 pF
68 pF
82 pF

100 pF
120 pF
150 pF
180 pF
220 pF
270 pF
330 pF
390 pF
470 pF
560 pF
680 pF
820 pF

1000 pF

0.5 ±0.05 0.5 ±0.05 0.5 ±0.05

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

MLCC Selection Charts

NPO - General purpose 16 to 50V, 01005 to 0603

NP0

General purpose

Capacitance

01005

0201

0402

0603

16 V

25 V

50 V

16 V

25 V

50 V

16 V

25 V

50 V

1.2 nF

0.8 ±0.1

1.5 nF
1.8 nF
2.2 nF
2.7 nF
3.3 nF
3.9 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF

10 nF

0.8 ±0.1

12 nF
15 nF
18 nF
22 nF
33 nF
39 nF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

NPO - General purpose 16 to 50V, 0805 to 1812

MLCC Selection Charts

NP0

General purpose

Capacitance

0805

1206

1210

1812

16 V

25 V

50 V

16 V

25 V

50 V

25 V

50 V

0.22 pF
0.47 pF

0.6 ±0.1

0.56 pF
0.68 pF
0.82 pF

1 pF

1.2 pF
1.5 pF
1.8 pF
2.2 pF
2.7 pF
3.3 pF
3.9 pF
4.7 pF
5.6 pF
6.8 pF
8.2 pF

10 pF
12 pF
15 pF
18 pF
22 pF
27 pF
33 pF
39 pF
47 pF

1.25 ±0.2

56 pF

1.25 ±0.2

68 pF
82 pF

100 pF
120 pF
150 pF
180 pF
220 pF
270 pF
330 pF
390 pF
470 pF
560 pF
680 pF
820 pF

1000 pF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

100

NPO - Gerneral purpose 16 to 50V, 0805 to 1812

MLCC Selection Charts

NP0

General purpose

Capacitance

0805

1206

1210

1812

16 V

25 V

50 V

16 V

25 V

50 V

25 V

50 V

1.2 nF

0.85 ±0.1

0.6 ±0.1

1.25 ±0.2

1.5 nF
1.8 nF
2.2 nF

1.25 ±0.2

2.7 nF
3.3 nF

0.85 ±0.1

3.9 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF

1.25 ±0.2

10 nF
12 nF
15 nF
18 nF
22 nF

2.0 ±0.2

33 nF

0.85 ±0.1

39 nF
47 nF

1.6 ±0.2

56 nF
68 nF
82 nF

100 nF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

101

NPO - Medium & High voltage, 0402 to 1812

MLCC Selection Charts

Temperature characteristic

Construction

Dimensions

Discrete capacitors - Medium and High voltage

Case size designation

Dimensions in mm

Inch-based

Metric

/ L

3 min

/ L

3 max

4 min

0402

1005M

1.0 ±0.05

0.5 ±0.05

0.15

0.30

0.40

0603

1608M

1.6 ±0.10

0.8 ±0.10

0.20

0.60

0.40

0805

2012M

2.0 ±0.20

1.25 ±0.20

0.25

0.75

0.55

1206

3216M

3.2 ±0.30

1.6 ±0.20

0.25

0.75

1.40

1210

3225M

3.2 ±0.40

2.5 ±0.30

0.25

0.75

1.40

1808

4520M

4.5 ±0.40

2.0 ±0.30

0.25

0.75

2.20

1812

4532M

4.5 ±0.40

3.2 ±0.30

0.25

0.75

2.20

Features

•  Capable of operating at high voltage levels
•  For high frequency snubber
•  Decoupling / smoothing function

120

T ( C)

(x10 /K)

- 6

-40

-20

Yageo-ProductSelectionGuide-html.html

102

NPO - Medium voltage, 0402 to 0805

MLCC Selection Charts

NP0

Medium voltage

Capacitance

0402

0603

0805

100 V

250 V

100 V

250 V

500 V

630 V

1000 V

1 pF

0.5 ±0.05

0.8 ±0.1

0.6 ±0.1

1.2 pF
1.5 pF
1.8 pF
2.2 pF
2.7 pF
3.3 pF
3.9 pF
4.7 pF
5.6 pF
6.8 pF
8.2 pF

10 pF

0.85 ±0.1

12 pF
15 pF
18 pF
22 pF
27 pF
33 pF
39 pF
47 pF
56 pF
68 pF
82 pF

100 pF
120 pF
150 pF
180 pF
220 pF

0.85 ±0.1

270 pF
330 pF
390 pF
470 pF
560 pF

1.25 ±0.2

680 pF
820 pF

1000 pF

1.2 nF

0.85 ±0.1

1.25 ±0.2

1.5 nF
1.8 nF
2.2 nF

1.25 ±0.2

2.7 nF
3.3 nF
3.9 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF

10 nF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

103

NPO - Medium voltage, 1206 to 1812

MLCC Selection Charts

NP0

Medium voltage

Capacitance

1206

1210

1812

100 V

250 V

500 V

630 V

100 V

250 V

500 V

630 V

100 V

250 V

500 V

630 V

1 pF

0.6 ±0.1

1.2 pF
1.5 pF
1.8 pF
2.2 pF

0.6 ±0.1

2.7 pF
3.3 pF
3.9 pF
4.7 pF
5.6 pF
6.8 pF
8.2 pF

10 pF

1.25 ±0.2

12 pF
15 pF
18 pF
22 pF
27 pF
33 pF

1.25 ±0.2

39 pF
47 pF

1.25 ±0.2

1.25 ±0.2 1.25 ±0.2

56 pF

1.25 ±0.2

1.25 ±0.2 1.25 ±0.2

1.25 ±0.2

68 pF
82 pF

100 pF
120 pF
150 pF
180 pF
220 pF
270 pF
330 pF
390 pF
470 pF
560 pF
680 pF
820 pF

0.85 ±0.1 0.85 ±0.1

1000 pF

1.2 nF
1.5 nF
1.8 nF

1.25 ±0.2

2.2 nF
2.7 nF
3.3 nF

0.85 ±0.1

3.9 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF

1.25 ±0.2

10 nF
22 nF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

104

NP0

High voltage

Capacitance

0805

1206

1210

1000 V

2000 V

1000 V

2000 V

10 pF

0.85 ±0.1

1.25 ±0.2

12 pF
15 pF
18 pF
22 pF
27 pF
33 pF

1.25 ±0.2

39 pF
47 pF
56 pF
68 pF
82 pF

100 pF
120 pF
150 pF
180 pF
220 pF
270 pF
330 pF
390 pF
470 pF
560 pF
680 pF
820 pF

1000 pF

1.2 nF
1.5 nF
1.8 nF
2.2 nF
2.7 nF
3.3 nF
3.9 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF

10 nF
12 nF
15 nF
18 nF
22 nF
33 nF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

NPO - High voltage, 0805 to 1210

MLCC Selection Charts

Yageo-ProductSelectionGuide-html.html

105

NP0

High voltage

Capacitance

1808

1812

1000 V

2000 V

3000 V

1000 V

2000 V

3000 V

10 pF

1.6 ±0.2

1.25 ±0.2

12 pF
15 pF
18 pF
22 pF
27 pF
33 pF

1.25 ±0.2

39 pF
47 pF
56 pF
68 pF
82 pF

100 pF
120 pF
150 pF
180 pF

2.0 ±0.2

220 pF
270 pF
330 pF
390 pF
470 pF
560 pF
680 pF
820 pF

1000 pF

1.25 ±0.2

1.2 nF
1.5 nF
1.8 nF
2.2 nF
2.7 nF
3.3 nF
3.9 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF

10 nF
12 nF
15 nF
18 nF
22 nF
33 nF

Tape width

12 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

NPO - High voltage, 1808 / 1812

MLCC Selection Charts

Yageo-ProductSelectionGuide-html.html

106

ESR characteristic

Construction

NP0 - High frequency, 0201 to 0805

MLCC Selection Charts

Features

• Lowest ESR in high frequency
• Ultra small
•

Noise filtering

Impendance and ESR @ 20

ESR
Impendance

Frequency (Hz)

100K

10M

100M

10G

100m

100

(

Ω

)

Yageo-ProductSelectionGuide-html.html

107

NP0 - High frequency, 0201 to 0805

MLCC Selection Charts

Case dimensions

Discrete capacitors - High Frequency

Case size designation

Dimensions in mm

Inch-based

Metric

/ L

3 min

/ L

3 max

4 min

0201

0603M

0.6 ±0.03

0.3 ±0.03

0.10

0.20

0402

1005M

1.0 ±0.05

0.5 ±0.05

0.15

0.30

0.40

0603

1608M

1.6 ±0.10

0.8 ±0.10

0.20

0.60

0.40

0805

2012M

2.0 ±0.10

1.25 ±0.10

0.25

0.75

0.55

NP0

High frequency

Capaci-

tance

0201

0402

25 V

50 V

16 V

25 V

50 V

0.2 pF

0.3 ±0.03 0.3 ±0.03

0.5 ±0.05 0.5 ±0.05 0.5 ±0.05

0.3 pF
0.4 pF
0.5 pF
0.6 pF
0.7 pF
0.8 pF
0.9 pF

1 pF

1.2 pF
1.5 pF
1.8 pF
2.2 pF
2.7 pF
3.3 pF
3.9 pF
4.7 pF
5.6 pF
6.8 pF
8.2 pF

10 pF
12 pF
15 pF
18 pF
22 pF
27 pF
33 pF
39 pF
47 pF

Tape

width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

NP0

High frequency

Capaci-

tance

0603

0805

50 V

100 V

250 V

50 V

100 V

250 V

0.2 pF

0.8 ±0.1 0.8 ±0.1 0.8 ±0.1

0.6 ±0.1 0.6 ±0.1 0.6 ±0.1

0.3 pF
0.4 pF
0.5 pF
0.6 pF
0.7 pF
0.8 pF
0.9 pF

1 pF

1.2 pF
1.5 pF
1.8 pF
2.2 pF
2.7 pF
3.3 pF
3.9 pF
4.7 pF
5.6 pF
6.8 pF
8.2 pF

10 pF
12 pF
15 pF
18 pF
22 pF
27 pF
33 pF
39 pF
47 pF
56 pF
68 pF
82 pF

100 pF

Tape

width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

108

X7R - General purpose & High capacitance, 01005 to 2220

MLCC Selection Charts

Temperature characteristic

Construction

Case dimensions

Discrete capacitors - General purpose & High capacitance

Case size designation

Dimensions in mm

Inch-based

Metric

/ L

3 min

/ L

3 max

4 min

01005

0402M

0.4 ±0.02

0.2 ±0.02

0.07

0.14

0201

0603M

0.6 ±0.03

0.3 ±0.03

0.10

0.20

0.6 ±0.05

0.3 ±0.05

0.10

0.20

0402

1005M

1.0 ±0.05

(1)

0.5 ±0.05

(1)

0.15

0.30

0.40

0603

1608M

1.6 ±0.10

(1)

0.8 ±0.10

(1)

0.20

0.60

0.40

1.6 ±0.15

(2)

0.8 ±0.15

(2)

0.20

0.60

0.40

0805

2012M

2.0 ±0.10

(1)

1.25 ±0.10

(1)

0.25

0.75

0.55

2.0 ±0.20

(2)

1.25 ±0.20

(2)

0.25

0.75

0.55

1206

3216M

3.2 ±0.15

(1)

1.6 ±0.15

(1)

0.25

0.75

1.40

3.2 ±0.30

(2)

1.6 ±0.20

(2)

0.25

0.75

1.40

1210

3225M

3.2 ±0.20

(1)

2.5 ±0.20

(1)

0.25

0.75

1.40

3.2 ±0.40

(2)

2.5 ±0.30

(2)

0.25

0.75

1.40

1808

4520M

4.5 ±0.40

2.0 ±0.30

0.25

0.75

2.20

1812

4532M

4.5 ±0.20

(1)

3.2 ±0.20

(1)

0.25

0.75

2.20

4.5 ±0.40

(2)

3.2 ±0.40

(2)

0.25

0.75

2.20

2220

5750M

5.7 ±0.40

5.0 ±0.30

0.25

0.75

3.40

Note:

1. Dimension for size 0603, C < 10 μF; 0805 to 1812, C ≤ 100 nF

2. Dimension for size 0402, C ≥ 4.7 μF; 0603, C = 1 μF, 50V; 0805 to 1812, C > 100 nF

Features

• Semi-stable on capacitance and high K
•

High volumetric efficiency

• Highly reliable in high temperature application
• High insulation resistance

-15

-25

-55

125

-10

∆

(%)

-5

T ( C)

Yageo-ProductSelectionGuide-html.html

109

X7R - General purpose & High Capacitance , 01005 to 0402

MLCC Selection Charts

X7R

General purpose

& High Capacitance

Capacitance

01005

0201

0402

6.3 V/10V

16 V

6.3 V

10 V

16 V

25 V

50 V

6.3 V

10 V

16 V

25 V

50 V

10 pF
15 pF
22 pF
33 pF
47 pF

0.3 ±0.03 0.3 ±0.03 0.3 ±0.03 0.3 ±0.03

0.3 ±0.03

68 pF

100 pF

0.2 ±0.02 0.2 ±0.02

0.5 ±0.05 0.5 ±0.05 0.5 ±0.05 0.5 ±0.05 0.5 ±0.05

150 pF
220 pF
330 pF
470 pF
680 pF

1.0 nF
1.5 nF
2.2 nF
3.3 nF
4.7 nF
6.8 nF

10 nF
15 nF
22 nF
33 nF
47 nF
68 nF

100 nF
150 nF
220 nF

0.5 ±0.05 0.5 ±0.05 0.5 ±0.05 0.5 ±0.05

330 nF
470 nF

0.5 ±0.05 0.5 ±0.05

680 nF

1000 nF

0.5 ±0.05

2.2 μF
4.7 μF

10 μF
22 μF
47 μF

100 μF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

110

X7R - General purpose & High capacitance, 0603 / 0805

MLCC Selection Charts

X7R

General purpose

& High Capacitance

Capacitance

0603

0805

6.3 V

10 V

16 V

25 V

50 V

6.3 V

10 V

16 V

25 V

50 V

10 pF
15 pF
22 pF
33 pF
47 pF
68 pF

100 pF

0.8 ±0.1

150 pF

0.6 ±0.1

220 pF
330 pF
470 pF
680 pF

1.0 nF
1.5 nF
2.2 nF
3.3 nF
4.7 nF
6.8 nF

10 nF
15 nF
22 nF
33 nF

0.85 ±0.1

47 nF
68 nF

100 nF
150 nF
220 nF

1.25 ±0.2

330 nF

1.25 ±0.2

470 nF

0.8 ±0.1

680 nF

1000 nF

0.8 ±0.15

2.2 μF
4.7 μF

10 μF
22 μF
47 μF

100 μF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

111

X7R - General purpose & High capacitance, 1206 to 2220

MLCC Selection Charts

X7R

General purpose

& High Capacitance

Capacitance

1206

1210

1812

2220

6.3 V

10 V

16 V

25 V

50 V

6.3 V

10 V

16 V

25 V

50 V

10 pF
15 pF
22 pF
33 pF
47 pF
68 pF

100 pF
150 pF
220 pF

0.85 ±0.1 0.85 ±0.1 0.85 ±0.1 0.85 ±0.1

0.85 ±0.1

330 pF
470 pF
680 pF

1.0 nF
1.5 nF
2.2 nF

0.85 ±0.1 0.85 ±0.1 0.85 ±0.1 0.85 ±0.1

0.85 ±0.1

3.3 nF
4.7 nF

0.85 ±0.1

6.8 nF

10 nF
15 nF
22 nF
33 nF
47 nF
68 nF

100 nF

1.15 ±0.1

150 nF

1.15 ±0.1

220 nF

0.85 ±0.1

330 nF

0.85 ±0.1

470 nF

1.0 ±0.1

1.15 ±0.1 1.15 ±0.1 1.15 ±0.1 1.15 ±0.1

1.25 ±0.2

680 nF

1.15 ±0.1 1.15 ±0.1 1.15 ±0.1 1.15 ±0.1

1.6 ±0.2

1000 nF

1.25 ±0.2 1.25 ±0.2 1.25 ±0.2 1.25 ±0.2

1.15 ±0.1

2.2 μF

1.9 ±0.2 1.9 ±0.2 1.9 ±0.2 1.9 ±0.2

1.9 ±0.2

4.7 μF

1.6 ±0.2 1.6 ±0.2 1.6 ±0.2

1.6 ±0.2

2.5 ±0.3

10 μF
22 μF

2.5 ±0.2 2.5 ±0.2

47 μF

100 μF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

112

X7R - Medium & High voltage, 0402 to 1812

MLCC Selection Charts

Temperature characteristic

Construction

Dimensions

Discrete capacitors - Medium and High voltage

Case size designation

Dimensions in mm

Inch-based

Metric

/ L

3 min

/ L

3 max

4 min

0402

1005M

1.0 ±0.05

0.5 ±0.05

0.15

0.30

0.40

0603

1608M

1.6 ±0.10

0.8 ±0.10

0.20

0.60

0.40

0805

2012M

2.0 ±0.20

1.25 ±0.20

0.25

0.75

0.55

1206

3216M

3.2 ±0.30

1.6 ±0.20

0.25

0.75

1.40

1210

3225M

3.2 ±0.40

2.5 ±0.30

0.25

0.75

1.40

1808

4520M

4.5 ±0.40

2.0 ±0.30

0.25

0.75

2.20

1812

4532M

4.5 ±0.40

3.2 ±0.30

0.25

0.75

2.20

Features

•  Capable of operating at high voltage levels
•  For high frequency snubber
•  Decoupling / smoothing function

-15

-25

-55

125

-10

∆

(%)

-5

T ( C)

Yageo-ProductSelectionGuide-html.html

113

X7R - Medium and High voltage, 0402 to 0805

MLCC Selection Charts

X7R

Medium voltage & High voltage

Capacitance

0402

0603

0805

100 V

250 V

100 V

250 V

500 V

630 V

1000 V

100 pF

0.5 ±0.05

0.8 ±0.1

150 pF

0.6 ±0.1

0.85 ±0.1

220 pF

0.8 ±0.1

330 pF
470 pF
680 pF

1.0 nF
1.5 nF
2.2 nF
3.3 nF
4.7 nF
6.8 nF

1.25 ±0.2

10 nF

1.25 ±0.2

15 nF

0.85 ±0.1

22 nF
33 nF

1.25 ±0.2

47 nF
68 nF

100 nF
150 nF
220 nF
330 nF
470 nF
680 nF

1000 nF

2.2 μF
4.7 μF

10 μF
22 μF
47 μF

100 μF

Tape width

12 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

114

X7R

Medium voltage & High voltage

Capacitance

1206

1210

100 V

250 V

500 V

630 V

1000 V

2000 V

100 V

250 V

500 V

630 V

1000 V

2000 V

100 pF
150 pF
220 pF

0.85 ±0.1

1.25 ±0.2 1.25 ±0.2

1.25 ±0.2

330 pF
470 pF
680 pF

1.0 nF
1.5 nF
2.2 nF

0.85 ±0.1

3.3 nF

1.25 ±0.2

4.7 nF
6.8 nF

10 nF
15 nF
22 nF

1.25 ±0.2

1.6 ±0.2 1.6 ±0.2

33 nF

1.6 ±0.2 1.6 ±0.2

47 nF
68 nF

1.25 ±0.2

100 nF

1.6 ±0.2

150 nF

1.25 ±0.2

220 nF
330 nF

1.6 ±0.2

470 nF

1.25 ±0.2

680 nF

2.0 ±0.2

1000 nF 1.6 ±0.2

2.2 μF
4.7 μF

10 μF
22 μF
47 μF

100 μF

Tape width

12 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

MLCC Selection Charts

X7R - Medium & High voltage, 1206/ 1210

Yageo-ProductSelectionGuide-html.html

115

X7R

Medium voltage & High voltage

Capacitance

1808

1812

1000 V

2000 V

3000 V

100 V

250 V

500 V

630 V

1000 V

2000 V

3000 V

100 pF
150 pF

1.6 ±0.2

220 pF
330 pF

1.35 ±0.2

470 pF

1.35 ±0.2

680 pF

1.0 nF

2.0 ±0.2

0.85 ±0.1

1.25 ±0.2

1.35 ±0.2

1.6 ±0.2

1.5 nF
2.2 nF

1.6 ±0.2

3.3 nF
4.7 nF
6.8 nF

1.6 ±0.2

10 nF

2.0 ±0.2

15 nF
22 nF

1.35 ±0.2

33 nF

1.6 ±0.2

47 nF

1.25 ±0.2

68 nF

100 nF

1.25 ±0.2

1.6 ±0.2

150 nF
220 nF

1.6 ±0.2

330 nF
470 nF

1.6 ±0.2

680 nF

1000 nF

2.2 μF
4.7 μF

10 μF
22 μF
47 μF

100 μF

Tape width

12 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

X7R - Medium and High voltage, 1808/ 1812

MLCC Selection Charts

Yageo-ProductSelectionGuide-html.html

116

X7R / X5R - Low inductance, 0204 to 0612

MLCC Selection Charts

Temperature characteristic

Construction

Dimensions

Discrete capacitors - Low inductance types only

Case size designation

Dimensions in mm

Inch-based

Metric

/ L

3 min

/ L

3 max

4 min

0204

0510M

0.5 ±0.10

1.0 ±0.10

0.30 ±0.10

0.10

0.30

0.10

0306

0816M

0.8 ±0.15

1.6 ±0.20

0.50 ±0.10

0.10

0.30

0.20

0508

1220M

1.25 ±0.20

2.0 ±0.20

0.85 ±0.10

0.13

0.46

0.38

0612

1632M

1.6 ±0.20

3.2 ±0.20

0.85 ±0.10

0.13

0.46

0.50

Features

• Good solution for anti resonance reduction with

controlled ESR

• Suitable for high speed IC decoupling due to low

inductance type

-15

-25

-55

125

-10

∆

(%)

-5

T ( C)

Yageo-ProductSelectionGuide-html.html

117

X7R / X5R - Low inductance, 0204 to 0612

MLCC Selection Charts

X7R

Low Inductance series

Capacitance

0306

0508

0612

10 V

16 V

25 V

16 V

25 V

50 V

10 nF

0.85 ±0.1

22 nF
47 nF

100 nF

0.5 ±0.1

220 nF

1.15 ±0.1

470 nF

1000 nF

1.15 ±0.1

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

X5R

Low Inductance series

Capacitance

0204

10 V

10 nF

0.3±0.1

22 nF
47 nF

100 nF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

118

NP0 / X7R - Soft termination, 0402 to 1812

MLCC Selection Charts

Construction

Dimensions

Discrete capacitors - Soft termination

Case size designation

Dimensions in mm

Inch-based

Metric

L2 / L3 min

L2 / L3 max

L4 min

0402

1005M

1.0 ±0.15

0.5 ±0.15

0.10

0.30

0.20

0603

1608M

1.6 ±0.20

0.8 ±0.15

0.20

0.50

0.40

0805

2012M

2.0 ±0.30

1.25 ±0.20

0.25

0.75

0.55

1206

3216M

3.2 ±0.40

1.6 ±0.20

0.25

0.85

1.40

1210

3225M

3.2 ±0.40

2.5 ±0.30

0.25

0.85

1.40

1808

4520M

4.5 ±0.40

2.0 ±0.30

0.25

0.85

2.20

1812

4532M

4.5 ±0.40

3.2 ±0.20

0.25

0.85

2.20

Features

•  Flexible termination system
•  Improved resistance to thermal stresses
•  Increased mechanical performance

Copper

Ni Plating

Sn Plating

Soft electrode

(Stress relaxation)

Yageo-ProductSelectionGuide-html.html

119

NP0 - Soft termination, 0402 to 0805

MLCC Selection Charts

NP0

Soft termination

Capacitance

0402

0603

0805

100 V

250 V

100 V

250 V

500 V

630 V

1000 V

1 pF

0.5 ±0.15

0.8 ±0.15

0.6 ±0.15

1.2 pF
1.5 pF
1.8 pF
2.2 pF
2.7 pF
3.3 pF
3.9 pF
4.7 pF
5.6 pF
6.8 pF
8.2 pF

10 pF

0.6 ±0.15

0.85 ±0.15

12 pF
15 pF
18 pF
22 pF
27 pF
33 pF
39 pF
47 pF
56 pF

1.25 ±0.2

68 pF
82 pF

100 pF
120 pF
150 pF
180 pF
220 pF

0.85 ±0.15

270 pF
330 pF
390 pF
470 pF
560 pF

1.25 ±0.2

680 pF
820 pF

1000 pF

1.2 nF

0.85 ±0.15

1.25 ±0.2

1.5 nF
1.8 nF
2.2 nF

1.25 ±0.2

2.7 nF
3.3 nF
3.9 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF

10 nF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

120

NP0 - Soft termination, 1206 / 1210

MLCC Selection Charts

NP0

Soft termination

Capacitance

1206

1210

100 V

250 V

500 V

630 V

1000 V

2000 V

100 V

250 V

500 V

630 V

1000 V

2000 V

1 pF

0.6 ±0.15

1.2 pF
1.5 pF
1.8 pF
2.2 pF

0.6 ±0.15

2.7 pF
3.3 pF
3.9 pF
4.7 pF
5.6 pF
6.8 pF
8.2 pF

10 pF

1.25 ±0.2

12 pF
15 pF
18 pF
22 pF
27 pF
33 pF

1.25 ±0.2 1.25 ±0.2

1.25 ±0.2

39 pF
47 pF

1.25 ±0.2

1.25 ±0.2 1.25 ±0.2

56 pF
68 pF
82 pF

100 pF
120 pF
150 pF
180 pF
220 pF
270 pF
330 pF
390 pF
470 pF
560 pF
680 pF
820 pF

0.85 ±0.15 0.85 ±0.15

1000 pF

1.2 nF
1.5 nF
1.8 nF

1.25 ±0.2

2.2 nF
2.7 nF
3.3 nF

0.85 ±0.15

3.9 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF

1.25 ±0.2

10 nF
22 nF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

121

NP0 - Soft termination, 1808 / 1812

MLCC Selection Charts

NP0

Soft termination

Capacitance

1808

1812

1 KV

2 KV

3K V

100 V

250 V

500 V

630 V

1000 V

2000 V

3000 V

10 pF

1.6 ±0.2

1.25 ±0.2

12 pF
15 pF
18 pF
22 pF
27 pF
33 pF

1.25 ±0.2

39 pF
47 pF
56 pF

1.25 ±0.2

68 pF
82 pF

100 pF
120 pF
150 pF
180 pF
220 pF
270 pF
330 pF
390 pF
470 pF
560 pF
680 pF
820 pF

1000 pF

1.2 nF
1.5 nF
1.8 nF
2.2 nF
2.7 nF
3.3 nF
3.9 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF

10 nF
22 nF

Tape width

12mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

122

X7R

Soft termination

Capacitance

0402

0603

16 V

25 V

50 V

100 V

16 V

25 V

50 V

100 V

250 V

100 pF

0.5 ±0.15

0.8 ±0.15

150 pF
220 pF
330 pF
470 pF
680 pF

1.0 nF
1.5 nF
2.2 nF
3.3 nF
4.7 nF
6.8 nF

10 nF
15 nF
22 nF
33 nF
47 nF
68 nF

100 nF
150 nF
220 nF
330 nF
470 nF
680 nF

1000 nF

2.2 µF
4.7 µF

10 µF
22 µF
47 µF

100 µF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

X7R - Soft termination, 0402 / 0603

MLCC Selection Charts

Yageo-ProductSelectionGuide-html.html

123

X7R - Soft termination, 0805

MLCC Selection Charts

X7R

Soft termination

Capacitance

0805

16 V

25 V

50 V

100 V

250 V

500 V

630 V

1000 V

100 pF
150 pF

0.6 ±0.15

0.85 ±0.15

220 pF

0.85 ±0.15

330 pF
470 pF
680 pF

1.0 nF
1.5 nF
2.2 nF
3.3 nF
4.7 nF
6.8 nF

1.25 ±0.2

10 nF

1.25 ±0.2

15 nF

0.85 ±0.15

22 nF
33 nF

0.85 ±0.15

1.25 ±0.2

47 nF
68 nF

100 nF
150 nF

1.25 ±0.2

220 nF
330 nF
470 nF
680 nF

1000 nF

2.2 µF
4.7 µF

10 µF
22 µF
47 µF

100 µF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

124

X7R - Soft termination, 1206

MLCC Selection Charts

X7R

Soft termination

Capacitance

1206

16 V

25 V

50 V

100 V

250 V

500 V

630 V

1000 V

2000 V

100 pF
150 pF
220 pF

0.85 ±0.15

1.25 ±0.2

330 pF
470 pF
680 pF

1.0 nF
1.5 nF
2.2 nF
3.3 nF
4.7 nF
6.8 nF

10 nF
15 nF
22 nF

1.25 ±0.2

1.6 ±0.2

33 nF

1.6 ±0.2

47 nF
68 nF

1.25 ±0.2

100 nF

1.6 ±0.2

150 nF

1.15 ±0.2

220 nF
330 nF

1.6 ±0.2

470 nF
680 nF

1.15 ±0.2

1000 nF

2.2 µF

1.6 ±0.2

4.7 µF

10 µF
22 µF
47 µF

100 µF

Tape width

12 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

125

X7R - Soft termination, 1210

MLCC Selection Charts

X7R

Soft termination

Capacitance

1210

16 V

25 V

50 V

100 V

250 V

500 V

630 V

1000 V

2000 V

100 pF
150 pF
220 pF
330 pF
470 pF

1.25 ±0.2

680 pF

1.0 nF
1.5 nF
2.2 nF

0.85 ±0.15

1.6 ±0.2

3.3 nF

1.25 ±0.2

4.7 nF
6.8 nF

10 nF
15 nF
22 nF

1.25 ±0.2

1.6 ±0.2

33 nF
47 nF
68 nF

100 nF
150 nF

1.15 ±0.2

1.25 ±0.2

220 nF
330 nF
470 nF

1.15 ±0.2

1.25 ±0.2

680 nF

2.0 ±0.2

1000 nF

1.25 ±0.2

2.2 µF
4.7 µF

10 µF
22 µF
47 µF

100 µF

Tape width

12 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

126

MLCC Selection Charts

X7R

Soft termination

Capacitance

1808

1000 V

2000 V

3000 V

100 pF
150 pF
220 pF
330 pF

1.35 ±0.2

1.6 ±0.2

470 pF
680 pF

1.0 nF

2.0 ±0.2

1.5 nF
2.2 nF

1.6 ±0.2

3.3 nF
4.7 nF
6.8 nF

1.6 ±0.2

10 nF
15 nF
22 nF
33 nF
47 nF
68 nF

100 nF
150 nF
220 nF
330 nF
470 nF
680 nF

1000 nF

2.2 µF
4.7 µF

10 µF
22 µF
47 µF

100 µF

Tape width

12 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

X7R - Soft termination, 1808

Yageo-ProductSelectionGuide-html.html

127

MLCC Selection Charts

X7R

Soft termination

Capacitance

1812

50 V

100 V

250 V

500 V

630 V

1000 V

2000 V

100 pF
150 pF
220 pF
330 pF
470 pF
680 pF

1.0 nF
1.5 nF
2.2 nF

0.85 ±0.15

1.25 ±0.2

1.35 ±0.2

3.3 nF
4.7 nF
6.8 nF

10 nF
15 nF
22 nF
33 nF

1.6 ±0.2

47 nF

1.25 ±0.2

68 nF

100 nF

1.15 ±0.2

1.25 ±0.2

1.6 ±0.2

150 nF
220 nF

1.6 ±0.2

330 nF
470 nF

1.6 ±0.2

680 nF

1.6 ±0.2

1000 nF

2.2 µF
4.7 µF

10 µF
22 µF
47 µF

100 µF

Tape width

12 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

X7R - Soft termination, 1812

Yageo-ProductSelectionGuide-html.html

128

X5R - General purpose & High capacitance, 01005 to 1210

MLCC Selection Charts

Temperature characteristic

Construction

Case dimensions

Discrete capacitors - General purpose & High capacitance

Case size designation

Dimensions in mm

Inch-based

Metric

/ L

3 min

/ L

3 max

4 min

01005

0402M

0.4 ±0.02

0.2 ±0.02

0.07

0.14

0201

0603M

0.6 ±0.03

(1)

0.3 ±0.03

(1)

0.10

0.20

0.6 ±0.05

(2)

0.3 ±0.05

(2)

0.10

0.20

0402

1005M

1.0 ±0.05

(1)

0.5 ±0.05

(1)

0.15

0.30

0.40

1.0 ±0.15

(2)

0.5 ±0.15

(2)

0.15

0.30

0.40

1.0 ±0.20

(3)

0.5 ±0.20

(3)

0.15

0.30

0.40

0603

1608M

1.6 ±0.10

(1)

0.8 ±0.10

(1)

0.20

0.60

0.40

1.6 ±0.20

(2)

0.8 ±0.20

(2)

0.20

0.60

0.40

0805

2012M

2.0 ±0.10

(1)

1.25 ±0.10

(1)

0.25

0.75

0.55

2.0 ±0.20

(2)

1.25 ±0.20

(2)

0.25

0.75

0.55

1206

3216M

3.2 ±0.15

(1)

1.6 ±0.15

(1)

0.25

0.75

1.40

3.2 ±0.30

(2)

1.6 ±0.20

(2)

0.25

0.75

1.40

1210

3225M

3.2 ±0.20

(1)

2.5 ±0.20

(1)

0.25

0.75

1.40

3.2 ±0.40

(2)

2.5 ±0.30

(2)

0.25

0.75

1.40

Note:

1. Dimension for size 0201, C < 1 μF; 0402, C < 4.7 μF; 0603, C < 10 μF; 0805 to 1812, C ≤ 100 nF

2. Dimension for size 0201, C ≥ 1 μF; 0402, C = 2.2 μF, 16V/25V and C = 4.7 μF ; 0603, C ≥ 10 μF; 0805 to 1812, C > 100 nF

3. Dimension for size 0402, C ≥ 10 μF

Features

• Semi-stable on capacitance and high K
•

High volumetric efficiency

• Highly reliable in high temperature application
• High insulation resistance

-15

-35

-60

-10

(%)

-5

T ( C)

∆

Yageo-ProductSelectionGuide-html.html

129

Temperature characteristic

Construction

Case dimensions

Discrete capacitors - General purpose & High capacitance

Case size designation

Dimensions in mm

Inch-based

Metric

/ L

3 min

/ L

3 max

4 min

01005

0402M

0.4 ±0.02

0.2 ±0.02

0.07

0.14

0201

0603M

0.6 ±0.03

(1)

0.3 ±0.03

(1)

0.10

0.20

0.6 ±0.05

(2)

0.3 ±0.05

(2)

0.10

0.20

0402

1005M

1.0 ±0.05

(1)

0.5 ±0.05

(1)

0.15

0.30

0.40

1.0 ±0.15

(2)

0.5 ±0.15

(2)

0.15

0.30

0.40

1.0 ±0.20

(3)

0.5 ±0.20

(3)

0.15

0.30

0.40

0603

1608M

1.6 ±0.10

(1)

0.8 ±0.10

(1)

0.20

0.60

0.40

1.6 ±0.20

(2)

0.8 ±0.20

(2)

0.20

0.60

0.40

0805

2012M

2.0 ±0.10

(1)

1.25 ±0.10

(1)

0.25

0.75

0.55

2.0 ±0.20

(2)

1.25 ±0.20

(2)

0.25

0.75

0.55

1206

3216M

3.2 ±0.15

(1)

1.6 ±0.15

(1)

0.25

0.75

1.40

3.2 ±0.30

(2)

1.6 ±0.20

(2)

0.25

0.75

1.40

1210

3225M

3.2 ±0.20

(1)

2.5 ±0.20

(1)

0.25

0.75

1.40

3.2 ±0.40

(2)

2.5 ±0.30

(2)

0.25

0.75

1.40

Note:

1. Dimension for size 0201, C < 1 μF; 0402, C < 4.7 μF; 0603, C < 10 μF; 0805 to 1812, C ≤ 100 nF

2. Dimension for size 0201, C ≥ 1 μF; 0402, C = 2.2 μF, 16V/25V and C = 4.7 μF ; 0603, C ≥ 10 μF; 0805 to 1812, C > 100 nF

3. Dimension for size 0402, C ≥ 10 μF

X5R - General purpose & High capacitance, 01005 to 0402

MLCC Selection Charts

X5R

General purpose & High capacitance

Capacitance

01005

0201

0402

6.3 V

10 V

6.3 V

10 V

16 V

25 V

50 V

6.3 V

10 V

16 V

25 V

50 V

100 pF 0.2 ±0.02 0.2 ±0.02

0.3 ±0.03 0.3 ±0.03 0.3 ±0.03

0.3 ±0.03

0.5 ±0.05

0.5 ±0.05 0.5 ±0.05

0.5 ±0.05

150 pF
220 pF 0.2 ±0.02 0.2 ±0.02
330 pF
470 pF 0.2 ±0.02 0.2 ±0.02
680 pF

1.0 nF 0.2 ±0.02 0.2 ±0.02
1.5 nF
2.2 nF 0.2 ±0.02 0.2 ±0.02
3.3 nF
4.7 nF 0.2 ±0.02 0.2 ±0.02
6.8 nF

10 nF 0.2 ±0.02 0.2 ±0.02
15 nF
22 nF 0.2 ±0.02
33 nF
47 nF 0.2 ±0.02
68 nF

100 nF 0.2 ±0.02

0.3 ±0.03 0.3 ±0.03 0.3 ±0.03 0.3 ±0.03

150 nF
220 nF 0.2 ±0.02

0.3 ±0.03 0.3 ±0.03

0.5 ±0.05

330 nF
470 nF

0.3 ±0.03

0.5 ±0.1 0.5 ±0.1 0.5 ±0.1

680 nF

1 000 nF

0.3 ±0.05

0.5 ±0.05 0.5 ±0.05

2.2 µF

0.5 ±0.15

4.7 µF

0.5 ±0.15* 0.5 ±0.15

10 μF

0.5 ±0.2 0.5 ±0.2

22 μF

0.5 ±0.2

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

*: 0402 low profile, T=0.3+/-0.03mm.

Yageo-ProductSelectionGuide-html.html

130

X5R - General purpose & High capacitance, 0603 / 0805

MLCC Selection Charts

X5R

General purpose & High capacitance

Capacitance

0603

0805

4 V

6.3 V

10 V

16 V

25 V

50 V

4 V

6.3 V

10 V

16 V

25 V

50 V

100 pF

0.8 ±0.1 0.8 ±0.1 0.8 ±0.1 0.8 ±0.1 0.8 ±0.1

0.8 ±0.1

150 pF
220 pF

0.6 ±0.1 0.6 ±0.1 0.6 ±0.1 0.6 ±0.1 0.6 ±0.1

330 pF
470 pF
680 pF

1.0 nF
1.5 nF
2.2 nF
3.3 nF
4.7 nF
6.8 nF

10 nF
15 nF
22 nF
33 nF
47 nF

0.85 ±0.1 0.85 ±0.1 0.85 ±0.1 0.85 ±0.1

0.85 ±0.1

68 nF

100 nF
150 nF
220 nF

1.25 ±0.2

330 nF

1.25 ±0.2 1.25 ±0.2

470 nF
680 nF

1 000 nF

2.2 µF

0.8 ±0.2

4.7 µF

0.8 ±0.15 0.8 ±0.15

10 µF

0.8 ±0.2

0.8 ±0.2 0.8 ±0.2

22 µF

47 µF

100 µF

1.25 ±0.2 1.25 ±0.2

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

*:0603 low profile, T=0.5+/-0.05mm; 0805 low profile, T=0.85+/-0.1mm

X5R

General purpose & High capacitance

Capacitance

0603

0805

4 V

6.3 V

10 V

16 V

25 V

50 V

4 V

6.3 V

10 V

16 V

25 V

50 V

100 pF

0.8 ±0.1 0.8 ±0.1 0.8 ±0.1 0.8 ±0.1 0.8 ±0.1

0.8 ±0.1

150 pF
220 pF

0.6 ±0.1 0.6 ±0.1 0.6 ±0.1 0.6 ±0.1 0.6 ±0.1

330 pF
470 pF
680 pF

1.0 nF
1.5 nF
2.2 nF
3.3 nF
4.7 nF
6.8 nF

10 nF
15 nF
22 nF
33 nF
47 nF

0.85 ±0.1 0.85 ±0.1 0.85 ±0.1 0.85 ±0.1

0.85 ±0.1

68 nF

100 nF
150 nF
220 nF

1.25 ±0.2

330 nF

1.25 ±0.2

1.25 ±0.2 1.25 ±0.2

470 nF
680 nF

1 000 nF

2.2 µF

0.8 ±0.2

4.7 µF

0.8 ±0.15 0.8 ±0.15

10 µF

0.8 ±0.2

0.8 ±0.2 0.8 ±0.2

22 µF
47 µF

100 µF

1.25 ±0.2

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

*:0603 low profile, T=0.5+/-0.05mm; 0805 low profile, T=0.85+/-0.1mm

Yageo-ProductSelectionGuide-html.html

131

X5R - General purpose & High capacitance, 1206

MLCC Selection Charts

X5R

General purpose & High capacitance

Capacitance

1206

6.3 V

10 V

16 V

25 V

50 V

100 pF
150 pF
220 pF

0.85 ±0.1

330 pF
470 pF
680 pF

1.0 nF
1.5 nF
2.2 nF
3.3 nF
4.7 nF
6.8 nF

10 nF
15 nF
22 nF
33 nF
47 nF
68 nF

100 nF
150 nF

1.15 ±0.1

220 nF
330 nF

1.0 ±0.1

470 nF
680 nF

1.15 ±0.1

1.6 ±0.2

1 000 nF

2.2 µF
4.7 µF

1.6 ±0.2

10 µF

1.6 ±0.3

22 µF

1.6 ±0.3

47 µF

100 µF

1.6 ±0.3

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

132

X5R - General purpose & High capacitance, 1210

MLCC Selection Charts

X5R

General purpose & High capacitance

Capacitance

1210

6.3 V

10 V

16 V

25 V

50 V

100 pF
150 pF
220 pF
330 pF
470 pF
680 pF

1.0 nF
1.5 nF
2.2 nF

0.85 ±0.1

3.3 nF
4.7 nF
6.8 nF

10 nF
15 nF
22 nF
33 nF
47 nF
68 nF

100 nF
150 nF

1.15 ±0.1

220 nF
330 nF
470 nF

1.15 ±0.1

1.25 ±0.2

680 nF

1 000 nF

1.25 ±0.2

2.2 µF

1.9 ±0.2

4.7 µF

10 µF

2.5 ±0.2

22 µF

2.5 ±0.2

2.5 ±0.3

47 µF

100 µF

2.5 ±0.3

220 µF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

133

Y5V - General purpose & High capacitance, 0402 to 1210

MLCC Selection Charts

Temperature characteristic

Construction

Case dimensions

Discrete capacitors - General purpose & High capacitance

Case size designation

Dimensions in mm

Inch-based

Metric

/ L

3 min

/ L

3 max

4 min

0402

1005M

1.0 ±0.05

(1)

0.5 ±0.05

(1)

0.15

0.30

0.40

1.0 ±0.20

(2)

0.5 ±0.20

(2)

0.15

0.30

0.40

0603

1608M

1.6 ±0.10

(1)

0.8 ±0.10

(1)

0.20

0.60

0.40

1.6 ±0.15

(2)

0.8 ±0.15

(2)

0.20

0.60

0.40

0805

2012M

2.0 ±0.10

(1)

1.25 ±0.10

(1)

0.25

0.75

0.55

2.0 ±0.20

(2)

1.25 ±0.20

(2)

0.25

0.75

0.55

1206

3216M

3.2 ±0.15

(1)

1.6 ±0.15

(1)

0.25

0.75

1.40

3.2 ±0.30

(2)

1.6 ±0.20

(2)

0.25

0.75

1.40

1210

3225M

3.2 ±0.20

(1)

2.5 ±0.20

(1)

0.25

0.75

1.40

3.2 ±0.40

(2)

2.5 ±0.30

(2)

0.25

0.75

1.40

Note:

1. Dimension for size 0402, C < 4.7 μF; 0603, C < 10 μF; 0805 to 1210, C ≤ 100 nF

2. Dimension for size 0402, C ≥ 4.7 μF; 0603, C ≥ 10 μF; 0805 to 1210, C > 100 nF

Features

•

High volumetric efficiency

• Non-polar construction

-100

-5

-30

-75

(%)

-50

-25

T ( C)

∆

Yageo-ProductSelectionGuide-html.html

134

Y5V - General purpose & High capacitance 6.3 to 50V, 0402

MLCC Selection Charts

Y5V

General purpose & High capacitance

Capacitance

0402

6.3 V

10 V

16 V

25 V

50 V

10 nF

0.5 ±0.05

22 nF
47 nF

100 nF
220 nF
470 nF

1 000 nF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

135

Y5V - General purpose & High capacitance 6.3 to 50V, 0603 / 0805

MLCC Selection Charts

Y5V

General purpose & High capacitance

Capacitance

0603

0805

6.3 V

10 V

16 V

25 V

50 V

6.3 V

10 V

16 V

25 V

50 V

10 nF

0.8 ±0.1

0.6 ±0.1

22 nF
47 nF

100 nF
220 nF

0.85 ±0.1

470 nF

0.85 ±0.1

1 000 nF

1.25 ±0.2

2.2 µF

1.25 ±0.2

4.7 µF

1.25 ±0.2

10 µF

1.25 ±0.2

22 µF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

136

Y5V - General purpose & High capacitance 6.3 to 50V, 1206 / 1210

MLCC Selection Charts

Y5V

General purpose & High capacitance

Capacitance

1206

1210

6.3 V

10 V

16 V

25 V

50 V

6.3 V

10 V

16 V

25 V

50 V

10 nF

0.6 ±0.1

22 nF
47 nF

100 nF
220 nF
470 nF

0.85 ±0.1

1 000 nF

2.2 µF

1.15 ±0.1

4.7 µF

10 µF

1.15 ±0.1

1.6 ±0.2

1.5 ±0.1

22 µF

1.6 ±0.2

47 µF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

137

NP0 / X7R - Automotive grade, 0402 to 1812

MLCC Selection Charts

Construction

Dimensions

Discrete capacitors - Automotive grade

Case size designation

Dimensions in mm

Inch-based

Metric

L2 / L3 min

L2 / L3 max

L4 min

0402

1005M

1.0 ±0.05

0.5 ±0.05

0.15

0.30

0.40

0603

1608M

1.6 ±0.20

0.8 ±0.10

0.20

0.60

0.40

0805

2012M

2.0 ±0.20

1.25 ±0.20

0.25

0.75

0.55

1206

3216M

3.2 ±0.30

1.6 ±0.20

0.25

0.75

1.40

1210

3225M

3.2 ±0.30

2.5 ±0.20

0.25

0.75

1.40

1812

4532M

4.5 ±0.40

3.2 ±0.30

0.25

0.75

2.20

Features

•

AEC-Q200 qualified

•  MSL class: MSL 1
•  J-STD-020D and TS-16949 compliant
•  Halogen free epoxy
•  RoHS compliant

Applications

•  All general purpose applications
•  Entertainment applications
•  Comfort / security applications
•  Information applications

Dimensions

4C arrays

Case size designation

Dimensions in mm

Inch-based

Metric

min

max

0508

(4 x 0402)

1220M

(4 x 1005)

2.0 ±0.15 1.25 ±0.15

0.50

0.70 0.28 ±0.10 0.2 ±0.10

0.5 ±0.10

0612

(4 x 0603)

1632M

(4 x 1608)

3.2 ±0.15 1.60 ±0.15 0.70

(1)

0.90

(1)

0.4 ±0.10

0.3 ±0.20

0.8 ±0.10

Note:

1. Available for NP0 and X7R

Yageo-ProductSelectionGuide-html.html

138

NP0 - Automotive grade, 0402 to 0805

MLCC Selection Charts

NP0

Automotive Grade

Capacitance

0402

0603

0805

50 V

100V

250V

50 V

100 V

250 V

10 pF

0.5 ±0.05

0.8 ±0.1

0.6 ±0.1

12 pF
15 pF
18 pF
22 pF
27 pF
33 pF
39 pF
47 pF
56 pF
68 pF
82 pF

100 pF
120 pF
150 pF
180 pF
220 pF

0.85 ±0.1

270 pF
330 pF
390 pF
470 pF
560 pF

0.85 ±0.1

680 pF
820 pF

1 000 pF

1.2 nF
1.5 nF
1.8 nF
2.2 nF
2.7 nF
3.3 nF
3.9 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF

10 nF

Tape width

8mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

139

NP0 - Automotive grade, 1206 / 1210

MLCC Selection Charts

NP0

Automotive Grade

Capacitance

1206

1210

50 V

100 V

250 V

500 V

630 V

50 V

100 V

250 V

500 V

10 pF

0.6 ±0.1

1.25 ±0.2

12 pF
15 pF
18 pF
22 pF
27 pF
33 pF
39 pF
47 pF
56 pF
68 pF
82 pF

100 pF
120 pF
150 pF
180 pF
220 pF
270 pF
330 pF
390 pF
470 pF
560 pF
680 pF
820 pF

0.85 ±0.1

1 000 pF

1.25 ±0.2

1.2 nF
1.5 nF
1.8 nF
2.2 nF
2.7 nF
3.3 nF
3.9 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF

10 nF

Tape width

8mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

140

X7R - Automotive grade, 0402 / 0603

MLCC Selection Charts

X7R

Automotive grade

Capacitance

0402

0603

10 V

16 V

25 V

50 V

10 V

16 V

25 V

50 V

100V

100 pF
150 pF
180 pF
220 pF

0.5 ±0.05

330 pF
390 pF
470 pF
680 pF

1 000 pF

0.8 ±0.1

1.5 nF
2.2 nF
3.3 nF
4.7 nF
6.8 nF

10 nF
15 nF
18 nF
22 nF
27 nF
33 nF
47 nF
68 nF

100 nF
150 nF
220 nF
270 nF
330 nF
390 nF
470 nF
680 nF

1000 nF

2.2 μF
4.7 μF

10 μF

Tape width

8mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

141

X7R - Automotive grade, 0805

MLCC Selection Charts

X7R

Automotive grade

Capacitance

0805

10 V

16 V

25 V

50 V

100 V

250 V

500 V

1 000 pF

0.85 ±0.1

1.5 nF
2.2 nF
3.3 nF
4.7 nF
6.8 nF

1.25 ±0.2

10 nF
15 nF
18 nF
22 nF
27 nF

1.25 ±0.2

33 nF
47 nF
68 nF

1.25 ±0.2

100 nF
150 nF

1.25 ±0.2

0.85 ±0.1

220 nF

1.25 ±0.2

270 nF
330 nF
390 nF
470 nF
680 nF

1000 nF

2.2 μF
4.7 μF

10 μF

Tape width

8mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

142

X7R - Automotive grade, 1206

MLCC Selection Charts

X7R

Automotive grade

Capacitance

1206

6.3 V

10 V

16 V

25V

50V

100V

250 V

100 pF
150 pF
180 pF
220 pF
330 pF
390 pF
470 pF
680 pF

1 000 pF

1.5 nF
2.2 nF
3.3 nF
4.7 nF
6.8 nF

10 nF
15 nF
18 nF
22 nF

0.85 ±0.1

1.25 ±0.2

27 nF
33 nF
47 nF
68 nF

1.25 ±0.2

100 nF
150 nF

1.15 ±0.1

220 nF
270 nF

1.6 ±0.2

330 nF
390 nF
470 nF

1.0 ±0.1

680 nF

1.15 ±0.1

1000 nF

2.2 μF
4.7 μF

10 μF

Tape width

8mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

143

X7R - Automotive grade, 1210 / 1812

MLCC Selection Charts

X7R

Automotive grade

Capacitance

1210

1812

6.3 V

10 V

16 V

25V

50V

100V

250 V

50 V

100 V

100 nF

0.85 ±0.1

1.25 ±0.2

150 nF

1.15 ±0.2

1.25 ±0.2

220 nF
270 nF
330 nF
390 nF

1.25 ±0.2

470 nF

1.6 ±0.2

680 nF

1000 nF

2.2 μF
4.7 μF

10 μF

Tape width

12mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

144

NPO/ X7R - Automotive grade 4-C Arrays, 0508, 0612

MLCC Selection Charts

NPO

4-C arrays

Capacitance

0508

0612

6.3 V

10 V

10 pF

0.6 ±0.1

0.8 ±0.1

12 pF
15 pF
18 pF
22 pF
33 pF
39 pF
47 pF
56 pF
68 pF
82 pF

100 pF
120 pF
150 pF
180 pF
220 pF
330 pF
390 pF
470 pF

Tape width

8mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

X7R

4-C arrays

Capacitance

0508

0612

16 V

25 V

50 V

16 V

25 V

50 V

220 pF

0.8 ±0.1

330 pF
470 pF
680 pF

1 nF

0.6 ±0.1

1.2 nF
1.5 nF
1.8 nF
2.2 nF
2.7 nF
3.3 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF

10 nF
12 nF
15 nF
18 nF
22 nF
27 nF
33 nF
47 nF
56 nF
68 nF
82 nF

100 nF

Tape width

8mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

145

NP0 / X7R - High voltage SC type, 1808 / 1812

MLCC Selection Charts

Temperature characteristic

NP0

X7R

Construction

Dimensions

Discrete capacitors - High voltage SC type

Case size designation

Dimensions in mm

Inch-based

Metric

/ L

3 min

/ L

3 max

1808

4520M

4.8 ±0.30

2.0 ±0.30

0.25

0.75

1812

4532M

4.8 ±0.30

3.2 ±0.30

0.25

0.75

Features

•  Capable of operating at high voltage levels
•  For high frequency snubber
•  Decoupling/ Smoothing function
•

TUV certificate No.: 50031668

•

UL certificate No.: E238900

120

T ( C)

(x10 /K)

- 6

-40

-20

-15

-25

-55

125

-10

∆

(%)

-5

T ( C)

Yageo-ProductSelectionGuide-html.html

146

NP0 - High voltage SC type, 1808 / 1812

MLCC Selection Charts

NP0

Capacitance

1808

1812

X1/Y2

for TUV

X1/Y2

for UL

X2/Y3

for TUV/UL

X1/Y2

for TUV/UL

2 pF

3.3 pF
4.7 pF

5 pF

10 pF
12 pF
15 pF

1.6 ±0.2

18 pF

1.6 ±0.2

22 pF
27 pF
33 pF

1.6 ±0.2

39 pF
47 pF
56 pF
68 pF
82 pF

100 pF

2.0 ±0.2

120 pF

2.0 ±0.2

150 pF
180 pF

2.0 ±0.2

220 pF
240 pF
270 pF
330 pF
390 pF
430 pF
470 pF
560 pF
680 pF
820 pF

1 000 pF

Tape width

12 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

X7R

Capacitance

1808

1812

X1/Y2

for TUV/UL

X2/Y3

for TUV/UL

X1/Y2

for TUV

150 pF

1.6 ±0.2

180 pF
220 pF

1.6 ±0.2

240 pF

2.0 ±0.2

270 pF
330 pF
390 pF

2.0 ±0.2

430 pF
470 pF
560 pF
680 pF

2.0 ±0.2

820 pF

1 000 pF

1.2 nF
1.5 nF

Tape width

12 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

147

MLCC Selection Charts

NP0 / X7R / Y5V / X5R - 4C Arrays, 0508 / 0612

Temperature characteristic

NP0

X7R

Temperature characteristic

Y5V

X5R

Features

• Less than 50% board space of an equivalent discrete

component

•

High volumetric efficiency

• Increased throughput, by time saved in mounting

120

T ( C)

(x10 /K)

- 6

-40

-20

-15

-25

-55

125

-10

∆

(%)

-5

T ( C)

-100

-5

-30

-75

(%)

-50

-25

T ( C)

∆

-15

-35

-60

-10

(%)

-5

T ( C)

∆

Yageo-ProductSelectionGuide-html.html

148

MLCC Selection Charts

NP0 / X7R / Y5V / X5R - 4C Arrays, 0508 / 0612

Dimensions

4C arrays

Case size designation

Dimensions in mm

Inch-based

Metric

min

max

0508

(4 x 0402)

1220M

(4 x 1005)

2.0 ±0.15 1.25 ±0.15

0.50

0.70 0.28 ±0.10 0.2 ±0.10

0.5 ±0.10

0612

(4 x 0603)

1632M

(4 x 1608)

3.2 ±0.15 1.60 ±0.15

0.70

(1)

0.90

(1)

0.4 ±0.10

0.3 ±0.20

0.8 ±0.10

0.50

(2)

0.70

(2)

Note:

1. Available for NP0 and X7R

2. Available for Y5V

Yageo-ProductSelectionGuide-html.html

149

MLCC Selection Charts

NP0 - 4C Arrays, 0508 / 0612

NP0

4C arrays

Capacitance

0508

0612

50 V

100 V

50 V

100 V

10 pF

0.6 ±0.1

0.8 ±0.1

15 pF
18 pF
22 pF
27 pF
47 pF

100 pF
150 pF
180 pF
220 pF
270 pF
330 pF
390 pF
470 pF
560 pF
680 pF
820 pF

1 000 pF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

150

MLCC Selection Charts

X7R / X5R - 4C Arrays, 0508 / 0612

X5R

4C arrays

Capacitance

0508

0612

10 V

100 nF

0.6 ±0.1

0.8 ±0.1

120 nF
150 nF
180 nF
220 nF
270 nF

0.85 ±0.1

330 nF
470 nF
560 nF
680 nF
820 nF

1000 nF

2.2 uF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

X7R

4C arrays

Capacitance

0508

0612

16 V

25 V

50 V

16 V

25 V

50 V

100 V

1 nF

0.6 ±0.1

0.8 ±0.1

1.2 nF
1.5 nF
1.8 nF
2.2 nF
2.7 nF
3.3 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF

10 nF

0.85 ±0.1

12 nF
15 nF
18 nF
22 nF
27 nF
33 nF
47 nF
56 nF
68 nF
82 nF

100 nF
220 nF
470 nF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

151

MLCC Selection Charts

Y5V - 4C Arrays, 0612

Y5V

4C arrays

Capacitance

0612

25 V

10 nF

0.6 ±0.1

22 nF
47 nF

100 nF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

152

MLCC Engineering Design Kits

Sample kits

Sample book (small)

Description

Size

Volt.

Cap range

CC0402000000SB000

CC0402 Commodity

0402

≤ 50V

<1uF

CC0603000000SB000

CC0603 Commodity

0603

≤ 50V

<1uF

CC0805000000SB000

CC0805 Commodity

0805

≤ 50V

<1uF

CC1206000000SB000

CC1206 Commodity

1206

≤ 50V

<1uF

CQ0201000000SB000

HiQ 0201

0201

25V

0.2pF to 10pF

CQ0402000000SB000

HiQ 0402

0402

50V

0.2pF to 33pF

CQ0603000000SB000

HiQ 0603

0603

50V

0.2pF to 47pF

CQ0805000000SB000

HiQ 0805

0805

250V

0.2pF to 100pF

HV777S00000000000

Hi-Votage sample book

0805 to 1206

100V to 630V

47pF to 1uF

AC7777000000SB000

AC sample book

0402 to 1206

16V to 100V

10pF to 1uF

HC8888000000SB000

Hi-Cap Series

0201 to 1210

6.3V to 25V

1uF to 220uF

HCV888800000SB000

HCV Series

0402 to 1210

6.3V to 100V

1uF to 22uF

SS1111000000SB000

CC Small Size series

01005 + 0201

6.3V to 50V

0.5pF to 2.2uF

CS8888000000SB000

Soft termination Series

0402 to 1206

16V to 1000V

100pF to 1uF

Yageo-ProductSelectionGuide-html.html

SMD CERAMIC EMI FILTER CAPACITORS

X2Y

PRODUCTS

Yageo-ProductSelectionGuide-html.html

154

X2Y

Product Selection Charts

SMD ceramic EMI filter capacitors X2Y

series

Circuit of typical applications

SCM049_V

Decoupling application

EMI filtering application

Benefits

Applications

• Fewer Components in Filtering: One X2Y

can replace multiple

inductors and/or capacitors

• Superior Performance in Filtering: One X2Y

can eliminate both

differential and common mode noises

• Fewer Components in Decoupling: Up to 1:7 replacement of MLCC

in power delivering system bypass networks

• Superior Performance in Decoupling: Large or small, X2Y

components exhibit ultra low ESL

• Total Cost Savings: Assembly cost savings through reduced

component count and placement costs

• Board Level Design Advantages: Dramatically

reduces via drills,

which blocks routing

•

EMI filtering on DC motors

• Filtered connectors (airbag connectors, RJ-45 connectors)
•

High speed data-line filtering

• Decoupling of supply-lines in high speed digital circuits
•

Broadband filtering

•

Amplifier decoupling and EMI suppression

• IC Decoupling, on-package, on-PCB
•

DC power line filtering

•

Data line filtering

•  EMI suppression for DC motors
•  Sensors
•  Audio

Features

• Broadband Filtering and Decoupling: X2Y® is effective up to 10

GHz and frequencies beyond

• Ultra Low ESL: Noise cancellation within X2Y® makes ESL

reducing from nanohenry to picohenry levels

• Bypass: Unlike feedthrough capacitors, X2Y® is in bypass, so no

DC current limitations

• Matched Y-caps: Two tightly matched line to ground capacitors in

one device

• Superior Balance: Temperature and voltage variations balanced of

two Y-caps

• Aging Reliability: Aging effects are equal on two Y-caps

Yageo-ProductSelectionGuide-html.html

155

X7R

Size

Y-Capacitor

Voltage rating

(V)

Thickness

(mm)

Global part number

Capacitance

(nF)

Tolerance

( %)

0603

20%

100

0.65

CX 0603 MR X7R 0BB 102

1.5

20%

100

0.65

CX 0603 MR X7R 0BB 152

2.2

20%

100

0.65

CX 0603 MR X7R 0BB 222

4.7

20%

100

0.65

CX 0603 MR X7R 0BB 472

5.6

20%

100

0.65

CX 0603 MR X7R 0BB 562

20%

50 / 63

0.65

CX 0603 MR X7R 9BB 103

20%

0.65

CX 0603 MR X7R 8BB 153

20%

0.65

CX 0603 MR X7R 8BB 183

20%

0.65

CX 0603 MR X7R 8BB 223

20%

0.65

CX 0603 MR X7R 7BB 393

20%

0.65

CX 0603 MR X7R 7BB 473

20%

0.65

CX 0603 MR X7R 7BB 563

100

20%

0.65

CX 0603 MR X7R 6BB 104

180

20%

0.65

CX 0603 MR X7R 6BB 184

220

20%

0.65

CX 0603 MR X7R 6BB 224

270

20%

0.65

CX 0603 MR X7R 6BB 274

330

20%

0.65

CX 0603 MR X7R 6BB 334

0805

20%

100

0.85

CX 0805 MR X7R 0BB 102

1.5

20%

100

0.85

CX 0805 MR X7R 0BB 152

2.2

20%

100

0.85

CX 0805 MR X7R 0BB 222

4.7

20%

100

0.85

CX 0805 MR X7R 0BB 472

5.6

20%

100

0.85

CX 0805 MR X7R 0BB 562

20%

100

0.85

CX 0805 MR X7R 0BB 103

20%

50 / 63

0.85

CX 0805 MR X7R 9BB 153

20%

50 / 63

0.85

CX 0805 MR X7R 9BB 183

20%

50 / 63

0.85

CX 0805 MR X7R 9BB 223

20%

0.85

CX 0805 MR X7R 7BB 473

20%

0.85

CX 0805 MR X7R 7BB 563

100

20%

0.85

CX 0805 MR X7R 7BB 104

180

20%

0.85

CX 0805 MR X7R 6BB 184

1206

20%

100

1.2

CX 1206 MK X7R 0BB 103

20%

100

1.2

CX 1206 MK X7R 0BB 153

20%

100

1.2

CX 1206 MK X7R 0BB 183

20%

100

1.2

CX 1206 MK X7R 0BB 223

20%

100

1.2

CX 1206 MK X7R 0BB 333

20%

50 / 63

1.2

CX 1206 MK X7R 9BB 393

20%

50 / 63

1.2

CX 1206 MK X7R 9BB 473

20%

50 / 63

1.2

CX 1206 MK X7R 9BB 563

100

20%

50 / 63

1.2

CX 1206 MK X7R 9BB 104

180

20%

1.2

CX 1206 MK X7R 7BB 184

220

20%

1.2

CX 1206 MK X7R 7BB 224

270

20%

1.2

CX 1206 MK X7R 7BB 274

330

20%

1.2

CX 1206 MK X7R 7BB 334

390

20%

1.2

CX 1206 MK X7R 7BB 394

470

20%

1.2

CX 1206 MK X7R 6BB 474

X2Y

Product Selection Charts

Ordering information

Yageo-ProductSelectionGuide-html.html

156

X2Y

Product Selection Charts

Ordering information

X5R

Size

Y-Capacitor

Voltage rating

(V)

Thickness

(mm)

Global part number

Capacitance

(nF)

Tolerance

( %)

0603

180

20%

0.65

CX 0603 MR X5R 6BB 184

220

20%

0.65

CX 0603 MR X5R 6BB 224

330

20%

0.65

CX 0603 MR X5R 6BB 334

390

20%

0.65

CX 0603 MR X5R 6BB 394

470

20%

0.65

CX 0603 MR X5R 6BB 474

Note:

1. Special values are available on request

Thickness classes and packing quantities

Thickness

Classification

(mm)

Quantity per reel
8 mm tape width

Ø180mm / 7”

0603 - 1410

Paper

Blister

0.60 ±0.10

4 000

---

0.85 ±0.10

4 000

---

1.20 ±0.15

---

3 000

1.60 ±0.15

---

2 000

1.90 ±0.20

---

2 000

Note:

1. Special values are available on request

Yageo-ProductSelectionGuide-html.html

157

Global part number

Ordering example: CX0603MKX7R6BB104

C X 0 6 0 3 M K X 7 R 6 B B 1 0 4

Series name (code 1-2)

Capacitance value (code 15-17)

CX = X2Y

-series

104 = 100 000 pF

(2 significant digits+number of zeros;

Size code (code 3-6)

the 3rd digit signifies the multiplying

EIA mm

factor, and letter R is decimal point)

0603 (1608M)

0 = x 1

0805 (2012M)

1 = x 10

1206 (3216M)

2 = x 10

1210 (3225M)

3 = x 10

1410 (3625M)

4 = x 10

5 = x 10

Capacitance tolerance (code 7)

6 = x 10

M = ±20%

Process code (code 14)

Packing style (code 8)

B = BME

R = Paper tape reel Ø7"
K = Embossed plastic tape reel Ø7"

Termination (code 13)

B = Ni-barrier

TC material (code 9-11)

NP0

Rated voltage (code 12)

X7R

5 = 6.3 V

X5R

6 = 10 V
7 = 16 V
8 = 25 V
9 = 50 V
0 = 100 V

X2Y

Product Selection Charts

Ordering information

Yageo-ProductSelectionGuide-html.html

WIRELESS COMPONENTS

Yageo-ProductSelectionGuide-html.html

160

Wireless Components Product Selection Charts

Introduction

Wireless Components

Antenna

Metal

PCB

FPCB

LTCC

/ Ceramic

Patch

/ Ceramic

LTCC Balun/ Filter/ Balun + Filter (Combo) / X2Y

Balun

Filter

Diplexer

Balanced Filter

X2Y Filter

Yageo Antenna Portfolio

Introduction

Yageo produces a comprehensive range of wireless components, inclding metal/PCB/FPCB antenna, patch antenna

(ceramic bulk), active antenna (LNA circuit), chip antenna, and RF components (filter/balancer).

Our products cover a wide variety of wireless communication protocols, including Bluetooth & IEEE 802.11b/g, WPAN

(Wireless Personal Area Network), WLAN (Wireless Local Area Network), WMAN (Wireless Metropolitan Area

Network), WWAN (Wireless Wide Area Network) and LTE (Long Term Evolution).

NFC/RFID

13.56MHz

Short-Range

(UHF/Sub-GHz)

GNSS

(GPS&Glonass&BDS)

WLAN & WPAN 2.4/5GHz

(WiFi/BT/Zigbee)

700/824 MHz

960 MHz

2.4 – 2.5 GHz

4.9/5.15 – 5.875 GHz

169MHz 315/433/470

868/915MHz

1560/1575/1602MHz

1710 – 2690 MHz

1 GHz = 1,000 MHz

Frequency

Cellular WWAN

(GSM/CDMA/UMTS/LTE)

Yageo-ProductSelectionGuide-html.html

161

Key features of wireless components

Compact

•

Maximize performance with the smallest size required

•

The smallest 2.4/5 GHz antenna: PCB 18.4x7.5 mm / LTCC 1.6x0.8 mm

Multi-Band & High Efficiency

•

WWAN: Quad-band (850/900/1800/1900 MHz) to Penta-band (850/900/1800/1900/2100 MHz)

•

Support 4G cellular network LTE 700 MHz (Band 12,13,17), 2300/2600 MHz

•

Multi-band 2.3/2.4/2.7 & 5 GHz supporting WLAN/WiMAX/LTE

•

Operating in dual navigational systems GPS & Glonass: 1575 – 1606 MHz

High Reliability

•

Operating temperature range: -40°C ~ 105°C

•

Operating humidity 95% RH at 40°C

•

Vibration verification

Easy Installation

•

Reliable adhesive tape, surface mount, and flexible cable/connector selection

Wireless Components Selection Charts

Introduction

Portable devices, home appliances, industrial/medical equipment will be equipped with wireless connectivity for Peer-to-Peer data
exchange. More wireless components are needed.

Mobile

Surveillance

Automotive

Medical

Smart Energy

Yageo-ProductSelectionGuide-html.html

162

Wireless Components Selection Charts

Antenna - 2.4 GHz

2.4 GHz

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT1204F001R2400A
1204 2.4GHz PIFA Chip Ante

Freq. Range:

2400~2500 MHz

Size

(mm)

12*4*2.0

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

6.66 dBi(Typ.)

ANT9520LL06R2400A
9520 2.4GHz Chip Antenna

Freq. Range:

2400~2500 MHz

Size

(mm)

9.5*2.0*1.2

VSWR

2.5 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

2.85 dBi(Typ.)

ANT8010LL04R2400A
8010 2.4GHz Chip Antenna

Freq. Range:

2400~2500 MHz

Size

(mm)

8.0*1.0*1.0

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

5.88 dBi(Typ.)

ANT7836A003R2400A
7836 2.4GHz Chip Antenna

Freq. Range:

2400~2500 MHz

Size

(mm)

7.8*3.6*0.5

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

3.93 dBi(Typ.)

ANT7020LL05R2400A
7020 2.4GHz Chip Antenna

Freq. Range:

2400~2500 MHz

Size

(mm)

7.0*2.0*0.8

VSWR

2.8 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

2.62 dBi(Typ.)

ANT5320LL45R2400A
5320 2.4GHz Chip Antenna

Freq. Range:

2400~2500 MHz

Size

(mm)

5.3*2.0*1.2

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

5.5 dBi(Typ.)

ANT5320LL24R2400A
5320 2.4GHz PIFA Chip Antenna

Freq. Range:

2400~2500 MHz

Size

(mm)

5.3*2.0*1.25

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

2.78 dBi(Typ.)

ANT5010LL04R2400A
5010 2.4GHz Chip Antenna

Freq. Range:

2400~2500 MHz

Size

(mm)

5.0*1.0*1.0

VSWR

2.8 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

2.28 dBi(Typ.)

ANT3216LL00R2400A
3216 2.4Ghz Chip Antenna

Freq. Range:

2400~2500 MHz

Size

(mm)

3.2*1.6*1.3

VSWR

2.5 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

5 dBi(Typ.)

ANT3216A063R2400A
3216 2.4GHz PIFA Chip Antenna

Freq. Range:

2400~2500 MHz

Size

(mm)

3.2*1.6*0.5

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

1.69 dBi(Typ.)

ANT3012LL04R2400A
3012 2.4GHz Chip Antenna

Freq. Range:

2400~2500 MHz

Size

(mm)

3.0*1.2*1.2

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

1.84 dBi(Typ.)

ANT2012LL13R2400A

Freq. Range :

2400~2500 MHz

Size

(mm)

2.0*1.2*1.0

2012 2.4GHz PIFA Chip Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

2.72 dBi(Typ.)

VSWR depends on the environment

Yageo-ProductSelectionGuide-html.html

163

Wireless Components Selection Charts

Antenna - 2.4/ 5 GHz

2.4 GHz

Model

Part No./

Description

Electrical Data

Mechanical Data

ANT1608LL14R2400A

Freq. Range :

2400~2500 MHz

Size

(mm)

1.6*0.8*0.4

1608 2.4GHz PIFA Chip Antenna

VSWR

3.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

2.0 dBi(Typ.)

ANTX200P001B24003

Freq. Range :

2400 MHz

Size

(mm)

18.4*7.5*0.55

2.4GHz PCB Antenna - mini

VSWR

2.5 (Max)

Operating Temp.:

-40 ~ 80°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

4.8 dBi(Typ.)

2.4 GHz

/ GPS

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT1003LL15R1524A

Freq. Range :

1575 / 2400 MHz

Size

(mm)

10*3*1.5

1003 2.4GHz+GPS PIFA Chip

VSWR

2.8 (Max)

Operating Temp.:

-40 ~ 105°C

Antenna

Polarization:

Linear

RoHS Compliance

Peak Gain :

1.15 dBi / 2.90 dBi(Typ.)

ANT5320LL07R1524A /

Freq. Range :

1575 / 2400 MHz

Size

(mm)

5.3*2.0*1.2

5320 2.4GHz+GPS PIFA Chip

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Antenna

Polarization:

Linear

RoHS Compliance

Peak Gain :

2.47 dBi / 2.04 dBi(Typ.)

2.4 / 5 GHz

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT1003LL05R2455A

Freq. Range :

2400~2500/ 5150~5875 MHz

Size

(mm)

10*3*1.6

1003 2.4+5GHz Chip Antenna

Operating Temp.:

-40 ~ 105°C

VSWR

2.8 (Max)

RoHS Compliance

Polarization:

Linear

Peak Gain :

2.45 dBi / 1.55dBi(Typ.)

ANT5320LL04R2455A
5320 2.4+5GHz Chip Antenna

Freq. Range :

2400~2500/ 5150~5875 MHz

Size

(mm)

5.3*2.0*1.4

Operating Temp.:

-40 ~ 105°C

RoHS Compliance

VSWR

2.8 (Max)

Polarization:

Linear

Peak Gain :

2.72 dBi / 3.85dBi(Typ.)

ANT5320LL24R2455A

Freq. Range :

2400~2500/

5150~5875 MHz

Size

(mm)

5.3*2.0*1.2

5320 2.4+5GHz PIFA Chip

Operating Temp.:

-40 ~ 105°C

Antenna

VSWR

2.8 (Max)

RoHS Compliance

Polarization:

Linear

Peak Gain :

2.17 dBi / 3.51dBi(Typ.)

ANT1608LL14R2455A

Freq. Range :

Size

(mm)

1.6*0.8*0.4

1608 2.4+5GHz Chip Antenna

2400 - 2500/5150 - 5875 MHz

Operating Temp.:

-40~105°C

VSWR

6/3.5 (Max)

RoHS Compliance

Polarization:

Linear

Peak Gain :

3.11 / 3.43 dBi(Typ.)

ANT3216A063R2455A

Freq. Range :

Size

(mm)

3.05*1.55*0.55

3216 2.4+5GHz Chip Antenna

2400 - 2500/5150 - 5875 MHz

Operating Temp.:

-40~105°C

VSWR

2 (Max)

RoHS Compliance

Polarization:

Linear

Peak Gain :

1.59 / 2.23 dBi(Typ.)

ANTX200P002B24553

Freq. Range :

Size

(mm)

40*43*0.55

2.4+5GHz PCB Antenna

2400 - 2500/5150 - 5875MHz

Operating Temp.:

-40 ~ 105°C

VSWR

2.5 (Max)

RoHS Compliance

Polarization:

Linear

Peak Gain :

2.3 dBi(Typ.)

ANTX100P001B24553

Freq. Range :

2400~2500/ 5150~5875 MHz

Size

(mm)

50*10*0.9

2.4+5GHz PCB Antenna

Operating Temp.:

-40 ~ 80°C

VSWR

2.5 (Max)

RoHS Compliance

Polarization:

Linear

Peak Gain :

5.1 dBi(Typ.)

VSWR depends on the environment

Yageo-ProductSelectionGuide-html.html

164

Wireless Components Product Selection Charts

Antenna - 5 GHz/ Cellular WWAN / Short Range

5 GHz

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT3216LL05R5000A

Freq. Range :

5150~5875 MHz

Size

(mm)

3.2*1.6*1.3

3216 5GHz Chip Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

5.71 dBi(Typ.)

VSWR depends on the environment

Cellular WWAN

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT2112A010B0918A
2112 Cellular-Band Chip Antenna

Freq. Range :

824~960 / 1710~1990 MHz

Size

(mm)

21*12*0.5

Operating Temp.:

-40 ~ 105°C

VSWR

2.0 (Max)

RoHS Compliance

Polarization:

Linear

Peak Gain :

0.5 ~ 1 dBi(Typ.)

ANT3505B002TWPENS
3505 Penta-band Antenna

Freq. Range :

824~960 /1710~2170 MHz

Size

(mm)

35*5*6

Operating Temp.:

-40 ~ 105°C

VSWR

2.8 / 3.5 (Max)

RoHS Compliance

Polarization:

Linear

Peak Gain :

2.9 dBi(Typ.)

ANT1204LL00R0918A
1204 Cellular-Band Chip Antenna

Freq. Range :

900/1800 MHz

Size

(mm)

12*4*1.2

VSWR

3.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

N/A

ANTX100P001BWPEN3
Penta-band PCB Antenna

Freq. Range :

824~960 / 1710~2170 MHz

Size

(mm)

50*20*0.55

Operating Temp.:

-40 ~ 80°C

VSWR

2.5 Max ( Low Band )

Cable

1.13 / 100mm

3.5 Max ( High Band )

Connector:

I-PEX

Polarization:

Linear

Mounting:

Adhesive Tape

Peak Gain :

4.2 dBi(Typ.)

RoHS Compliance

ANT4005B000RWHEXS

Freq. Range :

Size

(mm)

40*5*6

4005 LTE Antenna

698 - 960/1710 - 2690 MHz

Operating Temp.:

-40 ~ 80°C

VSWR

3.0 Max ( Low Band )

RoHS Compliance

Polarization:

Linear

Peak Gain :

3.2 / 4.0 dBi(Typ.)

Short-Range

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT1204LL05R0915A
1204 915MHz Chip Antenna

Freq. Range :

915 MHz

Size

(mm)

12*4*1.6

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

3.32 dBi(Typ.)

ANT1204LL08R0870A
1204 870MHz Chip Antenna

Freq. Range :

870 MHz

Size

(mm)

12*4*1.6

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

0.5 dBi(Typ.)

ANT1204LL17R0870A
1204 870MHz PIFA Chip Antenna

Freq. Range :

870 MHz

Size

(mm)

12*4*1.0

VSWR

2.8 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

1.05 dBi(Typ.)

ANT7020LL05R0870A

Freq. Range :

870 MHz

Size

(mm)

7.0*2.0*0.7

7020 870MHz Chip Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

N/A

ANT1204F002R0433A

Freq. Range :

315/ 433 MHz

Size

(mm)

12*4*1.6

1204 433MHz Chip Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

0.79 dBi(Typ.)

VSWR depends on the environment

Yageo-ProductSelectionGuide-html.html

165

Wireless Components Selection Charts

Antenna - Short-Range/ GPS

Short-Range

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT1204LL20R0433A

Freq. Range :

315/ 433 MHz

Size

(mm)

12*4*1.2

1204 433MHz Chip Antenna

VSWR

3.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

0.83 dBi(Typ.)

ANT2405F001R0169A

Freq. Range :

169 MHz

Size

(mm)

24*5*1.6

2405 169MHz Chip Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

N/A

ANT1204F005R0915A

Freq. Range :

915 MHz

Size

(mm)

12*4*1.6

1204 915MHz Chip Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 85°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

1.59 dBi(Typ.)

ANT1204F007R0870A

Freq. Range :

870 MHz

Size

(mm)

12*4*1.6

1204 870MHz Chip Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 85°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

1.67 dBi(Typ.)

GPS

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT8010LL05R1575A
8010 GPS Chip Antenna

Freq. Range :

1575 MHz

Size

(mm)

8.0*1.0*1.0

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain:

0.67 dBi(Typ.)

ANT6230LL01R1575A
6230 GPS Chip Antenna

Freq. Range :

1575 MHz

Size

(mm)

6.2*3.0*1.25

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain:

2.52 dBi(Typ.)

ANT5320LL14R1575A
5320 GPS PIFA Chip Antenna

Freq. Range :

1575 MHz

Size

(mm)

5.3*2.0*1.2

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain:

3.16 dBi(Typ.)

ANT3216LL15R1575A
3216 GPS PIFA Chip Antenna

Freq. Range :

1575 MHz

Size

(mm)

3.2*1.6*1.2

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain:

7.32 dBi(Typ.)

ANT3216A063R1575A

Freq. Range:

1575 MHz

Size

(mm)

3.05*1.55*0.55

3216 GPS Chip Antenna

Peak Gain:

1 dBic(Typ.)

Operating Temp. :

-40 ~ 105°C

VSWR

2.0 (Max)

Mounting:

Polarization:

Linear

RoHS Compliance

ANT1010B00FT1575S
10104 GPS Patch Antenna

Freq. Range :

1575 MHz

Size

(mm)

10*10*4

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain:

-3 dBic(Typ.)

RoHS Compliance

ANT1212B00DT1575S
12124 GPS Patch Antenna

Freq. Range :

1575 MHz

Size

(mm)

12*12*4

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain:

-1 dBic(Typ.)

RoHS Compliance

ANT1515B00DT1575S
15154 GPS Patch Antenna

Freq. Range :

1575 MHz

Size

(mm)

15*15*4

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain:

1.5 dBic(Typ.)

RoHS Compliance

ANT1515B00FT1575S
15154 GPS Patch Ant

Freq. Range :

1575 MHz

Size

(mm)

15*15*4

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain:

2.0 dBic(Typ.)

RoHS Compliance

VSWR depends on the environment

Yageo-ProductSelectionGuide-html.html

166

Wireless Components Selection Charts

Antenna - GPS

GPS

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT1818B00AT1575S
18182 GPS Patch Antenna

Freq. Range :

1575 MHz

Size

(mm)

18*18*2

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

RHCP

Mounting:

SMD

Peak Gain:

2 dBic(Typ.)

RoHS Compliance

ANT1818B00BT1575S
18184 GPS Patch Antenna

Freq. Range :

1575 MHz

Size

(mm)

18*18*4

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

RHCP

Mounting:

SMD

Peak Gain:

2 dBic(Typ.)

RoHS Compliance

ANT1818B00CT1575S

Freq. Range:

1575 MHz

Size

(mm)

18*18*2

18182 GPS Patch Antenna

VSWR

2.0 (Max)

Operating Temp. :

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain:

2 dBic(Typ.)

RoHS Compliance

ANT1818B00DT1575S

Freq. Range:

1575 MHz

Size

(mm)

18*18*4

18184 GPS Patch Antenna

VSWR

2.0 (Max)

Operating Temp. :

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain:

4 dBic(Typ.)

RoHS Compliance

ANT1818B00ET1575S

Freq. Range:

1575 MHz

Size

(mm)

18*18*2

18182 GPS Patch Antenna

VSWR

2.0 (Max)

Operating Temp. :

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain:

2 dBic(Typ.)

RoHS Compliance

ANT2525B00AT1575S

Freq. Range:

1575 MHz

Size

(mm)

25*25*2

25252 GPS Patch Antenna

VSWR

2.0 (Max)

Operating Temp. :

-40 ~ 105°C

Polarization:

RHCP

Mounting:

SMD

Peak Gain:

5 dBic(Typ.)

RoHS Compliance

ANT2525B00BT1575S

Freq. Range:

1575 MHz

Size

(mm)

25*25*4

25254 GPS Patch Antenna

VSWR

2.0 (Max)

Operating Temp. :

-40 ~ 105°C

Polarization:

RHCP

Mounting:

SMD

Peak Gain:

5.5 dBic(Typ.)

RoHS Compliance

ANT2525B00CT1575S

Freq. Range:

1575 MHz

Size

(mm)

25*25*2

25252 GPS Patch Antenna

VSWR

2.0 (Max)

Operating Temp. :

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain:

4.5 dBic(Typ.)

RoHS Compliance

ANT2525B00DT1575S

Freq. Range:

1575 MHz

Size

(mm)

25*25*4

25254 GPS Patch Antenna

VSWR

2.0 (Max)

Operating Temp. :

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain:

5 dBic(Typ.)

RoHS Compliance

ANT2525B00ET1575S

Freq. Range:

1575 MHz

Size

(mm)

25*25*2

25252 GPS Patch Antenna

VSWR

2.0 (Max)

Operating Temp. :

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain:

4.5 dBic(Typ.)

RoHS Compliance

ANT2525B00FT1575S

Freq. Range:

1575 MHz

Size

(mm)

25*25*4

25254 GPS Patch Antenna

VSWR

2.0 (Max)

Operating Temp. :

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain:

5 dBic(Typ.)

RoHS Compliance

ANT1606B00DT1575S

Freq. Range:

1575 MHz

Size

(mm)

16*6*4

16064 GPS Patch Antenna

VSWR

2.0 (Max)

Operating Temp. :

-40 ~ 105°C

Polarization:

Linear

Mounting:

Peak Gain:

-0.5 dBic(Typ.)

RoHS Compliance

VSWR depends on the environment

Yageo-ProductSelectionGuide-html.html

167

Wireless Components Selection Charts

Antenna - GPS / Glonass / Active Antenna/ GPS+BD

GPS+Glonass

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT1818B00BT1516S
18184 Gps+Glonass Patch Antenna

Freq. Range:

1575 / 1602 MHz

Size

(mm)

18*18*4

VSWR

2.0 (Max)

Operating Temp. :

-40 ~ 105°C

Polarization:

Linear

Mounting:

SMD

Peak Gain:

1.89 / 2.59 dBi(Typ.)

RoHS Compliance

ANT1818B00DT1516S

18184 Gps+Glonass Patch Antenna

Freq. Range:

1575 / 1602 MHz

Size

(mm)

18*18*4

VSWR

2.0 (Max)

Operating Temp. :

-40 ~ 105°C

Polarization:

Linear

Mounting:

Peak Gain:

2.65 / 2.79 dBi (Typ.)

RoHS Compliance

ANT2525B00BT1516S

25254 Gps+Glonass Patch Antenna

Freq. Range:

1575 / 1602 MHz

Size

(mm)

25*25*4

VSWR

2.0 (Max)

Operating Temp. :

-40 ~ 105°C

Polarization:

Linear

Mounting:

SMD

Peak Gain:

3.44 / 4.10 dBi (Typ.)

RoHS Compliance

ANT2525B00DT1516S
25254 Gps+Glonass Patch Antenna

Freq. Range:

1575 / 1602 MHz

Size

(mm)

25*25*4

VSWR

2.0 (Max)

Operating Temp. :

-40 ~ 105°C

Polarization:

Linear

Mounting:

Peak Gain:

3.5 / 3.8 dBi (Typ.)

RoHS Compliance

Active GPS

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT2525JB08B1575A

25256.9 GPS Active Antenna

Freq. Range:

1575 MHz

Size

(mm)

25*25*6.9

VSWR

2.0 (Max)

Cable

(mm)

1.13*75

Polarization:

RHCP

Operating Temp. :

-30 ~ 85°C

LNA Gain:

16 dB (Typ.)

RoHS Compliance

Antenna Gain:

5.5 dBic(Typ.)

ANT1515JB27B1575A
15156.5 GPS Active Antenna

Freq. Range:

1575 MHz

Size

(mm)

15*15*6.5

VSWR

2.0 (Max)

Cable

(mm)

1.13*100

Polarization:

RHCP

Operating Temp. :

-30 ~ 85°C

LNA Gain:

20.5 dB (Typ.)

RoHS Compliance

Antenna Gain:

1.0 dBic(Typ.)

ANT1606JB12B1575A
20066.4 GPS Active Antenna

Freq. Range:

1575 MHz

Size

(mm)

20*6*6.4

VSWR

2.0 (Max)

Cable

(mm):

1.37*93

Polarization:

Linear

Operating Temp. :

-30 ~ 85°C

LNA Gain:

20 dB (Typ.)

RoHS Compliance

Antenna Gain:

0.35 dBi (Typ.)

Active GPS+Glonass

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT8010JLC1B1516A
22061.9 GPS+Glonass Active Antenna

Freq. Range:

1575/1602 MHz

Size

(mm)

22*6*1.9

VSWR

2.0 (Max)

Cable

(mm):

1.13*100

Polarization:

Linear

Operating Temp. :

-30 ~ 85°C

LNA Gain:

20 / 20 dB (Typ.)

RoHS Compliance

Antenna Gain:

5.88 dBi(Typ.)

VSWR depends on the environment /

Cable/Connector is customizable

Yageo-ProductSelectionGuide-html.html

168

Wireless Components

Selection Charts

Antenna - GPS+BD/ Others

GPS+BD

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT2525B00FT15BDS

Freq. Range :

1575/1561 MHz

Size

(mm)

25*25*4

25254 GPS+BD Patch Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain :

7 dBic(Typ.)

RoHS Compliance

ANT1818B00FT15BDS

Freq. Range :

1575/1561 MHz

Size

(mm)

18*18*4

18184 GPS+BD Patch Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain :

5.6 dBic(Typ.)

RoHS Compliance

ANT1515B00FT15BDS

Freq. Range :

1575/1561 MHz

Size

(mm)

15*15*4

15154 GPS+BD Patch Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain :

4.8 dBic(Typ.)

RoHS Compliance

ANT1212B00FT15BDS

Freq. Range :

1575/1561 MHz

Size

(mm)

12*12*4

12124 GPS+BD Patch Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain :

2.5 dBic(Typ.)

RoHS Compliance

GNSS

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT1204LL04RGNSSA

Freq. Range :

1559 - 1610 MHz

Size

(mm)

12*4*1.1

1204 GNSS Chip Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

RHCP

RoHS Compliance

Peak Gain :

2.32 dBic(Typ.)

ANT2525B00FTGNSSS

Freq. Range :

1559 - 1610 MHz

Size

(mm)

25*25*4

25254 GNSS Patch Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain :

5.16 dBic(Typ.)

RoHS Compliance

ANT1818B00FTGNSSS

Freq. Range :

1559 - 1610 MHz

Size

(mm)

18*18*4

18184 GNSS Patch Antenna

VSWR

3.5 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

RHCP

Mounting:

Peak Gain :

3 dBic(Typ.)

RoHS Compliance

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT2405F001R0098A
2405 FM Chip Antenna

Freq. Range :

88 MHz

Size

(mm)

24*5*1.6

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

N/A

ANT1105LF00R0098A
1105 FM (Ferrite) Chip Antenna

Freq. Range :

88 MHz

Size

(mm)

11*5*1.3

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

Linear

RoHS Compliance

Peak Gain :

N/A

SDARS

Model

Part No./ Description

Electrical Data

Mechanical Data

ANT2525B00FT2300S

Freq. Range :

2320~2345 MHz

Size (mm):

25*25*4

25254 SDARS Patch Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

LHCP

Mounting:

Peak Gain :

7.7 dBic(Typ.)

RoHS Compliance

ANT2020B00FT2300S

Freq. Range :

2320~2345 MHz

Size (mm):

20*20*4

20204 SDARS Patch Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

LHCP

Mounting:

Peak Gain :

6 dBic(Typ.)

RoHS Compliance

ANT1818B00FT2300S

Freq. Range :

2320~2345 MHz

Size (mm):

18*18*4

18184 SDARS Patch Antenna

VSWR

2.0 (Max)

Operating Temp.:

-40 ~ 105°C

Polarization:

LHCP

Mounting:

Peak Gain :

7.6 dBic(Typ.)

RoHS Compliance

VSWR depends on the environment

Yageo-ProductSelectionGuide-html.html

169

Wireless Components Selection Charts

Filters

Filter (BPF)

Model

Part No./ Description

Electrical Data

Mechanical Data

BPF2520LL03R2400A
2520 2.4G BPF Type03

Freq. Range:

2400-2500MHz

Attenuation

Size

(mm)

2.5*2.0*0.95

Instertion Loss:

1.5dB(Max)

40dB Min @ 880~960MHz

Operating Temp.:

-40~85°C

VSWR

2.0dB(Max)

30dB Min @ 1710~1785MHz

RoHs Compliance

30dB Min @ 1850~1910MHz
20dB Min @ 4800~5000MHz
30dB Min @ 7200~7500MHz

BPF2520LL04R2400A

2520 2.4G BPF Type04

Freq. Range:

2400-2500MHz

Attenuation

Size

(mm)

2.5*2.0*0.95

Instertion Loss:

1.8dB(Max)

45dB Min @ 750~960MHz

Operating Temp.:

-40~85°C

VSWR

2.0dB(Max)

35dB Min @ 1710~1785MHz

RoHs Compliance

35dB Min @ 1920~1990MHz
20dB Min @ 4800~5000MHz
30dB Min @ 7200~7500MHz

BPF2012LL19R2400A

2012 2.4G BPF Type19

Freq. Range:

2400-2500MHz

Attenuation

Size

(mm)

2.5*2.0*0.95

Instertion Loss:

2.8dB(Max)

45dB Min @ 750~960MHz

Operating Temp.:

-40~85°C

VSWR

2.0dB(Max)

35dB Min @ 1710~1785MHz

RoHs Compliance

35dB Min @ 1920~1990MHz
20dB Min @ 4800~5000MHz
30dB Min @ 7200~7500MHz

BPF2012LL03R2400A
2012 2.4G BPF Type03

Freq. Range:

2400-2500MHz

Attenuation

Size

(mm)

2.0*1.25*1.0

Instertion Loss:

2.3dB(Max)

40dB Min @ 1000~1600MHz

Operating Temp.:

-40~85°C

VSWR

2.0dB(Max)

40dB Min @ 4900MHz

RoHs Compliance

25dB Min @ 7500MHz

BPF2012LL03R5000A
2012 5G BPF Type03

Freq. Range:

4900-5900 MHz

Attenuation:

Size

(mm)

2.0*1.25*0.85

Insertion Loss:

2.2dB (Max)

25dB Min @ 6850~7150MHz

Operating Temp.:

-40~85°C

VSWR

2.0 (Max)

20dB Min @ 7500~9000MHz

RoHS Compliance

BPF2012LL12R5000A
2012 5G BPF Type12

Freq. Range:

5149-5875 MHz

Attenuation:

Size

(mm)

2.0*1.25*0.95

Insertion Loss:

2.2dB (Max)

30dB Min @ 500~4000MHz

Operating Temp.:

-40~85°C

VSWR

2.0 (Max)

20dB Min @ 4600MHz

RoHS Compliance

BPF2012LL01R5000A
2012 5G BPF Type01

Freq. Range:

4900-5950 MHz

Attenuation:

Size

(mm)

2.0*1.2*1

Insertion Loss:

1.5dB (Max)

30dB Min @1280~3000MHz

Operating Temp.:

VSWR

2.0 (Max)

25dBMin @ 3300~4000MHz

RoHS Compliance

25dBMin @ 9800~11900MHz

BPF2012LL05R5000A
2012 5G BPF Type05

Freq. Range:

5150-5850 MHz

Attenuation:

Size

(mm)

2.0*1.2*0.8

Insertion Loss:

1.8dB (Max)

30dB Min @ 2400~2500MHz

Operating Temp.:

-40~85°C

VSWR

2.0 (Max)

20dB Min @ 4700MHz

RoHS Compliance

BPF2012LM47R2400A
2012 2.4G BPF Type47

Freq. Range:

2400-2500MHz

Attenuation

Size

(mm)

2.0*1.25*0.95

Instertion Loss:

1.8dB(Max)

30dB Min @ 824~915MHz

Operating Temp.:

-40~85°C

VSWR

2.0dB(Max)

30dB Min @ 1545~1605MHz

RoHs Compliance

35dB Min @ 1710~1990MHz
30dB Min @ 2170MHz
30dB Min @ 4800~5000MHz
25dB Min @ 7200~7500MHz

BPF1608LM17R2400A
1608 2.4G BPF Type17

Freq. Range:

2400-2500MHz

Attenuation

Size

(mm)

1.6*0.8*0.6

Instertion Loss:

2.7dB(Max)

38dB Min @ 880~915MHz

Operating Temp.:

-40~85°C

VSWR

2.0dB(Max)

35dB Min @ 1710~1850MHz

RoHs Compliance

35dB Min @ 1850~1910MHz
35dB Min @ 1920~19900MHz
25dB Min @ 2110~2170MHz
30dB Min @ 4800~5000MHz
30dB Min @ 7200~7500MHz

VSWR depends on the environment

Yageo-ProductSelectionGuide-html.html

170

Wireless Components Selection Charts

Filter

Filter (BPF)

Model

Part No./ Description

Electrical Data

Mechanical Data

BPF1608LM02R2400A
1608 2.4G BPF Type02

Freq. Range:

2400-2500 MHz

Attenuation:

Size

(mm)

1.6*0.8*0.6

Insertion Loss:

1.7 dB (Max)

30dB Min @ 880~960 MHz

Operating Temp.:

-40~85°C

VSWR

2.0 (Max)

20dB Min @ 1710~1990 MHz

RoHS Compliance

8.5dB Min@ 2170 MHz
20dB Min @ 4800~5000 MHz
25dB Min @ 7200~7500 MHz

BPF1608LM11R2400A

1608 2.4G BPF Type11

Freq. Range:

2400-2500 MHz

Attenuation:

Size

(mm)

1.6*0.8*0.6

Insertion Loss:

1.8 dB (Max.)

20dB Min @ 1710~1990 MHz

Operating Temp.:

-40~85°C

VSWR

2.0 (Max)

6.5dB Min @ 2110~2170 MHz

RoHS Compliance

25dB Min @ 4800~5000 MHz
20dB Min @ 7200~7500 MHz

Filter (LPF)

Model

Part No./ Description

Electrical Data

Mechanical Data

LPF2012LM59RWPENA
2012 LTE LPF Type59

Freq. Range:

800-2025 MHz

Attenuation

Size

(mm)

2.0*1.25*0.9

Insertion Loss:

26dB Min @ 2300~6100MHz

Operating Temp.:

-40~85°C

0.5dB Max @ 800~1000MHz

35dB Min @ 3400~3820MHz

RoHS Compliance

0.8dB Max @ 1700~1910MHz
1.5dB Max @ 2120~2025MHz

VSWR

1.5 (Max)

LPF1608LL53R2400A

1608 2.4G LPF Type53

Freq. Range:

2400-2500 MHz

Attenuation:

Size

(mm)

1.6*0.8*0.65

Insertion Loss:

0.48dB (Max)

35dB Min @ 4800~5000 MHz

Operating Temp.:

-40~85°C

VSWR

1.5 (Max)

27dB Min @ 7200~7500 MHz

RoHS Compliance

LPF1608LL52R2500A
1608 Wimax LPF Type52

Freq. Range:

2300-2700MHz

Attenuation:

Size

(mm)

1.6*0.8*0.65

Instertion Loss:

1.25dB(Max)

35dB Min @ 4800~5390MHz

Operating Temp.:

-40~105 °C

VSWR

1.5dB(Max)

25dB Min @ 7200~8085MHz

RoHS Compliance

LPF1608LL54RWHEXA
1608 LTE LPF Type54

Freq. Range:

699-2690MHz

Attenuation:

Size

(mm)

1.6*0.8*0.6

Instertion Loss:

0.25dB(Max)

23dB Min @ 5150~5960MHz

Operating Temp.:

-40~85 °C

VSWR

1.5dB(Max)

RoHS Compliance

LPF1608LL55R0709A
1608 LTE LPF Type55

Freq. Range:

698-960 MHz

Attenuation

Size

(mm)

1.6*0.8*0.6

Insertion Loss:

30dB Min @ 1554~1830MHz

Operating Temp.:

-40~85°C

0.6dB Max @ 698~830MHz

35dB Min @ 2097~2745MHz

RoHS Compliance

0.7dB Max @ 830~900MHz
0.75dB Max @ 900~915MHz
0.9dB Max @ 915~960MHz

VSWR

2.0 (Max)

LPF1608LL56RWHEXA
1608 LTE LPF Type56

Freq. Range:

600-2700MHz

Attenuation:

Size

(mm)

1.6*0.8*0.65

Instertion Loss:

0.5dB(Max)

30dB Min @ 4800~8000MHz

Operating Temp.:

-40~85 °C

VSWR

2.0dB(Max)

25dB Min @ 8500~12500MHz

RoHS Compliance

LPF1608LL57R2400A
1608 2.4G LPF Type57

Freq. Range:

2400-2500MHz

Attenuation:

Size

(mm)

1.6*0.8*0.65

Instertion Loss:

0.6dB(Max)

35dB Min @ 4800~5000MHz

Operating Temp.:

-40~85 °C

VSWR

2.0dB(Max)

30dB Min @ 7200~7500MHz

RoHS Compliance

LPF1005LL50R2400A
1005 2.4G LPF Type50

Freq. Range:

2400-2500MHz

Attenuation:

Size

(mm)

1.0*0.5*0.35

Instertion Loss:

0.5dB(Max)

25dB Min @ 4800~5000MHz

Operating Temp.:

-40~85 °C

VSWR

2.0dB(Max)

20dB Min @ 7200~7500MHz

RoHS Compliance

LPF1005LL51R2400A
1005 2.4G LPF Type51

Freq. Range:

2400-2500MHz

Attenuation:

Size

(mm)

1.0*0.5*0.35

Instertion Loss:

0.5dB(Max)

25dB Min @ 4800~5000MHz

Operating Temp.:

-40~85 °C

VSWR

2.0dB(Max)

20dB Min @ 7200~7500MHz

RoHS Compliance

VSWR depends on the environment

Yageo-ProductSelectionGuide-html.html

171

Wireless Components Selection Charts

Filters

Filter (Diplexer)

Model

Part No./ Description

Electrical Data

Mechanical Data

DPX2012LL87R2455A
2012 2.4/5GHz Diplexer
Type85

Freq. Range:

2400-2500MHz/

4900-5950MHz

Attenuation

Size

(mm)

2.0*1.25*0.5

Low Band:

Operating Temp.:

-40~85°C

Instertion Loss:

20dB(Min).@4800~5000MHz

RoHS Compliance

Low: 0.6dB

20dB(Min).@7200~7500MHz

High: 0.9dB

High Band:

VSWR

2.0 (Max)

20dB(Min).@824~915MHz
20dB(Min).@1800~2500MHz

DPX2012LL85R2455A

2012 2.4/5GHz Diplexer
Type85

Freq. Range:

2400-2500MHz/

4900-5900MHz

Attenuation:

Size

(mm)

2.0*1.2*0.85

20dB Min @ 4900~5900 MHz

Operating Temp.:

-40~85°C

Insertion Loss:

Low : 0.7dB/

High: 0.9dB

20dB Min @ 2400~2500 MHz

RoHS Compliance

VSWR

2.0 (Max)

DPX2012LL89R2455A

2012 2.4/5GHz Diplexer
Type89

Freq. Range:

2400-2500MHz/

4900-5950MHz

Attenuation:

Size

(mm)

2.0*1.2*0.5

20dB Min.,2f0 @4800~5000 MHz

Operating Temp.:

-40~85°C

Insertion Loss:

Low : 0.5dB/

High: 0.65dB

VSWR

2.0 (Max)

20dB Min.,3f0 @7200~7500 MHz

RoHS Compliance

20dB Min. @ 824~915 MHz
20dB Min. @1800~2500 MHz

10dB Ref.,2f0@9800~11900 MHz

DPX1608LL80R2455A
1608 2.4/5GHz Diplexer
Type80

Freq. Range:

2400-2500MHz/

Attenuation:

Size

(mm)

1.6*0.8*0.6

4900-6000MHz

Low Band:

Operating Temp.:

-40~85°C

Instertion Loss:

20dB(Min). @4800~5000MHz

RoHS Compliance

Low: 0.7dB/

20dB(Min). @7200~7500MHz

High: 0.8dB

High Band:

DPX1608LL85R2455A

VSWR

28dB(Min). @860~960MHz

Size

(mm)

1.6*0.8*0.6

1608 2.4/5GHz Diplexer

Low: 2.0dB(Max)/

23dB(Min). @1545~1605MHz

Operating Temp.:

-40~85°C

Type85

High: 1.7dB(Max)

23dB(Min). @1710~1990MHz

RoHS Compliance

28dB(Min). @2170MHz

Size

(mm)

1.6*0.8*0.6

8dB(Min). @8100MHz

Operating Temp.:

-40~85°C

15dB(Min). @8820~9800MHz

RoHS Compliance

27dB(Min). @9800~11800MHz

DPX1608LL86R2455A

Freq. Range:

2400-2500MHz/

Attenuation:

Size

(mm)

1.6*0.8*0.6

1608 2.4/5GHz Diplexer

4900-5950MHz

Low Band:

Operating Temp.:

-40~85°C

Type86

Instertion Loss:

20dB(Min).@4800-5000MHz

RoHS Compliance

Low: 0.6dB/

High Band:

High: 1.2dB

28dB(Min).@30-2700MHz

VSWR

2.0 (Max)

10dB(Min).@9800-11900MHz
5dB(Min).@14700-17850MHz

DPX1608LL87R1524A
1608 1.575/2.4GHz Diplexer
Type87

Freq. Range:

1570-1610MHz/

Attenuation:

2400-2500 MHz/4900-6000 MHz

Low Band:

Insertion Loss:

15 dB(Min) @2400~2500MHz

Low: 0.6dB/

15 dB(Min) @4900~6000MHz

High: 0.7dB/0.6dB

High Band:

VSWR

2.0 dB (Max)

15 dB(Min) @1570~1610MHz

VSWR depends on the environment

Yageo-ProductSelectionGuide-html.html

172

Filter (Triplexer)

Model

Part No./ Description

Electrical Data

Mechanical Data

TPX2012LL90R1525A

2012 1.575/2.4/5GHz

Triplexer

Type90

Freq. Range:

1570-1610MHz/

Attenuation:

Size

(mm)

2.0*1.2*0.9

2400-2500MHz/4900-5950MHz

Low Band:

Operating Temp.:

-40~85°C

Instertion Loss:

20dB(Min). @2400~2500MHz

RoHS Compliance

Low: 0.8dB/

20dB(Min). @4800~6000MHz

Mid.: 0.7dB/

Mid Band:

TPX2012LL95R1525A

2012 1.575/2.4/5GHz
Triplexer
Type95

High: 0.8dB

17.5dB(Min). @4800~5000MHz

VSWR

10dB(Min). @1545~1605MHz

Low: 2.0dB(Max)/

10dB(Min). @9600~10000MHz

Mid.: 2.0dB(Max)

High Band:

High: 1.6dB(Max)

27dB(Min). @860~960MHz
25dB(Min). @1545~1605MHz
25dB(Min). @1710~1990MHz
30dB(Min). @2170MHz
8dB(Min). @8100MHz
15dB(Min). @8820~9800MHz
27dB(Min). @9800~10760MHz
25dB(Min). @10760~11800MHz

VSWR depends on the environment

Balun

Model

Part No./ Description

Electrical Data

Mechanical Data

BLN1608LL01R5000A
1608 5G Balun Type01,
50100

Freq. Range:

4900-5950MHz

Unbalanced Impedance:

50Ω

Size

(mm)

1.6*0.8*0.65

Insertion Loss:

1.2 dB (Max)

Balanced Impedance:

100Ω

Operating Temp.:

-40~85°C

VSWR

2.0 (Max)

Phase Difference:

180 ±10 degree

RoHS Compliance

Amplitude Difference:

1.5 dB (Max)

BLN1608LL01R2400A
1608 2.4G Balun Type01,
50100

Freq. Range:

2400-2500MHz

Unbalanced Impedance:

50Ω

Size

(mm)

1.6*0.8*0.65

Insertion Loss:

1.1 dB (Max)

Balanced Impedance:

100Ω

Operating Temp.:

-40~85°C

VSWR

2.0 (Max)

Phase Difference:

180 ±10 degree

RoHS Compliance

Amplitude Difference:

2 dB (Max)

BLN1608LL30R2400A
1608 2.4G Balun Type30
5050

Freq. Range:

2400-2500MHz

Unbalanced Impedance:

Size

(mm)

1.6*0.8*0.65

Insertion Loss:

1.2dB(Max)

50Ω

Operating Temp.:

-40~85°C

VSWR

2.0dB(Max)

Balanced Impedance:

50Ω

RoHS Compliance

Phase Difference:

180 ± 10 degree

Amplitude Difference:

2 dB (Max)

VSWR depends on the environment

Wireless Components Selection Charts

Filter

Yageo-ProductSelectionGuide-html.html

173

Balance Filter (Combo)

Model

Part No./ Description

Electrical Data

Mechanical Data

BLF2012LL98R2400A
2012 2.4G Combo Type98

Freq. Range:

2400-2500MHz

Attenuation:

Size

(mm)

2.0*1.2*0.9

Insertion Loss:

3.5dB (Max)

40dB Min@880~960MHz

Operating Temp.:

-40~85°C

VSWR

2.0 (Max)

25dB Min@1300~1600MHz

RoHS Compliance

Unbalanced Impedance:

50Ω

35dB Min@4800~5000MHz

Balanced Impedance:

Conjugate

match to CSR BC03/04 series

30dB Min@7200~7500MHz

Phase Difference:

180 ±5 degree @25°C

Amplitude Balance:

1.0 dB (Max)

Coupler

Model

Part No./ Description

Electrical Data

Mechanical Data

CPL451171509HEX4K
1608 WWAN&LTE Coupler

Type09

Freq. Range:

689.5-960.5MHz

Coupling:

Size

(mm)

1.6*0.8*0.7

1700-2100MHz/2300-2700MHz

23~28dB@689.5-960.5MHz

Operating Temp.:

-40~85°C

Insertion Loss:

0.25dB(Max)/

19.5~22.5dB@1700-2100MHz

RoHS Compliance

0.3dB(Max)/ 0.4dB(Max)

19.5~24.5dB@2300-2700MHz

VSWR

1.4dB(Max)

CPL1608LL12WHEXA

1608 WWAN&LTE Coupler

Type12

Freq. Range:

689-960MHz

Coupling:

Size

(mm)

1.6*0.8*0.6

1710-2170MHz/2300-2690MHz

23~27dB@689-960MHz

Operating Temp.:

-30~85°C

Instertion Loss:

0.2dB(Max)/

21.5~26.5dB@1710-2170MHz

RoHS Compliance

0.25dB(Max)/ 0.3dB(Max)

22.5~27.5dB@2300-2690MHz

VSWR

1.45dB(Max)

VSWR depends on the environment

Wireless Components Selection Charts

Filters

Yageo-ProductSelectionGuide-html.html

174

Wireless Components Selection Charts

Product information - Ordering Information

Explanation of ordering code - New

Ordering example : ANT3216A063R2400A

ANT 3216 A

063 R 2400 A

Product Type (code 1)

Factory Control Code /

ANT: Antenna

Cable Type (code 7)

BPF: Band-Pass Filter

LPF: Low-Pass Filter
BLN: Balun

Frequency Band (MHz)(code 6)

BLF: Balun Filter

2400: 2.4 – 2.5 GHz;

DPX: Diplexer

2455: 2.4&5 GHz
1575: GPS; 1516: GPS+Glonass
0433: 433 MHz

(1) Size (mm) - SMD (LTCC) (code 2)

0870: 868 MHz

3216: 3.2 x 1.6 mm

0918: 900/1800 MHz

2012: 2.0 x 1.2 mm

WQUD: 850/900/1800/1900 MHz

2520: 2.5 x 2.0 mm

WPEN: 850/900/1800/1900/2100 MHz

(2) Connector - Cable length (mm)

Stand-alone (code 2)

Ex: X100 – IPEX connector, 100 mm cable length

X: IPEX, M: MMCX, S: SMA, Z: Stripped

100: 100 mm cable length

Packing Style (code 5)

R: Tape & Reel
T: Tray
B: Bulk

Type (code 3)

L, F, A: Chip antenna / Filter / Balun

Serial No. (code 4)

B: Bulk antenna
P: PCB
X: FPCB
S: Metal
E: External
J: Integrated antenna

Yageo-ProductSelectionGuide-html.html

175

Wireless components Engineering Design Kits

Sample Kits

M2M Application : Antenna

Ordering code ANTSB000000020150

Product Series

PART NUMBER

Frequency Range (MHz)

2.4GHz

ANT8010LL04R2400A

2400 - 2500

ANT3216A063R2400A

2400 - 2500

ANT3216LL00R2400A

2400 - 2500

ANT2012LL13R2400A

2400 - 2500

ANT1608LL14R2400A

2400 - 2500

ANTX200P001B24003

2400 - 2500

2.4/5 GHz

ANT5320LL04R2455A

2400 - 2500
5150 - 5875

ANT5320LL24R2455A

2400 - 2500
5150 - 5875

ANT3216A063R2455A

2400 - 2500
5150 - 5875

ANT1608LL14R2455A

2400 - 2500
5150 - 5875

ANTX100P001B24553

2400 - 2500
5150 - 5875

ANTX200P002B24553

2400 - 2500
5150 - 5875

GPS

ANT8010LL05R1575A

1575

ANT5320LL14R1575A

1575

ANT3216LL15R1575A

1575

ANT1212B00DT1575S

1575

ANT1515B00FT1575S

1575

ANT1818B00AT1575S

1575

ANT2525B00DT1575S

1575

GNSS

ANT1204LL04RGNSSA

1559 - 1610

ANT2525B00FTGNSSS

1559 - 1610

GPS& GLONASS

ANT5320LL14R1516A

1575 / 1602

ANT8010LL05R1516A

1575 / 1602

ANT1818B00BT1516S

1575 / 1602

ANT2525B00DT1516S

1575 / 1602

2.4GHz + GPS

ANT5320LL17R1524A

1575 / 2400

Cellular WWAN

ANT2112A010B0918A

900 / 1800

ANT1204LL00R0918A

900 / 1800

ANT3505B002TWPENS

824 - 960

1710 - 2170

ANT4005B000RWHEXS

698 - 960

1710 - 2690

ANTX100P001BWPEN3

824 - 960

1710 - 2170

Short-Range

ANT2405F001R0169A

169

ANT1204F002R0433A

315/433

ANT1204LL20R0433A

315/433

ANT1204LL08R0870A

870/915

ANT1204F007R0870A

870/915

SDARS

ANT2525B00FT2300S

2320 - 2345

Active GPS

ANT1818JB30B1575A

1575

WiFi /BT Application : Chip Antenna & Filter

Ordering code ANTSB000000020151

Freq.

Frequency Range

(MHz)

PART NUMBER

Chip Antenna

2.4 GHz

2400 - 2500

ANT8010LL04R2400A

2400 - 2500

ANT3216A063R2400A

2400 - 2500

ANT3216LL00R2400A

2400 - 2500

ANT2012LL13R2400A

2400 - 2500

ANT1608LL14R2400A

2.4/5 GHz

2400 - 2500

ANT5320LL04R2455A

5150 - 5875
2400 - 2500

ANT5320LL24R2455A

5150 - 5875
2400 - 2500

ANT3216A063R2455A

5150 - 5875
2400 - 2500

ANT1608LL14R2455A

5150 - 5875

GPS

1575

ANT8010LL05R1575A

1575

ANT5320LL14R1575A

1575

ANT3216LL15R1575A

GPS & GLONASS

1575 / 1602

ANT8010LL05R1516A

1575 / 1602

ANT5320LL14R1516A

2.4GHz + GPS

1575 / 2400

ANT5320LL17R1524A

Band-Pass Filter

2.45 GHz

2400 - 2500

BPF2012LL03R2400A

2400 - 2500

BPF1608LM02R2400A

Low-Pass Filter

2.45 GHz

2400 - 2500

LPF1608LL53R2400A

Diplexer / Triplexer

2.4/5 GHz

2400 - 2500

DPX1608LL80R2455A

2400 - 2500

DPX1608LL85R2455A

GPS/2.4

1575 / 2400

DPX1608LL87R1524A

GPS/2.4/5 GHz

1575 / 2400 /5000

TPX2012LL90R1525A

1575 / 2400 /5000

TPX2012LL95R1525A

Balun

2.45 GHz

2400 - 2500

BLN1608LL30R2400A

2400 - 2500

BLN1608LL01R2400A

5 GHz

5000

BLN1608LL01R5000A

Combo

2.45 GHz

2400 - 2500

BLF2012LL98R2400A

Yageo-ProductSelectionGuide-html.html

MULTILAYER CHIP VARISTORS

Yageo-ProductSelectionGuide-html.html

178

Case dimensions

Case size designation

Dimensions in mm

Inch-based

/ L

2 min

/ L

3 max

4 min

0402

1.0 ±0.10

0.5 ±0.10

0.15

0.30

0.40

0603

1.6 ±0.15

0.8 ±0.10

0.20

0.60

0.40

0805

2.0 ±0.20

1.25 ±0.10

0.85 ±0.10

0.25

0.75

0.55

1206

3.2 ±0.15

1.6 ±0.15

0.25

0.75

1.40

MLV Product Selection Charts

Multilayer Chip Varistors, 0402 to 1206

Construction

Features

•  Excellent clamping voltage
•  Excellent energy dissipation capability
•  Quick response time (<1n sec)
•

Adjustable capacitance values

•  High reliability
•  High transient current capability
•  Symmetrical voltage-current characteristics

Thickness classification and packing quantities

Type

Thickness classification

(mm)

8 mm tape width per reel

180 mm / 7”

Paper

0402

0.50 ±0.10

10 000

0603

0.80 ±0.10

4 000

0805

0.85 ±0.10

4 000

1206

0.85 ±0.10

4 000

Yageo-ProductSelectionGuide-html.html

179

MLV

General purpose

0402

Maximum

working voltage

5.5 V

9 V

14 V

18 V

30 V

Varistor voltage

tolerance

(code 8)

10 ~ 14 V

(S)

7.2 ~ 10.8V

(M)

10.2~13.8V

(L)

18~24 V

(S)

16.2~19.8V

(K)

24~34 V

(S)

50~80 V

(S)

21.6~26.4 V

(K)

50~80 V

(S)

1 pF
3 pF

0.5 ±0.10

5 pF

10 pF

0.5 ±0.10

15 pF
22 pF

0.5 ±0.10

27 pF
33 pF
40 pF
50 pF

0.5 ±0.10

82 pF

100 pF

0.5 ±0.10

120 pF
160 pF
200 pF
250 pF
300 pF
360 pF
470 pF
480 pF
650 pF
900 pF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

MLV Product Selection Charts

Specification for 0402

Yageo-ProductSelectionGuide-html.html

180

MLV Product Selection Charts

Specification for 0603

MLV

General purpose

0603

Maximum

working voltage

5.5 V

9 V

14 V

18 V

30 V

Varistor voltage

tolerance

(code 8)

10 ~ 14 V (S) 7.2 ~ 10.8 V (M) 14~ 18 V (S) 9.6 ~ 14.4 V (M) 18 ~ 24 V (S) 16.2 ~ 19.8 V (K) 24 ~ 32 V (S)

50 ~ 80 V (S)

1 pF
3 pF

0.80 ±0.10

5 pF
9 pF

10 pF

0.80 ±0.10

15 pF
22 pF

0.80 ±0.10

33 pF
50 pF
82 pF

100 pF

0.80 ±0.10

120 pF
160 pF
180 pF
200 pF
250 pF
300 pF
350 pF
360 pF
470 pF
650 pF
680 pF
800 pF
900 pF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

181

MLV Product Selection Charts

Specification for 0805

MLV

General purpose

0805

Maximum

working voltage

5.5 V

9 V

14 V

16 V

18 V

26 V

30 V

38 V

Varistor voltage

tolerance

(code 8)

7.2 ~ 10.8

V (M) 10.8 ~ 14.6

V (L) 16.3 ~ 20.7

V (K) 20 ~ 27

V (S) 19.27 ~ 28.8

V (M) 29.7 ~ 36.3

V (K) 36.9 ~ 45.1

V (K) 4

~ 5

V (S)

100 pF

0.85 ±0.10

160 pF
250 pF
400 pF
500 pF
600 pF
900 pF

1.1 nF
3.3 nF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

182

MLV Product Selection Charts

Specification for 1206

MLV

General purpose

1206

Maximum

working voltage

5.5 V

14 V

18 V

26 V

30 V

38 V

working voltage

7.2 ~ 10.8

V (M)

16.3 ~ 20.7

V (K)

19.27 ~ 28.8

V (M)

29.7 ~ 36.3

V (K)

36.9 ~ 45.1

V (K)

45 ~ 58 V (S)

100 pF

0.85 ±0.10

160 pF
250 pF
400 pF
500 pF

0.85 ±0.10

600 pF
800 pF
900 pF

1.1 nF
3.3 nF

Tape width

8 mm

Note:

Values in shaded cells indicate thickness class (unit: mm)

Yageo-ProductSelectionGuide-html.html

183

Global part number

Ordering example: VRS0402KR55R680N

V R S 0 4 0 2 K R 5 5 R 6 8 0 N

Series name (code 1-2)

Capacitance tolerance (code 16)

VR = Varistor

K = ± 10 %

L = ± 15 %

Chip type (code 3)

M = ± 20 %

S = Single chip

N = ± 30 %

Size code (code 4-7)

Capacitance value (code 13-15)

0402

680 = 68 pF

0603

(2 significant digits+number of zeros;

0805

the 3rd digit signifies the multiplying

1206

factor, and letter R is decimal point)

0 = x 1

Varistor voltage tolerance (code 8)

1 = x 10

K  =  ±10  %
L   =  ±15 %
M = ±20 %
S  =  Special  range

Maximum working voltage (code 10-12)

33R = 3.3 V

Packing style (code 9)

55R = 5.5 V

R = paper tape reel Ø7 inch

090 = 9 V
110 = 11 V
120 = 12 V
140 = 14 V
150 = 15 V
160 = 16 V
180 = 18 V
190 = 19 V
220 = 22 V
260 = 26 V
300 = 30 V
310 = 31 V
380 = 38 V

MLV Product Selection Charts

Ordering information for 0402 to 1206

Yageo-ProductSelectionGuide-html.html

Note:

Yageo-ProductSelectionGuide-html.html

Note:

Yageo-ProductSelectionGuide-html.html

Date of release: April 2017

Printed in Taiwan

All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice.

No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent or other industrial or intellectual property rights.

For a complete listing of all Yageo sales offices, distributors, and representatives, please visit "contact us" at

www.yageo.com

YAGEO - A GLOBAL COMPANY

ASIA

Suzhou, China

Tel. +86 512 6825 5568

Fax. +86 512 6825 5386

Shanghai, China

Tel. +86 21 64858697

Dongguan, China

Tel. +86 769 8772 0275

Fax. +86 769 8791 0053

Shenzhen, China

Tel. +86 755 8652 3739

Kuala Lumpur, Malaysia

Tel. +60 3 8063 8864

Fax. +60 3 8063 7376

Penang, Malaysia

Tel. +60 4 3973049

Fax. +60 4 3973050

Taipei, Taiwan

Tel. +886 2 6629 9999

Fax. +886 2 6628 8886

EUROPE

Munich, Germany

Tel. +49 8990 7784 380

Fax. +49 8990 7784 379

Milan, Italy

Tel. +39 02 6129 1017

Fax. +39 02 6601 7490

Roermond, Benelux

Tel. +31 475 385 555

Fax. +31 475 385 589

Szombathely, Hungary

Tel. +36 94 517 702

Fax. +36 94 517 701

Moscow, Russian Federation

Tel. +7 965 408 18 11

Fax. +7 498 610 07 07

NORTH AMERICA

San Jose, U.S.A.

Tel. +1 408 240 6200

Fax. +1 408 240 6201

Mexico

Tel. +52 33 31330631

Fax. +1 408 240 6201

Tokyo, Japan

Tel. +81 3 6809 3972

Fax. +81 3 6809 3982

Seongnam, Korea

Tel. +82 31 712 4797

Fax. +82 31 712 5866

Singapore

Tel. +65 6244 7800

Fax. +65 6244 4943
