Yes!

AxiBlade

Your ebm-papst solution.

One system for

many applications?

The AxiBlade axial fan
in sizes 630, 710, 800 & 910.

Here is how much

 GreenIntelligence there is

in the AxiBlade:



–

Simple monitoring via MODBUS



–

Detects imbalance e.g. caused by ice forming
on the fan impeller (optional)



–

Efficient operation over a wide range

Six reasons that make us the ideal partner:

Our systems expertise:

as experts in advanced motor technology,

electronics and aerodynamics, we provide system solutions from
a single source.

Our spirit of invention:

our 600 engineers and technicians will

 develop a solution that precisely fits your needs.

Our lead in technology:

 with our EC technology and

 GreenIntelligence, we combine the highest energy efficiency with
the advantages of IoT and digital networking.

Closeness to our customers:

 at 48 sales offices worldwide.

Our standard of quality:

our quality management is uncompromising,

at every step in every process.

Our sustainable approach:

we assume responsibility with our

 energy-saving products, environmentally-friendly processes, and
 social commitment.

About ebm-papst.

ebm-papst is a leader in ventilation and drive engineering technology and a much sought-after engineering partner in many industries. With
around 20,000 different products, we have the perfect solution for practically every requirement. We believe the consistent further development
of our highly-efficient GreenTech EC technology provides our customers with the best opportunities for the future in industrial digitization.
With GreenIntelligence, ebm-papst already offers intelligent networked complete solutions that are unique anywhere in the world today.

Why do our customers look so happy? Because when it comes to the Internet of Things and the digital transformation, we provide them with
a clear competitive edge with GreenIntelligence for intelligent control and interconnection of fans, drives and systems to make applications
more powerful, processes more efficient, businesses more successful and their customers more satisfied.

Modern, functional and reliable solutions are in high demand for

refrigeration and air conditioning

. GreenIntelligence supplies easy-to-install

fan solutions with intelligent networking capabilities and a wide variety of ideas and functions that make it possible to exploit the great potential
of digitalization right away.

GreenIntelligence.

Making Engineers Happy.

Björn

 already has a lot

of ideas for making his
refrigeration systems
smarter.

2

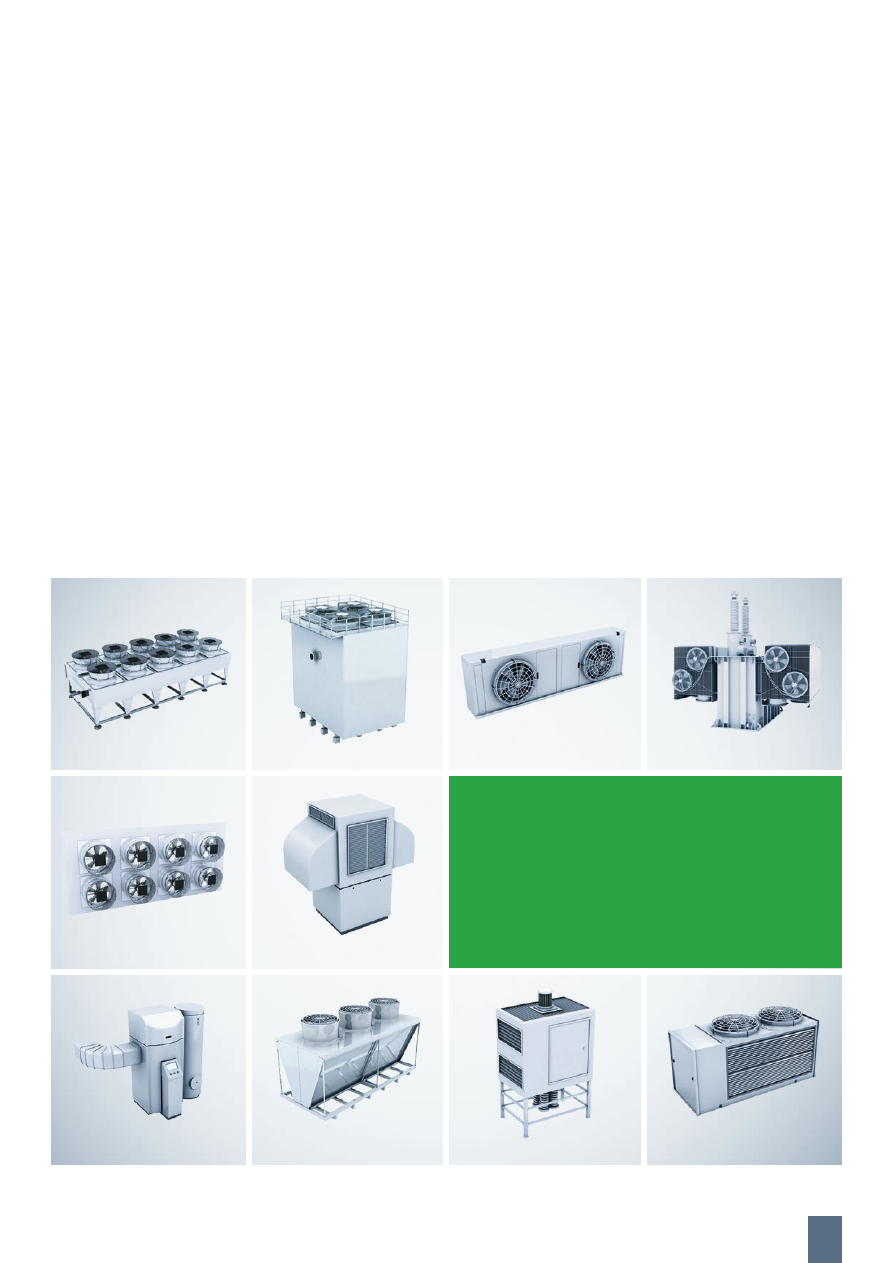

Commercial evaporator

Air/water heat pump

Process refrigeration systems

Cooling tower

Oil cooler

Transformer station

Condenser

Condenser unit

Exhaust FanGrid

Heat pump

The highly efficient, whisper-quiet
ebm-papst axial fans convey air for
 heating and cooling purposes in a
variety of different devices and systems.

Four sizes,

almost unlimited possibilities.

The innovative AxiBlade range sets the benchmark for large axial
fans when it comes to energy efficiency and noise characteristics.
There are four sizes from 630 to 910 to choose from as well as different
motor designs with AC and EC technology. AxiBlades are real all-
roun ders as they can be individually configured for each application.

The large fans in sizes 800 and 910 are particularly applicable to re-
frigerating plants like evaporators or condensers. They allow air flows
up to 40,000 m³/h, with a maximum pressure range of up to 350 Pa.

The sizes 630 and 710 are even more versatile. They are perfectly
 suited to heat pumps or exhaust air FanGrid solutions, for example.
Offering air flows of up to 25,000 m³/h at a maximum pressure range
of up to 450 Pa, they open up a myriad of applications in ventilation,
air conditioning and refrigeration technology.

3

AR

Air conditioning and refrigeration systems can have very different requirements. To offer your customers a tailored solution in all cases,
the heart of the system – the fan – also needs to be tailored.

This is perfectly satisfied by the AxiBlade series, developed by ebm-papst. By optimizing all the components that affect efficiency and
 enabling maximum flexibility when configuring them, highly efficient fans become “Your ebm-papst solution.”

The AxiBlade has many different and improved features. And despite the improvements, we were able to keep the same footprint
 dimensions. They are exactly the same as today’s industry standard, so the end device requires only minimal design changes.
Additionally, the overall height has been reduced for the AxiBlade. Even though this is not the most important factor during installation,
it is  a major advantage when transporting the device, and ultimately cuts costs.

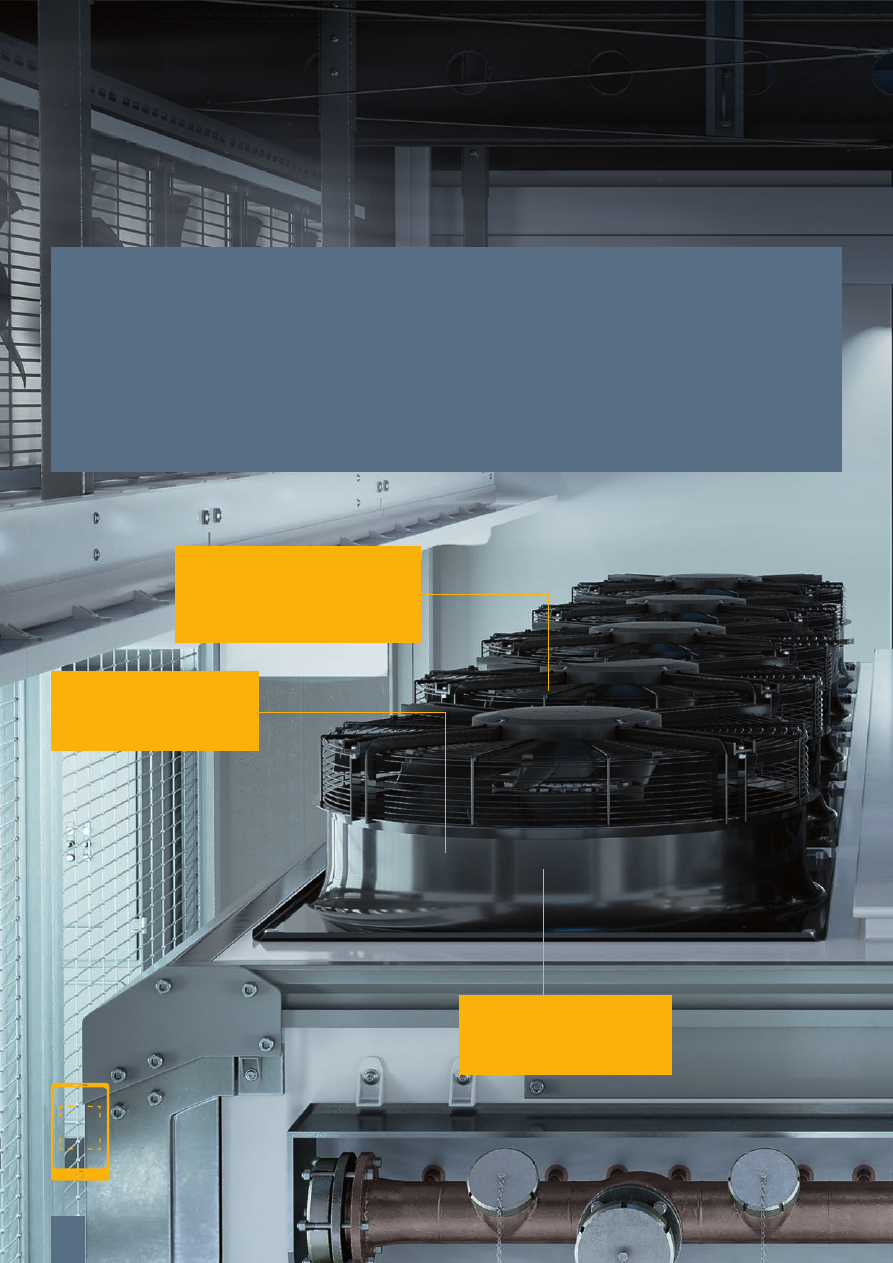

Increased refrigerating performance



–

 Significant increase in air flow to the
high- performance heat exchanger



–

Enables heat exchanger downsizing

Low installation height



–

Decisive for efficient transport
and loading

Lower sound emission



–

Optimized aerodynamics



–

Noise reduction up to 8 dB(A)

Your ebm-papst solution:

AxiBlade.

4

1. Activate the module

Go into the ebm-papst Xplore
app and select the “AxiBlade
product brochure” module.

2. Scan the images

Aim the camera at the images
marked with this icon, and
away you go.

Xplore: the whole ebm-papst
world in an app.

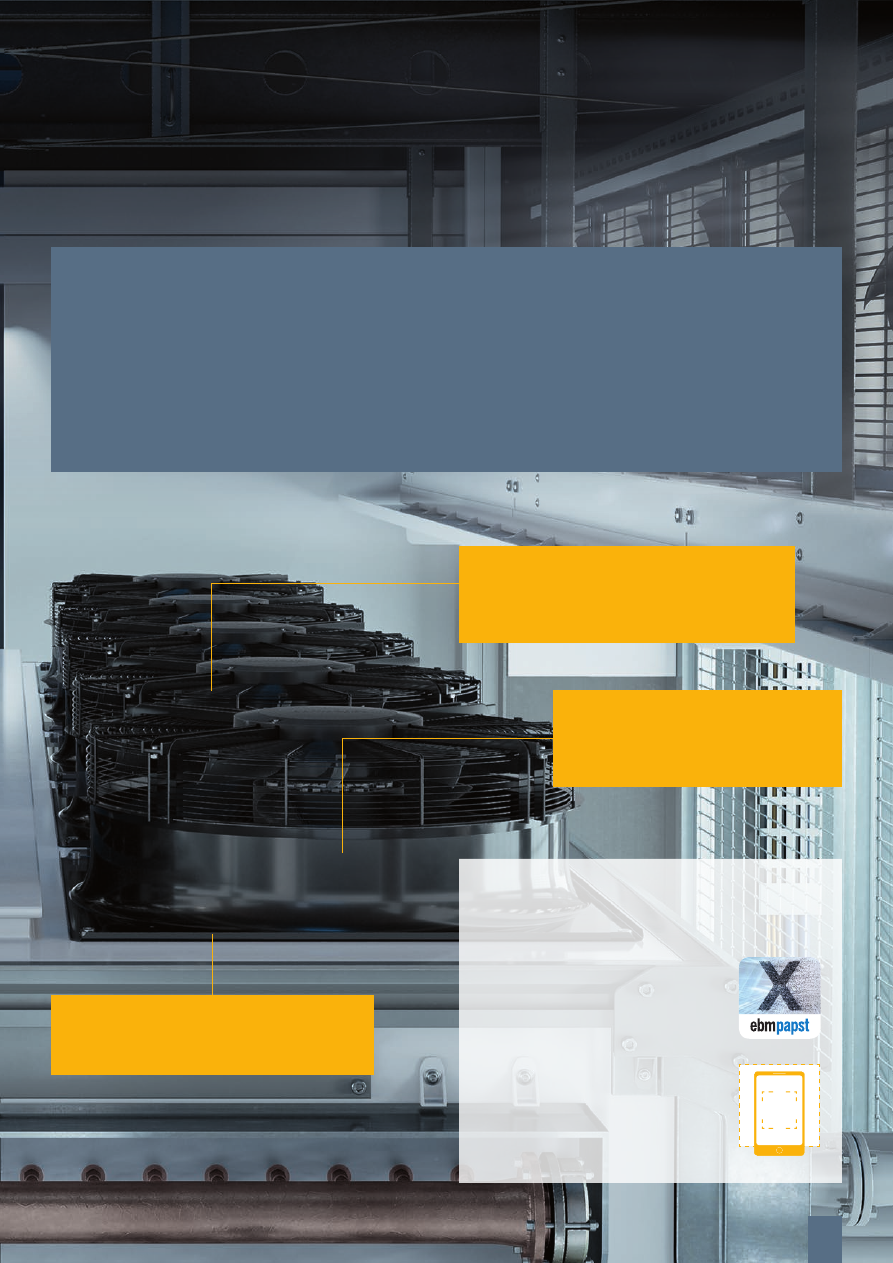

Rugged design



–

Top protection against splash water (to IP 55)



–

Durable, corrosion-resistant components for
the highest standards

Improved power



–

New standards of power density for your application



–

Significantly higher power per square meter of
 installation area

Yes!



–

Each fan component optimizes the overall system in a way
that targets the specific requirements



–

Optimal noise level and overall efficiency values

Improved performance.

All components have been optimized for maximum system
 performance. The results are a static efficiency of up to
60 % and up to 8 dB(A) lower noise emissions compared to the
HyBlade

®

 series.

Same installation area



–

Exterior dimensions identical to industry standard



–

Simple to install with few screws

AR

Your ebm-papst solution:

AxiBlade.

Have we really

thought of everything?

Maximum flexibility.

For all applications, the AxiBlade series’s modular system
provides the ideal efficiency and noise levels for meeting your
 requirements.

It’s simple.

We have improved the performance while maintaining the
same footprint. This means you will not have to implement any
design- related conversion measures on your application. The
new AxiBlade series is an exact replacement (with fan housing).

5

q

v

p

fs

Operating range 2

Operating range 1

AR

Modular design – the right solution for every pressure range.

With fans, different back pressures have to be taken into considera-
tion depending on the application and installation conditions. There
is no fan that will work with the same efficiency or noise levels in all
conditions: searching for an all-purpose unit is futile. However, with

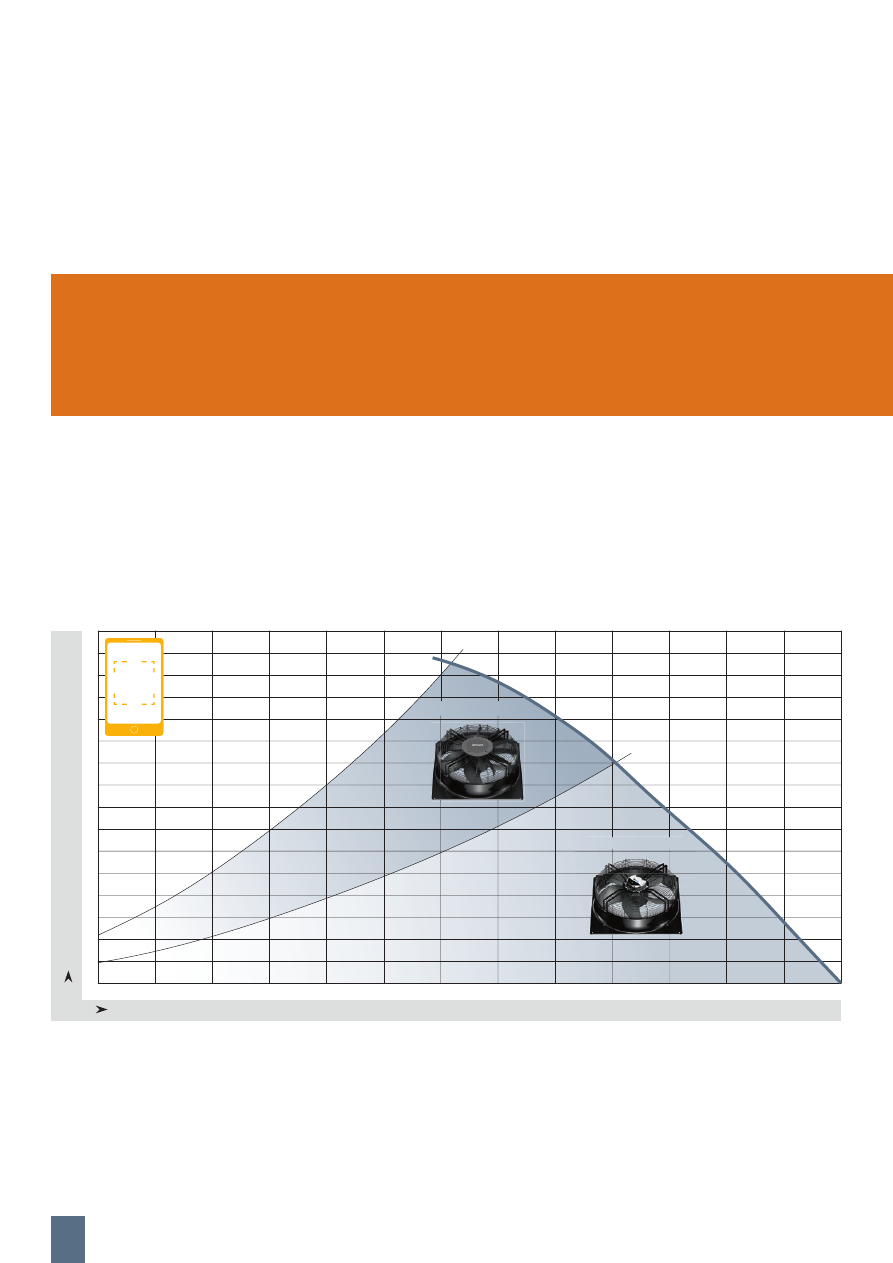

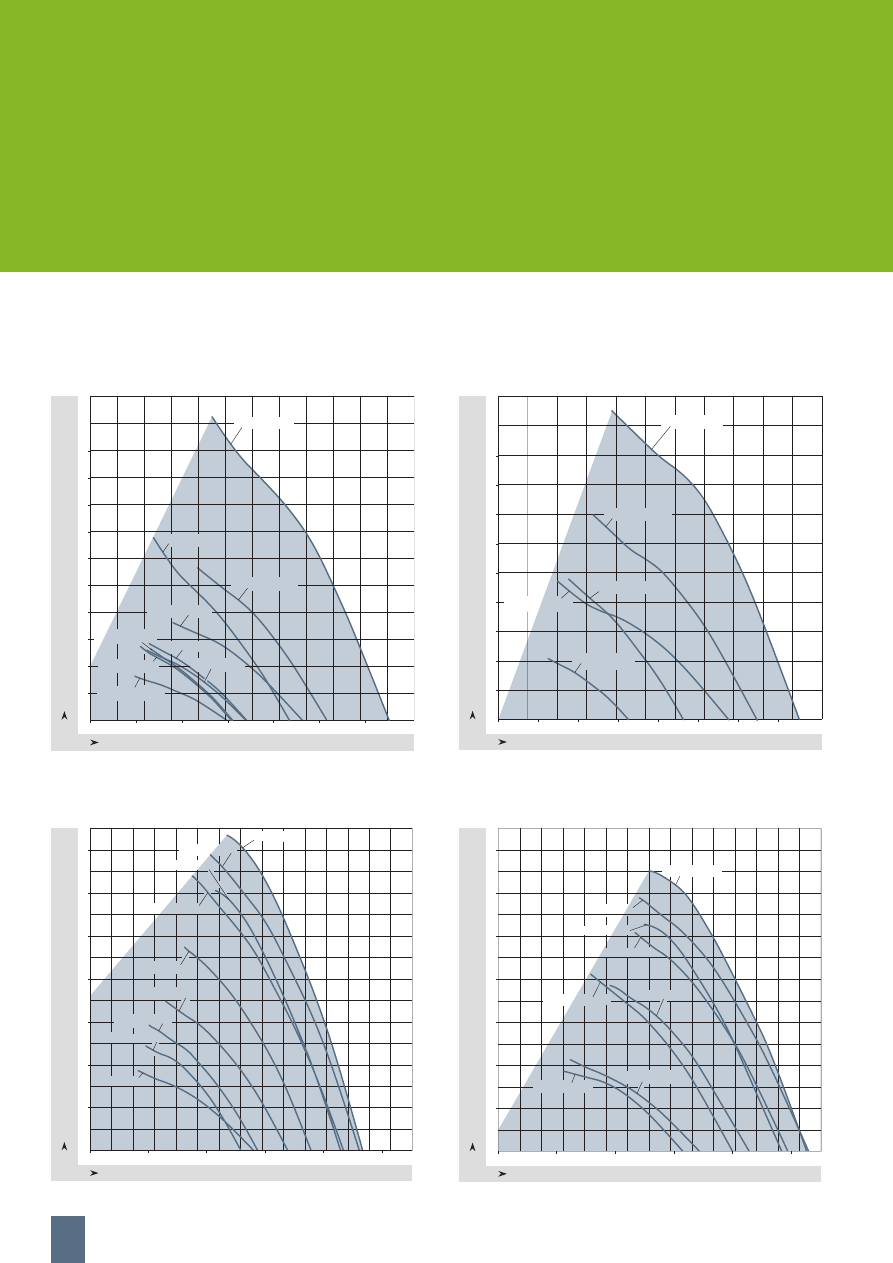

Air performance

The diagram shows the AxiBlade’s operating points typical in applications, for example for sizes 800 and 910. The dark areas represent high
back pressures of up to approx. 350 Pa, where the benefits of the system with the guide vanes come into full play. The light areas represent
low to medium back pressures up to approx. 200 Pa.

Yes!



–

 Because it is adapted to each application



–

 With clever individual solutions



–

 In a uniquely broad performance spectrum

their modular design, the AxiBlade axial fans can be combined with
great flexibility. Components can be combined depending on the
pressure ranges required and the fans can be produced accordingly.
There are optimized plug & play system solutions available to suit
the conditions expected for a specific application.

Do we deliver the

best values



for each operating point?

6

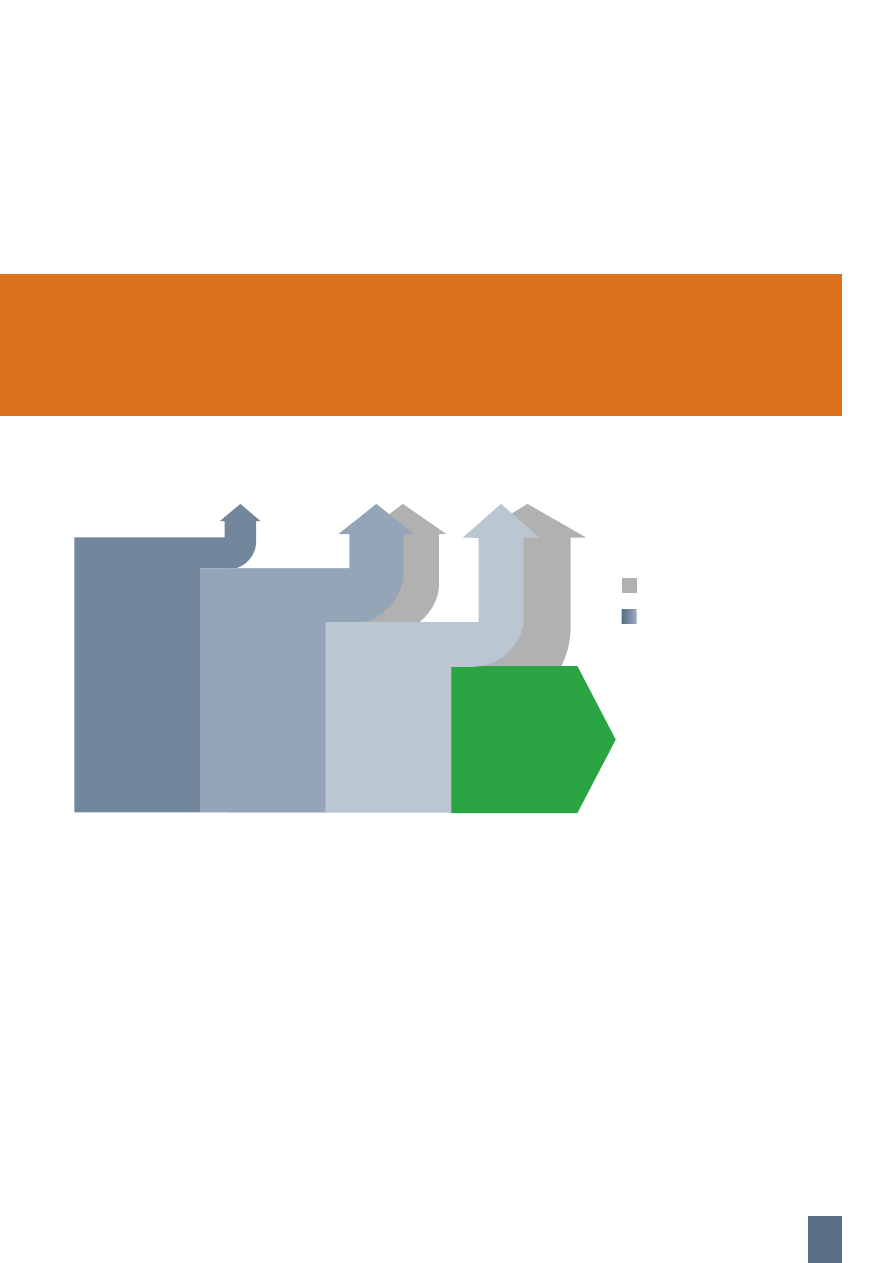

Motor and

electronic loss

Aerodynamic loss

Exit loss

Static output P

US

Values are measured with guard grill.

Electrical power

P

ed

11

%

19.6

%

15.4

%

100

%

/



100

%

89

%

/



89

%

69.4

%

/



64.3

%

54

%



/



35

%

Customer value

24.7

%

29.3

%

AxiBlade

Axial serial standard

Each detail counts.

The complete modular system consists of a fan housing with an
aerodynamically optimized geometry; sizes 800 and 910 have
 optional guide vanes. The diffuser raises the pressure, minimizing
the outlet losses. In addition, there are impellers with a profiled
blade geometry and winglets that are harmonized with the motor
that has been installed. This, too, increases efficiency and reduces
noise.

Yes!

The overall system, consisting of an impeller, motor, housing and commutation electronics, is always taken into consideration with the
 AxiBlade. After all, making the right adjustments is the only way to fully exploit the potential of a fan. As the figure shows, aerodynamics
is practically the only area in which decisive improvements can be achieved nowadays. At the same time, it is also important to bear
the exact  installation conditions and the application-specific operating points in mind so that the fans actually operate as efficiently as
possible  later on.

Values apply to size 800 EC and are measured with guard grill.

Depending on their requirements, the user can have GreenTech
EC motors with integrated control electronics or conventional
AC motors installed as drives. And the guard grills, which are
matched to the various combinations, are also aerodynamically
 optimized. Not only do they protect against accidental contact,
but they also contribute to the axial fans’ high overall efficiency.
In this fashion, the new axial fans can be optimally configured for
a given application.

Does AxiBlade exploit

all of its optimization potential?

7

One

benefit

 after another.

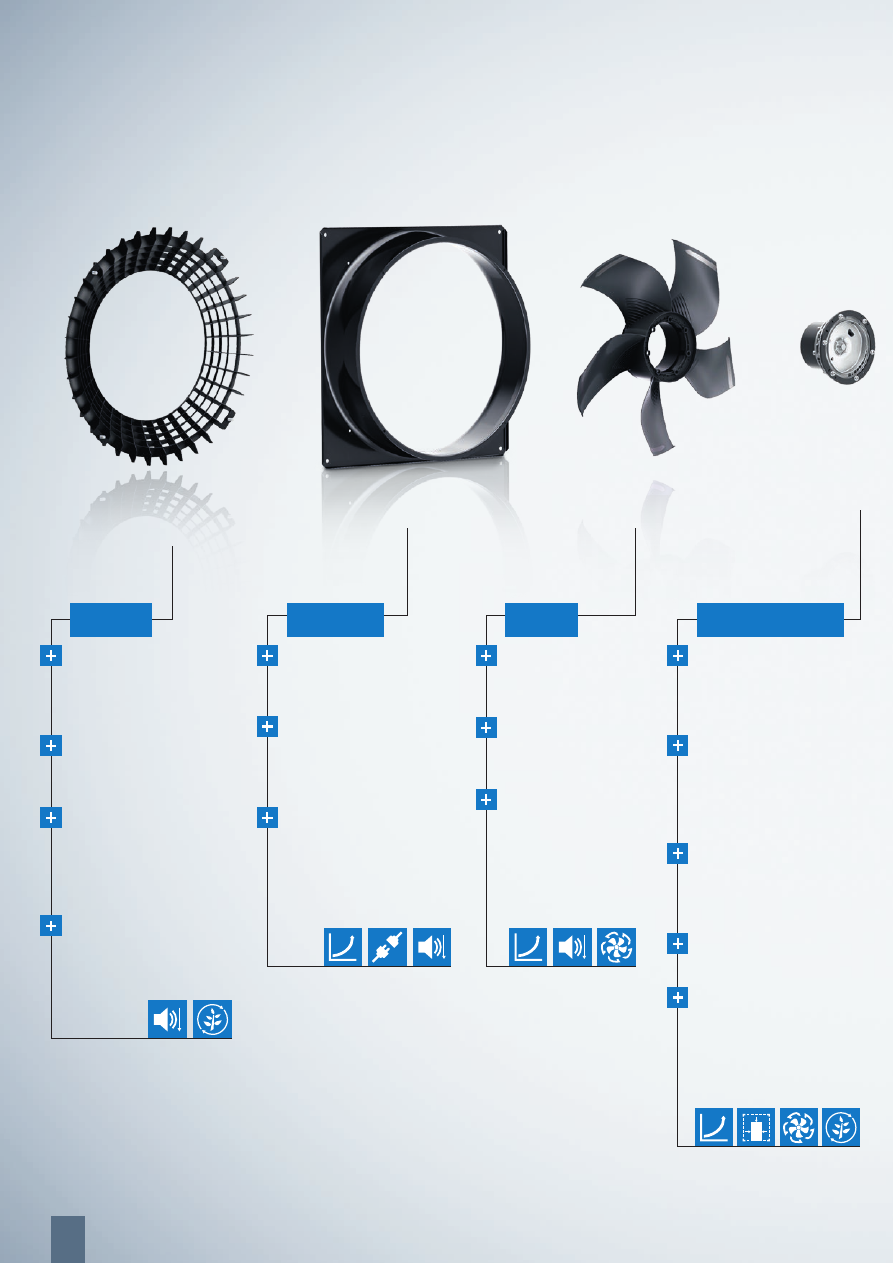

 FlowGrid

Reduced
noise spectrum



–

Low noise level



–

Dramatically dampened
blade passing noise

Retained efficiency



–

Unchanged air performance



–

Continued low power
 consumption

Effective environmental
 protection



–

Noise reduction as an
essential element of
environmentally-friendly
 operation

Rugged design



–

Made of resistant composite
 material

  Fan housing

Optimized aerodynamics



–

 Optimized inlet ring for
maximum efficiency and
quiet operation

Simple installation



–

Exterior dimensions iden-
tical to industry standard



–

Simple to install
with only a few screws

Rugged design



–

Durable, corrosion-resis-
tant, sendzimir galvanized
and coated sheet steel for
the highest standards

 Impeller

High efficiency



–

Profiled blade geo m-
etry and winglets for
maximum efficiency

Quiet operation



–

Aerodynamically
 optimized shape for
noise reduction

Innovative materials



–

 Impeller made of
tough composite
 material



–

UV and corrosion-
resistant

  GreenTech EC motor

Top energy efficiency



–

High efficiency



–

High power density



–

Optimized heat manage-
ment for low self-heating

Long service life



–

Very long service life
thanks to no-maintenance
ball bearing, brushless
 commutation and minimum
self-heating

Extremely durable



–

IP 55 protection class
provides optimum
 protection against splash
water

Safe operation



–

Insulated bearing system
to prevent bearing currents

Unrivaled compactness



–

 An axial fan unit:
The external rotor motor is
directly integrated into the
impeller

8

One

benefit

 after another.

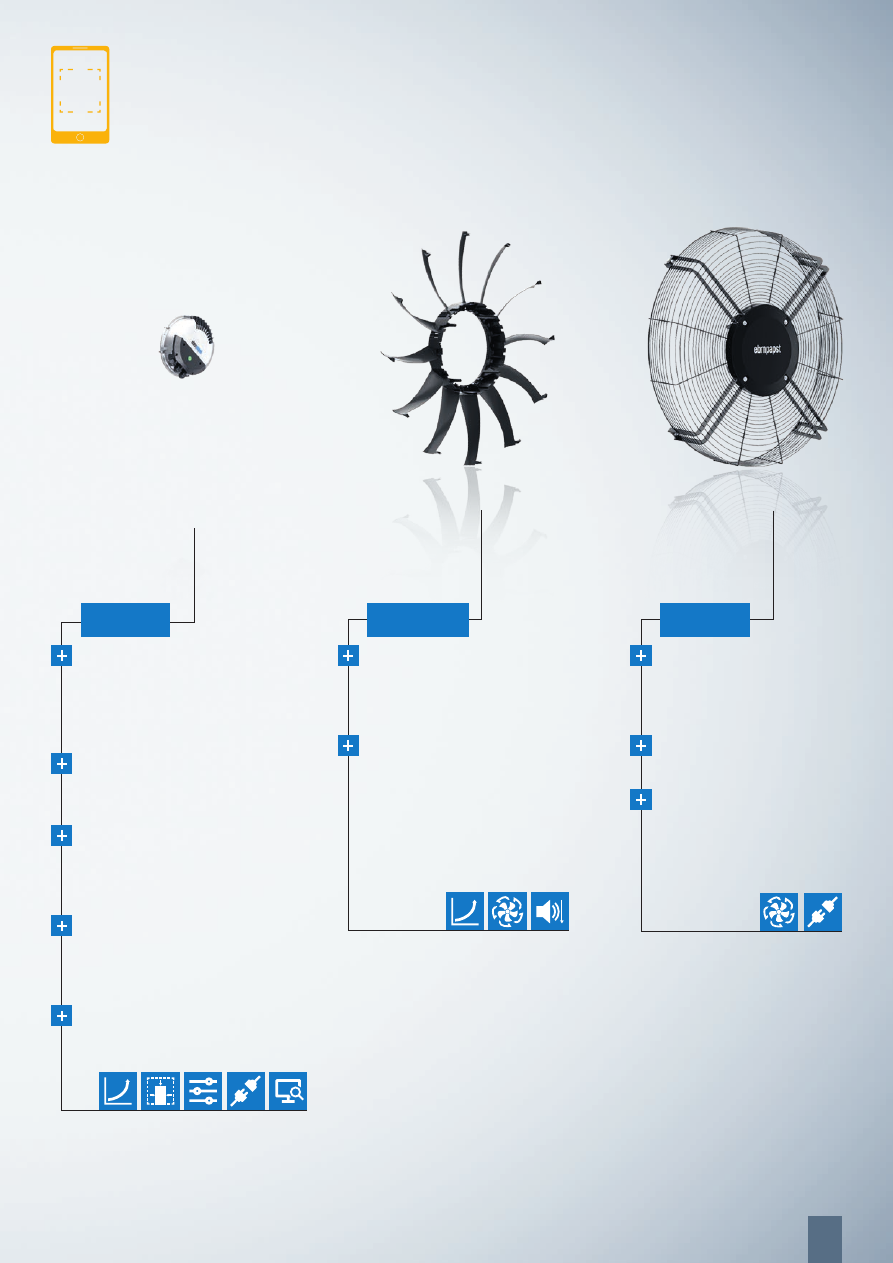

 Electronics

Precision control



–

 Infinitely variable speed control with,
for example, 0–10 V DC/PWM control
signal or MODBUS RTU



–

Remote maintenance and monitoring
using MODBUS RTU interface

Universally deployable



–

For use with 50 and 60 Hz grids



–

Worldwide voltage variants and grid
forms

Safe operation



–

Safety provided by integrated
locked-rotor and thermal overload
 protection



–

Status LED

Simple commissioning



–

 Simple hook-up via terminal box



–

Plug & play: no adjustment effort
 required



–

RFID for wireless parameterization

Maximum flexibility



–

Programmable interface

  Guide vanes*

Maximum efficiency



–

Integrated streaming system to
minimize flow turbulence for
 maximum efficiency and minimum
noise

Aerodynamically
perfected



–

Optimized internal diffuser in
combination with guide vanes
 reduces turbulence and increases
air performance

*available in sizes 800 and 910

  Guard grill

Safe operation



–

 Motor cover protects against
splash water



–

Contact protection according
to standard DIN EN ISO 13857

Robust design



–

 Double-coated metal
ring guard

Aerodynamically
optimized



–

Innovative design
minimizes pressure loss

AR

9

W3G 630-NP04-H1

2000

4000

6000

8000 10000 12000 14000 16000 18000 20000

0

2000

4000

6000

8000

10000

12000

100

200

300

400

500

0.

2

0.

4

0.

6

0.

8

1

1.

2

1.4

1.6

1.8

2

q

v

m³/h

cfm

p

fs

Pa

in.

 w

g

W3G 630-NP04-M1

W3G 630-NR63-01

W3G 630-NU33-03

W6E 630-NT03-01

W6D 630-NT01-01

(Δ)

W4D 630-NG01-01

(Δ)

W6D 630-NT01-01

(Y)

W4D 630-NG01-01

(Y)

5000

10000

15000

20000

0

2000

4000

6000

8000

10000

12000

14000

100

200

300

400

0.2

0.

4

0.6

0.

8

1

1.

2

1.

4

1.6

1.8

q

v

m³/h

cfm

p

fs

Pa

in.

 w

g

500

W3G 710-NK67-01

W3G 710-NU31-03

W4D 710-ND01-01

(Δ)

W4D 710-ND01-01

(Y)

W3G 710-NP19-M1

W3G 800-LU21-03

W3G 800-KE57-51

W3G 800-KH94-01

W3G 800-LV05-03

W3G 800-KV05-03

W3G 800-KS39-03

W3G 800-KU21-03

W6D 800-KG13-01

(Δ)

W6D 800-KG13-01

(Y)

q

v

m³/h

cfm

p

fs

Pa

in.

 w

g

5000

10000

15000

20000

25000

30000

0

4000

8000

12000

16000

20000

50

100

150

200

250

300

350

0.

4

0.

2

0.

8

0.

6

1.

2

1.

0

q

v

m³/h

cfm

p

fs

Pa

in.

 w

g

5000

10000

15000

20000

25000

30000

0

4000

8000

12000

16000

20000

50

100

150

200

250

300

350

0.4

0.2

0.8

0.

6

1.

2

1.

0

W3G 910-LU25-03

W3G 910-KU25-03

W3G 910-KS35-03

W3G 910-LV12-03

W6D 910-KD01-01

(Δ)

W6D 910-KD01-01

(Y)

W3G 910-KH02-51

W3G 910-KV12-03

Top values



for every operating point.

AxiBlade size 630

AxiBlade size 710

AxiBlade size 800 (AC/EC)

AxiBlade size 910 (AC/EC)

Values are measured with a guard grill.

10

Nominal data

Nominal



voltage range

Frequency

Speed

Max. power



co

ns

ump

ti

on

1

Max. input



current

1

Permissible



ambient



temperature

W

eight

Size

Item number

VAC

Hz

rpm

W

A

°C

kg

630

EC

W3G 630-NP04-H1

1~ 200–277

50/60

830

410

1.8

–25…+60

21

W3G 630-NP04-M1

3~ 380–480

50/60

840

450

0.7

–25…+60

21

W3G 630-NR63-01

3~ 380–480

50/60

1,260

1,150

1.8

–25…+60

24

W3G 630-NU33-03

3~ 380–480

50/60

1,800

3,600

5.5

–25…+60

38

AC

W6E 630-NT03-01

1~ 230

50

850

540

2.4

–25…+60

24

W6D 630-NT01-01

3~ 400

50

890/680

545/360

1.2 Δ / 0.65 Y

–25…+60

24

W4D 630-NG01-01

3~ 400

50

1,350/1,100

1,700/1,200

3.1 Δ / 2.0 Y

–25…+60

36

710

EC

W3G 710-NP19-M1

3~ 380–480

50/60

720

370

0.65

–25…+60

22

W3G 710-NK67-01

3~ 380–480

50/60

1,100

1,000

1.5

–25…+60

25

W3G 710-NU31-03

3~ 380–480

50/60

1,680

3,800

5.8

–25…+60

40

AC

W4D 710-ND01-01

3~ 400

50

1,350/1,100

2,350/1,600

4.6 Δ / 2.7 Y

–25…+60

41

800

EC

W3G 800-KE57-51

3~ 380–480

50/60

720

660

1.0

–25…+60

31

W3G 800-KH94-01

3~ 380–480

50/60

780

830

1.3

–25…+60

32

W3G 800-KS39-03

3~ 380–480

50/60

940

1,950

3.1

–25…+60

40

W3G 800-KU21-03

3~ 380–480

50/60

1,080

2,900

4.4

–25…+60

46

W3G 800-KV05-03

3~ 380–480

50/60

1,150

3,400

5.2

–25…+60

51

W3G 800-LU21-03

3~ 380–480

50/60

1,090

2,650

4.0

–25…+60

47

W3G 800-LV05-03

3~ 380–480

50/60

1,190

3,500

5.3

–25…+60

52

AC

W6D 800-KG13-01

3~ 400

50

870/650

1,430/840

2.8 Δ / 1.6 Y

–25…+60

39

910

EC

W3G 910-KH02-51

3~ 380–480

50/60

610

630

1.0

–25…+60

36

W3G 910-KS35-03

3~ 380–480

50/60

850

1,770

2.8

–25…+60

45

W3G 910-KU25-03

3~ 380–480

50/60

980

2,550

3.9

–25…+60

48

W3G 910-KV12-03

3~ 380–480

50/60

1,050

3,200

4.9

–25…+60

54

W3G 910-LU25-03

3~ 380–480

50/60

980

2,500

3.9

–25…+60

51

W3G 910-LV12-03

3~ 380–480

50/60

1,070

3,250

5.0

–25…+60

55

AC

W6D 910-KD01-01

3~ 400

50

870/640

1,920/1,170

3.8 Δ / 2.2 Y

–25…+55

47

1

 Nominal data at operating point with maximum load and 400 VAC.

Subject to technical changes.
Y: AC motor star circuit diagram; Δ: AC motor delta circuit diagram.
Variants with round fan housing or with conduit connection on request.
 The product descriptions in this catalog do not represent guaranteed properties.

11

F

2

E

A

F

1

E

A

D

B

C

F

2

E

A

F

1

E

A

D

B

C

F

2

E

A

F

1

E

A

D

B

C

D

B

C

The new

standard!

System with guide vanes

System without guide vanes

AR

12

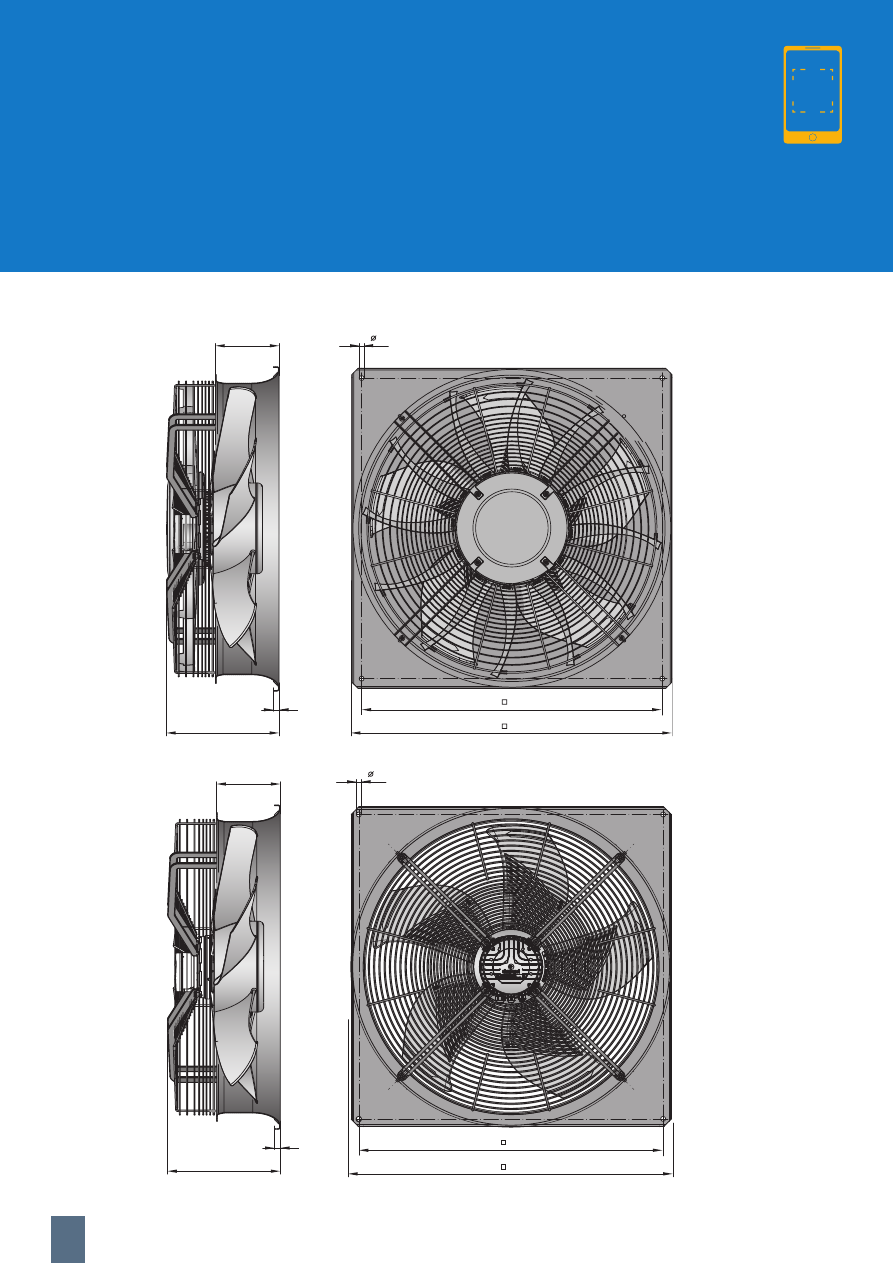

  Dimensions

Size

Item number

A

B

C

D

E

F1

F2

630

EC

W3G 630-NP04-H1

145

750

805

ø 11 (4x)

20

–

255

W3G 630-NP04-M1

145

750

805

ø 11 (4x)

20

–

280

W3G 630-NR63-01

145

750

805

ø 11 (4x)

20

–

273

W3G 630-NU33-03

145

750

805

ø 11 (4x)

20

–

270

AC

W6E 630-NT03-01

145

750

805

ø 11 (4x)

20

–

244

W6D 630-NT01-01

145

750

805

ø 11 (4x)

20

–

244

W4D 630-NG01-01

145

750

805

ø 11 (4x)

20

–

288

710

EC

W3G 710-NP19-M1

152

810

850

ø 14.5 (4x)

20

–

288

W3G 710-NK67-01

152

810

850

ø 14.5 (4x)

20

–

280

W3G 710-NU31-03

152

810

850

ø 14.5 (4x)

20

–

280

AC

W4D 710-ND01-01

152

810

850

ø 14.5 (4x)

20

–

267

800

EC

W3G 800-KE57-51

190

910

970

ø 14.5 (4x)

17

–

338

W3G 800-KH94-01

190

910

970

ø 14.5 (4x)

17

–

338

W3G 800-KS39-03

190

910

970

ø 14.5 (4x)

17

–

334

W3G 800-KU21-03

190

910

970

ø 14.5 (4x)

17

–

334

W3G 800-KV05-03

190

910

970

ø 14.5 (4x)

17

–

334

W3G 800-LU21-03

190

910

970

ø 14.5 (4x)

17

350

–

W3G 800-LV05-03

190

910

970

ø 14.5 (4x)

17

350

–

AC

W6D 800-KG13-01

190

910

970

ø 14.5 (4x)

17

–

336

910

EC

W3G 910-KH02-51

205

1,010

1,070

ø 14.5 (4x)

20

–

334

W3G 910-KS35-03

205

1,010

1,070

ø 14.5 (4x)

20

–

338

W3G 910-KU25-03

205

1,010

1,070

ø 14.5 (4x)

20

–

338

W3G 910-KV12-03

205

1,010

1,070

ø 14.5 (4x)

20

–

338

W3G 910-LU25-03

205

1,010

1,070

ø 14.5 (4x)

20

352

–

W3G 910-LV12-03

205

1,010

1,070

ø 14.5 (4x)

20

352

–

AC

W6D 910-KD01-01

205

1,010

1,070

ø 14.5 (4x)

20

–

343

All dimensions in mm. Data sheets available on request.
Variants with round fan housing or with conduit connection on request.
Subject to technical changes.

System with guide vanes

System without guide vanes

13

Our axial fans can be configured individually for each application,
and it is important to correctly consider all the relevant aspects when
selecting your axial fan. When making your selection, you can rely
on our experts’ many years of experience – and on our professional
fan selection software as well.

The ebm-papst FanScout has proven itself with its combination of
user friendliness and real-world measured values. Not only is the
 performance of the individual fan components measured but also that
of the fan as a complete system. The program allows you to quickly
select the best fan for your application, to describe and modify the
operating behavior and to document the technical specifications.
 During this process, factors such as air performance, operating time
and installation space can be taken into account. TÜV SÜD has
 tested the difference between the actual measurements and the data
calculated using the software and assigned the accuracy of the
 calculation to the highest class.

Exact presentation of the life cycle costs:

The costs of everything from operation, procurement and installation
to service can be calculated over a time period that can be indivi-
dually defined. Practical: The software can be integrated into your
device’s configuration program very easily, via DLL interface.

The best part:

ebm-papst will pre-select the products that are suitable for you.
This saves you the trouble of searching through the broad product
portfolio and helps you configure your application in advance.

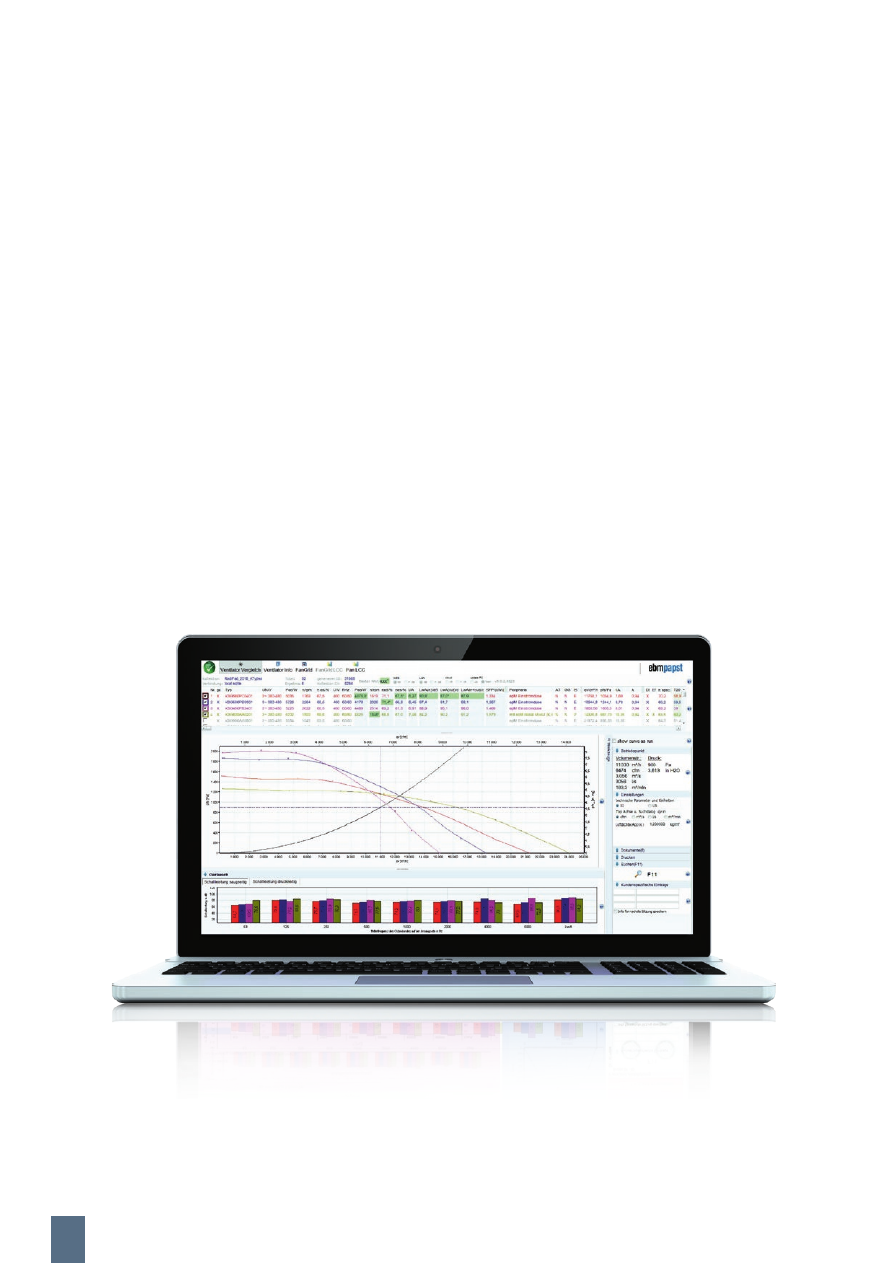

ebm-papst FanScout:

 click your way

to the optimum AxiBlade.

14

Do all components match perfectly? Yes!

Each fan component optimizes the overall system in a way that targets the specific requirements.

High power with low noise levels? Yes!

Up to 60 % overall efficiency and up to 8 dB(A) lower noise emissions compared to
the HyBlade®.

Suitable for all weather conditions? Yes!

Regardless of whether it is raining, snowing or it is sunny, the robust and corrosion-resistant
components withstand any weather.

Easy, like-for-like replacement? Yes!

Despite its increased power, its installation dimensions with the fan housing are the same: only the
height has changed: the AxiBlade is particularly low.

More cooling performance per square meter? Yes!

The AxiBlades’ high power density allows greater cooling performance with the same dimensions or
alternatively enables downsizing with the same performance.

A series for a wide variety of applications? Yes!

The AxiBlade can be configured with maximum flexibility, making it the first choice for a multitude
of ventilation, air conditioning and refrigeration technology applications.

AxiBlade:

the answer

to a whole host of requirements.

Do you have more questions?

For technical queries, simply call us on +49 7938 81-0
Or send us an e-mail to info1@de.ebmpapst.com

15

www.ebmpapst.com

38063-7-8811 · 2020-08 · WO-X’

ebm-papst Mulfingen GmbH & Co. KG

Bachmühle 2
74673 Mulfingen
Germany
Phone +49 7938 81-0
Fax +49 7938 81-110
info1@de.ebmpapst.com
