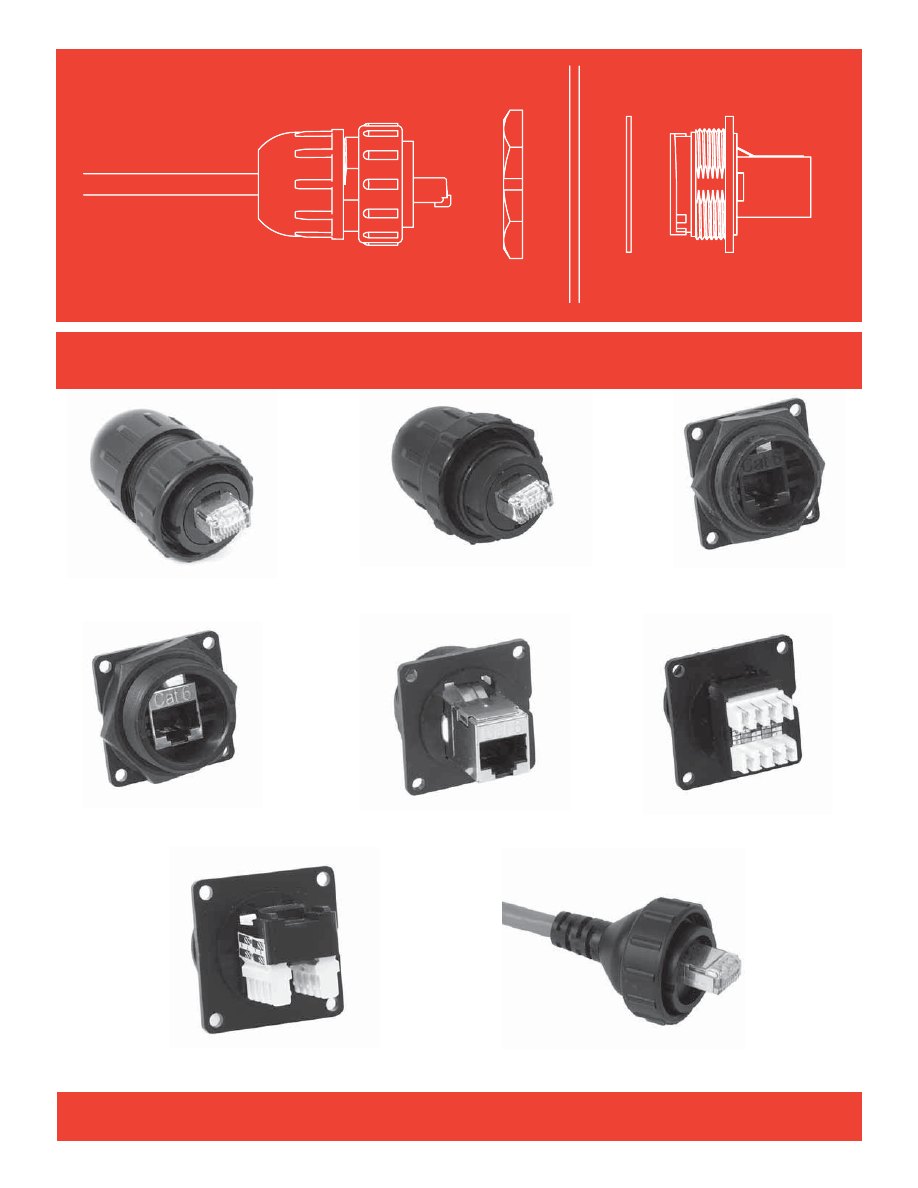

90 data-con-x

: rj45 weathertight connectors

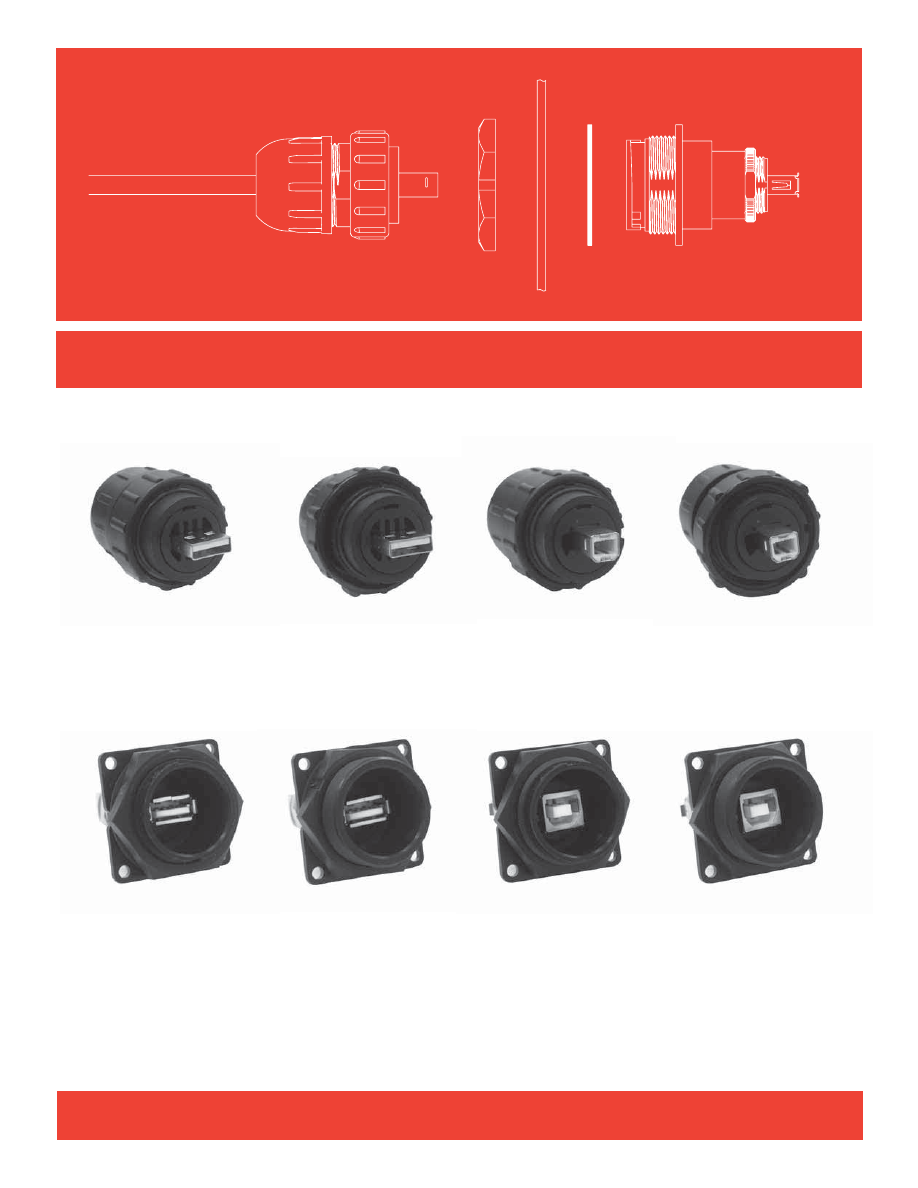

94 data-con-x

: usb a & B weathertight connectors

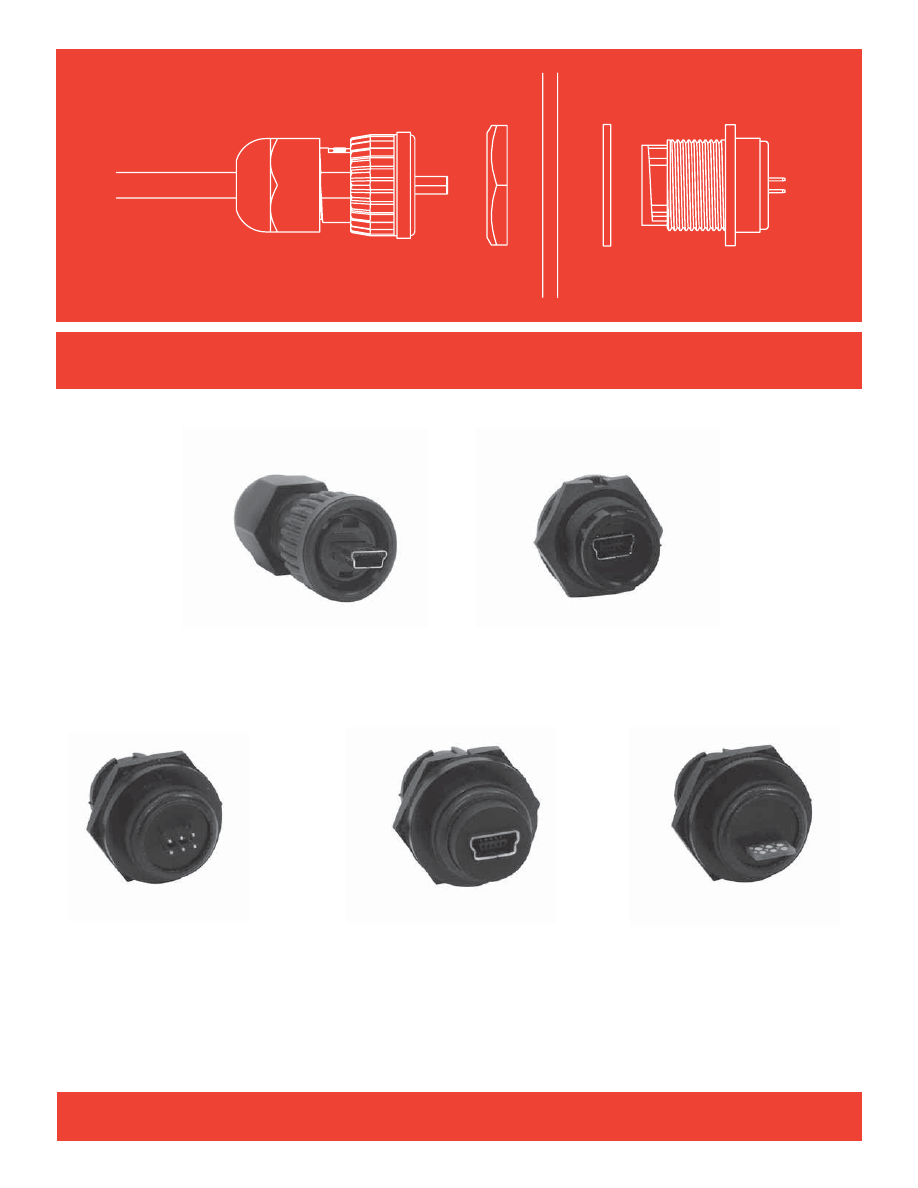

98 data-con-x

: sealed mini usb connectors

102

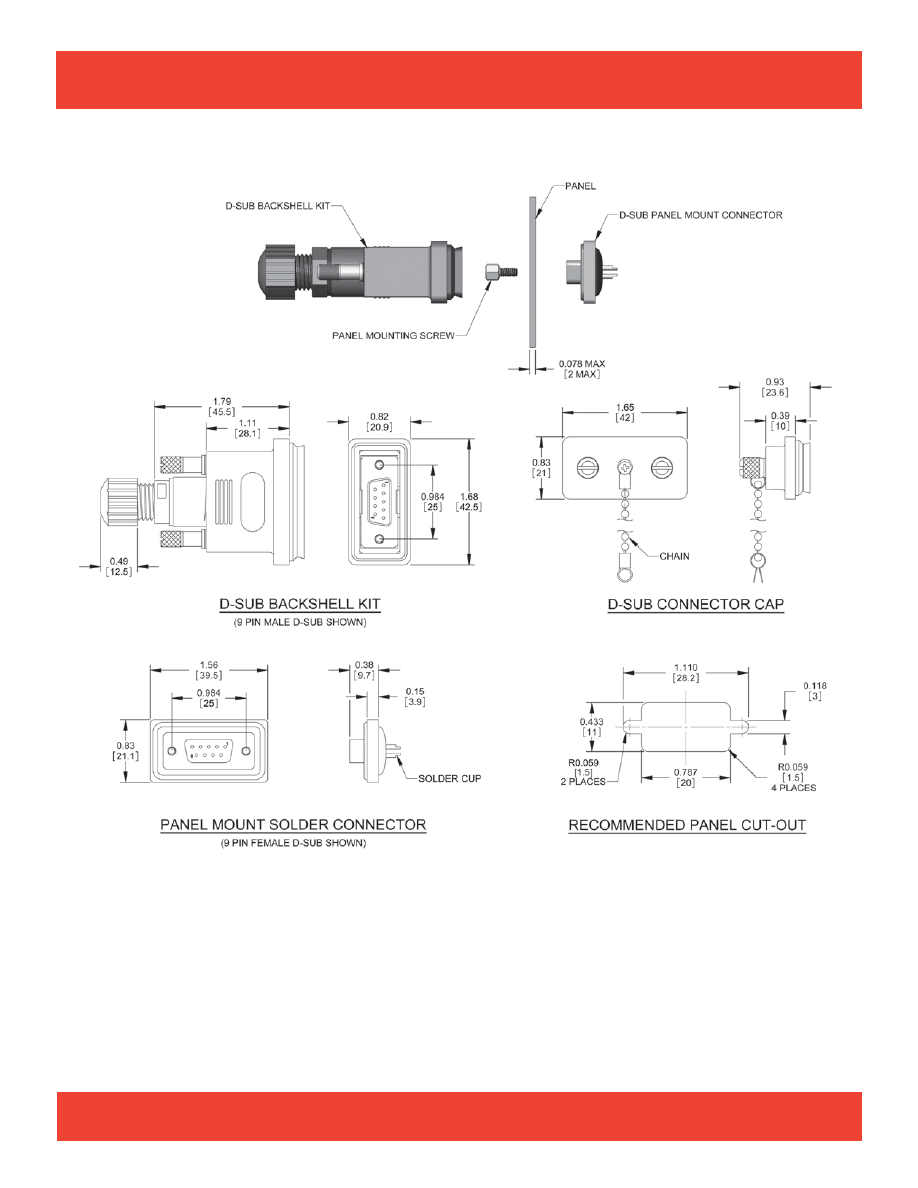

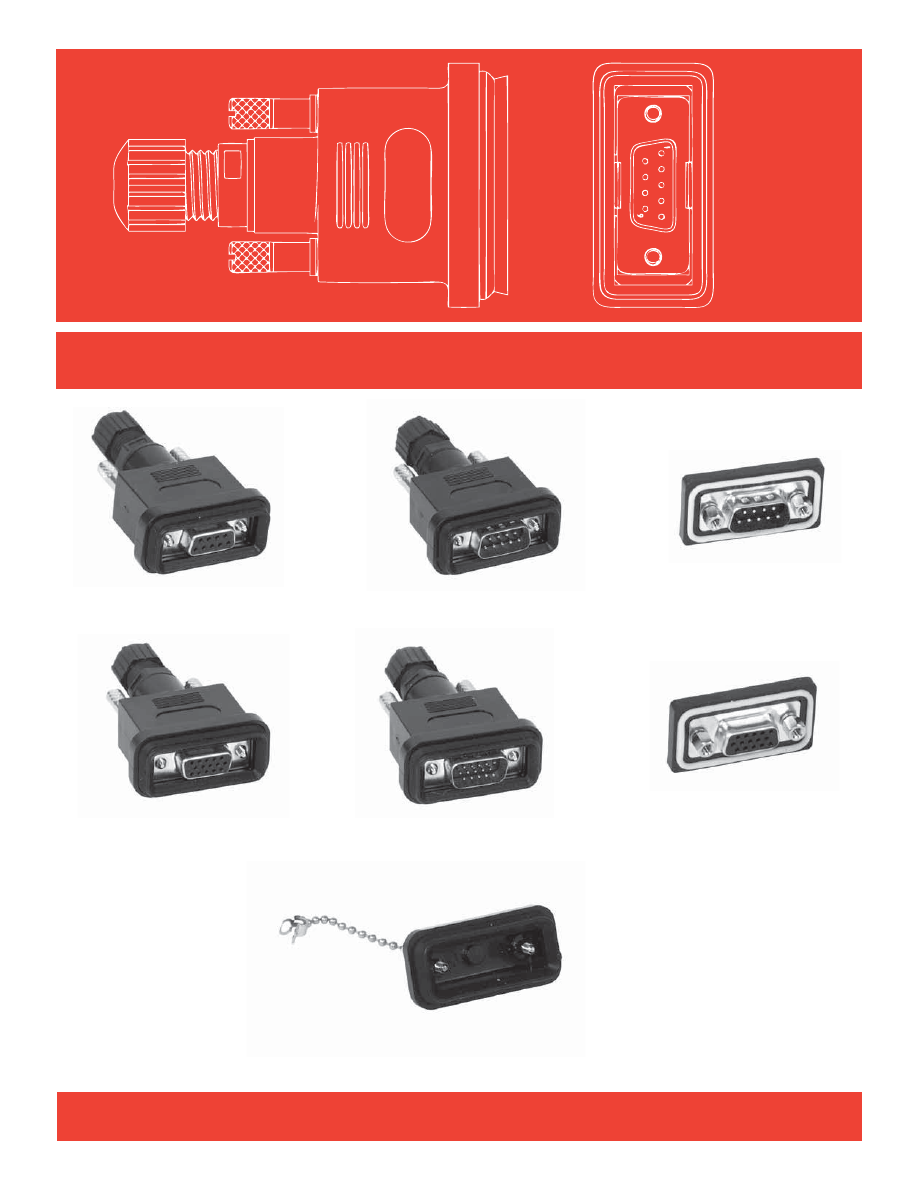

data-con-x

: sealed d-sub

106

molded cable assembly checklist

107

con-x

electrical current rating chart

108

mil-e-qual

electrical current rating chart

109

en2

en3

electrical current rating chart

110

tooling

112

notes

hec_2013_catalog_hires_b-html.html

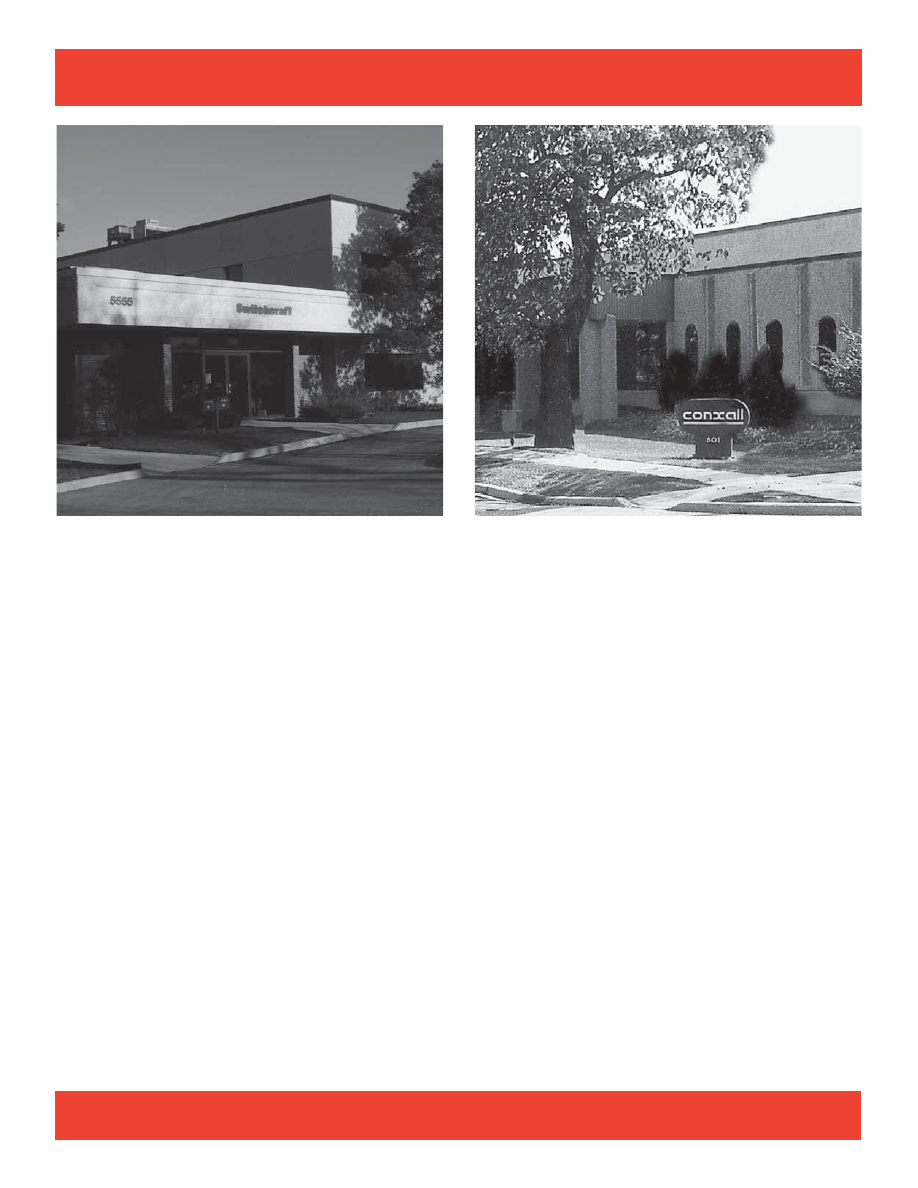

about us

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

Switchcraft, Inc. was established in 1946 to manufacture jacks, plugs and switches, mainly for the communications
industry. The original plant was located on West Diversey Street in Chicago. The company moved to a larger facility
at 1328 North Halsted Street in 1948 and in 1958, the operation moved to a 185,000 square foot facility located
at 5555 North Elston Avenue, which is still the headquarters and the largest of three manufacturing locations for
the corporation today.

In 1977, Switchcraft was bought by the Raytheon Corporation and it operated as an independent subsidiary
in its Commercial division for twenty years. During this time, Switchcraft expanded its production capability to
include vertical integration, for cost effective manufacturing in the United States. They also expanded into harsh
environment connector products, which expanded the market growth of the company.

In 1997 Raytheon made a strategic decision to focus solely on the defense industry. As a result, they divested their
interests in all of their commercial holdings. At that time Switchcraft was sold to company management and a
private equity firm.

In 1999, Switchcraft acquired Conxall, a manufacturer of circular connectors and cable assemblies, in order to
expand their offering of harsh environment connectivity products. They are located in a 32,000 square foot facility
in Villa Park, IL. This strategic acquisition helped to position Switchcraft for expanded growth in the Industrial
Marketplace.

In 2011, Switchcraft was acquired by HEICO Corporation and became part of their Electronic Technologies Group.

Switchcraft is a major supplier of harsh environment connectivity products to the Industrial market and the
premier connectivity provider to the Pro-Audio & Broadcast Industries.

hec_2013_catalog_hires_b-html.html

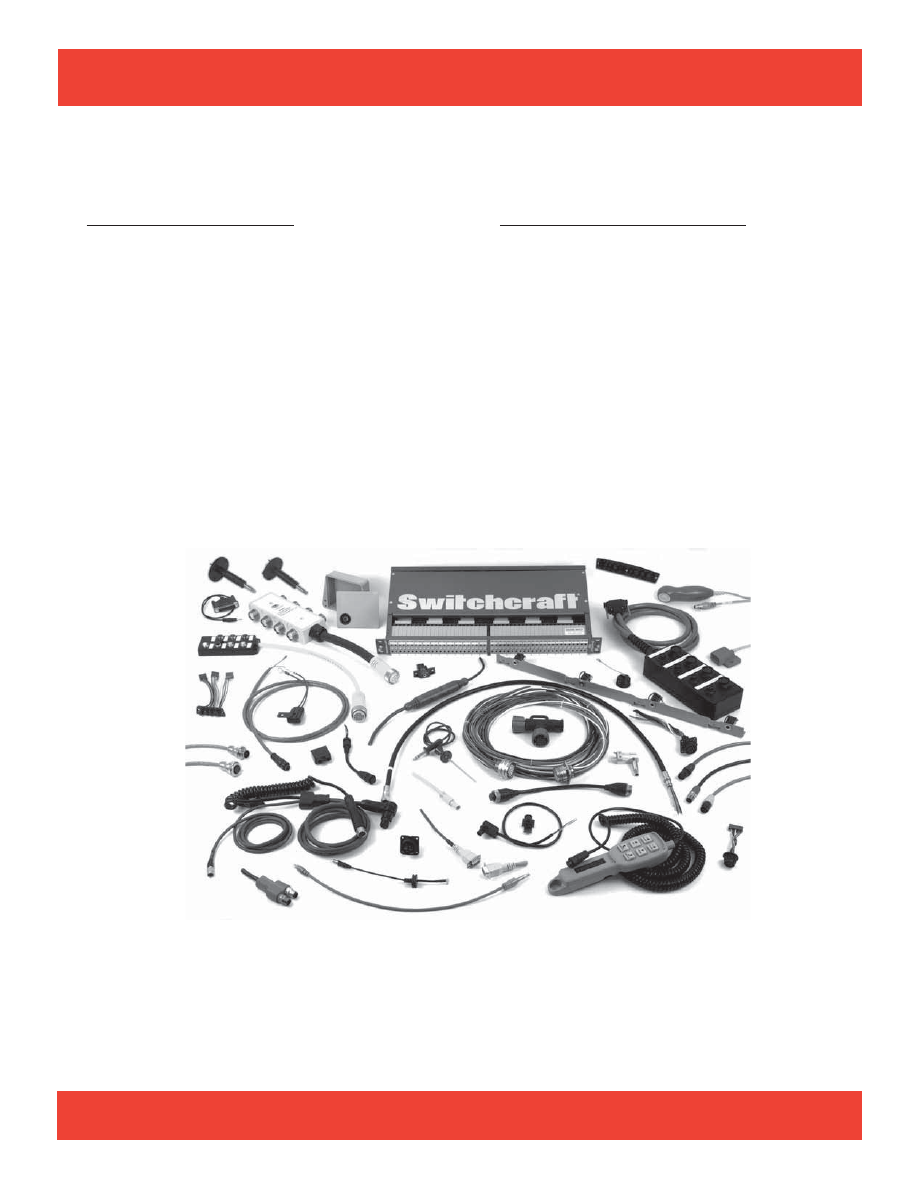

custom products

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

t 'VMMTUBòPGEFTJHOFOHJOFFSTJO$IJDBHPBOE

Villa Park, IL locations

t 'VMMVTFPGNPEFMJOHBOETJNVMBUJPOTPGUXBSF

for electronic and mechanical design

Ability to provide rapid prototypes quickly after
initial design concepts are completed

Test lab and model shop on site for product
development

Testing Capabilities for Electrical Properties

Insulation resistance

Breakdown voltage

Contact resistance

Return losses

t 'SFRVFODZSFTQPOTFNFBTVSFNFOU

Mechanical Properties

t 'PSDFUFTUJOH
t

Life cycle testing

Low level vibration

Environmental Testing

Thermal cycling

Salt spray

Humidity vs. temperature testing

NEMA 250 (6P) - IP 66/ 67/ 68

ENGINEERING CAPABILITIES

ENGINEERING TEST CAPABILITIES

Can’t find exactly what you are looking for in our standard product offering? Contact us to start creating your custom
solution! A strong group of engineers and a vertically integrated manufacturing facility make Switchcraft and Conxall
your logical choice for custom products. We can transform your product ideas into reality.

We manufacture many customized products. Some examples are:

Panel connectors with flex circuits

Wave soldering to panel mount connectors

Custom assembly and wiring

Custom mounted and wired product assemblies

Wide selection of mold compounds for molded color products

Assembled ends for non-Switchcraft and Conxall products

t 'VMMZNPMEFEVOJUTXJUIDPOOFDUPSTFODBQTVMBUFEJOUPUIFBTTFNCMZ

hec_2013_catalog_hires_b-html.html

en2

| micro-con-x

| en3

| mini-con-x

shielded mini-con-x

multi-con-x

harsh environment

hec_2013_catalog_hires_b-html.html

SHIELDED MULTI-CON-X

| MAXI-CON-X

| MEGA-CON-X

| MIL-E-QUAL

CONNECTIVITY SOLUTIONS

hec_2013_catalog_hires_b-html.html

en2

0.53”

[

]

od 2-7 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

WINGED CABLE END - PIN

MATES WITH PANEL MOUNT

WINGED CABLE END - SOCKET

MATES WITH PANEL MOUNT

PANEL MOUNT - SOCKET

MATES WITH CABLE END

RIBBED CABLE END - PIN

MATES WITH PANEL MOUNT

PANEL MOUNT - PIN

MATES WITH CABLE END

RIBBED CABLE END - SOCKET

MATES WITH PANEL MOUNT

hec_2013_catalog_hires_b-html.html

en2

0.53”

[

]

od 2-7 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

600

insertion/withdrawal

cycles

minimum

Vibration:

Mil-Std

202G

Method

201A

Hex

Nut

Torque:

5-6

in/lb

0QFSBUJOH'PSDFT

MCNBYJNVNJOTFSUJPO

0.25

minimum

withdrawal

Back

Shell

Type:

Threaded

Handle

Conductor Sizes:

#20 contacts accepts 20 through 26 AWG

#22

contacts

accepts

through

AWG

#26

contacts

accepts

through

AWG

Electrical Specifications

Voltage Rating:

250 V AC/DC for 2 contact arrangement

125

AC/DC

for

3-7

contact

arrangements

Current Rating:

See current rating table on page 109

Insulation Resistance:

1000 MΩ minimum

Contact

Resistance: 10

mΩ

maximum

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF-JNJUT

$UP$ 'UP'

Moisture Resistance:

Mil-Std 202G Method 106G

Insulation Resistance:

Mil-Std 202G Method 302 Condition B

Thermal Shock:

Mil-Std 202G Method 107G

Salt Atmosphere (Corrosion):

Mil-Std 202G Method 101E Condition B

Weathertight Ratings:

IP16, IP18, IP66, IP67, IP68 per IEC60529

/&." 1$'31BSU

Material Specifications

Connector

Housing: Thermoplastic,

Black

Hex

Nut:

Thermoplastic,

Black

Coupling

Ring:

Thermoplastic,

Black

Cable

Clamp:

Thermoplastic,

Black

Handle

(Back-Shell) Thermoplastic,

Black

Insulator:

Elastomer,

Black

Seal

Grommet:

Elastomer,

Black

Contacts:

Copper

Alloy,

Plated

Consult factory for optional colors and materials

NOTE: Seal grommet provides an integrated O-ring seal for the connector assembly instead of a separate O-ring.

hec_2013_catalog_hires_b-html.html

en2

0.53”

[

]

od 2-7 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

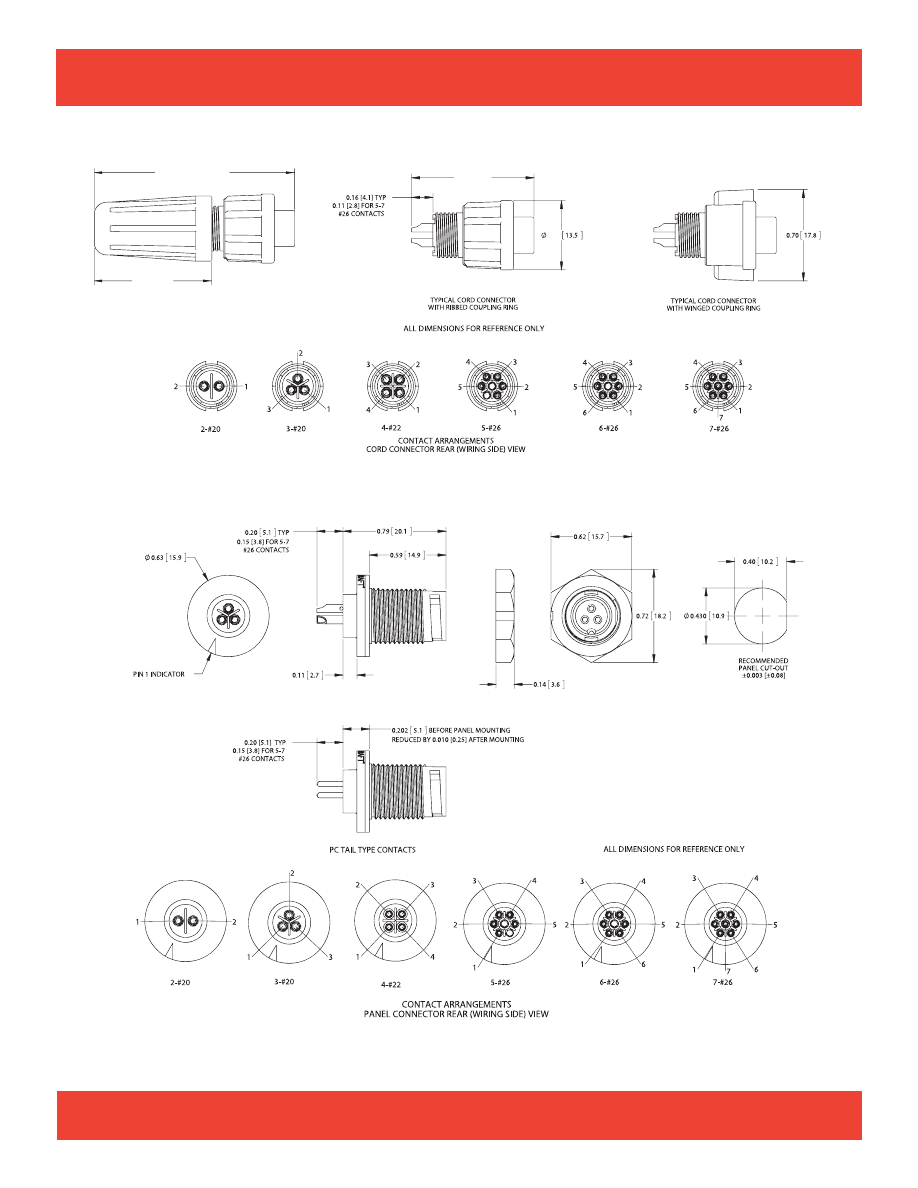

All dimensions are for reference only. Units shown: in[mm].

0.53

0.94 [23.8]

1.50 [38] - 1.57 [40]

0.90 [22.8]

PANEL MOUNT

CORD

hec_2013_catalog_hires_b-html.html

en2

0.53”

[

]

od 2-7 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

PART NUMBER TO ORDER

Consult factory for Cable to Cable (Inline) type connectors.

EN2

Connector Type:
C - Cord
P - Panel

# of Contacts:
2-3    for #20
4    for #22
5-7    for #26

Gender:
M - Male
F - Female

Contact Size:
20 - #20
22 - #22
26 - #26

Contact Style:
Leave blank for Solder or Crimp
P - PC tail (Panel connectors only)

Packaging Options:
Leave blank for Bulk
K - Kit (one unit/bag)

Grommet Code - Cable O.D. Range: (Cord Only)
DC  - Daisy Chain (all 3 sizes)
G1  - 0.100-0.140 (2.5-3.6)
G2  - 0.140-0.180 (3.6-4.6)
G3  - 0.180-0.220 (4.6-5.6)

Coupling Ring Options (Cord Only):
Leave blank for Ribbed
W - Winged

hec_2013_catalog_hires_b-html.html

CABLE END - SOCKET

MATES WITH PANEL MOUNT AND

CABLE TO CABLE

PANEL MOUNT - PIN

MATES WITH CABLE END

MOLDED CABLE END ASSEMBLY

MOLDED CABLE TO CABLE ASSEMBLY

MOLDED RIGHT ANGLE CABLE ASSEMBLY

PANEL MOUNT - SOCKET

MATES WITH CABLE END

DUST CAP

P/N - 16295

IP RATED LOCKING CAP

P/N-16295P (2-3 Contacts)

CABLE END - PIN

MATES WITH PANEL MOUNT AND

CABLE TO CABLE

CABLE TO CABLE / INLINE - SOCKET

MATES WITH CABLE END

Micro-con-x

0.53”

[

]

od 2-7 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

hec_2013_catalog_hires_b-html.html

Micro-con-x

0.53”

[

]

od 2-7 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

300 insertion / withdrawal cycles minimum

Vibration:

Coupling rings have overriding locking feature to prevent loosening or

separation

connector

Hex Nut Torque:

9 in-lb max tightening torque.

Coupling Locking Style:

Bayonet with ribbed coupling nut (winged coupling nut available) P/N 16482

Backshell

Style:

Non-removable

snap

lock

Conductor Sizes:

#20 accepts 20 through 24 AWG

#22 contacts accepts 22 through 24 AWG

#26 contacts accepts 24 through 26 AWG

Electrical Specifications

Voltage

Rating:

600V

AC/DC

Current Rating:

7.5 A – max (See page 107 for Electrical Current Rating Chart)

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

$UP$ 'UP¡'

Salt Atmosphere (Corrosion):

300 Hr salt spray when mated

Weathertight:

IP67 at the face, when mated

Material Specifications

Backshell:

Thermoplastic, UL 94HB, Black

Contacts:

Copper Alloy, Gold over Nickel Plate

Coupling Ring:

Thermoplastic, UL 94HB, Black

Gasket:

Elastomer,

Black

Grommet / Strain Relief:

Elastomer, Black

Hex Nut:

Thermoplastic, UL 94HB, Black

O-Ring:

Elastomer,

Black

Shell:

Thermoplastic,

94HB,

Black

Optional Dust Cap:

Elastomer, Black

Molded Cable Assemblies

Weathertight:

NEMA 6P, 13: IEC IP67

Certifications

6-'JMF&
$4"'JMF

Not

for

current

interruption

RoHS

compliant

REACH

compliant

Options

673BUJOH

'BWBJMBCMF

'MBNF3BUJOH

6-)#6-7BWBJMBCMF

Consult factory for optional colors and materials

hec_2013_catalog_hires_b-html.html

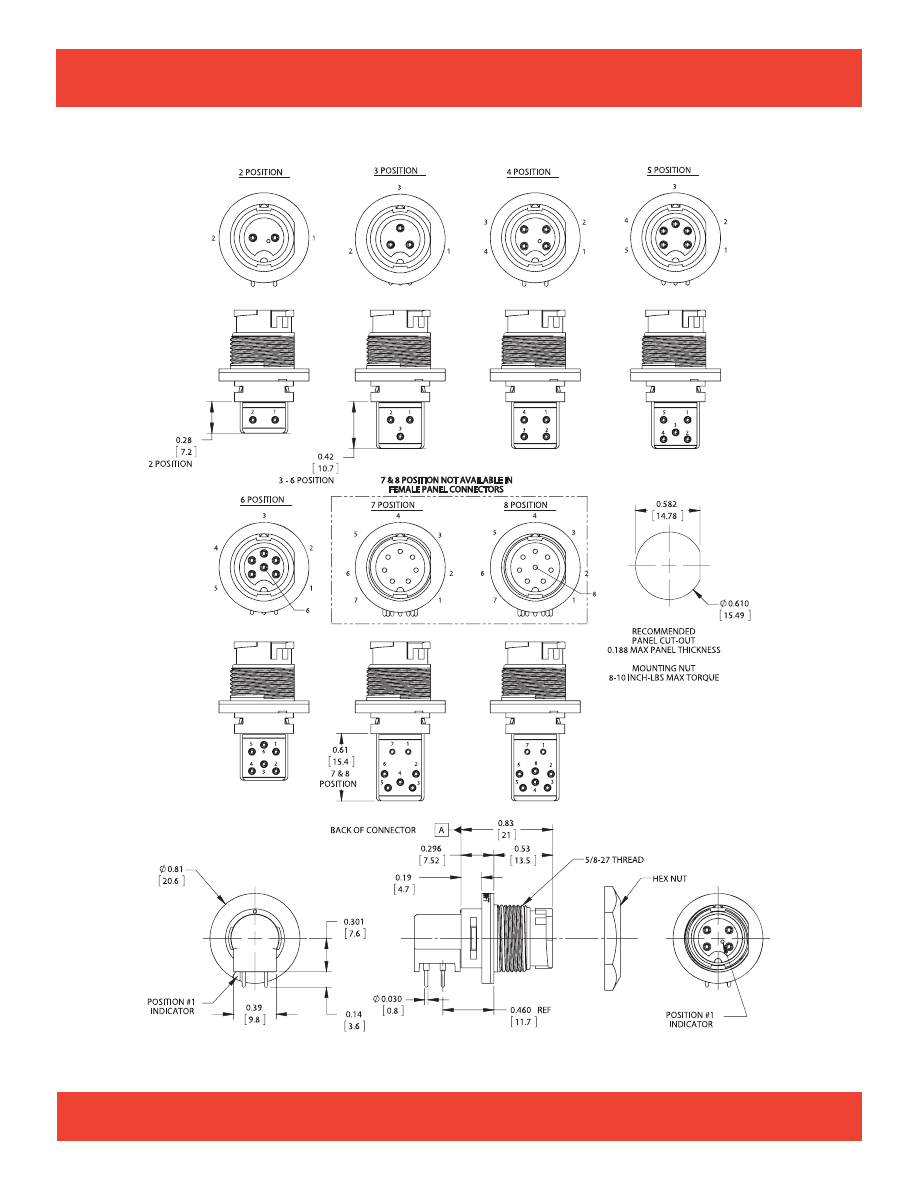

17X82-XXG-3XX

PANEL MOUNT CONNECTOR

SOLDER CUP

17X8X-XXG-3XX

PANEL MOUNT CONNECTOR

PC TAIL

1.56in

[39.6mm]

0.44in

[11.2mm]

18XXX-XXG-5XX
FIELD INSTALLABLE
CABLE TO CABLE CONNECTOR
BACKSHELL TYPE 5-LONG

1.31

[33.3]

18XXX-XXG-3XX
FIELD INSTALLABLE
CABLE TO CABLE CONNECTOR
BACKSHELL TYPE 3-SHORT

*2 & 3 POSITION ONLY*

0.44in

[11.2mm]

1.52

[38.7]

16XXX-XXG-5XX
FIELD INSTALLABLE
CABLE CONNECTOR
BACKSHELL TYPE 5-LONG

0.53

[13.5]

16XXX-XXG-3XX
FIELD INSTALLABLE
CABLE CONNECTOR
BACKSHELL TYPE 3-SHORT

*2 & 3 POSITION ONLY*

1.27

[32.3]

0.53in

[13.5mm]

0.55

[13.9]

SKIRT

17X80-XXG-3XX

PANEL MOUNT CONNECTOR

CRIMP

0.10
[2.4]

0.62

[15.7]

0.72

[18.2]

0.40

[10.2]

0.43

[10.9]

Micro-con-x

0.53”

[

]

od 2-7 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

PANEL MOUNT ASSEMBLY KITS

FIELD INSTALLABLE KITS

9:;$POTVMU'BDUPSZ"MMEJNFOTJPOTBSFGPSSFGFSFODFPOMZ6OJUTTIPXOJO<NN>

hec_2013_catalog_hires_b-html.html

Micro-con-x

0.53”

[

]

od 2-7 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

2 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

4 POSITION

#22 PIN & SOCKET

CONTACT

2 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

4 POSITION

#22 PIN & SOCKET

CONTACT

5 POSITION B-KEY

#26 PIN & SOCKET

CONTACT

6 POSITION A-KEY
#26 PIN & SOCKET

CONTACT

7 POSITION B-KEY

#26 PIN & SOCKET

CONTACT

5 POSITION B-KEY

#26 PIN & SOCKET

CONTACT

6 POSITION A-KEY
#26 PIN & SOCKET

CONTACT

7 POSITION B-KEY

#26 PIN & SOCKET

CONTACT

5 POSITION B-KEY

#26 PIN & SOCKET

CONTACT

6 POSITION A-KEY
#26 PIN & SOCKET

CONTACT

7 POSITION B-KEY

#26 PIN & SOCKET

CONTACT

2 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

4 POSITION

#22 PIN & SOCKET

CONTACT

2 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

4 POSITION

#22 PIN & SOCKET

CONTACT

5 POSITION B-KEY

#26 PIN & SOCKET

CONTACT

6 POSITION A-KEY
#26 PIN & SOCKET

CONTACT

7 POSITION B-KEY

#26 PIN & SOCKET

CONTACT

Panel Mount / Cable to Cable Connectors

Front View | Wire View

Cable Connectors

Front View | Wire View

PANEL MOUNT / CABLE TO CABLE CONNECTORS

CABLE CONNECTORS

hec_2013_catalog_hires_b-html.html

Micro-con-x

0.53”

[

]

od 2-7 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

1.47

[37.3]

1.71

[43.4]

1.03

[26.1]

0.53

[13.4]

0.53

[13.4]

16XXX-XXG

CABLE CONNECTOR

STRAIGHT OVERMOLDED

16XXX-XXG

CABLE CONNECTOR

RIGHT ANGLE OVERMOLDED

18XXX-XXG

CABLE TO CABLE CONNECTOR

STRAIGHT OVERMOLDED

1.47

[37.3]

0.53

[13.4]

CUSTOM MOLDED CABLE ASSEMBLIES

hec_2013_catalog_hires_b-html.html

Micro-con-x

0.53”

[

]

od 2-7 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

PART NUMBER TO ORDER

*Consult factory for length and diameter of PC Tail. Additionally, alternative colors and materials are available.

XX X XX - XXG - XXX X

Connector Type

- Cable End

- Panel mount

- Cable to Cable

Special Features

“W”

- Winged Coupling Nut

Contact Size

- #20

- #22

- #26

Panel Mount
with Hex Nut & Gasket

3ES

- with Epoxy

300

- without Epoxy

Cable & Cable to Cable
Backshell Style - Non-removable Snap Lock
with Grommet (Cable O.D. Range)

Gold Plated

No. & Type of Contacts

in or

ocket

Contact Style

“0”

- Crimp

“1”

- #20 PC Tail Standard*

“2”

- Solder

“3”

- #22 PC Tail

“4”

- #26 PC Tail

- Extended PC Tail

“1”

- #20 PC Tail Medium*

“2”

- #20 PC Tail Long*

3XX

- Short Backshell (2&3 Contacts Only)

“11”

- 0.09” - 0.14”

“15”

- 0.15“ - 0.17”

“18”

- 0.18“ - 0.20”

5XX

- Long Backshell (2-7 Contacts)

“18”

- 0.18” - 0.20”

“21”

- 0.21” - 0.22”

“22”

- 0.22” - 0.23”

hec_2013_catalog_hires_b-html.html

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

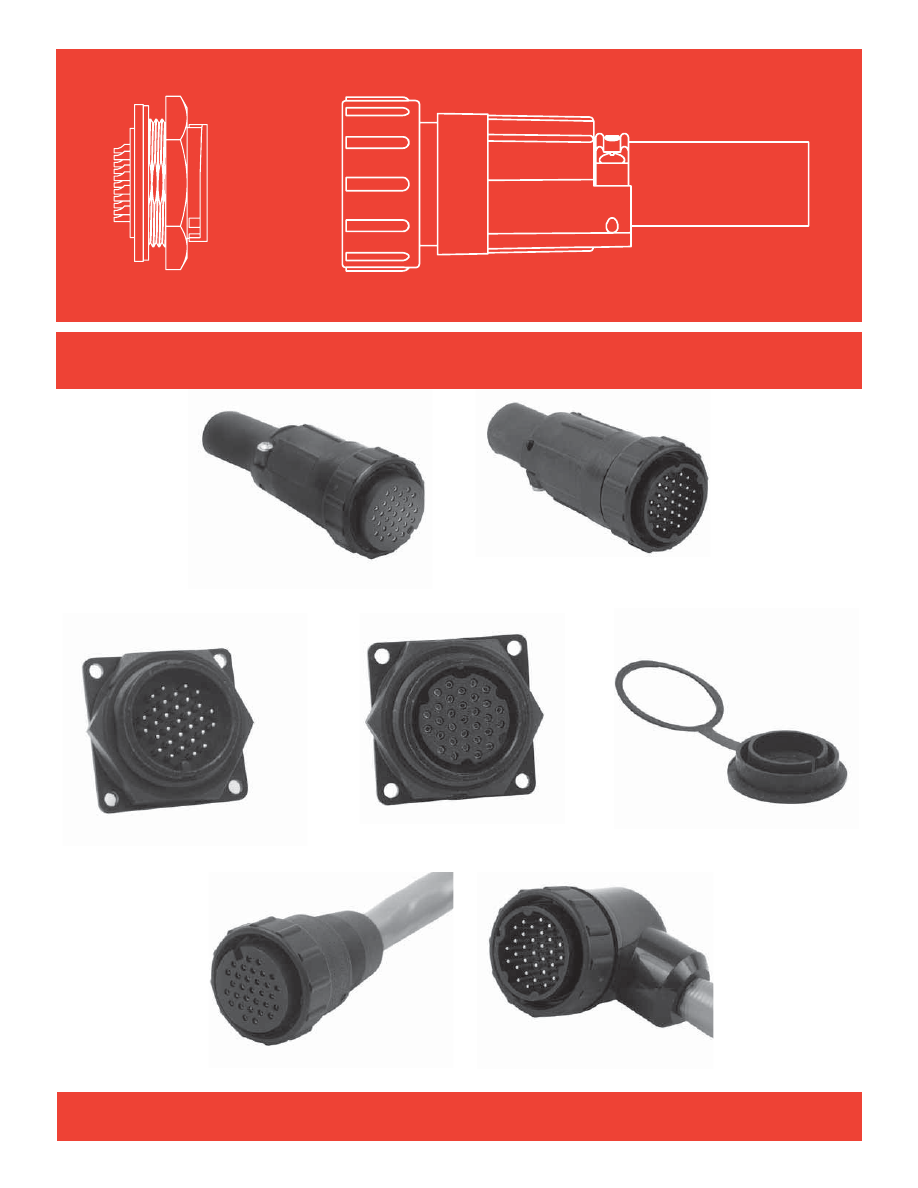

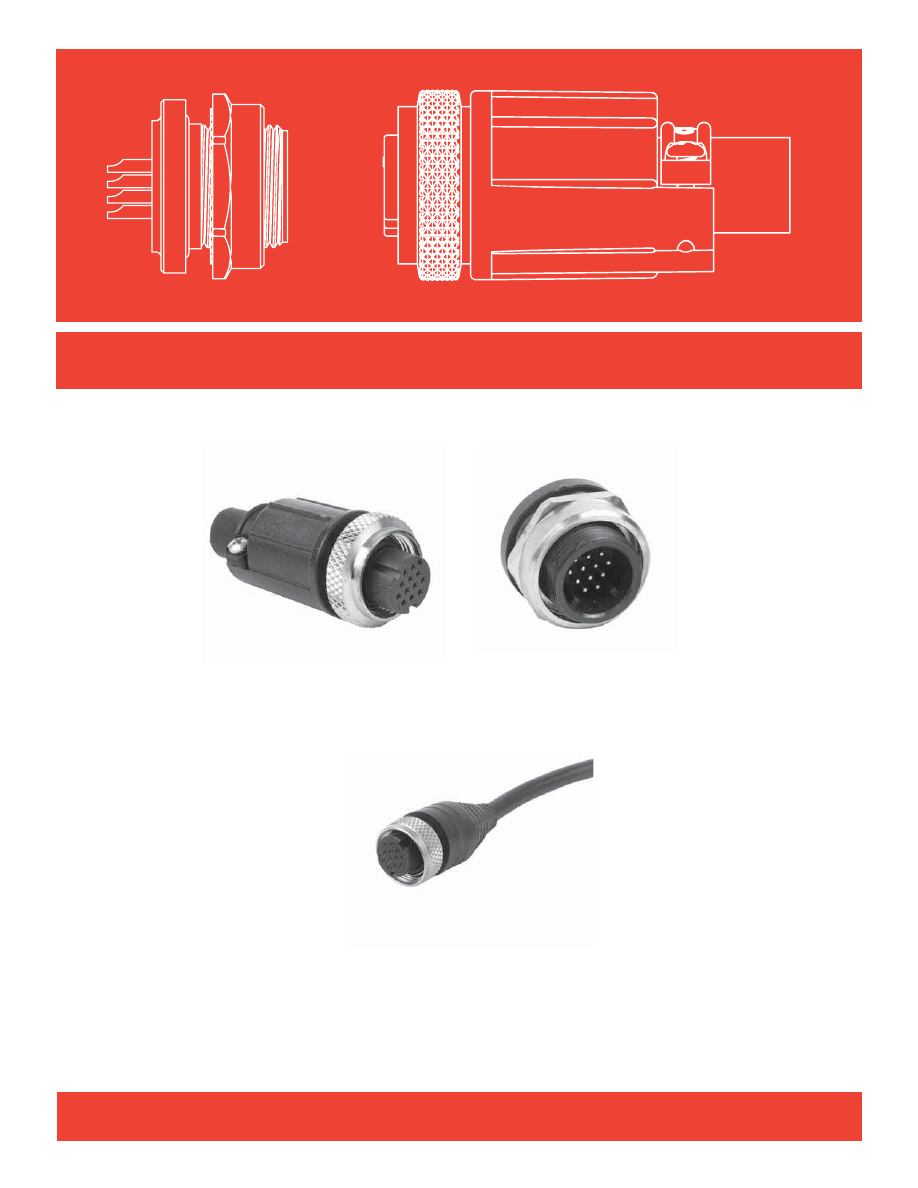

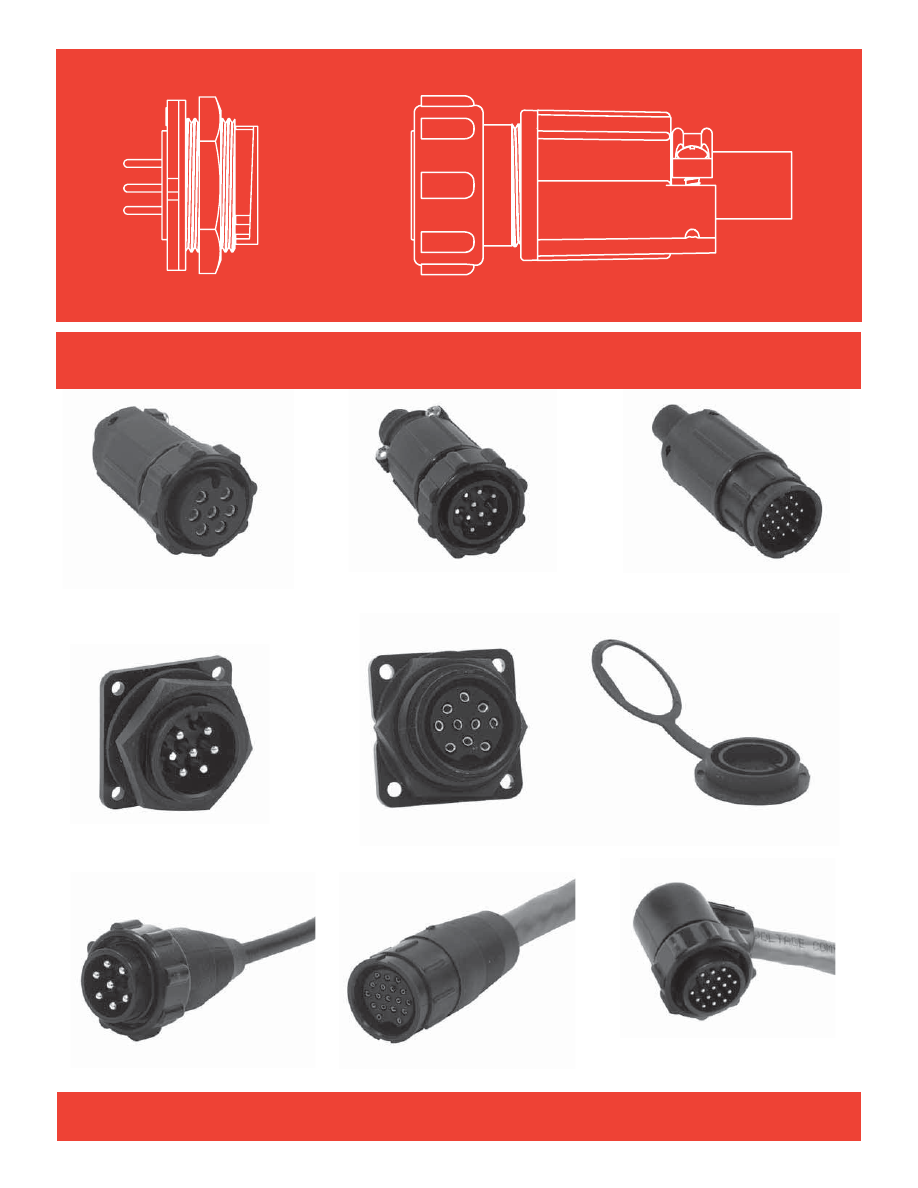

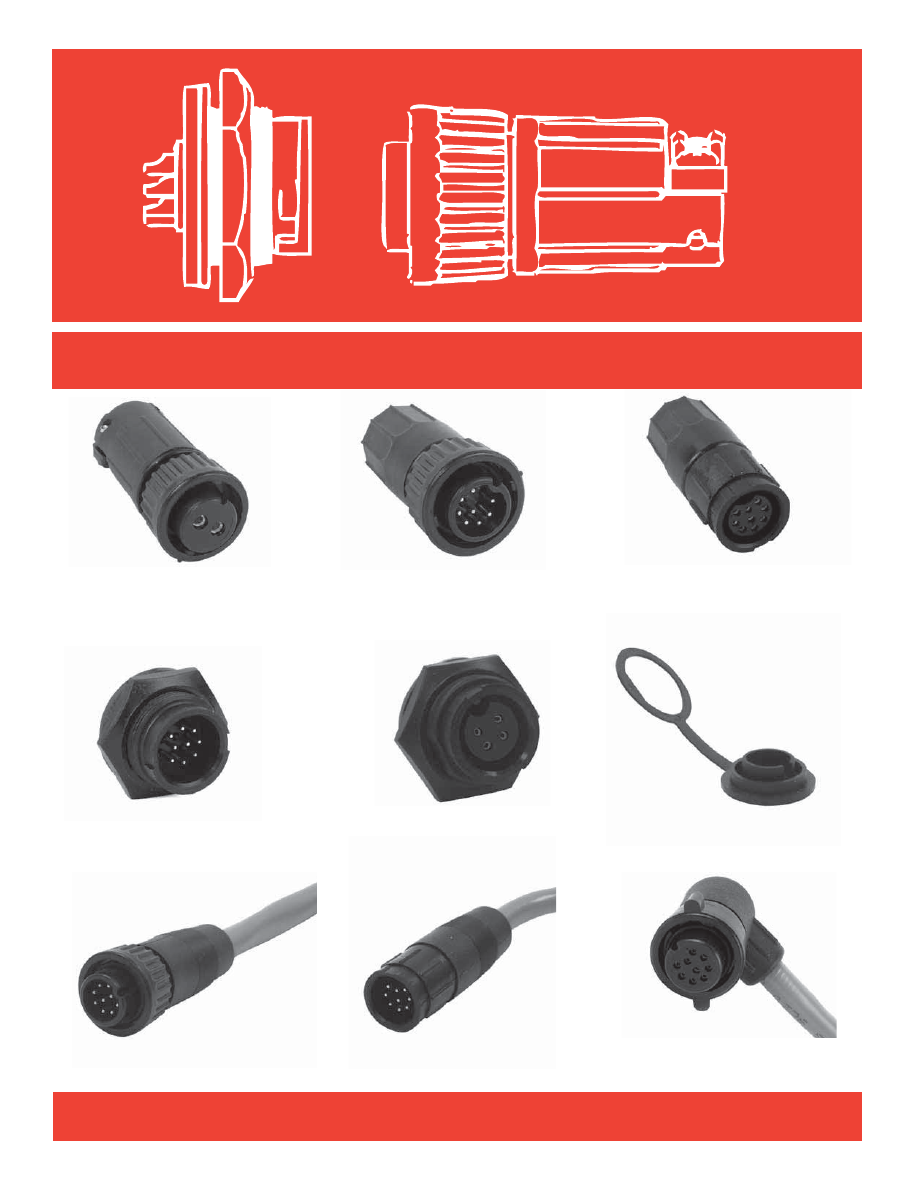

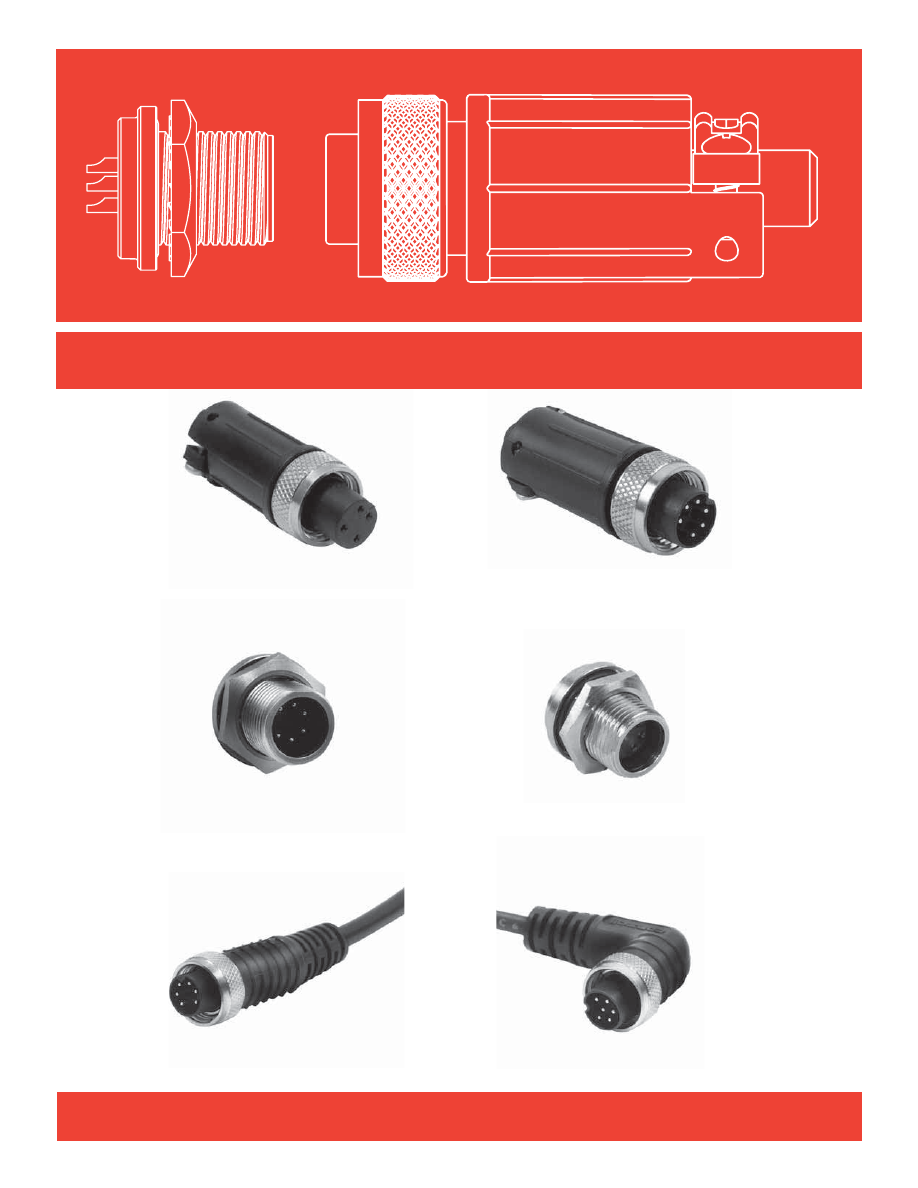

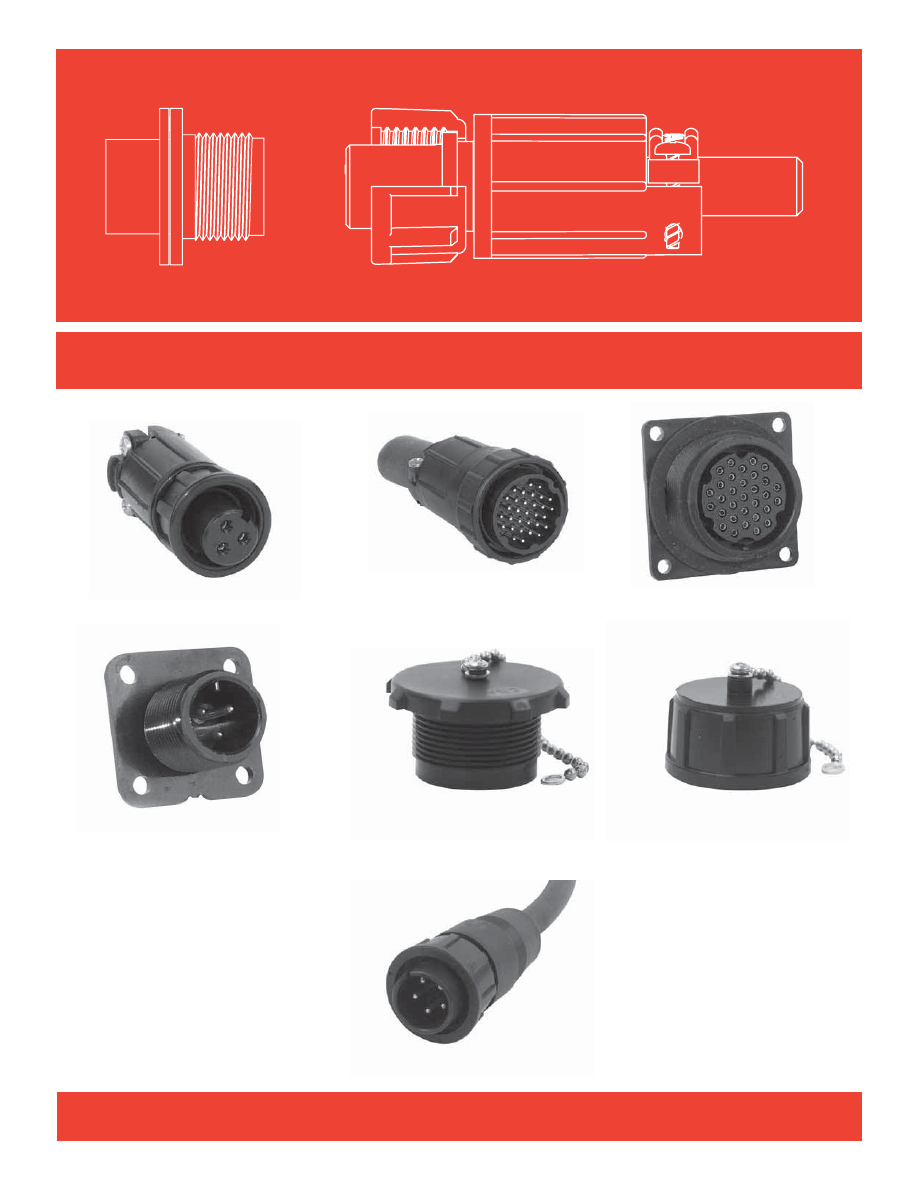

MOLDED

CABLE END ASSEMBLY

MOLDED

RIGHT ANGLE ASSEMBLY

DUST CAP FOR CABLE END

P/N - EN3CAPC

EN3 CAP

P/N - EN3CAP

IP RATED LOCKING CAP

P/N - EN3IPCAPX

CABLE END - SOCKET

MATES WITH PANEL MOUNT AND

CABLE TO CABLE

CABLE END - PIN

MATES WITH PANEL MOUNT AND

CABLE TO CABLE

CABLE TO CABLE / INLINE - PIN

MATES WITH

CABLE END

PANEL MOUNT - PIN

MATES WITH

CABLE END

PANEL MOUNT-

SOCKET RIGHT ANGLE

MATES WITH CABLE END

PANEL MOUNT-

RIGHT ANGLE PCB

MATES WITH CABLE END

QUICK DISCONNECT

CABLE END

en3

0.71”

[

]

od 2-18 contacts

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

600 insertion / withdrawal cycles minimum

Vibration:

Mil-Std 202 Method 201

Shock:

Mil-Std 202 Method 213B, condition K

Hex Nut Torque:

All series hex nut to withstand 8-10 in-lb tightening torque.

Coupling Locking Style

Bayonet with ribbed coupling nut (winged coupling nut available)

Back

Shell

Style:

Boot

Conductor Sizes:

#16 contacts accepts 16 through 18 AWG

#20 contacts accepts 20 through 22 AWG

#26 contacts accepts 26 through 28 AWG

Electrical Specifications

Voltage

Rating:

250

AC/DC

Current Rating:

See current rating table on page 109

Insulation Resistance:

100 MΩ min

Contact Resistance:

20 mΩ max

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

$UP$ 'UP¡'

.PJTUVSF3FTJTUBODF

.JM4UE.FUIPE'

Insulation Resistance:

Mil-Std 202 Method 302 condition B

Thermal Shock:

Mil-Std 202 Method 107G

Salt Atmosphere (Corrosion):

Mil-Std 202 Method 101D condition B

Weathertight:

IEC

60529

IP16/IP18

IEC

60529

IP66/IP68

IEC

60529

IP68

NEMA

250

(6P)

$'31BSU

Material Specifications

Panel connector shells & locking disk:

Thermoplastic UL94V-0

Connector shell interior:

Elastomeric, Black UL 94HB

Contacts:

Copper Alloy, Gold over Nickel Plate

Molded Cable Assemblies

Weathertight:

IEC

60529

IP66/IP68

IEC

60529

IP68

NEMA

250

(6P)

$'31BSU

Certifications:

6-'JMF&QJODPSEJOMJOFBOEQBOFMPOMZ

Consult factory for optional colors and materials

NOTE: Seal grommet provides an integrated O-ring seal for the connector assembly instead of a separate O-ring.

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

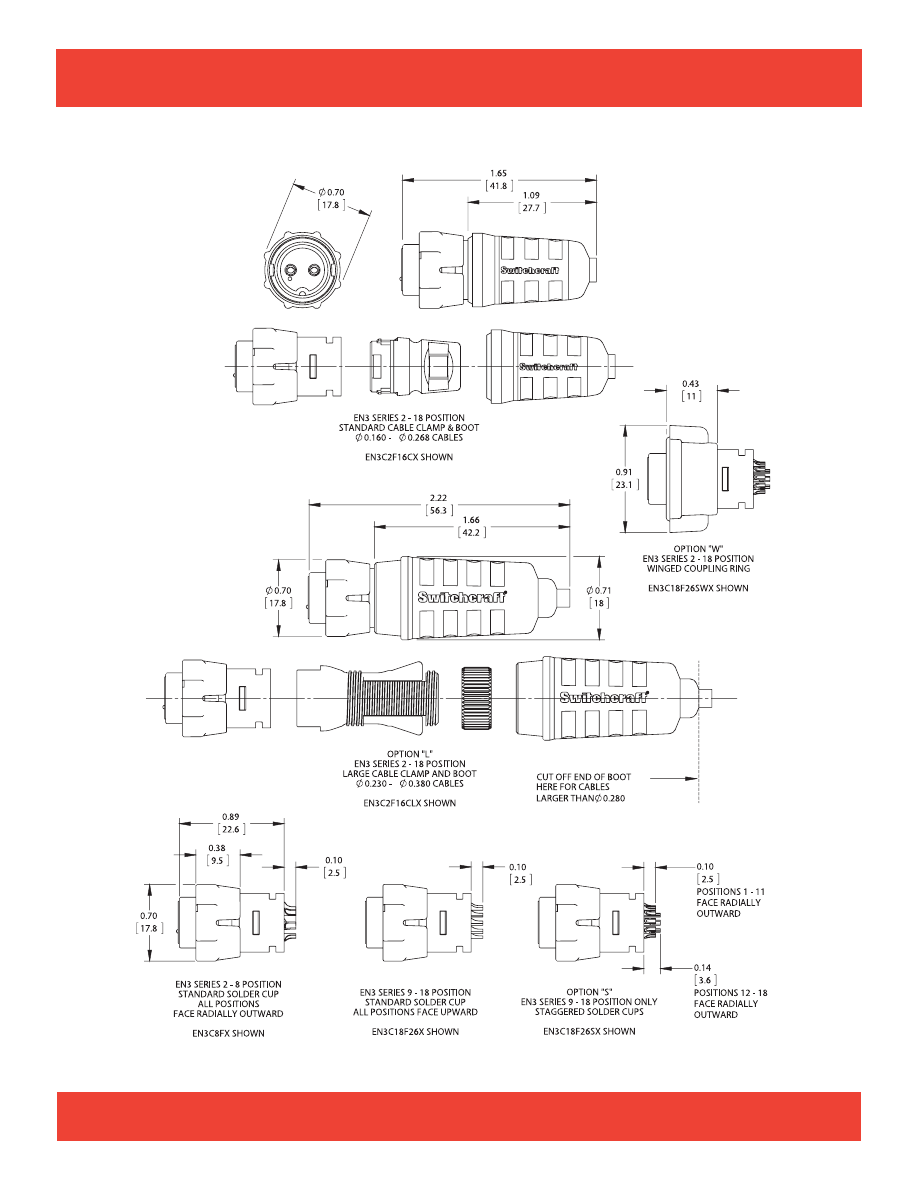

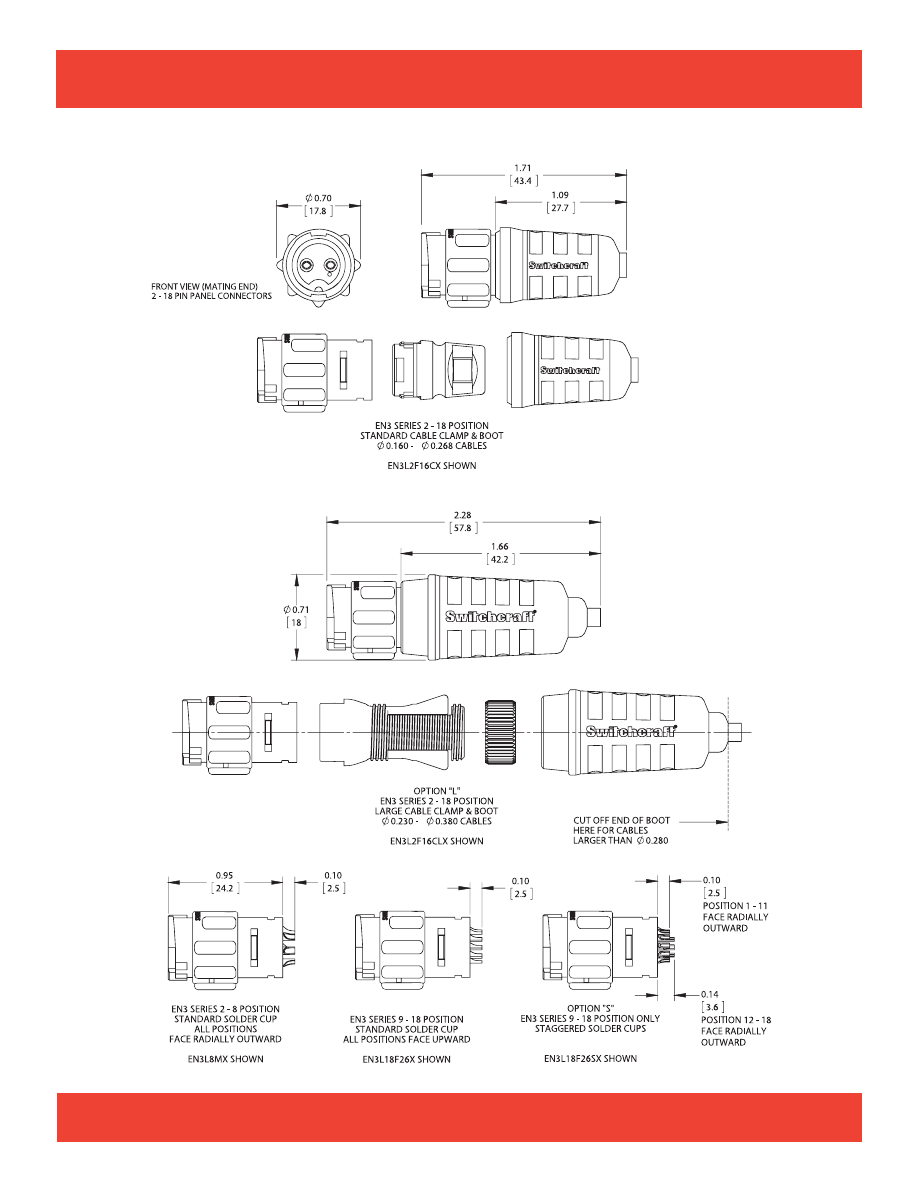

CORD CONNECTORS

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

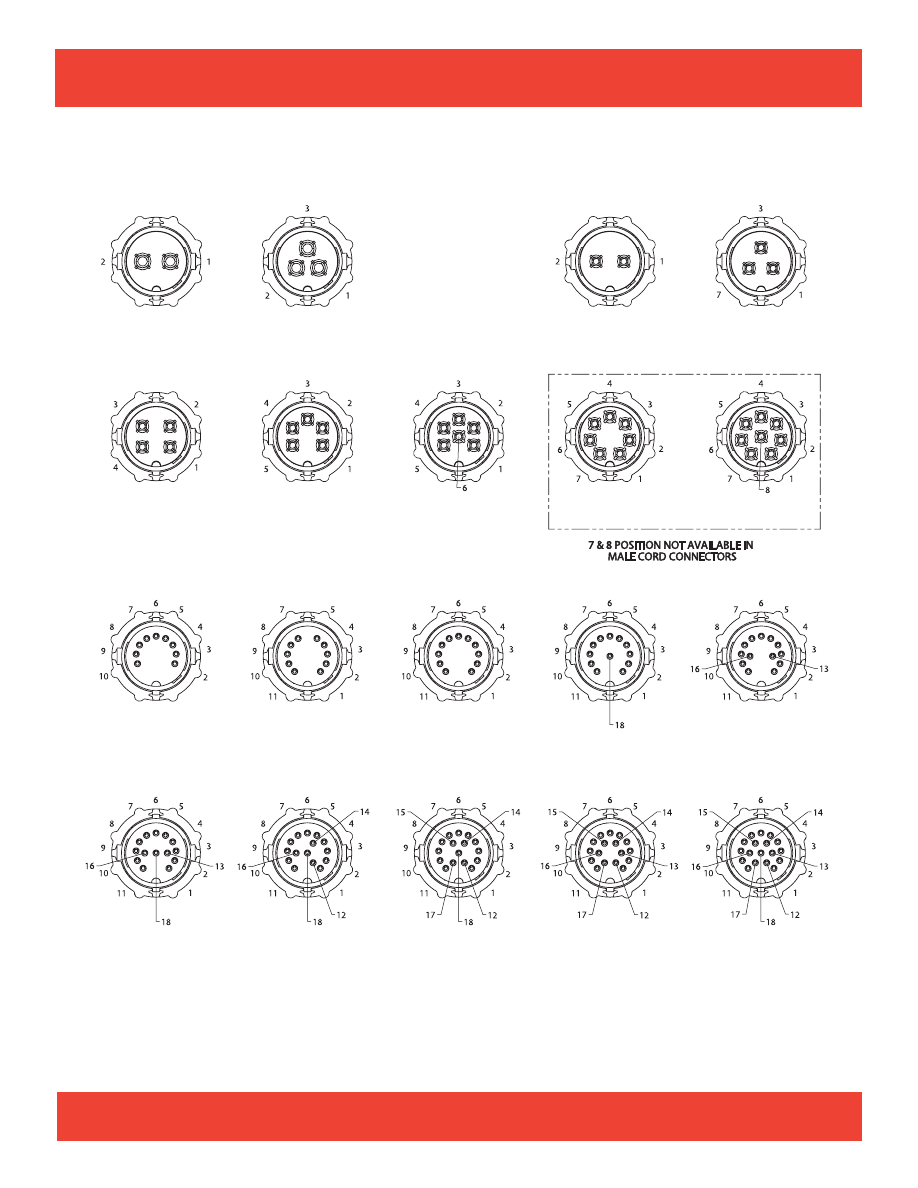

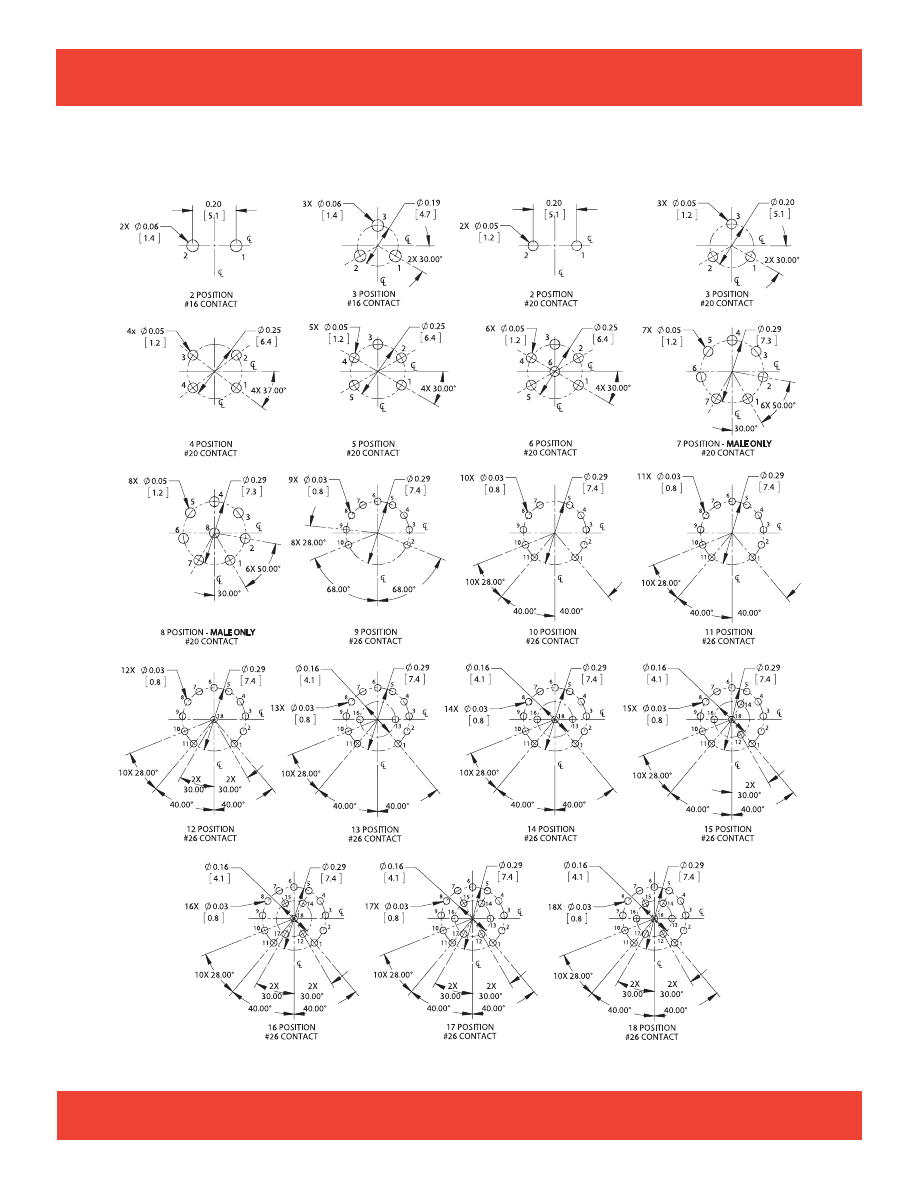

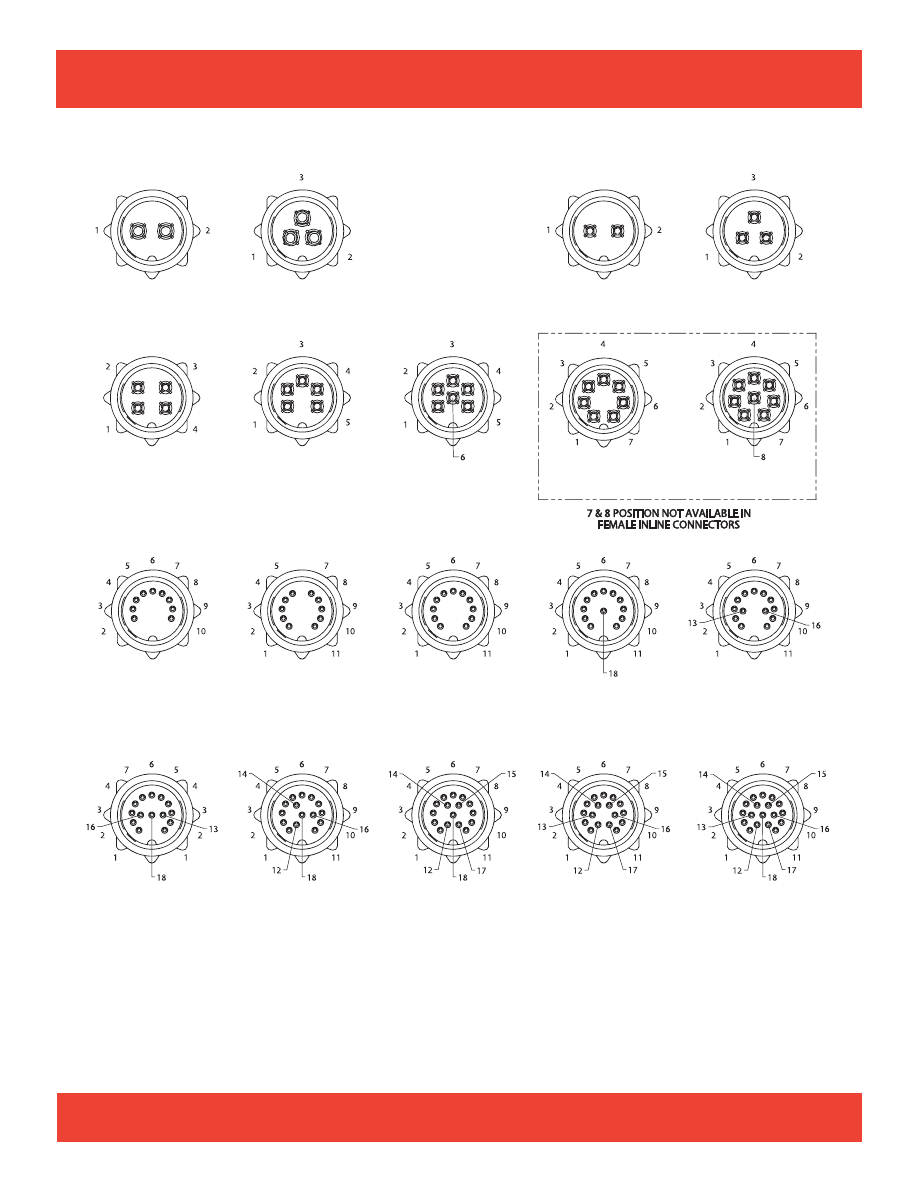

2-18 POSITION CORD CONNECTORS

Rear View (Wiring Side)

9-18 Position indentification numbers denote

position used in 18 position layout

2 POSITION

#16 PIN & SOCKET

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

9 POSITION

#26 PIN & SOCKET

CONTACT

14 POSITION

#26 PIN & SOCKET

CONTACT

15 POSITION

#26 PIN & SOCKET

CONTACT

16 POSITION

#26 PIN & SOCKET

CONTACT

17 POSITION

#26 PIN & SOCKET

CONTACT

18 POSITION

#26 PIN & SOCKET

CONTACT

10 POSITION

#26 PIN & SOCKET

CONTACT

11 POSITION

#26 PIN & SOCKET

CONTACT

12 POSITION

#26 PIN & SOCKET

CONTACT

13 POSITION

#26 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 SOCKET CONTACT

8 POSITION

#20 SOCKET CONTACT

3 POSITION

#16 PIN & SOCKET

CONTACT

2 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

2-18 POSITION CORD CONNECTORS

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

0.003” [0.08mm]

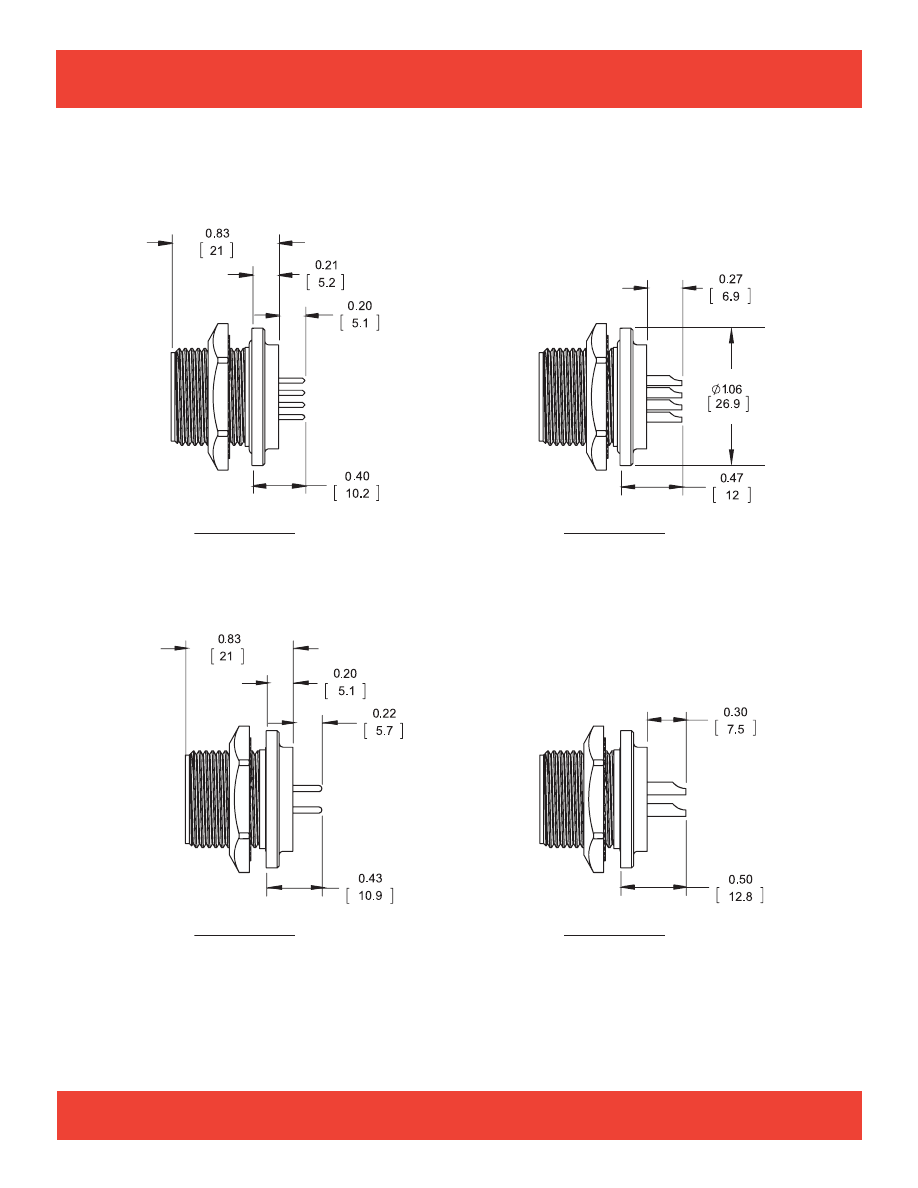

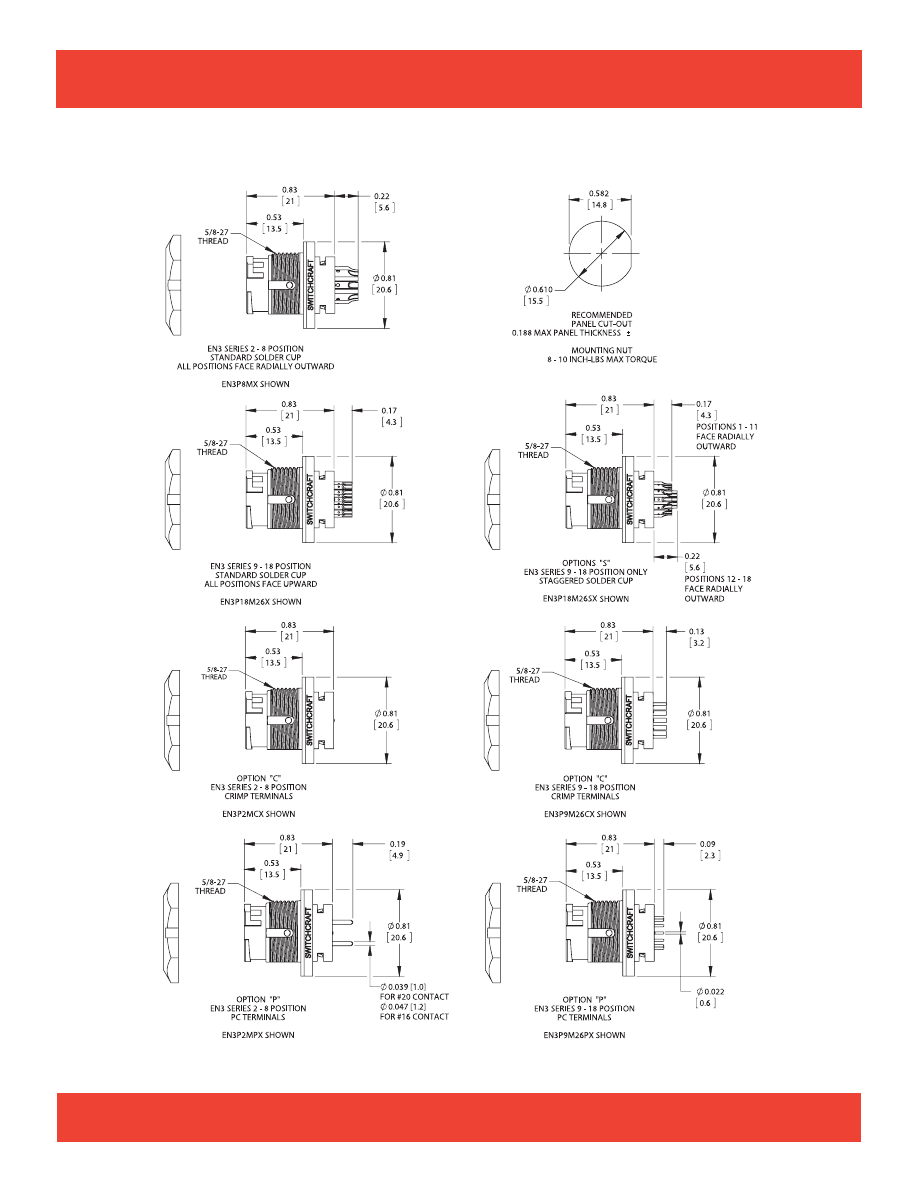

EN3® PANEL CONNECTORS

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

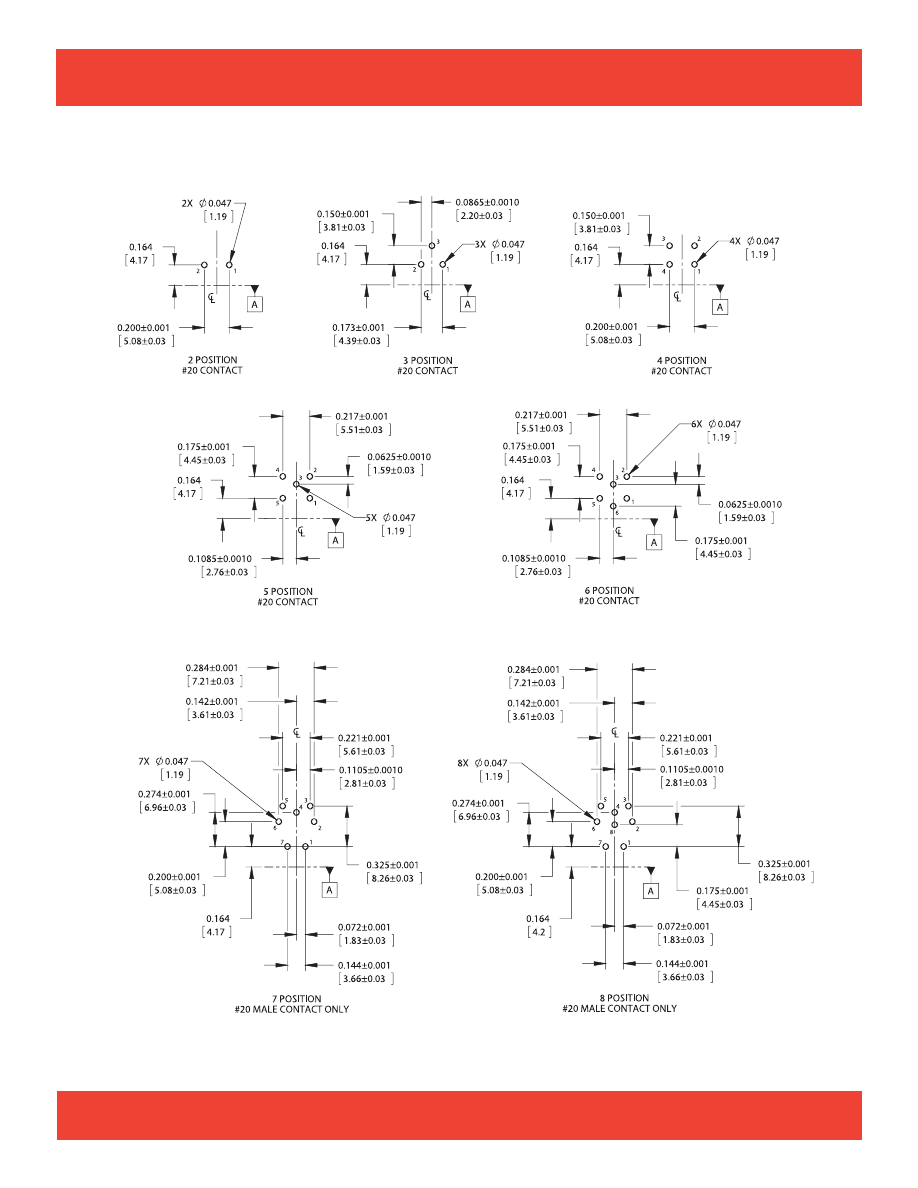

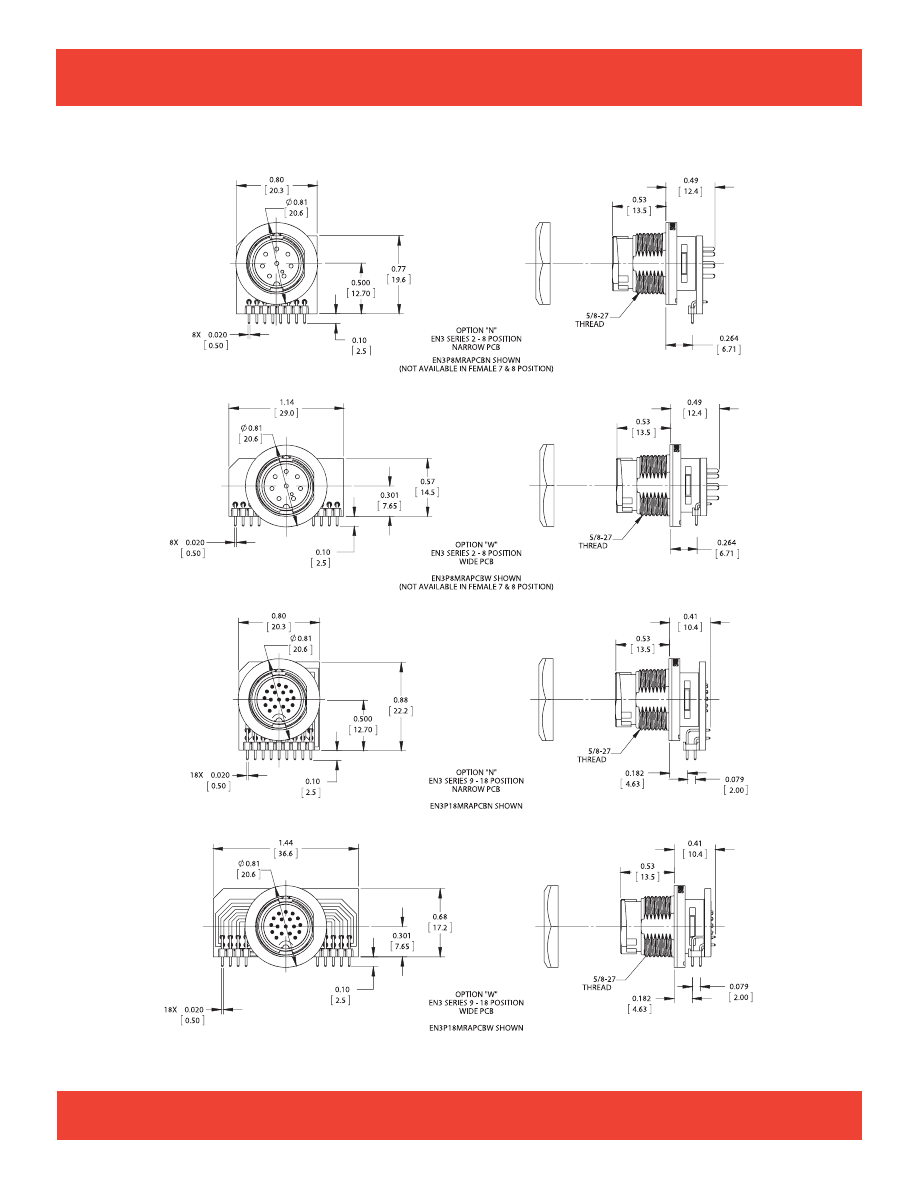

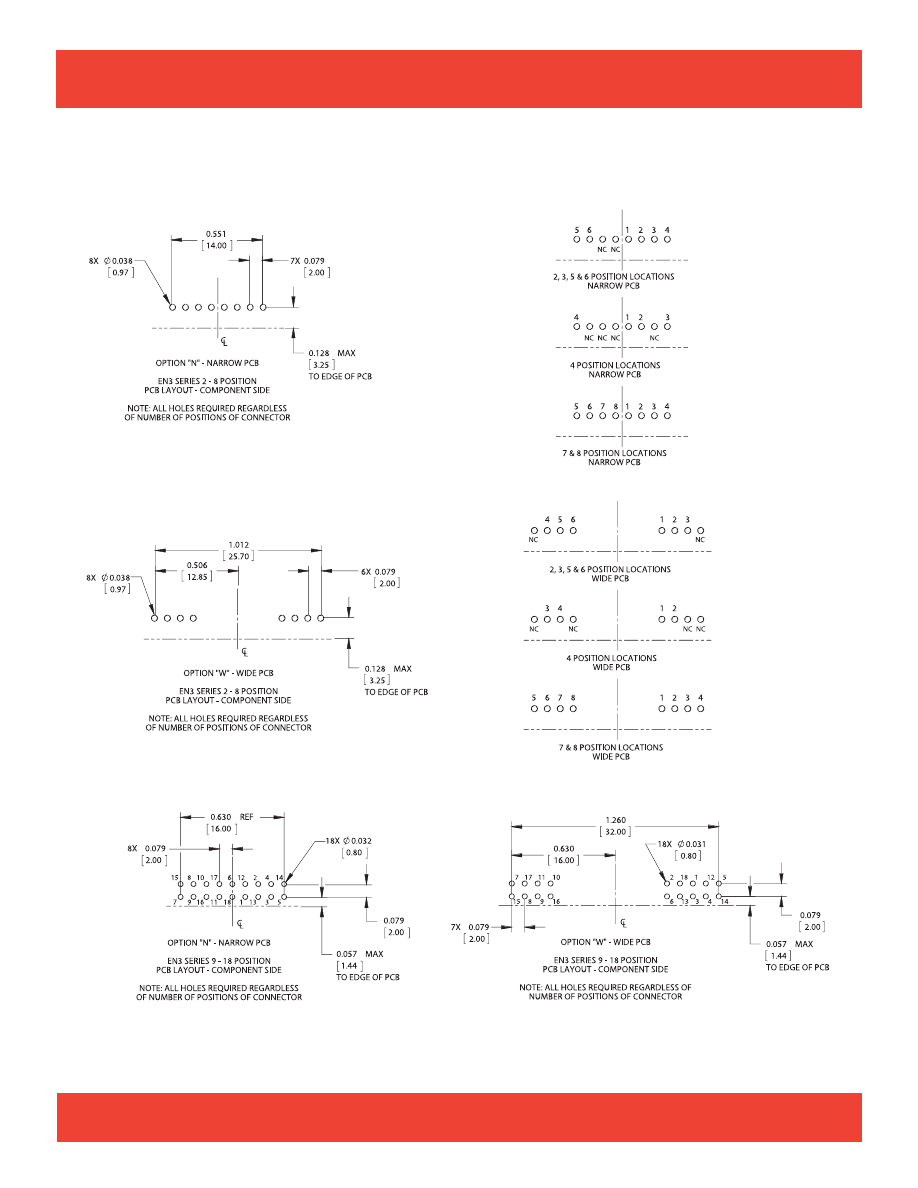

EN3® PANEL CONNECTORS PCB LAYOUT COMPONENT SIDE

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

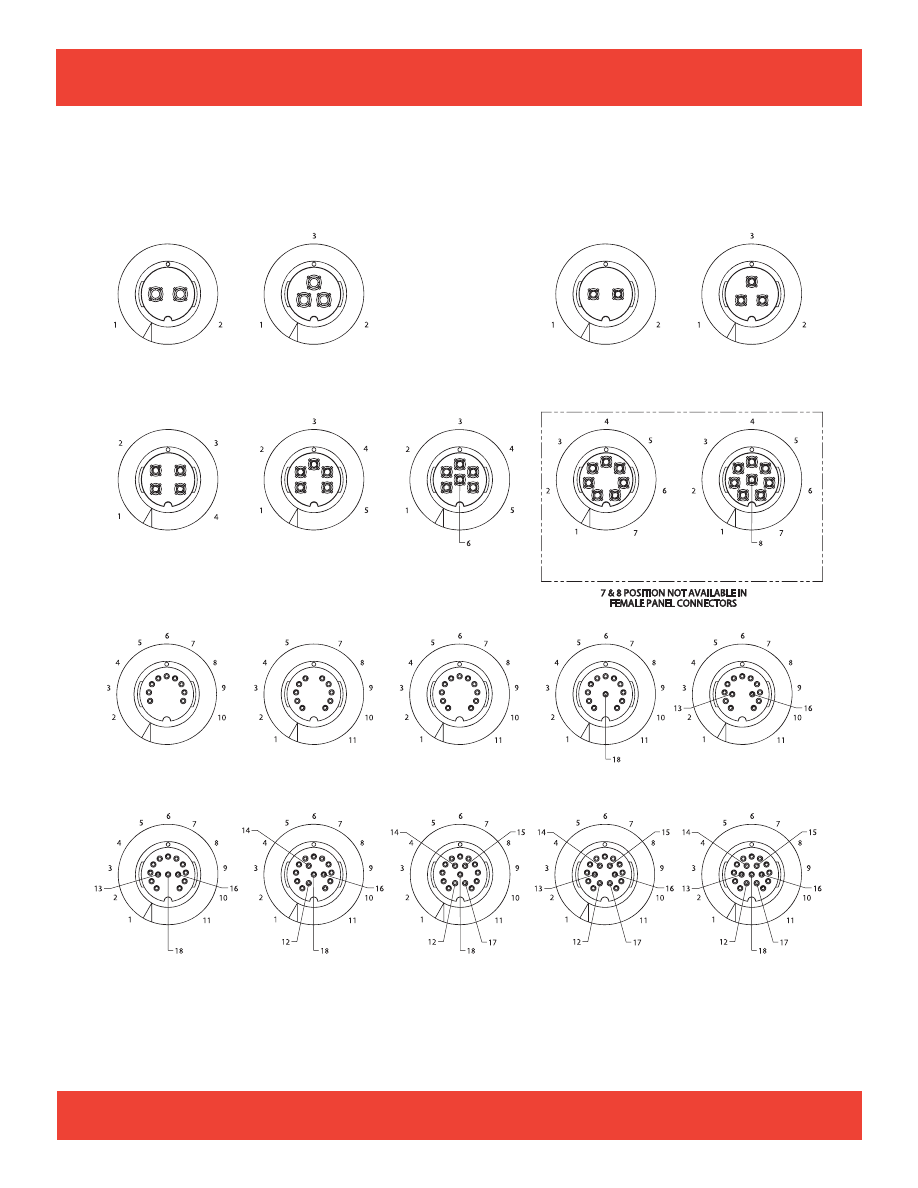

7 & 8 PIN ONLY CONNECTORS

14 POSITION

#26 PIN & SOCKET

CONTACT

15 POSITION

#26 PIN & SOCKET

CONTACT

16 POSITION

#26 PIN & SOCKET

CONTACT

17 POSITION

#26 PIN & SOCKET

CONTACT

18 POSITION

#26 PIN & SOCKET

CONTACT

9 POSITION

#26 PIN & SOCKET

CONTACT

10 POSITION

#26 PIN & SOCKET

CONTACT

11 POSITION

#26 PIN & SOCKET

CONTACT

12 POSITION

#26 PIN & SOCKET

CONTACT

13 POSITION

#26 PIN & SOCKET

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 PIN CONTACT

8 POSITION

#20 PIN CONTACT

2 POSITION

#16 PIN & SOCKET

CONTACT

3 POSITION

#16 PIN & SOCKET

CONTACT

2 POSITION

#16 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

2-18 PIN PANEL CONNECTORS

'SPOU7JFX .BUJOH&OE

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

2 POSITION

#16 PIN & SOCKET

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

9 POSITION

#26 PIN & SOCKET

CONTACT

14 POSITION

#26 PIN & SOCKET

CONTACT

15 POSITION

#26 PIN & SOCKET

CONTACT

16 POSITION

#26 PIN & SOCKET

CONTACT

17 POSITION

#26 PIN & SOCKET

CONTACT

18 POSITION

#26 PIN & SOCKET

CONTACT

10 POSITION

#26 PIN & SOCKET

CONTACT

11 POSITION

#26 PIN & SOCKET

CONTACT

12 POSITION

#26 PIN & SOCKET

CONTACT

13 POSITION

#26 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 PIN CONTACT

8 POSITION

#20 PIN CONTACT

3 POSITION

#16 PIN & SOCKET

CONTACT

2 POSITION

#16 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

2-18 PANEL CONNECTORS

Rear View (Wiring Side)

9-18 position identification numbers

denote position used in 18 position layout

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

INLINE CONNECTORS

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

2-18 POSITION INLINE CONNECTORS

Rear View (Wiring Side)

9-18 Position indentification numbers denote

position used in 18 position layout

2 POSITION

#16 PIN & SOCKET

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

9 POSITION

#26 PIN & SOCKET

CONTACT

14 POSITION

#26 PIN & SOCKET

CONTACT

15 POSITION

#26 PIN & SOCKET

CONTACT

16 POSITION

#26 PIN & SOCKET

CONTACT

17 POSITION

#26 PIN & SOCKET

CONTACT

18 POSITION

#26 PIN & SOCKET

CONTACT

10 POSITION

#26 PIN & SOCKET

CONTACT

11 POSITION

#26 PIN & SOCKET

CONTACT

12 POSITION

#26 PIN & SOCKET

CONTACT

13 POSITION

#26 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 PIN CONTACT

8 POSITION

#20 PIN CONTACT

3 POSITION

#16 PIN & SOCKET

CONTACT

2 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

PART NUMBER TO ORDER - EN3®

EN3

CONNECTOR TYPE:
C  - Cord
P  - Panel
L  - In-Line

# OF CONTACTS:
2-3    for #16
2-8    for #20
9-18  for #26

GENDER:
M - Male
F - Female

CONTACT SIZE:
16 - 16 AWG
Leave blank for 20 AWG
26 - 26 AWG

CONTACT STYLE:
C  - Crimp
P  - PC tail (Panel connectors only)
S  - Staggered Solder Cup*
Leave blank for Straight Solder Cup

CABLE CLAMP OPTION:
L - for 0.230" to 0.380"
cable nom. O.D. and
0.750" long stripping.
Leave blank for 0.160" to 0.265"

cable nom. O.D. and
0.380" long stripping.

COUPLING NUT OPTION:
W - Winged Coupling Nut
Cord Connector Only
Leave blank for standard nut

PACKAGING OPTIONS:
K - Kit (one unit per bag)
Leave blank for Bulk

Notes:
7 and 8 pin not available in male Cord connector
7 and 8 pin not available in female Panel or In-Line connector

*Available only for products with 9-18 contacts

X - RoHS Compliant

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

EN3® RIGHT ANGLE 2-8 POSITION MOLDED CONNECTORS

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

EN3® RIGHT ANGLE 2-8 POSITION CONNECTORS

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

EN3® RIGHT ANGLE PC BOARD CONNECTORS

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

EN3® RIGHT ANGLE PC BOARD CONNECTORS

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

PART NUMBER TO ORDER - RIGHT ANGLE EN3® PANEL MOUNTS

EN3

# of Contacts:
2 - 8 #20
9 - 18 #26

Gender:
M

- Male

F - Female

PCB Style:
BN - Narrow PCB
BW
BLANK - Molded

- Wide PCB

Connector Type:
P - Panel

EN3 Style:
RAPC - Right Angle PC

RAPC

Notes:
7 and 8 pin not available in female Panel connector

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

1.23
31.2

1.81

0.70

17.8

EN3 SERIES COMPACT OVERMOLD

CORD CONNECTOR

CABLE RANGE

0.100 -

0.310

1.87
47.5

1.23
31.2

0.70

17.8

EN3 SERIES COMPACT OVERMOLD

INLINE CONNECTOR

2.46

62.5

0.70

17.8

1.88

47.8

EN3 SERIES STRAIGHT OVERMOLD

CORD CONNECTOR

WITH FLEX RELIEF

CABLE RANGE

UP TO

0.380

2.52

64.1

0.70

17.8

1.88

47.8

EN3 SERIES STRAIGHT OVERMOLD

INLINE CONNECTOR

WITH FLEX RELIEF

CABLE RANGE

UP TO

0.380

0.12

3.1

2.35
59.6

0.80

20.3

1.88

47.8

EN3 SERIES QUICK CONNECT OVERMOLD

CORD CONNECTOR

WITH FLEX RELIEF

CABLE RANGE

UP TO

0.380

2.35

59.6

0.17

4.4

0.80

20.3

1.88

47.8

EN3 SERIES QUICK CONNECT OVERMOLD

INLINE CONNECTOR

WITH FLEX RELIEF

CABLE RANGE

UP TO

0.380

2.46

62.5

0.70

17.8

1.88

47.8

EN3 SERIES STRAIGHT OVERMOLD

CORD CONNECTOR

WITHOUT FLEX RELIEF

CABLE RANGE

UP TO

0.380

2.52

64.1

0.70

17.8

1.88

47.8

EN3 SERIES STRAIGHT OVERMOLD

INLINE CONNECTOR

WITHOUT FLEX RELIEF

CABLE RANGE

UP TO

0.380

2.35

59.6

0.17

4.4

0.80

20.3

1.88

47.8

EN3 SERIES QUICK CONNECT OVERMOLD

INLINE CONNECTOR

WITHOUT FLEX RELIEF

CABLE RANGE

UP TO

0.380

0.12

3.1

2.35
59.6

0.80

20.3

1.88

47.8

EN3 SERIES QUICK CONNECT OVERMOLD

CORD CONNECTOR

WITHOUT FLEX RELIEF

CABLE RANGE

UP TO

0.380

CUSTOM MOLDED CABLE ASSEMBLIES

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

en3

0.71”

[

]

od 2-18 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

1.56

39.7

0.92

23.4

1.92

48.6

1.57

39.8

0.70

17.8

0.65

16.5

EN3 SERIES RIGHT ANGLE

INLINE CONNECTOR

OVERMOLD

WITH FLEX RELIEF

CABLE RANGE

UP TO

0.380

0.65

16.5

0.70

17.8

0.92

23.4

1.57

39.8

1.92

48.6

1.50

38.1

EN3 SERIES RIGHT ANGLE

CORD CONNECTOR

OVERMOLD

WITH FLEX RELIEF

CABLE RANGE

UP TO

0.380

POLARIZATION KEY
STANDARD = 6 O'CLOCK (SHOWN)
OPTIONAL = 3, 9 & 12 O'CLOCK

1.56

39.7

0.92

23.4

1.92

48.6

1.57

39.8

0.70

17.8

0.65

16.5

EN3 SERIES RIGHT ANGLE

INLINE CONNECTOR

OVERMOLD

WITHOUT FLEX RELIEF

CABLE RANGE

UP TO

0.380

0.65

16.5

0.70

17.8

0.92

23.4

1.57

39.8

1.92

48.6

1.50

38.1

EN3 SERIES RIGHT ANGLE

CORD CONNECTOR

OVERMOLD

WITHOUT FLEX RELIEF

CABLE RANGE

UP TO

0.380

POLARIZATION KEY
STANDARD = 6 O'CLOCK (SHOWN)
OPTIONAL = 3, 9 & 12 O'CLOCK

CUSTOM MOLDED CABLE ASSEMBLIES

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

CABLE END - SOCKET

MATES WITH PANEL MOUNT AND

CABLE TO CABLE

PANEL MOUNT - PIN

MATES WITH CABLE END

MOLDED CABLE END ASSEMBLY

MOLDED CABLE TO CABLE ASSEMBLY

MOLDED RIGHT ANGLE CABLE ASSEMBLY

PANEL MOUNT - SOCKET

MATES WITH CABLE END

DUST CAP

P/N - 6295

IP RATED LOCKING CAP

P/N - 6295P-W

CABLE END - PIN

MATES WITH PANEL MOUNT AND

CABLE TO CABLE

CABLE TO CABLE / INLINE - PIN

MATES WITH CABLE END

MINI-con-x

0.71”

[

]

od 2-8 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

hec_2013_catalog_hires_b-html.html

mini-con-x

0.71”

[

]

od 2-8 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

300 insertion / withdrawal cycles minimum

Vibration:

Coupling rings have overriding locking feature to prevent loosening or separation

connector

Hex Nut Torque:

10 in-lb max tightening torque.

Coupling Locking Style:

Bayonet with ribbed coupling nut (winged coupling nut available) P/N 6482

Backshell

Style:

Removable

twist

lock

Conductor Size:

#16 contacts accepts 16 through 18 AWG

#20 contacts accepts 20 through 24 AWG

Electrical Specifications

Voltage

Rating:

600

AC/DC

Current Rating:

13.0 A – max (See page 107 for Electrical Current Rating Chart)

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

$UP$ 'UP¡'

Salt Atmosphere (Corrosion):

300 Hr salt spray when mated

Weathertight:

IP67

when

mated

Material Specifications

Backshell:

Thermoplastic, UL 94HB, Black

Contacts:

Copper Alloy, Gold over Nickel Plate

Coupling Ring:

Thermoplastic, UL 94HB, Black

Gasket:

Elastomer,

Black

Grommet / Strain Relief:

Elastomer, Black

Hex Nut:

Thermoplastic, UL 94HB, Black

O-Ring:

Elastomer,

Black

Shell:

Thermoplastic,

94HB,

Black

Optional Dust Cap:

Elastomer, Black

Molded Cable Assemblies

Weathertight:

NEMA 6P, 13: IEC IP67

Certifications

6-'JMF&

$4"'JMF

Not

for

current

interruption

RoHS

compliant

REACH

compliant

Options

673BUJOH

'BWBJMBCMF

'MBNF3BUJOH

6-7BWBJMBCMF

Consult factory for optional colors and materials

hec_2013_catalog_hires_b-html.html

Mini-con-x

0.71”

[

]

od 2-8 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

0.80

20.3

HEX

0.92

23.5

1.38

35.1

0.63
[16]

0.582
14.8

0.610

15.5

RECOMMENDED
PANEL CUT-OUT

TOLERANCE: 0.003 [0.08]

1.68

42.6

0.71
[18.0]

0.67

Z
SKIRT

7X80-XXG-3XX

PANEL MOUNT CONNECTOR

CRIMP

1.73

43.8

0.60
[15.2]

8XXX-XXG-5XX
FIELD INSTALLABLE
CABLE TO CABLE CONNECTOR
TWIST LOCK BACKSHELL
TYPE 5-LONG

8XXX-XXG-3XX
FIELD INSTALLABLE
CABLE TO CABLE CONNECTOR
TWIST LOCK BACKSHELL
TYPE 3-SHORT

1.32

33.4

0.71
[18.0]

6XXX-XXG-3XX
FIELD INSTALLABLE
CABLE CONNECTOR
TWIST LOCK BACKSHELL
TYPE 3-SHORT

6XXX-XXG-5XX
FIELD INSTALLABLE
CABLE CONNECTOR
TWIST LOCK BACKSHELL
TYPE 5-LONG

7X82-XXG-3XX

PANEL MOUNT CONNECTOR

SOLDER CUP

7XXX-XXG-3XX

PANEL MOUNT CONNECTOR

PC TAIL

PANEL MOUNT ASSEMBLY KITS

FIELD INSTALLABLE KITS

9:;$POTVMU'BDUPSZ"MMEJNFOTJPOTBSFGPSSFGFSFODFPOMZ6OJUTTIPXOJO<NN>

hec_2013_catalog_hires_b-html.html

Mini-con-x

0.71”

[

]

od 2-8 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

Panel Mount / Cable to Cable Connectors

Front View | Wire View

Cable Connectors

Front View | Wire View

2 POSITION

#16 PIN & SOCKET

CONTACT

2 POSITION

#20 PIN & SOCKET

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 PIN

CONTACT

8 POSITION

#20 PIN

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 SOCKET

CONTACT

8 POSITION

#20 SOCKET

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 SOCKET

CONTACT

8 POSITION

#20 SOCKET

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 PIN

CONTACT

8 POSITION

#20 PIN

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

2 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

2 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

2 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#16 PIN & SOCKET

CONTACT

4 POSITION

#16 PIN & SOCKET

CONTACT

5 POSITION

#16 PIN

CONTACT

2 POSITION

#16 PIN & SOCKET

CONTACT

3 POSITION

#16 PIN & SOCKET

CONTACT

4 POSITION

#16 PIN & SOCKET

CONTACT

5 POSITION

#16 PIN

CONTACT

2 POSITION

#16 PIN & SOCKET

CONTACT

3 POSITION

#16 PIN & SOCKET

CONTACT

4 POSITION

#16 PIN & SOCKET

CONTACT

5 POSITION

#16 SOCKET

CONTACT

2 POSITION

#16 PIN & SOCKET

CONTACT

3 POSITION

#16 PIN & SOCKET

CONTACT

4 POSITION

#16 PIN & SOCKET

CONTACT

5 POSITION

#16 SOCKET

CONTACT

PANEL MOUNT / CABLE TO CABLE CONNECTORS

CABLE CONNECTORS

hec_2013_catalog_hires_b-html.html

Mini-con-x

0.71”

[

]

od 2-8 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

1.37

34.9

1.11

28.2

1.69

42.9

0.71
[18.0]

0.630
[16]

0.91
[23.1]

6XXX-XXG

CUSTOM CABLE CONNECTOR

STRAIGHT OVERMOLDED

8XXX-XXG

CUSTOM CABLE TO CABLE CONNECTOR

STRAIGHT OVERMOLDED

6XXX-XXG

CUSTOM CABLE CONNECTOR

RIGHT ANGLE OVERMOLDED

1.69

42.9

CUSTOM MOLDED CABLE ASSEMBLIES

Note: Mini-Con-X® can be overmolded onto an extended well panel mount. Straight version only.

t"WBJMBCMFJOBOEGFNBMF

t"WBJMBCMFJOBOENBMF

hec_2013_catalog_hires_b-html.html

Mini-con-x

0.71”

[

]

od 2-8 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

PART NUMBER TO ORDER

*Consult factory for length and diameter of PC Tail. Additionally, alternative colors and materials are available.

X X XX - XXG - XXX X

Connector Type

- Cable End

- Panel mount

- Cable to Cable

Special Features

“W”

- Winged Coupling Nut

Contact Size

- #20

- #16

Backshell Style - Snap Lock
with Grommet (Cable O.D. Range)

Gold Plated

No. & Type of Contacts

in or

ocket

Contact Style

“0”

- Crimp

“1”

- #20 PC Tail Short*

“2”

- Solder

- Extended PC Tail

“1”

- #20 PC Tail Medium*

“2”

- #20 PC Tail Long*

3XX

- Short Backshell (2&3 Contacts Only)

“11”

- 0.09” - 0.14”

“15”

- 0.15” - 0.17”

“18”

- 0.18” - 0.20”

“21”

- 0.21” - 0.23”

5XX

- Long Backshell (2-7 Contacts)

“13”

- 0.13“ - 0.15”

“16”

- 0.16“ - 0.18”

“19”

- 0.19“ - 0.21”

“22”

- 0.22“ - 0.25”

Panel Mount
with Hex Nut & Gasket

3ES

- with Epoxy

300

- without Epoxy

hec_2013_catalog_hires_b-html.html

CABLE END - SOCKET

MATES WITH PANEL MOUNT

PANEL MOUNT - PIN

MATES WITH CABLE END

MOLDED CABLE END ASSEMBLY

MOLDED RIGHT ANGLE CABLE ASSEMBLY

PANEL MOUNT - SOCKET

MATES WITH CABLE END

CABLE END - PIN

MATES WITH PANEL MOUNT

shielded MINI-con-x

0.760”

[

]

od 2-8 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

hec_2013_catalog_hires_b-html.html

shielded MINI-con-x

0.760”

[

]

od 2-8 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

400 insertion / withdrawal cycles minimum

Vibration:

MIL-STD 202G Method 201A

Hex Nut Torque:

10-12 in-lb max tightening torque.

Coupling Locking Style:

Threaded Coupling Ring

Backshell

Style:

Threaded

Electrical Specifications

Voltage

Rating:

600

VAC/DC

Current Rating:

13.0 A – max (See page 107 for Electrical Current Rating Chart)

Conductor Size:

2 through 6 #16 contacts accepts 16 AWG

2 through 8 #20 contacts accepts 20 AWG

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

$UP$ 'UP¡'

4BMU"UNPTQIFSF $PSSPTJPO

.FUIPE'.JM4UE

Weathertight:

IP66 / IP68 NEMA 250 (6P) (when mated)

Material Specifications

Backshell & Strap:

Thermoplastic

Contacts:

Copper Alloy, Gold over Nickel Plate

Coupling Ring:

Nickel Plated Copper Alloy

Inserts:

Thermoplastic

Grommet / Strain Relief:

Elastomer

O-Ring:

Elastomer

Shell:

Nickel

Plated

Copper

Alloy

Cable Housing:

Nickel Plated Copper Alloy

Screws:

Stainless

Steel

Molded Cable Assemblies

Weathertight:

IP66 / IP68 NEMA 250 (6P) (when mated)

Certifications

Not

for

current

interruption

RoHS

compliant

Options

'MBNF3BUJOH

6-)#

hec_2013_catalog_hires_b-html.html

shielded MINI-con-x

0.760”

[

]

od 2-8 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

0.81

22.1

SF7X81-XXG-3XX

PANEL MOUNT CONNECTOR

PC TAIL

0.72

18.3

SF6X8X-XXG

CUSTOM CABLE CONNECTOR

STRAIGHT OVERMOLDED

0.72

18.3

SF6X8X-XXG

CUSTOM CABLE CONNECTOR

RIGHT ANGLE OVERMOLDED

0.72

18.3

SF6X82-XXG-5XX

CABLE CONNECTOR

SOLDER CUP

SF7X82-XXG-3XX

PANEL MOUNT CONNECTOR

SOLDER CUP

RECOMMENDED
PANEL CUT-OUT
TOLERANCE: 0.003 [0.08]

SF6X8X-XXG

CUSTOM CABLE CONNECTOR

STRAIGHT OVERMOLDED (Alternative)

1.825
[46.4]

.720

[18.3]

PANEL MOUNT ASSEMBLY KITS

CUSTOM MOLDED CABLE ASSEMBLIES

FIELD INSTALLABLE KITS

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

shielded MINI-con-x

0.760”

[

]

od 2-8 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

Panel Mount Connector

Front View

Panel Mount Connector

Wire View

2 POSITION

#16 PIN & SOCKET

CONTACT

3 POSITION

#16 PIN & SOCKET

CONTACT

4 POSITION

#16 PIN & SOCKET

CONTACT

5 POSITION

#16 PIN & SOCKET

CONTACT

6 POSITION

#16 PIN & SOCKET

CONTACT

2 POSITION

#16 PIN & SOCKET

CONTACT

3 POSITION

#16 PIN & SOCKET

CONTACT

4 POSITION

#16 PIN & SOCKET

CONTACT

5 POSITION

#16 PIN & SOCKET

CONTACT

6 POSITION

#16 PIN & SOCKET

CONTACT

2 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 PIN & SOCKET

CONTACT

8 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

ALTERNATE

6 POSITION

#20 PIN & SOCKET

CONTACT

ALTERNATE

2 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 PIN & SOCKET

CONTACT

8 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

ALTERNATE

6 POSITION

#20 PIN & SOCKET

CONTACT

ALTERNATE

PANEL MOUNT CONNECTOR

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

shielded MINI-con-x

0.760”

[

]

od 2-8 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

Cable Connectors

Front View

Cable Connectors

Wire View

2 POSITION

#16 PIN & SOCKET

CONTACT

2 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

2 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#20 PIN & SOCKET

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#16 PIN & SOCKET

CONTACT

4 POSITION

#16 PIN & SOCKET

CONTACT

5 POSITION

#16 PIN & SOCKET

CONTACT

6 POSITION

#16 PIN & SOCKET

CONTACT

2 POSITION

#16 PIN & SOCKET

CONTACT

3 POSITION

#16 PIN & SOCKET

CONTACT

4 POSITION

#16 PIN & SOCKET

CONTACT

5 POSITION

#16 PIN & SOCKET

CONTACT

6 POSITION

#16 PIN & SOCKET

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 PIN & SOCKET

CONTACT

8 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

ALTERNATE

6 POSITION

#20 PIN & SOCKET

CONTACT

ALTERNATE

6 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 PIN & SOCKET

CONTACT

8 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

ALTERNATE

6 POSITION

#20 PIN & SOCKET

CONTACT

ALTERNATE

All dimensions are for reference only. Units shown: in[mm].

CABLE CONNECTORS

hec_2013_catalog_hires_b-html.html

shielded MINI-con-x

0.760”

[

]

od 2-8 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

PART NUMBER TO ORDER

Consult factory for connectors with alternate 5-20AWG and 6-20AWG contact arrangements.

SF X X XX - XXG - XXX

Connector Type

- Cable End

- Panel mount

Contact Size

- #20 AWG

- #16 AWG

Backshell & Panels

No. of Contacts

2-8

for 20 AWG

2-6

for 16 AWG

Contact Type

- Pin

- Socket

Contact Plating

- Gold

Contact Style

“1”

- #20 PC Tail (Panel Only)

“2”

- Solder Cup

3ES

- Panel w/ Epoxy

520

- Backshell w/ 0.220” Grommet ID

530

- Backshell w/ 0.330” Grommet ID

Shielded Field Installable

hec_2013_catalog_hires_b-html.html

CABLE END - SOCKET

MATES WITH PANEL MOUNT AND

CABLE TO CABLE

PANEL MOUNT - PIN

MATES WITH CABLE END

MOLDED CABLE END ASSEMBLY

MOLDED CABLE TO CABLE ASSEMBLY

MOLDED RIGHT ANGLE CABLE ASSEMBLY

PANEL MOUNT - SOCKET

MATES WITH CABLE END

DUST CAP

P/N - 4295

CABLE END - PIN

MATES WITH PANEL MOUNT AND

CABLE TO CABLE

CABLE TO CABLE / INLINE - SOCKET

MATES WITH CABLE END

multi-con-x

0.875”

[

]

od 2-12 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

hec_2013_catalog_hires_b-html.html

multi-con-x

0.875”

[

]

od 2-12 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

300 insertion / withdrawal cycles minimum

Vibration:

Coupling rings have overriding locking feature to prevent loosening or separation

connector

Hex Nut Torque:

10 in-lb tightening torque.

Coupling Locking Style:

Bayonet with ribbed coupling nut (winged coupling nut available) P/N 4482

Backshell

Style:

Threaded

Conductor Size:

#12 contacts accepts 12 through 14 AWG

#16

contacts

accepts

through

AWG

#20 contacts accepts 20 through 24 AWG

Electrical Specifications

Voltage

Rating:

600

VAC/DC

Current Rating:

17.0 A – max (See page 107 for Electrical Current Rating Chart)

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

$UP$ 'UP¡'

Salt Atmosphere (Corrosion):

300 Hr salt spray when mated

Weathertight:

IP67

when

mated

Material Specifications

Backshell:

Thermoplastic, UL 94HB, Black

Contacts:

Copper Alloy, Gold over Nickel Plate

Coupling Ring:

Thermoplastic, UL 94HB, Black

Gasket:

Elastomer,

Black

Grommet / Strain Relief:

Elastomer, Black

Hex Nut:

Thermoplastic, UL 94HB, Black

O-Ring:

Elastomer,

Black

Shell:

Thermoplastic,

94HB,

Black

Optional Dust Cap:

Elastomer, Black

Molded Cable Assemblies

Weathertight:

NEMA 6P, 13: IEC IP67

Certifications

6-'JMF&

$4"'JMF

Not

for

current

interruption

RoHS

compliant

REACH

compliant

Options

673BUJOH

'BWBJMBCMF

'MBNF3BUJOH

6-7BWBJMBCMF

Consult factory for optional colors and materials

hec_2013_catalog_hires_b-html.html

multi-con-x

0.875”

[

]

od 2-12 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

.750
19.1

.790

20.1

RECOMMENED

PANEL CUT-OUT
TOLERANCE: 0.003 [0.08]

1.00

25.4

HEX

1.15

29.3

0.67

4X80-XXG-3XX

PANEL MOUNT CONNECTOR

CRIMP

1.75

44.5

0.76

19.3

5XXX-XXG-5XX
FIELD INSTALLABLE
CABLE TO CABLE
CONNECTOR
THREADED BACKSHELL
TYPE 5-LONG

1.71

43.3

0.87

22.1

3XXX-XXG-5XX
FIELD INSTALLABLE
CABLE CONNECTOR
THREADED BACKSHELL
TYPE 5-LONG

1.65

41.9

5X82-XXG-3XX
FIELD INSTALLABLE
CABLE TO CABLE
CONNECTOR
THREADED BACKSHELL
TYPE 3-LONG
(SOLDER TYPE CONTACT ONLY)

1.57

39.9

3X82-XXG-3XX
FIELD INSTALLABLE
CABLE CONNECTOR
THREADED BACKSHELL
TYPE 3-LONG
(SOLDER TYPE CONTACT ONLY)

1.40

35.6

5X80-XXG-3XX
FIELD INSTALLABLE
CABLE TO CABLE
CONNECTOR
THREADED BACKSHELL
TYPE 3-SHORT
(CRIMP TYPE CONTACT ONLY)

1.33

33.7

3X80-XXG-3XX
FIELD INSTALLABLE
CABLE CONNECTOR
THREADED BACKSHELL
TYPE 3-SHORT
(CRIMP TYPE CONTACT ONLY)

4X82-XXG-3XX

PANEL MOUNT CONNECTOR

SOLDER CUP

4XXX-XXG-3XX

PANEL MOUNT CONNECTOR

PC TAIL

PANEL MOUNT ASSEMBLY KITS

FIELD INSTALLABLE KITS

9:;$POTVMU'BDUPSZ"MMEJNFOTJPOTBSFGPSSFGFSFODFPOMZ6OJUTTIPXOJO<NN>

hec_2013_catalog_hires_b-html.html

Panel Mount / Cable to Cable Connectors

Front View | Wire View

Cable Connectors

Front View | Wire View

2 POSITION

#12 PIN & SOCKET

CONTACT

5 POSITION*

#16 PIN ONLY

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

10 POSITION

#20 PIN & SOCKET

CONTACT

11 POSITION

#20 PIN & SOCKET

CONTACT

12 POSITION

#20 PIN & SOCKET

CONTACT

10 POSITION

#20 PIN & SOCKET

CONTACT

11 POSITION

#20 PIN & SOCKET

CONTACT

12 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 PIN & SOCKET

CONTACT

8 POSITION

#20 PIN & SOCKET

CONTACT

9 POSITION

#20 PIN & SOCKET

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 PIN & SOCKET

CONTACT

8 POSITION

#20 PIN & SOCKET

CONTACT

9 POSITION

#20 PIN & SOCKET

CONTACT

6 POSITION*

#16 PIN ONLY

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION*

#16 PIN ONLY

CONTACT

6 POSITION*

#16 PIN ONLY

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#12 PIN & SOCKET

CONTACT

4 POSITION*

#12 PIN ONLY

CONTACT

4 POSITION

#16 PIN & SOCKET

CONTACT

2 POSITION

#12 PIN & SOCKET

CONTACT

3 POSITION

#12 PIN & SOCKET

CONTACT

4 POSITION*

#12 PIN ONLY

CONTACT

4 POSITION

#16 PIN & SOCKET

CONTACT

2 POSITION

#12 PIN & SOCKET

CONTACT

5 POSITION*

#16 SOCKET ONLY

CONTACT

7 POSITION

#20 PIN & SOCKET

CONTACT

11 POSITION

#20 PIN & SOCKET

CONTACT

12 POSITION

#20 PIN & SOCKET

CONTACT

8 POSITION

#20 PIN & SOCKET

CONTACT

9 POSITION

#20 PIN & SOCKET

CONTACT

10 POSITION

#20 PIN & SOCKET

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

3 POSITION

#12 PIN & SOCKET

CONTACT

4 POSITION*

#12 SOCKET ONLY

CONTACT

4 POSITION

#16 PIN & SOCKET

CONTACT

11 POSITION

#20 PIN & SOCKET

CONTACT

12 POSITION

#20 PIN & SOCKET

CONTACT

7 POSITION

#20 PIN & SOCKET

CONTACT

8 POSITION

#20 PIN & SOCKET

CONTACT

9 POSITION

#20 PIN & SOCKET

CONTACT

10 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION*

#16 SOCKET ONLY

CONTACT

4 POSITION

#20 PIN & SOCKET

CONTACT

5 POSITION

#20 PIN & SOCKET

CONTACT

6 POSITION

#20 PIN & SOCKET

CONTACT

2 POSITION

#12 PIN & SOCKET

CONTACT

3 POSITION

#12 PIN & SOCKET

CONTACT

4 POSITION*

#12 SOCKET ONLY

CONTACT

4 POSITION

#16 PIN & SOCKET

CONTACT

PANEL MOUNT / CABLE TO CABLE CONNECTORS

CABLE CONNECTORS

multi-con-x

0.875”

[

]

od 2-12 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for

reference only. Units

shown: in[mm].

*Available in socket only

*Available in

pin only

hec_2013_catalog_hires_b-html.html

multi-con-x

0.875”

[

]

od 2-12 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

1.45

1.13

28.8

2.06

52.4

2.00

50.8

0.88
22.3

1.13

28.7

0.76

19.3

4XXX-XXG

CUSTOM CABLE CONNECTOR

STRAIGHT OVERMOLDED

4XXX-XXG

CUSTOM CABLE CONNECTOR

RIGHT ANGLE OVERMOLDED

5XXX-XXG

CUSTOM CABLE TO CABLE CONNECTOR

STRAIGHT OVERMOLDED

CUSTOM MOLDED CABLE ASSEMBLIES

Note: Multi-Con-X® can be overmolded onto an extended well panel mount. Straight version only.

t"WBJMBCMFJOBOENBMF

t"WBJMBCMFJOBOEGFNBMF

hec_2013_catalog_hires_b-html.html

multi-con-x

0.875”

[

]

od 2-12 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

PART NUMBER TO ORDER

*Consult factory for length and diameter of PC Tail. Additionally, alternative colors and materials are available.

X X XX - XXG - XXX X

Connector Type

- Cable End

- Panel mount

- Cable to Cable

Special Features

“W”

- Winged Coupling Nut

Contact Size

- #12

- #20

- #16

Backshell Style - Threaded with Grommet
(Cable O.D. Range)

Gold Plated

No. & Type of Contacts

in or

ocket

Contact Style

“0”

- Crimp

“1”

- #20 PC Tail Short*

“2”

- Solder Cup

- Extended PC Tail

“1”

- #20 PC Tail Medium*

“2”

- #20 PC Tail Long*

3XX

- Weathertight Grommet Grip Seal

5XX

- Mechanical Screw-Down Cable

Clamp with Grommet Seal

“15”

- 0.15” - 0.17”

“18”

- 0.18” - 0.20”

“21”

- 0.21” - 0.23”

“24”

- 0.24” - 0.27”

“28”

- 0.28” - 0.29”

“30”

- 0.30” - 0.32”

3DC

- Daisy Chian Grommet w/ 3 IDs

( 0.125”, 0.188”, 0.250”)

Panel Mount
with Hex Nut & Gasket

3ES

- with Epoxy

300

- without Epoxy

hec_2013_catalog_hires_b-html.html

CABLE END - SOCKET

MATES WITH PANEL MOUNT AND

CABLE TO CABLE

PANEL MOUNT - PIN

MATES WITH CABLE END

MOLDED CABLE END ASSEMBLY

shielded multi-con-x

0.995”

[

]

od 2-12 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

hec_2013_catalog_hires_b-html.html

shielded multi-con-x

0.995”

[

]

od 2-12 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

400 insertion / withdrawal cycles minimum

Vibration:

Coupling rings have overriding locking feature to prevent loosening or separation

connector

Hex Nut Torque:

10-12 in-lb tightening torque.

Coupling Locking Style:

Threaded Coupling Ring

Backshell

Style:

Threaded

Electrical Specifications

Voltage

Rating:

600V

Current Rating:

13.0 A – max (See page 107 for Electrical Current Rating Chart)

Conductor Size:

2 through 4 #16 contacts accepts 16 AWG

through

#20

contacts

accepts

AWG

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

$UP$ 'UP¡'

Salt Atmosphere (Corrosion):

48 Hr salt spray when mated

Weathertight:

IP66 / IP68 NEMA 250 (6P) (when mated)

Material Specifications

Cable Ends

Coupling Nut & Housing:

Nickel Plated Copper Alloy

Contacts:

Copper Alloy, Gold over Nickel Plating

Insert:

Thermoplastic

Backshell & Strap:

Thermoplastic

Screws:

Stainless

Steel

O-Rings:

Elastomer

Metal Panel Mounts

Shell:

Nickel

Plated

Copper

Alloy

Nut:

Nickel

Plated

Copper

Alloy

Contacts:

Copper Alloy, Gold over Nickel Plating

Insert:

Thermoplastic

Plastic Panel Mounts

Housing:

Thermoplastic

Shielding Nut:

Nickel Plated Aluminum

Contacts:

Copper Alloy. Gold over Nickel Plating

Molded Cable Assemblies

Weathertight:

IP66 / IP68 NEMA 250 (6P) (when mated)

Certifications

Not

for

current

interruption

RoHS

compliant

hec_2013_catalog_hires_b-html.html

shielded multi-con-x

0.995”

[

]

od 2-12 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

SF4281-XXPG-3XX

PANEL MOUNT CONNECTOR

#20 PC TAIL

SF4381-XXPG-3XX

PANEL MOUNT CONNECTOR

#16 PC TAIL

SF4282-XXPG-3XX

PANEL MOUNT CONNECTOR

#20 SOLDER CUP

SF4382-XXPG-3XX

PANEL MOUNT CONNECTOR

#16 SOLDER CUP

PANEL MOUNT ASSEMBLY KITS - PIN ONLY - METAL

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

shielded multi-con-x

0.995”

[

]

od 2-12 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

0.77

19.6

2.14

54.4

1.9

48.3

0.87

22.2

0.87

22.2

0.99

25.3

SF4X81V-XXEPG-3XX

PANEL MOUNT CONNECTOR

PC TAIL

SF4X82V-XXEPG-3XX

PANEL MOUNT CONNECTOR

SOLDER CUP

SM3X8X-XXXG

CUSTOM CABLE CONNECTOR, FEMALE

STRAIGHT OVERMOLDED

SM5X8X-XXXG

CUSTOM CABLE TO CABLE CONNECTOR, MALE

STRAIGHT OVERMOLDED

SF3X8X-XXSG-5XX

FIELD INSTALLABLE CABLE CONNECTOR KIT

RECOMMENDED
PANEL CUT-OUT
TOLERANCE: 0.003 [0.08]

PANEL MOUNT ASSEMBLY KITS - PIN ONLY - PLASTIC

CUSTOM MOLDED CABLE ASSEMBLIES

FIELD INSTALLABLE KITS - SOCKET ONLY

All dimensions are for reference only.

Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

shielded multi-con-x

0.995”

[

]

od 2-12 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

Panel Mount Connectors

Front View | Wire View

Cable Connectors

Front View | Wire View

(2-4)-POSITION

#16 PIN CONTACT

“F” KEY

(6)-POSITION

#16 PIN CONTACT

“E” KEY

(2-9)-POSITION

#20 PIN CONTACT

“A” KEY

(2-9)-POSITION

#20 PIN CONTACT

“B” KEY

(2-12)-POSITION

#20 PIN CONTACT

“E” KEY

(2-9)-POSITION

#20 PIN CONTACT

“C” KEY

(2-9)-POSITION

#20 PIN CONTACT

“D” KEY

(2-4)-POSITION

#16 PIN CONTACT

“F” KEY

(6)-POSITION

#16 PIN CONTACT

“E” KEY

(2-9)-POSITION

#20 PIN CONTACT

“A” KEY

(2-9)-POSITION

#20 PIN CONTACT

“B” KEY

(4-12)-POSITION

#20 PIN CONTACT

“E” KEY

(2-9)-POSITION

#20 PIN CONTACT

“C” KEY

(2-9)-POSITION

#20 PIN CONTACT

“D” KEY

(2-4)-POSITION

#16 PIN CONTACT

“F” KEY

(6)-POSITION

#16 PIN CONTACT

“E” KEY

(2-9)-POSITION

#20 PIN CONTACT

“A” KEY

(2-9)-POSITION

#20 PIN CONTACT

“B” KEY

(4-12)-POSITION

#20 PIN CONTACT

“E” KEY

(2-9)-POSITION

#20 PIN CONTACT

“C” KEY

(2-9)-POSITION

#20 PIN CONTACT

“D” KEY

(2-4)-POSITION

#16 PIN CONTACT

“F” KEY

(6)-POSITION

#16 PIN CONTACT

“E” KEY

(2-9)-POSITION

#20 PIN CONTACT

“A” KEY

(2-9)-POSITION

#20 PIN CONTACT

“B” KEY

(2-12)-POSITION

#20 PIN CONTACT

“E” KEY

(2-9)-POSITION

#20 PIN CONTACT

“C” KEY

(2-9)-POSITION

#20 PIN CONTACT

“D” KEY

All dimensions are for reference only. Units shown: in[mm].

PANEL MOUNT CONNECTORS

CABLE CONNECTORS

hec_2013_catalog_hires_b-html.html

shielded multi-con-x

0.995”

[

]

od 2-12 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

PART NUMBER TO ORDER

SF X X XX X - XX X XG - XXX

Connector Type

- Cable End

- Panel mount

Contact Size

- #20 AWG

- #16 AWG

Backshell & Panels

No. of Contacts

2-12

Contact Type

- Pin (Panel Mount)

- Socket (Cable End)

Keying

A-D

- (2 -9 #20 Contacts)

- (2 -12 #20 Contacts)

- (2 -4 #16 Contacts)

Contact Plating

- Gold

Contact Style

“1”

- #20 PC Tail (Panel Only)

“2”

- Solder Cup

Insert & Shell Material Only

Blank

- Thermoplastic Insert

(Cable End Only)

Blank

- Nickel Plated Copper Alloy Panel Mount

Shell with an Engineered Polyester Resin Insert

(Panel

Only)

- One Piece Thermoplastic

Panel Mount Shell

3ES

- Panel w/ Epoxy

520

- Backshell w/ 0.200” Grommet ID

540

- Backshell w/ 0.400” Grommet ID

Shielded Field Installable

hec_2013_catalog_hires_b-html.html

CABLE END - SOCKET

MATES WITH PANEL MOUNT AND

CABLE TO CABLE

PANEL MOUNT - PIN

MATES WITH CABLE END

MOLDED CABLE END ASSEMBLY

MOLDED CABLE TO CABLE ASSEMBLY

MOLDED RIGHT ANGLE CABLE ASSEMBLY

PANEL MOUNT - SOCKET

MATES WITH CABLE END

DUST CAP

P/N - 14295

CABLE END - PIN

MATES WITH PANEL MOUNT AND

CABLE TO CABLE

CABLE TO CABLE / INLINE - PIN

MATES WITH CABLE END

maxi-con-x

1.17”

[

]

od 7, 10, 18 & 20 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

hec_2013_catalog_hires_b-html.html

maxi-con-x

1.17”

[

]

od 7, 10, 18 & 20 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

300 insertion / withdrawal cycles minimum

Vibration:

Coupling rings have overriding locking feature to prevent loosening or separation

connector

Hex Nut Torque:

10 in-lb max tightening torque.

Coupling Locking Style:

Bayonet with ribbed coupling nut (winged coupling nut available) P/N 14482

Backshell

Style:

Threaded

Conductor Size:

#12 contacts accepts 12 through 14 AWG

#16 contacts accepts 16 through 18 AWG

#20 contacts accepts 20 through 24 AWG

Electrical Specifications

Voltage Rating:

600V DC / 480V AC

Current Rating:

23.0 A – max (See page 107 for Electrical Current Rating Chart)

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

$UP$ 'UP¡'

Salt Atmosphere (Corrosion):

300 Hr salt spray when mated

Weathertight:

IP67

when

mated

Material Specifications

Backshell:

Thermoplastic, UL 94HB, Black

Contacts:

Copper Alloy, Gold over Nickel Plate

Coupling Ring:

Thermoplastic, UL 94HB, Black

Gasket:

Elastomer,

Black

Grommet / Strain Relief:

Elastomer, Black

Hex Nut:

Thermoplastic, UL 94HB, Black

O-Ring:

Elastomer,

Black

Shell:

Thermoplastic,

94HB,

Black

Optional Dust Cap:

Elastomer, Black

Molded Cable Assemblies

Weathertight:

NEMA 6P, 13: IEC IP67

Certifications

6-'JMF&

$4"'JMF

Not

for

current

interruption

RoHs

compliant

REACH

compliant

Options

673BUJOH

'BWBJMBCMF

'MBNF3BUJOH

6-7BWBJMBCMF

Consult factory for optional colors and materials

hec_2013_catalog_hires_b-html.html

maxi-con-x

1.17”

[

]

od 7, 10, 18 & 20 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

0.919

23.3

0.992

25.2

0.992

25.2

RECOMMENDED

PANEL CUT-OUT

* X, Y, Z - CONSULT FACTORY

TOLERANCE:

0.70

17.7

1.30

1.13

28.6

HEX

1.25

31.8

SQUARE

0.96

24.5

SQUARE

0.13

3.2

TYP.

0.003 [0.08]

I.D.

14X80-XXG-3XX

PANEL MOUNT CONNECTOR

CRIMP

14X82-XXG-3XX

PANEL MOUNT CONNECTOR

SOLDER CUP

14XXX-XXG-3XX

PANEL MOUNT CONNECTOR

PC TAIL

PANEL MOUNT ASSEMBLY KITS

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

maxi-con-x

1.17”

[

]

od 7, 10, 18 & 20 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

2.00

50.8

2.06

52.4

1.63

41.4

1.41

35.8

1.98

50.2

2.56

15XXX-XXG-3XX

Field Installable

Cable to Cable Connector

Threaded Backshell - Type 3

1.98

50.2

2.50

63.5

13XXX-XXG-3XX

Field Installable Cable Connector
Threaded Backshell - Type 3

1.06
[26.9]

1.17
[29.7]

0.93
[23.6]

1.18
[30.0]

1.49
[38.0]

13XXX-XXG

CUSTOM CABLE CONNECTOR

STRAIGHT OVERMOLDED

15XXX-XXG

CUSTOM CABLE TO CABLE CONNECTOR

STRAIGHT OVERMOLDED

13XXX-XXG

CABLE CONNECTOR

RIGHT ANGLE OVERMOLDED

*CABLE ONLY*

CUSTOM MOLDED CABLE ASSEMBLIES

FIELD INSTALLABLE KITS

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

maxi-con-x

1.17”

[

]

od 7, 10, 18 & 20 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

Panel Mount Connectors

Front View | Wire View

Cable Connectors

Front View | Wire View

7 POSITION

#12 PIN & SOCKET

CONTACT

10 POSITION

#16 PIN & SOCKET

CONTACT

12 POSITION

#16 PIN & SOCKET

CONTACT

12 POSITION

#16 PIN & SOCKET

CONTACT

12 POSITION

#16 PIN & SOCKET

CONTACT

7 POSITION

#12 PIN & SOCKET

CONTACT

10 POSITION

#16 PIN & SOCKET

CONTACT

7 POSITION

#12 PIN & SOCKET

CONTACT

10 POSITION

#16 PIN & SOCKET

CONTACT

18 POSITION

#20 PIN & SOCKET

CONTACT

20 POSITION

#20 PIN

CONTACT

7 POSITION

#12 PIN & SOCKET

CONTACT

10 POSITION

#16 PIN & SOCKET

CONTACT

12 POSITION

#16 PIN & SOCKET

CONTACT

18 POSITION

#20 PIN & SOCKET

CONTACT

20 POSITION

#20 SOCKET

CONTACT

18 POSITION

#20 PIN & SOCKET

CONTACT

20 POSITION

#20 SOCKET

CONTACT

18 POSITION

#20 PIN & SOCKET

CONTACT

20 POSITION

#20 PIN

CONTACT

All dimensions are for reference only. Units shown: in[mm].

PANEL MOUNT CONNECTORS

CABLE CONNECTORS

hec_2013_catalog_hires_b-html.html

maxi-con-x

1.17”

[

]

od 7, 10, 18 & 20 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

PART NUMBER TO ORDER

*Consult factory for length and diameter of PC Tail. Additionally, alternative colors and materials are available.

XX X XX - XXG - XXX X

Connector Type

- Cable End

- Panel Mount

- Cable to Cable

Special Features

“W”

- Winged Coupling Nut

Contact Size

- #12

- #20

- #16

Panel Mount
with Hex Nut & Gasket

3ES

- with Epoxy

300

- without Epoxy

Backshell Style - Threaded with
Grommet (Cable O.D. Range)

Gold Plated

No. & Type of Contacts

in or

ocket

Contact Style

“0”

- Crimp

“1”

- #20 PC Tail Short*

“2”

- Solder

- Extended PC Tail

“1”

- #20 PC Tail Medium*

“2”

- #20 PC Tail Long*

3XX

- Backshell

“21”

- 0.21” - 0.23”

“26”

- 0.26” - 0.30”

“31”

- 0.31” - 0.38”

hec_2013_catalog_hires_b-html.html

CABLE END - SOCKET

MATES WITH PANEL MOUNT

PANEL MOUNT - PIN

MATES WITH CABLE END

MOLDED CABLE END ASSEMBLY

MOLDED RIGHT ANGLE CABLE ASSEMBLY

PANEL MOUNT - SOCKET

MATES WITH CABLE END

CABLE END - PIN

MATES WITH PANEL MOUNT

DUST CAP

P/N - 24295

mega-con-x

1.29”

[

]

od 31 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

hec_2013_catalog_hires_b-html.html

mega-con-x

1.29”

[

]

od 31 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

300 insertion / withdrawal cycles minimum

Vibration:

Coupling rings have overriding locking feature to prevent loosening or separation

connector

Hex Nut Torque:

10 in-lb max tightening torque.

Coupling Style:

Bayonet with ribbed coupling nut (winged coupling nut available)

Backshell

Style:

Threaded

Conductor Size:

#20 contacts accepts 20 through 24 AWG

Electrical Specifications

Voltage

Rating:

600V

Current Rating:

2.3 A – max (See page 107 for Electrical Current Rating Chart)

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

$UP$ 'UP¡'

Salt Atmosphere (Corrosion):

300 Hr salt spray when mated

Weathertight:

IP67

when

mated

Material Specifications

Backshell:

Thermoplastic, UL 94HB, Black

Contacts:

Copper Alloy, Gold over Nickel Plate

Coupling Ring:

Thermoplastic, UL 94HB, Black

Gasket:

Elastomer,

Black

Grommet / Strain Relief:

Elastomer, Black

Hex Nut:

Thermoplastic, UL 94HB, Black

O-Ring:

Elastomer,

Black

Shell:

Thermoplastic,

94HB,

Black

Optional Dust Cap:

Elastomer, Black

Molded Cable Assemblies

Weathertight:

NEMA 6P, 13: IEC IP67

Certifications

6-'JMF&

$4"'JMF

Not

for

current

interruption

RoHS

compliant

REACH

compliant

Options

673BUJOH

'BWBJMBCMF

'MBNF3BUJOH

6-7BWBJMBCMF

Consult factory for optional colors and materials

hec_2013_catalog_hires_b-html.html

mega-con-x

1.29”

[

]

od 31 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

0.70in

17.8mm

1.43in

36.3mm

1.19in

30.2mm

0.13in

3.3mm

TYP

1.59in

40.3mm

1.38in

34.9mm

HEX

1.43in

36.3mm

SQUARE

1.19in

30.2mm

0.13in

3.3mm

TYP.

0.57in

14.6mm

1.11in

28.1mm

MAX

1.142in

29mm

1.185in

29.7mm

RECOMMENDED

PANEL CUT-OUT
QUICK CONNECT TYPE
TOLERANCE:

0.003 [0.08mm]

1.200in

30.5mm

RECOMMENDED

PANEL CUT-OUT

THREADED TYPE

TOLERANCE: 0.003

[0.08mm]

*X, Y, Z - CONSULT FACTORY

24280-31XG-3XX

PANEL MOUNT CONNECTOR

CRIMP

24282-31XG-3XX

PANEL MOUNT CONNECTOR

SOLDER CUP

242XX-31XG-3XX

PANEL MOUNT CONNECTOR

PC TAIL

PANEL MOUNT ASSEMBLY KITS

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

mega-con-x

1.29”

[

]

od 31 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

2.12

53.8

3.56

90.3

2.28

57.9

3.72

94.4

1.30

[33]

1.30

[33]

1.30

[33]

1.39in

[35.2mm]

1.39

[35.3]

2.06

52.4

2.58

65.5

1.74

44.2

1.76
44.7

232XX-31XG-3XX

FIELD INSTALLABLE QUICK CONNECT TYPE

CABLE CONNECTOR - BACKSHELL TYPE 3

232XX-31XG

CUSTOM CABLE CONNECTOR STRAIGHT OVERMOLDED

QUICK CONNECT TYPE

232XX-31XG

CUSTOM CABLE CONNECTOR RIGHT ANGLE OVERMOLDED

QUICK CONNECT TYPE

232XX-31XG

CUSTOM CABLE CONNECTOR STRAIGHT OVERMOLDED

THREADED CONNECT TYPE

232XX-31XG-T3XX

FIELD INSTALLABLE THREADED TYPE

CABLE CONNECTOR - BACKSHELL TYPE 3

CUSTOM MOLDED CABLE ASSEMBLIES

FIELD INSTALLABLE KITS

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

mega-con-x

1.27”

[

]

od 31 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

Panel Mount Connectors

Front View | Wire View

Cable Connectors

Front View | Wire View

QUICK CONNECT TYPE

SINGLE KEY

31-POSITION

#20 PIN CONTACT

THREADED TYPE

5 KEY

31-POSITION

#20 PIN CONTACT

QUICK CONNECT TYPE

5 KEY

31-POSITION

#20 PIN CONTACT

THREADED TYPE

5 KEY

31-POSITION

#20 PIN CONTACT

QUICK CONNECT TYPE

5 KEY

31-POSITION

#20 PIN CONTACT

THREADED TYPE

5 KEY

31-POSITION

#20 PIN CONTACT

QUICK CONNECT TYPE

SINGLE KEY

31-POSITION

#20 PIN CONTACT

THREADED TYPE

5 KEY

31-POSITION

#20 PIN CONTACT

All dimensions are for reference only. Units shown: in[mm].

PANEL MOUNT CONNECTORS

CABLE CONNECTORS

hec_2013_catalog_hires_b-html.html

mega-con-x

1.27”

[

]

od 31 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

PART NUMBER TO ORDER

*Consult factory for length and diameter of PC Tail. Additionally, alternative colors and materials are available.

XX X XX - XX X G - T 3 XXX

Connector Type

- Cable End

- Panel Mount

Special Features

“W”

- Winged Coupling Nut

Number of Contacts

Coupling Type

Contact Size

- #20

Panel Mount

with Hex Nut & Gasket

3ES

- with Epoxy

300

- without Epoxy

Backshell Style- Thread with
Grommet (Cable O.D. Range)

Gold Plated

Type of Contact

in or

ocket

“T”

- Threaded

Blank

- Standard Twist lock

Contact Style

“0”

- Crimp

“1”

- #20 PC Tail Short*

“2”

- Solder Cup

- Extended PC Tail

“1”

- #20 PC Tail Medium*

“2”

- #20 PC Tail Long*

350

- 0.51 - 0.56 (12.9 - 14.2)

hec_2013_catalog_hires_b-html.html

CABLE END - SOCKET

MATES WITH PANEL MOUNT

PANEL MOUNT - SOCKET

MATES WITH CABLE END

CABLE CAP

MOLDED CABLE END ASSEMBLY

CABLE END - PIN

MATES WITH PANEL MOUNT

PANEL MOUNT - PIN

MATES WITH CABLE END

RECEPTACLE CAP

OVERMOLDED ONLY

mil-e-qual

(mil-c-5015 equivalent)

2-37 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

hec_2013_catalog_hires_b-html.html

mil-e-qual

(mil-c-5015 equivalent)

2-37 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

300 insertion / withdrawal cycles minimum

Coupling Locking Style:

Threaded

Backshell

Style:

Threaded

Conductor Size:

#12 contacts accepts 12 through 16 AWG

#16 contacts accepts 16 through 20 AWG

Electrical Specifications

Voltage Rating:

600 VAC for shell types 3101A and 3102A

500 VAC for shell type 3106A up to 28 positions

277 VAC for shell type 3106A from 29 or greater positions

Current Rating:

23.0 A – max (See page 108 for Electrical Current Rating Chart)

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

$UP$ 'UP¡'

Salt Atmosphere (Corrosion):

48Hr salt spray contacts when mated

Weathertight:

Consult factory with specific application

Material Specifications

Cable Pin / Socket

Mechanical Backshell (Threaded):

Thermoplastic, Black with UV Inhibitor UL94HB

Strap:

Thermoplastic, Black with UV Inhibitor UL94HB

Screws:

Stainless

Steel

Grommet:

Elastomer

Coupling Ring:

Thermoplastic, Black with UV Inhibitor UL94HB

Contacts:

Copper Alloy, Silver Plated, Gold Optional

Connector

Body:

Thermoplastic

Connector Cap (Optional):

Thermoplastic

O-Ring

(Optional):

Elastomer

Alternate Keys/Different Keyways Available

W, X, Y or Z Consult factory

Box Receptacle, In-Line receptacle, Pin/Socket

Contacts:

Copper Alloy, Silver Plated, Gold Optional

Receptacle Body:

Thermoplastic, Black with UV Inhibitor UL94HB

Receptacle Cap (Optional):

Thermoplastic, Black with UV Inhibitor UL94HB

Gasket

(Optional):

Elastomer

Alternate Keys/Different Keyways Available

W, X, Y or Z Consult factory

Molded Cable Assemblies

Weathertight:

NEMA 6P, 13: IEC IP67 when mated

Certifications

6-'JMF&

$4"'JMF1BUUFSOT

6-5FNQFSBUVSF$ 'NBY

Not for current interruption

Options

673BUJOH

'BWBJMBCMF

'MBNF3BUJOH

6-7BWBJMBCMF

Consult factory for optional colors and materials

hec_2013_catalog_hires_b-html.html

mil-e-qual

(mil-c-5015 equivalent)

2-37 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

CUSTOM OVERMOLDED ASSEMBLIES

FIELD INSTALLABLE KITS

BOX RECEPTACLE KITS

All dimensions are for reference only.

Units shown: in[mm].

Connector

Size

Fitting

Threads

Inch

10SL

1.800

47.7

0.535

13.6

0.825

20.9

1/2-20

12S

1.900

48.3

0.535

13.6

0.965

24.1

5/8-24

14S

2.000

50.8

0.553

14.0

1.160

29.5

3/4-20

16S

2.200

56.0

1.425

36.2

1.250

31.8

7/8-20

2.400

61.0

1.425

36.2

1.320

33.5

7/8-20

2.570

65.3

1.425

36.2

1.435

36.4

1-20

2.866

72.8

1.445

36.7

1.440

36.6

1-1/8-18

2.892

73.5

1.445

36.7

1.765

44.8

1-1/4-18

2.892

73.5

1.445

36.7

1.765

44.8

1-3/8-18

2.972

75.5

1.440

36.6

2.099

53.3

1-5/8-18

Connector

Size

Coupling

Threads

Inch

10SL

5/8-24

3.5

88.9

0.080

2.0

0.940

23.9

9/16

14.3

25/32

19.8

1.0

25.4

0.635

16.1

12S

3/4-20

3.5

88.9

0.085

2.2

0.957

24.3

9/16

14.3

13/16

20.6

1-3/32

27.8

0.760

19.3

14S

7/8-20

3.5

88.9

0.090

2.3

1.130

28.7

9/16

14.3

29/32

23.0

1-11/64

29.8

0.885

22.5

16S

1-20

3.5

88.9

0.140

3.6

1.170

29.7

19/32

15.1

31/32

24.6

1-9/32

32.5

1.010

25.7

1-20

3.5

88.9

0.140

3.6

1.360

34.5

3/4

19.0

31/32

24.6

1-9/32

32.5

1.010

25.7

1-1/8-18

5.0

127.0

0.140

3.6

1.330

33.8

21/32

16.7

1-1/16

1-3/8

34.9

1.135

28.8

1-1/4-18

5.0

127.0

0.142

3.6

1.330

33.8

3/4

19.0

1-5/32

29.4

1-1/2

38.1

1.260

32.0

1-3/8-18

5.0

127.0

0.145

3.7

1.210

30.7

3/4

19.0

1-1/4

31.8

1-5/8

41.3

1.385

35.2

1-1/2-18

6.0

152.4

0.145

3.7

1.220

31.0

13/16

20.6

1-3/8

34.9

1-25/32

45.2

1.510

38.4

1-3/4-18

6.0

152.4

0.145

3.7

1.220

31.0

13/16

20.6

1-9/16

39.7

2.0

50.8

1.760

44.7

hec_2013_catalog_hires_b-html.html

mil-e-qual

(mil-c-5015 equivalent)

2-37 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

Box Receptacle / Cable Plug / Cable Receptacle Pin

Face View

NOTE: Mating face of pin insert shown (socket opposite). Unless otherwise specified, arrangements are per
MIL-STD 165L. For alternate key positions, consult factory.

NOTE: *9 contacts: 7-#16/2-#12 cable end, socket only. Panel: pin only.

NOTE: 10SL-4 available in cable end socket and panel mount pin styles only.

All dimensions are for reference only. Units shown: in[mm].

BOX RECEPTACLE / CABLE PLUG / CABLE RECEPTACLE PIN

hec_2013_catalog_hires_b-html.html

mil-e-qual

(mil-c-5015 equivalent)

2-37 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

Box Receptacle / Cable Plug / Cable Receptacle Pin

Wire View

NOTE: Rear face of pin insert shown (socket opposite). Unless otherwise specified, arrangements are per
MIL-STD 165L. For alternate key positions, consult factory.

*9 contacts: 7-#16/2-#12 cable end, socket only. Panel: pin only.

All dimensions are for reference only. Units shown: in[mm].

BOX RECEPTACLE / CABLE PLUG / CABLE RECEPTACLE PIN

hec_2013_catalog_hires_b-html.html

mil-e-qual

(mil-c-5015 equivalent)

2-37 contacts

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

PART NUMBER TO ORDER

CX X 310XA XXXX XX X XXXX

Conxall

Options

300

- Weathertight Option adds

O-Ring for plug (3106A)
Elastomer Panel Gasket for Receptacle.
(3102A)

010

- Receptacle with (4) mounting hole

reinforcements. Consult factory.

310

- Same as -010 except with Elastomer Panel

Gasket. Plug (3106A)

320

- Gold plated contacts.

(gold is optional/silver standard)

30GX

- Pin Insert Receptacle with ground pin.

“X” is the letter position of the extended

pin. Letter is left “Blank” for crimp contacts.

Standard plating, silver plated contacts.

32GX

- Pin Insert Receptacle with ground pin.

“X” is the letter position of the extended

pin. Letter is left “Blank” for crimp contacts.

Optional plating, gold plated contacts.

Insert Number / Arrangement per 5015

10SL-4

16S-1

18-19

10SL-3

16S-8

20-7

12S-3

16-10

20-16

14S-1

18-1

20-27

14S-2

18-4

20-29

14S-5

18-8

22-14

14S-6

18-10

24-2

14S-7

18-11

24-28

14S-9

18-12

28-2

28-12
28-21

Contact Style

- Solder

- Crimp

No. & Type of Contacts

- Pin

- Socket

Complete P/N contains no spaces or dashes.
Consult factory for optional colors and materials

Note 1: All Plugs, Box Mount Receptacles and In-Line Receptacles include

Crimp or Solder Contacts specified.

Note 2: Straight Plugs include Backshell Assembly with Cable Clamp and Bushing.
Note 3: In-Line Receptacles can be with or without Accessory Thread. Consult factory for

availability. In-Line Receptacles without Accessory Thread can be overmolded.

Shell Type

3101A

- Cable Receptacle (See note 1)

In-Line with or without Accessory Thread

(See note 3)

3102A

- Box Receptacle without Accessory Thread

3106A

- Straight Plug (See note 2)

hec_2013_catalog_hires_b-html.html

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

PLUG

MATES WITH SEALED POWER JACKS

SOLDER LUG JACK

MATES WITH SEALED POWER PLUGS

STRAIGHT PC TERMINAL JACK

MATES WITH SEALED POWER PLUGS

RIGHT ANGLE PC TERMINAL JACK

MATES WITH SEALED POWER PLUGS

J CAP

sealed dc power jacks & plugs

0.62”

[

]

hec_2013_catalog_hires_b-html.html

sealed dc power jacks & plugs

0.62”

[

]

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

5000 insertion / withdrawal cycles minimum

Vibration:

MIL-STD 202G Method 201A

Hex

Nut

Torque:

8-12

in-lb

Coupling Locking Style:

Threaded Coupling Ring

Backshell

Style:

Threaded

Handle

Electrical Specifications

Voltage Rating:

500V AC max

$VSSFOU3BUJOH

"VQUP7%$BU¡$ ¡' DVSSFOUDBSSZJOHPOMZ

Contact Resistance:

0.01 Ω max (Initial)

0.02

(After

humidity,

durability

exposure)

0.10

max(after

salt

spray)

Insulation Resistance:

10,000 MΩ Min (Initial)

1,000

MΩ

(After

humidity,

durability

exposure)

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

¡$UP¡$ 'UP¡'

Salt Atmosphere (Corrosion):

MIL-STD 202G Method 101E

Thermal Shock:

MIL-STD 202G Method 107G

Weathertight:

IP66, IP67 & IP68 / NEMA 250 (6P) (when mated)

Material Specifications

Jack

Housing:

Thermoplastic

Bushing:

Plated

Copper

Alloy

Terminals:

Plated

Copper

Alloy

Insulators:

Thermoplastic

Hardware:

Supplied with one nickel plated copper alloy hex nut (P1489), one nickel plated

steel flat washer (P3031) and one o-ring for sealing jack to panel

Plug

Plug Sleeve and Pin:

Plated Copper Alloy

Lock Ring:

Plated Copper Alloy

'JOHFS*OTVMBUPS

5IFSNPQMBTUJD

Insulating

Washer:

Thermoplastic

Sleeve Terminal:

Tin Plated Copper Alloy

Handle:

Thermoplastic Over molded with Elastomer

Cap

Body:

Elastomer

Molded Cable Assemblies

Consult factory for molded options

Accessories

Isolated Mount - P3818: Includes insulating shoulder washer/seal and insulating flat washer.

hec_2013_catalog_hires_b-html.html

sealed dc power jacks & plugs

0.62”

[

]

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

1.03

26.3

0.37

9.4

0.28

7.1

0.509

12.93

0.16

4.0

1.03

26.3

0.37

9.4

0.390

9.91

0.610

15.48

0.330

8.38

0.14

3.6

0.62

15.7

STRAIGHT PC

0.62

15.7

RIGHT ANGLE PC

0.28

7.1

1.03

26.3

0.37

9.4

SLEEVE

SHUNT

CENTER
PIN

FLAT WASHER

7/16 - 32 HEX NUT

0.62

15.7

SOLDER LUG

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

sealed dc power jacks & plugs

0.62”

[

]

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

CENTER PIN

SLEEVE SHUNT

JACK SCHEMATIC

SLEEVE

0.156

3.96

0.150

3.81

0.040

1.02

0.156

3.96

0.062 [1.57]

SLEEVE

CENTER PIN

STRAIGHT PC JACK

RECOMMEMDED PCB LAYOUT

(COMPONENT SIDE)

SLEEVE SHUNT

0.220±0.002

5.59±0.05

0.067±0.001

1.70±0.03

0.130±0.002

3.30±0.05

SEE NOTE

0.130±0.002

3.30±0.05

SEE NOTE

CENTER PIN

SLEEVE SHUNT

RIGHT ANGLE PC JACK

RECOMMEMDED PCB LAYOUT

(COMPONENT SIDE)

NOTE: 0.130 [3.30] FOR HAND INSERTION
0.135 [3.43] FOR AUTOMATED INSERTION

SLEEVE

0.440±0.002

11.18±0.05

RECOMMENDED

PANEL MOUNTING HOLE

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

sealed dc power jacks & plugs

0.62”

[

]

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

SEALED POWER PLUGS

ASSEMBLED HANDLE

SEALED POWER PLUGS

MOLDED CABLE ASSEMBLY

SLEEVE

CENTER PIN INSIDE
(SEE TABLE)

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

sealed dc power jacks & plugs

0.62”

[

]

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

Part Number

Center Pin/

Jack Size

Terminal Type

Mating Power Plug

L712AS

0.10 [2.5]

Solder Lugs

761KS12, 761KS15, 761KS17

PCL712AS

Straight PC

L712RAS

Right Angle PC

L722AS

0.08 [2.0]

Solder Lugs

S761KS12, S761KS15, S761KS17,

PCL722AS

Straight PC

L722RAS

Right Angle PC

JCAP

Power Jack Seal Cap

Part Number

Center Pin ID/

Jack Size

Tip Insulator

Color

Cable Nominal O.D. Range

Mating Power Plug

761KS12

0.10 [2.5]

Black

0.125-0.150 [3.2-3.8mm]

L712AS, L712RAS, PCL712AS

761KS15

Black

0.150-0.175 [3.8-4.4mm]

761KS17

Black

0.175-0.200 [4.4-5.1mm]

S761KS12

0.08 [2.0]

White

0.125-0.150 [3.2-3.8mm]

L722AS, L722RAS, PCL722AS

S761KS15

White

0.150-0.175 [3.8-4.4mm]

S761KS17

White

0.175-0.200 [4.4-5.1mm]

PART NUMBER TO ORDER

All dimensions are for reference only. Units shown: in[mm].

SEALED POWER JACK MOLDED CABLE ASSEMBLY

[51.0]

[9.65]

[6.04]

[9.39]

[15.7]

hec_2013_catalog_hires_b-html.html

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

RIGHT ANGLE HIGH AMPERAGE

POWER JACK - PC MOUNT

HIGH AMPERAGE

POWER PLUG - SEALED

LOCKING

HIGH AMPERAGE

POWER PLUG - NON SEALED

LOCKING

HIGH AMPERAGE

POWER PLUG - NON SEALED

NON LOCKING

RIGHT ANGLE HIGH AMPERAGE

POWER JACK - SMT MOUNT

RIGHT ANGLE HIGH AMPERAGE

POWER JACK - HYBRID MOUNT

high amperage dc power jacks & plugs

.43”

[

]

RIGHT ANGLE HIGH AMPERAGE

hec_2013_catalog_hires_b-html.html

high amperage dc power jacks & plugs

.43”

[

]

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

5000

insertion/withdrawal

cycles

minimum

Vibration: Mil-Std

202G

Method

201A

(Locking Only)

0QFSBUJOH'PSDFT

MCNBYJNVNJOTFSUJPOMCNJOJNVNXJUIESBXBM

Panel

Mounting

Torque:

8-10

in-lb

Electrical Specifications

Voltage

Rating:

AC/DC

Current Rating:

See page 88 for Electrical Current Rating Chart

Insulation

Resistance:

1000MΩ

min

Contact Resistance (initial):

15 mΩ max

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

¡$UP¡$ 'UP¡'

Moisture Resistance

MIL-STD 202G Method 106G

(Sealed Only)

Insulation Resistance

MIL-STD 202G Method 302 Condition B

Thermal Shock:

MIL-STD 202G Method 107G

Salt Atmosphere (Corrosion):

MIL-STD 202G Method 101E Condition B

(Sealed Only

)

Weathertight Ratings:

IP66, IP67, IP68, NEMA 250 (6p) when mated

(Sealed Only)

Material Specifications - Jacks

Housing, Cover (insulators):

Thermoplastic, Black

Mounting Bushing, Hex Nut:

Copper Alloy, Nickel Plated

'MBU8BTIFS

4UFFM/JDLFM1MBUFE

O-Ring:

Elastomer,

Black

Center

Pin:

Copper

Alloy,

Nickel

Plated

Center Pin Terminal & Shunt Terminals:

Copper Alloy, Silver or Matte Tin Plated

Sleeve Spring Terminal:

Spring Copper Alloy, Silver or Matte Tin Plated

Material Specifications - Plugs

Plug Barrel (Sleeve):

Copper Alloy, Nickel Plated

Coupling

Ring:

Copper

Alloy,

Nickel

Plated

Metal

Handle:

Copper

Alloy,

Nickel

Plated

Rubber Seal Handle:

Black Elastomer over Metal Handle

O-Ring:

Elastomer,

Black

Center Contact (Tip):

Copper Alloy, Silver Plated

Tip & Sleeve Terminals:

Copper Alloy, Tin Plated

Tip

Insulator:

Thermoplastic,

Blue

5FSNJOBM*OTVMBUPS

&QPYZ(MBTT'3

Tubular

Insulator:

Mylar

hec_2013_catalog_hires_b-html.html

high amperage dc power jacks & plugs

.43”

[

]

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

0.063 1.60

(3X)

0.95 24.2

0.325 8.26

0.125 3.18 MAXIMUM
PANEL THICKNESS

0.055 1.4

0.10 2.5

0.008 0.20

0.020 0.51

0.06 1.6

0.19 4.9

0.054 1.36

0.248 6.29

0.349 8.87

SEAL O-RING

NOT ALWAYS SUPPLIED

(SEE TABLE)

HEX NUT

5/16-32 THREAD

FLAT WASHED

MTG. BUSHING

5/16-32 UNFE 2A

THREAD

CENTER PIN
TERMINAL

SLEEVE
TERMINAL

0.47 11.9

0.020 0.51

0.08 2

CENTER PIN

0.10 2.5

0.25 6.4

0.37 9.5

ACROSS FLATS

0.43 11

0.062 1.57

SHUNT TERMINAL

0.35 9

0.43 11

0.26 6.5

0.12 3

0.14 3.4

0.020 0.51

0.19 4.8

0.030 0.76

0.140 3.56

0.040 1.02

0.120 3.05

0.030 0.76

0.349 8.87

0.478 12.14

0.248 6.29

0.189 4.80

0.120 3.05

0.070 [1.78] MIN FOR CLEARANCE FIT
0.067 [1.70] MAX FOR INTERFERENCE FIT

REQUIRED ONLY FOR JACKS WITH POST

0.177 4.50

RECOMMENDED PCB LAYOUT

(COMPONENT SIDE)

JACK MOUNTING SURFACE

0.349 8.87

0.478 12.14

0.248 6.29

0.189 4.80

0.070 [1.78] MIN FOR CLEARANCE FIT
0.067 [1.70] MAX FOR INTERFERENCE FIT

REQUIRED ONLY FOR JACKS WITH POST

0.140 3.56

0.120 3.05

0.177 4.50

ALTERNATE PCB LAYOUT

(COMPONENT SIDE)

JACK MOUNTING SURFACE

CENTER PIN

SHUNT

SLEEVE

SCHEMATIC

PCB LOCATING POST

NOT ALWAYS PRESENT

(SEE TABLE)

SLEEVE SPRING
TERMINAL

CENTER PIN
TERMINAL

SHUNT
TERMINAL

PC-MOUNT HIGH AMPERAGE POWER JACKS

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

high amperage dc power jacks & plugs

.43”

[

]

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

0.95 24.2

0.325 8.26

0.125 3.18 MAXIMUM
PANEL THICKNESS

0.055 1.4

0.06 1.6

0.19 4.9

0.054 1.36

0.10 2.5

SEAL O-RING

NOT ALWAYS SUPPLIED

(SEE TABLE)

HEX NUT

5/16-32 THREAD

FLAT WASHED

5/16-32 UNFE 2A

THREAD

CENTER PIN
TERMINAL

0.47 11.9

0.08 2

CENTER PIN

0.25 6.4

0.37 9.5

ACROSS FLATS

0.43 11

0.062 1.57

0.60 15.2

0.07 1.7

0.08 2

SHUNT TERMINAL

SLEEVE
TERMINAL

0.35 9

0.43 11

0.26 6.5

1.05 26.7 REF

0.180 4.57

(2X)

0.07 1.7

0.03 0.9

SLEEVE

TERMINAL

SHUNT
TERMINAL

CENTER PIN
TERMINAL

PCB LOCATING POST

NOT ALWAYS PRESENT

(SEE TABLE)

SLEEVE SPRING
TERMINAL

CENTER PIN
TERMINAL

SHUNT
TERMINAL

0.070 [1.78] MIN FOR CLEARANCE FIT
0.067 [1.70] MAX FOR INTERFERENCE FIT

REQUIRED ONLY FOR JACKS WITH POST

0.130 3.30

0.160 4.06

0.130 3.30

0.150 3.81

0.030 0.76

0.240 6.10

0.283 7.19

0.360 9.14

0.321 8.15

0.250 6.35 (2X)

0.148 3.76

RECOMMENDED PCB LAYOUT

(COMPONENT SIDE)

JACK MOUNTING SURFACE

CENTER PIN

SHUNT

SLEEVE

SCHEMATIC

SMT-MOUNT HIGH AMPERAGE POWER JACKS

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

high amperage dc power jacks & plugs

.43”

[

]

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

0.95 24.2

0.325 8.26

0.125 3.18 MAXIMUM
PANEL THICKNESS

0.055 1.4

0.10 2.5

0.008 0.20

0.020 0.51

0.06 1.6

0.19 4.9

0.054 1.36

0.180 4.57

(2X)

0.10 2.5

0.248 6.29

0.349 8.87

SEAL O-RING

NOT ALWAYS SUPPLIED

(SEE TABLE)

HEX NUT

5/16-32 THREAD

FLAT WASHED

5/16-32 UNFE 2A

THREAD

CENTER PIN
TERMINAL

SLEEVE
TERMINAL

0.47 11.9

0.020 0.51

0.08 2

CENTER PIN

0.10 2.5

0.25 6.4

0.37 9.5

ACROSS FLATS

0.43 11

0.062 1.57

0.60 15.2

0.07 1.7

0.08 2

SHUNT TERMINAL

SLEEVE
TERMINAL

0.35 9

0.43 11

0.26 6.5

0.020 0.51

0.14 3.4

TYP

0.07 1.7

0.030 0.76

0.19 4.8

0.03 0.6

0.04 1.1

PCB LOCATING POST

NOT ALWAYS PRESENT

(SEE TABLE)

SLEEVE SPRING
TERMINAL

CENTER PIN
TERMINAL

SHUNT
TERMINAL

0.030 0.76

0.040 1.02

0.120 3.05

0.030 0.76

0.189 4.80

0.120 3.05

0.070 [1.78] MIN FOR CLEARANCE FIT
0.067 [1.70] MAX FOR INTERFERENCE FIT

REQUIRED ONLY FOR JACKS WITH POST

0.044 1.12

0.050 1.27
0.025 0.64

0.130 3.30

0.160 4.06

0.265 6.73

0.130 3.30

0.250 6.35

(2X)

0.157 3.99

0.150 3.81

0.258 6.55

0.478 12.14

0.349 8.86

0.177 4.50

0.248 6.30

RECOMMENDED PCB LAYOUT

(COMPONENT SIDE)

JACK MOUNTING SURFACE

0.349 8.87

0.478 12.14

0.189 4.80

0.070 [1.78] MIN FOR CLEARANCE FIT
0.067 [1.70] MAX FOR INTERFERENCE FIT

REQUIRED ONLY FOR JACKS WITH POST

0.044 1.12

0.025 0.64

0.130 3.30

0.265 6.73

0.130 3.30

0.250 6.35

(2X)

0.157 3.99

0.150 3.81

0.258 6.55

0.120 3.05

0.248 6.30

0.160 4.06

0.120 3.05

0.050 1.27

0.177 4.50

RECOMMENDED PCB LAYOUT

(COMPONENT SIDE)

JACK MOUNTING SURFACE

CENTER PIN

SHUNT

SLEEVE

SCHEMATIC

HYBRID-MOUNT HIGH AMPERAGE POWER JACKS

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

LOCKING and SEALING PLUGS S10KS12, S10KS15, S10KS17

LOCKING, NON-SEALING PLUG S10K

NON-LOCKING, NON-SEALING PLUGS S1012, S1015, S1017

NON-LOCKING, NON-SEALING PLUG S10

high amperage dc power jacks & plugs

.43”

[

]

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

LOCKING AND SEALED PLUGS S10KS12, S10KS15, S10KS17

LOCKING, NON-SEALING PLUG S10K

NON-LOCKING, NON-SEALING PLUGS S1012, S1015, S1017

NON-LOCKING, NON-SEALING PLUG S10

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

high amperage dc power jacks & plugs

.43”

[

]

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

CURRENT RATING TABLE

Jack Terminal

Plating

Wire

(awg)

Current Rating (A) at Operating Temperature (

C )

55ºC max

65ºC max

75ºC max

85ºC max

95ºC max

105ºC max

Silver

11 10

9.5

7.5

9.5

5.5

6.5

Tin

5.5

9.5

5.5

8.5

6.5

5.5

Note: DC Power Plugs & Jacks are for current carry only. Switching Power Jack on-off under resistive load is not recommended.

5IFDJSDVJUSZPOPòTXJUDITIPVMECFPòCFGPSFDPOOFDUJOHPSEJTDPOOFDUJOHUIF1PXFS1MVHUP+BDL'PSFMFDUSJDBMMJGFMJNJUBUJPOT

under resistive load, consult factory.

hec_2013_catalog_hires_b-html.html

high amperage dc power jacks & plugs

.43”

[

]

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

HIGH AMPERAGE POWER PLUG ORDERING CODE:

HIGH AMPERAGE POWER JACK ORDERING CODE:

S 1 0

S10

Series

Locking option:
K - Locking
blank - non-locking

Seal option:
S - Sealed (Requires Locking Option)
blank - non-sealed

Handle options:
12 - rubber over metal sealing handle for
cable O.D. 0.125 - 0.150" [3.2 - 3.8mm]
15 - rubber over metal sealing handle for
cable O.D. 0.150 - 0.175" [3.8 - 4.4mm]
17 - rubber over metal sealing handle for
cable O.D. 0.175 - 0.210" [4.4 - 5.3mm]
blank - metal, non-sealing handle for
cable O.D. up to 0.218" [5.5mm]

R A

Terminal Plating:
S - Tin
blank - Silver

Termination Type:
PC

- Through Hole

SM - Surface Mount
SH

- Hybrid

Locating Post option:
P - with Post
blank - without Post

Seal option:
S - Sealed
blank - non-sealed

Notes:
1. Standard packaging is bulk. Contact factory for tube or tape & reel packaging options.
2. Tin plating currently not available for the hybrid (SH) termination option.

hec_2013_catalog_hires_b-html.html

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

QUICK CONNECT CABLE END

MATES WITH PANEL MOUNT

SHIELDED PANEL MOUNT

MATES WITH CABLE END

REAR VIEW

FEED-THRU TERMINATION

REAR VIEW

STRAIGHT IDC TERMINATION

REAR VIEW-RIGHT ANGLE IDC TERMINATION

MOLDED CABLE ASSEMBLY

PANEL MOUNT

MATES WITH CABLE END

THREADED CABLE END

MATES WITH PANEL MOUNT

rj45 weathertight connectors

1.44”

[

]

hec_2013_catalog_hires_b-html.html

rj45 weathertight connectors

1.44”

[

]

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Manufacturers Identifications

Life:

750 insertion / withdrawal cycles minimum

Vibration:

Mil-Std 202G Method 201A

Hex

Nut

Torque:

10-12

in-lb

Coupling Locking Style:

Quick Connect (Bayonet)

Threaded
Backshell

Style:

Threaded

Electrical Specifications

Voltage

Rating:

1000V

Current

Rating:

1.5

Contact Resistance:

20 mΩ max

Insulation Resistance:

500 MΩ min

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

¡$UP¡$ 'UP¡'

Insulation Resistance:

Mil-Std 202G Method 302G

Thermal Shock:

Mil-Std 202G Method 107G

Weathertight:

IP67 & IP68, NEMA 250 (6P) (when mated)

Product Ratings:

RJ45 Cable Plug (Category 6):

TIA/EIA 568 C.2

RJ45 Panel Jack (Category 5e & 6):

TIA/EIA 568 B.2

Material Specifications

Field Installable Plug Assembly:

Sealing Nut, Coupling Ring:

Thermoplastic

Plug Housing, Insert:

Thermoplastic

Sealing Ring:

Elastomer

O-Ring:

Elastomer

RJ45 Plug:

Insulator:

Thermoplastic

Contacts:

Copper Alloy, Gold Plated

Shield (Shielded Option Only):

Copper Alloy, Tin Plated

Panel Housing Jack Assembly:

Panel Housing, Hex Nut:

Thermoplastic

Gasket:

Elastomer

RJ45 Jack:

Housing:

Thermoplastic

Contacts:

Copper Alloy, Gold Plated

1SJOUFE$JSDVJU#PBSE 1$#

IDC Contacts:

Copper Alloy, Tin Plated

Molded Cable Assemblies:

Consult factory for molded options

Other

'MBNF3BUJOH

6-7

Recommended Panel Thickness:

1/32” to 3/16” [0.8mm to 4.8mm] - Quick Connect Coupling

1/32” to 5/32” [0.8mm to 3.9mm] - Threaded Coupling

Recommended Cable Type

Conductor Type:

Solid or Stranded Conductors

Outer Cable O.D. Range:

Ø0.190” - Ø0.250” [4.83mm to 6.35mm]

Conductor insulator O.D. Range:

Ø0.037” - Ø0.042” [0.94mm to 1.06mm]

hec_2013_catalog_hires_b-html.html

PANEL

RJ45 PANEL MOUNT JACK

RJ45 FIELD INSTALLABLE

CABLE PLUG

HEX NUT

GASKET

CABLE

(NOT INCLUDED)

2.0

51.7

THREADED COUPLING RING

RJ45 FIELD INSTALLABLE CABLE PLUG

(THREADED COUPLING)

RJ45 PLUG

1.44

36.7

2.0

51.7

QUICK CONNECT COUPLING RING

RJ45 FIELD INSTALLABLE CABLE PLUG

(QUICK CONNECT COUPLING)

RJ45 PLUG

1.29

32.8

1.190 ±0.003

30.2 ±0.1

1.155 ±0.003

29.3 ±0.1

QUICK CONNECT COUPLING

OR THREADED COUPLING

RECOMMENDED PANEL CUT-OUT

0.59

14.9

1.49

37.8

PANEL

RJ45 JACK

GASKET

HEX NUT

HOUSING

0.13

3.3

TYP

1.44
36.5

SQUARE

1.19
30.2
TYP

1 3/8 HEX

[34.9]

RJ45 PANEL MOUNT FEED-THRU JACK

(SHOWN WITH NON-SHIELDED CAT 6 JACK)

(SHOWN WITH QUICK CONNECT HOUSING)

0.59

14.9

1.49

37.8

PANEL

RJ45 JACK

GASKET

HEX NUT

HOUSING

0.13

3.3

TYP

1.44
36.5

SQUARE

1.19
30.2
TYP

1 3/8 HEX

[34.9]

RJ45 PANEL MOUNT FEED-THRU JACK

(SHOWN WITH SHIELDED CAT 6 JACK)

(SHOWN WITH THREADED HOUSING)

0.59

14.9

1.52

38.7

PANEL

RJ45 JACK

GASKET

HEX NUT

HOUSING

0.13

3.3

TYP

1.44
36.5

SQUARE

1.19
30.2
TYP

1 3/8 HEX

[34.9]

RJ45 PANEL MOUNT IDC JACK

(SHOWN WITH NON-SHIELDED CAT 6 JACK)

(SHOWN WITH QUICK CONNECT HOUSING)

0.59

14.9

1.55

39.3

PANEL

RJ45 JACK

GASKET

HEX NUT

HOUSING

0.13

3.3

TYP

1.44
36.5

SQUARE

1.19
30.2
TYP

1 3/8 HEX

[34.9]

RJ45 PANEL MOUNT IDC JACK

(SHOWN WITH SHIELDED CAT 6 JACK)

(SHOWN WITH THREADED HOUSING)

0.59

14.9

1.45

36.9

PANEL

RJ45 JACK

GASKET

HEX NUT

HOUSING

0.13

3.3

TYP

1.44
36.5

SQUARE

1.19
30.2
TYP

1 3/8 HEX

[34.9]

RJ45 PANEL MOUNT IDC RIGHT ANGLE JACK

(SHOWN WITH NON-SHIELDED CAT 6 JACK)

(SHOWN WITH QUICK CONNECT HOUSING)

0.59

14.9

1.49

37.9

PANEL

RJ45 JACK

GASKET

HEX NUT

HOUSING

0.13

3.3

TYP

1.44
36.5

SQUARE

1.19
30.2
TYP

1 3/8 HEX

[34.9]

RJ45 PANEL MOUNT IDC RIGHT ANGLE JACK

(SHOWN WITH SHIELDED CAT 6 JACK)

(SHOWN WITH THREADED HOUSING)

rj45 weathertight connectors

1.44”

[

]

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

PANEL MOUNT ASSEMBLY KITS

FIELD INSTALLABLE KITS

All dimensions are for reference only. Units shown: in[mm].

DATA-CON-X®: RJ45 WEATHERTIGHT CONNECTORS

hec_2013_catalog_hires_b-html.html

rj45 weathertight connectors

1.44”

[

]

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

CUSTOM MOLDED CABLE ASSEMBLIES

PART NUMBER TO ORDER

DCP

XXX

DCC

RJ6

310

RJ45 FIELD INSTALLABLE

CABLE PLUG ASSEMBLY

PLUG TYPE

PLUG SHIELDING

COUPLING TYPE

SERIES

DCC

RJ6

= RJ45 CAT 6

BLANK

= UNSHIELDED

= SHIELDED

= QUICK CONNECT

= THREADED

310

RJ45 FIELD INSTALLABLE

PANEL HOUSING ASSEMBLY

JACK TYPE

JACK SHIELDING

COUPLING TYPE

SERIES

DCP

RJ5

= RJ45 CAT 5e

RJ6

= RJ45 CAT 6

BLANK

= UNSHIELDED

= SHIELDED

= QUICK CONNECT

= THREADED

= FEED-THRU (TO SAME CONNECTOR)

= IDC, STRAIGHT

= IDC, RIGHT ANGLE

1.30in

[33.0mm]

1.44in

[36.6mm]

DCM-RJXXB-XXXX

CUSTOM CABLE CONNECTOR

STRAIGHT OVERMOLD

QUICK CONNECT

DCM-RJXXT-XXXX

CUSTOM CABLE CONNECTOR

STRAIGHT OVERMOLD

THREADED CONNECT

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

usb a & b weathertight connectors

1.44”

[

]

CABLE END - USB A

QUICK CONNECT

MATES WITH PANEL MOUNT

PANEL MOUNT - USB A

QUICK CONNECT

MATES WITH CABLE END

CABLE END - USB B

QUICK CONNECT

MATES WITH PANEL MOUNT

PANEL MOUNT - USB B

QUICK CONNECT

MATES WITH CABLE END

CABLE END - USB A

THREADED CONNECT

MATES WITH PANEL MOUNT

PANEL MOUNT - USB A

THREADED CONNECT

MATES WITH CABLE END

CABLE END - USB B

THREADED CONNECT

MATES WITH PANEL MOUNT

PANEL MOUNT - USB B

THREADED CONNECT

MATES WITH CABLE END

hec_2013_catalog_hires_b-html.html

usb a & b weathertight connectors

1.44”

[

]

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

350 insertion/withdrawal cycles minimum

Hex Nut Torque:

10-12 in-lb max

Coupling Locking Style:

Quick Connect (Bayonet) or Threaded

Backshell Style:

Threaded Nut-Squeezed Grommet

Electrical Specifications

Current Rating:

1.5 A

Voltage Rating:

Per USB 2.0 standard

Contact Resistance:

30 mΩ max

Insulation Resistance:

1000 MΩ min

Dielectric Withstanding Voltage:

500 V AC/one minute

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

¡$UP¡$ 'UP¡'

4UPSBHF5FNQFSBUVSF

¡$UP¡$ 'UP¡'

Moisture Resistance:

Mil-Std 202G Method 106G

Insulation Resistance:

Mil-Std 202G Method 302

Vibration:

Mil-Std 202G Method 201A

Thermal Shock:

Mil-Std 202G Method 107G

Weathertight:

IP67 & IP68, NEMA 250 (6P) (when mated)

Salt Spray:

Mil-Std 202G Method 101E

Product Ratings:

Tested per USB 2.0

Material Specifications

Plug Nut, Coupling Ring:

Thermoplastic

Plug Housing, Insert:

Thermoplastic

Sealing Ring, O-Ring:

Elastomer

Panel Housing, Hex Nut:

Thermoplastic

Retaining Nut:

Copper Alloy, Nickel Plated

Gasket:

Elastomer

USB A or B Plug:

Shell:

Steel, Nickel Plated

Contacts:

Copper Alloy, Gold Plated

Insulator:

Thermoplastic

UL94V-0,

White

USB A Receptacle:

Shell:

Steel, Nickel Plated

Contacts:

Copper Alloy, Gold Plated

Insulator:

Thermoplastic

UL94V-0,

White

USB B Receptacle:

Shell:

Copper Alloy, Nickel Plated

Contacts:

Copper Alloy, Gold Plated

Insulator:

Thermoplastic

UL94V-0,

White

Molded Cable Assemblies

Consult factory for molded options

Other

'MBNF3BUJOH

6-7

Recommended Panel Thickness:

1/32” - 3/16” [0.8mm to 4.8mm] - Quick Connect Coupling

1/32” - 5/32” [0.8mm to 3.9mm] - Threaded Coupling

Recommended Cable Type

Conductor Type:

Solid or Stranded Conductors

Outer Cable O.D. Range:

Product 150 Series: 0.134”-0.170” [3.40mm-4.33mm]

Product 180 Series: 0.171”-0.208” [4.34mm-5.28mm]

hec_2013_catalog_hires_b-html.html

usb a & b weathertight connectors

1.44”

[

]

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

DATA-CON-X®:USB A & B WEATHERTIGHT CONNECTORS

hec_2013_catalog_hires_b-html.html

usb a & b weathertight connectors

1.44”

[

]

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

PART NUMBER TO ORDER

USB FIELD INSTALLABLE CABLE PLUG PART NUMBER CHART

64#'*&-%*/45"--"#-&

CABLE PLUG ASSEMBLY

PLUG

TYPE

COUPLING

TYPE

SERIES

DCC

USBA

= USB “A” 2.0

USBB

= USB “B” 2.0

= QUICK CONNECT

= THREADED

150

= ø0.134”-0.170” [3.40-4.33mm]

180

= ø0.171”-0.208 “[4.34-5.28mm]

USB PANEL MOUNT FEED-THRU CONNECTORS PART NUMBER CHART

64#'*&-%*/45"--"#-&

PANEL HOUSING ASSEMBLY

RECEPTACLE TYPE

(SEALED END)

COUPLING

TYPE

RECEPTACLE TYPE

(NON-SEALED END)

DCP

USBA

= USB “A” 2.0

USBB

= USB “B” 2.0

= QUICK CONNECT

= THREADED

USBA

= USB “A” 2.0 *

USBB

= USB “B” 2.0 **

(NOT AVAILABLE WITH USBA ON SEALED END)

(NOT

AVAILABLE

WITH

USBB

SEALED

END)

DCC

XXXX

XXX

XXXX

hec_2013_catalog_hires_b-html.html

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

QUICK CONNECT CABLE END

MATES WITH PANEL MOUNT

REAR VIEW - PC TAIL

REAR VIEW - FEED-THRU TERMINATION

REAR VIEW - SOLDER HOLES

PANEL MOUNT

MATES WITH CABLE END

sealed mini usb connectors

0.71”

[

]

hec_2013_catalog_hires_b-html.html

sealed mini usb connectors

0.71”

[

]

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

500 insertion / withdrawal cycles minimum

Vibration:

Mil-Std 202G Method 201A

Hex

Nut

Torque:

10-12

in-lb

Coupling Locking Style:

Quick Connect (Bayonet)

Backshell

Style:

Threaded

Electrical Specifications

Tested Per USB 2.0 Specifications

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

¡$UP¡$ 'UP¡'

Moisture Resistance:

Mil-Std 202G method 106G

Insulation Resistance:

Mil-Std 202G Method 302G

Thermal Shock:

Mil-Std 202G Method 107G

Weathertight:

IP67 & IP68, NEMA 250 (6P) (when mated)

Material Specifications

Plug Nut, Coupling Nut:

Thermoplastic

Plug Housing, Insert:

Thermoplastic

Sealing Ring, O-Ring:

Elastomer

Panel Housing, Hex Nut:

Thermoplastic

Gasket:

Elastomer

1SJOUFE$JSDVJU#PBSE 1$#

Header

Insulator:

Thermoplastic UL94V-0, Black

Contacts:

Copper Alloy, Gold Plated

USB Mini-B Plug:

Insulator:

Thermoplastic

UL94V-0,

Black

Contacts:

Copper Alloy, Gold Plated (Contact Area)

Metal

Shield:

Steel,

Tin

Plated

USB Mini-B Receptacle:

Insulator:

Thermoplastic

UL94V-0,

Black

Contacts:

Copper Alloy, Gold Plated (Contact Area)

Metal Shield:

Copper Alloy, Nickel Plated

Molded Cable Assemblies

Consult factory for molded options

Other

Recommended Cable O.D. Range:

Ø0.161”-Ø0.181” [4.1mm-4.6mm]

Recommended Panel Thickness:

Ø0.031”-Ø0.187” [0.8mm-4.8mm]

hec_2013_catalog_hires_b-html.html

sealed mini usb connectors

0.71”

[

]

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

Part Number

Style

Description

DCC-USBNB-160

Plug

'JFME*OTUBMMBCMF$BCMF1MVH

DCP-USBNB-MNHD

Receptacle

Panel Mount: USB Mini-B to PC Tails

DCP-USBNB-MNSC

Receptacle

Panel Mount: USB Mini-B to Solder Holes

DCP-USBNB-USBN

Receptacle

1BOFM.PVOU64#.JOJ#'FFEUISV

PART NUMBER TO ORDER

CABLE

(NOT INCLUDED)

HEX NUT

PANEL

GASKET

USB MINI-B
PANEL ASSEMBLY

USB MINI-B

CABLE ASSEMBLY

DCC-USBNB-160

USB MINI-B CABLE PLUG FIELD INSTALLABLE

1.41

35.91

5/8

HEX

15.9

0.71

18.03

All dimensions are for reference only. Units shown: in[mm].

DATA-CON-X®: SEALED MINI USB CONNECTORS

hec_2013_catalog_hires_b-html.html

sealed mini usb connectors

0.71”

[

]

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

DCP-USBNB-USBN

USB MINI-B FEED-THRU

1.00

25.49

0.56

14.22

13/16 HEX NUT

GASKET

0.81

20.57

PIN No.1

PIN No.5

PIN No.1

DCP-USBNB-MNSC

USB MINI-B TO SOLDER HOLES

0.99

25.02

0.56

14.22

13/16 HEX NUT

GASKET

0.03

0.86
TYP

DETAIL B

SCALE 2 : 1

SHIELD

0.81

20.57

PIN No.5

PIN No.1

PCB HOLE LAYOUT FOR DCP-USBNB-MNHD

0.08
2.01

0.03 X 6

0.81

0.08

TYP

2.01

0.610

15.49

0.582
14.78

RECOMMENDED
PANEL CUT-OUT

TOLERANCES:

0.003 [

0.1mm]

DCP-USBNB-MNHD

USB MINI-B TO PC TAILS

0.96

24.32

0.56

14.22

13/16 HEX NUT

GASKET

0.81

20.57

PIN No.5

PIN No.1

DETAIL A

SCALE 2 : 1

SHIELD

PANEL MOUNT ASSEMBLY KITS

All dimensions are for reference only. Units shown: in[mm].

hec_2013_catalog_hires_b-html.html

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

9 PIN STANDARD CABLE MOUNT-SOCKET

MATES WITH PANEL MOUNT

15 PIN HIGH DENSITY

CABLE MOUNT-SOCKET

MATES WITH PANEL MOUNT

15 PIN HIGH DENSITY

CABLE MOUNT-PIN

MATES WITH PANEL MOUNT

15 PIN HIGH DENSITY

PANEL MOUNT

MATES WITH CABLE MOUNT

CAP FOR PANEL MOUNT

P/N DBSCAP

9 PIN STANDARD PANEL MOUNT

MATES WITH CABLE MOUNT

9 PIN STANDARD CABLE MOUNT-PIN

MATES WITH PANEL MOUNT

SEALED D-SUB connectors

9 or 15 contacts

hec_2013_catalog_hires_b-html.html

SEALED D-SUB connectors

9 or 15 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

SPECIFICATIONS

Mechanical Specifications

Life:

500 insertion / withdrawal cycles minimum

Coupling Locking Style:

Standard Jackscrew

Backshell

Style:

Threaded

Electrical Specifications

Voltage Rating:

1000V AC for 1 Minute

Current Rating:

5.0A- Standard D-Sub (9 Contacts)

2.0A-

High

Density

D-Sub

(15

Contacts)

Contact Resistance:

25 mΩ max

Insulation Resistance:

500MΩ at

Environmental Specifications

0QFSBUJOH5FNQFSBUVSF3BUJOH

¡$UP¡$ 'UP¡'

Thermal Shock:

MIL-STD 202G Method 107G, Condition A

Weathertight:

IP67

(when

mated)

Material Specifications

D-Sub Backshell Kit

Housing, Clamp, & Nut:

Thermoplastic, Black

Insulator:

Thermoplastic

(UL94V-0)

Gasket & Seal:

Elastomer, Black

Shell:

Steel,

Tin

Plated

Screw:

Copper

Alloy,

Nickel

Plated

Contact Pins:

Copper Alloy, Gold Plated

D-Sub Panel Mount Connector

'MBOHF*OTVMBUPS

5IFSNPQMBTUJD 6-7

Shell:

Steel,

Tin

Plated

Epoxy:

Epoxy,

Black

O-Ring:

Elastomer,

Light

Blue

Screw:

Copper

Alloy,

Nickel

Plated

Contact Pin:

Copper Alloy, Gold Plated

D-Sub Connector Cap

Body:

Thermoplastic,

Black

Gasket & O-ring:

Elastomer, Black

Screw:

Copper Alloy, Nickel Plated

Chain:

Stainless

Steel

Other

'MBNF3BUJOH

6-7

Recommended Panel Thickness:

0.048” - 0.078” [1.22mm to 1.98mm]

Recommended Cable Type

Conductor Type:

Solid or Stranded Conductors, 22-26 AWG

Outer Cable O.D. Range:

Ø0.138” - Ø0.276” [3.51mm to 7.01mm]

hec_2013_catalog_hires_b-html.html

SEALED D-SUB connectors

9 or 15 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

All dimensions are for reference only. Units shown: in[mm].

DATA-CON-X®: SEALED D-SUB

hec_2013_catalog_hires_b-html.html

D-Sub Panel Mount Series

D-Sub

Gender

Termination Style

Panel

DCP

DB09

= 9 pin Standard

HD15

= 15 Pin, High Density

= Male

'FNBMF

= Solder Cup

1 = 0.48-0.78 in

[1.22-1.98 mm]

D-Sub Backshell Kit Series

D-Sub

Gender

DCC

DB09

= 9 pin Standard

HD15

= 15 Pin, High Density

= Male

'FNBMF

SEALED D-SUB connectors

9 or 15 contacts

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

PART NUMBER TO ORDER

DCP

DCC

XXXX

hec_2013_catalog_hires_b-html.html

molded cable assembly checklist

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

Company:

Date:

Contact Name:

Email:

Phone:

Address:

City, State, Zip, Country:

Project

Name:

Quantity

requested

quote:

Application / Description:

End “A” Part Number:

Is right angle required? (Y/N):

End “B” Part Number:

Is right angle required? (Y/N):

If single ended cable, how should “B” side be terminated?

Yes

Strip

Tin

(S&T)

Standard 1/4” outer jacket, 1/8” inner jacket

Straight

cut-off

(SCO)

Other

(Please

specify)

Please note some insulation may be removed for quality control.

Cable vendor & P/N:

If cable vendor is known, is equivalent cable acceptable? (Y/N):

UL # of cable (if applicable):

Outer cable jacket material (PUR, PVC, Other):

Outer cable jacket color (Black, Grey, Other):

Number of conductors:

Conductor AWG:

Is cable shielded? If yes, what type of shield (foil, braided, etc.):

Is there a drain wire (Y/N):

If yes, where terminated?:

Overall length of assembly. Determined by connector ends. Please specify units:

Does cable have any environment requirements? (Temperature, UV, other):

Is an adhesive moisture bond to the outer jacket of the cable required? (Y/N):

Comments / Special Notes:

CUSTOMER INFORMATION

PROJECT INFORMATION

CONNECTOR REQUIREMENTS

CABLE REQUIREMENTS

NOTE: Please submit completed form and drawing (if available) by fax to 630-834-8540 or email: sales@switchcraft.com.

If a single ended assembly is requested, a diagram of the wire color code illustrating the conductors and the corresponding
contact position is required. Also show drain wire and shield terminators if applicable. We thank you for giving us the

opportunity to quote your cable assembly requirements. MADE IN USA.

hec_2013_catalog_hires_b-html.html

Con-X

electrical current rating chart

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

CONTACT SIZE

CONDUCTOR SIZE - AWG

NUMBER OF CONDUCTORS

CURRENT RATING

#12

1 through 7

23.0A

#14

1 through 3

17.0A

4 through 6

12.75A

7 through 9

11.0A

#16

1 through 3

13.0A

4 through 6

9.75A

8.45A

#16

1 through 10

13.0A

11 and 12

7.5A

#18

1 through 3

10.0A

4 through 12

7.5A

#20

#18

1 through 3

7.5A

4 through 20

5.6A

21 through 31

2.3A

#20

1 through 3

7.5A

4 through 20

5.6A

21 through 31

2.3A

#20 Multi-Con-X

10 through 12

5.0A

#22

1 through 3

6.0A

4 through 20

2.5A

21 through 31

2.5A

#24

1 through 3

4.5A

4 through 20

2.0A

21 through 31

1.5A

#22

5.5A

#24

5.0A

#26

#24

5 to 6

4.0A

#24

3.5A

#26

5 to 6

2.5A

#26

2.5A

#28*

5 to 6

2.0A

#28*

2.0A

6 -

#16 Multi-Con-X

12 - #16 Maxi-Con-X
3 -

#20 Micro-Con-X

4 - #12 Multi-Con-X
7 -

#12 Maxi-Con-X

5 -

#16 Mini-Con-X

8 -

#20 Mini-Con-X

9 -

#20 Multi-Con-X

20 - #20 Maxi-Con-X

31 - #20 Mega-Con-X
4 -

#22 Micro-Con-X

7 -

#26 Micro-Con-X

MAX. NUMBER AND SIZE OF CONTACTS PER SERIES:

*Not UL tested for this wire conductor size

hec_2013_catalog_hires_b-html.html

mil-e-qual

electrical current rating chart

$0/9"--$0.t4"-&4ũ$0/9"--$0.t&8*-%800%7*--"1"3,*-t

Please check our website for the most up-to-date product specifications.

CONTACT SIZE

CONDUCTOR SIZE - AWG

NUMBER OF CONDUCTORS

CURRENT RATING

#12

1 through 3

23.0A

4 through 6

17.0A

7 through 9

13.0A

#14

1 through 3

17.0A

4 through 6

12.75A

7 through 9

11.0A

#16

1 through 3

13.0A

4 through 6

9.75A

7 through 9

8.45A

#16

1 through 3

13.0A

4 through 6

9.75A

7 through 10

8.45A

10 through 20

5.85A

21 through 30

4.55A

31 and up

3.9A

#18

1 through 3

10.0A

4 through 6

7.5A

7 through 9

6.5A

10 through 20

4.5A

21 through 30

3.5A

31 and up

3.0A

#20

1 through 3

7.5A

4 through 6

5.6A

7 through 9

4.8A

10 through 20

3.4A

21 through 30

2.62A

31 and up

2.3A

hec_2013_catalog_hires_b-html.html

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

en2

en3

electrical current rating chart

EN2 SERIES CURRENT RATING TABLE

EN3®SERIES CURRENT RATING TABLE

CONTACTS

WIRE

(AWG)

CURRENT RATING (A) AT OPERATING TEMPERATURE (˚C)

45˚C MAX

55˚C MAX

65˚C MAX

75˚C MAX

85˚C MAX

2 #20

3.5

5.5

2.5

5.5

2.5

3.5

2.5

3 #20

6.5

5.5

4.5

3.5

4.5

3.5

1.5

4.5

3.5

1.5

2.5

1.5

0.5

4 #22

4.5

3.5

1.5

4.5

2.5

1.5

0.5

5-7 #26

2.5

1.5

2.5

1.5

0.5

1.5

0.5

CONTACT SIZE

CONDUCTOR SIZE - AWG

NUMBER OF CONDUCTORS

CURRENT RATING

#16

2 through 3

13.0A

#20

2 through 6

7.5A

7 through 8

6.5A

#26

9 through 18

hec_2013_catalog_hires_b-html.html

tooling

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

CON-X® MANUAL CONTACT CRIMPING TOOL

Handle

Description

Positioner

Contact Sizes

Wire Sizes

Conductor

Strip Length

359-24

Multi Contact Turret
Crimp Tool

357-124

#12

12-14 AWG

7/32 in

#16

16-18-20 AWG

7/32 in

#20

20-22-24 AWG

3/16 in

359-21

Single Contact Crimp
Tool

357-122

#20

20-22-24 AWG

3/16 in

357-125

#22

22-24 AWG

5/32 in

357-126

#26(Cable Pin Only)

24-26-28 AWG

3/16 in

357-127

#26(Panel Pin, Cable & Panel
Socket)

24-26-28 AWG

3/16 in

CON-X® MANUAL CONTACT INSERTION TOOL

Handle

Description

Insertion Bits

Contact Sizes

356-1

Single Contact Hand Tool

356-12

#12

356-16

#16

356-20

#20

356-22

#22 (20 AWG Crimp Barrel)

356-22-1-K

#22 (22 AWG Crimp Barrel)

356-26-K

#26

MIL-E-QUAL® MANUAL CONTACT CRIMPING TOOL

Handle

Description

Positioner

Contact Sizes

Wire Sizes

Conductor Strip

Length

359-24

Hand Crimp Tool

358-112

#12

12-14 AWG

7/32 in

#16

16-18-20 AWG

9/32 in

MIL-E-QUAL® MANUAL CONTACT INSERTION TOOL

Handle

Description

Insertion Bits

Contact Sizes

356-1

Single Contact Hand Tool

356-12

#12

356-16

#16

hec_2013_catalog_hires_b-html.html

tooling

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.

EN2 & EN3® CONTACT CRIMPING TOOL

Handle

Description

Positioner

Contact Sizes

Wire Sizes

EN3CR

Crimp Hand Tool

EN3POS16

#16

16 AWG

EN3POS20

#20

20 & 22 AWG

EN3POS26

#26

26, 28 & 30 AWG

EN3CRAUTO

Pneumatic Crimp Tool

EN3POS16

#16

16 AWG

EN3POS20

#20

20 & 22 AWG

EN3POS26

#26

26, 28 & 30 AWG

EN2 & EN3® INSERTION / EXTRACTION TOOLS

Part Number

Contact Sizes

Description

EN3INS16

#16

Insertion / Extraction Tool for 16 AWG

EN3INS20

#20, #22

Insertion / Extraction Tool for 20 & 22 AWG

EN3INS26

#26

Insertion / Extraction Tool for 26, 28 & 30 AWG

EN2 & EN3® ALTERNATE LARGER FRAME TOOL

Handle

Description

Positioner

Contact Sizes

Wire Sizes

EN2CRL

Hand Tool

EN2POS20L

#20, #22

20-22-24-26 AWG

EN2CRAUTOL

Pneumatic Tool

hec_2013_catalog_hires_b-html.html

notes

48*5$)$3"'5$0.t4"-&4ũ48*5$)$3"'5$0.t/&-450/"7&/6&$)*$"(0*-t

Please check our website for the most up-to-date product specifications.
