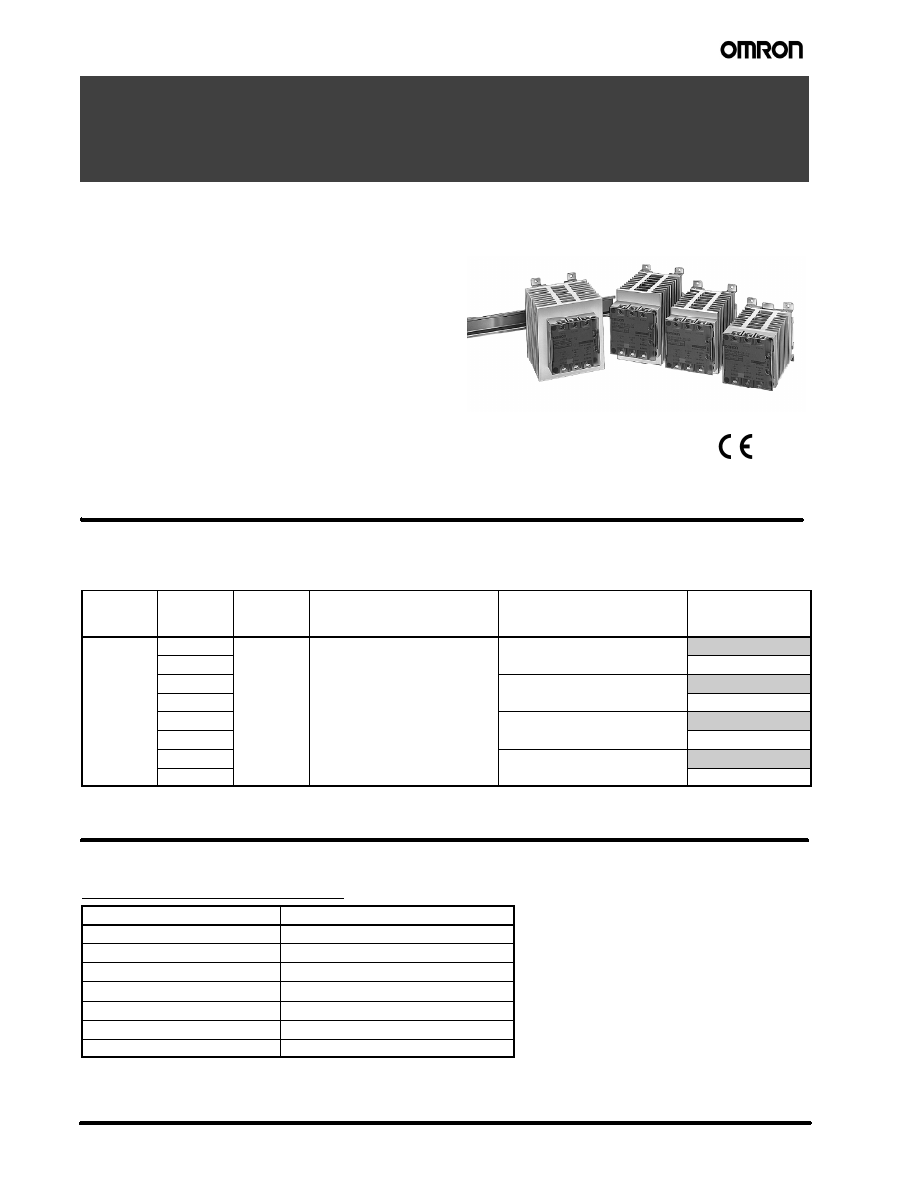

3--Phase Solid--state Contactor

G3PB

C--16

3--Phase Solid--state Contactor

G3PB

Space and working time saved with
new heat sink construction. Series
now includes 480-VAC models to
allow use in a greater range of
applications.

A comprehensive lineup that now includes 480-VAC
models.

Slim design with 3-phase output and built-in heat sinks.

DIN track mounting supported as standard. (Screw
mounting is also possible.)

Conforms to international standards (IEC, UL, and
CSA).

VDE

Ordering Information

Models with Built-in Heat Sinks

Stock Note

: Shaded models are normally stocked.

Applicable

phase

Number of

poles

Zero-cross

function

Main circuit voltage

Applicable heater capacity

(with Class-1 AC resistive

load)

Model

Yes

200 to 480 VAC

12.5 kW max. (15 A)

G3PB-515B-3N-VD

(

)

G3PB-515B-2N-VD

20.7 kW max. (25 A)

G3PB-525B-3N-VD

(

)

G3PB-525B-2N-VD

29.0 kW max. (35 A)

G3PB-535B-3N-VD

(

)

G3PB-535B-2N-VD

37.4 kW max. (45 A)

G3PB-545B-3N-VD

(

)

G3PB-545B-2N-VD

Specifications

Ratings (at an Ambient Temperature of 25

Operating Circuit (Common)

Item

Common

Rated operating voltage

12 to 24 VDC

Operating voltage range

9.6 to 30 VDC

Rated input current (Impedance)

10 mA max. (at 24 VDC)

Must-operate voltage

9.6 VDC max.

Reset voltage

1 VDC min.

Insulation method

Phototriac coupler

Operation indicator

Yellow LED

3--Phase Solid--state Contactor

G3PB

C--17

Main Circuit of Models with Built-in Heat Sinks

Item

G3PB-

515B-

3N-VD

G3PB-

515B-

2N-VD

G3PB-

525B-

3N-VD

G3PB-

525B-

2N-VD

G3PB-

535B-

3N-VD

G3PB-

535B-

2N-VD

G3PB-

545B-

3N-VD

G3PB-

545B-

2N-VD

Rated voltage

200 to 480 VAC

Operating voltage range

180 to 528 VAC

Rated carry current
(see note)

15 A

25 A

35 A

45 A

Minimum load current

0.5 A

Inrush current
resistance (peak value)

220 A
(60 Hz, 1 cycle)

440 A
(60 Hz, 1 cycle)

Permissible I

(half 60-Hz wave)

260 A

1,260 A

Note:

Rated carry current varies depending on the ambient temperature. For details, refer to

Load Current vs. Ambient Temperature

Engi-

neering Data.

Characteristics

Models with Built-in Heat Sinks

Item

G3PB-

515B-

3N-VD

G3PB-

515B-

2N-VD

G3PB-

525B-

3N-VD

G3PB-

525B-

2N-VD

G3PB-

535B-

3N-VD

G3PB-

535B-

2N-VD

G3PB-

545B-

3N-VD

G3PB-

545B-

2N-VD

Operate time

1/2 of load power source cycle + 1 ms max. (DC input)

Release time

1/2 of load power source cycle + 1 ms max. (DC input)

Output ON voltage drop

1.8 V (RMS) max.

Leakage current
(see note)

20 mA (at 480 VAC)

Insulation resistance

100 M

Ω

min. (at 500 VDC)

Dielectric strength

2,500 VAC, 50/60 Hz for 1 min

Vibration resistance

10 to 55 Hz, 0.175-mm single amplitude

Shock resistance

294 m/s

(98 m/s

with reverse mounting)

Ambient temperature

Operating:

--30

C to 80

C (with no icing or condensation)

Storage:

--30

C to 100

C (with no icing or condensation)

Ambient humidity

Operating: 45% to 85%

Weight

Approx. 1.25 kg

Approx. 1.45 kg

Approx. 1.65 kg

Approx. 2.0 kg

Approved standards

UL508, CSA22.2 No. 14, EN60947-4-3 (IEC947-4-3) approved by VDE
(From April 2001)

EMC

Emission

EN55011 Group 1 Class B

Immunity

ESD

IEC947-4-3, EN61000-4-2

4 kV contact discharge
8 kV air discharge

Immunity

Electromagnetic

IEC947-4-3, EN61000-4-3

10 V/m (80 MHz to 1 GHz)

Immunity

EFT

IEC947-4-3, EN61000-4-4

2 kV AC power-signal line

Immunity

Surge transient

IEC947-4-3, EN61000-4-5

Normal mode

1 kV, Common mode

2 kV

Immunity

RF disturbance

IEC947-4-3, EN61000-4-6

10 V (0.15 to 80 MHz)

Immunity

Dips

IEC947-4-3, EN61000-4-11

Note:

The leakage current of phase S will be approximately

times larger if the 2-element model is applied.

√

3--Phase Solid--state Contactor

G3PB

C--19

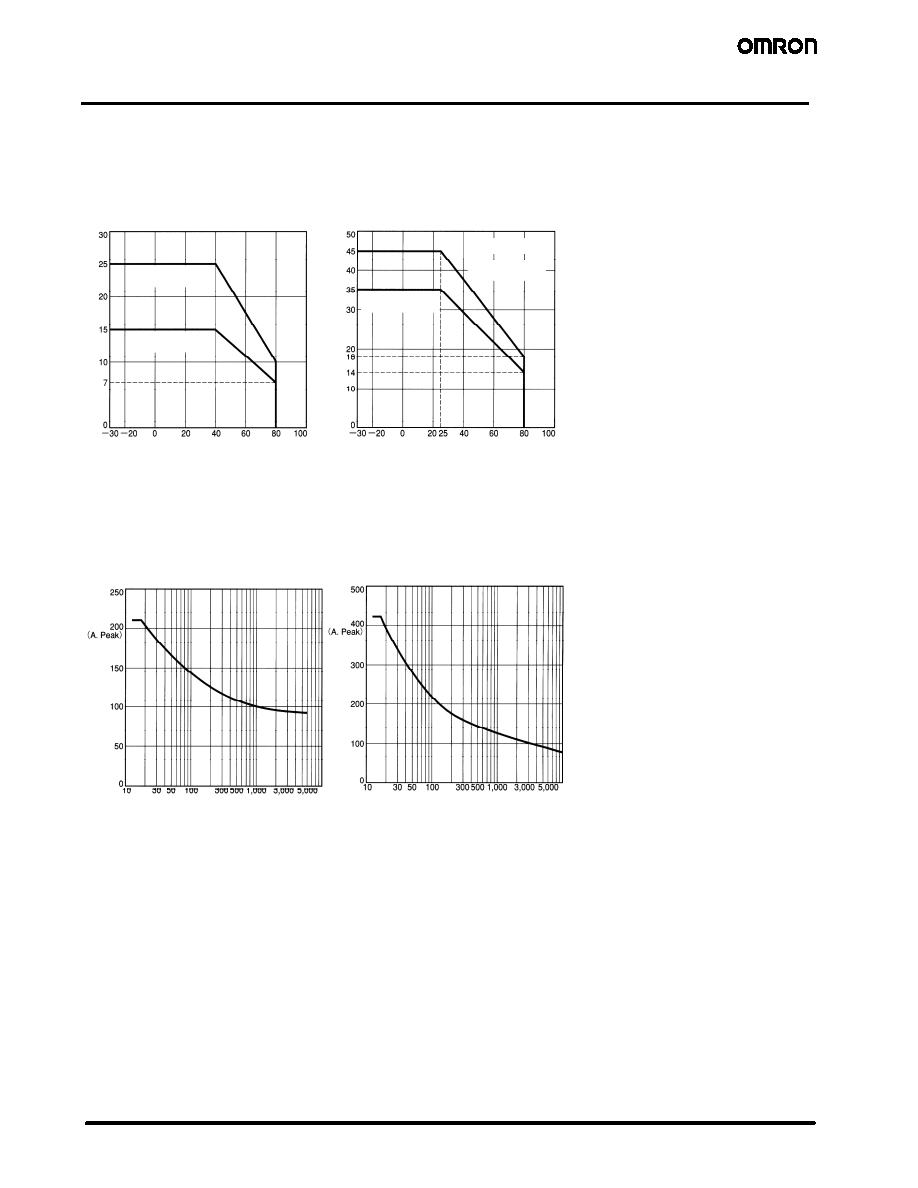

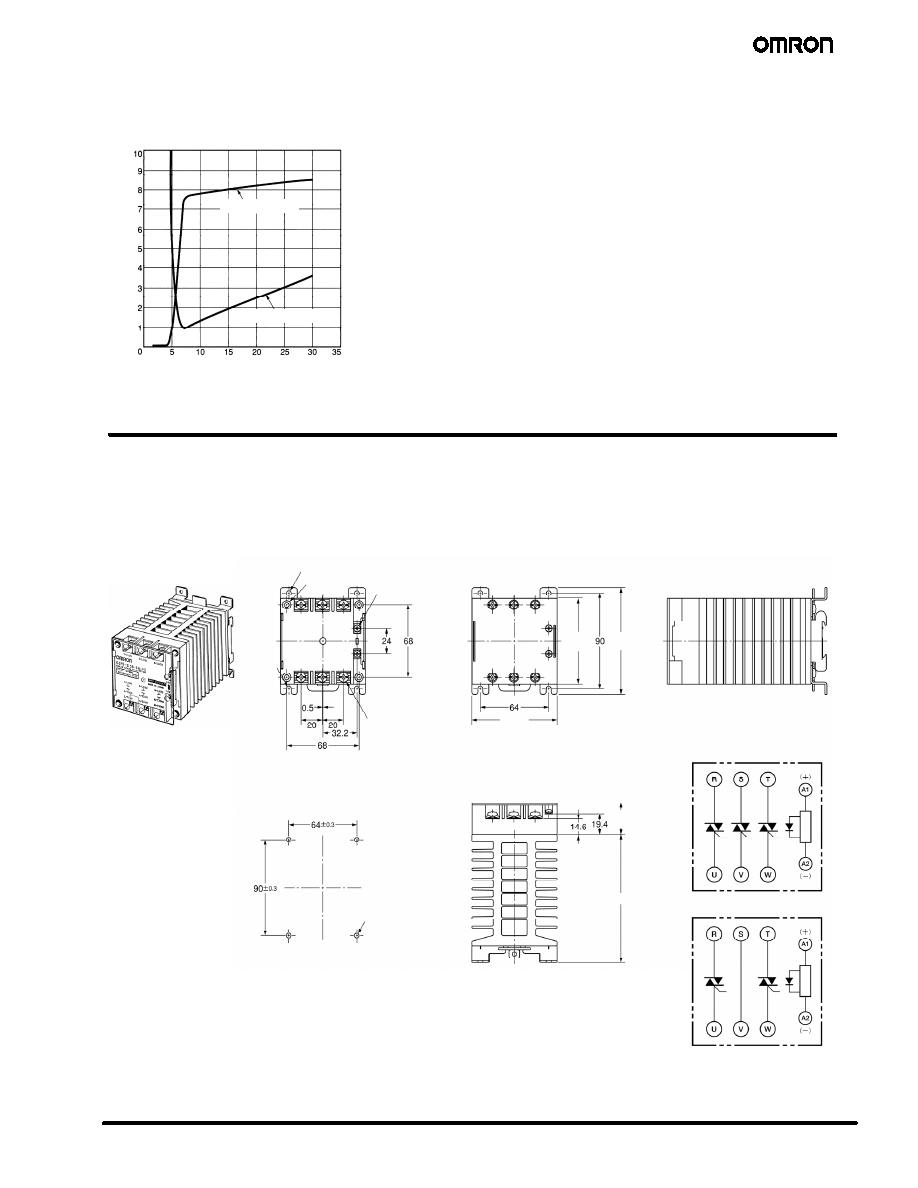

Input Voltage vs. Input Current and Input Voltage vs. Input
Impedance

Input voltage (V)

Input

current

(mA)

)

Ω

Input current

Input impedance

Dimensions

Note:

All units are in millimeters unless otherwise indicated.

G3PB-515B-3N-VD
G3PB-515B-2N-VD
G3PB-525B-2N-VD

Two, 4.6-dia. mounting holes

Four, 8 dia.

Two, R2.3

mounting

holes

80 max.

100 max.

80.5
max.

Mounting Hole Dimensions

Four, 4.5-dia. or M4

30.5 max.

120 max.

Terminal Arrangement/
Internal Connections

G3PB-

jjj

B-3N-VD

G3PB-

jjj

B-2N-VD

Input

rcui

Input

rcui

Without Terminal Cover

With Terminal Cover

Two, M3.5

Six, M4

3--Phase Solid--state Contactor

G3PB

C--21

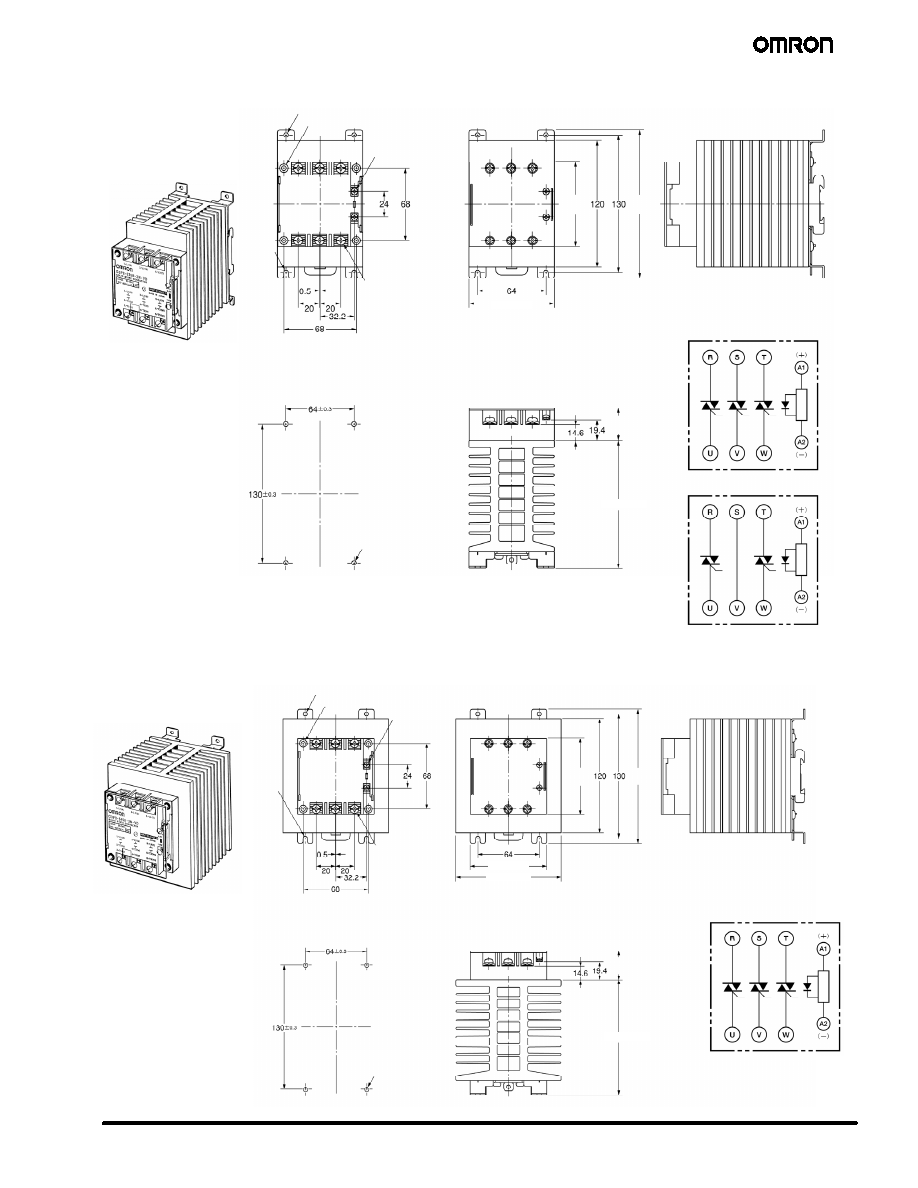

G3PB-535B-3N-VD
G3PB-545B-2N-VD

Two, 4.6-dia. mounting holes

Four, 8 dia.

140
max.

80.5
max.

30.5 max.

120 max.

G3PB-

jjj

B-3N-VD

G3PB-

jjj

B-2N-VD

Two, R2.3

mounting

holes

Four, 4.5-dia. or M4

Without Terminal Cover

With Terminal Cover

Terminal Arrangement/
Internal Connections

Input

rcui

Input

rcui

Mounting Hole Dimensions

Two, M3.5

Six, M5

80 max.

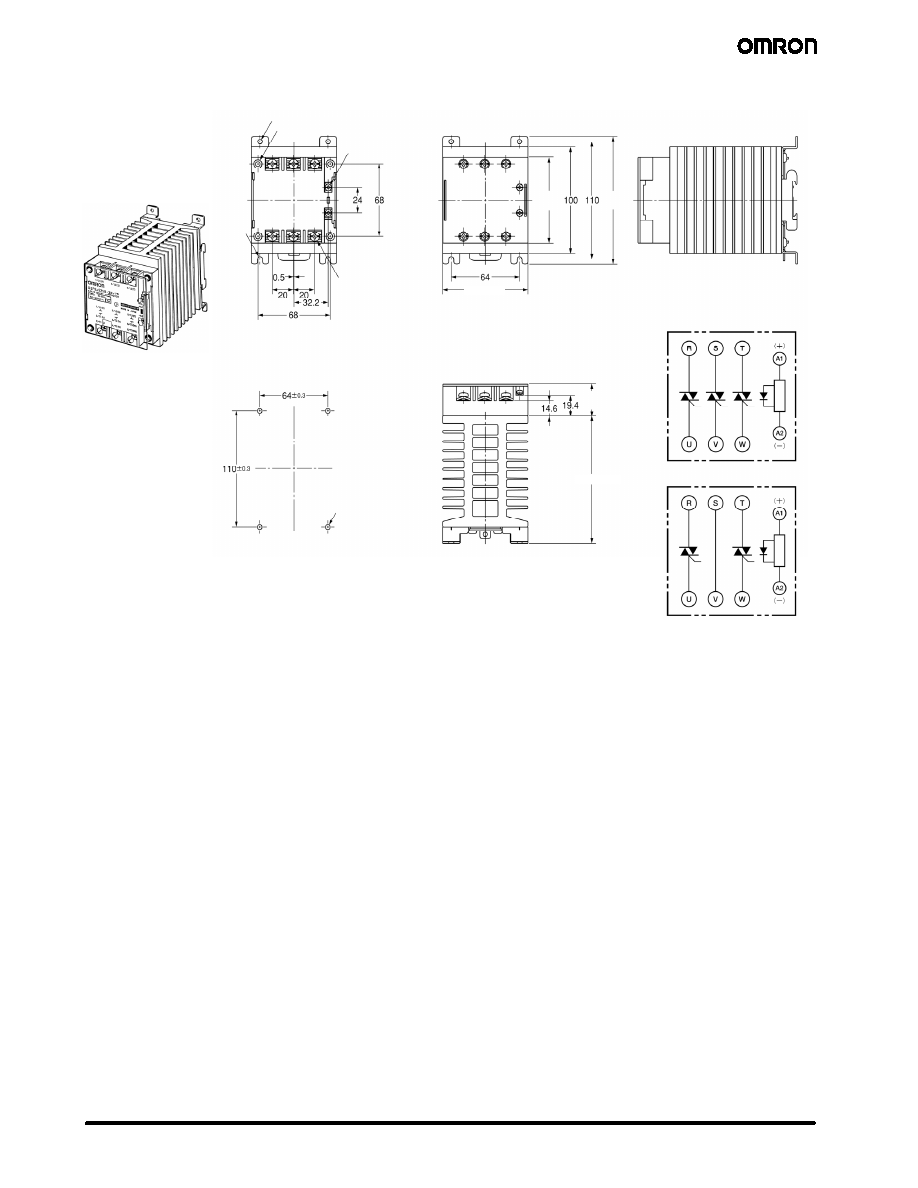

G3PB-545B-3N-VD

Four, 8 dia.

80 max.

140
max.

80.5
max.

30.5 max.

120 max.

G3PB-

jjj

B-3N-VD

110 max.

Two, 4.6-dia. mounting holes

Two, R2.3

mounting

holes

Without Terminal Cover

With Terminal Cover

Mounting Hole Dimensions

Four, 4.5-dia.
or M4

Terminal Arrangement/
Internal Connections

Input

rcui

Two, M3.5

Six, M5

3--Phase Solid--state Contactor

G3PB

C--22

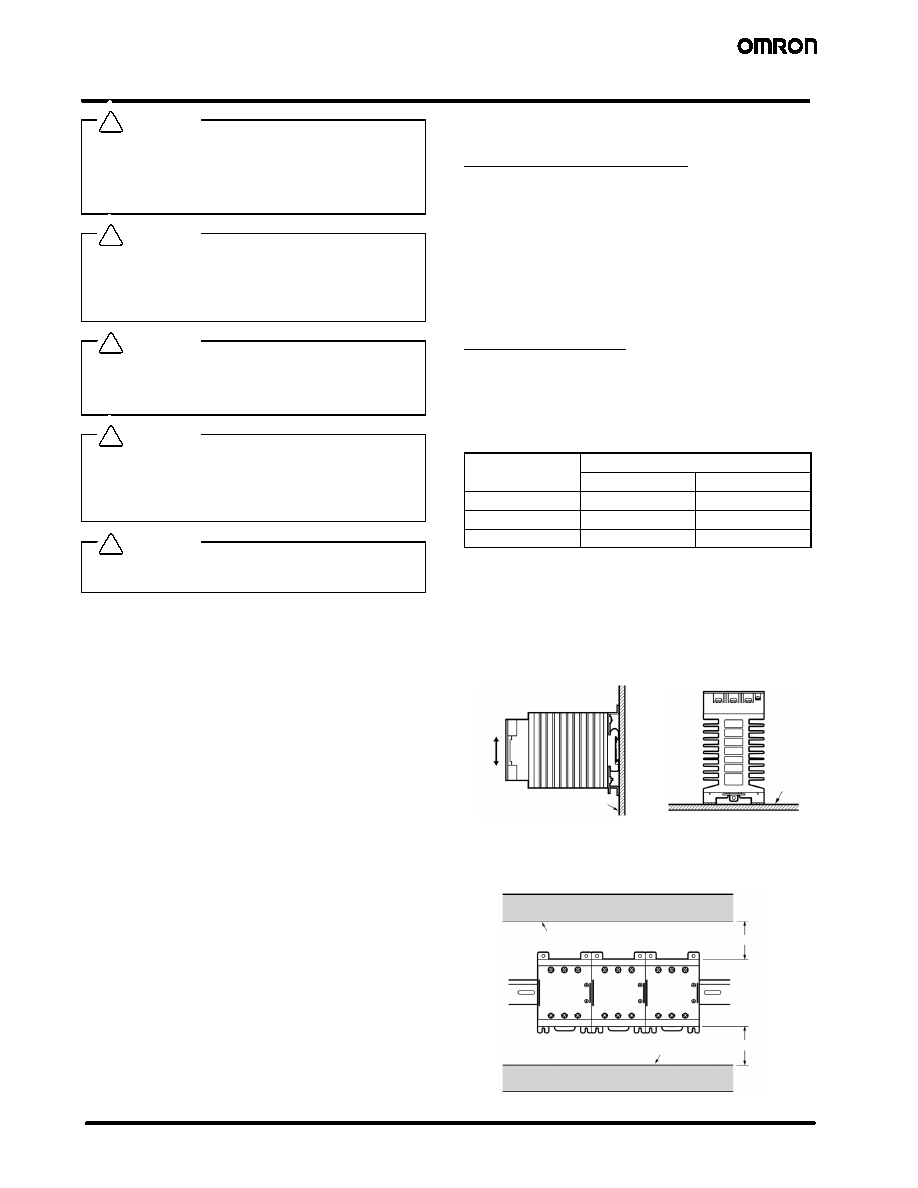

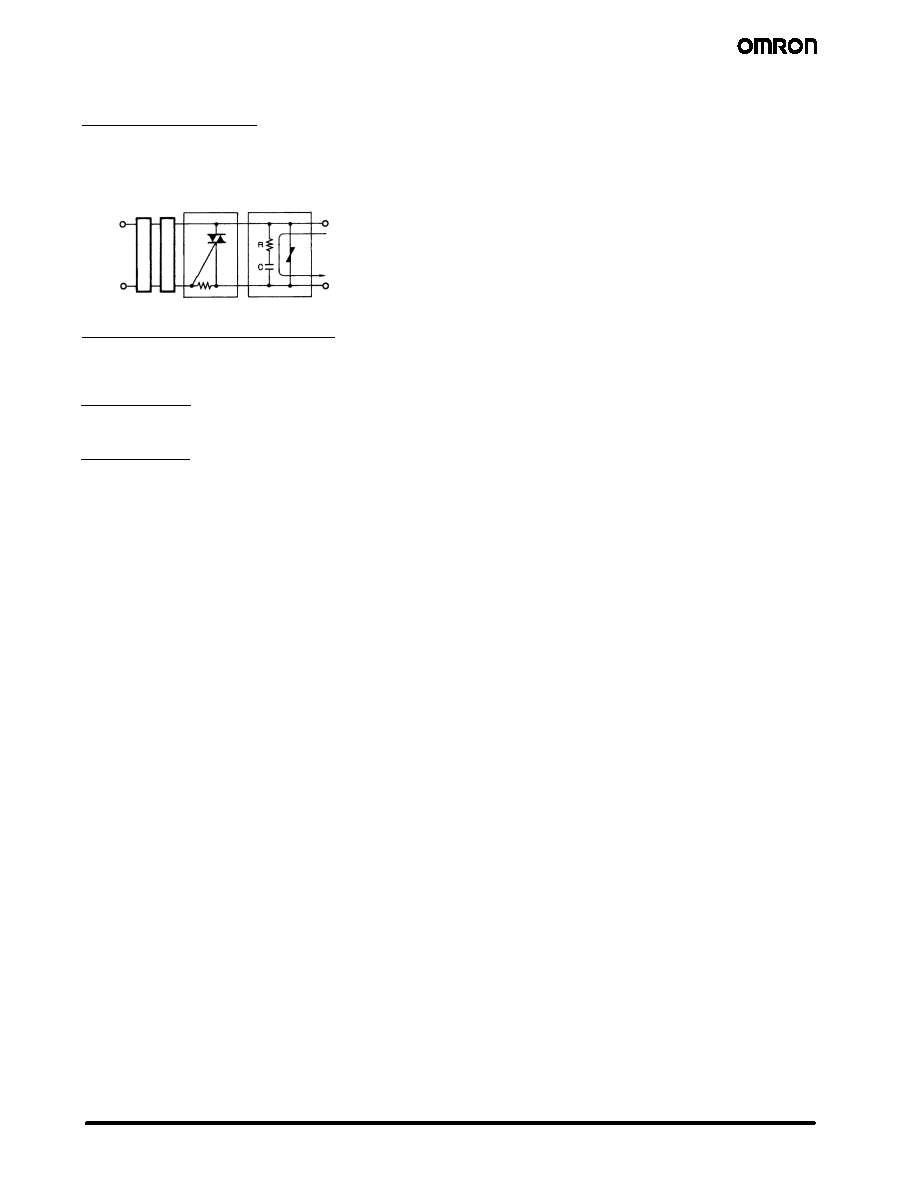

Precautions

Do not touch the terminals (i.e., charged parts) of the G3PB
while power is supplied, otherwise an electric shock may be
received.

If the G3PB is provided with a terminal cover, be sure to attach
the terminal cover to the G3PB before operating the G3PB.

WARNING

The G3PB and radiator are very hot while power is supplied to
the G3PB.
Do not touch the G3PB or the radiator while power is supplied
to the G3PB or immediately after the G3PB is turned OFF,
otherwise a burn may result.

WARNING

Do not touch main circuit terminal of the G3PB immediately af-
ter the G3PB is turned OFF, otherwise an electric shock may
be received due to the residual charge of the built-in snubber
circuit.

WARNING

Be sure to turn OFF the power supply to the G3PB before wir-
ing, otherwise an electric shock may be received.
Mount the terminal cover to the G3PB after wiring.
Do not touch the terminals of the G3PB while power is sup-
plied, otherwise an electric shock may be received.

WARNING

Ensure that a short-circuit current does not flow on the load
side of the SSR, otherwise the G3PB may be damaged.

General Precautions

At OMRON, we are constantly working to improve the quality and
reliability of our products. SSRs, however, use semiconductors,
which are prone to malfunction. Be sure to use SSRs within their
rated values.

Use the SSR only in systems that are designed with redundancies,
flame protection, counter measures to prevent operation errors, and
other countermeasures to prevent accidents involving human life or
fires.

1. Do not apply voltages or currents to the G3PB’s terminals in

excess of the rated values. Doing so may result in malfunction
or burning.

2. Do not use the G3PB with terminal screws not properly

tightened. Abnormal heating of the terminals may result in
burning.

3. Do not obstruct the flow of air around the G3PB and the

radiator. Abnormal heating of the G3PB may result
short-circuiting of output elements and burning.

4. Perform wiring and tighten screws according to the

instructions given under

Correct Use

. Using the G3PB with

incorrect wiring or with the screws not tightened properly may
result in burning due to abnormal heating of the G3PB during
use.

Correct Use

Before Actual Operation

•

The G3PB in operation may cause an unexpected accident.
Therefore it is necessary to test the G3PB under a variety of
conditions that are possible. As for the characteristics of the
G3PB, it is necessary to consider differences in characteristics
between G3PB Units.

•

The ratings in this datasheet are tested values in a temperature
range between 15

C and 30

C, a relative humidity range

between 25% and 85%, and an atmospheric pressure range
between 88 and 106 kPa. It will be necessary to provide the
above conditions as well as the load conditions if the user wants
to confirm the ratings of actual G3PB Units.

Mounting Method

Since the Relay is heavy, firmly mount the DIN track and fix both
ends with End Plates for DIN-track-mounting models.

Applicable DIN Tracks

The G3PB can be mounted to TH35-15Fe (IEC60715) DIN tracks.
The manufacturers and models of DIN tracks to which mounting is
possible are shown in the following table.

Manufacturer

Thickness

1.5 mm

2.3 mm

Schneider

AM1-DE200

---

WAGO

210-114, 210-197

210-118

PHOENIX

NS35/15

NS35/15-2.3

Direct Mounting

When mounting directly onto a panel, mount securely under the fol-
lowing conditions.

Screw diameter: M4
Tightening torque: 0.98 to 1.47 N

Mounted State

Vertical Mounting

Horizontal Mounting

rtical

direction

Panel

Note:

Mount the G3PB so
that the markings
can be read.

Note:

When the G3PB is
mounted horizontally,
use at 50% of the rated
load current.

Wiring duct

80 mm min.

Wiring duct

Close Mounting

3--Phase Solid--state Contactor

G3PB

C--23

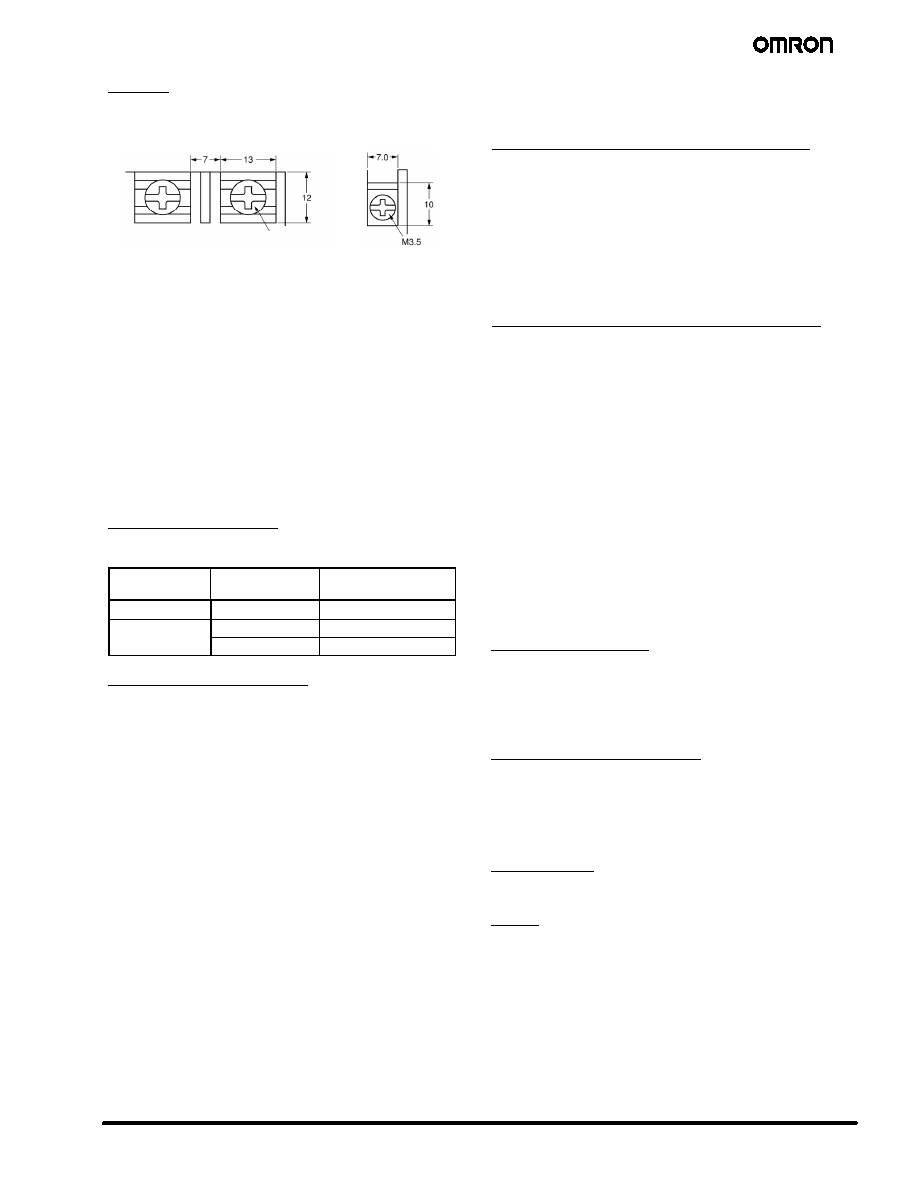

Wiring

When using crimp terminals, refer to the terminal clearances shown
below.

Output Terminals

Input Terminals

M4 (15 A, 25 A)
M5 (35 A, 45 A)

•

Be sure that all lead wires are thick enough according to the
current.

•

Output terminals T1, T2, and T3 are charged regardless of
whether the Unit is a 2- or 3-element model that is turned on or
off. Do not touch these terminals, otherwise an electric shock
may be received.

To isolate the Unit from the power supply, install an appropriate
circuit breaker between the power supply and Unit.

Be sure to turn off the power supply before wiring the Unit.

•

Terminal L2 and terminal T2 of the 2-element model are
internally short-circuited to each other. Therefore, connect
terminal L2 to the ground terminal side of the power supply. If
terminal L2 is connected to a terminal other than the ground
terminal, cover all the charged terminals, such as heater
terminals, for the prevention of electric shock accidents and
ground faults.

Tightening Torque

Refer to the following and be sure to tighten each screw of the Unit to
the specified torque in order to prevent the Unit from malfunctioning.

Item

Screw terminal

diameter

Tightening torque

Input terminal

M3.5

0.59 to 1.18 N

Output terminal

0.98 to 1.47 N

1.47 to 2.45 N

Operating Conditions

•

Do not apply current exceeding the rated current otherwise, the
temperature of the G3PB may rise excessively.

•

Be sure to prevent the ambient temperature rising due to the heat
radiation of the G3PB. If the G3PB is mounted inside a panel,
install a fan so that the interior of the panel is fully ventilated.

•

Do not use the G3PB if heat dissipation fins have been bent as a
result of, for example, dropping the G3PB. If used in this state,
the G3PB may be damaged due to the decreased heat
dissipation capacity.

•

Only use the G3PB with loads that are within the rated values.
Using the G3PB with loads outside the rated values may result in
malfunction, damage, or burning.

•

Use a power supply within the rated frequency range. Using a
power supply outside the rated frequency range may result in
malfunction, damage, or burning.

•

Keep wiring separate from high-voltage power lines and use
wires of an appropriate length, otherwise malfunction and
damage may result due to induction.

•

As protection against accidents due to short-circuiting, be sure to
install protective devices, such as fuses and no-fuse breakers on
the power supply side.

Operating and Storage
Environments

1. Operating Ambient Temperature

The rated value for the ambient operating temperature of the G3PB
is for when there is no built-up heat. For this reason, under condi-
tions where heat dissipation is not good due to poor ventilation, and
where heat may build up easily, the actual temperature of the G3PB
may exceed the rated value resulting in malfunction on burning.

When using the G3PB, design the system to allow heat dissipation
sufficient to stay below the

Load Current vs. Ambient Temperature

characteristic curve. Note also that the ambient temperature of the
G3PB may increase as a result of environmental conditions (e.g.,
climate, air-conditioning) and operating conditions (e.g., mounting
in an airtight panel).

2. Operating and Storage Locations

Do not use or store the G3PB in the following locations. Doing so
may result in damage, malfunction, or deterioration of performance
characteristics.

•

Do not use or store in locations subject to direct sunlight.

•

Do not use in locations subject to ambient temperatures outside
the range --20 to 60

•

Do not use in locations subject to relative humidity outside the
range 45% to 85% or locations subject to condensation as the
result of severe changes in temperature.

•

Do not store in locations subject to ambient temperatures
outside the range --30 to 70

•

Do not use or store in locations subject to corrosive or flammable
gases.

•

Do not use or store in locations subject to dust (especially iron
dust) or salts.

•

Do not use or store in locations subject to shock or vibration.

•

Do not use or store in locations subject to exposure to water, oil,
or chemicals.

3. Transportation

When transporting the G3PB, observe the following points. Not do-
ing so may result in damage, malfunction, or deterioration of perfor-
mance characteristics.

•

Do not drop the G3PB or subject it to severe vibrations or shock.

•

Do not transport the product if it is wet.

4. Vibration and Shock

Do not subject the SSR to excessive vibration or shock. Otherwise
the SSR may malfunction and internal components may be dam-
aged.

To prevent the SSR from abnormal vibration, do not install the G3PB
in locations or by means that will subject it to the vibrations from oth-
er devices, such as motors.

5. Solvents

Do not allow the G3PB to come in contact with solvents such as thin-
ners or gasoline. Doing so will dissolve the markings on the SSR.

6. Oil

Do not allow the G3PB terminal cover to come in contact with oil.
Doing so will cause the cover to crack and become cloudy.

&HUWDLQ7HUPVDQG&RQGLWLRQVRI6DOH

2IIHU$FFHSWDQFH7KHVHWHUPVDQGFRQGLWLRQVWKHVH7HUPVDUHGHHPHG

SDUWRIDOOFDWDORJVPDQXDOVRURWKHUGRFXPHQWVZKHWKHUHOHFWURQLFRULQZULW

LQJ UHODWLQJ WR WKH VDOH RI JRRGV RU VHUYLFHV FROOHFWLYHO\ WKH *RRGV E\

2PURQ(OHFWURQLFV//&DQGLWVVXEVLGLDU\FRPSDQLHV6HOOHU6HOOHUKHUHE\

REMHFWVWRDQ\WHUPVRUFRQGLWLRQVSURSRVHGLQ%X\HUVSXUFKDVHRUGHURURWKHU

GRFXPHQWVZKLFKDUHLQFRQVLVWHQWZLWKRULQDGGLWLRQWRWKHVH7HUPV3OHDVH

FRQWDFW\RXU2PURQUHSUHVHQWDWLYHWRFRQILUPDQ\DGGLWLRQDOWHUPVIRUVDOHV

IURP\RXU2PURQFRPSDQ\

3ULFHV $OO SULFHV VWDWHG DUH FXUUHQW VXEMHFW WR FKDQJH ZLWKRXW QRWLFH E\

6HOOHU%X\HUDJUHHVWRSD\WKHSULFHLQHIIHFWDWWLPHRIVKLSPHQW

'LVFRXQWV &DVK GLVFRXQWV LI DQ\ ZLOO DSSO\ RQO\ RQ WKH QHW DPRXQW RI

LQYRLFHV VHQW WR %X\HU DIWHU GHGXFWLQJ WUDQVSRUWDWLRQ FKDUJHV WD[HV DQG

GXWLHVDQGZLOOEHDOORZHGRQO\LILWKHLQYRLFHLVSDLGDFFRUGLQJWR6HOOHUV

SD\PHQWWHUPVDQGLL%X\HUKDVQRSDVWGXHDPRXQWVRZLQJWR6HOOHU

2UGHUV6HOOHUZLOODFFHSWQRRUGHUOHVVWKDQQHWELOOLQJ

*RYHUQPHQWDO $SSURYDOV %X\HU VKDOO EH UHVSRQVLEOH IRU DQG VKDOO EHDU DOO

FRVWVLQYROYHGLQREWDLQLQJDQ\JRYHUQPHQWDSSURYDOVUHTXLUHGIRUWKHLPSRU

WDWLRQRUVDOHRIWKH*RRGV

7D[HV$OOWD[HVGXWLHVDQGRWKHUJRYHUQPHQWDOFKDUJHVRWKHUWKDQJHQHUDO

UHDOSURSHUW\DQGLQFRPHWD[HVLQFOXGLQJDQ\LQWHUHVWRUSHQDOWLHVWKHUHRQ

LPSRVHGGLUHFWO\RULQGLUHFWO\RQ6HOOHURUUHTXLUHGWREHFROOHFWHGGLUHFWO\RU

LQGLUHFWO\E\6HOOHUIRUWKHPDQXIDFWXUHSURGXFWLRQVDOHGHOLYHU\LPSRUWDWLRQ

FRQVXPSWLRQ RU XVH RI WKH *RRGV VROG KHUHXQGHU LQFOXGLQJ FXVWRPV GXWLHV

DQGVDOHVH[FLVHXVHWXUQRYHUDQGOLFHQVHWD[HVVKDOOEHFKDUJHGWRDQG

UHPLWWHGE\%X\HUWR6HOOHU

)LQDQFLDO,IWKHILQDQFLDOSRVLWLRQRI%X\HUDWDQ\WLPHEHFRPHVXQVDWLVIDFWRU\

WR 6HOOHU 6HOOHU UHVHUYHV WKH ULJKW WR VWRS VKLSPHQWV RU UHTXLUH VDWLVIDFWRU\

VHFXULW\RUSD\PHQWLQDGYDQFH,I%X\HUIDLOVWRPDNHSD\PHQWRURWKHUZLVH

FRPSO\ZLWKWKHVH7HUPVRUDQ\UHODWHGDJUHHPHQW6HOOHUPD\ZLWKRXWOLDELOLW\

DQGLQDGGLWLRQWRRWKHUUHPHGLHVFDQFHODQ\XQVKLSSHGSRUWLRQRI*RRGVVROG

KHUHXQGHUDQGVWRSDQ\*RRGVLQWUDQVLWXQWLO%X\HUSD\VDOODPRXQWVLQFOXG

LQJDPRXQWVSD\DEOHKHUHXQGHUZKHWKHURUQRWWKHQGXHZKLFKDUHRZLQJWRLW

E\%X\HU%X\HUVKDOOLQDQ\HYHQWUHPDLQOLDEOHIRUDOOXQSDLGDFFRXQWV

&DQFHOODWLRQ (WF 2UGHUV DUH QRW VXEMHFW WR UHVFKHGXOLQJ RU FDQFHOODWLRQ

XQOHVV%X\HULQGHPQLILHV6HOOHUIXOO\DJDLQVWDOOFRVWVRUH[SHQVHVDULVLQJLQ

FRQQHFWLRQWKHUHZLWK

)RUFH0DMHXUH6HOOHUVKDOOQRWEHOLDEOHIRUDQ\GHOD\RUIDLOXUHLQGHOLYHU\

UHVXOWLQJIURPFDXVHVEH\RQGLWVFRQWUROLQFOXGLQJHDUWKTXDNHVILUHVIORRGV

VWULNHV RU RWKHU ODERU GLVSXWHV VKRUWDJH RI ODERU RU PDWHULDOV DFFLGHQWV WR

PDFKLQHU\ DFWV RI VDERWDJH ULRWV GHOD\ LQ RU ODFN RI WUDQVSRUWDWLRQ RU WKH

UHTXLUHPHQWVRIDQ\JRYHUQPHQWDXWKRULW\

6KLSSLQJ'HOLYHU\8QOHVVRWKHUZLVHH[SUHVVO\DJUHHGLQZULWLQJE\6HOOHU

D 6KLSPHQWVVKDOOEHE\DFDUULHUVHOHFWHGE\6HOOHU

E 6XFKFDUULHUVKDOODFWDVWKHDJHQWRI%X\HUDQGGHOLYHU\WRVXFKFDUULHU

VKDOOFRQVWLWXWHGHOLYHU\WR%X\HU

F $OOVDOHVDQGVKLSPHQWVRI*RRGVVKDOOEH)2%VKLSSLQJSRLQWXQOHVVRWK

HUZLVHVWDWHGLQZULWLQJE\6HOOHUDWZKLFKSRLQWWLWOHWRDQGDOOULVNRIORVVRI

WKH*RRGVVKDOOSDVVIURP6HOOHUWR%X\HUSURYLGHGWKDW6HOOHUVKDOOUHWDLQD

VHFXULW\LQWHUHVWLQWKH*RRGVXQWLOWKHIXOOSXUFKDVHSULFHLVSDLGE\%X\HU

G 'HOLYHU\DQGVKLSSLQJGDWHVDUHHVWLPDWHVRQO\

H 6HOOHUZLOOSDFNDJH*RRGVDVLWGHHPVSURSHUIRUSURWHFWLRQDJDLQVWQRUPDO

KDQGOLQJDQGH[WUDFKDUJHVDSSO\WRVSHFLDOFRQGLWLRQV

&ODLPV $Q\ FODLP E\ %X\HU DJDLQVW 6HOOHU IRU VKRUWDJH RU GDPDJH WR WKH

*RRGVRFFXUULQJEHIRUHGHOLYHU\WRWKHFDUULHUPXVWEHSUHVHQWHGLQZULWLQJWR

6HOOHUZLWKLQGD\VRIUHFHLSWRIVKLSPHQWDQGLQFOXGHWKHRULJLQDOWUDQVSRUWD

WLRQELOOVLJQHGE\WKHFDUULHUQRWLQJWKDWWKHFDUULHUUHFHLYHGWKH*RRGVIURP

6HOOHULQWKHFRQGLWLRQFODLPHG

:DUUDQWLHV D ([FOXVLYH :DUUDQW\ 6HOOHUV H[FOXVLYH ZDUUDQW\ LV WKDW WKH

*RRGVZLOOEHIUHHIURPGHIHFWVLQPDWHULDOVDQGZRUNPDQVKLSIRUDSHULRGRI

WZHOYHPRQWKVIURPWKHGDWHRIVDOHE\6HOOHURUVXFKRWKHUSHULRGH[SUHVVHG

LQZULWLQJE\6HOOHU6HOOHUGLVFODLPVDOORWKHUZDUUDQWLHVH[SUHVVRULPSOLHG

E/LPLWDWLRQV6(//(50$.(612:$55$17<255(35(6(17$7,21

(;35(66 25 ,03/,(' $%287 121,1)5,1*(0(17 0(5&+$17$%,/

,7< 25 ),71(66 )25 $ 3$57,&8/$5 385326( 2) 7+( *22'6

%8<(5$&.12:/('*(67+$7,7$/21(+$6'(7(50,1('7+$77+(

*22'6 :,// 68,7$%/< 0((7 7+( 5(48,5(0(176 2) 7+(,5

,17(1'('86(6HOOHUIXUWKHUGLVFODLPVDOOZDUUDQWLHVDQGUHVSRQVLELOLW\RI

DQ\W\SHIRUFODLPVRUH[SHQVHVEDVHGRQLQIULQJHPHQWE\WKH*RRGVRURWKHU

ZLVHRIDQ\LQWHOOHFWXDOSURSHUW\ULJKWF%X\HU5HPHG\6HOOHUVVROHREOLJD

WLRQKHUHXQGHUVKDOOEHWRUHSODFHLQWKHIRUPRULJLQDOO\VKLSSHGZLWK%X\HU

UHVSRQVLEOH IRU ODERU FKDUJHV IRU UHPRYDO RU UHSODFHPHQW WKHUHRI WKH QRQ

FRPSO\LQJ *RRG RU DW 6HOOHUV HOHFWLRQ WR UHSD\ RU FUHGLW %X\HU DQ DPRXQW

HTXDOWRWKHSXUFKDVHSULFHRIWKH*RRGSURYLGHGWKDWLQQRHYHQWVKDOO6HOOHU

EHUHVSRQVLEOHIRUZDUUDQW\UHSDLULQGHPQLW\RUDQ\RWKHUFODLPVRUH[SHQVHV

UHJDUGLQJ WKH *RRGV XQOHVV 6HOOHUV DQDO\VLV FRQILUPV WKDW WKH *RRGV ZHUH

SURSHUO\KDQGOHGVWRUHGLQVWDOOHGDQGPDLQWDLQHGDQGQRWVXEMHFWWRFRQWDPL

QDWLRQDEXVHPLVXVHRULQDSSURSULDWHPRGLILFDWLRQ5HWXUQRIDQ\JRRGVE\

%X\HUPXVWEHDSSURYHGLQZULWLQJE\6HOOHUEHIRUHVKLSPHQW6HOOHUVKDOOQRW

EHOLDEOHIRUWKHVXLWDELOLW\RUXQVXLWDELOLW\RUWKHUHVXOWVIURPWKHXVHRI*RRGV

LQFRPELQDWLRQZLWKDQ\HOHFWULFDORUHOHFWURQLFFRPSRQHQWVFLUFXLWVV\VWHP

DVVHPEOLHV RU DQ\ RWKHU PDWHULDOV RU VXEVWDQFHV RU HQYLURQPHQWV $Q\

DGYLFHUHFRPPHQGDWLRQVRULQIRUPDWLRQJLYHQRUDOO\RULQZULWLQJDUHQRWWREH

FRQVWUXHGDVDQDPHQGPHQWRUDGGLWLRQWRWKHDERYHZDUUDQW\

'DPDJH/LPLWV(WF6(//(56+$//127%(/,$%/()2563(&,$/,1',

5(&7 25 &216(48(17,$/ '$0$*(6 /266 2) 352),76 25 352

'8&7,2125&200(5&,$//266,1$1<:$<&211(&7(':,7+7+(

*22'6:+(7+(568&+&/$,0,6%$6(',1&2175$&7:$55$17<

1(*/,*(1&(25675,&7 /,$%,/,7<)XUWKHULQ QRHYHQW VKDOOOLDELOLW\RI

6HOOHUH[FHHGWKHLQGLYLGXDOSULFHRIWKH*RRGRQZKLFKOLDELOLW\LVDVVHUWHG

,QGHPQLWLHV%X\HUVKDOOLQGHPQLI\DQGKROGKDUPOHVV6HOOHULWVDIILOLDWHVDQG

LWV HPSOR\HHV IURP DQG DJDLQVW DOO OLDELOLWLHV ORVVHV FODLPV FRVWV DQG

H[SHQVHVLQFOXGLQJDWWRUQH\VIHHVDQGH[SHQVHVUHODWHGWRDQ\FODLPLQYHV

WLJDWLRQOLWLJDWLRQRUSURFHHGLQJZKHWKHURUQRW6HOOHULVDSDUW\ZKLFKDULVHV

RULVDOOHJHGWRDULVHIURP%X\HUVDFWVRURPLVVLRQVXQGHUWKHVH7HUPVRULQ

DQ\ZD\ZLWKUHVSHFWWRWKH*RRGV:LWKRXWOLPLWLQJWKHIRUHJRLQJ%X\HUDW

LWVRZQH[SHQVHVKDOOLQGHPQLI\DQGKROGKDUPOHVV6HOOHUDQGGHIHQGRUVHWWOH

DQ\DFWLRQEURXJKWDJDLQVW6HOOHUWRWKHH[WHQWWKDWLWLVEDVHGRQDFODLPWKDW

DQ\*RRGPDGHWR%X\HUVSHFLILFDWLRQVLQIULQJHGLQWHOOHFWXDOSURSHUW\ULJKWVRI

DQRWKHUSDUW\

3URSHUW\&RQILGHQWLDOLW\7KHLQWHOOHFWXDOSURSHUW\HPERGLHGLQWKH*RRGVLV

WKHH[FOXVLYHSURSHUW\RI6HOOHUDQGLWVDIILOLDWHVDQG%X\HUVKDOOQRWDWWHPSWWR

GXSOLFDWHLWLQDQ\ZD\ZLWKRXWWKHZULWWHQSHUPLVVLRQRI6HOOHU1RWZLWKVWDQG

LQJDQ\FKDUJHVWR%X\HUIRUHQJLQHHULQJRUWRROLQJDOOHQJLQHHULQJDQGWRROLQJ

VKDOO UHPDLQ WKH H[FOXVLYH SURSHUW\ RI 6HOOHU $OO LQIRUPDWLRQ DQG PDWHULDOV

VXSSOLHGE\6HOOHUWR%X\HUUHODWLQJWRWKH*RRGVDUHFRQILGHQWLDODQGSURSUL

HWDU\ DQG %X\HU VKDOO OLPLW GLVWULEXWLRQ WKHUHRI WR LWV WUXVWHG HPSOR\HHV DQG

VWULFWO\SUHYHQWGLVFORVXUHWRDQ\WKLUGSDUW\

0LVFHOODQHRXVD:DLYHU1RIDLOXUHRUGHOD\E\6HOOHULQH[HUFLVLQJDQ\ULJKW

DQGQRFRXUVHRIGHDOLQJEHWZHHQ%X\HUDQG6HOOHUVKDOORSHUDWHDVDZDLYHU

RIULJKWVE\6HOOHUE$VVLJQPHQW%X\HUPD\QRWDVVLJQLWVULJKWVKHUHXQGHU

ZLWKRXW6HOOHUVZULWWHQFRQVHQWF$PHQGPHQW7KHVH7HUPVFRQVWLWXWHWKH

HQWLUHDJUHHPHQWEHWZHHQ%X\HUDQG6HOOHUUHODWLQJWRWKH*RRGVDQGQRSUR

YLVLRQPD\EHFKDQJHGRUZDLYHGXQOHVVLQZULWLQJVLJQHGE\WKHSDUWLHV

G6HYHUDELOLW\,IDQ\SURYLVLRQKHUHRILVUHQGHUHGLQHIIHFWLYHRULQYDOLGVXFK

SURYLVLRQVKDOOQRWLQYDOLGDWHDQ\RWKHUSURYLVLRQH6HWRII%X\HUVKDOOKDYH

QR ULJKWWR VHWRII DQ\ DPRXQWV DJDLQVWWKH DPRXQWRZLQJ LQ UHVSHFW RIWKLV

LQYRLFHI$VXVHGKHUHLQLQFOXGLQJPHDQVLQFOXGLQJZLWKRXWOLPLWDWLRQ

&HUWDLQ3UHFDXWLRQVRQ6SHFLILFDWLRQVDQG8VH

6XLWDELOLW\RI8VH6HOOHUVKDOOQRWEHUHVSRQVLEOHIRUFRQIRUPLW\ZLWKDQ\VWDQ

GDUGVFRGHVRUUHJXODWLRQVZKLFKDSSO\WRWKHFRPELQDWLRQRIWKH*RRGLQWKH

%X\HUVDSSOLFDWLRQRUXVHRIWKH*RRG$W%X\HUVUHTXHVW6HOOHUZLOOSURYLGH

DSSOLFDEOHWKLUGSDUW\FHUWLILFDWLRQGRFXPHQWVLGHQWLI\LQJUDWLQJVDQGOLPLWDWLRQV

RIXVHZKLFKDSSO\WRWKH*RRG7KLVLQIRUPDWLRQE\LWVHOILVQRWVXIILFLHQWIRUD

FRPSOHWHGHWHUPLQDWLRQRIWKHVXLWDELOLW\RIWKH*RRGLQFRPELQDWLRQZLWKWKH

HQGSURGXFWPDFKLQHV\VWHPRURWKHUDSSOLFDWLRQRUXVH7KHIROORZLQJDUH

VRPH H[DPSOHV RI DSSOLFDWLRQV IRU ZKLFK SDUWLFXODU DWWHQWLRQ PXVW EH JLYHQ

7KLVLVQRWLQWHQGHGWREHDQH[KDXVWLYHOLVWRIDOOSRVVLEOHXVHVRIWKLV*RRG

QRULVLWLQWHQGHGWRLPSO\WKDWWKHXVHVOLVWHGPD\EHVXLWDEOHIRUWKLV*RRG

L 2XWGRRUXVHXVHVLQYROYLQJSRWHQWLDOFKHPLFDOFRQWDPLQDWLRQRUHOHFWULFDO

LQWHUIHUHQFHRUFRQGLWLRQVRUXVHVQRWGHVFULEHGLQWKLVGRFXPHQW

LL(QHUJ\FRQWUROV\VWHPVFRPEXVWLRQV\VWHPVUDLOURDGV\VWHPVDYLDWLRQ

V\VWHPVPHGLFDOHTXLSPHQWDPXVHPHQWPDFKLQHVYHKLFOHVVDIHW\

HTXLSPHQWDQGLQVWDOODWLRQVVXEMHFWWRVHSDUDWHLQGXVWU\RUJRYHUQPHQW

UHJXODWLRQV

LLL6\VWHPVPDFKLQHVDQGHTXLSPHQWWKDWFRXOGSUHVHQWDULVNWROLIHRU

SURSHUW\3OHDVHNQRZDQGREVHUYHDOOSURKLELWLRQVRIXVHDSSOLFDEOHWR

WKLV*RRG

1(9(586(7+(352'8&7)25$1$33/,&$7,21,192/9,1*6(5,286

5,6.72/,)(253523(57<:,7+287(1685,1*7+$77+(6<67(0

$6$:+2/(+$6%((1'(6,*1('72$''5(667+(5,6.6$1'7+$7

7+( 6(//(56 352'8&7 ,6 3523(5/< 5$7(' $1' ,167$//(' )25

7+(,17(1'('86(:,7+,17+(29(5$//(48,30(17256<67(0

3URJUDPPDEOH 3URGXFWV 6HOOHU VKDOO QRW EH UHVSRQVLEOH IRU WKH XVHUV SUR

JUDPPLQJRIDSURJUDPPDEOH*RRGRUDQ\FRQVHTXHQFHWKHUHRI

3HUIRUPDQFH'DWD3HUIRUPDQFHGDWDJLYHQLQWKLVFDWDORJLVSURYLGHGDVD

JXLGHIRUWKHXVHULQGHWHUPLQLQJVXLWDELOLW\DQGGRHVQRWFRQVWLWXWHDZDUUDQW\

,WPD\UHSUHVHQWWKHUHVXOWRI6HOOHUVWHVWFRQGLWLRQVDQGWKHXVHUPXVWFRUUH

ODWHLWWRDFWXDODSSOLFDWLRQUHTXLUHPHQWV$FWXDOSHUIRUPDQFHLVVXEMHFWWRWKH

6HOOHUV:DUUDQW\DQG/LPLWDWLRQVRI/LDELOLW\

&KDQJH LQ 6SHFLILFDWLRQV 3URGXFW VSHFLILFDWLRQV DQG DFFHVVRULHV PD\ EH

FKDQJHGDWDQ\WLPHEDVHGRQLPSURYHPHQWVDQGRWKHUUHDVRQV,WLVRXUSUDF

WLFHWRFKDQJHSDUWQXPEHUVZKHQSXEOLVKHGUDWLQJVRUIHDWXUHVDUHFKDQJHG

RUZKHQVLJQLILFDQWFRQVWUXFWLRQFKDQJHVDUHPDGH+RZHYHUVRPHVSHFLILFD

WLRQVRIWKH*RRGPD\EHFKDQJHGZLWKRXWDQ\QRWLFH:KHQLQGRXEWVSHFLDO

SDUWQXPEHUVPD\EHDVVLJQHGWRIL[RUHVWDEOLVKNH\VSHFLILFDWLRQVIRU\RXU

DSSOLFDWLRQ 3OHDVH FRQVXOW ZLWK \RXU 6HOOHUV UHSUHVHQWDWLYH DW DQ\ WLPH WR

FRQILUPDFWXDOVSHFLILFDWLRQVRISXUFKDVHG*RRG

(UURUV DQG 2PLVVLRQV 7KH LQIRUPDWLRQ LQ WKLV FDWDORJ KDV EHHQ FDUHIXOO\

FKHFNHGDQGLVEHOLHYHGWREHDFFXUDWHKRZHYHUQRUHVSRQVLELOLW\LVDVVXPHG

IRUFOHULFDOW\SRJUDSKLFDORUSURRIUHDGLQJHUURUVRURPLVVLRQV
