Background

Pb free solder material was started in 1995. A
composition of (Sn-4Bi-2Ag-0.5Cu-0.1Ge) was
announced in July 1998, though, since later it was found
that for 42 alloy (most popular material fore lead frame),
wetting and joint strength was insufficient and further
“Life-off” problem was newly found, the composition was
reviewed and resulted in the present composition.
According to the test data shown in that meeting, major
components  (QFP, Chip-R, MLCC) were tested and
significant difference in mechanical strength was not
found compared with Sn/Pb solder. Some of Japanese
electronic equipment providers  may think technical
problems were to some extent cleared. However, since
the data was just experimental and looked at only one
aspect, different reliability problems might come up from
each device manufacturer. The company also
mentioned the solution as “latest” and “maybe not final”.

Concretely technical standards for some test items were
given by Sony. The standards are to test wetting and
robustness of electrical components quantitatively. For
some tests, use of special test equipment is required,
however some of them can be replaced by other
methods that require none of special equipment.
Particularly for wetting test, “self-alignment method” can
be used, because self-alignment effect seen in reflow
soldering process depends large part on wetting.



Sn/Pb Phase Diagram

(Engineering version)

An alloy cannot necessarily be soldered at its melting point.
At or slightly above its melting temperature the alloy is still
sluggish, does not flow very easily, and seems to have
restraint in its wetting characteristics.

A good rule of thumb to use a range of approximately by
33~90

°

C above the melting point for soldering operation, this

range is suitable for most alloys.

For 63/37 solder alloy, recommended alloy temperature
during wetting around 245~275

°

C.

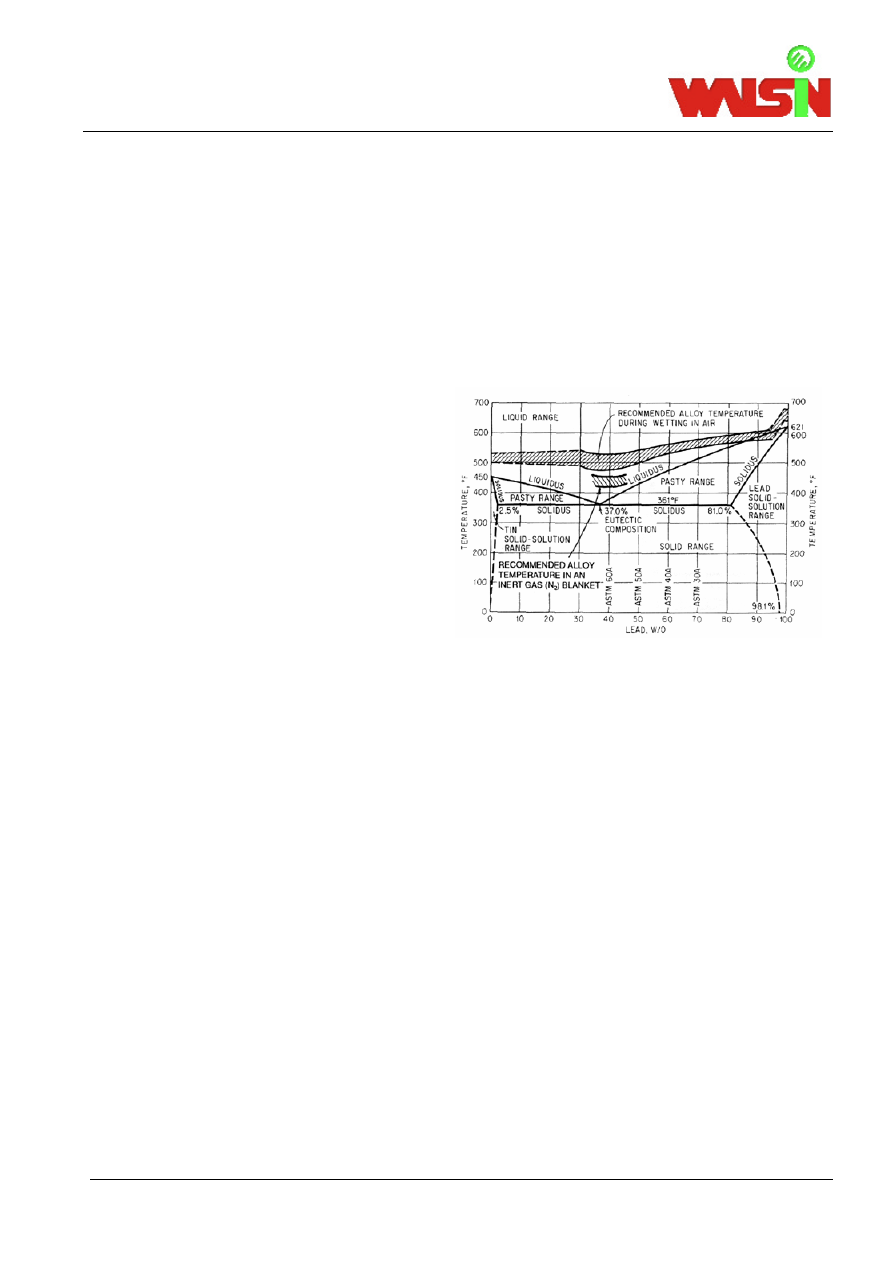

Figure 1. Sn/Pb Phase Diagram (Ref. “Solders and Soldering 3rd

edition”, Howard H. Manko)





The proposal of Infineon, Philips and STMicroelectronics contains an upper limit for “lead-free” components of 0.1% related to
the individual material, not to the whole package or component. The “lead-free” products give at least their European clients a
certainty to be “green” in time. Although legislation has not yet been consolidated, a max. level of 1000ppm is mentioned in
the law of some countries.

Note: Shipping materials such as blister tape and paper based boxes are not part of this consideration, since they are usually
part of existing recycling processes.

Walsin Technology Corporation





HTTP://WWW.PASSIVECOMPONENT.COM

Version 03

Page-3

Evaluation of Pb Free solder paste



Score=1 means very good, score=6 means very poor. Score=10 means extremely bad

 (Ref. and rated by Soldertec Ltd.)



Sn-3.5Ag

Sn-Ag-Cu

*8



Sn-Ag-Cu-Sb

*9



Sn-0.7Cu

Sn-Bi-Ag

Sn-Zn-Bi

Melting/Process temperature

5

3.5

3.5

6

2

1

Peeling off after soldering

*1



2.5

2.5

2.5

2.5

5.5

5.5

Solderability

*2



4

2

3

5

1

10

Profile

*3



3

1.5

1.5

5

4

10

Reliability

*4



3

1.5

1.5

4

5

6

Recycling

*5



2.5

2.5

2.5

2.5

5

6

Cost

*6



4.5

4.5

4.5

1.5

4.5

1.5

Alloy authorization

*7



1.5

3

4

1.5

5

6

Total score

26

21

23

28

32

46

Average score

3.3

2.6

2.9

3.5

4.0

5.6



*1

  Bi alloy easy to peel-off or lift-off after soldering, as well as not so environmental friendly. But Bi is helpful in wettability and

solderability and to reduce soldering temperature.

*2

  Zn alloy easy to be oxides, powerful flux is required.

*3

  The advantage of Sn-Ag-C u   (-Sb) and Sn-Bi-Ag is able to apply lower solder joint temperature. However, need to

considerate the soldered peel-off issue by applying Sn-Bi-Ag.

*4

It is average performance; the ranking might be changed under different application conditions.

*5

Zn and Bi will also created issues/costs, same situation as other alloys.

*6

The approximately of related costs is depended on Ag content. Tin strip is efficient than Solder paste.

*7

Sn-Ag-Cu is secured by some patents; some authorizations and patents secure Sn-Ag-Cu-Sb; Sn-Bi-Ag and Sn-Zn-Bi are
secured in various ways  of patents.

*8

The recommended composition : Sn- (3.4~4.1)Ag- (0.5~0.9)Cu

*9

Standard composition : Sn-2.5Ag-0.8Cu-0.55Sb






Pb Free Components from Walsin Technology

New coating technology, then offers advantages beyond the simpler elimination of lead :

l



Pure tin termination coating.

l



Improved shelf life because of low intermetallic growth.

l



Improved solderability because of neglible degradation of the solder surface.

l



No whiskers and no lead.

Walsin Technology Corporation





HTTP://WWW.PASSIVECOMPONENT.COM

Version 03

Page-4

Recommended IR Reflow Soldering Conditions

Ÿ



The following Lead free solderpastes are suitable to be applied with WTC components :

1.

Sn-3Ag-0.5Cu series

 of Lead free solder paste. Recommended by JEITIA on Jun.-2000. Typical ally melting

point at +225~230

°

C.

2.

Sn-(3.7~4.1)Ag-(0.4~0.8)Cu series

(e.g. Multicore Sn-3.8Ag-0.7Cu) of



Lead free solder paste. Recommended

by NEMI.

3.

Sn-2.5Ag-0.5Cu-1Bi series

(e.g. Senju #OZ-7085-340F-32-12) of Lead free solderpaste. Typical alloy melting

point at +222

°

C.

4.

Sn-2.2Ag-20In series

 (e.g. Indium Indalloy #227) Lead free solderpaste.



Ÿ



Soldering profile  :

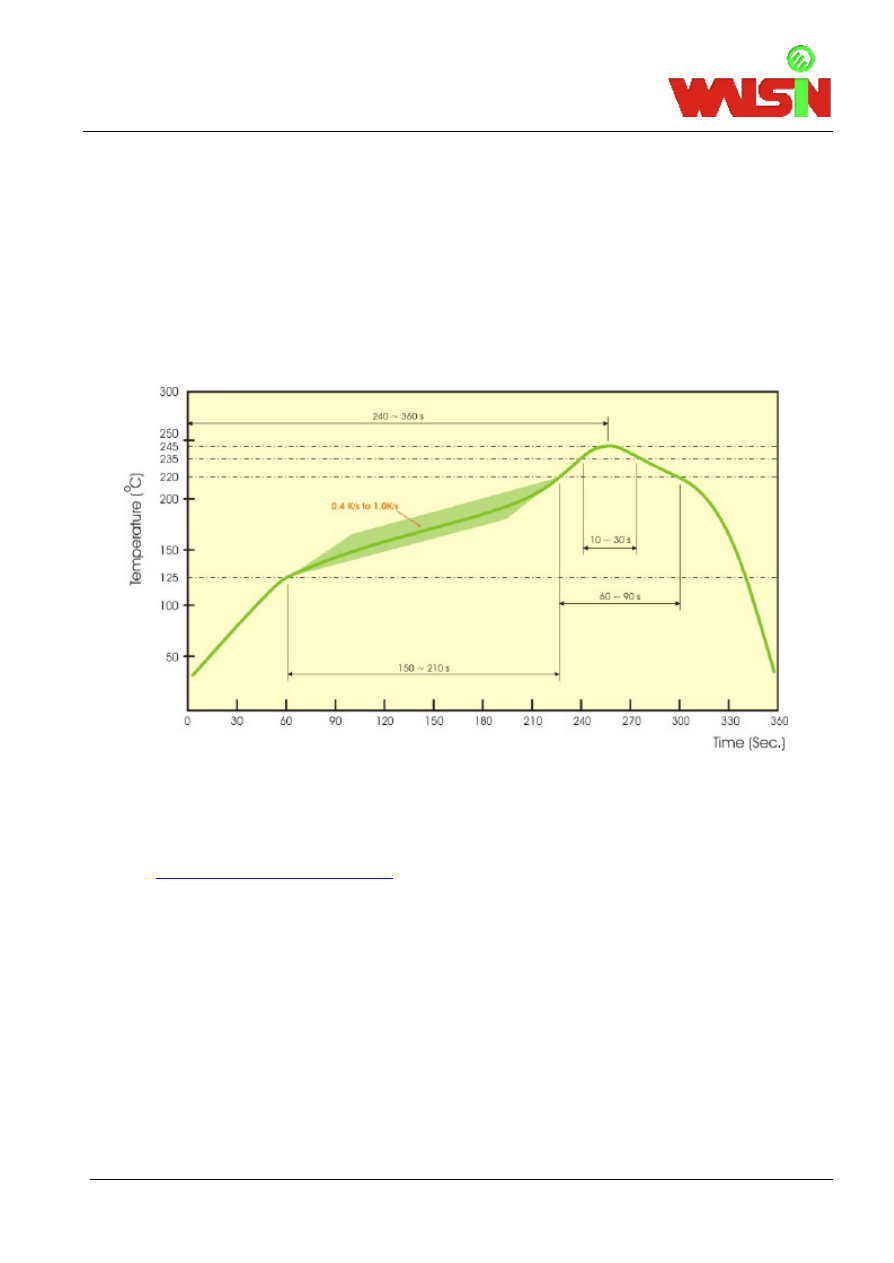

Fig 2. Infrared soldering profile for Lead-Free SMD



Others

For more information, please contact with

Application Group, R&D Dept., Walsin Technology :
