section n-tooling-html.html

Crimpers — Battery Actuated

PAT46LWS ...............................................................N-8
PAT46LW .................................................................N-9
PAT750 .................................................................... N-10
PAT644 .................................................................... N-11
PAT81KFT ............................................................... N-12
PAT4PC834 ............................................................. N-13
PAT600 .................................................................... N-14
PAT500SJ6 Series ................................................ N-15
PATMD6 Series ..................................................... N-16
PATMD6LIWCJ Series ......................................... N-17
PATMD6LICUTKIT1 Series .................................. N-18
CSMD6 Series ....................................................... N-19

Crimpers — Self-Contained Hydraulic

Y750HSXT .............................................................N-20
Y35 ..........................................................................N-21
Y39 ..........................................................................N-22
Y644HSXT .............................................................N-23
Y81KFT ..................................................................N-24
Y4PC834 ................................................................N-25
Y500CTHS .............................................................N-26

TABLE OF CONTENTS

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Table of Contents

N-1

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Table of Contents - Continued

Crimpers — Remote Hydraulic

Y60LW ....................................................................N-27
Y46LWSBH ............................................................N-28
Y46LWBH ..............................................................N-29
Y45 ..........................................................................N-30
Y750BHXT .............................................................N-31
Y35BH ....................................................................N-32
Y39BH ....................................................................N-33
Y644MBH ...............................................................N-34
Y81KFTMBH..........................................................N-35
Y4PC834MBH .......................................................N-36
Y34BH ....................................................................N-37
Y29BH ....................................................................N-38

Crimpers — Mechanical & Ratchet

Y10D ...................................................................... N-39
Y1022 ..................................................................... N-39
Y2210FL ................................................................N-40
YFTOOL Series ................................................... N-41
Y8MRB1 ................................................................ N-42
MR8 Series ...........................................................N-43
Y10MRSA1 ............................................................N-44
MRE1022 Series ..................................................N-45
MR Series .............................................................N-46
MR4C .................................................................... N-47
Y1MRTC ................................................................N-48
Y122CMR ..............................................................N-49
Y122CMR Kits ...................................................... N-50
M8ND .................................................................... N-51
MRC840 Series .................................................... N-52
MY28/MY29 Series .............................................. N-53
OH25 ..................................................................... N-54
OUR840 ................................................................ N-55
MD6 Series ........................................................... N-56
MD7 Series ........................................................... N-57
MD734R ................................................................ N-58

N-2

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Table of Contents - Continued

Crimpers — OEM

Y46OEM12T .......................................................... N-59
Y46OEM11T ..........................................................N-60
OEM840NCP ........................................................ N-61
Y6NCP1 ................................................................. N-62
Y6NCP1SD ........................................................... N-63

Dies, Die Kits

60-Ton Dies (HPS/Fargo-equivalent) ........N-64 to N-69
12-Ton U Dies ........................................................N-70
U Die Kit Series ....................................................N-71
UM-Style Dies .......................................................N-72
W Dies ....................................................................N-73
W Die Kit Series ...................................................N-74
W Die Related .......................................................N-75

N-3

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Table of Contents - Continued

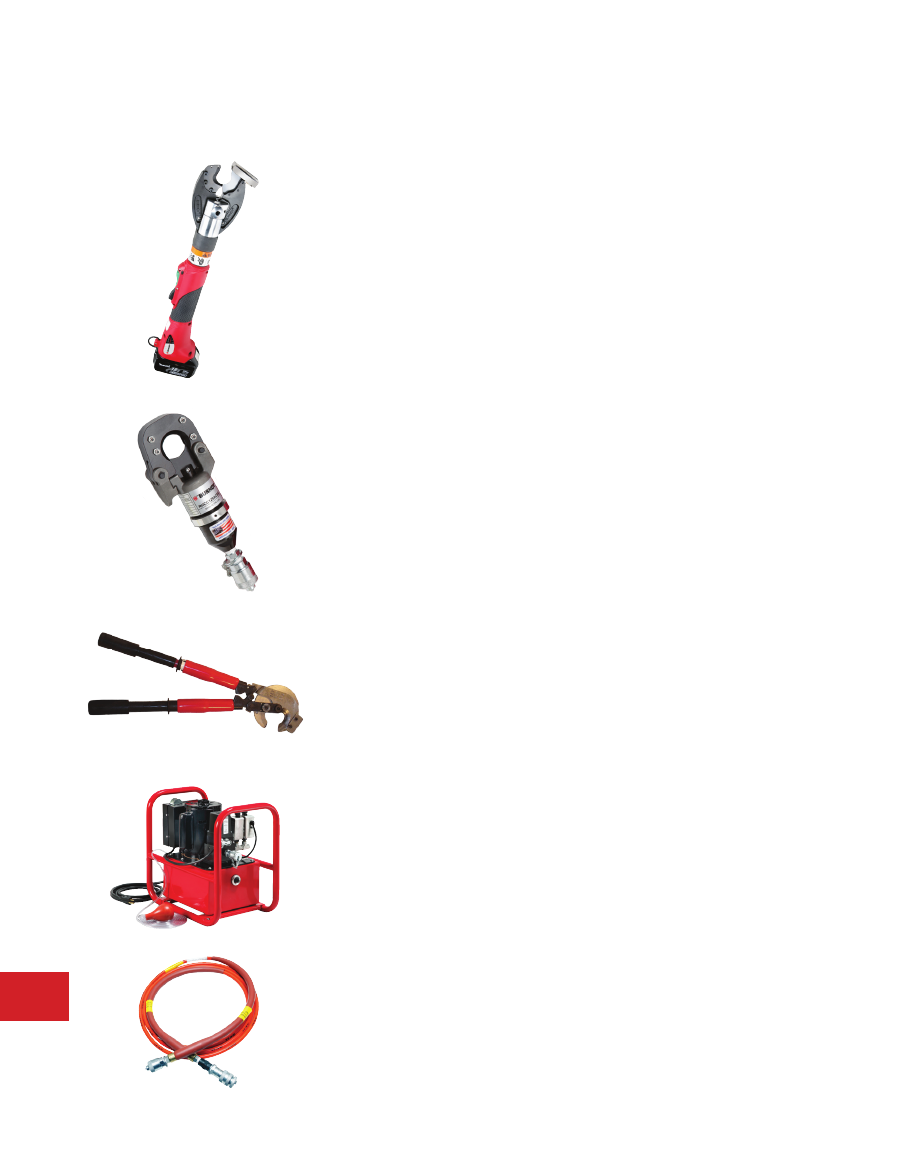

Cutters — Battery Actuated

PATCUT4CUAL ....................................................N-76
PATCUT2156 ........................................................N-77
PATCUT129 ..........................................................N-78
PATCUT245 ..........................................................N-79
PAT500SJCUT Series .........................................N-80
PATMDCUT Series ..............................................N-81
PATMDALLIF Series ..........................................N-82
BCC1000CUAL ....................................................N-83

Cutters — Self-Contained Hydraulic

YCUT129ACSR ....................................................N-84

Cutters — Remote Hydraulic

RHCC4CUAL .......................................................N-85
RHCC2156ACSR .................................................N-86
RHCC129ACSR ...................................................N-87
RHCC245CUAL ...................................................N-88

Cutters — Mechanical & Ratchet

MCC Series ..........................................................N-89
RCC Cu/Al Series ................................................N-90
RCC Cu/Al & ACSR Series ................................N-91
RWRC Series .......................................................N-92

Hydraulic Pumps

Y10AC9 .................................................................N-93
EPP10 ....................................................................N-94
EP10 ......................................................................N-95
EPAC10 .................................................................N-96
HP10 ......................................................................N-97
FP10 .......................................................................N-97
GP10 ......................................................................N-98

Hydraulic Hoses; Pump Accessories

Hydraulic Hoses ..........................................N-99 to N-100
Pump Accessories ............................................N-101

N-4

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Table of Contents - Continued

Accessories

MD6 / MD7 Related ............................................. N-102
Miscellaneous Accessories .............................. N-103

Gauges

FORCEGAUGE1215 ............................................ N-104
PT292792 .............................................................. N-104
WIREMIKE............................................................ N-105

Adjustable Ratchet Torque Tools ............................ N-106

WEJTAP™ Installation Tooling

WEJTAP™ Tooling & Accessories .................. N-107
Accessories and Kits ......................................... N-108
Hotstick Accessories ......................................... N-109

Auger Bits .....................................................................N-110

Low Pressure Hydraulic

HIW716ENF Impact Wrench ..............................N-111
HIW716MAG Impact Wrench .............................N-112
LPHY750XT Crimper ...........................................N-113
HBR Series Breakers ..........................................N-114
Submersible Pumps ...........................................N-115
HPT-R1 Series Tampers .....................................N-116
HHS Series Hand Chain Saws ...........................N-117
HPS-LW Series Pole Saws .................................N-118
HPP Series Power Packs....................................N-119
Low Pressure Hydraulic Accessories ............ N-120

Dieless Tool Expanded Cable Range Information

4-POINT

Series ...........................................N-121 to N-122

Y644 Series .......................................................... N-123

N-5

section n-tooling-html.html

N-6

• Lithium-Ion; 3.0Ah, 5.0Ah

• AC

• DC

• LCB (Less Charger, Batteries)

• LCCB (Less Case, Charger, Batteries)

• Nickel Metal Hydride

• AC

• DC

• 250 Volt

Contact Customer Service for further information.

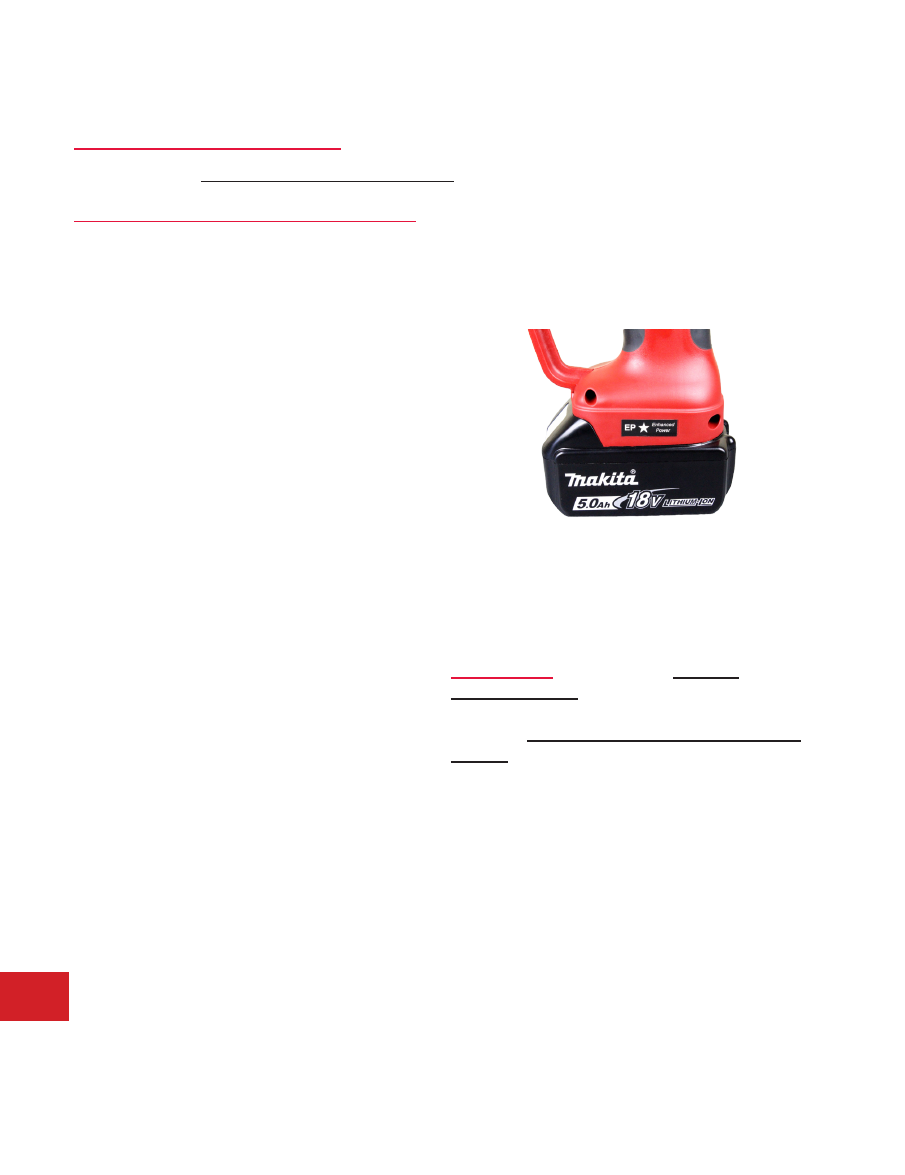

EP (Enhanced Power) PATRIOT

tools

operate on an

18V lithium-ion battery and are designed to accept an

expanded range of Makita batteries, from larger capacity

5.0Ah to smaller 2.0Ah capacity, providing the user more

choices and flexibility.

PLEASE NOTE:

Prior models, tools

WITHOUT

the

EP Enhanced Power label, will only accept Makita 18V

3.0Ah batteries. Do not force a 5.0Ah (or other size) battery

into the tool.

Damage caused by doing so will void the

warranty.

IMPORTANT NOTES:

Unless noted, product is

not recommended for use on energized lines.

Notes for battery operated crimpers and cutters:

It is recommended that battery be removed when changing jaws, changing dies or storing tool in case.

Select battery operated tools are available in alternate versions :

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Important Notes

section n-tooling-html.html

Tooling

Introduction

Installation Tools

The BURNDY

Engineered System features the most

complete line of installation tools in the electrical industry.

Available in various styles: battery actuated, mechanical,

full cycle ratchet, self contained hydraulic, remote controlled

hydraulic, along with power actuated pumps, hoses and

accessories. BURNDY has the options to suit your needs.

BURNDY tools are designed to integrate with the complete

line of BURNDY connectors. Whether you’re a small

contractor working with #22 wire or a large utility working

with 2500 kcmil conductor, there is a BURNDY tool available

to do the job.

The benefits of the BURNDY

Engineered System are

many, however, probably the most significant benefit is

reliability. There is nothing more important to the electrical

industry today than reliability. It represents the one area that

leads to economical installations that will endure for the life

of the installation.

Tool Center

An important element of the BURNDY

Engineered System

is the BURNDY Tool Center, located at 150 Burndy Road,

Littleton, NH 03561 (800-426-8720 or 603-621-4499). This

center provides advice and information on the operation,

maintenance and repair of BURNDY tools. The repair

center is staffed with specialized technicians who provide

the best possible service for all BURNDY tools, pumps and

accessories.

BURNDY designed and produced the first self contained

hydraulic compression electrical connector installation tool in

1934. In our continuing efforts to provide the highest quality

and highest value connection systems, we offer the current

BURNDY tool policy.

Limited Warranty

The majority of BURNDY tools are warranted to be free of

defects in materials and workmanship for a period of five (5)

years from the date of shipment. See specific tool page for

length of warranty. If inspection by a certified technician

shows the trouble is caused by defective workmanship or

material, BURNDY will repair or (at our option) replace the

tool.

This Warranty does not apply where:

• Repairs or alterations have been made or attempted by

others

• Repairs are required because of normal wear and tear

• The tool has been abused, misused or improperly

maintained

• The use of any non-BURNDY product has resulted in

damage to the tool

Repair Policy

All non-warranty repaired tools are completely reconditioned

and receive a limited 1-year warranty. Non-warranty repair

returns tools to like-new condition at a maximum cost of

40% of a new tool. A nominal service charge of $5 is applied

to all repairs to cover shop supplies, oil disposal and other

miscellaneous services not covered as part of the standard

repair.

If the decision is made not to repair, a handling charge of

$25.00 will be applied plus return freight costs.

Return Procedure

All tools sent to the BURNDY Tool Center (1-800-426-8720)

or an authorized repair center must be accompanied by

a purchase order with detailed bill to and ship to address

authorizing repair. Requests for repair charges before work is

done must be stated on the purchase order. All tools sent to

the BURNDY Tool Center or an authorized repair center as a

warranty claim must be accompanied by a proof of purchase

such as a BURNDY invoice or invoice from any BURNDY

distributor.

All tools must be shipped at the owner’s expense, prepaid.

BURNDY pays for the return freight, same surface freight as

received. Airfreight returns will be returned same way collect

for non-warranty repair and prepaid for warranty repairs.

This warranty and repair policy supercedes all previous

policies and is in effect as of January 1, 2005.

Introduction

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

N-7

section n-tooling-html.html

Tooling

Crimpers — Battery Actuated

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

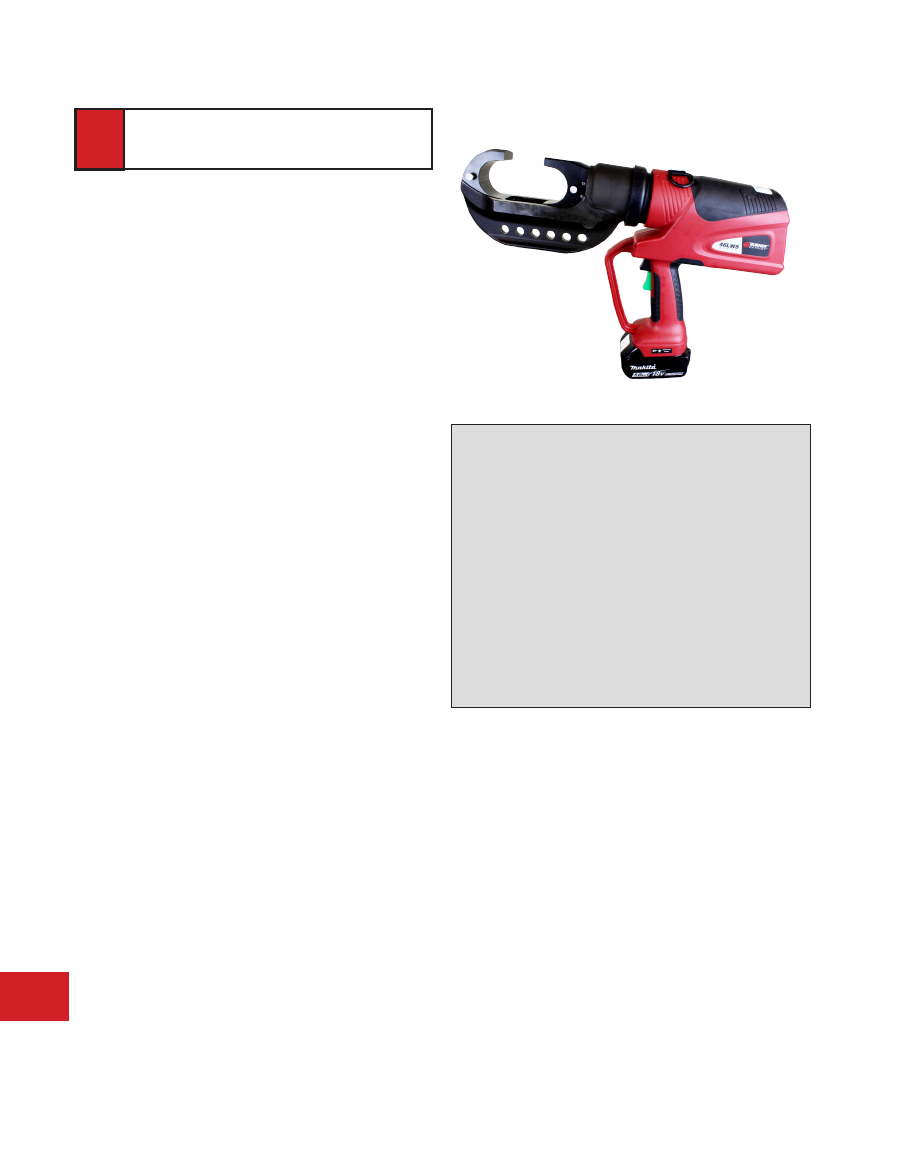

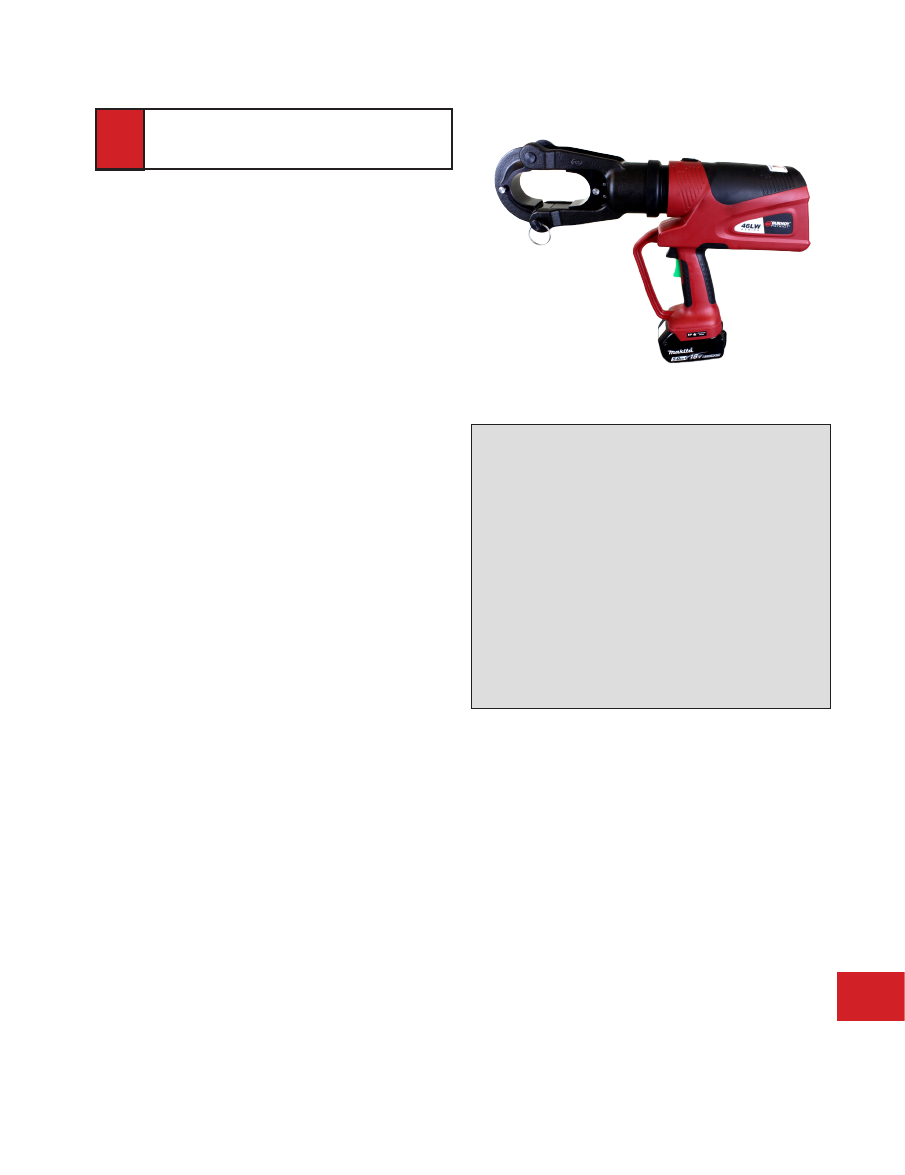

15-Ton, Light Weight C-Head

Hydraulic Self-Contained, 18V Lithium-Ion

• 2” jaw opening

• Used with P dies; U dies with PUADP1 adapter (sold

separately)

• Light weight, scoop style C-head with 355º head rotation

• Overmolded, ergonomic handle

• Improved ergonomic balance

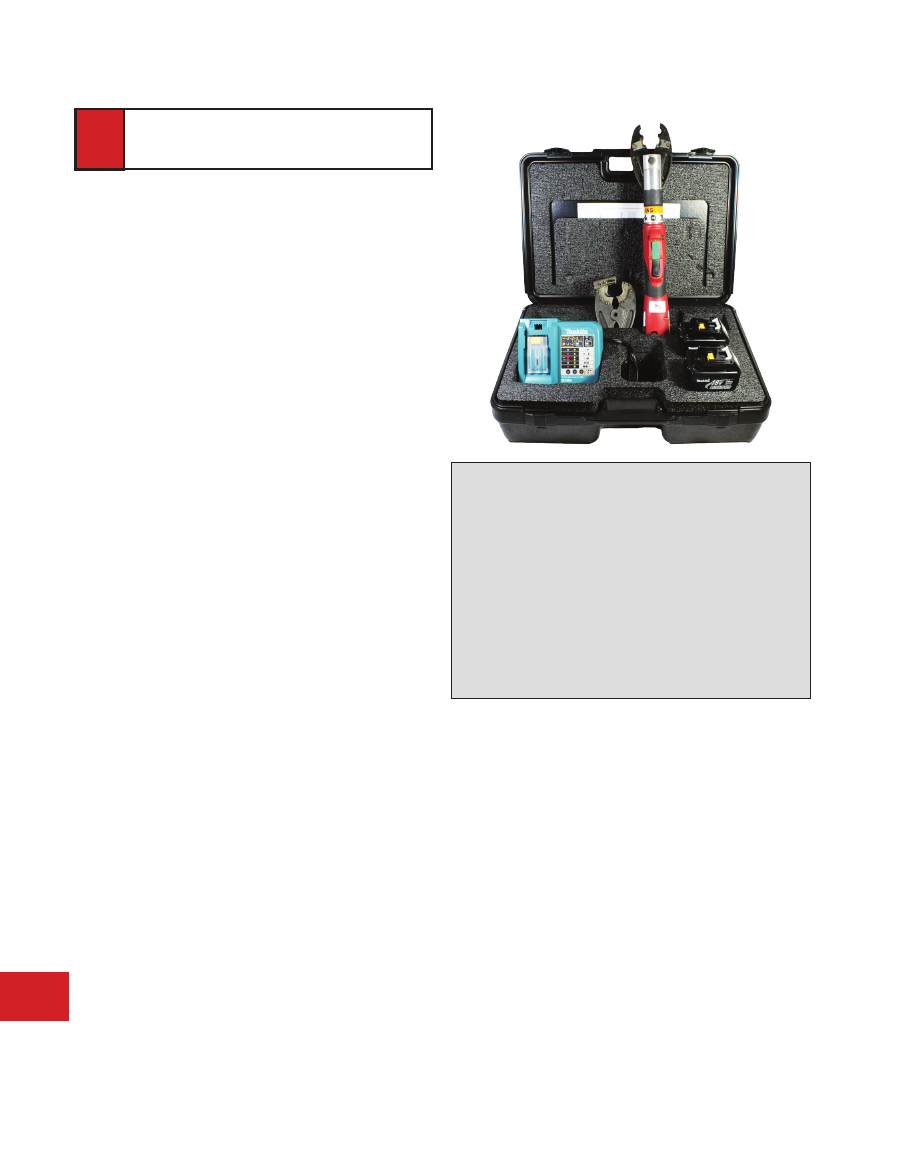

• Includes 2 batteries, charger, and polymer carrying case

• EP Enhanced Power

labeled tools accept 2.0, 3.0, 4.0,

and 5.0Ah Makita batteries

For Use On:

Copper - #8 AWG Str. - 1500 kcmil

Code Cable, Navy Cable, Flexible, Extra Flexible

1/2” - 1” Ground Rods

Terminals, grounding:

to 500 kcmil; YGA, YGHA, YGF

Terminals, uninsulated:

#8 - 1500 kcmil; YA, YA-2N, YA-L, YA-LB, YA-TC,

YA-2LN, YAB-4N, YAV-L, YAV-RS, YA-TC-FX

Terminals, insulated:

#8 - 2/0; YAEV-L, YAEV-H, YAEV-RS, YAEV-RH

Splices:

#8 - 1500 kcmil; YS, YS-T, YS-L, YS-LB, YST,

YSP-T, YGS, YGHS

Taps:

#14 - 1000 kcmil; YH, YCHC

to 4/0 AWG; YC-C

Taps, grounding:

to 500 kcmil; YGHC-C, YGHP-C, YGHR-C

Aluminum - #8 AWG - 1250 kcmil

Code Cables

Terminals:

YA-A, AYP, AYPO

Splices:

YS-A, YS-AT, YRB

Taps:

YFD, YFN, YFO, YFR

ACSR

- see Overhead Transmission & Distribution

Sections H & I of the current BURNDY

Master

Catalog

Specifications:

Output Force:

15 Tons

Tool Weight:

18.9 lbs

Size:

18.00” x 14.00” x 3.00”

Die Style:

P and U style (with PUADP1)

Jaw Opening:

2.00”

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes (3.0Ah)

45 minutes (5.0Ah)

Warranty:

5 year limited warranty

Lifetime warranty on INFINITY

DRIVE

3 year on batteries and charger

Accessories:

Catalog Number:

Description:

P15K:

Cutter Die, max. diameter 1.2”

PUADP1:

U Die Adapter

BAT18VLI:

3.0Ah Li-Ion battery

BAT18V5AHLI:

5.0Ah Li-Ion battery

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PT208620:

Lanyard

Variations:

(additional variations may be available)

Catalog Number:

Description:

PAT46LWSLI

with 3.0Ah Li-Ion batteries

PAT46CLWSLI

with rubber covered head (3.0Ah)

PAT46LWSL5

with 5.0Ah Li-Ion batteries

PAT46CLWSL5

with rubber covered head (5.0Ah)

PAT46LWS

See Important Notes on Page N-6.

N-8

section n-tooling-html.html

Tooling

Crimpers — Battery Actuated

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

15-Ton, Light Weight Latch Head

Hydraulic Self-Contained, 18V Lithium-Ion

• 2” jaw opening

• Used with P dies; U dies with PUADP1 adapter (sold

separately)

• Light weight, Latch-head

• 355

head rotation

• Ergonomically balanced

• Includes 2 batteries, charger, and polymer carrying case

• EP Enhanced Power

labeled tools accept 2.0, 3.0, 4.0,

and 5.0Ah Makita batteries

For Use On:

Copper - #8 AWG Str. - 1500 kcmil

Code Cable, Navy Cable, Flexible, Extra Flexible

1/2” - 1” Ground Rods

Terminals, grounding:

to 500 kcmil; YGA, YGHA, YGF

Terminals, uninsulated:

#8 - 1500 kcmil; YA, YA-2N, YA-L, YA-LB, YA-TC,

YA-2LN, YAB-4N, YAV-L, YAV-RS, YA-TC-FX

Terminals, insulated:

#8 - 2/0; YAEV-L, YAEV-H, YAEV-RS, YAEV-RH

Splices:

#8 - 1500 kcmil; YS, YS-T, YS-L, YS-LB, YST,

YSP-T, YGS, YGHS

Taps:

#14 - 1000 kcmil; YH, YCHC

to 4/0 AWG; YC-C

Taps, grounding:

to 500 kcmil; YGHC-C, YGHP-C, YGHR-C

Aluminum - #8 AWG - 1250 kcmil

Code Cables

Terminals:

YA-A, AYP, AYPO

Splices:

YS-A, YS-AT, YRB

Taps:

YFD, YFN, YFO, YFR

ACSR

- see Overhead Transmission & Distribution

Sections H & I of the current BURNDY

Master

Catalog

Specifications:

Output Force:

15 Tons

Tool Weight:

16.8 lbs

Size:

18.75” x 13.75” x 3.75”

Die Style:

P and U style (with PUADP1)

Jaw Opening:

2.00”

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes (3.0Ah)

45 minutes (5.0Ah)

Warranty:

5 year limited warranty

Lifetime warranty on INFINITY

DRIVE

2 year on batteries and charger

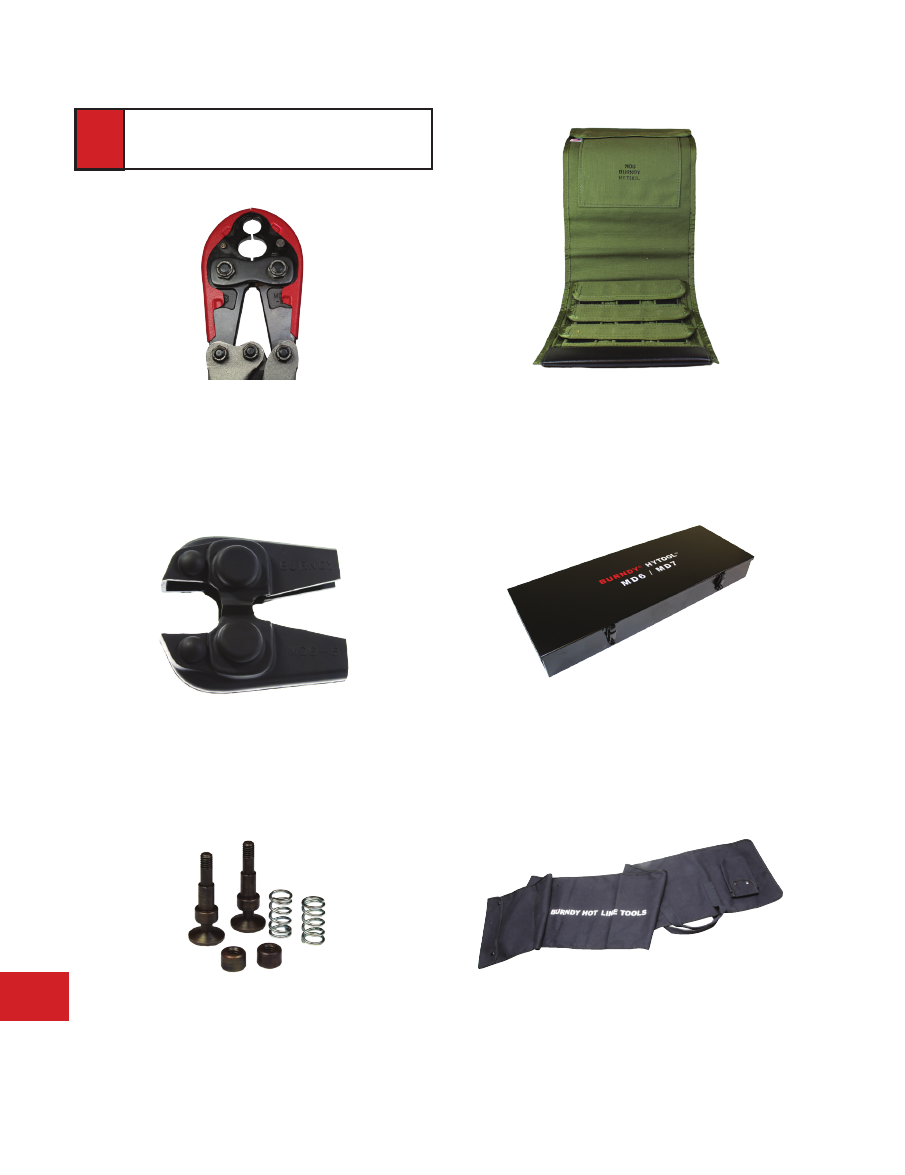

Accessories:

Catalog Number: Description:

P15K:

Cutter Die, max. diameter 1.2”

PUADP1:

U Die Adapter

BAT18VLI:

3.0Ah Li-Ion battery

BAT18V5AHLI:

5.0Ah Li-Ion battery

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PT208620:

Lanyard

Variations:

(additional variations may be available)

Catalog Number: Description:

PAT46LWLI

with 3.0Ah batteries

PAT46LWL5

with 5.0Ah batteries

PAT46LW

See Important Notes on Page N-6.

N-9

section n-tooling-html.html

Tooling

Crimpers — Battery Actuated

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Accessories:

Catalog Number: Description:

BAT18VLI:

3.0Ah Li-Ion battery

BAT18V5AHLI:

5.0Ah Li-Ion battery

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PT208620:

Lanyard

Variations:

(additional variations may be available)

Catalog Number: Description:

PAT750LI

with 3.0Ah Li-Ion batteries

PAT750CLI

PAT750LI with rubber covered head (3.0Ah)

PAT750KLI

PAT750LI with KEARNEY™ style head

(3.0Ah) used with KEARNEY™ WH1 and

WH2 and BURNDY U dies with KUADP

adapter (sold separately)

PAT750L5

with 5.0Ah Li-Ion batteries

PAT750CL5

PAT750L5 with rubber covered head (5.0Ah)

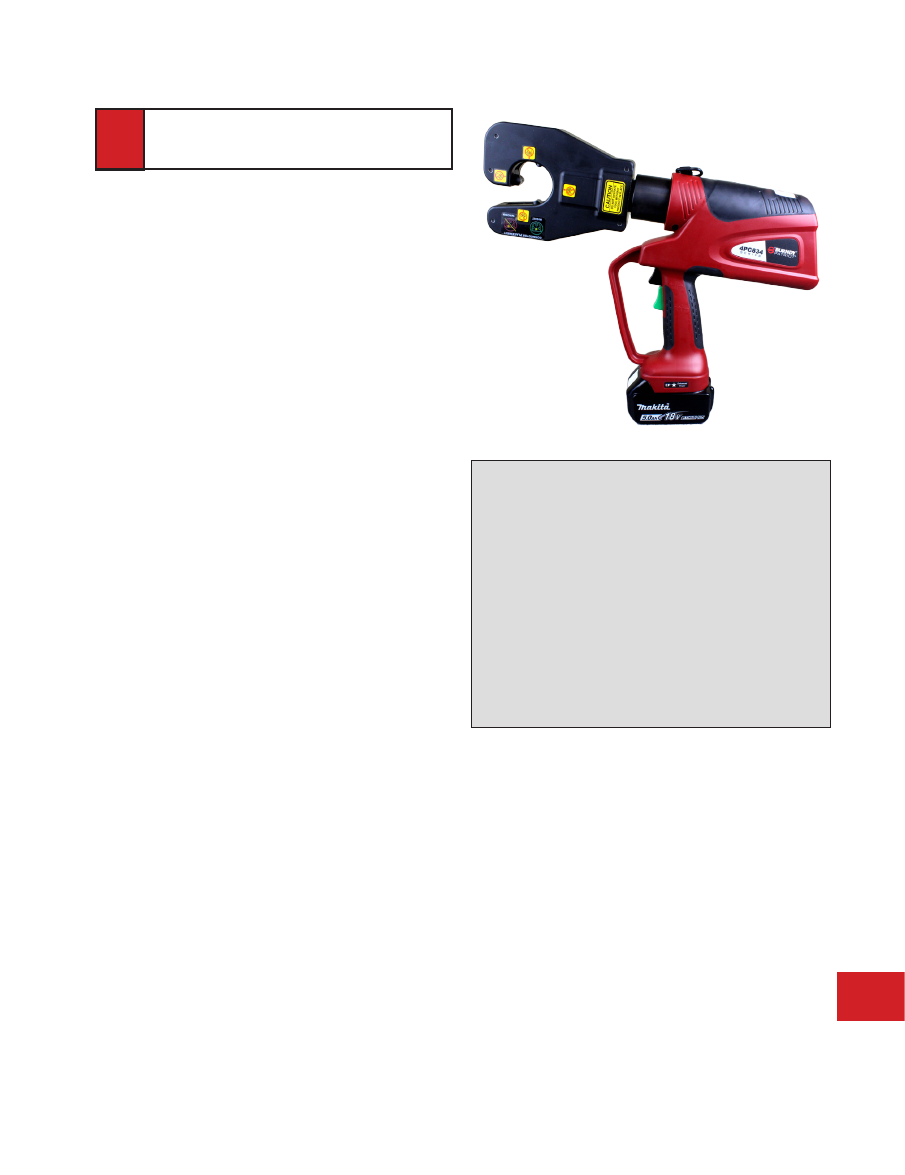

PAT750

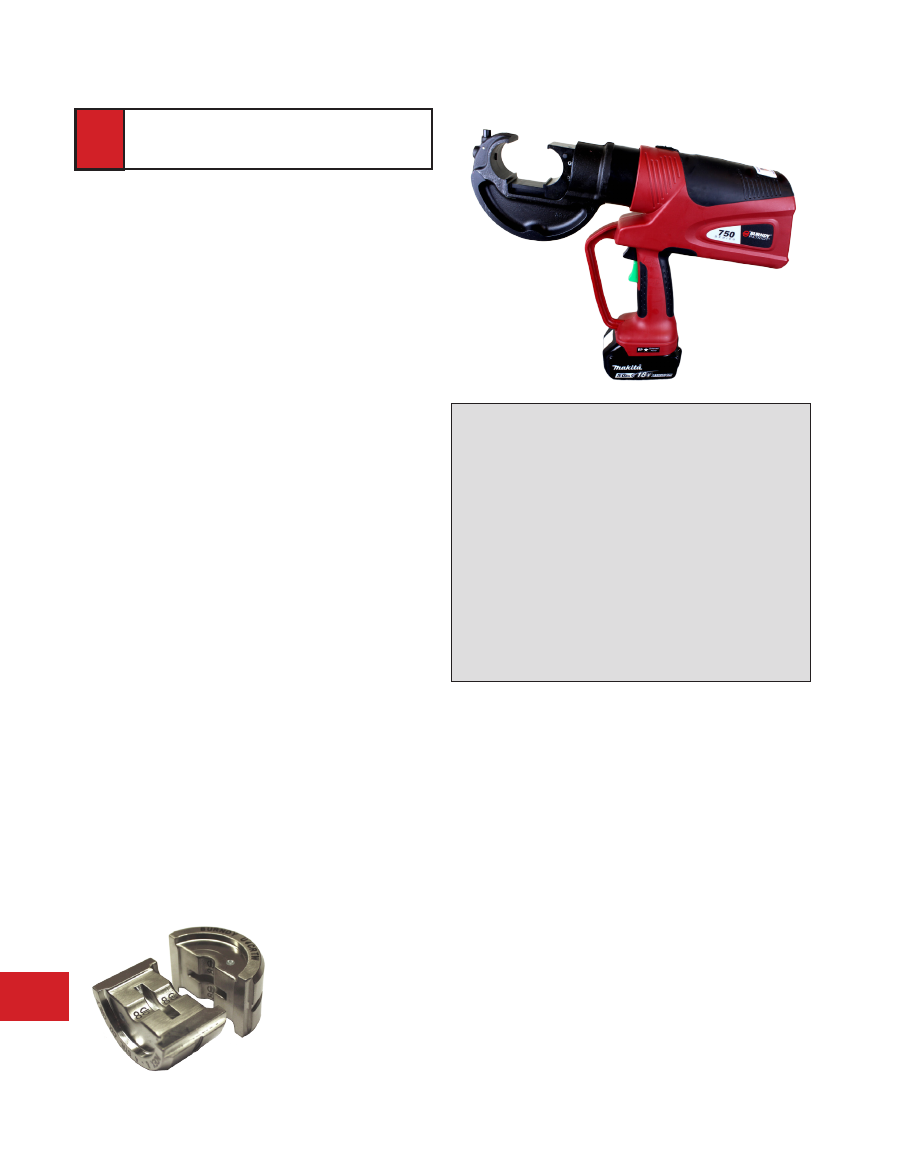

PATRIOT

12-Ton, C-Head

Hydraulic Self-Contained, 18V Lithium-Ion

• 1.65” jaw opening

• Used with U dies

• C-head with 355

head rotation

• Bearing/alignment guide for HYGROUND

as well as

other asymmetrical connectors

• Includes 2 batteries, charger, and polymer carrying case

• EP Enhanced Power

labeled tools accept 2.0, 3.0, 4.0,

and 5.0Ah Makita batteries

For Use On:

Tension Sleeves

Copper

#8 sol. - 500 kcmil

Aluminum

#8 sol. - 587.2 kcmil

ACSR

#4 - 556.5 kcmil

Taps

Copper

#14 sol. - 500 kcmil

Aluminum

#8 - 500 kcmil

Aerial Cable

Copper

#6 - 500 kcmil

Terminals & Splices

Copper

#8 - 750 kcmil

Aluminum

#8 - 750 kcmil

ACSR

#4 - 556 kcmil

HYGROUND

(Compression Grounding)

Copper

#8 - 500 kcmil

Ground Rods

1/2” - 1” diameter

Specifications:

Output Force:

12 Tons

Tool Weight:

15.7 lbs

Size:

15.75” x 13.50” x 3.50”

Die Style:

U style

Jaw Opening:

1.65”

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes (3.0Ah)

45 minutes (5.0Ah)

Warranty:

5 year limited warranty

Lifetime warranty on INFINITY

DRIVE

3 year on batteries and charger

Wide U-dies (sold separately)

can be used with long barrel

terminals and splices saving

time and labor!

See Important Notes on Page N-6.

N-10

section n-tooling-html.html

Tooling

Crimpers — Battery Actuated

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

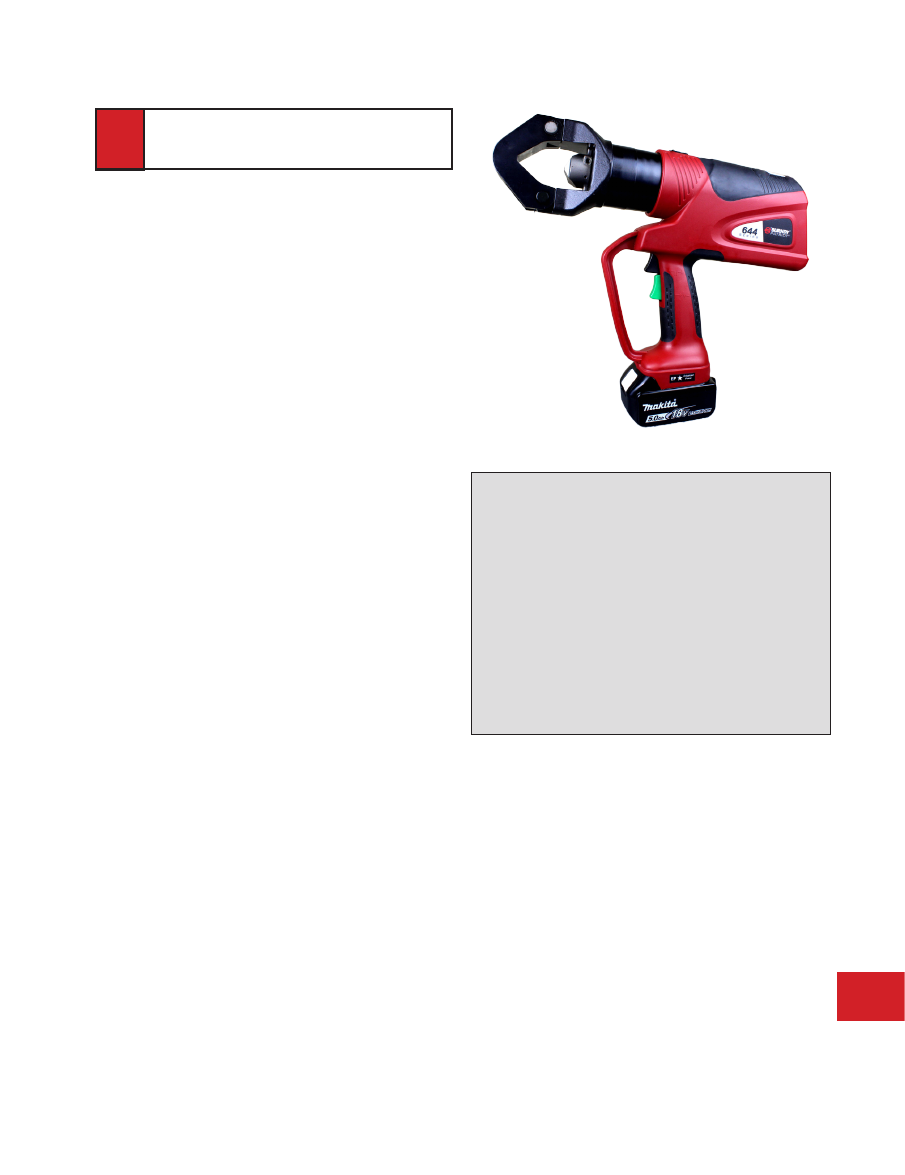

PAT644

PATRIOT

11-Ton, Latch Head

Hydraulic Self-Contained, 18V Lithium-Ion

• Dieless system

• Range taking capabilities

• 355

head rotation

• Ergonomically balanced

• Includes 2 batteries, charger, and polymer carrying case

• EP Enhanced Power

labeled tools accept 2.0, 3.0, 4.0,

and 5.0Ah Makita batteries

For Use On:

Copper #6 -1000 kcmil

Terminals:

YA-L, YA-2LN, YA, YA-2N, YA-L-2TC,

YAB-4N, YA-L-TC, YA-2L, YA-4N

Splices:

YS-L, YS, YS-T

Aluminum #6 - 900 kcmil

Terminals:

YA-A, YA-A-TN

Splices:

YS-A

HYPLUG™:

AYP, AYPO

See Expanded Range details in Reference Section

Specifications:

Output Force:

11 Tons

Tool Weight:

15.9 lbs

Size:

15.62” x 14.12” x 3.25”

Die Style:

Dieless

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes (3.0Ah)

45 minutes (5.0Ah)

Warranty:

5 year limited warranty

Lifetime warranty on INFINITY

DRIVE

3 year on batteries and charger

Accessories:

Catalog Number: Description:

BAT18VLI:

3.0Ah Li-Ion battery

BAT18V5AHLI:

5.0Ah Li-Ion battery

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PT208620:

Lanyard

Variations:

(additional variations may be available)

Catalog Number: Description:

PAT644LI

with 3.0Ah Li-Ion batteries

PAT644L5

with 5.0Ah Li-Ion batteries

See Important Notes on Page N-6.

N-11

section n-tooling-html.html

Tooling

Crimpers — Battery Actuated

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

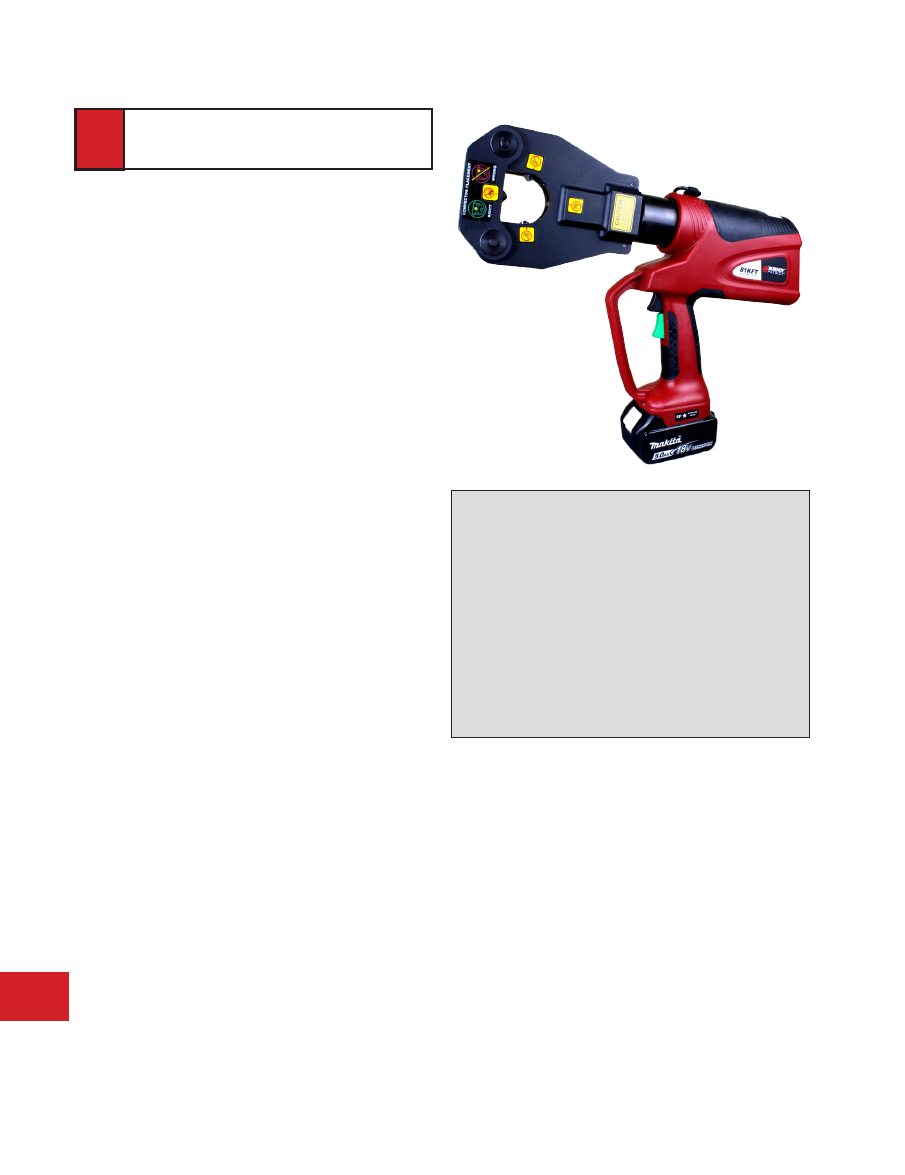

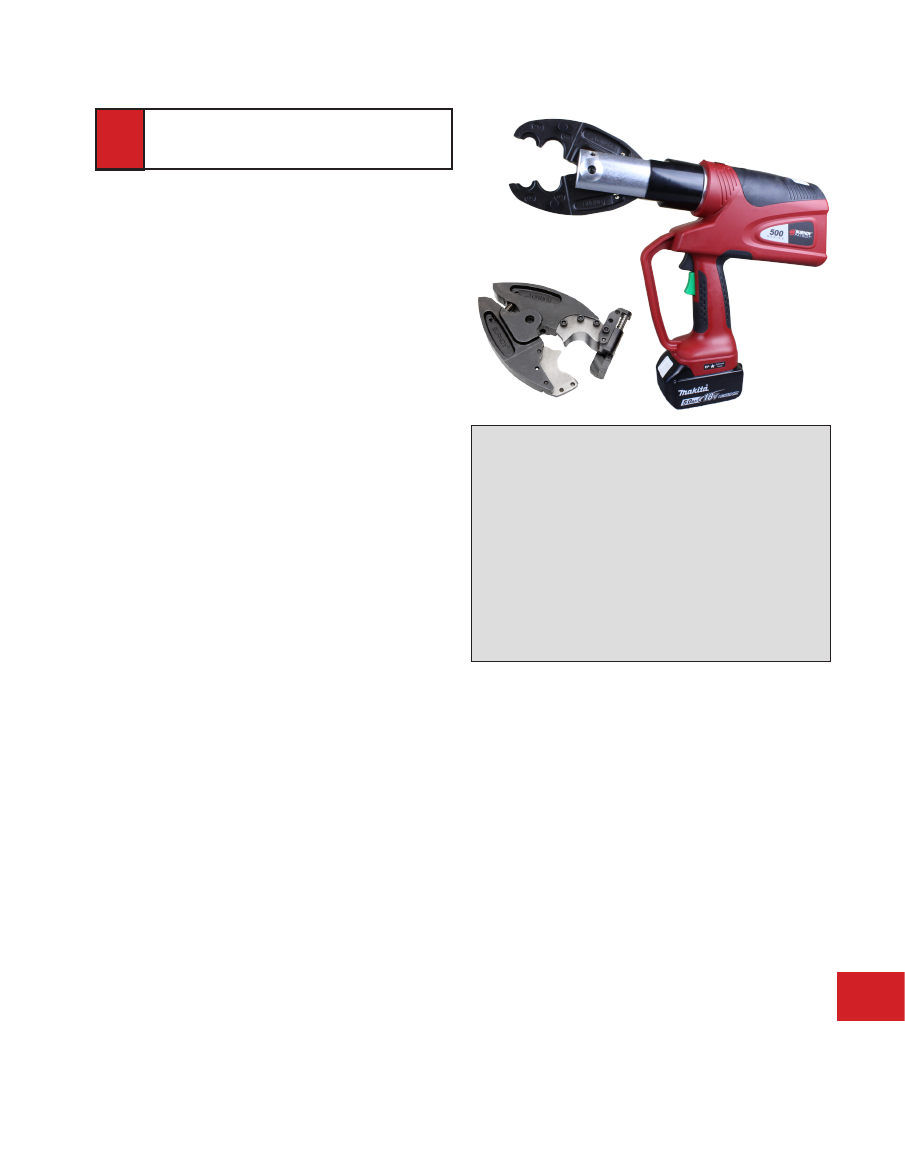

6-Ton, 4-POINT

Dieless Latch Head

Hydraulic Self-Contained, 18V Lithium-Ion

• Dieless system

• Range taking capabilities

• 360

head rotation

• Mechanical ram release (no battery consumption)

• Includes 2 batteries, charger, and polymer carrying case

• EP Enhanced Power

labeled tools accept 2.0, 3.0, 4.0,

and 5.0Ah Makita batteries

For Use On:

Copper #8 -1000 kcmil

Terminals:

YA, YA-L

Splices:

YS-L, YS, YS-T, Y-R

Copper Flex #8 - 777.7 kcmil Flex (750 Nominal)

Terminals:

YA-FX, YAV, YA-L-FX

Splices:

YS, YSV-FXB

Aluminum #8 - 750 kcmil

Terminals:

YA-A, YA-A-TN

Splices:

YS-A

HYPLUG™:

AYP, AYPO

See Expanded Range details in Reference Section

Specifications:

Output Force:

6 Tons

Tool Weight:

13.2 lbs

Size:

15.62” x 14.12” x 3.25”

Die Style:

Dieless

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes (3.0Ah)

45 minutes (5.0Ah)

Warranty:

5 year limited warranty

Lifetime warranty on INFINITY DRIVE

3 year on batteries and charger

Accessories:

Catalog Number: Description:

BAT18VLI:

3.0Ah Li-Ion battery

BAT18V5AHLI:

5.0Ah Li-Ion battery

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PT208620:

Lanyard

PAT81KFT

Variations:

(additional variations may be available)

Catalog Number: Description:

PAT81KFTLI

with 3.0Ah Li-Ion batteries

PAT81KFL5

with 5.0Ah Li-Ion batteries

See Important Notes on Page N-6.

N-12

section n-tooling-html.html

Tooling

Crimpers — Battery Actuated

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

PAT4PC834

6-Ton, 4-POINT

Dieless, C-Head

Hydraulic Self-Contained, 18V Lithium-Ion

• Dieless system

• Range taking capabilities

• 360

head rotation

• Ergonomically balanced

• Includes 2 batteries, charger, and polymer carrying case

• EP Enhanced Power

labeled tools accept 2.0, 3.0, 4.0,

and 5.0Ah Makita batteries

For Use On:

Copper

Terminals:

YA, YA-L (#8-1000 kcmil)

Splices:

YS-L, YS, YS-T, Y-R (#8-500 kcmil)

Copper Flex

Terminals:

YA-FX, YAV, YA-L-FX (#8-777.7 Flex)

Splices:

YS, YSV-FXB (#8-500 kcmil)

Aluminum

Terminals:

YA-A, YA-A-TN (#8-750 kcmil)

Splices:

YS-A (#8-350 kcmil)

HYPLUG™:

AYP, AYPO (#8-750 kcmil)

See Expanded Range details in Reference Section

Specifications:

Output Force:

6 Tons

Tool Weight:

13.0 lbs

Size:

15.62” x 14.12” x 3.25”

Die Style:

Dieless

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes (3.0Ah)

45 minutes (5.0Ah)

Warranty:

5 year limited warranty

Lifetime warranty on INFINITY

DRIVE

3 year on batteries and charger

Accessories:

Catalog Number: Description:

BAT18VLI:

3.0Ah Li-Ion battery

BAT18V5AHLI:

5.0Ah Li-Ion battery

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PT208620:

Lanyard

Variations:

(additional variations may be available)

Catalog Number: Description:

PAT4PC834LI

with 3.0Ah Li-Ion batteries

PAT4PC834L5

with 35.0Ah Li-Ion batteries

See Important Notes on Page N-6.

N-13

section n-tooling-html.html

Tooling

Crimpers — Battery Actuated

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

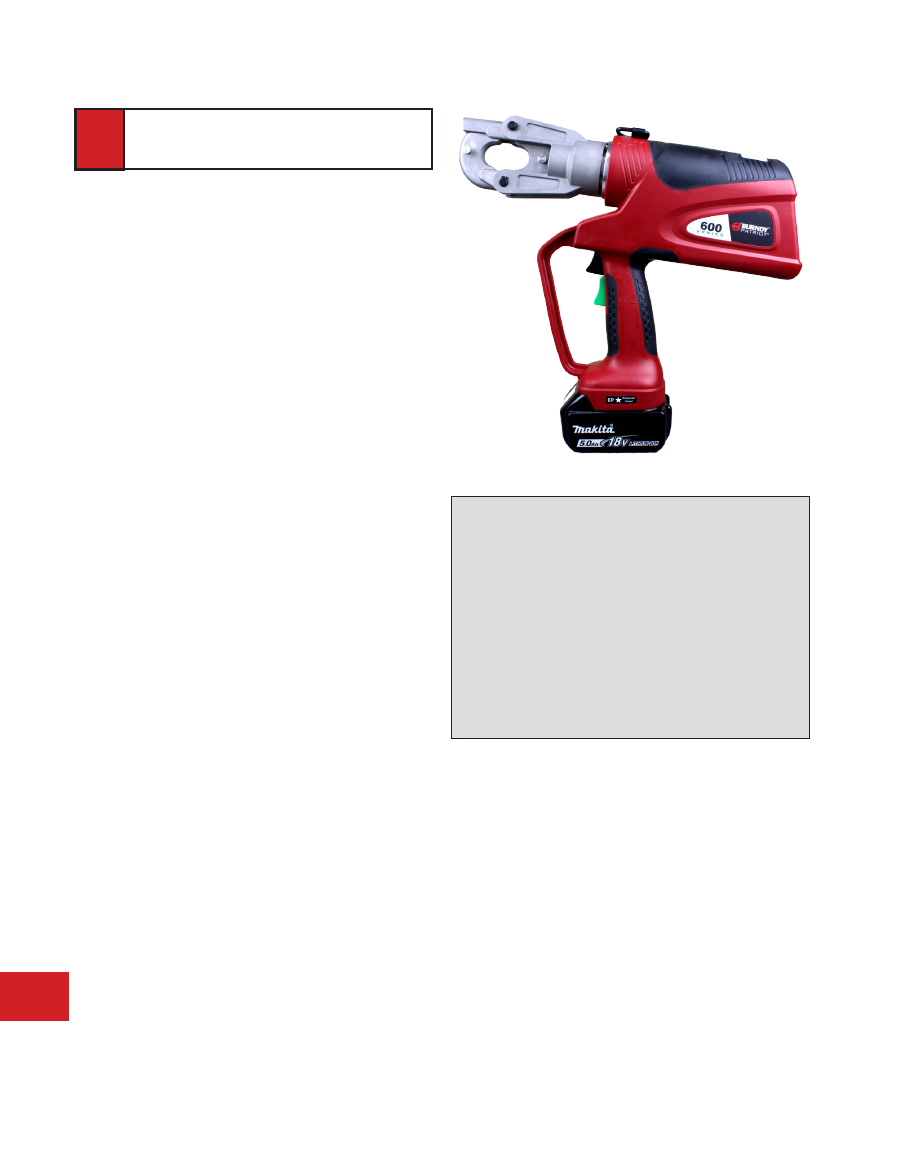

PATRIOT

6-Ton, Latch Head

Hydraulic Self-Contained, 18V Lithium-Ion

• Permanent functional D3 groove (no die needed)

• Uses W, X, W-VT style dies

• 180

head rotation

• Enhanced clearance for tap connections

• Includes 2 batteries, charger, and polymer carrying case

• EP Enhanced Power

labeled tools accept 2.0, 3.0, 4.0,

and 5.0Ah Makita batteries

For Use On:

Copper #8 -600 kcmil

Terminals:

YA, YA-L

Splices:

YS-L, YS, YS-T, Y-R

Copper Flex #8 - 350 kcmil Flex

Terminals:

YA-FX, YAV, YA-L-FX

Splices:

YS, YSV-FXB

Aluminum #8 - 350 kcmil

Terminals:

YA-A, YA-A-TN

Splices:

YS-A

Specifications:

Output Force:

6 Tons

Tool Weight:

10.1 lbs

Size:

14.50” x 13.75” x 3.50”

Die Style:

W, V, W-VT style dies

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes (3.0Ah)

45 minutes (5.0Ah)

Warranty:

5 year limited warranty

Lifetime warranty on INFINITY DRIVE

3 year on batteries and charger

Accessories:

Catalog Number: Description:

BAT18VLI:

3.0Ah Li-Ion battery

BAT18V5AHLI:

5.0Ah Li-Ion battery

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PT208620:

Lanyard

WDIETREE:

W die holder

PAT600

Variations:

(additional variations may be available)

Catalog Number: Description:

PAT600LI

with 3.0Ah Li-Ion batteries

PAT600L5

with 5.0Ah Li-Ion batteries

See Important Notes on Page N-6.

N-14

section n-tooling-html.html

Tooling

Crimpers — Battery Actuated

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

PAT500SJ6

PATRIOT

6-Ton, Scissor Action

Hydraulic Self-Contained, 18V Lithium-Ion

• Interchangeable scissor action crimping and cutting jaws

• 180

head rotation

• Uses W and X style dies

• Ergonomically balanced tool design

• Includes 2 batteries, charger, and polymer carrying case

• EP Enhanced Power

labeled tools accept 2.0, 3.0, 4.0,

and 5.0Ah Makita batteries

For Use On:

Copper, Aluminum, ACSR, Steel, Copperweld, Alumoweld,

6201, 5005, Compressed, and Compact Conductors

Taps:

Copper: #10 sol. to 2/0 str.

Aluminum & ACSR: #14 sol. to 4/0 ACSR

Stirrups:

#6 to 4/0 ACSR

Overhead Full Tension Deadends, Full Tension Splices

and Terminals:

#10 str. to 4/0 ACSR

Installs Splices, Taps or Terminations:

#8 to 500 kcmil Copper Stranded (YA, YA-L, YS, YS-L)

#8 to 350 kcmil Copper Flex

#8 to 350 kcmil Aluminum (YA-A, YS-A)

Specifications:

Output Force:

6 Tons

Tool Weight:

11.5 lbs

Size:

17.00” X 14.25” X 3.00”

Die Style:

W and X (with crimping jaws)

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes (3.0Ah)

45 minutes (5.0Ah)

Warranty:

5 year limited warranty

Lifetime warranty on INFINITY DRIVE

3 year on batteries and charger

Accessories:

Catalog Number: Description:

BAT18VLI:

3.0Ah Li-Ion battery

BAT18V5AHLI:

5.0Ah Li-Ion battery

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PATMD6JC:

Jaw covers for PATMD6 and PATMD68 versions

PATMD66JC:

Jaw covers for PATMD66 snub-nose versions

PT10074020:

Wrist strap

W28K:

Cutter Dies (cuts 4-4/0 Cu, Al, ACSR)

WDIETREE:

W-die holder for 6 die sets

Interchangeable Jaw Assemblies:

Catalog Number: Description:

PATJAWSMD6

BG and D3 grooves

PATJAWSMD68

O and D3 grooves

PATJAWSMD66

D3 groove only (snub-nose)

PATJAWSCUT

Cutter jaw set

Variations:

(additional variations may be available)

Catalog Number:

Description:

PAT500SJ6LI

BG and D3 grooves (3.0Ah)

PAT500SJ68LI

O and D3 grooves (3.0Ah)

PAT500SJ66LI

D3 groove only (snub-nose) (3.0Ah)

PAT500SJ6L5

BG and D3 grooves (5.0Ah)

PAT500SJ68L5

O and D3 grooves (5.0Ah)

PAT500SJ66L5

D3 groove only (snub-nose) (5.0Ah)

Kits:

Catalog Number:

Description:

PAT500SJ6LICUTKIT1

Kit includes crimp head with BG & D3

grooves, cutter jaw, 120V charger and

2 batteries (3.0Ah)

PAT500SJ68LICUTKIT1

Kit includes crimp head with O & D3

grooves, cutter jaw, 120V charger and

2 batteries (3.0Ah)

See Important Notes on Page N-6.

N-15

section n-tooling-html.html

Tooling

Crimpers — Battery Actuated

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

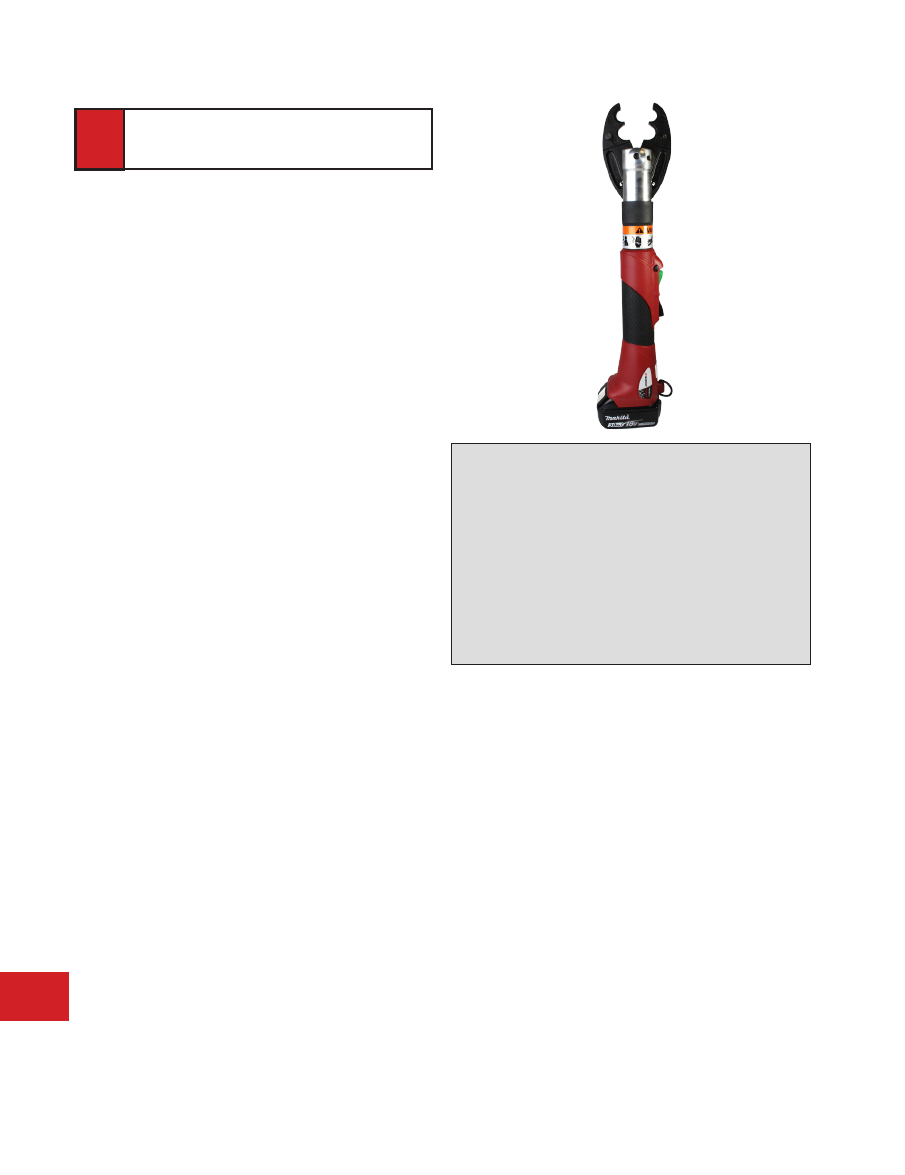

PATMD6

6-Ton, IN-LINE

, Scissor Action

Hydraulic Self-Contained, 18V Lithium-Ion

• Interchangeable scissor action crimping and cutting jaws

• 350

head rotation

• Uses W and X style dies

• Ergonomically balanced tool design with trigger lock

• Includes 2 batteries, charger, and soft carrying case

For Use On:

Copper, Aluminum, ACSR, Steel, Copperweld, Alumoweld,

6201, 5005, Compressed, and Compact Conductors

Taps:

Copper: #10 sol. to 2/0 str.

Aluminum & ACSR: #14 sol. to 4/0 ACSR

Stirrups:

#6 to 4/0 ACSR

Overhead Full Tension Deadends, Full Tension Splices

and Terminals:

#10 str. to 4/0 ACSR

Installs Splices, Taps or Terminations:

#8 to 500 kcmil Copper Stranded (YA, YA-L, YS, YS-L)

#8 to 350 kcmil Copper Flex

#8 to 350 kcmil Aluminum (YA-A, YS-A)

Specifications:

Output Force:

6 Tons

Tool Weight:

7.8 lbs

Size:

21.00” x 5.50” x 3.75”

Die Style:

W and X (with crimping jaws)

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes (3.0Ah)

Warranty:

5 year limited warranty

Lifetime warranty on INFINITY DRIVE

3 year on batteries and charger

Accessories:

Catalog Number: Description:

BAT18VLI:

3.0Ah Li-Ion battery

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PATMD6JC:

Jaw covers for PATMD6 and PATMD68 versions

PATMD66JC:

Jaw covers for PATMD66 snub-nose versions

PATMD6KJC:

Jaw covers for PATMD6K snub-nose versions

W28K:

Cutter Dies (cuts 4-4/0 Cu, Al, ACSR)

WDIETREE:

W-die holder for 6 die sets

TOOLBAGMDLI:

Tool bag (included with tool)

PT10074020:

Wrist strap

Interchangeable Jaw Assemblies:

Catalog Number: Description:

PATJAWSMD6

BG and D3 grooves

PATJAWSMD68

O and D3 grooves

PATJAWSMD66

D3 groove only (snub-nose)

PATJAWSMD6K

KEARNEY™ groove (snub-nose)

PATJAWSCUT

Cutter jaw set

Variations:

(additional variations may be available)

Catalog Number: Description:

PATMD6LI:

BG and D3 grooves (3.0Ah)

PATMD68LI:

O and D3 grooves (3.0Ah)

PATMD66LI:

D3 groove only (snub-nose) (3.0Ah)

PATMD6KLI:

KEARNEY™ groove (snub-nose) (3.0Ah)

[Accepts KEARNEY™ dies; BURNDY W and

X dies with KWADP adapter, sold separately]

Crimp/Cut Kits are also available supplied with both

crimping and cutting jaws

See Important Notes on Page N-6.

N-16

section n-tooling-html.html

Tooling

Crimpers — Battery Actuated

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

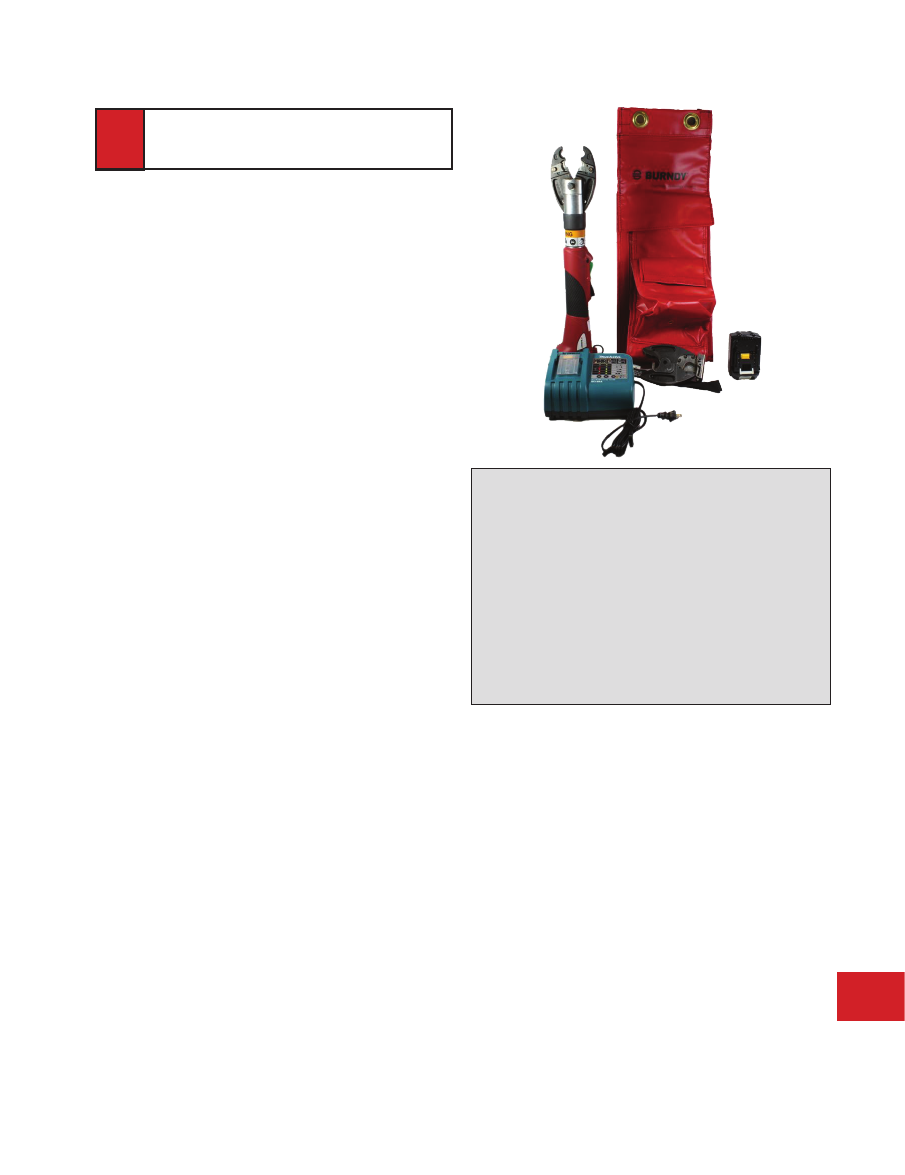

BURNDY

6-Ton, IN-LINE

, Crimp/Cut Kit

Hydraulic Self-Contained, 18V Lithium-Ion

• Interchangeable scissor action crimping and cutting jaws

included

• 350

head rotation; trigger lock

• Actuated blade guide (with cutting jaws)

• Kit includes tool, crimping jaw, cutting jaw, 2 batteries,

charger, and soft carrying case

For Use On:
Crimping:

Copper, Aluminum, ACSR, Steel, Copperweld, Alumoweld,

6201, 5005, Compressed, and Compact Conductors

Taps:

Copper: #10 sol. to 2/0 str.

Aluminum & ACSR: #14 sol. to 4/0 ACSR

Stirrups:

#6 to 4/0 ACSR

Overhead Full Tension Deadends, Full Tension Splices

and Terminals:

#10 str. to 4/0 ACSR

Installs Splices, Taps or Terminations:

#8 to 500 kcmil Copper Stranded (YA, YA-L, YS, YS-L)

#8 to 350 kcmil Copper Flex

#8 to 350 kcmil Aluminum (YA-A, YS-A)

Cutting Capacity (Maximum):

ACSR:

556 kcmil (26/7 Dove)

AAC:

636 kcmil

Copper:

500 kcmil soft drawn copper

Specifications:

Output Force:

6 Tons

Tool Weight:

7.8 lbs

Size:

21.00” x 5.50” x 3.75”

Die Style:

W and X (with crimping jaws)

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes

Warranty:

5 year limited warranty

Lifetime warranty on INFINITY DRIVE

3 year on batteries and charger

Accessories:

Catalog Number: Description:

BAT18VLI:

Hi-capacity LI battery (3.0 AH)

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PATMD6JC:

Jaw covers for PATMD6 and PATMD68 versions

PATMD66JC:

Jaw covers for PATMD66 snub-nose versions

PATMD6KJC:

Jaw covers for PATMD6K snub-nose versions

W28K:

Cutter Dies (cuts 4-4/0 Cu, Al, ACSR)

WDIETREE:

W die holder for 6 sets (sold separately)

TOOLBAGMDLI:

Replacement Tool Bag

PT10074020:

Wrist Strap

PATMD6LIWCJ

Variations:

(additional variations may be available)

Catalog Number:

Description:

PATMD6LIWCJ

BG & D3 Grooves, soft case

PATMD68LIWCJ

O & D3 Grooves, soft case

PATMD66LIWCJ

D3 Groove only (Snub-nose), soft case

PATMD6KLIWCJ

KEARNEY™ (Snub-nose), hard case

See Important Notes on Page N-6.

N-17

Includes

Utility Bag

section n-tooling-html.html

Tooling

Crimpers — Battery Actuated

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

6-Ton, IN-LINE

, Crimp/Cut Kit

Hydraulic Self-Contained, 18V Lithium-Ion

• Interchangeable scissor action crimping and cutting jaws

included

• 350

head rotation; trigger lock

• Actuated blade guide (with cutting jaws)

• Kit includes tool, crimping jaw, cutting jaw, 2 batteries,

charger, and hard plastic carrying case

For Use On:
Crimping:

Copper, Aluminum, ACSR, Steel, Copperweld, Alumoweld,

6201, 5005, Compressed, and Compact Conductors

Taps:

Copper: #10 sol. to 2/0 str.

Aluminum & ACSR: #14 sol. to 4/0 ACSR

Stirrups:

#6 to 4/0 ACSR

Overhead Full Tension Deadends, Full Tension Splices

and Terminals:

#10 str. to 4/0 ACSR

Installs Splices, Taps or Terminations:

#8 to 500 kcmil Copper Stranded (YA, YA-L, YS, YS-L)

#8 to 350 kcmil Copper Flex

#8 to 350 kcmil Aluminum (YA-A, YS-A)

Cutting Capacity (Maximum):

ACSR:

556 kcmil (26/7 Dove)

AAC:

636 kcmil

Copper:

500 kcmil soft drawn copper

Specifications:

Output Force:

6 Tons

Tool Weight:

7.8 lbs

Size:

21.00” x 5.50” x 3.75”

Die Style:

W and X (with crimping jaws)

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes

Warranty:

5 year limited warranty

Lifetime warranty on INFINITY DRIVE

1 year on batteries and charger

Accessories:

Catalog Number: Description:

BAT18VLI:

Hi-capacity LI battery (3.0 AH)

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PATMD6JC:

Jaw covers for PATMD6 and PATMD68 versions

PATMD66JC:

Jaw covers for PATMD66 snub-nose versions

PATMD6KJC:

Jaw covers for PATMD6K snub-nose versions

W28K:

Cutter Dies (cuts 4-4/0 Cu, Al, ACSR)

WDIETREE:

W die holder for 6 sets (sold separately)

PT50025151:

Replacement plastic carry case

PT10074020:

Wrist Strap

PATMD6LICUTKIT1

Variations:

(additional variations may be available)

Catalog Number: Description:

PATMD6LICUTKIT1

BG & D3 Grooves, hard case

PATMD68LICUTKIT1

O & D3 Grooves, hard case

PATMD66LICUTKIT1

D3 Groove only (Snub-nose), hard case

PATMD6KLICUTKIT1

KEARNEY™ (Snub-nose), hard case

See Important Notes on Page N-6.

N-18

Includes

Case

section n-tooling-html.html

Tooling

Crimpers — Battery Actuated

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

CSMD6LI

Contractor Series, 6-Ton, IN-LINE

Hydraulic Self-Contained, 18V Lithium-Ion

• 2 economy versions available with a fixed jaw

• 350

head rotation

• Accepts all BURNDY W and X style die sets

• Safety lock, ergonomically balanced, non-slip grip

• Includes 1 (3.0Ah) battery and charger

For Use On:

Copper, Aluminum, ACSR, Steel, Copperweld,

Alumoweld, 6201, 5005, Compressed, and Compact

Conductors

Taps:

Copper: #10 sol. to 2/0 str.

Aluminum & ACSR: #14 sol. to 4/0 ACSR

Stirrups:

#6 to 4/0 ACSR

Overhead Full Tension Deadends, Full Tension

Splices and Terminals:

#10 str. to 4/0 ACSR

Installs Splices, Taps or Terminations:

#8 to 500 kcmil Copper Stranded (YA, YA-L,

YS, YS-L)

#8 to 350 kcmil Copper Flex

#8 to 350 kcmil Aluminum (YA-A, YS-A)

Specifications:

Output Force:

6 Tons

Tool Weight:

7.8 lbs

Size:

21.00” x 5.50” x 3.75”

Die Style:

W and X

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes

Warranty:

1 year limited warranty tool, battery,

and charger

Accessories:

Catalog Number: Description:

BAT18VLI:

Hi-capacity LI battery (3.0 AH)

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PATMD6JC:

Jaw covers for CSMD6 and CSMD68 versions

W28K:

Cutter Dies (cuts 4-4/0 Cu, Al, ACSR)

WDIETREE:

W-die holder for 6 die sets

TOOLBAGMDLI:

Tool bag (sold separately)

PT10074020:

Wrist strap

Variations:

(additional variations may be available)

Catalog Number: Description:

CSMD6LI:

BG and D3 grooves

CSMD68LI:

O and D3 grooves

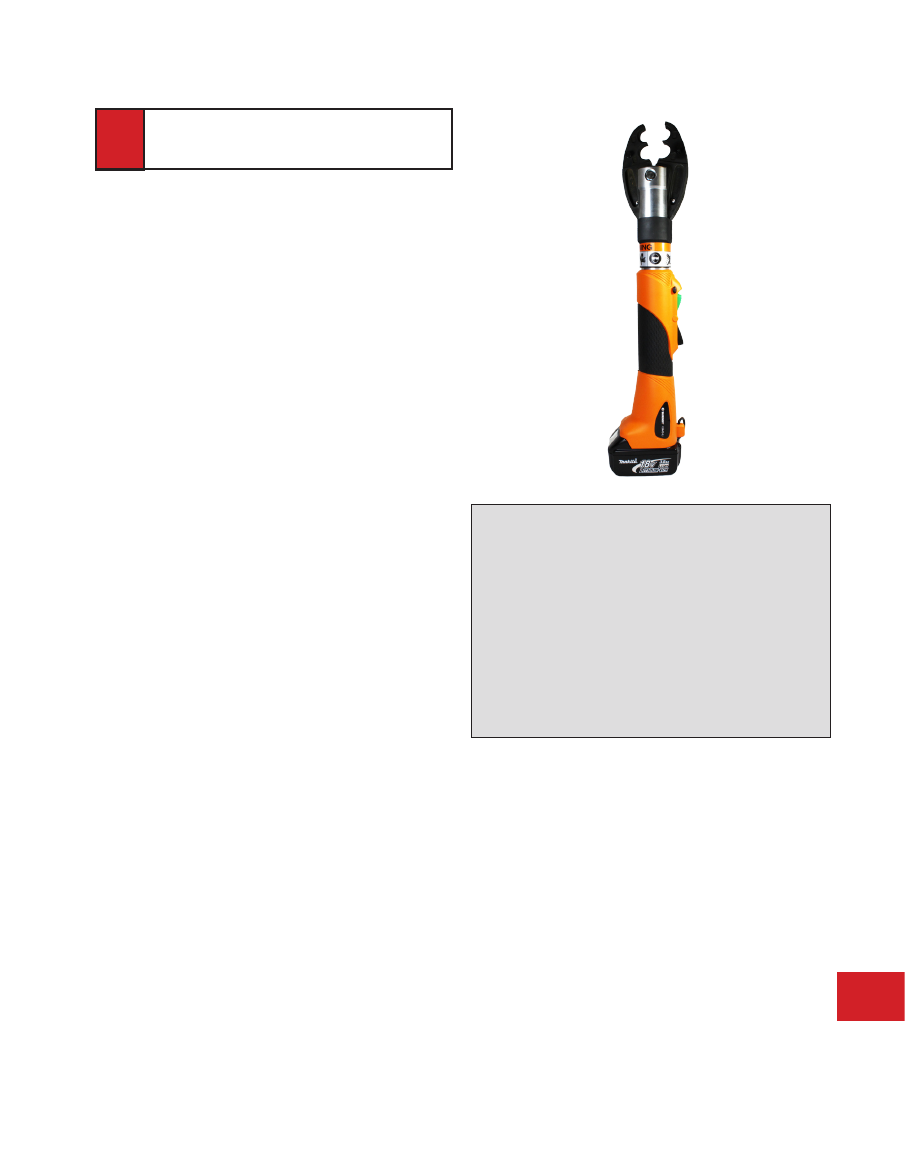

Shown: CSMD6-LI

Scissor-action jaws,

safety orange

See Important Notes on Page N-6.

N-19

section n-tooling-html.html

Tooling

Crimpers — Self-Contained Hydraulic

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Y750HSXT

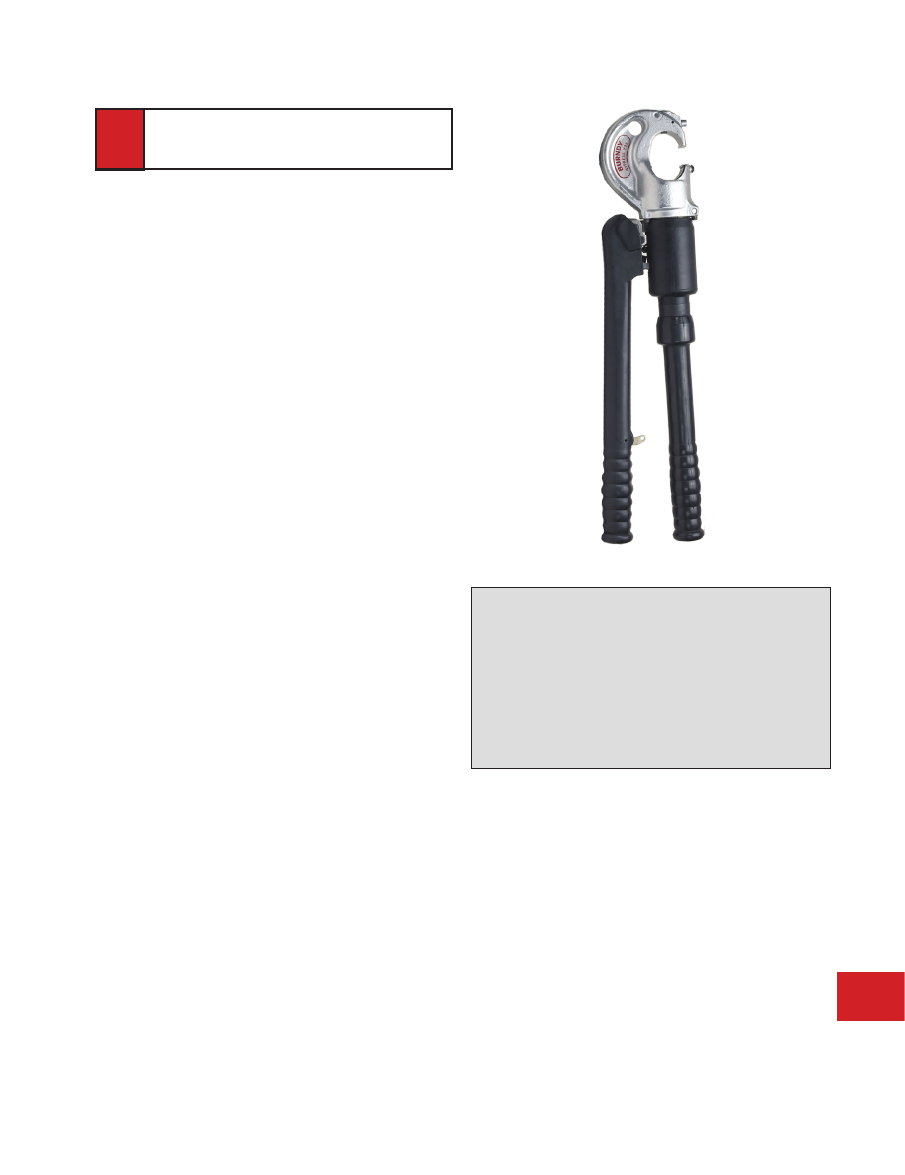

12-Ton, C-Head, HYPRESS™

Hydraulic Self-Contained, Hand Operated Tool

• 355

head rotation

• 1.65” jaw opening

• Rapid advance pump

• Uses standard BURNDY U dies (sold separately)

For Use On:

Tension Sleeves

Copper

#8 sol. - 500 kcmil

Aluminum

#8 sol. - 587.2 kcmil

ACSR

#4 - 556.5 kcmil

Taps

Copper

#14 sol. - 500 kcmil

Aluminum

#8 - 500 kcmil

Aerial Cable

Copper

#6 - 500 kcmil

Terminals & Splices

Copper

#8 - 750 kcmil

Aluminum

#8 - 750 kcmil

ACSR

#4 - 556 kcmil

HYGROUND

(Compression Grounding)

Copper

#8 - 500 kcmil

Ground Rods

1/2” - 1” diameter

Specifications:

Output Force:

12 Tons

Tool Weight:

14.5 lbs

Size:

24.00” x 8.75” x 2.88”

Die Style:

U style

Jaw Opening:

1.65”

Warranty:

5 year limited warranty

Accessories:

Catalog Number:

Description:

PT10024162:

Plastic carrying case for

Y750HSXT/Y750CHSXT

FORCEGAUGE1215:

Force test gauge for accurate

reading of output force

PT29291:

Steel die case for U dies

Variations:

Catalog Number: Description:

Y750HSXT

Standard version

Y750CHSXT

Rubber covered head version

N-20

section n-tooling-html.html

Tooling

Crimpers — Self-Contained Hydraulic

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

12-Ton, C-Head, HYPRESS™

Hydraulic Self-Contained, Hand Operated Tool

• 180

head rotation

• Uses BURNDY U style dies (sold separately)

• Body and handles rubber covered for impact protection

• Trigger controlled ram release

For Use On:

Copper #8 str. - 500 kcmil code cable

Grounding Terminals:

YGH, YGHA, YGF

Grounding Splices:

YGS, YGHS

Copper #8 str. - 500 kcmil and up to 3/4” ground rod

Grounding Taps:

YGHC-C, YGHP-C, YGHR-C

Copper #8 str. - 750 kcmil code cable, N30 - N500 Navy

cable, flexible, and extra flex

Terminals (Bare):

YA, YA-2N, YA-L, YA-LB, YA-2LN

Terminals (Insulated):

YAEV-L, YAEV-H, YAEV-RS, YAEV-RH

Splices to 400 kcmil only:

YS, YS-T, YS-L, YS-LB, YSV-L, YSM

Aluminum #8 str. - 750 kcmil code cable

Terminals:

YA-A, AYP, AYPO

Splices to 350 kcmil only:

YSA, YRB, YS-AT

ACSR:

See Overhead Transmission and Distribution

sections in the BURNDY Master Catalog

Specifications:

Output Force:

12 Tons

Tool Weight:

13.0 lbs

Size:

23.25” x 8.75” x 4.75”

Die Style:

U style

Warranty:

5 year limited warranty

Y35

Variations:

Catalog Number: Description:

Y35

Standard tool (rubber covered body

and handles only)

Y352

Y35 with rubber covered head, body, and

handles

Accessories:

Catalog Number: Description:

PT2972:

Steel Carry Case for Y35 (included with tool)

PT29360:

Steel Carry Case for Y352 (included with tool)

Y35/Y39REPKITA:

Seal Repair Kit

N-21

section n-tooling-html.html

Tooling

Crimpers — Self-Contained Hydraulic

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

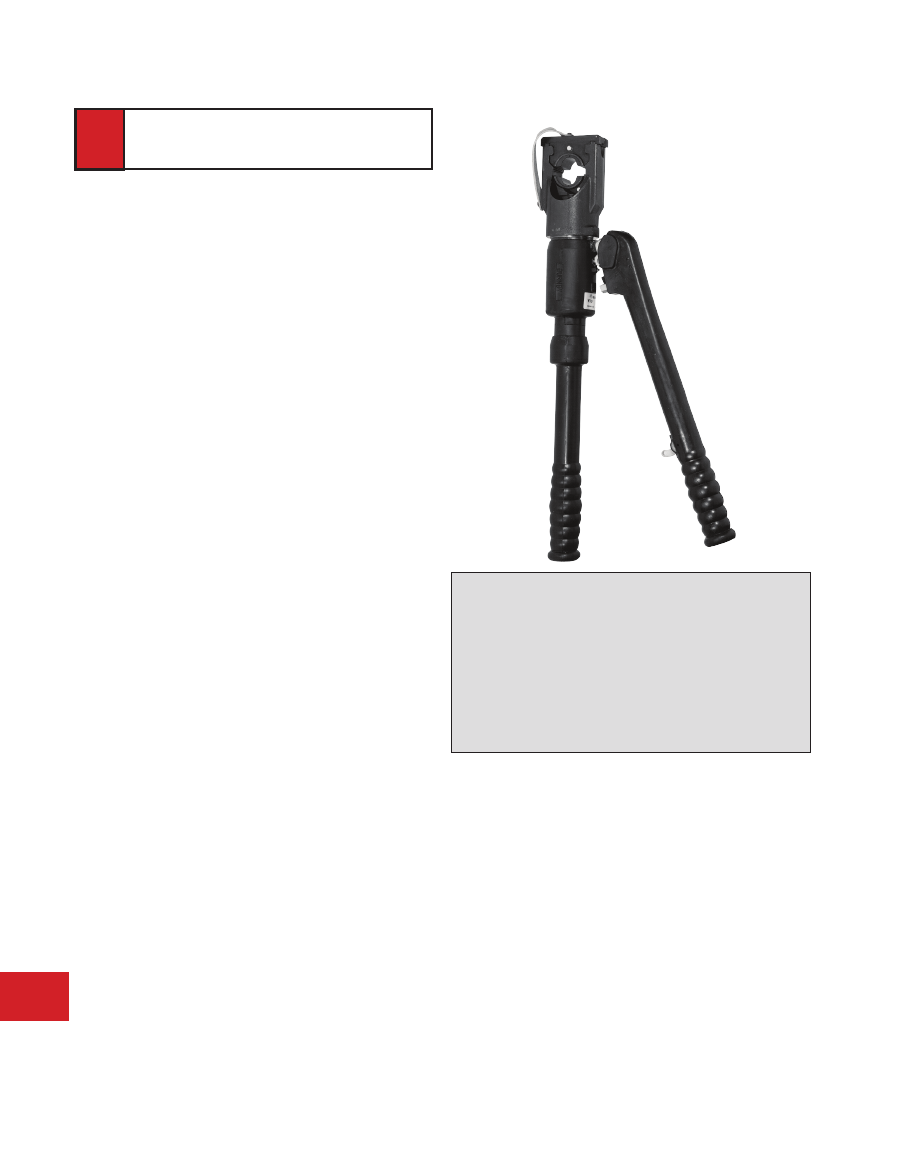

Y39

12-Ton, Latch Head, HYPRESS™

Hydraulic Self-Contained, Hand Operated Tool

• 180

head rotation

• Body and handles rubber covered for impact protection

• Trigger controlled ram release

• Uses standard BURNDY U dies (sold separately)

For Use On:

Copper #6 AWG - 750 kcmil str. Code Cable

N30 - N650 Navy Cable, Flexible, and Extra Flexible

Terminals (Bare):

YA, YA-L, YA-LB, YGH, YGHA

Splices and Tees (Bare):

YS, YS-L, YS-LB, YS-T, YSP-T, YST

Copper AN or AIR #6 AWG - 4/0 str. Code Cable

AN6 - AN4/0 Aircraft Cable, Flexible, and Extra Flexible

Terminals (Bare):

YAV-L, YAV-RS

Splices (Bare):

YSV-L

Copper #8 AWG - 2/0 str. Code Cable

AN8 - AN2/0 Aircraft Cable, Flexible, and Extra Flexible

Terminals (Insulated):

YAEV-L, YAEV-RS, YAEV-RH

Copper #12 AWG sol. - 250 kcmil

Taps:

YC-C, YGHC-C, YGHP-C, YGHR-C

Aluminum #8 AWG - 750 kcmil Code Cable

Terminals:

YA-A

Splices:

YS-A, YS-AT, YRB

Aluminum #6 str. - 500 kcmil

Taps:

YFD, YFN, YFO

Specifications:

Output Force:

12 Tons

Tool Weight:

12.0 lbs

Size:

23.00” x 8.75” x 4.00”

Die Style:

U style

Warranty:

5 year limited warranty

Accessories:

Catalog Number:

Description:

PT2972:

Metal Carrying Case (included with tool)

Y35/Y39REPKITA:

Seal Repair Kit

N-22

Variations:

Catalog Number: Description:

Y39

Standard tool (rubber covered body

and handles)

section n-tooling-html.html

Tooling

Crimpers — Self-Contained Hydraulic

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

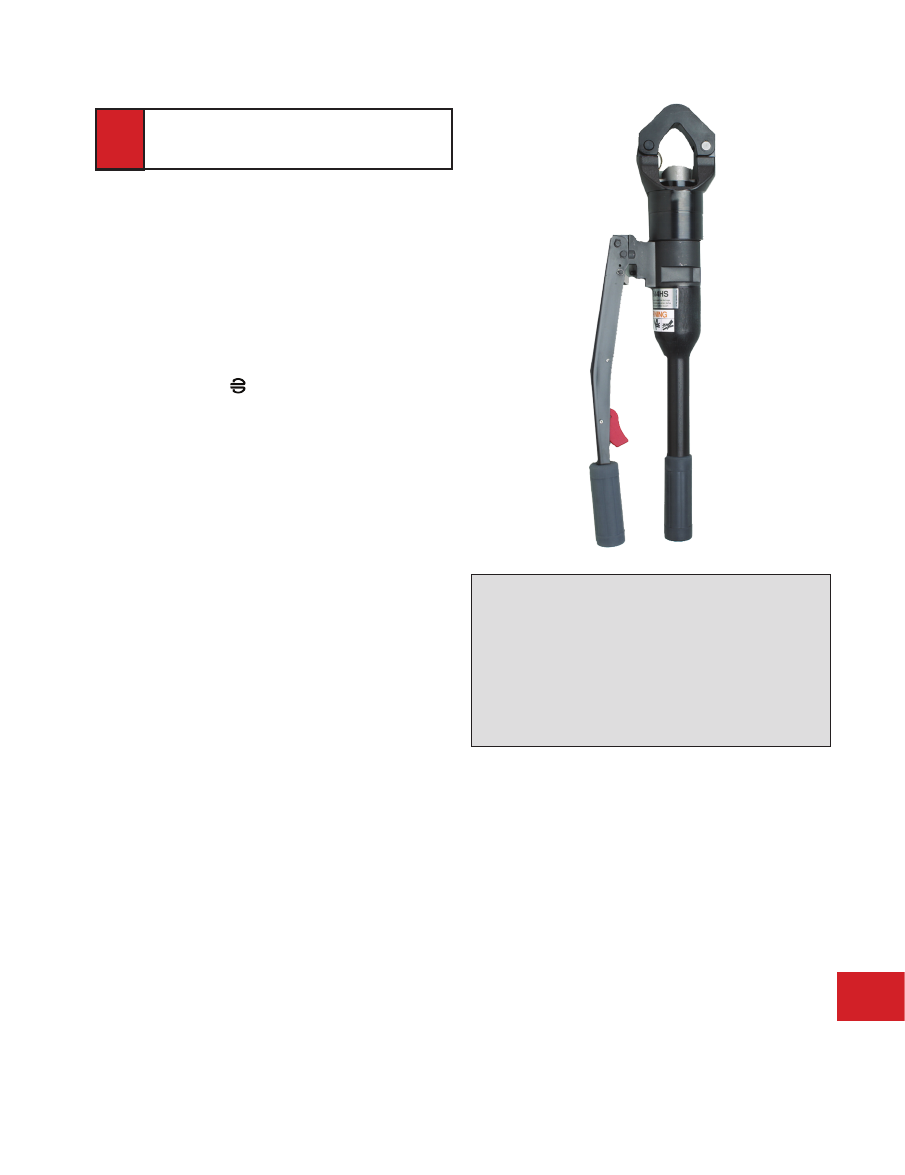

11-Ton, Dieless Latch Head

Hydraulic Self-Contained, Hand Operated Tool

• 355

head rotation

• Dieless System

• Range taking capabilities

• Only “1” crimp necessary for most standard and long

barrel terminals and splices

• Easy inspection; positive identification proved with

BURNDY

‘Bug’ ( ) embossment after crimp

completion

For Use On:

Copper #6 - 1000 kcmil

Terminals:

YA-L, YA-2-LN, YA, YA-FXB, YA-2N, YA-L-2TC,

YA-L-FX,

YAB-4N, YA-L-TC, YA-2L, YA-4N, YEV-P-FX,

YE-P,

YE-P-FX

Splices:

YS-L, YS, YS-T

Aluminum #6 str. - 900 kcmil

Terminals:

YA-A, YA-A-TN

Splices:

YS-A

HYPLUG™:

AYP, AYPO

See Expanded Range details in Reference Section

Specifications:

Output Force:

11 Tons

Tool Weight:

15.0 lbs

Size:

23.25” x 7.13” x 3.00”

Die Style:

Dieless

Warranty:

5 year limited warranty

Accessories:

Catalog Number: Description:

Y644HSCASE:

Plastic carrying case (included with tool)

Y644HSXT

N-23

Variations:

Catalog Number: Description:

Y644HSXT

Standard tool

section n-tooling-html.html

Tooling

Crimpers — Self-Contained Hydraulic

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

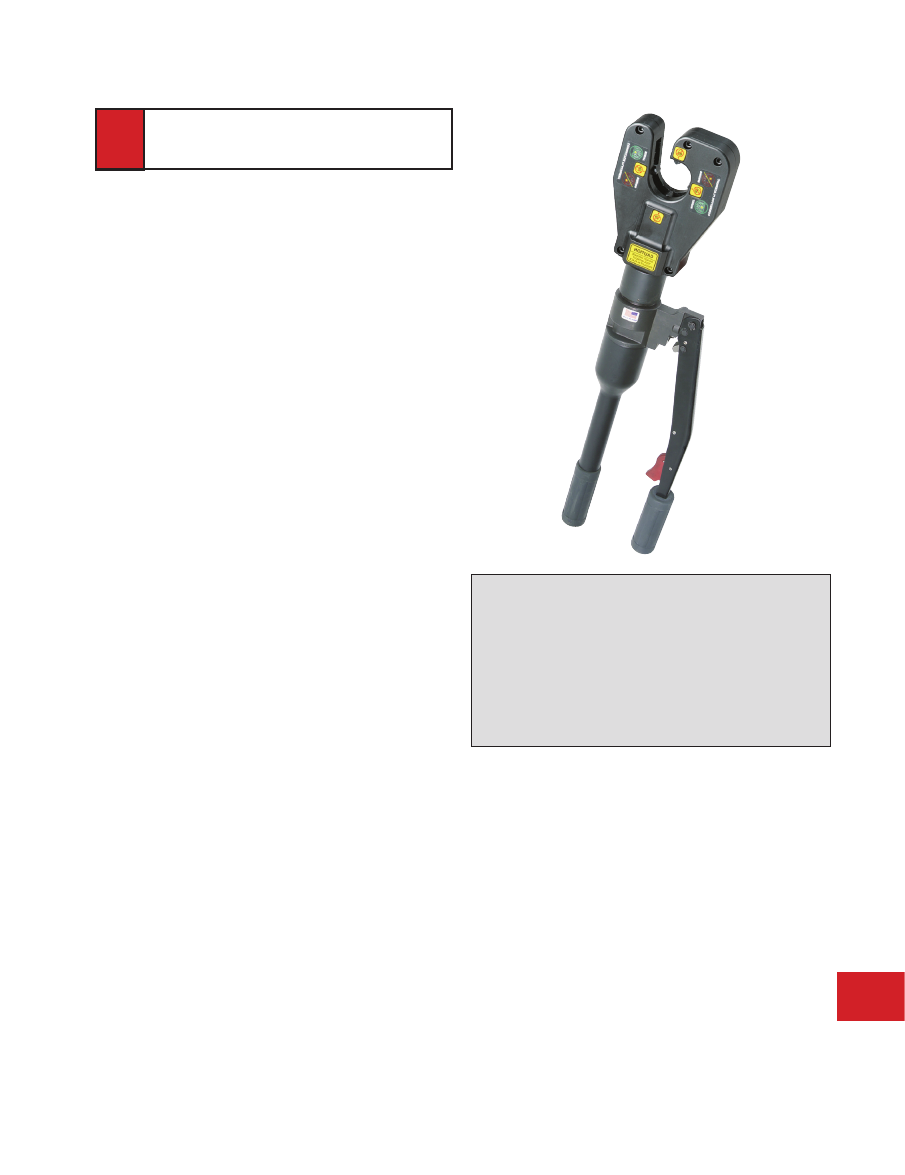

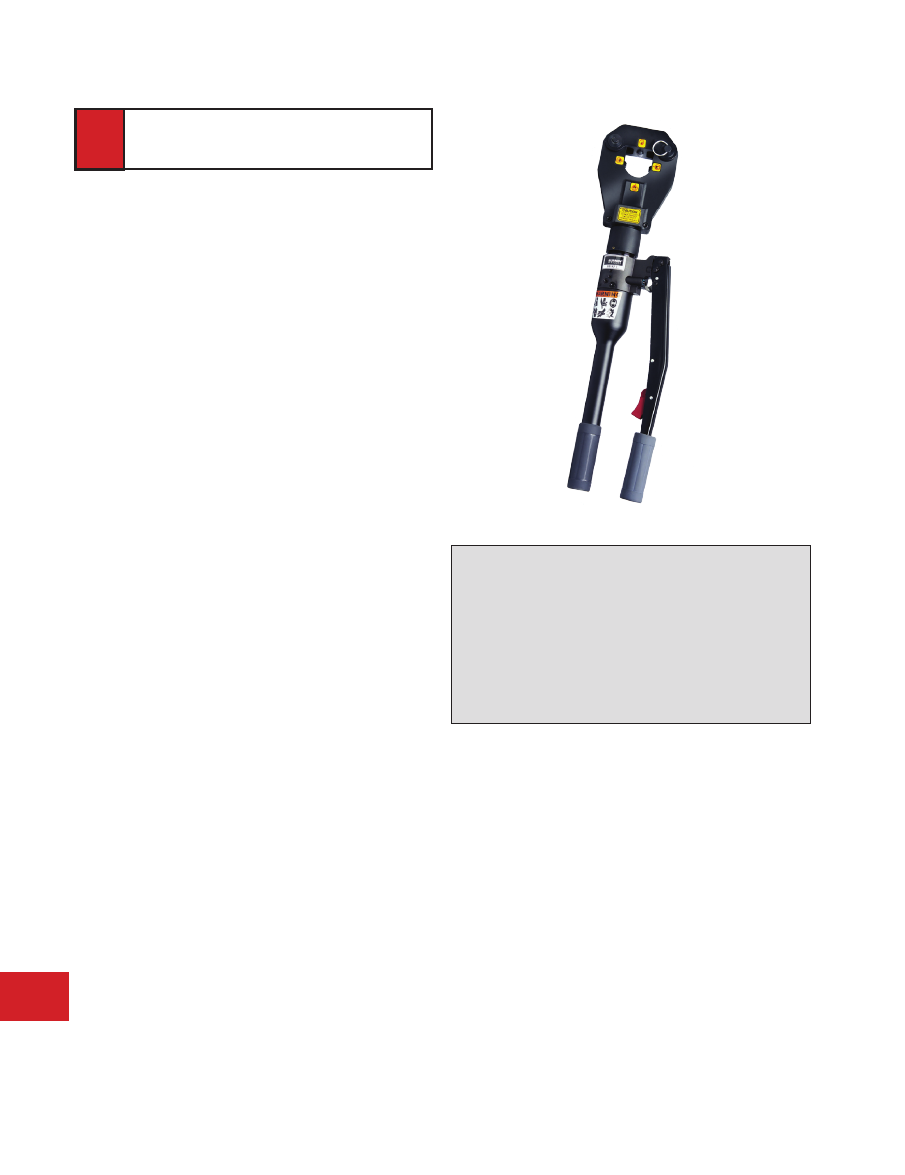

Y81KFT

6-Ton, 4-POINT

Dieless Latch Head

Hydraulic Self-Contained, Hand Operated Tool

• Dieless System

• Range taking capabilities

• Flip top latch head design

• 360

head rotation

For Use On:

Copper #8 -1000 kcmil

Terminals:

YA, YA-L

Splices:

YS-L, YS, YS-T, Y-R

Copper Flex #8 - 777.7 kcmil Flex (750 Nominal)

Terminals:

YA-FX, YAV, YA-L-FX

Splices:

YS, YSV-FXB

Aluminum #8 - 750 kcmil

Terminals:

YA-A, YA-A-TN

Splices:

YS-A

HYPLUG™:

AYP, AYPO

See Expanded Range details in Reference Section

Specifications:

Output Force:

6 Tons

Tool Weight:

12.0 lbs

Size:

25.62” x 7.75” x 2.50”

Die Style:

Dieless

Warranty:

5 year limited warranty

Accessories:

Catalog Number: Description:

PT10050733:

Plastic Carrying Case (included with tool)

N-24

Variations:

Catalog Number: Description:

Y81KFT

Standard 4-POINT

Dieless Latch Head tool

section n-tooling-html.html

Tooling

Crimpers — Self-Contained Hydraulic

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

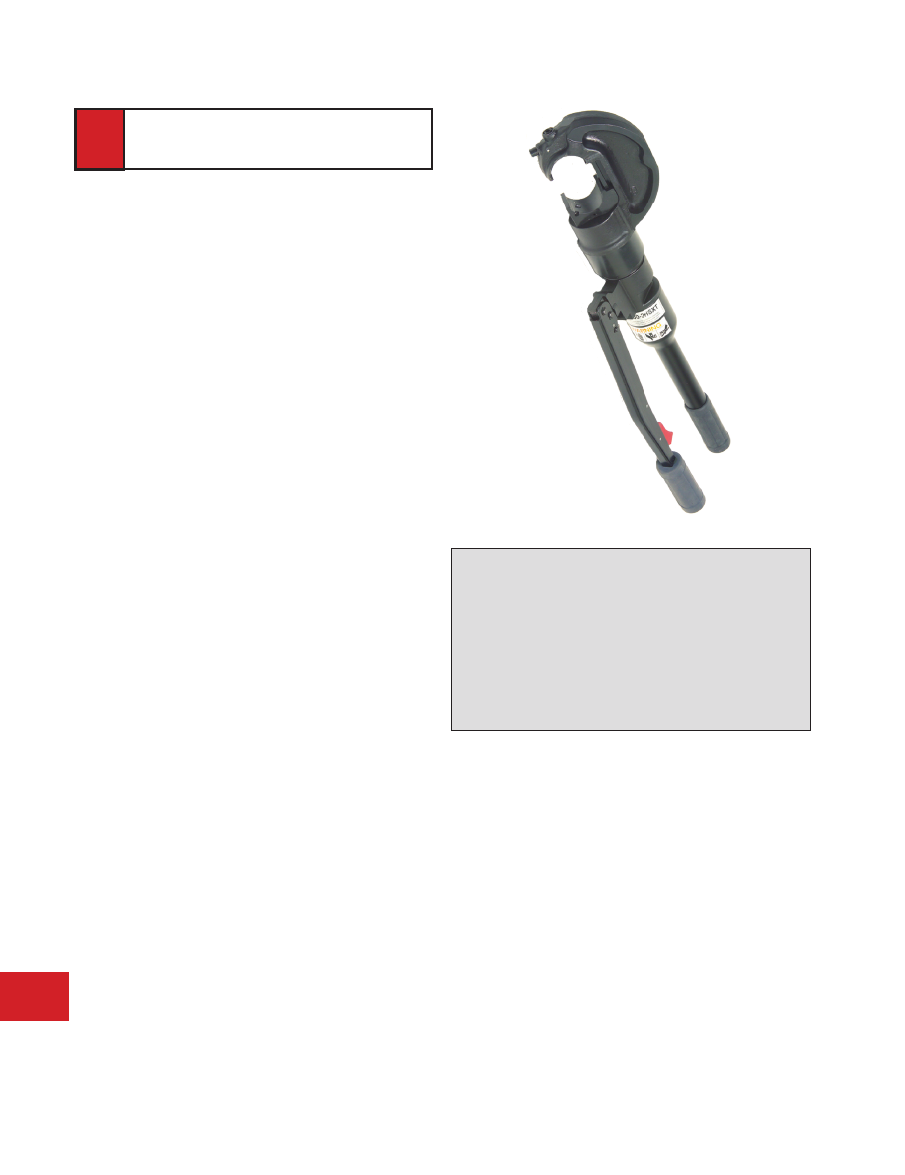

6-Ton, 4-POINT

Dieless C-Head

Hydraulic Self-Contained, Hand Operated Tool

• 360

head rotation

• Dieless System

• Range taking capabilities

• Handle trigger release

For Use On:

Copper

Terminals:

YA, YA-L (#8-1000 kcmil)

Splices:

YS-L, YS, YS-T, Y-R (#8-500 kcmil)

Copper Flex

Terminals:

YA-FX, YAV, YA-L-FX (#8-777.7 Flex)

Splices:

YS, YSV-FXB (#8-500 kcmil)

Aluminum

Terminals:

YA-A, YA-A-TN (#8-750 kcmil)

Splices:

YS-A (#8-350 kcmil)*

HYPLUG™:

AYP, AYPO (#8-750 kcmil)

*Range limited due to jaw opening. For a more expanded

range, please see the PAT81KFT.

See Expanded Range details in Reference Section

Specifications:

Output Force:

6 Tons

Tool Weight:

11.9 lbs

Size:

25.62” x 7.75” x 2.50”

Die Style:

Dieless

Warranty:

5 year limited warranty

Y4PC834

Accessories:

Catalog Number: Description:

PT10050733:

Plastic Carrying Case (included with tool)

N-25

Variations:

Catalog Number: Description:

Y4PC834

Standard 4-POINT

Dieless C-Head tool

section n-tooling-html.html

Tooling

Crimpers — Self-Contained Hydraulic

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

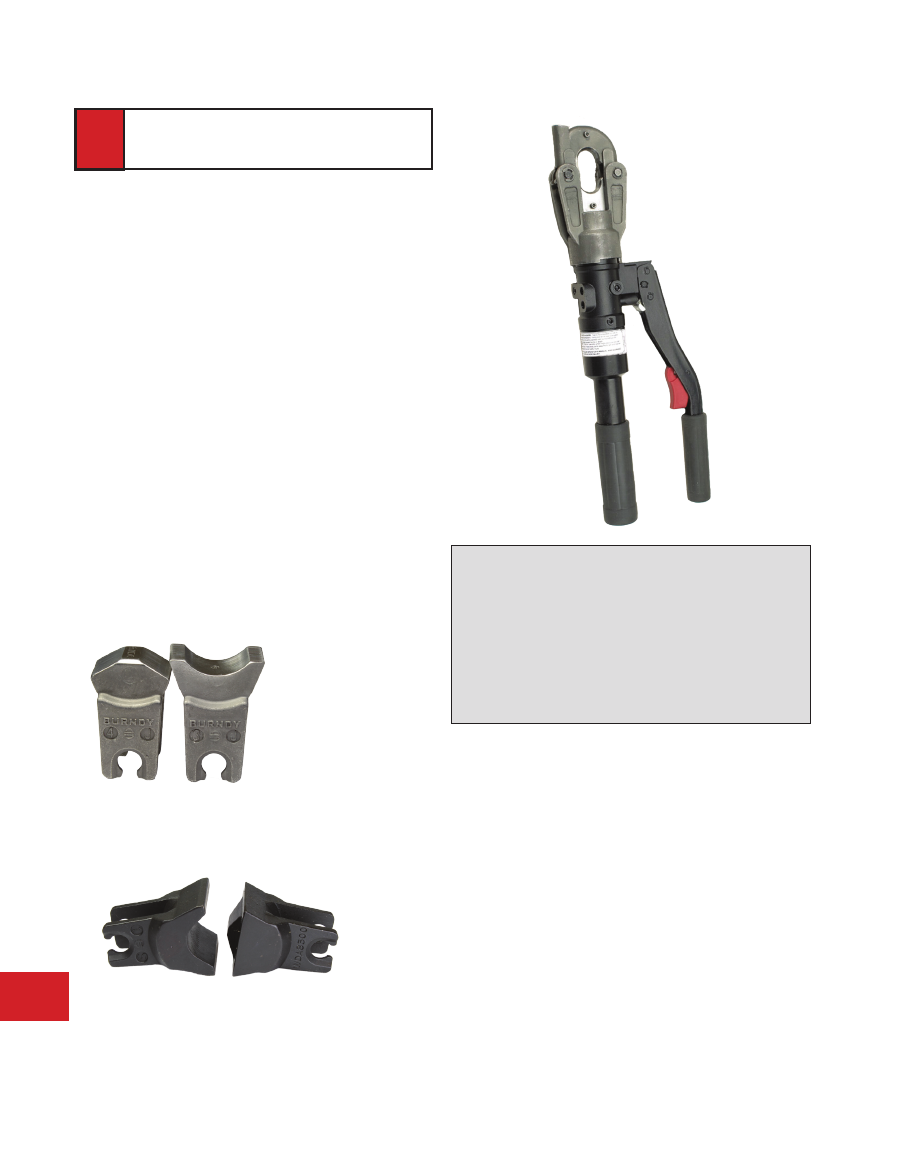

Y500CTHS

6-Ton, Latch Head, L’IL CRIMP™

Hydraulic Self-Contained, Hand Operated Tool

• Permanent functional D3 groove (no die needed)

• Used with W, X, and W-VT style dies

• 180

head rotation

• Enhanced clearance for tap connectors

For Use On:

Copper, Aluminum, ACSR, Steel, Copperweld,

Alumoweld, 6201, 5005, Compressed, Compact,

Stranded and Solid conductors

Installs Splices, Taps or Terminations:

#8 - 600 kcmil Copper Str.

#8 - 350 kcmil Flex

#8 - 350 kcmil Aluminum

Specifications:

Output Force:

6 Tons

Tool Weight:

7.8 lbs

Size:

17.63” x 6.00” x 2.68”

Die Style:

W, W-VT and X styles

Warranty:

5 year limited warranty

Accessories:

Catalog Number: Description:

WDC4500:

Range taking die for #4 - 500 Cu Str. and

#2 - 4/0 Cu Flex

WDA8300:

Range taking die for #8 - 300 Al, #6 - 400 Cu Str.

and #2 - 4/0 Cu Flex

PT212851:

Metal Carrying Case (included with tool)

When used with UL Listed/CSA Certified YA, YS, YA-A, and YS-A series

terminals and splices, connections are UL/CSA.

Range taking dies also for use on the YAV and YSV series.

WDC4500

range taking

die for #4 - 500 Cu Str.

and #2 - 4/0 Cu Flex

(sold separately)

WDA8300

range taking die for

#8 - 300 Al,

#6 - 400 Cu Str. and

#2 - 4/0 Cu Flex

(sold separately)

N-26

Variations:

Catalog Number: Description:

Y500CTHS

Standard Latch Head Tool

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Remote Hydraulic

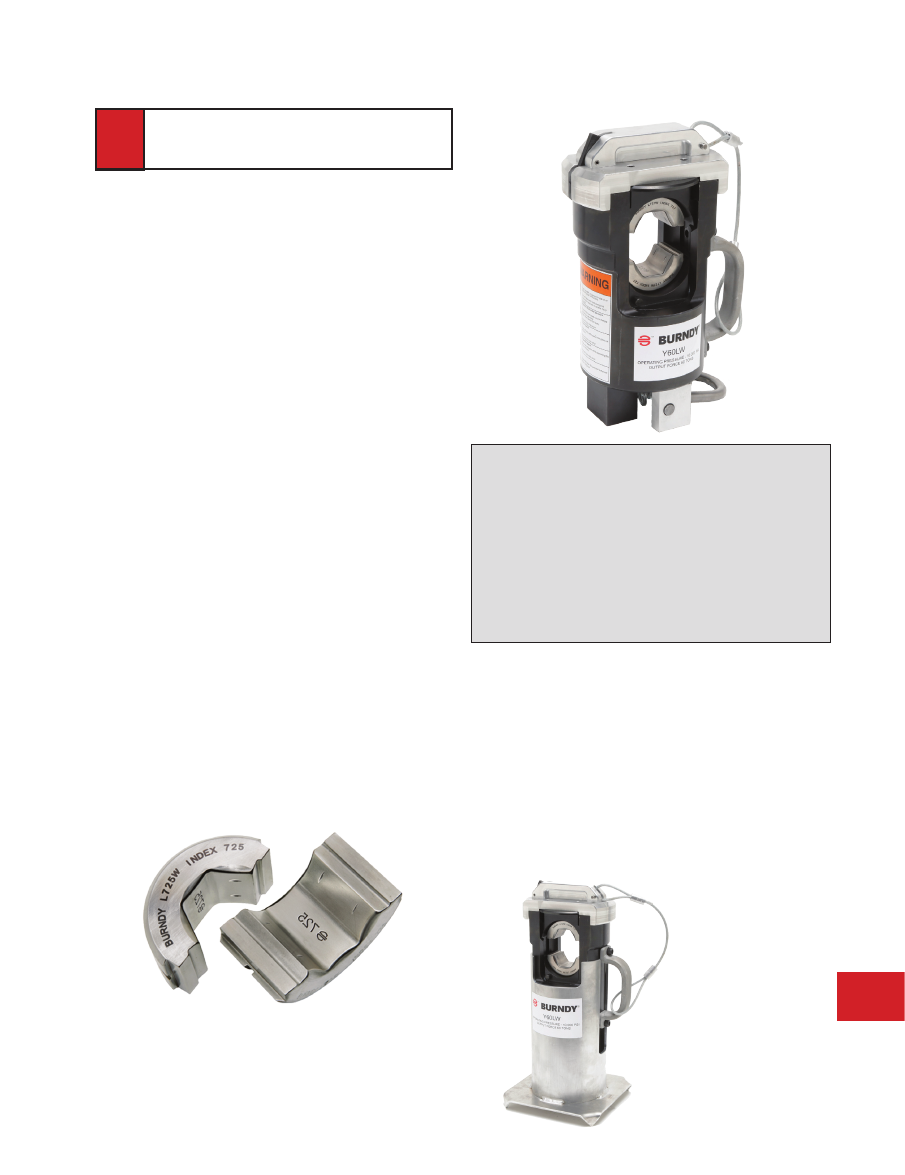

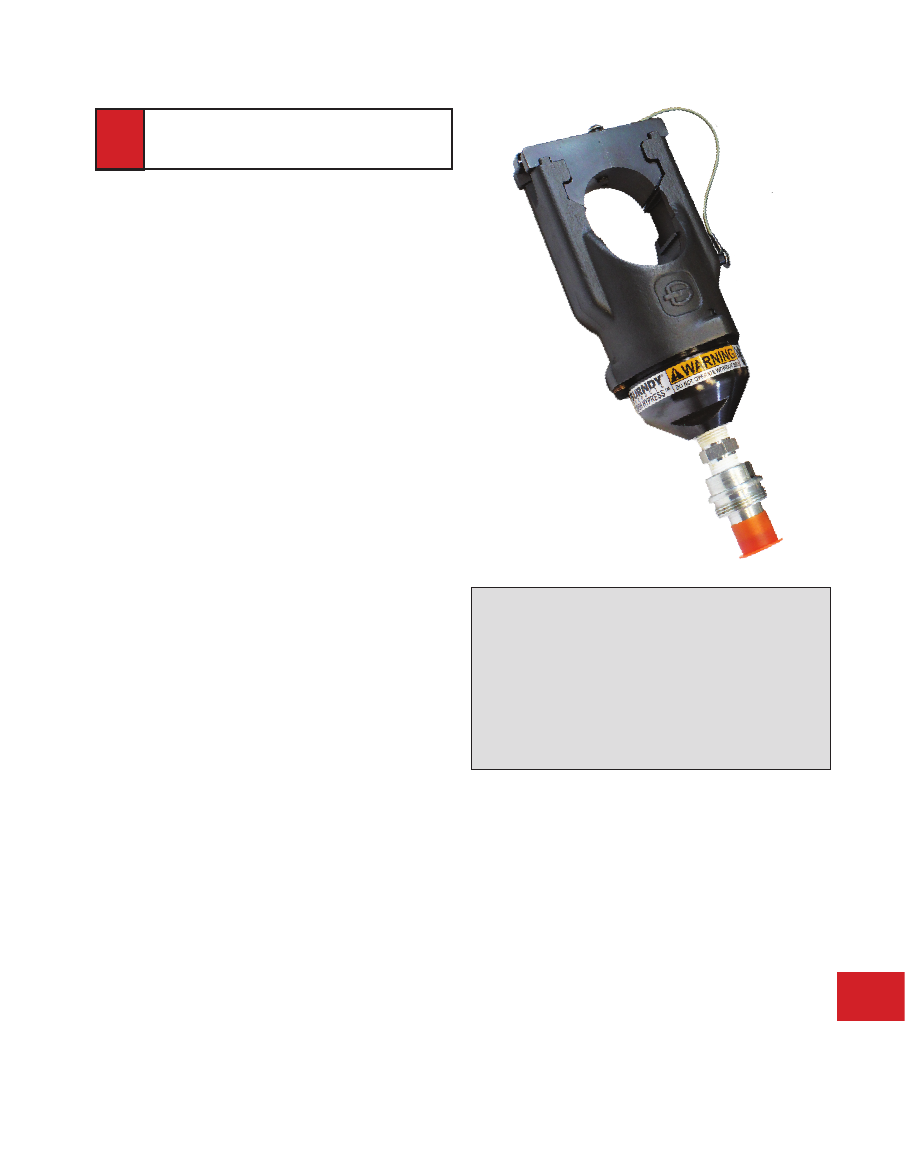

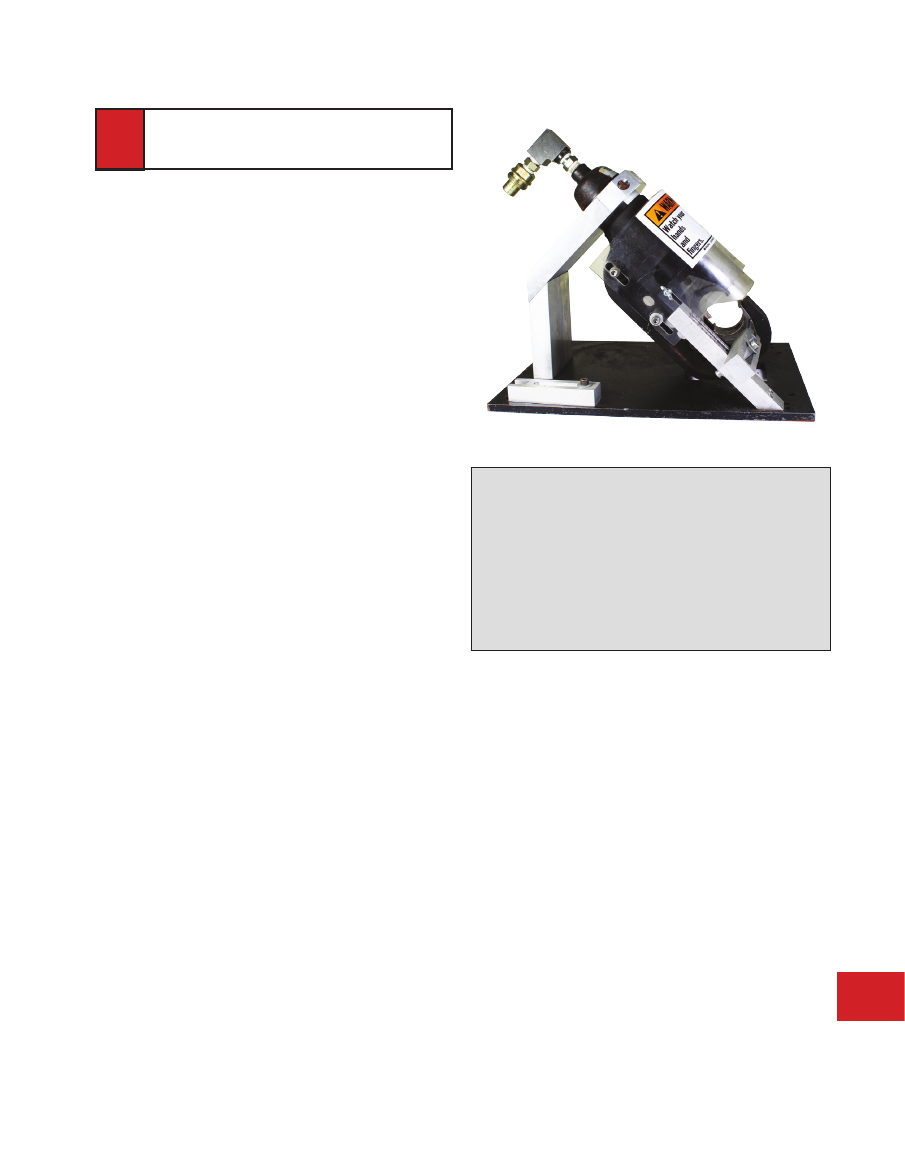

Y60LW

60-Ton, Light Weight Remote Latch Head

Single Acting Light Weight Hydraulic Tool

• Remote power operated

• Used with BURNDY L, wide L style dies, and HPS/Fargo-

equivalent 60 ton dies

• Base stand and metal carry case (for head only) included

• Side lift handle

For Use On:

Copper 300 - 2000 kcmil Str. Code Cable

Terminals:

YA, YA-2N, YA-4N, YA-L, YA-2LN, YA-LB

Splices:

YS, YST, YS-L, YS-T, YSP-T

Aluminum 250 - 2000 kcmil Str. Code Cable

Terminals:

YA-A

Splices:

YS-A, YS-AT

Transmission & Distribution Connectors:

Tension Sleeves:

Copper: 1/0 str. - 1000 kcmil

Aluminum: 1/0 str. - 2300 kcmil

ACSR: 1/0 str. - 2156 (84/19 str.) kcmil

Aerial:

Copper: 4/0 str. - 2500 kcmil

Aluminum: 3/0 str. - 2500 kcmil

Types: YTS, YTN, YNS, YNA, YNT, YNTA, YNU, YDS,

YDN, YCS, YCA, YCU

Specifications:

Output Force:

60 Tons

Tool Weight:

43.0 lbs

Size:

13.00” x 8.12” x 8.12”

Die Style:

L style (standard or wide style);

HPS/Fargo-equivalent 60 ton dies

Operating Pressure:

10,000 PSI

Warranty:

5 year limited warranty

Accessories:

Catalog Number: Description:

Y60LWSTAND:

Metal stand for Y60LW (included with tool)

Y60LWCASE:

Steel carry case for Y60LW head (included

with tool)

See Gas or Electric Pumps and Hydraulic Hoses;

Pump Accessories for other necessary equipment.

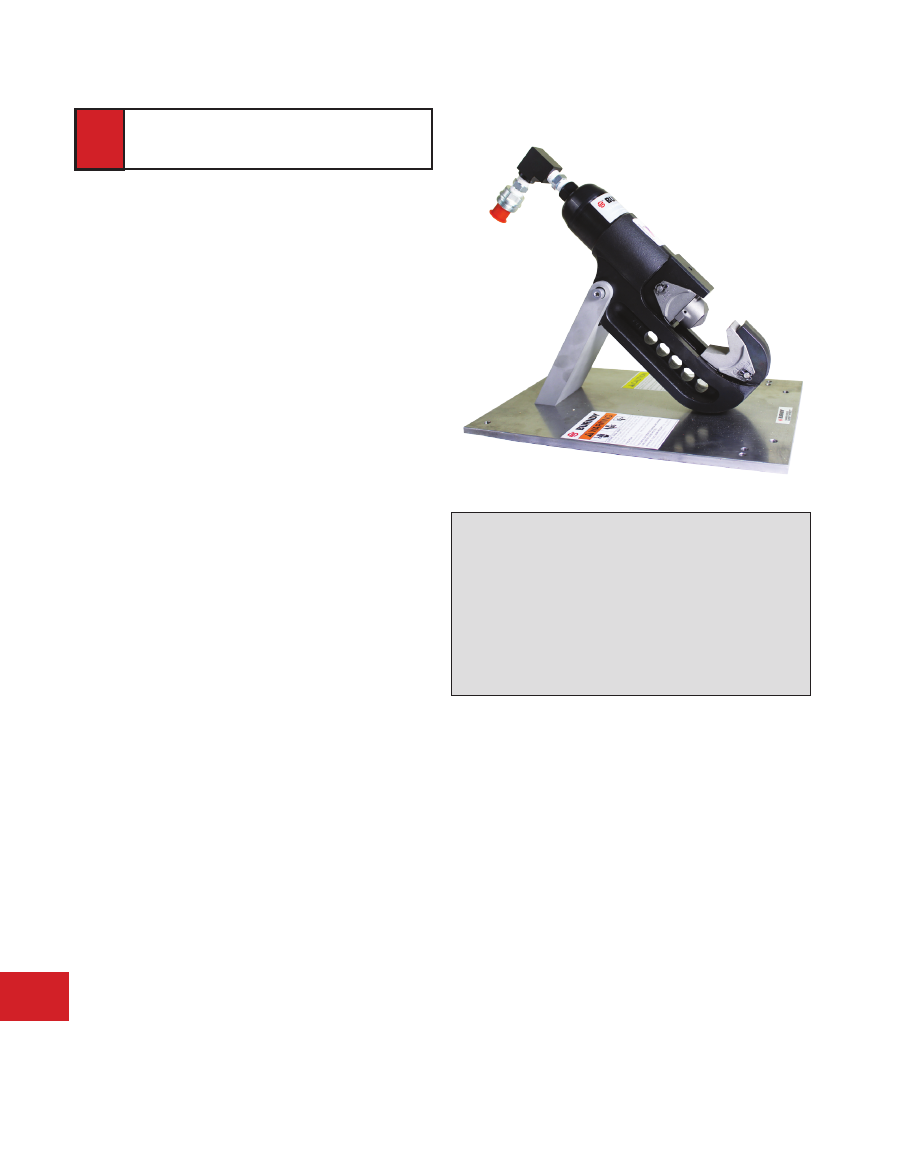

Y60LW

pictured on Y60L-

WSTAND (included with

tool purchase)

N-27

Variations:

Catalog Number: Description:

Y60LW

Light Weight Remote Latch Head Tool

Wide L-dies (sold separately) can be used to save time

and labor! Indicator marks on die set for ease of aligning

connector properly.

L725W

shown.

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Remote Hydraulic

Accessories:

Catalog Number: Description:

PUADP1:

U die adapter

P15K:

Cutter Die, max. diameter 1.2”

PT10054094:

Carry Bag (included with tool)

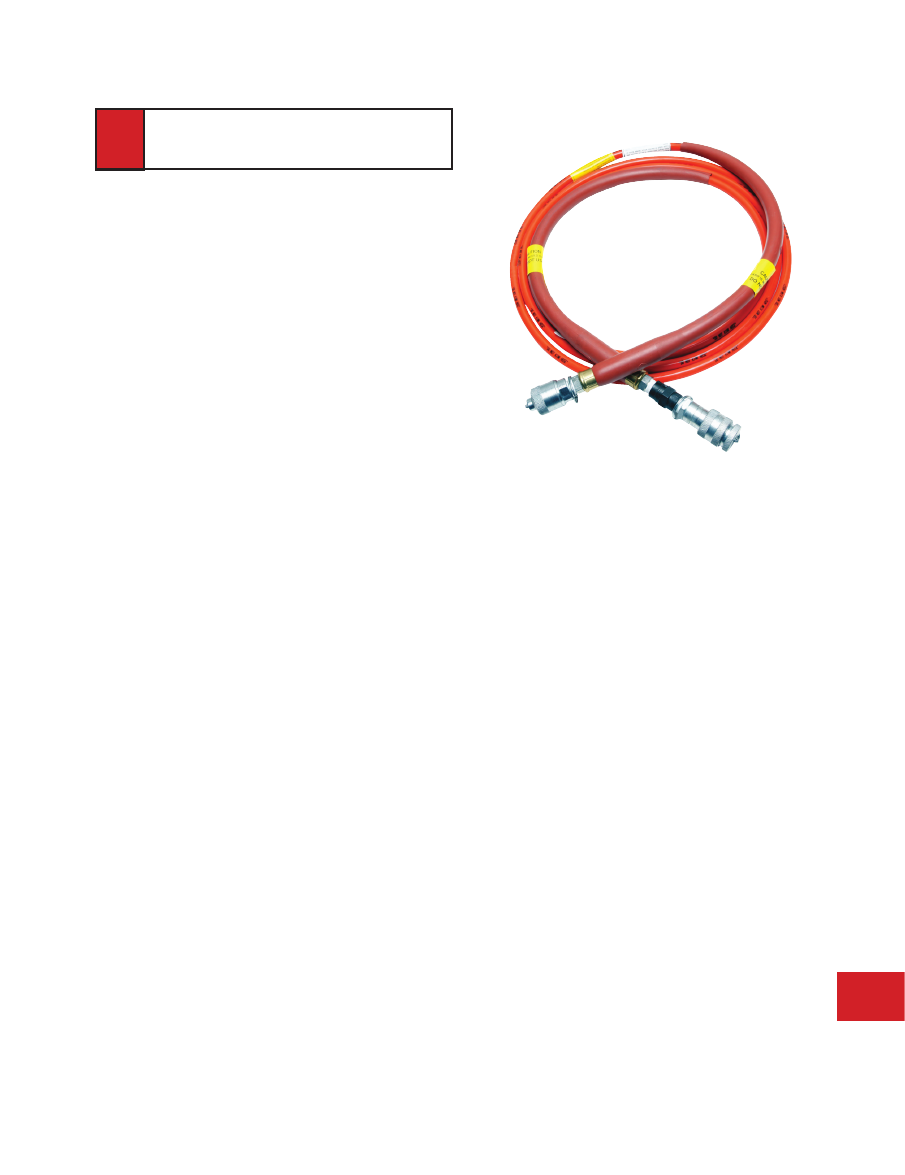

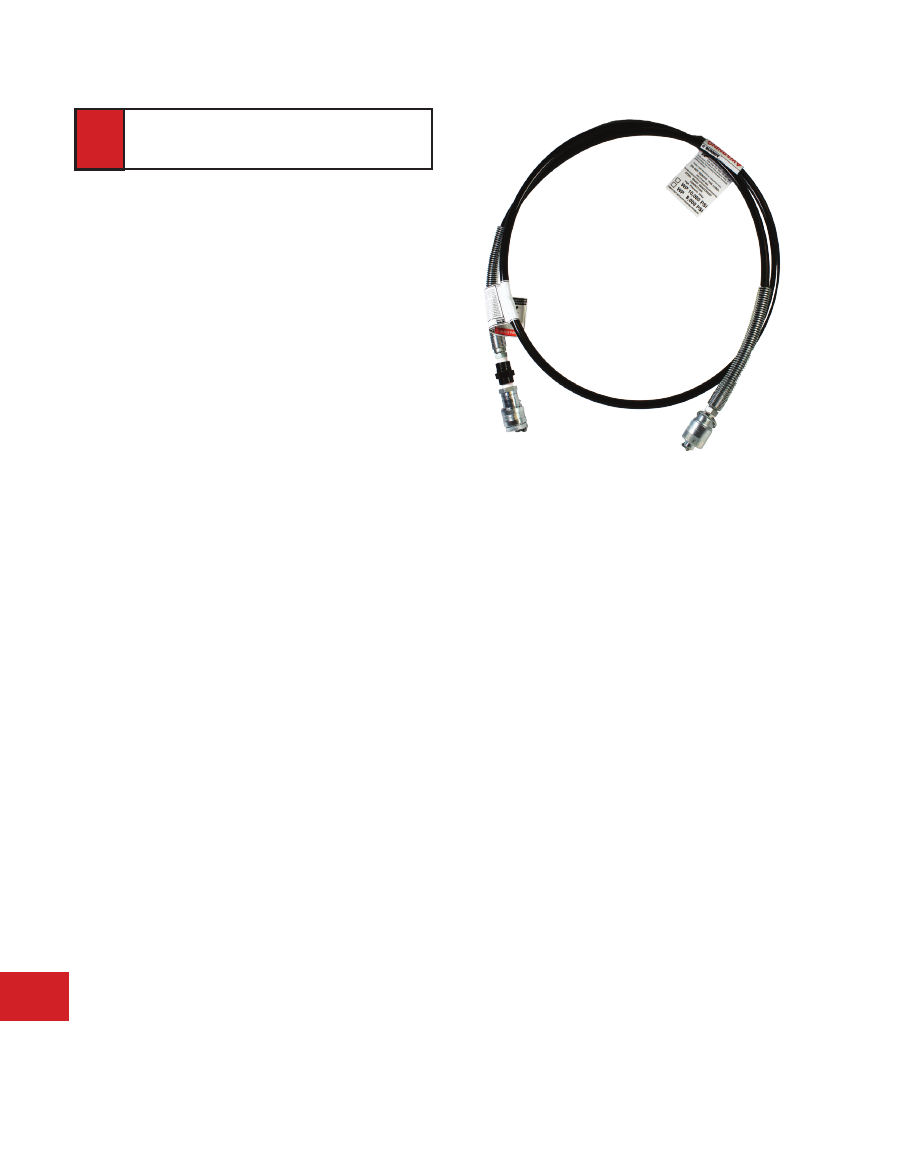

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories

for other necessary equipment.

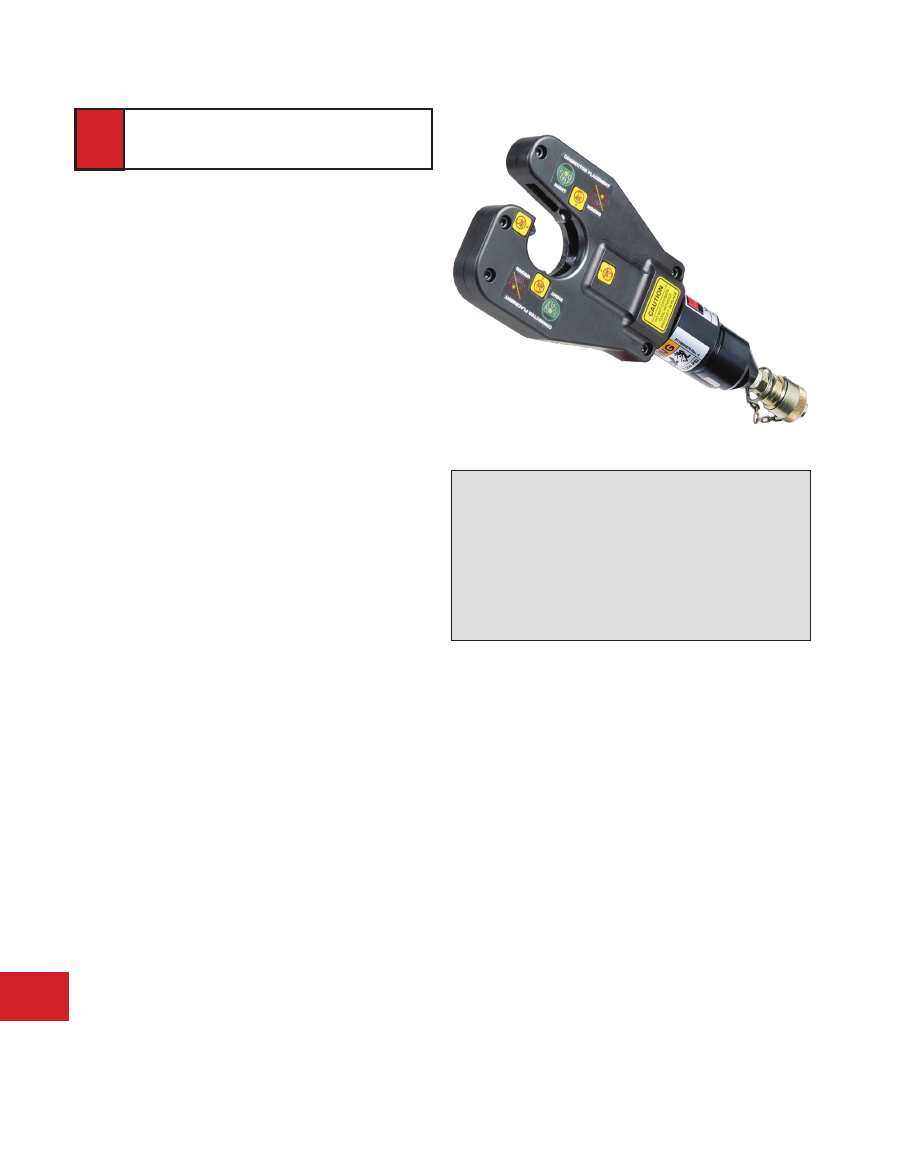

Y46LWSBH

15-Ton, Remote Light Weight C-Head

Remote Operated Hydraulic Tool

• 2” jaw opening

• Used with P dies; U dies with PUADP1 adapter (sold

separately)

• Positive push button die locks

• Light weight scoop style open head design

For Use On:

Copper - #8 AWG Str. - 1500 kcmil

Code Cable, Navy Cable, Flexible, Extra Flexible

1/2” - 1” Ground Rods

Terminals, grounding:

to 500 kcmil; YGA, YGHA, YGF

Terminals, uninsulated:

#8 - 1500 kcmil; YA, YA-2N, YA-L, YA-LB, YA-TC,

YA-2LN, YAB-4N, YAV-L, YAV-RS, YA-TC-FX

Terminals, insulated:

#8 - 2/0; YAEV-L, YAEV-H, YAEV-RS, YAEV-RH

Splices:

#8 - 1500 kcmil; YS, YS-T, YS-L, YS-LB, YST,

YSP-T, YGS, YGHS

Taps:

#14 - 1000 kcmil; YH, YCHC

to 4/0 AWG; YC-C

Taps, grounding:

to 500 kcmil; YGHC-C, YGHP-C, YGHR-C

Aluminum - #8 AWG - 1250 kcmil

Code Cables

Terminals:

YA-A, AYP, AYPO

Splices:

YS-A, YS-AT, YRB

Taps:

YFD, YFN, YFO, YFR

ACSR

- See Overhead Transmission & Distribution

Sections H & I of the current BURNDY

Master

Catalog

Specifications:

Output Force:

15 Tons

Tool Weight:

14.6 lbs

Size:

14.93” x 5.12” x 3.12”

Die Style:

P style and U style with PUADP1 adapter

Operating Pressure:

10,000 PSI

Cycles:

10,000

Warranty:

5 year limited warranty

Variations:

Catalog Number: Description:

Y46LWSBH

Standard Light Weight C-Head tool

Y46CLWSBH

Permanently molded head of 3/16” rubber

included separate molded rubber boot for

lower body and hydraulic coupler

Y46CLWSBHF

Y46CLWSBH (covered) tool with female coupler

Y46LWSBHF

Y46LWSBH tool with Female coupler (not rubber

covered)

N-28

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Remote Hydraulic

15-Ton, Light Weight Latch Head

Remote Operated Hydraulic Tool

• 2” ram travel

• Used with P dies; U dies with PUADP1 adapter (sold

separately)

• Positive push button die locks

• Light weight latch head design

For Use On:

Copper - #8 AWG Str. - 1500 kcmil

Code Cable, Navy Cable, Flexible, Extra Flexible

1/2” - 1” Ground Rods

Terminals, grounding:

to 500 kcmil; YGA, YGHA, YGF

Terminals, uninsulated:

#8 - 1500 kcmil; YA, YA-2N, YA-L, YA-LB, YA-TC,

YA-2LN, YAB-4N, YAV-L, YAV-RS, YA-TC-FX

Terminals, insulated:

#8 - 2/0; YAEV-L, YAEV-H, YAEV-RS, YAEV-RH

Splices:

#8 - 1500 kcmil; YS, YS-T, YS-L, YS-LB, YST,

YSP-T, YGS, YGHS

Taps:

#14 - 1000 kcmil; YH, YCHC

to 4/0 AWG; YC-C

Taps, grounding:

to 500 kcmil; YGHC-C, YGHP-C, YGHR-C

Aluminum - #8 AWG - 1250 kcmil

Code Cables

Terminals:

YA-A, AYP, AYPO

Splices:

YS-A, YS-AT, YRB

Taps:

YFD, YFN, YFO, YFR

ACSR

- See Overhead Transmission & Distribution

Sections H & I of the current BURNDY

Master Catalog

Specifications:

Output Force:

15 Tons

Tool Weight:

12.5 lbs

Size:

15.50” x 5.12” x 3.12”

Die Style:

P style and U style with PUADP1 adapter

Operating Pressure:

10,000 PSI

Cycles:

10,000

Warranty:

5 year limited warranty

Accessories:

Catalog Number: Description:

PUADP1:

U die adapter

P15K:

Cutter Die, max. diameter 1.2”

PT10054094:

Carry Bag (included with tool)

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories

for other necessary equipment.

Variations:

Catalog Number: Description:
Y46LWBH

Standard tool, Light Weight Latch Head

Y46LWBHF

Y46LWBH tool with Female coupler (not rubber

covered)

Y46LWBH

N-29

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Remote Hydraulic

Accessories:

Catalog Number: Description:

PT6515:

Adapter for use with U die sets

PT6545:

Die carrying case for S and/or P die type dies.

Holds eight (8) die sets. Dies sold separately.

433206016010:

Carry Case (included with tool)

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories

for other necessary equipment.

Y45

15-Ton, Remote C-Head

Remote Operated Hydraulic Tool

• Lifting eye

• Fully protected ram and die buttons

• Used with S dies; U dies with PT6515 adapter (sold

separately)

For Use On:

Tension Sleeves:

Copper #8 sol. - 500 kcmil

Aluminum #6 sol. - 954 kcmil

ACSR #4 - 795 (26/7) kcmil

Taps:

Aluminum #14 - 954 (18/1) kcmil

ACSR #6 - 795 (54/7) kcmil

Aerial Cable Connectors:

Copper #6 str. - 1500 kcmil

Aluminum #4 str. - 1000 kcmil

HYGROUND

Compression Grounding:

Copper #6 - 500 kcmil

1/2” - 1” ground rods

Code Cable Terminals/Splices:

Copper #8 - 1500 kcmil

Aluminum #8 - 1000 kcmil

Code Cable Taps:

Copper #14 - 1000 kcmil

Aluminum #14 - 900 kcmil

Specifications:

Output Force:

15 Tons

Tool Weight:

15.75 lbs

Size:

14.25” x 7.25” x 2.62”

Die Style:

S style and U style with PT6515 adapter

Operating Pressure:

10,000 PSI

Cycles:

10,000

Warranty:

5 year limited warranty

Variations:

Catalog Number: Description:

Y45

Standard Remote C-Head

N-30

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Remote Hydraulic

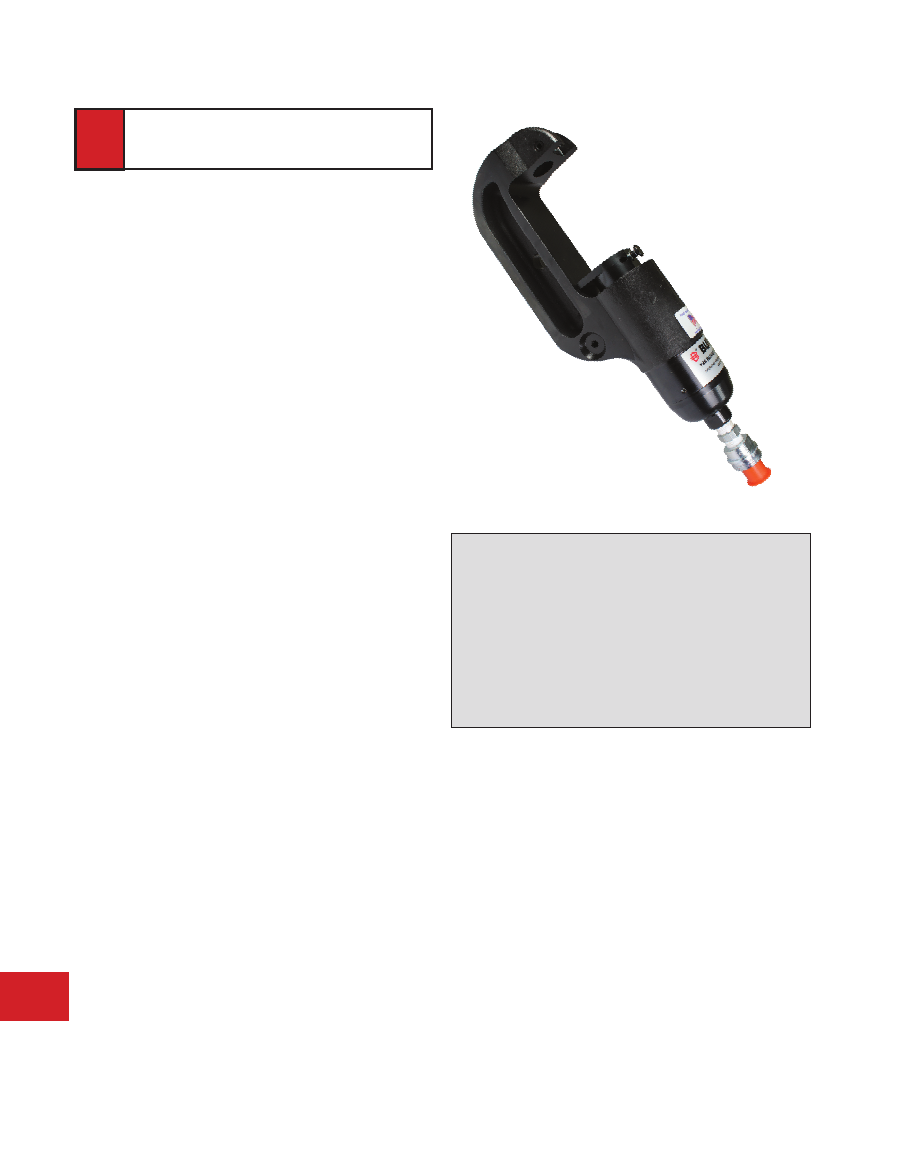

12-Ton, Remote C-Head

Remote Operated Hydraulic Tool

• 1.65” jaw opening

• 355º head rotation

• Used with U style dies

• Exposed positive die lock buttons

For Use On:

Tension Sleeves

Copper

#8 sol. - 500 kcmil

Aluminum

#8 sol. - 587.2 kcmil

ACSR

#4 - 556.5 kcmil

Taps

Copper

#14 sol. - 500 kcmil

Aluminum

#8 - 500 kcmil

Aerial Cable

Copper

#6 - 500 kcmil

Terminals & Splices

Copper

#8 - 750 kcmil

Aluminum

#8 - 750 kcmil

ACSR

#4 - 556 kcmil

HYGROUND

(Compression Grounding)

Copper

#8 - 500 kcmil

Ground Rods

1/2” - 1” diameter

Specifications:

Output Force:

12 Tons

Tool Weight:

10.3 lbs

Size:

12.88” x 5.25” x 3.12”

Die Style:

U style

Jaw Opening:

1.65”

Operating Pressure:

10,000 PSI

Warranty:

5 year limited warranty

Accessories:

Catalog Number: Description:

PT294021:

Adjustable head grip for joining head to universal

hot sticks

PT29291:

Steel die case for storage and protection of U dies

PT10054094:

Canvas carry bag (included with tool)

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories

for other necessary equipment.

Y750BHXT

Variations:

Catalog Number: Description:

Y750BHXT

Standard Remote C-Head tool

Y750CBHXT

Y750BHXT with molded rubber covering on

head, body and hose fittings

N-31

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Remote Hydraulic

Variations:

Catalog Number: Description:

Y35BH

Standard Remote C-Head

Y35H

Y35BH head, PT294021 universal hot stick

adapter, and steel carrying case

Y35B

Y35BH head, PT91 steel reinforced hydraulic

hose, and an FP10 foot pump in a steel carrying

case

Y35BH4

Permanent molded rubber head, 3/16” rubber for

tool impact protection

Accessories:

Catalog Number: Description:

PT2972:

Carry Case (included with tool)

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories

for other necessary equipment.

Y35BH

12-Ton, Remote C-Head

Remote Operated Hydraulic Tool

• Lifting eye

• .95” jaw opening

• Uses U style dies

• Positive die lock buttons

For Use On:

Copper #8 str. - 500 kcmil code cable

Grounding Terminals:

YGH, YGHA, YGF

Grounding Splices:

YGS, YGHS

Copper #8 str. - 500 kcmil and up to 3/4” ground rod

Grounding Taps:

YGHC-C, YGHP-C, YGHR-C

Copper #8 str. - 750 kcmil code cable, N30 - N500 Navy

cable, flexible, and extra flex

Terminals (Bare):

YA, YA-2N, YA-L, YA-LB, YA-2LN

Terminals (Insulated):

YAEV-L, YAEV-H, YAEV-RS, YAEV-RH

Splices to 400 kcmil only:

YS, YS-T, YS-L, YS-LB, YSV-L, YSM

Aluminum #8 str. - 750 kcmil code cable

Terminals:

YA-A, AYP, AYPO

Splices to 350 kcmil only:

YSA, YRB, YS-AT

ACSR: See Overhead Transmission & Distribution

Sections H & I of the current BURNDY

Master

Catalog

Specifications:

Output Force:

12 Tons

Tool Weight:

8.0 lbs

Size:

9.25” x 4.75” x 2.62”

Die Style:

U style

Jaw Opening:

.95”

Operating Pressure:

10,000 PSI

Cycles:

10,000

Warranty:

5 year limited warranty

N-32

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Remote Hydraulic

12-Ton, Remote Latch Head

Remote Operated Hydraulic Tool

• Used with U style dies

• Positive push button die locks

For Use On:

Copper #6 AWG - 750 kcmil str. Code Cable

N30 - N650 Navy Cable, Flexible, and Extra Flexible

Terminals (Bare):

YA, YA-L, YA-LB, YGH, YGHA

Splices and Tees (Bare):

YS, YS-L, YS-LB, YS-T, YSP-T, YST

Copper AN or AIR #6 AWG - 4/0 str. Code Cable

AN6 - AN4/0 Aircraft Cable, Flexible, and Extra Flexible

Terminals (Bare):

YAV-L, YAV-RS

Splices (Bare):

YSV-L

Copper #8 AWG - 2/0 str. Code Cable

AN8 - AN2/0 Aircraft Cable, Flexible, and Extra Flexible

Terminals (Insulated):

YAEV-L, YAEV-RS, YAEV-RH

Copper #12 AWG sol. - 250 kcmil

Taps:

YC-C, YGHC-C, YGHP-C, YGHR-C, YH, YCHC

Aluminum #8 AWG - 750 kcmil Code Cable

Terminals:

YA-A

Splices:

YS-A, YS-AT, YRB

Aluminum #6 str. - 500 kcmil

Taps:

YFD, YFN, YFO

Specifications:

Output Force:

12 Tons

Tool Weight:

6.5 lbs

Size:

9.12” x 3.12” x 3.12”

Die Style:

U style

Operating Pressure:

10,000 PSI

Warranty:

5 year limited warranty

Accessories:

Catalog Number: Description:

PT2972:

Carry Case (included with tool)

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories

for other necessary equipment.

Y39BH

Variations:

Catalog Number: Description:

Y39BH

Standard Remote Latch Head tool

N-33

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Remote Hydraulic

Accessories:

Catalog Number: Description:

PT20719001

Steel Carry Case (included with tool)

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories

for other necessary equipment.

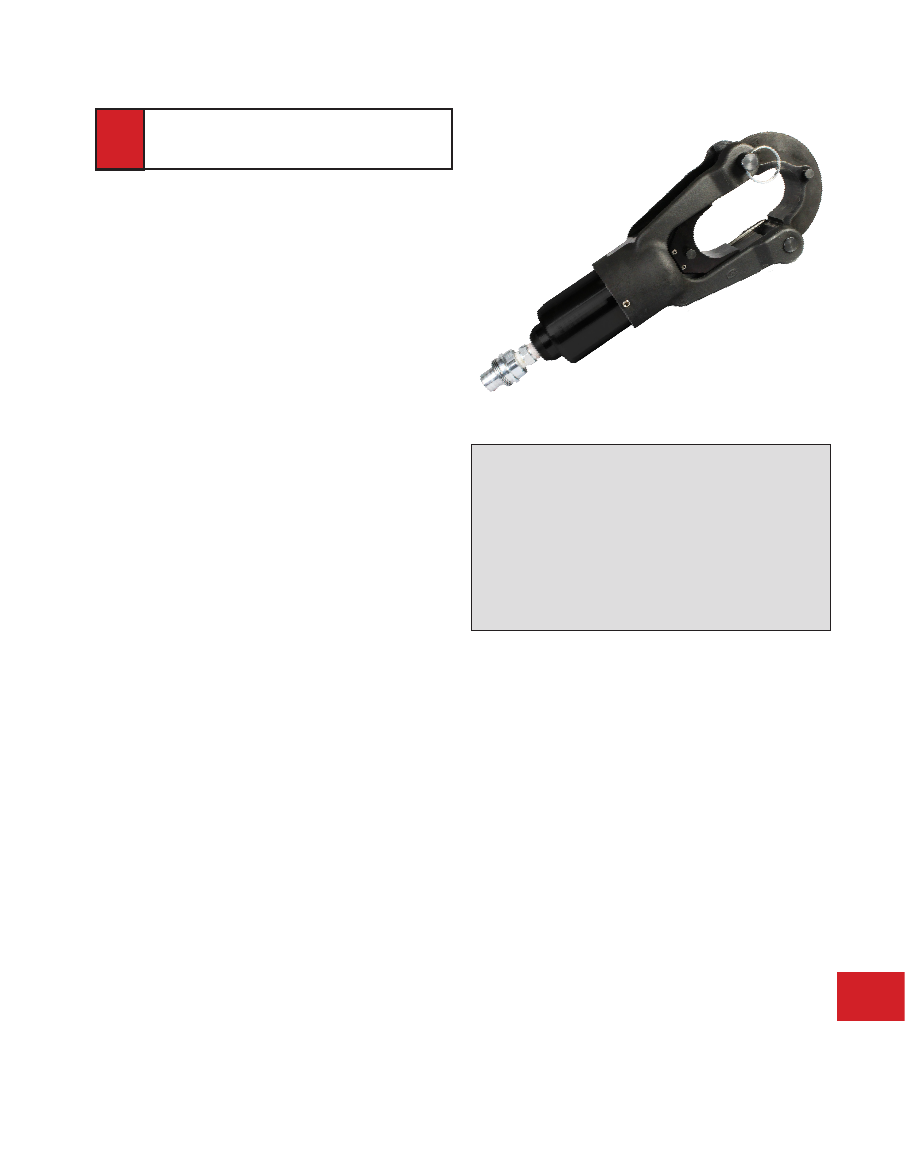

Y644MBH

11-Ton, Dieless Remote Head

Remote Operated Hydraulic Tool

• Dieless System

• Latch head design

• Range taking capabilities

• Infinitely rotatable head

For Use On:

Copper #6 - 1000 kcmil

Terminals:

YA-L, YA-2-LN, YA, YA-2N, YA-L-2TC, YAB-4N,

YA-L-TC, YA-2L, YA-4N

Splices:

YS-L, YS, YS-T

Aluminum #6 str. - 1000 kcmil

Terminals:

YA-A, YA-A-TN

Splices:

YS-A

HYPLUG™:

AYP, AYPO

See Expanded Range details in Reference Section

Specifications:

Output Force:

11 Tons

Tool Weight:

9.5 lbs

Size:

12.00” x 4.00” x 3.12”

Die Style:

Dieless

Operating Pressure:

10,000 PSI

Warranty:

5 year limited warranty

Variations:

Catalog Number: Description:

Y644MBH

Standard Dieless Remote Latch Head

N-34

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Remote Hydraulic

6-Ton, 4-POINT

Dieless Head

Remote Operated Hydraulic Tool

• Dieless installation system

• Range taking capabilities

• Flip top design

• Incorporates Parker-type quick connect 3/8” male coupler

• 360º head rotation

For Use On:

Copper #8 -1000 kcmil

Terminals:

YA, YA-L

Splices:

YS, YS-L, YS-T, Y-R

Copper Flex #8 - 777.7 kcmil Flex (750 Nominal)

Terminals:

YA-FX, YAV, YA-L-FX

Splices:

YS, YSV-FXB

Aluminum #8 - 750 kcmil

Terminals:

YA-A, YA-A-TN

Splices:

YS-A

HYPLUG™:

AYP, AYPO

See Expanded Range details in Reference Section

Specifications:

Output Force:

6 Tons

Tool Weight:

8.5 lbs

Size:

13.88” x 5.38” x 2.00”

Die Style:

Dieless

Operating Pressure:

10,000 PSI

Warranty:

5 year limited warranty

Accessories:

Catalog Number: Description:

PT10054094:

Canvas carry bag (included with tool)

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories

for other necessary equipment.

Y81KFTMBH

Variations:

Catalog Number: Description:

Y81KFTMBH

Standard 4-POINT

Dieless Remote tool

N-35

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Remote Hydraulic

Accessories:

Catalog Number: Description:

PT10054094:

Canvas carry bag (included with tool)

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories

for other necessary equipment.

Y4PC834MBH

6-Ton, 4-POINT

, Dieless Head

Remote Operated Hydraulic Tool

• Dieless System

• Range taking capabilities

• C-shaped head design

• 360

head rotation

For Use On:

Copper

Terminals:

YA, YA-L (#8-1000 kcmil)

Splices:

YS-L, YS, YS-T, Y-R (#8-500 kcmil)

Copper Flex

Terminals:

YA-FX, YAV, YA-L-FX (#8-777.7 Flex)

Splices:

YS, YSV-FXB (#8-500 kcmil)

Aluminum

Terminals:

YA-A, YA-A-TN (#8-750 kcmil)

Splices:

YS-A (#8-350 kcmil)*

HYPLUG™:

AYP, AYPO (#8-750 kcmil)

*Range limited due to jaw opening. For a more expanded

range, please see the Y81KFTMBH.

See Expanded Range details in Reference Section

Specifications:

Output Force:

6 Tons

Tool Weight:

8.4 lbs

Size:

5.50” x 4.00” x 2.00”

Die Style:

Dieless

Operating Pressure:

10,000 PSI

Warranty:

5 year limited warranty

Variations:

Catalog Number: Description:

Y4PC834MBH

Standard 4-POINT

Dieless Remote C-Head

N-36

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Remote Hydraulic

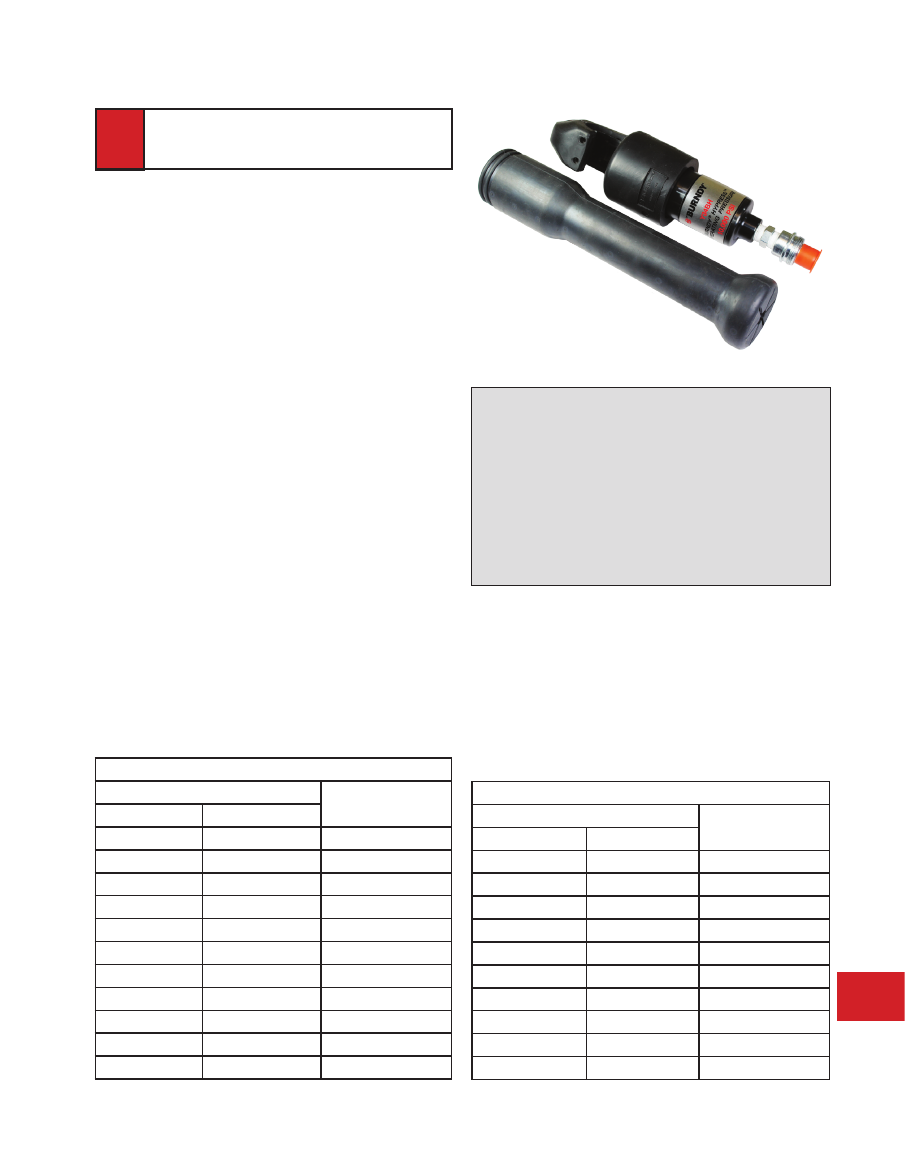

9-Ton, Remote C-Head

Remote Operated Hydraulic Tool

• Molded rubber covering on head, body, and hose fittings

• Fast ram retraction

• Compact C-shaped forged head

For Use On:

Copper #4 - 500 kcmil code cable

Welding Cable: 350 kcmil

N40 to N500 Navy Cable

Flexible and Extra Flexible

#4 - 4/0 Aircraft Cable

HYLUG™ Terminals (Bare)

HYLINK™ Splices (Bare)

HYCRAB™ BURNDY

Network Connector System

Copper: #4 - 500 kcmil str.

Aluminum: #6 - 300 kcmil

Specifications:

Output Force:

9 Tons

Tool Weight:

8.0 lbs

Size:

16.75” x 3.00” x 3.00”

Die Style:

B style nest & Y34 series indenter dies

Jaw Opening:

1.5”

Operating Pressure:

10,000 PSI

Warranty:

5 year limited warranty

Variations:

Catalog Number: Description:

Y34BH

9-Ton Remote C-Head

Y34BH1

Y34BH with 10’ non-conductive hose attached

at factory

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories for other necessary equipment.

Y34BH

Installation Die Charts for Y34BH

Aluminum Conductor

Installation Die

Max. Conductor

Nest

Indenter

B4CD

Y34PA

#6 Str.

B1CD

Y34PA

#4 Str.

B25D

Y34PA

#2 Str.

B26D

Y34PR5

#1 Str.

B27D

Y34PR5

1/0 Str.

B29D

Y34PR5

2/0 Str.

B30D

Y34PR5

3/0 Str.

B31D

Y34PR5

4/0 Str.

B32D

Y34PR5

250 kcmil

No Die Req’d

Y34PR11

300 kcmil

Copper Conductor

Installation Die

Max. Conductor

Nest

Indenter

B4CD

Y34PR

#4 Str.

B2CD

Y34PR

#2 Str.

B1CD

Y34PR

#1 Str.

B25D

Y34PR

1/0 Str.

B26D

Y34PR

2/0 Str.

B27D

Y34PR

3/0 Str.

B28D

Y34PR

4/0 Str.

B29D

Y34PR

250 kcmil

B30D

Y34PR

300 kcmil

B31D

Y34PR

350 kcmil

No Die Req’d

Y34PR

500 kcmil

N-37

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Remote Hydraulic

Accessories:

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories

for other necessary equipment.

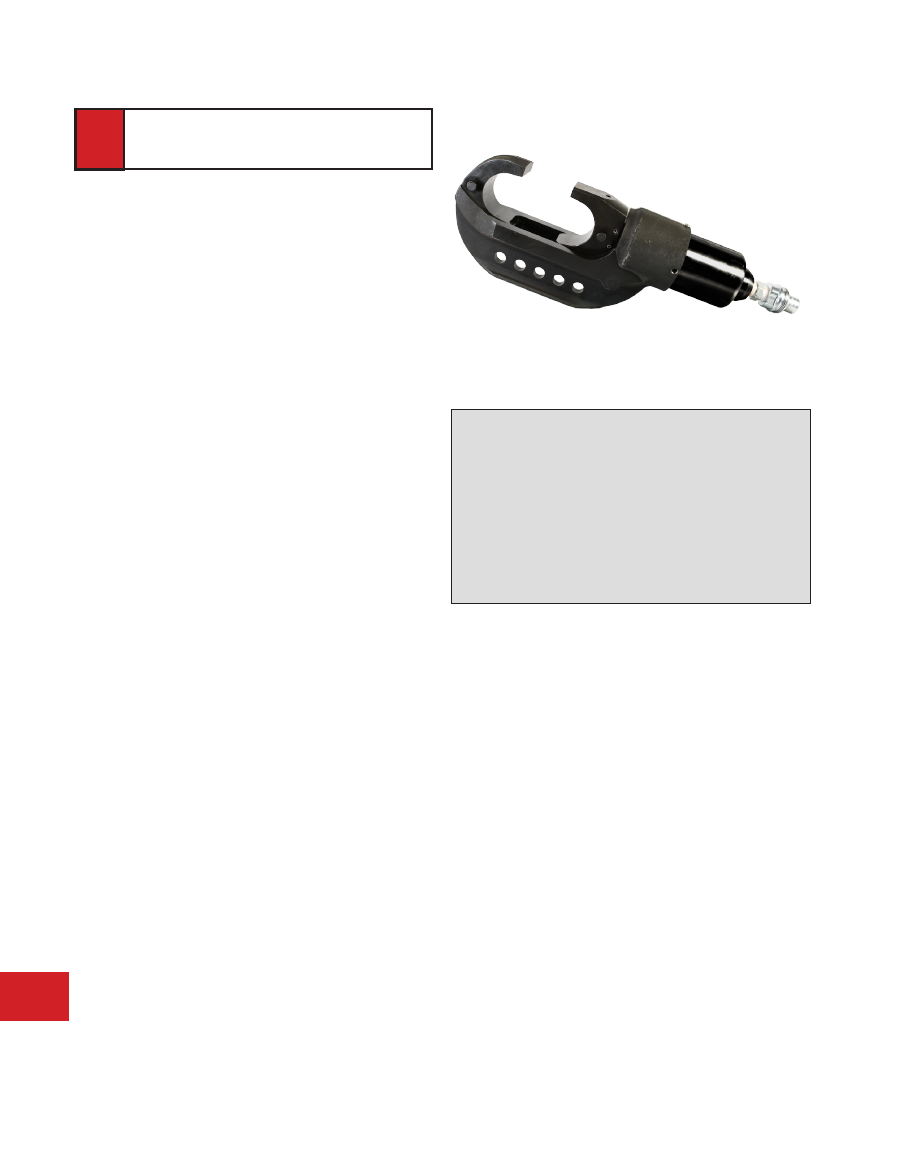

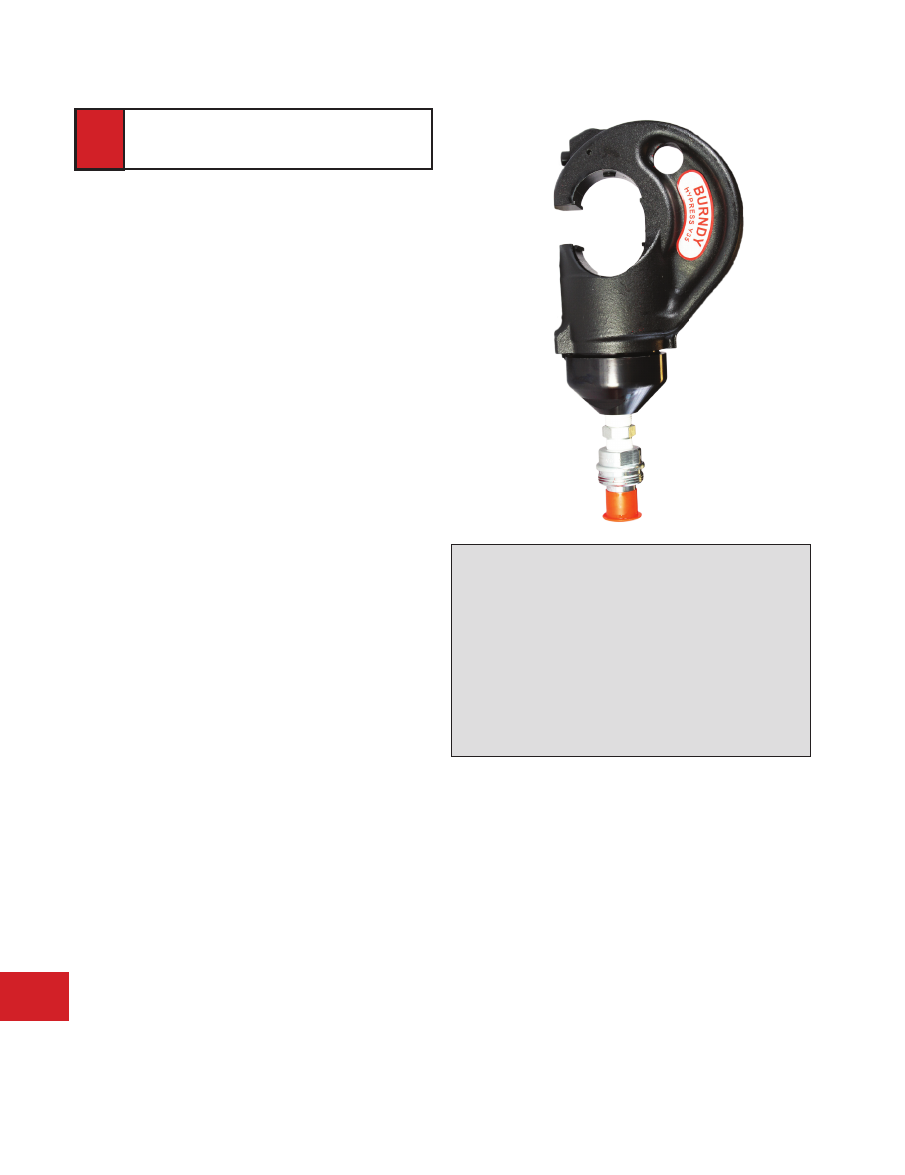

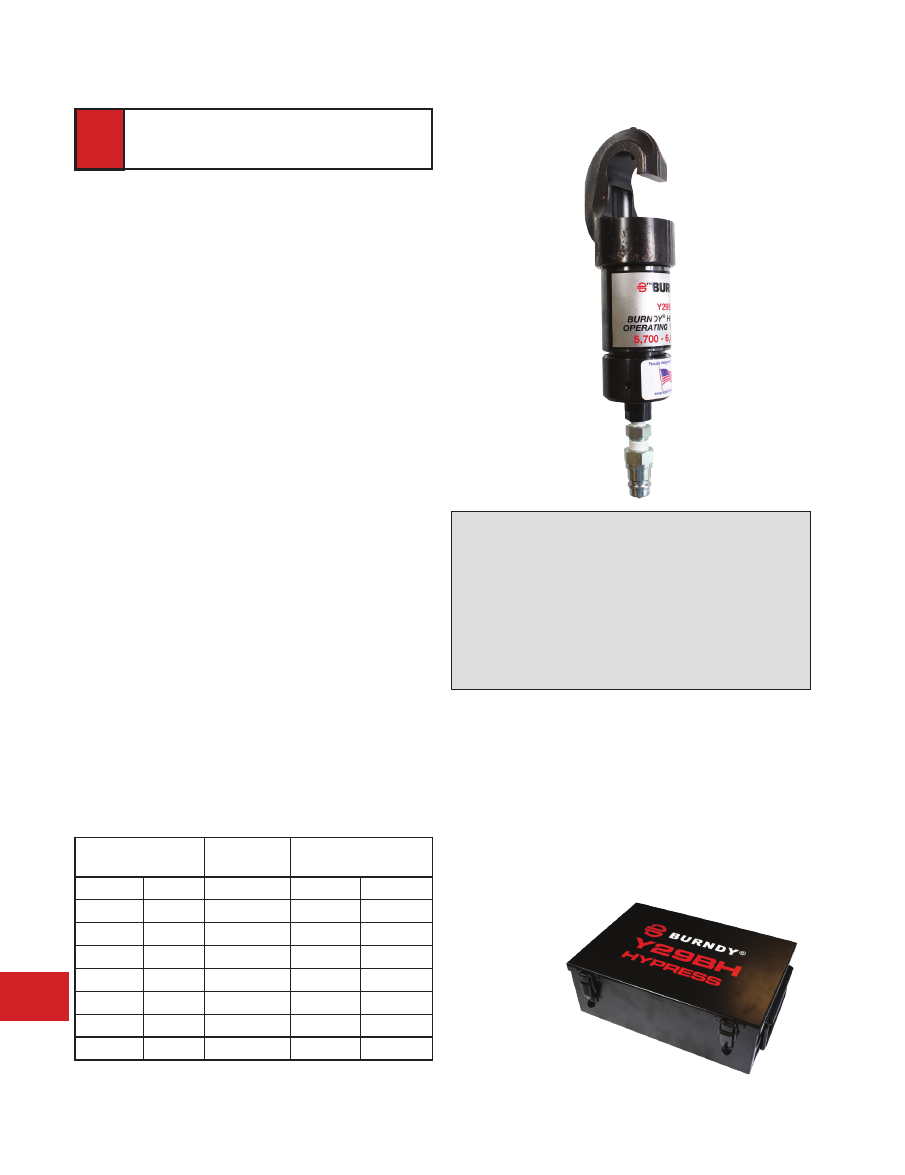

Y29BH

4.5-Ton, 6,000 PSI Remote Head

Remote Operated Hydraulic Tool

• D series nest dies and Y29 series indenter dies

• Light weight, portable design

• C-shaped head; 1.2” jaw opening

• Easy placement/removal on continuous conductor lengths

For Use On:

Copper #8 - 2/0 AWG Code/Flex

Nylon Insulated Lugs:

(Connectors meet MIL-T-7928 requirements)

YAEV-L, YAEV-H, YAEV-RS, YAEV-RH

Non-Insulated Lugs:

(Connectors meet MIL-T-7928 requirements)

YAV-L, YAV-R, YAV-RS

Copper #8 - 4/0 AWG

Non-Insulated Splices:

(Type YSV-L connectors UL Listed/CSA Certified)

YSM, YSV-L

Specifications:

Output Force:

4.5 Tons

Tool Weight:

5.0 lbs

Size:

10.75” x 3.00” x 1.25”

Die Style:

D style nest & Y29 series indenter dies

Jaw Opening:

1.15”

Operating Pressure:

6,000 PSI

Warranty:

5 year limited warranty

Non-Insulated

Connectors

Maximum

Conductor

Insulated

Connectors

Nest

Indenter

Size

Nest

Indenter

DV8L1

Y29PL

#8 AWG

DEV8L

Y29PLE1

DV6L

Y29PL

#6 AWG

DEV6L

Y29PLE1

DV4L

Y29PL

#4 AWG

DEV4L

Y29PLE1

DV2L

Y29PL

#2 AWG

DEV2L

Y29PLE

DV1L

Y29PL

#1 AWG

DEV1L

Y29PLE

DV25L

Y29PL

1/0 AWG

DEV25L

Y29PLE

DV26L

Y29PL

2/0 AWG

DEV26L

Y29PLE

Installation Die Chart for Y29BH

(Connectors meet MIL-T-7928 requirements)

PT30250

metal carrying

case (included with tool)

Variations:

Catalog Number: Description:

Y29BH

4.5-Ton, 6,000 PSI Remote Head

N-38

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

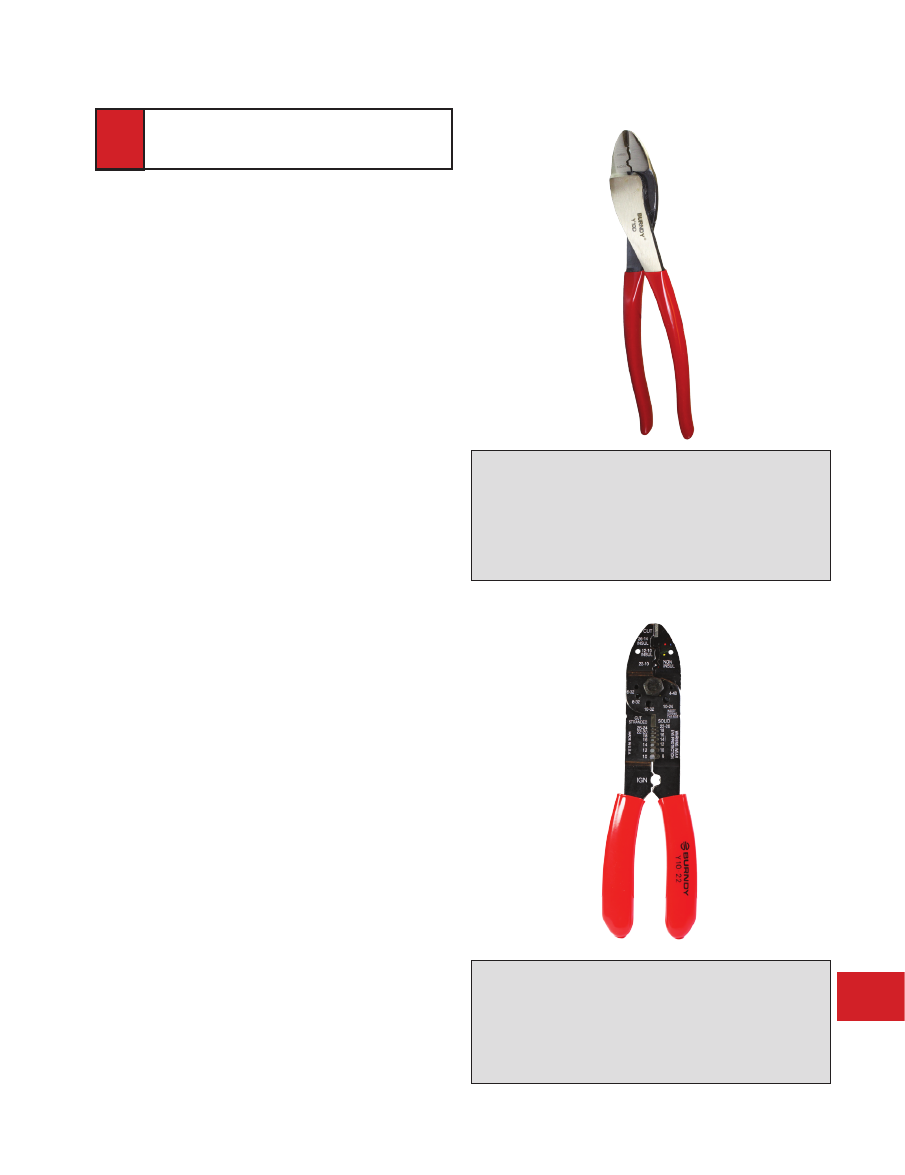

Y10D for Nylon & Bare

Hand-held plier tool for #22 - #10 AWG

• One tool for both nylon insulated and bare connectors

• Precision machined wire cutter for aluminum and copper

• Heavy duty forged steel, rust resistant finish

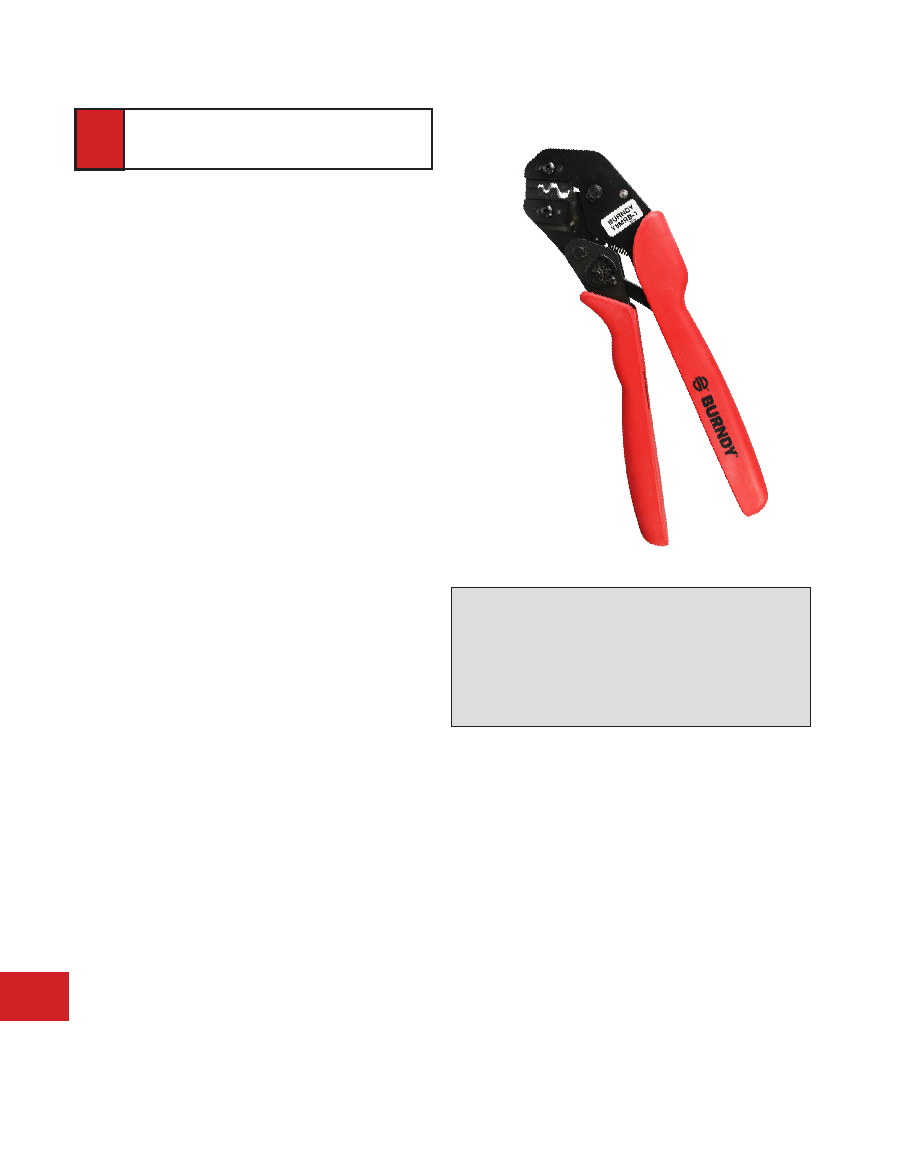

Y1022 for Nylon, Vinyl & Bare

Hand-held plier tool for #22 - #10 AWG

• One step stripping #22 - #10 AWG

• Cuts common size mild steel, non-ferrous screws

• Crimps full range of Nylon, Vinyl and Bare terminals and splices

For Use On:

Y10D:

#22 - #10 AWG Nylon Insulated Terminals

Types: TN, TN-F, YAE-N, YAE-N-F, YAE-Z, YAEV, YAES,

YAES-E

#22 - #10 AWG Nylon Insulated Splices

Types: SN, YSE-HN*, SNM, YSES, YSE-H*

#22 - #10 AWG Bare Uninsulated Terminals

Types: T, YAD, T-F, YAD-F, YAV, YAV-T-F, YAV-H*, YAV-H-F*,

YAV-Z

#22 - #10 AWG Bare Uninsulated Splices

Types: YSV, YSV-H*

Y1022 all of above and also:

#22 - #10 AWG Vinyl Insulated Terminals

Types: TP, BA, TP-F, BA-EF, TP-Z, BA-EZ

#22 - #10 AWG Vinyl Insulated Splices

Types: SP, BS

*Conductor crimp only

Specifications: (Catalog Number: Y10D)

Size:

9.75” x 5.00” x 1.00”

Weight:

13.5 oz.

Warranty:

5 year limited warranty

Plier Hand Tools

Specifications: (Catalog Number: Y1022)

Size:

8.63” x 5.00” x .75”

Weight:

11 oz.

Warranty:

5 year limited warranty

N-39

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

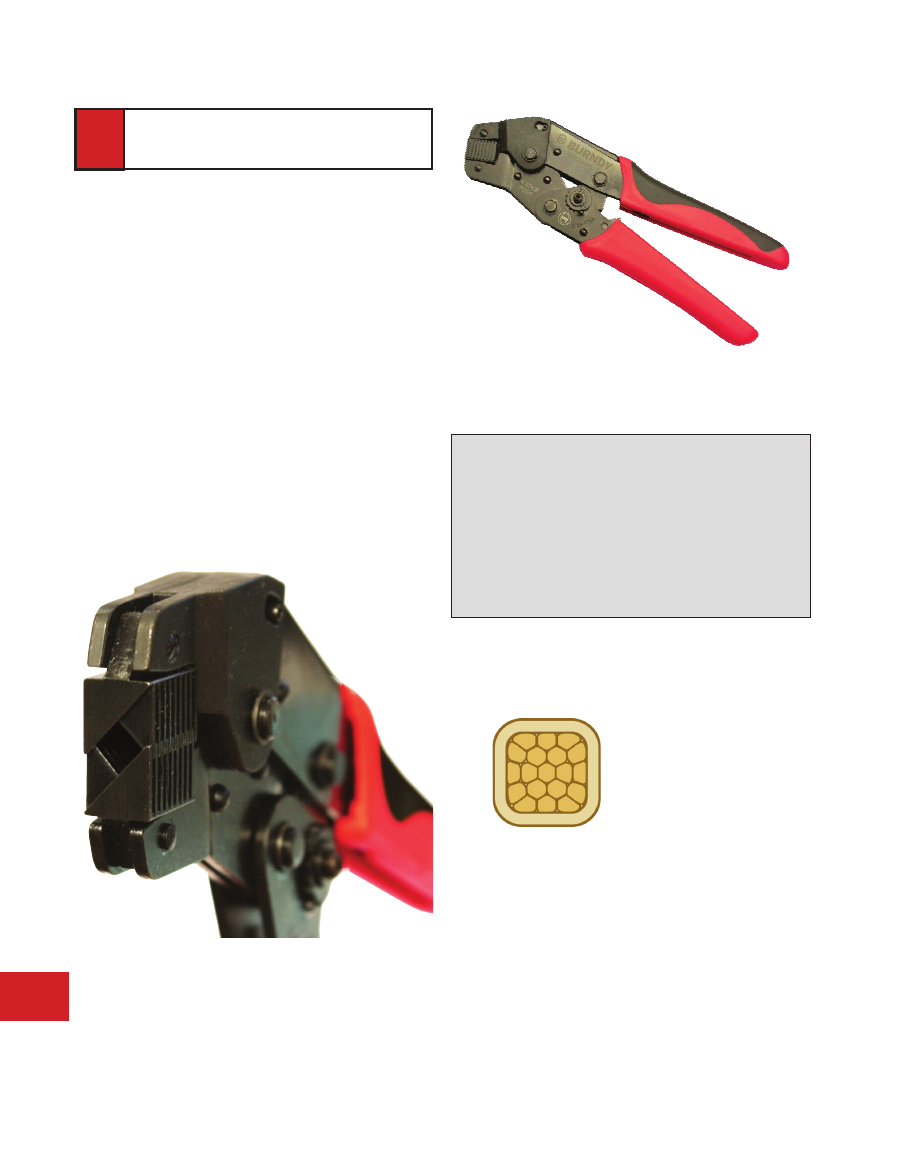

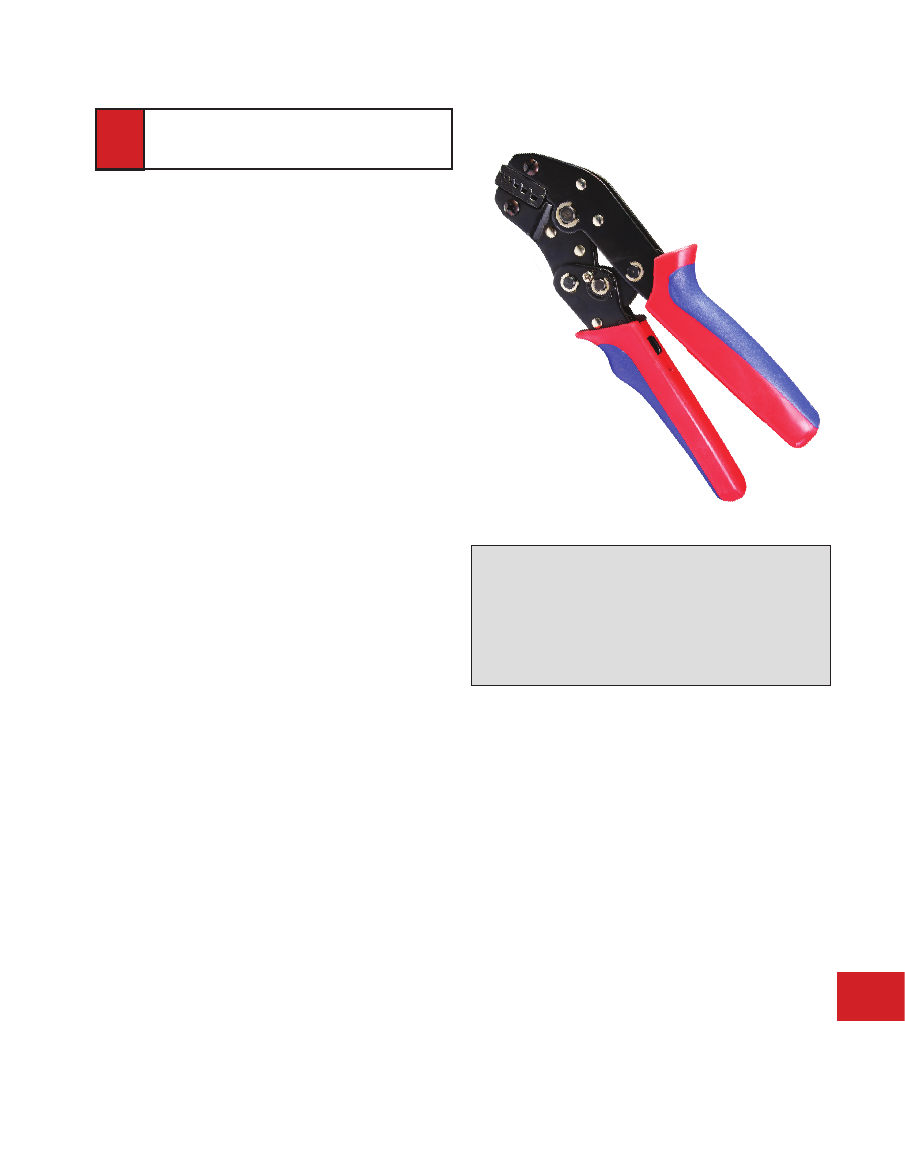

Dieless, Front Load, for Ferrules

Full cycle ratchet tool for insulated/bare ferrules

• Front load crimping position

• Dieless crimping without multiple grooves

• Full cycle ratchet mechanism

• Ratchet release lever

For Use On:

Catalog Number: YF2210FL

#22 - #10 AWG Insulated and Uninsulated (Bare) Ferrules

Types: YF, YF-UI Wire End Ferrules

Specifications:

Size:

7.75” x 2.38 x 1.00”

Die Style:

Dieless

Weight:

.8 lbs

Output Force:

1,600 lbs

Warranty:

5 year limited warranty

YF2210FL

Crimp Profile

Close up of YF2210FL front load ratchet tool

N-40

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

YFTOOL Series

Ratchet Tools for Ferrules

Tools covering from #32 AWG to 250 kcmil

• Release mechanism

• Low handle force

• Ergonomic handle design

• Trapezoidal crimp profile unless noted

• For use on insulated or uninsulated ferrules

For Use On:

#32 - #6 AWG Insulated and Uninsulated (Bare) Ferrules

Tool:

YF3206TOOL

(Square crimp profile)

#26 - #10 AWG Insulated and Uninsulated (Bare) Ferrules

Tool:

YF2610TOOL

#22 - #14 AWG Insulated and Uninsulated (Bare) Ferrules

Tool:

YF2214TOOL

#22 - #10 AWG Insulated and Uninsulated (Bare) Ferrules

Tool:

YF2210TOOL

#10 - #6 AWG Insulated and Uninsulated (Bare) Ferrules

Tool:

YF1006TOOL

#8 - #1 AWG Insulated and Uninsulated (Bare) Ferrules

Tool:

YF0801TOOL

#4 - #1 AWG Insulated and Uninsulated (Bare) Ferrules

Tool:

YF0401TOOL

#1/0 - #3/0 kcmil Insulated and Uninsulated (Bare) Ferrules

Tool:

YF1/03/0TOOL

#4/0 - #250 kcmil Insulated and Uninsulated (Bare) Ferrules

Tool:

YF4/0250TOOL

Specifications:

Length:

Varies

Weight:

Varies from 1.02 to 1.80 lbs

Warranty:

2 year limited warranty

N-41

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

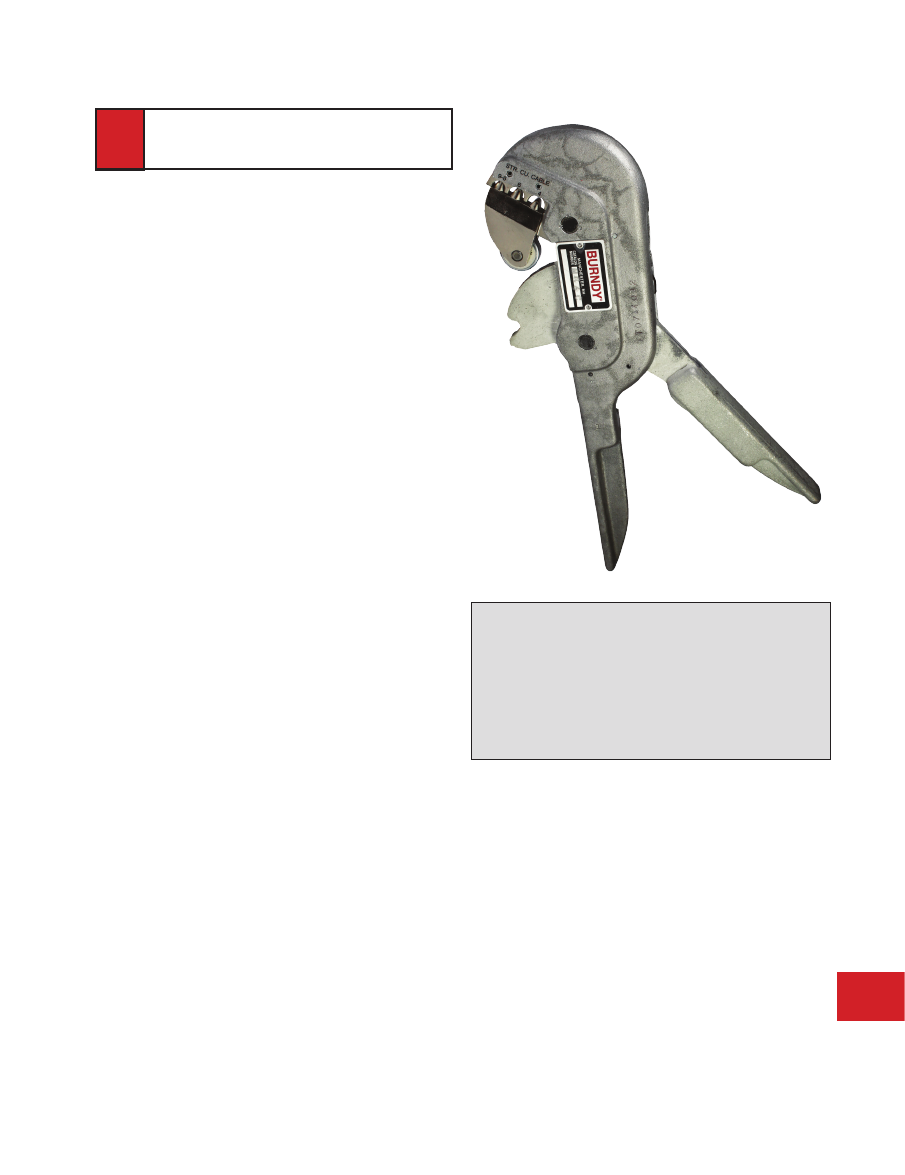

Full Cycle Ratchet Tool

Hand-held ratchet tool for #22 - 8 AWG

• Light weight

• Each indentor has unique identifying marks for inspectability

• Fullly enclosed, protected ratchet mechanism does not allow

the handles to be opened until full ratchet cycle is completed

• Inspection gauges (sold separately) available to check each

groove

For Use On:

Catalog Number: Y8MRB1

#22 - 8 AWG Uninsulated (Bare) Terminals:

Types: T, YAD, T-F, YAD-F, YAV, YAV-L, YAV-T-F, YAV-Z

#22 - 8 AWG Uninsulated (Bare) Splices:

Types: YSV, YSV-L

Specifications:

Weight:

1.2 lbs

Size:

10.56” x 3.50” x 1.12”

Die Style:

Permanent Dies

Warranty:

5 year limited warranty

Accessories:

Catalog Number: Description:

PG3951

Inspection gauge for #18 groove

PG3961

Inspection gauge for #14 groove

PG3971

Inspection gauge for #10 groove

PG3981

Inspection gauge for #8 groove

Y8MRB1

N-42

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

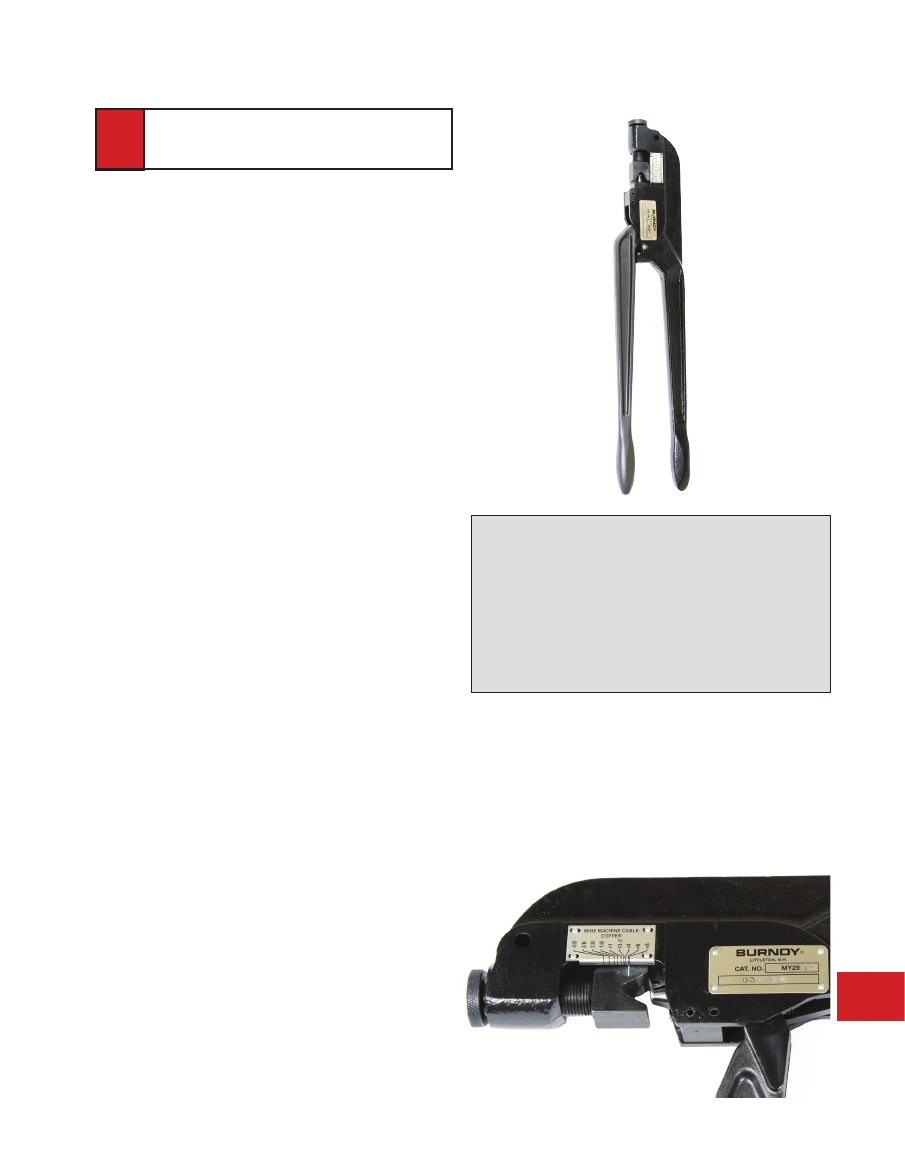

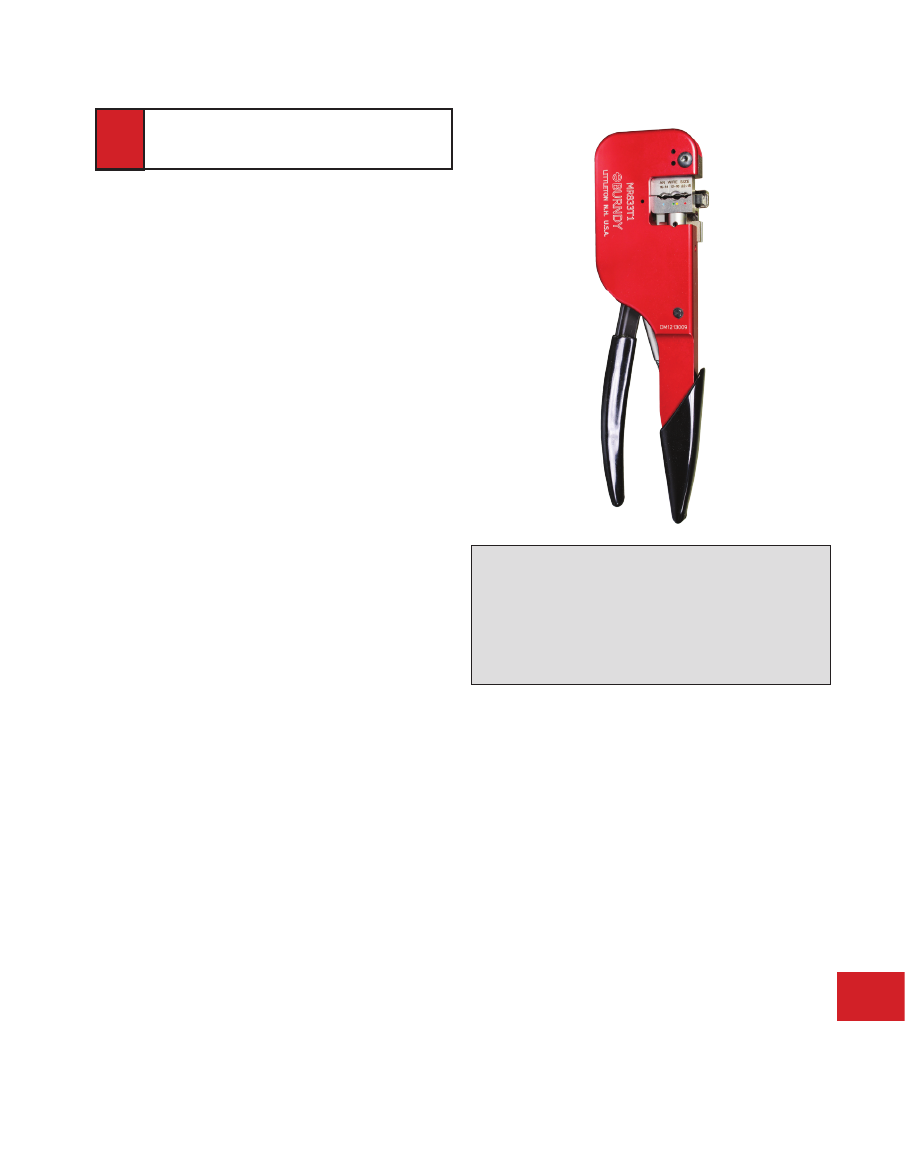

MR8 Series

Fully Protected Ratchet Mechanism

Full cycle ratchet tools for critical applications

• Fully enclosed, protected ratchet mechanism does not

allow the handles to be opened until full ratchet cycle is

completed

• Designed for critical applications such as nuclear-class

1E terminations, heavy duty industrial, aircraft

• Lightweight aluminum

• Easy groove identification with color-coded dies

For Use On:

Catalog Number: Description:

MR81A:

#22 - #10 AN Copper Cable

INSULUG™ terminals/splices

YAE

MR89Q:

#18 - #8 AN Copper Cable

#22 - #10 AWG Sol. Cable

#22 - #8 AWG Str. Cable

YAV, YSV, T, T-F, YAD, YAD-F

MR833S1,

MR833T1:

#18 - #10 MIL-W-5086 Str.

YSE, YSE-H

MR8G96:

#22 - #14

TP, BA

MR8G98:

#22 - #10

YAV, T, YAD

Specifications:

Size:

10.50” x 3.50” x 1.50”

Weight:

1.5 lbs

Die Style:

Permanent Dies

Warranty:

5 year limited warranty

N-43

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

Accessories:

Catalog Number: Description:

J1022NC1:

J die set see detail under For Use On section

J1022NC2:

J die set see detail under For Use On section

J1022NC3:

J die set see detail under For Use On section

J1022NC4:

J die set see detail under For Use On section

J1022NC5:

J die set see detail under For Use On section

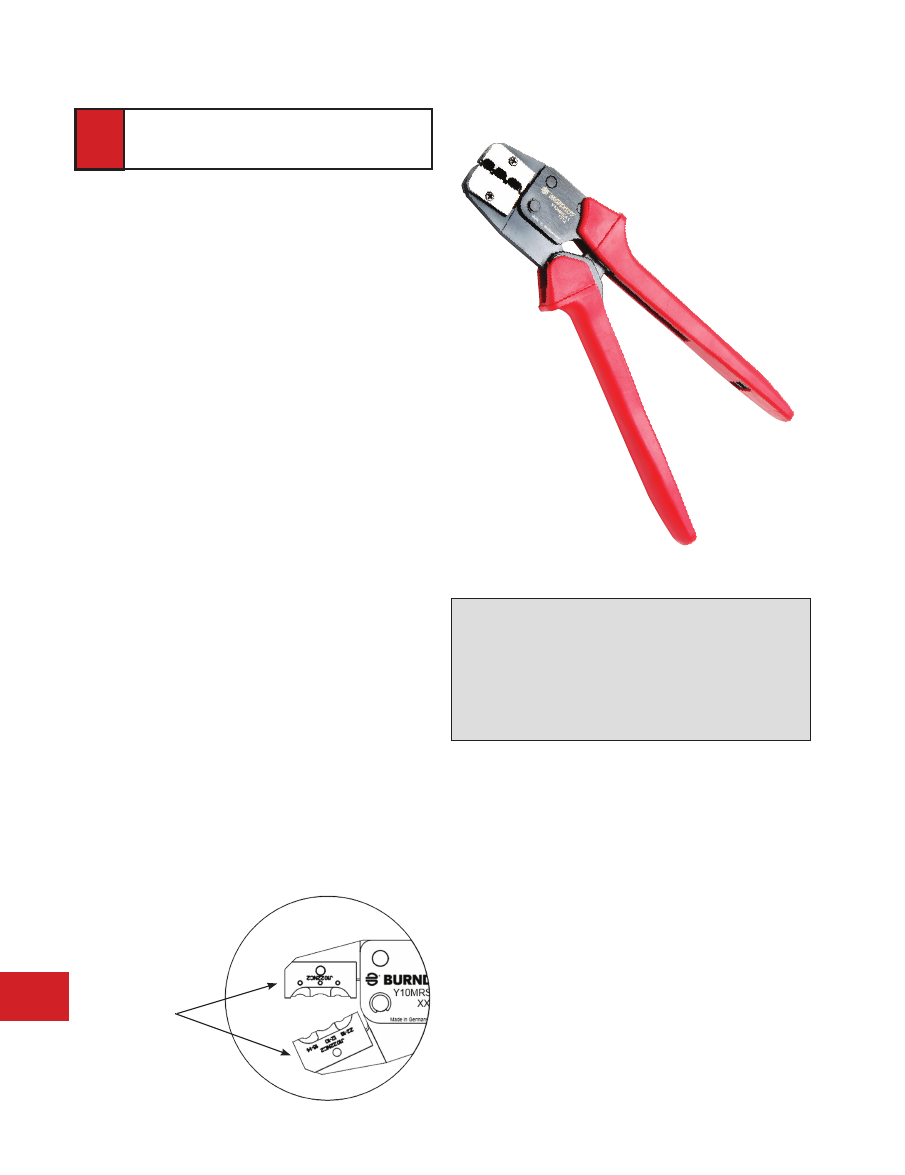

Y10MRSA1

Ergonomic Full Cycle Ratchet

Hand-held tool using J-dies for #22 - #10 AWG

• Compact, narrow nose with scissor action

• Uses J-style die inserts (sold separately)

• High-strength steel frame, rubber covered comfort handles

• Ergonomic design requires less handle force

Catalog Number Y10MRSA1

For Use On:

with J1022NC1 die (sold separately):

#22 - #10 AWG Nylon Insulated Terminals/Splices

Types: YAE, YAE-N, YAE-N-F, YAE-Z

with J1022NC2 die (sold separately):

#22 - #10 AWG Nylon Insulated Terminals/Splices

Types: YAEV, YAEV-L, YAEV-H, YAEV-RH, YAEV-RS

with J1022NC3 die (sold separately):

#22 - #10 AWG Nylon Insulated Terminals/Splices

Types: TN, YAES, TN-F, YAES-F, SN, YSE-HN

with J1022NC4 die (sold separately):

#22 - #10 AWG Vinyl Insulated Terminals/Splices

Types: TP, BA, TP-F, BA-EF, TP-Z, BA-EZ, TP-LF, BA-EL,

SP, BS

with J1022NC5 die (sold separately):

#22 - #10 AWG Uninsulated (Bare) Terminals/Splices*

Types: T, YAD, T-F, YAD-F, YAV, YAV-L, YAV-H, YAV-R,

YAV-RS, YAV-T-F, YAV-H-F, YAV-Z, YSV, YSV-H, YSV-L

* Wire barrel only

Specifications:

Size:

10.75” x 3.12” x 1.88”

Die Style:

J style

Weight:

1.3 lbs

Warranty:

5 year limited warranty

J-Dies

(sold separately)

N-44

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

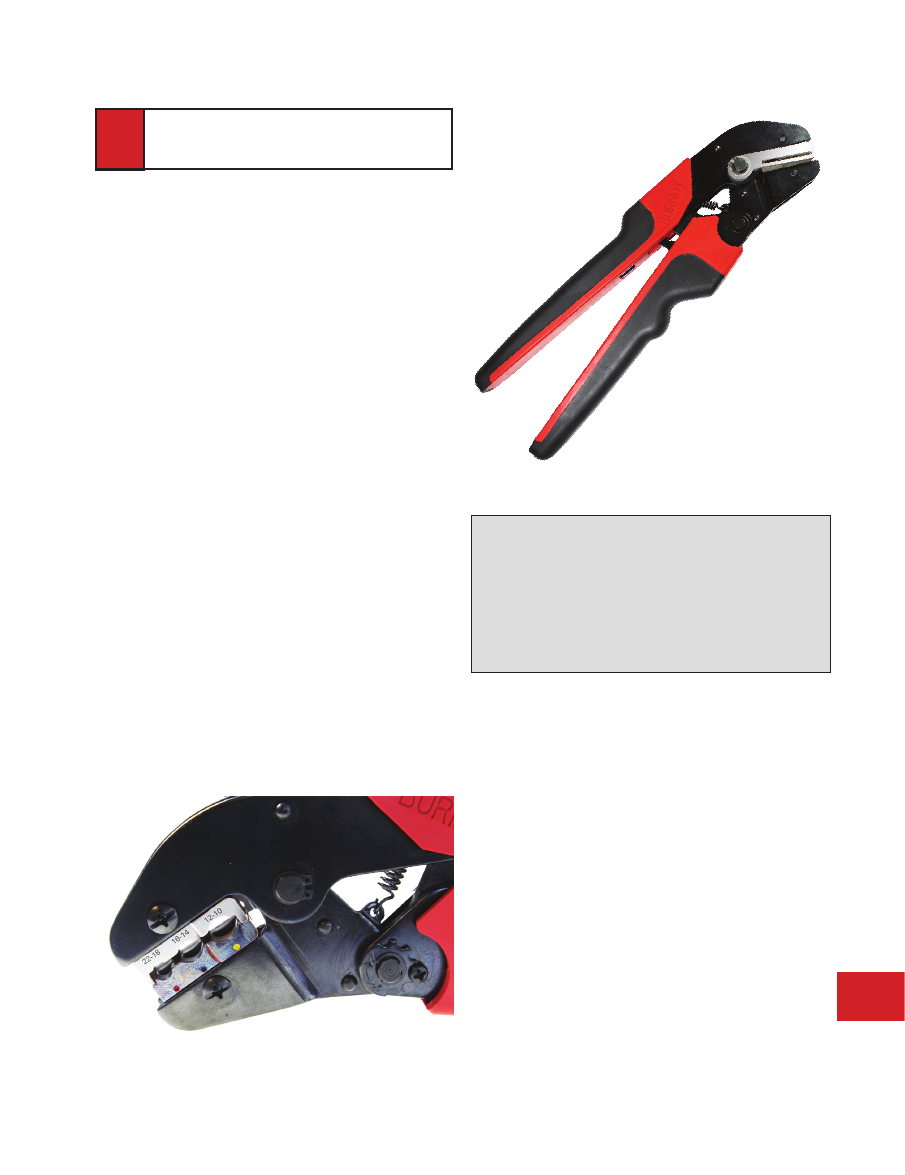

Ergonomic Full Cycle Ratchet

Hand-held tools for #22 - #10 AWG Nylon/Vinyl &

Bare

• Ratchet mechanism does not allow handles to open until full

cycle is complete

• Stop plate ensures proper location for consistent reliable

connection

• Die Inspection Gauges available (sold separately)

• Easy groove identification with color coded dies

• Ratchet release lever in case of misalignment

For Use On:

Catalog Number: MRE1022B

#22 - #10 AWG Uninsulated (Bare) Terminals/Splices

Types: T, YAD, T-F, YAD-F, YAV, YAV-H, YAV-R, YAV-T-F,

YAV-H-F, YAV-Z, YSV, YSV-H

Catalog Number: MRE1022NV

#22 - #10 AWG Nylon & Vinyl Insulated Terminal/

Splices

Types: TP, BA, TP-F, BA-EF, TP-Z, BA-EZ, TP-LF, BA-EL,

SP, BS, TN, YAES, TN-F, YAES-F, SNM*, YSES*,

YAE-N, YAE-N-F, YAE-Z, YSE-HN, YSE-H, YAEV

*Excludes #10 size

Specifications:

Weight:

1.3 lbs

Size:

10.50” x 3.00” x 1.00”

Width:

3”

Die Style:

Permanent Dies

Warranty:

5 year limited warranty

Accessories:

Catalog Number: Description:

PG4032R:

Die Inspection Gauge for #22 - #14 AWG

for MRE1022B

PG4031R:

Die Inspection Gauge for #12 - #10 AWG

for MRE1022B

PG4061:

Die Inspection Gauge for #22 - #18 AWG (Red)

for MRE1022NV

PG4071:

Die Inspection Gauge for #16 - #14 AWG (Blue)

for MRE1022NV

PG4081:

Die Inspection Gauge for #12 - #10 AWG (Yellow)

for MRE1022NV

MRE1022 Series

Close-up

MRE1022NV

N-45

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

Accessories:

Catalog Number: Description:

MR15DIESETD1:

MR15 interchangeable die set

MR18DIESETD1:

MR18 interchangeable die set

MR20DIESETD1:

MR20 interchangeable die set

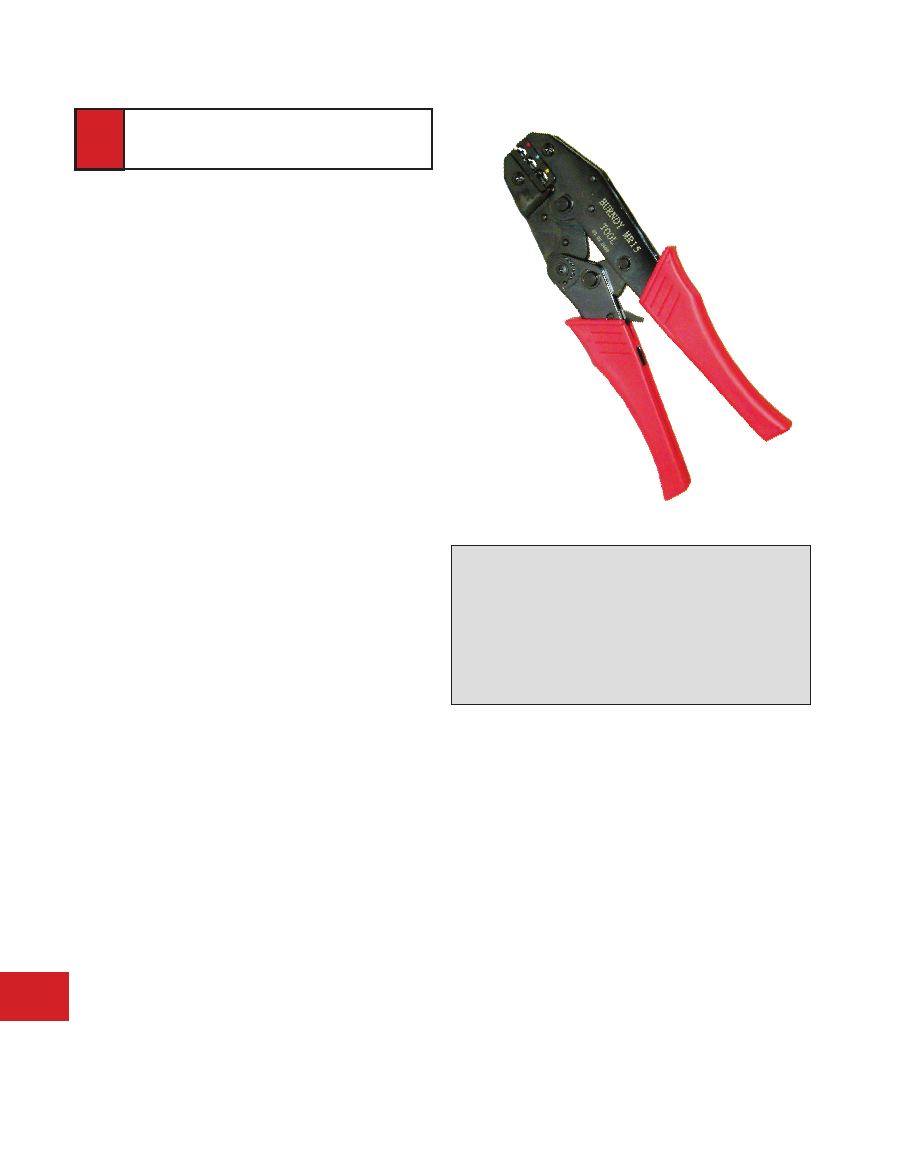

MR Series

Full Cycle Ratchet

Hand-held tools for #22 - #10 AWG

• Ratchet mechanism does not allow handles to open until full

cycle is complete

• Easy groove identification with color coded dies

• Compact, narrow nose

• Comfort grip handles

• Ratchet release lever in case of misalignment

For Use On:

Catalog Number: MR15

#22 - #10 AWG Vinyl Insulated Terminals/Splices

Types: TP, BA, TP-F, BA-EF, TP-Z, BA-EZ, TP-LF, BA-EL,

SP, BS

Catalog Number: MR18

#22 - #10 AWG Nylon Insulated Terminals/Splices

Types: TN**, TN-F, YAES, YAES-F, SN, SNM, YSE-HN,

YSES

Catalog Number: MR20

#22 - #10 AWG Uninsulated (Bare) Terminals/Splices

Types: T, YAD-F, T-F, YAV-H*, YAV, YAV-H-F*, YAD,

YAV-T-F, YSV, YSV-H*

*Conductor crimps only

**Excludes #10 Size

Specifications:

Size:

8.88” x 6.00” x 2.50”

Weight:

1.1 lbs

Warranty:

5 year limited warranty

N-46

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

Full Cycle Ratchet

Hand-held tool for #9 - #4 AWG Bare Terminals/

Splices

• Reinforced heavy duty back with high strength aluminum

body

• Fully protected ratchet mechanism does not allow handles to

open until full cycle is completed

• Inspection gauges available to check each groove (sold

separately)

• Spring loaded indentor jaw, keeps jaws closed

Catalog Number: MR4C

For Use On:

#9 - #4 AWG Uninsulated (Bare) Terminals/Splices

Types: YAV-L, YA-L, YSV, YS-L

Specifications:

Length:

11.75” x 3.62” x 1.00”

Weight:

2.3 lbs

Die Style:

Permanent Dies

Warranty:

5 year limited warranty

Accessories:

Catalog Number: Description:

PG1211:

Die Inspection Gauge for #9 - #8 AWG groove

PG1251:

Die Inspection Gauge for #6 AWG groove

PG1331:

Die Inspection Gauge for #4 AWG groove

MR4C

N-47

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

Variations:

Catalog Number: Description:

Y1MRTC

Standard tool only

Y1MRKIT

Y1MRTC tool, sturdy metal carrying case and

select terminals/splices

Y1MRTCKIT

Y1MRTC tool, sturdy metal carrying case,

selected terminals and YC4L12 Thin-Wall

C-Tap

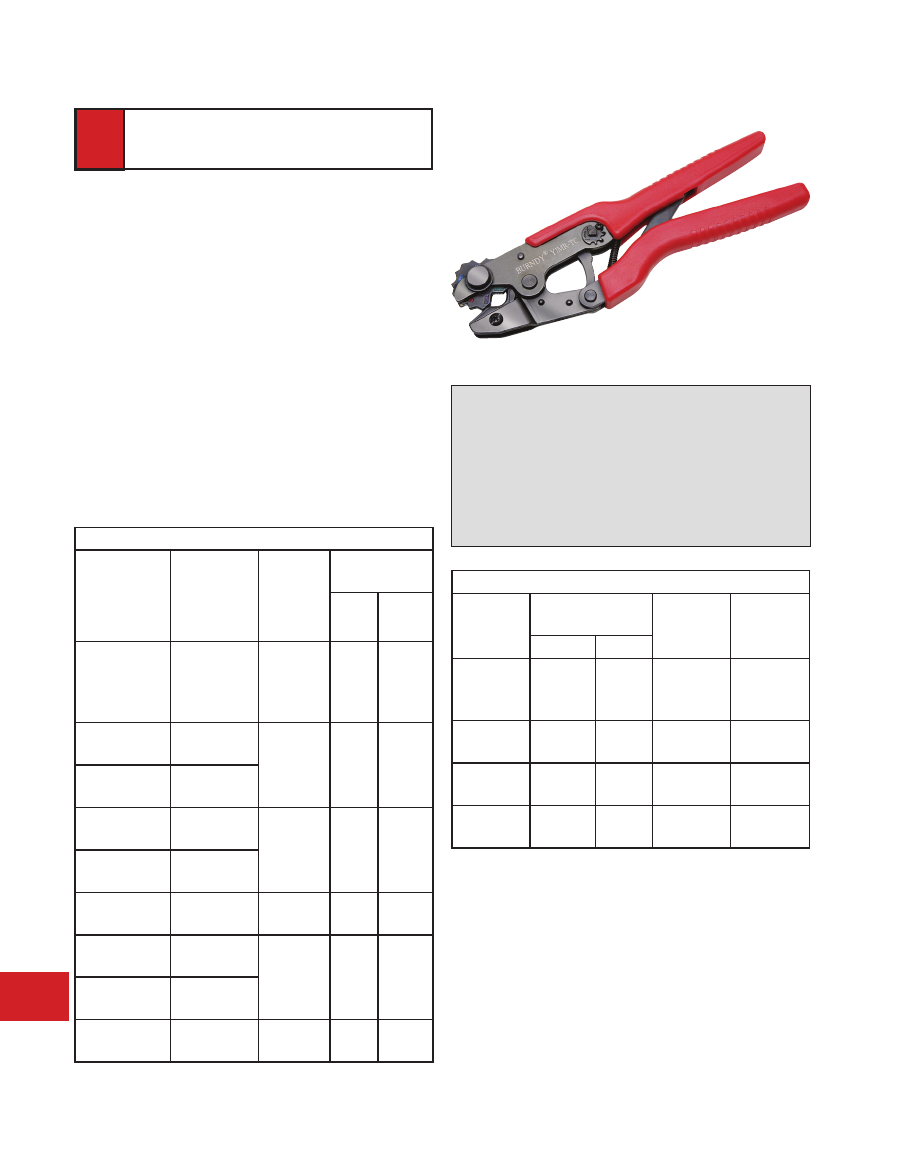

Y1MRTC

Rotating Die Full Cycle Ratchet

For #8 - #1 Copper HYDENT™ Terminals, Splices,

#6 - #6 Thin-Wall C-Taps

• Die index embossment

• Rotating die with color coding to match connectors

• Ratchet mechanism with release in case of misalignment

For Use On:

See charts for details

#8 - #1 AWG Uninsulated (Bare) Terminals and Splices

Types: YA, YAV, YS, YSV

Thin Wall C-Taps:

YC10L12, YC8L12, YC6L12, YC4L12

Specifications:

Size:

9.88” x .75” x 2.75”

Weight:

1.7 lbs

Die Style

Rotating Die Wheel

Warranty:

5 year limited warranty

Copper C-Tap Connectors

Catalog

Number

Wire Size

Cu Str. AWG

Die Index #

(Color)

# of Crimps

Run

Tap

YC10L12

16-14

(Red)

YC8L12

(Blue)

YC6L12

10-8

12-10

(Grey)

YC4L12

5, 4

8-6

12-8

(Brown)

Copper Terminals & Splices

Copper

Wire Size

Connector

Catalog

Types

Die Index

# (Color)

# Crimps per

Barrel Length

Std

Long

#8 AWG

Code & Flex

YA8C-

YS8C-

YAV8C-

YSV8C-

(Red)

#6 AWG

Code

YA6C-

YS6C-

(Blue)

#6 AWG

Code & Flex

YAV6C-

YSV6C-

#4 AWG

Code

YA4C-

YS4C-

(Grey)

#4 AWG

Code & Flex

YAV4C-

YSV4C-

#3 AWG

#2 Sol.

YA3C-

YS3C-

(White)

#2 AWG

Code

YA2C-

YS2C-

(Brown)**

# 2 AWG Code

& Flex

YAV2C-

YSV2C-

#1 AWG

Code

YA1C-

YS1C-

(Green)**

**Die Index 10/Brown and 11/Green use the same die wheel crimp groove.

N-48

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

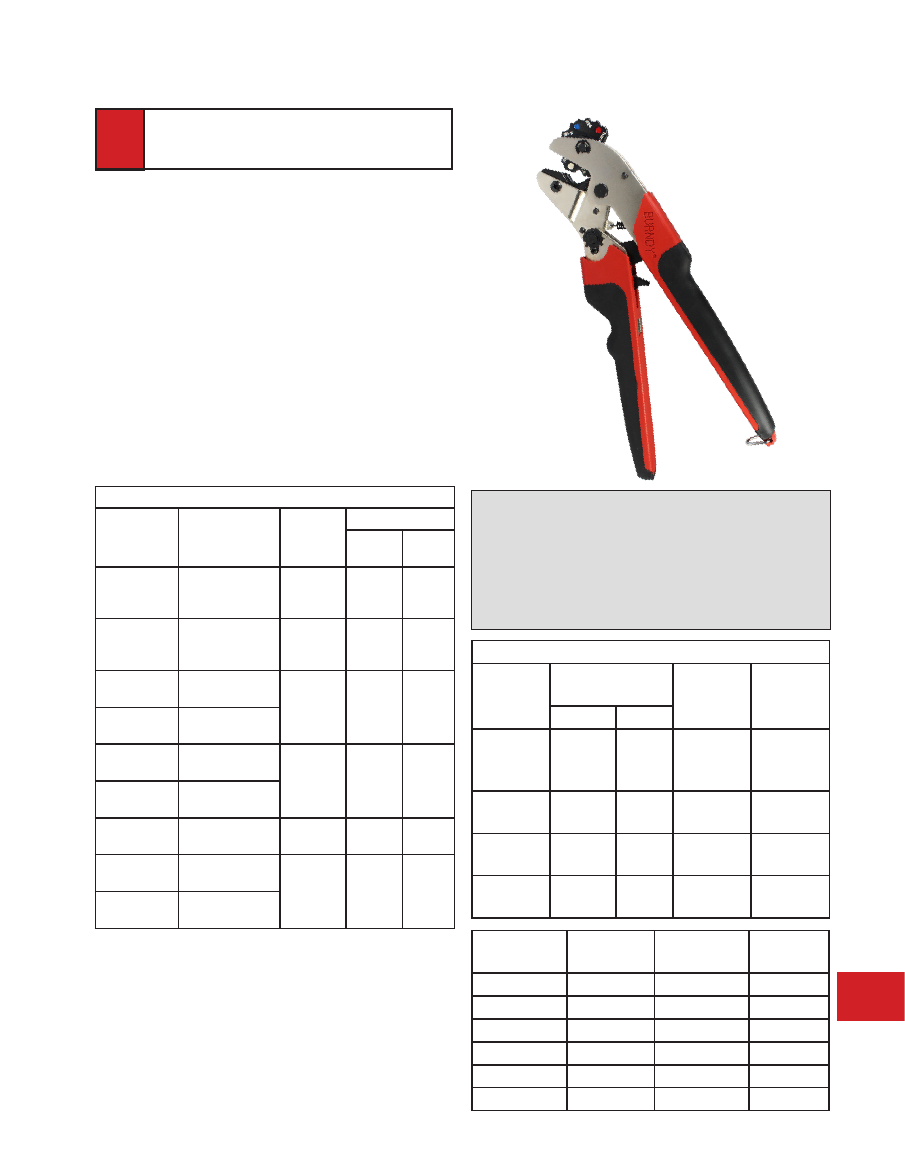

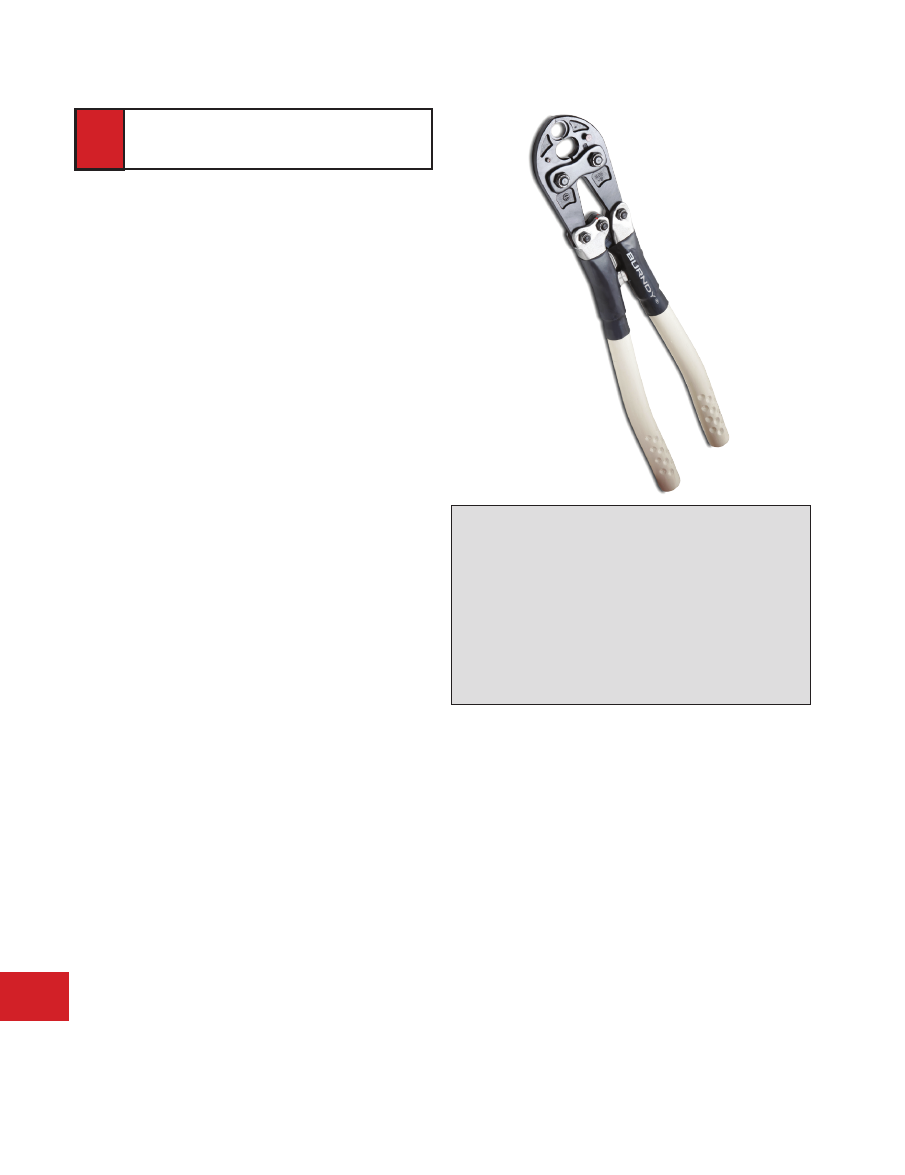

Ergonomic Full Cycle

For #12 - #2 AWG Stranded, Solid, and Flex

• Overmolded comfort grip handles

• Easy groove identification with color coded dies

• UL Listed/CSA Certified connections when used with

recommended BURNDY terminals/splices

• Die index embossment for all 6 wire ranges

• Emergency release mechanism in case of misalignment

or mistaken die choice

• Two different kits are also available with a selection

of connectors in a sturdy metal carrying case

(

Y122CMRKIT

and

Y122CMRCIKIT

)

Specifications:

Catalog Number

Y122CMR

Size:

10.50” x 3.00” x 1.00”

Weight:

1.3 lbs

Die Style:

Rotating Die Wheel

Warranty:

5 year limited warranty

Y122CMR

Accommodates Copper Terminals and Splices

Copper Wire

Size

Connector

Catalog Types

Die Index #

(Color

Code)

Number of Crimps

Standard

Barrel

Long

Barrel

#10 - #12 AWG

Sol. & Str.

T10-, YAD10-,

YAV10, YAZ10,

YAZV10-

– –

(Yellow)

N/A

#8 AWG Code

& Flex

YA8C-, YAV8C-,

YAZ8C-, YAZV8C-,

YS8C, YSV8C-

(Red)

#6 AWG Code

YA6C-, YAZ6C,

YS6C-

(Blue)

#6 AWG Code

& Flex

YAV6C-, YAZV6C-,

YSV6C-

#4 AWG Code

YA4C-, YAZ4C-,

YS4C-

(Gray)

#4 AWG Code

& Flex

YAV4C-, YAZV4C-,

YSV4C-

#3 AWG Code

& #2 AWG Sol

YA3C-, YS3C

(White)

#2 AWG Code

YA2C-, YAZ2C-,

YS2C-

(Brown)

#2 AWG Code

& Flex

YAV2C-, YAZV2C-,

YSV2C-

Accessories:

Die Inspection Gages are available and sold separately. See table

to the right for information.

Gage Catalog

Number

AWG Size

Die Index

Color Code

PG4091

#10 - #12

– –

Yellow

PG4092

Red

PG4093

Blue

PG4094

Gray

PG4095

White

PG4096

Brown

Copper C-Tap Connectors

Catalog

Number

Wire Size

Cu Str. AWG

Die Index #

(Color)

# of Crimps

Run

Tap

YC10L12

16-14

(Red)

YC8L12

(Blue)

YC6L12

10-8

12-10

(Grey)

YC4L12

5, 4

8-6

12-8

(Brown)

N-49

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

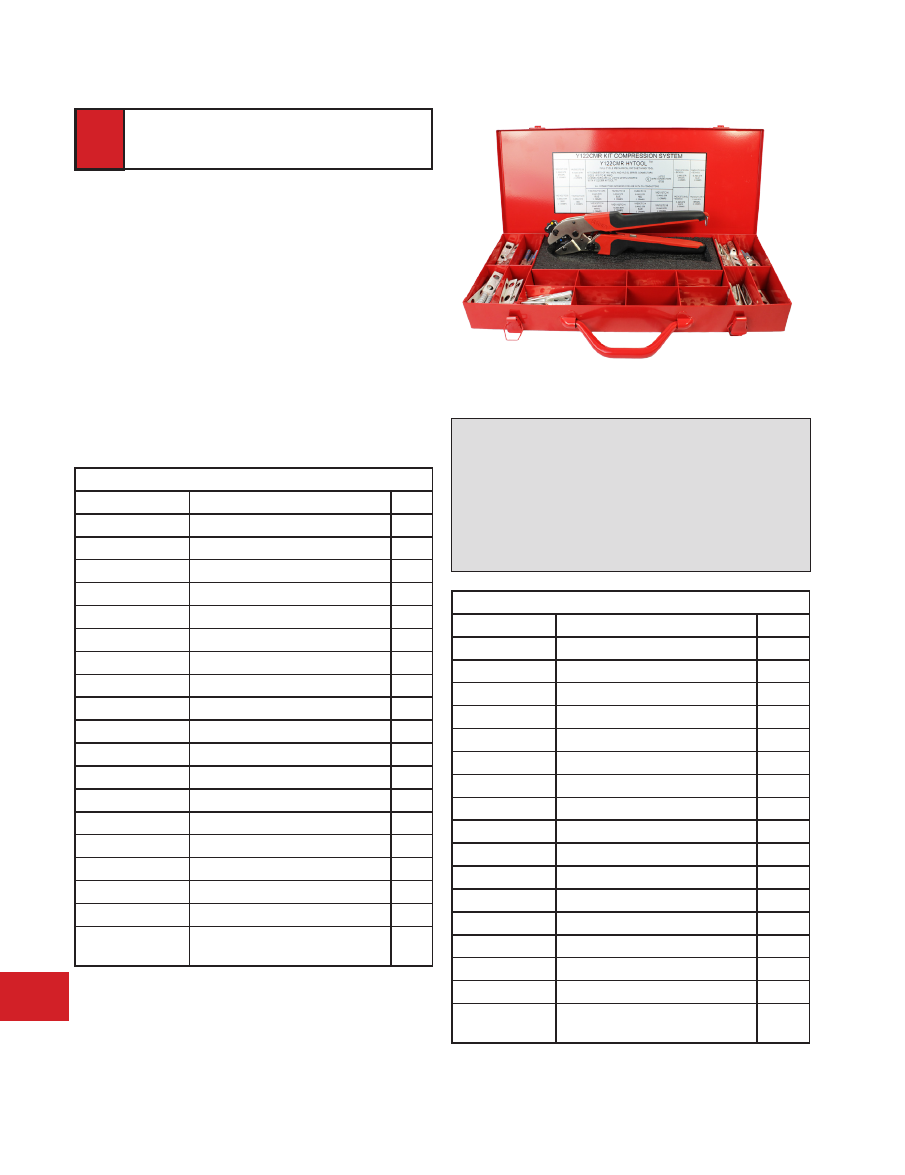

Y122CMR Kits

Specifications:

Size:

18.00” x 7.50” x 2.00”

Weight:

13.7 lbs

Die Style

Rotating Die Wheel

Warranty:

5 year limited warranty

Y122CMR Tool with select connectors

For #12 - #2 AWG Stranded, Solid, and Flex

• Overmolded comfort grip handles

• Easy groove identification with color coded dies

• UL Listed/CSA Certified connections when used with

recommended BURNDY terminals/splices

• Die index embossment for all 6 wire ranges

• Two kits available that include popular connectors in a sturdy

metal carrying case

• Y122CMRKIT

offers select LONG barrel connectors

• Y122CMRCIKIT

offers select STANDARD barrel connectors

Y122CMRKIT

shown

Y122CMRCIKIT Contents: (all connectors are STANDARD Barrel)

Catalog Number

Description

Qty

Y122CMR

HYTOOL™ Full Cycle Ratchet Tool

Y1MRKITCASE

Metal Case for Tool and Connectors

YAV10T3

#10 Sol & Str, 1/4” Stud, 1 Hole

YA8CL

#8 AWG, #10 Stud, 1 Hole

YA8CL1

#8 AWG, 1/4” Stud, 1 Hole

YA6CL

#6 AWG, 1/4” Stud, 1 Hole

YAV6CLTC14FX

#6 AWG & Flex, 1/4” Stud, 1 Hole

YA4CL

#4 AWG, 1/4” Stud, 1 Hole

YAV4CLTC516FX

#4 AWG & Flex, 5/16” Stud, 1 Hole

YA2CL

#2 AWG, 5/16” Stud, 1 Hole

YAV2CLTC516FX

#2 AWG & Flex, 5/16” Stud, 1 Hole

YSV10

#10 Sol & Str Splice

YS8CL

#8 AWG Splice

YS6CL

#6 AWG Splice

YS4CL

#4 AWG Splice

YS2CL

#2 AWG Splice

Y122MRSOMI

Safety Operating &

Maintenance Instructions

Y122CMRKIT Contents: (all connectors are LONG Barrel)

Catalog Number

Description

Qty

Y122CMR

HYTOOL™ Full Cycle Ratchet Tool

Y1MRKITCASE

Metal Case for Tool and Connectors

YAV102TC14

#10 Sol & Str, 1/4” Stud, 2 Holes

YAZV10TC14

#10 Sol & Str, 1/4” Stud, 1 Hole

YAZV102TC14

#10 AWG, 1/4” Stud, 2 Holes

YAZ8CTC14

#8 AWG, 1/4” Stud, 1 Hole

YAZ8C2TC38

#8 AWG, 3/8” Stud, 2 Holes

YAZ6CTC14

#6 AWG, 1/4” Stud, 1 Hole

YAZ6C2TC38SL

#6 AWG, 3/8” Stud, 2 Slotted Holes

YAZ6C2TC14

#6 AWG, 1/4” Stud, 2 Holes

YAZV6C2TC14FX

#6 Code & Flex, 1/4” Stud, 2 Holes

YAZ6C2TC38

#6 AWG, 3/8” Stud, 2 Holes

YAZ4C2TC38

#4 AWG, 3/8” Stud, 2 Holes

YAZ3C2TC14

#3 AWG, 1/4” Stud, 2 Holes

YAZ3C2TC38SL

#3 AWG, 3/8” Stud, 2 Slotted Holes

YAZ2C2TC38

#2 AWG, 3/8” Stud, 2 Holes

YAZ2C2TC38SL

#2 AWG, 3/8 Stud, 2 Slotted Holes

YAZV2C2TC14FX

#2 Code & Flex, 1/4” Stud, 2 Holes

Y122MRSOMI

Safety Operating &

Maintenance Instructions

Accessories:

Die Inspection Gages are available and sold separately.

See

Y122CMR

catalog page for details.

N-50

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

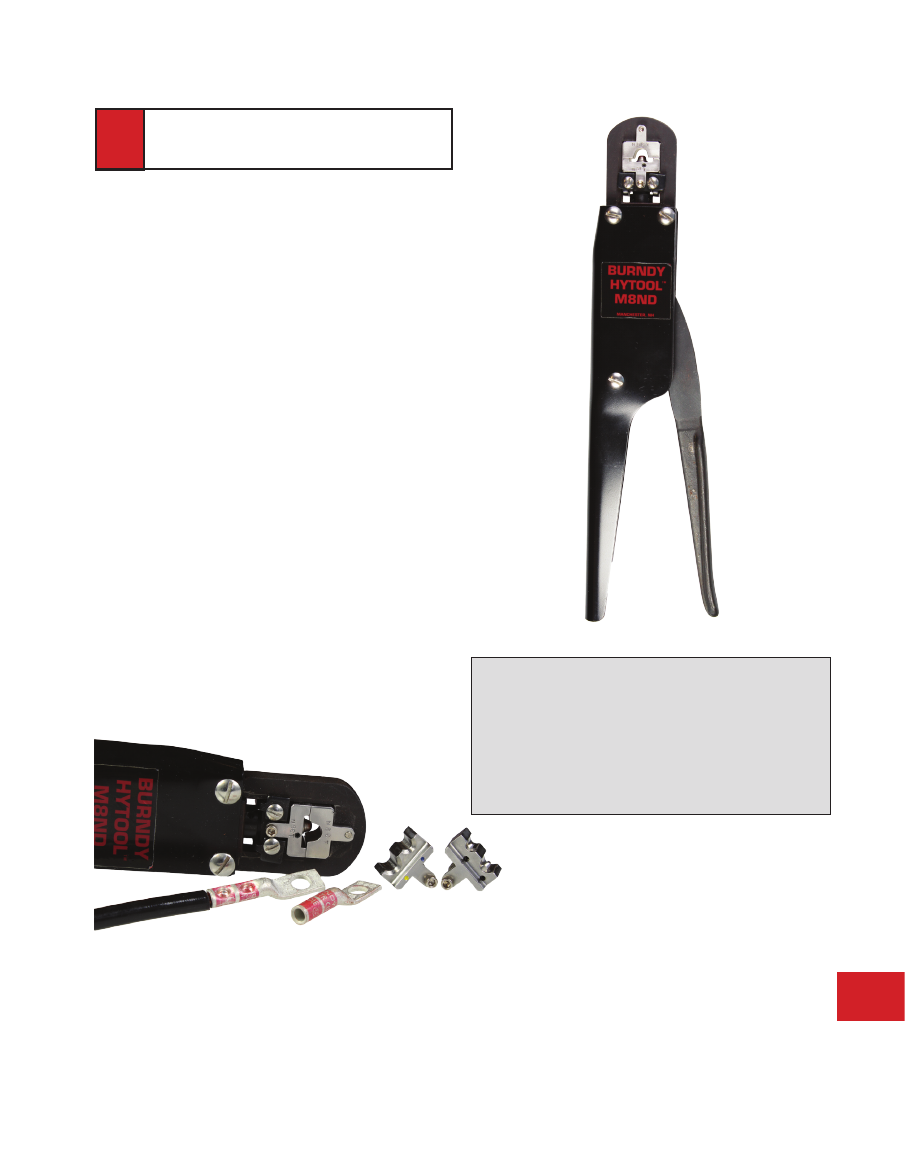

Full Cycle Ratchet

Hand-held tools for #26 - #8 AWG Terminals/Splices

• Ratchet mechanism does not allow handles to open until full

cycle is complete

• Fully protected ratchet mechanism

• Uses standard BURNDY N style dies (sold separately)

• Easy groove identification with color coded dies

Catalog Number M8ND For Use On:

#26 - #8 AWG Terminals/Splices

Terminal Types

: YAD, BA-E, YAD-F, BA-EF, YAE,

BA-ES, YAE-F, BA-EZ, YAE-Z, BA-EL, YAES, YAEV-H,

YAEV-L, YAV, YAV-F, YAV-H, YAV-H-F

Splice Types:

YSV, YSM, YSV-H, YRV-L

Specifications:

Weight:

1.8 lbs

Size:

10.88” x 2.00” x .88”

Die Style:

N style

Cycles:

10,000

Warranty:

5 year limited warranty

M8ND

shown with N8CT die set installed. (Dies sold separately.)

N-51

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

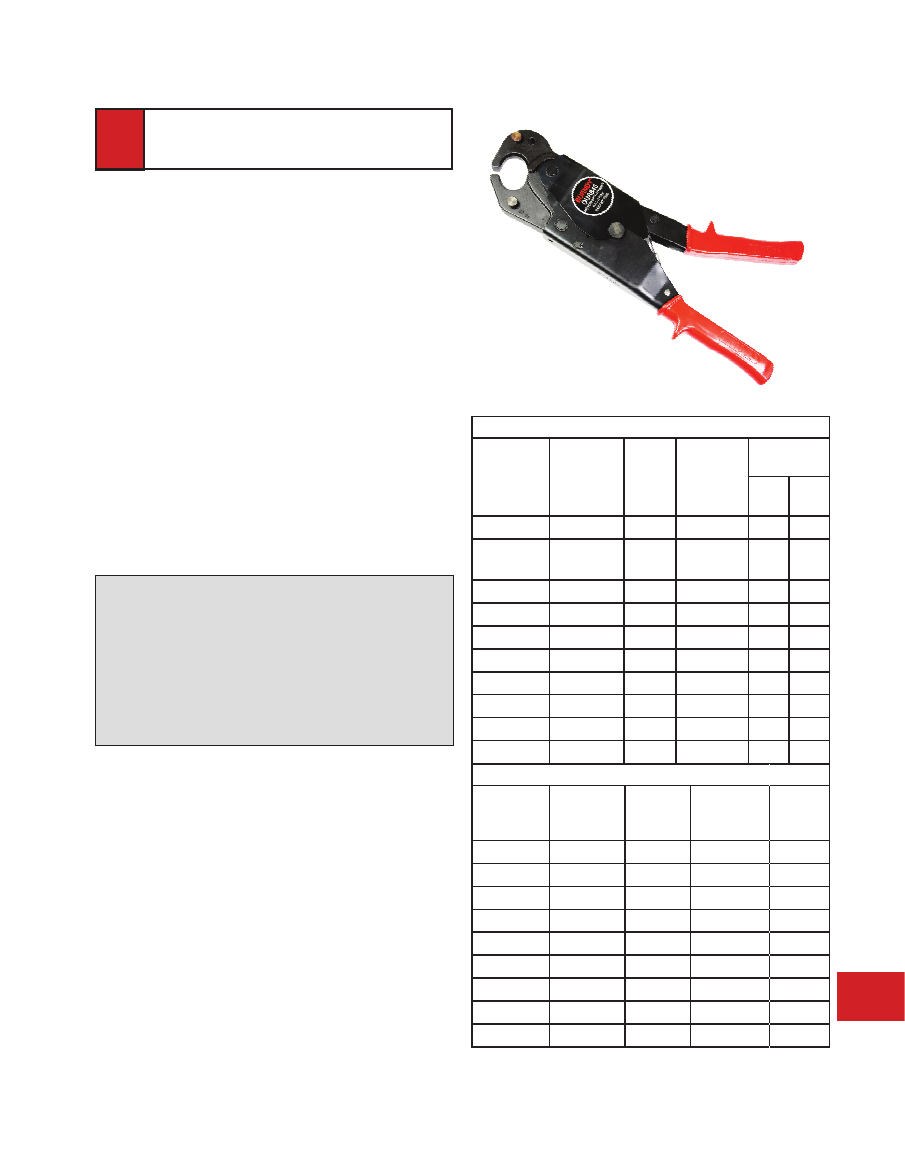

MRC840 Series

Mechanical Rotating Crimp Tool

For #8 - 4/0 AWG Uninsulated (Bare) Terminals/

Splices

• Heat treated steel jaws

• Spring loaded mechanism locks die wheel into position

• Multiple crimp selection with rotatable die wheels

• Die index embossment for inspectability

For Use On:

Catalog Number: MRC840

#8 - #4/0 AWG Copper Terminals/Splices

Types: YA, YA-L, YS, YS-L

Catalog Number: MRC840AL

#8 - #4/0 AWG Aluminum Terminals/Splices

Types: YA-A, YS-A

Specifications:

Size:

26.00” x 8.00” x 1.50”

Weight:

8.3 lbs

Die Style:

Rotating Die Wheel

Warranty:

5 year limited warranty

N-52

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

Dieless Mechanical Compression Tools

#8 Str. - 250 kcmil Copper; #8 Str. - 4/0 Str.

Aluminum

• Easy to adjust nest die with knurled steel knob and machine

threads

• Rugged tool design with heavy duty forged steel with

reinforced back and handles

• Bench mount adapter (sold separately) available

For Use On:

Catalog Numbers: MY293, MY293C (covered handles),

MY293CF (fully covered)

#8 Str. - 250 kcmil Copper commercial (code) cable

30 Navy - 250 Navy Copper Navy cable

#8 Str. - 4/0 Str. Aluminum commercial (code) cable

Types (Copper): YA, YA-L, YS-L

Types (Aluminum): YA-A, YS-A

Catalog Numbers: MY2911, MY2911C (covered handles),

MY29UNIVERSALKIT

(MY2911 tool with select connectors)

#8 Str. - 250 kcmil Copper commercial (code) cable

30 Navy - 250 Navy Copper Navy cable

#8 Str. - 4/0 Str. Flexible copper mine machine cable

Types (Copper): YA, YA-L, YS, YAV-FX, YS-L,

YAV-L, YSV-L

Catalog Number: MY28

#8 Str. - 4/0 Str. Copper aircraft cable

Types (Copper): YAV-L, YSV-L

Catalog Number: MY284

#8 Str. - 4/0 Str. Aluminum aircraft cable

Types (Aluminum): YAV-A-L, YSV-A-L, YAV-A-R

Catalog Number: MY286

#8 Str. - 2/0 Str. Copper aircraft cable (flexible)

Types (Copper): Nylon Insulated: YAE-L, YAEV-RS,

YAEV-H, YAEV-RH

Specifications:

Weight:

8.0 lbs

Size:

22.65” x 4.88” x 1.12”

Die Style:

Dieless

Cycles:

10,000

Warranty:

5 year limited warranty

Accessories:

Catalog Number: Description:

BMYBCHMT:

Bench Mount Adapter

MY28/MY29 Series

Close-up of dieless mechanism

N-53

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

Accessories:

Catalog Number: Description:

PT4583:

Leather Holster

PT8504:

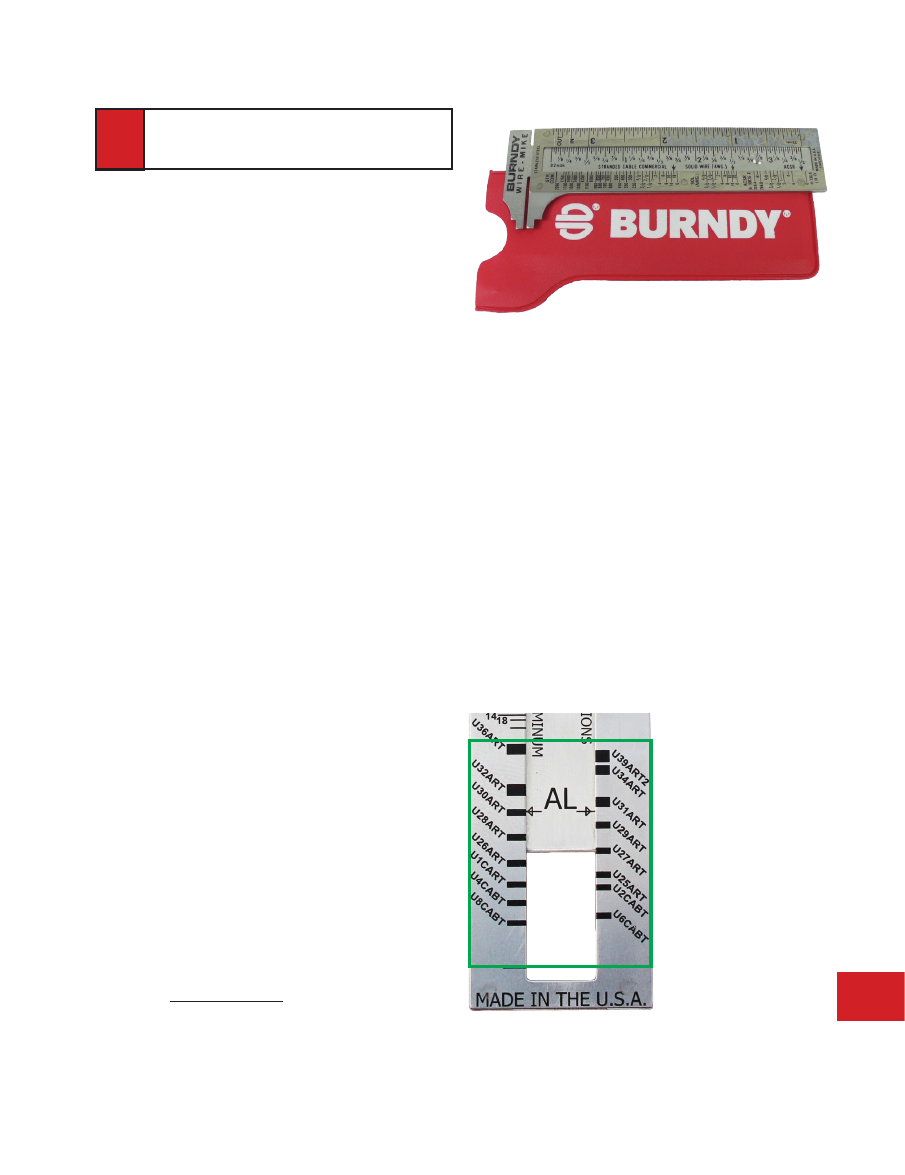

Go/No-Go Gauge; used to check crimp

dimensions

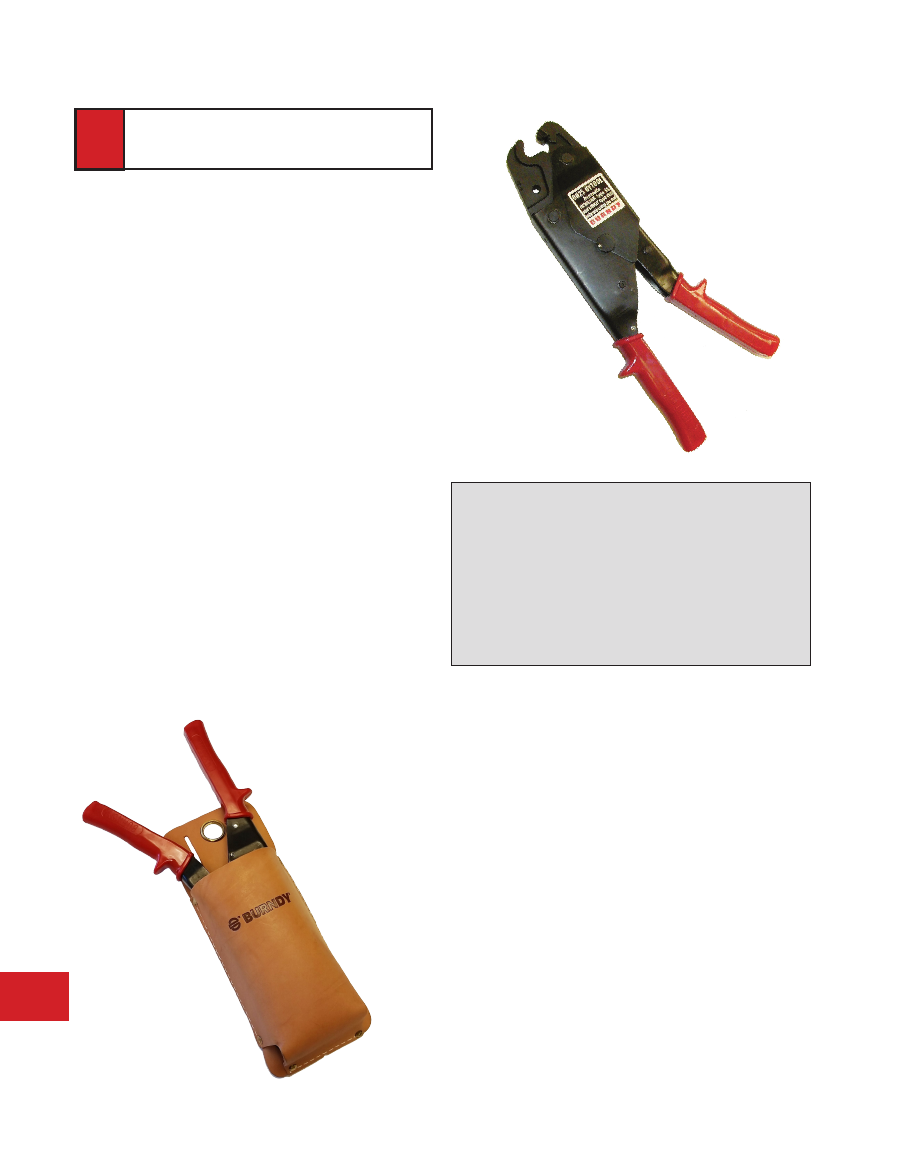

OH25

Dieless Full Cycle Ratchet

Installs Service Entrance Splice Connectors #10 - 1/0

• Ratchet mechanism does not allow handles to open until

full cycle is complete

• Easy, one-hand operation incrementally closes jaws with

each handle stroke

• Spring-loaded comfort grip handles

• Forged steel jaws and stainless steel indentor

Catalog Number OH25 For Use On:

Conductor Range: #10 - 1/0

5/8” Service Entrance Sleeves:

INSULINK™ Type ES (insulated) #10 - 1/0 Str.

LINKIT™ Type YSU (bare) #8 - 1/0 Str.

5/8” Neutral Tension Sleeves HYSPLICE™

Types: YS-S, YCS-R, YDS-AT (#4 - 1/0)

AYP Type HYPLUG™ #6 - 1/0 Str.

Specifications:

Handle Force:

50 lbs max.

Force Developed:

6,000 lbs max.

Size:

12.25” x 3.75” x 1.50”

Weight:

2 lbs. 11 oz.

Die Style:

Dieless

Warranty:

5 year limited warranty

PT4583

Leather Holster

(sold separately; shown with

OH25 tool)

N-54

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

840 POPPER™ HYTOOL™

Overhead/Underground Applications; Full Cycle

Ratchet

• Allows proper crimping of sleeves/terminations in

underground applications

• Uses X dies for reduced handle force and W dies for

fewer number of crimps

• UL Listed connections when used with BURNDY Listed

connectors and color-coded X dies

Catalog Number OUR840 For Use On:

See charts for details

Selected Applications

Copper conductors #8 AWG - 250 kcmil

Aluminum conductors #8 AWG to 4/0 AWG

Specifications:

Handle Force:

8 lbs max.

Force Developed:

8,000 lbs max.

Die Style:

W and X style dies

Size:

13.00” x 3.75” x 1.50”

Weight:

2 lbs. 14 oz.

Warranty:

5 year limited warranty

Accessories:

Catalog Number: Description:

XOH25:

Nest/Indenter die set for OUR840

W28K:

Cutter die for #4 - 4/0 ACSR, Copper, Aluminum

PT4583:

Leather Holster made from top grain cowhide

saddle leather with large grommet

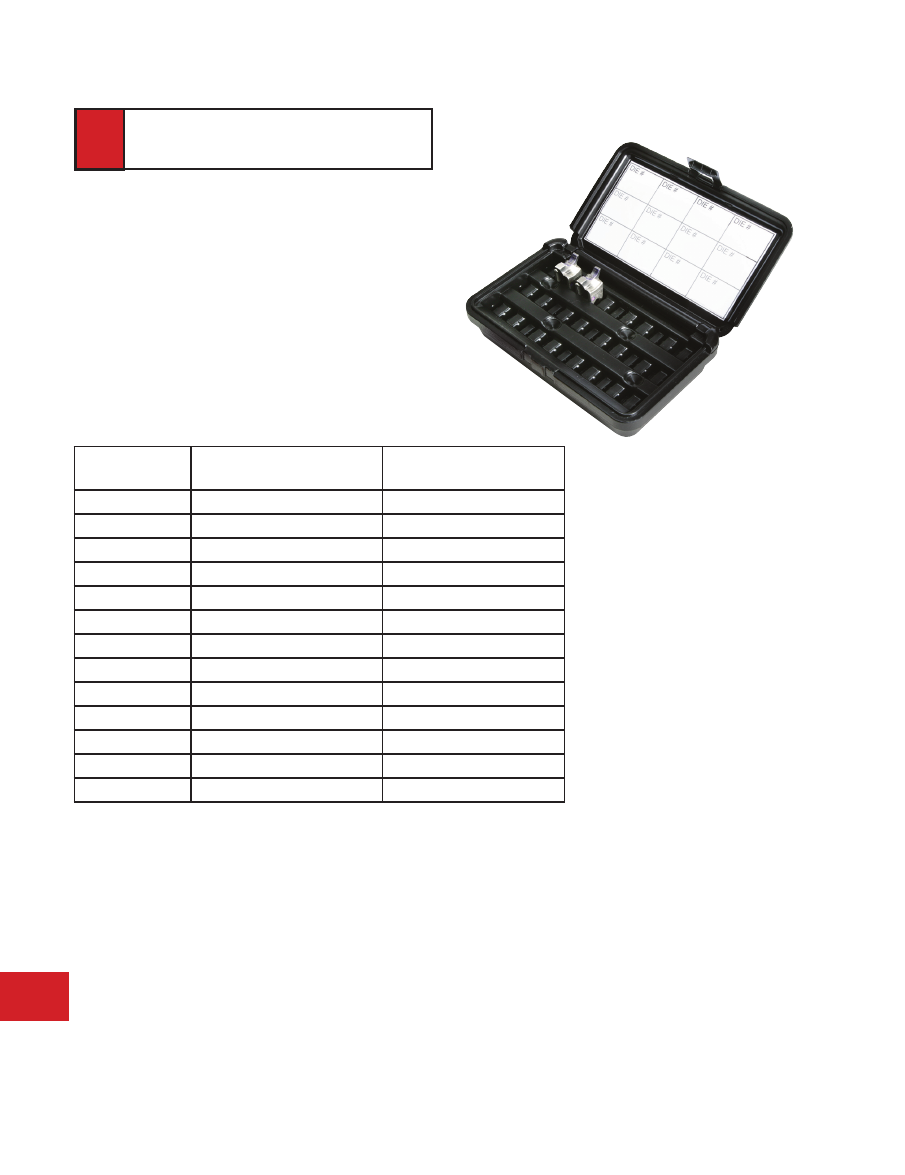

OUR840WC:

Metal carrying case with die tray - holds OUR840

tool and up to eleven (11) X dies (sold separately)

OUR840

Copper Terminals & Splices

Copper

Wire Size

Connector

Catalog

Types

Die

Index #

(Color)

# Crimps per

Barrel Length

Std

Long

#8 AWG Str. YA / YS 8C- X8CRT

49 (Red)

#6 AWG Str.

#5 AWG Str.

YA / YS 6C-,

YA / YS 5C- X5CRT

7 (Blue)

#4 AWG Str. YA / YS 4C- X4CRT

8 (Gray)

#2 AWG Str. YA / YS 2C- X2CRT 10 (Brown)

#1 AWG Str.

YA / YS 1C- X1CRT

11 (Green)

1/0 AWG Str. YA / YS 25- X25RT

12 (Pink)

2/0 AWG Str. YA / YS 26- X26RT

13 (Black)

3/0 AWG Str.

YA / YS 27-

X27RT 14 (Orange)

4/0 AWG Str. YA / YS 28- X28RT

15 (Purple)

250 kcmil

YA / YS 29- X29RT 16 (Yellow)

Aluminum Terminals & Splices

Aluminum

Wire Size

Connector

Catalog

Types

Die

Index # (Color)

Crimps

#8 AWG Str. YA / YS 8CA X8CART

374 (Blue)

#6 AWG Str. YA / YS 6CA- X6CART

346 (Gray)

#4 AWG Str. YA / YS 4CA- X4CART

375 (Green)

#2 AWG Str. YA / YS 2CA- X2CART

348 (Pink)

#1 AWG Str. YA / YS 1CA- X1CART

471 (Gold)

1/0 AWG Str. YA / YS 25A- X25ART

296 (Tan)

2/0 AWG Str. YA / YS 26A- X26ART

297 (Olive)

3/0 AWG Str. YA / YS 27A-

X27ART

467 (Ruby)

4/0 AWG Str. YA / YS 28A- X28ART

298 (White)

N-55

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

Variations (continued):

Catalog Number: Description:

MD64

Permanent BG (5/8) and D3 grooves; straight

fiberglass handles 24” long; fiberglass rated 100kV

per foot for 5 min.

MD614

Permanent BG (5/8) and D3 grooves; straight

fiberglass handles 19” long with grips; fiberglass

rated 100kV per foot for 5 min.

MD612

Permanent O and D3 grooves; straight fiberglass

handles 24” long; fiberglass rated 100kV per foot

for 5 min.

Accessories:

Catalog Number: Description:

WBG:

Common die set for MD68, MD612

WO:

Common die set for MD6, MD64, MD614

KWADP:

Adapter to use BURNDY W and X dies with

MD6K variation

WDIETREE:

W die holder for 6 die sets

MD6 Series

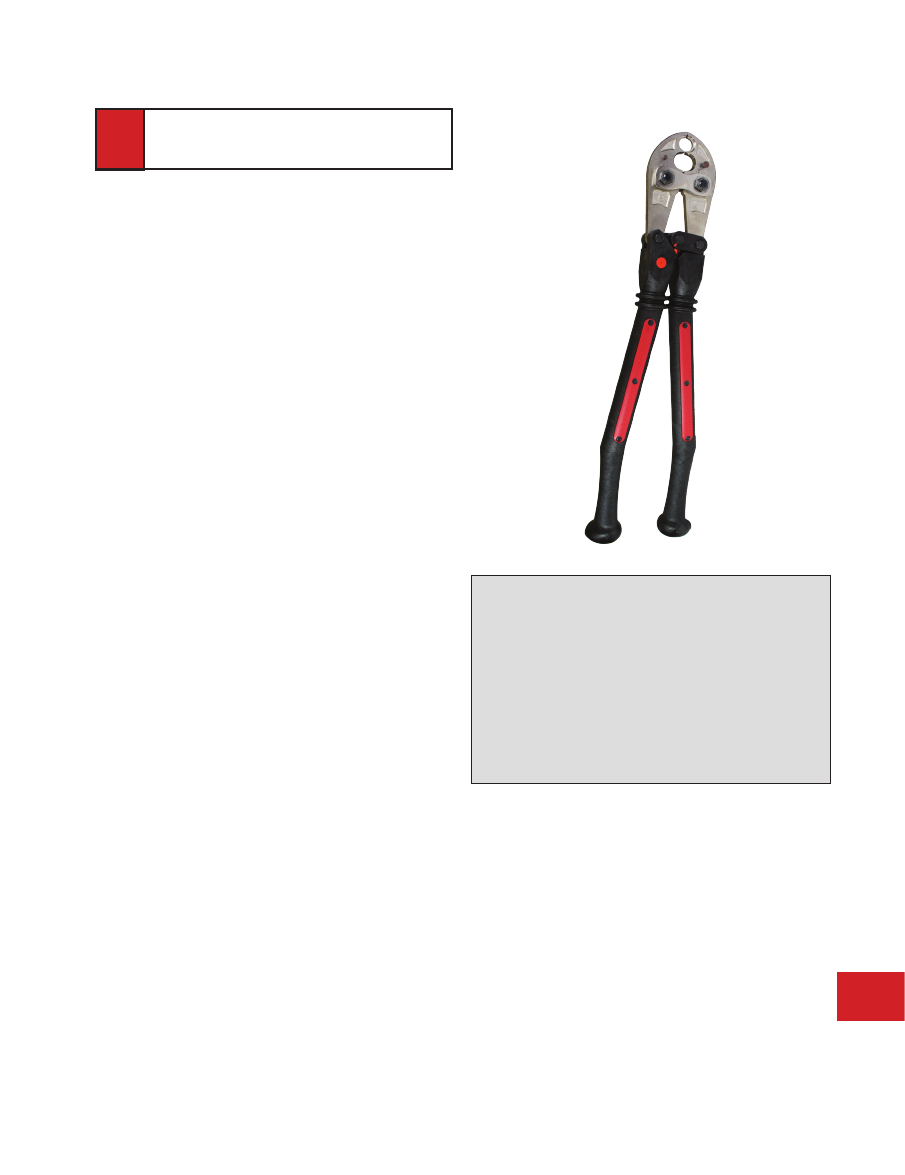

Hand-Operated HYTOOL™

Installs full range of connectors #14 - 4/0

• Uses BURNDY

W dies

• Spring loaded positive lock die retainer buttons

• Multiple variations available

For Use On:

Copper, Aluminum, ACSR, Steel, Copperweld, Alumoweld,

6201, 5005, Compressed, and Compact Conductors

Taps:

Copper: #10 sol. to 2/0 str.

Aluminum & ACSR: #14 sol. to 4/0 ACSR

Stirrups:

#6 to 4/0 ACSR

Overhead Full Tension Deadends, Full Tension Splices

and Terminals:

#10 str. to 4/0 ACSR

Installs Splices, Taps or Terminations:

#8 to 500 kcmil Copper Stranded (YA, YA-L, YS, YS-L)

#8 to 350 kcmil Copper Flex

#8 to 350 kcmil Aluminum (YA-A, YS-A)

Specifications:

Crimp Force:

4.5 Tons

Life Cycle

Tested over 90,000 cycles with

no adjustments or part replacement

Length:

25.50” x 4.50” x 2.00”

Weight:

6.0 lbs

Die Style:

W and X styles

Warranty:

5 year limited warranty

Variations:

Catalog Number: Description:

MD6

Permanent BG (5/8) and D3 grooves; with WO

die (sold separately) can install the CABLELOK

CRIMPIT™ and HYCRIMP™ tap connectors

MD68

Permanent O and D3 grooves; with WBG die

(sold separately) can install the CABLELOK

CRIMPIT™ and HYCRIMP™ tap connectors

MD66

Snub-nose, permanent D3 groove only

MD637

Permanent 161, 162, 163, 171 dies in jaw

(J, M & P, T & X)

MD638

Permanent K, BG, C dies in jaw

MD6K

Snub-nose, accepts KEARNEY™ type O dies;

using KWADP adapter (sold separately) will

accept BURNDY W and X dies

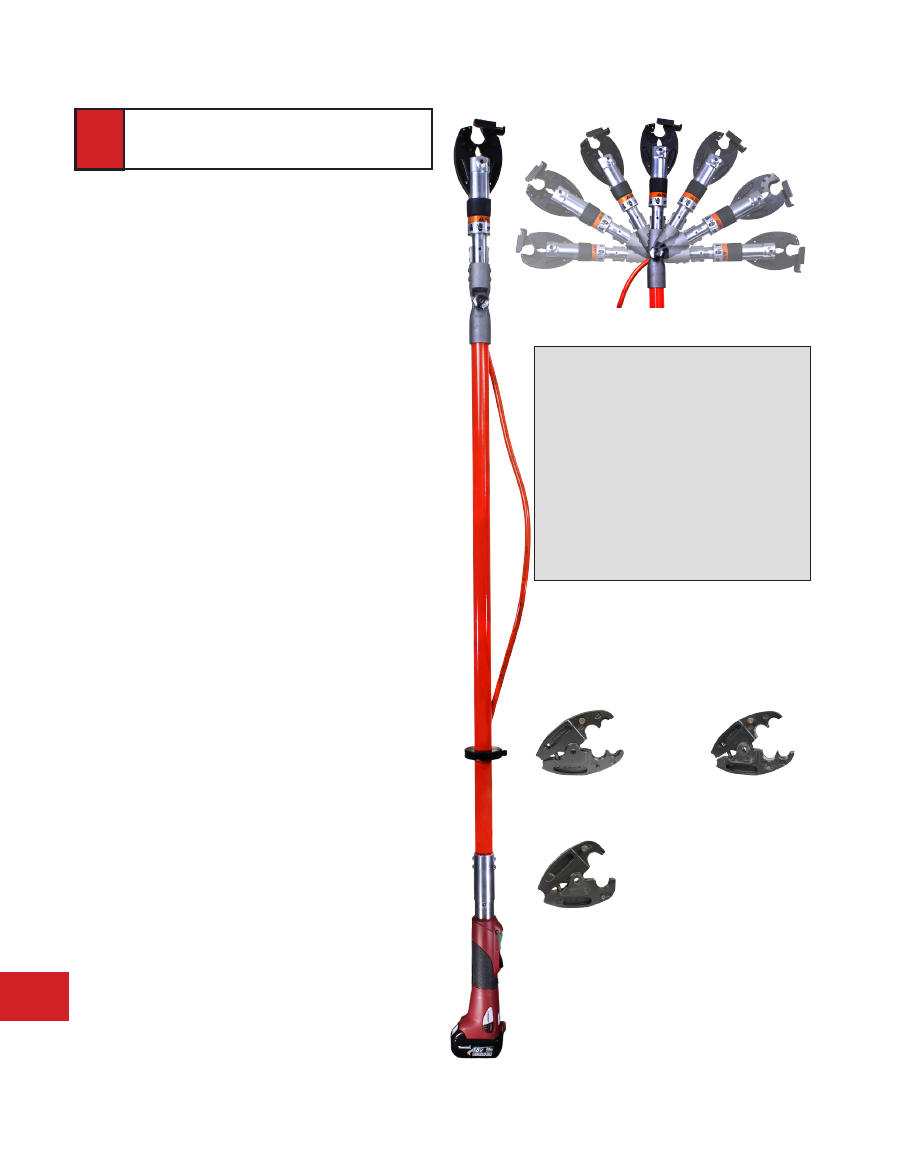

Hotstick Tools Available - Contact Customer Service

N-56

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

Hand-Operated HYTOOL™

Installs full range of connectors #14 - 4/0

• Accepts W and X Dies

• Ergonomic, one-piece composite polymer handles

• Nickel plated jaws and jaw links

For Use On:

Copper, Aluminum, ACSR, Steel, Copperweld, Alumoweld, 6201,

5005, Compressed, and Compact Conductors

Taps:

Copper: #10 sol. to 2/0 str.

Aluminum & ACSR: #14 sol. to 4/0 ACSR

Stirrups:

#6 to 4/0 ACSR

Overhead Full Tension Deadends, Full Tension Splices and

Terminals:

#10 str. to 4/0 ACSR

Installs Splices, Taps or Terminations:

#8 to 500 kcmil Copper Stranded (YA, YA-L, YS, YS-L)

#8 to 350 kcmil Copper Flex

#8 to 350 kcmil Aluminum (YA-A, YS-A)

Specifications:

Output Force:

4.5 Tons

Size:

25.00” x 4.50” x 2.00”

Weight:

7.0 lbs.

Die Style:

W and X styles

Life Cycle

Tested over 90,000 cycles with no

adjustments or part replacement

Warranty:

5 year limited warranty

Accessories:

Catalog Number: Description:

WBG:

Common die set for MD78

WO:

Common die set for MD7, MD76

WDIETREE:

W die holder for 6 die sets

MD7 Series

Variations:

Catalog Number: Description:

MD7

Permanent BG (5/8) and D3 grooves; with WO

die (sold separately) can install the CABLELOK

CRIMPIT™ and HYCRIMP™ tap connectors

MD78

Permanent O and D3 grooves; with WBG die

(sold separately) can install the CABLELOK

CRIMPIT™ and HYCRIMP™ tap connectors

MD76

Snub-nose, permanent D3 groove only

N-57

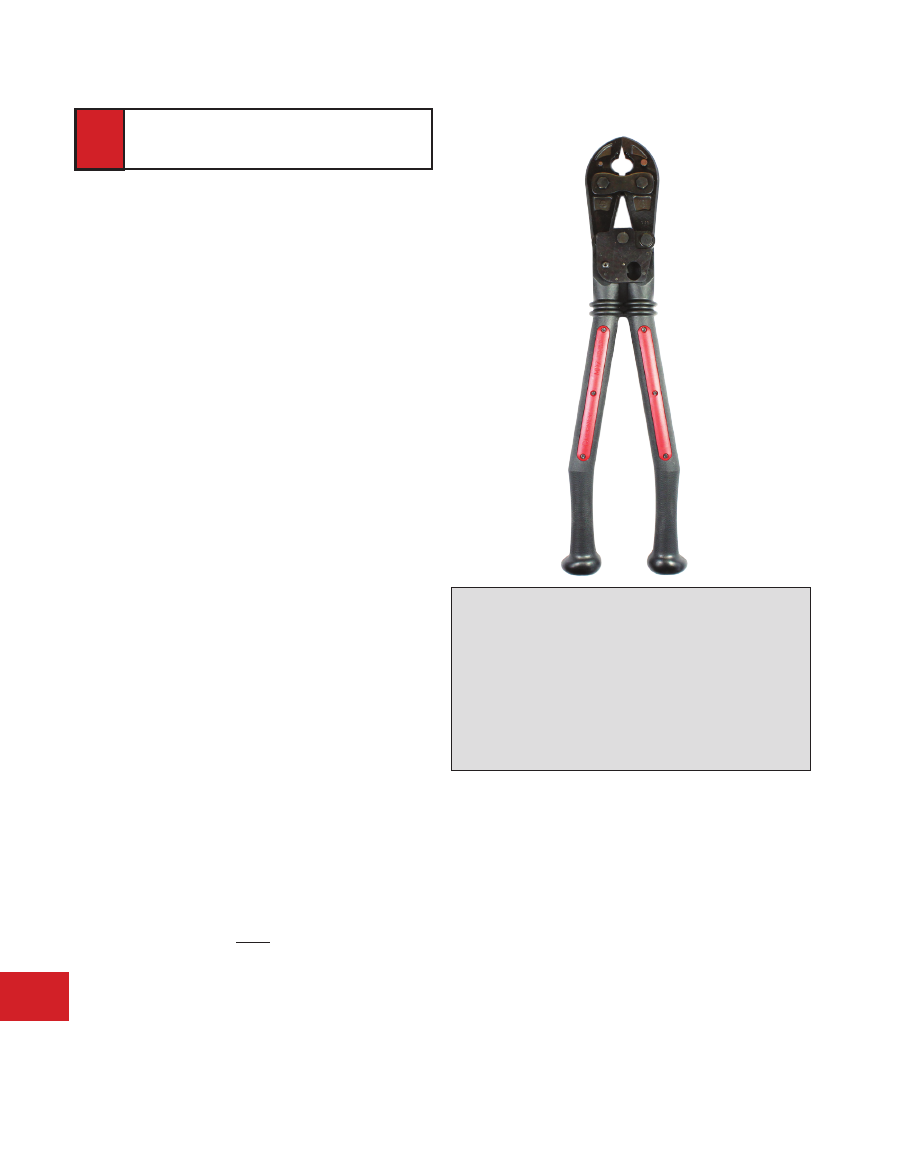

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — Mechanical & Ratchet

Accessories:

Catalog Number: Description:

PT49521:

Metal carry case (sold separately)

PT4925:

Canvas bag (sold separately)

WDIETREE:

W die holder for 6 sets of dies (sold separately)

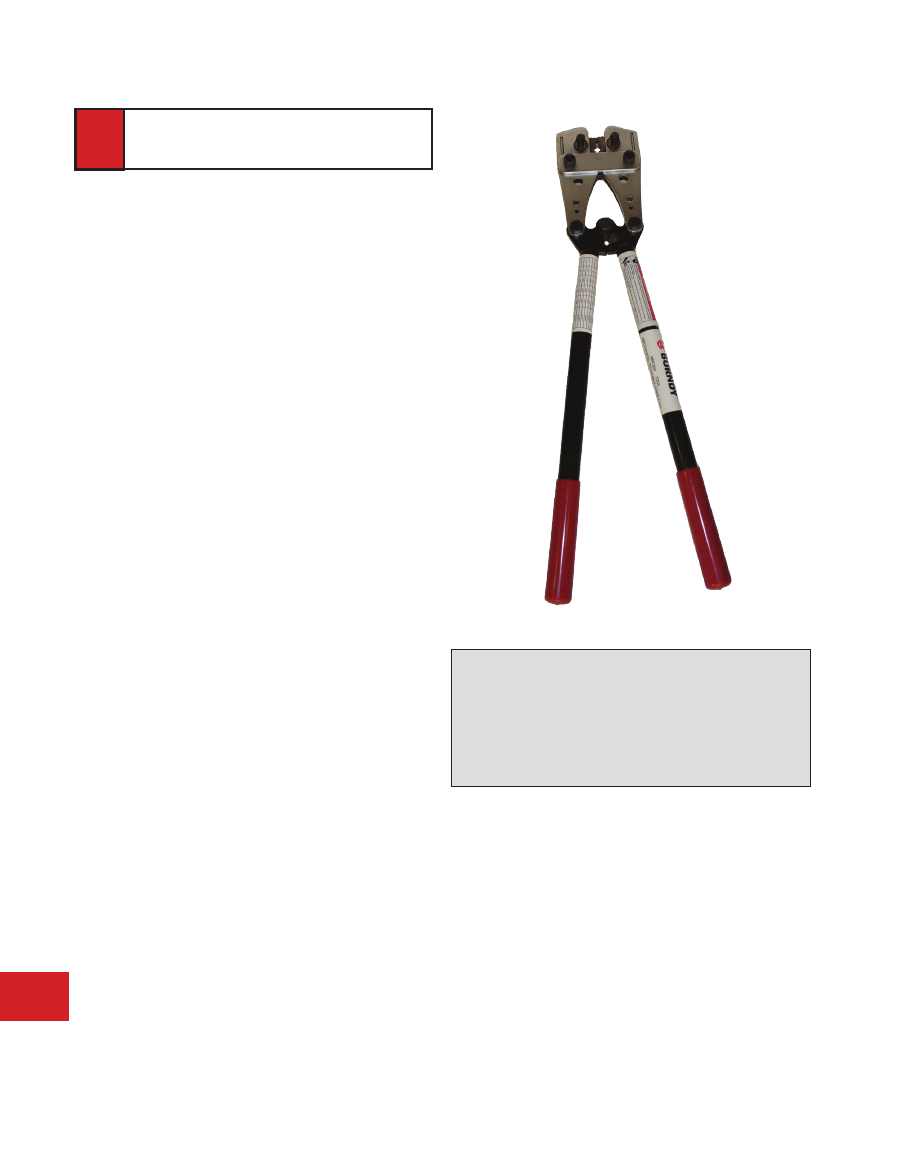

MD734R

Hand-Operated POSI-PRESS™

Hand-operated full cycle ratchet tool

• Full stroke ratchet mechanism

• Ergonomical one-piece composite polymer handles

• Allows use of complete W-VT, W-RT and X-RT line of

BURNDY dies with die embossment

For Use On:

Copper Lugs/Splices #8 - 500 kcmil:

Types: YA, YA-L, YA-L-TC, YA-L-NT, YS-L, YS, YST,

YA-TC

Copper Lugs/Splices #8 - 350 kcmil Flex

Types: YAV-L-TC-FX, YA-LB, YA-TC-FXB, YSV-L,

YAV-L-NT-FX, YAV-L-FX, YAV-FXB

Copper Battery Lugs #8 - 350 kcmil Flex

Type: YAG-TC-LD

Thin Wall C-Taps #12 - 3/0 AWG

Type: YC-L

Specifications:

Crimp Force:

4.5 Tons

Length:

26.00” x 4.50” x 2.00”

Width:

8.00” at handles; 4.50” at jaws

Die Style:

W-VT, W-RT, and X-RT Styles

Handle Material:

Reinforced composite polymer

Warranty:

5 year limited warranty

Variations:

Catalog Number: Description:

MD734R

POSI-PRESS™ Full Cycle Ratchet Tool

MD734RC

MD734R tool with EPDM rubber covering

MD734RKIT1

MD734R tool, metal carrying case and all dies

for #8 - 500 kcmil copper HYDENT™ and

C-Taps for #12 - 3/0 AWG

MD734

Supplied without the ratchet mechanism

MD734KIT1

MD734 tool (no ratchet mechanism), metal

carrying case and all dies for #8 - 500 kcmil

copper HYDENT™ and C-Taps for #12 - 3/0 AWG

N-58

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — OEM

Accessories:

Catalog Number:

Description:

Y8AC9:

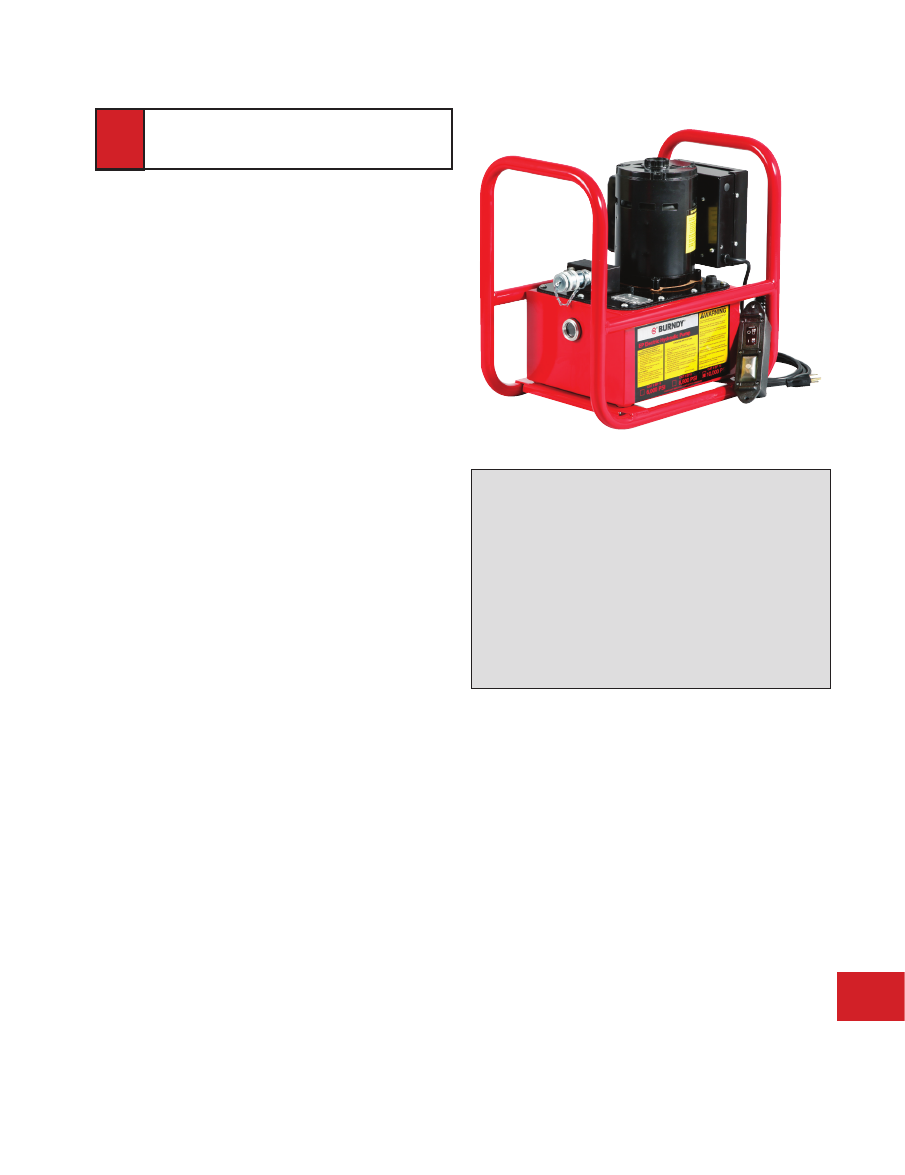

5/8 HP Electric Hydraulic Pump 8,800 PSI

PT2990010:

10 foot long hydraulic hose

YACFC:

Foot switch for Y8AC9 pump

Y46OEMGUARD:

Clear safety shield

Y46OEMLOCATOR:

Adjustable connector locator

12TONP1:

Factory installed stroke limiter

UDIEKITCU:

U die kit complete with 15 U die sets for

crimping #6 AWG - 750 kcmil copper,

provided in one metal storage case

UDIEKITAL:

U die kit complete with 15 U die sets for

crimping #6 AWG - 750 kcmil aluminum,

provided in one metal storage case

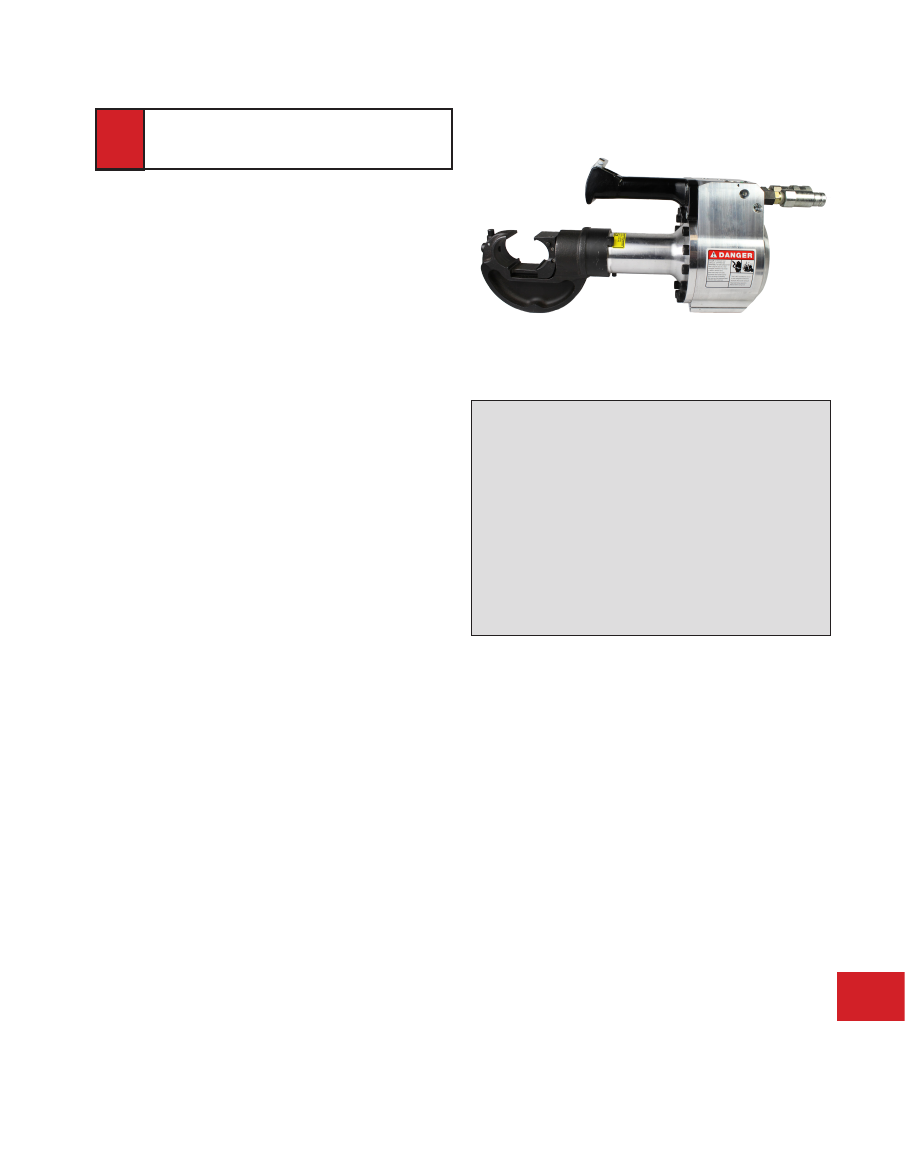

Y46OEM12T

12 Ton Remote Operated HYPRESS™

Designed for Specific OEM Applications; Bench Mount

• Head mounted at 45

angle

• U dies for copper and aluminum

• Forged steel tool, precision machined components

• Coupler at 90

angle

For Use On:

Copper Terminals (Bare) #6 - 750 kcmil Code/Navy:

Types: YA, YA-2N, YA-L, YA-LB, YA-TC, YA-2LN, YAB-4N,

YAV-L, YAV-RS, YA-TC-FX

Copper Terminals (Insulated) #8 - 2/0 Flex/Extra Flex

Types: YAEV-L, YAEV-H, YAEV-RS, YAEV-RH

Aluminum Terminals #6 - 750 kcmil Code

Types: YA-A, AYP, AYPO

Specifications:

Operating Pressure:

8,800 PSI

Force Developed:

12 Tons

Weight:

34.5 lbs

Size:

14.00” x 12.25” x 10.00”

Die Style:

U Dies (with PUADP-1 adapter, included)

Warranty:

2 year limited warranty

Variations:

Catalog Number: Description:

Y46OEM12T

Y46OEM12T tool only

Y46OEM12TKIT

Kit complete with Y46OEM12T tool, Y8AC9

pump, and PT2990010 hose

Y46OEM12TKITFC

Kit complete with Y46OEM12TKIT

(see above)

and YACFC foot switch

Y46OEM12TKIT1

Kit complete with Y46OEM12TKIT

(see above),

Y46OEMGUARD, Y46OEMLOCATOR, and

12TONP1

Y46OEM12TKIT1FC

Kit complete with Y46OEM12TKIT1 (see

above) and YACFC foot switch

N-59

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — OEM

Accessories:

Catalog Number:

Description:

Y7AC9:

7,300 PSI Electric Hydraulic Pump

PT2990010:

10 foot long hydraulic hose

Y46OEMGUARD:

Clear safety shield

Y46OEMLOCATOR:

Adjustable connector locator

Y46OEM11T

11 Ton Remote Operated HYPRESS™

Designed for OEM Applications, Bench Mounted

• Same crimp profile as 644 Series tools with dedicated P644

die set permanently affixed

• “1 Crimp” technology for most long and standard length barrel

terminals

• Expanded range taking capacity

For Use On:

Copper Terminals #6 - 750 kcmil Code/Navy (Terminals):

Types: YA-L, YA-2LN, YA, YA-2N, YA-L-2TC,

YAB-4N, YA-L-TC, YA-2L, YA-4N

Copper Terminals #6 - 500 kcmil Code/Navy (Splices):

Types: YS-L, YS-T, YS

Aluminum #6 - 500 kcmil

Terminal Types: YA-A, YA-A-TN

HYPLUG™ Types: AYP, AYPO

Aluminum #6 - 350 kcmil

Splice Type: YS-A

Specifications:

Operating Pressure:

7,300 PSI

Force Developed:

11 Tons

Weight:

34.5 lbs

Size:

14.00” x 12.25” x 10.00”

Die Style:

P644 die permanently affixed

Warranty:

2 year limited warranty

Variations:

Catalog Number: Description:

Y46OEM11T

Tool only

Y46OEM11TKIT

Kit complete with Y46OEM11T tool, Y7AC9

electric pump (7,300 PSI), and PT2990010

10’ hydraulic hose

NOTE:

Not to be used with 10,000 PSI operating pressure.

Ensure ONLY 7,300 PSI is used for this 11-Ton output force

tool.

N-60

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — OEM

Specifications:

Weight:

60.0 lbs

Size:

22.75” x 12.38” x 10.25”

(18.56” L with air gauge)

Die Style:

UM, U, W Styles

Crimp Speed:

3 seconds (approximately)

Life Cycles:

2.5 M cycles (min)

Air Pressure:

90-100 PSI

Connector Port:

3/8” NPT female thread

Warranty:

2 year limited warranty

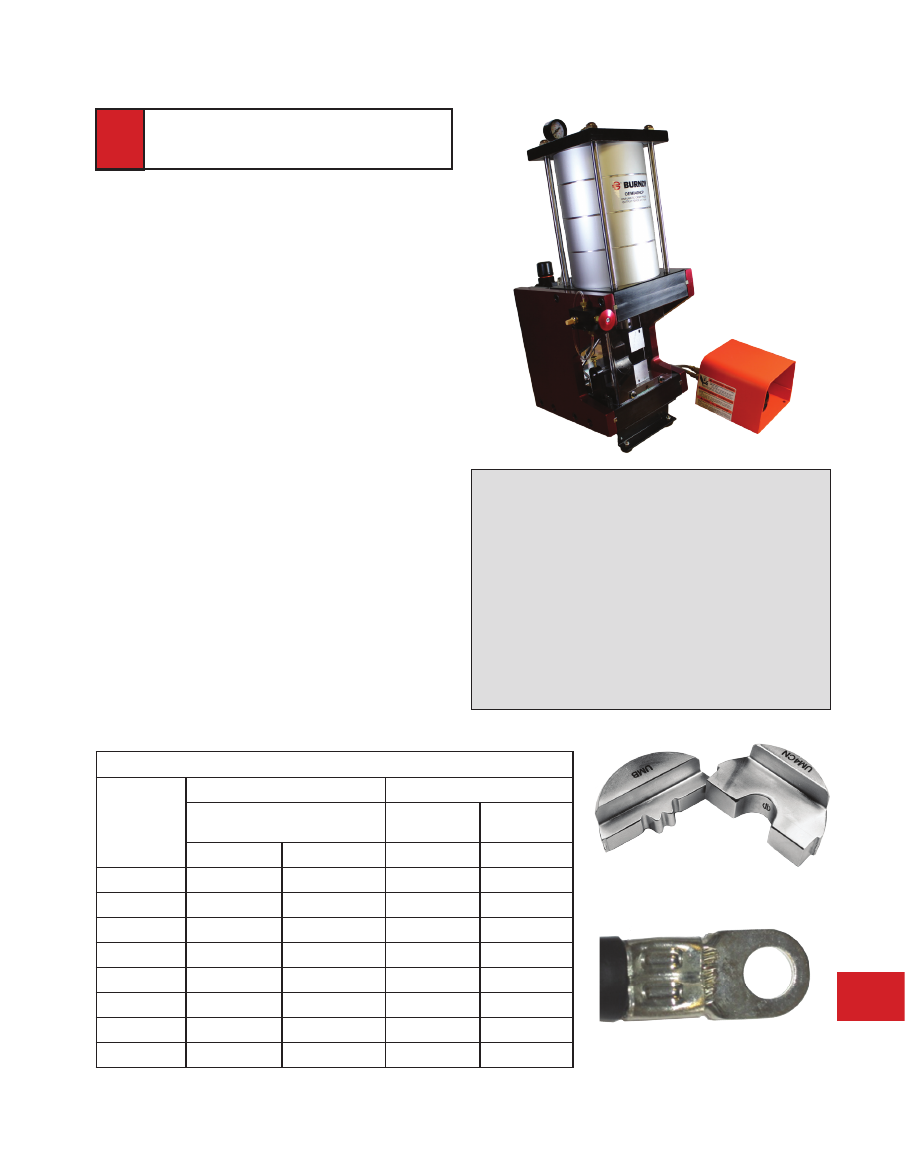

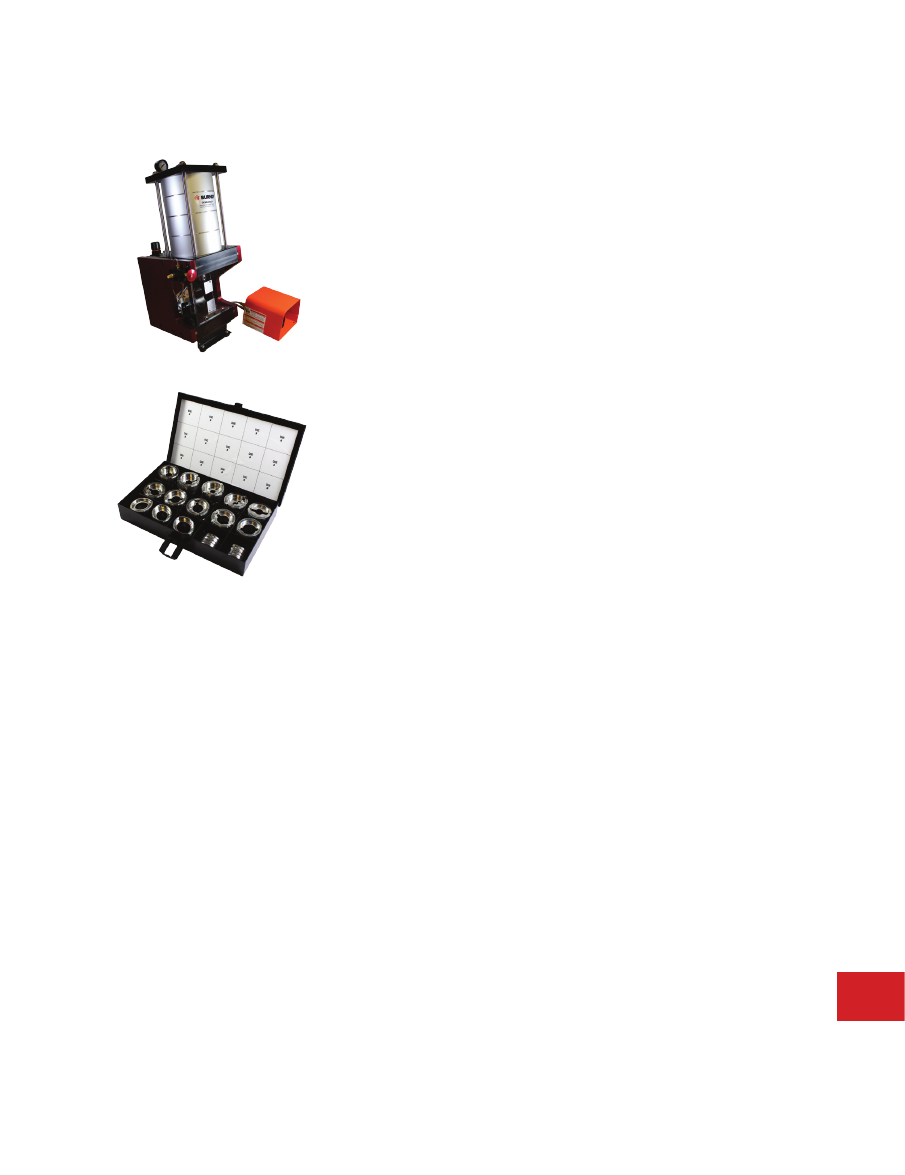

OEM Pneumatic Press

Installs #8 - 4/0 AWG

• Customizable clear safety guard for left, right, or front

feed cable entry

• Guarded foot switch

• Adjustable connector locator

• Cycle counter

• Accommodates UM, U and W dies

• Testing for UL Listing performed up to:

• U dies: UL Listed to 1/0 AWG (YA-L), #2 AWG

(YAV-L)

• W dies: UL Listed to 3/0 AWG (YA-L), 1/0 AWG

(YAV-L)

OEM840NCP

Accessories:

Catalog Number: Description:

PT50024685:

U / UM Die Holder Assembly

PT50024683:

W Die Holder Assembly

PT50024605:

Front Safety Guard

See Connector and Die Selection Matrix below

all dies, nest and indenters are sold separately

Connector and Die Selection Matrix

Wire Size

YAD-M Connectors

YA and YA-L Connectors

UM Dies (DLO Copper)

U Dies

(Code)

W Dies

(Code)

Indenter

Nest

Copper

#8 AWG

UMA

UM8CN

U8CRT

W8CRT

#6 AWG

UMB

UM6CN

U6CRT

W6CRT

#4 AWG

UMB

UM4CN

U4CRT

W4CRT

#2 AWG

UMB

UM2CN

U2CRT

W2CRT

1/0 AWG

UMC

UM25N

U25RT

W25RT

2/0 AWG

UMC

UM26N

U26RT

W26RT

3/0 AWG

UMC

UM27N

U27RT

W27RT

4/0 AWG

UMC

UM28N

U28RT

W28RT

UM Nest/Indenter

UM Crimped Terminal

Variations:

Catalog Number: Description:

OEM840NCP

OEM Pneumatic Press

N-61

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Crimpers — OEM

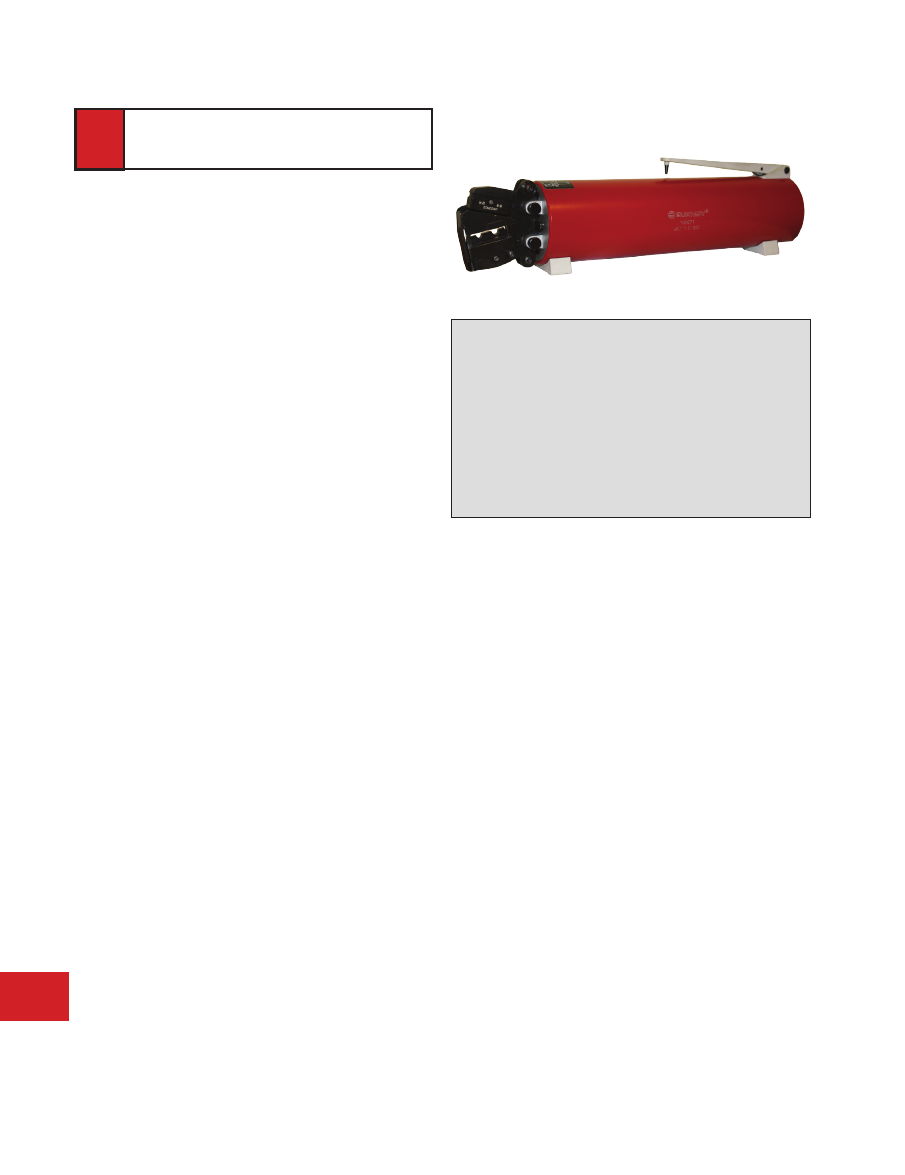

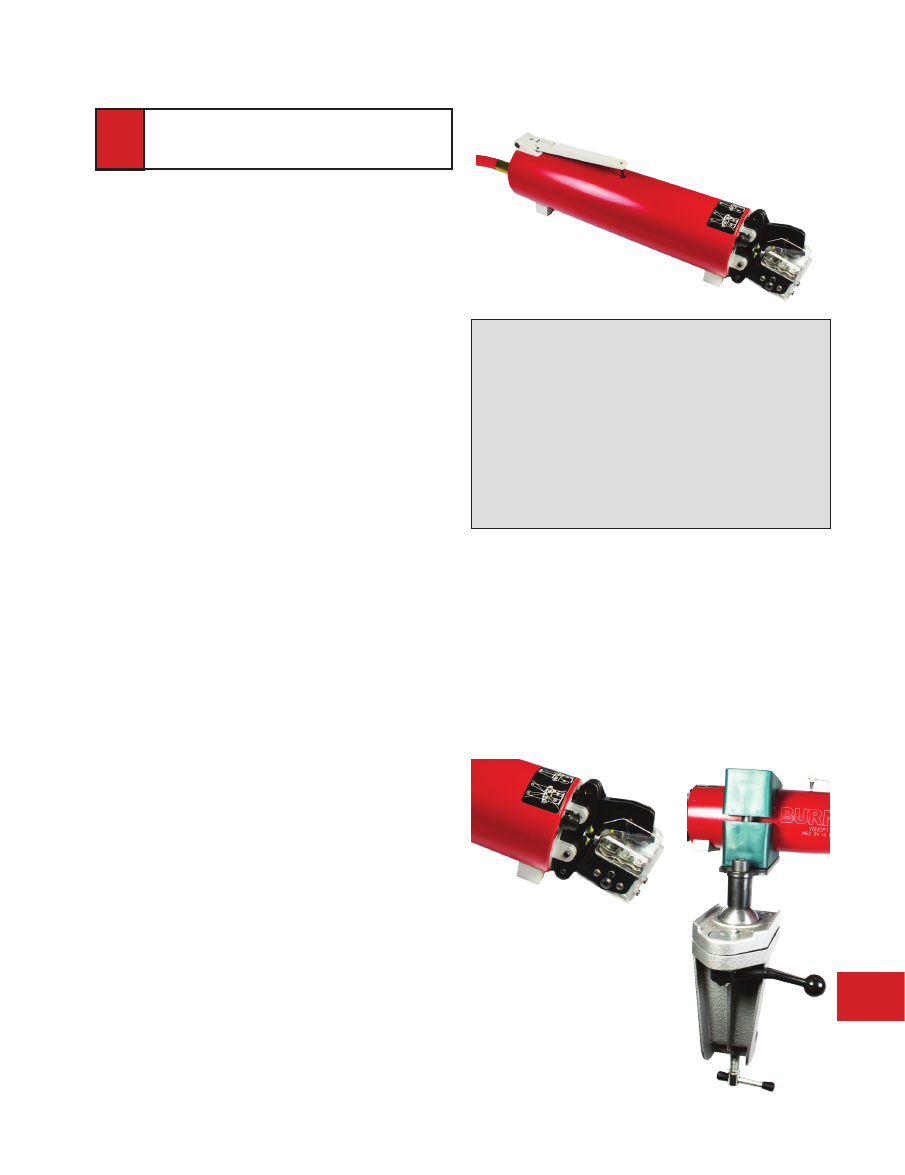

Y6NCP1

Pneumatic OEM Crimp Tool

Accepts J-dies for wider wire range

• UL Listed connections used with BURNDY UL Listed

connectors

• 360

rotating head

• Reliable crimp performance

• Tested to 300,000 crimps without a failure

• Pull Out Force exceeds Mil Spec/SAE*

For Use On:

Copper - #22 - #4 AWG

Nylon, Vinyl and Bare Terminals/Splices

Nylon:

YAE, YAE-N, YAE-N-F, YAE-Z, YAEV, YAEV-L,

YAEV-H, YAEV-RH, YAEV-RS, TN*, YAES*, TN-F*,

YAES-F*, SN, YSE-HN

Vinyl:

TP, BA, TP-F, BA-EF, TP-Z, BA-EZ, TP-LF, BA-EL,

SP, BS

Bare:

T, YAD, T-F, YAD-F, YAV, YAV-L, YAV-H, YAV-R,

YAV-RS, YAV-T-F, YAV-H-F, YAV-Z, YSV, YSV-H,

YSV-L, YA, YAV, YS, YSV

*Excludes TN and YAES terminals with #12 AWG wire

Specifications:

Tool Weight:

4.4 lbs

Length x Dia.:

12.88” x 2.63” x 2.63”

Die Style:

J style

Air Pressure:

90-110 PSI

Crimp Motion:

Scissor Action

Pull Out Force:

Exceeds Mil Spec/SAE*

Warranty:

1 year limited warranty

Accessories:

Catalog Number: Description:

Y6NCP1FTSW:

Foot Switch

Y6NCP1BMNT:

Bench Mount Unit

J6NCP1CH:

Replacement J-die crimp head (included)

J1022NC1:

Die set for YAE, YAE-N, YAE-N-F, YAE-Z

J1022NC2:

Die set for YAEV, YAEV-L, YAEV-H,

YAEV-RH, YAEV-RS

J1022NC3:

Die set for TN, YAES, TN-F, YAES-F, SN,

YSE-HN

J1022NC4:

Die set for TP, BA, TP-F, BA-EF, TP-Z,

BA-EZ, TP-LF, BA-EL, SP, BS

J1022NC5:

Die set for T, YAD, T-F, YAD-F, YAV, YAV-L,

YAV-H, YAV-R, YAV-RS, YAV-T-F, YAV-H-F,

YAV-Z, YSV, YSV-H, YSV-L

J8CNC:

Die set used with Y2CNC (sold separately)

for #8 size YA, YAV, YS, YSV

J6CNC:

Die set used with Y2CNC (sold separately)

for #6 size YA, YAV, YS, YSV

J4CNC:

Die set used with Y2CNC (sold separately)

for #4 size YA, YAV, YS, YSV

Y2CNC:

Used with J8CNC, J6CNC, and J4CNC

(sold separately)

Variations:

Catalog Number: Description:

Y6NCP1SD

Pneumatic OEM Tool using SD-dies (industry

standard profile); See separate cut sheet for

more information

Pneumatic crimp tool Catalog Number

Y6NCP1 includes:

Y6NCP1 Tool

Tool Case

1/8” NPT air hose

Crimp head for J-Dies

N-62

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Crimpers — OEM

Y6NCP1SD

Pneumatic OEM Crimp Tool

For Loose Piece Terminals/Splices

• UL Listed connections used with BURNDY

UL Listed

connectors

• 360

rotating head

• Reliable crimp performance

• Tested to 300,000 crimps without a failure

• Pull Out Force exceeds UL 486A/B

• Industry standard die envelope; identical to MRE1022B and

MRE1022NV hand tools crimp profiles

For Use On:

Copper - #22 - #10 AWG

Nylon, Vinyl and Bare Terminals/Splices

Nylon:

YAE, YAE-N, YAE-N-F, YAE-Z, YAEV, YAEV-L,

YAEV-H, YAEV-RH, YAEV-RS, TN, YAES, TN-F,

YAES-F, SN, YSE-HN

Vinyl:

TP, BA, TP-F, BA-EF, TP-Z, BA-EZ, TP-LF, BA-EL,

SP, BS

Bare:

T, YAD, T-F, YAD-F, YAV-, YAV-L, YAV-H, YAV-R,

YAV-RS, YAV-T-F, YAV-H-F, YAV-Z, YSV, YSV-H,

YSV-L

Specifications:

Tool Weight:

4.4 lbs

Length x Dia.:

12.88” x 2.63” 2.63”

Die Style:

SD Industry-Standard Die Envelope

Air Pressure:

90-110 PSI

Crimp Motion:

Scissor Action

Pull Out Force:

Exceeds UL 486A/B

Warranty:

1 year limited warranty

Accessories:

Y6NCP1FTSW:

Foot Switch

Y6NCP1BMNT:

Bench Mount Unit

SD10NCP1CH:

Replacement SD-die crimp head (included)

BECNVSD:

Replacement

Nylon/Vinyl SD-die set

(included)

BECBSD:

Replacement Bare SD-die set (included)

SD10NCP1LP1:

Replacement Locator Plate (included)

Variations:

Catalog Number: Description:

Y6NCP1

Pneumatic OEM Tool using J-dies (sold

separately) See separate cut sheet for more

information

Spring-loaded Terminal Locator

Pneumatic crimp tool Catalog Number

Y6NCP1SD includes:

Tool Case

1/8” NPT air hose

Crimp head for SD-Dies

Nylon/Vinyl SD Die Set

Bare SD Die Set

Terminal Locator Plate

Y6NCP1BMNT

(tool not included

sold separately)

N-63

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Dies, Die Kits

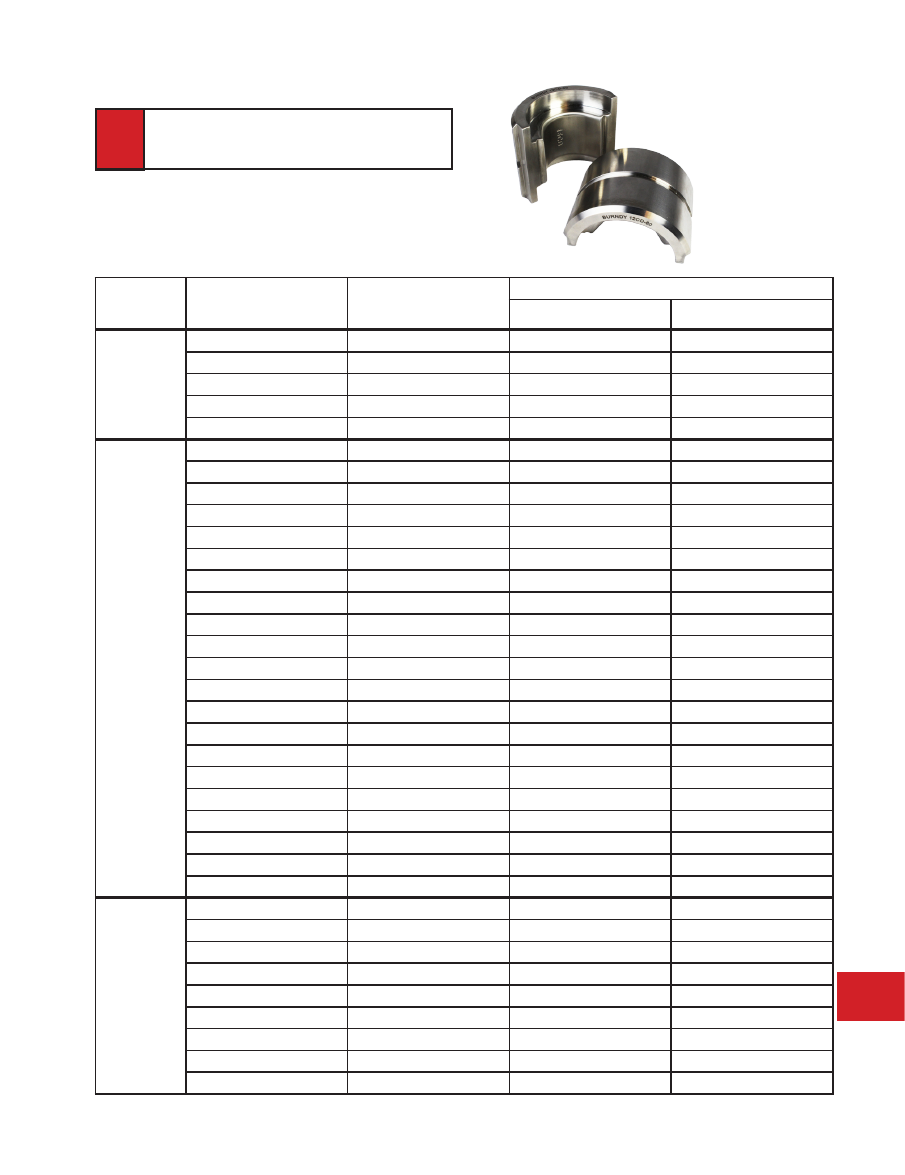

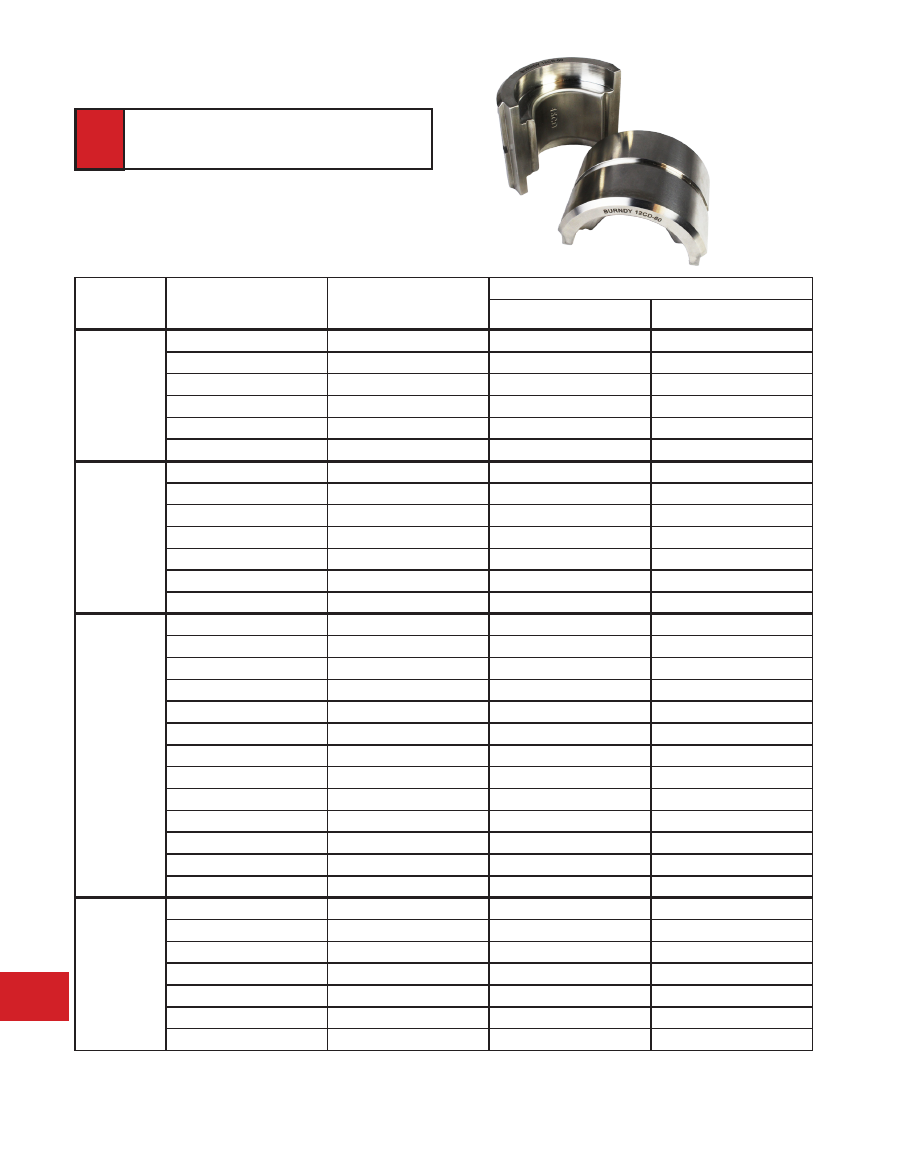

60-Ton HPS/Fargo-equivalent Dies

CD Index; Circumferential Profile

BURNDY

Die Catalog

Number

Conductor Code Name

Conductor Size

Typical HPS/Fargo Connectors

UNI-GRIP

Splice

UNI-GRIP

Deadend

07CD60

Peony

300.0 AAC

C150707

C010707

Tulip

336.4 AAC

C150707

C010707

Daffodil

350.0 AAC

C150707

C010707

no name (0.595-0.680 dia.)

281.4-312.8 AAAC

AB150707

AB010707

Owl

266.8 ACSR 6/7 Str.

A150709

A010709

Partridge

266.8 ACSR 26/7 Str.

A150710

A010710

08CD60

Canna

397.5 AAC

C150808

C010808

Four-O'Clock

400.0 AAC

C150808

C010808

no name (0.681-0.765 dia.)

394.5-419.6 AAAC

AB150808

AB010808

Ostrich

300.0 ACSR 26/7 Str.

A150811

A010811

Merlin

336.4 ACSR 18/1 Str.

A150812

A010812

Linnet

336.4 ACSR 26/7 Str.

A150813

A010813

Chickadee

397.5 ACSR 18/1 Str.

A150815

A010815

09CD60

Goldentuft

450.0 AAC

C150909

C010909

Yarrow

450.0 AAC

C150909

C010909

Cosmos

477.0 AAC

C150909

C010909

Syringa

477.0 AAC

C150909

C010909

Zinnia

500.0 AAC

C150909

C010909

Hyacinth

500.0 AAC

C150909

C010909

Ganzania

550.0 AAC

C150909

C010909

no name (0.772-0.855 dia.)

465.4-503.6 AAAC

AB150909

AB010909

Oriole

336.4 ACSR 30/7 Str.

A150914

A010914

Brant

397.5 ACSR 24/7 Str.

A150916

A010916

Ibis

397.5 ACSR 26/7

A150917

A010917

Pelican

477.0 ACSR 18/1 Str.

A150919

A010919

Flicker

477.0 ACSR 24/7 Str.

A150920

A010920

10CD60

Dahlia

556.5 AAC

C151010

C011010

Mistletoe

556.5 AAC

C151010

C011010

Meadowsweet

600.0 AAC

C151010

C011010

Orchid

636.0 AAC

C151010

C011010

Heuchera

650.0 AAC

C151010

C011010

no name (0.856-0.950 dia.)

545.0-657.3 AAAC

AB151010

AB011010

Hawk

477.0 ACSR 26/7 Str.

A1510211

A0110211

60 Ton Dies

N-64

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Dies, Die Kits

60-Ton HPS/Fargo-equivalent Dies

BURNDY

Die Catalog

Number

Conductor Code Name

Conductor Size

Typical HPS/Fargo Connectors

UNI-GRIP

Splice

UNI-GRIP

Deadend

10CD60

(Continued)

Osprey

556.5 ACSR 18/1 Str.

A151023

A011023

Parakeet

556.5 ACSR 24/7 Str.

A151024

A011024

Dove

556.5 ACSR 26/7 Str.

A151025

A011025

Swift

636.0 ACSR 36/1 Str.

A151030

A010030

Kingbird

636.0 ACSR 18/1 Str.

A151031

A010031

11CD60

Verbena

700.0 AAC

C151111

C011111

Flag

700.0 AAC

C151111

C011111

Violet

715.5 AAC

C151111

C011111

Nasturtium

715.5 AAC

C151111

C011111

Petunia

750.0 AAC

C151111

C011111

Cattail

750.0 AAC

C151111

C011111

Arbutus

795.0 AAC

C151111

C011111

Lilac

795.0 AAC

C151111

C011111

Fuchsia

800.0 AAC

C151111

C011111

Heliotrope

800.0 AAC

C151111

C011111

no name (0.940-1.036 dia.)

739.8-740.8 AAAC

AB151111

AB011111

Hen

477.0 ACSR 30/7 Str.

A151122

A011122

Eagle

556.5 ACSR 30/7 Str.

A151126

A011126

Peacock

605.0 ACSR 24/7 Str.

A151127

A011127

Squab

605.0 ACSR 26/7 Str.

A151128

A011128

Rook

636.0 ACSR 24/7 Str.

A151132

A011132

Grosbeak

636.0 ACSR 26/7 Str.

A151133

A011133

Flamingo

666.6 ACSR 24/7 Str.

A151136

A011136

Gannett

666.6 ACSR 26/7 Str.

A151137

A011137

Stilt

715.5 ACSR 24/7 Str.

A151138

A011138

Coot

795.0 ACSR 36/1 Str.

A151141

A011141

12CD60

Anemone

874.5 AAC

C151212

C011212

Crocus

874.5 AAC

C151212

C011212

Cockscomb

900.0 AAC

C151212

C011212

Snapdragon

900.0 AAC

C151212

C011212

Magnolia

954.0 AAC

C151212

C011212

Goldenrod

954.0 AAC

C151212

C011212

no name (1.026-1.131 dia.)

833.6-932.6 AAAC

AB151212

AB011212

Teal

605.0 ACSR 30/19 Str.

A151229

A011229

Egret

636.0 ACSR 30/19 Str.

A151234

A011234

CD Index; Circumferential Profile

(Continued)

60 Ton Dies

N-65

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Dies, Die Kits

BURNDY

Die Catalog

Number

Conductor Code Name

Conductor Size

Typical HPS/Fargo Connectors

UNI-GRIP

Splice

UNI-GRIP

Deadend

12CD60

(continued)

Starling

715.5 ACSR 26/7 Str.

A151239

A011239

Tern

795.0 ACSR 45/7 Str.

A151242

A011242

Cuckoo

795.0 ACSR 24/7 Str.

A151243

A0112431

Condor

795.0 ACSR 54/7 Str.

A1512441

A0112441

Drake

795.0 ACSR 26/7 Str.

A1512451

A0112451

Ruddy

900.0 ACSR 45/7

A151247

A011247

Catbird

954.0 ACSR 36/1 Str.

A151249

A011249

13CD60

Hawkweed

1000.0 AAC 37 Str.

C151313

C011313

Camelia

1000.0 AAC 61 Str.

C151313

C011313

Bluebell

1033.5 AAC 37 Str.

C151313

C011313

Larkspur

1033.5 AAC 61 Str.

C151313

C011313

Marigold

1113.0 AAC 61 Str.

C151313

C011313

no name (1.140-1.235 dia.)

1000.0-1127.0 AAAC

AB151313

AB011313

Mallard

795.0 ACSR 30/19 Str.

A151346

A011346

Canary

900.0 ACSR 54/7 Str.

A151348

A011348

Rail

954.0 ACSR 45/7 Str.

A151350

A011350

Cardinal

954.0 ACSR 54/7 Str.

A1513511

A011351

Ortolan

1033.5 ACSR 45/7 Str.

A151353

A011353

14CD60

Hawthorn

1192.5 AAC 61 Str.

C151414

C011414

Narcissus

1272.0 AAC 61 Str.

C151414

C011414

no name (1.236-1.330 dia.)

1172.0-1300.0 AAAC

AB151414

AB011414

Curlew

1033.5 ACSR 54/7 Str.

A151454

A011454

Bluejay

1113.0 ACSR 45/7 Str.

A151455

A011455

Finch

1113.0 ACSR 54/19 Str.

A151456

A011456

Bunting

1192.5 ACSR 45/7 Str.

A151457

A011457

15CD60

Columbine

1351.5 AAC 61 Str.

AC151515

AC011515

Carnation

1431.0 AAC 61 Str.

AC151515

AC011515

Gladiolus

1510.5 AAC 61 Str.

AC151515

AC011515

no name (1.331-1.425 dia.)

1361.0-1500.0 AAAC

AB151315

AB011515

Grackle

1192.5 ACSR 54/19 Str.

A151558

A011558

Bittern

1272.0 ACSR 45/7 Str.

A1515591

A0115591

Pheasant

1272.0 ACSR 54/19 Str.

A151560

A011560

Dipper

1351.5 ACSR 45/7 Str.

A151561

A011561

Martin

1351.5 ACSR 54/19 Str.

A151562

A011562

60-Ton HPS/Fargo-equivalent Dies

CD Index; Circumferential Profile

(Continued)

60 Ton Dies

N-66

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Dies, Die Kits

BURNDY

Die Catalog

Number

Conductor Code Name

Conductor Size

Typical HPS/Fargo Connectors

UNI-GRIP

Splice

UNI-GRIP

Deadend

16CD60

Coreopsis

1590.0 AAC 61 Str.

C151616

C011616

Dogwood

1590.0 AAC 91 Str.

C151616

C011616

no name (1.426-1.520 dia.)

1534.0-1703.0 AAAC

AB151616

AB011616

Bobolink

1431.0 ACSR 45/7 Str.

A151663

A011663

Lapwing

1590.0 ACSR 45/7 Str.

A151667

A011667

17CD60

Jessamine

1750.0 AAC 61 Str.

C151717

C011717

Falcon

1590.0 ACSR 54/19 Str.

A1517681

A0117681

Chukar

1780.0 ACSR 84/19 Str.

A151769

A011769

Seahawk

1869.0 ACSR 68/7 Str.

A151770

A011717

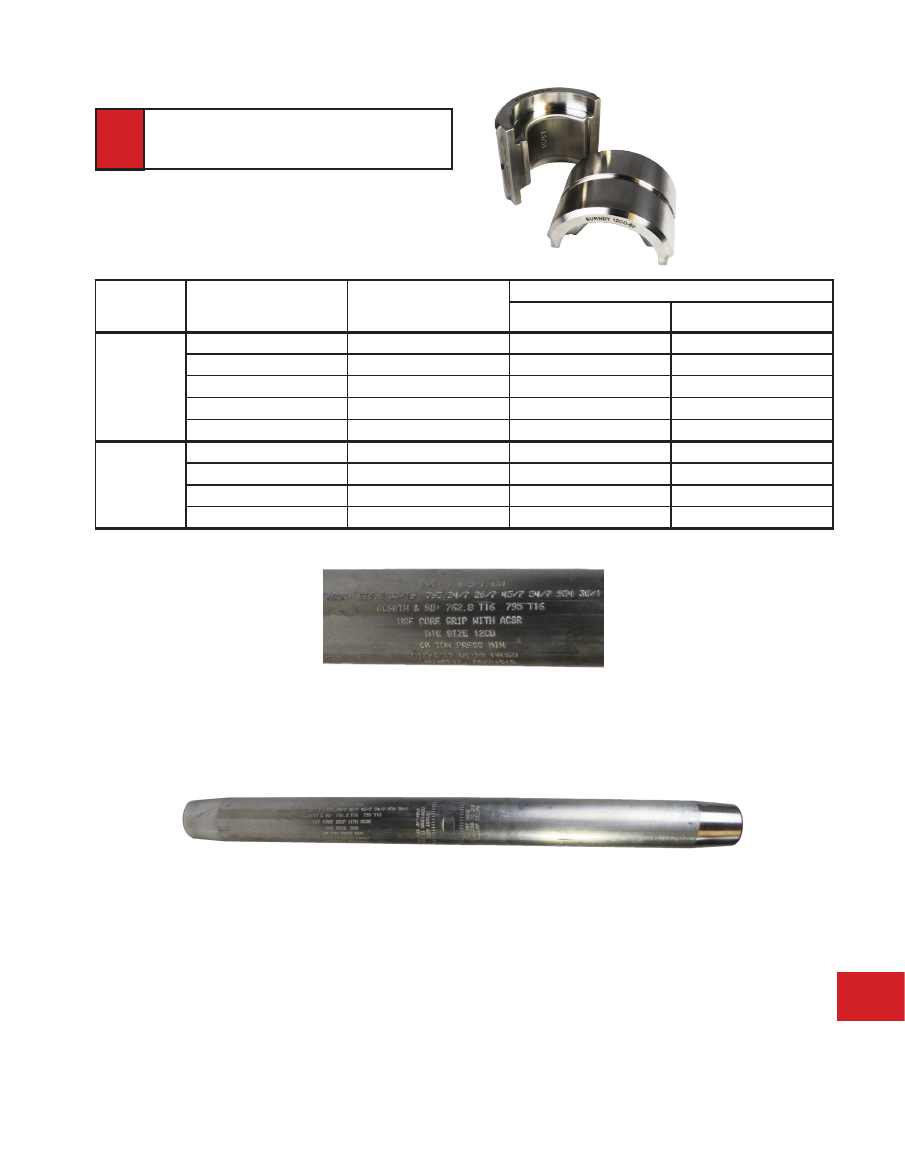

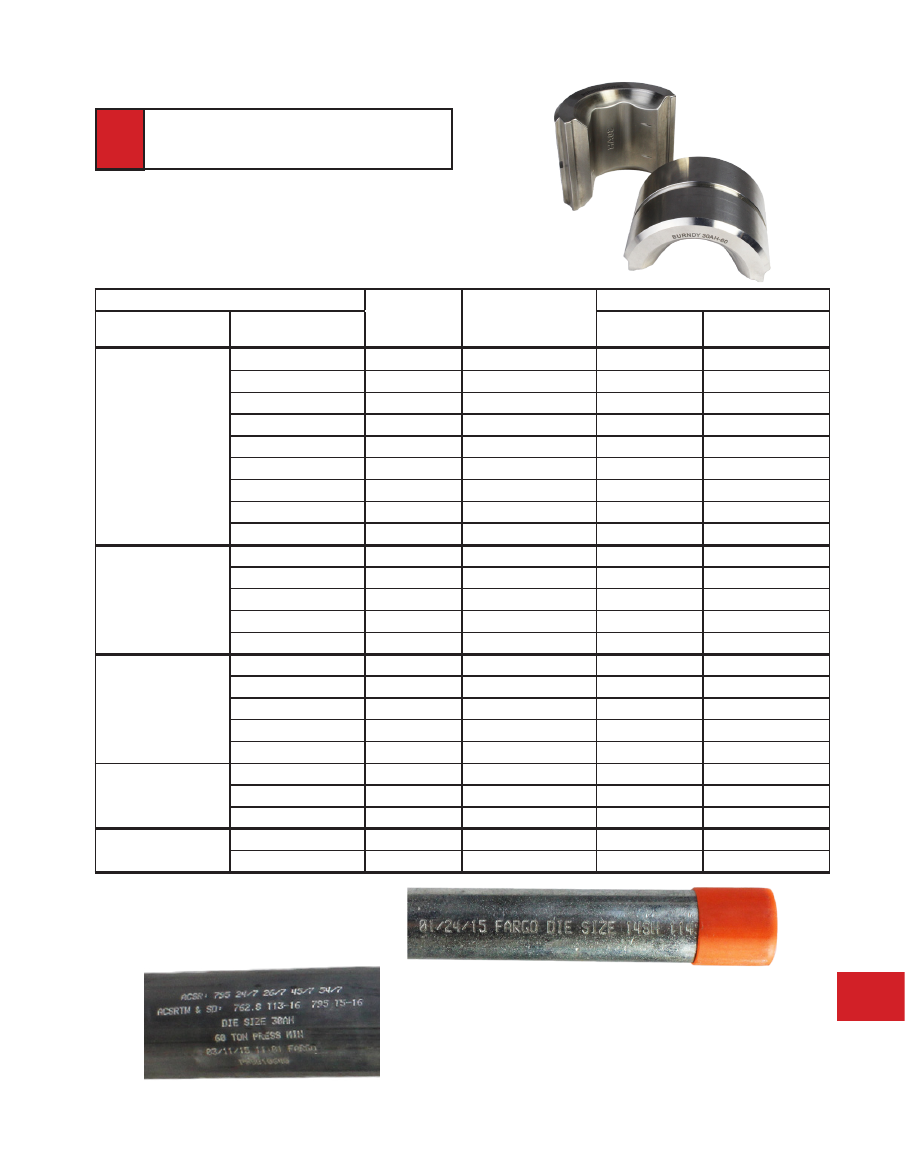

Top: close up of marking on Fargo splice

requiring 12CD die index.

Bottom: Fargo splice requiring 12CD die index.

60-Ton HPS/Fargo-equivalent Dies

CD Index; Circumferential Profile

(Continued)

60 Ton Dies

N-67

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Dies, Die Kits

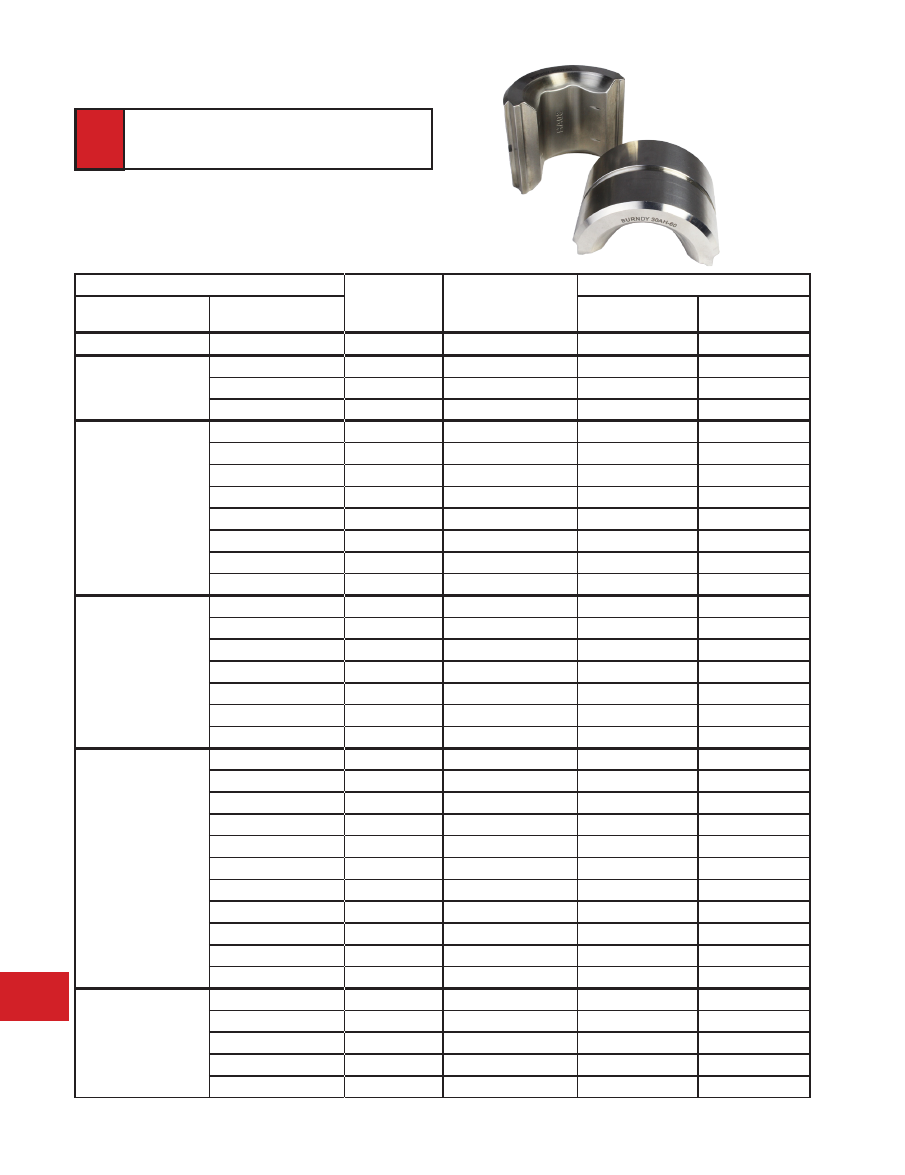

60-Ton HPS/Fargo-equivalent Dies

SH Index; Hexagonal Profile

AH Index; Hexagonal Profile

Two Die Sets Required (sold separately)

Conductor Code

Name

Conductor Size

Typical HPS/Fargo Connectors

BURNDY Catalog #

Aluminum Die

BURNDY Catalog #

Steel Die

2-Die Splice

2-Die Deadend

75AH60

75SH60

Pigeon

3/0 ACSR 6/1 Str.

TJA7829

SEDA7829

76AH60

75SH60

Penguin

4/0 ACSR 6/1 Str.

TJA7929

SEDA7929

74SH60

Waxwing

266.8 ACSR 18/1 Str.

TJA1102

SEDA1102

76SH60

Partridge

266.8 ACSR 26/7 Str.

TJA1109

SEDA1109

20AH60

74SH60

Merlin

336.4 ACSR 18/1 Str.

TJA1302

SEDA1302

74SH60

Chickadee

397.5 ACSR 18/1 Str.

TJA1502

SEDA1502

10SH60

Ostrich

300.0 26/7 Str.

TJA1209

SEDA1209

10SH60

Linnet

336.4 ACSR 26/7 Str.

TJA1309

SEDA1309

10SH60

Oriole

336.4 ACSR 30/7 Str.

TJA1313

SEDA1313

10SH60

Brant

397.5 ACSR 24/7 Str.

TJA1508

SEDA1508

10SH60

Ibis

397.5 ACSR 26/7 Str.

TJA1509

SEDA1509

12SH60

Lark

397.5 ACSR 30/7 Str.

TJA1513

SEDA1513

24AH60

75SH60

Pelican

477.0 ACSR 18/1 Str.

TJA1802

SEDA1802

75SH60

Osprey

556.5 ACSR 18/1 Str.

TJA2202

SEDA2202

10SH60

Flicker

477.0 ACSR 24/7 Str.

TJA1808

SEDA1808

10SH60

Parakeet

556.5 ACSR 24/7 Str.

TJA2208

SEDA2208

12SH60

Hawk

477.0 ACSR 26/7 Str.

TJA1809

SEDA1809

12SH60

Hen

477.0 ACSR 30/7 Str.

TJA1813

SEDA1813

12SH60

Dove

556.5 ACSR 26/7 Str.

TJA2209

SEDA2209

27AH60

12SH60

Peacock

605.0 ACSR 24/7 Str.

TJA2408

SEDA2408

12SH60

Squab

605.0 ACSR 26/2 Str.

TJA2409

SEDA2409

12SH60

Rook

636.0 ACSR 24/7 Str.

TJA2508

SEDA2508

12SH60

Grosbeak

636.0 ACSR 26/7 Str.

TJA2509

SEDA2509

12SH60

Flamingo

666.6 ACSR 24/7 Str.

TJA2808

SEDA2808

12SH60

Gannet

666.6 ACSR 26/7 Str.

TJA2809

SEDA2809

14SH60

Eagle

556.5 ACSR 30/7 Str.

TJA2213

SEDA2213

14SH60

Wood Duck

605.0 ACSR 30/7 Str.

TJA2413

SEDA2413

14SH60

Teal

605.0 ACSR 30/19 Str.

TJA2417

SEDA2417

14SH60

Scoter

636.0 ACSR 30/7 Str.

TJA2513

SEDA2513

14SH60

Egret

636.0 ACSR 30/19 Str.

TJA2517

SEDA2517

30AH60

10SH60

Tern

795.0 ACSR 45/7 Str.

TJA3318

SEDA3318

10SH60

Ruddy

900.0 ACSR 45/7 Str.

TJA3818

SEDA3818

10SH60

Rail

954.0 ACSR 45/7 Str.

TJA4118

SEDA4118

12SH60

Stilt

715.5 ACSR 24/7 Str.

TJA3008

SEDA3008

12SH60

Cuckoo

795.0 ACSR 24/7 Str.

TJA3308

SEDA3308

60 Ton Dies

N-68

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Dies, Die Kits

Two Die Sets Required (sold separately)

Conductor Code

Name

Conductor Size

Typical HPS/Fargo Connectors

BURNDY Catalog #

Aluminum Die

BURNDY Catalog #

Steel Die

2-Die Splice

2-Die Deadend

30AH60

(Continued)

12SH60

Condor

795.0 ACSR 54/7 Str.

TJA3321

SEDA3321

12SH60

Crane

874.5 ACSR 54/7 Str.

TJA3721

SEDA3721

14SH60

Starling

715.5 ACSR 26/7 Str.

TJA3009

SEDA3009

14SH60

Drake

795.0 ACSR 26/7 Str.

TJA3309

SEDA3309

14SH60

Canary

900.0 ACSR 54/7 Str.

TJA3821

SEDA3821

14SH60

Towhee

954.0 ACSR 48/7 Str.

TJA4119

SEDA4119

14SH60

Cardinal

954.0 ACSR 54/7 Str.

TJA4121

SEDA4121

16SH60

Redwing

715.5 ACSR 30/19 Str.

TJA3017

SEDA3017

16SH60

Mallard

795.0 ACSR 30/19 Str.

TJA3317

SEDA3317

34AH60

10SH60

Ortolan

1033.5 ACSR 45/7 Str.

TJA4418

SEDA4418

12SH60

Bluejay

1113.0 ACSR 45/7 Str.

TJA4718

SEDA4718

12SH60

Bunting

1192.5 ACSR 45/7 Str.

TJA4918

SEDA4918

14SH60

Curlew

1033.5 ACSR 54/7 Str.

TJA4421

SEDA4421

14SH60

Finch

1113.0 ACSR 54/19 Str.

TJA4724

SEDA4724

36AH60

12SH60

Bittern

1272.0 ACSR 45/7 Str.

TJA5118

SEDA5118

12SH60

Dipper

1351.5 ACSR 45/7 Str.

TJA5218

SEDA5218

12SH60

Bobolink

1431.0 ACSR 45/7 Str.

TJA5418

SEDA5418

14SH60

Grackle

1192.5 ACSR 54/19 Str.

TJA4924

SEDA4924

16SH60

Pheasant

1272.0 ACSR 54/19 Str.

TJA5124

SEDA5124

38AH60

16SH60

Martin

1351.5 54/19 Str.

TJA5224

SEDA5224

16SH60

Plover

1431.0 54/19 Str.

TJA5424

SEDA5424

12SH60

Nuthatch

1510.5 45/7 Str.

TJA5618

SEDA5618

40AH60

16SH60

Parrot

1510.5 54/19 Str.

TJA5624

SEDA5624

12SH60

Lapwing

1590.0 45/7 Str.

TJA5718

SEDA5718

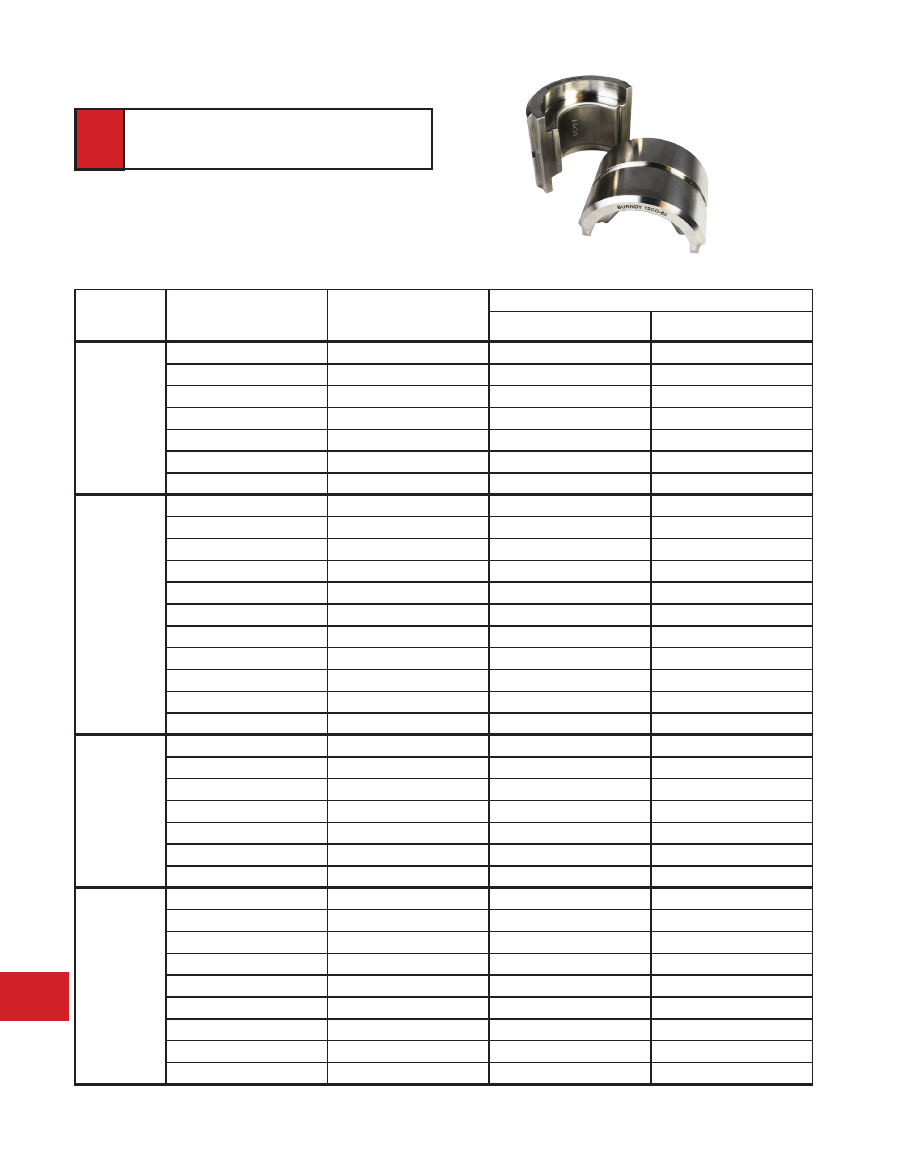

60-Ton HPS/Fargo-equivalent Dies

Above: close up of marking on Fargo

splice requiring 14SH die index.

Left: Fargo splice requiring 30AH

die index.

SH Index; Hexagonal Profile

AH Index; Hexagonal Profile

(Continued)

60 Ton Dies

N-69

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Dies, Die Kits

12-Ton U Dies*

For Y35, Y39, Y750, PAT750 Series

PAT46 Series (with PUADP1 Adapter)

U28RT

Die Set

U4CRTW

Wide Die Set

Wire Size

Copper

Copper Wide Die**

Aluminum

#8 AWG

U8CRT

U8CRTW

U8CABT

#6 AWG

U5CRT

U5CRTW

U6CABT

#4 AWG

U4CRT

U4CRTW

U4CABT

#3 AWG

U3CRT

U3CRTW

N/A

#2 AWG

U2CRT

U2CRTW

U2CABT

#1 AWG

U1CRT1

U1CRT1W

U1CART

1/0 AWG

U25RT

U25RTW

U25ART

2/0 AWG

U26RT

U26RTW

U26ART

3/0 AWG

U27RT

U27RTW

U27ART

4/0 AWG

U28RT

U28RTW

U28ART

250 kcmil

U29RT

N/A

U29ART

300 kcmil

U30RT

U30ART

350 kcmil

U31RT

U31ART

400 kcmil

U32RT

U32ART

500 kcmil

U34RT

U34ART

535 Flex

U38XRT

N/A

600 kcmil

U36RT

U36ART

750 kcmil

U39RT

U39ART2

777 Flex

U44XRT

N/A

* Non-tension U-type 12 ton dies for YA, YS, YA-A, YS-A style

connectors

** Wide dies are intended for use on long barrel terminals and splices

(YA/YS) only.

Die Sets sold separately; U Die Kits also available; see following page

Note: N/A = not applicable

PT29291

die box is available (sold

separately) holding up to 15 “U” style

(standard or wide) die sets; dies not

included.

N-70

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Dies, Die Kits

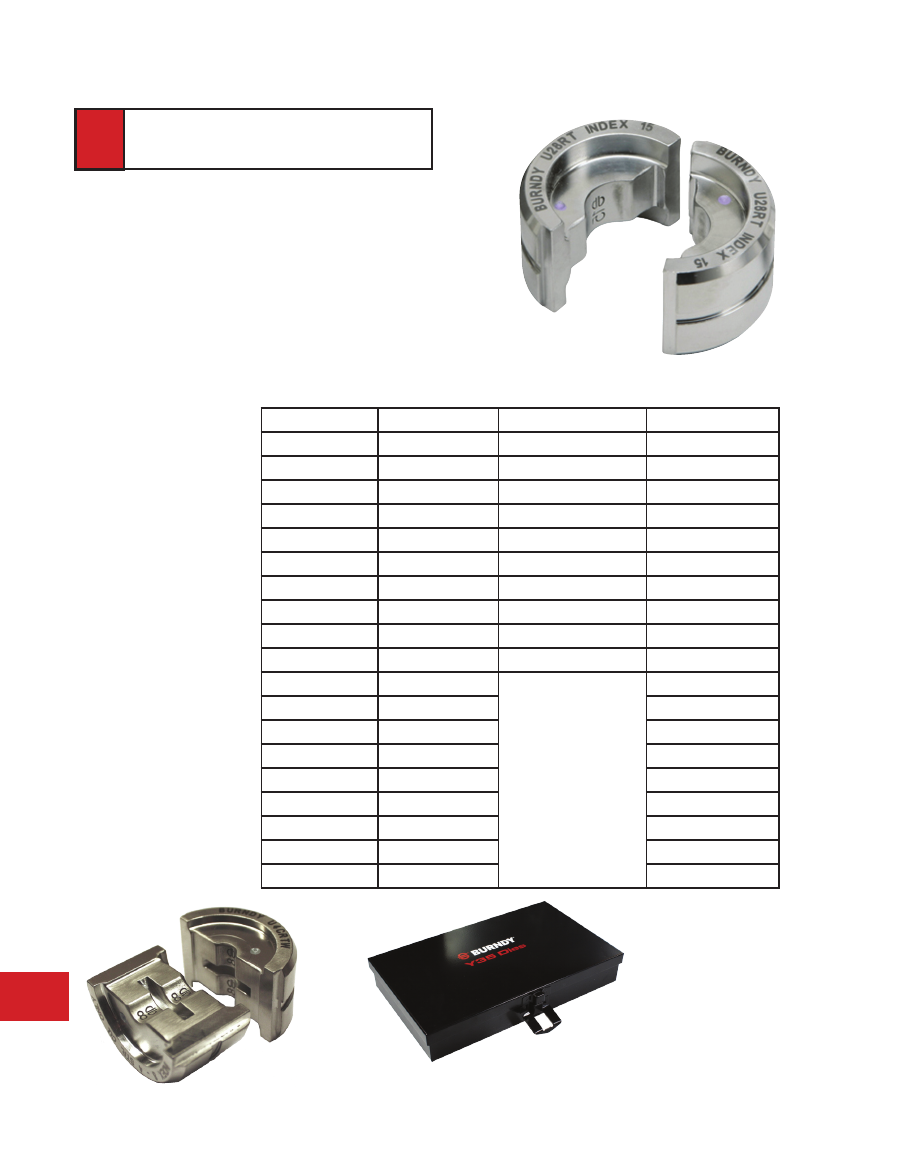

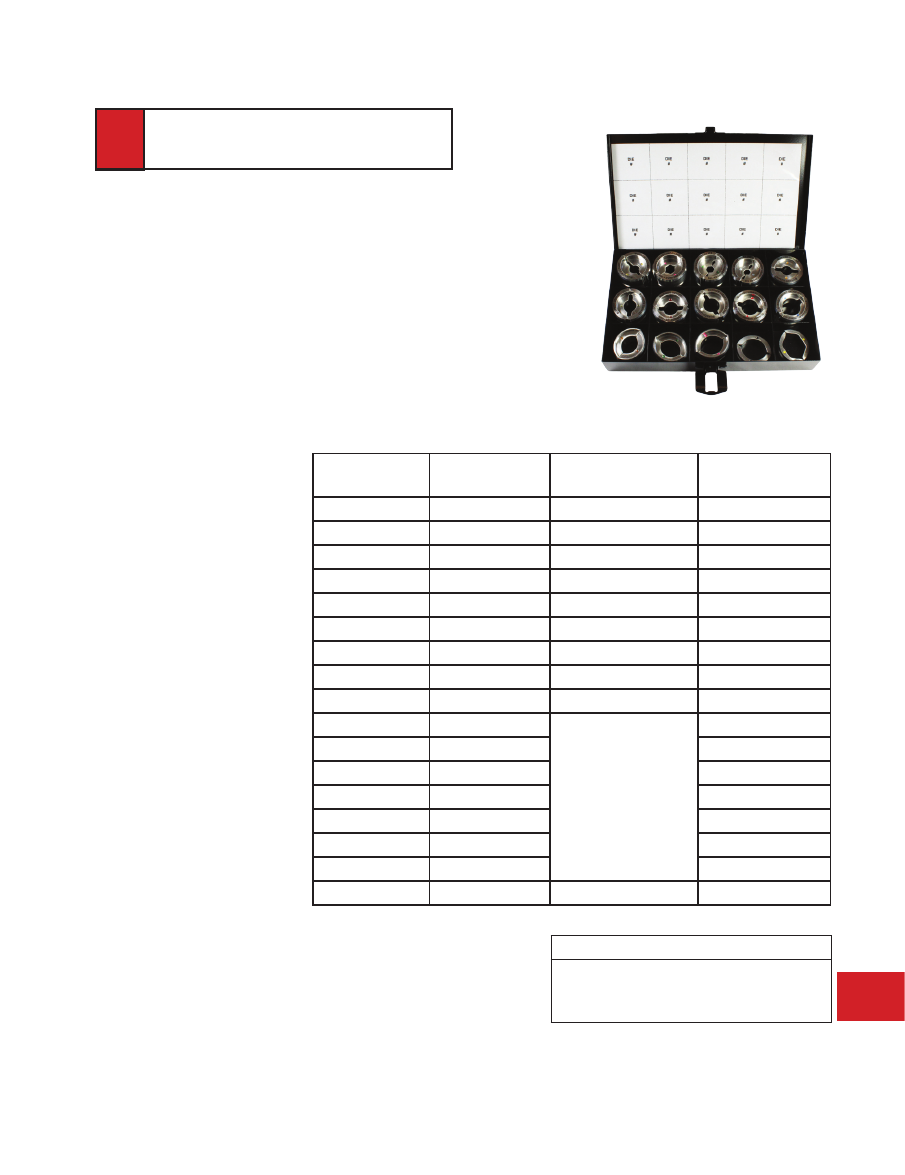

U Die Kits

For Y35, Y39, Y750, PAT750 Series

PAT46 Series (with PUADP1 Adapter)

UDIEKITCU

Wire Size

UDIEKITCU

includes

UDIEKITCUW

includes

UDIEKITAL

includes

#8 AWG

N/A

U8CRTW

N/A

#6 AWG

U5CRT

U5CRTW

U6CABT

#4 AWG

U4CRT

U4CRTW

U4CABT

#2 AWG

U2CRT

U2CRTW

U2CABT

#1 AWG

U1CRT1

U1CRT1W

U1CART

1/0 AWG

U25RT

U25RTW

U25ART

2/0 AWG

U26RT

U26RTW

U26ART

3/0 AWG

U27RT

U27RTW

U27ART

4/0 AWG

U28RT

U28RTW

U28ART

250 kcmil

U29RT

N/A

U29ART

300 kcmil

U30RT

U30ART

350 kcmil

U31RT

U31ART

400 kcmil

U32RT

U32ART

500 kcmil

U34RT

U34ART

600 kcmil

U36RT

U36ART

750 kcmil

U39RT

U39ART2

Die Case

PT29291

UDIEKITCU

and

UDIEKITAL

include 15 sets of “U” dies and die

case. These stainless steel color coded dies are for crimping YA,

YS, YA-A, and YS-A types of connectors, ranging from #6 AWG

through 750 kcmil.

UDIEKITCUW

includes 9 sets of wide stainless steel color coded

dies for crimping long barrel YA and YS types of connectors up

to 4/0 AWG. The wide dies require only one crimp compared to 2

for the standard width dies.

Note: N/A = not applicable

UDIEKITHYGRD includes
UC, UO, U997, PU998, U1011, U1104, U1105,

U2CABT

(Ground rod pre-crimp die), and

PT29291

die case

UDIEKITHYGRD

includes 8 dies sets. Seven die sets are used to

install the BURNDY

HYGROUND

irreversible compression grounding

connectors; the U2CABT die set is for pre-crimping 1/2”, 5/8” and 3/4”

ground rods for increased rotational resistance. The UDIEKITHYGRD

also includes the PT29291 die case.

N-71

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Dies, Die Kits

UM-Style Dies

For Y35, Y39, Y750, PAT750 Series,

Y46 and PAT46 Series

(with PUADP1 Adapter),

OEM840NCP

(up to 4/0 size)

UM-style Nest and Indenter dies are

specifically designed to work with the YAD

lugs. The distinctive “M” crimping profile design

straddles the brazed seam of the YAD-M and

YAV-L series lugs to provide a consistent, long

term, reliable connection. Accepts copper

cable sizes from 8 AWG to 600 kcmil for DLO/

Flex cable.

CNC machined from stainless steel, these dies

are compatible with all BURNDY

tooling that

accepts a “U” die envelope.

Sold individually or in a kit (

UMDIEKIT

) which

has select dies/indenters covering #8 to 4/0

AWG in a metal die case.

Copper Wire

Size

Catalog Number

(Indenter Dies)

Catalog Number

(Nest Dies)

Crimps Lug

Series

8 AWG DLO

UMA

UM8CN

YAD-M, YAV-L

6 AWG DLO

UMB

UM6CN

YAD-M, YAV-L

4 AWG DLO

UMB

UM4CN

YAD-M, YAV-L

2 AWG DLO

UMB

UM2CN

YAD-M, YAV-L

1/0 AWG DLO

UMC

UM25N

YAD-M, YAV-L

2/0 AWG DLO

UMC

UM26N

YAD-M, YAV-L

3/0 AWG DLO

UMC

UM27N

YAD-M, YAV-L

4/0 AWG DLO

UMC

UM28N

YAD-M, YAV-L

300 kcmil DLO

UME

UM30N

YAD-M

350 kcmil DLO

UME

UM31N

YAD-M

450 kcmil DLO

UME

UM33N

YAD-M

600 kcmil DLO

UME

UM36N

YAD-M

UMDIEKIT Contents

Catalog Number

Description

Quantity

UMA

Indenter #8 AWG

UMB

Indenter #6, #4, #2 AWG

UMC

Indenter 1/0-4/0

UM8CN

Nest #8 AWG

UM6CN

Nest #6 AWG

UM4CN

Nest #4 AWG

UM2CN

Nest #2 AWG

UM25N

Nest 1/0 AWG

UM26N

Nest 2/0 AWG

UM27N

Nest 3/0 AWG

UM28N

Nest 4/0 AWG

PT29291

UM Die Kit Case

Close up of “M”

Profile Crimp

N-72

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Dies, Die Kits

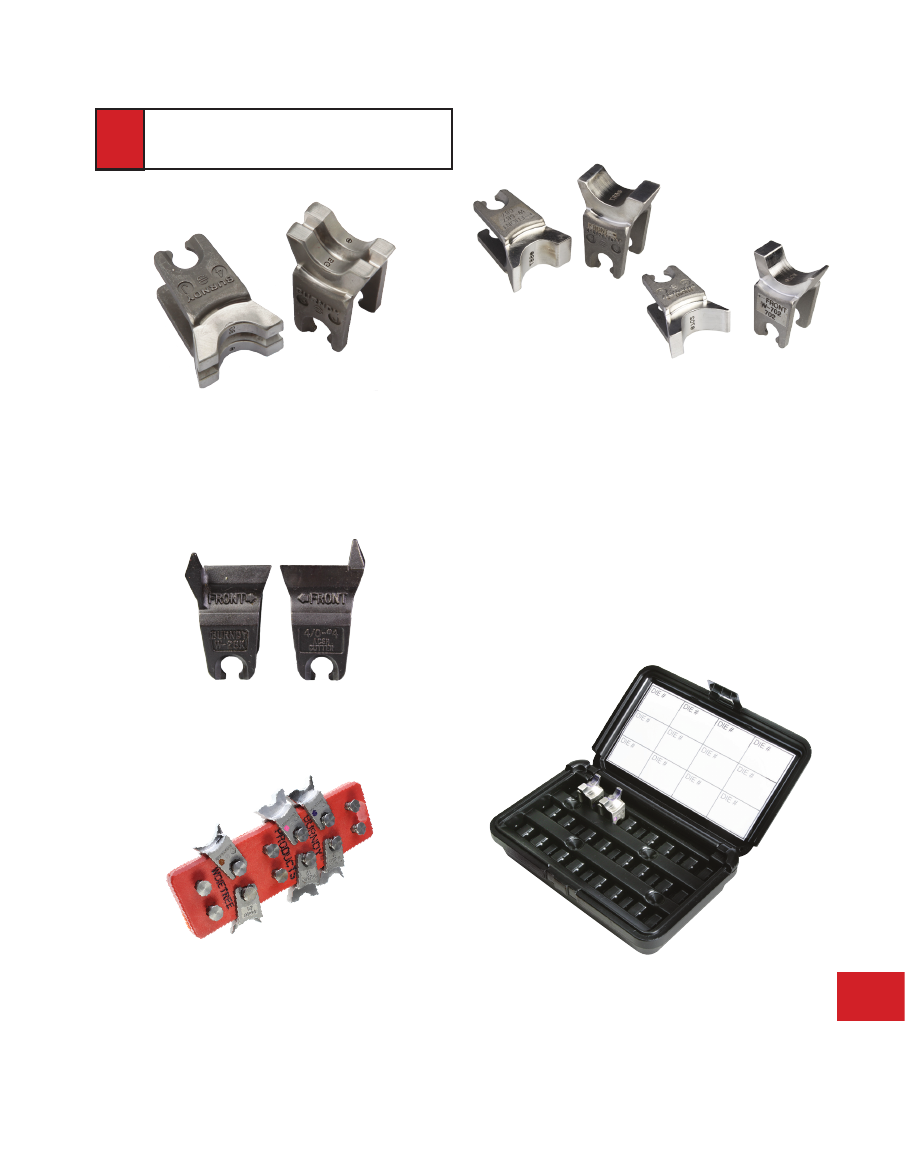

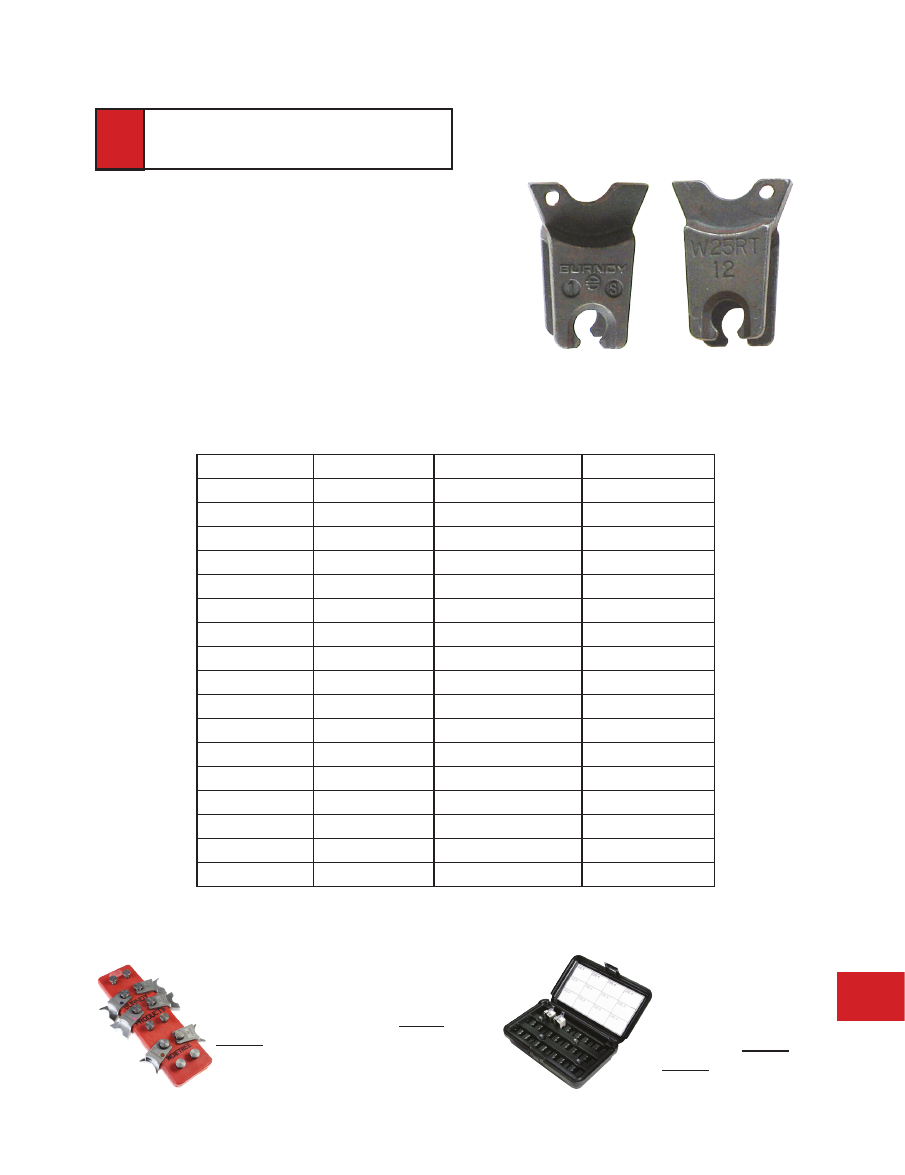

W Dies

For MD6, MD7, Y500CTHS, PAT500SJ,

PAT600, PATMD6 and CSMD Series

* These sizes (250 - 500) for Y500CTHS, MD734, and MD734R only.

** For PAT600 and PAT500SJ series and Y500CTHS only.

Note: N/A = not applicable

Suitable for use on YA, YS, YA-A, YS-A type non-tension connectors.

Die Sets sold separately; W Die Kits also available; see following page

Wire Size

Copper (-VT)

Copper (-RT)

Aluminum

#8 AWG

W8CVT

W8CRT

X8CART

#6 AWG

W5CVT

W5CRT

W161

#4 AWG

W4CVT

W4CRT

W162

#3 AWG

W3CRT

N/A

#2 AWG

W2CVT

W2CRT

W239

#1 AWG

W1CVT

W1CRT1

W163

1/0 AWG

W25VT

W25RT

W241

2/0 AWG

W26VT

W26RT

W245

3/0 AWG

W27VT

W27RT

W166

4/0 AWG

W28VT

W28RT

W660

250 kcmil

W29VT*

W29RT*

W249

300 kcmil

W30VT*

W30RT*

N/A

350 kcmil

W31VT*

W31RT*

W31ART*

400 kcmil

W32VT*

W32RT*

N/A

450 kcmil

W33VT*

W33RT*

N/A

500 kcmil

W34VT*

W34RT*

N/A

600 kcmil

N/A

W36RT**

N/A

W25RT

Die Set

VT = “V” profile die for reduced handle force when using MD6/MD7 series tools; Twin die (includes both halves)

RT = Round die (circumferential); Twin die (includes both halves)

CASEWDIES

die box

available (sold separately);

holds up to 12 “W” or “X”

style die sets (dies not

included)

WDIETREE

available (sold separately);

holds up to 6 “W” style die sets (dies not

included)

N-73

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Dies, Die Kits

W Die Kits

For MD6, MD7, Y500CTHS, PAT500SJ,

PAT600, PATMD6 and CSMD Series

* These sizes (250 - 500) for PAT600 and PAT500SJ Series,

Y500CTHS, MD734, and MD734R only.

Note: N/A = not applicable

Suitable for use on YA, YS, YA-A, YS-A type non-tension connectors.

Wire Size

WDIEKITCU for Copper

includes

WDIEKITAL for Aluminum

includes

#8 AWG

W8CRT

X8CART

#6 AWG

W5CRT

W161

#4 AWG

W4CRT

W162

#2 AWG

W2CRT

W239

#1 AWG

W1CRT1

W163

1/0 AWG

W25RT

W241

2/0 AWG

W26RT

W245

3/0 AWG

W27RT

W166

4/0 AWG

W28RT

W660

250 kcmil

W29RT*

W249

350 kcmil

W31RT*

W31ART*

500 kcmil

W34RT*

N/A

Die Case

CASEWDIES

included with die kits;

also sold separately

(dies not included)

N-74

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Accessories

W Die Related

WBG Die Set

• Double groove die set

• One (1) crimp per end on service entrance sleeves

• Requires half the number of crimps on other 5/8” sleeves

W28K Cutter Die Set

• Cuts #4 - 4/0 ACSR, Aluminum or Copper

W687 & W702 Non-Bowing Die Sets

• Install one-piece, full-tension UNISPLICE™ sleeves on ACSR

conductors without bowing (sold separately)

W687:

Installs #4 ACSR 6/1, 7/1; YDS4RL and YDS4RLY

#2 ACSR 6/1; YS2RL and YDS2RLY

W702:

Installs #2 ACSR 7/1; YDS021RL and YDS021RLY

1/0 ACSR; YDS25RL and YDS25RLY

CASEWDIES Compact Die Case

• Space for 12 W or X style dies (not included)

WDIETREE W Die Holder

• Innovative die holder as alternative to the standard die

case

• Designed to hold up to 6 W dies

• Shown with die sets (not included)

N-75

section n-tooling-html.html

Tooling

Cutters — Battery Actuated

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

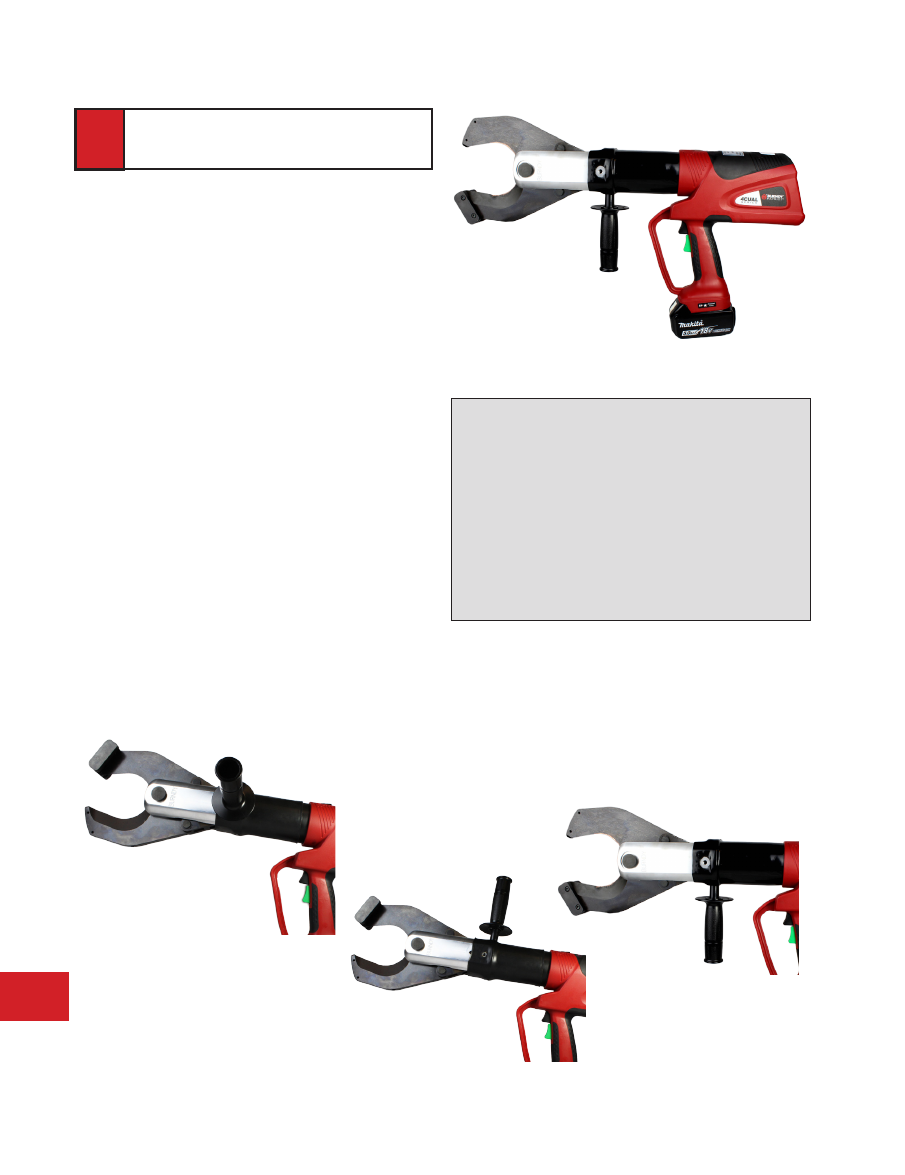

PATCUT4CUAL

PATRIOT

11-Ton, Scissor Action

Hydraulic Self-Contained, 18V Lithium-Ion

• Extra wide jaw opening

• Scissor action cutting jaws

• 355

head rotation

• Multi-position assist handle

• Includes 2 batteries, charger, lanyard, polymer carrying

case

• EP Enhanced Power

labeled tools accept 2.0, 3.0, 4.0,

and 5.0Ah Makita batteries

For Use On:

Maximum Cutting Capacity:

Copper and Aluminum:

up to 4.00” O.D.

Specifications:

Output Force:

11 Tons

Tool Weight:

20.3 lbs

Size:

24.31” X 3.26” X 15.33”

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes (3.0Ah)

45 minutes (5.0Ah)

Warranty:

5 year limited warranty (excludes blades)

Lifetime warranty on INFINITY DRIVE

3 year on batteries and charger

Accessories:

Catalog Number: Description:

BAT18VLI:

3.0Ah Li-Ion battery

BAT18V5AHLI:

5.0Ah Li-Ion battery

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PT208620:

Tool Retention Lanyard

Variations:

(additional variations may be available)

Catalog Number: Description:

PATCUT4CUALLI

with 3.0Ah battery

PATCUT4L5

with 5.0Ah battery

PATCUT4CUALLI

with multi-position

assist handle

See Important Notes on Page N-6.

N-76

section n-tooling-html.html

Tooling

Cutters — Battery Actuated

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

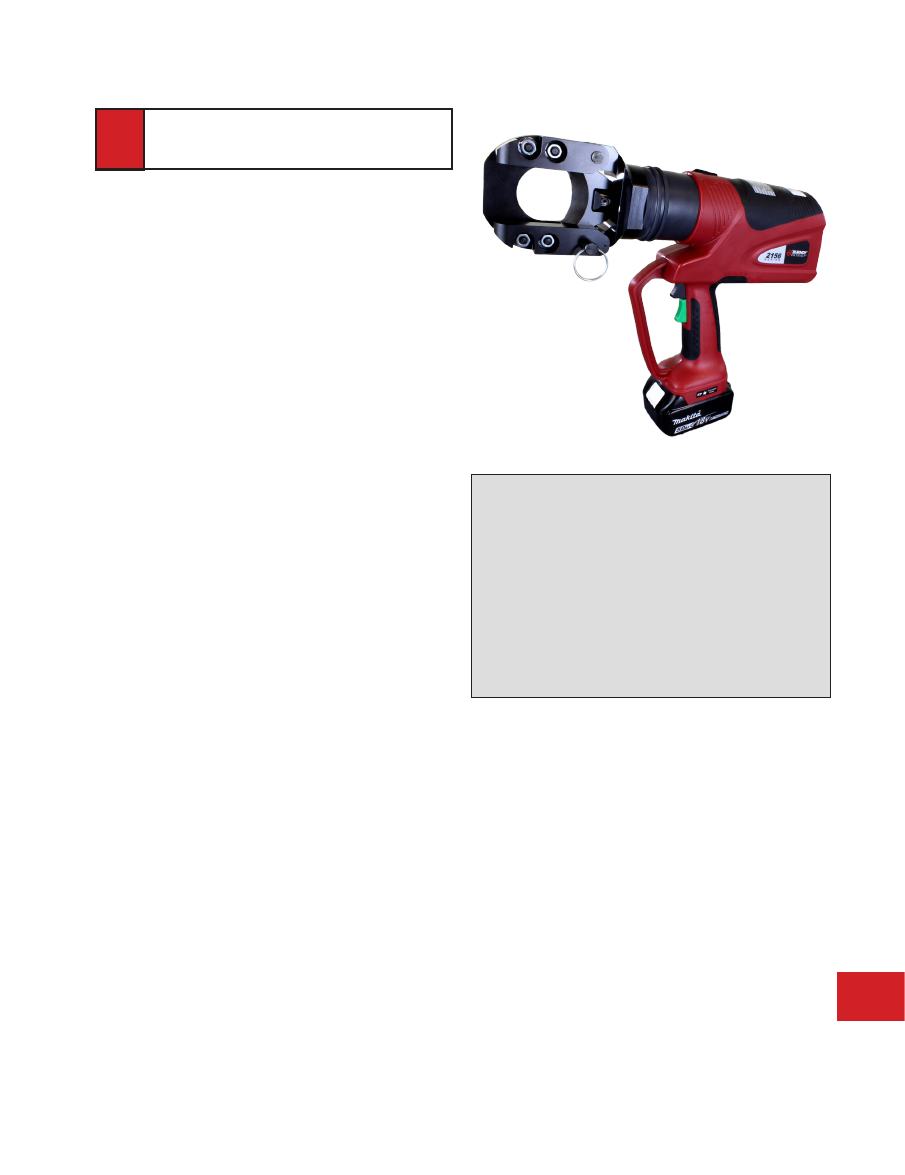

PATCUT2156

Latch Head, ACSR up to 2156 kcmil

Hydraulic Self-Contained Cutter, 18V Lithium-Ion

• 180

head rotation

• Durable hardened steel blades

• Specialized latch head for mid-span cuts

• Mechanical ram release with no power consumption

• Includes 2 batteries, charger, and polymer carrying case

• EP Enhanced Power

labeled tools accept 2.0, 3.0, 4.0,

and 5.0Ah Makita batteries

For Use On:

Copper/Aluminum Cable:

up to 2”

ACSR:

up to 2156 kcmil

Ground Rod:

up to 3/4”

Rebar:

up to 5/8”

Soft Steel Bolts:

up to 3/4”

Standard Guy:

up to 9/16”

EHS Guy:

up to 9/16”

Specifications:

Output Force:

10 Tons

Tool Weight:

15.5 lbs

Size:

16.50” x 13.50” x 3.38”

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes (3.0Ah)

45 minutes (5.0Ah)

Warranty:

5 year limited warranty (excluding blades)

Lifetime warranty on INFINITY DRIVE

3 year on batteries and charger

Accessories:

Catalog Number:

Description:

BAT18VLI:

3.0Ah Li-Ion battery

BAT18V5AHLI:

5.0Ah Li-Ion battery

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PT208620:

Lanyard

CUT200BLMVBL:

Replacement Moving Blade

CUT200BLSTA:

Replacement Fixed (Stationary) Blade

Variations:

(additional variations may be available)

Catalog Number:

Description:

PATCUT2156LI

with 3.0Ah battery

PATCUT2156L5

with 5.0Ah battery

See Important Notes on Page N-6.

N-77

section n-tooling-html.html

Tooling

Cutters — Battery Actuated

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

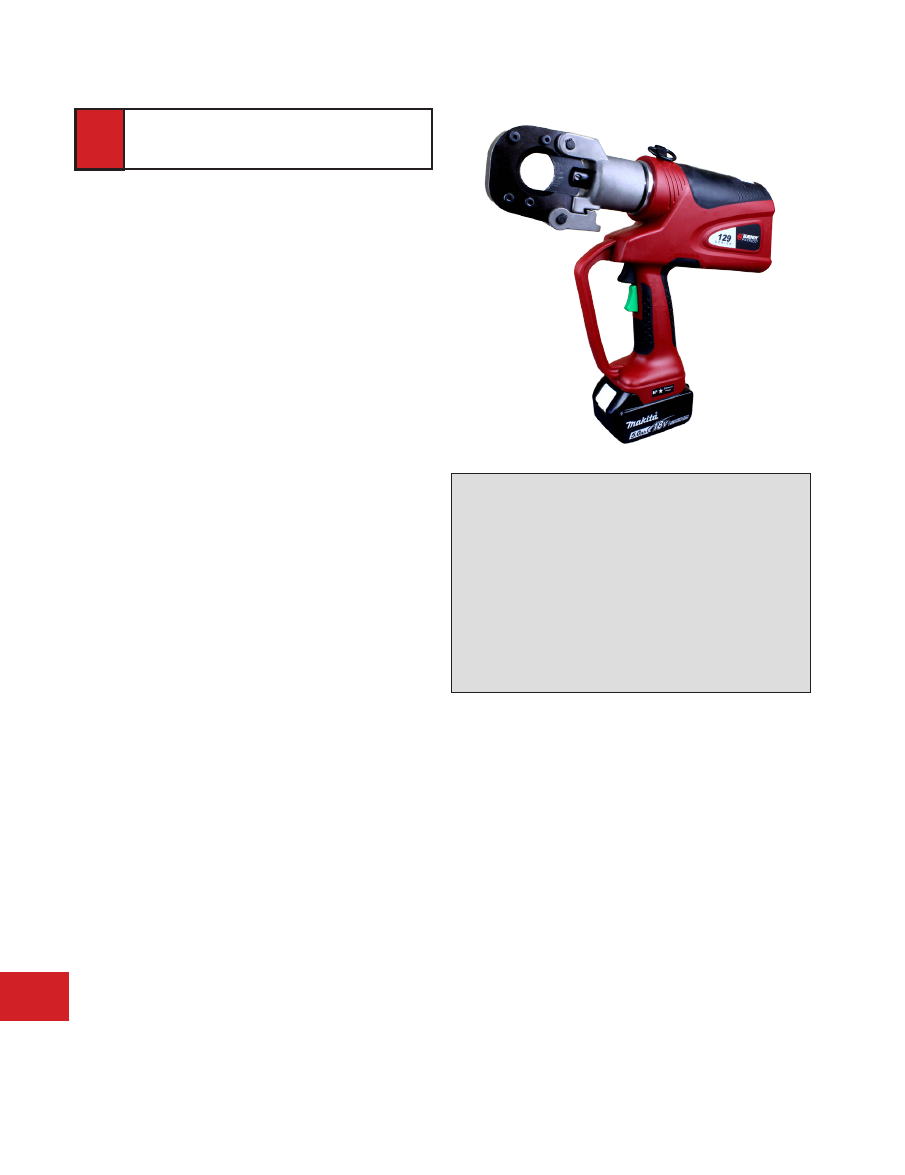

PATCUT129

Latch Head, Cu/Al to 1.29” diameter

Hydraulic Self-Contained Cutter, 18V Lithium-Ion

• 180

head rotation

• Overmolded handle and ergonomic design

• One-handed operation for advance, retract and hold

• Latch head design for interference free closure for mid-span

cuts

• Includes 2 batteries, charger, and polymer carrying case

• EP Enhanced Power

labeled tools accept 2.0, 3.0, 4.0,

and 5.0Ah Makita batteries

For Use On:

Copper/Aluminum Cable:

up to 1.29”

ACSR:

up to 1113 kcmil

Ground Rod:

up to 5/8”

Rebar:

up to 1/2”

Soft Steel Bolts:

up to 5/8”

Standard Guy:

up to 1/2”

EHS Guy Strand:

up to 3/8”

Specifications:

Output Force:

7 Tons

Tool Weight:

10.2 lbs

Size:

14.50” x 13.50” x 3.50”

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes (3.0Ah)

45 minutes (5.0Ah)

Warranty:

5 year limited warranty (excluding blades)

Lifetime warranty on INFINITY DRIVE

3 year on batteries and charger

Accessories:

Catalog Number: Description:

BAT18VLI:

3.0Ah Li-Ion battery

BAT18V5AHLI:

5.0Ah Li-Ion battery

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PT208620:

Lanyard

PT10037388:

Replacement Moving Blade

PT10037384:

Replacement Fixed Blade

Variations:

(additional variations may be available)

Catalog Number:

Description:

PATCUT129LI

with 3.0Ah battery

PATCUT129L5

with 5.0Ah battery

See Important Notes on Page N-6.

N-78

section n-tooling-html.html

Tooling

Cutters — Battery Actuated

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Accessories:

Catalog Number: Description:

BAT18VLI:

3.0Ah Li-Ion battery

BAT18V5AHLI:

5.0Ah Li-Ion battery

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PT208620:

Lanyard

PT10038657:

Replacement Moving Blade

PT10040663:

Replacement Fixed Blade

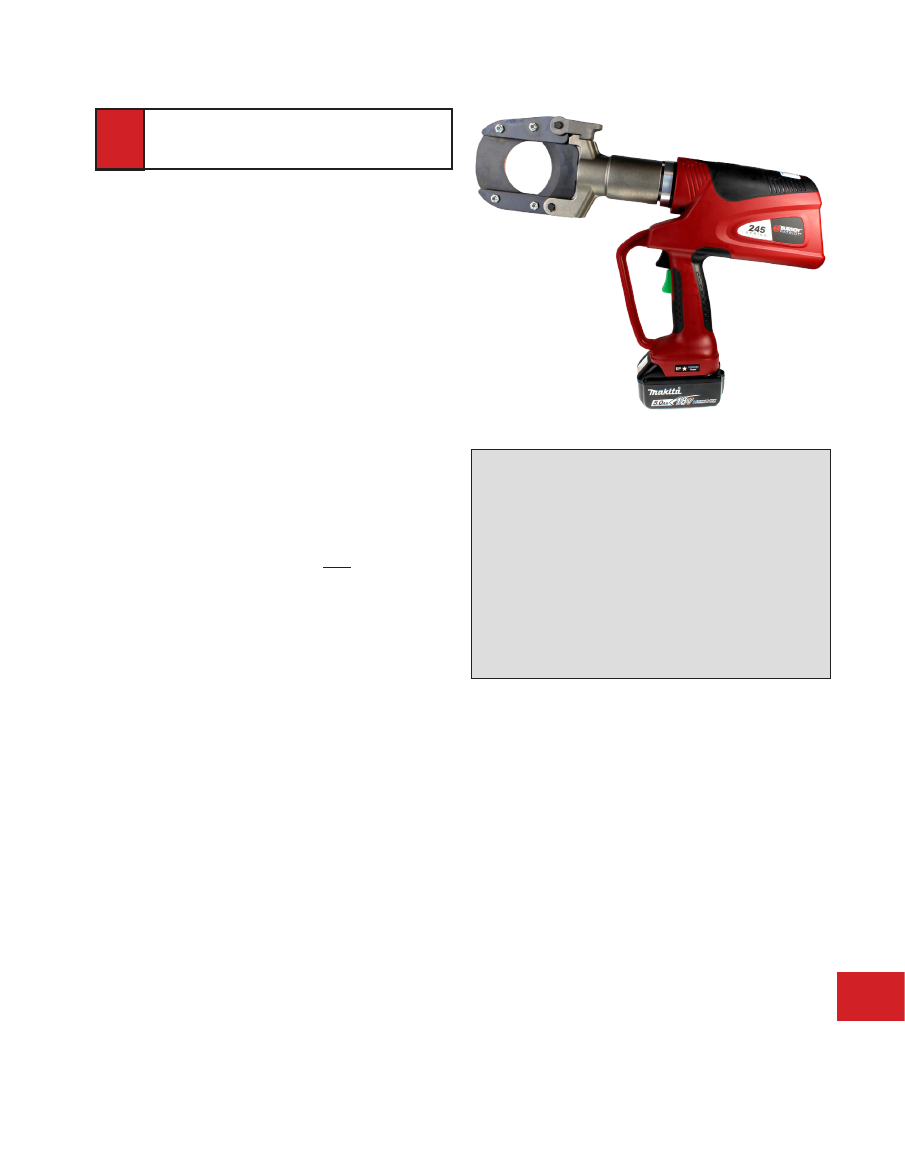

PATCUT245

Latch Head, Cu/Al up to 2.45” O.D.

Hydraulic Self-Contained Cutter 18V Lithium-Ion

• 180

head rotation

• Cuts up to 2.45” diameter copper/aluminum cable

• Specialized latch style cutting head for interference-free

closure for mid-span work

• Ergonomic design, overmolded handle

• Includes 2 batteries, charger, and polymer carrying case

• EP Enhanced Power

labeled tools accept 2.0, 3.0, 4.0,

and 5.0Ah Makita batteries

For Use On:

Copper/Aluminum Cable:

Up to 2.45” O.D.

For Copper and Aluminum cable only. Do not cut

steel, ground rod, rebar or guy wire.

Specifications:

Output Force:

6 Tons

Tool Weight:

13.7 lbs

Size:

18.13” x 13.50” x 3.50”

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes (3.0Ah)

45 minutes (5.0Ah)

Warranty:

5 year limited warranty (excluding blades)

Lifetime warranty on INFINITY DRIVE

3 year on batteries and charger

Variations:

(additional variations may be available)

Catalog Number:

Description:

PATCUT245LI

with 3.0Ah battery

PATCUT245L5

with 5.0Ah battery

See Important Notes on Page N-6.

N-79

section n-tooling-html.html

Tooling

Cutters — Battery Actuated

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

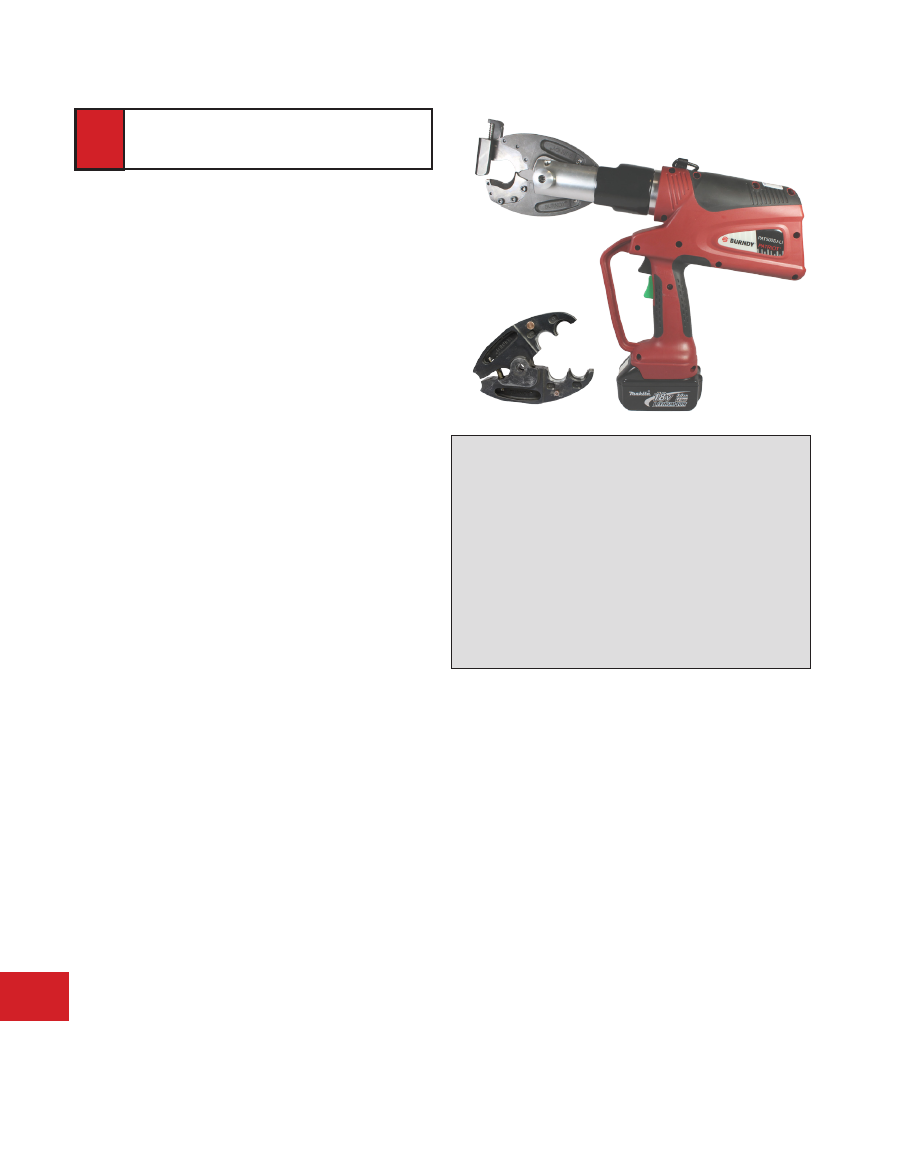

PAT500SJCUT

6-Ton, Scissor Action

Hydraulic Self-Contained, 18V Lithium-Ion

• Interchangeable scissor action crimping and cutting jaws

• 180

head rotation

• Uses W and X style dies with available crimping jaws

• Ergonomically balanced tool design

• Includes 2 batteries, charger, and polymer carrying case

• EP Enhanced Power

labeled tools accept 2.0, 3.0, 4.0,

and 5.0Ah Makita batteries

For Use On:

Maximum Cutting Capacity:

ACSR:

556 kcmil (26/7 Dove)

AAC:

636 kcmil

Copper:

500 kcmil soft drawn copper

Specifications:

Output Force:

6 Tons

Tool Weight:

11.5 lbs

Size:

17.00” X 14.25” X 3.00”

Die Style:

W and X (with crimping jaws)

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes (3.0Ah)

45 minutes (5.0Ah)

Warranty:

5 year limited warranty

Lifetime warranty on INFINITY DRIVE

3 year on batteries and charger

Accessories:

Catalog Number: Description:

BAT18VLI:

3.0Ah Li-Ion battery

BAT18V5AHLI:

5.0Ah Li-Ion battery

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PT10074020:

Wrist strap

WDIETREE:

W-die holder for 6 die sets

Variations:

(additional variations may be available)

Catalog Number:

Description:

PAT500SJCUTLI

with 3.0Ah battery

PAT500SJCUTL5

with 5.0Ah battery

Interchangeable Jaw Assemblies / Kits:

Catalog Number:

Description:

PATJAWSMD6

BG and D3 grooves

PATJAWSMD68

O and D3 grooves

PATJAWSMD66

D3 groove only (snub-nose)

PAT500SJ6LICUTKIT1

Kit includes crimp head with BG & D3

grooves, cutter jaw, 120V charger and

2 batteries (3.0Ah)

PAT500SJ68LICUTKIT1

Kit includes crimp head with O & D3

grooves, cutter jaw, 120V charger and

2 batteries (3.0Ah)

See Important Notes on Page N-6.

N-80

section n-tooling-html.html

Tooling

Cutters — Battery Actuated

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Accessories:

Catalog Number:

Description:

BAT18VLI:

Hi-capacity LI battery (3.0 AH)

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

PATMDCUTACSRKIT:

Replaceable ACSR Blades Only

(not jaw assembly)

PT10074020:

Wrist Strap

Interchangeable Jaw Assemblies (no tool included):

Catalog Number: Description:

PATJAWSCUT:

Cutting jaws, includes ACSR blades

PATJAWSMD6:

Crimp jaws with permanent BG & D3 die grooves

PATJAWSMD68:

Crimp jaws with permanent O & D3 die grooves

PATJAWSMD66:

Crimp jaws with permanent D3 die groove only

PATJAWSMD6K:

Crimp jaws with KEARNEY™ groove

PATMD6JC:

Jaw covers for PATJAWSMD6 & PATJAWSMD68

PATMD66JC:

Jaw covers for PATJAWSMD66

PATMD6KJC:

Jaw covers for PATJAWSMD6K

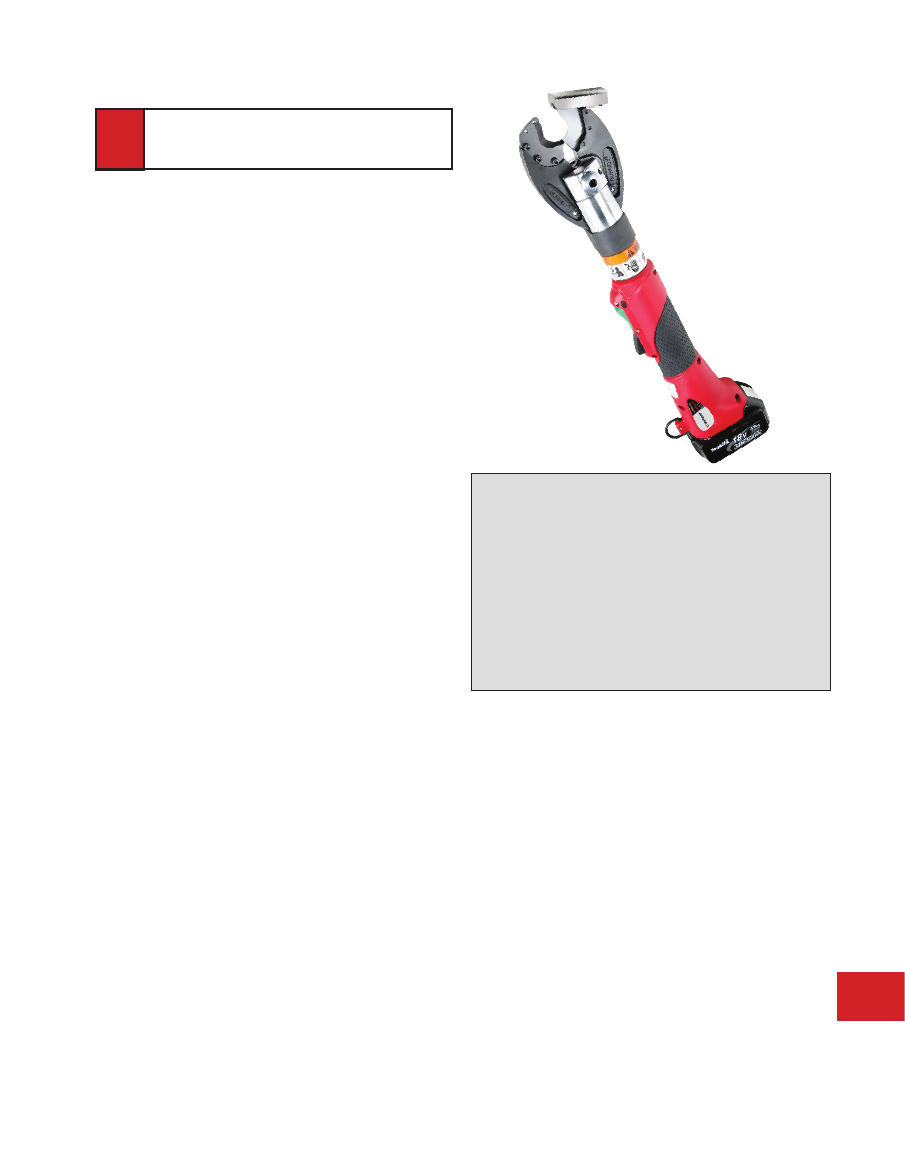

PATMDCUTLI

Battery Actuated IN-LINE

Tool

Hydraulic Self-Contained Cutter 18V Lithium-Ion

• 350

head rotation

• Ergonomically balanced tool design

• Actuated blade guide automatically closes for easy

positioning

• Interchangeable scissor action jaws (sold separately)

available to crimp or cut with same tool

• Includes 2 batteries, charger, and soft carrying case

For Use On:

Maximum Cutting Capacity:

ACSR:

556 kcmil (26/7 Dove)

AAC:

636 kcmil

Copper:

500 kcmil soft drawn copper

Specifications:

Output Force:

6 Tons

Tool Weight:

8 lbs

Size:

22.00” x 5.00” x 2.75”

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes

Warranty:

5 year limited warranty (excludes blades)

Lifetime warranty on INFINITY DRIVE

3 year on batteries and charger

Variations:

(additional variations may be available)

Catalog Number: Description:

PATMDCUTLI

Tool with cutting blades; 120V-AC Li-Ion

charger

Crimp/Cut Kits are also available supplied with both

crimping and cutting jaws

; see separate catalog page

See Important Notes on Page N-6.

N-81

section n-tooling-html.html

Tooling

Cutters — Battery Actuated

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

IN-LINE

Angle Pole Cutter / Crimper

Hydraulic Self-Contained, 18V Lithium-Ion; 82”

• Adjustable Angular Head

• ASTM F711 Rated Pole

• Rocker trigger design for controlled actuation of the tool

• Safety lock to prevent accidental operation

• Includes 2 batteries and charger

Specifications:

Output Force:

6 Tons

Operating Voltage:

18 V-DC Lithium-Ion

Recharge Time:

30 minutes

Warranty:

5 year limited warranty

(excludes blades)

Lifetime warranty on

INFINITY DRIVE

3 year on batteries and

charger

PATMDALLIF Series

Accessories:

Catalog Number: Description:

BAT18VLI:

Hi-capacity LI battery (3.0 AH)

PATCHGRLI:

120V-AC Charger

PATCHGRLIDC:

12/24V-DC Charger

WDIETREE:

W-die holder for 6 die sets

Variations:

(additional variations may be available)

Catalog Number:

Description:

PATMDCUT82ALLIF

Cutter jaw; 82” F711 Pole

PATMD682ALLIF

Crimp Jaws (BG & D3); 82” F711 Pole

PATMD6882ALLIF

Crimp Jaws (O & D3); 82” F711 Pole

PATMD6682ALLIF

Crimp Jaws (D3 only); 82” F711 Pole

Kits with Tool, Crimping and Cutting Jaws,

Pole:

Catalog Number:

Description:

PATMD682ALLIFWCJ

Kit includes crimp head with BG & D3

grooves, cutter jaw, 120V charger and

2 batteries

PATMD6882ALLIFWCJ

Kit includes crimp head with O & D3

grooves, cutter jaw, 120V charger and

2 batteries

PATMD6682ALLIFWCJ

Kit includes crimp head with D3 groove,

cutter jaw, 120V charger and 2

batteries

For Use On:

Maximum Cutting Capacity:

ACSR:

556 kcmil (26/7 Dove)

AAC:

636 kcmil

Copper:

500 kcmil soft drawn copper

Interchangeable Jaw Assemblies

(no tool or pole):

Catalog Number: Description:

PATJAWSCUT

Cutting jaws

PATJAWSMD6

BG and D3 grooves

PATJAWSMD68

O and D3 grooves

PATJAWSMD66

D3 groove only (snub-nose)

PATJAWSMD6

BG and D3 grooves

PATJAWSMD68

O and D3 grooves

PATJAWSMD66

D3 groove only

See Important Notes on Page N-6.

N-82

section n-tooling-html.html

Tooling

Cutters — Battery Actuated

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Accessories:

Catalog Number: Description:

BCCBAT12V:

Sealed nickel cadmium battery

BCCCHGR:

120 V-AC Charger

BCCCASE:

Replacement Case for BCC1000CUAL tool

RP50RP03:

Replaceable Moving Blade

RP50RP02:

Replaceable Fixed Blade

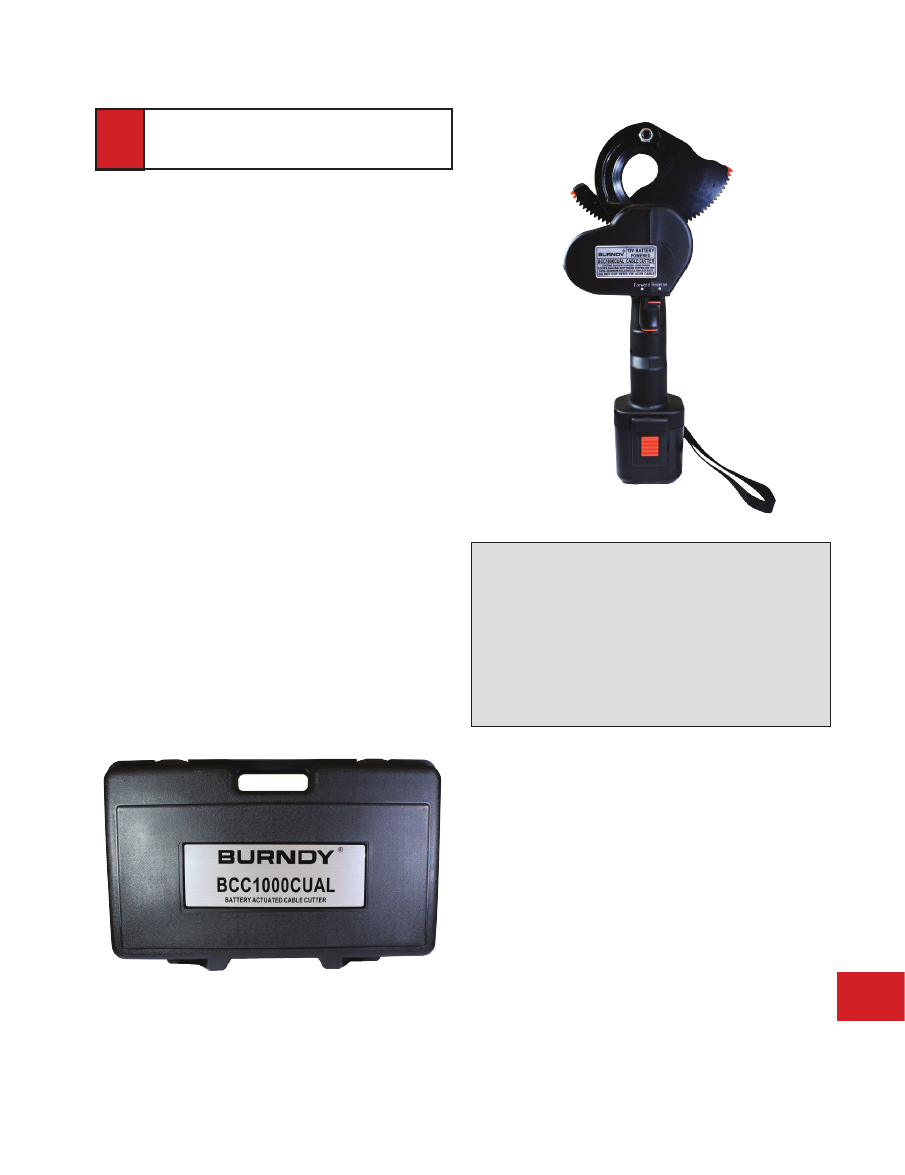

BCC1000CUAL

Sealed Nickel Cadmium Cutter

Cuts up to 750 kcmil hard drawn copper;

1000 kcmil soft drawn copper; 2” O.D. aluminum

• Hook head design

• Three-way switch

• Hardened steel blades

• Withstands rugged use, resists oil and solvents

• Includes 1 battery, 1 charger, and case

Catalog Number BCC1000CUAL For Use On:

Hard Drawn Copper:

750 kcmil

Soft Drawn Copper:

1000 kcmil

Aluminum:

up to 2” O.D

Do Not Cut Steel or ACSR

Specifications:

Tool Weight:

6.0 lbs

Size:

14.50” x 4.50” x 4.00”

Operating Voltage:

12 V-DC Nickel Cadmium

Recharge Time:

1 hour (fast) to 16 hours (standard)

Warranty:

90 day limited warranty (excluding

blades)

N-83

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Cutters — Self-Contained Hydraulic

Accessories:

Catalog Number:

Description:

PT10024162:

Carrying Case (included with tool)

PT10037388:

Moving Blade

PT10037384:

Fixed Blade

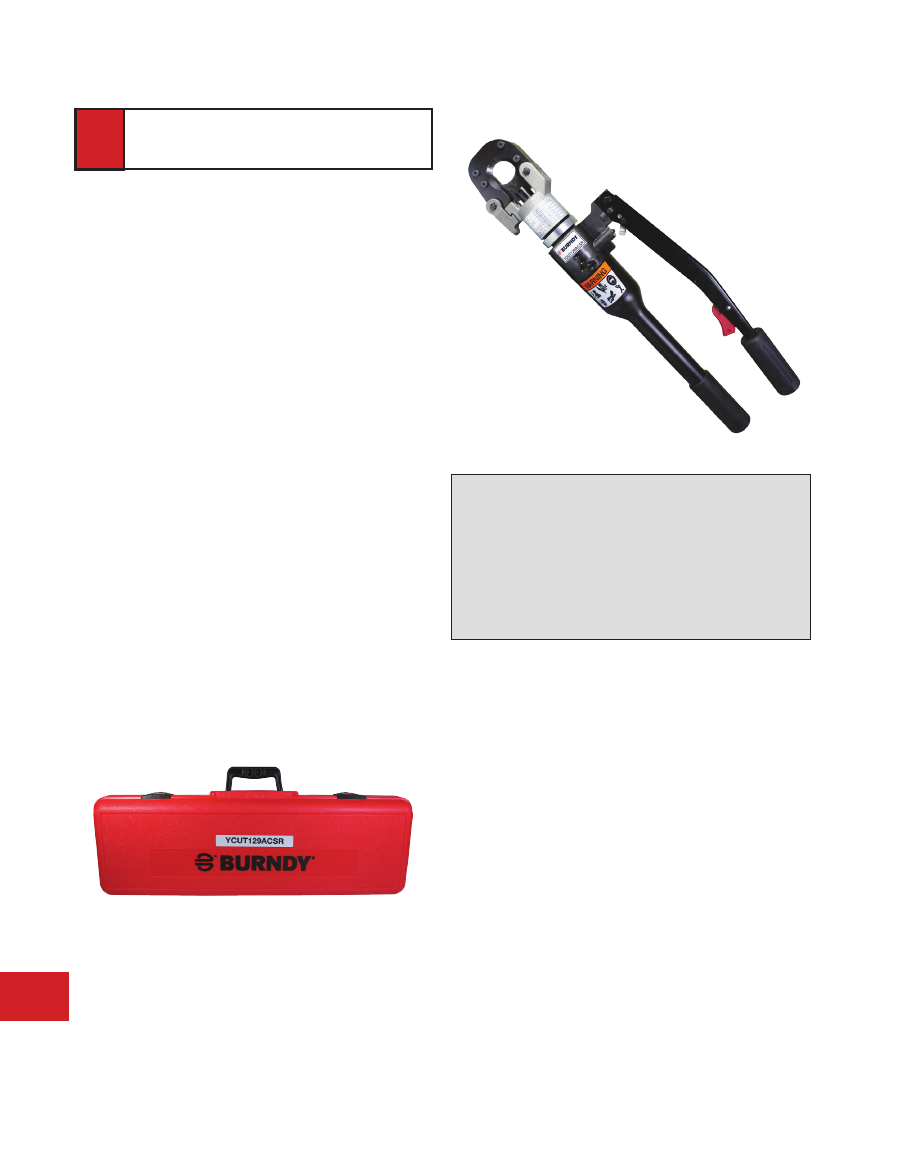

YCUT129ACSR

Latch Head Style

Hydraulic Hand Operated Cutter

• Rapid advance pump

• Handle trigger drain

• Interference free closure on mid-span cuts

• 180

head rotation

Catalog Number YCUT129ACSR For Use On:

Copper/Aluminum Cable:

up to 1.29”

ACSR:

up to 1113 kcmil

Ground Rod:

up to 5/8”

Rebar:

up to 1/2”

Soft Steel Bolts:

up to 5/8”

Standard Guy:

up to 1/2”

EHS Guy Strand:

up to 3/8”

Specifications:

Output Force:

7 Tons

Weight:

11.4 lbs

Size:

22.50” x 6.63” x 2.50”

Warranty:

5 year limited warranty (excluding

blades)

PT10024162

Hard Polymer Case for YCUT129ACSR

N-84

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Cutters — Remote Hydraulic

Accessories:

Catalog Number:

Description:

BAGCNVS5X9X24:

Canvas Bag (included with tool)

RHCC4CUALBLD:

Cutting Blade (one blade; 2 required)

RHCC4CUALGDEBLD:

Blade Guide

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories

for other necessary equipment.

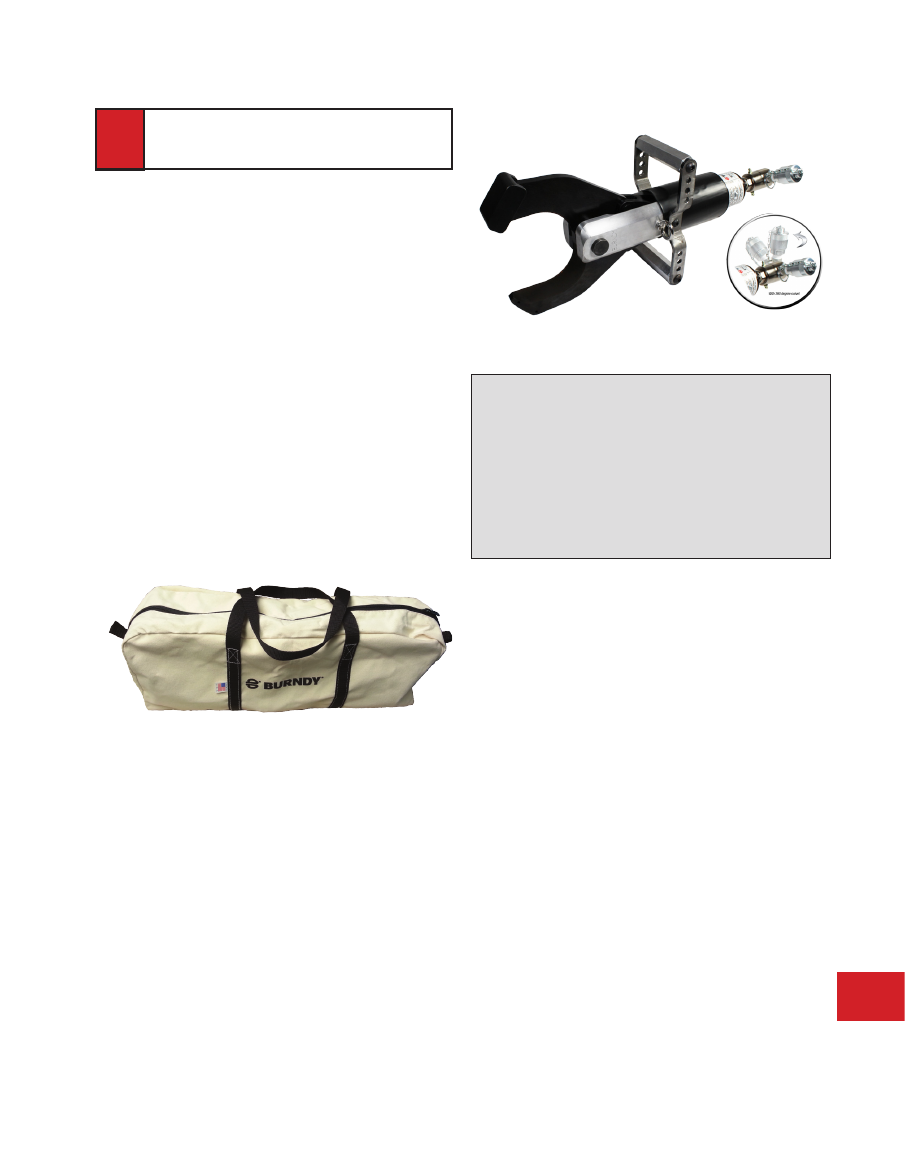

RHCC4CUAL

Specifications:

Operating Pressure:

10,000 PSI

Weight:

19.9 lbs

Size:

21.29” x 9.13” x 5.15”

Warranty:

5 year limited warranty (excluding

blades)

BAGCNVS5X9X24

Canvas Bag available separately

(included with tool)

Scissor Action Cutter

Cuts up to 4.00” Copper / Aluminum Cable

• Specialized scissor head design for interference free

closure for mid-span cuts

• High strength hardened steel cutting blades

• 360º swivel hose fitting

• Stainless Steel lifting assist eyebolt

• Light weight ergonomic design

Catalog Number RHCC4CUAL For Use On:

Copper/Aluminum Cable:

up to 4.00”

N-85

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Cutters — Remote Hydraulic

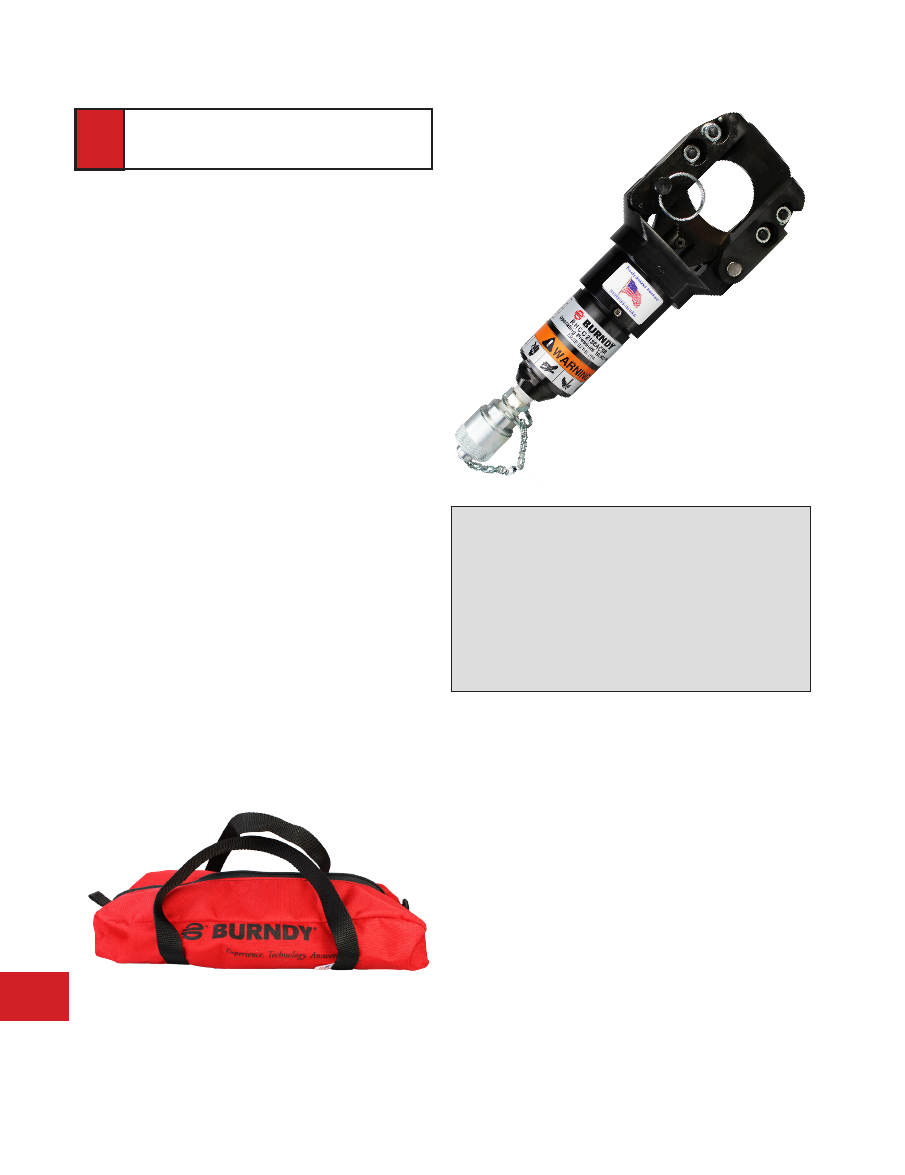

RHCC2156ACSR

Accessories:

Catalog Number:

Description:

PT10054094:

Canvas Bag (included with tool)

CUT200BLMVBL:

Replacement Moving Blade

CUT200BLSTA:

Replacement Fixed (Stationary) Blade

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories

for other necessary equipment.

Latch Head, Remote Operated Cutter

Cuts up to 2156 kcmil ACSR

• 180

head rotation

• Durable hardened, precision steel blades

• Specialized latch head for mid-span cuts

• Durable canvas carrying bag stores tool and accessories

Catalog Number RHCC2156ACSR

For Use On:

Copper/Aluminum Cable:

up to 2”

ACSR:

up to 2156 kcmil

Ground Rod:

up to 3/4”

Rebar:

up to 5/8”

Soft Steel Bolts:

up to 3/4”

Standard Guy:

up to 9/16”

EHS Guy Strand:

up to 9/16”

Specifications:

Operating Pressure:

10,000 PSI

Weight:

10 lbs

Size:

13.17” x 4.13” x 2.69”

Warranty:

5 year limited warranty (excluding

blades)

Variations:

Catalog Number: Description:

RHCC2156ACSR

Standard RHCC2156ACSR remote cutter

RHCC2156ACSRF

RHCC2156ACSR tool with female coupler

PT10054094

Canvas Bag available separately

(included with tool)

N-86

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Cutters — Remote Hydraulic

Accessories:

Catalog Number:

Description:

PT10043890:

Canvas Bag (included with tool)

PT10037388:

Moving Blade

PT10037384:

Fixed Blade

RHCCHSA:

Hot Stick Adapter

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories

for other necessary equipment.

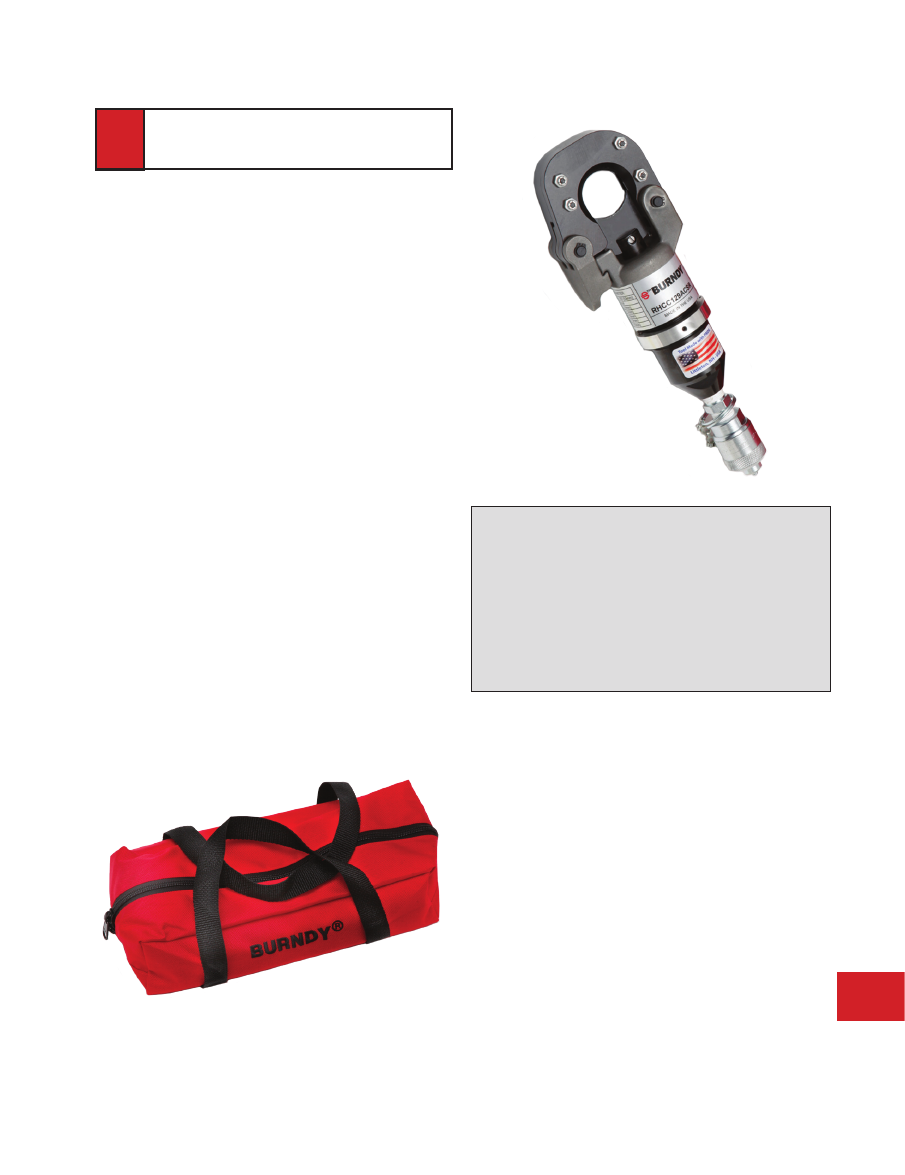

RHCC129ACSR

Latch Head, Remote Operated Cutter

Cuts up to 1.29” Copper / Aluminum Cable

• Interference free closure for mid-span cuts

• Precision cutting blades for clean cuts

• High strength steel cylinder

• Light weight, ergonomic design

• Durable canvas carrying bag stores tool and accessories

Catalog Number RHCC129ACSR For Use On:

Copper/Aluminum Cable:

up to 1.29”

ACSR:

up to 1113 kcmil

Ground Rod:

up to 5/8”

Rebar:

up to 1/2”

Soft Steel Bolts:

up to 5/8”

Standard Guy:

up to 1/2”

EHS Guy Strand:

up to 3/8”

Specifications:

Operating Pressure:

10,000 PSI

Weight:

5.8 lbs

Size:

11.25” x 3.75” x 3.00”

Warranty:

5 year limited warranty (excluding

blades)

PT10043890

Canvas Bag available separately

(included with tool)

N-87

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Cutters — Remote Hydraulic

Accessories:

Catalog Number:

Description:

PT10054094:

Canvas Bag (included with tool)

PT10038657:

Moving Blade

PT10040663:

Fixed Blade

RHCCHSA:

Hot Stick Adapter

See Hydraulic Pumps and Hydraulic Hoses;

Pump Accessories

for other necessary equipment.

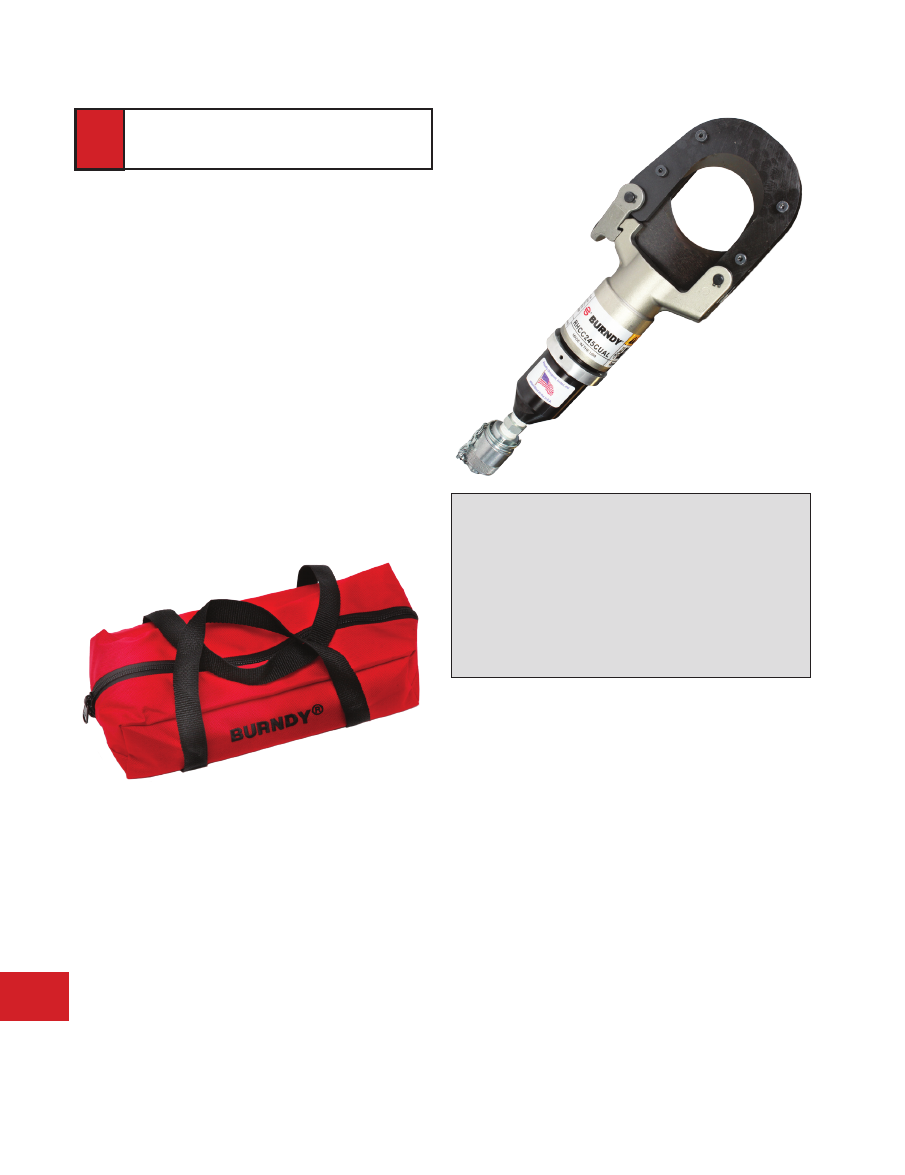

RHCC245CUAL

Latch Head, Remote Operated Cutter

Cuts up to 2.45” Copper / Aluminum Cable

• Interference free closure for mid-span cuts

• Precision cutting blades for clean cuts

• Lightweight ergonomic design

• Durable canvas carrying bag stores tool and accessories

Catalog Number RHCC245CUAL For Use On:

Copper/Aluminum Cable:

up to 2.45”

Specifications:

Operating Pressure:

10,000 PSI

Weight:

8.3 lbs

Size:

14.87” x 4.75” x 3.00”

Warranty:

5 year limited warranty (excluding

blades)

PT10054094

Canvas Bag available separately

(included with tool)

N-88

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Cutters — Mechanical & Ratchet

Accessories:

Catalog Number:

Description:

MCC600BLADESET:

Replacement blades for MCC600

MCC1000BLADESET:

Replacement blades for MCC1000

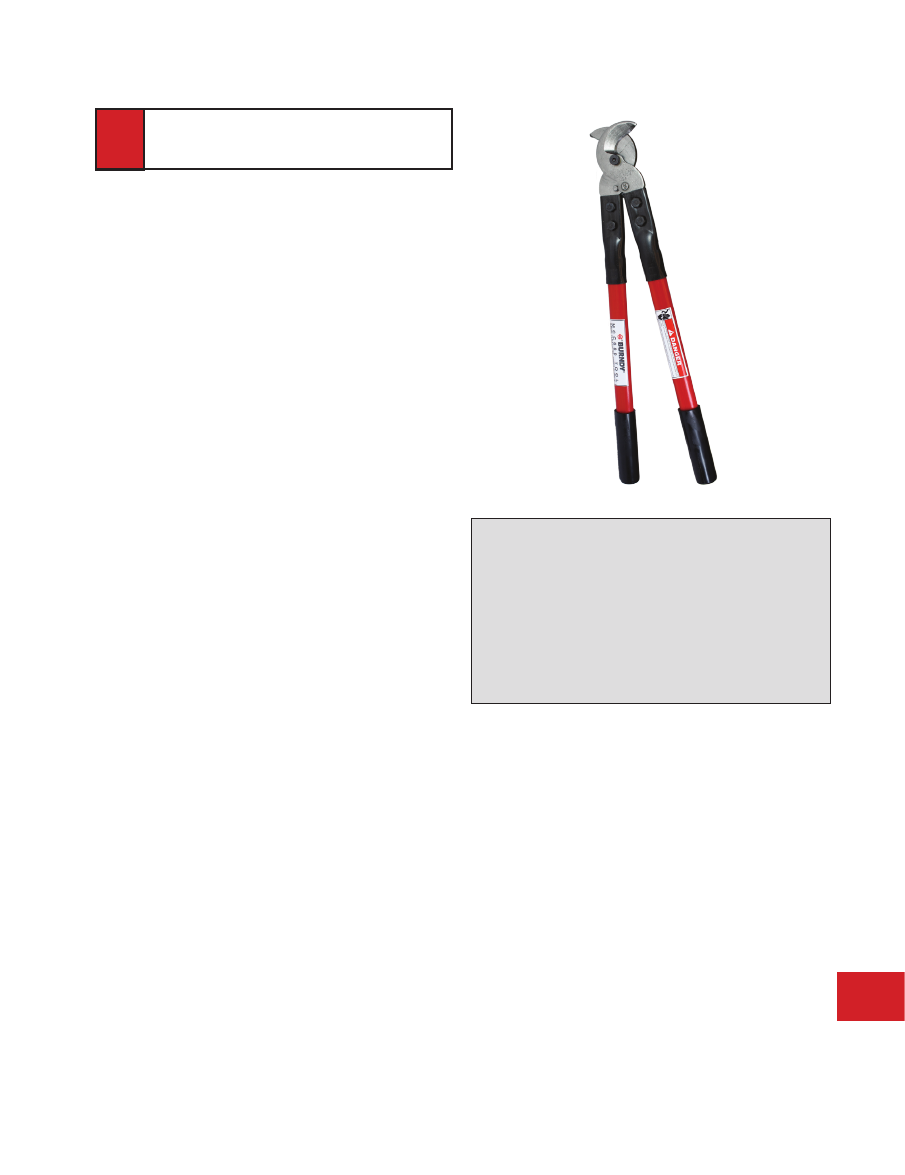

MCC Series

Manual Cable Cutters

MCC600 cuts to 600 kcmil Cu/Al;

MCC1000 cuts to 1000 kcmil Cu/Al

• Rugged, high quality steel cutting blades

• Fiberglass handles with soft grips

• Excellent cutting edge performance

• Minimum of cable distortion

For Use On:

Copper/Aluminum Cable:

up to 600 kcmil (MCC600)

up to 1000 kcmil (MCC1000)

Variations:

Catalog Number: Description:

MCC600

3.5 lbs; 21” overall length; cuts copper and

aluminum cable to 600 kcmil; max. insulation

diameter 1.31”

MCC1000

9.0 lbs; 32” overall length; cuts copper and

aluminum cable to 1000 kcmil; max. insulation

diameter 1.90”

Specifications (MCC600):

Weight:

3.5 lbs

Size:

21.00 x 5.00” x 2.00”

Max. Insulation Dia.:

1.31”

Warranty:

1 year limited warranty (excluding

blades)

N-89

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Cutters — Mechanical & Ratchet

Accessories:

Catalog Number: Description:

RPC701302:

Fixed Replacement Blade for RCC1000

RPC701402:

Moveable Replacement Blade for

RCC1000

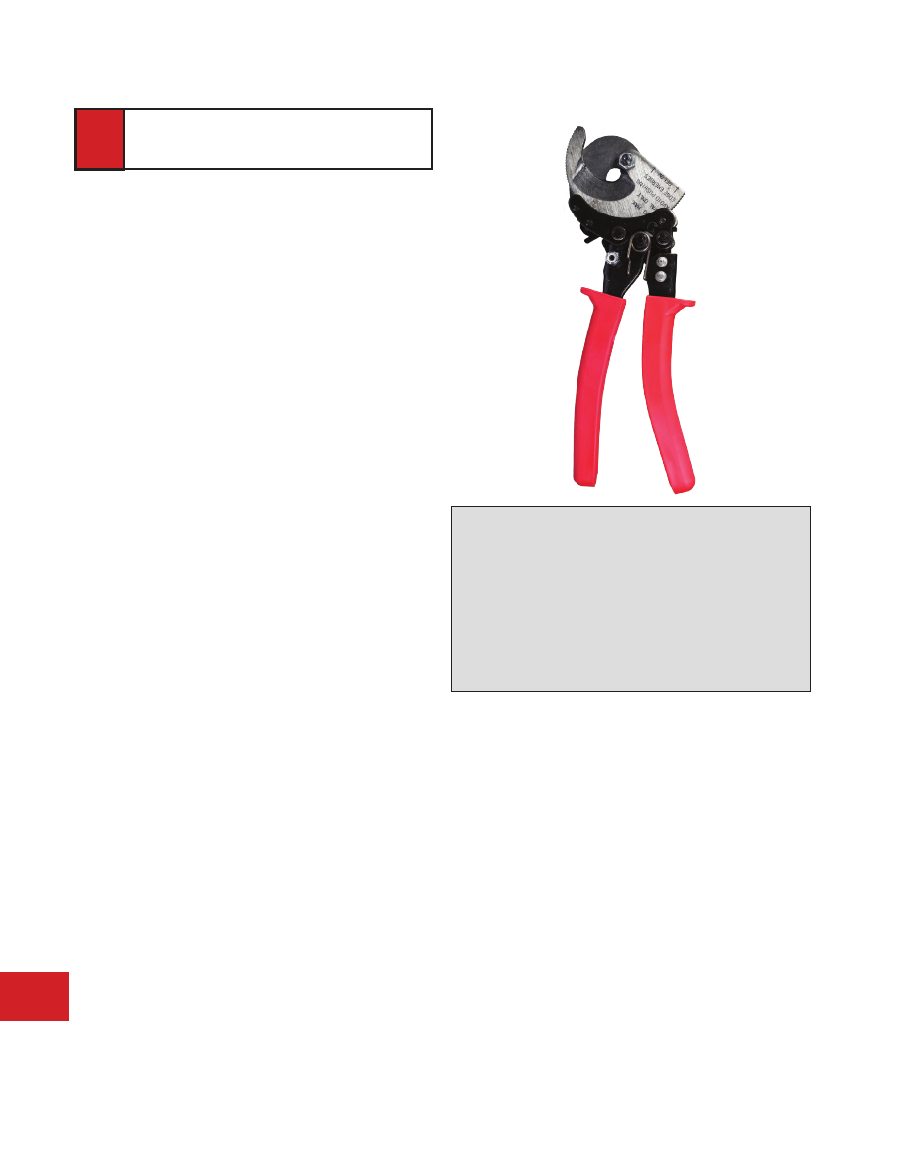

RCC - Cu/Al

RCC-Series Ratchet Cutters for Cu/Al

Three variations covering a range of Cu/Al

• Rugged, high quality steel cutting blades

• Excellent cutting edge performance

• Minimum of cable distortion

For Use On:

RCC600E:

Copper & Aluminum 600 kcmil

RCC750HD:

Copper & Aluminum 750 kcmil

RCC1000:

Copper & Aluminum 1000 kcmil

Variations:

Catalog Number: Description:

RCC600E

10.5” overall length; cuts copper and

aluminum cable to 600 kcmil; max. insulation

diameter 1.05”; 1.3 lbs

RCC750HD

10.5” overall length; cuts copper and

aluminum cable to 750 kcmil; max. insulation

diameter 1.62”; 2.4 lbs

RCC1000

20” overall length; cuts copper and aluminum

cable to 1000 kcmil; max. insulation diameter

2.38”; 5.0 lbs

Specifications (RCC600E):

Weight:

1.3 lbs

Length:

10.50” x 4.25” x 1.75”

Max. Insulation Dia.:

1.05”

Warranty:

1 year limited warranty (excluding

blades)

N-90

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Cutters — Mechanical & Ratchet

Variations:

Catalog Number: Description:

RCC954ACSR1K

22.75” overall length; 1.38” max. insulation

diameter; 6.5 lbs

RCC556

20” overall length; 1.25” max. insulation

diameter; 4.5 lbs

RCC336

10.5” overall length; .74” max. insulation

diameter; 1.2 lbs

Accessories:

Catalog Number: Description:

RPC705501:

Fixed Replacement Blade for RCC556

RPC705601:

Moveable Replacement Blade for RCC556

RPC902101:

Fixed Replacement Blade for RCC336

RPC902201:

Moveable Replacement Blade for RCC336

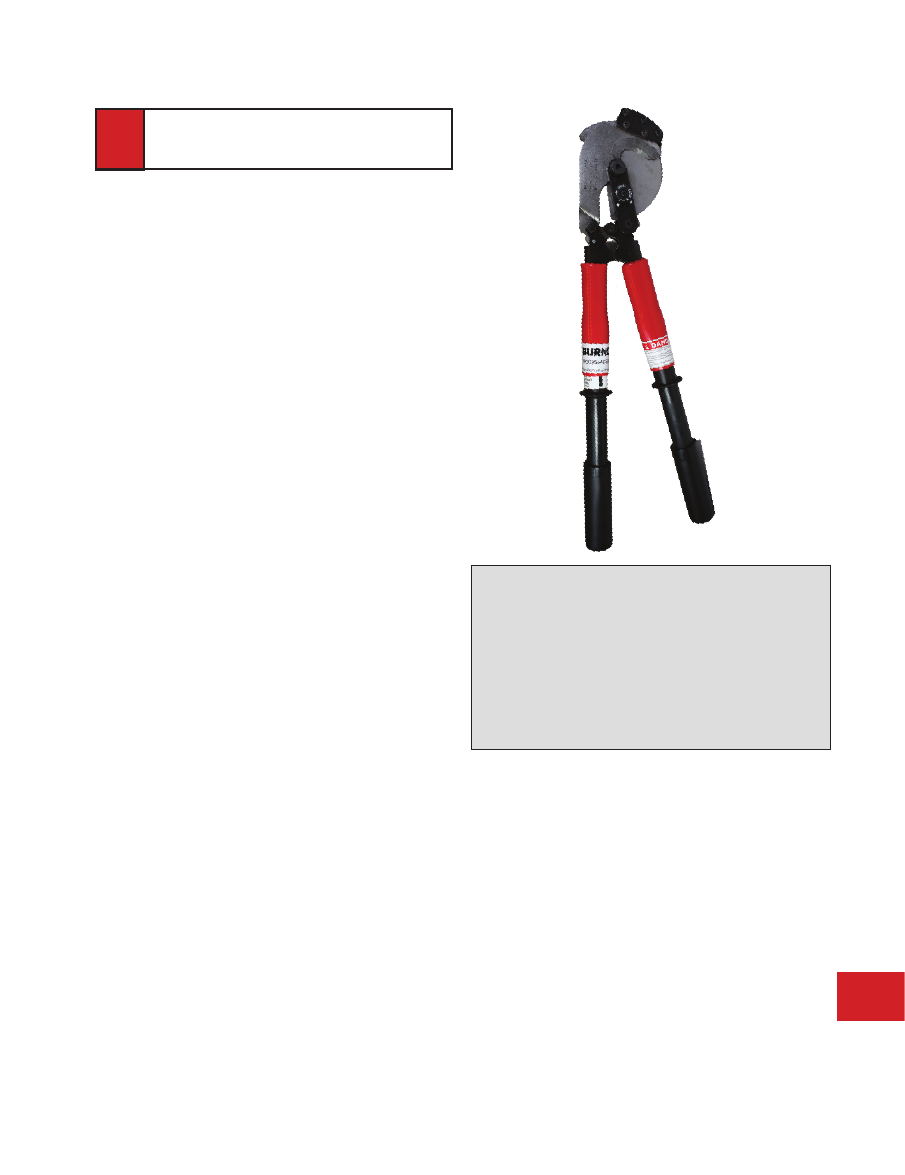

RCC - Cu/Al, ACSR

RCC-Series Cutters for Cu/Al, ACSR

Three variations covering a range of Cu/Al , ACSR

• Quick release, bi-directional ratchet mechanism

• Rapid blade advance

• Easy cutting with minimal cable distortion

For Use On:

RCC954ACSR1K:

Copper 1000 kcmil;

Aluminum 1000 kcmil;

ACSR 954 kcmil

RCC556:

Copper 500 kcmil;

Aluminum 500 kcmil;

ACSR 556 kcmil

RCC336:

Copper 350 kcmil;

Aluminum 500 kcmil;

ACSR 336 kcmil

Specifications (RCC954ACSR1K):

Weight:

6.5 lbs

Size:

22.75” x 7.00” x 1.88”

Max. Insulation Dia.:

1.38”

Warranty:

1 year limited warranty (excluding

blades)

RCC954ACSR1K

N-91

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Cutters — Mechanical & Ratchet

Variations:

Catalog Number: Description:

RWRC916

20” overall length; 9/16” diameter Mild

Steel; 1/2” diameter Stainless Steel; 4.4 lbs

RWRC516

10” overall length; 5/16” diameter Mild

Steel; 1/4” diameter Stainless Steel; 1.2 lbs

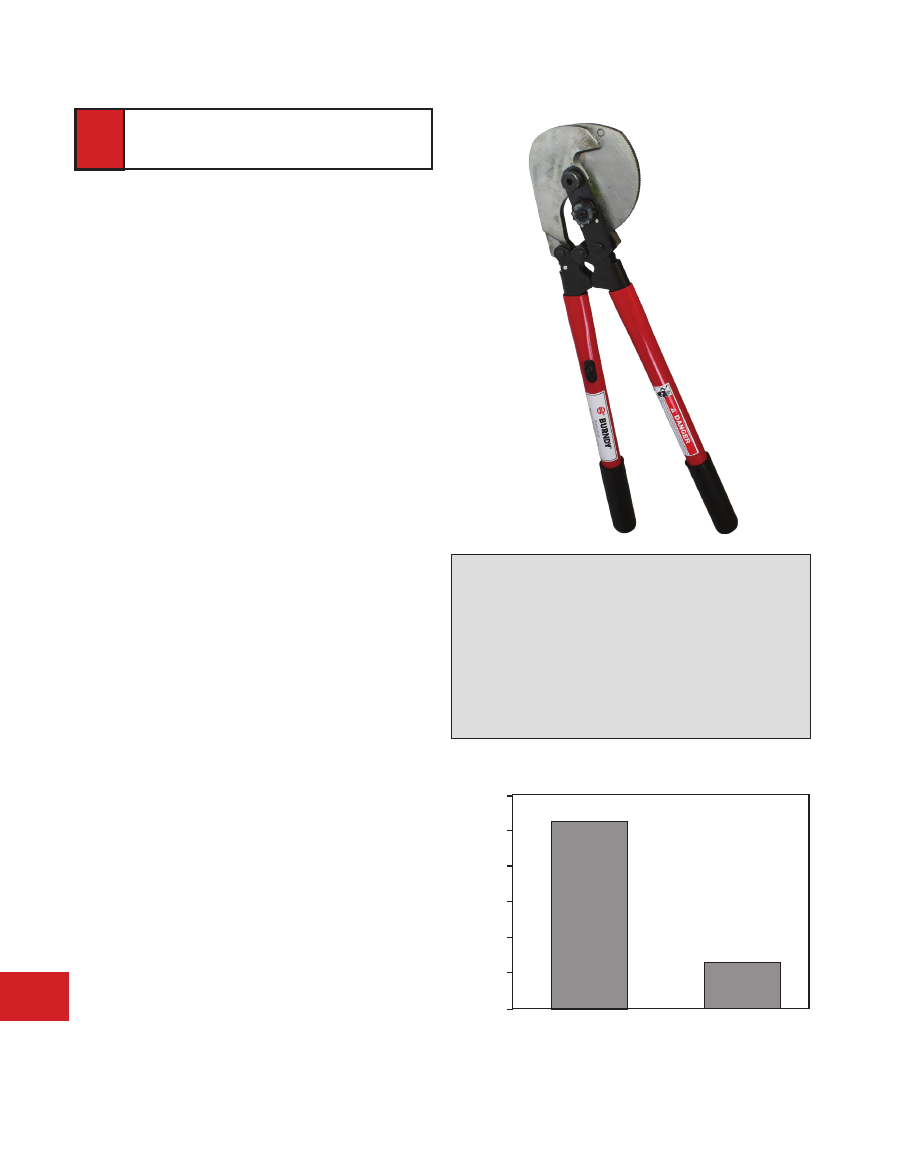

RWRC Series

Ratchet Wire Rope Cutters

Cuts Mild and Stainless Steel

• Hardened steel blades

• Rapid blade advance

• Reduced handle force compared to scissor or compound

action designs

For Use On:

RWRC916:

Mild Steel: 9/16” diameter

Stainless Steel: 1/2” diameter

RWRC516:

Mild Steel: 5/16” diameter

Stainless Steel: 1/4” diameter

Specifications (RWRC916):

Weight:

4.4 lbs

Size:

20.00” x 9.00” x 2.00”

Mild Steel Dia.:

9/16”

Stainless Steel Dia.:

1/2”

Warranty:

2 year limited warranty (excluding

blades)

Handle Force

1/4″ Dia. Wire Rope

Non-ratchet Design

RWRC916

150

125

100

N-92

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Hydraulic Pumps

Accessories:

Catalog Number: Description:

YACCASE:

Steel carrying case with handle and

locking latch

YACFC:

Foot control switch

See Hydraulic Hoses; Pump Accessories

for Hose options

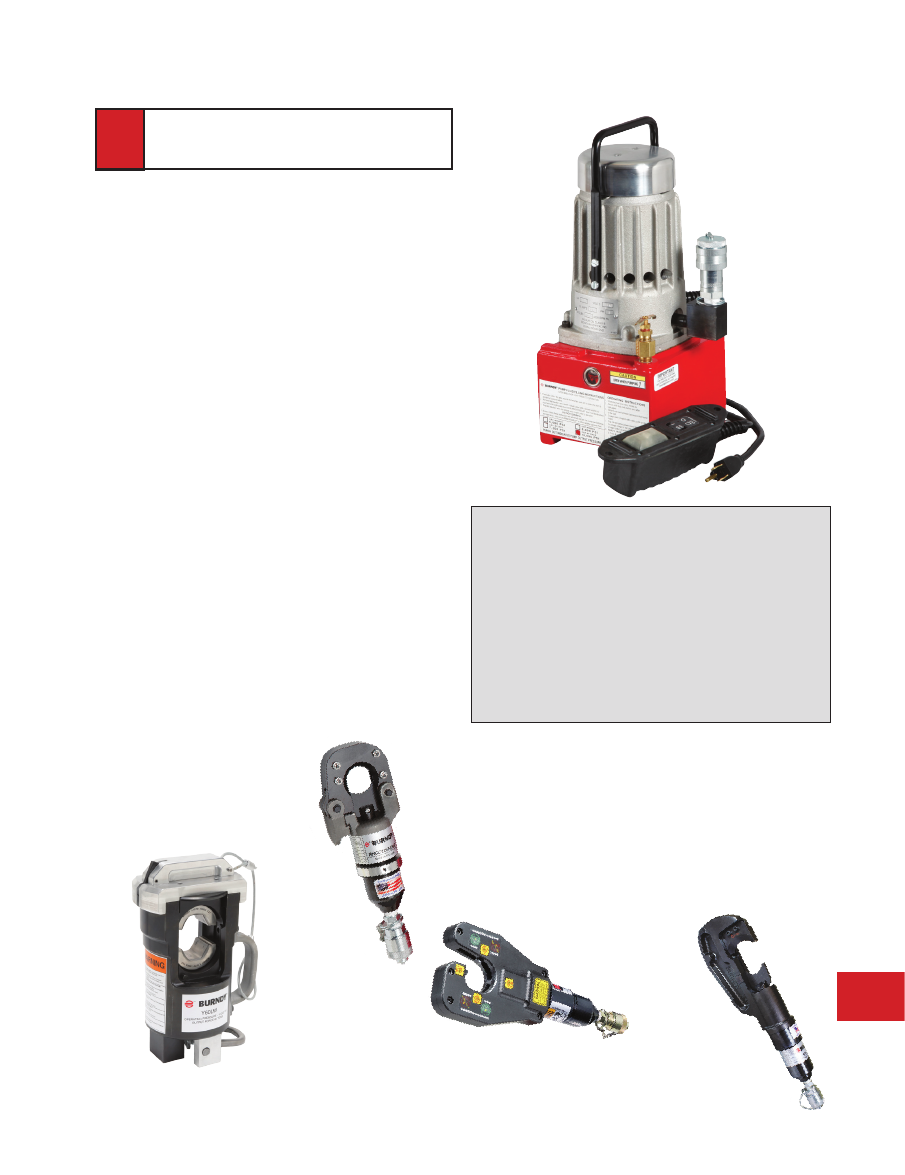

Y10AC9

Electric Hydraulic Pump; 10,000 PSI

Light weight, space saving design

• Easy to carry and transport

• Factory set relief valve

• 100,000+ life cycles

• Sealed electric pendant switch with 10-foot cord

For Use With:

Y10AC9:

10,000 PSI electric pump

Used with

: Y34BH, Y35BH, Y35BH4, Y39BH, Y45, Y46,

Y46C, Y750BHXT, Y750CBHXT, Y644MBH,

Y4PC834MBH, Y81KFTMBH, Y60BHU,

Y60LW, RHCC Series Cutters

Specifications:

Weight:

28.0 lbs (including oil)

Motor:

115V-AC 50/60 Hz 5/8 HP,

10,000 RPM

Height:

14.38”

Base:

18.00” x 8.75” x 6.50”

Max. Current Draw:

11 amp

Reservoir Volume:

1.61 quarts

Warranty:

5 year limited warranty

Variations:

Catalog Number: Description:

Y10AC9

Electric hydraulic pump

Y10AC9OEM

Electric hydraulic pump with foot switch; pump

features “Jog & Hold”

Examples of some of the

remote crimping and cutting

heads for use with

Y10AC9 pump

Y60LW

RHCC129ACSR

RHCC10ACSR

Y4PC834MBH

N-93

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Hydraulic Pumps

Accessories:

Catalog Number: Description:

EPPCASE1:

Steel carrying case with handle, locking latch

PT9711:

Pendant switch

See Hydraulic Hoses; Pump Accessories

for Hose options

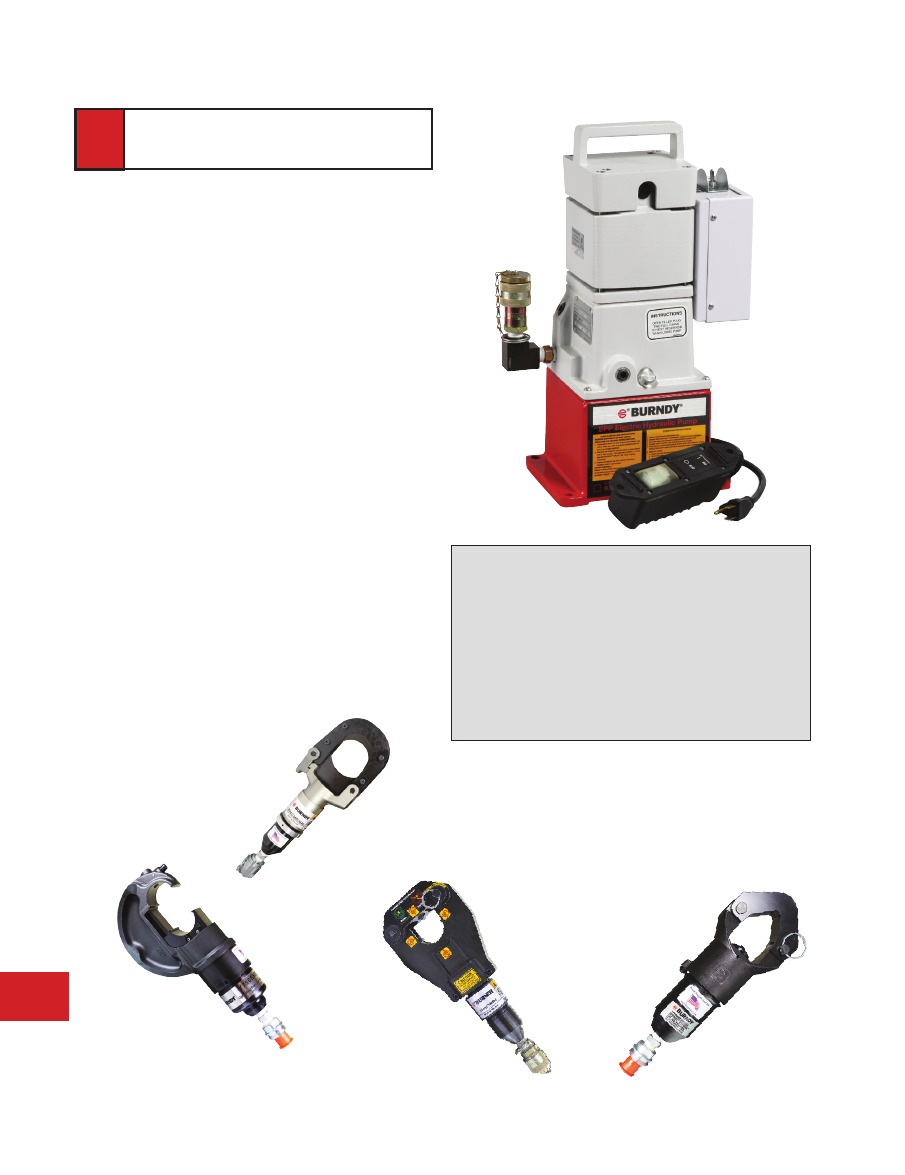

EPP10

Electric Hydraulic Pump; 10,000 PSI

Also available in 6,000 PSI

• Lightweight, small size

• 100,000+ life cycles

• Durable remote pendant switch

Variations / For Use With:

Catalog Number EPP10:

10,000 PSI electric pump

Used with

: Y34BH, Y35BH, Y35BH4, Y750BHXT,

Y750CBHXT, Y39BH, Y45, Y46C, Y46,

Y60BHU, Y60LW, Y644MBH,

Y4PC834MBH, Y81KFTMBH,

RHCC Series Cutters

Catalog Number EPP6:

6,000 PSI electric pump

Used with

: Y29BH, Y35L

Specifications:

Motor:

115V-AC/60 Hz 1/2 HP @ 3450 RPM

Max. Current Draw:

12.5 amperes

Weight:

30.0 lbs

Base:

18.00” x 8.00” x 6.00”

Height:

16.00”

Reservoir Volume:

2 quarts

Warranty:

5 year limited warranty

Examples of some of the remote

crimping and cutting heads for use with

EPP10 pump

Y644MBH

RHCC245CUAL

Y750BHXT

Y81KFTMBH

N-94

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Hydraulic Pumps

Accessories:

See Hydraulic Hoses; Pump Accessories for

Hose options

EP10

Electric Hydraulic Pump; 10,000 PSI

Also available in 6,000 PSI

• Dual voltage / hertz

• Oil level window

• 8 quart reservoir

Variations / For Use With:

Catalog Number: Description:

EP10:

10,000 PSI electric pump; 1/2 HP 115/230

V-AC; 60 cycle

Used with

Y34BH, Y35BH, Y35BH4, Y750BHXT,

Y750CBHXT, Y39BH, Y45, Y46C, Y46,

Y60BHU, Y60LW, Y644MBH, Y4PC834MBH,

Y81KFTMBH, RHCC Series Cutters

EP101HP:

10,000 PSI electric pump; 1 HP 115/230 V-AC;

60 cycle

Used with

Y34BH, Y35BH, Y35BH4, Y750BHXT,

Y750CBHXT, Y39BH, Y45, Y46C, Y46,

Y60BHU, Y60LW, Y644MBH, Y4PC834MBH,

Y81KFTMBH, RHCC Series Cutters

EP101HP2:

10,000 PSI electric pump; 1/2 HP 220/230

V-AC; 50/60 cycle

Used with

Y34BH, Y35BH, Y35BH4, Y750BHXT,

Y750CBHXT, Y39BH, Y45, Y46C, Y46,

Y60BHU, Y60LW, Y644MBH, Y4PC834MBH,

Y81KFTMBH, RHCC Series Cutters

EP102:

10,000 PSI electric pump; 1/2 HP 220/230

V-AC; 50/60 cycle

Used with

Y34BH, Y35BH, Y35BH-4, Y750BHXT,

Y750CBHXT, Y39BH, Y45, Y46C, Y46,

Y60BHU, Y60LW, Y644MBH, Y4PC834MBH,

Y81KFTMBH, RHCC Series Cutters

EP6:

6,000 PSI electric pump

Used with

Y35L, Y29BH

Specifications:

Motor:

1/2 HP 115/230V-AC,

60 Cycle; 1/2 HP @ 3450 RPM

Max. Current Draw:

10 amperes

Reservoir Volume:

8 quarts max; 2 quarts min.

Height:

17.50”

Base:

11.75” x 18.50”

Dry Weight:

68.0 lbs (86.0 lbs with max. fluid)

Warranty:

5 year limited warranty

N-95

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Hydraulic Pumps

Accessories:

See Hydraulic Hoses; Pump Accessories for

Hose options

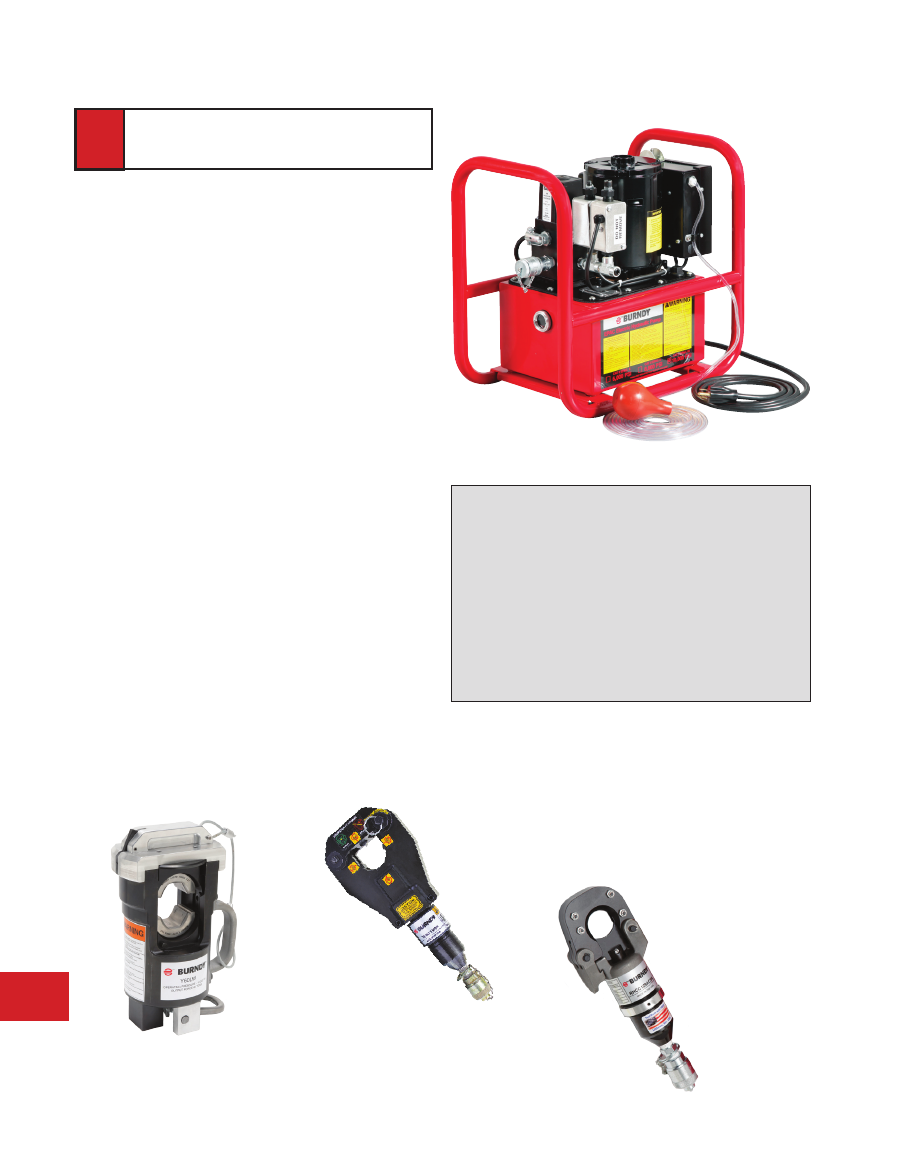

EPAC10

Electric Hydraulic Pump; 10,000 PSI

Also available in 6,000 PSI

• Roll cage

• 3 position switch and control box

• Full automatic or manual “Jog and Hold” cycles

• Windows allow easy inspection of proper oil level

Variations / For Use With:

Catalog Number: Description:

EPAC10:

10,000 PSI electric pump

Used with

Y34BH, Y35BH, Y35BH4, Y39BH, Y45, Y46,

Y46C, Y750BHXT, Y750CBHXT, Y644MBH,

Y4PC834MBH, Y81KFTMBH, Y60BHU,

Y60LW, RHCC Series Cutters

EPAC6:

6,000 PSI electric pump

Used with

Y29BH, Y35L

Specifications:

Motor:

1/2 HP 115/230V-AC,

60 Cycle; 1/2 HP @ 3450 RPM

Max. Current Draw:

10 amperes

Reservoir Volume:

8 quarts max; 2 quarts min.

Height:

17.50”

Base:

11.75” x 18.50”

Dry Weight:

68.0 lbs (82.0 lbs with max. fluid)

Warranty:

5 year limited warranty

Examples of some of the remote

crimping and cutting heads for

use with EPAC10 pump

Y81KFTMBH

Y60LW

RHCC129ACSR

N-96

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Hydraulic Pumps

Accessories:

Catalog Number: Description:

BP10PADKIT:

Extended leg pad stabilizers (includes

hardware)

See Hydraulic Hoses; Pump Accessories for

Hose options

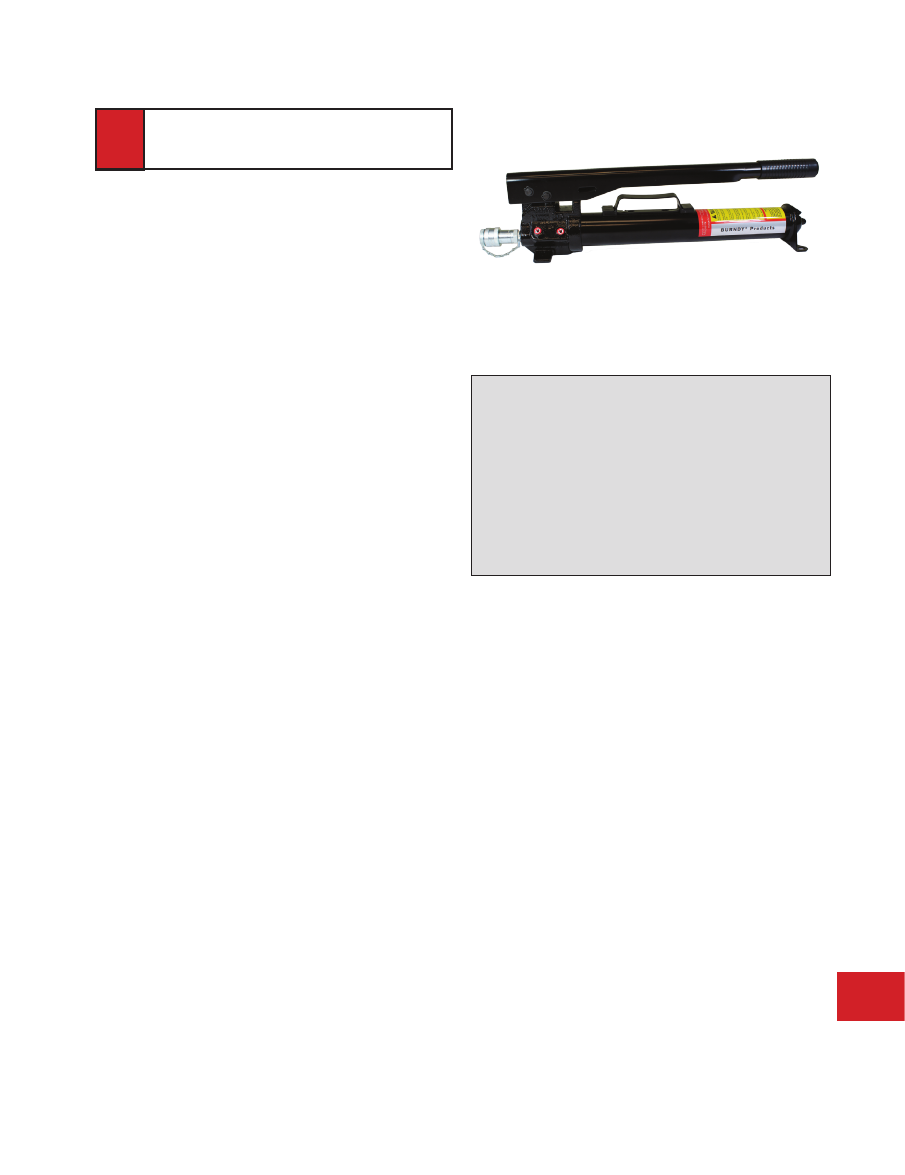

HP10 and FP10

Manual Hydraulic Pump; 10,000 PSI

Also available in 6,000 PSI

• Solid base with broad leg stabilizers

• Quick disconnect hydraulic fitting

• Built in handle for easy transport

• Factory set pressure release valve with audible click

• Quality, heavy duty foot pad with diamond plate steel

(FP10)

Variations / For Use With:

Catalog Number: Description:

HP10:

10,000 PSI hand pump

Used with

Y34BH, Y35BH, Y35BH4, Y750BHXT,

Y750CBHXT, Y39BH, Y45, Y46C, Y46,

Y644MBH, Y4PC834MBH, Y81KFTMBH,

RHCC Series

Cutters

HP6:

6,000 PSI hand pump

Used with

Y29BH, Y35L

FP10:

10,000 PSI foot pump

Used with

Y34BH, Y35BH, Y35BH4, Y750BHXT,

Y750CBHXT, Y39BH, Y45, Y46C, Y46,

Y644MBH, Y4PC834MBH, Y81KFTMBH,

RHCC Series Cutters

FP6:

6,000 PSI foot pump

Used with

Y29BH, Y35L

Specifications:

Weight:

18.0 lbs

Size:

24.75” x 6.75” x 3.00”

Height (open):

20.00”

Reservoir Volume:

1-1/8 quarts

Warranty:

5 year limited warranty

HP10

Hand Pump

N-97

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Hydraulic Pumps

Accessories:

See Hydraulic Hoses; Pump Accessories for

Hose options

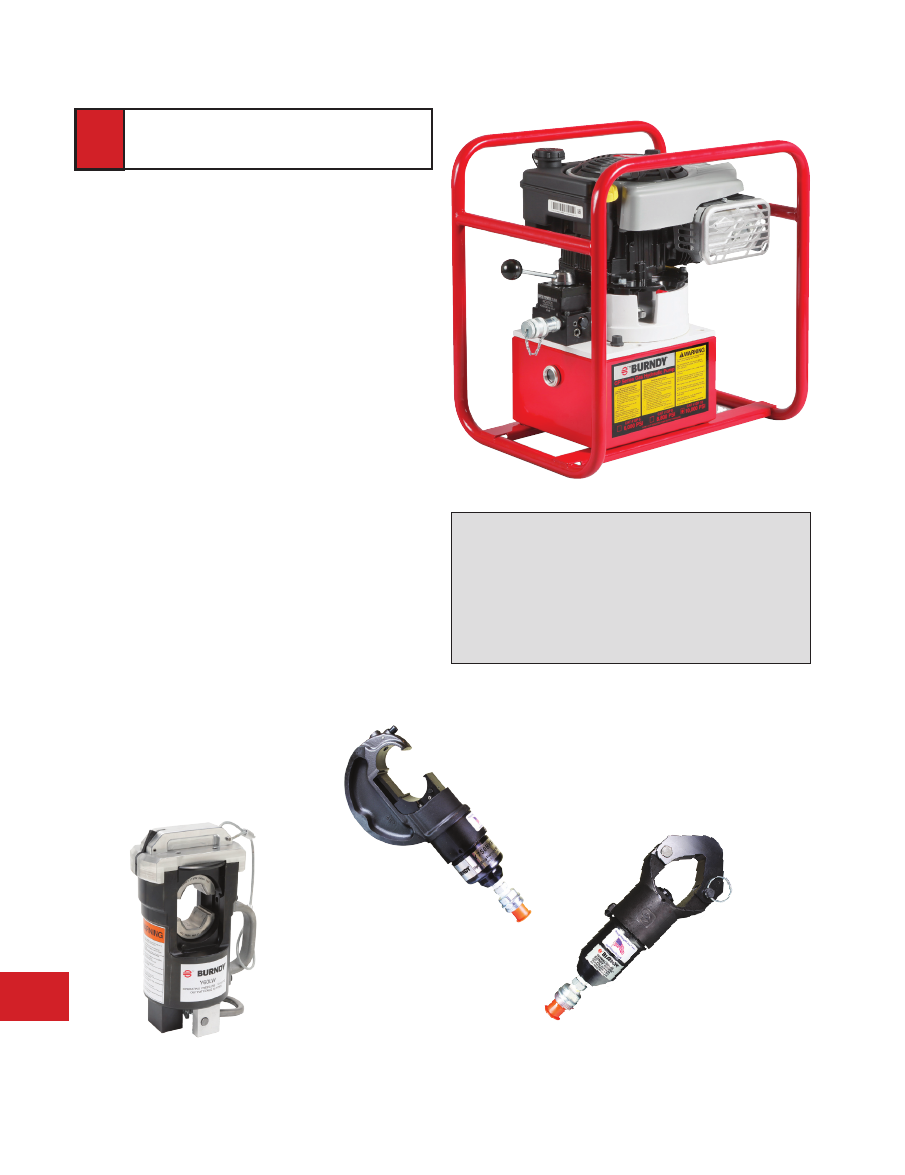

GP10

Gas Driven Hydraulic Pump; 10,000 PSI

Heavy Duty 4 Horse Power gasoline engine

• Sturdy steel roll cage design

• Manual control valve

• Fast hose assembly; quick disconnect hydraulic coupler

• Large 8 quart reservoir

For Use With:

Catalog Number GP10:

10,000 PSI; 4 HP engine, 4 cycle

Used with

: Y34BH, Y35BH, Y35BH4, Y750BHXT,

Y750CBHXT, Y39BH, Y45, Y46C, Y46,

Y60BHU, Y60BHUD, Y60LW, Y644MBH,

Y4PC834MBH, Y81KFTMBH, RHCC Series

Cutters

Specifications:

Engine:

4 H.P.; 4 Cycle

Weight:

77.8 lbs (overall dry weight)

Size:

21.00” x 22.25” x 16.00”

Reservoir Volume:

8 quarts

Warranty:

5 year limited warranty

Examples of some of the remote

crimping and cutting heads for

use with GP10 pump

Y750BHXT

Y644MBH

Y60LW

N-98

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Hydraulic Hoses; Pump Accessories

Notes:

For proper care and maintenance of hydraulic hoses, consult

the

Hydraulic Hose Care Manual; Form #7828

1/4” diameter (available for 10,000 PSI only) hose provides a

higher flow rate for faster ram movement.

Hydraulic Hoses

10,000 PSI Non Conductive Hoses

• 3 lengths available in 2 diameters

• Orange

• Stackable couplers (male/female)

Variations:

Catalog Number: Description:

PT2990010

10’ length; 3/16” diameter

PT2990015

15’ length; 3/16” diameter

PT2990025

25’ length; 3/16” diameter

PT2990110

10’ length; 1/4” diameter

PT2990115

15’ length; 1/4” diameter

PT2990125

25’ length; 1/4” diameter

6,000 PSI Non Conductive Hoses

• 3 lengths available

• Orange

• Stackable couplers (male/female)

Variations:

Catalog Number: Description:

PT2990210

10’ length; 3/16” diameter

PT2990215

15’ length; 3/16” diameter

PT2990225

25’ length; 3/16” diameter

N-99

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Hydraulic Hoses; Pump Accessories

Hydraulic Hoses

10,000 PSI Conductive Hose

• Stackable couplers (male/female)

• Steel braided with steel spring reinforced ends

• Black

Variations:

Catalog Number: Description:

PT91

8’ length; steel braided with steel spring

reinforced ends; stackable couplers

(male/female); Black. No electrical rating.

DO NOT USE ON ENERGIZED CONDUCTOR

8,800 PSI Conductive Hose

• Stackable couplers (male/female)

• Steel braided with steel spring reinforced ends

• Black

Variations:

Catalog Number: Description:

PT76

8’ length; steel braided with steel spring

reinforced ends; stackable couplers

(male/female); Black. No electrical rating.

DO NOT USE ON ENERGIZED CONDUCTOR

Notes:

For proper care and maintenance of hydraulic hoses, consult

the

Hydraulic Hose Care Manual; Form #7828

N-100

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Hydraulic Hoses; Pump Accessories

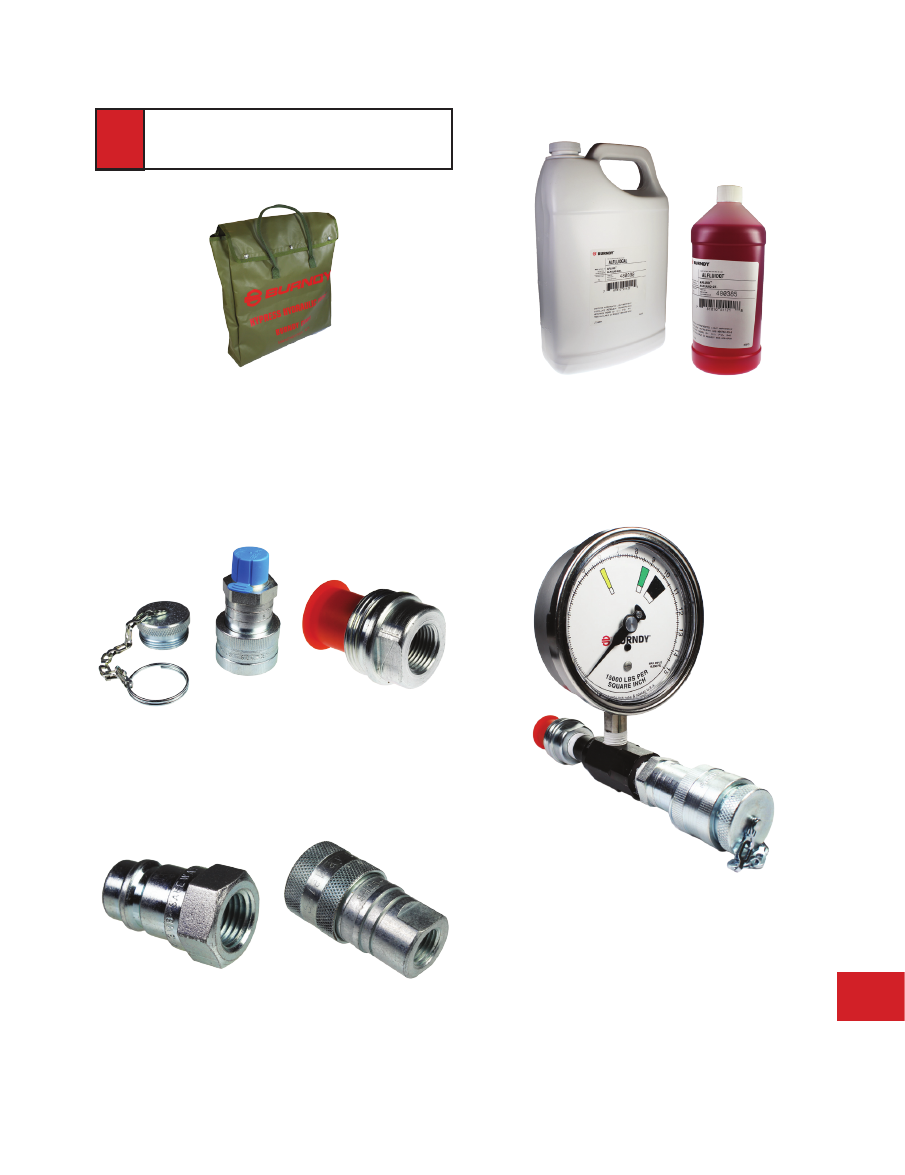

Accessories

ALFLUID™ Hydraulic Fluid for Pumps

• AFLUIDQT

is quart size;

ALFLUIDGAL

is gallon size

• All weather hydraulic fluid for BURNDY

pumps types HP hand

pump, FP foot pump, GP gasoline pump, and EPP electric pump

PT11018 In-Line Pressure Gauge for

10,000 PSI Hydraulic Pumps

• Pressure gauge for 10,000 PSI operating hydraulic pumps

PT290741 Insulated Hose Carrying Bag

• Designed for protection and cleanliness for non conductive

hoses; maximum carrying capacity of 10 lbs.

• Accommodates 100 feet of non-conductive hose coiled to 17-

1/2” OD and 3-3/4” wide

PT93 (Male) and PT94 (Female)

• Replacement couplers for 10,000 PSI operating pressure

(sold separately)

PT29091 (Male) and PT292141 (Female)

• Replacement couplers for 6,000 PSI operating pressure

(sold separately)

N-101

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Accessories

PT4925 Canvas Bag

• Sturdy canvas bag for MD6/MD7 tool variations with or

without covers in place

• Holds up to 9 die sets (sold separately)

PT49521 Steel Carrying Case

• Provides storage for the following: MD6, MD66, MD68,

MD614, MD637, MD638, MD7, and MD76 with or without

covers (sold separately)

• Holds up to 18 die sets (sold separately)

PT6733 Hotstick Tool Carrying Bag

• Heavy-duty, adjustable canvas bag

• Accommodates 48”, 60” and 72” variations of the MD6

and Y35 Hotstick tools

MD6CP1 Protective Jaw Covers

• Laminated vinyl jaw covers, supplied as set

• Compact, snap in place easily

• Fits all styles except Snub-Nose variations

PT6744 Jaw Cover (Snub-Nose)

• Semi-rigid Neoprene non-conductive material

• Fits all MD66 Snub-nose variations

PT49311 Die Button Repair Kit

• Replacement die button kit for MD6/MD7 tool variations

MD6/MD7 Related

N-102

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Accessories

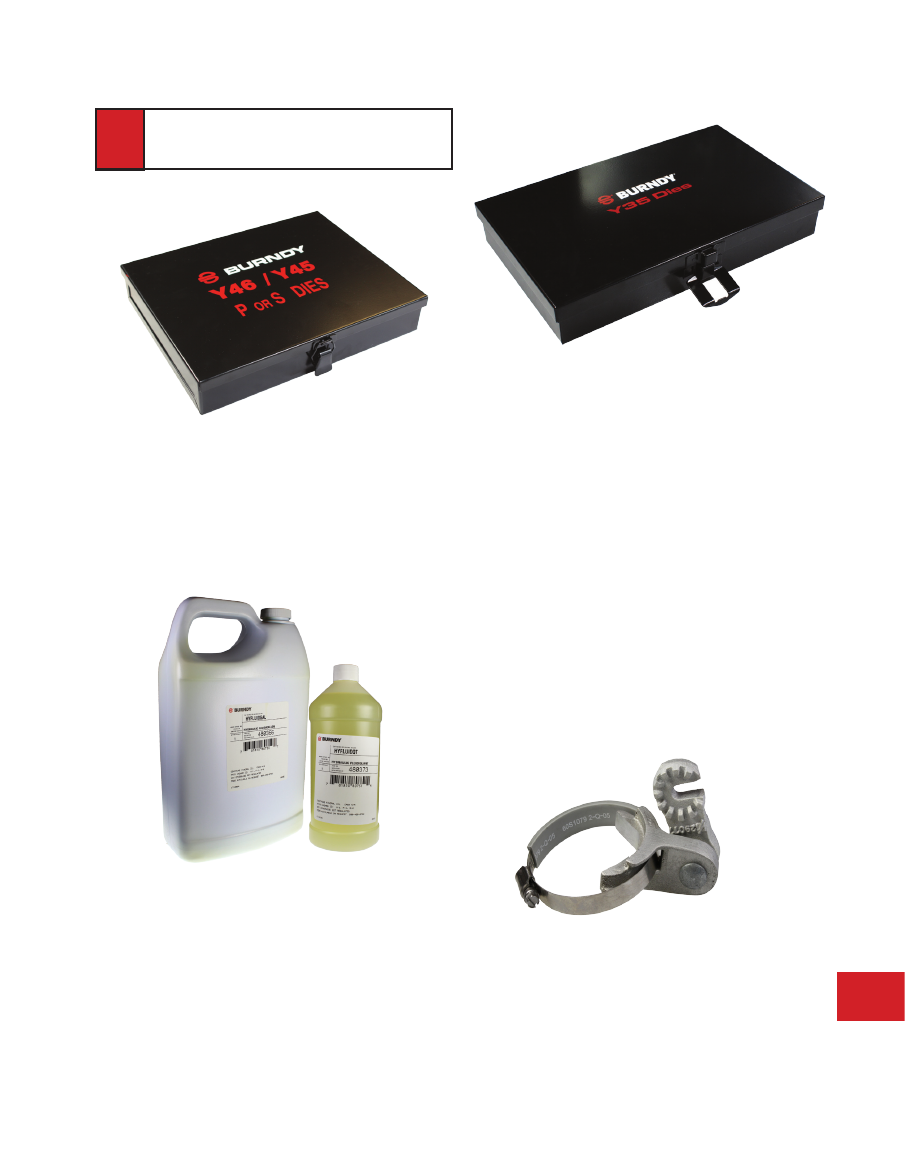

PT29291 Carry Case for U Dies

• Steel case design for storage and protection of U dies

• Accommodates 15 die sets (standard or wide width U

dies)

• Case is 9-1/2” x 6” x 1-1/2”

• Die sets sold separately

Y35/Y39REPKITA Seal Repair Kit

• Seal repair kit for Y35 or Y39 tools

Steel Carrying Cases for Y35 & Y352

• PT2972

- steel carrying case for Y35 tool

• PT29360

- steel carrying case for Y352 tool

Accessories

Adjustable Head Grip for Hot Stick

PT294021 for Y35 and Y750 remote

tools PT10128 for Y46

• Adjustable head grip for joining HYPRESS™ heads to

universal hot sticks

PT6545 Die Case for S or P Style

Die Sets

• Metal carrying case

• Accommodates 8 S or P Style Die Sets typically used

with the Y45 and Y46 series of tools

HYFLUID™ Hydraulic Fluid for

HYPRESS™ Hand Tools

• HYFLUIDQT

- quart size;

HYFLUIDGAL

- gallon size

• Hydraulic fluid for HYPRESS™ hand tools types Y35,

Y352, Y39, Y750HSXT, and Y750CHSXT

PT294021

N-103

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Gauges

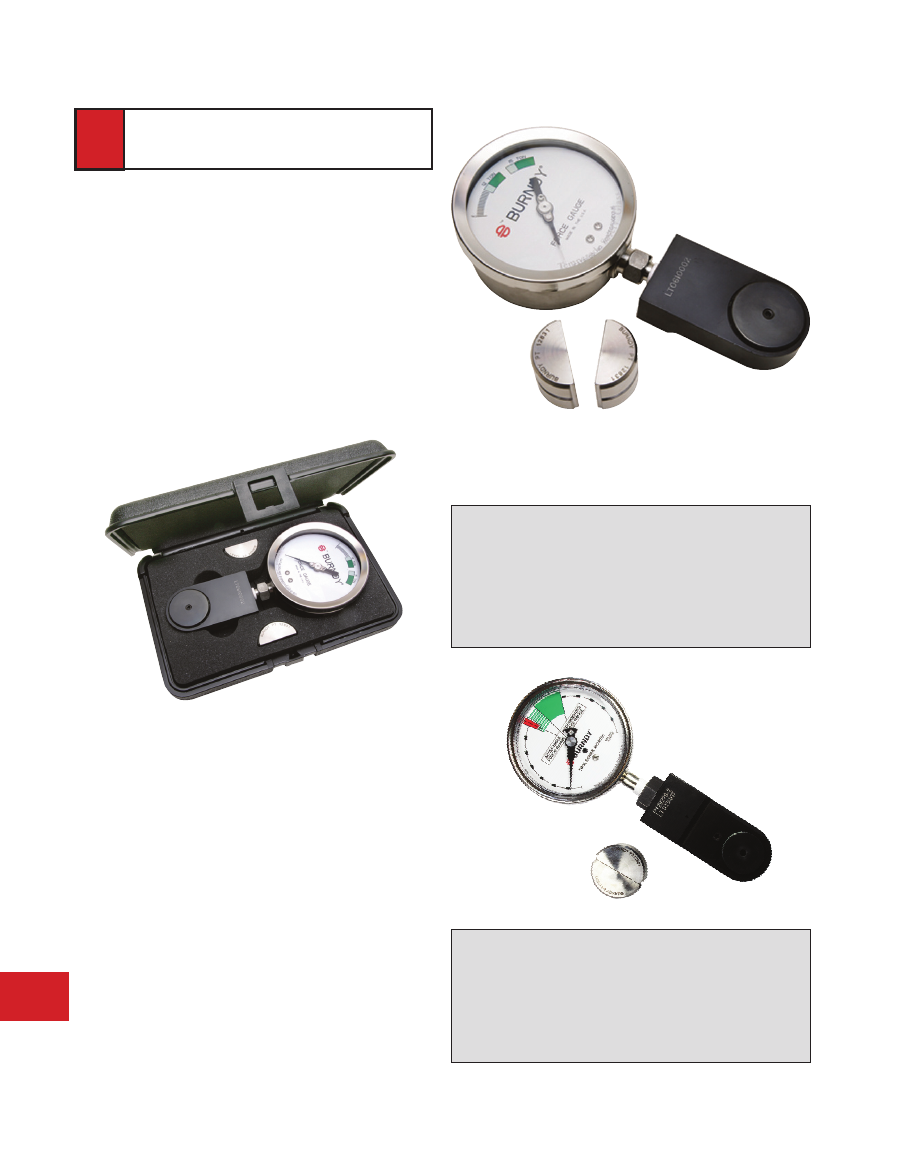

FORCEGAUGE1215

Force Test Gauge for 12 & 15 ton tools

Use with PAT46*, PAT750, Y750 and Y35

• Custom U die blanks with detent

• Accommodates 12 ton or 15 ton tools

• Comes with custom polymer-based carry case to protect

blanks and gauge

* PUADP1 adaptor required with PAT46 tool

Gauge Specifications:

Weight:

2.7 lbs (4.5 lbs for entire kit)

Size:

8.30” x 4.30” x 1.50”

Warranty:

1 year limited warranty

FORCEGAUGE1215

with die blanks (included)

FORCEGAUGE1215

in case

(all items included)

PT292792 Force Test Gauge for Y39

• For Y39 HYPRESS™ tools

• Not recommended for remote powered heads

• Easy to read dial; includes operating and maintenance

manual and test dies

Gauge Specifications:

Weight:

2.7 lbs

Size:

9.25” x 3.88” x 2.00”

Warranty:

1 year limited warranty

N-104

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Gauges

WIREMIKE

™

WIREMIKE

Stainless Steel Wire Micrometer

Available in a variety of formats

• Strong, durable, high quality

• Most formats:

• Allows for use as both caliper and ruler

• Measures I.D. and O.D. of tubing

• Measures thin-wall and rigid conduit including IPS

• Measures ACSR, stranded and solid commercial

cables

Catalog # WIREMIKE, WIREMIKED and RK1942

are for use on:

ACSR

#6 to 336.4 (26/7) Stranded

Stranded AWG

#18 to 2000 kcmil

Solid

#20 to 4/0 AWG

IPS Tubing (Cu/Al) and Rigid Conduit:

1/4” to 2-1/2”

Tubing Sizes:

3-1/8” inside maximum; 2-15/16” outside maximum

Thin-wall Conduit:

3/8” to 2-1/2”

Variations:

Catalog Number: Description:

WIREMIKE

Stainless Steel, inch/fraction markings

WIREMIKECI

Stainless Steel, no ruler capabilities but may

be used for reference on specific completed

crimps (see more detail to left for WIREMIKECI)

WIREMIKED

Stainless Steel, decimal markings in place of

fraction markings, same capabilities as catalog

# WIREMIKE™

RK1942

Convenience packaging of WIREMIKE™

(with inch markings) in packaging suitable

for hanging on a rack; sold in multiples of

10 only

Catalog # WIREMIKECI is for use on:

Compression Connectors and Splices

(including Compression Grounding)

#18 to 2500 kcmil Copper Class B

#10 to 4/0 Solid Aluminum / Copper

#18 to 3500 kcmil Concentric Aluminum

#8 to 1100 kcmil Compact Aluminum

#14 to 1111 kcmil Copper DLO

Also used for reference only* for inspection of

completed crimp when using Butting Copper or

Aluminum Dies with the 750, 46, 35, or 39 series of tools.

Copper Dies U8CRT to U44XRT

Aluminum Dies U8CABT to U39ART-2

WIREMIKECI

tool is to provide measurements for reference only,

not to confirm the suitability of connection. Customer is responsible to

independently verify suitability of connection.

Close up for the

Die Inspection Section

(Used for Reference Only*)

Catalog # WIREMIKECI only

N-105

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

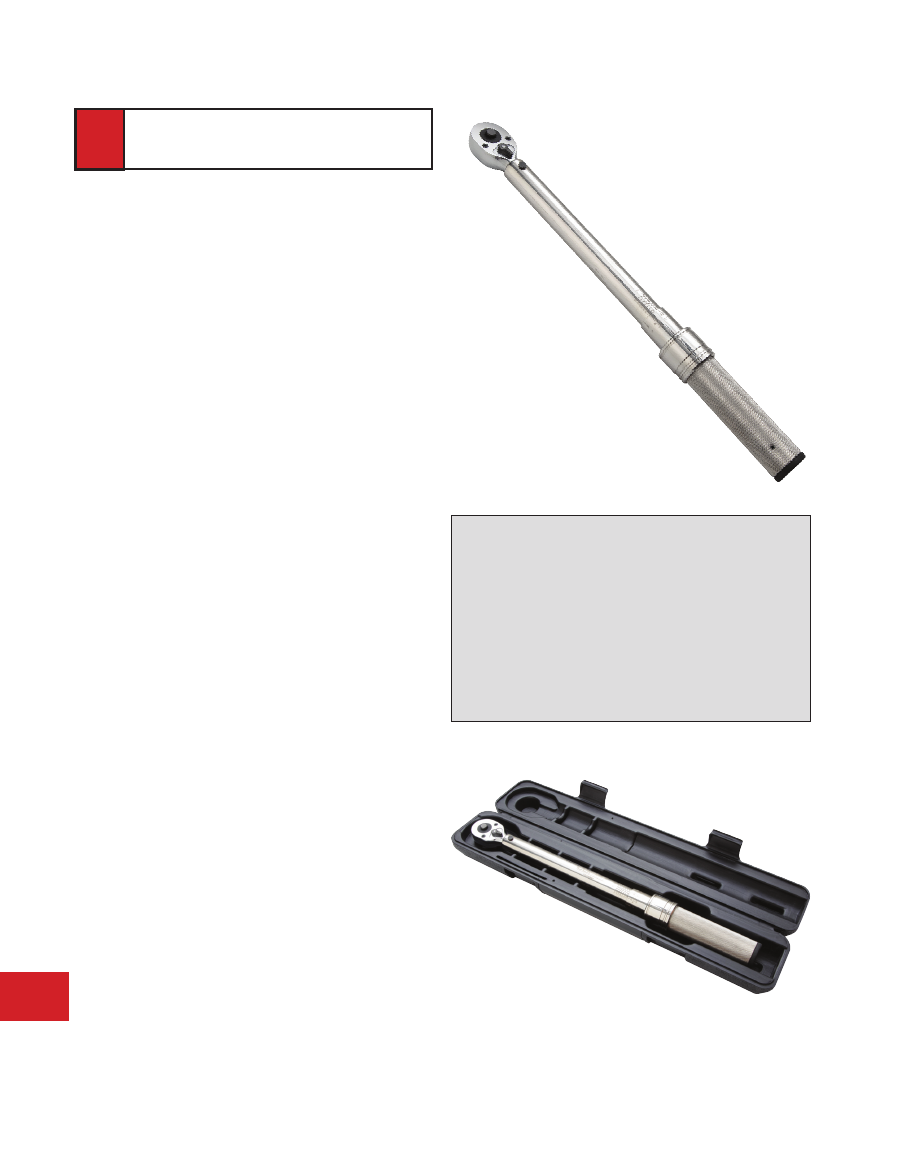

Adjustable Ratchet Torque Tools

BTW Series

Micro-Adjustable Professional Grade

Hand-operated “Click-Type” Torque Wrenches

• Ratcheting, calibrated, dual direction

• Positive lock with spring-loaded pull-down lock ring

• Individually serialized with matching certificate of calibration

traceable to N.I.S.T.

• ASME B107.14M-1994 and ISO 6789

For Use On:

Any mechanical connection with torque values within

range of specific torque wrench. Including, but not

limited to:

Types: SERVIT

, OKLIP™, VERSITAP™, SCRULUG™,

Lay-In QIKLUG™, VARITAP™, VARILUG™, KA-U

Universal Terminals, UNITAP™, POLYTAP™,

BARTAP™, Type BIPC, Terminal Blocks,

U-BLOK™, SPEC-BLOK™, VERSIPOLE™

Specifications:

Accuracy:

±4% clockwise; ±6% counter clockwise

of indicated value clockwise, from 20%

to 100% of full scale

Applicable

Standards:

ASME B107.14M-1994; ISO 6789

Calibration:

Traceable to N.I.S.T.

Warranty:

1 year limited warranty

Variations:

Catalog Number: Description:

BTW30150

Torque range 30 - 150 in-lbs; 10.25” long;

3/8” drive

BTW150750

Torque range 150 - 750 in-lbs; 16.00” long;

3/8” drive

BTW1575F12

Torque range 15 - 75 ft-lbs; 16.00” long;

1/2” drive

N-106

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

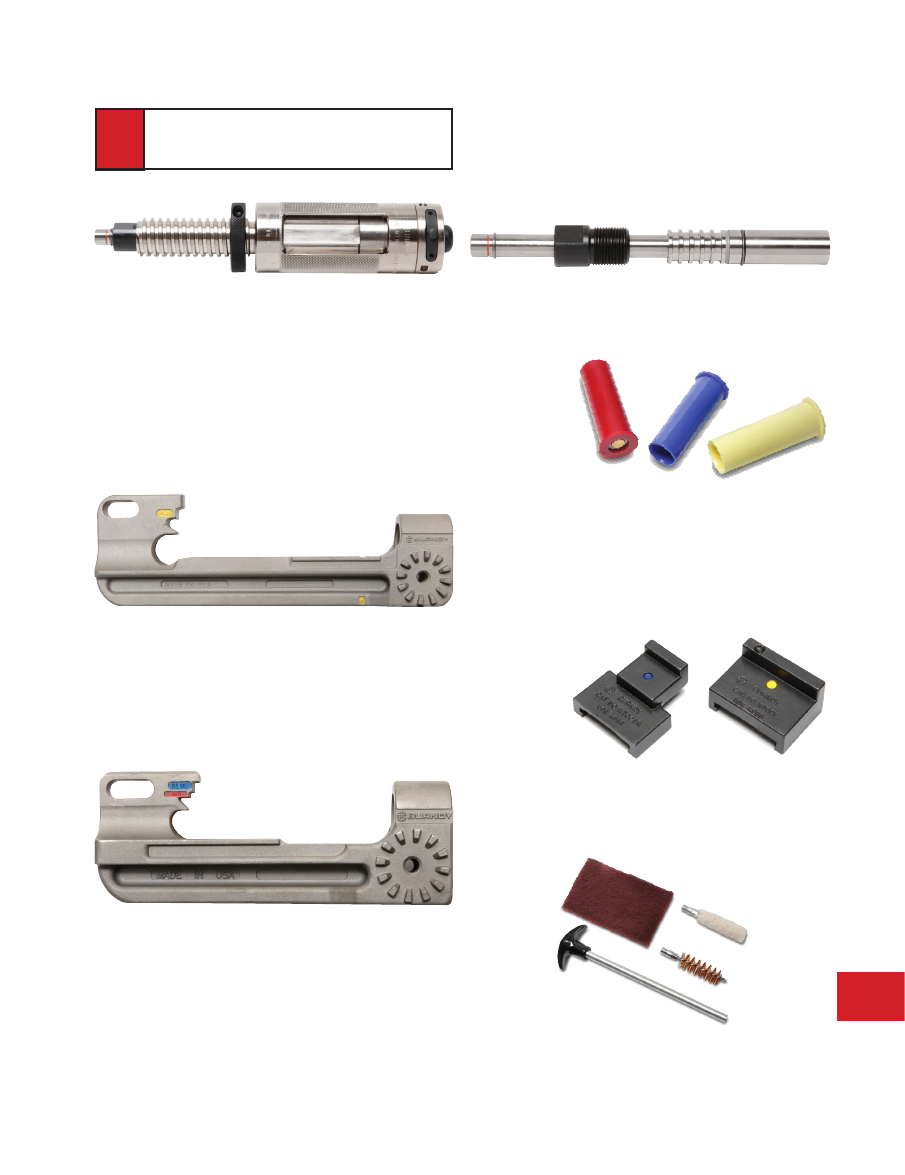

WEJTAP™ Tooling

WEJTAP

™

Tooling

WTB

• WEJTAP™ patented tool body

• One piece assembly

• Installs WEJTAP™ and STIRRUP™ connectors #8 AWG

- 1590 kcmil ACSR with applicable tool head

WEJTAP™

Boosters

• The WEJTAP™ System requires use of boosters for

installation of connectors (red, blue, and yellow boosters

match connectors)

• Boosters are available packaged with connectors and

also sold separately

Red: WPBRNBOX25

Yellow: WPBYNBOX25

Blue: WPBBNBOX25

WTHY1S

• WEJTAP™ tool head

• Installs medium and large (yellow coded) connectors

WTBASY

• WEJTAP™ ram replacement assembly

WTOCBR

and

WTOCY

• WEJTAP™ removal clip for red/blue connectors (

WTOC-

) with WTHRBY1S tool head

• WEJTAP™ removal clip for yellow connectors (

WTOCY)

with

WTHY1S tool head

WTCK

• WEJTAP™ tool cleaning/maintenance kit for use with

type WTB tool body

• Comes in clear carrying bag

WTHRB1S

• WEJTAP™ tool head

• Installs small and medium (red/blue coded) connectors

N-107

Accessories

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

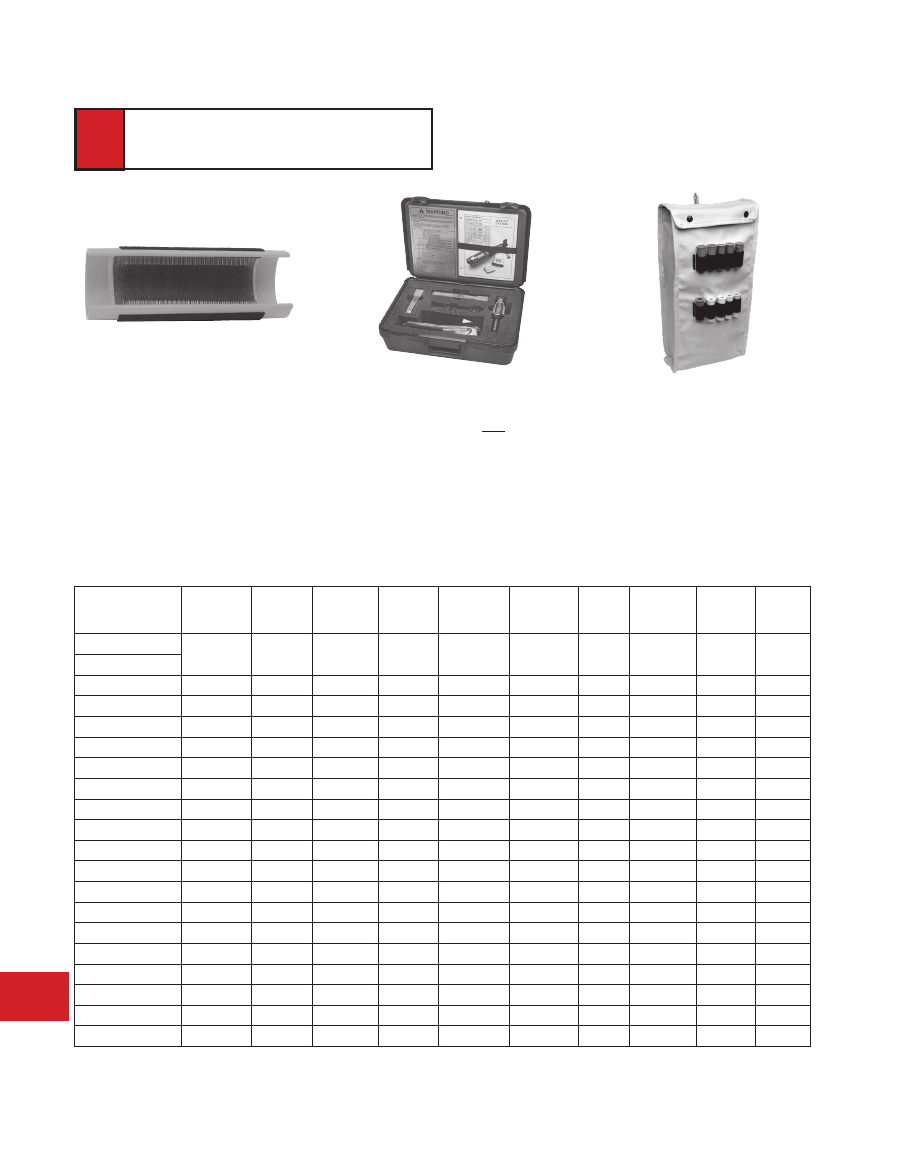

WEJTAP™ Tooling

*Non-Hotstick

Power Unit

Hotstick

Power Unit

Self-

Firing

Tool

Large

Frame

(Yellows)

Large

Frame

Take Off Clip

Small

Frame

(Red, Blue)

Cleaning

Kit

Small

Frame

Take Off Clip

Molded

Carrying

Case

Canvas

Style

Tool Bag

Component

WTBNHS*

WTB

WTBGBW

WTHY1S

WTOCY

WTHRB1S

WTCK

WTOCBR

WTCC

WABAG

Kit Catalog No.

WT2B2RBYWABAG

WT2BRBYWABAG

WTRBYK

WTRBYKNHS

WTYK

WTYKNHS

WTRBK

WTRBKNHS

WT2BRBYK

WTY

WTRB

WTYWABAG

WTYKNHSBAG

WTRBWABAG

WTRBKNHSBAG

WTBGBWRBYK

WTRBYWABAG

WTRBYKNHSBAG

WHHWB

• Hand-held wire brush for cleaning

surface contact areas on non-

energized conductors

WTCC

• Plastic carrying case only;

designed for rugged use in all

weather conditions

• Accommodates WEJTAP™

installation tool, removal clips, and

cleaning kit (sold separately)

WABAG

• Durable bag designed to carry

installation tool(s), removal

clips, cleaning kit, and hotstick

accessories; Holders for power

boosters located on outside of bag

(all sold separately)

WEJTAP™ Kits with contents shown below

*Note: Non-hotstick power units do not contain features allowing activation with hotsticks; they are not upgradeable.

Accys & Kits

N-108

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

WEJTAP™ Tooling

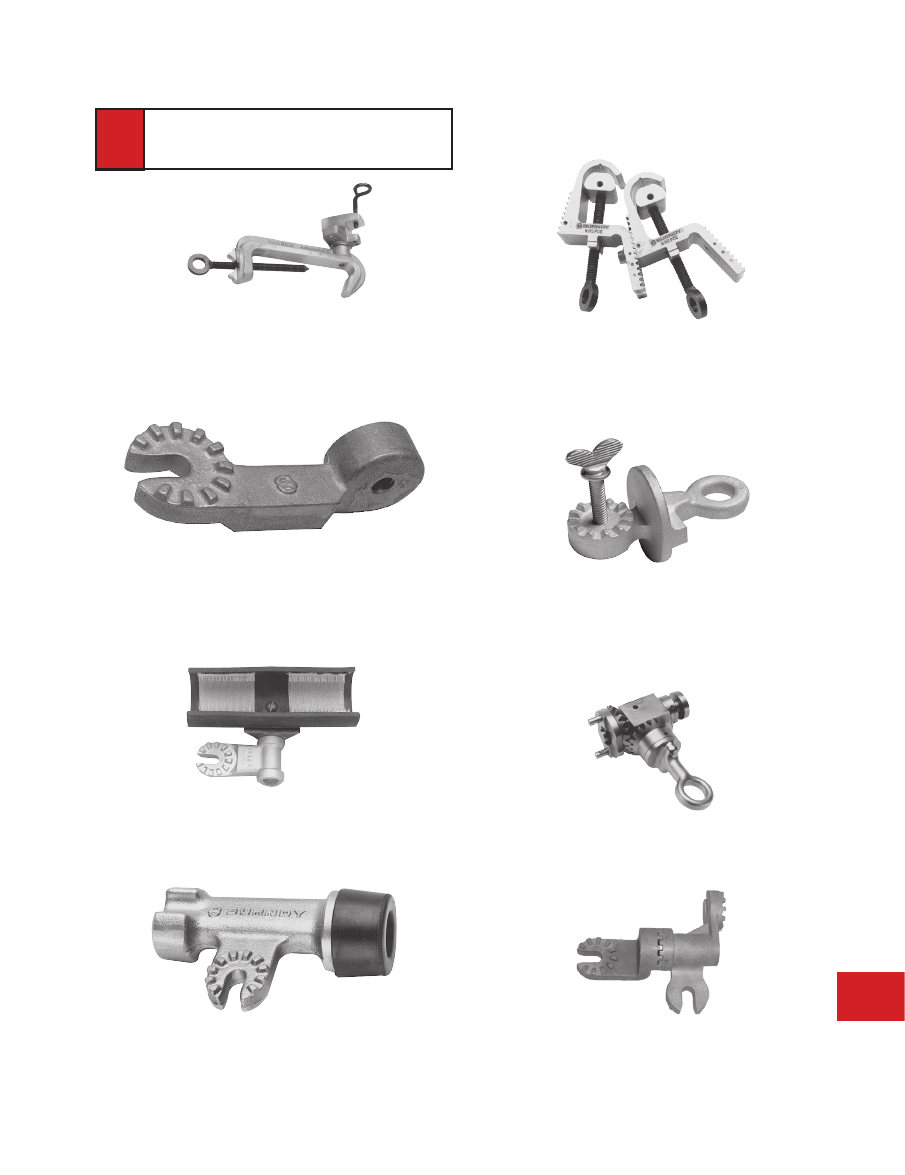

Hotstick Accys

WHSCWH

• Hotstick connector clamp holds tap connector and

wedge for installation on energized lines with shotgun

hotstick

WHSWHADP

• Hotstick angle wedge holder adapter attaches wedge

clamp to universal hotstick for hotline installation

WHSWB

• Hotstick wirebrush attaches to universal hotstick for

cleaning the contact surface of the line conductor

WHSTA

• Hotstick tool (actuator) hammer attaches to universal

hotstick for striking the actuator button to complete

installation

WHSPBC

• Hotstick dual cable clamp to hold run and tap conductors

in place during installation; for all applications #8-1272

ACSR

WCHAWAS

• Hotstick angle wedge holder adapter attaches wedge

clamp to universal hotstick for installation using shotgun

stick

WHSGB

• Hotstick breech drive; geared shotgun hotstick adapter

latches to breech end of tool without disassembly for use

on energized lines

WHSSADP

• Hotstick spring loaded 90 degree adapter; used to attach

tool to universal hotstick for hotline installations

N-109

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Auger Bits

HIW716MAG

Hydraulic

Impact Wrench

TREATED WOOD

OAL

DIA

DOMINATOR

18”

9/16”

LPHTBIT91618D

18”

5/8”

LPHTBIT5818D

18”

11/16”

LPHTBIT111618D

18”

3/4”

LPHTBIT3418D

18”

13/16”

LPHTBIT131618D

18”

15/16”

LPHTBIT151618D

24”

11/16”

LPHTBIT111624D

24”

13/16”

LPHTBIT131624D

24”

15/16”

LPHTBIT151624D

HIW716ENF

Hydraulic

Impact Wrench

N-110

DOMINATOR Auger Bits

• Single Flute

• Hardened Steel Tip

• Aggressive lead screw

• Cuts hardest of woods with very fast drilling

• Self-feeding

• 100+ Holes

For Use On:

Treated Wood

Close up of

DOMINATOR lead

screw

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Impact Wrenches — Low Pressure Hydraulic

Accessories:

Catalog Number:

Description:

HIW716ENFTGKIT:

Trigger guard assembly kit

LPHTADPMMOP66:

Male to male adaptor for use with couplers

listed below *(Qty. 2)

LPHTHTMANOSE66:

Male coupling 3/8” NPT *(Qty. 1) per tool

Qty. 2 per hose

LPHTHTMABODY66:

Female coupling 3/8” NPT *(Qty. 1) per tool

Qty. 2 per hose

LPHTHOSNCR66668:

3/8” X 8’ hose set *(Qty. 1)

LPHTHOSNCR666610:

3/8” X 10’ hose set *(Qty. 1)

(Recommended quantity for use with

HIW716ENF

)

See Low Pressure Hydraulic Accessories

for additional options

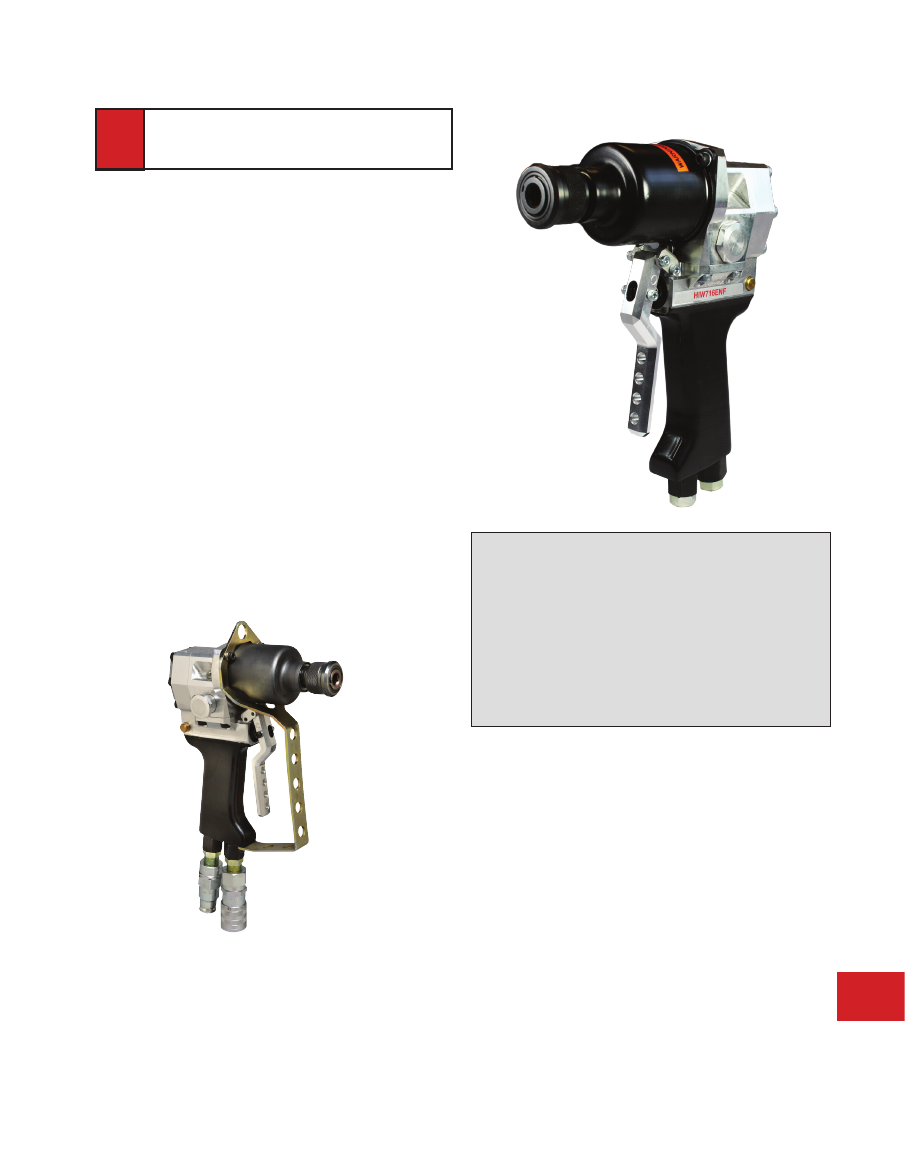

HIW716ENF

ENFORCER

Hydraulic Impact Wrench

Variable Torque; 7/16” Quick Chuck

• Industry exclusive torque selector allows switching

between 200 and 515 ft-lb torque settings

• Dual spool selector for Open and Closed systems

• Cartridge style valves for greater accuracy

• Internal safety relief valve

Variations:

Catalog Number:

Description:

HIW716ENFKIT1

Wrench, eyelet

HIW716ENFKIT2

Wrench, eyelet, flat face

couplers

HIW716ENFKIT3

Wrench, flat face couplers

HIW716ENFTG

Wrench, trigger guard

HIW716ENFTGKIT1

Wrench, trigger guard, flat

face couplers

Specifications:

Chuck Type:

7/16” Quick Change

Opt. Pressure:

750-2000 PSI

Flow Range:

4-12 GPM

Opt. Flow Range:

4-8 GPM

Weight:

6.0 lbs

Torque:

515 ft-lbs

Size:

9.00” x 7.75” x 3.12”

Warranty:

5 year limited warranty

HIW716ENFTGKIT1

Hydraulic Impact Wrench

shown with trigger guard, adaptors and couplers

See our complete line of Auger Bits

N-111

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Impact Wrenches — Low Pressure Hydraulic

Specifications:

Chuck Type:

7/16” Tri-ball quick chuck

Opt. Pressure:

1,000 - 2,000 PSI

Flow Range:

4 - 12 GPM

Opt. Flow Range:

4 - 8 GPM

Weight:

7.6 lbs

Torque:

550 ft-lbs

Size:

9.62” x 9.00” x 3.62”

Warranty:

5 year limited warranty

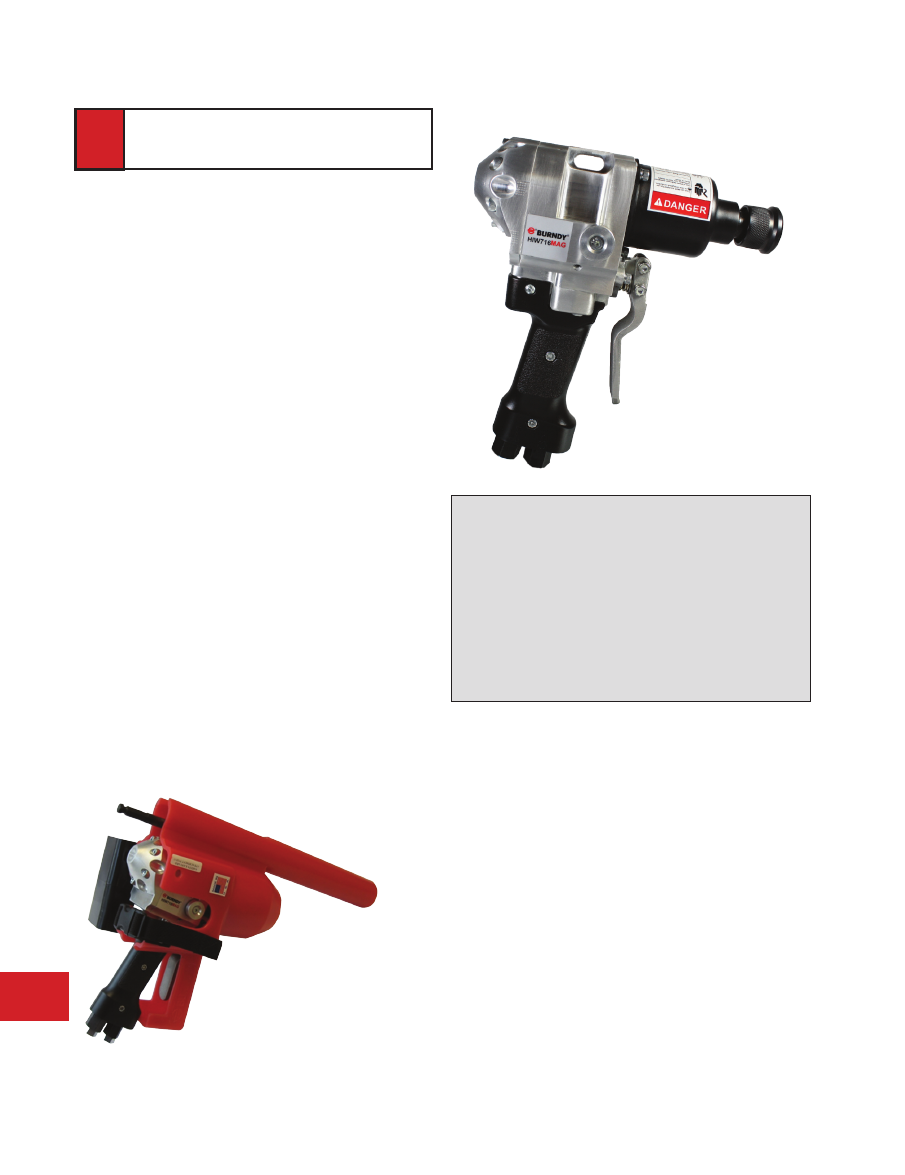

MAG Series, Hydraulic Impact Wrench

achined

luminum,

erotor Design

• Aircraft grade extruded aluminum body, forged handle

• CNC machined parts

• Frictionless gerotor motor

• Cartridge style valve

• 7/16” Tri-ball quick change chuck

• Dual spool selector for Open & Closed systems

• “Glove-sized” wide grip activation trigger

• Inlet/Outlet SAE 6 adapters

• Reverse flow and hook-up protection

• Injection molded thermally insulated textured comfort

grips

• Forward/Reverse selector

Variations:

Catalog Number: Description:

HIW716MAGKIT1

Wrench, flat face couplers

HIW716MAGKIT2

Wrench, swivels, 8’ NCR hose, flat face

couplers

HIW716MAGKIT3

Wrench, swivels, 10’ NCR hose, flat face

couplers

HIW716MAGKIT4

Wrench, flat face couplers, trigger guard

HIW716MAGKIT5

Wrench, flat face couplers, trigger guard,

handle

MAG

HOLSTER

(tool not included)

Also see our full line of Auger Bits!

HIW716

MAG

Accessories:

Catalog Number:

LPHTADPMM71612

7/16” quick chuck to 1/2” square drive adapter

LPHTADPMMOP66 (2 required)

SAE #6 to 3/8” NPT male-to-male adaptor

LPHTHTMANOSE66

3/8” male coupler (flat face) with 3/8” NPT (female thread)

LPHTHTMABODY66

3/8” female coupler (flat face) with 3/8” NPT (female thread)

LPHTHOSNCR66668

3/8” X 8’ hose set

LPHTHOSNCR666610

3/8” X 10’ hose set

LPHTADPSMFOP66 (2 required)

SAE swivel adapter

See Low Pressure Hydraulic Accessories

for additional options

N-112

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Low Pressure Hydraulic

KOMPRESSOR™ Remote Operated

12 Ton Low Pressure Hydraulic Compression Tool

• Visual and audible crimp indicator

• 1.65” jaw opening covers a range of applications

• 350º head rotation

• Uses all standard BURNDY

U dies

• Crimp time approximately 2 seconds

For Use On:

Tension Sleeves

Copper

#8 sol. - 500 kcmil

Aluminum

#8 sol. - 587.2 kcmil

ACSR

#4 - 556.5 kcmil

Taps

Copper

#14 sol. - 500 kcmil

Aluminum

#8 - 500 kcmil

Aerial Cable

Copper

#6 - 500 kcmil

Terminals & Splices

Copper

#8 - 750 kcmil

Aluminum

#8 - 750 kcmil

ACSR

#4 - 556.5 kcmil

HYGROUND

(Compression Grounding)

Copper

#8 - 500 kcmil

Ground Rods

1/2” - 1” diameter

LPHY750XT

Specifications:

Flow Rate:

3 - 9 GPM (11 - 34 LPM)

Operating Pressure:

1,500 - 2,500 PSI (103 - 172 BAR)

Force Developed:

12 Tons

Die Style:

U dies

Jaw Opening:

1.65”

Weight:

21.0 lbs (9.5 kg)

Size:

20.75” x 15.00” x 12.00”

Max. Back Pressure:

250 PSI (17 BAR)

Warranty:

5 year limited warranty

Accessories:

Catalog Number:

Description:

LPHTHOSNCR66668OP:

Direct connect 8’ non-conductive

hose set

LPHTHOSNCR666610OP:

Direct connect 10’ non-conductive

hose set

LPHTHOSNCR66668:

8’ non-conductive hose set

LPHTHOSNCR666610:

10’ non-conductive hose set

LPHTHTMANOSE66:

Male coupler 3/8” HTMA

LPHTHTMABODY66:

Female coupler 3/8” HTMA

LPHTADPSMFOP66:

Swivel Adapter

*These hoses are used with

LPHTADPSMFOP66

swivel adapter

See Low Pressure Hydraulic Accessories

for additional options

Variations:

Catalog Number: Description:

LPHY750XT

Standard KOMPRESSOR™ tool

LPHY750CXT

LPHY750XT with molded rubber covering

LPHY750K

LPHY750XT with KEARNEY head

LPHY750XT

shown with couplers (sold separately)

N-113

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Low Pressure Hydraulic

Accessories:

See Low Pressure Hydraulic Accessories for options

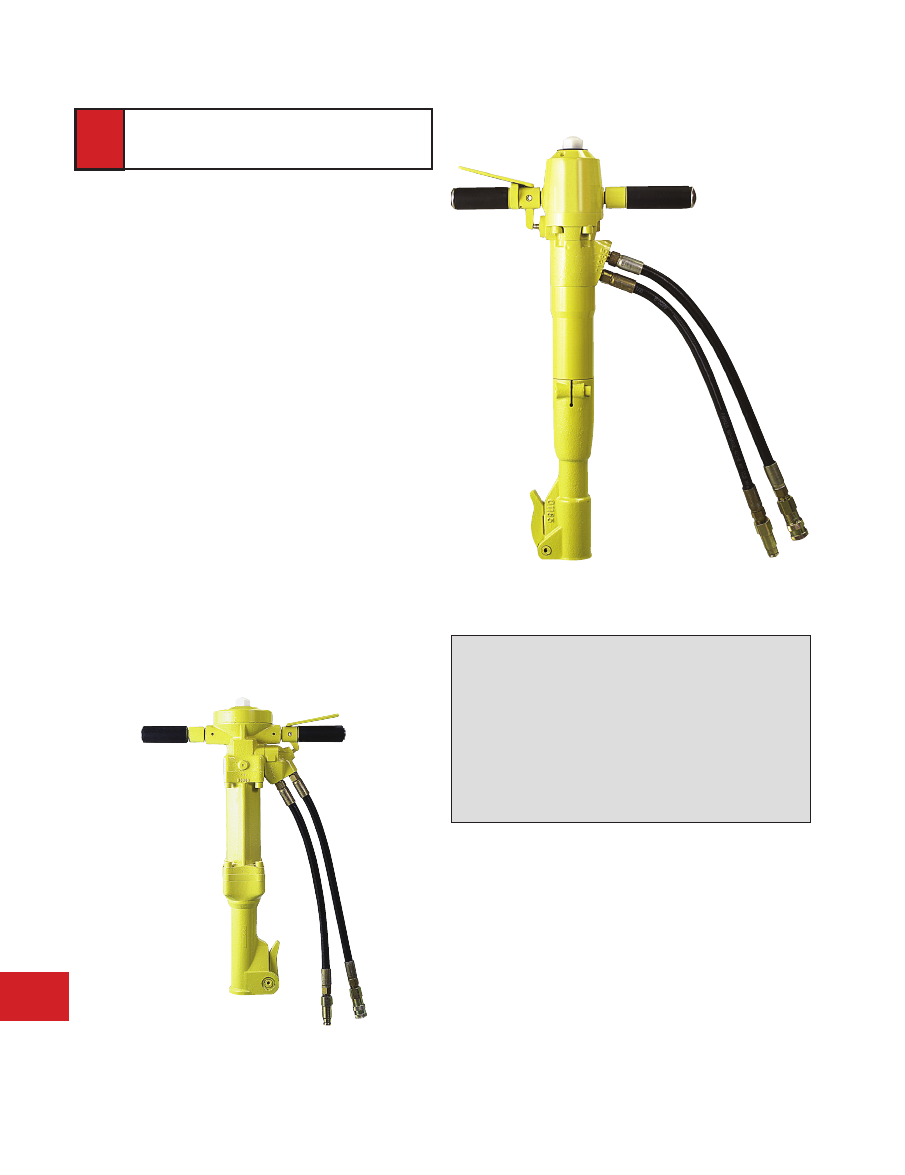

HBR Series

Hydraulic Breakers

Light/Medium Duty (

HBR40

)

Medium/Heavy Duty (

HBR66

)

• Control trigger built into handle

• Provided with 18” braided whip hoses (couplers ordered

separately)

• Standard tool attachment mechanism allows use of all

standard tool bits

Variations:

Catalog Number: Description:

HBR40

Light to Medium Duty Hydraulic Breaker

Performance: 45-55 lb class breakers;

Weight: 40 - 48 lbs.; Length: 25”;

Tool Steel Capacity: 1” x 4-1/4”

HBR66

Medium to Heavy Duty Hydraulic Breaker

Performance: 60 - 80 lb class breakers;

Weight: 50 - 67 lbs.; Length: 27” to 35”;

Tool Steel Capacity: 1-1/4” x 6”

Specifications:

Flow:

4 - 7 GPM (15 - 27 LPM)

Optimum Flow:

4 GPM (15 LPM)

Pressure:

1200- 2000 PSI (85 - 140 BAR)

Max. Back Pressure:

150 PSI (11 BAR)

Whip Hoses:

18” with 3/8” NPT fittings

Warranty:

5 year limited warranty

HBR66

Medium and Heavy Duty Hydraulic Breaker

HBR40

Light and Medium Duty Hydraulic Breaker

N-114

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Low Pressure Hydraulic

Accessories:

Catalog Number:

Description:

HOSE325:

25 ft. long hose (for HTP3)

HOSE350:

50 ft. long hose (for HTP3)

HP2CAMLOCKHOSESET:

Hose Set Kit (for HP2HV)

HOSE2:

25 ft. long hose (for HP2HV)

See Low Pressure Hydraulic Accessories

for additional options

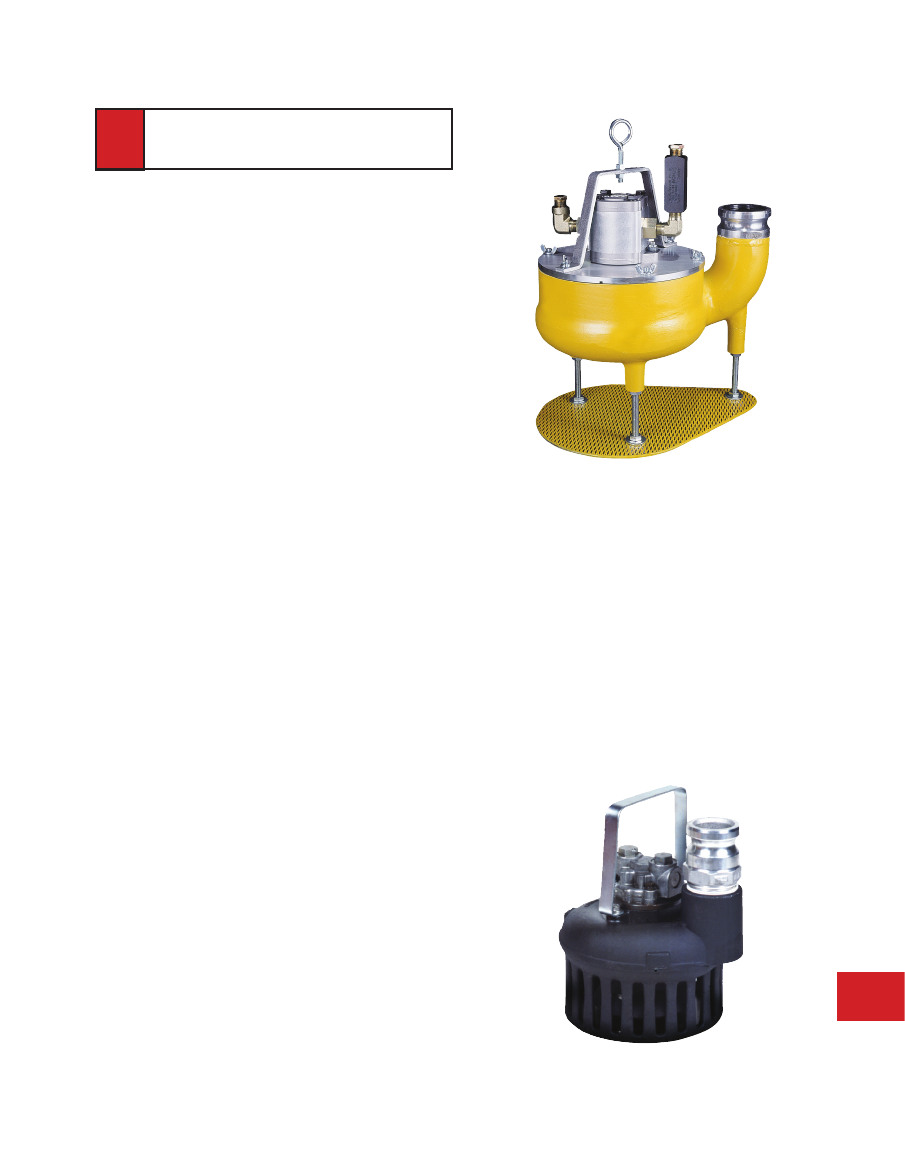

Fully Submersible,

1,000-2,000 PSI Pumps

Provided with whip hoses

• Self-lubricating design

• Totally submersible

• Can run dry without damage

• Open/Closed Center operation

Variations:

Catalog Number: Description:

HTP3

3” Submersible pump; 7-10 GPM flow;

40 lbs.; Pump capacity: 500 GPM (1900

LPM); Gear Motor; 3” Male Cam-lock;

40’ maximum lift; 1/2” x 14 (#8) NPT (F)

HP2HV

Submersible pump adaptable to 2” or 2-1/2”

discharge; 4-9 GPM flow; 13 lbs.; Pump

capacity: 340 GPM; Gerotor Motor

Submersible Pumps

HTP3

HP2HV

N-115

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Low Pressure Hydraulic

Accessories:

Catalog Number: Description:

TSKD:

Kidney shoe; 3” x 8” (7.6 cm x 20.3 cm)

TSSQ:

Square shoe; 8” x 8” (20.3 cm x 20.3 cm)

LPWHPKITD:

Whip Hose Kit

See Low Pressure Hydraulic Accessories

for additional options

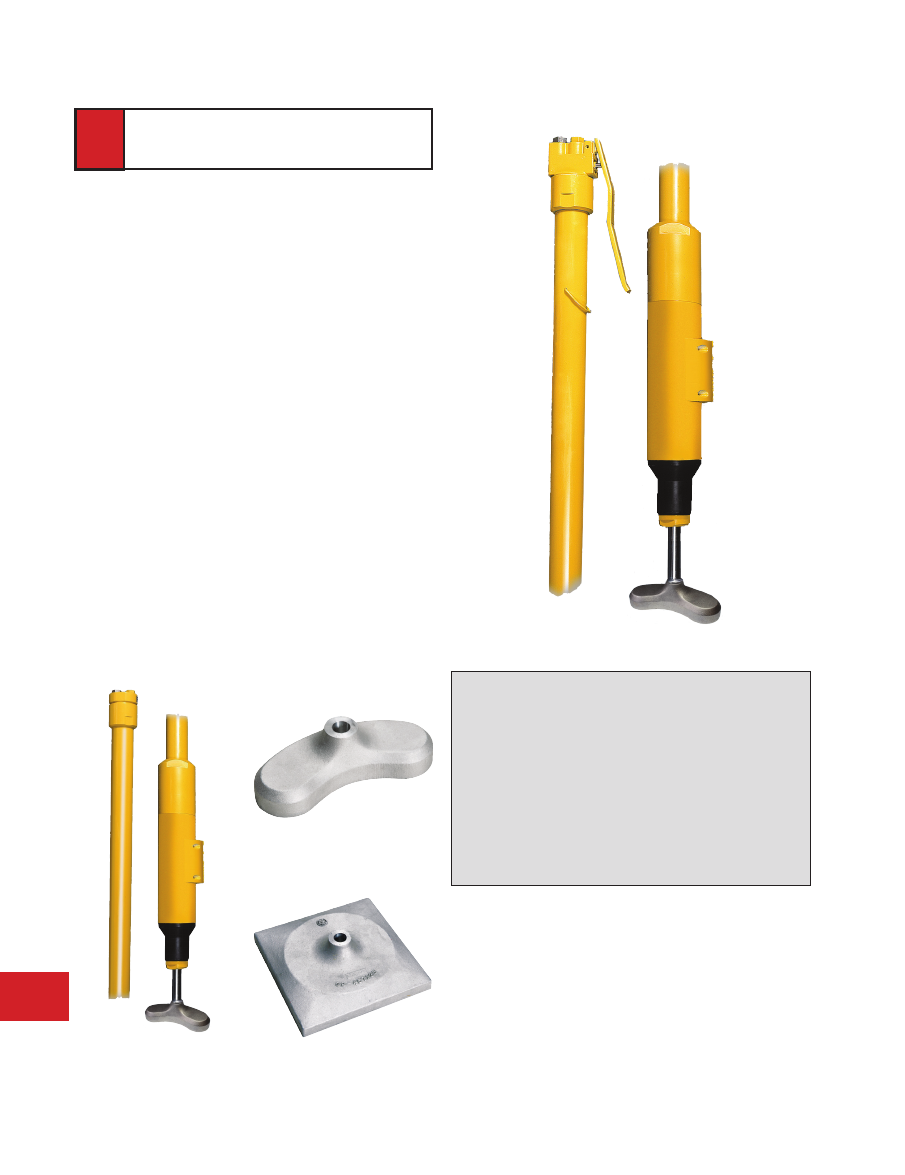

HPT-R1 Series

Low Pressure Hydraulic Pole Tampers

Available with or without On/Off Valve

• Patented valving prevents impacting of ram within tamper

• Stroke amplitude of 1-5/8”

• Stroke frequency of 1375 blows/min

• Interchangeable heavy duty tamper shoes (sold separately)

Variations:

Catalog Number: Description:

HPT60R1

60” length; 29 lbs; with On/Off valve

HPT72R1

72” length; 30 lbs; with On/Off valve

HPT84R1

84” length; 32 lbs; with On/Off valve

HPT96R1

96” length; 34 lbs; with On/Off valve

HPT59R1

59” length; 26 lbs; without On/Off valve

HPT71R1

71” length; 28 lbs; without On/Off valve

HPT83R1

83” length; 31 lbs; without On/Off valve

Specifications:

Flow:

4-10 GPM (15-38 LPM)

Pressure:

1000-2000 PSI (70-140 BAR)

Max. Back Pressure:

250 PSI (17 BAR)

Operation:

Open/Closed Center

Stroke Amplitude:

1-5/8”

Stroke Frequency:

1375 per minute

Tool Ports:

#6 SAE O-Ring (F)

Warranty:

5 year limited warranty

Hydraulic Tamper with On/Off Valve

Hydraulic Tamper

without On/Off Valve

TSKD

Kidney Tamper Shoe

TSSQ

Square Tamper Shoe

N-116

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Low Pressure Hydraulic

Variations:

Catalog Number: Description:

HHSO/CB13

13” cutting capacity; 15-1/2” bar length;

7.5 lbs; 24” overall length

HHSO/CB16

16” cutting capacity; 18-1/2” bar length;

8.0 lbs; 27” overall length

HHSO/CB20

20” cutting capacity; 22-1/2” bar length; 8.5 lbs;

30” overall length

Accessories:

See Low Pressure Hydraulic Accessories for options

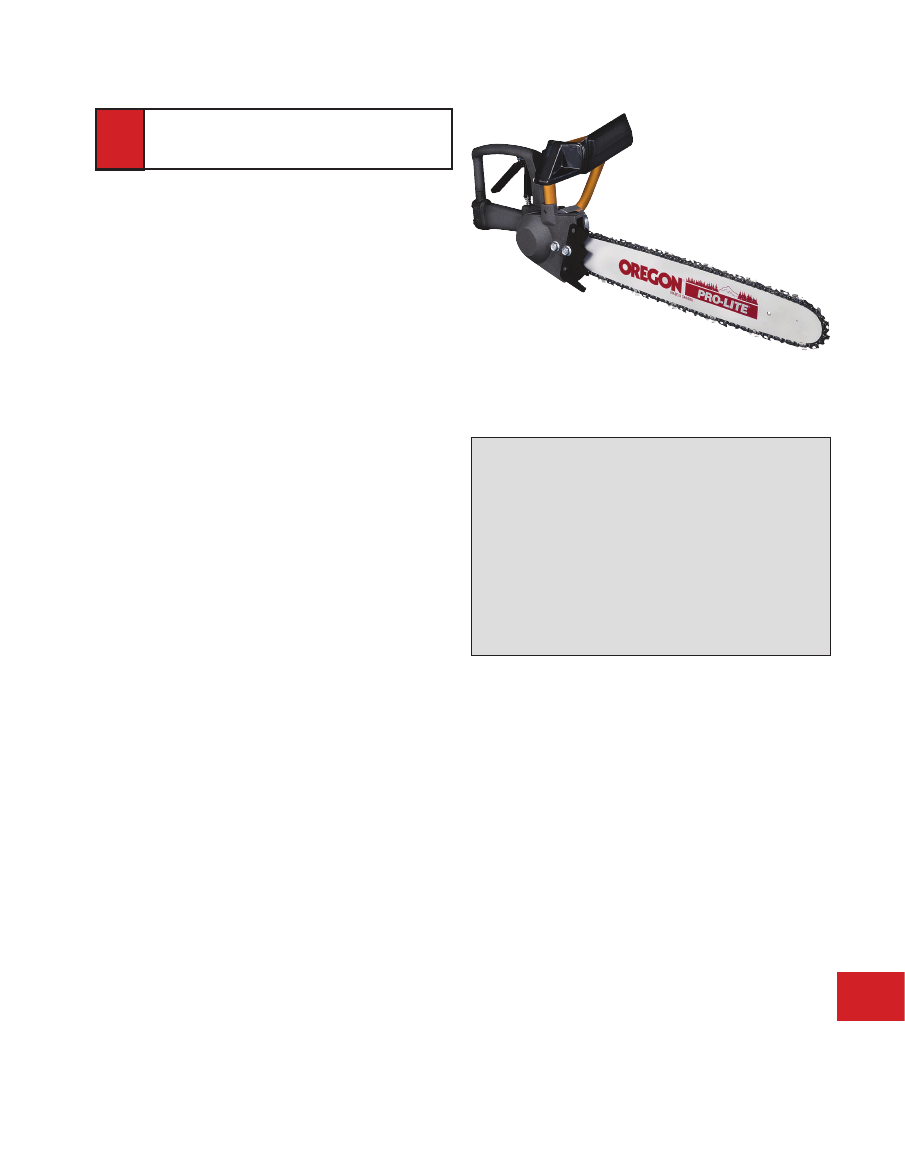

HHS Series

Hydraulic Hand Chain Saws

Low Pressure Hydraulic Chain Saws

• Gerotor-type motor has lifetime warranty

• .325” pitch anti-kickback chain

• Dual action spool switches from open to closed center

operation easily

Specifications:

Flow:

5-8 GPM (19-30 LPM)

Pressure:

1000-2000 PSI (70-140 BAR)

Max. Back Pressure:

250 PSI (17 BAR)

Operation:

Open/Closed Center

Motor:

Gerotor (lifetime warranty)

Chain:

.325” pitch anti-kickback

Tool Ports:

#6 SAE O-Ring (F)

Warranty:

5 year limited warranty

HHSO/CB13

Low Pressure Hydraulic Hand Chain Saw

N-117

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Low Pressure Hydraulic

Variations:

Catalog Number: Description:

HPS1371LW

71” overall length; 1.312” pole diameter;

13” cutting capacity; 8.0 lbs

HPS1383LW

83” overall length; 1.312” pole diameter;

13” cutting capacity; 8.2 lbs

Accessories:

See Low Pressure Hydraulic Accessories

for additional options

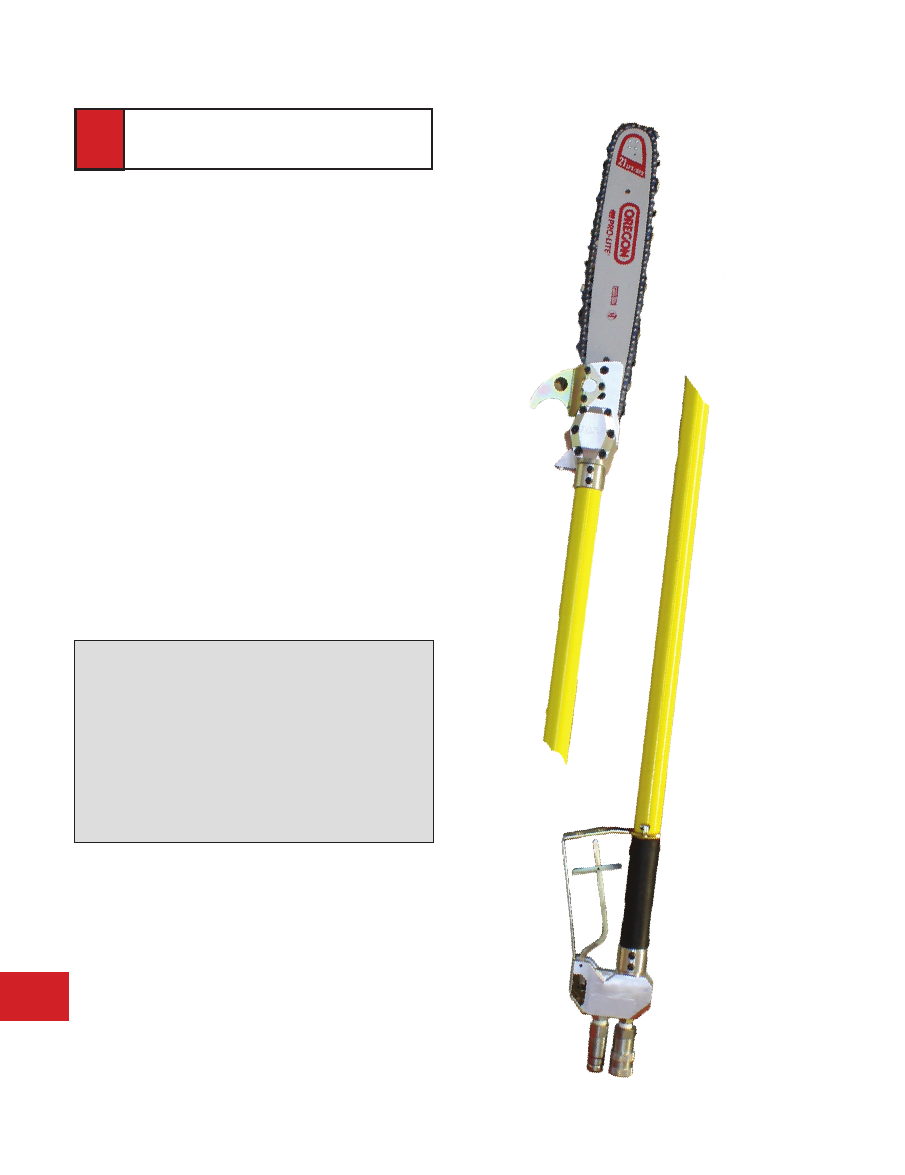

HPS-LW Series

Hydraulic Pole Saws

Light weight, low pressure hydraulic

• CNC machined Aircraft grade solid Aluminum body and

handle

• Branch hook

• Cartridge style valve

• External bar oiler

• 2-stage safety trigger, anti-kickback chain and anti-slip grip

• Fiberglass tube tested at final assembly with AB Chance

Hot Stick Tester Model CC403-3178 to the value specified

as per OSHA 1910.269

Specifications:

Flow:

4-8 GPM (16-30 LPM)

Pressure:

1000-2000 PSI (70-140 BAR)

Max. Back Pressure:

250 PSI (17 BAR)

Operation:

Open/Closed Center

Motor:

Gear

Chain:

.325” pitch anti-kickback

Tool Ports:

#6 SAE O-Ring

Warranty:

5 year limited warranty

N-118

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Low Pressure Hydraulic

Accessories:

See Low Pressure Hydraulic Accessories for options

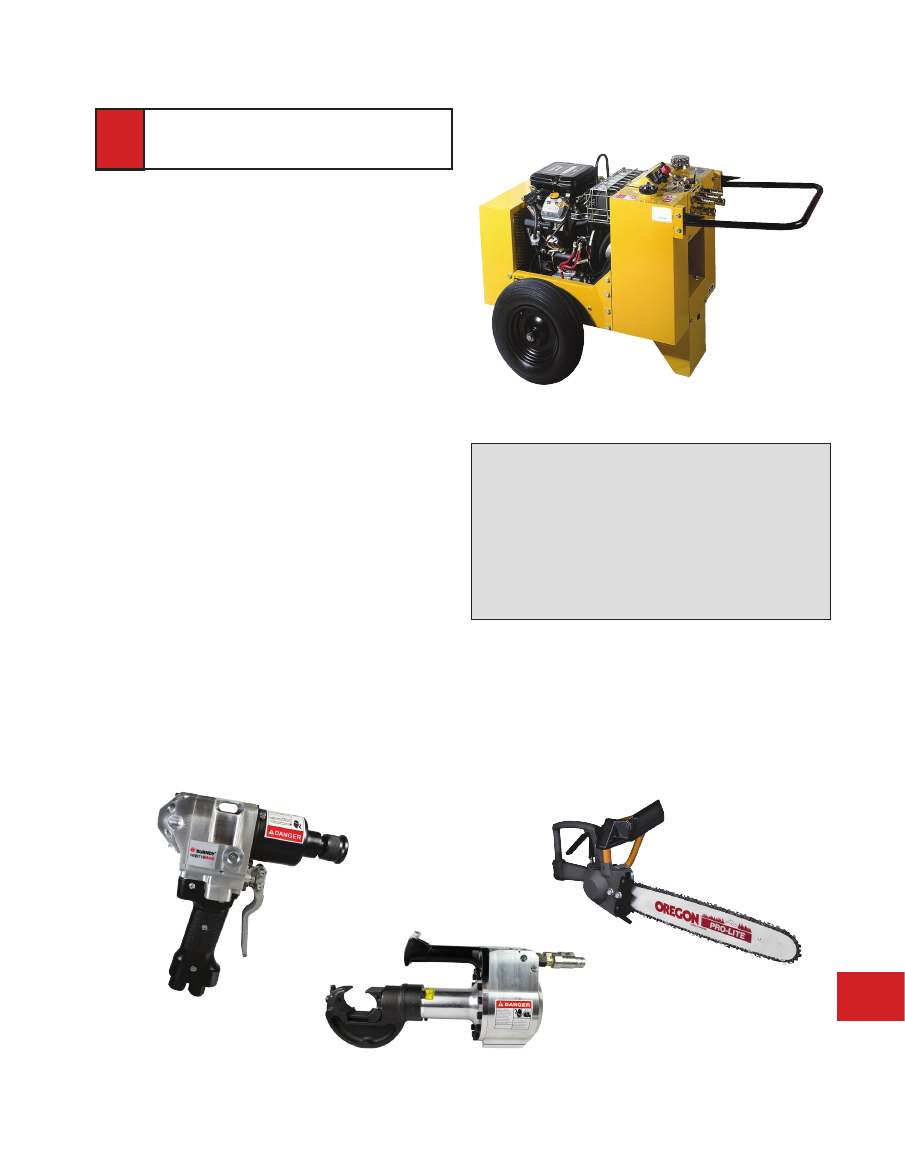

HPP Series

Hydraulic Power Pack, Low Pressure

Available for single or dual circuit

• Integral oil cooling system

• Fully shrouded fan and changeable oil filter

• Manual choke with adjustable throttle mechanism

Variations:

Catalog Number: Description:

HPP18

Output/Flow 1 @ 2000 PSI @ 1-10 GPM (138 Bar

@ 0-38 LPM); 18 HP @ 3500 RPM; Variable GPM

output valve

HPP182

Output/Flow 2 @ 2000 PSI @ 5 GPM or 1 @ 2000

PSI @ 10 GPM; can simultaneously operate two (2) 5

GPM tools OR 1 (1) tool at 10 GPM; 18 HP @ 3500

RPM

HPP5

Output/Flow 1 @ 1450 PSI; L: 20” x H: 18” x W: 17”

5.5 HP engine with recoil start; Dry Weight: 83 lbs;

Fuel Tank Capacity: 1 gallon; Hydraulic Oil Capacity:

1.25 gallons

Specifications (HPP18 Series):

Dry Weight:

233 lbs (105.6 kg)

Size:

35.00” x 32.00” x 29.00”

Motor.:

18 HP @ 3500 RPM

Warranty:

5 year limited warranty

Examples of some of the tools

for use with the HPP series of

Hydraulic Power Packs.

N-119

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Low Pressure Hydraulic

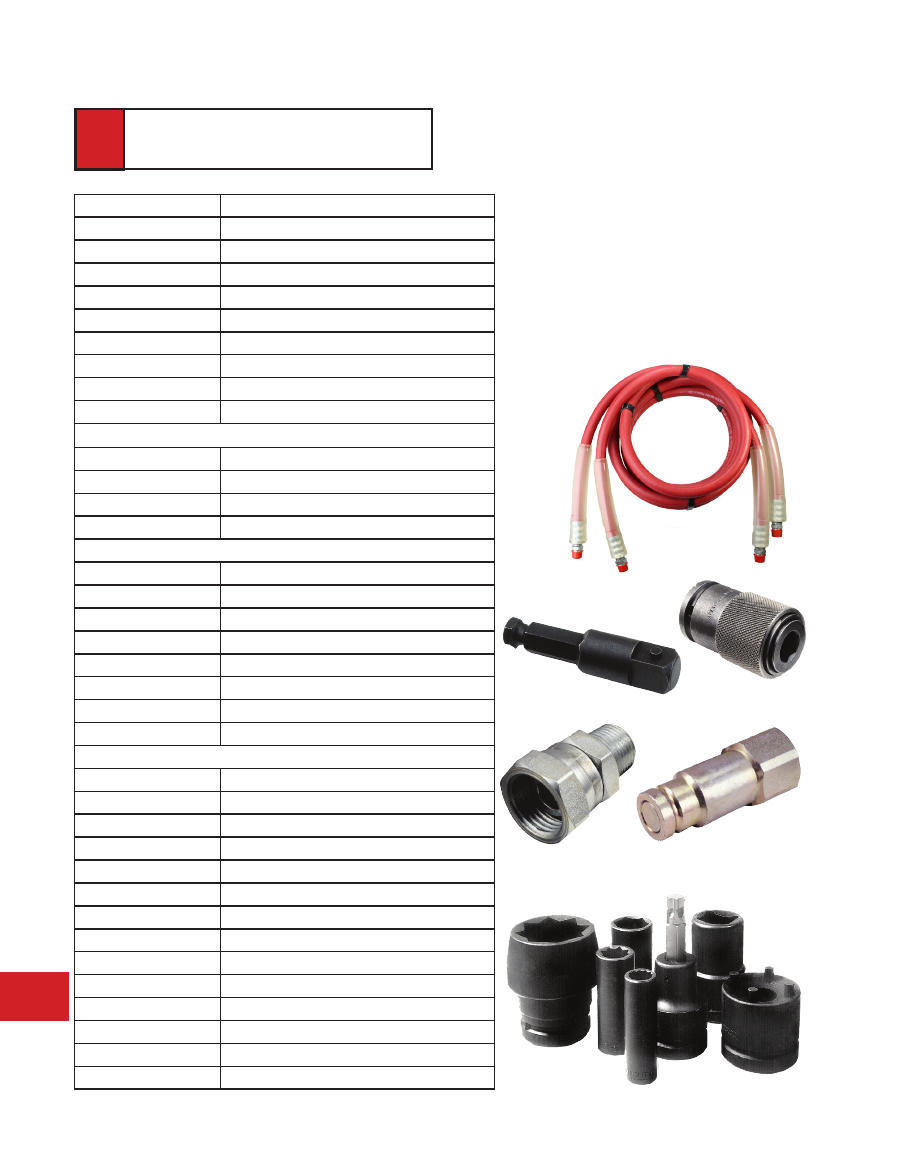

LPHT Accessories

Catalog Number

Description

LPHT3CHISEL11418

3” Chisel, 1-1/4”, hex, 18” long

LPHTASPHALTCUT118

Asphalt cutter, 1-1/8” hex

LPHTCLAYSPADE118

Clay spade, 1-1/8” hex

LPHTGRDVR11458

Ground rod driver, 1-1/4” hex, 5/8” rod

LPHTMOILPT118

Moil point, 1” hex, 18” long

LPHTNARCHISEL11814

Narrow chisel, 1-1/8” hex, 14” long

LPHTADPMM71612

7/16” Quick chuck adaptor x 1/2” square

HIW71612TGKIT

Trigger guard for HIW716

LPHTADPMMOP66

ADP Male/Male SAE #6, 3/8 NPT (2 required per tool)

LPHT HOSES Red or Orange

LPHTHOSNCR666610

Hose; Insulated, 10 foot; 3/8 NPT, 3/8 NPT

LPHTHOSNCR66668

Hose; Insulated, 8 foot; 3/8 NPT, 3/8 NPT

LPHTHOSNCR6668OP

Hose; Insulated, 8 foot, SAE #6, 3/8 NPT

LPHTHOSNCR666610OP

Hose; Insulated, 10 foot, SAE #6, 3/8 NPT

COUPLERS

LPHTDRIPBODY66

Dripless body; 3/8 body, 3/8 NPT

LPHTDRIPBODY88

Dripless body; 1/2 body; 1/2 NPT

LPHTDRIPNOSE66

Dripless nose; 3/8 nose, 3/8 NPT

LPHTDRIPNOSE88

Dripless nose; 1/2 nose, 1/2 NPT

LPC38S

3/8, 3/8 NPT Flush face coupler set (body & nose)

LPC12S

3/8, 1/2 NPT Flush face coupler set (body & nose)

LPHTHTMADUSTCAPF

HTMA dust cap body

LPHTHTMADUSTCAPM

HTMA dust cap nose

SOCKETS

LPHTSOC121

Socket - 1/2” drive x 1”

LPHTSOC121116

Socket - 1/2” drive x 11/16”

LPHTSOC12112

Socket - 1/2” drive x 1-1/2”

LPHTSOC12114

Socket - 1/2” drive x 1-1/4”

LPHTSOC12118

Socket - 1/2” drive x 1-1/8”

LPHTSOC1212

Socket - 1/2” drive x 1/2”

LPHTSOC121316

Socket - 1/2” drive x 13/16”

LPHTSOC12138

Socket - 1/2” drive x 1-3/8”

LPHTSOC121716

Socket - 1/2” drive x 1-1/16”

LPHTSOC1234

Socket - 1/2” drive x 3/4”

LPHTSOC1258

Socket - 1/2” drive x 5/8”

LPHTSOC1278

Socket - 1/2” drive x 7/8”

LPHTSOC12916

Socket - 1/2” drive x 9/16”

HIW12SOCSET

Socket set - 1/2” drive DP IMP 6 Point

NOTE:

Only the most common accessories and

sizes are shown. BURNDY has over 200

accessory items for your Low Pressure

Hydraulic needs; if you don’t see what you

are looking for call us at Customer Service:

1-800-346-4175.

Auger Bits are featured on the Auger Bit

pages earlier in the catalog.

N-120

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Expanded Cable Range

AYP/AYPO CONNECTORS

(Aluminum and Copper — Code & Compact)

Wire Size Expanded Range

Pin

# Crimps*

Straight

Offset

#6 AWG

AYP6

—

#4 AWG

AYP4

—

#2 AWG

#4 - #2 AWG

AYP2

—

#1 AWG

#2 - #1 AWG

AYP1

—

1/0 AWG

#2 - 1/0 AWG

AYP1/0

—

2/0 AWG

#1 - 2/0 AWG

AYP2/0

AYPO2/0

3/0 AWG

1/0 - 3/0 AWG

AYP3/0

AYPO3/0

4/0 AWG

2/0 - 4/0 AWG

AYP4/0

AYPO4/0

250 kcmil

3/0 - 250 kcmil

AYP250

AYPO250

300 kcmil

4/0 - 300 kcmil

AYP300

AYPO300

350 kcmil

250 - 350 kcmil

AYP350

AYPO350

400 kcmil

350 - 500 kcmil

AYP400

AYPO400

500 kcmil

350 - 500 kcmil

AYP500

AYPO500

600 kcmil

400 - 600 kcmil

AYP600

AYPO600

750 kcmil

500 - 750 kcmil

AYP750

AYPO750

Aluminum & Copper Conductor (Code & Compact)

Conductor

Connector

Wire Size

Expanded Range

Terminal

Splice

# Crimps*

#8 AWG

YA8CA-

YS8CA-

#6 AWG

YA6CA-

YS6CA-

#4 AWG

#6 - #4 AWG

YA4CA-

YS4CA-

#2 AWG

#6 - #2 AWG

YA2CA-

YS2CA-

#1 AWG

#6 - #1 AWG

YA1CA-

YS1CA-

1/0 AWG

#6 - 1/0 AWG

YA25A-

YS25A-

2/0 AWG

#4 - 2/0 AWG

YA26A-

YS26A-

3/0 AWG

#2 - 3/0 AWG

YA27A-

YS27A-

4/0 AWG

#1 - 4/0 AWG

YA28A-

YS28A-

250 kcmil

1/0 AWG - 250 kcmil

YA29A-

YS29A-

300 kcmil

2/0 AWG - 300 kcmil

YA30A-

YS30A-

350 kcmil

3/0 AWG - 350 kcmil

YA31A-

YS31A-

400 kcmil

4/0 AWG - 400 kcmil

YA32A-

YS32A-

500 kcmil

4/0 AWG - 500 kcmil

YA34A-

YS34A-

600 kcmil

250 - 600 kcmil

YA36A-

YS36A-

750 kcmil

500 - 750 kcmil

YA39A-

YS39A-

Copper Conductor (Code & Compact)

Conductor

Standard Barrel

Long Barrel

Wire Size

Expanded Range

Terminal

Splice

# Crimps*

Terminal

Splice

# Crimps*

#8 AWG

YA8CL-

YS8CL-

YA8C-

YS8C-

#6 AWG

YA6CL-

YS6CL-

YA6C-

YS6C-

#4 AWG

#6 - #4 AWG

YA4CL-

YS4CL-

YA4C-

YS4C-

#2 AWG

#6 - #2 AWG

YA2CL-

YS2CL-

YA2C-

YS2C-

#1 AWG

#6 - #1 AWG

YA1CL-

YS1CL-

YA1C-

YS1C-

1/0 AWG

#6 - 1/0 AWG

YA25L-

YS25L-

YA25-

YS25-

2/0 AWG

#4 - 2/0 AWG

YA26L-

YS26L-

YA26-

YS26-

3/0 AWG

#2 - 3/0 AWG

YA27L-

YS27L-

YA27-

YS27-

4/0 AWG

#1 - 4/0 AWG

YA28L-

YS28L-

YA28-

YS28-

250 kcmil

1/0 AWG - 250 kcmil

YA29L-

YS29L-

YA29-

YS29-

300 kcmil

2/0 AWG - 300 kcmil

YA30L-

YS30L-

YA30-

YS30-

350 kcmil

3/0 AWG - 350 kcmil

YA31L-

YS31L-

YA31-

YS31-

400 kcmil

4/0 AWG - 400 kcmil

YA32L-

YS32L-

YA32-

YS32-

500 kcmil

4/0 AWG - 500 kcmil

YA34L-

YS34L-

YA34-

YS34-

600 kcmil

250 - 600 kcmil

YA36L-

YS36L-

YA36-

YS36-

700 kcmil

350 - 700 kcmil

YA38L-

YS38L-

YA38-

YS38-

750 kcmil

500 - 750 kcmil

YA39L-

YS39L-

YA39-

YS39-

800 kcmil

500 - 800 kcmil

YA40L-

YS40L-

YA40-

YS40-

1000 kcmil

750 - 1000 kcmil

YA44L-

YS44L-

YA44-

YS44-

*Same number of recommended crimps for both Standard and Expanded wire ranges

COPPER

ALUMINUM

The following connectors are range taking when crimped onto

code and flex conductor using the 4-POINT

Series of tools:

N-121

section n-tooling-html.html

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

BURNDY

Tooling

Expanded Cable Range

E-Line Connectors

Wire Size

Expanded

Wire Range

Aluminum

Copper

Offset

Center formed

Crimps*

Offset

Center formed

Crimps*

#8 AWG

YA8CA-T-E

#6 AWG

#4 AWG

#6 - #4 AWG

#2 AWG

#6 - #2 AWG

YA2CA-T-E

YAC2CA-T-E

#1 AWG

#6 - #1 AWG

1/0 AWG

#6 - 1/0 AWG

YA25A-T-E

YA25L-T-E YAC25L-T-E

2/0 AWG

#4 - 2/0 AWG

YA26A-T-E

YA26L-T-E YAC26L-T-E

3/0 AWG

#2 - 3/0 AWG

YA27A-T-E

YAC27A-T-E

4/0 AWG

#1 - 4/0 AWG

YA28A-T-E

250 kcmil

1/0 AWG - 250 kcmil

300 kcmil

2/0 AWG - 300 kcmil

YA30A-T-E

YA30L-T-E YAC30L-T-E

350 kcmil

3/0 AWG - 350 kcmil

YA31A-T-E

YAC31A-T-E

400 kcmil

4/0 AWG - 400 kcmil

YA32A-T-E

500 kcmil

4/0 AWG - 500 kcmil

YA34A-T-E

YA34L-T-E

500 kcmil

4/0 AWG - 500 kcmil

YA342L-T-E

600 kcmil

250 - 600 kcmil

YA36A-T-E

YA36L-T-E

600 kcmil

250 - 600 kcmil

YA362L-T-E

700 kcmil

350 - 700 kcmil

750 kcmil

500 - 750 kcmil

YA39A-T-E

YA39L-T-E

750 kcmil

500 - 750 kcmil

YA392L-T-E

800 kcmil

500 - 800 kcmil

1000 kcmil

750 - 1000 kcmil

Expanded conductor ranges

shown are applicable when

using the 4-POINT

Series

of tools only.

(Continued from previous

page.)

The following connectors are range taking when crimped onto

code and flex conductor using 4-POINT

Series of tools:

(continued from previous page)

*Same number of recommended crimps for both Standard and Expanded wire ranges

Y81KFTMBH

Copper Conductor (Flex Only)

Nom Flex

Wire Size

Standard Barrel

Long Barrel

Expanded Range

Terminal

Splice

# of

Crimps Expanded Range Terminal Splice

# of

Crimps

#8 AWG

YAV8CL- YSV8CL-

#8 AWG

YAV8C- YSV8C-

#6 AWG

YAV6CL- YSV6CL-

#6 AWG

YAV6C- YSV6C-

#4 AWG

#6 - #4 AWG

YAV4CL- YSV4CL-

#6 - #4 AWG

YAV4C- YSV4C-

#2 AWG

#6 - #2 AWG

YAV2CL- YSV2CL-

#6 - #2 AWG

YAV2C- YSV2C-

#1 AWG

#4 - #1 AWG

YAV1CL- YSV1CL-

#4 - #1 AWG

YAV1C- YSV1C-

1/0 AWG

#4 - 1/0 AWG

YAV25L- YSV25L-

#4 - 1/0 AWG

YAV25- YSV25-

2/0 AWG

#2 - 2/0 AWG

YAV26L- YSV26L-

#4 - 2/0 AWG

YAV26- YSV26-

3/0 AWG

#1 - 3/0 AWG

YAV27L- YSV27L-

#2 - 3/0 AWG

YAV27- YSV27-

4/0 AWG

1/0 - 4/0 AWG

YAV28L- YSV28L-

#1 - 4/0 AWG

YAV28- YSV28-

250 kcmil

3/0 AWG - 250 kcmil

YAV29L-

YS29L-

1/0 AWG - 250 kcmil YAV29-

YS29-

300 kcmil 4/0 AWG - 313.1 kcmil YA32L-

YS32L-

2/0 AWG - 313.1 kcmil YA32-

YS32-

350 kcmil

262.2 - 373.7 kcmil

YA34L-

YS34L-

3/0 AWG - 373.7 kcmil YA34-

YS34-

450 kcmil

373.7 - 444.4 kcmil

YA36L-

YS36L-

262.2 - 444.4 kcmil

YA36-

YS36-

450 kcmil

262.2 - 444.4 kcmil

YA36L-

YS36L-

500 kcmil

444.4 - 535.3 kcmil

YA38L-

YS38L-

373.7 - 535.3 kcmil

YA38-

YS38-

500 kcmil

373.7 - 535.3 kcmil

YA38L-

YS38L-

600 kcmil

373.7 - 600 kcmil

YA39L-

YS39L-

262.2 - 600 kcmil

YA39-

YS39-

650 kcmil

444.4 - 646 kcmil

YA40L-

YS40L-

444.4 - 646 kcmil

YA40-

YS40-

750 kcmil

535.3 - 777.7 kcmil

YA44L-

YS44L-

535.3 - 777.7 kcmil

YA44-

YS44-

N-122

section n-tooling-html.html

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

BURNDY

Tooling

Expanded Cable Range

The following connectors are range taking when crimped onto

code and flex conductor using Y644 Series of tools:

COPPER

ALUMINUM

Copper HYLUG™ & HYLINK™ Connectors

Types YA, YA-L, YAB, YS, YS-L, YST, YS-T, YSP-T

Catalog No.

Standard

Wire Size

Expanded

Wire Range

Terminal*

Splice**

YA6C-

YA5C-

YA4C-

YA3C-

YA2C-

YA1C-

YS6C-

YS5C-

YS4C-

YS3C-

YS2C-

YS1C-

#6 AWG

#5 AWG

#4 AWG

#3 AWG

#2 AWG

#1 AWG

#6 AWG

#6 - #5 AWG

#6 - #4 AWG

#6 - #3 AWG

#6 - #2 AWG

#6 - #1 AWG

YA25-

YA26-

YA27-

YA28-

YS25-

YS26-

YS27-

YS28-

1/0 AWG

2/0 AWG

3/0 AWG

4/0 AWG

#6 - 1/0 AWG

#4 - 2/0 AWG

#2 - 3/0 AWG

#1 - 4/0 AWG

YA29-

YA30-

YA31-

YA32-

YA34-

YS29-

YS30-

YS31-

YS32-

YS34-

250 kcmil

300 kcmil

350 kcmil

400 kcmil

500 kcmil

1/0 AWG - 250 kcmil

2/0 AWG - 300 kcmil

3/0 AWG - 350 kcmil

4/0 AWG - 400 kcmil

4/0 AWG - 500 kcmil

YA36-

YA39-

YA40-

YS36-

YS39-

YS40-

600 kcmil

750 kcmil

800 kcmil

250 - 600 kcmil

500 - 750 kcmil

500 - 800 kcmil

YA44-

YS44-

1000 kcmil

750 - 1000 kcmil

Aluminum HYLUG™ & HYLINK™ Connectors

Types YA-A & YS-A (Copper or Aluminum Conductor)

Catalog No.

Standard

Wire Size

Expanded

Wire Range

Terminal*

Splice**

YA6CA-

YA4CA-

YA2CA-

YA1CA-

YS6CA-

YS4CA-

YS2CA-

YS1CA-

#6 AWG

#4 AWG

#2 AWG

#1 AWG

#6 AWG

#6 - #4 AWG

#6 - #2 AWG

#2 - #1 AWG

YA25A-

YA26A-

YA27A-

YA28A-

YS25A-

YS26A-

YS27A-

YS28A-

1/0 AWG

2/0 AWG

3/0 AWG

4/0 AWG

#1 - 1/0 AWG

#1 - 2/0 AWG

#1 - 3/0 AWG

#1 - 4/0 AWG

YA29A-

YA30A-

YA31A-

YA32A-

YA34A-

YS29A-

YS30A-

YS31A-

YS32A-

YS34A-

250 kcmil

300 kcmil

350 kcmil

400 kcmil

500 kcmil

1/0 AWG - 250 kcmil

2/0 AWG - 300 kcmil

3/0 AWG - 350 kcmil

4/0 AWG - 400 kcmil

4/0 AWG - 500 kcmil

YA36A-

YA39A-

YS36A-

YS39A-

600 kcmil

750 kcmil

250 - 600 kcmil

500 - 750 kcmil

* 1 Crimp

** 1 Crimp per side

* 1 Crimp

** 1 Crimp per side

Expanded conductor ranges shown

on this page are applicable when

using the Y644/PAT644 Series of

tools only.

Y644MBH

N-123
