About Taicom

Taicom manufactures a very extensive range of connectors that includes Chassis Mounting, PCB Mounting Terminal Blocks and
Terminal Strips. Signal/Data connectors in the range include D Sub-miniature, DIN41612, FireWire, IC Sockets, IDC, IEEE 488
Type, Memory Module Sockets, RJ, Smart Card and USB. The range of PCB Interconnects include Board to Board, FFC/FPC,
Headers and Sockets, Modular and Wire to Board. Taicom also have ranges of Cables and Accessories, Battery Connectors
and Holders.

Connector

INFORMATION GUIDE

About Anglia

Anglia is the UK’s leading independent authorised distributor of semiconductors,
optoelectronics, interconnect, and passive and electromechanical components.
A signatory of the ADS SC21 programme, the company holds AS9120, ISO9001
& ISO14001 accreditations and IECQ-CECC qualifi cation.

Renowned for our great customer service and comprehensive technical support, Anglia
has gained a wealth of experience and a thorough understanding of the market having
served the electronics industry for over 40 years. Technically adept, we support OEM and
EMS companies in every sector of electronics manufacturing. Our suppliers include some
of the world’s leading electronic component brands, complemented by many smaller
companies with leadership in their chosen technologies.

Anglia stocks over 800 million components from over 700,000 product lines in the UK
for same-day dispatch. We aim to streamline logistics and reduce customers’ transaction
costs through services that include KAN-BAN, EDI, and customer-dedicated inventory,
while an accurate, on-time delivery performance is a vital goal for the company.

Using our website data reference

How to Order

Find more information on any part in our connector book
by using our dedicated website data reference.

Website

Phone

www.anglia-live.com  +44 (0)1945 47 47 47

Go to www.anglia-live.com
Enter the ‘website data ref’ into our
search fi eld at the top of the home page.
Browse the range for more pricing,
information and specifi cations.

Table of

CONTENTS

Signal & Data

D-Sub Miniature

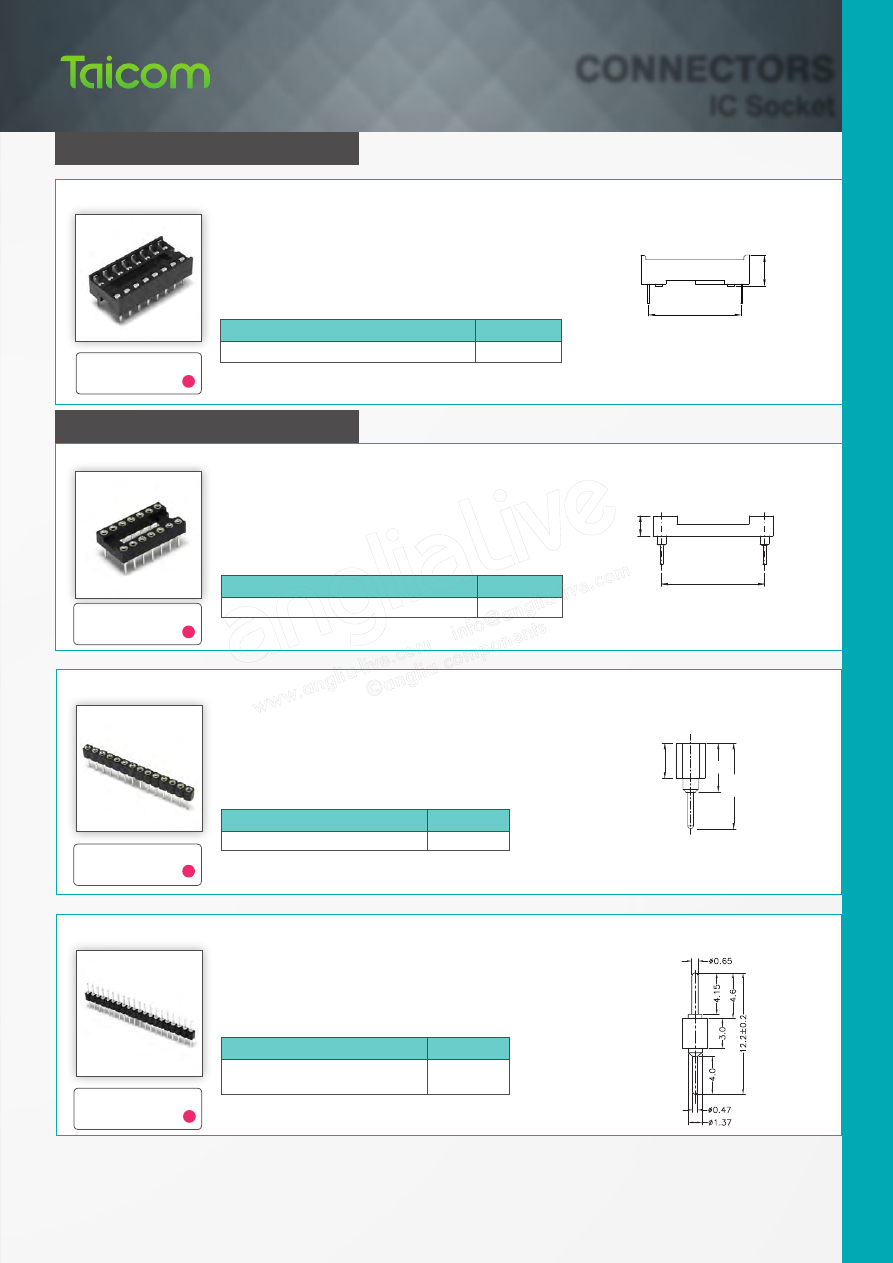

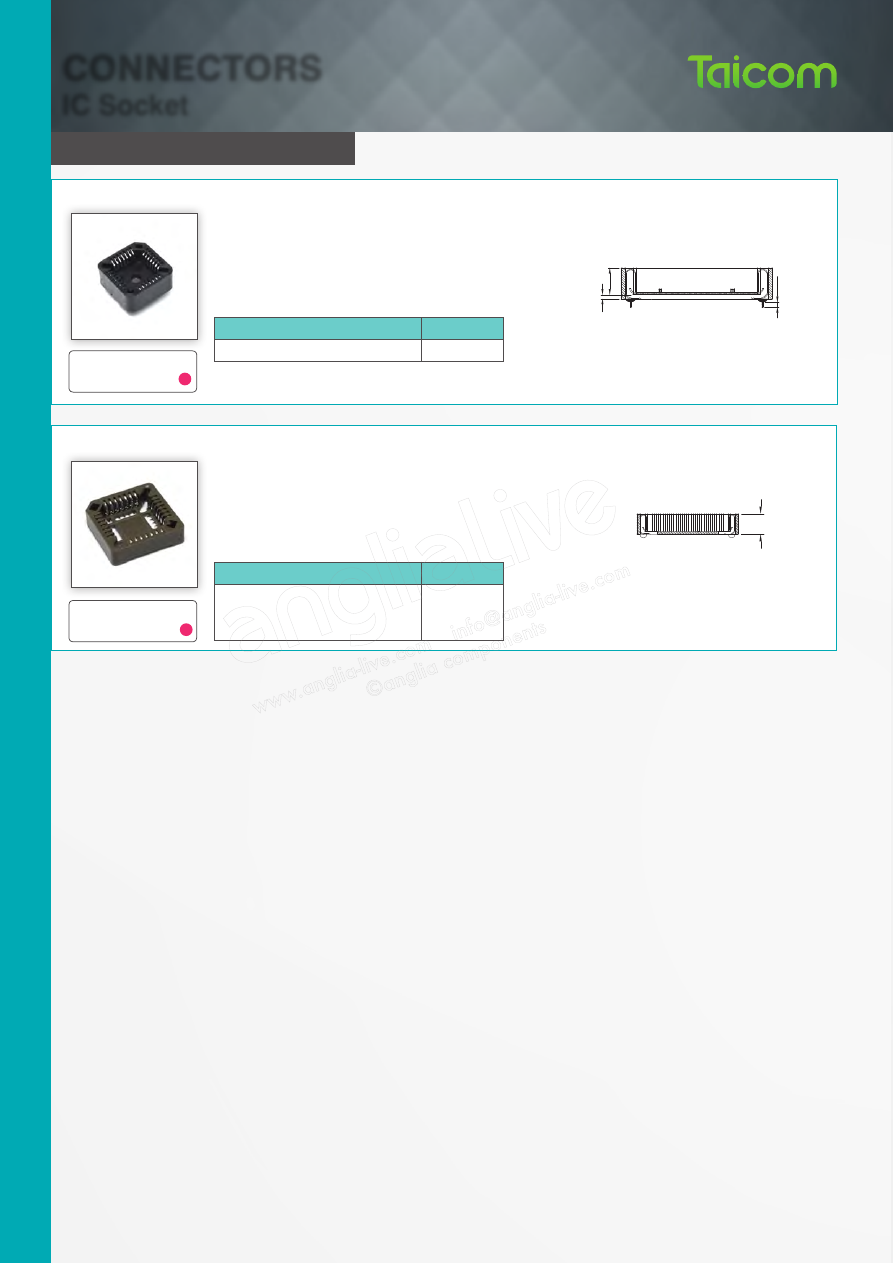

IC Socket

IC Sockets Formed, IC Turned Pin, Chip Carrier

Backplane

DIN41612

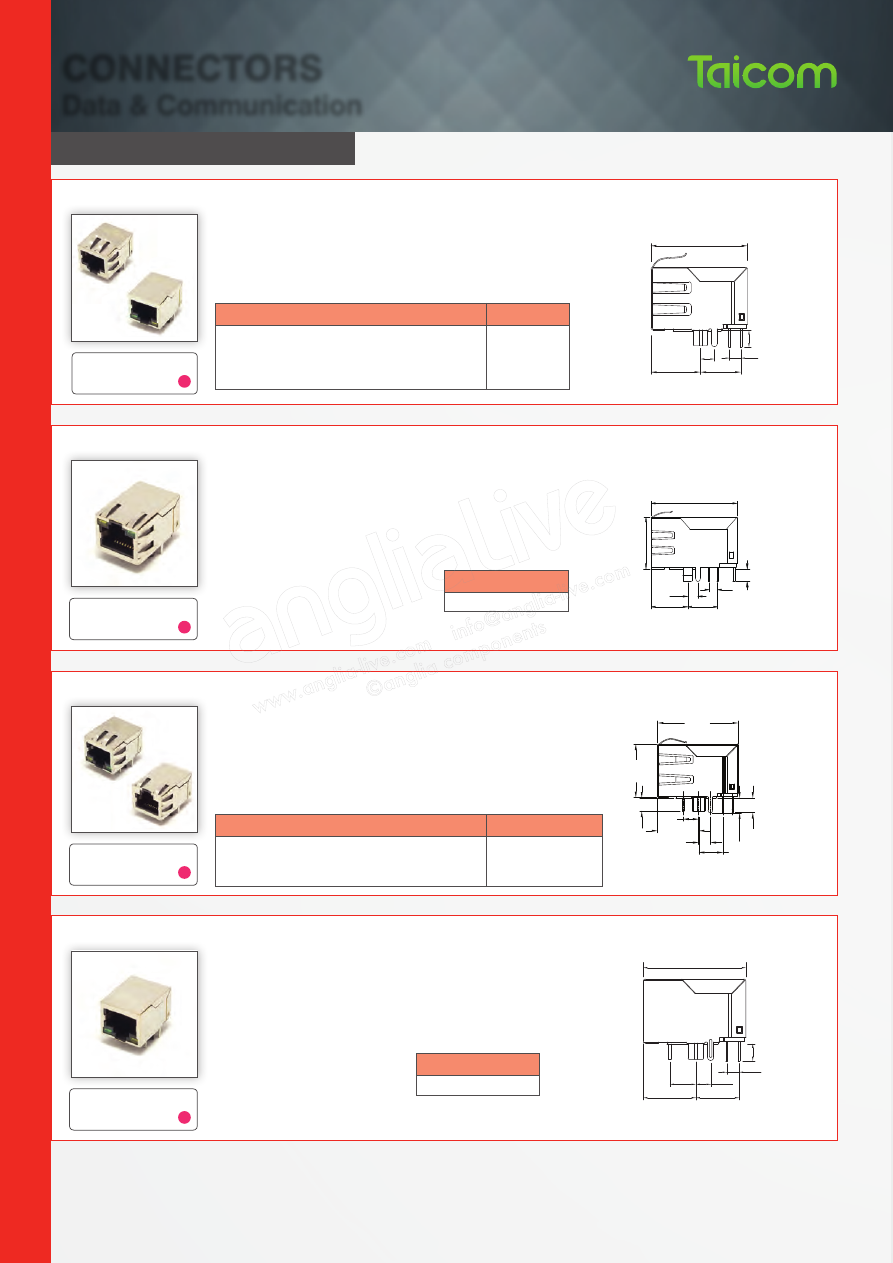

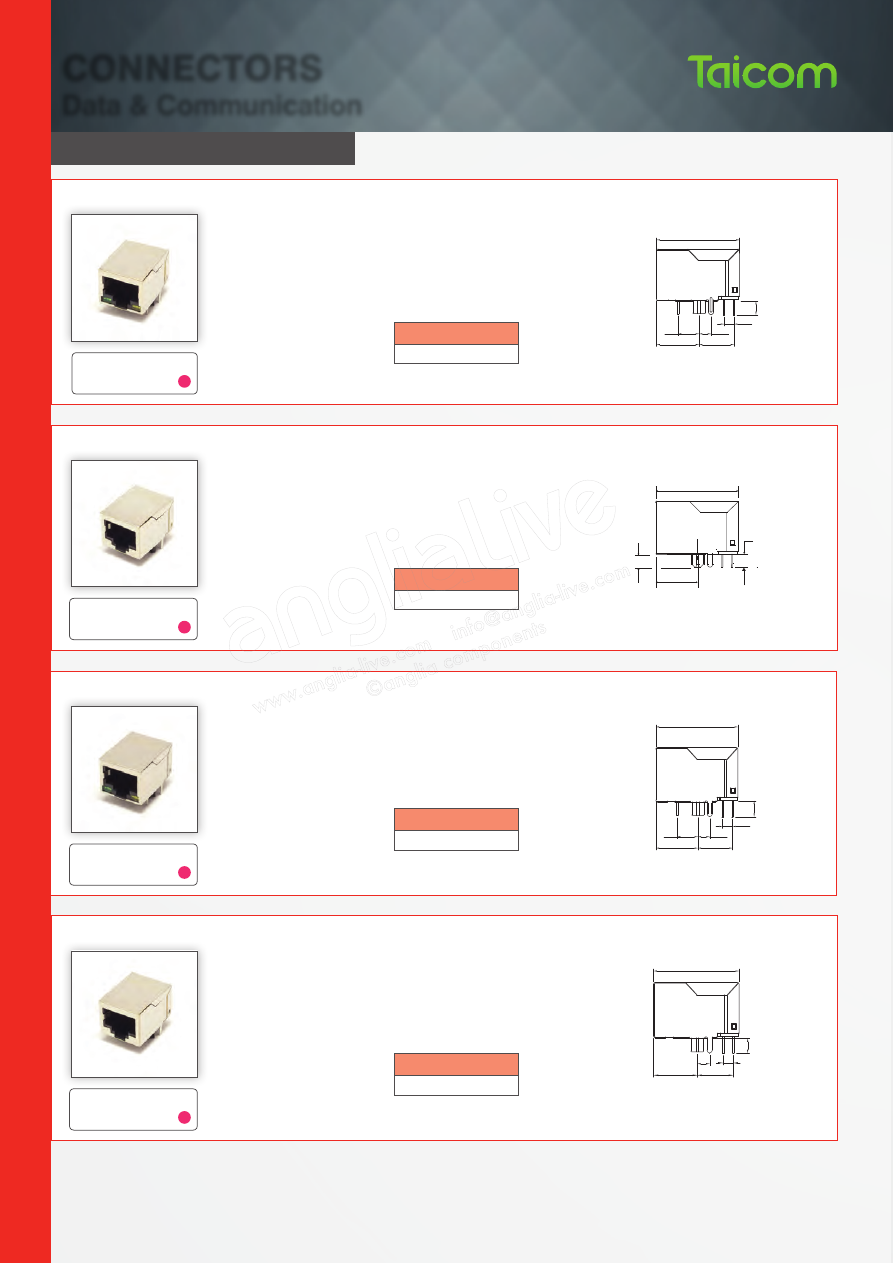

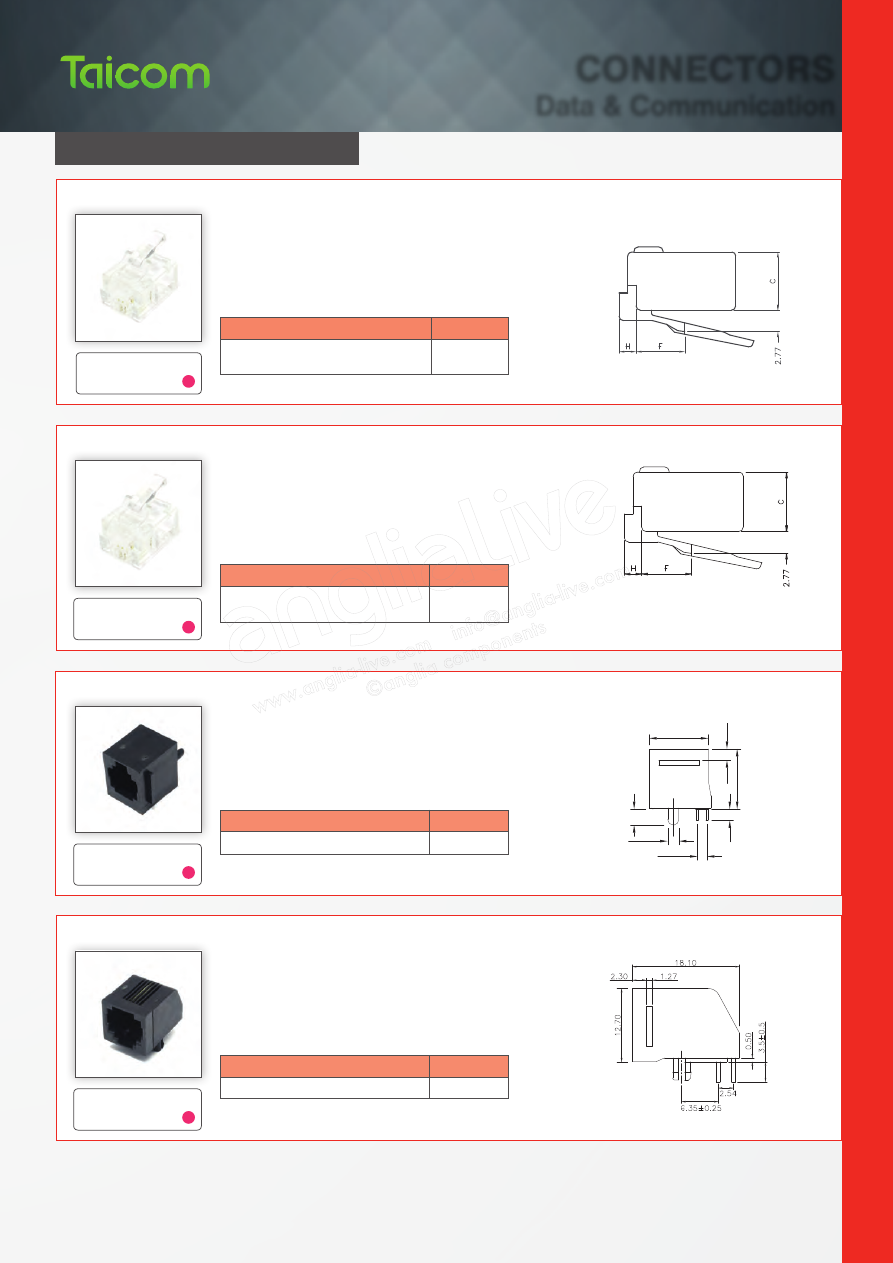

Data & Communication

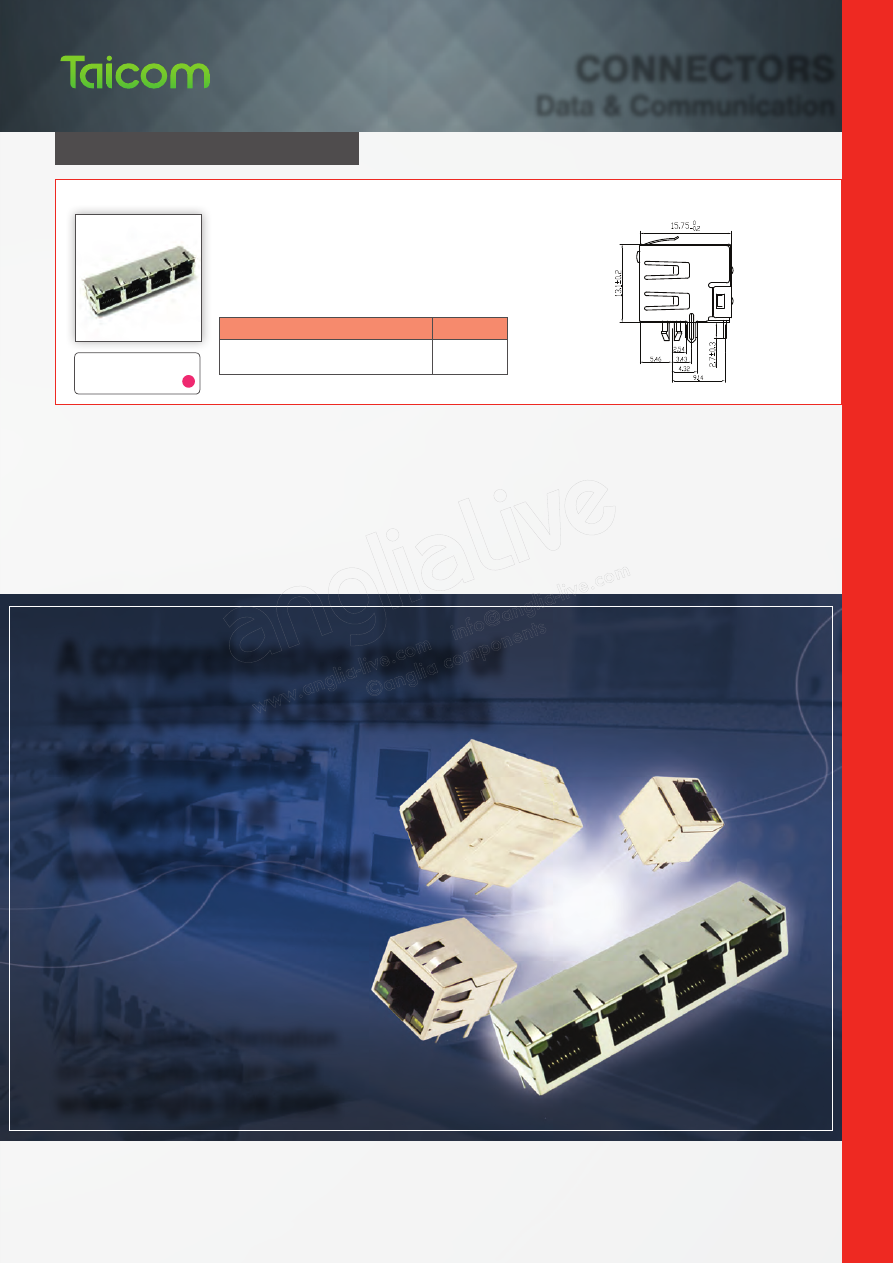

RJ, USB, RJ with Integrated Magnetics

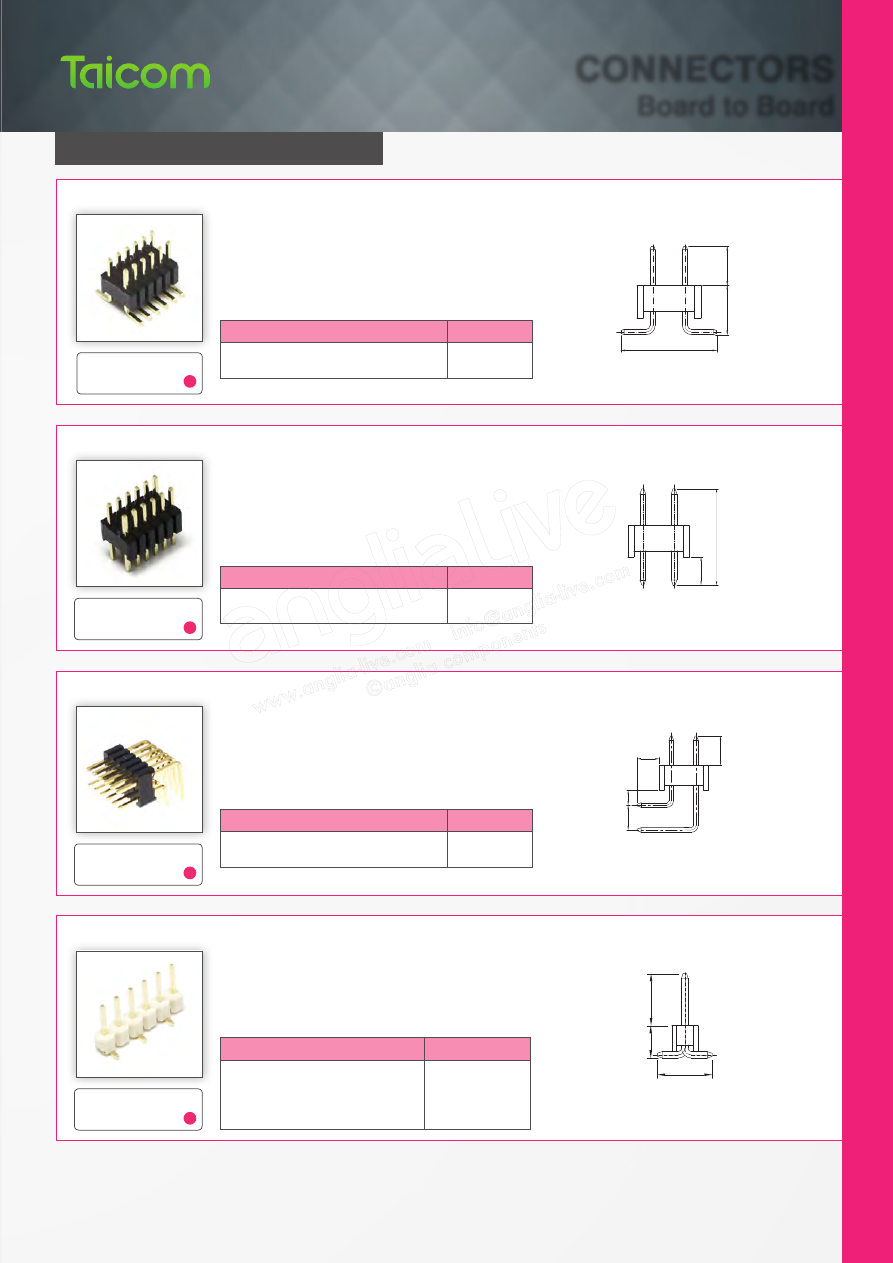

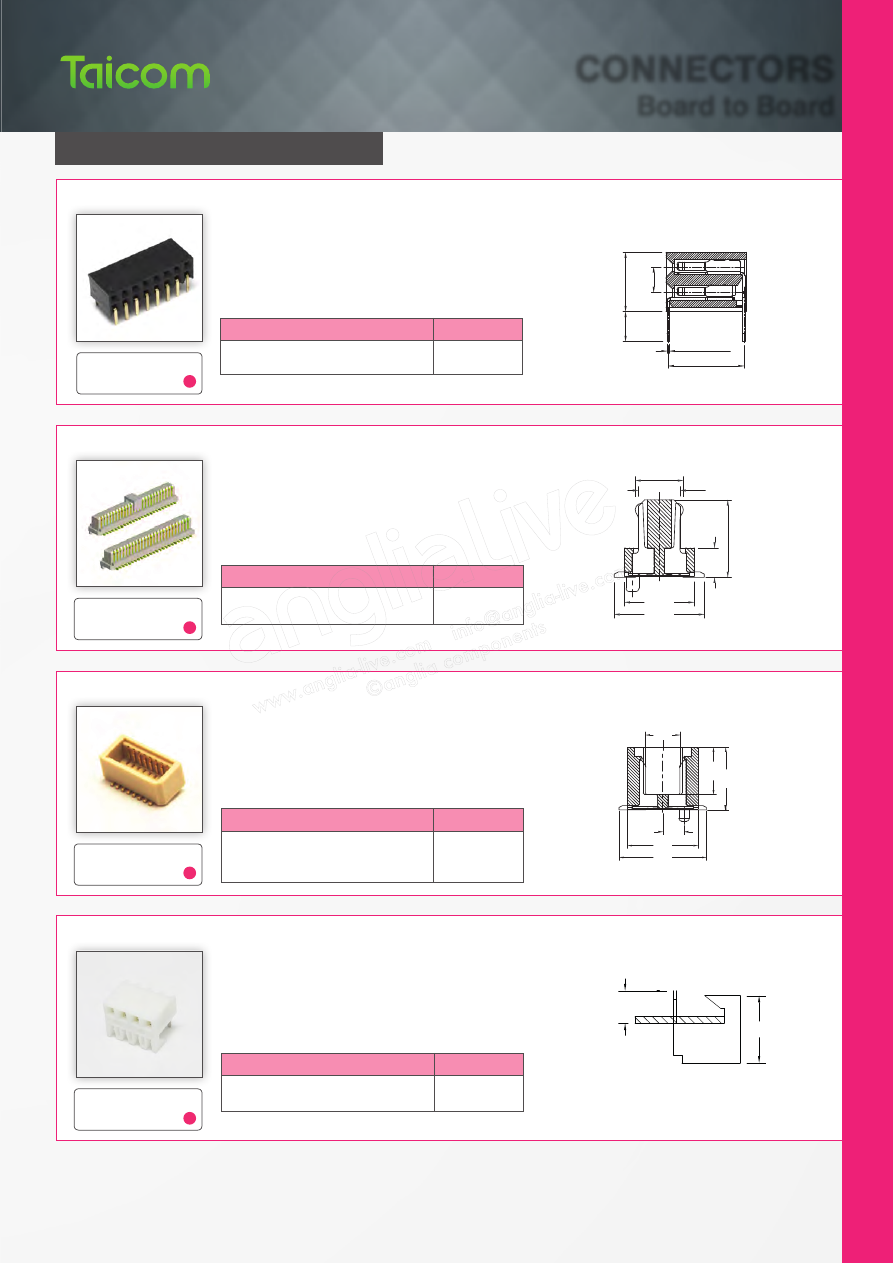

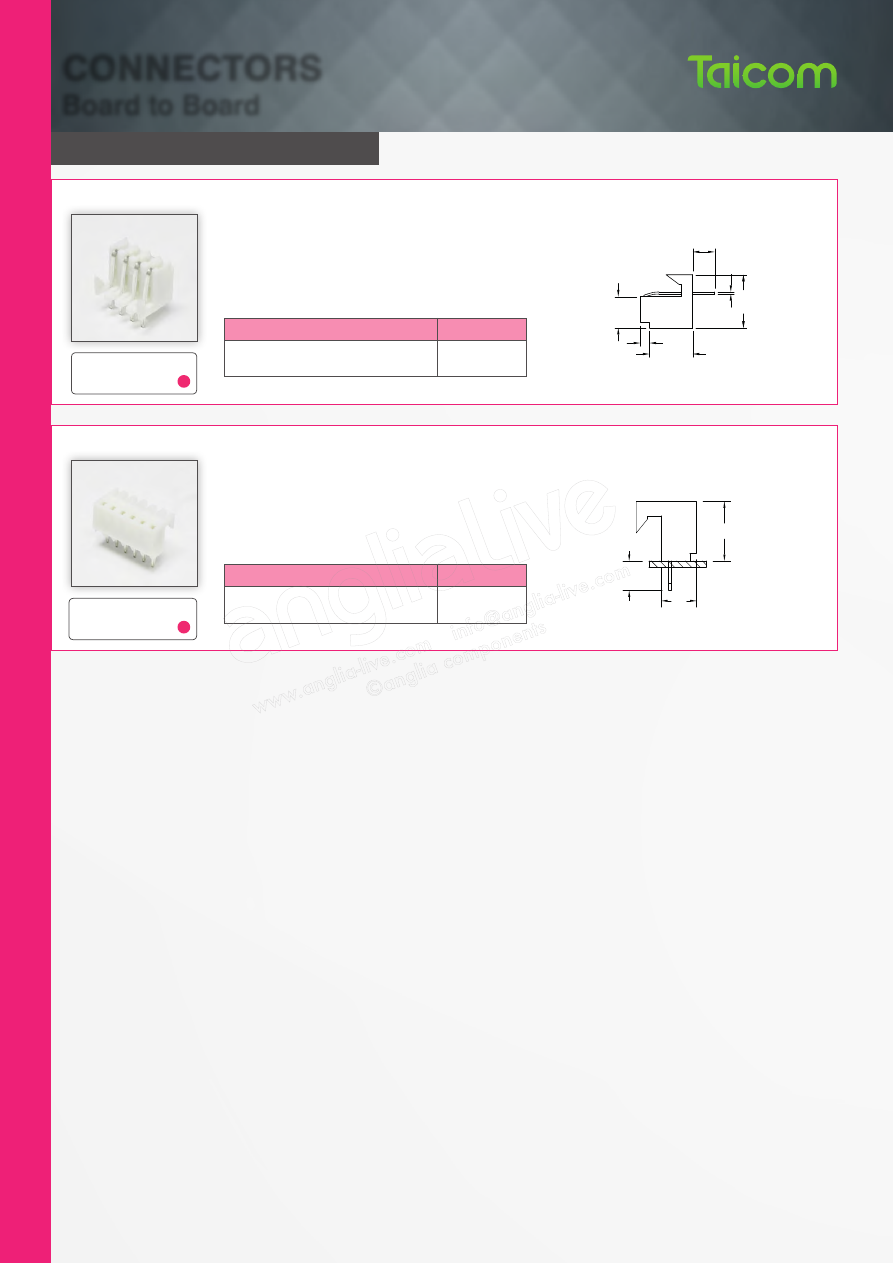

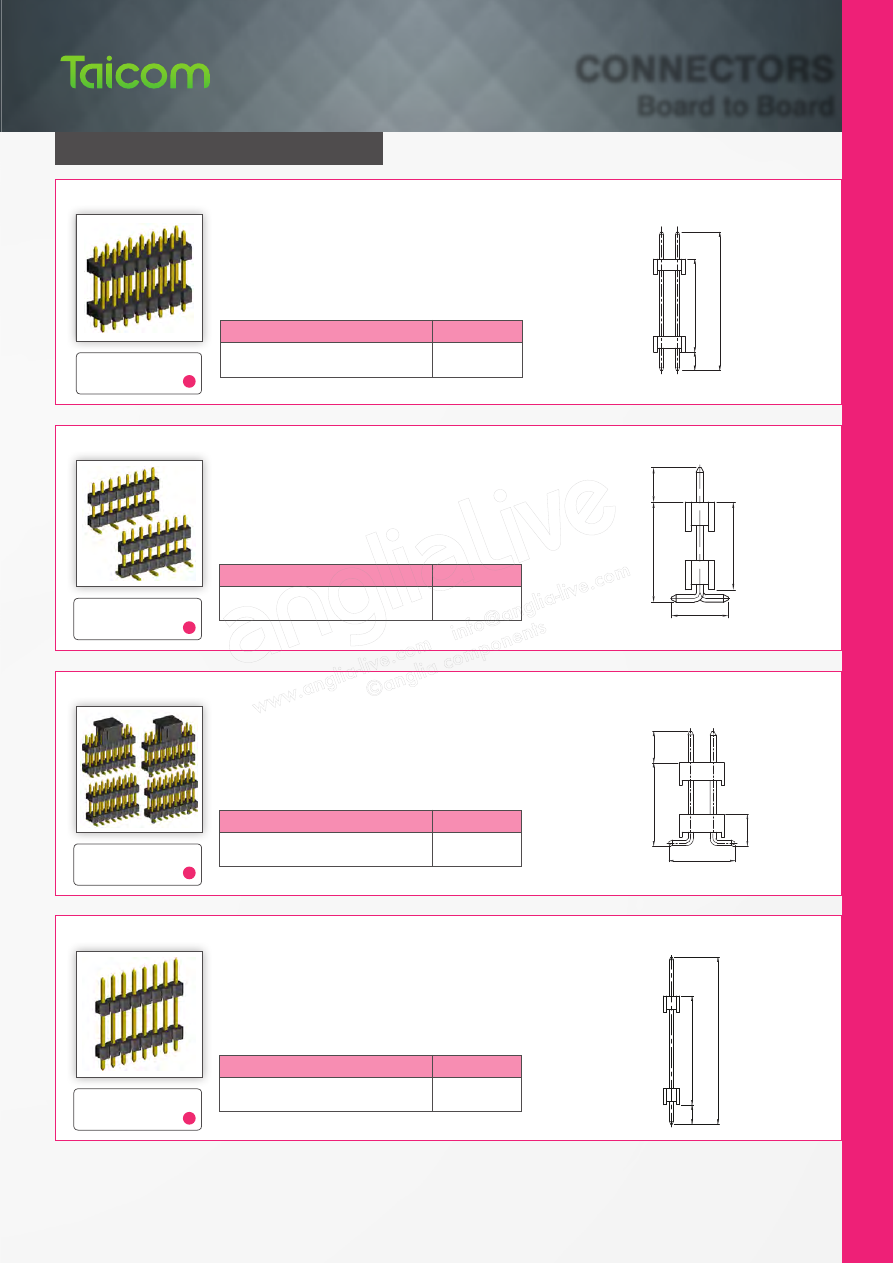

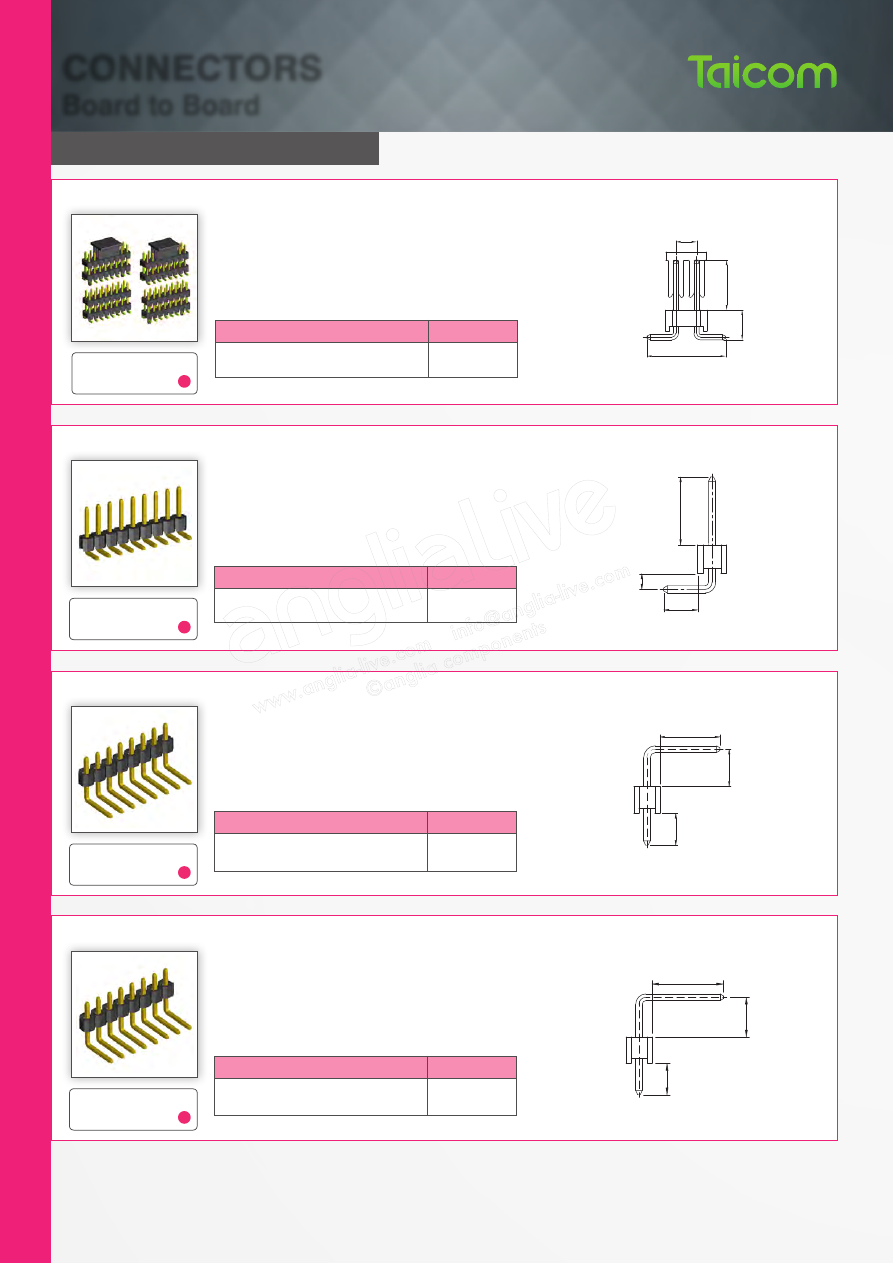

Board to Board

Headers, Spacers & Sockets, Jumper Links,
Wire & Cable

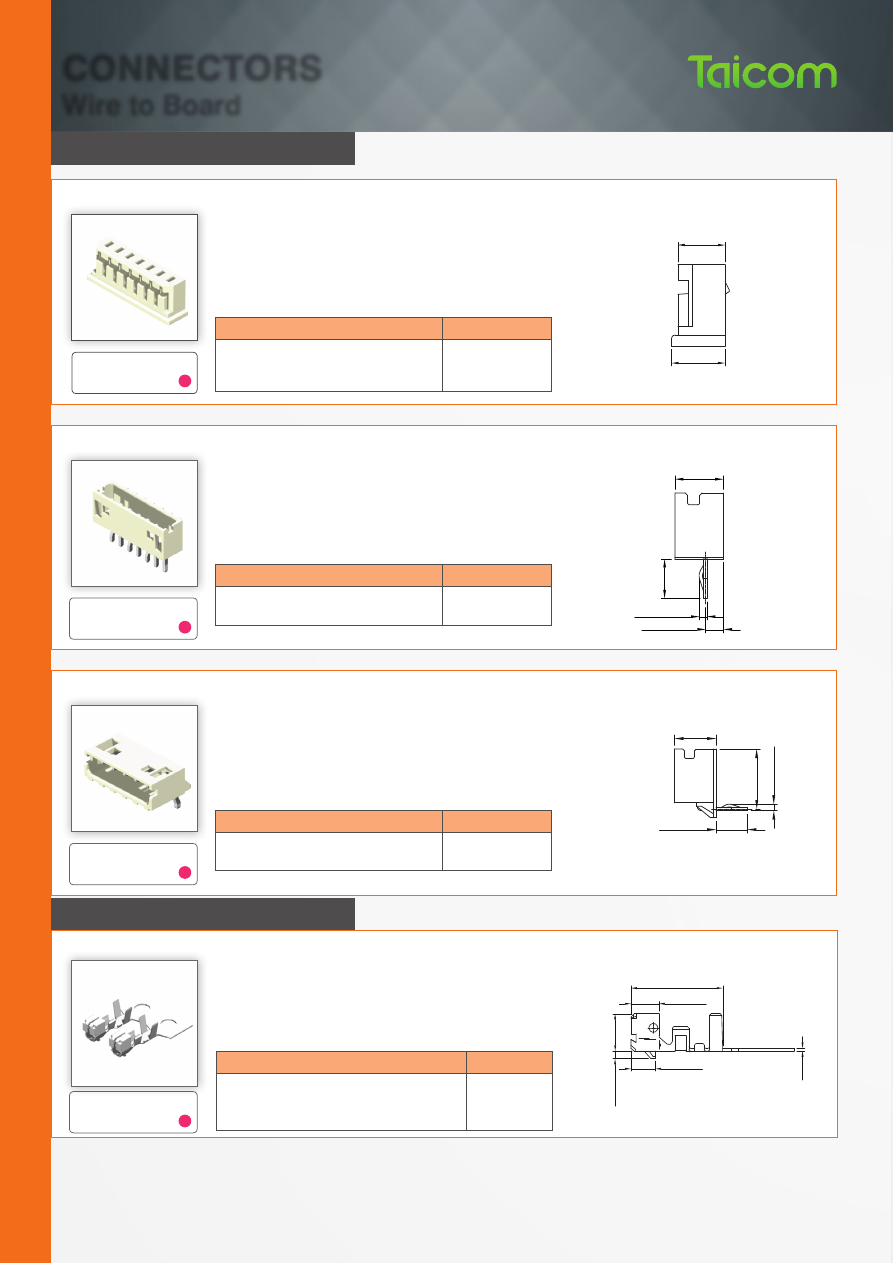

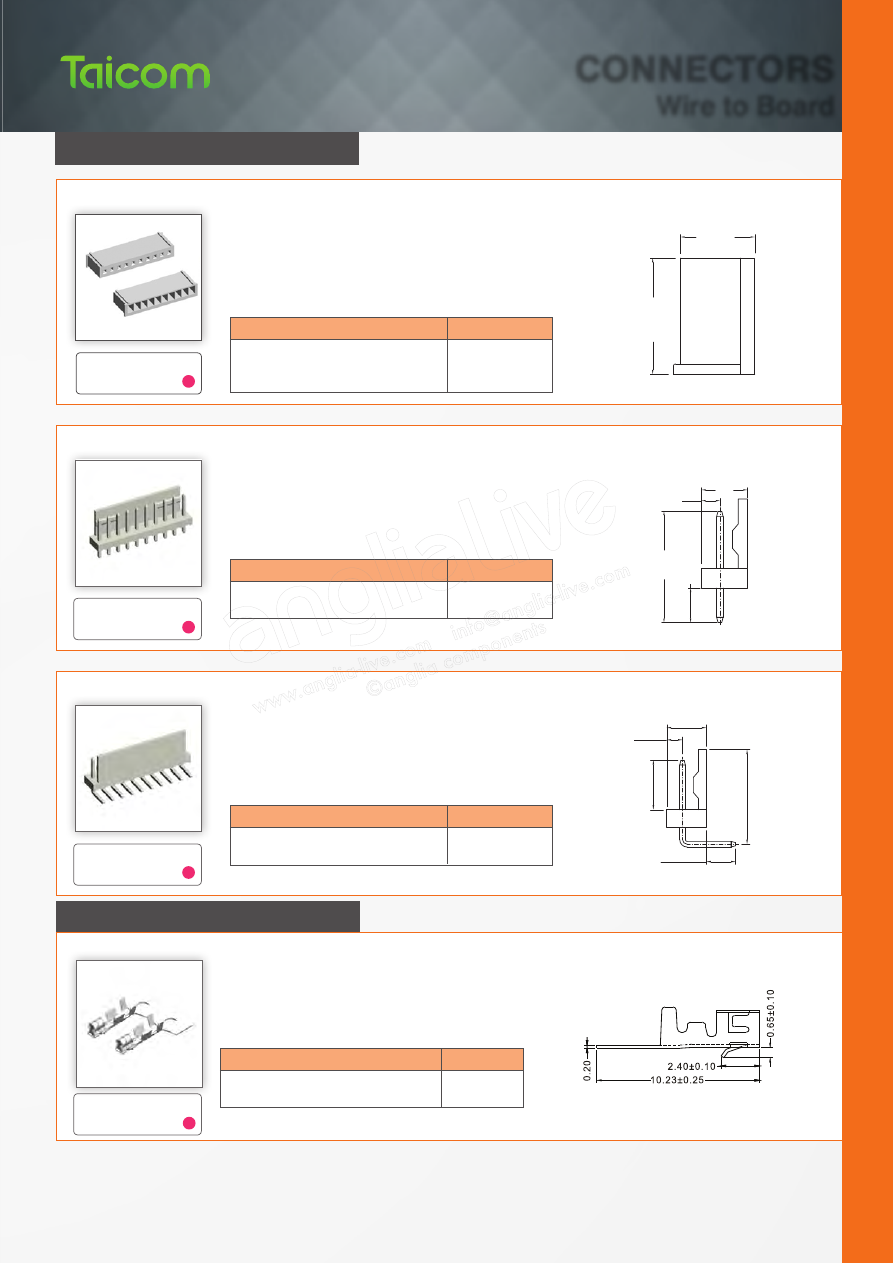

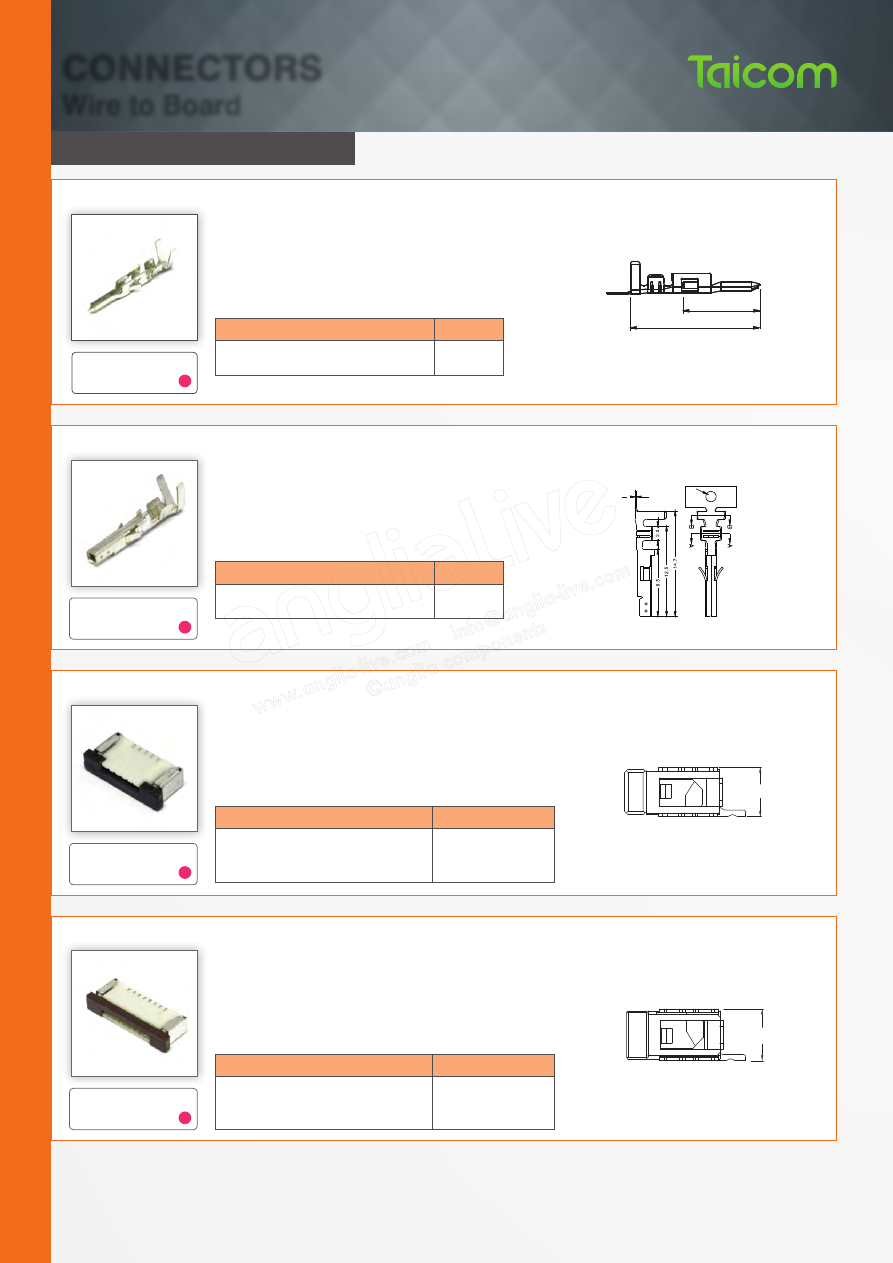

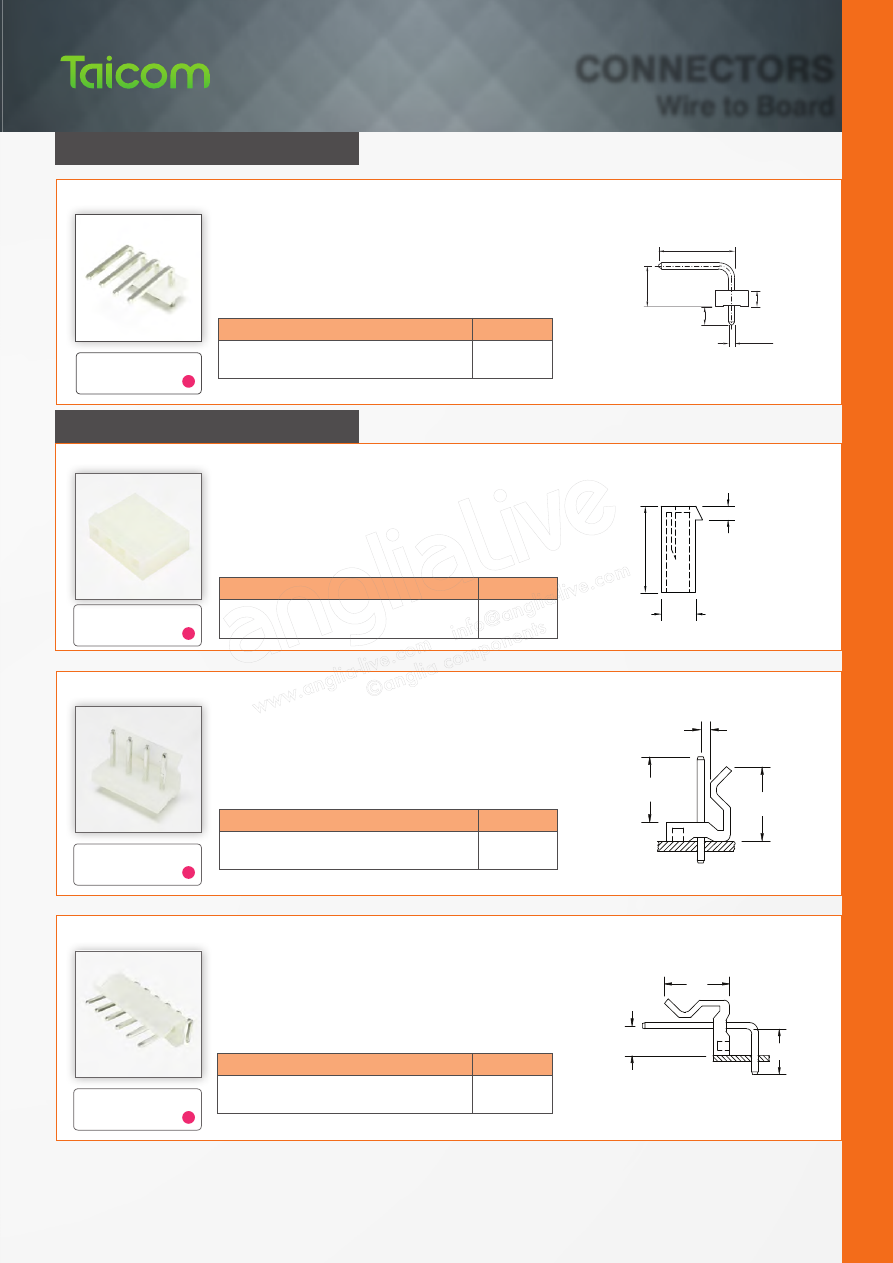

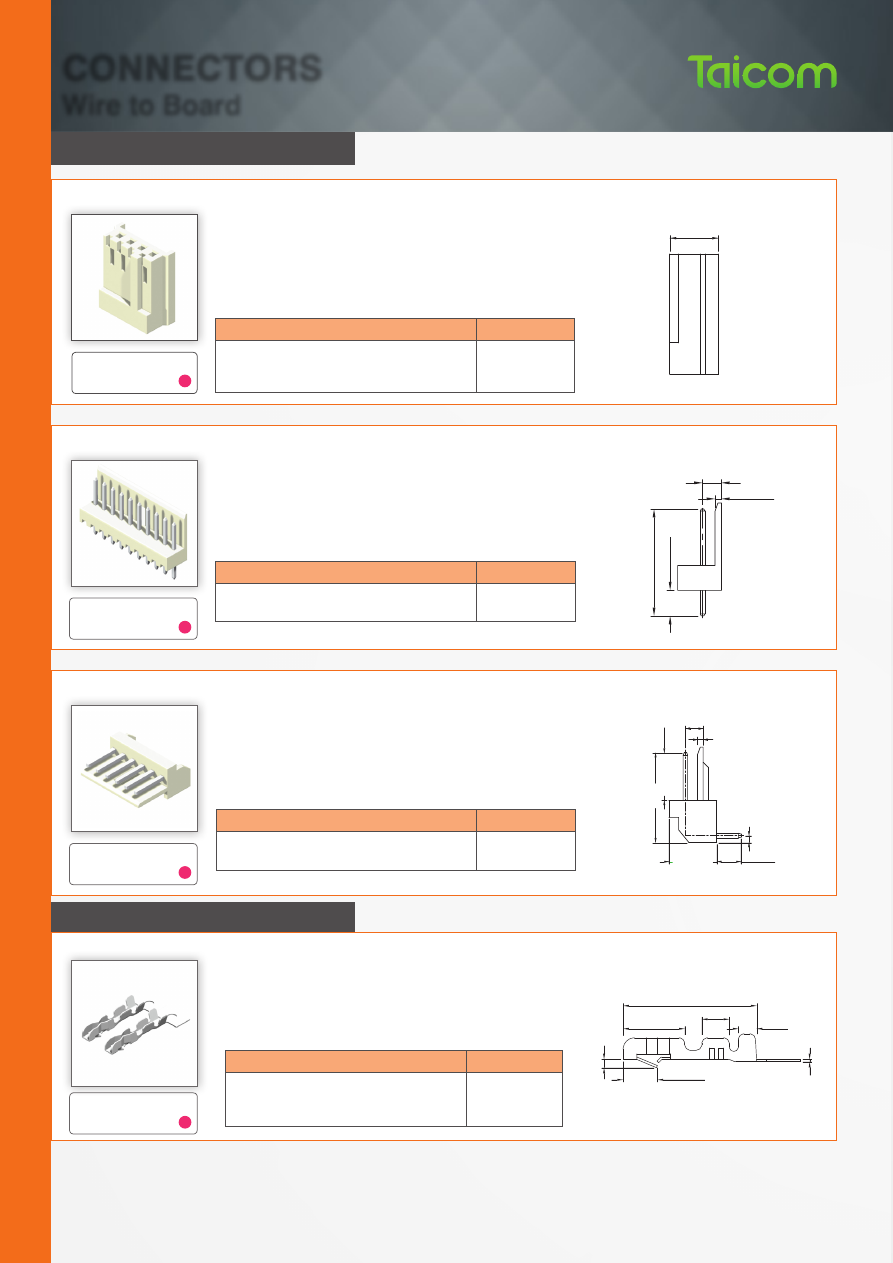

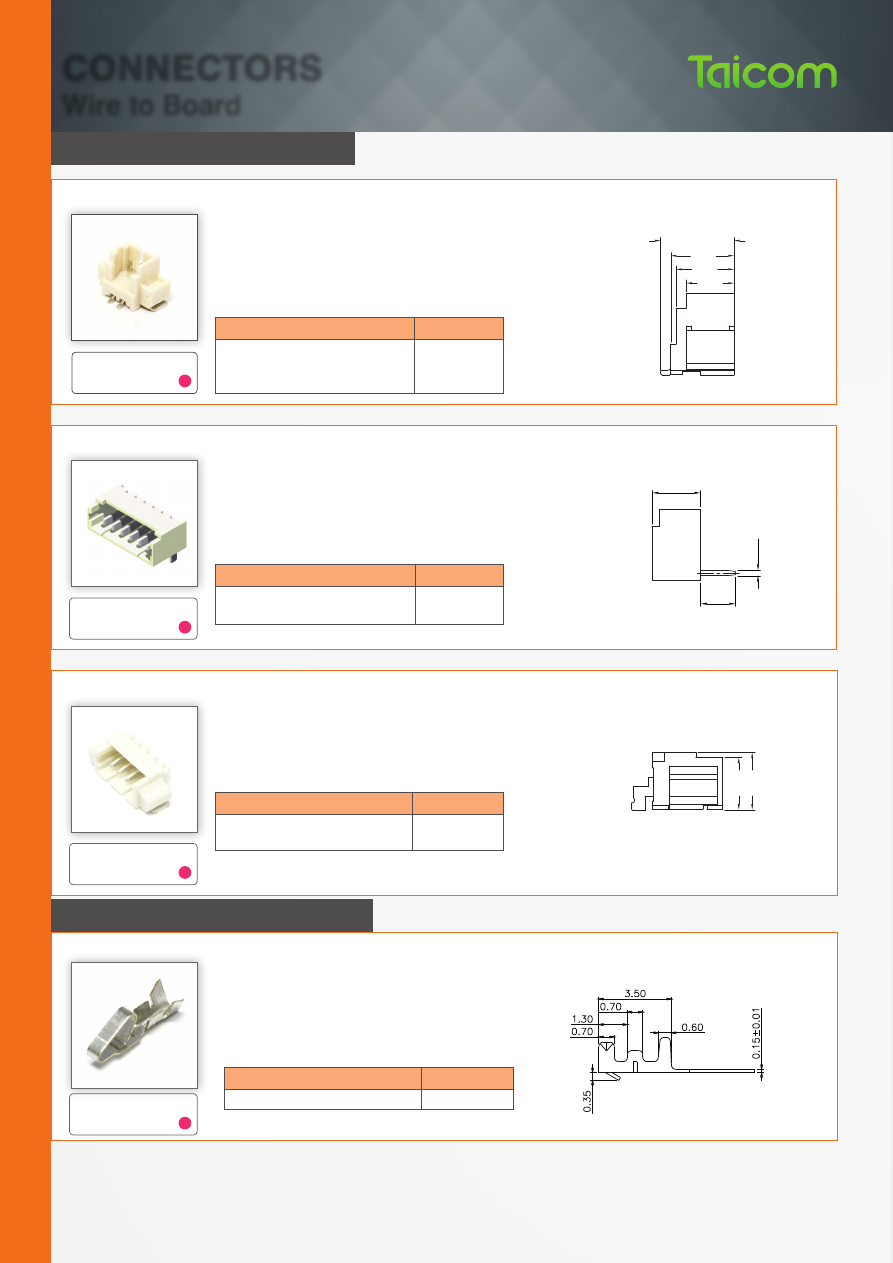

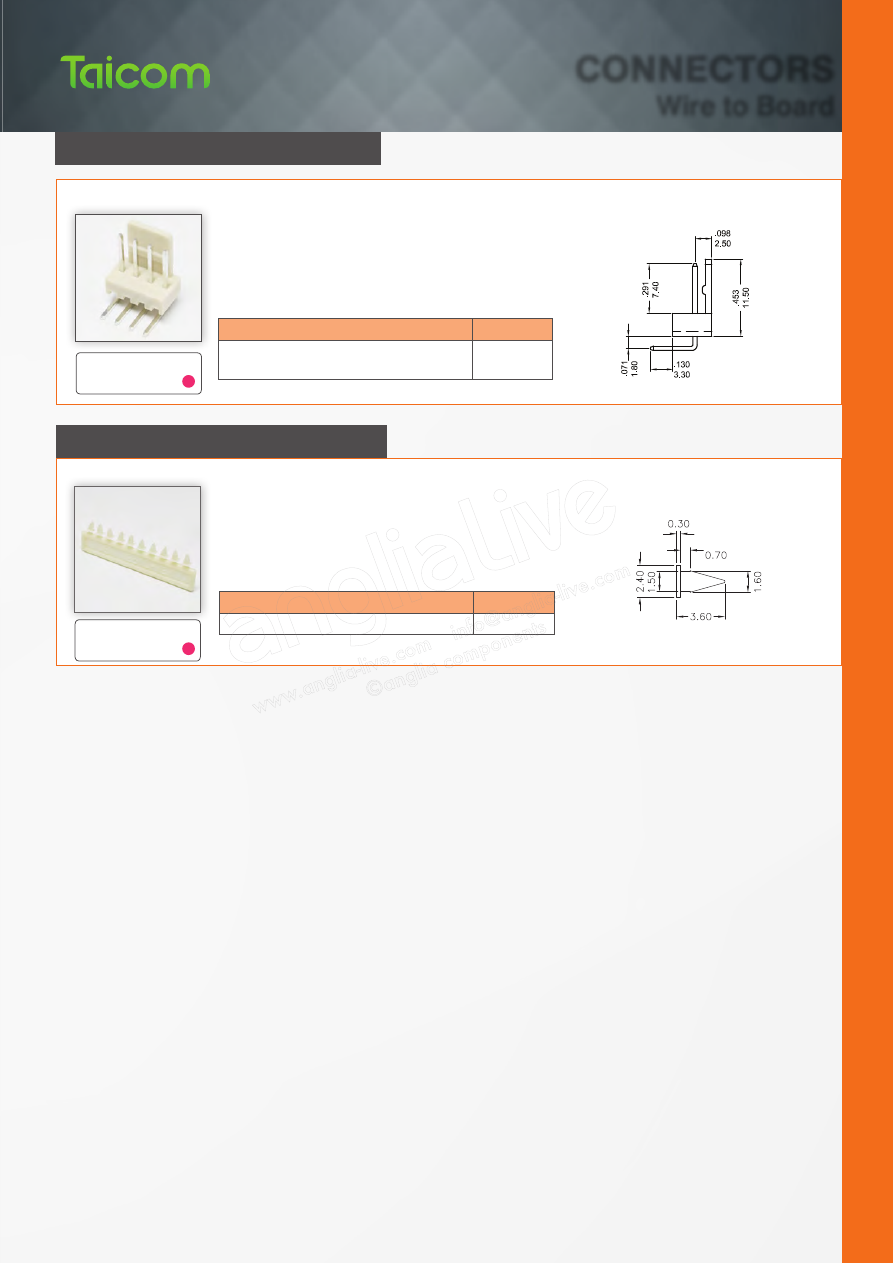

Wire to Board

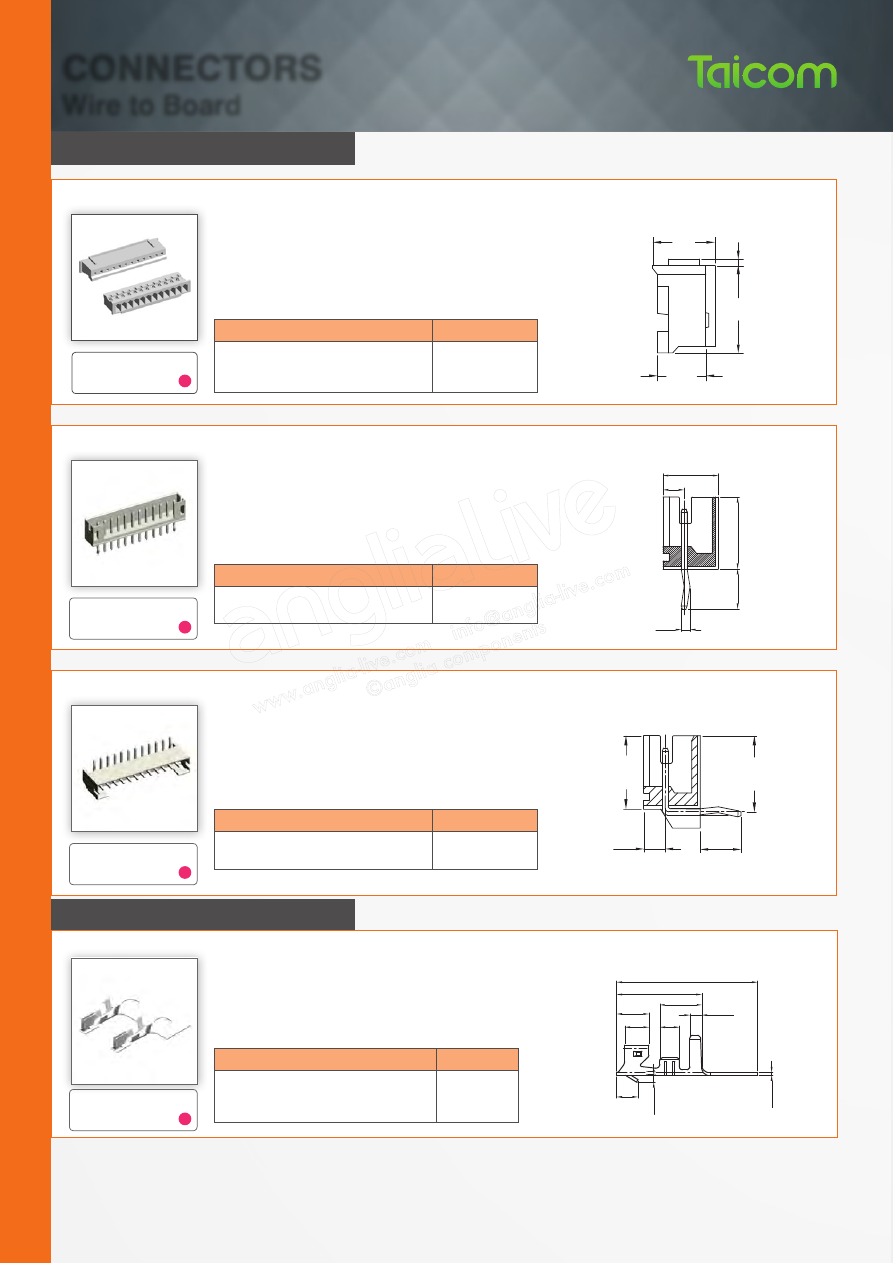

IDC Headers & Sockets, Housing,
Wafer Headers & Crimps, Modular, ZIF Sockets

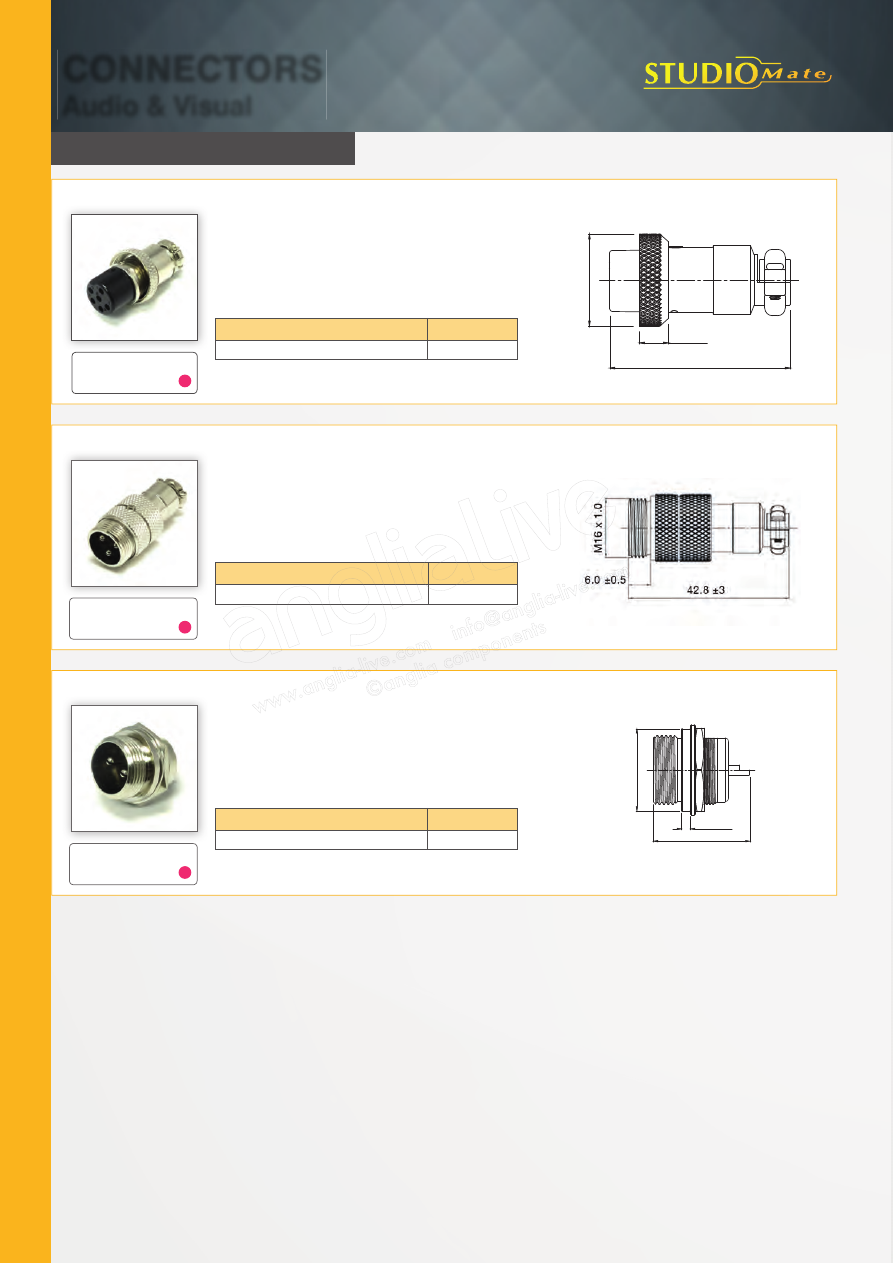

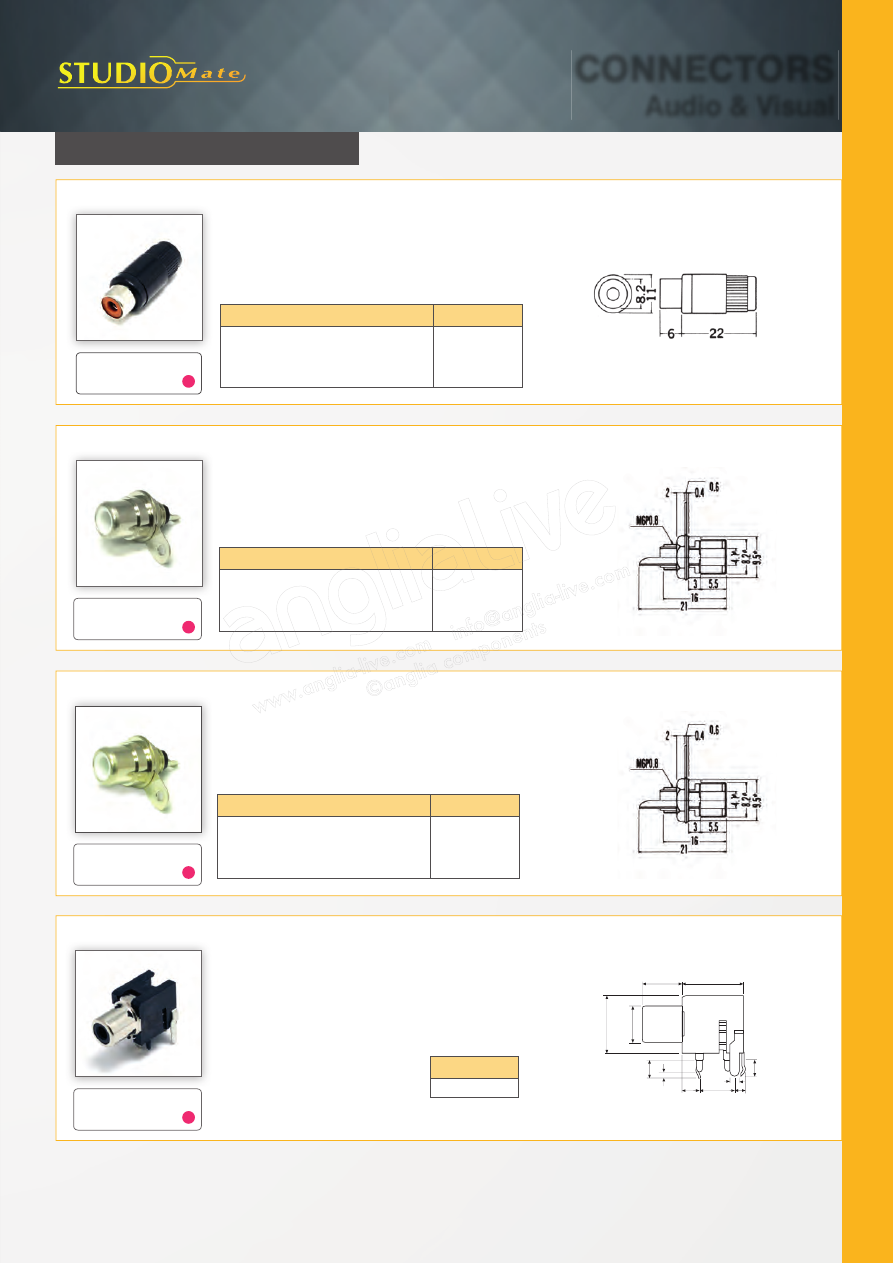

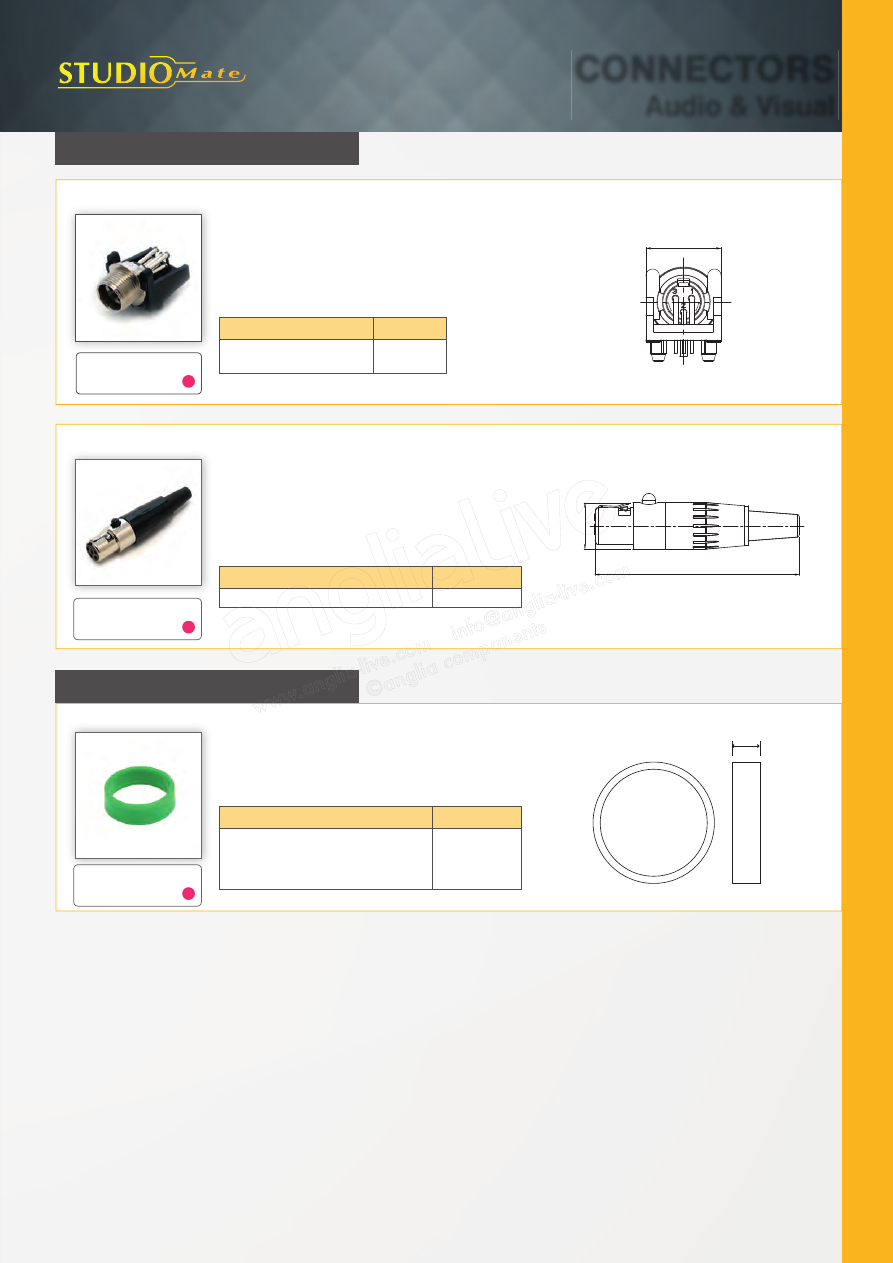

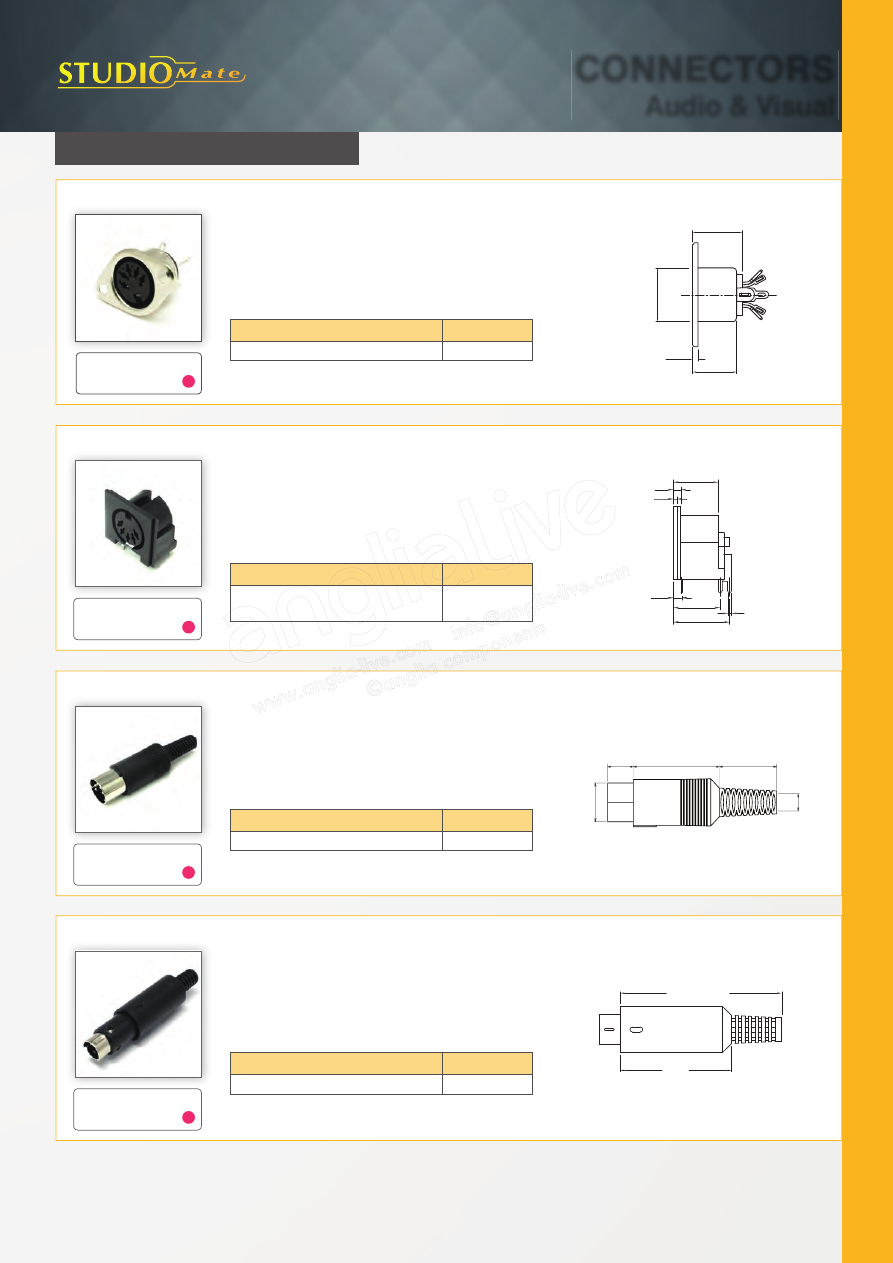

Audio & Visual

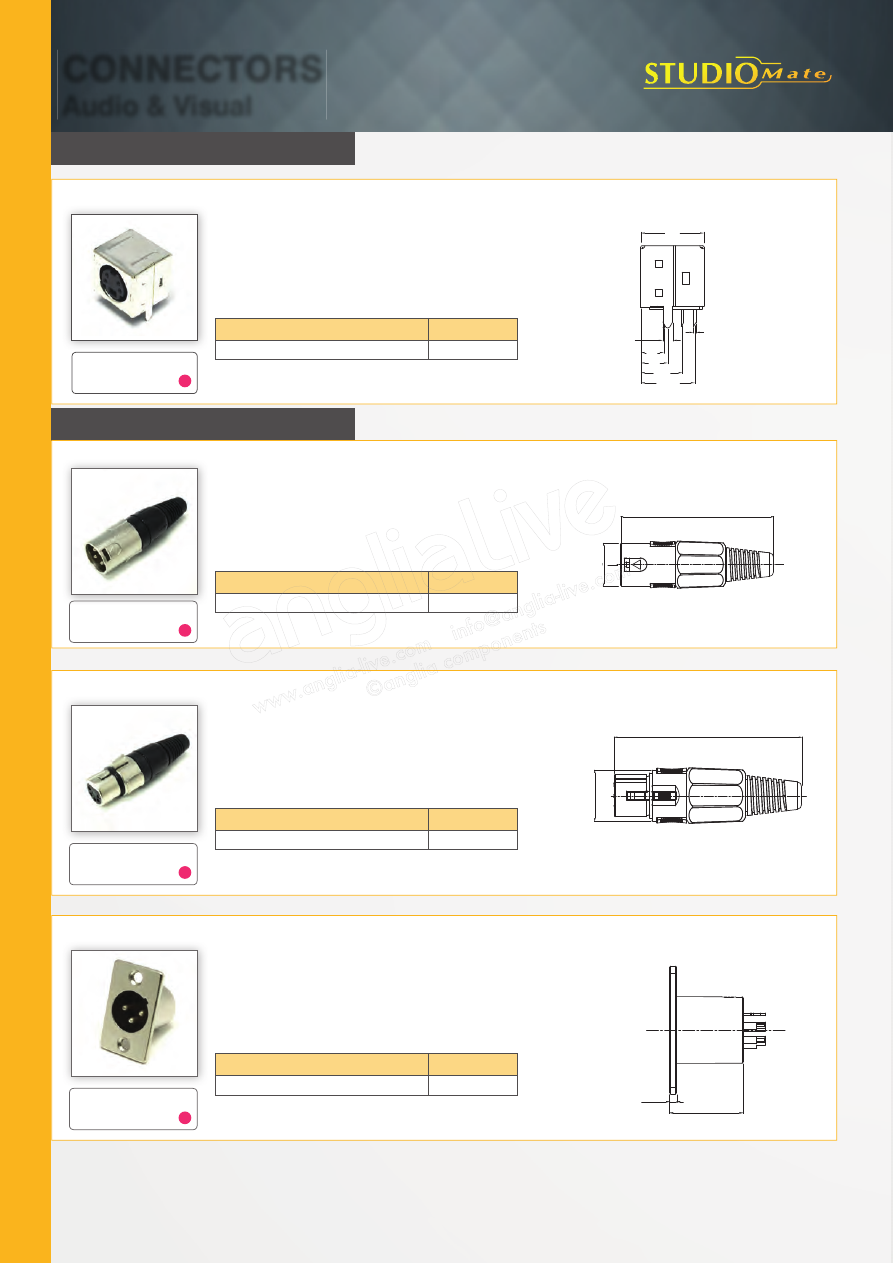

DIN/Mini DIN, XLR/Mini XLR, Circular,

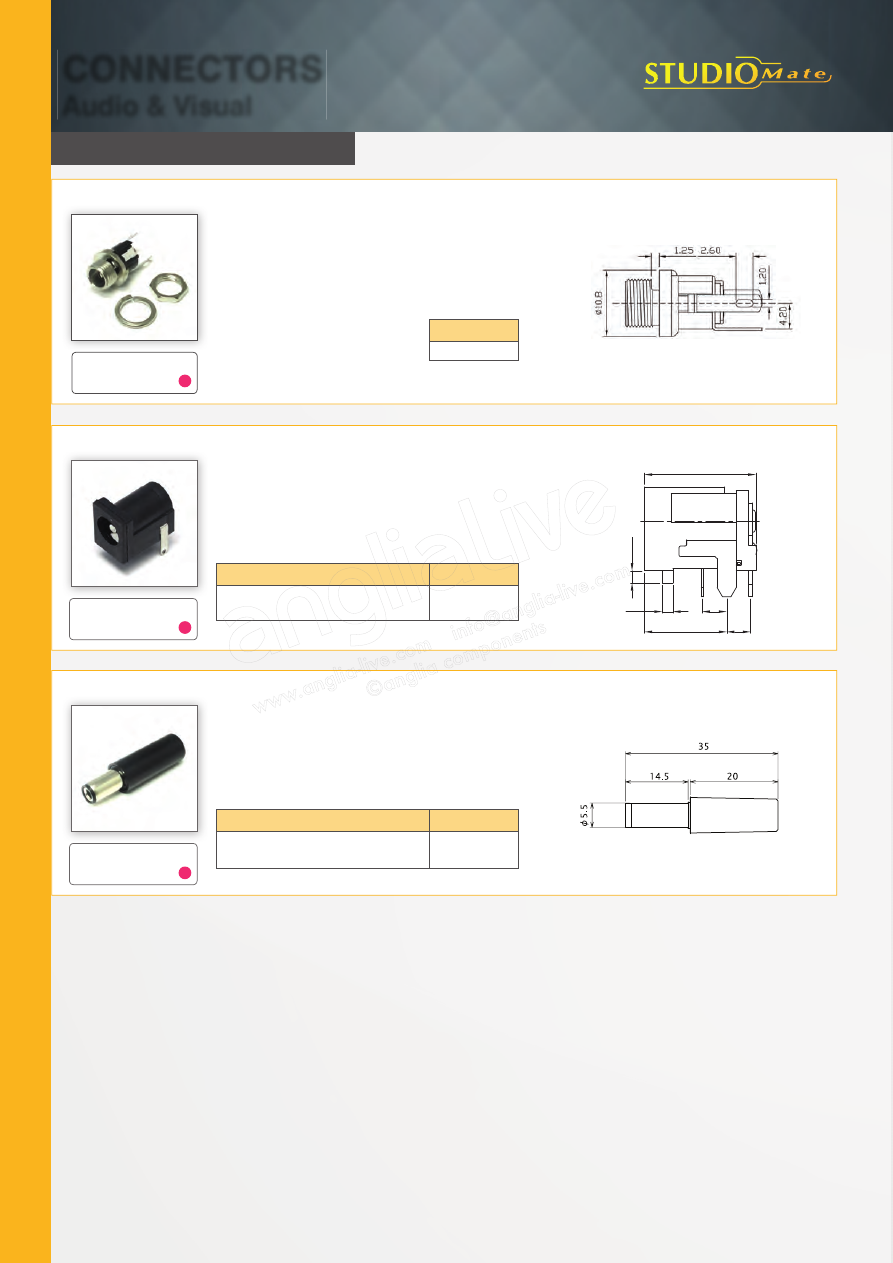

DC Power, Phono, 4mm Banana, HDMI

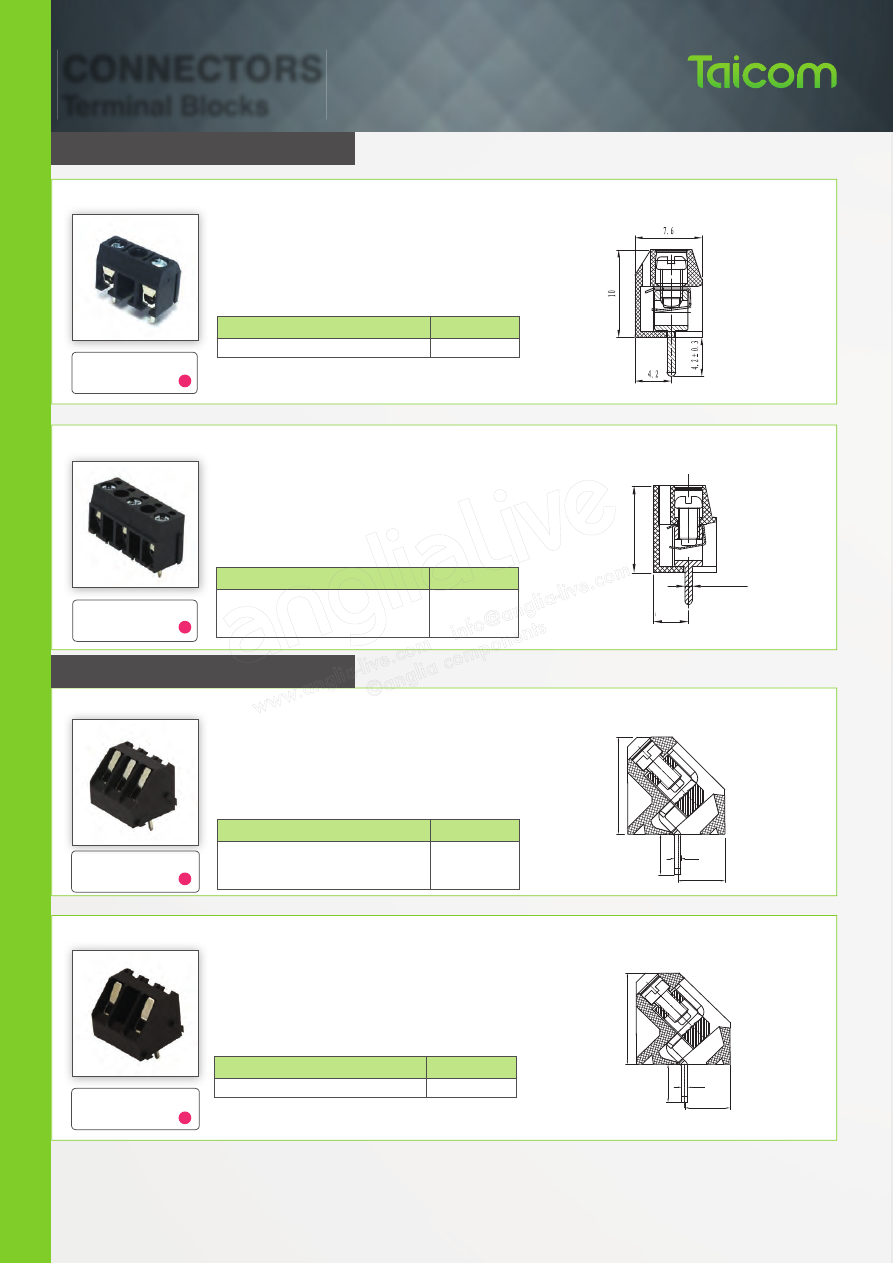

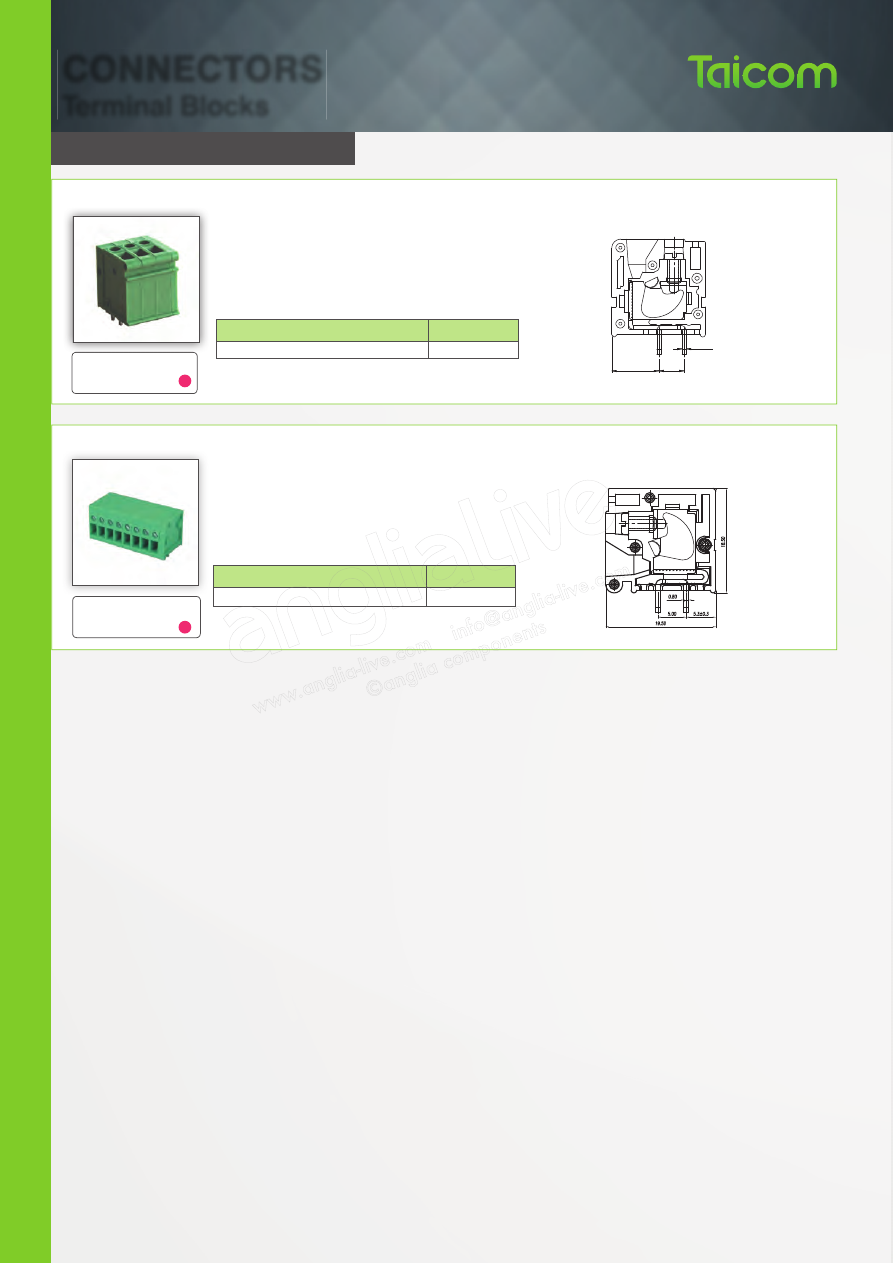

Terminal Blocks

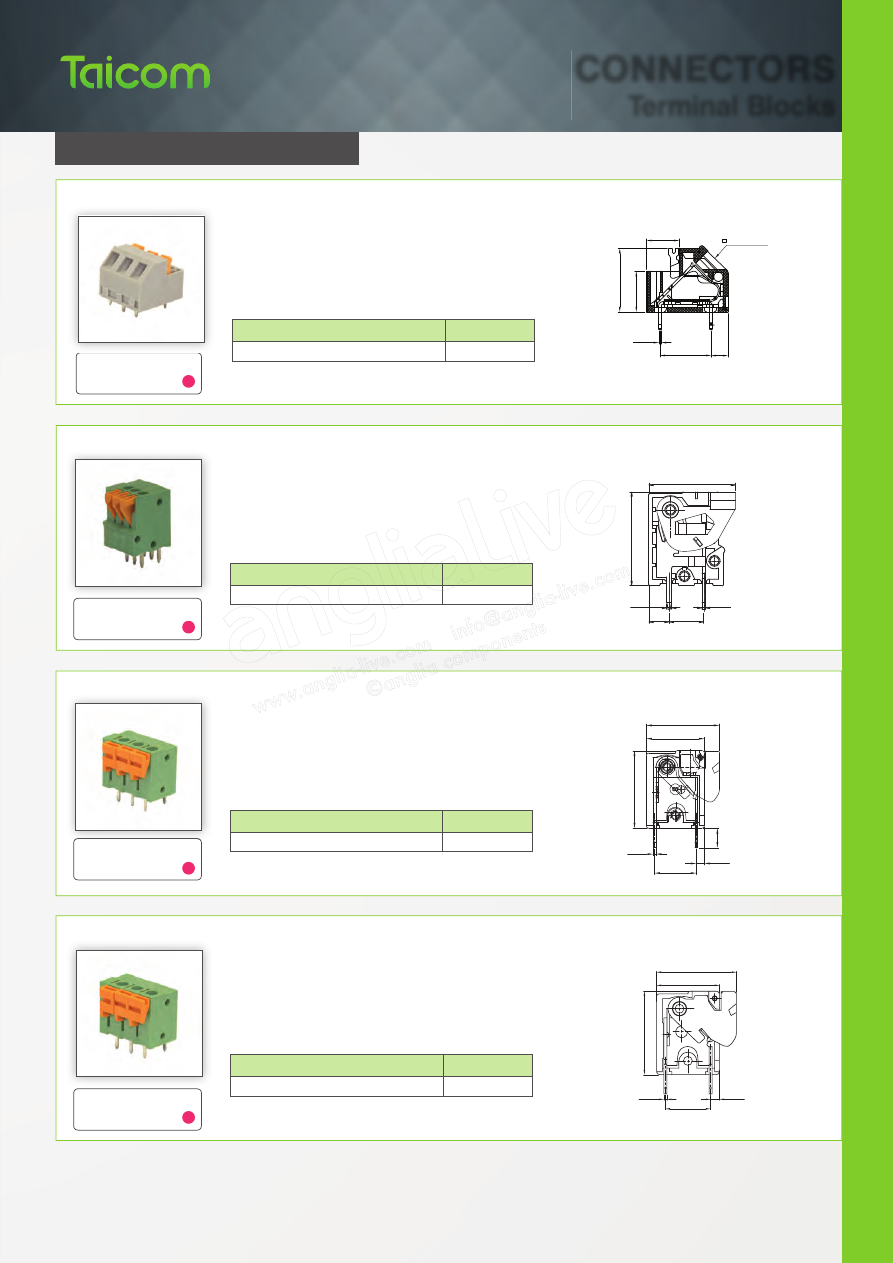

PCB Mount, Plugs & Headers

Terminal Strips

Lighting, Fused, Standard

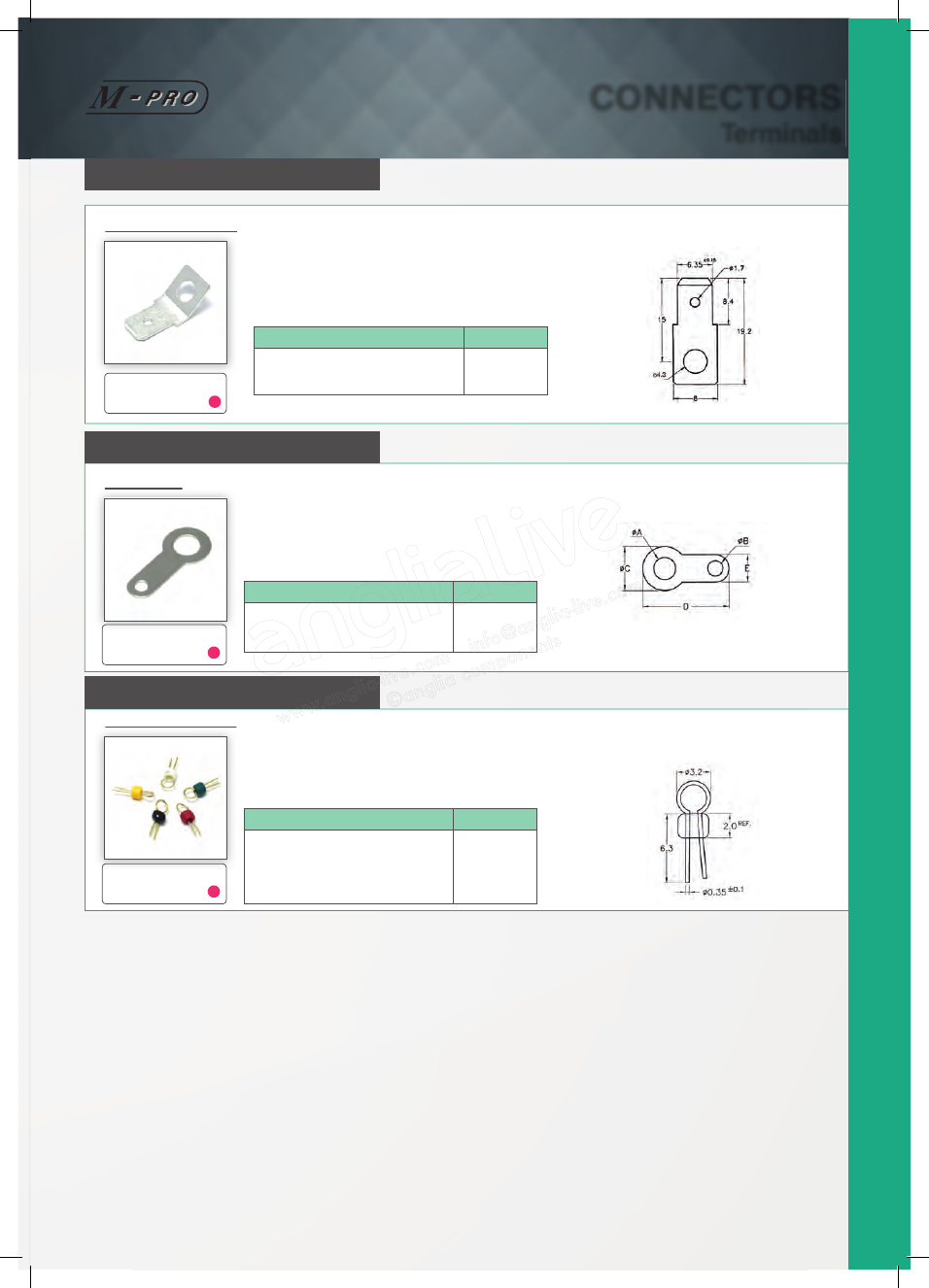

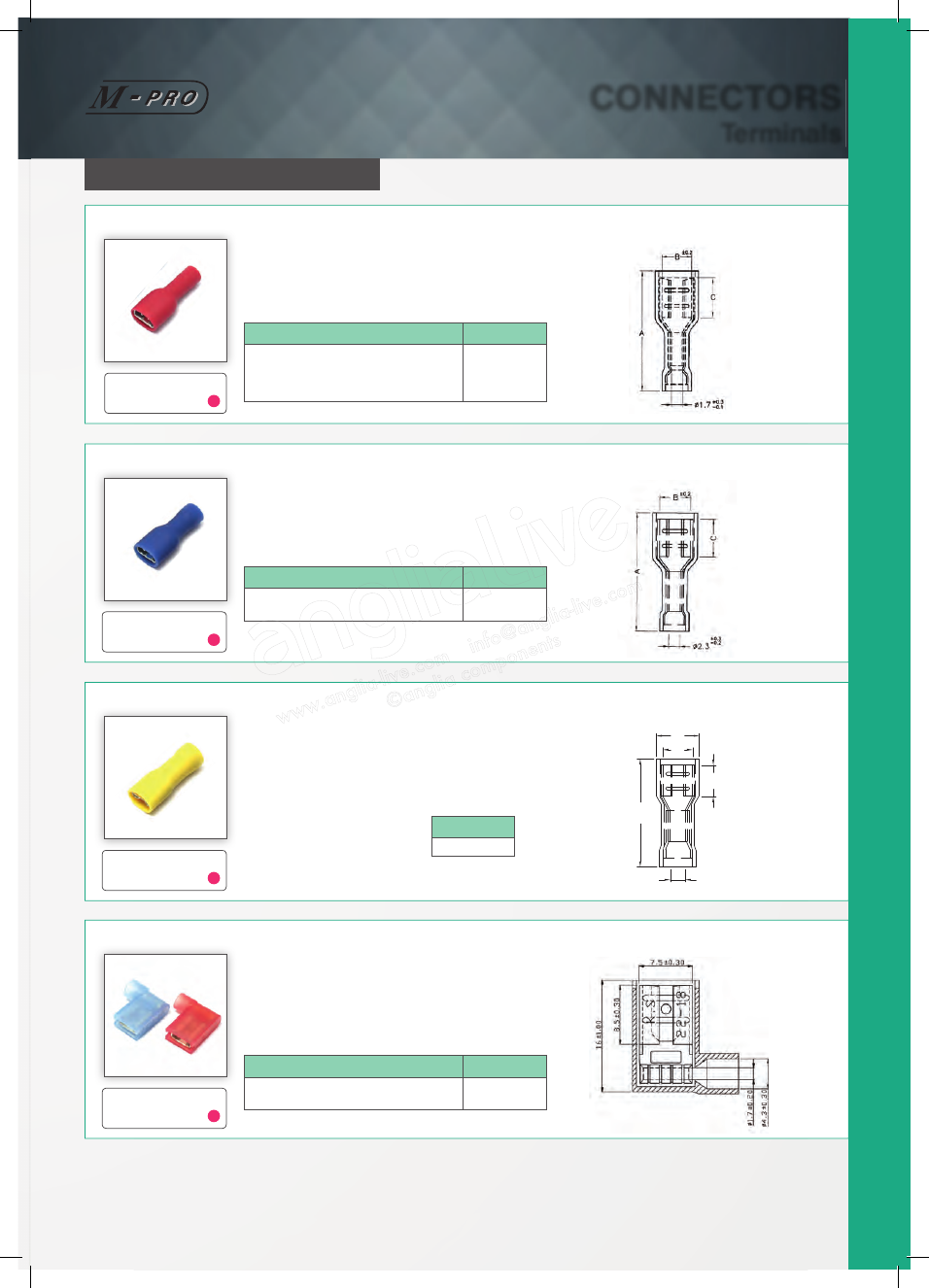

Terminals

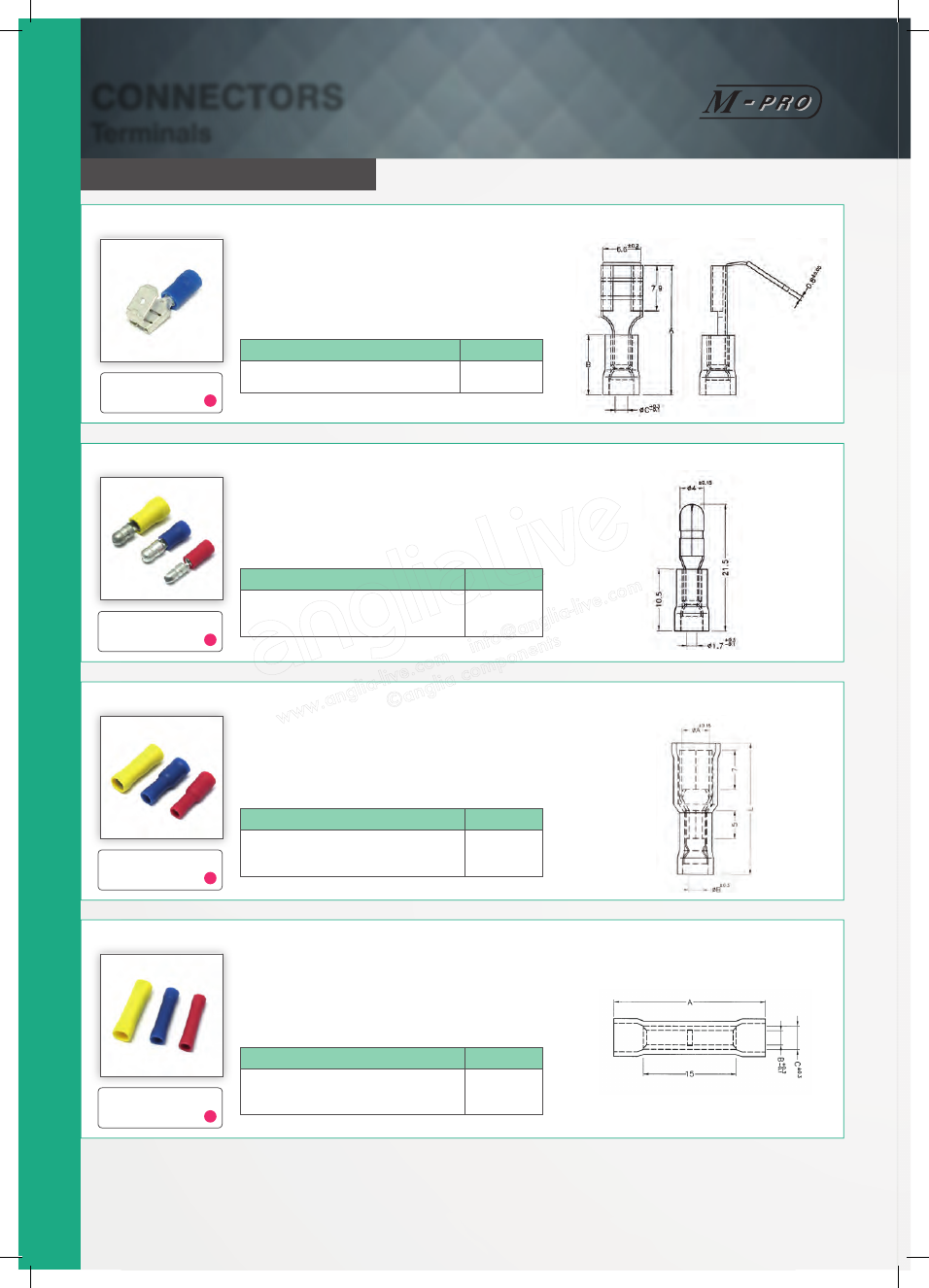

Crimp, Cord End, Blade, PCB Screw,
Test Pins, Blade Strip

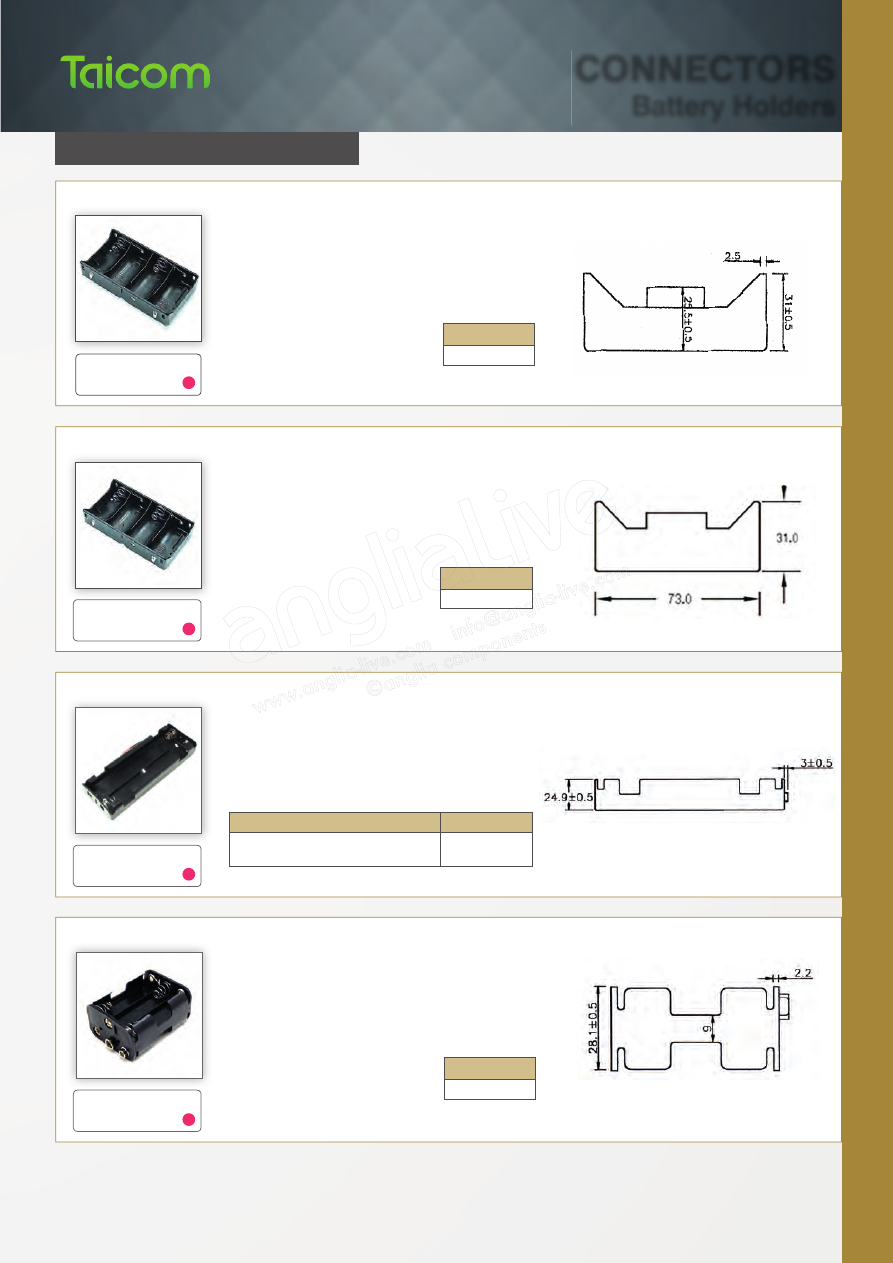

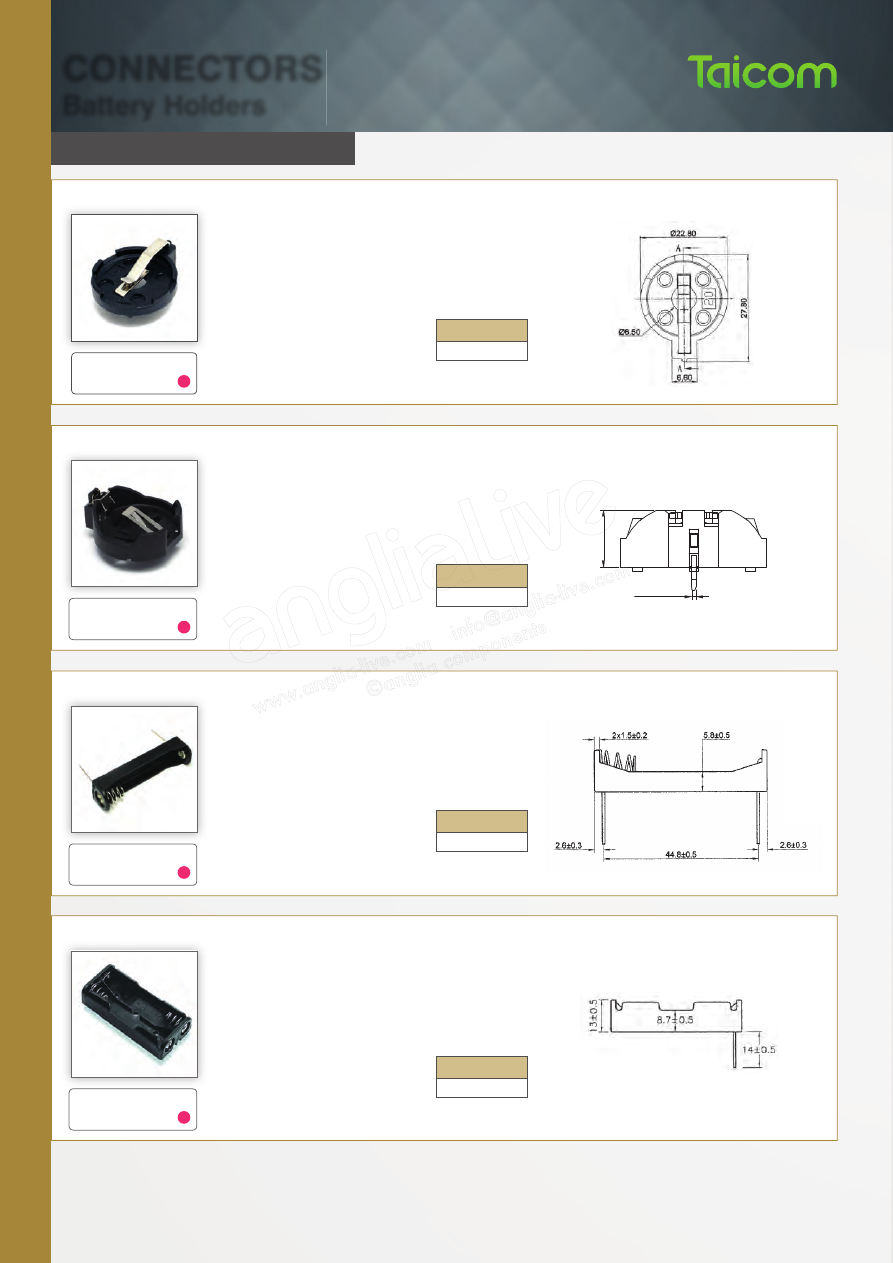

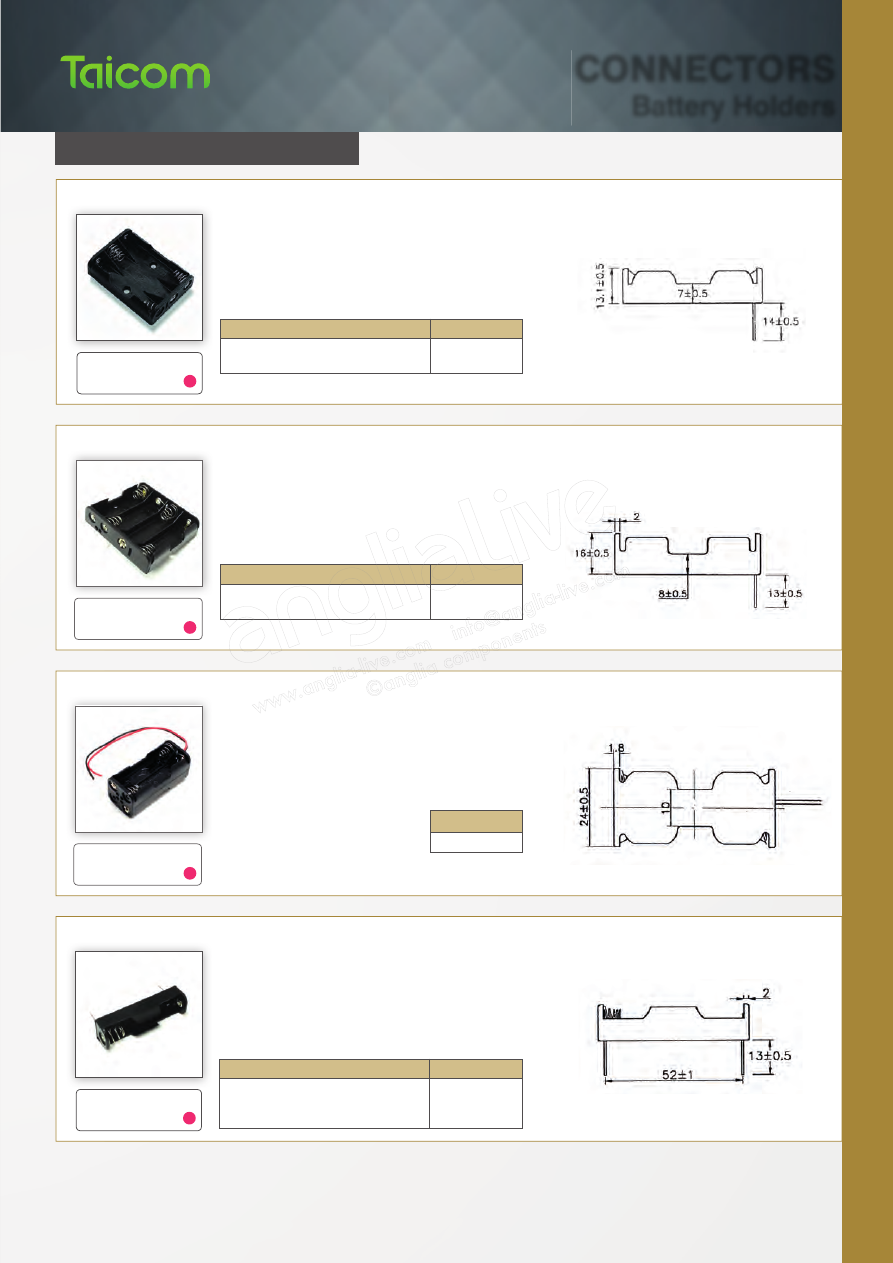

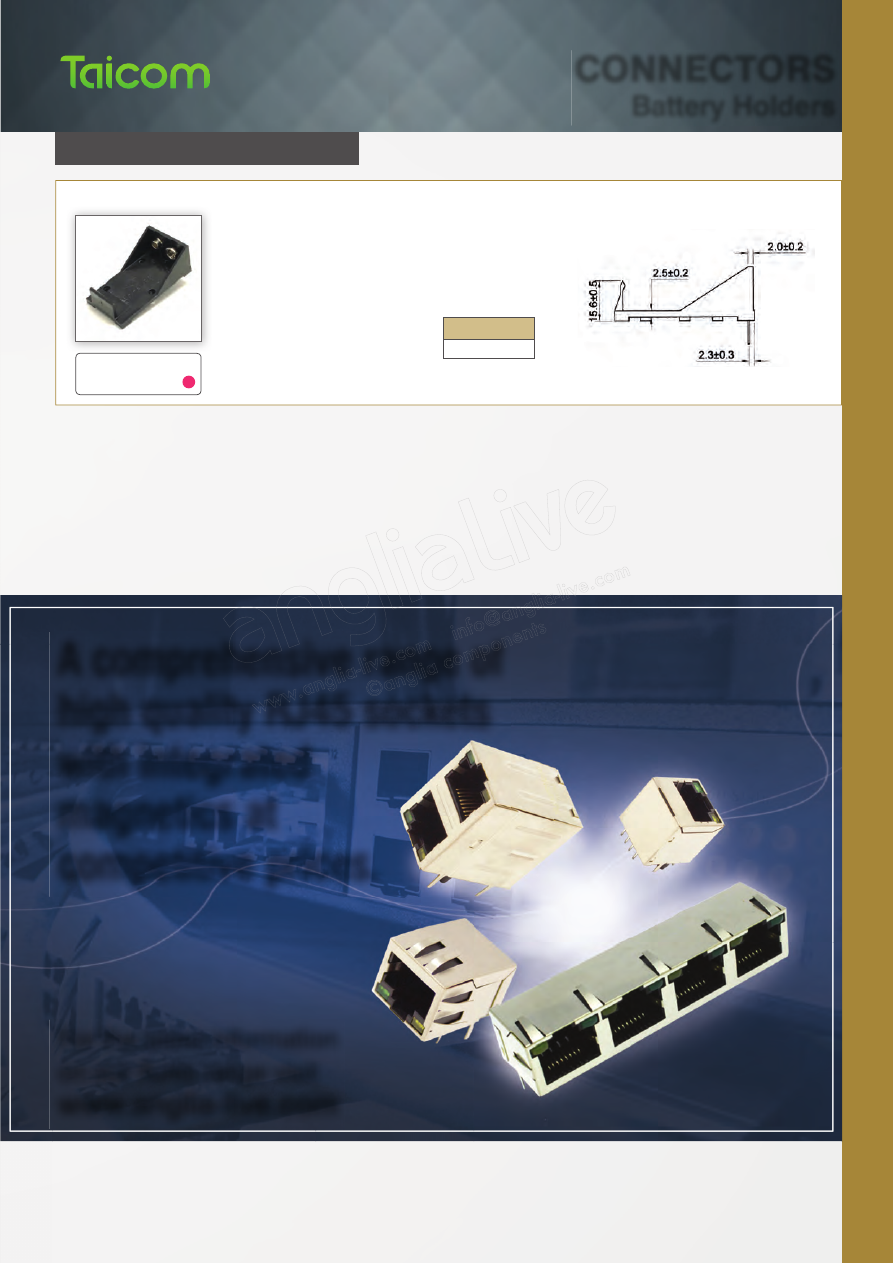

Battery Holders

Clips, Snaps & Holders

Memory Cards

2



-



8

9



-



10

11

12

13



-



26

27



-



51

52



-



82

83 - 100

101



-



114

115



-



118

119



-



127

128



-



135

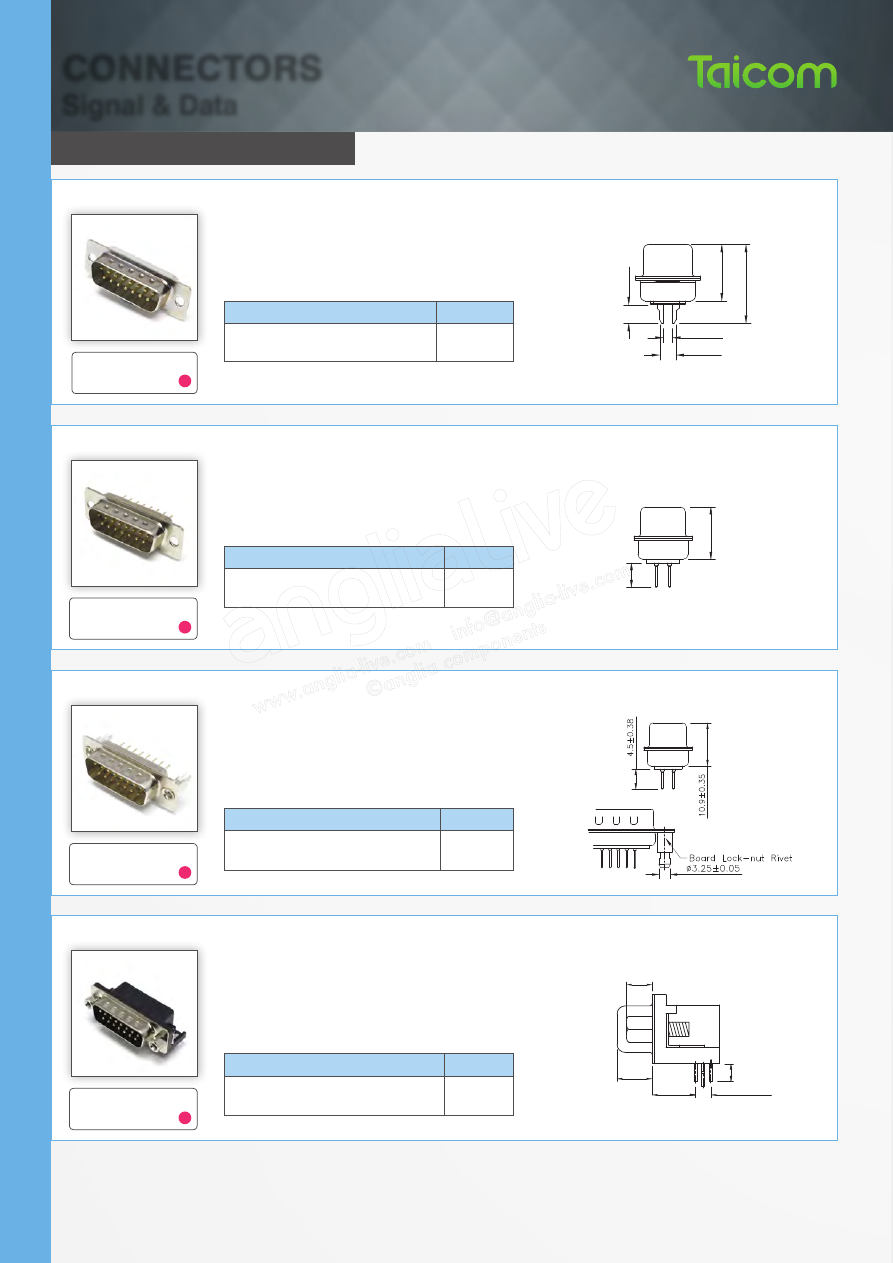

2

www.anglia-live.com

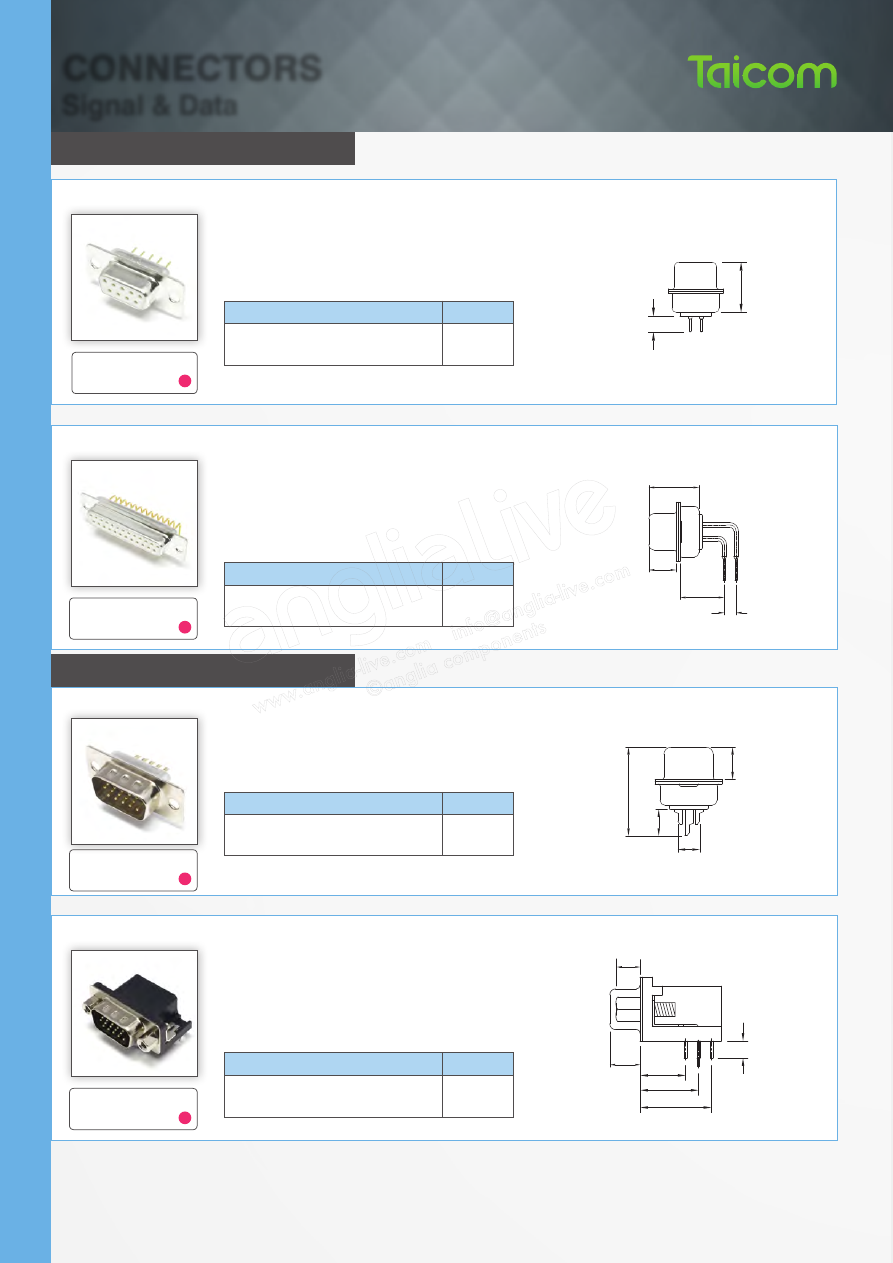

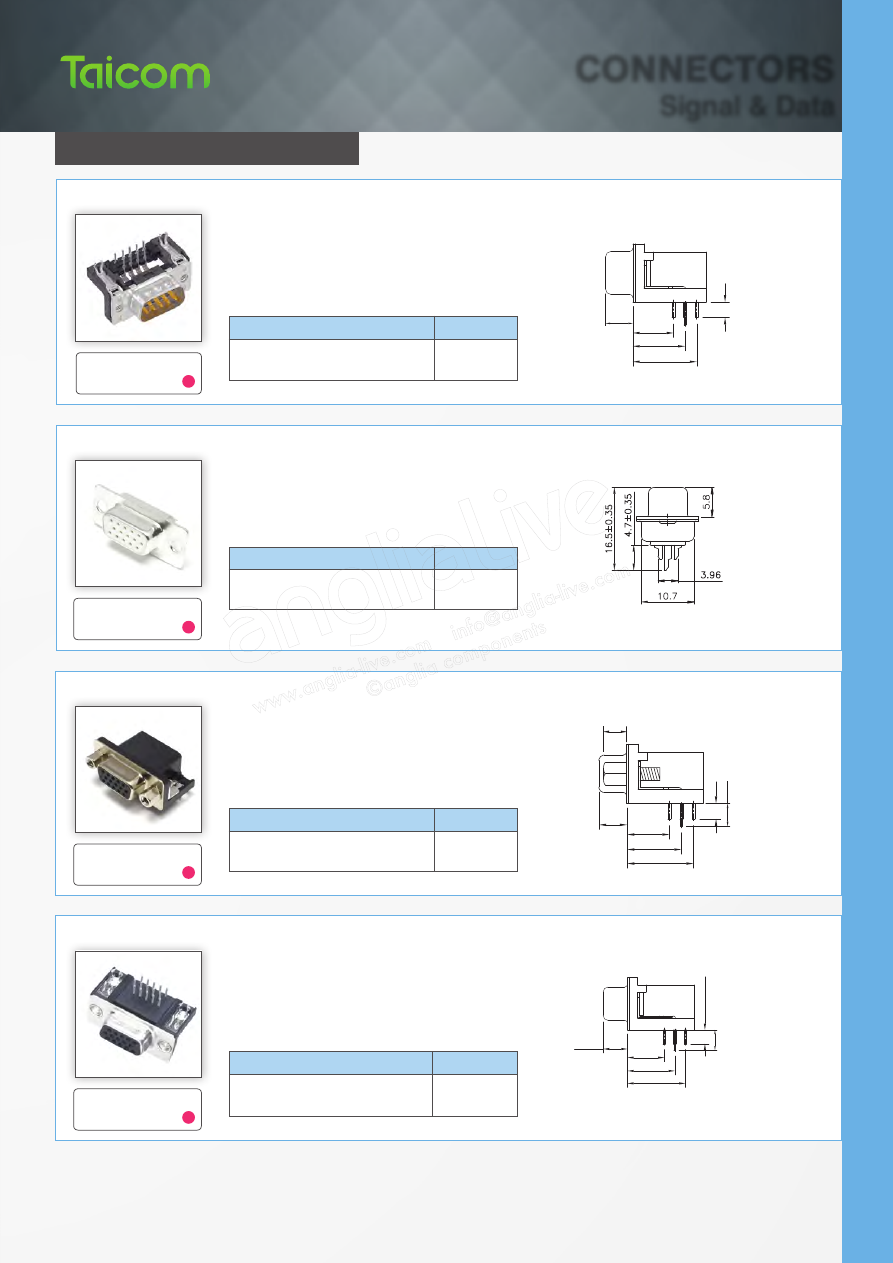

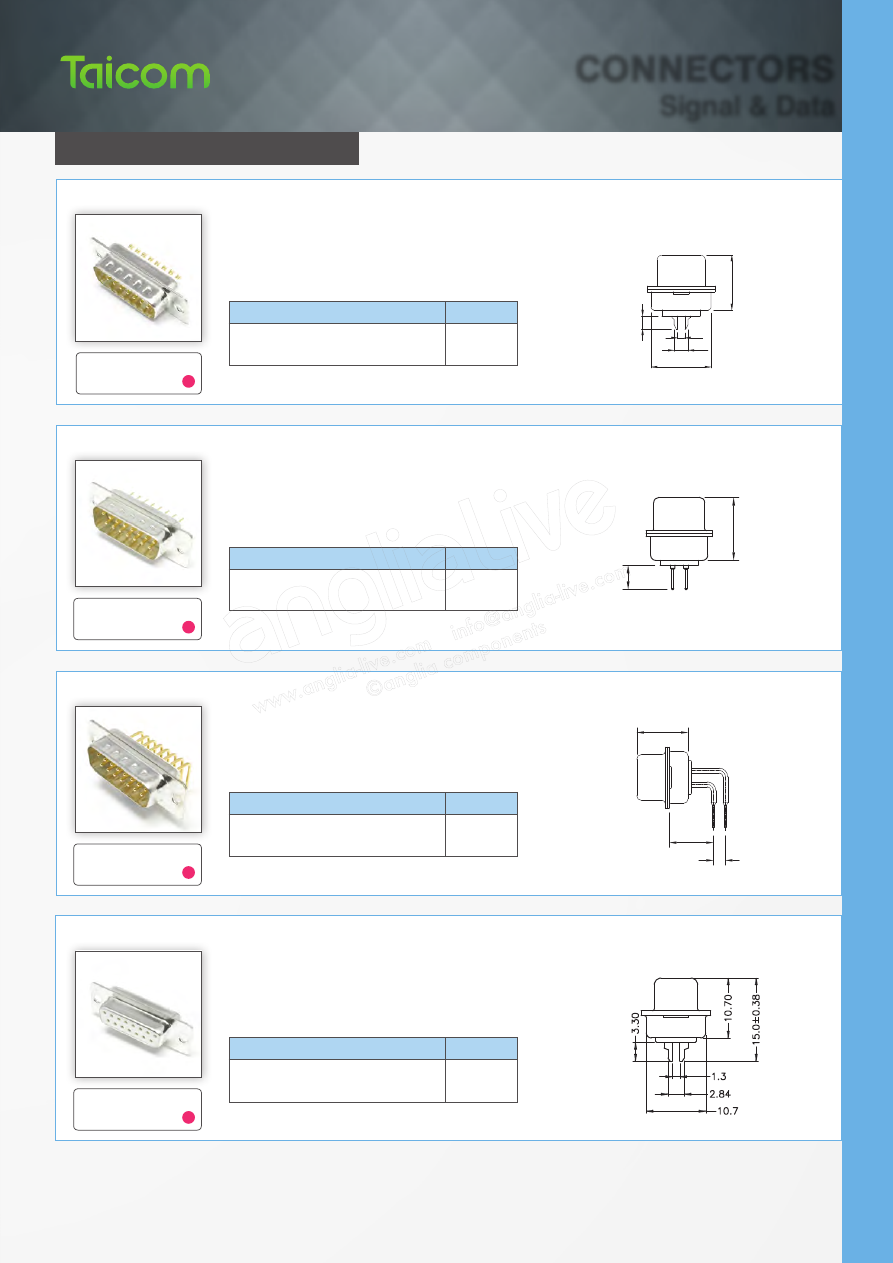

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

6.0 ±0.2

8.08 ±0.38

2.84 ±0.2

3.3 ±0.3

4.8

Website Data Reference

TAI020

No. of Ways

Part No.

9, 15, 25, 37

TDxxMPR

Mates with

TD Sockets

•

UL94V-0 Insulator

•

EMI/RFI shielding

•

4-40 UNC Female Screwlocks

Plug - PCB Mounting - Right Angle with Female Screwlocks

Website Data Reference

TAI019

No. of Ways

Part No.

9, 15, 25, 37, 50

TDxxMPSC

Mates with

TD Sockets

•

UL94V-0 Insulator

•

EMI/RFI shielding

•

4-40 UNC Threaded Board locks

Plug - PCB Mounting - Straight with Threaded Board Locks

Website Data Reference

TAI018

No. of Ways

Part No.

9, 15, 25, 37, 50

TDxxMPS

Mates with

TD Sockets

•

UL94V-0 Insulator

•

EMI/RFI shielding

Plug - PCB Mounting - Straight

15.0

±0.38

10.9

1.6

3.5

3.3

4.5

±0.38

10.9

±0.35

Website Data Reference

TAI017

No. of Ways

Part No.

9, 15, 25, 37, 50

TDxxMB

Mates with

TD Sockets

•

UL94V-0 Insulator

•

EMI/RFI shielding

Plug - Solder Bucket

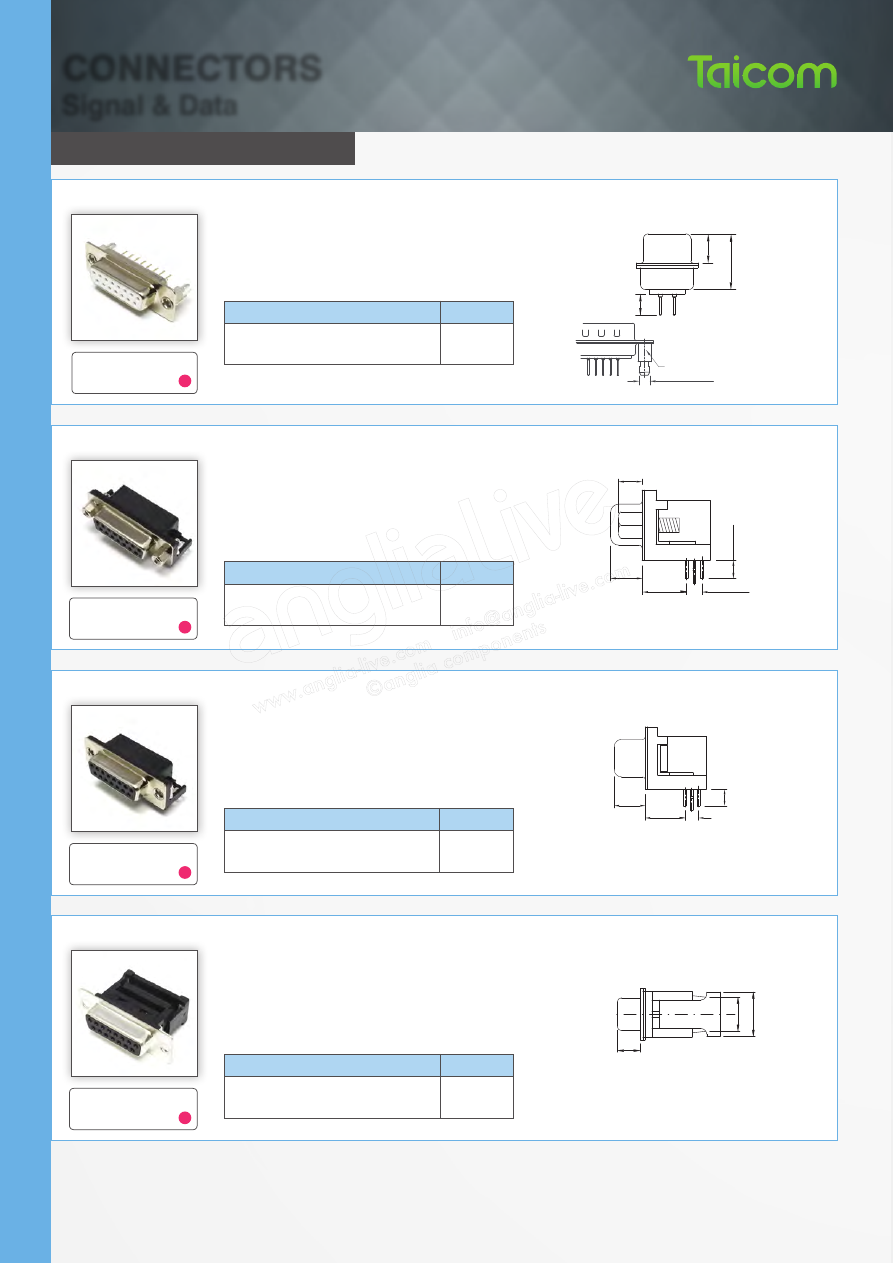

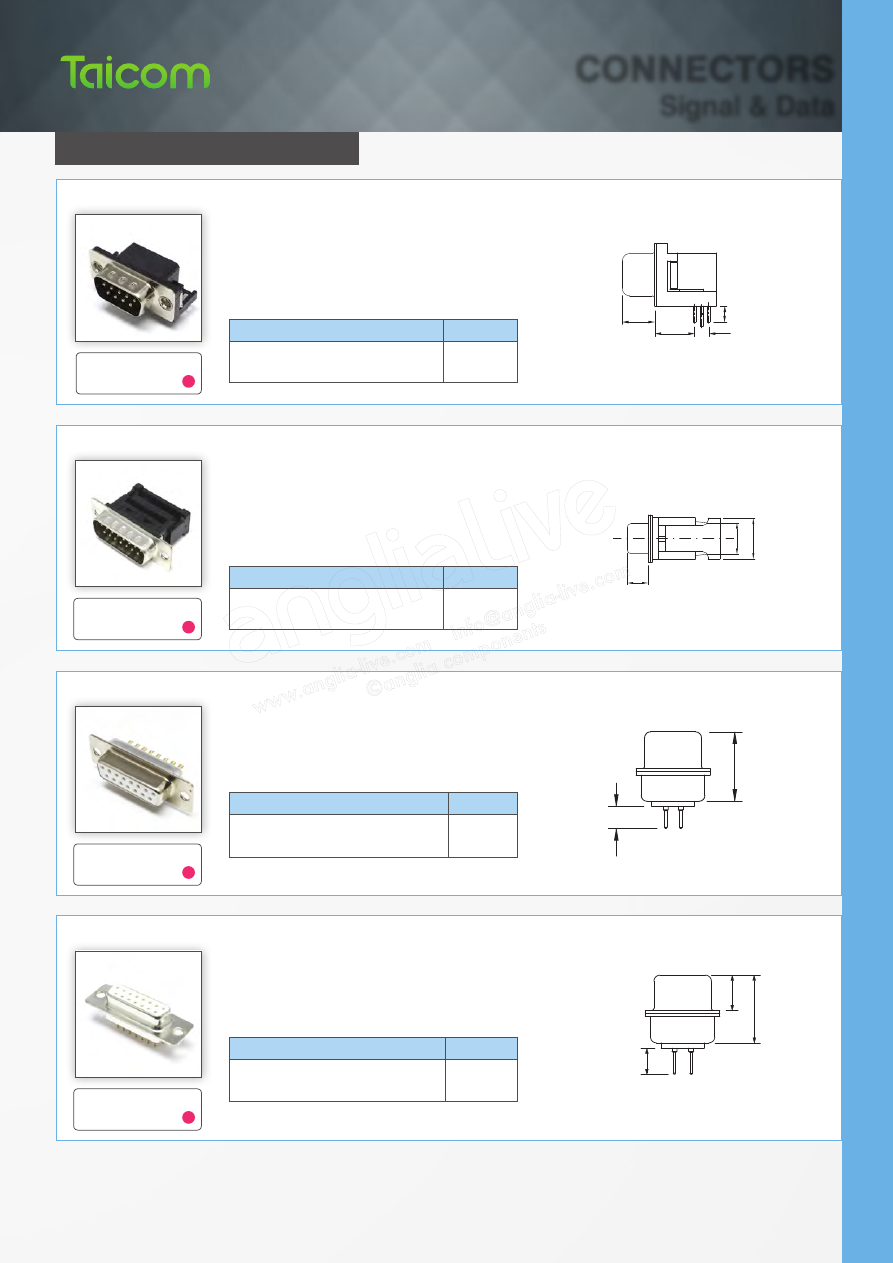

D-Sub Miniature, Formed

CONNECTORS

Signal & Data

i

i

i

i

3

www.anglia-live.com

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

4.3

±0.38

10.8

±0.3

5.8

4.4

10.0

6.1

9.0

10.7

6.0

8.0

2.8

3.3

Website Data Reference

TAI024

No. of Ways

Part No.

9, 15, 25, 37, 50

TDxxFPS

Mates with

TD Plugs

•

UL94V-0 Insulator

•

Stamped & formed contacts

•

EMI/RFI shielding

Socket - PCB Mounting - Straight

Website Data Reference

TAI023

No. of Ways

Part No.

9, 15, 25, 37, 50

TDxxFB

Mates with

TD Plugs

•

UL94V-0 Insulator

•

Stamped & formed contacts

•

EMI/RFI shielding

Socket - Solder Bucket

Website Data Reference

TAI022

No. of Ways

Part No.

9, 15, 25, 37

TDxxMI

Mates with

TD Sockets

•

UL94V-0 Insulator

•

Complete with strain relief

•

For use with 1.27mm ribbon cable (TFGxxC)

Plug - IDC

Website Data Reference

TAI021

No. of Ways

Part No.

9, 15, 25, 37

TDxxMPRC

Mates with

TD Sockets

•

UL94V-0 Insulator

•

EMI/RFI shielding

•

4-40 UNC Threaded Inserts

Plug - PCB Mounting - Right Angle with Threaded Inserts

D-Sub Miniature, Formed

CONNECTORS

Signal & Data

i

i

i

i

4

www.anglia-live.com

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

5.84

±0.25

9.0 ±0.25

10.7 ±0.25

3.3 ±0.3

2.84 ±0.2

8.08

±0.38

5.8

±0.2

3.3 ±0.3

4.8

2.84 ±0.2

8.08

±0.38

5.8

±0.2

4.3

10.8

Board Lock-nut Rivet

ø3.25 ±0.05

5.8

Website Data Reference

TAI028

No. of Ways

Part No.

9, 15, 25, 37

TDxxFI

Mates with

TD Plugs

•

UL94V-0 Insulator

•

Complete with strain relief

•

For use with 1.27mm ribbon cable (TFGxxC)

Socket - IDC

Website Data Reference

TAI027

No. of Ways

Part No.

9, 15, 25, 37

TDxxFPRC

Mates with

TD Plugs

•

UL94V-0 Insulator

•

Complete with strain relief

•

Stamped & formed contacts

•

4-40 UNC Threaded Inserts

Socket - PCB Mounting - Right Angle with Threaded Inserts

Website Data Reference

TAI026

No. of Ways

Part No.

9, 15, 25, 37

TDxxFPR

Mates with

TD Plugs

•

UL94V-0 Insulator

•

Complete with strain relief

•

Stamped & formed contacts

•

4-40 UNC Female screwlocks

Socket - PCB Mounting - Right Angle with Female Screwlocks

Website Data Reference

TAI025

No. of Ways

Part No.

9, 15, 25, 37, 50

TDxxFPSC

Mates with

TD Plugs

•

UL94V-0 White Insulator

•

Stamped & formed contacts

•

4-40 UNC Threaded board locks

Socket - PCB Mounting - Straight with Threaded Board Locks

D-Sub Miniature, Formed

CONNECTORS

Signal & Data

Dimensions (mm)

i

i

i

i

5

www.anglia-live.com

2.54

9.4

10.9

4.5

±0.38

11.0

±0.35

10.72

2.84

1.6

11.0

2.7

±0.35

Website Data Reference

TAI032

•

UL94V-0 Insulator

•

Stamped & formed contacts

•

EMI/RFI shielding

Socket - PCB Mounting - Solder Bucket

Website Data Reference

TAI031

•

UL94V-0 Insulator

•

Stamped & formed contacts

•

EMI/RFI shielding

Plug - PCB Mounting - Right Angle

Website Data Reference

TAI030

•

UL94V-0 Insulator

•

Stamped & formed contacts

•

EMI/RFI shielding

Plug - PCB Mounting - Straight

Website Data Reference

TAI029

•

UL94V-0 Insulator

•

Stamped & formed contacts

•

EMI/RFI shielding

Plug - Solder Bucket

CONNECTORS

Signal & Data

D-Sub Miniature, Turned Pin

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

No. of Ways

Part No.

9, 15, 25, 37

TTxxMPR

Mates with

TT Sockets

Dimensions (mm)

No. of Ways

Part No.

9, 15, 25, 37, 50

TTxxMPS

Mates with

TT Sockets

No. of Ways

Part No.

9, 15, 25, 37, 50

TTxxMB

Mates with

TT Sockets

No. of Ways

Part No.

9, 15, 25, 37, 50

TTxxFB

Mates with

TT Plugs

i

i

i

i

6

www.anglia-live.com

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

3.3 ±0.35

6.0

4.8

8.89

11.43

13.97

10.7

5.8

2.54

9.4

4.4

10.0

Website Data Reference

TAI036

No. of Ways

Part No.

15, 26, 44

THDxxMPR

Mates with

THD Sockets

•

High density

•

UL94V-0 Insulator

•

Complete with strain relief

•

Stamped & formed contacts

•

4-40 UNC Female Screwlocks

Plug - High Density - PCB Mounting Right Angle with Female Screwlocks

Website Data Reference

TAI035

•

High density

•

UL94V-0 Insulator

Plug - High Density - Solder Bucket

Website Data Reference

TAI034

No. of Ways

Part No.

9, 15, 25, 37

TTxxFPR

Mates with

TT Plugs

•

UL94V-0 Insulator

•

Complete with strain relief

•

Stamped & formed contacts

Socket - PCB Mounting - Right Angle

Website Data Reference

TAI033

No. of Ways

Part No.

9, 15, 25, 37, 50

TTxxFPS

Mates with

TT Plugs

•

UL94V-0 Insulator

•

Stamped & formed contacts

•

EMI/RFI shielding

Socket - PCB Mounting - Straight

D-Sub Miniature, Turned Pin

D-Sub Miniature, High Density

CONNECTORS

Signal & Data

No. of Ways

Part No.

15, 26, 44

THDxxMB

Mates with

THD Sockets

Dimensions (mm)

3.96

6.0

17.0

±0.35

4.9

±0.3

i

i

i

i

7

www.anglia-live.com

Dimensions (mm)

6.0

8.89

11.43

13.97

3.3 ±0.35

5.9

±0.25

8.89

4.8

3.3

±0.35

3.9

±0.35

11.43

13.97

5.9

±0.25

8.89

11.43

13.97

3.9

±0.35

3.3 ±0.35

Dimensions (mm)

Website Data Reference

TAI040

No. of Ways

Part No.

15, 26, 44

THDxxFPRC

Mates with

THD Plugs

•

UL94V-0 Insulator

•

Stamped & formed contacts

•

EMI/RFI shielding

•

4-40 UNC Threaded Inserts

Socket - High Density - PCB Mounting Right Angle with Threaded Inserts

Website Data Reference

TAI039

No. of Ways

Part No.

15, 26, 44

THDxxFPR

Mates with

THD Plugs

•

UL94V-0 Insulator

•

Complete with strain relief

•

Stamped & formed contacts

•

4-40 UNC Female Screwlocks

Socket - High Density - PCB Mounting Right Angle with Female Screwlocks

Website Data Reference

TAI038

No. of Ways

Part No.

15, 26, 44

THDxxFB

Mates with

THD Plugs

•

High density

•

Tin Plated Shells

•

Insulator UL94V-0

Socket - High Density - Solder Bucket

Website Data Reference

TAI037

No. of Ways

Part No.

15, 26, 44

THDxxMPRC

Mates with

THD Sockets

•

High density

•

UL94V-0 Insulator

•

Stamped & formed contacts

•

EMI/RFI shielding

•

4-40 UNC Threaded Inserts

CONNECTORS

Signal & Data

D-Sub Miniature, High Density

Plug - High Density - Right Angle with Threaded Inserts

Dimensions (mm)

Dimensions (mm)

i

i

i

i

8

www.anglia-live.com

Dimensions (mm)

Dimensions (mm)

30.5

41.0

30.5

41.0

Website Data Reference

TAI042

No. of Ways

Part No.

9, 15, 25, 37, 51
For use with

TDxxFB & TDxxMB D SUBs

Short screws

TDHxxP

Long (Thumb) screws

TDHxxPT

•

ABS Plastic

•

Commercial and Industrial compatible

•

Option of Short screws or Long (thumb) screws

•

Supplied with cable clamp

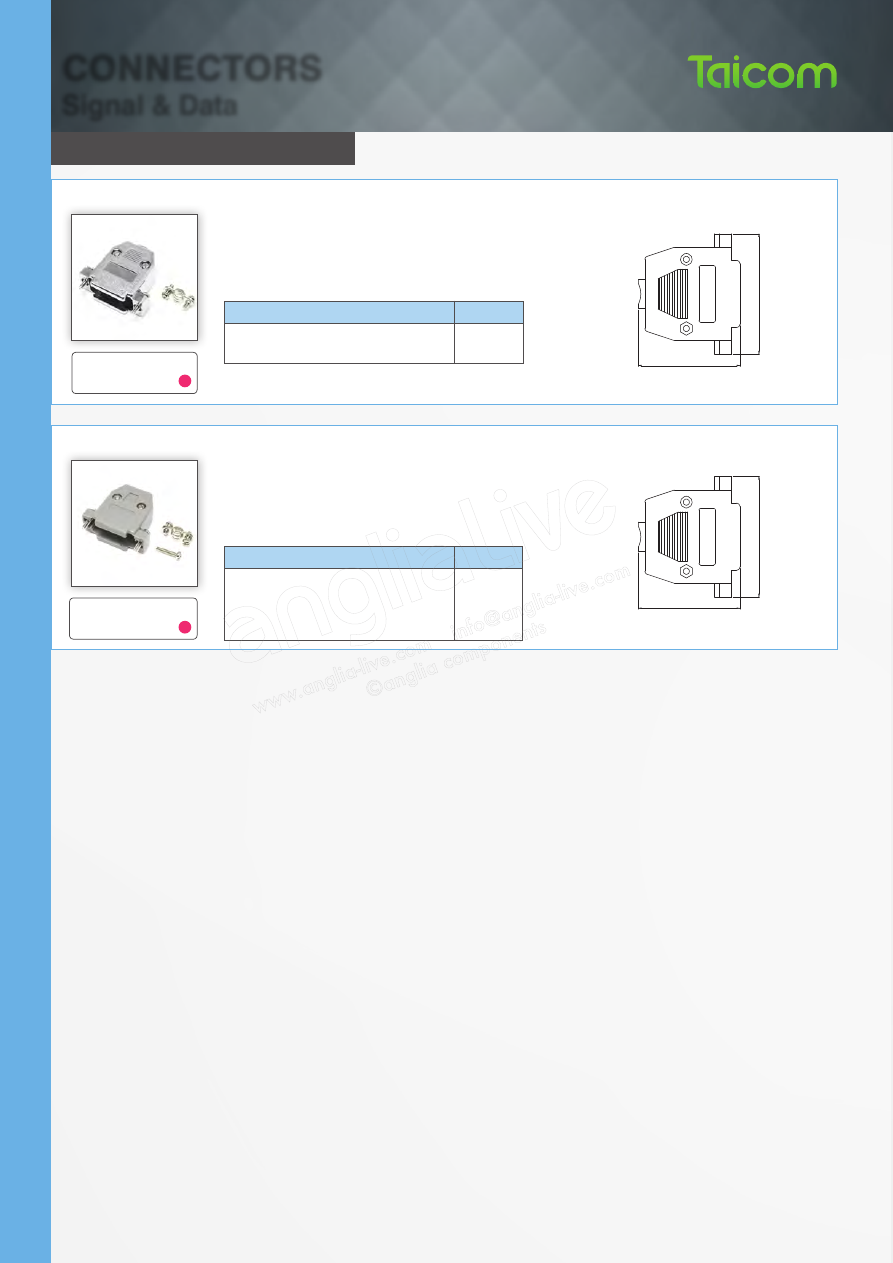

D Sub Miniature - Plastic Hood

Website Data Reference

TAI041

No. of Ways

Part No.

9, 15, 25, 37, 50

TDHxxMP

For use with

TDxxFB & TDxxMB D SUBs

•

Chrome over nickel plated for EM/RFI shielding

•

Commercial and Industrial compatible

•

Supplied with cable clamp and short screws

D Sub Miniature - Metallised Hood

D Sub Hoods

CONNECTORS

Signal & Data

i

i

9

www.anglia-live.com

IC Sockets, Turned Pin

Website Data Reference

TAI043

No. of Ways

Part No.

6, 8, 14, 16, 18, 20, 22, 24, 28, 32, 40, 42, 48

TSDxxx

No. of Ways

Part No.

6, 8, 14, 20, 22, 24, 28, 32, 36, 40, 48, 64

TTDxxx

•

Dual wipe, stamped & formed contacts

•

Black glass filled flame retardant bodies UL94V-0

•

Closed base anti-wicking design

•

Low profile, open frame

•

End & side stackable

•

Shrink DIP suitable for Microcontrollers & EPROM

IC Socket DIL

IC Sockets, Formed

CONNECTORS

IC Socket

•

High quality, turned pin contacts with gold plated inner contact

•

Black glass filled flame retardant bodies UL94V-0

•

Closed base anti-wicking design

•

Low profile, open frame

•

End & side stackable

•

Shrink DIP suitable for Microcontrollers & EPROM

Website Data Reference

TAI045

IC Socket Turned Pin

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

5.2

7.62

7.62 ±0.15

3.0

±0.2

3.0

±0.2

7.43

±0.3

4.3

Website Data Reference

TAI048

•

Black UL94V-0 PPS Insulator

•

Tin plated contacts

2.54mm Turned Pin SIL Headers

Website Data Reference

TAI047

No. of Ways

Part No.

3, 5, 6, 11, 14, 15, 20, 32

TTSxx

•

Black UL94V-0 PPS Insulator

•

Gold plated sleeve

•

Tin plated contacts

2.54mm IC Turned Socket SIL

Dimensions (mm)

No. of Ways

Part No.

20 way

TPH20SST

32 way

TPH32SST

i

i

i

i

10

www.anglia-live.com

IC Sockets Chip Carrier

CONNECTORS

IC Socket

PLCC - Through Hole

PLCC - Surface Mount

Website Data Reference

TAI049

Website Data Reference

TAI050

Dimensions (mm)

Dimensions (mm)

•

Accepts Jedec A & B chip carriers

•

Black glass filled PBT flame retardant body
UL94V-0

•

Low profile

•

Tin plated contacts

•

Accepts Jedec A & B chip carriers

•

Low profile

•

Tin plated contacts

•

With or without polarising peg

•

High Temperature rated 150°C

•

Brown PPS flame retardant body UL94V-0

1.65

3.0

6.46

4.5

No. of Ways

Part No.

28, 32, 44, 52, 68, 84

TCCxxB

No. of Ways

Part No.

28, 32, 44, 52, 68, 84
Without polarising peg

TCCxxPSM1

With polarising peg

TCCxxPSM2

i

i

11

www.anglia-live.com

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

5.08

0.5 ±0.05

3.0

8.4

17.7

2.9

5.08

2.54

3.9

±0.25

11.5

3.0

6.0

8.0

2.9

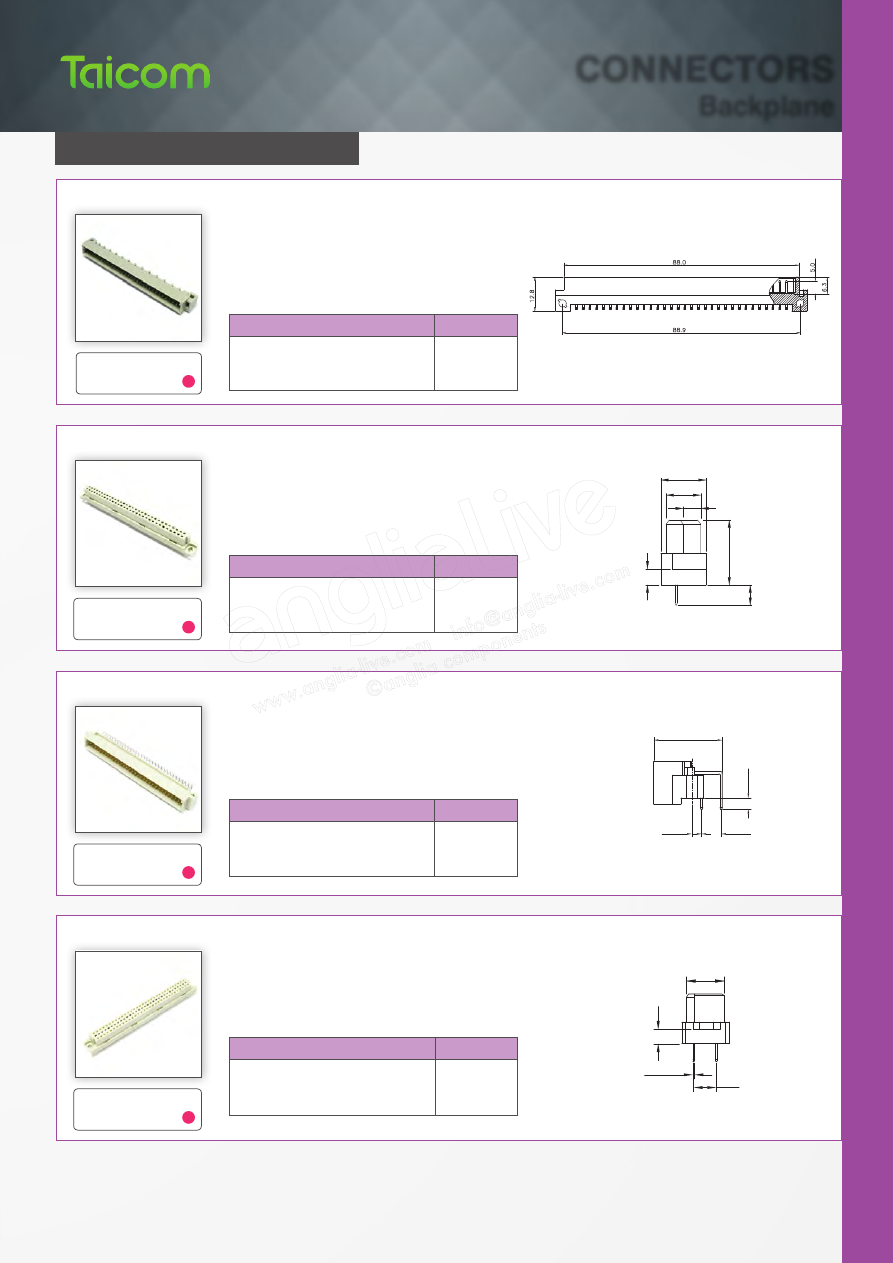

Website Data Reference

TAI054

No. of Ways

Part No.

64 or 96 way
Class 3

TDNxxFC

Class 2

TDNxxFC2

•

Industry Standard DIN14612 - Type C

•

Ideal for indirect board to board interconnection

•

Compatible with 19 inch sub-rack systems & eurocards

•

Grey glass filled PBT flame retardant body UL94V-0

•

Option of Class 2 or Class 3

DIN41612 - Socket - Straight

Website Data Reference

TAI053

•

Industry Standard DIN14612 - Type C

•

Ideal for indirect board to board interconnection

•

Compatible with 19 inch sub-rack systems & eurocards

•

Grey glass filled PBT flame retardant body UL94V-0

•

Option of Class 2 or Class 3

DIN41612 - Plug - Right Angle

Website Data Reference

TAI052

•

Industry Standard DIN14612 - Type B

•

Ideal for indirect board to board interconnection

•

Compatible with 19 inch sub-rack systems & eurocards

•

Grey glass filled PBT flame retardant body UL94V-0

•

Option of Class 2 or Class 3

DIN41612 - Socket - Straight

Website Data Reference

TAI051

•

Industry Standard DIN14612 - Type B

•

Ideal for indirect board to board interconnection

•

Compatible with 19 inch sub-rack systems & eurocards

•

Grey glass filled PBT flame retardant body UL94V-0

•

Option of Class 2 or Class 3

DIN41612 - Plug - Right Angle

DIN41612

CONNECTORS

Backplane

No. of Ways

Part No.

32 or 64 way
Class 3

TDNxxMB

Class 2

TDNxxMB2

No. of Ways

Part No.

32 or 64 way
Class 3

TDNxxFB

Class 2

TDNxxFB2

No. of Ways

Part No.

64 or 96 way
Class 3

TDNxxMC

Class 2

TDNxxMC2

i

i

i

i

12

www.anglia-live.com

Dimensions (mm)

2.54

Type

CAV

NO.

0.8 TYP.

17.2

29.7

15.4

CAV NO.

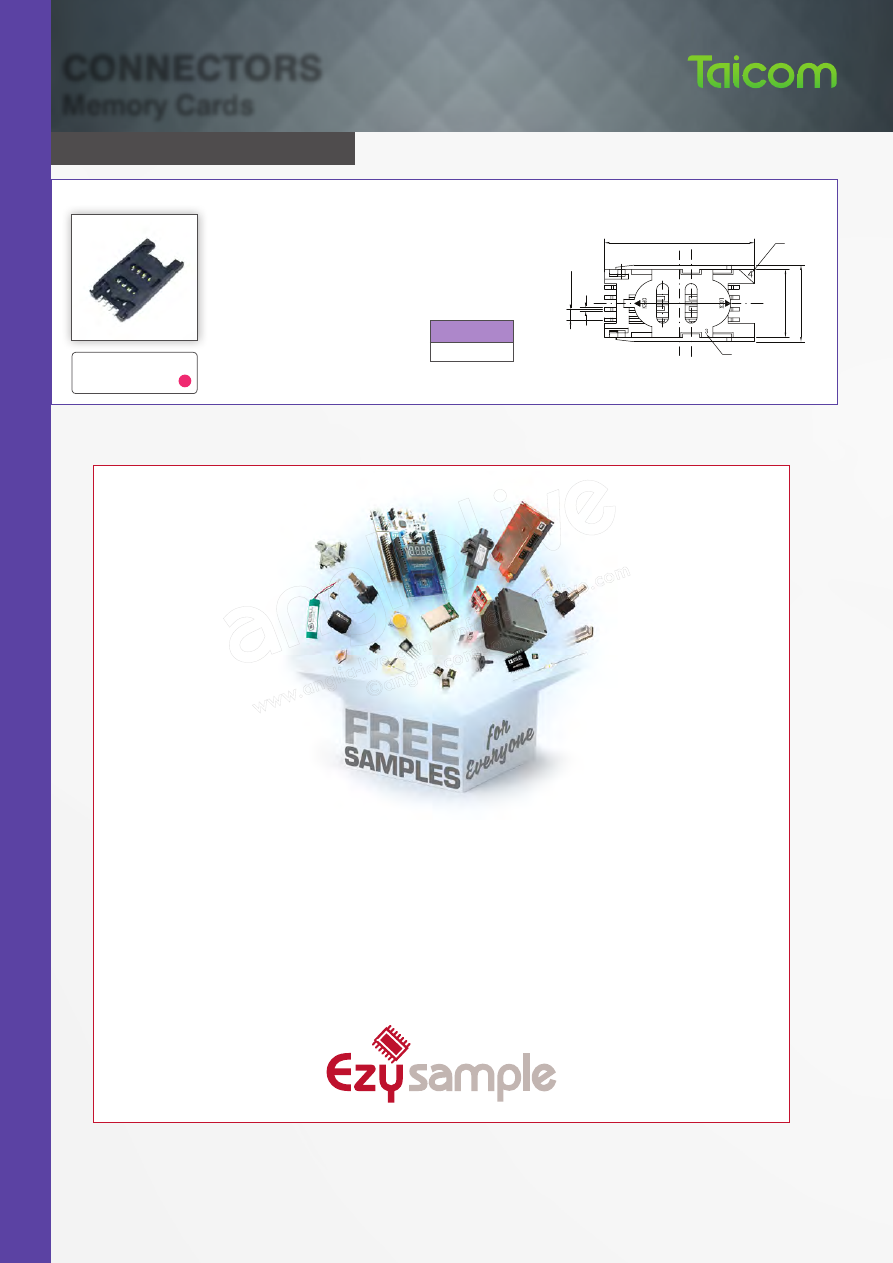

Website Data Reference

TAI324

Part No.

TSIM08TE

•

SIM Card Holder 8 Pin

•

0.5A rated

•

Durability 5000 cycles

•

Black UL94V-0 LCP

SIM Card 8 Pin

CONNECTORS

Memory Cards

MEMORY CARDS

ORDER YOUR

FREE SAMPLES

using our NEW sample service

Visit

www.anglia-live.com/ezysample

for more information.

Every project needs the right start

i

RJ Connectors

13

www.anglia-live.com

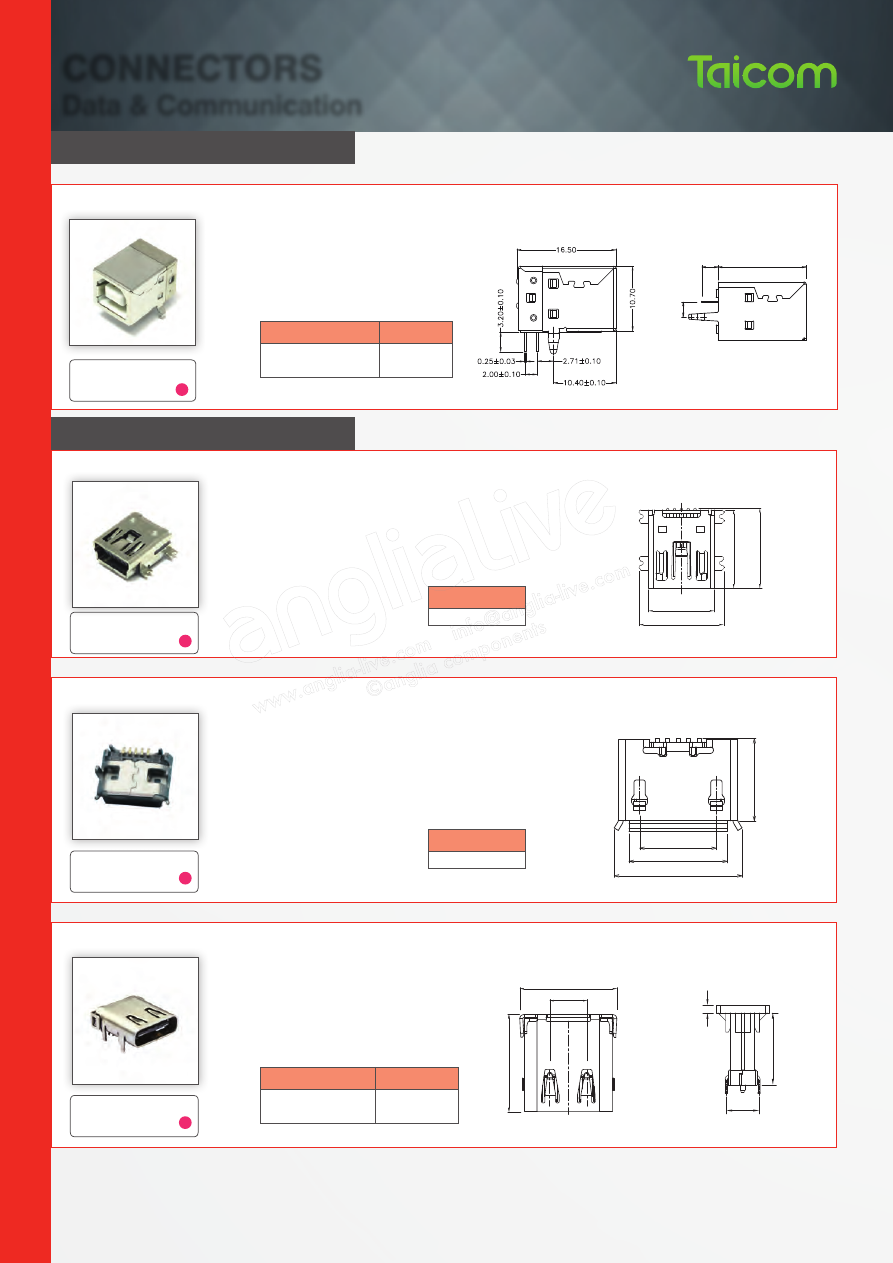

CONNECTORS

Data & Communication

Website Data Reference

TAI058

•

Industry compatible RJ

•

FCC-68 compatible

•

Gold plated contact area, tin plated on solder pins

•

Black glass filled body flame retardant to UL94V-0

RJ Sockets - Right Angle - Low Profile

Website Data Reference

TAI057

•

Industry compatible RJ

•

FCC-68 compatible

•

Gold plated contact area, tin plated on solder pins

•

Black glass filled flame retardant to UL94V-2

RJ Sockets - Vertical

Website Data Reference

TAI056

•

Industry compatible RJ

•

Round cable

•

FCC-68 compatible

•

Gold plated contacts

•

Clear polycarbonate flame retardant to UL94V-2

•

Shielding brass, nickel plated

RJ Plugs

Website Data Reference

TAI055

•

Industry compatible RJ

•

Flat cable

•

FCC-68 compatible

•

Gold plated contacts

•

Clear polycarbonate flame retardant to UL94V-2

•

Shielding brass, nickel plated

RJ Plugs

No. of Ways

Part No.

6/2, 6/4, 6/6, 8/8, 10/10

TRJxxSR

No. of Ways

Part No.

4/4, 6/2, 6/4, 6/6, 8/8, 10/10

TRJxxSV

No. of Ways

Part No.

Non-Shielded

TRJxxPxC

Shielded

TRJxxP1SC

No. of Ways

Part No.

Non-Shielded

TRJxxP

Shielded

TRJxxP1S

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

3.25

±0.25

16.38

3.05

15.9

3.9

ø3.0

2.54

i

i

i

i

RJ Connectors

14

www.anglia-live.com

CONNECTORS

Data & Communication

Website Data Reference

TAI061

•

Surface mount

•

Industry compatible RJ

•

FCC-68 compatible

•

1.5A rated

•

Gold plated contact

•

Black UL94V-0 Nylon 6T

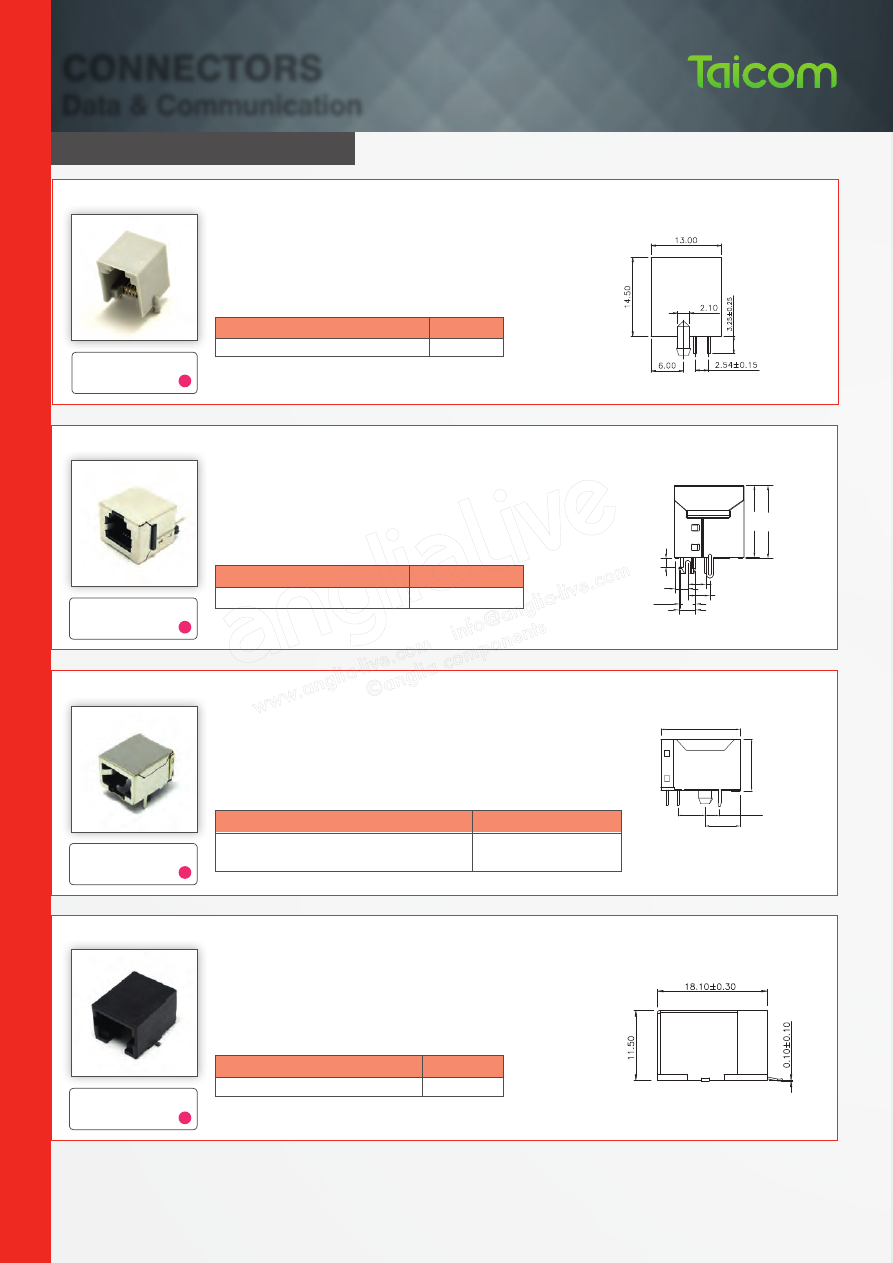

RJ Sockets - SMD - Right Angle

Website Data Reference

TAI060

•

Industry compatible RJ

•

FCC-68 compatible

•

Gold plated contact area

•

UL94V-0 PBT Housing & Insert Material

•

Industry compatible RJ

•

FCC-68 compatible

•

Gold plated contact area

•

UL94V-0 PBT Housing & Insert Material

RJ Sockets - Shielded - Vertical

RJ Sockets - Shielded - Right Angle

Website Data Reference

TAI059

•

Industry compatible RJ

•

FCC-68 compatible

•

Gold plated contact area, tin plated on solder pins

•

Grey UL94V-0 glass filled PBT

RJ Sockets - Right Angle

No. of Ways

Part No.

6/6, 8/8

TRJxxSR-SM

No. of Ways



Part No.

6/6, 8/8, 10/10

Without LEDs

TRJxxSRS

8/8 Tab Up EMI Fingers  Yellow - Green LEDs

 TRJ56S8P8C1X1YGENL

No. of Ways

Part No.

4/4, 6/4, 6/6

TRJxxSR1

No. of Ways

Part No.

6/6

TRJ52T6611EBNL

Dimensions (mm)

18.9

12.0

6.35

3.0

8.25

Dimensions (mm)

Dimensions (mm)

15.8

3.47

4.24

1.8

2.42

3.0

3.2

15.5

Dimensions (mm)

Website Data Reference

TAI209

i

i

i

i

RJ Connectors

15

www.anglia-live.com

CONNECTORS

Data & Communication

Website Data Reference

TAI062

•

Industry compatible RJ

•

FCC-68 compatible

•

LED indicators

•

Gold plated contact area, tin plated on solder pins

•

Black glass filled body flame retardant to UL94V-0

RJ Sockets - SMD - Right Angle - Shielded with LED’s

No. of Ways

Part No.

8/8 Single socket

TRJ88SRS2

8/8 Quad (ganged)



TRJ88SRS5

Dimensions (mm)

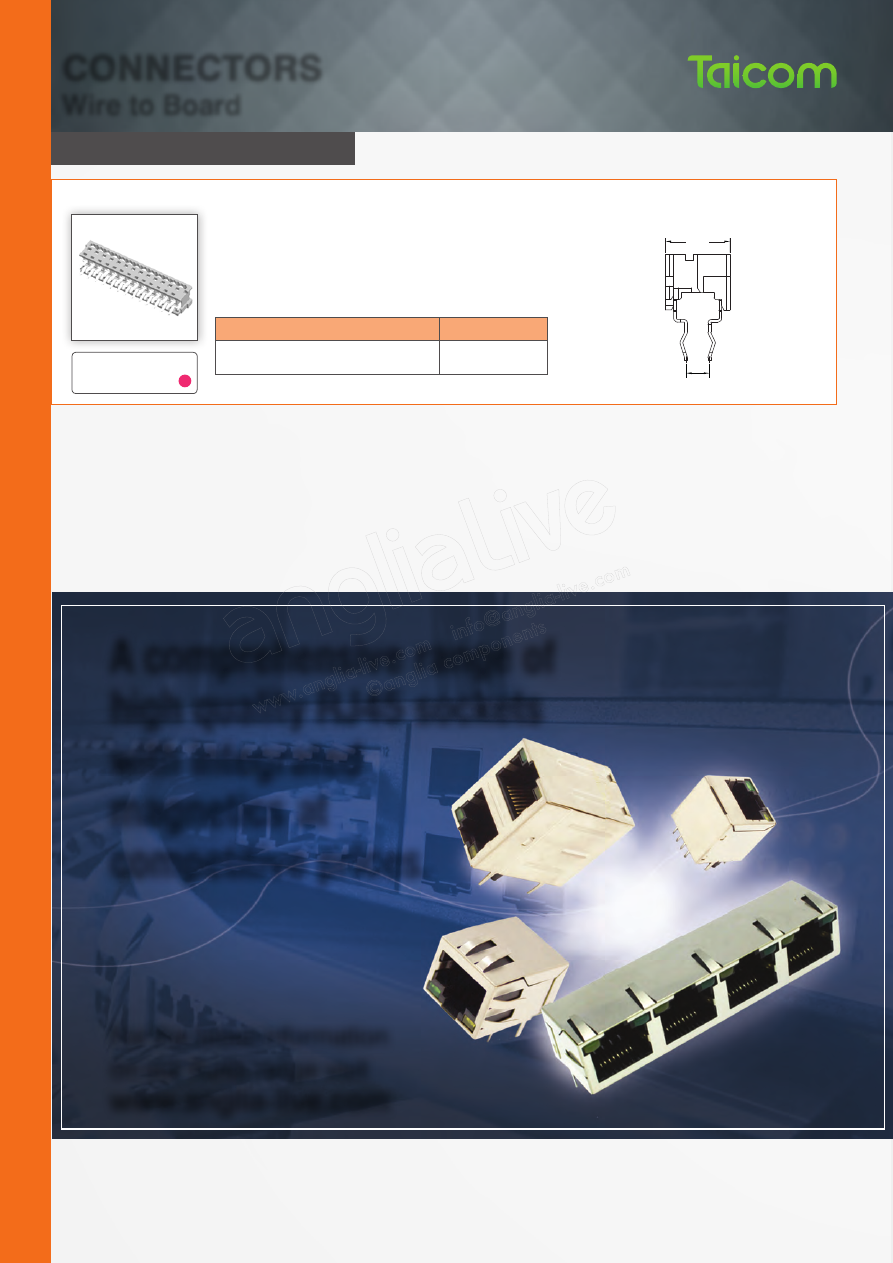

A comprehensive range of

high quality RJ45 sockets

with integrated

magnetics at

competitive prices.

For the latest information
on our RJ45 range visit



www.anglia-live.com



i

RJ Connectors

16

www.anglia-live.com

CONNECTORS

Data & Communication

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

21.30

13.65

3.20

10.80

16.30

LEFT LED

RIGHT LED

J8

J1

P1

P10

GREEN

YELLOW

Y

G

0.35

0.5

2.03

4.57

10.89

0.3

2.54

3.05

8.97

1.10

1.30

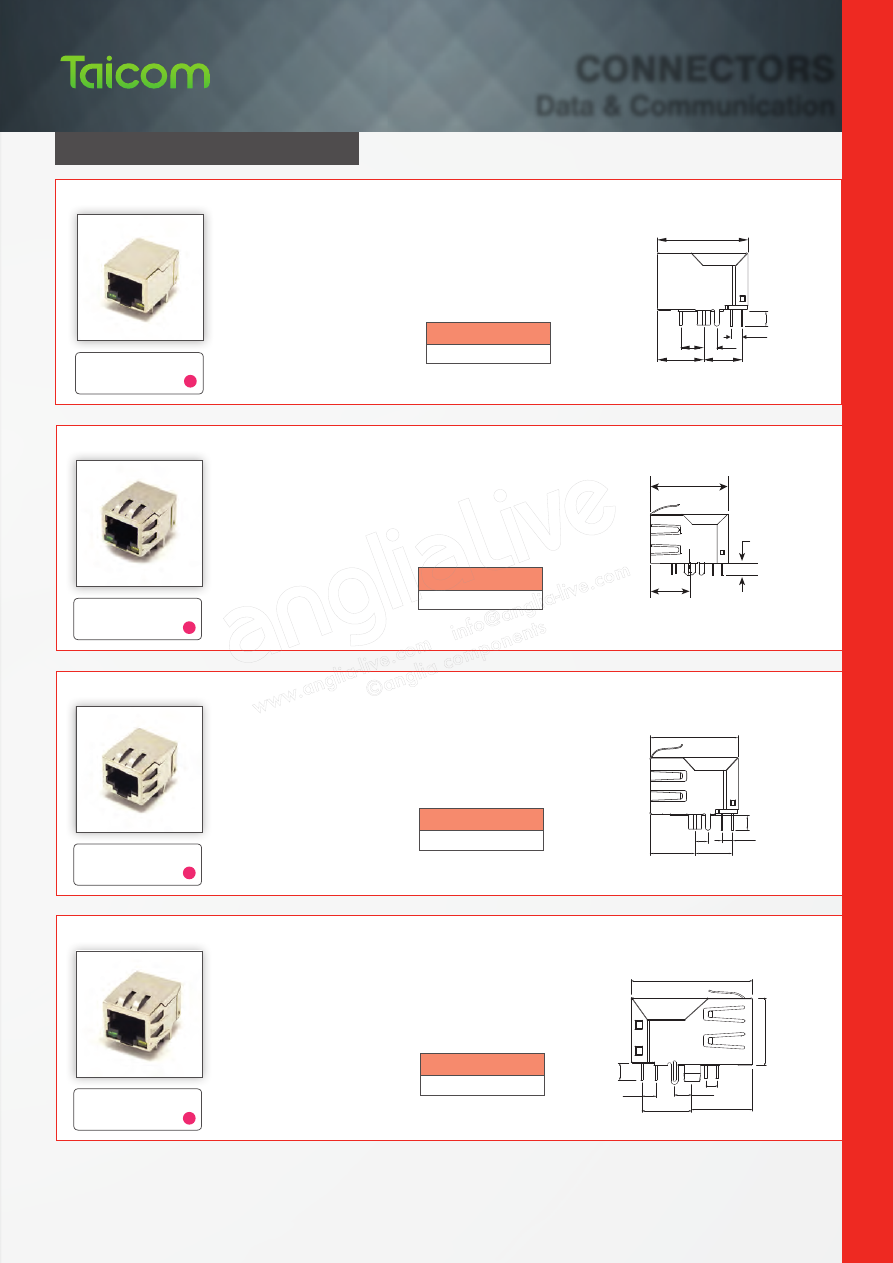

Website Data Reference

TAI507

•

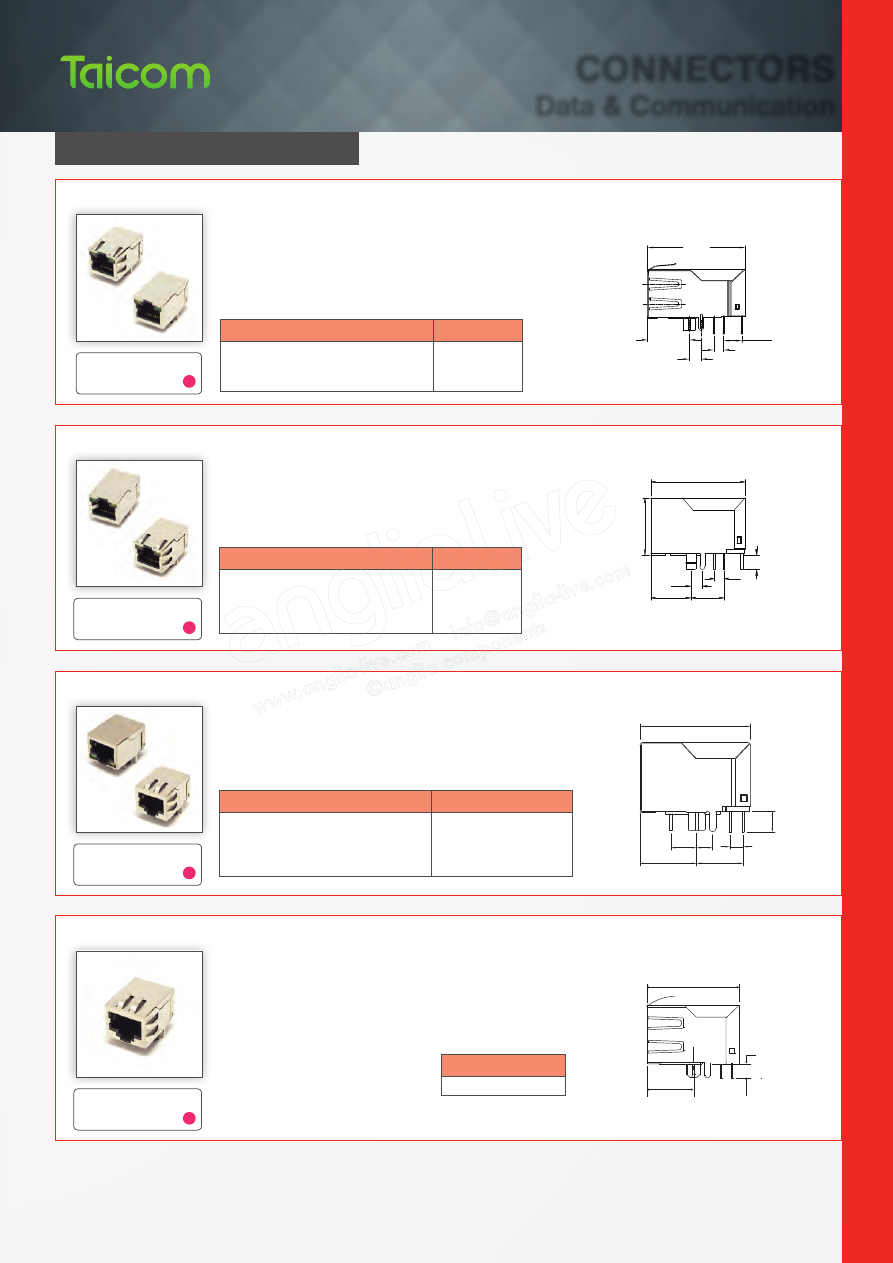

1X1 Tab-Up RJ45 Shielded

•

1000BASE-T

•

Green - Yellow LEDs (top position)

•

OCL:350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

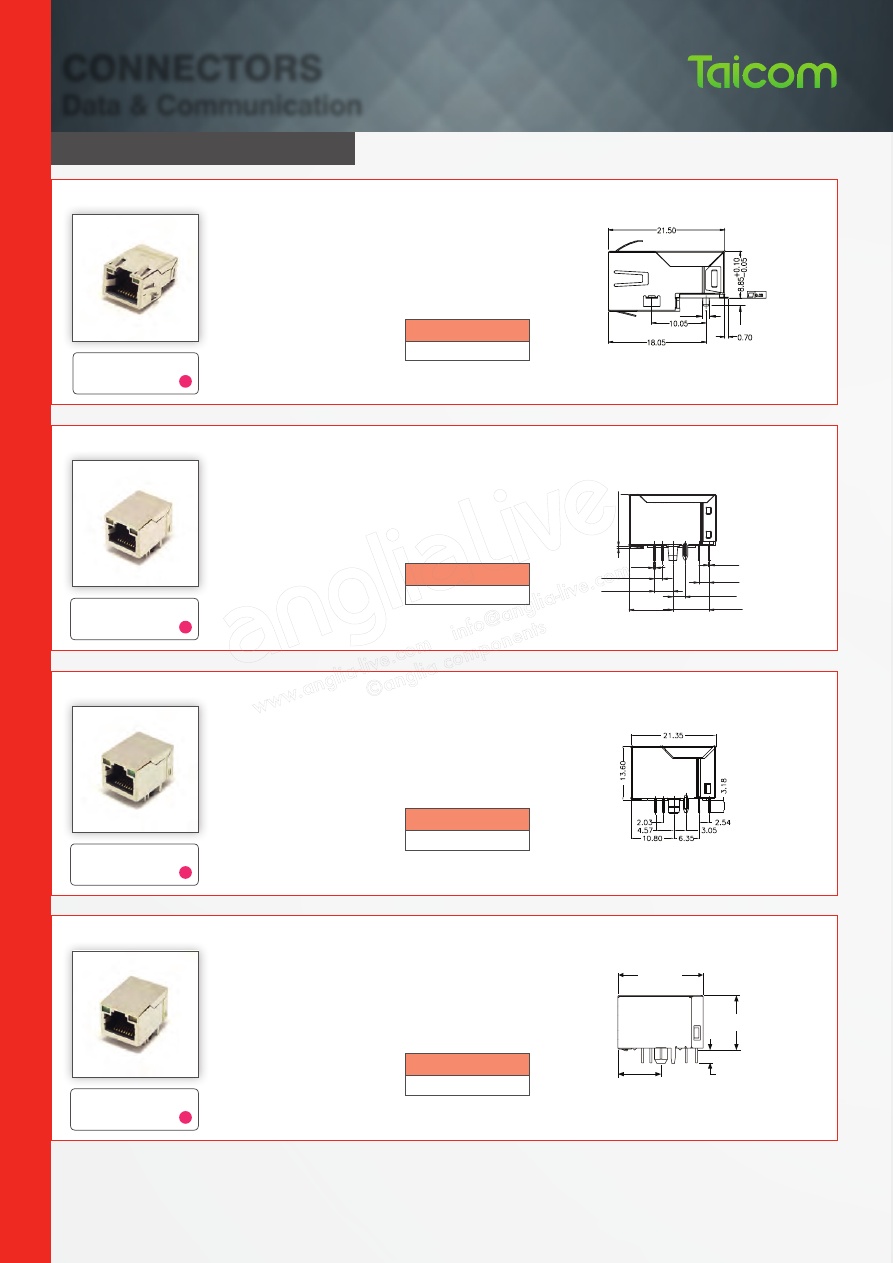

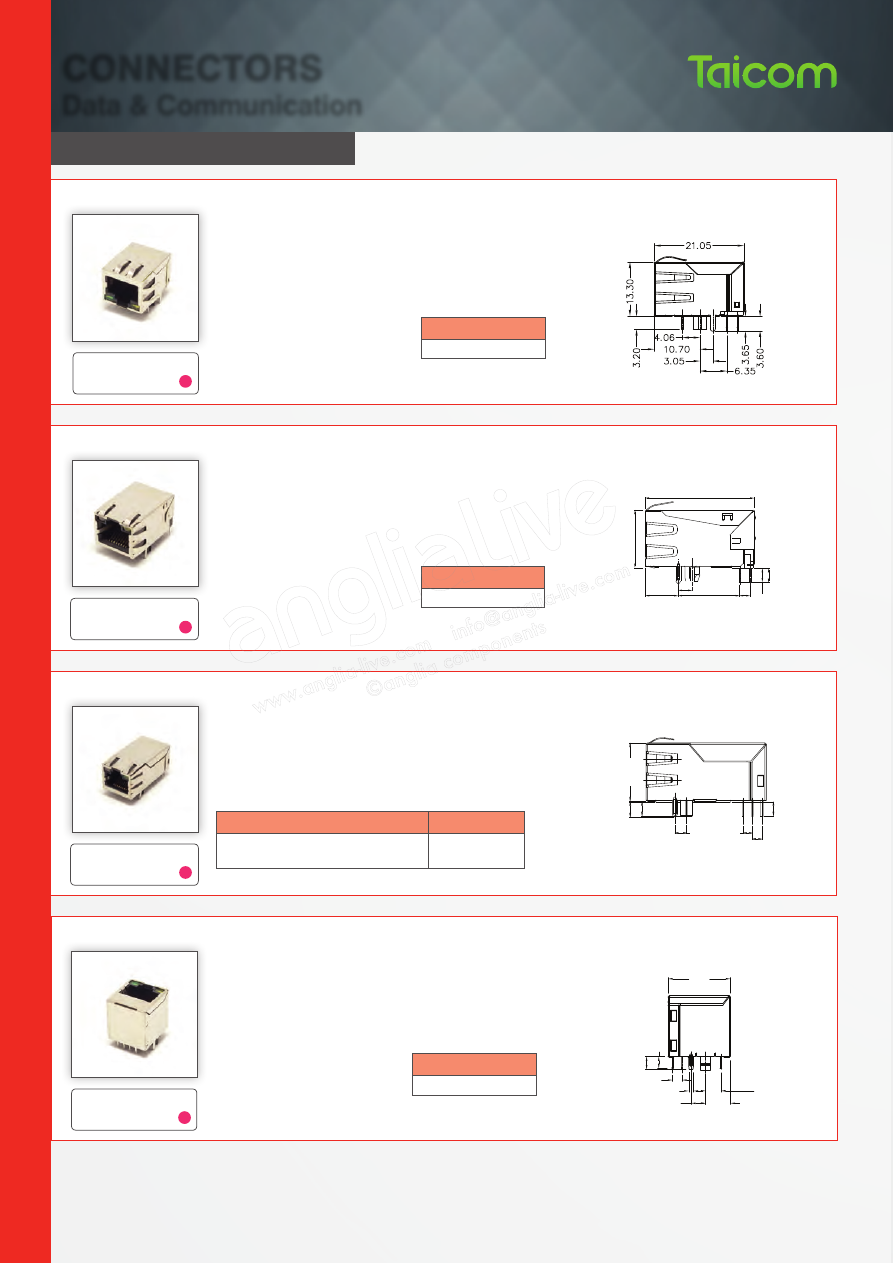

RJ45 Socket with Magnetics

Website Data Reference

TAI506

•

1X1 Tab-Up RJ45 Shielded

•

100BASE-T

•

Yellow - Green LEDs (top position)

•

OCL:350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

RJ45 Socket with Magnetics

Website Data Reference

TAI505

•

1X1 Tab-Up RJ45 Shielded

•

1000BASE-T

•

Yellow - Green LEDs (top position)

•

OCL:350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

•

Temperature range 0°C to +70°C

RJ45 Socket with Magnetics

Website Data Reference

TAI504

Part No.

TRJCB329YGZENL

Part No.

TRJH202YGNL

Part No.

TRJSH105YGLNL

Part No.

TRJSH329GYNL

•

1X1 Tab-Up RJ45 Shielded SMD

•

1000BASE-T

•

Yellow - Green LEDs (top position)

•

EMI fingers

•

OCL:350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

RJ45 Socket with Magnetics - Surface Mount

i

i

i

i

RJ Connectors

17

www.anglia-live.com

CONNECTORS

Data & Communication

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

15.9

21.1

13.4

10.8

3.05

2.54

3.50

8.89

15.9

13.4

10.8

8.89

2.54

3.5

21.1

3.05

16.00

13.30

3.80  SHIELD PIN

GREEN

YELLOW

10.80

21.30

3.80

J1

Website Data Reference

TAI512

•

1X1 Tab-Down RJ45 Shielded

•

10/100BASE-T

•

OCL:350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

RJ45 Socket with Magnetics

Website Data Reference

TAI511

RJ45 Socket with Magnetics

Website Data Reference

TAI510

Website Data Reference

TAI508

•

1X1 Tab-Down RJ45 Shielded

•

10/100BASE-T

•

Green - Yellow LEDs (bottom position)

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

•

Very cost effective

•

1X1 Tab-Down RJ45 Shielded

•

10/100BASE-T

•

OCL:350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

RJ45 Socket with Magnetics

Colour



Part No.



Green - Yellow LEDs

TRJ003ANL



Green - Yellow LEDs EMI Fingers

 TRJ003NL



Green - Green LEDs EMI Fingers

 TRJ003RNL

•

1X1 Tab-Down RJ45 Shielded

•

10/100BASE-T

•

With LEDs (bottom position)

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

RJ45 Socket with Magnetics

Part No.

TRJ109ANL

Part No.

TRJ015NL

Part No.

TRJ017NL

i

i

i

i

RJ Connectors

18

www.anglia-live.com

CONNECTORS

Data & Communication

RJ45 Socket with Magnetics

RJ45 Socket with Magnetics

RJ45 Socket with Magnetics

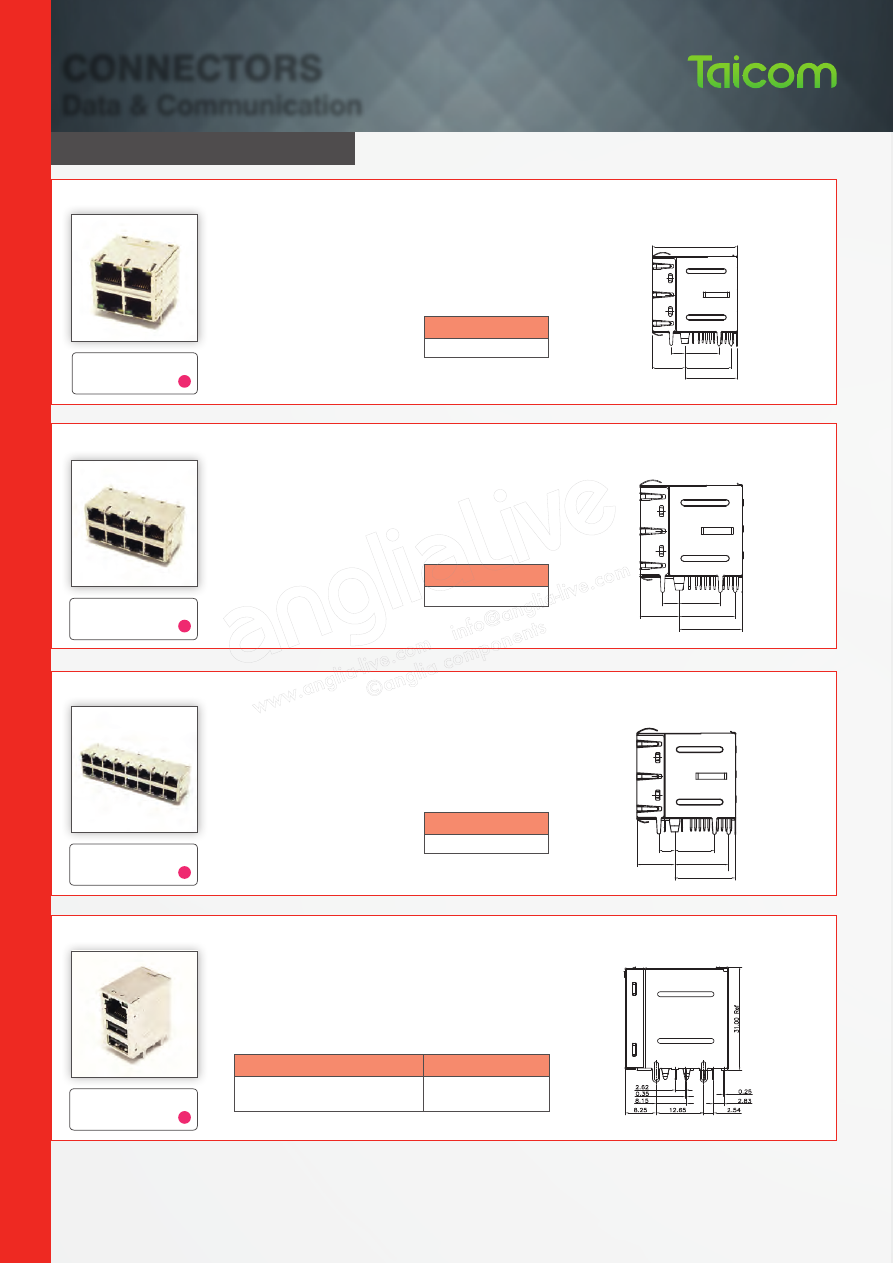

RJ45 Socket with Magnetics

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

15.90

LEFT

RIGHT

13.40

J1

J8

GREEN

YELLOW

21.30

4.90

10.80

3.80

2.54

3.05

8.89

YELLOW

LEFT

GREEN

LEFT

15.74

6.35

3.6

3.65

3.05

10.7

4.06

21.05

3.2

13.3

1.27

15.94

16.20

25.40

J1

J8

11.43

3.05

13.50

3.30

2.54

10.80

8.89

GREEN

YELLOW

15.9

13.4

10.8

8.89

3.05

2.54

3.5

21.1

Website Data Reference

TAI521

•

1X1 Tab-Down RJ45 Shielded

•

10/100BASE-T

•

Green - Yellow LEDs (bottom position)

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI518

•

1X1 Tab-Down RJ45 Shielded

•

10/100BASE-T

•

With or without LEDs

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

•

Snap-in or board guide option

Website Data Reference

TAI517

•

1X1 Tab-Up RJ45 Shielded

•

10/100BASE

•

Yellow - Green LEDs (top position)

•

EMI Fingers

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI513

•

1X1 Tab-Down RJ45 Shielded

•

10/100BASE-T

•

With or without LEDs

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Colours



Part No.



No LEDs EMI fingers

TRJ022FNL



Green - Yellow LEDs (bottom position)

 TRJ022HNL

 Green - Yellow LEDs (bottom position) EMI fingers

 TRJ022NL



No LEDs

 TRJ022TNL

Colours



Part No.

  Yellow - Green LEDs (bottom position) EMI fingers

TRJ060BNL



No LEDs EMI fingers

 TRJ060SHWNL

Yellow - Green LEDs (bottom position) EMI fingers

 TRJ060YGZEFKNL

Part No.

TRJ037NL

Part No.

TRJ092NL

i

i

i

i

RJ Connectors

19

www.anglia-live.com

CONNECTORS

Data & Communication

RJ45 Socket with Magnetics

RJ45 Socket with Magnetics

RJ45 Socket with Magnetics

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

RJ45 Socket with Magnetics

16.00

14.00MAX

10.80

21.30

4.00

J1

21.10

13.35

15.95

10.8

8.89

2.54

   3.05

   4.06

4.0±0.5

16.20

J1

J8

11.43

3.05

13.50

25.40

3.30

2.54

10.80

8.89

GREEN

YELLOW

GREEN

GREEN

16.3

16.1

1.27

13.5

25.3

4.67

2.54

10.74

Website Data Reference

TAI530

•

1X1 Tab-Down RJ45 Shielded

•

1000BASE-T

•

EMI fingers

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI529

•

1X1 Tab-Down RJ45 Shielded

•

10/100BASE-T

•

With or without LEDs

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI525

•

1X1 Tab-Up RJ45 Shielded

•

10/100BASE-T

•

With LEDs (top position)

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI522

•

1X1 Tab-Up RJ45 Shielded

•

10/100BASE-T

•

With LEDs (top position)

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Colour



Part No.



Green - Green LEDs EMI Fingers

TRJ098DBNL



Yellow - Green LEDs

 TRJ098GENL



Green - Yellow LEDs

 TRJ098GNL

Colour



Part No.



Green - Yellow LEDs

TRJ099DZNL



Green - Yellow LEDs EMI Fingers

 TRJ099NL



Yellow - Green LEDs EMI Fingers

 TRJ099YENL



Green - Green LEDs EMI Fingers

TRJ099YTNL

Colour



Part No.



Green - Yellow LEDs

*



TRJ11106CB1



No LEDs EMI fingers

 TRJ11106H01



Green - Yellow LEDs

*

 EMI fingers

 TRJ11166FB1



Yellow - Green LEDs

*



TRJ111B015AB1A1DP

* Bottom Position

Part No.

TRJ118BABNL

i

i

i

i

RJ Connectors

20

www.anglia-live.com

CONNECTORS

Data & Communication

RJ45 Socket with Magnetics

RJ45 Socket with Magnetics

RJ45 Socket with Magnetics

RJ45 Socket with Magnetics

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

15.9

13.4

10.8

8.89

3.05

2.54

3.5

21.1

16.00

LEFT

RIGHT

13.30

J1

J8

GREEN

YELLOW

21.30

4.90

10.80

4.00

2.54

3.05

8.89

16.00

13.50

3.50  SHIELD PIN

10.77

21.30

3.60

J1

3.30

15.90

LEFT

RIGHT

13.40

J1

J8

YELLOW

21.30

4.90

10.80

3.80

2.54

3.05

8.89

Website Data Reference

TAI536

•

1X1 Tab-Down RJ45 Shielded

•

10/100BASE-T

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI535

•

1X1 Tab-Down RJ45 Shielded

•

10/100BASE-T

•

Yellow - Green LEDs (bottom position)

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI534

•

1X1 Tab-Down RJ45 Shielded

•

100BASE-T

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI533

•

1X1 Tab-Down RJ45 Shielded

•

10/100BASE-T

•

Green - Yellow LEDs (bottom position)

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Part No.

TRJ125NL

Part No.

TRJ13PBNL

Part No.

TRJ138ENL

Part No.

TRJ146BNL

i

i

i

i

RJ Connectors

21

www.anglia-live.com

CONNECTORS

Data & Communication

RJ45 Socket with Magnetics

Dimensions (mm)

Website Data Reference

TAI544

•

1X1 Tab-Down RJ45 Shielded

•

1000BASE-T

•

Green - Yellow LEDs (bottom position)

•

OCL: 350µH MIN with 8mA bias current

•

Phosphor Bronze, Gold plated contact area

16.00

13.30

6.25

4.0

LEFT  LED

RIGHT  LED

J1

GREEN

YELLOW

21.50

4.90

10.80

4.00

2.54

3.05

8.89

Part No.

TRJ320DNL

RJ45 Socket with Magnetics

RJ45 Socket with Magnetics

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Website Data Reference

TAI532

•

1X1 Tab-Up RJ45 Shielded

•

100BASE-T PoE

•

Green - Yellow LEDs (top position)

•

EMI fingers

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI553

•

1X1 Tab-Down RJ45 Shielded

•

10/100BASE-T

•

EMI fingers

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI552

•

1X1 Tab-Down RJ45 Shielded

•

10/100BASE-T

•

Green - Yellow LEDs (bottom position)

•

EMI fingers

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

RJ45 Socket with Magnetics

16.00

13.30

3.80  SHIELD PIN

GREEN

YELLOW

10.80

21.30

3.80

J1

15.9

13.4

21.1

3.5

2.54

8.89

10.8

3.05

J8

J1

11.43

15.5

3.2

±0.35

2.54

8.89

3.05

10.85 ±0.35

2.03

21.60 ±0.30

13.35

±0.30

Part No.

TRJ577NL

Part No.

TRJ821NL

Part No.

TRJH015P

O

ENL

i

i

i

i

RJ Connectors

22

www.anglia-live.com

CONNECTORS

Data & Communication

RJ45 Socket with Magnetics

RJ45 Socket with Magnetics

RJ45 Socket with Magnetics

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

LED2

GREEN/YELLOW

16.5

13.5

3.56

3.3

3.18

2.54

2.54

3.3

LED1

GREEN

Website Data Reference

TAI546

•

1X1 Tab-Up RJ45 Shielded

•

1000BASE-T with PoE option

•

With LEDs (top position)

•

EMI fingers

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI542

•

1X1 Tab-Up RJ45 Shielded

•

10/100BASE-T

•

EMI fingers

•

Green/Orange - Yellow LEDs (top position)

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI545

•

1X1 Tab-Down RJ45 Shielded

•

10/100/1000BASE-T

•

Green - Yellow LEDs (bottom position)

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Part No.

TRJ329NL

Colour



Part No.



Green/Yellow - Green

TRJ339NL



Green/Orange - Yellow PoE

 TRJ339PNL

Part No.

TRJ254DPNL

YELLOW

GREEN/ORANGE

16.80

J1

J8

25.53

13.45

3.30

3.20

2.45

14.35

3.18

7.75

RJ45 Socket with Magnetics - Vertical Mount

Website Data Reference

TAI551

Dimensions (mm)

•

1X1 Tab-Up RJ45 Shielded

•

100BASE-T

•

Green - Yellow LEDs

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

16.82

3.6

3.25

2.54

1.3

3.89

6.73

4.11

Part No.

TRJ511B083AC2A8

i

i

i

i

RJ Connectors

23

www.anglia-live.com

CONNECTORS

Data & Communication

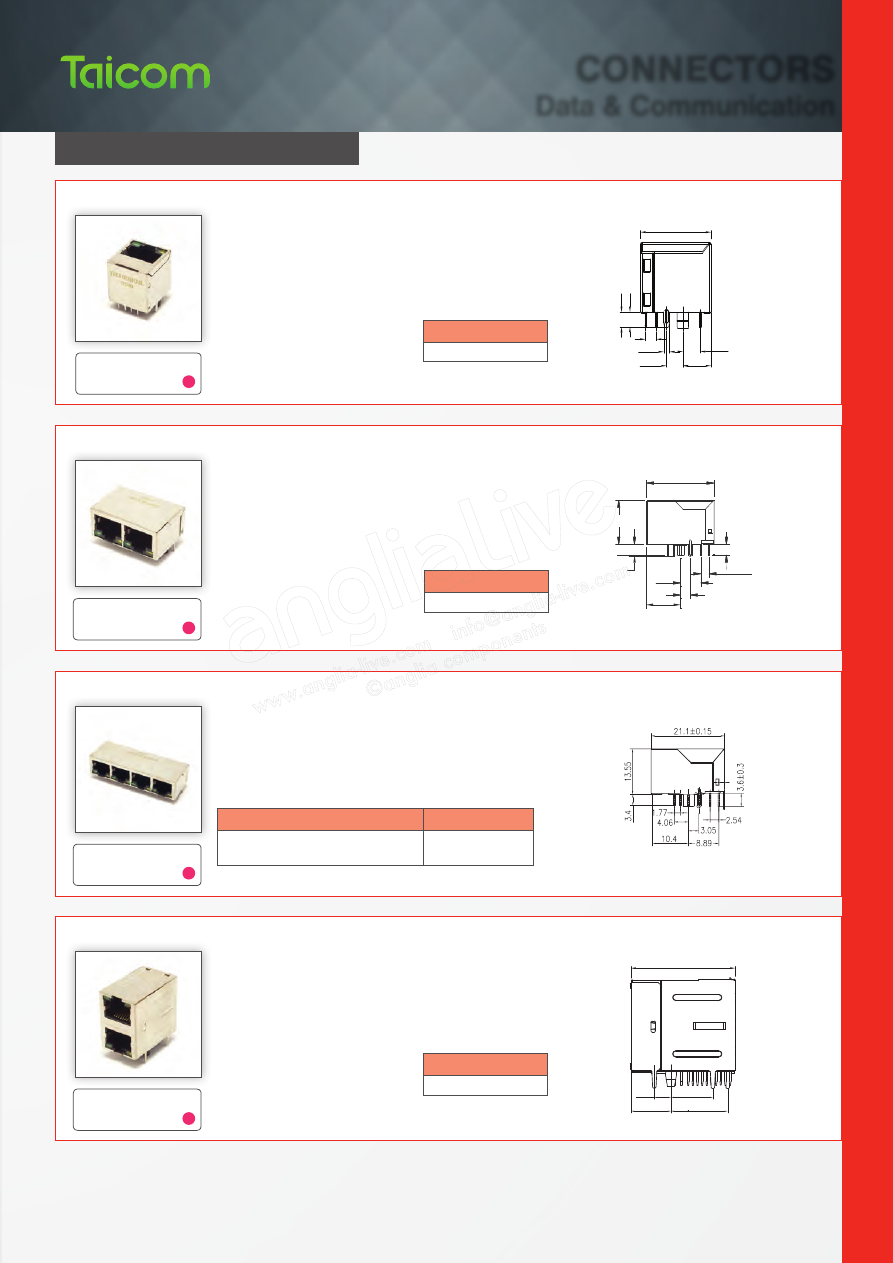

RJ45 Socket with Magnetics - Vertical Mount

RJ45 Socket with Magnetics

RJ45 Socket with Magnetics

RJ45 Socket with Magnetics

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Website Data Reference

TAI538

•

2X1 RJ45 Shielded

•

1000BASE-T

•

Green - Yellow LEDs

•

OCL:350µH MIN with 8mA bias current

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI548

•

1X4 Tab-Down RJ45 Shielded

•

10/100/1000BASE-T

•

Green - Yellow LEDs (bottom position)

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI539

•

1X2 Tab-Down RJ45 Shielded

•

10/100BASE-T

•

Green - Yellow LEDs (bottom position)

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI537

•

1X1 Tab-Up RJ45 Shielded

•

100BASE-T

•

Green - Yellow LEDs

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

•

Phosphor Bronze, Gold plated contact area

 LEFT GREEN

RIGHT

YELLOW

16.0

16.83

3.6

2.54

3.89

6.73

4.11

1.3

3.5

Part No.

TRJ180KNL

31.24

25.40
30.75

YELLOW LED

21.30

13.60

4.00

10.92

3.05

6.35

2.54

4.00

GREEN LED

Part No.

TRJ215GYZNL

Base



Part No.



10/100 Base

TRJ415GYZNL



10/100/1000 Base

 TRJ4329GYZHNL

28.5

17.21

LEFT

LED

RIGHT

LED

25.79

3.3

17.01

15.49

10.89

4.57

11.43

Part No.

TRJ21Q077AB2A4D

i

i

i

i

RJ Connectors

24

www.anglia-live.com

CONNECTORS

Data & Communication

RJ45 Socket with Magnetics

RJ45 Socket with Magnetics

RJ45 Socket with Magnetics

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

4.57

11.43

10.89

15.49

17.41 ±0.25

Website Data Reference

TAI210

•

RJ45 with dual USB

•

10/100BASE

•

Yellow - Green LEDs

•

OCL: 350µH MIN at 100kHz 100mV 8mA DC

RJ45 Socket with Magnetics and Dual USB

Website Data Reference

TAI543

•

2X8 RJ45 Shielded

•

100/1000BASE-T

•

Green - Yellow LEDs

•

EMI fingers

•

OCL: 350µH MIN with 8mA bias current

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI541

•

2X4 RJ45 Shielded

•

1000BASE-T

•

EMI fingers

•

Green/Yellow - Green/Yellow LEDs

•

OCL: 350µH MIN with 8mA bias current

•

Phosphor Bronze, Gold plated contact area

•

2X2 RJ45 Shielded

•

1000BASE-T

•

EMI fingers

•

Green - Yellow LEDs

•

OCL: 350µH MIN with 8mA bias current

•

Phosphor Bronze, Gold plated contact area

Website Data Reference

TAI540

28.5 ±0.35

4.57

11.43

10.89

15.49

17.41 ±0.35

30.98 ±0.4

3.3 ±0.3

31.18 ±0.35

LEFT LED

RIGHT LED

13.97

25.7 ±0.35

25.4 ±0.2

Part No.

TRJ22Q077FB2A1D

10.89

17.41 ±0.35

58.92 ±0.45

3.3 ±0.3

25.79 ±0.35

59.18 ±0.35

3 x 13.97

15.49

11.43

4.57

Part No.

TRJ24Q077FG1A1D

Part No.

TRJ28Q077DG1A4D

Base



Part No.



Yellow/Green LEDs

TRJ2USB083YGZNL



Without LEDs

 TRJ2USB083WDNL

i

i

i

i

25

www.anglia-live.com

CONNECTORS

Data & Communication

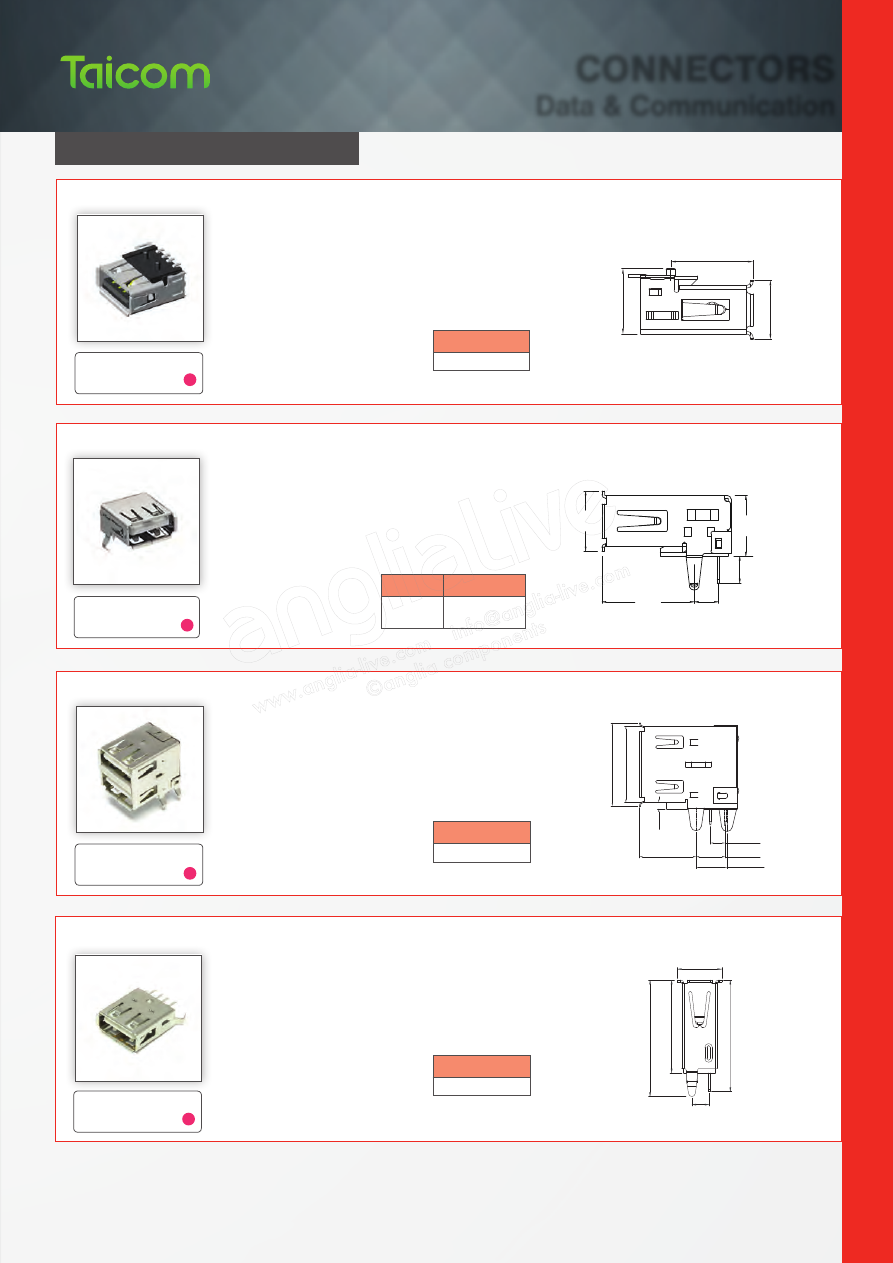

Website Data Reference

TAI015

•

Industry Standard USB 2.0 & 3.0

•

Type A

•

Gold plated contacts

•

UL94V-0 White PBT Insulator

•

Copper alloy, tin plated shielding

USB Type A - Right Angle - 2.0 & 3.0

USB

10.3

2.7

6.72

3.0 ±0.15

6.82

Type

Part No.

2.0

 TSB4AR

3.0

 TSB4AR-3.0

Dimensions (mm)

Website Data Reference

TAI065

•

Industry Standard USB

•

Surface mount

•

Type A

•

Gold plated contacts

•

UL94V-0 White PBT Insulator

•

Copper alloy, tin plated shielding

USB Type A - SMD - Right Angle

Part No.

TSB4AR-SM

i

9.9

7.9

7.1

Dimensions (mm)

Website Data Reference

TAI016

•

Industry Standard USB

•

Type A

•

Gold plated contacts

•

UL94V-0 White PBT Insulator

•

Copper alloy, tin plated shielding

•

Double stacked

USB Type A - Right Angle - Double Stacked

Part No.

TSB4A1R

15.6 ±0.3

14.3

1.2

10.4

5.68 ±0.25

5.25 ±0.2

2.7 ±0.2

i

Dimensions (mm)

Website Data Reference

TAI063

•

Industry Standard USB

•

Type A

•

Gold plated contacts

•

UL94V-0 White PBT Insulator

•

Copper alloy, tin plated shielding

USB Type A - Straight

Part No.
TSB4AS

i

18.15

2.7

7.1

18.7

14.9

Dimensions (mm)

i

26

www.anglia-live.com

CONNECTORS

Data & Communication

Website Data Reference

TAI064

•

Industry Standard Mini USB

•

Type B

•

Gold plated contacts

•

UL94V-0 Black Hi-Temp LCP Insulator

•

Brass, Tin plated shell

Mini - USB

USB

Mini / Micro USB

Part No.

TSB5MBR-SM

i

7.7 ±0.10
9.9 ±0.15

9.5

9.3

±0.2

Dimensions (mm)

Website Data Reference

TAI044

Website Data Reference

TAI014

•

Industry Standard USB

•

Type C

•

Gold plated contacts

•

UL94V-0 Insulator

•

Industry Standard Micro USB

•

Type B

•

UL94V-0 Black Hi-Temp LCP Insulator

•

Brass, Nickel plated shell

USB Type C - Right Angle / Straight

Micro USB Type B

Part No.

TSB6UBR-SM

i

i

9.87

9.85

3.76

1.0

4.3

9.3

Dimensions (mm)

Dimensions (mm)

5.15

±0.25

4.8

6.15 ±0.2

8.0 ±0.3

Website Data Reference

TAI013

•

Industry Standard USB

•

Type B

•

Gold plated contacts

•

UL94V-0 White PBT Insulator

•

Copper alloy, tin plated shielding

USB Type B - Right Angle / Straight

16.1

3.0

2.7

Mounting Direction

Part No.

Right Angle

TSB4BR

Straight

TSB4BS

Mounting Direction

Part No.

Right Angle

TSB24CR-SM

Straight

TSB24CS-SM

Dimensions (mm)

Right Angle

Right Angle

Straight

Straight

i

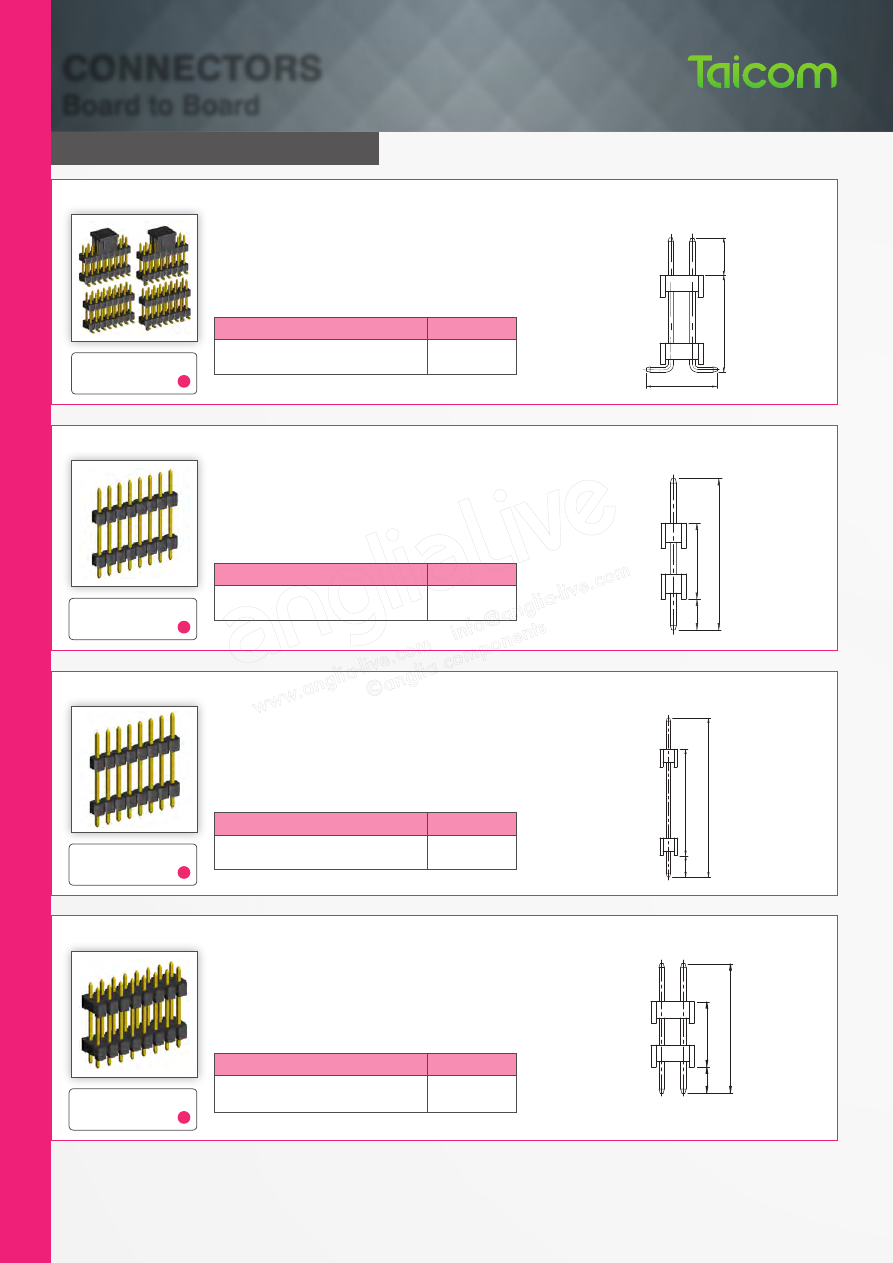

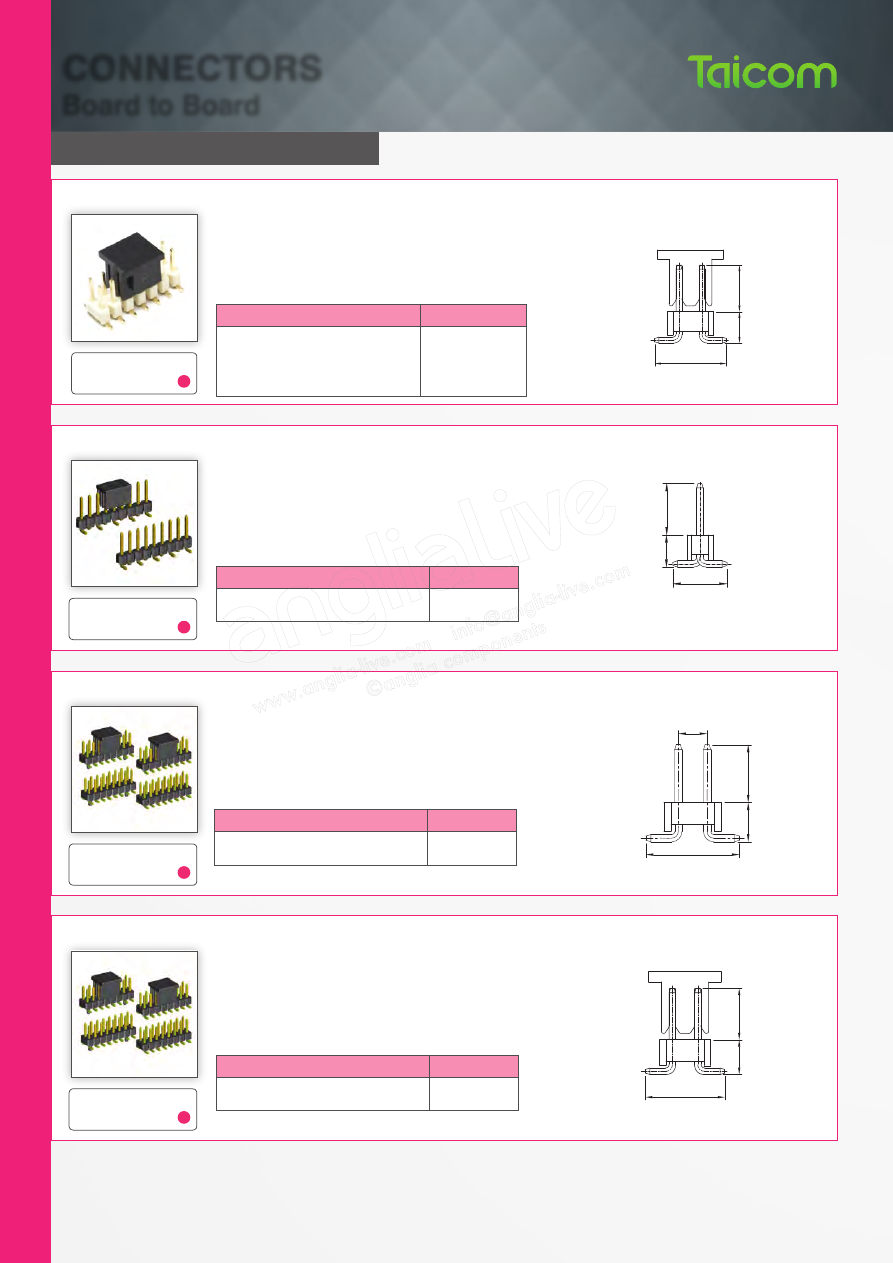

PCB Interconnect Headers & Sockets

27

www.anglia-live.com

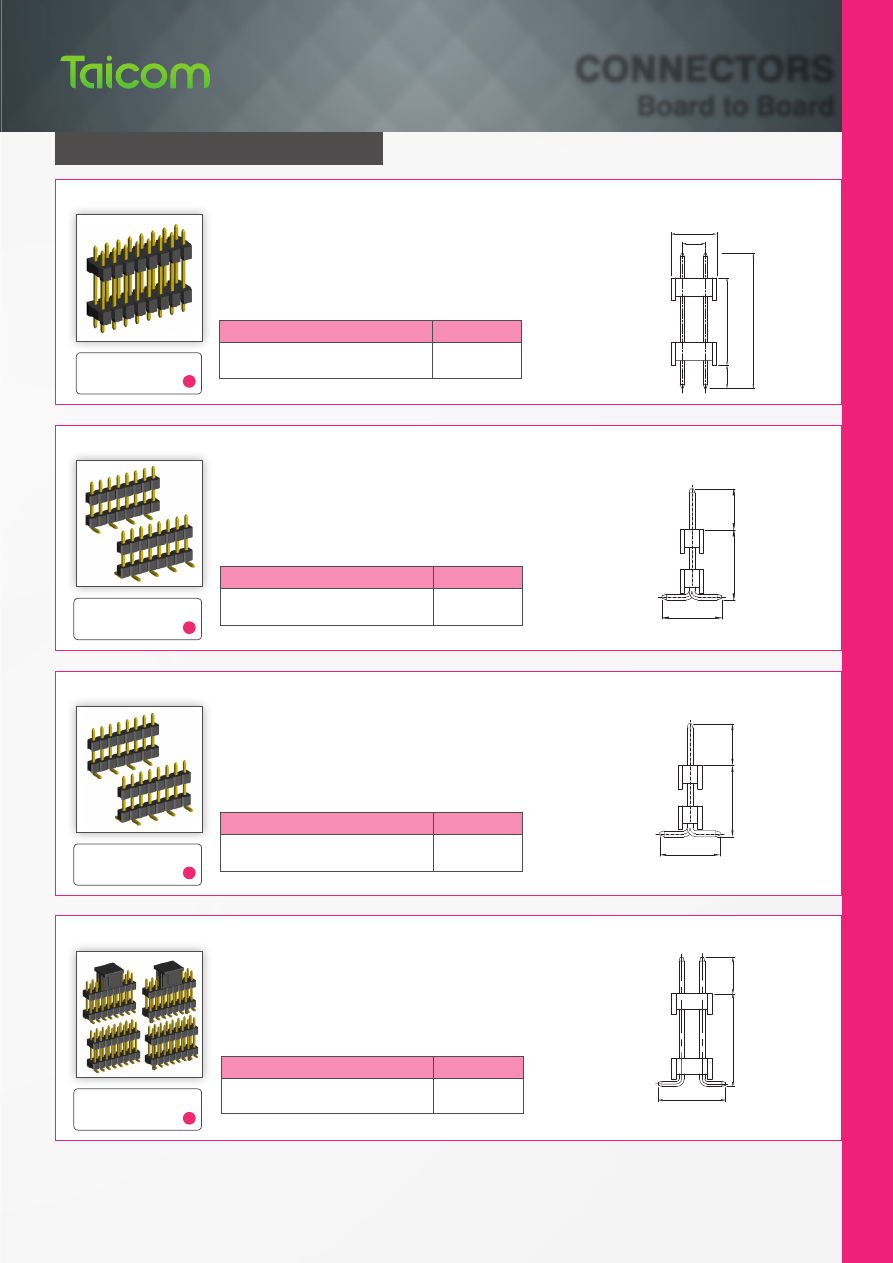

CONNECTORS

Board to Board

Website Data Reference

TAI082

Website Data Reference

TAI081

Website Data Reference

TAI079

Website Data Reference

TAI083

3.0

2.5

4.4

Dimensions (mm)

3.0

1.5

2.3

Dimensions (mm)

5.1

2.1

3.0

Dimensions (mm)

4.4

2.5

3.0

Dimensions (mm)

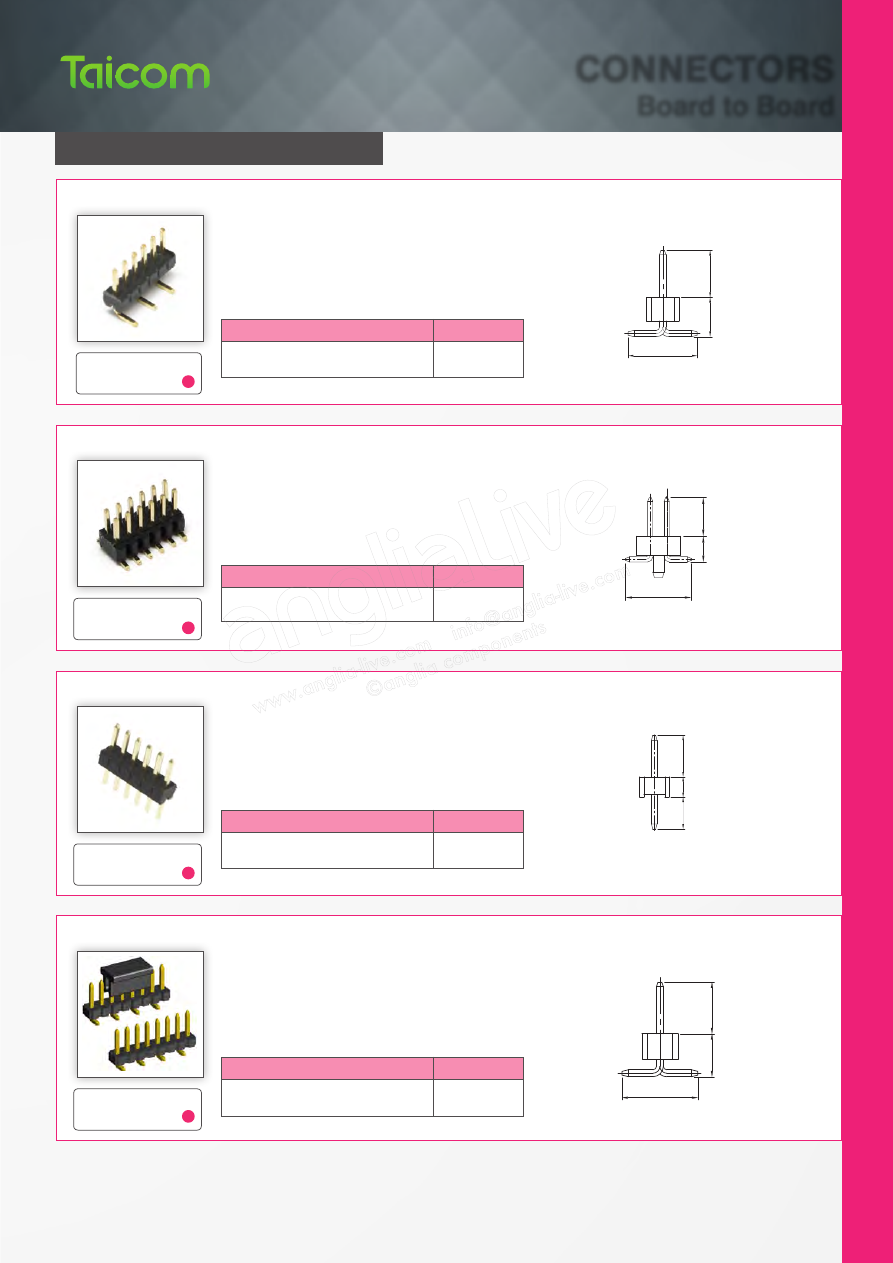

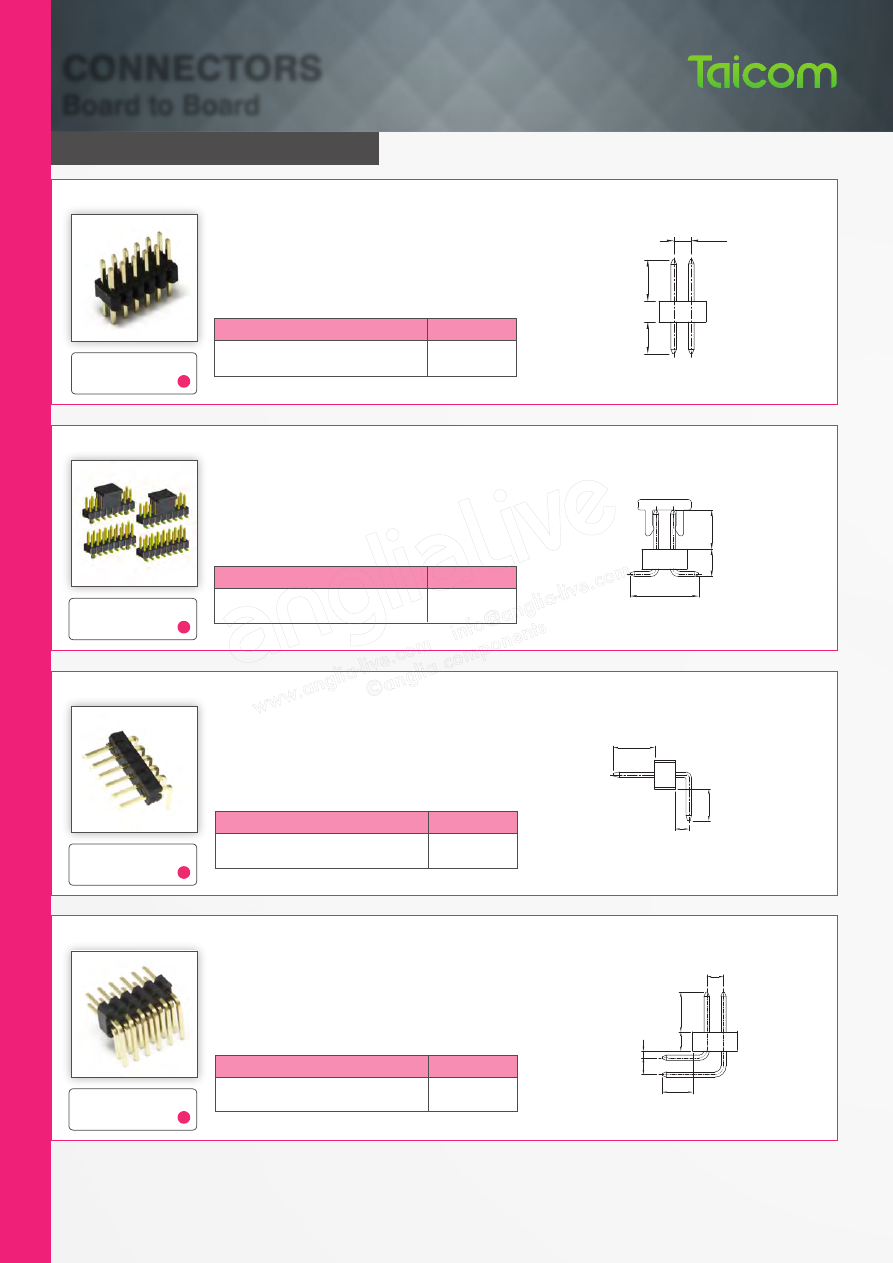

1.27mm Pitch Pin Headers - Single Row - Straight

1.27mm Pitch SMD Pin Headers - Dual Row - Straight

1.27mm Pitch Pin Headers - Single Row - Straight

1.27mm Pitch SMD Pin Headers - Single Row - Straight T & R

No. of Ways

Part No.

2 to 40

TPHxxCDSNB

Mates with

TFHxx 1.27mm sockets

No. of Ways

Part No.

2 to 40

TPHxxCSS

Mates with

TFHxx 1.27mm sockets

No. of Ways

Part No.

2 to 40

TPHxxCSSCT

Mates with

TFHxx 1.27mm sockets

No. of Ways

Part No.

2 to 40

TPHxxCSSNB

Mates with

TFHxx 1.27mm sockets

•

3mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end stackable

•

3mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end stackable

•

3mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 9T

•

End to end stackable

•

3mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black polyester

•

End to end stackable

i

i

i

i

PCB Interconnect Headers & Sockets

28

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

2.3

3.0

1.27

3.0

2.1

5.1 ±0.25

3.0

2.3

1.0

2.3

1.27

0.5

3.0

1.5

1.27

Website Data Reference

TAI076

1.27mm Pitch Pin Headers - Dual Row - Right Angle

Website Data Reference

TAI080

1.27mm Pitch Pin Headers - Single Row - Right Angle

Website Data Reference

TAI078

1.27mm Pitch SMD Pin Headers - Dual Row - Straight T & R

Website Data Reference

TAI077

1.27mm Pitch Pin Headers - Dual Row - Straight

No. of Ways

Part No.

2 to 40

TPHxxCSR

Mates with

TFHxx 1.27mm sockets

No. of Ways

Part No.

2 to 40

TPHxxCDS

Mates with

TFHxx 1.27mm sockets

No. of Ways

Part No.

2 to 40

TPHxxCDSCT

Mates with

TFHxx 1.27mm sockets

No. of Ways

Part No.

2 to 40

TPHxxCDR

Mates with

TFHxx 1.27mm sockets

•

3mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end stackable

•

3mm mating pin length

•

Gold plated contacts

•

Pick & Place Cap

•

UL94V-0 Black Nylon 9T

•

End to end stackable

•

3mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 9T

•

End to end stackable

•

3mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 9T

•

End to end stackable

i

i

i

i

PCB Interconnect Headers & Sockets

29

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

7.5 ±0.25

3.8

3.0

2.3

7.84

±0.2

2.54

1.5

2.3

3.0

4.0

2.5

4.2

Website Data Reference

TAI075

2.0mm Pitch SMD Pin Headers - Single Row - Straight

1.27 x 2.54mm Pitch Pin Headers - Dual Row - Right Angle

Website Data Reference

TAI091

Website Data Reference

TAI092

1.27 x 2.54mm Pitch Pin Headers - Dual Row - Straight

Website Data Reference

TAI093

1.27 x 2.54mm Pitch Pin Headers - Dual Row - Straight

No. of Ways



Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40


Tubed

 TPHxxBSSNB



Taped & Reeled

TPHxxBSSNBTR

Mates with

TFHxx 2.0mm sockets

No. of Ways

Part No.

2 to 40

TPHxxEDR

Mates with

TFHxx 1.27 x 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxEDS

Mates with

TFHxx 1.27 x 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxEDSNB

Mates with

TFHxx 1.27 x 2.54mm sockets

•

3mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end stackable

•

3mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end stackable

•

3mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end stackable

•

4mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Plastic

•

End to end & side stackable

i

i

i

i

30

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

4.0

2.7

6.2 ±0.25

4.0

2.7

6.2 ±0.25

4.0

2.5

4.2

2.0

4.0

2.7

6.2 ±0.25

PCB Interconnect Headers & Sockets

Website Data Reference

TAI068

2.0mm Pitch SMD Pin headers - Dual Row - Straight T & R

Website Data Reference

TAI069

2.0mm Pitch SMD Pin Headers - Dual Row - Straight

Website Data Reference

TAI074

2.0mm Pitch SMD Pin Headers - Single Row - Straight

Website Data Reference

TAI071

2.0mm Pitch SMD Pin Headers - Dual Row - Straight with Cap

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TPHxxBSSCT

Mates with

TFHxx 2.0mm sockets

No. of Ways



Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40


Tubed

 TPHxxBDSSM



Taped & Reeled

TPHxxBDSSMTR

Mates with

TFHxx 2.0mm sockets

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TPHxxBDSNB

Mates with

TFHxx 2.0mm sockets

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TPHxxBDSCT

Mates with

TFHxx 2.0mm sockets

•

4mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end & side stackable

•

Pick & Place Cap

•

Available Tubed or Taped & Reeled

•

4mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black polyester

•

End to end & side stackable

•

4mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end & side stackable

•

4mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

Pick & Place Cap

•

End to end & side stackable

i

i

i

i

PCB Interconnect Headers & Sockets

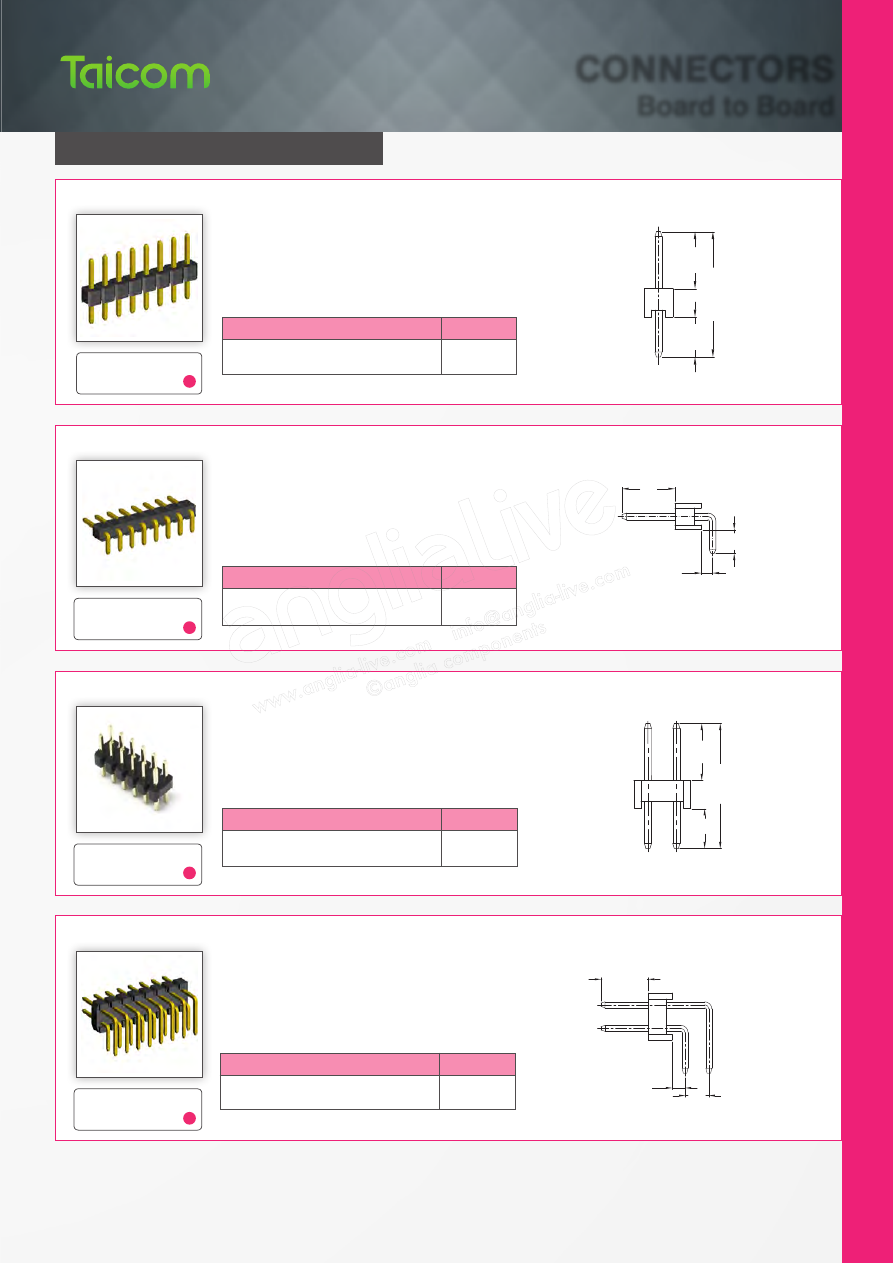

31

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

4.0

2.8

8.8 ±0.2

1.5

2.8

4.0

8.8

±0.2

2.8

4.0

4.0 ±0.15

1.1

2.0

2.0mm Pitch Pin Headers - Dual Row - Straight

2.0mm Pitch Pin Headers - Dual Row - Straight

2.0mm Pitch Pin Headers - Single Row - Right Angle

2.0mm Pitch Pin Headers - Single Row - Straight

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TPHxxBSR

Mates with

TFHxx 2.0mm sockets

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TPHxxBSS

Mates with

TFHxx 2.0mm sockets

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TPHxxBDS

Mates with

TFHxx 2.0mm sockets

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TPHxxBDR

Mates with

TFHxx 2.0mm sockets

•

4mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end & side stackable

•

4mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end & side stackable

•

4mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end stackable

•

4mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end & side stackable

Website Data Reference

TAI073

Website Data Reference

TAI072

Website Data Reference

TAI067

Website Data Reference

TAI066

i

i

i

i

PCB Interconnect Headers & Sockets

32

www.anglia-live.com

CONNECTORS

Board to Board

1.27mm x 2.54mm Pitch Pin Headers - Single Row - Straight

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

6.0

3.60

5.0

11.54

±0.2

6.0

3.0

2.54mm Pitch SMD Pin Headers - Dual Row - Straight

2.54mm Pitch SMD Pin Headers - Dual Row - Straight

2.54mm Pitch SMD Pin Headers - Single Row - Straight

No. of Ways

Part No.

2 to 40

TPHxxDSNB

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxDSSM

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxSSNB

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxSS

Mates with

TFHxx 2.54mm sockets

•

6mm mating pin length

•

Gold plated contacts

•

UL94V-0 Nylon 6T Ivory

•

End to end stackable

•

6mm mating pin length

•

Gold plated contacts

•

Pick & Place Cap

•

UL94V-0 Nylon 6T White

•

End to end stackable

•

6mm mating pin length

•

Gold plated contacts

•

UL94V-0 Nylon 6T Ivory

•

End to end stackable

•

6mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end stackable

Website Data Reference

TAI101

Website Data Reference

TAI090

Website Data Reference

TAI088

Website Data Reference

TAI098

i

i

i

i

PCB Interconnect Headers & Sockets

33

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

12.5

±0.2

3.0

6.0

3.6

5.0

6.0

3.0

11.54

±0.2

12.6

±0.2

3.0

2.54

2.54mm Pitch Pin Headers - Dual Row - Straight

2.54mm Pitch Pin Headers - Dual Row - Straight

2.54mm Pitch SMD Pin Headers - Single Row - Straight T&R

2.54mm Pitch Pin Headers - Single Row - Straight

No. of Ways

Part No.

2 to 25

TPHxxSSL

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxSSCT

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxDSL

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxDS

Mates with

TFHxx 2.54mm sockets

•

7mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end stackable

•

6mm mating pin length

•

Gold plated contacts

•

Pick & Place Cap

•

UL94V-0 Black Nylon 6T

•

End to end stackable

•

6mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end stackable

•

7mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end stackable

Website Data Reference

TAI100

Website Data Reference

TAI099

Website Data Reference

TAI085

Website Data Reference

TAI087

i

i

i

i

PCB Interconnect Headers & Sockets

34

www.anglia-live.com

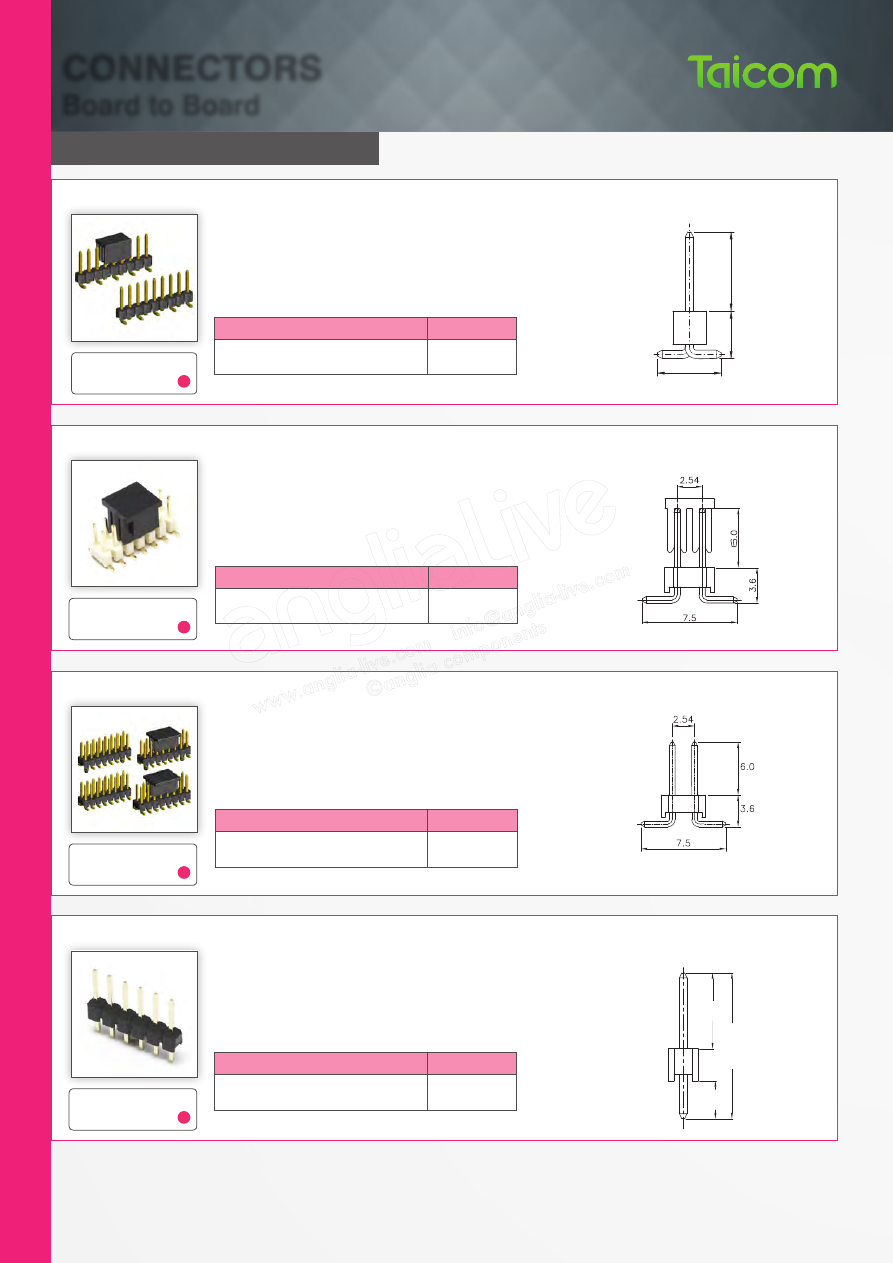

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

2.54

6.0

3.6

7.5

6.0

1.5

3.0

3.0

3.5

6.0

7.0

3.8

3.0

2.54mm Pitch Pin Headers - Single Row - Right Angle

Website Data Reference

TAI094

2.54mm Pitch Pin Headers - Single Row - Right Angle

2.54mm Pitch Pin Headers - Single Row - Right Angle Flush

2.54mm SMD Pin Headers - Dual Row - Straight T & R

No. of Ways

Part No.

2 to 25

TPHxxSRL

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxSR

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxSRF

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxDSCT

Mates with

TFHxx 2.54mm sockets

•

6mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end stackable

•

6mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end stackable

•

6mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end stackable

•

7mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end stackable

Website Data Reference

TAI086

Website Data Reference

TAI095

Website Data Reference

TAI096

i

i

i

i

PCB Interconnect Headers & Sockets

35

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

6.0

3.0

1.5

6.0

2.54

1.5

5.08

3.0

2.54

3.0

8.0

4.2

1.27mm Pitch SMD Spacer Pin Headers - Single Row - Straight

2.54mm Pitch Pin Headers - Triple Row - Straight

2.54mm Pitch Pin Headers - Dual Row - Right Angle

2.54mm Pitch Pin Headers - Single Row - Right Angle Reversed

No. of Ways

Part No.

2 to 25

TPHxxSRR

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxDR

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

6 to 120

TPHxxTS

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxCSSNBZ

Mates with

TFHxx 1.27mm sockets

•

6mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end stackable

•

6mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black polyester

•

End to end stackable

•

Triple row

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end & side stackable

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end & side stackable

•

Board spacing 8mm

Website Data Reference

TAI097

Website Data Reference

TAI084

Website Data Reference

TAI102

Website Data Reference

TAI113

i

i

i

i

PCB Interconnect Headers & Sockets

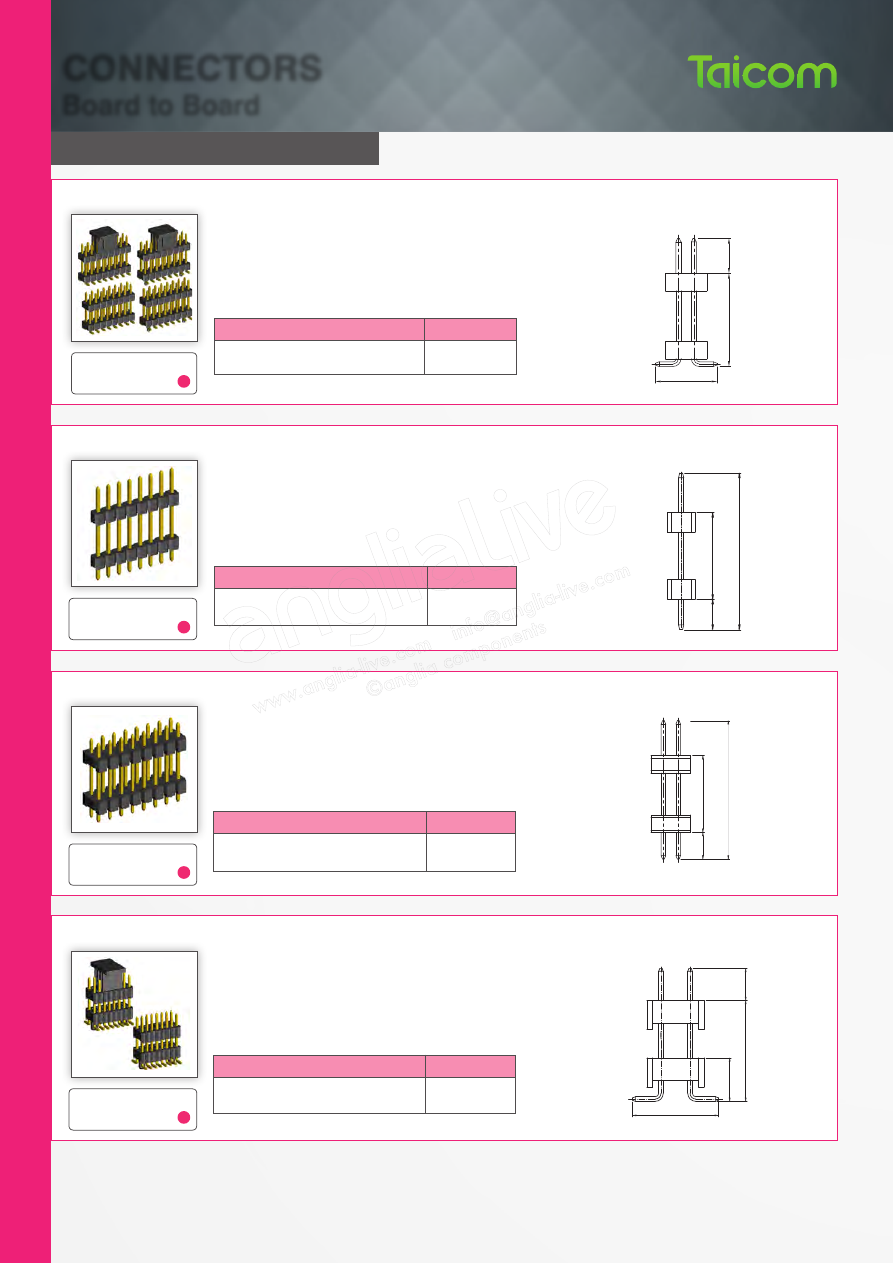

36

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

3.0

8.0

5.1 ±0.25

11.9 ±0.2

6.6

2.3

11.9 ±0.2

6.6

2.3

7.5 ±0.25

8.8 ±0.2

2.8

3.8

1.27 x 2.54mm Pitch SMD Spacer Pin Headers - Dual Row - Straight

1.27mm Pitch Spacer Pin Headers - Dual Row - Straight

1.27mm Pitch Spacer Pin Headers - Single Row - Straight

1.27mm Pitch SMD Spacer Pin Headers - Dual Row - Straight

No. of Ways

Part No.

2 to 40

TPHxxEDSNBZ

Mates with

TFHxx 1.27 x 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxCDSZ

Mates with

TFHxx 1.27mm sockets

No. of Ways

Part No.

2 to 40

TPHxxCSSZ

Mates with

TFHxx 1.27mm sockets

No. of Ways

Part No.

2 to 40

TPHxxCDSNBZ

Mates with

TFHxx 1.27mm sockets

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end & side stackable

•

Board spacing 6.0mm

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end & side stackable

•

Board spacing 6.6mm

•

Gold plated contacts

•

UL94V-0 Black polyester

•

End to end & side stackable

•

Board spacing 6.6mm

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end & side stackable

•

Board spacing 8.8mm

Website Data Reference

TAI111

Website Data Reference

TAI114

Website Data Reference

TAI112

Website Data Reference

TAI117

i

i

i

i

PCB Interconnect Headers & Sockets

37

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

3.0

21.48

±0.2

15.48

5.0

2.54

3.5

6.0

4.2

3.5

6.0

4.2

3.5

9.0

6.5 ±0.25

2.0mm Pitch SMD Spacer Pin Headers - Dual Row - Straight

2.0mm Pitch SMD Pin Headers - Single Row - Straight T & R

2.0mm Pitch SMD Spacer Pin Headers - Single Row - Straight

1.27 x 2.54mm Pitch Spacer Pin Headers - Dual Row - Straight

No. of Ways

Part No.

2 to 40

TPHxxEDSZ

Mates with

TFHxx 1.27 x 2.54mm sockets

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TPHxxBSSNBZ

Mates with

TFHxx 2.0mm sockets

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TPHxxBDSNBZ

Mates with

TFHxx 2.0mm sockets

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 41

TPHxxBSSCTZ

Mates with

TFHxx 2.0mm sockets

•

Gold plated contacts

•

UL94V-0 Black Plastic

•

End to end & side stackable

•

Board spacing 15.48mm

•

3.5mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end & side stackable

•

Board spacing 6.0mm

•

3.5mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end & side stackable

•

Board spacing 6.0mm

•

3.5mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end & side stackable

•

Board spacing 9.0mm

Website Data Reference

TAI118

Website Data Reference

TAI108

Website Data Reference

TAI107

Website Data Reference

TAI104

i

i

i

i

PCB Interconnect Headers & Sockets

38

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

3.5

9.0

6.5 ±0.25

6.0

11.9

±0.2

2.4

12.0

2.4

17.9

±0.2

11.9

±0.2

6.0

2.4

2.0mm Pitch Spacer Pin Headers - Dual Row - Straight

2.0mm Pitch Spacer Pin Headers - Single Row - Straight

2.0mm Pitch Spacer Pin Headers - Single Row - Straight

2.0mm Pitch SMD Spacer Pin Headers - Dual Row - Straight

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TPHxxBDSCTZ

Mates with

TFHxx 2.0mm sockets

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TPHxxBDSZ06

Mates with

TFHxx 2.0mm sockets

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TPHxxBSSZ06

Mates with

TFHxx 2.0mm sockets

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TPHxxBSSZ12

Mates with

TFHxx 2.0mm sockets

•

3.5mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end & side stackable

•

Board spacing 6.0mm

•

3.5mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end & side stackable

•

Board spacing 6mm

•

3.5mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end & side stackable

•

Board spacing 12.0mm

•

3.5mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end & side stackable

•

Board spacing 6mm

Website Data Reference

TAI103

Website Data Reference

TAI109

Website Data Reference

TAI110

Website Data Reference

TAI105

i

i

i

i

PCB Interconnect Headers & Sockets

39

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

17.9

±0.2

12.0

2.4

5.0

6.8

7.5

3.0

7.5 ±0.2

3.3

9.3

3.5

3.0

16.8

25.8

±0.2

2.54mm Pitch Spacer Pin Headers - Single Row - Straight

2.54mm Pitch SMD Spacer Pin Headers - Dual Row - Straight

2.54mm Pitch SMD Spacer Pin Headers - Single Row - Straight

2mm Pitch Spacer Pin Headers - Dual Row - Straight

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TPHxxBDSZ12

Mates with

TFHxx 2.0mm sockets

No. of Ways

Part No.

2 to 40

TPHxxDSNBZ

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxSSNBZ

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

2 to 40

TPHxxSSZ

Mates with

TFHxx 2.54mm sockets

•

3mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black

•

End to end & side stackable

•

Board spacing 12mm

•

3mm mating pin length

•

Gold plated contacts

•

Board spacing 6.8mm

•

End to end & side stackable

•

UL94V-0 Black Plastic

•

3.5mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end & side stackable

•

Board spacing 9.3mm

•

6.0mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end & side stackable

•

Board spacing 16.8mm

Website Data Reference

TAI106

Website Data Reference

TAI119

Website Data Reference

TAI115

Website Data Reference

TAI120

i

i

i

i

PCB Interconnect Headers & Sockets

40

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

3.0

25.8

±0.2

16.8

2.15

3.7 ±0.3

4.5

5.1

4.5

3.0

3.4

2.15

0.15

1.27mm Pitch Socket - Single Row - Straight

1.27mm Pitch SMD Socket - Dual Row - Straight

1.27mm Pitch SMD Socket - Single Row - Straight

2.54mm Pitch Spacer Pin Headers - Dual Row - Straight

No. of Ways

Part No.

2 to 40

TFHxxCSS

Mates with

TPHxx 1.27mm pin headers

No. of Ways

Part No.

2 to 40

TFHxxCSSNB

Mates with

TPHxx 1.27mm pin headers

No. of Ways

Part No.

2 to 40

TPHxxDSZ

Mates with

TFHxx 2.54mm sockets

No. of Ways

Part No.

2 to 40

TFHxxCDSNB

Mates with

TPHxx 1.27mm pin headers

•

6mm mating pin length

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end & side stackable

•

Board spacing 16.8mm

•

Surface mount single row

•

Gold plated contacts

•

UL94V-0 Black Plastic 9T

•

End to end stackable

•

Surface mount dual row

•

Gold plated contacts

•

UL94V-0 Black PBT 9T

•

End to end stackable

•

Gold plated contacts

•

UL94V-0 Black Nylon 9T

•

End to end stackable

Website Data Reference

TAI116

Website Data Reference

TAI131

Website Data Reference

TAI128

Website Data Reference

TAI130

i

i

i

i

PCB Interconnect Headers & Sockets

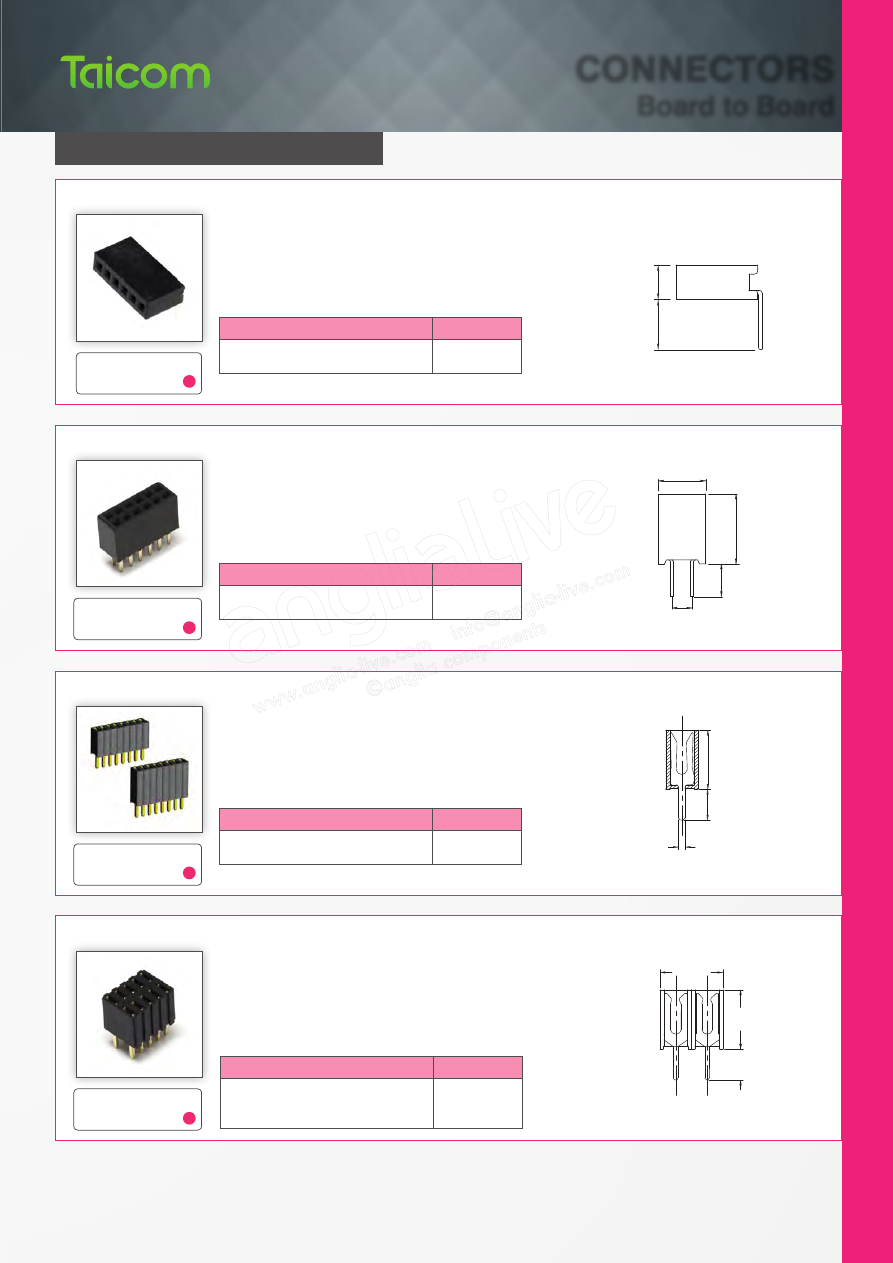

41

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

2.14 ±0.1

2.6 ±0.3

3.0

4.5

2.1 ±0.3

1.27 ±0.05

0.5 ±0.05

Dim ±0.25

4.6

5.2 ±0.1

4.6

2.4

1.27 x 2.54mm Socket - Dual Row - Straight

1.27mm Socket - Single Row - Straight

1.27mm Pitch Socket - Dual Row - Straight

1.27mm Pitch Socket - Single Row - Right Angle

No. of Ways

Part No.

2 to 40

TFHxxEDS

Mates with

TFHxx 1.27 x 2.54mm

pin headers

No. of Ways

Part No.

2 to 40

TFHxxCSR

Mates with

TPHxx 1.27mm sockets

No. of Ways

Part No.

2 to 40

TFHxxCDS

Mates with

TPHxx 1.27mm sockets

No. of Ways

Part No.

2 to 40

TFHxxESS

Mates with

TPHxx 1.27mm sockets

•

Single row

•

Gold plated contacts

•

UL94V-0 Black LCP

•

End to end stackable

•

Dual row

•

Gold plated contacts

•

UL94V-0 Black Nylon 9T

•

End to end stackable

•

Single row

•

Gold plated contacts

•

UL94V-0 Black Nylon 9T

•

End to end stackable

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end stackable

Website Data Reference

TAI129

Website Data Reference

TAI127

Website Data Reference

TAI138

Website Data Reference

TAI136

i

i

i

i

PCB Interconnect Headers & Sockets

42

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

6.4 ±0.3

6.0

0.2

4.15

4.4

2.4

4.0

5.8

2.4

2.4

2.0mm Pitch Socket - Single Row - Straight

2.0mm Pitch SMD Socket - Dual Row - Straight

2.0mm Pitch SMD Socket - Single Row - Straight

1.27 x 2.54mm SMD Socket - Dual Row - Straight

No. of Ways



Part No.

2 to 40



Tube

 TFHxxBDSSM



Taped & Reeled

TFHxxBDSSM-TR

Mates with

TPHxx 2.0mm pin headers

No. of Ways

Part No.

2 to 50

TFHxxEDSNB

Mates with

TFHxx 1.27 x 2.54mm

pin headers

No. of Ways

Part No.

2 to 40

TFHxxBSSNB

Mates with

TPHxx 2.0mm pin headers

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TFHxxBSS

Mates with

TPHxx 2.0mm pin headers

T P P 0 8 S 4 S M

T P P 0 8 S 4 S M

•

Surface mount dual row

•

Gold plated contacts

•

UL94V-0 Black Nylon 6T

•

End to end stackable

•

Surface mount single row

•

Gold plated contacts

•

UL94V-0 Black Nylon 9T

•

End to end stackable

•

Gold plated contacts

•

UL94V-0 Black polyester

•

End to end stackable

•

Gold plated contacts

•

UL94V-0 Black polyester

•

End to end stackable

Website Data Reference

TAI137

Website Data Reference

TAI126

Website Data Reference

TAI125

Website Data Reference

TAI124

i

i

i

i

PCB Interconnect Headers & Sockets

43

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

4.0

2.0

2.4

±0.3

2.4

2.3

±0.3

4.3

2.85

2.96

2.0

5.1

5.0

0.25

4.4 ±0.3

•

Surface mount single row

•

Gold plated contacts

•

UL94V-0 Black Plastic

•

End to end stackable

2.54mm Pitch SMD Socket - Single Row - Straight

•

Gold plated contacts

•

UL94V-0 Black Plastic

•

End to end stackable

2.0mm Pitch Socket - Dual Row - Right Angle

•

Gold plated contacts

•

UL94V-0 Black polyester

•

End to end stackable

2.0mm Pitch Socket - Single Row - Right Angle

•

Gold plated contacts

•

UL94V-0 Black polyester

•

End to end stackable

2.0mm Pitch Socket - Dual Row - Straight

No. of Ways

Part No.

2, 3, 4, 5, 6, 8, 10, 12, 20, 25, 40

TFHxxBDS

Mates with

TPHxx 2.0mm pin headers

No. of Ways

Part No.

2 to 40

TFHxxBSR

Mates with

TPHxx 2.0mm pin headers

No. of Ways

Part No.

2 to 40

TFHxxBDR

Mates with

TPHxx 2.0mm pin headers

No. of Ways

Part No.

2 to 40

TFHxxSSNB

Mates with

TPHxx 2.54mm pin headers

Website Data Reference

TAI122

Website Data Reference

TAI123

Website Data Reference

TAI121

Website Data Reference

TAI141

i

i

i

i

PCB Interconnect Headers & Sockets

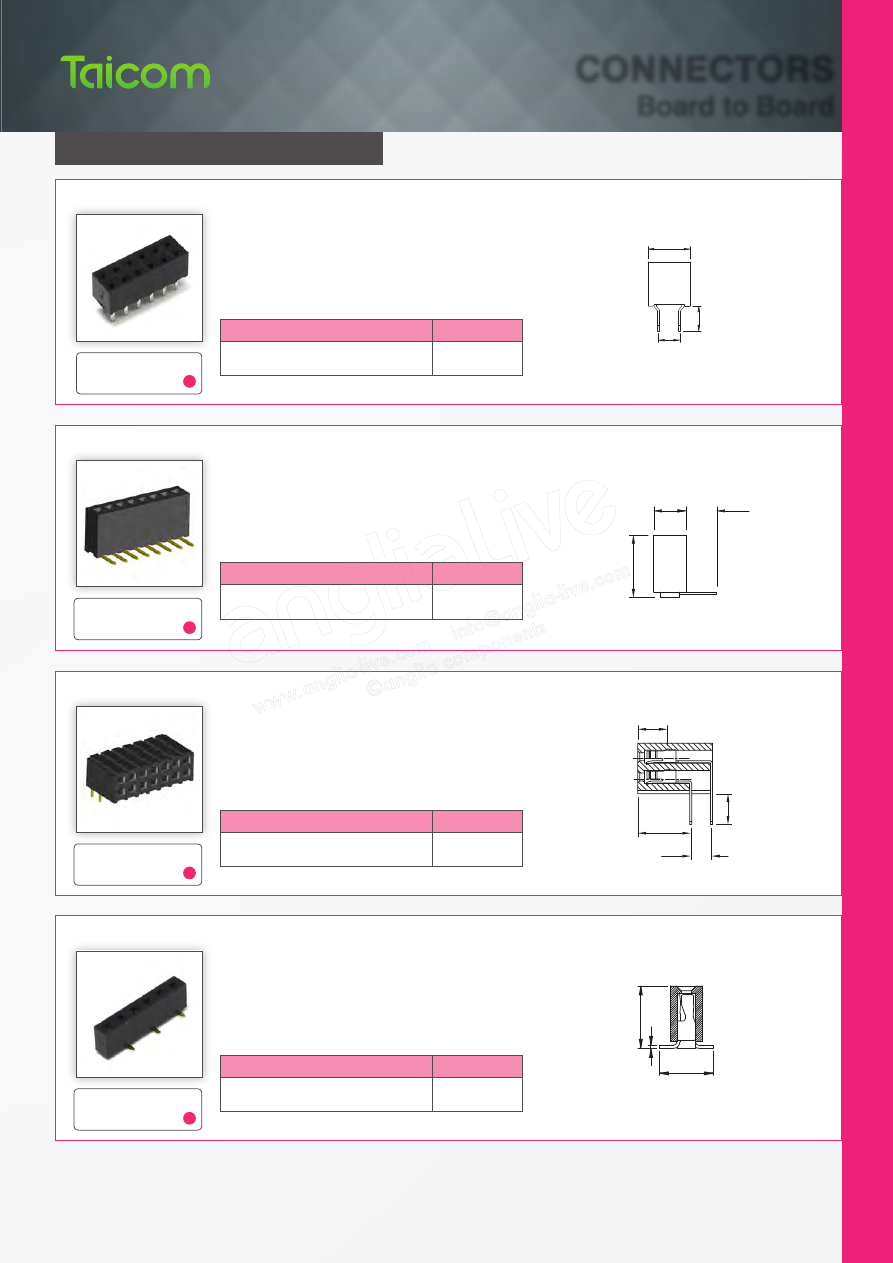

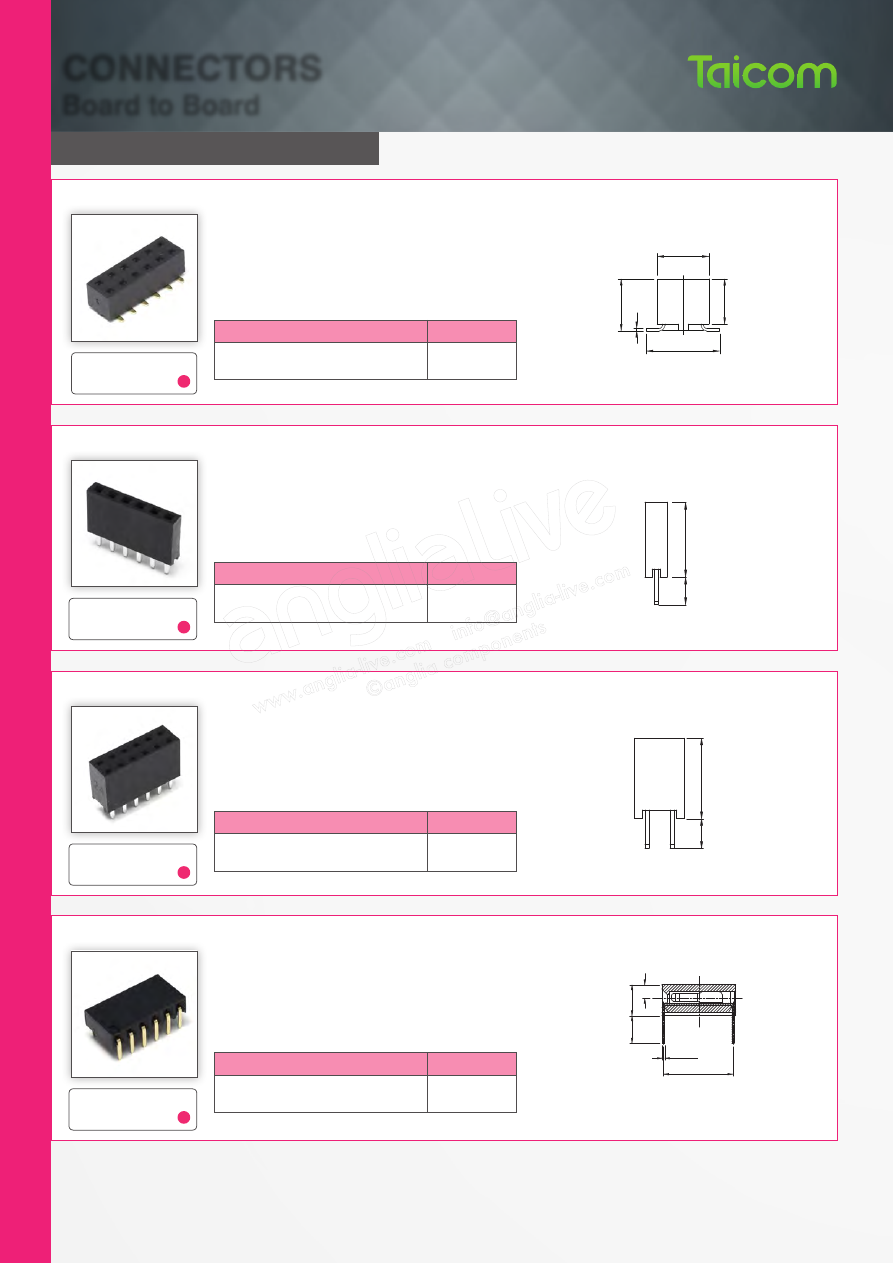

44

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

5.08

7.2

4.45

5.11

0.25

8.5

3.1

8.5

3.1

1.5

3.4

3.0

±0.3

0.25

±0.02

7.62

•

Gold plated contacts

•

UL94V-0 Black Plastic

•

End to end stackable

2.54mm Pitch Socket - Single Row - Side Entry

2.54mm Pitch Socket - Dual Row - Straight

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end stackable

•

Gold plated contacts

•

UL94V-0 Black PBT

•

End to end stackable

2.54mm Pitch Socket - Single Row - Straight

•

Gold plated contacts

•

UL94V-0 Black Nylon 9T

•

End to end stackable

2.54mm Pitch SMD Socket - Dual Row - Straight

No. of Ways

Part No.

2 to 40

TFHxxDS

Mates with

TPHxx 2.54mm pin headers

No. of Ways

Part No.

2 to 40

TFHxxDSNB

Mates with

TPHxx 2.54mm pin headers

No. of Ways

Part No.

2 to 40

TFHxxSS

Mates with

TPHxx 2.54mm pin headers

No. of Ways

Part No.

2 to 40

TFHxxSR

Mates with

TPHxx 2.54mm pin headers

Website Data Reference

TAI135

Website Data Reference

TAI140

Website Data Reference

TAI134

Website Data Reference

TAI139

i

i

i

i

PCB Interconnect Headers & Sockets

45

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

5.95

0.25 ±0.05

7.62 ±0.25

3.0

±0.3

2.54

2.24

1.96

3.55

1.35

3.25

4.2

2.0

3.65

2.75

1.25

4.1

5.1

8.0

3.5

2.54mm Pitch Socket - Right Angle

0.8mm Pitch SMD Socket

0.8mm Pitch SMD Plug - Dual Row

2.54mm Pitch Socket - Dual Row - Side Entry

No. of Ways

Part No.

2 to 40

TFHxxDR

Mates with

TPHxx 2.54mm pin headers

No. of Ways

Part No.

5 to 20

TPPxxPSM

Mates with

TPPxxSxSM sockets

No. of Ways

Part No.

5 to 20

4.0mm Mating Height

TPPxxS4SM



6.0mm Mating Height

TPPxxS6SM

Mates with

TPPxxPSM Plugs

No. of Ways

Part No.

2 to 25

TKBxxFR

Mates with 2.54mm pin headers

•

Gold plated contacts

•

UL94V-0 Black polyester

•

End to end stackable

•

Nylon 6T flame retardant UL94V-0

•

Gold plated contacts

•

Polarised to stop incorrect insertion

•

Nylon 6T flame retardant UL94V-0

•

Gold plated contacts

•

Polarised to stop incorrect insertion

•

Choice of 4.0mm or 6.0mm mating height

•

Single row socket

•

Through hole

•

UL94V-0 White Nylon

•

Board Hooks

Website Data Reference

TAI132

Website Data Reference

TAI142

Website Data Reference

TAI143

Website Data Reference

TAI144

i

i

i

i

PCB Interconnect Headers & Sockets

46

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

4.7

3.3

1.4

6.5

0.3 8.0

3.9

4.7

7.9

2.54mm Pitch Socket - Top Entry

2.54mm Pitch Socket - Bottom Entry

No. of Ways

Part No.

2 to 25

TKBxxFB

Mates with 2.54mm pin headers

No. of Ways

Part No.

2 to 25

TKBxxFS

Mates with 2.54mm pin headers

•

Single row socket

•

Through hole

•

UL94V-0 White Nylon

•

Board Hooks

•

Single row socket

•

Through hole

•

UL94V-0 White Nylon

•

Board Hooks

Website Data Reference

TAI145

Website Data Reference

TAI146

i

i

PCB Interconnect Headers & Sockets

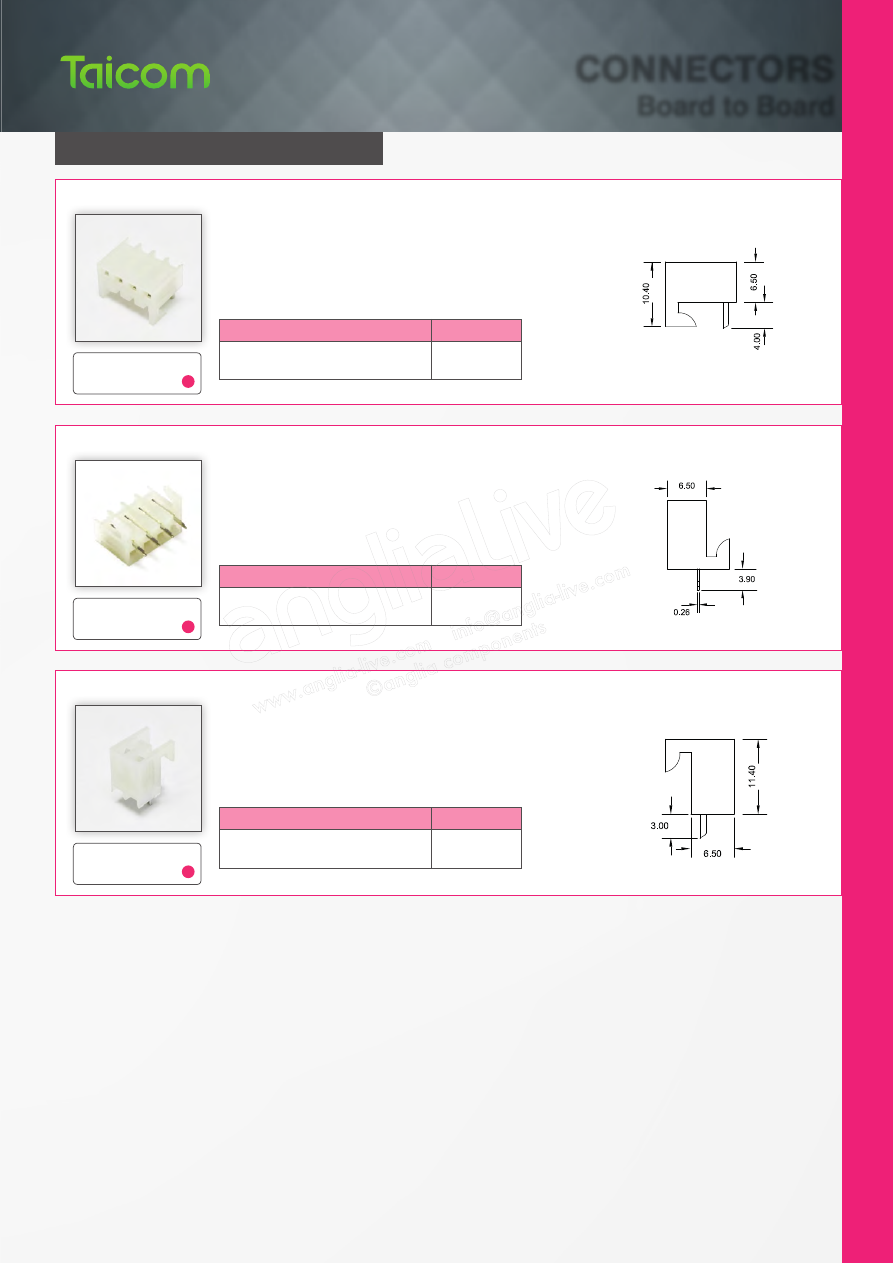

47

www.anglia-live.com

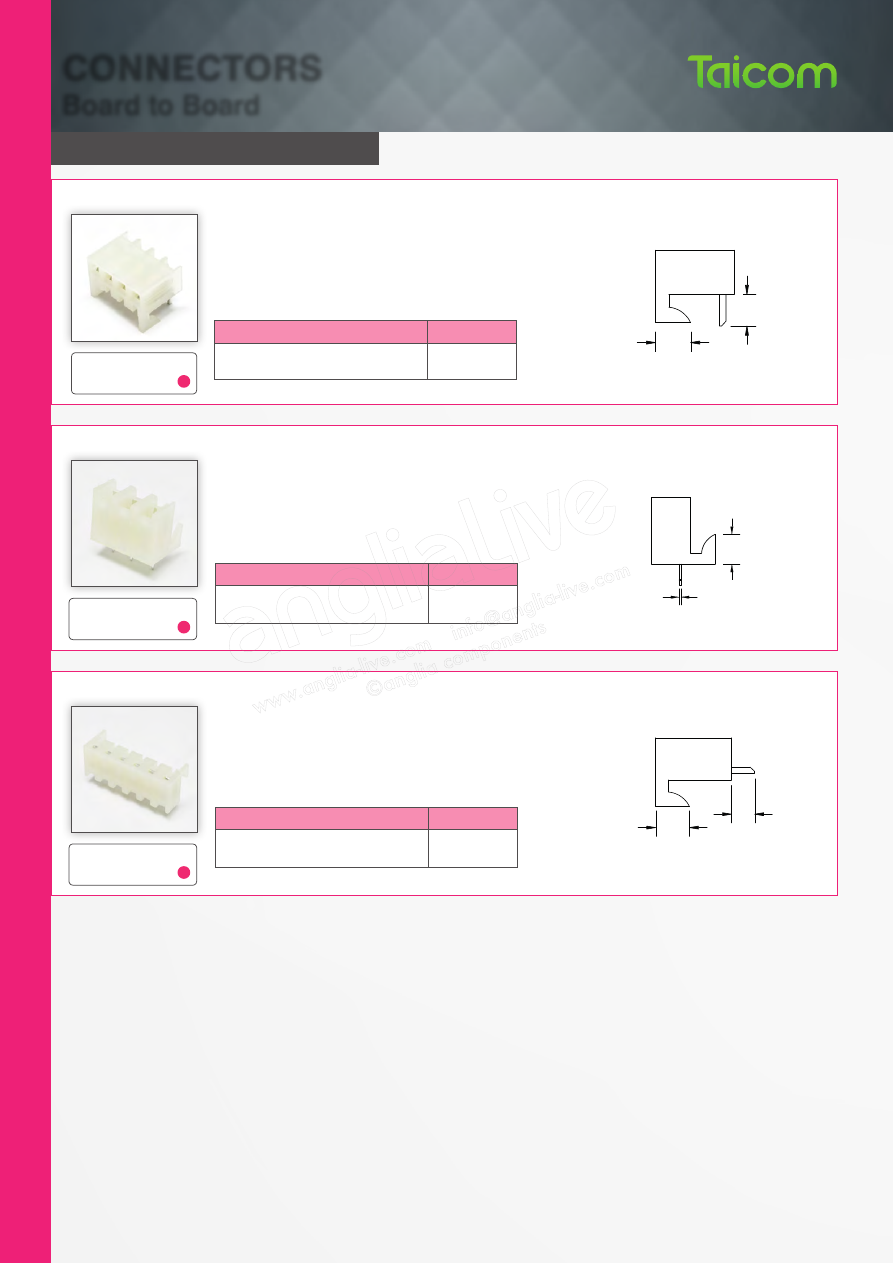

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

3.96mm Pitch Socket - Top Entry

3.96mm Pitch Socket - Bottom Entry

3.96mm Pitch Socket - Side Entry

No. of Ways

Part No.

2 to 20

TKCxxFR

Mates with 3.96mm pin headers

No. of Ways

Part No.

2 to 20

TKCxxFB

Mates with 3.96mm pin headers

No. of Ways

Part No.

2 to 20

TKCxxFS

Mates with 3.96mm pin headers

•

Single row socket

•

Through hole

•

UL94V-2 Nylon

•

Board Hooks

•

Single row socket

•

Through hole

•

UL94V-2 Nylon

•

Board Hooks

•

Single row socket

•

Through hole

•

UL94V-0 Nylon

•

Board Hooks

Website Data Reference

TAI342

Website Data Reference

TAI340

Website Data Reference

TAI341

i

i

i

PCB Interconnect Headers & Sockets

48

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

4.

0

5.1

5.1

0.3

5.1

3.5

•

Single row socket

•

Through hole

•

UL94V-2 Nylon 66

•

Board Hooks

5.08mm Pitch Socket - Top Entry

•

Single row socket

•

Through hole

•

UL94V-2 Nylon 66

•

Board Hooks

5.08mm Pitch Socket - Bottom Entry

•

Single row socket

•

Through hole

•

UL94V-2 Nylon 66

•

Board Hooks

5.08mm Pitch Socket - Side Entry

No. of Ways

Part No.

2 to 20

TKDxxFB

Mates with 5.08mm pin headers

No. of Ways

Part No.

2 to 20

TKDxxFS

Mates with 5.08mm pin headers

No. of Ways

Part No.

2 to 20

TKDxxFR

Mates with 5.08mm pin headers

Website Data Reference

TAI147

Website Data Reference

TAI148

Website Data Reference

TAI149

i

i

i

49

www.anglia-live.com

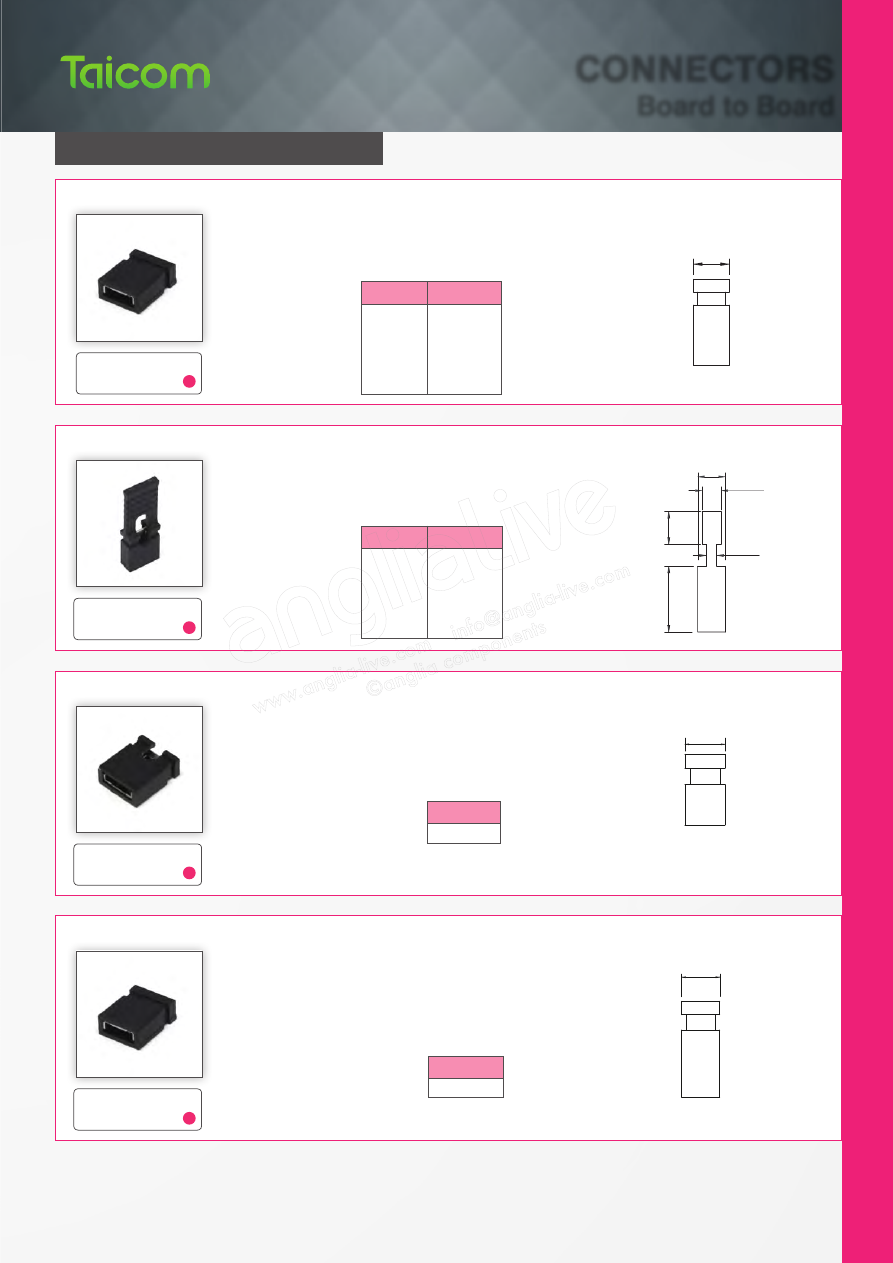

CONNECTORS

Board to Board

Jumper Links

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

1.25

1.5

3.0

0.46

0.85

1.25

2 ±0.2

2 ±0.2

2.00mm Pitch - Mini Jumper - Closed

2.00mm Pitch - Mini Jumper - Open

1.27mm Pitch - Mini Jumper with Handle

1.27mm Pitch - Mini Jumper - Closed

Part No.
TMJ00B

Part No.

TMJ00BC

Colours

Part No.

 Black

TMJC00C

 Red

TMJC02C

 Yellow

TMJC04C

 Green

TMJC05C

 Blue

TMJC06C

 White

TMJC09C

Colours

Part No.

 Black

TMJC00H

 Red

TMJC02H

 Yellow

TMJC04H

 Green

TMJC05H

 Blue

TMJC06H

 White

TMJC09H

•

3A rated

•

Gold over nickel plated contacts

•

UL94V-0 flame retardant material

•

3A rated

•

Test Slot

•

Gold over nickel plated contacts

•

UL94V-0 flame retardant material

•

1A rated

•

Gold over nickel plated contacts

•

UL94V-0 PBT flame retardant material

•

1A rated

•

Gold over nickel plated contacts

•

UL94V-2 flame retardant material

Website Data Reference

TAI155

Website Data Reference

TAI156

Website Data Reference

TAI153

Website Data Reference

TAI154

i

i

i

i

For use with

TPHxx

1.27mm pin headers

For use with

TPHxx

1.27mm pin headers

For use with

TPHxx

2.0mm pin headers

For use with

TPHxx

2.0mm pin headers

50

www.anglia-live.com

CONNECTORS

Board to Board

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

1.4

5.97

2.54

5.0

6.47

13.5

6.0

2.54

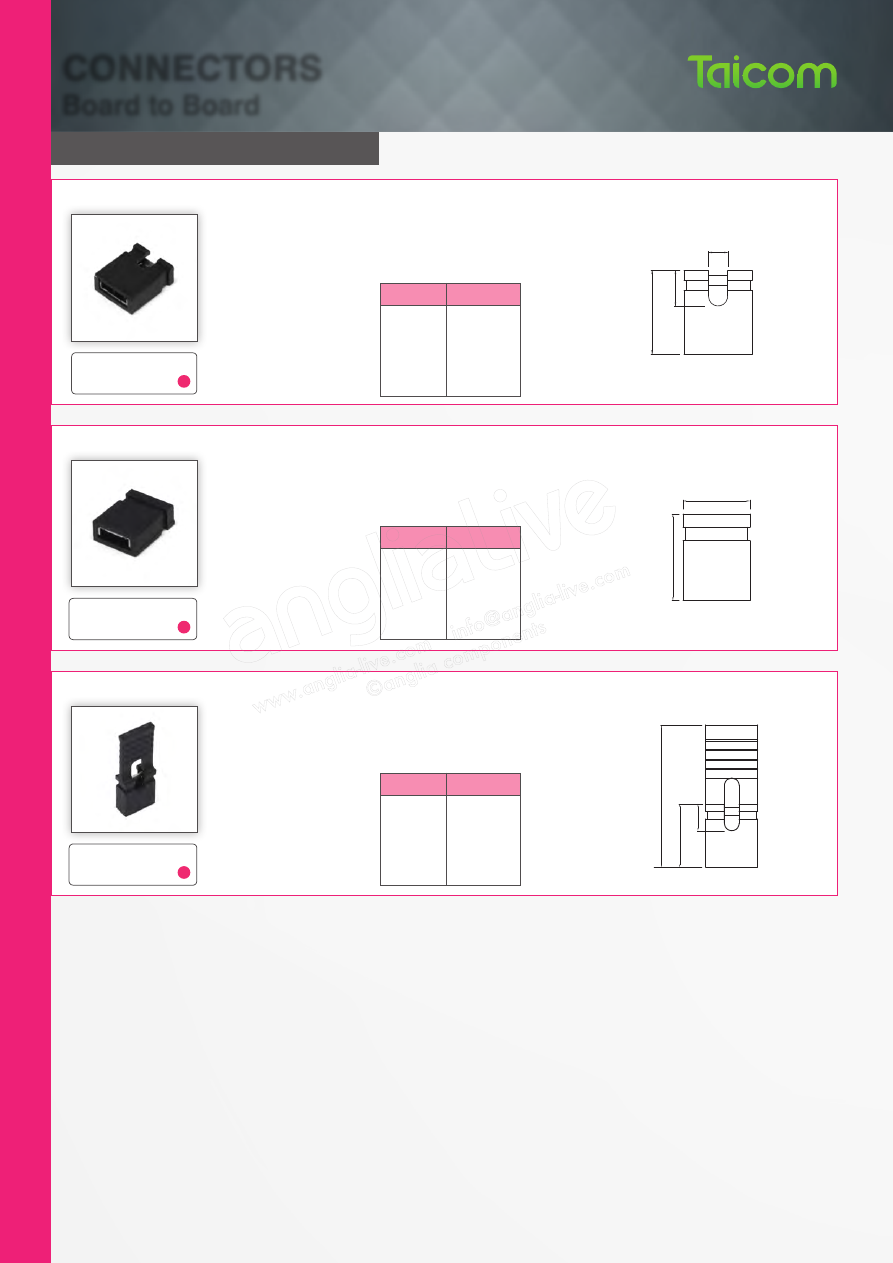

Jumper Links

2.54mm Pitch - Mini Jumper with Handle

2.54mm Pitch - Mini Jumper - Closed

2.54mm Pitch - Mini Jumper - Open

Colours

Part No.

 Black

TMJ00

 Red

TMJ02

 Yellow

TMJ04

 Green

TMJ05

 Blue

TMJ06

 White

TMJ09

Colours

Part No.

 Black

TMJ00C

 Red

TMJ02C

 Yellow

TMJ04C

 Green

TMJ05C

 Blue

TMJ06C

 White

TMJ09C

Colours

Part No.

 Black

TMJ00H

 Red

TMJ02H

 Yellow

TMJ04H

 Green

TMJ05H

 Blue

TMJ06H

 White

TMJ09H

•

3A rated

•

Gold over nickel plated contacts

•

UL94V-0 PBT flame retardant material

•

3A rated

•

Gold over nickel plated contacts

•

UL94V-0 PBT flame retardant material

•

3A rated

•

Gold over nickel plated contacts

•

UL94V-0 PBT flame retardant material

Website Data Reference

TAI150

Website Data Reference

TAI151

Website Data Reference

TAI152

i

i

i

For use with

TPHxx

2.54mm pin headers

For use with

TPHxx

2.54mm pin headers

For use with

TPHxx

2.54mm pin headers

51

www.anglia-live.com

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Website Data Reference

TAI292

No. of Ways



Part No.

14, 16, 20, 31

Lengths available

30, 40, 50, 60, 100, 140, 150, 200, 250mm
 C = Termination on same face both ends

TFFxxC1Lxxx



D = Termination on opposing faces

TFFxxD1Lxxx

No. of Ways



Part No.

14, 16, 20, 31

Lengths available

30, 40, 50, 60, 100, 140, 150, 200, 250mm
 C = Termination on same face both ends

TFFxxC2Lxxx



D = Termination on opposing faces

TFFxxD2Lxxx

•

Same side or opposing termination

•

UL2896

•

Flame retardant polyester

1.0mm Pitch - Flat Flexible Cable

1.25mm Pitch - Flat Flexible Cable

Website Data Reference

TAI291

•

Same side or opposing termination

•

UL2896

•

Flame retardant polyester

FFC/FPC Cable

CONNECTORS

Board to Board

Website Data Reference

TAI293

No. of Ways



Part No.

14, 16, 20, 31

Lengths available
30, 40, 50, 60, 100, 140, 150, 200, 250mm
 C = Termination on same face both ends

TFFxxC3Lxxx



D = Termination on opposing faces

TFFxxD3Lxxx

•

Same side or opposing termination

•

UL2896

•

Flame retardant polyester

0.5mm Pitch - Flat Flexible Cable

i

i

i

CONNECTORS

Wire to Board

52

www.anglia-live.com

con/1747

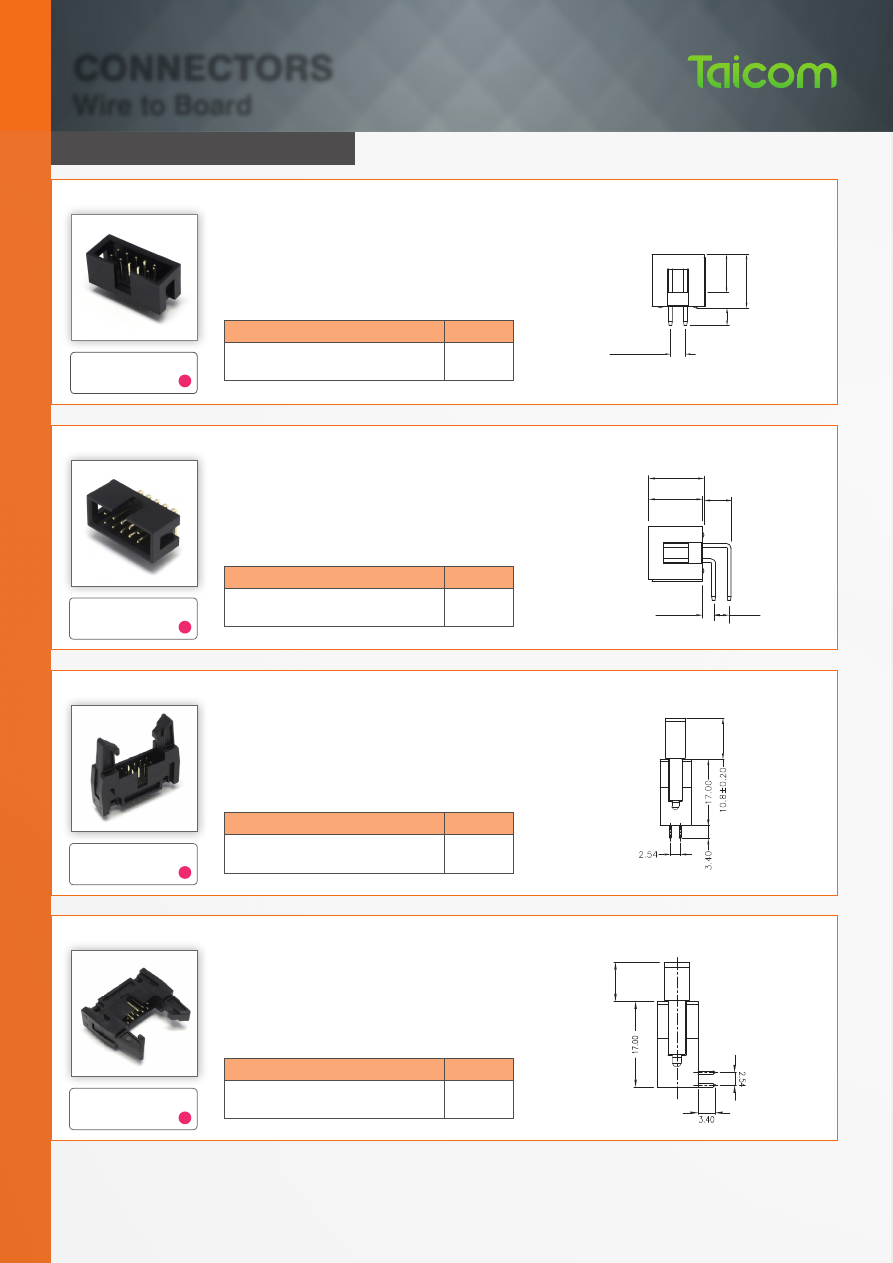

2.54mm Pitch IDC Box Headers

2.54 x 2.54mm Latch Headers - Right Angle

2.54 x 2.54mm Latch Headers - Straight

2.54 x 2.54mm Box Headers - Right Angle

2.54 x 2.54mm Box Headers - Straight

•

Dual row latch header

•

UL94V-0 Black glass filled polyester

•

Gold over nickel plated contacts

•

Industry compatible

•

Dual row latch header

•

UL94V-0 Black glass filled polyester

•

Gold over nickel plated contacts

•

Industry compatible

•

Dual row

•

UL94V-0 Black glass filled polyester

•

Gold over nickel plated contacts

•

Industry compatible

•

Dual row

•

UL94V-0 Black glass filled polyester

•

Gold over nickel plated contacts

•

Industry compatible

No. of Ways

Part No.

6, 10, 14, 16, 20, 26, 34, 40, 50, 60, 64

TIxxBHS

Mates with

TIxxCS Cable Sockets

No. of Ways

Part No.

10, 14, 16, 20, 26, 34, 40, 50, 60, 64

TIxxBHR

Mates with

TIxxCS Cable Sockets

No. of Ways

Part No.

6, 10, 14, 16, 20, 26, 34, 40, 50, 60, 64

TIxxLHS

Mates with

TIxxCS Cable Sockets

No. of Ways

Part No.

10, 14, 16, 20, 26, 34, 40, 50, 60, 64

TIxxLHR

Mates with

TIxxCS Cable Sockets

Website Data Reference

TAI004

Website Data Reference

TAI003

Website Data Reference

TAI002

Website Data Reference

TAI001

10.8

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

1.84

2.54

3.0

8.85

9.1

2.54 ±0.05

3.0

9.1

6.5

i

i

i

i

53

www.anglia-live.com

con/1747

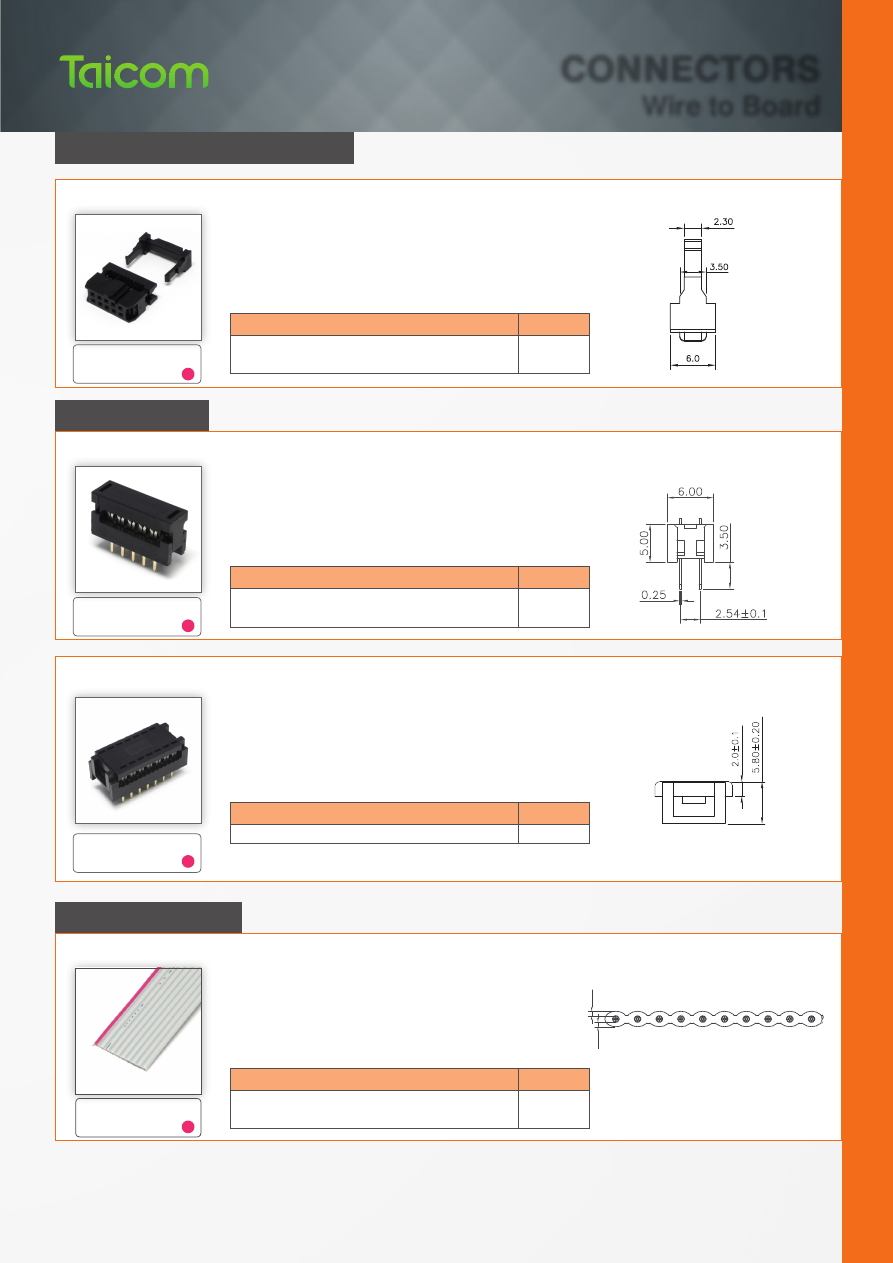

1.27mm Pitch IDC Flat Cable - Grey

IDC Cable Socket

2.54 x 2.54mm IDC Transition Connector

2.54mm Pitch IDC DIL Plug

CONNECTORS

Wire to Board

IDC Cable Socket

IDC Transition

IDC Ribbon Cable

11.0

12.0

•

Grey colour with marker

•

28 AWG 1.27mm pitch conductors

•

Flame retardant PVC insulation

•

UL recognised

•

100ft length

•

Supplied on hexagonal reels

•

UL94V-0 Black glass filled polyester

•

Gold over nickel plated contacts

•

Industry compatible

•

Complete with strain relief

•

Centre bump polarised

•

For use with 1.27mm ribbon cable (TFGxxC)

•

Dual row

•

UL94V-0 Black glass filled polyester

•

Gold over nickel plated contacts

•

Industry compatible

•

Dual row

•

UL94V-0 Black glass filled polyester

•

Gold over nickel plated contacts

•

Industry compatible

No. of Ways

Part No.

6, 10, 14, 16, 20, 26, 34, 40, 50, 60, 64

TIxxCS

Mates with

TI box & latch headers

No. of Ways

Part No.

10, 14, 16, 20, 26, 34, 40, 50, 60, 64

TIxxTC

Mates with

TFCxxG ribbon cable

No. of Ways

Part No.

8, 14, 16, 18, 20, 24, 28, 40

TIxxDP

No. of Ways

Part No.

9, 10, 14, 16, 20, 25, 26, 34, 36, 40, 50, 64

TFCxxG

For use with IDC connectors

Website Data Reference

TAI327

Website Data Reference

TAI325

Website Data Reference

TAI326

Website Data Reference

TAI196

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

i

i

i

i

54

www.anglia-live.com

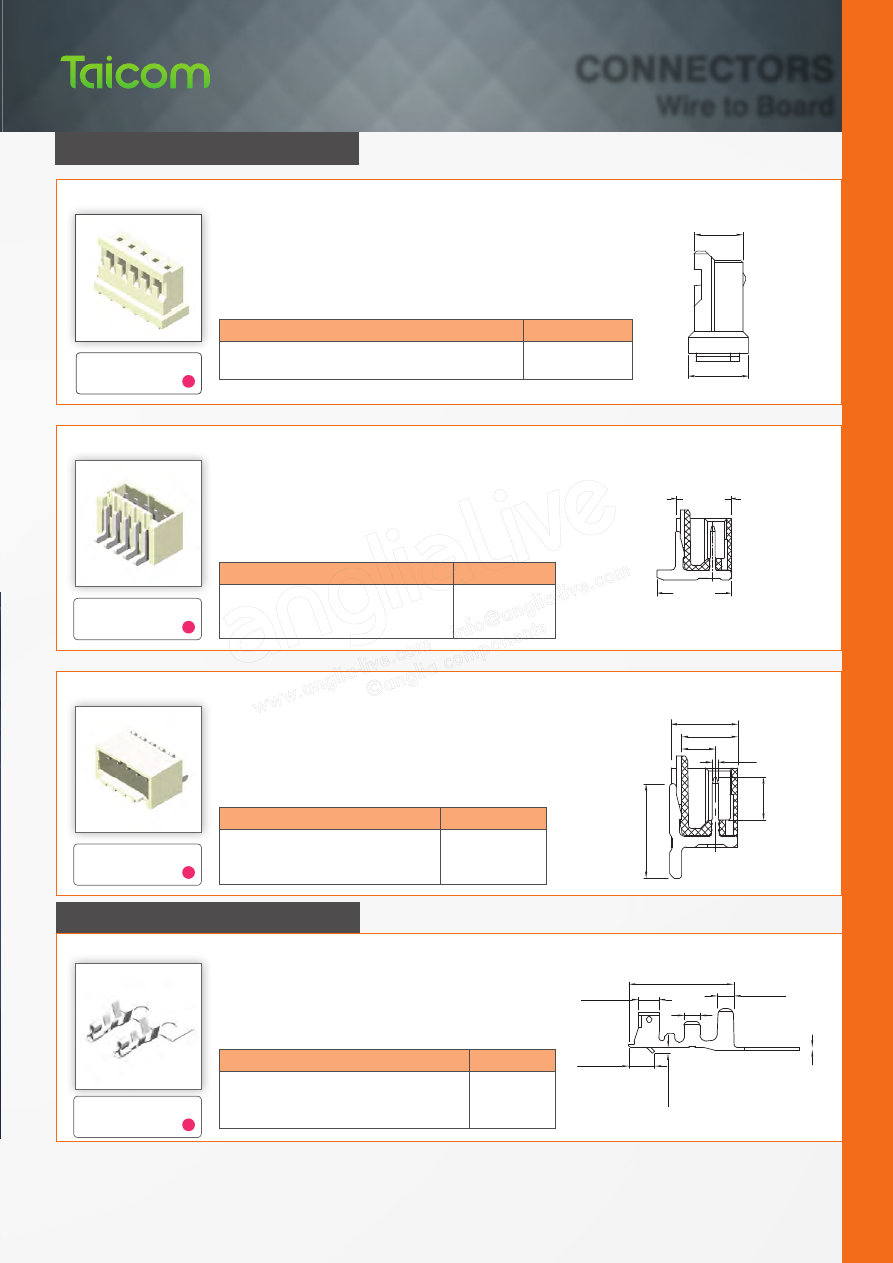

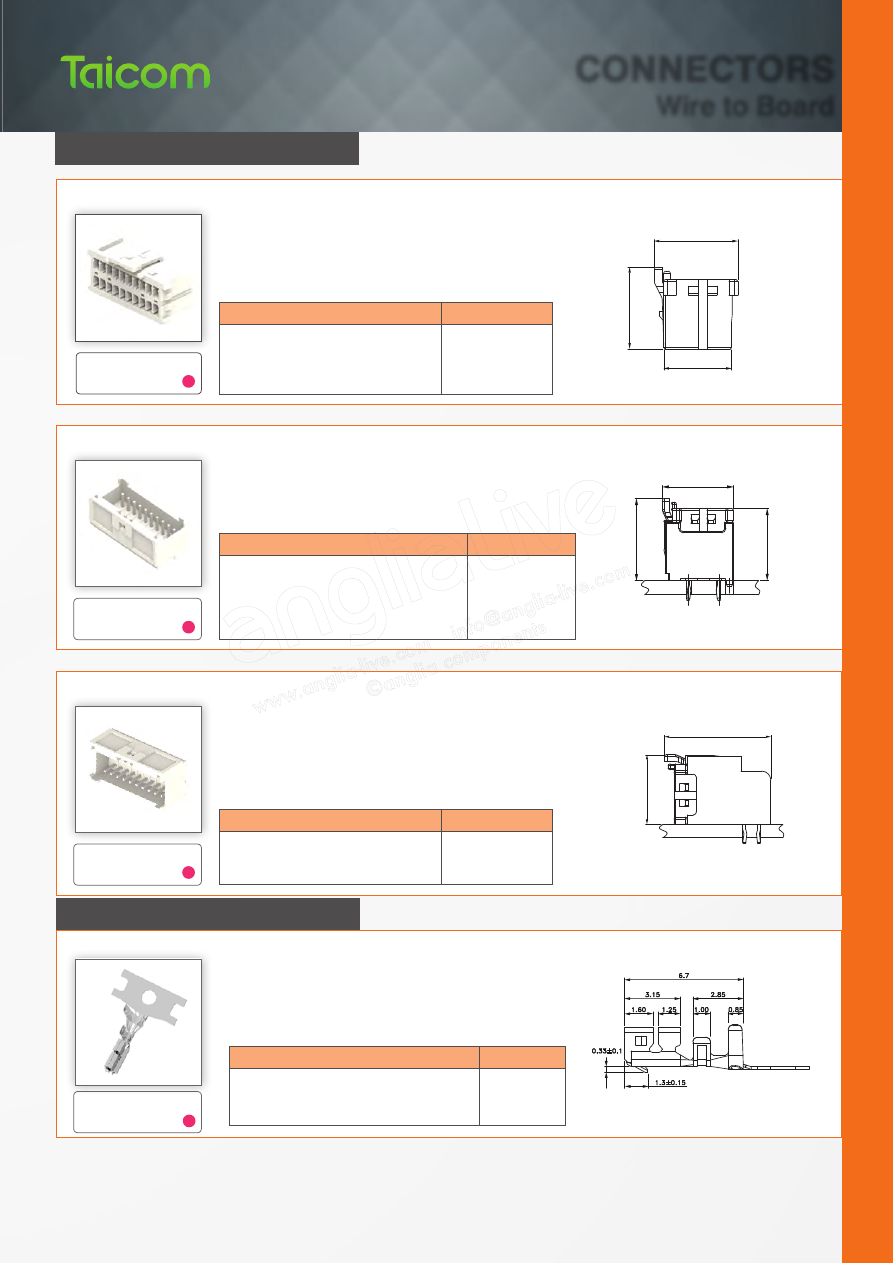

Dimensions (mm)

Dimensions (mm)

Dimensions (mm)

CONNECTORS

Wire to Board

Website Data Reference

TAI366

1.5

0.13

0.7

3.1

1.7±0.3

3.05

Website Data Reference

TAI365

•

SMD Right Angle dual row

•

1A rated

•

Phosphor Bronze, Gold or Tin Plated terminal

•

Brass, Gold or Tin Plated solder tabs

•

White UL94V-0 Nylon 6T

1.00mm Pitch SMD Headers - Dual Row - Right Angle

4.93

4.30

With Cap

Website Data Reference

TAI364

•

SMD Vertical dual row

•

1A rated

•

Phosphor Bronze, Gold or Tin Plated terminal

•

Brass, Gold or Tin Plated solder tabs

•

White UL94V-0 Nylon 6T

1.00mm Pitch SMD Headers - Straight

1.9

±0.2

2.8

±0.2

5.0

±0.2

2.1

±0.1

Website Data Reference

TAI363

•

Single row housing

•

1A rated

•

White UL94V-0 PBT

1.00mm Pitch - Crimp Housing

1.00mm Pitch Wire to Board

No. of Ways

Part No.

2 to 20

TCH1001RxxFN

Mates with

TMH1001H headers

&

TCR10001 crimp terminals

No. of Ways

Part No.

2 to 20

TMH1001HxxSVR

Mates with

TCH1001RxxFN

housings

No. of Ways

Part No.

2 to 20

TMH1001HxxSHR

Mates with

TCH1001RxxFN

housings

Supplied



Part No.



Tin Plated - Loose

TCR10001*



Gold Plated - Loose

TCR10001G



Tin Plated - Reeled

TCR10001R



Gold Plated - Reeled

TCR10001GR

For use with

TCH1001RxxFN housings

•

Wire size 28 - 32 AWG

•

Choice of contact plating:

•

Phosphor Bronze, Tin Plated

•

Phosphor Bronze, Gold Plated

•

Choice of loose or reeled

Crimp Terminal

Crimps & Contacts

Dimensions (mm)

i

i

i

i
