Altera’s Nios II is a soft processor, defined in a hardware description language, which can be implemented

in Altera’s FPGA devices by using the Quartus

II CAD system. To implement a useful system it is necessary

to add other funcional units such as memories, input/output interfaces, timers, and communications interfaces.
To facilitate the implementation of such systems, it is useful to have computer-aided-design (CAD) software for
implementing a system-on-a-programmable-chip (SOPC). Altera’s SOPC Builder is the software needed for this
task; an introduction to this software is provided in the tutorial Introduction to the Altera SOPC Builder.

This tutorial provides a basic introduction to the Nios II processor, intended for a user who wishes to implement

a Nios II based system on the Altera DE2 board.

Nios II System

The Nios II processor can be used with a variety of other components to form a complete system. These com-
ponents include a number of standard peripherals, but it is also possible to define custom peripherals. Altera’s
Education and Development board DE2 contains several components that can be integrated into a Nios II system.
An example of a system that can be implemented on the DE2 board is shown in Figure 1.

On-chip

memory

SDRAM

interface

I/O

interface

I/O

interface

SRAM

interface

SRAM

chip

SDRAM

chip

Avalon switch fabric

Nios II processor

JTAG UART

interface

USB-Blaster

interface

Host computer

Cyclone II
FPGA chip

JTAG Debug

module

On-chip

memory

I/O

device 1

I/O

device

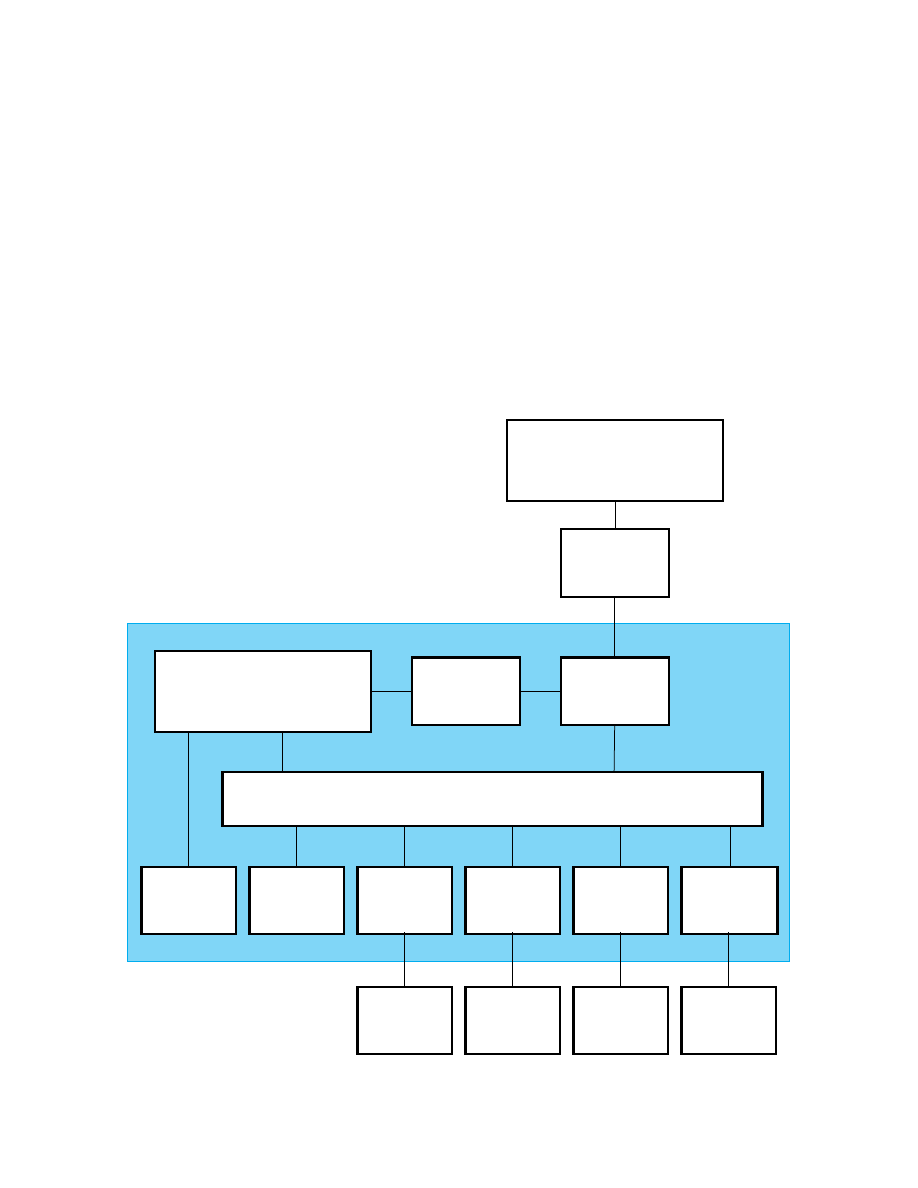

Figure 1. A Nios II system implemented on the DE2 board.

The Nios II processor and the interfaces needed to connect to other chips on the DE2 board are implemented in

the Cyclone II FPGA chip. These components are interconnected by means of the interconnection network called
the Avalon Switch Fabric. Memory blocks in the Cyclone II device can be used to provide an on-chip memory for
the Nios II processor. They can be connected to the processor either directly or through the Avalon network. The
SRAM and SDRAM memory chips on the DE2 board are accessed through the appropriate interfaces. Input/output
interfaces are instantiated to provide connection to the I/O devices used in the system. A special JTAG UART
interface is used to connect to the circuitry that provides a Universal Serial Bus (USB) link to the host computer to
which the DE2 board is connected. This circuitry and the associated software is called the USB-Blaster. Another
module, called the JTAG Debug module, is provided to allow the host computer to control the Nios II processor.
It makes it possible to perform operations such as downloading programs into memory, starting and stopping
execution, setting breakpoints, and collecting real-time execution trace data.

Since all parts of the Nios II system implemented on the FPGA chip are defined by using a hardware description

language, a knowledgeable user could write such code to implement any part of the system. This would be an
onnerous and time consuming task. Instead, one can use the SOPC Builder to implement a desired system simply
by choosing the required components and specifying the parameters needed to make each component fit the overall
requirements of the system.

Overview of Nios II Processor Features

Nios II is a soft processor that has a number of features that can be configured by the user to meet the demands of
a desired system. The processor can be implemented in three different configurations:

•

Nios II/f is a "fast" version designed for superior performance. It has the widest scope of configuration
options that can be used to optimize the processor for performance.

•

Nios II/s is a "standard" version that requires less resources in an FPGA device as a trade-off for reduced
performance.

•

Nios II/e is an "economy" version which requires the least amount of FPGA resources, but also has the most
limited set of user-configurable features.

The Nios II processor has a Reduced Instruction Set Computer (RISC) architecture. Its arithmetic and logic

operations are performed on operands in the general purpose registers. The data is moved between the memory
and these registers by means of Load and Store instructions.

The wordlength of the Nios II processor is 32 bits. All registers are 32 bits long. Byte addresses in a 32-bit

word can be assigned in either little-endian or big-endian style. The assignment style is one of the options that the
user may select at configuration time. In this tutorial, we will use the little-endian assignment in which the lower
byte addresses are used for the less significant bytes (the rightmost bytes) of the word.

The Nios II architecture uses separate instruction and data buses, which is often referred to as the Harvard

architecture.

A Nios II processor may operate in the following three modes:

•

Supervisor mode – allows the processor to execute all instructions and perform all available functions. When
the processor is reset, it enters this mode.

•

User mode – prevents execution of some instructions intended for systems purposes only. Some processor
features are not accessible in this mode.

•

Debug mode – is used by software debugging tools to implement features such as breakpoints and watch-
points.

Application programs can be run in either the User or Supervisor modes. Presently available versions of the Nios
II processor do not support the User mode.

Register Structure

The Nios II processor has thirty two 32-bit general purpose registers, as shown in Figure 2. Some of these registers
are intended for a specific purpose and have special names that are recognized by the Assembler.

•

Register r0 is referred to as the zero register. It always contains the constant 0. Thus, reading this register
returns the value 0, while writing to it has no effect.

•

Registers r24 and r29 are used for processing of exceptions; they are not available in User mode

•

Registers r25 and r30 are used exclusively by the JTAG Debug module

•

Registers r27 and r28 are used to control the stack used by the Nios II processor

•

Register

Name

Function

zero

0x00000000

Assembler Temporary

r2
r3

r23
r24

Exception Temporary (1)

r25

Breakpoint Temporary (2)

r26

Global Pointer

r27

Stack Pointer

r28

Frame Pointer

r29

Exception Return Address (1)

r30

Breakpoint Return Address (2)

r31

Return Address

(1) The register is not available in User mode
(2) The register is used exclusively by the JTAG Debug module

Figure 2. General Purpose registers.

There are six 32-bit control registers, as indicated in Figure 3. The names given in the figure are recognized

by the Assembler. These registers are used automatically for control purposes. They can be read and written to by
special instructions

rdctl

and

wrctl

, which can be executed only in the supervisor mode. The registers are used as

follows:

•

–

is the User/Supervisor mode bit;

= 1

for User mode, while

= 0

for Supervisor mode.

– PIE is the processor interrupt-enable bit. When

P I E

= 1

, the processor may accept external inter-

rupts. When

P I E

= 0

, the processor ignores external interrupts.

•

Register ctl1 holds a saved copy of the status register during exception processing. The bits EU and EPIE
are the saved values of the status bits

and PIE.

•

Register ctl2 holds a saved copy of the status register during debug break processing. The bits BU and BPIE
are the saved values of the status bits

and PIE.

•

Register ctl3 is used to enable individual external interrupts. Each bit corresponds to one of the interrupts
irq0 to irq31. The value of 1 means that the interrupt is enabled, while 0 means that it is disabled.

•

ctl

, is set to 1 if the interrupt

irqk is both active and enabled by having the interrupt-enable bit,

ctl

, set to 1.

•

Register

Name

· · ·

ctl0

status

Reserved

PIE

ctl1

estatus

Reserved

EPIE

ctl2

bstatus

Reserved

BPIE

ctl3

ienable

Interrupt-enable bits

ctl4

ipending

Pending-interrupt bits

ctl5

cpuid

Unique processor identifier

Figure 3. Control registers.

Accessing Memory and I/O Devices

Figure 4 shows how a Nios II processor can access memory and I/O devices. For best performance, the Nios II/f
processor can include both instruction and data caches. The caches are implemented in the FPGA memory blocks.
Their usage is optional and they are specified (including their size) at the system generation time by using the
SOPC Builder. The Nios II/s version can have the instruction cache but not the data cache. The Nios II/e version
has neither instruction nor data cache.

Another way to give the processor fast access to the on-chip memory is by using the tightly coupled memory

arrangement, in which case the processor accesses the memory via a direct path rather than through the Avalon
network. Accesses to a tightly coupled memory bypass the cache memory. There can be one or more tightly
coupled instruction and data memories. If the instruction cache is not included in a system, then there must be at
least one tightly coupled memory provided for Nios II/f and Nios II/s processors. On-chip memory can also be
accessed via the Avalon network.

Off-chip memory devices, such as SRAM, SDRAM, and Flash memory chips are accessed by instantiating the

appropriate interfaces. The input/output devices are memory mapped and can be accessed as memory locations.

Data accesses to memory locations and I/O interfaces are performed by means of Load and Store instructions,

which cause data to be transferred between the memory and general purpose registers.

Tightly coupled

instruction memory

I/O

interface

Tightly coupled

data memory

Memory
interface

Memory

device

Avalon switch fabric

Data

cache

Cyclone II
FPGA chip

Instruction

cache

I/O

device

Instruction bus selector logic

Data bus selector logic

General purpose

registers

Program counter

Figure 4. Memory and I/O organization.

Addressing

The Nios II processor issues 32-bit addresses. The memory space is byte-addressable. Instructions can read and
write words (32 bits), halfwords (16 bits), or bytes (8 bits) of data. Reading or writing to an address that does not
correspond to an existing memory or I/O location produces an undefined result.

There are five addressing modes provided:

•

Immediate mode – a 16-bit operand is given in the instruction. This value may be sign extended to produce
a 32-bit operand in instructions that perform arithmetic operations.

•

Register mode – the operand is in a processor register

•

Displacement mode – the effective address of the operand is the sum of the contents of a register and a
signed 16-bit displacement value given in the instruction

•

Register indirect mode – the effective address of the operand is the contents of a register specified in the
instruction. This is equivalent to the displacement mode where the displacement value is equal to 0.

•

Absolute mode – a 16-bit absolute address of an operand can be specified by using the displacement mode
with register r0 which always contains the value 0.

Instructions

All Nios II instructions are 32-bits long. In addition to machine instructions that are executed directly by the pro-
cessor, the Nios II instruction set includes a number of pseudoinstructions that can be used in assembly language
programs. The Assembler replaces each pseudoinstruction by one or more machine instructions.

Figure 5 depicts the three possible instruction formats: I-type, R-type and J-type. In all cases the six bits

−

denote the OP code. The remaining bits are used to specify registers, immediate operands, or extended OP codes.

•

I-type – Five-bit fields A and B are used to specify general purpose registers. A 16-bit field IMM16 provides
immediate data which can be sign extended to provide a 32-bit operand.

•

R-type – Five-bit fields A, B and C are used to specify general purpose registers. An 11-bit field OPX is
used to extend the OP code.

•

J-type – A 26-bit field IMM26 contains an unsigned immediate value. This format is used only in the Call
instruction.

IMMED16

(a) I-type

IMMED26

(b) R-type

OPX

Figure 5. Formats of Nios II instructions.

The following subsections discuss briefly the main features of the Nios II instruction set. For a complete

description of the instruction set, including the details of how each instruction is encoded, the reader should
consult the Nios II Processor Reference Handbook.

6.1

Load and Store Instructions

Load and Store instructions are used to move data between memory (and I/0 interfaces) and the general purpose
registers. They are of I-type. For example, the Load Word instruction

ldw rB, byte_offset(rA)

determines the effective address of a memory location as the sum of a byte_offset value and the contents of
register

. The 16-bit byte_offset value, which is given as a decimal number, is sign extended to 32 bits. The

32-bit memory operand is loaded into register

For instance, assume that the contents of register

are

1260

and the byte_offset value is

. Then, the

instruction

ldw r3, 80(r4)

loads the 32-bit operand at memory address

1340

into register

The Store Word instruction has the format

stw rB, byte_offset(rA)

It stores the contents of register

into the memory location at the address computed as the sum of the byte_offset

value and the contents of register

There are Load and Store instructions that use operands that are only 8 or 16 bits long. They are referred to as

Load/Store Byte and Load/Store Halfword instructions, respectively. Such Load instructions are:

•

ldb

(Load Byte)

•

ldbu

(Load Byte Unsigned)

•

ldh

(Load Halfword)

•

ldhu

(Load Halfword Unsigned)

When a shorter operand is loaded into a 32-bit register, its value has to be adjusted to fit into the register. This
is done by sign extending the 8- or 16-bit value to 32 bits in the

ldb

and

ldh

instructions. In the

ldbu

and

ldhu

instructions the operand is zero extended.

The corresponding Store instructions are:

•

stb

(Store Byte)

•

sth

(Store Halfword)

The

stb

instruction stores the low byte of register

into the memory byte specified by the effective address. The

sth

instruction stores the low halfword of register

. In this case the effective address must be halfword aligned.

Each Load and Store instruction has a version intended for accessing locations in I/O device interfaces. These

instructions are:

•

ldwio

(Load Word I/O)

•

ldbio

(Load Byte I/O)

•

ldbuio

(Load Byte Unsigned I/O)

•

ldhio

(Load Halfword I/O)

•

ldhuio

(Load Halfword Unsigned I/O)

•

stwio

(Store Word I/O)

•

stbio

(Store Byte I/O)

•

sthio

(Store Halfword I/O)

The difference is that these instructions bypass the cache, if one exists.

6.2

Arithmetic Instructions

The arithmetic instructions operate on the operands that are either in general purpose registers or are given as
immediate values in the instruction. These instructions are of R-type or I-type, respectively. They include:

•

add

(Add Registers)

•

addi

(Add Immediate)

•

sub

(Subtract Registers)

•

subi

(Subtract Immediate)

•

mul

(Multiply)

•

muli

(Multiply Immediate)

•

div

(Divide)

•

divu

(Divide Unsigned)

The Add instruction

add rC, rA, rB

adds the contents of registers

and

, and places the sum into register

The Add Immediate instruction

addi rB, rA, IMMED16

adds the contents of register

and the sign-extended 16-bit operand given in the instruction, and places the result

into register

. The addition operation in these instructions is the same for both signed and unsigned operands;

there are no condition flags that are set by the operation. This means that when unsigned operands are added, the
carry from the most significant bit position has to be detected by executing a separate instruction. Similarly, when
signed operands are added, the arithmetic overflow has to be detected separately. The detection of these conditions
is dicussed in section 6.11.

The Subtract instruction

sub rC, rA, rB

subtracts the contents of register

from register

, and places the result into register

. Again, the carry and

overflow detection has to be done by using additional instructions, as explained in section 6.11.

The immediate version,

subi

, is a pseudoinstruction implemented as

addi rB, rA, -IMMED16

The Multiply instruction

mul rC, rA, rB

multiplies the contents of registers

and

, and places the low-order 32 bits of the product into register

. The

operands are treated as unsigned numbers. The carry and overflow detection has to be done by using additional
instructions. In the immediate version

muli rB, rA, IMMED16

the 16-bit immediate operand is sign extended to 32 bits.

The Divide instruction

div rC, rA, rB

divides the contents of register

by the contents of register

and places the integer portion of the quotient into

. The operands are treated as signed integers. The

divu

instruction is performed in the same way except

that the operands are treated as unsigned integers.

6.3

Logic Instructions

The logic instructions provide the AND, OR, XOR, and NOR operations. They operate on the operands that are
either in general purpose registers or are given as immediate values in the instruction. These instructions are of
R-type or I-type, respectively.

The AND instruction

and rC, rA, rB

performs a bitwise logical AND of the contents of registers

and

, and stores the result in register

. Similarly,

the instructions

xor

and

nor

perform the OR, XOR and NOR operations, respectively.

The AND Immediate instruction

andi rB, rA, IMMED16

performs a bitwise logical AND of the contents of register

and the IMMED16 operand which is zero-extended

to 32 bits, and stores the result in register

. Similarly, the instructions

ori

xori

and

nori

perform the OR, XOR

and NOR operations, respectively.

It is also possible to use the 16-bit immediate operand as the 16 high-order bits in the logic operations, in which
case the low-order 16 bits of the operand are zeros. This is accomplished with the instructions:

•

andhi

(AND High Immediate)

•

orhi

(OR High Immediate)

•

xorhi

(XOR High Immediate)

6.4

Move Instructions

The Move instructions copy the contents of one register into another, or they place an immediate value into a
register. They are pseudoinstructions implemented by using other instructions. The instruction

mov rC, rA

copies the contents of register

into register

. It is implemented as

add rC, rA, r0

The Move Immediate instruction

movi rB, IMMED16

sign extends the IMMED16 value to 32 bits and loads it into register

. It is implemented as

addi rB, r0, IMMED16

The Move Unsigned Immediate instruction

movui rB, IMMED16

zero extends the IMMED16 value to 32 bits and loads it into register

. It is implemented as

ori rB, r0, IMMED16

The Move Immediate Address instruction

movia rB, LABEL

loads a 32-bit value that corresponds to the address LABEL into register

. It is implemented as:

orhi

rB, r0, %hi(LABEL)

ori

rB, rB, %lo(LABEL)

The

%hi(LABEL)

and

%lo(LABEL)

are the Assembler macros which extract the high-order 16 bits and the low-

order 16 bits, respectively, of a 32-bit value LABEL. The

orhi

instruction sets the high-order bits of register

followed by the

ori

instruction which sets the low-order bits of

. Note that two instructions are used because the

I-type format provides for only a 16-bit immediate operand.

6.5

Comparison Instructions

The Comparison instructions compare the contents of two registers or the contents of a register and an immediate
value, and write either 1 (if true) or 0 (if false) into the result register. They are of R-type or I-type, respectively.
These instructions correspond to the equality and relational operators in the C programming language.

The Compare Less Than Signed instruction

cmplt rC, rA, rB

performs the comparison of signed numbers in registers

and

, and writes a 1 into register

if the

result is true; otherwise, it writes a 0.

The Compare Less Than Unsigned instruction

cmpltu rC, rA, rB

performs the same function as the

cmplt

instruction, but it treats the operands as unsigned numbers.

Other instructions of this type are:

•

cmpeq rC, rA, rB

(Comparison rA == rB)

•

cmpne rC, rA, rB

(Comparison rA != rB)

•

cmpge rC, rA, rB

(Signed comparison rA

= rB)

•

cmpgeu rC, rA, rB

(Unsigned comparison rA

= rB)

•

cmpgt rC, rA, rB

(Signed comparison rA

rB)

This is a pseudoinstruction implemented as the

cmplt

instruction by swapping its rA and rB operands.

•

cmpgtu rC, rA, rB

(Unsigned comparison rA

rB)

This is a pseudoinstruction implemented as the

cmpltu

instruction by swapping its rA and rB operands.

•

cmple rC, rA, rB

(Signed comparison rA

= rB)

This is a pseudoinstruction implemented as the

cmpge

instruction by swapping its rA and rB operands.

•

cmpleu rC, rA, rB

(Unsigned comparison rA

= rB)

This is a pseudoinstruction implemented as the

cmpgeu

instruction by swapping its rA and rB operands.

The immediate versions of the Comparison instructions involve an immediate operand. For example, the

Compare Less Than Signed Immediate instruction

cmplti rB, rA, IMMED16

compares the signed number in register

with the sign-extended immediate operand. It writes a 1 into register

IMMED16

; otherwise, it writes a 0.

The Compare Less Than Unsigned Immediate instruction

cmpltui rB, rA, IMMED16

compares the unsigned number in register

with the zero-extended immediate operand. It writes a 1 into register

IMMED16

; otherwise, it writes a 0.

Other instructions of this type are:

•

cmpeqi rB, rA, IMMED16

(Comparison rA == IMMED16)

•

cmpnei rB, rA, IMMED16

(Comparison rA != IMMED16)

•

cmpgei rB, rA, IMMED16

(Signed comparison rA

= IMMED16)

•

cmpgeui rB, rA, IMMED16

(Unsigned comparison rA

= IMMED16)

•

cmpgti rB, rA, IMMED16

(Signed comparison rA

IMMED16)

This is a pseudoinstruction implemented using the

cmpgei

instruction with an immediate value IMMED16

+ 1.

•

cmpgtui rB, rA, IMMED16

(Unsigned comparison rA

IMMED16)

This is a pseudoinstruction implemented using the

cmpgeui

instruction with an immediate value IMMED16

+ 1.

•

cmplei rB, rA, IMMED16

(Signed comparison rA

= IMMED16)

This is a pseudoinstruction implemented as the

cmplti

instruction with an immediate value IMMED16 + 1.

•

cmpleui rB, rA, IMMED16

(Unsigned comparison rA

= IMMED16)

This is a pseudoinstruction implemented as the

cmpltui

instruction with an immediate value IMMED16 +

6.6

Shift Instructions

The Shift instructions shift the contents of a register either to the right or to the left. They are of R-type. They
correspond to the shift operators,

> and

<, in the C programming language. These instructions are:

•

srl rC, rA, rB

(Shift Right Logical)

•

srli rC, rA, IMMED5

(Shift Right Logical Immediate)

•

sra rC, rA, rB

(Shift Right Arithmetic)

•

srai rC, rA, IMMED5

(Shift Right Arithmetic Immediate)

•

sll rC, rA, rB

(Shift Left Logical)

•

slli rC, rA, IMMED5

(Shift Left Logical Immediate)

The

srl

instruction shifts the contents of register

to the right by the number of bit positions specified by the five

least-significant bits (number in the range 0 to 31) in register

, and stores the result in register

. The vacated

bits on the left side of the shifted operand are filled with 0s.

The

srli

instruction shifts the contents of register

to the right by the number of bit positions specified by the

five-bit unsigned value, IMMED5, given in the instruction.

The

sra

and

srai

instructions perform the same actions as the

srl

and

srli

instructions, except that the sign bit,

, is replicated into the vacated bits on the left side of the shifted operand.

The

sll

and

slli

instructions are similar to the

srl

and

srli

instructions, but they shift the operand in register

to the

left and fill the vacated bits on the right side with 0s.

6.7

Rotate Instructions

There are three Rotate instructions, which use the R-type format:

•

ror rC, rA, rB

(Rotate Right)

•

rol rC, rA, rB

(Rotate Left)

•

roli rC, rA, IMMED5

(Rotate Left Immediate)

The

ror

instruction rotates the bits of register

in the left-to-right direction by the number of bit positions spec-

ified by the five least-significant bits (number in the range 0 to 31) in register

, and stores the result in register

The

rol

instruction is similar to the

ror

instruction, but it rotates the operand in the right-to-left direction.

The

roli

instruction rotates the bits of register

in the right-to-left direction by the number of bit positions specified

by the five-bit unsigned value, IMMED5, given in the instruction, and stores the result in register

6.8

Branch and Jump Instructions

The flow of execution of a program can be changed by executing Branch or Jump instructions. It may be changed
either unconditionally or conditionally.

The Jump instruction

jmp rA

transfers execution unconditionally to the address contained in register

The Unconditional Branch instruction

br LABEL

transfers execution unconditionally to the instruction at address LABEL. This is an instruction of I-type, in which
a 16-bit immediate value (interpreted as a signed number) specifies the offset to the branch target instruction. The
offset is the distance in bytes from the instruction that immediately follows

to the address LABEL.

Conditional transfer of execution is achieved with the Conditional Branch instructions, which compare the

contents of two registers and cause a branch if the result is true. These instructions are of I-type and the offset is
determined as explained above for the

instruction.

The Branch if Less Than Signed instruction

blt rA, rB, LABEL

performs the comparison

, treating the contents of the registers as signed numbers.

The Branch if Less Than Unsigned instruction

bltu rA, rB, LABEL

performs the comparison

, treating the contents of the registers as unsigned numbers.

The other Conditional Branch instructions are:

•

beq rA, rB, LABEL

(Comparison rA == rB)

•

bne rA, rB, LABEL

(Comparison rA != rB)

•

bge rA, rB, LABEL

(Signed comparison rA

= rB)

•

bgeu rA, rB, LABEL

(Unsigned comparison rA

= rB)

•

bgt rA, rB, LABEL

(Signed comparison rA

rB)

This is a pseudoinstruction implemented as the

blt

instruction by swapping the register operands.

•

bgtu rA, rB, LABEL

(Unsigned comparison rA

rB)

This is a pseudoinstruction implemented as the

bltu

instruction by swapping the register operands.

•

ble rA, rB, LABEL

(Signed comparison rA

= rB)

This is a pseudoinstruction implemented as the

bge

instruction by swapping the register operands.

•

bleu rA, rB, LABEL

(Unsigned comparison rA

= rB)

This is a pseudoinstruction implemented as the

bgeu

instruction by swapping the register operands.

6.9

Subroutine Linkage Instructions

Nios II has two instructions for calling subroutines. The Call Subroutine instruction

call LABEL

is of J-type, which includes a 26-bit unsigned immediate value (IMMED26). The instruction saves the return
address (which is the address of the next instruction) in register

. Then, it transfers control to the instruction

at address LABEL. This address is determined by concatenating the four high-order bits of the Program Counter
with the IMMED26 value as follows

Jump address = PC

−

: IMMED26 : 00

Note that the two least-significant bits are 0 because the Nios II instructions must be aligned on word boundaries.

The Call Subroutine in Register instruction

callr rA

is of R-type. It saves the return address in register

and then transfers control to the instruction at the address

contained in register

Return from a subroutine is performed with the instruction

ret

This instruction transfers execution to the address contained in register

6.10

Control Instructions

The Nios II control registers can be read and written by special instructions. The Read Control Register instruction

rdctl rC, ctlN

copies the contents of control register ctlN into register

The Write Control Register instruction

wrctl ctlN, rA

copies the contents of register A into the control register ctlN.

There are two instructions provided for dealing with exceptions:

trap

and

eret

. They are similar to the

call

and

ret

instructions, but they are used for exceptions. Their use is discussed in section 8.2.

The instructions

break

and

bret

generate breaks and return from breaks. They are used exclusively by the

software debugging tools.

The Nios II cache memories are managed with the instructions:

flushd

(Flush Data Cache Line),

flushi

(Flush

Instruction Cache Line),

initd

(Initialize Data Cache Line), and

initi

(Initialize Instruction Cache Line). These

instructions are discussed in section 9.1.

6.11

Carry and Overflow Detection

As pointed out in section 6.2, the Add and Subtract instructions perform the corresponding operations in the same
way for both signed and unsigned operands. The possible carry and arithmetic overflow conditions are not de-
tected, because Nios II does not contain condition flags that might be set as a result. These conditions can be
detected by using additional instructions.

Consider the Add instruction

add rC, rA, rB

Having executed this instruction, a possible occurrence of a carry out of the most-significant bit (

) can be

detected by checking whether the unsigned sum (in register

) is less than one of the unsigned operands. For

example, if this instruction is followed by the instruction

cmpltu rD, rC, rA

then the carry bit will be written into register

Similarly, if a branch is required when a carry occurs, this can be accomplished as follows:

add

rC, rA, rB

bltu

rC, rA, LABEL

A test for arithmetic overflow can be done by checking the signs of the summands and the resulting sum. An

overflow occurs if two positive numbers produce a negative sum, or if two negative numbers produce a positive
sum. Using this approach, the overflow condition can control a conditional branch as follows:

add

rC, rA, rB

/* The required Add operation */

xor

rD, rC, rA

/* Compare signs of sum and rA */

xor

rE, rC, rB

/* Compare signs of sum and rB */

and

rD, rD, rE

/* Set

= 1

if (

(

) ! =

) */

blt

rD, r0, LABEL

/* Branch if overflow occurred */

A similar approach can be used to detect the carry and overflow conditions in Subtract operations. A carry out

of the most-significant bit of the resulting difference can be detected by checking whether the first operand is less
than the second operand. Thus, the carry can be used to control a conditional branch as follows:

sub

rC, rA, rB

bltu

rA, rB, LABEL

The arithmetic overflow in a Subtract operation is detected by comparing the sign of the generated difference with
the signs of the operands. Overflow occurs if the operands in registers

and

have different signs, and the sign

of the difference in register

is different than the sign of

. Thus, a conditional branch based on the arithmetic

overflow can be achieved as follows:

sub

rC, rA, rB

/* The required Subtract operation */

xor

rD, rA, rB

/* Compare signs of rA and rB */

xor

rE, rA, rC

/* Compare signs of rA and rC */

and

rD, rD, rE

/* Set

= 1

((

! =

) && (

! =

)

) */

blt

rD, r0, LABEL

/* Branch if overflow occurred */

Example Program

As an illustration of Nios II instructions, Figure 6 gives an assembly language program that computes a dot product
of two vectors, A and B. The vectors have

elements. The required computation is

Dot product

−

A(i)

B(i)

The vectors are stored in memory locations at addresses AVECTOR and BVECTOR, respectively. The number of el-
ements,

, is stored in memory location

. The computed result is written into memory location DOT_PRODUCT.

Each vector element is assumed to be a signed 32-bit number.

.include "nios_macros.s"
.equ

AVECTOR, 0xe00

.equ

BVECTOR, 0xf00

.equ

N, 0xdf0

.equ

DOT_PRODUCT, 0xdf4

.global _start
_start:

movia r2, AVECTOR

/* Register r2 is a pointer to vector

movia r3, BVECTOR

/* Register r3 is a pointer to vector

movia r4, N
ldw

r4, 0(r4)

/* Register r4 is used as the counter for loop iterations */

add

r5, r0, r0

/* Register r5 is used to accumulate the product */

LOOP: ldw

r6, 0(r2)

/* Load the next element of vector

ldw

r7, 0(r3)

/* Load the next element of vector

mul

r8, r6, r7

/* Compute the product of next pair of elements */

add

r5, r5, r8

/* Add to the sum */

addi

r2, r2, 4

/* Increment the pointer to vector

addi

r3, r3, 4

/* Increment the pointer to vector

subi

r4, r4, 1

/* Decrement the counter */

bgt

r4, r0, LOOP

/* Loop again if not finished */

stw

r5, DOT_PRODUCT(r0)

/* Store the result in memory */

STOP:

STOP

Figure 6. A program that computes the dot product of two vectors.

In this program, we assumed that the memory addresses of the first elements of vectors

and

are e00 and

f00, respectively, while the value

and the final dot product are at df0 and df4. Note that the program ends by

continuously looping on the last Branch instruction. If instead we wanted to pass control to debugging software,
we could replace this

instruction with the

break

instruction.

The program includes the assembler directive

.include "nios_macros.s"

which informs the Assembler to use the Nios II macros needed to convert the

movia

pseudoinstruction into the

two OR instructions as explained in section 6.4.

The directive

.global _start

indicates to the Assembler that the label _start is accessible outside the assembled object file. This label is the
default label we use to indicate to the Linker program the beginning of the application program.

The Nios II Assembler conforms to the widely used GNU Assembler, which is the software available in the

public domain. Thus, the GNU Assembler directives can be used in Nios II programs.

To execute the program in Figure 6 on Altera’s DE2 board, it is necessary to implement a Nios II processor

and its memory (which can be just the on-chip memory of the Cyclone II FPGA). Since the program includes the
Multiply instruction, it cannot be executed on the economy version of the processor, because Nios II/e does not
support the

mul

instruction. Either Nios II/s or Nios II/f processors can be used.

Tutorial Introduction to the Altera SOPC Builder explains how a Nios II system can be implemented. Tutorial

Nios II Debug Client explains how an application program can be assembled, downloaded and executed on the
DE2 board.

Exception Processing

An exception in the normal flow of program execution can be caused by:

•

Software trap

•

Hardware interrupt

•

Unimplemented instruction

In response to an exception the Nios II processor performs the following actions:

1. Saves the existing processor status information by copying the contents of the status register (ctl0) into the

estatus register (ctl1)

2. Clears the

bit in the status register, to ensure that the processor is in the Supervisor mode

3. Clears the PIE bit in the status register, thus disabling the external processor interrupts

4. Writes the address of the instruction after the exception into the ea register (r29)

5. Transfers execution to the address of the exception handler which determines the cause of the exception and

dispatches an appropriate exception routine to respond to the exception

The address of the exception handler is specified at system generation time, and it cannot be changed by software
at run time. This address can be provided by the designer; otherwise, the default address is

from the starting

address of the main memory. For example, if the memory starts at address 0, then the default address of the
exception handler is 0x00000020.

8.1

Software Trap

A software exception occurs when a

trap

instruction is encountered in a program. This instruction saves the

address of the next instruction in the ea register (r29). Then, it disables interrupts and transfers execution to the
exception handler.

In the exception-service routine the last instruction is

eret

(Exception Return), which returns execution control

to the instruction that follows the

trap

instruction that caused the exception. The return address is given by the

contents of register ea. The

eret

instruction restores the previous status of the processor by copying the contents

of the estatus register into the status register.

A common use of the software trap is when an intervention by the operating system is required.

8.2

Hardware Interrupts

Hardware interrupts can be raised by external sources, such as I/O devices, by asserting one of the processor’s 32
interrupt-request inputs, irq0 through irq31. An interrupt is generated only if the following three conditions are
true:

•

The PIE bit in the status register is set to 1

•

An interrupt-request bit, irqk, is asserted

•

The corresponding interrupt-enable bit, ctl3

, is set to 1

The contents of the ipending register (ctl4) indicate which interrupt requests are pending. An exception routine
determines which of the pending interrupts has the highest priority, and transfers control to the corresponding
interrupt-service routine.

Upon completion of the interrupt-service routine, the execution control is returned to the interrupted program

by means of the

eret

instruction, as explained above. However, since an external interrupt request is handled

without first completing the instruction that is being executed when the interrupt occurs, the interrupted instruction
must be re-executed upon return from the interrupt-service routine. To achieve this, the interrupt-service routine
has to adjust the contents of the ea register which are at this time pointing to the next instruction of the interrupted
program. Hence, the value in the ea register has to be decremented by 4 prior to executing the

eret

instruction.

8.3

Unimplemented Instructions

This exception occurs when the processor encounters a valid instruction that is not implemented in hardware. This
may be the case with instructions such as

mul

and

div

. The exception handler calls a routine that emulates the

required operation in software.

8.4

Determining the Type of Exception

When an exception occurs, the exception-handling routine has to determine what type of exception has occurred.
The order in which the exceptions should be checked is:

1. Read the ipending register to see if a hardware interrupt has occurred; if so, then go to the appropriate

interrupt-service routine.

2. Read the instruction that was being executed when the exception occurred. The address of this instruction

is the value in the ea register minus 4. If this is the

trap

instruction, then go to the software-trap-handling

routine.

3. Otherwise, the exception is due to an unimplemented instruction.

Cache Memory

As shown in Figure 4, a Nios II system can include instruction and data caches, which are implemented in the
memory blocks in the FPGA chip. The caches can be specified when a system is being designed by using the
SOPC Builder software. Inclusion of caches improves the performance of a Nios II system significantly, particu-
larly when most of the main memory is provided by an external SDRAM chip, as is the case with Altera’s DE2
board. Both instruction and data caches are direct-mapped.

The instruction cache can be implemented in the fast and standard versions of the Nios II processor systems.

It is organized in 8 words per cache line, and its size is a user-selectable design parameter.

The data cache can be implemented only with the Nios II/f processor. It has a configurable line size of 4, 16

or 32 bytes per cache line. Its overall size is also a user-selectable design parameter.

9.1

Cache Management

Cache management is handled by software. For this purpose the Nios II instruction set includes the following
instructions:

•

initd IMMED16(rA)

(Initialize data-cache line)

Invalidates the line in the data cache that is associated with the address determined by adding the sign-
extended value IMMED16 and the contents of register rA.

•

initi rA

(Initialize instruction-cache line)

Invalidates the line in the instruction cache that is associated with the address contained in register rA.

•

flushd IMMED16(rA)

(Flush data-cache line)

Computes the effective address by adding the sign-extended value IMMED16 and the contents of register
rA. Then, it identifies the cache line associated with this effective address, writes any dirty data in the cache
line back to memory, and invalidates the cache line.

•

flushi rA

(Flush instruction-cache line)

Invalidates the line in the instruction cache that is associated with the address contained in register rA.

9.2

Cache Bypass Methods

A Nios II processor uses its data cache in the standard manner. But, it also allows the cache to be bypassed in two
ways. As mentioned in section 6.1, the Load and Store instructions have a version intended for accessing the I/O
devices, where the effective address specifies a location in an I/O device interface. These instructions are:

ldwio

ldbio

lduio

ldhio

ldhuio

stwio

stbio

, and

sthio

. They bypass the data cache.

Another way of bypassing the data cache is by using bit-31 of an address as a tag that indicates whether the

processor should transfer the data to/from the cache, or bypass it. This feature is available only in the Nios II/f
processor.

Mixing cached and uncached accesses has to be done with care. Otherwise, the coherence of the cached data

may be compromised.

Tightly Coupled Memory

As explained in section 4, a Nios II processor can access the memory blocks in the FPGA chip as a tightly coupled
memory. This arrangement does not use the Avalon network. Instead, the tightly coupled memory is connected
directly to the processor.

Data in the tightly coupled memory is accessed using the normal Load and Store instructions, such as

ldw

stw

. The Nios II control circuits determine if the address of a memory location is in the tightly coupled memory.

Accesses to the tightly coupled memory bypass the caches. For the address span of the tightly coupled memory,
the processor operates as if caches were not present.
