Description

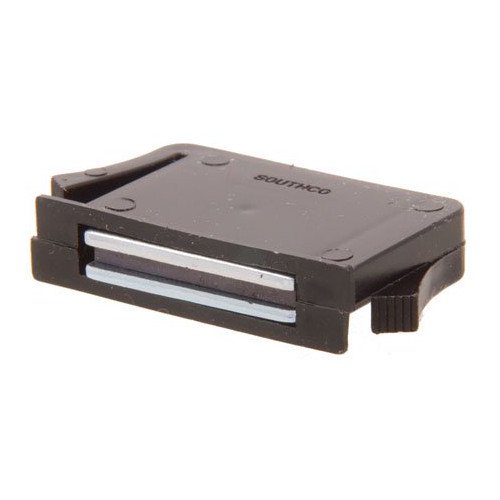

Southco 02-10-101-10 Magnetic Latch, Snap-In- Rectangular hole, 40 N (8.7 lbs.) Rated Load, Medium Size, Black
Gain a lot of flexibility in applications where you can use these magnetic fastening latches instead of mechanically actuated latches. They have no moving parts, are great for lightweight sheet metal doors and enclosures, tolerate misalignment, and can even be used with non-metallic enclosures by adding a steel strike plate.
Push to close, pull to open. The snap-in magnetic catch is made of black polypropylene with 1010 zinc plated steel metal parts. Magnet is barium ferrite. Easy snap in installation into 1.5″ x .32″ punched hole. A mounting bracket is available for the SC-021 for applications where the frame is not suitable for punching. Mounts with two #4, #5 or M3 screws. Self adhesive steel strike is 1.25″ x .75″ x .09″. Strike and mounting bracket not included and must be ordered separately.
Weight (lbs):0.0423
UOM:EA
Brand:Southco
Color:Black
Material:Plastic
Product Type:Magnetic Latch
Installation:Snap-In
Material Grade:Polypropylene
Operation:Magnetic
Rated Load:40 N (8.7 lbs.)
Size Series:Medium Size
Thread or Hole Type:Rectangular hole
Manufacturer Part Number: 02-10-101-10
