Description

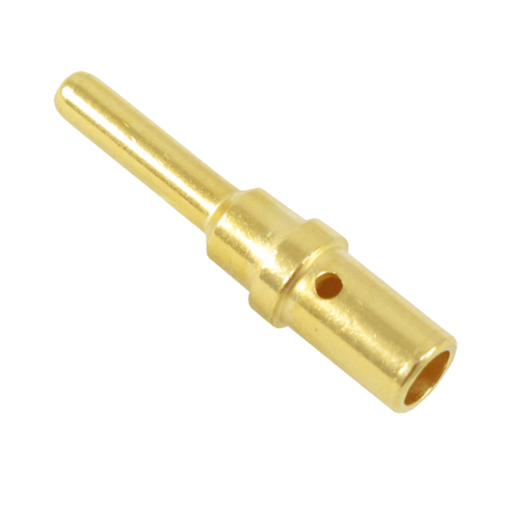

TE Connectivity 0460-220-1231 Deutsch Size 12 Solid Contact Pin Crimp 12-14 AWG Power, Machined
DEUTSCH solid contacts terminate wire from 4 AWG to 22 AWG (25 – 0.35mm2) and are available in 5 sizes each of the pin and socket. They are available with either a nickel or gold plating finish.
Specifications
Manufacturer: TE Connectivity
Product Category: Automotive Connectors
RoHS: Details
Product: Terminals
Gender: Male
Mounting Style: Free Hanging
Termination Style: Crimp
Contact Plating: Gold
Wire Gauge Range: 14 AWG to 12 AWG
Packaging: Bulk
Contact Type: Pin (Male)
Current Rating: 25 A
Type: Contact
Brand: TE Connectivity / DEUTSCH
Contact Gender: Pin (Male)
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 55 C
Product Type: Automotive Connectors
Factory Pack Quantity: 1
Subcategory: Automotive Connectors
Wire Gauge Max: 12 AWG
Wire Gauge Min: 14 AWG
Part # Aliases: 0460-220-1231-AS ZPF000000000131864
Unit Weight: 0.044198 oz
Manufacturer:TE Connectivity
Datasheet:0460-220-1231.pdf
