Description

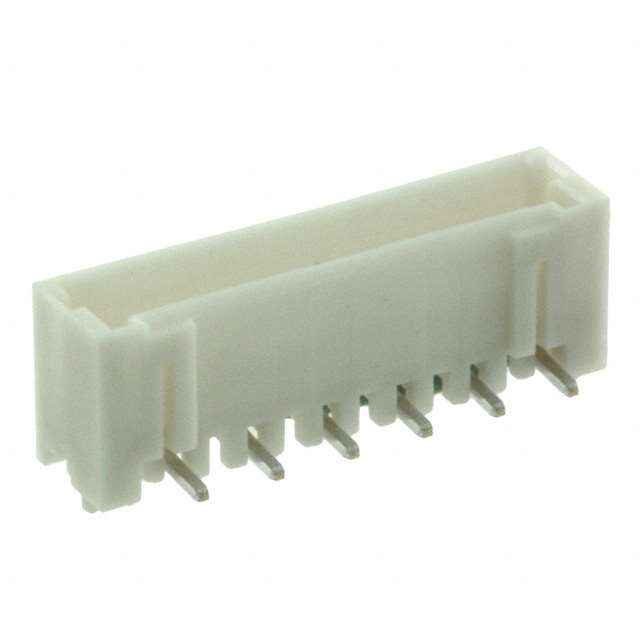

TE Connectivity 1-292230-0, Connectors Mini-CT shrouded header, 1.5mm, SMD, 10P
Contact Type Male Pin
Connector Type Header, Shrouded
Number of Positions 10
Number of Positions Loaded All
Pitch 0.059″ (1.50mm)
Number of Rows 1
Contact Mating Length 0.094″ (2.40mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type –
Features Board Guide
Contact Finish Tin
Manufacturer: TE Connectivity
Product Category: Headers & Wire Housings
RoHS: RoHS Compliant Details
Brand: TE Connectivity / AMP
Product: Headers
Type: Shrouded
Number of Positions: 10
Pitch: 1.5 mm
Number of Rows: 1 Row
Termination Style: SMD
Contact Gender: Pin (Male)
Contact Plating: Tin
Series: Mini CT
Tradename: COMMON TERMINATION
Contact Material: Brass
Contact Type: Pin
Current Rating: 2 A
Operating Temperature Range: – 30 C to + 105 C
Packaging: Reel
Factory Pack Quantity: 500
Voltage Rating: 50 V
Wire Gauge: 28 AWG – 24 AWG
Manufacturer Part Number: 1-292230-0
