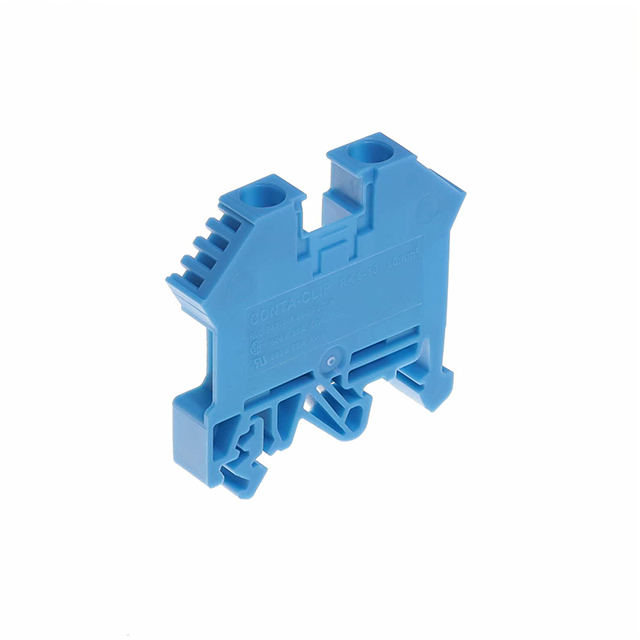

1005.5 Conta-Clip Connector Screw Terminal Block 2-Poles Feed Through 57A 800V 6-22 AWG 0.2-10mm2 Blue
Dimensions
Height TS 32
51.5 mm
Height TS 35/7.5
47 mm
Length
48 mm
Width
8 mm
Ratings
Contamination degree
3
Maximum power dissipation for nominal condition
1.82 W
Overvoltage category
III
Rated cross-section
10 mm²
Rated current
57 A
Rated impulse voltage
6 kV
Rated voltage
800 V
Connection data
Connection position
Lateral
Connection principle
Screw connection
Connections
2
Number of levels
1
Number of terminals per level
2
Screw head
Slotted
Screw threading
M 4
Stripping length
12 mm
Tightening torque, max.
2 Nm
Tightening torque, min.
1.2 Nm
Wire cross-section AWG, max.
8
Wire cross-section AWG, min.
22
Wire cross-section single core (rigid)/stranded, max.
10 mm²
Wire cross-section single-core (rigid) / stranded, min.
0.2 mm²
Wire cross-section stranded with wire-end ferrules, max.
10 mm²
Wire cross-section stranded with wire-end ferrules, min.
0.2 mm²
Wire cross-section stranded, max.
10 mm²
Wire cross-section stranded, min.
0.2 mm²
Further technical data
End plate required
✓
Gauge plug acc. to EN 60 947-1
A5
Mounting type
Mounting rail TS 35/7.5 and TS 32
Number of cross-connection channels
1
Number of test pick-off options
1
Materials
Flammability class UL 94
V-2
Insulation housing
Polyamide 6.6
Working temperature, max.
105 °C
Working temperature, min.
-40 °C
Type: Feed Through
Number of Position: 2
Number of Level: 1
Terminal Width: 8.0mm
Termination Style: Screw
Current IEC: 57A
Voltage IEC:800V
Current UL: 65 A
Voltage UL: 600V
Wire Gauge or Range AWG: 6-22 AWG
Wire Gauge or Range mm2: 0.2-10mm2
Color: Blue
