Description

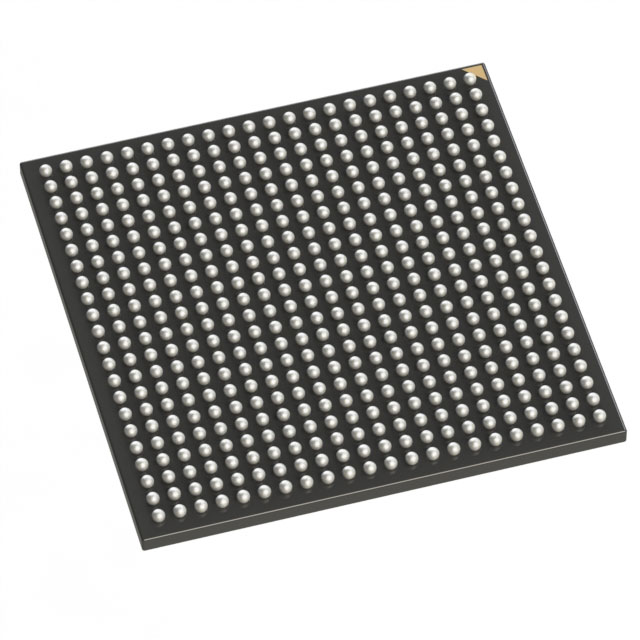

10CL040ZU484I8G Altera Cyclone® 10 LP IC FPGA 1.0V 145152 Bytes 325-I/O Surface Mount 484-FBGA Tray
Category: Integrated Circuits (ICs) FPGAs (Field Programmable Gate Array)
Manufacturer: Altera
Number of LABs/CLBs: 2475
Number of Logic Elements/Cells: 39600
Total RAM: 1161216 Bits
Number of I/O: 325
Supply Voltage: 1.0V
Mounting Type: Surface Mount
Operating Temperature: -40C-100°C (TJ)
Package / Case: 484-UBGA
The Cyclone® 10 LP FPGAs are optimized for low cost and low static power, making them ideal for high-volume and cost-sensitive applications.
Cyclone 10 LP devices provide a high density sea of programmable gates, on-board resources, and general purpose I/Os. These resources satisfies the requirements of I/O expansion and chip-to-chip interfacing. The Cyclone 10 LP architecture suits smart and connected end applications across many market segments:
– Industrial and automotive
– Broadcast, wireline, and wireless
– Compute and storage
– Government, military, and aerospace
– Medical, consumer, and smart energy
The free but powerful Quartus® Prime Lite Edition software suite of design tools meets the requirements of several classes of users:
– Existing FPGA designers
– Embedded designers using the FPGA with the Nios® V processor
– Students and hobbyists who are new to FPGA
