Description

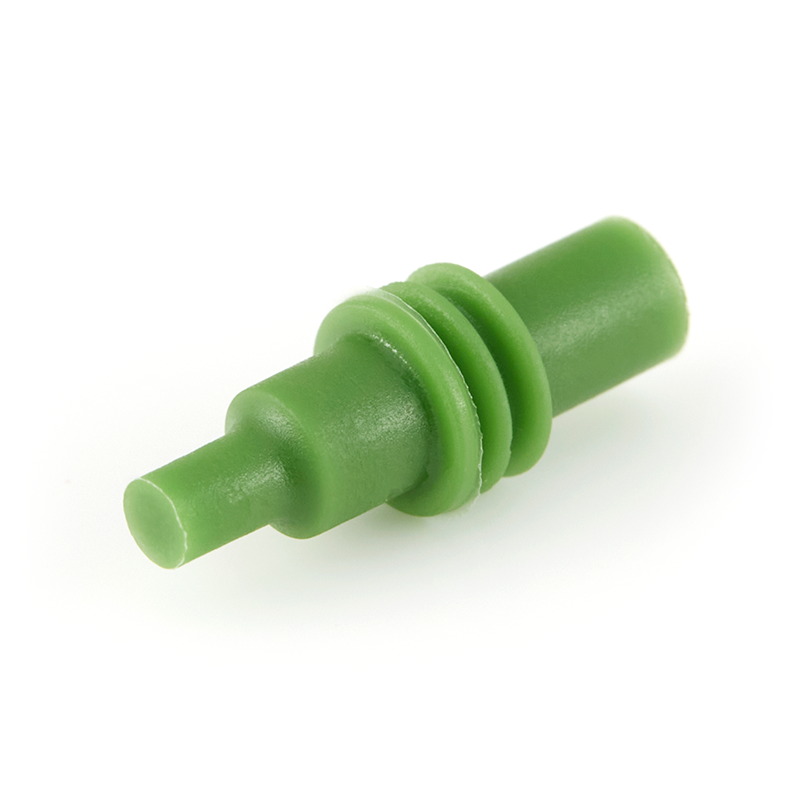

12010300 Aptiv / Delphi Automotive Connectors 1-Way Cable Cavity Plug Seal, Round, Green RoHS
Weather Pack cavity plugs are manufactured of self-lubricating silicone and designed to fill and seal unused housing cavities.
Seals and plugs are made of self-lubricating silicone.
Multiple “ribs” seal against dust, moisture, engine compartment fluids and chemicals.
Cavity seals are crimped to the terminal to assure positive position of the seal in the housing cavity.
The cavity plug is designed to fill and seal unused cavities.
Aptiv 12010300 Cable Cavity Plugs
Category: Aptiv Metri-Pack 280 Series
Manufacturer: Aptiv
Component Type: Cavity Plug
Series: 280 Series
Use the cavity plug for all pin locations not filled with terminals
Cable seals must be used with mating terminals to create a weather-tight connection
The plug or tower half connector body comes with a self-lubricating silicone seal to reduce the engagement assembly force.
Weather-Pack male terminals, female terminals and cable seals are secured into connector bodies with a hinge lock assembly
Assembly Instructions
Apply the cable seal to your wire before stripping
Align the cable seal with wire insulation
Insert Weatherpack terminal in a crimping tool, then position the wire, seal in place
Crimp and visually inspect for good crimp before installing in connector body
Specifications
Manufacturer: Aptiv
Product Category: Automotive Connectors
Product: Accessories
Accessory Type: Cable Seal
Number of Positions: 1 Position
Gender: Plug (Male)
Packaging: Bulk
Brand: Aptiv (formerly Delphi)
Color: Green
Length: 19.89 mm
Material: Silicone
Outside Diameter: 7.25 mm
Product Type: Automotive Connectors
Reel:3500
Subcategory: Automotive Connectors
Unit Weight: 0.012699 oz
Manufacturer:Electronic Components
Datasheet:Others/2648778.pdf
