Description

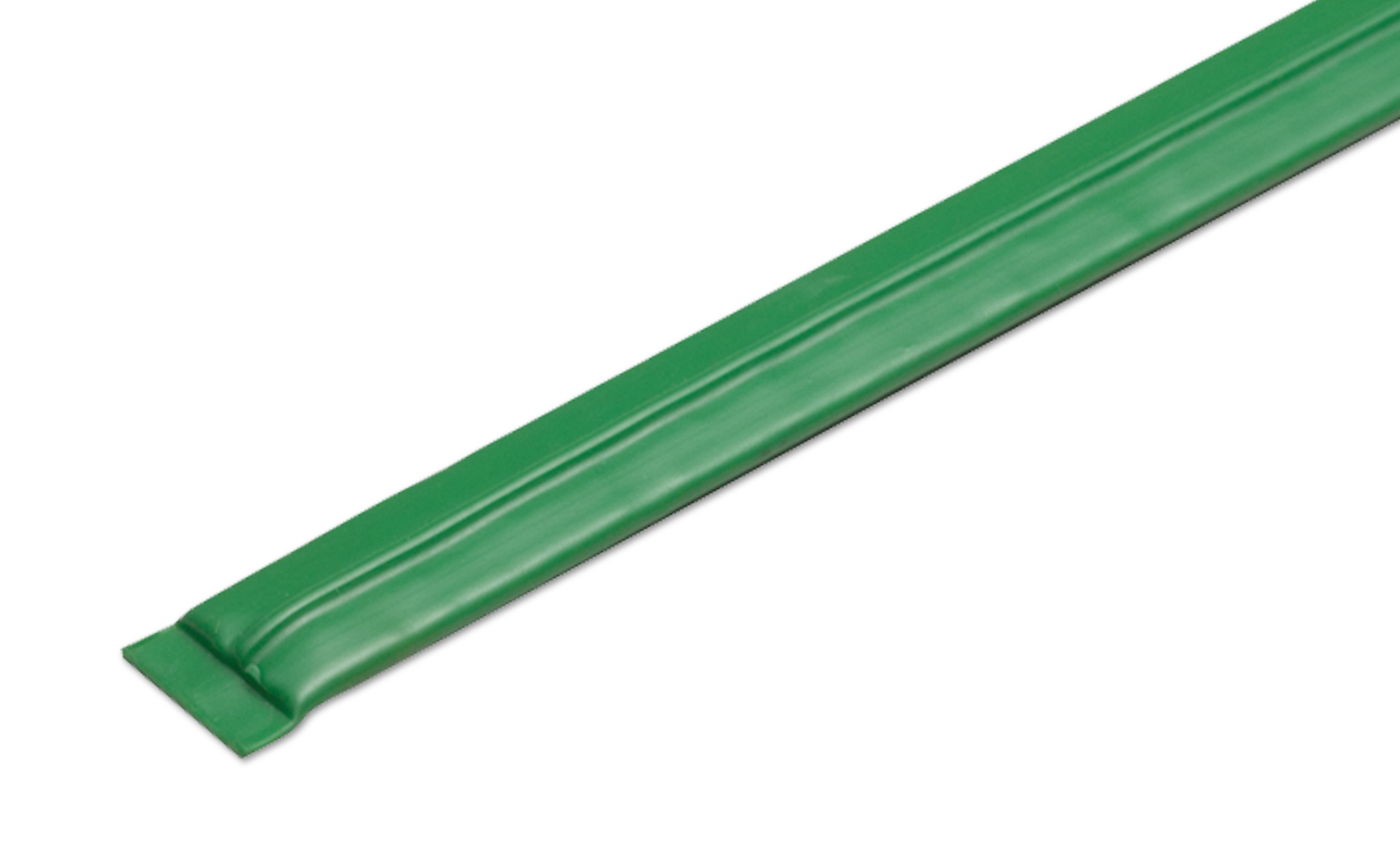

121BP/2330/SL/2000/GN Tapeswitch General Purpose Ribbon Switches, General purpose ribbon switch 9/16 in. wide x 5/32″ high with low actuating bead. For activation by hand, foot, or mechanical device. Sensitivity of 8 oz.
General purpose ribbon switches designed for activation by hand, foot, or mechanical device. These switches have a PVC exterior.
Actuation force is 8 oz. (2 N)
Mounting is by aluminum channel or double-faced tape.
Length is cut to customer requirements.
Actuation Force:8 oz. (2 N)
Bending Radius:1/2 in. (12 mm) minimum
Exterior Covering:PVC (standard) or TPE (optional)
Color:light green or black
Lead Wire:#22 AWG, 18 in. (460 mm) long
Dimensions:9/16 in. wide, 5/32 in. high (14.3 mm x 4.0 mm)
Recommended Voltage & Current:24 VAC or VDC at 1 amp max.
Dielectric Resistance:1000 VAC for 2 minutes
Manufacturer:Electronic Components
Datasheet:Ribbon Switches GB0618.pdf
