Description

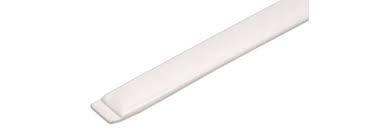

151-BBW Tapeswitch General Purpose Ribbon Switches, General purpose ribbon switch 9/16 in. wide x 5/32″ high with low actuating bead. For activation by hand, foot, or mechanical device
General purpose ribbon switches designed for activation by hand, foot, or mechanical device. These switches have a PVC exterior.
Actuation force is 8 oz. (2 N)
Mounting is by aluminum channel or double-faced tape.
Length is cut to customer requirements.
Note: All ribbon switches can be supplied with a black TPE exterior for enhanced moisture and chemical resistance. Add “E” to the type designation, e.g., 151-BBWE, to specify.
Options
• Custom switch lengths
• Custom lead lengths
• Fail-Safe leads
• Air leak test
• Adhesive backing
• Interconnected switches (sausage style)
Custom colors are available on request. Please contact the factory.
SPECS
Ribbon Switch Type Channel DA-32 Double-Faced Tape
151-BBW No Yes
Actuation Force: 8 oz. (2 N)
Bending Radius: 1/8 in. (6.5 mm) minimum
Exterior Covering: PVC (standard) or TPE (optional)
Color: white
Lead Wire: #22 AWG, 18 in. (460 mm) long
Dimensions: 9/16 in. wide, 3/32 in. high (14.3 mm x 2.4 mm)
Recommended Voltage & Current: 24 VAC or VDC at 1 amp max.
Dielectric Resistance: 1000 VAC for 2 minutes
