Description

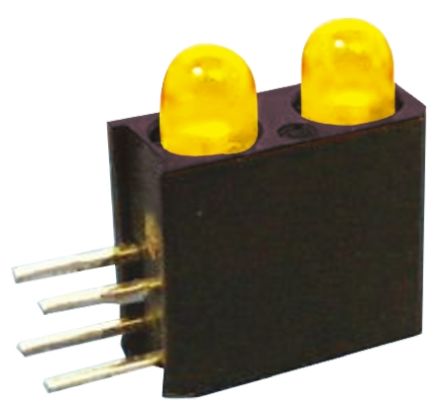

MARL 122-311-04, Yellow Right Angle PCB LED Indicator, 2 LEDs, Through Hole 2.1 V
Marl 122 Series Bi-Level LED Indicators
The 122 series, from Marl International, are bi-level PCB LED indicators. They contain two 3mm (T-1) through-hole LEDS, mounted one on top on the other, for board space optimisation. Their black plastic housing holds the LEDs at a right angle to the PCB. The LEDs are available in colour diffused lens types with a white diffused lens for bi-colour LEDs.
Features of the 122 series LED indicators:
2 x 3mm (T-1) LEDs
Through-hole mounting
Variety of colours
Black plastic housing
High contrast ratio
Right angle
Specifications
LED Colours Yellow
Number of LEDs 2
Mounting Type Through Hole
Supply Voltage 2.1 V
Number of Pins 4
Dominant Wavelength 590 nm
LED Orientation Right Angle
Dimensions 13.7 x 5.2 x 10.2mm
Length 13.7mm
Width 5.2mm
Height 10.2mm
Intensity 30mcd
Manufacturer:MARL
Datasheet:Marl/122-rs.pdf
