Description

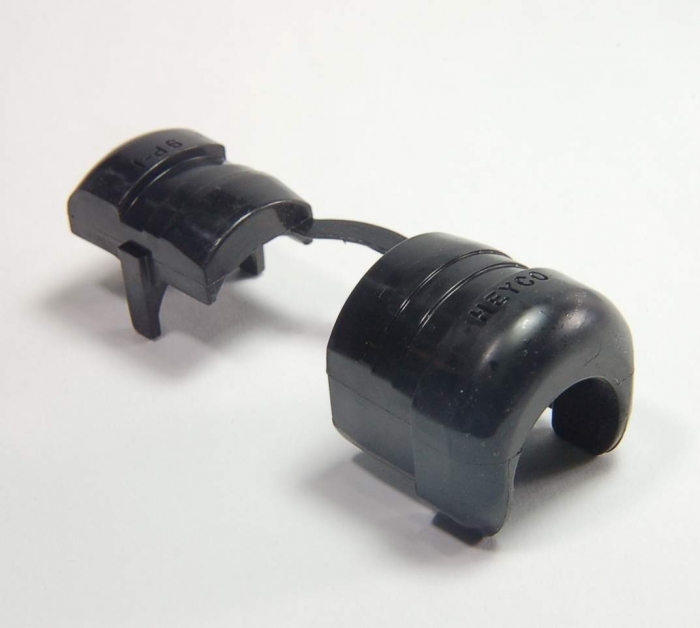

1287 Heyco Products Wire/Cable Bushings, Glands, Liquid Tight Fittings, Strain Reliefs, Strain Relief Bushing, 12/2 to 10/4 AWG, 0.600 to 0.690 Inch, Fits 1/2 or 3/4 Inch Mounting Holes, Non-Metallic, Black.12/2awg, 12/3awg, 10/2awg, 10/3awg
1.093″-1.187″ Panel Mounting Hole, 1.000″ to prevent Rotation, .281″ Maximum Panel Thickness
1.000″ Body length
Protects by absorbing the forces of pull, push and twist exerted on the flexible power cord.
ColorBlack
MeasurementTBD
BrandHeyco / 108460
Thread SizeTBD
MOQ1000
Panel Thickness.281
Weight0.021
FamilyStrain Reliefs
Class204
Class DescriptionStraight-Thru SR for Round
Wire Harness TypeRound
Mounting Hole Size1.093
Assembly MethodTool
Carton1000
CR – Active Brand 10889123MP09P20
Manufacturer:Heyco
Product Category:Cable Glands, Strain Reliefs & Cord Grips
RoHS
Product Type:Strain Reliefs
Material:Nylon
Series:SR
Length:25.4 mm
Mounting Method:Panel
Brand:Heyco
Factory Pack Quantity:1000
Subcategory:Wire & Cable Management
Unit Weight:0.740753 oz
Manufacturer:Heyco
Datasheet:Heyco/Original-Strain-Relief-Flat-2.pdf
