Description

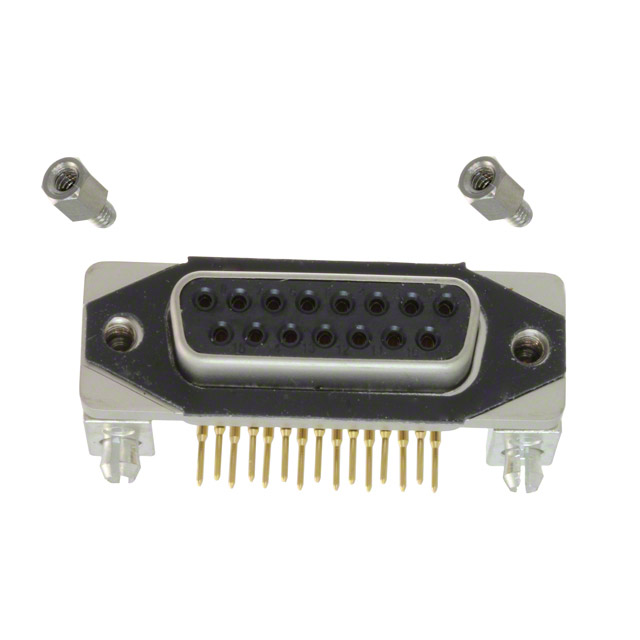

15-006603 CONEC D-Sub Connector Receptacle, Female Sockets 15 Position 2 (DA, A) Zinc Die Cast, Nickel Plated Gold Flash IP67 – Dust Tight, Waterproof Board Edge, Through Hole, Right Angle UL94 V0 5A Board Lock, Gasket, Mounting Brackets
Connector Style: D-Sub
Connector Type: Receptacle, Female Sockets
Number of Position: 15
Number of Row: 2
Mounting Type: Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout: 2 (DA, A)
Contact Type: Signal
Flange Feature: Board Side (4-40); Mating Side, Female Screwlock (4-40)
Termination: Solder
Shell Material, Finish: Zinc Die Cast, Nickel Plated
Contact Finish: Gold
