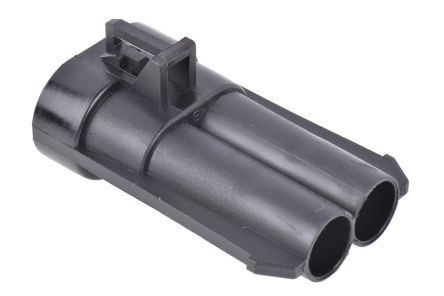

15363993 Aptiv (formerly Delphi) Automotive Connector 2 Way Black Metri-Pack 630 Male Connector, Max Current 46 amps. From Delphi, a range of robust male housings from the Metri-Pack 630 series. These automotive connectors are designed to exceed requirements for marine, appliance and industrial control applications. Made from a tough PBT housing material, these connectors have an excellent resistance to temperature, chemicals and abrasion. The automotive connector housings can accommodate a cable range of 0.50 5.0 mm2 cable and utilise contacts with a 6.3mm blade width.
Delphi, Metri-Pack 630 Automotive Connector Plug 2 Way, Crimp Termination Technical data
Part-No.: 15363993 Equates: 15363993-B Manufacturer: Aptiv (Delphi) Connection Systems Type: Connector Max Current [amp] 46 Weight [kg] 0.0089 Mates with:12147067, 15363990 Gender: Male Series: Ducon 6.3 Sealed Color Black RoHS conform: Yes Cavities: 2
Manufacturer:Electronic Components
Datasheet:15363993.pdf
