Description

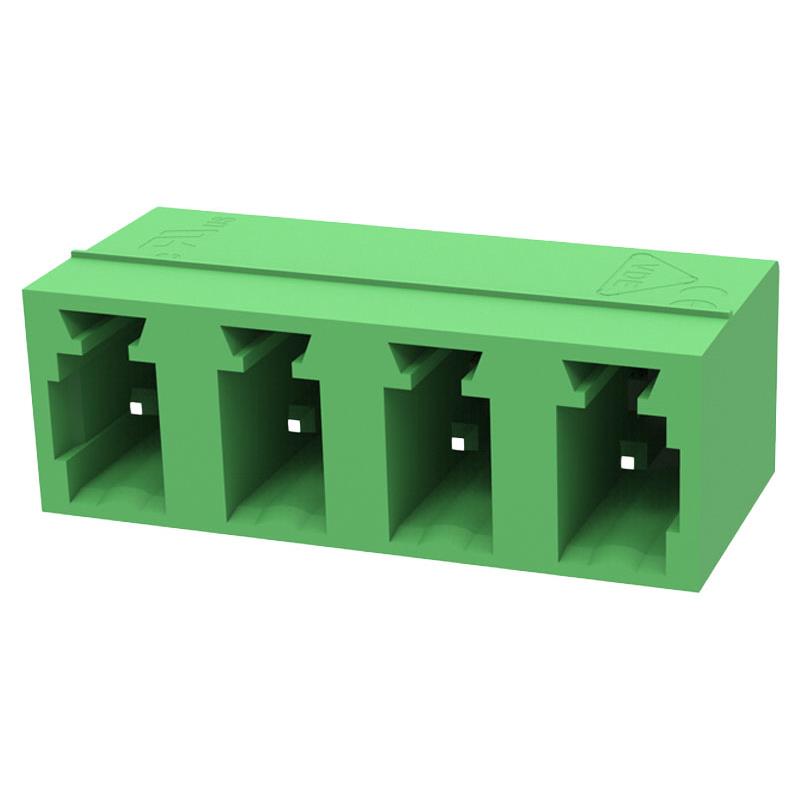

15EDGRC-5.08-04P-14-00L(H) Degson Terminal Block 4 Position 0.200″ (5.08mm) 8A 300V Tin 90°, Right Angle Solder Green Through Hole
Pluggable Terminal Blocksnominal current7A.Rated voltage(Ⅱ/2)：450V,pitch:5.08mm,Color:green,Contact surface:Tin
Type: Header, Male Pins, Shrouded (4 Side)
Number of Positions: 4
Number of Levels: 1
Positions Per Level:4
Pitch: 0.200″ (5.08mm)
Termination Style: Solder
Current – IEC: 7A
Voltage – IEC: 450 V
Connection direction 0°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 5.08mm
Number of potentials 4
Pluggable or not Yes
Number of rows 1
Material data
Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0
Mechanical tests
Test Specification IEC60947/UL1059
Environmental data
Ambient temperature (operation) -40℃~105℃(depending on derating curve)
Manufacturer PN: 15EDGRC-5.08-04P-14-00L(H)
Manufacturer: Degson
Datasheet: 15EDGRC-5.08-04P-14-00LH.pdf
