Description

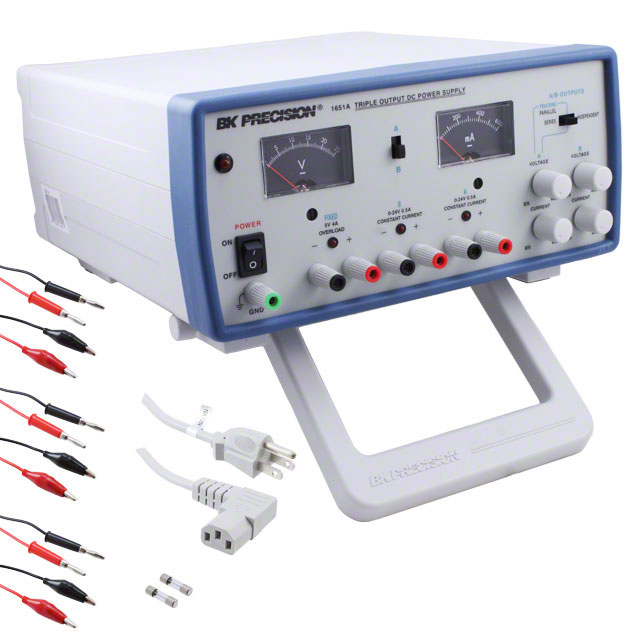

1651A B&K Precision Power Supply Bench (AC to DC) 108 ~ 132VAC Analog 0 ~ 24VDC, 0 ~ 24VDC, 5VDC 0 ~ 0.5A, 0 ~ 0.5A, 4A Tracking. The B&K Precision 1651A Triple Output DC Power Supply has two 0 to 24VDC outputs capable of supplying 0 to 500mA, and one fixed 5VDC output capable of supplying up to 4A. Connect outputs in series for higher voltage or connect in parallel for higher current output (switch selectable). Voltage and current metering is provided by two, analog displays. This unit is fully short circuit, overload, and reverse polarity protected.
The 1651A triple output DC power supply have two 0 to 24 VDC outputs capable of supplying 0 to 500 mA, and one fixed 5 VDC output capable of supplying up to 4 A. Connect outputs in series for higher voltage or connect in parallel for higher current output (selectable via tracking mode switch). Voltage and current for variable outputs are continuously monitored on two analog displays.
Adjustable current limiting
Designed to operate continuously at rated output
Short circuit protection, overvoltage protection, reverse polarity protection
Connect outputs in series for higher voltage output or in parallel for higher current output
Contents
3 sets of hook up cables, power cord, spare fuse and instruction manual
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: Variable / Fixed
Input Voltage: 120 VAC, 220 VAC
Number of Outputs: 3 Output
Output Voltage-Channel 1: 0 VDC to 24 VDC
Output Current-Channel 1: 0 A to 500 mA
Output Voltage-Channel 2: 0 VDC to 24 VDC
Output Current-Channel 2: 0 A to 500 mA
Output Voltage-Channel 3: 5 VDC
Output Current-Channel 3: 4 A
Output Power: 165 W
Display Type: Dual Analog
Brand: B&K Precision
Cable Type: North American Power Cord Included
Product Type: Bench Top Power Supplies
Series: 1651A
Subcategory: Power Supplies
Unit Weight: 18 lbs
Number of Outputs: 3
Voltage Output: 0 ~ 24VDC, 0 ~ 24VDC, 5VDC
Current Output: 0 ~ 0.5A, 0 ~ 0.5A, 4A
Size / Dimension: 10.975″ L x 11.750″ W x 5.500″ H (278.77mm x 298.45mm x 139.70mm)
Manufacturer: B&K Precision
Datasheet: 1651A_manual.pdf
