Description

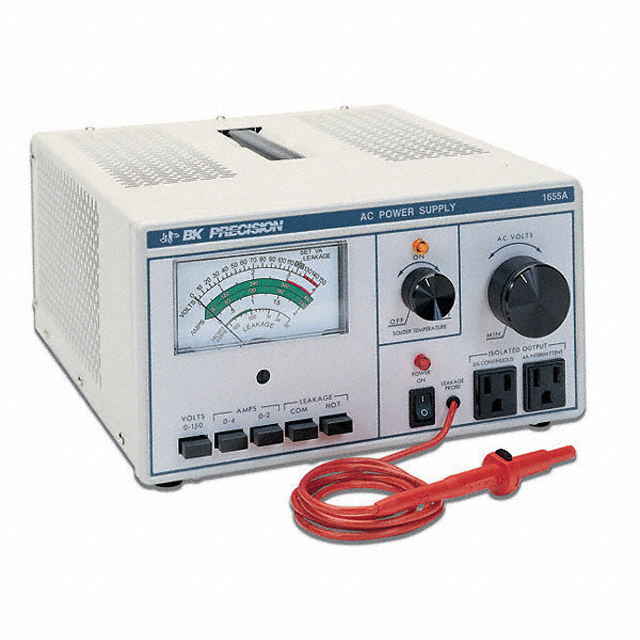

1655A B&K Precision Power Supply Bench (AC to AC) Isolation 120VAC Analog 0 ~ 150VAC 0 ~ 3A Solder Iron Outlet and Control. The 1655A-220V variable isolated AC power supply is great for testing AC line voltage variations or any given product requiring AC power. With wide current range, Heavy duty unit handles virtually all servicing needs. Output current up to 3 amps continuous, 4 amps intermittent. Wide load measurement capability built in multi-function meter. 0-150V, two current ranges of 0-2A and 0-4A for improved resolution. Current scales also calibrated in VA at 120V.
The 1655A variable isolated AC power supply is great for testing AC line variations or any product requiring AC power.
Variable isolated 0 to 150 VAC
3 A continuous output
Displays voltage or current readings
Isolation transformer to eliminate shock hazard while servicing “hot chassis” equipment
Built-in soldering iron temperature control
Expanded leakage scale
circuit breaker overload protection
Applications
Test & Measurement, Power Management
Notes
Instruction manual and power cord
Number of Outputs: 1
Voltage Output: 0 ~ 150VAC
Current Output: 0 ~ 3A
Size / Dimension: 12.000″ L x 5.700″ W x 10.500″ H (304.80mm x 144.78mm x 266.70mm)
Manufacturer: B&K Precision
Datasheet: 1655A_manual.pdf
