Description

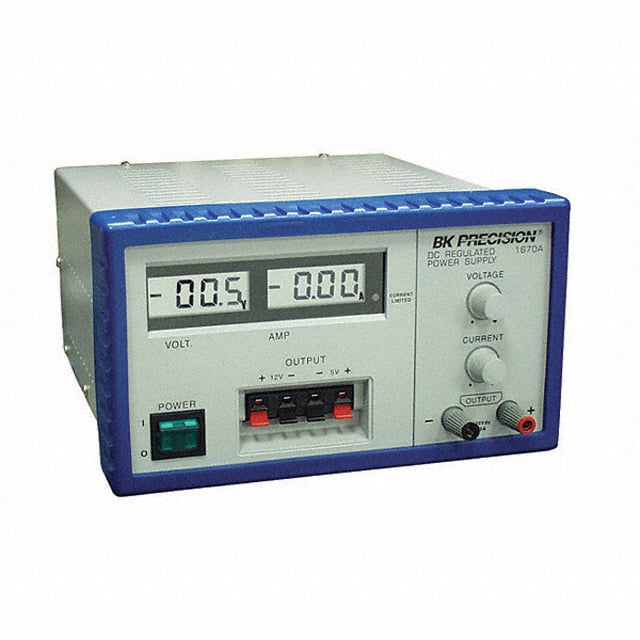

1670A B&K Precision Power Supply Bench (AC to DC) 108 ~ 132VAC LCD 0 ~ 30VDC, 12VDC, 5VDC 0 ~ 3 A, 0 ~ 500mA, 0 ~ 500mA. B&K Precision Model 1670A is a general purpose triple output DC power supply. Their main outputs are versatile constant voltage or constant current regulated power source that is variable from 0 to 30 volts and 0 to 3 amps. An indicator lights in the constant current mode, and serves as an overload indicator in the constant voltage mode.
While this model is competitively priced with most single output power supplies, they have the added advantage of fixed 5 volt and 12 volt outputs capable of providing up to 0.5 amps each. One common application for these power supply is powering of circuit boards while troubleshooting. Many circuit boards require two or three input voltages, with the most common values being 5 volts and 12 volts. These power supplies can provide up to three outputs simultaneously. Since each output is fully isolated, any output can be connected for positive or negative polarity.
The main output voltage and current are continuously monitored by two digital LCD meters with resolution of 0.1 volt and 0.01 amp.
The Model 1670A can operate continuously at its maximum rated output and is fully overload protected
specs
Manufacturer: B&K Precision
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: Variable / Fixed
Input Voltage: 115 VAC, 230 VAC
Number of Outputs: 3 Output
Output Voltage-Channel 1: 0 VDC to 30 VDC
Output Current-Channel 1: 0 A to 3 A
Output Voltage-Channel 2: 12 VDC
Output Current-Channel 2: 500 mA
Output Voltage-Channel 3: 5 VDC
Output Current-Channel 3: 500 mA
Output Power: 165 W
Display Type: LCD, Dual 3 Digit
Brand: B&K Precision
Cable Type: North American Power Cord Included
Height: 8.5 in
Length: 9.5 in
Product Type: Bench Top Power Supplies
Series: 1670A
Subcategory: Power Supplies
Width: 4.9 in
Unit Weight: 13 lbs
Number of Outputs: 3
Voltage Output: 0 ~ 30VDC, 12VDC, 5VDC
Current Output: 0 ~ 3 A, 0 ~ 500mA, 0 ~ 500mA
Size / Dimension: 14.000″ L x 11.000″ W x 7.000″ H (355.60mm x 279.40mm x 177.80mm)
Manufacturer: B&K Precision
Datasheet: 1671A_datasheet.pdf
