Description

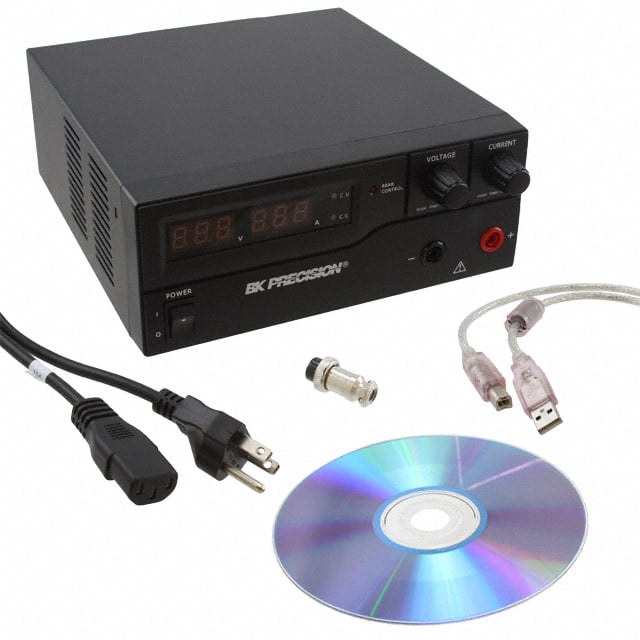

1685B B&K Precision Power Supply Bench (AC to DC) 100 ~ 240VAC LED 1 ~ 60VDC 0 ~ 5A Programmable, Remote Control, Software, Switching, USB Interface. The B&K Precision 1685B switching mode DC power supply provides various configurations of high output voltage or high output current in a small, lightweight form factor. In addition to their constant voltage (CV) and constant current (CC) modes, these high efficiency DC power supplies offer unique preset and remote control modes. With a variety of features the 1685B is suitable for a wide range of applications including production testing, telecommunications, R&D, electronic field service, and university labs. The B&K Precision 1685B switching mode DC power supply provides 1 to 60 V, 0 to 5 A in a small, lightweight form factor. In addition to its constant voltage (CV) and constant current (CC) modes, this high-efficiency DC power supply offers unique preset and remote control modes. Up to three different presets of voltage and current values can be saved for quick recall through a rear switch. For remote control, an analog remote control terminal is accessible on the rear, or use the USB interface to communicate with the power supply via PC software or remote commands. These features make the 1685B suitable for a wide range of applications including production testing, telecommunications, R&D, electronic field service, and university labs.
Rotary encoder control for precise voltage and current setting
3 user-defined voltage and current presets
USB interface with PC software for remote control and external timed programming
Analog remote control function
Overvoltage, over temperature, and overload protection
Specs
Brand: B&K Precision
Voltage Range Selector: 50-99.9
Output Voltage: 60 V
Current Range Selector: 5-9.9
Output Current: 5 A
Power Range Selector: 200-499
Power Rating: 300 W
Mounting Type: Bench Top
Input Voltage: 100-240 VAC
Series: Value Series
Display: LED
Interface: USB
Number of Outputs: Single Output
Programmable: Yes
Special Features: Constant Current, Constant Voltage
Number of Outputs: 1
Voltage Output: 1 ~ 60VDC
Current Output: 0 ~ 5A
Size / Dimension: 8.189″ L x 7.874″ W x 3.543″ H (208.00mm x 200.00mm x 90.00mm)
Manufacturer: B&K Precision
