Description

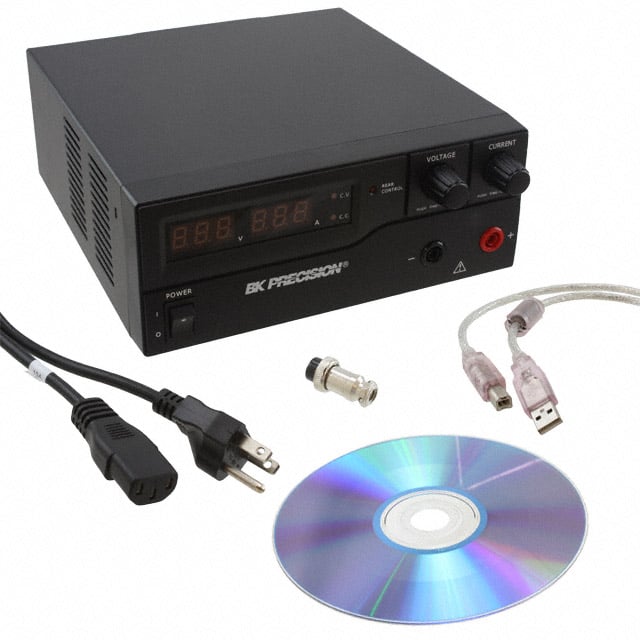

1687B B&K Precision Power Supply Bench (AC to DC) 100 ~ 240VAC LED 1 ~ 36VDC 0 ~ 10A Programmable, Remote Control, Software, Switching, USB Interface Provides various configurations of high output voltage or high output current in a small, lightweight form factor.
The B&K Precision 1687B switching mode DC power supply provides various configurations of high output voltage or high output current in a small, lightweight form factor. In addition to the constant voltge (CV) and constant current (CC) modes, this high efficiency DC power spply offers unique preset and remote control modes. Up to three different presets of voltage and current values can be saved for quick rcall through a rear switch. For remote control, an analog remote control terminal is accessible on the rear, or use the USB interface to communicate with the power supply via PC software or remote commands.
Specs
Manufacturer: B&K Precision
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: CC/CV Modes
Input Voltage: 100 VAC to 240 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 1 VDC to 36 VDC
Output Current-Channel 1: 0 A to 10 A
Output Power: 360 W
Display Type: LED, Dual 3 Digit
Brand: B&K Precision
Cable Type: North American Power Cord Included
Product Type: Bench Top Power Supplies
Series: 1685B
Subcategory: Power Supplies
Unit Weight: 6.650 lbs
Number of Outputs: 1
Voltage Output: 1 ~ 36VDC
Current Output: 0 ~ 10A
Size / Dimension: 8.189″ L x 7.874″ W x 3.543″ H (208.00mm x 200.00mm x 90.00mm)
Manufacturer: B&K Precision
Datasheet: 1685B.87B,88B.pdf
