Description

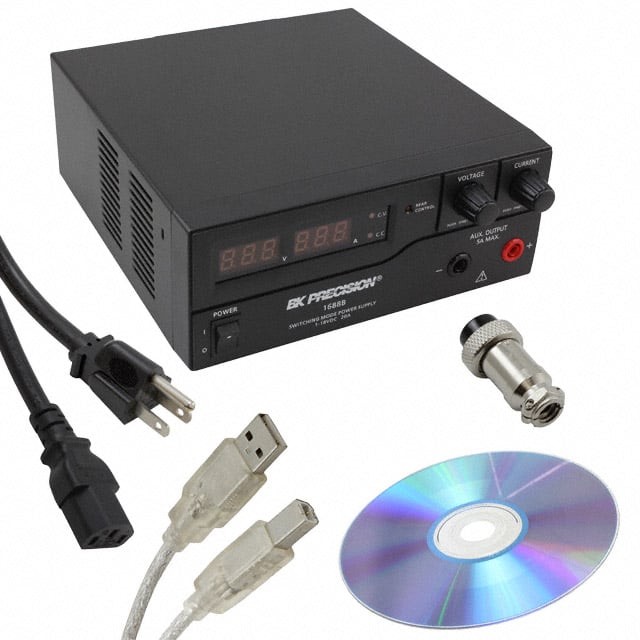

1688B B&K Precision Power Supply Bench (AC to DC) 100 ~ 240VAC LED 1 ~ 18VDC 0 ~ 20A Programmable, Remote Control, Software, Switching, USB Interface. The B&K Precision 1688B switching mode DC power supply provides 1 to 18 V, 0 to 20 A in a small, lightweight form factor. In addition to its constant voltage (CV) and constant current (CC) modes, this high-efficiency DC power supply offers unique preset and remote control modes. Up to three different presets of voltage and current values can be saved for quick recall through a rear switch. For remote control, an analog remote control terminal is accessible on the rear, or use the USB interface to communicate with the power supply via PC software or remote commands. These features make the 1688B suitable for a wide range of applications including production testing, telecommunications, R&D, electronic field service, and university labs.
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: CC/CV Modes
Input Voltage: 100 VAC to 240 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 1 VDC to 18 VDC
Output Current-Channel 1: 0 A to 20 A
Output Power: 360 W
Display Type: LED, Dual 3 Digit
Brand: B&K Precision
Cable Type: North American Power Cord Included
Height: 3.5 in
Length: 8.2 in
Product Type: Bench Top Power Supplies
Series: 1688B
Subcategory: Power Supplies
Width: 7.9 in
Unit Weight: 7 lbs
Number of Outputs: 1
Voltage Output: 1 ~ 18VDC
Current Output: 0 ~ 20A
Size / Dimension: 8.189″ L x 7.874″ W x 3.543″ H (208.00mm x 200.00mm x 90.00mm)
Manufacturer: B&K Precision
Datasheet: 1685B.87B,88B.pdf
