Description

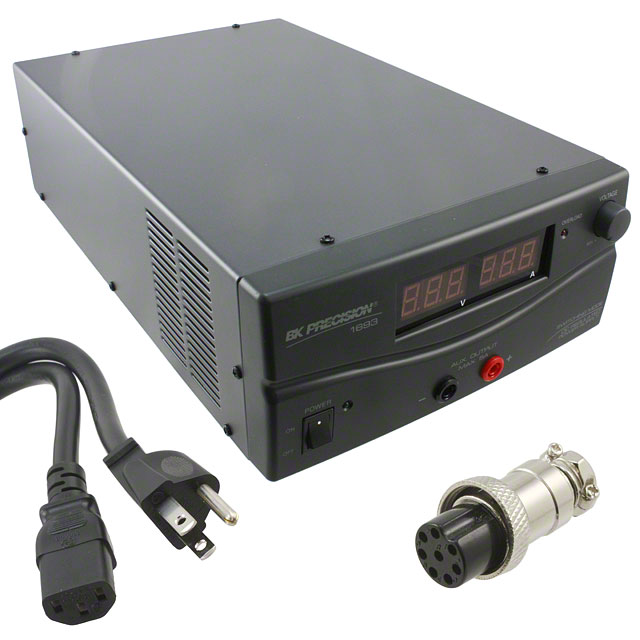

1693 B&K Precision Power Supplies – Bench Top 1-15V, 60A Switching DC Power Supply with Remote Sense. The 1693 switching mode DC power supply provides high current output in a lightweight and compact package. Bright red and green LED displays provide for an accurate and highly readable indicator of settings.
Up to 60 A output current
Remote sense terminal
Analog remote control via external voltage source or variable resistor
Current foldback circuitry with illuminated indicator prevents overloading the power supply
Overtemperature protection circuitry
Overvoltage protection
Front panel rated auxiliary output current 5A
Applications
Test & Measurement, Power Management
Contents
Power cord, instruction manual, remote control connector
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: High Current
Input Voltage: 100 VAC to 240 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 1 VDC to 15 VDC
Output Current-Channel 1: 60 A
Output Power: 900 W
Display Type: LED, Dual 3 Digit
Brand: B&K Precision
Cable Type: North American Power Cord Included
Height: 4.33 in
Length: 14.17 in
Product Type: Bench Top Power Supplies
Series: 1693
Subcategory: Power Supplies
Width: 8.66 in
Unit Weight: 14 lbs
Number of Outputs: 1
Voltage Output: 1 ~ 15VDC
Current Output: 60A
Size / Dimension: 14.170″ L x 8.660″ W x 4.330″ H (359.92mm x 219.96mm x 109.98mm)
Manufacturer: B&K Precision
Datasheet: 1693_1694_datasheet.pdf
