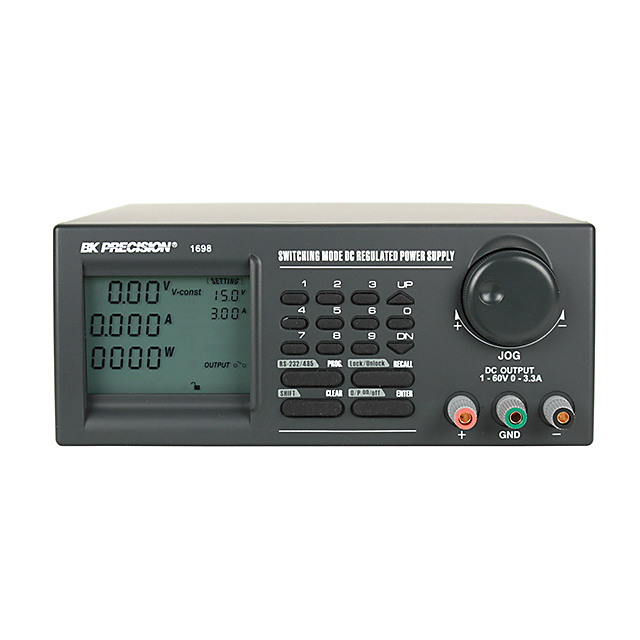

1698 B&K Precision Power Supply Bench (AC to DC) 90 ~ 265VAC LCD 1 ~ 60VDC 0 ~ 3.3A Programmable, RS232 Port, Software, Switching. The BK Precision 1698B Programmable DC Power Supply delivers 200 W of affordable and reliable DC power in a compact form factor, making it an ideal solution for a variety of applications in electronics manufacturing and educational settings. It features an improved user interface with dedicated V-set/I-set buttons and a USB interface supporting basic SCPI commands.
The 1696 Series Programmable DC Switching Power Supplies use new switching technologies to offer more power at a lower cost than traditional linear power supplies. The RS232 interface allows you to remotely control the power supply or program a sequence of different voltages and current limits that can be used in an automated test application.
Information appearing on the large back-lit LCD makes the panel controls simple and easy to use despite its sophisticated features. Because of the MCU (micro-controller unit) and the related software, user re-calibration without opening the case is an added bonus. When used with a standard PC, the supplied user-friendly software and built-in RS-232 interface provide two-way communication improving the functionality of this unit. Data logging with color graphic display in adjusting range voltage, current, watts, and time periods are all valuable tools in data analysis.
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: Programmable
Input Voltage: 90 VAC to 265 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 1 VDC to 60 VDC
Output Current-Channel 1: 0 A to 3.3 A
Output Power: 200 W
Display Type: LCD, 4 Digit
Brand: B&K Precision
Cable Type: North American Power Cord Included
Height: 3.85 in
Length: 8.46 in
Product Type: Bench Top Power Supplies
Subcategory: Power Supplies
Width: 7.6 in
Unit Weight: 7.154 lbs
Number of Outputs: 1
Voltage Output: 1 ~ 60VDC
Current Output: 0 ~ 3.3A
Size / Dimension: 8.460″ L x 7.600″ W x 3.850″ H (214.88mm x 193.04mm x 97.79mm)
Manufacturer: B&K Precision
Datasheet: 1696_datasheet.pdf
