Description

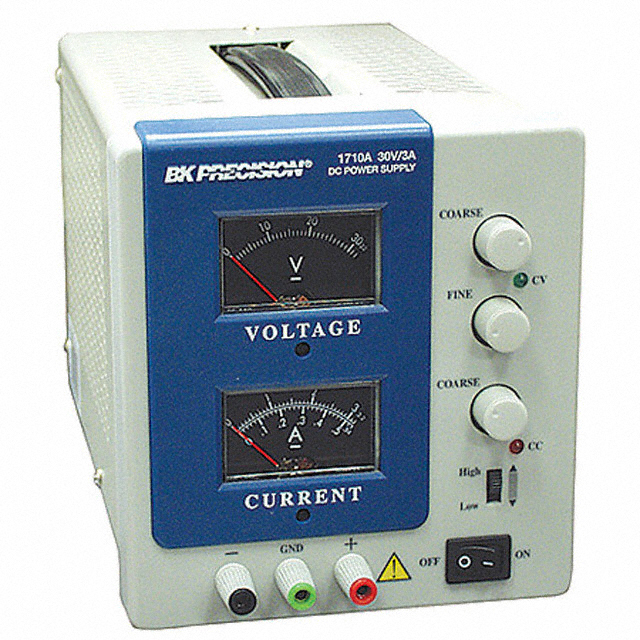

1710A B&K Precision Power Supply Bench (AC to DC) 120VAC Analog (2) 0 ~ 30VDC 0 ~ 1A Constant Current and Constant Voltage Indicators. The BK Precision Model 1710A DC Power Supply is a high quality, general-purpose DC power source. It provides 0 – 30 volts dc output, adjustable with both coarse and fine controls for precise stability. The current output of the Model 1710A is 0-1 amp. Two current ranges, High and Low, provide excellent current stability and meter resolution. Two large panel-mounted meters continuously monitor the output voltage and current.
Specs
Manufacturer: B&K Precision
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: Linear
Input Voltage: 120 VAC, 220 VAC, 230 VAC, 240 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VDC to 30 VDC
Output Current-Channel 1: 0 A to 1 A
Output Power: 70 W
Display Type: Dual Analog
Brand: B&K Precision
Cable Type: North American Power Cord Included
Height: 6.2 in
Length: 1.042 ft
Product Type: Bench Top Power Supplies
Series: 1710A
Subcategory: Power Supplies
Width: 5.5 in
Unit Weight: 8 lbs
Number of Outputs: 1
Voltage Output: 0 ~ 30VDC
Current Output: 0 ~ 1A
Size / Dimension: 12.500″ L x 5.500″ W x 6.200″ H (317.50mm x 139.70mm x 157.48mm)
Manufacturer: B&K Precision
Datasheet: 17xxA_datasheet.pdf
