Description

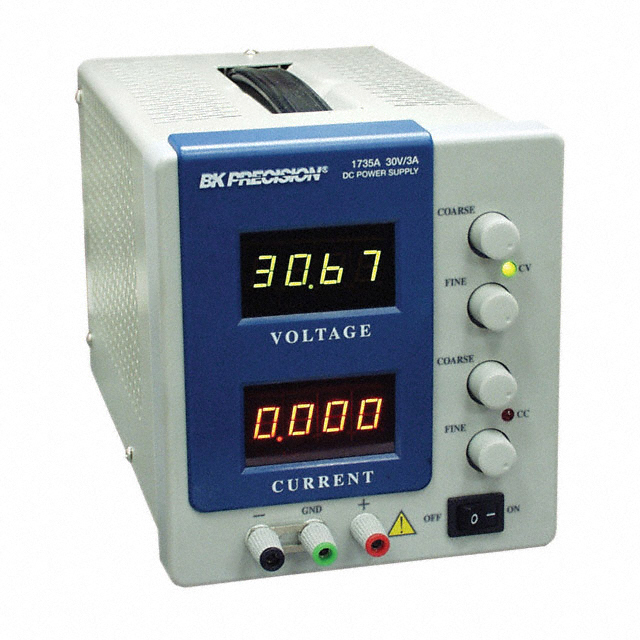

1735A B&K Precision Power Supply Bench (AC to DC) 120VAC LED 0 ~ 30VDC 0 ~ 3A Constant Current and Constant Voltage Indicators 0-30 V, 0-3 A Constant voltage or constant current operation Coarse and fine voltage and current controls Excellent regulation, very low ripple Continuously monitor voltage and current output on two 4 digit LED displays Connect two supplies in parallel to double the current output Connect two supplies in series to double the voltage output Operate continuously at full load without overheating Fully overload protected UL Approved for USA and Canada 2 Year Warranty. Provides exceptional accuracy with dual analog displays and coarse and fine voltage and current controls, this DC power supply features an output voltage of 0 to 30 V and an output current of 0 to 3 A. In addition, it operates continuously at full load without overheating and is fully overload protected.
The 1735A single output, DC power supply can be connectable with another from the same range to produce two lots of output current and voltage in parallel.
Reliable, Durable
Operate continuously at full load without overheating
Fully overload protected
Coarse and fine voltage controls
Excellent regulation
Very low ripple
Constant voltage or constant current operation
Continuously monitor voltage and current output on two meters
cUL Approved
Specs
Brand: B&K Precision
Voltage Range Selector: 30-49.9
Output Voltage: 30 V
Current Range Selector: 2.5-4.9
Output Current: 3 A
Power Range Selector: 1-199
Power Rating: 90 W
Mounting Type: Bench Top
Input Voltage: 120 VAC
Series: Basic Series
Display: LED
Interface: None
Number of Outputs: Single Output
Programmable: No
Special Features: Constant Current, Constant Voltage
Number of Outputs: 1
Voltage Output: 0 ~ 30VDC
Current Output: 0 ~ 3A
Size / Dimension: 12.500″ L x 5.500″ W x 6.200″ H (317.50mm x 139.70mm x 157.48mm)
Manufacturer: B&K Precision
Datasheet: 1735A_datasheet.pdf
