Description

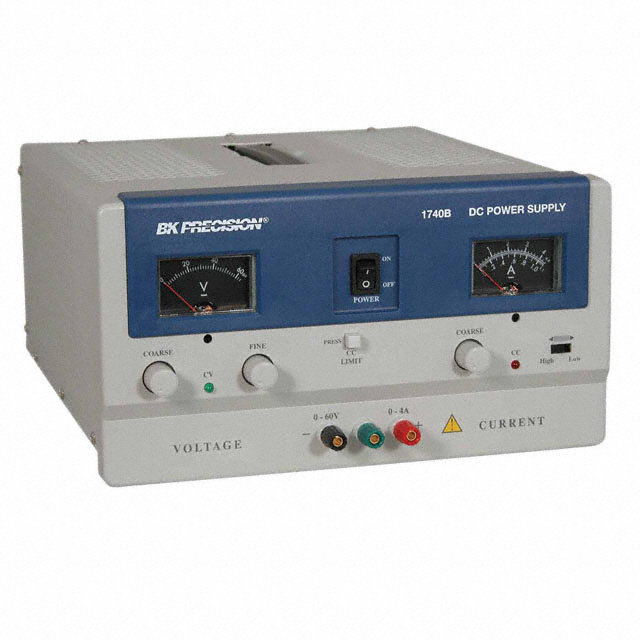

1740B B&K Precision Power Supply Bench (AC to DC) 120VAC, 220VAC Analog (2) 0 ~ 60VDC 0 ~ 4A Constant Current and Constant Voltage Indicators, Continuously monitor voltage and current output on two analog meters with the B&K Precision 1740B 60V/4A DC Power Supply. These bench power supplies have coarse and fine voltage control knobs along with a low and high range current control with dual analog displays to continuously monitor both output current and voltage.
Features
Connect two supplies in parallel to double the current output
Connect two supplies in series to double the voltage output
Reliable, Durable
Operate continuously at full load without overheating
Fully overload protected
Coarse and fine voltage controls
Excellent regulation
Very low ripple
Constant voltage or constant current operation
Replaced by: 1747
Continuously monitor voltage and current output on two analog meters
Connect two supplies in parallel to double the current output
Connect two supplies in series to double the voltage output
Reliable, Durable
Operate continuously at full load without overheating
Fully overload protected
Coarse and fine voltage controls
Excellent regulation
Very low ripple
Constant voltage or constant current operation
Two year warranty
Number of Outputs: 1
Voltage Output: 0 ~ 60VDC
Current Output: 0 ~ 4A
Size / Dimension: 15.000″ L x 10.500″ W x 5.700″ H (381.00mm x 266.70mm x 144.78mm)
Manufacturer: B&K Precision
Datasheet: 1743B_datasheet.pdf
