Description

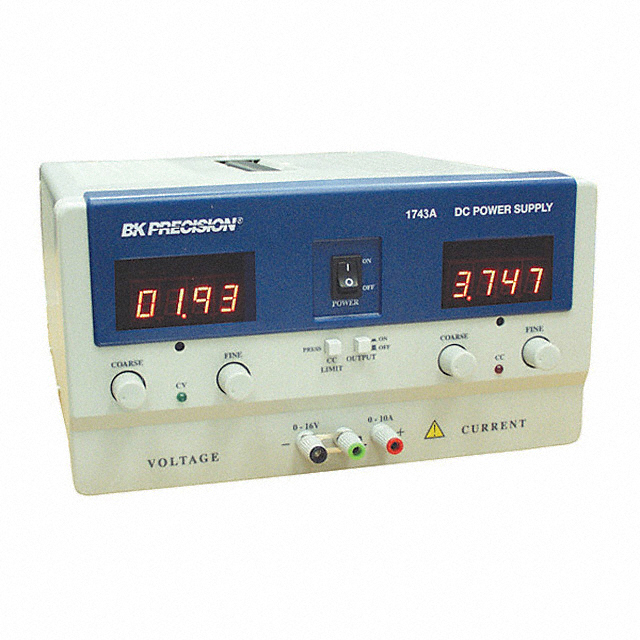

1743A B&K Precision Power Supply Bench (AC to DC) 120VAC LED 0 ~ 35VDC 0 ~ 6A Constant Current and Constant Voltage Indicators
Replaced by: 1743B
Continuously monitor voltage and current output on two 4 digit LED displays
Connect two supplies in parallel to double the current output
Connect two supplies in series to double the voltage output
Reliable, Durable
Operate continuously at full load without overheating
Fully overload protected
Coarse and fine voltage controls
Excellent regulation
Very low ripple
Constant voltage or constant current operation
Voltage Regulation – Load 0.04% + 2mV
Voltage Regulation – Line 0.2% + 2mV
Voltage – Supply 120VAC
Voltage – Output 0 ~ 35VDC
Type Bench (AC to DC)
Size / Dimension 15.000″ L x 10.500″ W x 5.700″ H (381.00mm x 266.70mm x 144.78mm)
Series 1743
Ripple 1mV rms
Power (Watts) –
Number of Outputs 1
Number of Characters 4 (2)
Features Constant Current and Constant Voltage Indicators
Display Type LED
Current Regulation – Load 0.4% + 5mA
Current Regulation – Line 0.4% + 5mA
Current – Output 0 ~ 6A
Accuracy – Voltmeter; Ammeter 0.5% + 9 digits
Number of Outputs: 1
Voltage Output: 0 ~ 35VDC
Current Output: 0 ~ 6A
Size / Dimension: 15.000″ L x 10.500″ W x 5.700″ H (381.00mm x 266.70mm x 144.78mm)
Manufacturer: B&K Precision
Datasheet: 17xxA_datasheet.pdf
