Description

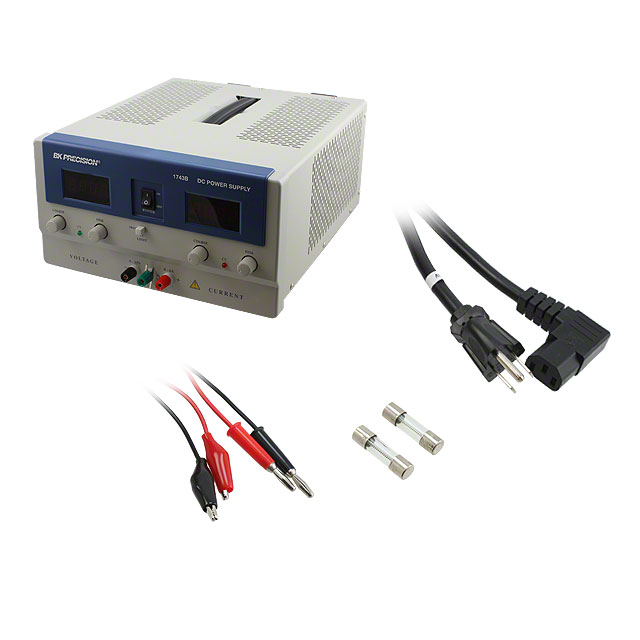

1743B B&K Precision Power Supply Bench (AC to DC) 120VAC, 220VAC LED 0 ~ 35VDC 0 ~ 6A Constant Current and Constant Voltage Indicators. The 1743B is a 0-35V, 0-6A DC power supply with a large array of great features not usually available in similar price range products. The output-shorting button allows the user to short the output terminals to set the current limit.
Connect two supplies in series to double the voltage current and in parallel to double the output
Reliable, Durable
Operate continuously at full load without overheating
Fully overload protected
Coarse and fine voltage controls
Excellent regulation
Very low ripple
Constant voltage or constant current operation
Continuously monitor voltage and current output on two meters
Applications
Test & Measurement, Power Management
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: CC/CV Modes
Input Voltage: 120 VAC, 220 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VDC to 35 VDC
Output Current-Channel 1: 0 A to 6 A
Output Power: 420 W
Display Type: LED, Dual 4 Digit
Brand: B&K Precision
Cable Type: North American Power Cord Included
Product Type: Bench Top Power Supplies
Series: 1743B
Subcategory: Power Supplies
Unit Weight: 27 lbs
Number of Outputs: 1
Voltage Output: 0 ~ 35VDC
Current Output: 0 ~ 6A
Size / Dimension: 15.000″ L x 10.500″ W x 5.700″ H (381.00mm x 266.70mm x 144.78mm)
Manufacturer: B&K Precision
Datasheet: 1743B_datasheet.pdf
